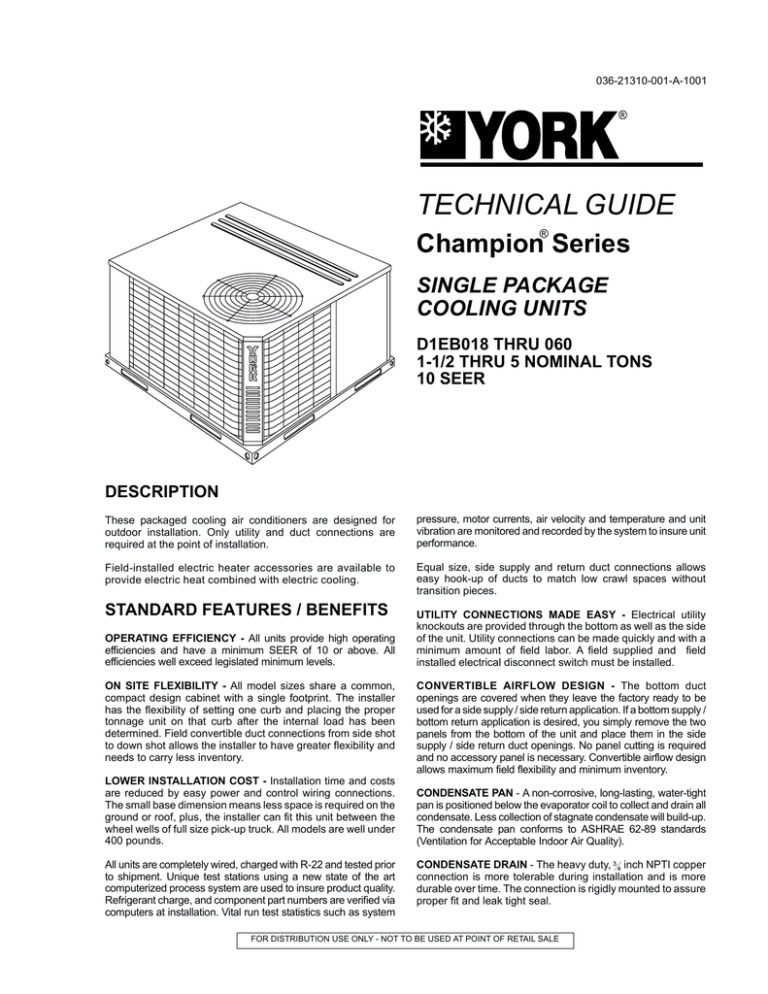

TECHNICAL GUIDE
®
Champion Series
SINGLE PACKAGE
COOLING UNITS
D1EB018 THRU 060
1-1/2 THRU 5 NOMINAL TONS
10 SEER
DESCRIPTION
These packaged cooling air conditioners are designed for
outdoor installation. Only utility and duct connections are
required at the point of installation.
pressure, motor currents, air velocity and temperature and unit
vibration are monitored and recorded by the system to insure unit
performance.
Field-installed electric heater accessories are available to
provide electric heat combined with electric cooling.
Equal size, side supply and return duct connections allows
easy hook-up of ducts to match low crawl spaces without
transition pieces.
STANDARD FEATURES / BENEFITS
OPERATING EFFICIENCY - All units provide high operating
efficiencies and have a minimum SEER of 10 or above. All
efficiencies well exceed legislated minimum levels.
ON SITE FLEXIBILITY - All model sizes share a common,
compact design cabinet with a single footprint. The installer
has the flexibility of setting one curb and placing the proper
tonnage unit on that curb after the internal load has been
determined. Field convertible duct connections from side shot
to down shot allows the installer to have greater flexibility and
needs to carry less inventory.
LOWER INSTALLATION COST - Installation time and costs
are reduced by easy power and control wiring connections.
The small base dimension means less space is required on the
ground or roof, plus, the installer can fit this unit between the
wheel wells of full size pick-up truck. All models are well under
400 pounds.
All units are completely wired, charged with R-22 and tested prior
to shipment. Unique test stations using a new state of the art
computerized process system are used to insure product quality.
Refrigerant charge, and component part numbers are verified via
computers at installation. Vital run test statistics such as system
UTILITY CONNECTIONS MADE EASY - Electrical utility
knockouts are provided through the bottom as well as the side
of the unit. Utility connections can be made quickly and with a
minimum amount of field labor. A field supplied and field
installed electrical disconnect switch must be installed.
CONVERTIBLE AIRFLOW DESIGN - The bottom duct
openings are covered when they leave the factory ready to be
used for a side supply / side return application. If a bottom supply /
bottom return application is desired, you simply remove the two
panels from the bottom of the unit and place them in the side
supply / side return duct openings. No panel cutting is required
and no accessory panel is necessary. Convertible airflow design
allows maximum field flexibility and minimum inventory.
CONDENSATE PAN - A non-corrosive, long-lasting, water-tight
pan is positioned below the evaporator coil to collect and drain all
condensate. Less collection of stagnate condensate will build-up.
The condensate pan conforms to ASHRAE 62-89 standards
(Ventilation for Acceptable Indoor Air Quality).
CONDENSATE DRAIN - The heavy duty, 3 4 inch NPTI copper
connection is more tolerable during installation and is more
durable over time. The connection is rigidly mounted to assure
proper fit and leak tight seal.
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
036-21310-001-A-1001
STANDARD FEATURES and BENEFITS - continued
DURABLE FINISH - With a heavy duty cabinet made of
powder-painted, galvanized steel the neutral color blends into
surrounding areas. The powered paint, provides a better paint
to steel bond, which resists corrosion and rust creep. The
special primer formulas and glossy earth tone finish insure less
fading when exposed to sunlight and offers a more attractive on
site appearance. This paint finish exceeds ASTM-B117
standards for 750 hours salt spray rating, the highest in the
industry.
FULL PERIMETER BASE RAILS - The easily removable base
rails provide a solid foundation for the entire unit and protects
the unit during shipment. The rails provide fork lift access from
all sides, and rigging holes are also provided so that an
overhead crane can be used to place the units on a roof. On
applications when the unit is placed on a pad, the base will
keep the unit off the pad to deter corrosion. On applications
where height is limited, the 2 3 8 inch high base rails may be
removed on location.
MORE ATTRACTIVE APPEARANCE - A single piece “Water
Shed” top cover containing a top discharge condenser fan
arrangement requires less square footage on installation and
provides a wider variety of installations. The one piece design
adds greater water integrity. Rounded corners with water drip
edges add to the attractive appearance. The cabinet panels
have a non-fibrous insulation that does not add insulation fibers
into conditioned area.
TOP DISCHARGE - The top discharge condenser fan does not
disrupt neighboring areas and does not dry-out vegetation
surrounding the unit. The warm air from the top mounted fan is
blown up away from the structure and any landscaping. This
allows compact location on multi-unit applications.
CONDENSER COIL GRILLE - A multi-piece totally enclosed,
rigidly mounted condenser coil grille provides protection from
objects and personal after installation and provides protection
during transit and installation.
LOW OPERATING SOUND LEVEL - The upward air flow
carries the normal operating noise up and away from the living
area. The rigid top panel effectively isolates any motor sound.
Isolator mounted compressor and the rippled fins of the
condenser coil muffle the normal fan motor and compressor
operating sounds. The unique formed base pan also aids in
sound alterations with it's “Super-Structure” design. This
design strategically places embossments in the pan for
optimum strength and rigidity.
FAN SYSTEM - All models operate over a wide range of design
conditions with a 3-speed direct-drive fan motor. These units
easily match all types of applications and provides greater on site
flexibility to match comfort requirement.
SIMPLE CONTROL CIRCUIT - A low voltage printed circuit
board contains a low voltage terminal strip. The electrical control box is not located in the compressor compartment. All wiring internal to the unit is color/number coded.
PROTECTED COMPRESSOR - The compressor is internally
protected against high pressure and temperature. This is
accomplished by the simultaneous operation of high pressure
relief valve and a temperature sensor which protect the
compressor if undesirable operating conditions occur.
EXCLUSIVE COIL DESIGN - Grooved copper tubes and
enhanced aluminum fin construction improves heat transfer for
maximum efficiency and durability.
LOW MAINTENANCE - Long life, permanently lubricated
condenser and evaporator fan motor bearings need no annual
maintenance adding greater reliability to the unit. Blower
assembly can be easily removed for cleaning by the unique
“Slip- Track” slide-out blower assembly.
SECURED SERVICE ACCESS PORTS - Protected, externally
mounted, re-usable service access ports are provided on both the
high and low lines for ease of evacuating and charging the
system. No final field mounting required.
EASY SERVICE ACCESS - A large, single panel covers the
electrical controls and makes servicing easy. The blower
compartment has an additional large panel with a built-in
handle tab. Removing this panel will allow the blower assembly
to slide-out for easy removal for maintenance and ease of
trouble shooting.
REPLACEMENT PARTS - The installer has no need to carry
an inventory of unique parts or needs special training to
replace any of the components parts for these units. All are
easily obtained from Source 1 or other part houses.
TABLE OF CONTENTS
Description ............................................................................1
Features and Benefits .....................................................1 & 2
Field-installed Accessories ....................................................3
Ratings ..................................................................................4
Physical Data.........................................................................4
Cooling Capacities - DEB018 ................................................5
Cooling Capacities - DEB024 ................................................6
Cooling Capacities - DEB030 ................................................7
Cooling Capacities - DEB036 ................................................8
Cooling Capacities - DEB042 ................................................9
Cooling Capacities - DEB048 ..............................................10
Cooling Capacities - DEB060 ..............................................11
Side and Bottom Supply Air Blower Performance ...............12
Additional Static pressure Resistance .................................13
Field Wiring Diagram ...........................................................13
2
Electrical Data (basic unit)...................................................13
Electrical Data (cooling / electric heat) ................................14
Unit Dimensions ..................................................................15
Clearances ..........................................................................15
Typical Applications .............................................................16
Unit Weights and Center of Gravity .....................................16
Roof Curb Dimensions ........................................................17
Roof Curb Application .........................................................17
Typical Wiring Diagram (208/230-1-60)...............................18
Typical Wiring Diagram (208/230-3-60)...............................19
Typical Wiring Diagram Notes .............................................19
Typical Wiring Diagram Legend ..........................................19
Typical Wiring Diagram (460/575-3-60)...............................20
Mechanial Specifications.............................................21 & 22
Unitary Products Group
036-21310-001-A-1001
FIELD-INSTALLED ACCESSORIES
ECONOMIZER DOWN DISCHARGE / SUPPLY KIT Modulating integrated economizer provides simultaneous
operation between the mechanical cooling and economizer
operation. Independent blade design insures proper control
and less than 1% leak rate. Includes hood and mesh bird
screen filter integrated into the hood, dry bulb sensor and relief
damper. Separate field accessories of single enthalpy and dual
enthalpy are also available.
SINGLE ENTHALPY SENSOR - Sensor replaces dry bulb
sensor standard in economizer kit. Provides improved
economizer operation by sensing the dry bulb temperature
from outdoors plus the enthalpy content of the outdoor air.
DUAL ENTHALPY SENSOR - Additional sensor to single
enthalpy sensor. Sensor senses both the return air
temperature dry bulb and humidity in conjunction with the
single enthalpy to determine the most economical mix. Single
Enthalpy sensor also required.
UPGRADE SAFETY PACKAGE - Contains screw-in type High
pressure, Low Pressure/Loss of Charge switch, freeze
protection switch and lockout relay. Switches are placed onto
existing scharder ports located in the unit by furnished
adapters. When abnormal conditions are sensed through the
pressure switches, the unit will lock out preventing any further
operation until reset or problem is corrected. Package agency
approved.
HAIL GUARD KIT - Kit contains protected grilles made of
expanded aluminum grilles with full perimeter 1 1 2 inch frame.
Sloped hoods are also included to assure maximum protection.
ANTI SHORT CYCLE TIMER - Automatically prevents the
compressor from restarting for 5 minutes after cycled off. Not
required if Thermostat 2ET07700224 and 2ET04700224 are
used.
FILTER / FRAME KIT (Single Phase only) - Kit contains the
necessary hardware to field install return air filters into the base
unit. Pre-cut filter racks and appropriate cleanable standard
size filters are shipped in one kit. (1" filter is supplied) This kit is
available for single phase horizontal or vertical duct application
only. Standard in all 3 Phase models.
Unitary Products Group
MOTORIZED FRESH AIR DAMPER - Designed for duct
mounted side return and unit mounted down shot return
applications. Damper capable of providing 0% thru 50% of
outdoor air (field supplied). Closes on power loss, includes
hood and screen assembly.
RECTANGLE TO ROUND ADAPTERS - Kit includes one
supply and one return air rectangle to round duct adapter.
Adapters are preformed and designed to fit over current duct
openings on the base unit. Transition is from 15” square to 14”
round.
ROOF CURBS - NRCA approved curbs provide proper fit to
base unit for rooftop installations. Curbs are designed to be
assembled through hinge pins in each corner. Kit also provides
seal strip to assure a water tight seal. 8 and 14 inch high roof
curbs are available.
MANUAL OUTDOOR DAMPER - Provides 0% thru 50%
outdoor air capability (field adjustable). Designed for duct
mounted side return and unit mounted down shot return
applications. Includes hood and screen assembly.
WALL THERMOSTAT - The units are designed to operate with
24-volt electronic and electro-mechanical thermostats. All
units can operate with single stage heat / single stage cool
thermostats - with or without the economizer.
LOW AMBIENT KIT - Kit provides necessary hardware to
convert unit to operate in cooling cycle down to 0° F. Standard
unit operation 45° F.
TRANSFORMER KIT - Kit provides necessary hardware to
provide single phase models from factory furnished 40 VA
transformer capability to 75 VA transformer capability.
ELECTRIC HEATERS - Each heater package provides easy
installation of electric heat strips. Slide in design with plug in
harness and agency approved. Heaters are available from 5.0
KW sizes and are designed for single point connection.
3
036-21310-001-A-1001
DIRECT DRIVE
CONDENSER
FAN MOTOR
HIGHLY EFFICIENT ENHANCED
COPPER TUBE/ALUMINUM FIN
EVAPORATOR COIL
BACK AND BOTTOM
RETURN AIR
AND SUPPLY AIR
DUCT OPENING
HIGHLY EFFICIENT
ENHANCED COPPER
TUBE/ALUMINUM FIN
CONDENSER COIL
DECORATIVE
PROTECTIVE
COIL GUARD
HIGH VOLTAGE
TERMINAL BLOCK
LOW VOLTAGE
TERMINAL BLOCK
LONG LASTING
POWDER PAINT
FINISH EARTH
TONE COLOR
3-SPEED DIRECT DRIVE
BLOWER MOTOR WITH
SLIDE-OUT BLOWER ASSEMBLY
HIGH EFFICIENCY
COMPRESSOR
RIGIDLY
MOUNTED
HEAVY GAUGE
REMOVABLE
BASE RAILS
RATINGS
MODEL
DEB
018
024
030
036
042
048
060
COOLING
CAPACITY1
80 / 67-95°F
MBH
SEER
17.6
10.00
23.0
10.55
29.0
10.15
35.2
10.15
40.5
10.50
46.5
10.00
59.0
10.35
SOUND
RATING2
(decibels)
ELECTRIC HEAT
NOM. CAPACITY
KW
(single phase)
ELECTRIC HEAT
NOM. CAPACITY
KW
(three phase)
76
76
79
81
83
81
79
5.0, 7.5
5.0. 7.5. 10.0
5.0, 7.5, 10.0, 15.0
5.0, 7.5, 10.0, 15.0
5.0, 7.5, 10.0, 15.0
10.0, 15.0, 20.0, 25.0
10.0, 15.0, 20.0, 25.0
N/A
N/A
N/A
10.0, 15.0
10.0, 15.0
10.0, 15.0, 20.0, 25.0
10.0, 15.0, 20.0, 25.0
SEER = Seasonal Energy Efficiency Ratio - the total cooling output in BTU's during a normal annual usage period for cooling divided by
the total electric power input in watt-hours during the same period.
N/A = Not Available. 1 Certified in accordance with the Unitary Small Equipment certification program, which is based on ARI Standard 210/240.
2
Rated in accordance with ARI Standard 270.
PHYSICAL DATA
MODELS
EVAPORATOR
BLOWER
EVAPORATOR
COIL
CHARGE
060
11 x 10
1
2
3
3
3
1
2
2
2
2
2
3
13
15
15
15
15
13
16
5.26
FAN MOTOR HP (Three Speed)
1
2
1
2
ROWS DEEP
2
FINS PER INCH
CENTRIFUGAL BLOWER (Dia. x Wd. in.)
4
4
4
2.19
2.81
4.38
4.38
4.38
5.62
PROPELLER DIA. (in.)
22
22
22
22
22
22
22
FAN MOTOR HP
1/4
1/4
1/4
1/4
1/4
1/4
1/4
2,800
1,800
2,200
2,400
2,400
2,400
2,800
ROWS DEEP
1
1
1
1
1
1
1
FINS PER INCH
18
16
20
18
16
13
20
FACE AREA (Sq. Ft.)
8.3
8.3
8.3
8.3
11.7
16.4
16.4
REFRIGERANT 22 (lbs./oz.)
3/4
3/5
3 / 13
3 / 10
4/7
5 / 15
5 /15
Recip
Recip
Recip
Scroll
Scroll
FILTER
FACE AREA (Sq. Ft. / Qty. / Size)
COMPRESSOR HERMETIC Type, (Qty. = 1)
4
048
11 x 10
030
10 X 8
NOM. CFM TOTAL
CONDENSER
COIL
042
11 X 10
024
10 X 8
FACE AREA (Sq. Ft.)
CONDENSER
FAN
DEB
036
10 x 8
018
9X6
2.14 / 2 / 14" x 22"
Recip
Recip
Unitary Products Group
036-21310-001-A-1001
COOLING CAPACITIES - 1-1/2 TON (DEB018)
Temperature of Air on
Condenser Coil
72
115 °F
125 °F
1
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
105 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
95 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
85 °F
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
450 CFM
WB°F
67 62
57
72
525 CFM
WB°F
67 62
Air On Evaporator Coil
600 CFM
WB°F
57 72 67 62 57 72
675 CFM
WB°F
67 62
57
72
750 CFM
WB°F
67 62
57
18.1 17.3 16.0 16.3 18.2 17.4 16.1 16.4 18.4 17.5 16.2 16.5 19.0 18.2 16.8 17.1 19.7 18.8 17.4 17.7
1.77 1.75 1.74 1.72 1.82 1.81 1.79 1.78 1.87 1.86 1.85 1.83 1.91 1.90 1.88 1.87 1.95 1.94 1.92 1.91
10.1
8.8
7.5
6.2
4.9
-
13.1
11.8
10.6
9.3
8.0
6.7
5.4
15.9
14.7
13.4
12.1
10.8
9.5
8.2
16.3
16.0
14.7
13.4
12.1
10.9
9.6
10.8
9.3
7.8
6.2
4.7
-
14.0
12.4
10.9
9.4
7.9
6.4
4.9
16.1
15.4
13.8
12.3
10.8
9.3
7.8
16.4
16.3
15.2
13.7
12.2
10.7
9.1
11.5
9.8
8.0
6.3
4.5
-
14.8
13.0
11.3
9.5
7.8
6.0
4.3
16.2
16.0
14.3
12.5
10.8
9.0
7.3
16.5
16.5
15.7
14.0
12.2
10.5
8.7
12.3
10.3
8.3
6.3
4.4
-
15.7
13.7
11.7
9.8
7.8
5.8
3.8
16.8
16.7
14.9
12.9
10.9
8.9
6.9
17.1
17.1
16.3
14.4
12.4
10.4
8.4
13.1
10.9
8.7
6.4
4.2
-
16.7
14.4
12.2
10.0
7.7
5.5
3.3
17.4
17.4
15.5
13.2
11.0
8.8
6.5
17.7
17.7
17.0
14.8
12.5
10.3
8.1
16.2 16.1 13.7 14.1 17.0 16.8 14.3 14.8 17.8 17.6 15.0 15.5 18.0 17.8 15.1 15.6 18.1 17.9 15.3 15.8
1.88 1.89 1.84 1.84 1.94 1.95 1.90 1.89 1.99 2.00 1.95 1.95 2.02 2.03 1.98 1.97 2.04 2.05 2.00 2.00
9.1 12.6 13.7 14.1 10.2
7.9 11.4 13.2 13.6 8.7
6.6 10.1 11.9 12.3 7.2
5.3 8.8 10.7 11.1 5.7
4.0 7.5 9.4 9.8 4.2
6.2 8.1 8.5
4.9 6.8 7.2
-
14.1
12.6
11.0
9.5
8.0
6.5
5.0
14.3
14.1
13.1
11.6
10.1
8.6
7.0
14.8
14.6
13.5
12.0
10.5
9.0
7.5
11.3
9.6
7.8
6.1
4.3
-
15.5
13.8
12.0
10.3
8.5
6.8
5.0
15.0
15.0
14.3
12.5
10.8
9.0
7.3
15.5
15.5
14.7
13.0
11.2
9.5
7.7
11.9
9.9
7.9
6.0
4.0
-
16.2
14.2
12.2
10.2
8.2
6.2
4.2
15.1
15.1
14.4
12.5
10.5
8.5
6.5
15.6
15.6
14.9
12.9
10.9
9.0
7.0
12.5
10.3
8.1
5.8
3.6
-
16.8
14.6
12.3
10.1
7.9
5.6
3.4
15.3
15.3
14.6
12.4
10.2
7.9
5.7
15.8
15.8
15.1
12.9
10.7
8.4
6.2
15.2 14.6 12.7 13.2 15.9 15.2 13.3 13.8 16.6 15.9 13.9 14.3 16.9 16.2 14.1 14.6 17.2 16.5 14.4 14.9
1.99 2.00 1.96 1.94 2.05 2.06 2.02 2.00 2.11 2.12 2.08 2.06 2.14 2.15 2.10 2.09 2.16 2.17 2.13 2.11
8.7 12.0 12.7 13.2 9.8 13.4 13.3 13.8 10.9
7.4 10.7 12.4 12.6 8.3 11.9 13.1 13.5 9.2
6.2 9.4 11.1 11.3 6.8 10.4 12.2 12.5 7.4
4.9 8.1 9.8 10.0 5.3 8.9 10.7 10.9 5.7
3.6 6.9 8.5 8.7 3.8 7.4 9.2 9.4 3.9
5.6 7.2 7.4
5.9 7.7 7.9
4.3 5.9 6.2
4.3 6.2 6.4
-
14.8
13.2
11.4
9.7
7.9
6.2
4.4
13.9
13.9
13.4
11.6
9.9
8.1
6.4
14.3
14.3
13.6
11.9
10.1
8.4
6.6
11.6
9.6
7.6
5.6
3.7
-
15.4
13.7
11.7
9.7
7.7
5.7
3.7
14.1
14.1
13.7
11.7
9.8
7.8
5.8
14.6
14.6
14.0
12.0
10.0
8.0
6.0
12.3
10.1
7.8
5.6
3.4
-
15.9
14.2
12.0
9.8
7.5
5.3
3.1
14.4
14.4
14.1
11.8
9.6
7.4
5.1
14.9
14.9
14.4
12.1
9.9
7.6
5.4
14.3 13.1 11.8 12.2 14.8 13.6 12.3 12.7 15.4 14.2 12.8 13.2 15.9 14.6 13.2 13.6 16.3 15.0 13.5 14.0
2.10 2.11 2.07 2.04 2.17 2.17 2.14 2.11 2.23 2.24 2.21 2.18 2.26 2.27 2.23 2.20 2.28 2.29 2.26 2.22
8.3 11.3 11.8 12.2 9.4 12.8 12.3 12.7 10.5
7.0 10.1 11.5 11.5 7.9 11.3 12.1 12.4 8.8
5.7 8.8 10.2 10.2 6.4 9.8 11.4 11.4 7.0
4.4 7.5 8.9 8.9 4.9 8.3 9.9 9.9 5.3
3.2 6.2 7.6 7.7 3.3 6.8 8.3 8.4 3.5
4.9 6.4 6.4
5.2 6.8 6.8
3.6 5.1 5.1
3.7 5.3 5.3
-
14.2
12.5
10.8
9.0
7.3
5.5
3.8
12.8
12.8
12.5
10.8
9.0
7.3
5.5
13.2
13.2
12.6
10.8
9.1
7.3
5.6
11.3
9.3
7.3
5.3
3.3
-
14.6
13.2
11.2
9.2
7.2
5.3
3.3
13.2
13.2
13.0
11.0
9.0
7.1
5.1
13.6
13.6
13.1
11.1
9.1
7.1
5.1
12.1
9.8
7.6
5.4
3.1
-
15.0
13.9
11.7
9.4
7.2
5.0
2.7
13.5
13.5
13.5
11.3
9.1
6.8
4.6
14.0
14.0
13.6
11.3
9.1
6.9
4.6
13.3 11.6 10.9 11.3 13.7 12.0 11.3 11.7 14.2 12.4 11.7 12.1 14.8 13.0 12.2 12.6 15.4 13.5 12.7 13.1
2.2
2.2
2.2
2.1
7.9 10.7 10.9 11.3
6.6 9.4 10.6 10.4
5.3 8.1 9.3 9.2
4.0 6.9 8.1 7.9
2.7 5.6 6.8 6.6
4.3 5.5 5.3
3.0 4.2 4.0
2.3
2.3
2.3
2.2
2.4
2.4
2.3
2.3
2.4
2.4
2.4
2.3
2.4
2.4
2.4
2.3
9.0 12.1 11.3 11.7 10.1
7.5 10.7 11.1 11.3 8.4
6.0 9.2 10.5 10.3 6.6
4.5 7.6 9.0 8.8 4.9
2.9 6.1 7.5 7.3 3.1
4.6 6.0 5.8
3.1 4.4 4.2
-
13.5
11.9
10.2
8.4
6.7
4.9
3.2
11.7
11.7
11.7
9.9
8.2
6.4
4.7
12.1
12.1
11.5
9.7
8.0
6.2
4.5
11.0
9.0
7.0
5.0
3.0
-
13.8
12.7
10.8
8.8
6.8
4.8
2.8
12.2
12.2
12.3
10.3
8.3
6.3
4.4
12.6
12.6
12.1
10.1
8.2
6.2
4.2
11.9
9.6
7.4
5.2
2.9
-
14.1
13.6
11.3
9.1
6.9
4.6
2.4
12.7
12.7
13.0
10.7
8.5
6.3
4.0
13.1
13.1
12.8
10.6
8.3
6.1
3.9
= These capacities are net capacities - indoor fan heat deducted.
ALL SENSIBLE CAPACITY
Unitary Products Group
5
036-21310-001-A-1001
COOLING CAPACITIES - 2 TON (DEB024)
Temperature of Air on
Condenser Coil
72
115 °F
125 °F
1
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
105 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
95 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
85 °F
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
600 CFM
WB°F
67 62
57
72
700 CFM
WB°F
67 62
Air On Evaporator Coil
800 CFM
WB°F
57 72 67 62 57 72
900 CFM
WB°F
67 62
57
1,000 CFM
WB°F
72 67 62 57
25.1 23.0 21.2 20.7 26.1 23.9 22.0 21.5 27.0 24.8 22.8 22.3 27.2 24.9 22.9 22.4 27.3 25.0 23.0 22.5
2.33 2.34 2.30 2.26 2.39 2.40 2.35 2.31 2.44 2.45 2.40 2.36 2.57 2.58 2.53 2.49 2.71 2.72 2.66 2.62
14.8
13.1
11.4
9.7
8.0
-
18.5
16.8
15.1
13.4
11.7
10.0
8.2
21.2
20.7
19.0
17.3
15.6
13.9
12.2
20.7
20.7
19.6
17.9
16.2
14.4
12.7
16.2
14.2
12.1
10.1
8.1
-
20.1
18.1
16.1
14.1
12.0
10.0
8.0
22.0
21.8
20.2
18.2
16.2
14.2
12.2
21.5
21.5
20.9
18.8
16.8
14.8
12.8
17.5
15.2
12.9
10.5
8.2
-
21.7
19.4
17.1
14.7
12.4
10.1
7.7
22.8
22.8
21.5
19.2
16.8
14.5
12.2
22.3
22.3
22.1
19.8
17.5
15.1
12.8
18.6
16.0
13.3
10.7
8.0
-
23.0
20.3
17.6
15.0
12.3
9.7
7.0
22.9
22.9
22.2
19.6
16.9
14.2
11.6
22.4
22.4
22.3
19.7
17.0
14.3
11.7
19.7
16.7
13.8
10.8
7.8
-
24.2
21.2
18.2
15.2
12.3
9.3
6.3
23.0
23.0
22.9
20.0
17.0
14.0
11.0
22.5
22.5
22.5
19.5
16.5
13.6
10.6
23.8 21.4 19.7 20.2 24.7 22.2 20.4 21.0 25.7 23.0 21.2 21.8 25.8 23.1 21.3 21.9 25.9 23.2 21.4 22.0
2.49 2.46 2.44 2.39 2.54 2.51 2.49 2.44 2.59 2.56 2.54 2.49 2.74 2.71 2.68 2.63 2.89 2.86 2.83 2.77
14.2
12.5
10.8
9.1
7.4
-
17.6
15.9
14.2
12.5
10.8
9.1
7.4
19.7
19.5
17.7
16.0
14.3
12.6
10.9
20.2
19.4
17.7
16.0
14.3
12.6
10.9
15.7
13.7
11.7
9.6
7.6
-
19.4
17.3
15.3
13.3
11.3
9.3
7.2
20.4
20.3
19.1
17.1
15.1
13.1
11.1
21.0
20.6
19.1
17.1
15.0
13.0
11.0
17.2
14.9
12.5
10.2
7.9
-
21.1
18.8
16.4
14.1
11.8
9.4
7.1
21.2
21.2
20.5
18.2
15.9
13.5
11.2
21.8
21.8
20.5
18.2
15.8
13.5
11.2
18.3
15.7
13.0
10.3
7.7
-
22.2
19.7
17.1
14.4
11.8
9.1
6.4
21.3
21.3
21.0
18.3
15.6
13.0
10.3
21.9
21.9
21.2
18.6
15.9
13.3
10.6
19.4
16.5
13.5
10.5
7.5
-
23.2
20.7
17.7
14.7
11.7
8.8
5.8
21.4
21.4
21.4
18.4
15.4
12.4
9.5
22.0
22.0
22.0
19.0
16.0
13.0
10.0
21.5 19.0 17.9 17.9 22.5 19.9 18.7 18.7 23.5 20.8 19.6 19.5 23.6 20.8 19.6 19.6 23.7 20.9 19.7 19.7
2.61 2.58 2.55 2.51 2.67 2.64 2.60 2.56 2.72 2.69 2.65 2.62 2.87 2.84 2.79 2.76 3.01 2.98 2.93 2.90
13.4
11.7
9.9
8.2
6.5
-
16.7
15.0
13.3
11.6
9.9
8.2
6.5
17.9
17.7
16.0
14.3
12.6
10.9
9.1
17.9
17.5
15.9
14.2
12.5
10.8
9.1
14.9
12.9
10.8
8.8
6.8
-
18.3
16.5
14.5
12.5
10.5
8.4
6.4
18.7
18.6
17.4
15.4
13.4
11.3
9.3
18.7
18.5
17.3
15.3
13.3
11.2
9.2
16.4
14.0
11.7
9.4
7.0
-
19.8
18.0
15.7
13.4
11.0
8.7
6.4
19.6
19.6
18.8
16.5
14.2
11.8
9.5
19.5
19.5
18.7
16.4
14.1
11.7
9.4
17.5
14.8
12.2
9.5
6.9
-
20.4
18.8
16.3
13.7
11.0
8.3
5.7
19.6
19.6
19.3
16.6
14.0
11.3
8.6
19.6
19.6
19.2
16.5
13.9
11.2
8.6
18.6
15.6
12.6
9.6
6.7
-
20.9
19.7
16.9
13.9
11.0
8.0
5.0
19.7
19.7
19.7
16.7
13.8
10.8
7.8
19.7
19.7
19.7
16.7
13.7
10.7
7.7
19.2 16.7 16.1 15.5 20.2 17.6 17.0 16.4 21.3 18.5 17.9 17.2 21.4 18.6 18.0 17.3 21.4 18.7 18.1 17.3
2.74 2.70 2.65 2.63 2.80 2.76 2.71 2.69 2.86 2.82 2.77 2.75 3.00 2.96 2.91 2.88 3.14 3.10 3.04 3.02
12.5
10.8
9.1
7.4
5.7
-
15.9
14.2
12.4
10.7
9.0
7.3
5.6
16.1
15.9
14.2
12.5
10.8
9.1
7.4
15.5
15.5
14.1
12.4
10.7
9.0
7.3
14.0
12.0
10.0
8.0
6.0
-
17.2
15.7
13.7
11.7
9.7
7.6
5.6
17.0
16.9
15.7
13.6
11.6
9.6
7.6
16.4
16.4
15.5
13.5
11.5
9.5
7.4
15.6
13.2
10.9
8.6
6.2
-
18.5
17.3
14.9
12.6
10.3
7.9
5.6
17.9
17.9
17.1
14.8
12.4
10.1
7.8
17.2
17.2
17.0
14.6
12.3
10.0
7.6
16.7
14.0
11.3
8.7
6.0
-
18.6
18.0
15.5
12.9
10.2
7.6
4.9
18.0
18.0
17.6
14.9
12.3
9.6
6.9
17.3
17.3
17.1
14.5
11.8
9.2
6.5
17.7
14.8
11.8
8.8
5.8
-
18.7
18.7
16.1
13.1
10.2
7.2
4.2
18.1
18.1
18.1
15.1
12.1
9.1
6.1
17.3
17.3
17.3
14.4
11.4
8.4
5.4
16.9 14.3 14.4 13.2 18.0 15.3 15.3 14.0 19.1 16.2 16.3 14.9 19.2 16.3 16.3 15.0 19.2 16.4 16.4 15.0
2.9
2.8
2.8
2.8
2.9
2.9
2.8
2.8
3.0
3.0
2.9
2.9
3.1
3.1
3.0
3.0
3.3
3.2
3.1
3.1
11.6
9.9
8.2
6.5
4.8
-
15.0
13.3
11.6
9.9
8.2
6.4
4.7
14.4
14.2
12.5
10.8
9.1
7.3
5.6
13.2
13.6
12.3
10.6
8.9
7.2
5.5
13.2
11.2
9.2
7.1
5.1
-
16.1
14.9
12.9
10.9
8.8
6.8
4.8
15.3
15.2
13.9
11.9
9.9
7.9
5.8
14.0
14.2
13.8
11.7
9.7
7.7
5.7
14.8
12.4
10.1
7.8
5.4
-
17.2
16.5
14.2
11.9
9.5
7.2
4.9
16.3
16.3
15.4
13.0
10.7
8.4
6.0
14.9
14.9
15.2
12.9
10.5
8.2
5.9
15.8
13.2
10.5
7.9
5.2
-
16.8
17.1
14.8
12.1
9.5
6.8
4.1
16.3
16.3
15.9
13.2
10.6
7.9
5.2
15.0
15.0
15.1
12.4
9.8
7.1
4.5
16.9
13.9
10.9
7.9
5.0
-
16.4
17.6
15.3
12.4
9.4
6.4
3.4
16.4
16.4
16.4
13.4
10.4
7.4
4.5
15.0
15.0
15.0
12.0
9.1
6.1
3.1
= These capacities are net capacities - indoor fan heat deducted.
ALL SENSIBLE CAPACITY
6
Unitary Products Group
036-21310-001-A-1001
COOLING CAPACITIES - 2-1/2 TON (DEB030)
Temperature of Air on
Condenser Coil
72
115 °F
125 °F
1
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
105 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
95 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
85 °F
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
750 CFM
WB°F
67 62
57
72
875 CFM
WB°F
67 62
Air On Evaporator Coil
1,000 CFM
1,125 CFM
WB°F
WB°F
57 72 67 62 57 72 67 62 57
1,250 CFM
WB°F
72 67 62 57
32.3 29.8 27.5 28.1 32.6 30.1 27.8 28.4 33.0 30.4 28.1 28.7 33.5 30.9 28.4 29.1 33.9 31.3 28.8 29.5
2.94 2.92 2.83 2.81 3.02 3.00 2.90 2.88 3.10 3.08 2.98 2.96 3.20 3.18 3.08 3.06 3.31 3.28 3.18 3.16
18.2
16.1
14.0
11.8
9.7
-
23.6
21.4
19.3
17.2
15.0
12.9
10.8
27.5
25.5
23.3
21.2
19.1
16.9
14.8
28.1
26.3
24.1
22.0
19.9
17.7
15.6
20.1
17.5
15.0
12.5
10.0
-
25.8
23.3
20.7
18.2
15.7
13.2
10.6
27.8
26.8
25.1
22.5
20.0
17.5
15.0
28.4
27.5
25.9
23.4
20.9
18.3
15.8
21.9
19.0
16.0
13.1
10.2
-
28.0
25.1
22.2
19.3
16.3
13.4
10.5
28.1
28.1
26.8
23.9
21.0
18.0
15.1
28.7
28.7
27.7
24.8
21.9
19.0
16.1
23.3
20.0
16.7
13.4
10.1
-
29.6
26.4
23.1
19.7
16.4
13.1
9.8
28.4
28.4
27.8
24.5
21.2
17.9
14.5
29.1
29.1
28.6
25.3
22.0
18.7
15.3
24.8
21.1
17.3
13.6
9.9
-
31.3
27.7
24.0
20.2
16.5
12.8
9.1
28.8
28.8
28.8
25.1
21.4
17.7
13.9
29.5
29.5
29.5
25.8
22.1
18.4
14.6
29.1 27.5 24.4 24.8 30.2 28.6 25.3 25.7 31.3 29.7 26.2 26.7 30.9 29.3 25.9 26.4 30.5 28.9 25.6 26.0
3.17 3.11 3.04 3.03 3.24 3.17 3.10 3.09 3.30 3.23 3.16 3.15 3.43 3.36 3.29 3.27 3.56 3.49 3.41 3.39
17.5
15.4
13.2
11.1
9.0
-
22.2
20.1
18.0
15.8
13.7
11.6
9.4
24.4
24.1
22.0
19.9
17.7
15.6
13.5
24.8
23.9
21.8
19.6
17.5
15.3
13.2
19.5
17.0
14.5
12.0
9.4
-
24.7
22.2
19.7
17.2
14.6
12.1
9.6
25.3
25.2
24.1
21.6
19.1
16.5
14.0
25.7
25.3
23.8
21.3
18.8
16.3
13.7
21.6
18.7
15.8
12.8
9.9
-
27.2
24.3
21.4
18.5
15.6
12.7
9.7
26.2
26.2
26.2
23.3
20.4
17.5
14.6
26.7
26.7
25.9
23.0
20.1
17.2
14.3
23.1
19.8
16.5
13.1
9.8
-
28.1
25.7
22.4
19.0
15.7
12.4
9.1
25.9
25.9
25.9
22.6
19.2
15.9
12.6
26.4
26.4
26.0
22.6
19.3
16.0
12.7
24.6
20.9
17.2
13.4
9.7
-
28.9
27.0
23.3
19.6
15.9
12.1
8.4
25.6
25.6
25.6
21.8
18.1
14.4
10.6
26.0
26.0
26.0
22.3
18.6
14.8
11.1
26.7 24.8 22.2 22.3 27.8 25.8 23.1 23.2 28.9 26.8 24.0 24.1 28.6 26.5 23.7 23.9 28.3 26.3 23.5 23.6
3.38 3.28 3.22 3.22 3.45 3.35 3.29 3.28 3.52 3.42 3.36 3.35 3.66 3.55 3.49 3.48 3.79 3.68 3.62 3.61
16.5
14.4
12.3
10.1
8.0
-
21.3
19.2
17.0
14.9
12.7
10.6
8.5
22.2
22.0
19.8
17.7
15.6
13.4
11.3
22.3
21.8
19.6
17.5
15.3
13.2
11.1
18.5
16.0
13.5
10.9
8.4
-
23.4
21.2
18.7
16.2
13.7
11.1
8.6
23.1
23.0
21.8
19.3
16.8
14.2
11.7
23.2
22.9
21.6
19.0
16.5
14.0
11.5
20.5
17.6
14.7
11.8
8.9
-
25.6
23.3
20.4
17.5
14.6
11.7
8.7
24.0
24.0
23.8
20.9
17.9
15.0
12.1
24.1
24.1
23.5
20.6
17.7
14.8
11.9
22.0
18.7
15.4
12.0
8.7
-
25.9
24.3
21.3
18.0
14.7
11.4
8.0
23.7
23.7
23.6
20.3
17.0
13.7
10.3
23.9
23.9
23.6
20.3
16.9
13.6
10.3
23.5
19.7
16.0
12.3
8.6
-
26.3
25.3
22.2
18.5
14.8
11.0
7.3
23.5
23.5
23.5
19.8
16.0
12.3
8.6
23.6
23.6
23.6
19.9
16.2
12.5
8.7
24.3 22.0 20.0 19.8 25.4 22.9 20.8 20.7 26.4 23.9 21.7 21.5 26.2 23.7 21.6 21.4 26.1 23.6 21.4 21.3
3.58 3.45 3.41 3.41 3.66 3.52 3.48 3.48 3.74 3.60 3.56 3.56 3.89 3.74 3.69 3.69 4.03 3.87 3.83 3.83
15.6
13.4
11.3
9.1
7.0
-
20.3
18.2
16.1
13.9
11.8
9.6
7.5
20.0
19.8
17.7
15.5
13.4
11.2
9.1
19.8
19.6
17.5
15.3
13.2
11.1
8.9
17.5
15.0
12.5
9.9
7.4
-
22.1
20.3
17.7
15.2
12.7
10.1
7.6
20.8
20.7
19.5
17.0
14.4
11.9
9.4
20.7
20.6
19.3
16.8
14.2
11.7
9.2
19.5
16.5
13.6
10.7
7.8
-
23.9
22.3
19.4
16.5
13.6
10.6
7.7
21.7
21.7
21.3
18.4
15.5
12.6
9.7
21.5
21.5
21.1
18.2
15.3
12.4
9.5
20.9
17.6
14.2
10.9
7.6
-
23.7
23.0
20.3
16.9
13.6
10.3
7.0
21.6
21.6
21.4
18.1
14.7
11.4
8.1
21.4
21.4
21.2
17.9
14.6
11.2
7.9
22.3
18.6
14.9
11.1
7.4
-
23.6
23.6
21.1
17.4
13.7
10.0
6.2
21.4
21.4
21.4
17.7
14.0
10.2
6.5
21.3
21.3
21.3
17.6
13.8
10.1
6.4
21.9 19.2 17.8 17.4 22.9 20.1 18.6 18.2 23.9 21.0 19.4 19.0 23.9 21.0 19.4 18.9 23.9 20.9 19.4 18.9
3.8
3.6
3.6
3.6
3.9
3.7
3.7
3.7
4.0
3.8
3.8
3.8
4.1
3.9
3.9
3.9
4.3
4.1
4.0
4.0
14.6
12.5
10.3
8.2
6.0
-
19.4
17.2
15.1
13.0
10.8
8.7
6.5
17.8
17.6
15.5
13.3
11.2
9.1
6.9
17.4
17.5
15.3
13.2
11.1
8.9
6.8
16.5
14.0
11.4
8.9
6.4
-
20.8
19.3
16.7
14.2
11.7
9.2
6.6
18.6
18.5
17.2
14.7
12.1
9.6
7.1
18.2
18.2
17.0
14.5
12.0
9.4
6.9
18.4
15.5
12.6
9.6
6.7
-
22.2
21.3
18.4
15.5
12.6
9.6
6.7
19.4
19.4
18.9
16.0
13.1
10.1
7.2
19.0
19.0
18.7
15.8
12.9
10.0
7.0
19.8
16.5
13.1
9.8
6.5
-
21.6
21.6
19.2
15.9
12.6
9.3
5.9
19.4
19.4
19.1
15.8
12.5
9.2
5.8
18.9
18.9
18.8
15.5
12.2
8.9
5.5
21.2
17.4
13.7
10.0
6.3
-
20.9
21.9
20.1
16.3
12.6
8.9
5.2
19.4
19.4
19.4
15.6
11.9
8.2
4.5
18.9
18.9
18.9
15.2
11.5
7.7
4.0
= These capacities are net capacities - indoor fan heat deducted.
ALL SENSIBLE CAPACITY
Unitary Products Group
7
036-21310-001-A-1001
COOLING CAPACITIES - 3 TON (DEB036)
Temperature of Air on
Condenser Coil
72
115 °F
125 °F
1
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
105 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
95 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
85 °F
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
900 CFM
WB°F
67 62
57
1,050 CFM
WB°F
72 67 62 57
Air On Evaporator Coil
1,200 CFM
1,350 CFM
WB°F
WB°F
72 67 62 57 72 67 62 57
1,500 CFM
WB°F
72 67 62 57
34.7 32.3 28.5 28.4 36.9 34.3 30.3 30.1 39.0 36.4 32.1 31.9 39.9 37.1 32.7 32.6 40.7 37.9 33.4 33.2
3.61 3.52 3.46 3.46 3.62 3.53 3.47 3.47 3.63 3.55 3.48 3.48 3.70 3.61 3.55 3.55 3.77 3.68 3.61 3.61
19.7
17.2
14.6
12.0
9.5
-
25.4
22.9
20.3
17.7
15.2
12.6
10.0
28.5
26.7
24.2
21.6
19.1
16.5
13.9
28.4
28.4
26.0
23.4
20.8
18.3
15.7
22.2
19.2
16.1
13.1
10.1
-
28.5
25.5
22.4
19.4
16.4
13.3
10.3
30.3
29.4
26.7
23.7
20.6
17.6
14.6
30.1
30.1
28.7
25.6
22.6
19.6
16.5
24.6
21.1
17.6
14.1
10.6
-
31.5
28.0
24.5
21.0
17.5
14.1
10.6
32.1
32.1
29.2
25.7
22.2
18.7
15.2
31.9
31.9
31.4
27.9
24.4
20.9
17.4
26.3
22.4
18.4
14.4
10.4
-
33.5
29.5
25.6
21.6
17.6
13.6
9.6
32.7
32.7
30.4
26.4
22.5
18.5
14.5
32.6
32.6
32.3
28.3
24.3
20.4
16.4
28.0
23.6
19.1
14.6
10.2
-
35.5
31.0
26.6
22.1
17.6
13.2
8.7
33.4
33.4
31.6
27.2
22.7
18.2
13.7
33.2
33.2
33.2
28.8
24.3
19.8
15.4
32.5 30.4 27.8 26.8 34.4 32.2 29.4 28.4 36.3 34.0 31.0 29.9 37.2 34.8 31.8 30.7 38.1 35.7 32.6 31.5
3.85 3.74 3.70 3.68 3.85 3.75 3.71 3.68 3.86 3.75 3.71 3.69 3.93 3.82 3.78 3.76 4.01 3.90 3.86 3.83
18.5
16.0
13.4
10.8
8.3
-
24.3
21.7
19.2
16.6
14.0
11.5
8.9
27.8
25.7
23.2
20.6
18.0
15.5
12.9
26.8
26.6
24.0
21.4
18.9
16.3
13.7
21.0
18.0
14.9
11.9
8.9
-
27.4
24.4
21.3
18.3
15.3
12.2
9.2
29.4
28.4
25.8
22.8
19.7
16.7
13.7
28.4
28.2
26.7
23.7
20.6
17.6
14.6
23.4
19.9
16.4
12.9
9.4
-
30.5
27.0
23.5
20.0
16.5
13.0
9.5
31.0
31.0
28.4
24.9
21.4
17.9
14.4
29.9
29.9
29.4
25.9
22.4
18.9
15.4
24.8
20.8
16.8
12.8
8.8
-
32.0
28.0
24.0
20.0
16.0
12.0
8.1
31.8
31.8
29.0
25.0
21.0
17.1
13.1
30.7
30.7
30.0
26.1
22.1
18.1
14.1
26.1
21.6
17.1
12.7
8.2
-
33.4
29.0
24.5
20.0
15.5
11.1
6.6
32.6
32.6
29.6
25.1
20.7
16.2
11.7
31.5
31.5
30.7
26.2
21.7
17.3
12.8
29.5 27.4 25.0 24.4 31.4 29.2 26.6 26.0 33.3 31.0 28.2 27.6 34.1 31.7 28.9 28.3 35.0 32.5 29.6 29.0
4.05 3.92 3.93 3.85 4.07 3.94 3.95 3.87 4.09 3.96 3.97 3.89 4.15 4.02 4.02 3.95 4.21 4.08 4.08 4.00
17.5
15.0
12.4
9.8
7.3
-
23.3
20.7
18.1
15.6
13.0
10.4
7.9
25.0
24.0
21.4
18.8
16.3
13.7
11.1
24.4
24.3
21.7
19.1
16.6
14.0
11.4
19.9
16.9
13.9
10.8
7.8
-
26.3
23.3
20.3
17.3
14.2
11.2
8.2
26.6
26.1
23.9
20.9
17.9
14.8
11.8
26.0
25.9
24.3
21.2
18.2
15.2
12.1
22.3
18.8
15.3
11.8
8.3
-
29.2
25.9
22.4
18.9
15.4
11.9
8.4
28.2
28.2
26.5
23.0
19.5
16.0
12.5
27.6
27.6
26.8
23.3
19.8
16.3
12.8
23.6
19.6
15.6
11.6
7.6
-
30.3
26.8
22.8
18.8
14.8
10.8
6.9
28.9
28.9
26.9
22.9
18.9
14.9
10.9
28.3
28.3
27.3
23.3
19.3
15.3
11.3
24.8
20.3
15.8
11.4
6.9
-
31.4
27.6
23.1
18.7
14.2
9.7
5.3
29.6
29.6
27.3
22.8
18.4
13.9
9.4
29.0
29.0
27.7
23.2
18.8
14.3
9.8
26.5 24.4 22.2 22.0 28.4 26.2 23.8 23.6 30.4 28.0 25.5 25.2 31.1 28.6 26.1 25.8 31.8 29.3 26.7 26.4
4.25 4.11 4.16 4.03 4.28 4.14 4.19 4.06 4.31 4.17 4.22 4.09 4.36 4.21 4.27 4.13 4.40 4.25 4.31 4.17
16.5
14.0
11.4
8.8
6.3
-
22.2
19.7
17.1
14.5
12.0
9.4
6.8
22.2
22.2
19.6
17.1
14.5
11.9
9.4
22.0
22.0
19.4
16.9
14.3
11.7
9.2
18.9
15.9
12.8
9.8
6.8
-
25.1
22.3
19.2
16.2
13.2
10.1
7.1
23.8
23.8
22.1
19.0
16.0
13.0
9.9
23.6
23.6
21.8
18.8
15.8
12.7
9.7
21.2
17.7
14.2
10.7
7.2
-
28.0
24.9
21.4
17.9
14.4
10.9
7.4
25.5
25.5
24.5
21.0
17.5
14.0
10.5
25.2
25.2
24.3
20.8
17.3
13.8
10.3
22.4
18.4
14.4
10.4
6.4
-
28.6
25.6
21.6
17.6
13.6
9.6
5.6
26.1
26.1
24.8
20.8
16.8
12.8
8.8
25.8
25.8
24.5
20.5
16.5
12.5
8.6
23.5
19.0
14.5
10.1
5.6
-
29.3
26.3
21.8
17.3
12.9
8.4
3.9
26.7
26.7
25.0
20.5
16.1
11.6
7.1
26.4
26.4
24.7
20.3
15.8
11.3
6.9
23.5 21.4 19.4 19.6 25.4 23.2 21.1 21.3 27.4 25.0 22.7 22.9 28.0 25.5 23.2 23.4 28.6 26.1 23.7 23.9
4.5
4.3
4.4
4.2
4.5
4.3
4.4
4.2
4.5
4.4
4.5
4.3
4.6
4.4
4.5
4.3
4.6
4.4
4.5
4.3
15.5
13.0
10.4
7.8
5.3
-
21.2
18.6
16.1
13.5
10.9
8.4
5.8
19.4
20.4
17.9
15.3
12.7
10.2
7.6
19.6
19.7
17.1
14.6
12.0
9.4
6.9
17.8
14.8
11.8
8.7
5.7
-
24.0
21.2
18.2
15.2
12.1
9.1
6.1
21.1
21.6
20.2
17.2
14.2
11.1
8.1
21.3
21.3
19.4
16.4
13.3
10.3
7.3
20.1
16.6
13.1
9.6
6.1
-
26.7
23.8
20.3
16.8
13.3
9.8
6.3
22.7
22.7
22.6
19.1
15.6
12.1
8.6
22.9
22.9
21.7
18.2
14.7
11.2
7.7
21.2
17.2
13.2
9.2
5.2
-
27.0
24.4
20.4
16.4
12.4
8.4
4.4
23.2
23.2
22.6
18.7
14.7
10.7
6.7
23.4
23.4
21.7
17.7
13.8
9.8
5.8
22.2
17.7
13.2
8.8
4.3
-
27.2
24.9
20.4
16.0
11.5
7.0
2.6
23.7
23.7
22.7
18.2
13.8
9.3
4.8
23.9
23.9
21.8
17.3
12.8
8.4
3.9
= These capacities are net capacities - indoor fan heat deducted.
ALL SENSIBLE CAPACITY
8
Unitary Products Group
036-21310-001-A-1001
COOLING CAPACITIES - 3-1/2 TON (DEB042)
Temperature of Air on
Condenser Coil
115 °F
125 °F
1
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
105 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
95 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
85 °F
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
1, 050 CFM
WB°F
72 67 62 57
1,225 CFM
WB°F
72 67 62 57
Air On Evaporator Coil
1,400 CFM
1,575 CFM
WB°F
WB°F
72 67 62 57 72 67 62 57
1,750 CFM
WB°F
72 67 62 57
40.7 39.0 36.5 34.1 42.0 40.3 37.7 35.2 43.3 41.6 38.8 36.3 43.9 42.1 39.3 36.8 44.4 42.6 39.8 37.2
4.09 3.82 3.77 3.75 4.16 3.89 3.83 3.81 4.23 3.95 3.90 3.88 4.38 4.10 4.04 4.02 4.54 4.25 4.18 4.16
23.8
20.8
17.8
14.9
11.9
-
31.3
28.3
25.4
22.4
19.4
16.4
13.4
36.5
34.6
31.6
28.6
25.6
22.7
19.7
34.1
34.1
31.9
28.9
26.0
23.0
20.0
26.1
22.6
19.1
15.5
12.0
-
34.2
30.6
27.1
23.6
20.0
16.5
12.9
37.7
36.7
33.8
30.3
26.7
23.2
19.6
35.2
35.2
34.1
30.6
27.0
23.5
20.0
28.5
24.4
20.3
16.2
12.1
-
37.0
32.9
28.8
24.7
20.7
16.6
12.5
38.8
38.8
36.0
31.9
27.8
23.7
19.6
36.3
36.3
36.3
32.2
28.1
24.1
20.0
30.5
25.9
21.2
16.6
11.9
-
39.4
34.8
30.1
25.5
20.8
16.2
11.5
39.3
39.3
37.6
32.9
28.3
23.6
19.0
36.8
36.8
36.8
32.1
27.5
22.8
18.2
32.6
27.3
22.1
16.9
11.7
-
41.9
36.6
31.4
26.2
21.0
15.8
10.6
39.8
39.8
39.2
34.0
28.8
23.6
18.3
37.2
37.2
37.2
32.0
26.8
21.6
16.4
38.7 36.7 34.0 32.7 40.1 38.1 35.2 33.9 41.6 39.4 36.5 35.2 42.1 39.9 36.9 35.6 42.6 40.3 37.4 36.0
4.16 4.06 3.96 3.98 4.23 4.13 4.03 4.05 4.30 4.19 4.10 4.11 4.44 4.33 4.23 4.25 4.59 4.47 4.37 4.39
23.0
20.0
17.0
14.0
11.0
-
30.4
27.4
24.4
21.4
18.4
15.4
12.4
34.0
33.2
30.3
27.3
24.3
21.3
18.3
32.7
32.7
30.4
27.5
24.5
21.5
18.5
25.4
21.9
18.3
14.8
11.3
-
33.3
29.8
26.3
22.7
19.2
15.6
12.1
35.2
34.9
32.6
29.1
25.5
22.0
18.4
33.9
33.9
32.8
29.3
25.7
22.2
18.7
27.8
23.7
19.7
15.6
11.5
-
36.3
32.2
28.2
24.1
20.0
15.9
11.8
36.5
36.5
35.0
30.9
26.8
22.7
18.6
35.2
35.2
35.2
31.1
27.0
22.9
18.8
29.9
25.2
20.6
15.9
11.3
-
38.3
34.1
29.5
24.8
20.2
15.5
10.9
36.9
36.9
36.2
31.5
26.9
22.2
17.6
35.6
35.6
35.6
30.9
26.3
21.6
17.0
32.0
26.7
21.5
16.3
11.1
-
40.3
36.0
30.8
25.6
20.4
15.2
10.0
37.4
37.4
37.4
32.1
26.9
21.7
16.5
36.0
36.0
36.0
30.8
25.5
20.3
15.1
36.2 33.9 30.8 31.2 37.6 35.1 32.0 32.4 38.9 36.4 33.1 33.6 39.4 36.8 33.5 34.0 39.9 37.3 33.9 34.4
4.40 4.28 4.20 4.22 4.47 4.35 4.27 4.29 4.54 4.42 4.34 4.35 4.69 4.57 4.48 4.50 4.84 4.71 4.63 4.64
22.4
19.4
16.4
13.4
10.4
-
29.3
26.3
23.3
20.3
17.3
14.3
11.4
30.8
30.5
27.8
24.8
21.8
18.8
15.8
31.2
31.2
28.8
25.8
22.8
19.8
16.8
24.8
21.3
17.7
14.2
10.7
-
32.1
28.8
25.3
21.7
18.2
14.7
11.1
32.0
31.8
30.1
26.5
23.0
19.4
15.9
32.4
32.4
31.2
27.6
24.1
20.6
17.0
27.3
23.2
19.1
15.0
10.9
-
34.9
31.3
27.2
23.1
19.0
15.0
10.9
33.1
33.1
32.4
28.3
24.2
20.1
16.0
33.6
33.6
33.6
29.5
25.4
21.3
17.2
29.3
24.7
20.0
15.4
10.7
-
36.1
33.2
28.6
23.9
19.3
14.6
10.0
33.5
33.5
33.1
28.5
23.8
19.2
14.5
34.0
34.0
34.0
29.3
24.7
20.0
15.4
31.4
26.2
21.0
15.8
10.6
-
37.3
35.1
29.9
24.7
19.5
14.3
9.1
33.9
33.9
33.9
28.7
23.5
18.3
13.1
34.4
34.4
34.4
29.1
23.9
18.7
13.5
33.8 31.1 27.7 29.8 35.0 32.2 28.8 30.9 36.3 33.4 29.8 32.0 36.7 33.8 30.1 32.3 37.2 34.2 30.5 32.7
4.64 4.51 4.44 4.46 4.71 4.58 4.51 4.53 4.78 4.65 4.58 4.59 4.94 4.80 4.73 4.75 5.09 4.96 4.88 4.90
21.7
18.7
15.7
12.7
9.7
-
28.3
25.3
22.3
19.3
16.3
13.3
10.3
27.7
27.7
25.3
22.3
19.3
16.3
13.3
29.8
29.8
27.1
24.1
21.1
18.1
15.2
24.2
20.7
17.1
13.6
10.0
-
30.8
27.8
24.3
20.7
17.2
13.7
10.1
28.8
28.8
27.5
24.0
20.4
16.9
13.4
30.9
30.9
29.5
26.0
22.5
18.9
15.4
26.7
22.6
18.5
14.4
10.3
-
33.4
30.3
26.3
22.2
18.1
14.0
9.9
29.8
29.8
29.8
25.7
21.6
17.5
13.4
32.0
32.0
32.0
27.9
23.8
19.7
15.6
28.8
24.2
19.5
14.9
10.2
-
33.8
32.3
27.7
23.0
18.4
13.7
9.1
30.1
30.1
30.1
25.5
20.8
16.2
11.5
32.3
32.3
32.3
27.7
23.0
18.4
13.7
30.9
25.7
20.5
15.3
10.1
-
34.2
34.2
29.1
23.8
18.6
13.4
8.2
30.5
30.5
30.5
25.3
20.1
14.8
9.6
32.7
32.7
32.7
27.5
22.3
17.1
11.9
31.4 28.3 24.6 28.3 32.5 29.3 25.5 29.3 33.6 30.4 26.4 30.3 34.0 30.7 26.7 30.7 34.5 31.1 27.1 31.1
4.9
4.7
4.7
4.7
4.9
4.8
4.7
4.8
5.0
4.9
4.8
4.8
5.2
5.0
5.0
5.0
5.3
5.2
5.1
5.2
21.1
18.1
15.1
12.1
9.1
-
27.2
24.2
21.3
18.3
15.3
12.3
9.3
24.6
25.0
22.8
19.8
16.8
13.8
10.8
28.3
28.3
25.5
22.5
19.5
16.5
13.5
23.6
20.0
16.5
13.0
9.4
-
29.6
26.8
23.3
19.7
16.2
12.7
9.1
25.5
25.7
25.0
21.4
17.9
14.4
10.8
29.3
29.3
27.9
24.4
20.8
17.3
13.8
26.1
22.0
17.9
13.9
9.8
-
31.9
29.4
25.3
21.2
17.1
13.1
9.0
26.4
26.4
27.2
23.1
19.0
14.9
10.8
30.3
30.3
30.3
26.3
22.2
18.1
14.0
28.3
23.6
19.0
14.3
9.7
-
31.5
31.3
26.7
22.1
17.4
12.8
8.1
26.7
26.7
27.1
22.5
17.8
13.2
8.5
30.7
30.7
30.7
26.1
21.4
16.8
12.1
30.4
25.2
20.0
14.8
9.5
-
31.1
33.3
28.2
23.0
17.7
12.5
7.3
27.1
27.1
27.1
21.9
16.6
11.4
6.2
31.1
31.1
31.1
25.9
20.7
15.5
10.2
= These capacities are net capacities - indoor fan heat deducted.
ALL SENSIBLE CAPACITY
Unitary Products Group
9
036-21310-001-A-1001
COOLING CAPACITIES - 4 TON (DEB048)
Temperature of Air on
Outdoor Coil
115 °F
125 °F
1
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
105 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
95 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
85 °F
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
1200 CFM
WB°F
72 67 62 57
1400 CFM
WB°F
72 67 62 57
Air On Indoor Coil
1600 CFM
WB°F
72 67 62 57
1800 CFM
WB°F
72 67 62 57
2000 CFM
WB°F
72 67 62 57
49.2 46.1 41.6 41.3 50.6 47.4 42.9 42.5 52.1 48.8 44.1 43.7 52.8 49.4 44.7 44.2 53.4 50.1 45.2 44.8
4.47 4.44 4.35 4.33 4.59 4.57 4.47 4.45 4.72 4.69 4.59 4.57 4.78 4.76 4.66 4.63 4.85 4.83 4.72 4.70
28.3
24.9
21.4
18.0
14.6
-
35.7
32.3
28.9
25.5
22.1
18.6
15.2
41.3
37.8
34.4
31.0
27.6
24.2
20.7
41.3
39.5
36.1
32.7
29.3
25.8
22.4
31.5
27.4
23.4
19.4
15.3
-
39.6
35.6
31.6
27.5
23.5
19.4
15.4
42.7
41.0
37.6
33.5
29.5
25.4
21.4
42.5
41.6
39.4
35.4
31.3
27.3
23.2
34.7
30.0
25.4
20.7
16.0
-
43.5
38.9
34.2
29.5
24.9
20.2
15.5
44.1
44.1
40.7
36.1
31.4
26.7
22.1
43.7
43.7
42.7
38.1
33.4
28.7
24.1
37.1
31.8
26.5
21.2
15.8
-
46.3
41.0
35.7
30.4
25.1
19.8
14.4
44.7
44.7
42.5
37.2
31.9
26.6
21.3
44.2
44.2
43.8
38.5
33.1
27.8
22.5
39.5
33.5
27.6
21.6
15.7
-
49.1
43.2
37.2
31.2
25.3
19.3
13.4
45.2
45.2
44.3
38.3
32.4
26.4
20.4
44.8
44.8
44.8
38.9
32.9
26.9
21.0
47.2 43.4 39.3 38.8 48.6 44.7 40.5 40.0 50.0 46.0 41.7 41.1 48.9 45.0 40.8 40.2 47.8 44.0 39.9 39.3
4.88 4.85 4.74 4.74 5.00 4.97 4.86 4.86 5.13 5.09 4.98 4.98 5.23 5.20 5.09 5.08 5.34 5.31 5.19 5.19
27.7
24.2
20.8
17.4
14.0
-
34.7
31.3
27.9
24.5
21.0
17.6
14.2
39.3
36.5
33.0
29.6
26.2
22.8
19.4
38.8
37.9
34.5
31.1
27.7
24.2
20.8
30.6
26.6
22.5
18.5
14.5
-
38.3
34.2
30.2
26.2
22.1
18.1
14.0
40.5
39.1
35.8
31.7
27.7
23.7
19.6
40.0
39.5
37.4
33.3
29.3
25.2
21.2
33.6
28.9
24.3
19.6
14.9
-
41.9
37.2
32.5
27.9
23.2
18.5
13.9
41.7
41.7
38.5
33.9
29.2
24.5
19.9
41.1
41.1
40.2
35.6
30.9
26.2
21.6
35.3
30.0
24.7
19.3
14.0
-
42.9
38.3
33.0
27.7
22.4
17.1
11.8
40.8
40.8
39.1
33.8
28.5
23.2
17.9
40.2
40.2
39.8
34.5
29.1
23.8
18.5
37.0
31.0
25.0
19.1
13.1
-
44.0
39.5
33.5
27.6
21.6
15.7
9.7
39.9
39.9
39.7
33.8
27.8
21.9
15.9
39.3.
39.3
39.3
33.3
27.4
21.4
15.5
45.5 40.1 37.8 37.4 46.1 40.6 38.3 37.9 46.7 41.1 38.8 38.3 46.3 40.8 38.5 38.0 46.0 40.4 38.2 37.7
5.37 5.30 5.21 5.21 5.49 5.43 5.34 5.33 5.62 5.55 5.46 5.45 5.72 5.66 5.56 5.55 5.83 5.76 5.66 5.65
27.0
23.6
20.1
16.7
13.3
-
33.2
29.8
26.4
22.9
19.5
16.1
12.7
37.8
35.7
32.3
28.9
25.5
22.0
18.6
37.4
36.3
32.9
29.5
26.1
22.7
19.2
29.6
25.6
21.5
17.5
13.5
-
36.1
32.2
28.2
24.2
20.1
16.1
12.0
38.3
37.3
34.6
30.5
26.5
22.4
18.4
37.9
37.3
35.2
31.2
27.1
23.1
19.0
32.3
37.6
22.9
18.3
13.6
-
39.1
34.7
30.0
25.4
20.7
16.0
11.6
38.8
38.8
36.8
32.1
27.5
22.8
18.1
38.3
38.3
37.5
32.8
28.2
23.5
18.8
34.3
29.0
23.7
18.4
13.1
-
39.7
36.3
31.0
25.7
20.4
15.1
9.8
38.5
38.5
37.5
32.1
26.8
21.5
16.2
38.0
38.0
37.6
32.3
27.0
21.7
16.4
36.4
30.4
24.5
18.5
12.5
-
40.4
38.0
32.0
26.0
20.1
14.1
8.1
38.2
38.2
38.1
32.1
26.2
20.2
14.3
37.7
37.7
37.7
31.8
25.8
19.8
13.9
43.9 36.7 36.3 36.0 43.6 36.5 36.1 35.8 43.3 36.3 35.8 35.5 43.7 36.6 36.2 35.8 44.1 36.9 36.5 36.2
5.86 5.76 5.69 5.67 5.98 5.88 5.81 5.80 6.11 6.01 5.94 5.92 6.22 6.11 6.04 6.02 6.32 6.21 6.14 6.12
26.3
22.9
19.5
16.1
12.6
-
31.7
28.3
24.8
21.4
18.0
14.6
11.1
36.3
35.0
31.6
28.2
24.7
21.3
17.9
36.0
34.8
31.3
27.9
24.5
21.1
17.6
28.6
24.6
20.5
16.5
12.5
-
34.0
30.2
26.2
22.2
18.1
14.1
10.0
36.1
35.4
33.3
29.3
25.2
21.2
17.1
35.8
35.1
33.1
29.0
25.0
20.9
16.9
30.9
26.3
21.6
17.0
12.3
-
36.3
32.2
27.6
22.9
18.2
13.6
8.9
35.8
35.8
35.1
30.4
25.7
21.1
16.4
35.5
35.5
34.8
30.1
25.4
20.8
16.1
33.4
28.1
22.7
17.4
12.1
-
36.6
34.3
29.0
23.7
18.4
13.1
7.8
36.2
36.2
35.8
30.4
25.1
19.8
14.5
35.8
35.8
35.5
30.2
24.8
19.5
14.2
35.8
29.8
23.9
17.9
12.0
-
36.9
36.4
30.5
24.5
18.5
12.6
6.6
36.5
36.5
36.5
30.5
24.5
18.6
12.6
36.2
36.2
36.2
30.2
24.2
18.3
12.3
42.2 33.4 34.8 34.6 41.1 32.4 33.8 33.7 40.0 31.4 32.9 32.7 41.1 32.4 33.8 33.7 42.2 33.4 34.8 34.6
6.3
6.2
6.2
6.1
6.5
6.3
6.3
6.3
6.6
6.5
6.4
6.4
6.7
6.6
6.5
6.5
6.8
6.7
6.6
6.6
25.6
22.2
18.8
15.4
12.0
-
30.1
26.7
23.3
19.9
16.5
13.0
9.6
34.8
34.3
30.8
27.4
24.0
20.6
17.2
34.6
33.2
29.8
26.3
22.9
19.5
16.1
27.6
23.6
19.5
15.5
11.5
-
31.8
28.2
24.2
20.2
16.1
12.1
8.0
33.8
33.6
32.1
28.0
24.0
19.9
15.9
33.7
32.9
30.9
26.9
22.8
18.8
14.7
29.6
25.0
20.3
15.6
11.0
-
31.4
29.8
25.1
20.4
15.8
11.1
6.4
32.9
32.9
32.9
28.6
24.0
19.3
14.6
32.7
32.7
32.1
27.4
22.7
18.1
13.4
32.4
27.1
21.8
16.5
11.2
-
32.4
32.3
27.0
21.7
16.4
11.1
5.7
33.8
33.8
33.8
28.8
23.4
18.1
12.8
33.7
33.7
33.3
28.0
22.7
17.4
12.1
35.2
29.3
23.3
17.3
11.4
-
33.4
33.4
28.9
22.9
17.0
11.0
5.1
34.8
34.8
34.8
28.9
22.9
17.0
11.0
34.6
34.6
34.6
28.6
22.7
16.7
10.7
= These capacities are net capacities - indoor fan heat deducted.
ALL SENSIBLE CAPACITY
10
Unitary Products Group
036-21310-001-A-1001
COOLING CAPACITIES - 6 TON (DEB060)
Temperature of Air on
Outdoor Coil
115 °F
125 °F
1
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
105 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
95 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
85 °F
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
1200 CFM
WB°F
72 67 62 57
1400 CFM
WB°F
72 67 62 57
Air On Indoor Coil
1600 CFM
WB°F
72 67 62 57
1800 CFM
WB°F
72 67 62 57
2000 CFM
WB°F
72 67 62 57
65.2 59.2 52.9 53.4 67.2 61.1 54.5 55.1 69.2 62.9 56.2 56.7 70.3 63.9 57.1 57.6 71.4 64.9 58.0 58.6
5.68 5.60 4.45 5.41 5.87 5.79 5.63 5.59 6.06 5.98 5.82 5.77 6.25 6.16 6.00 5.95 6.43 6.35 6.18 6.13
37.9
33.6
29.3
25.1
20.8
-
46.9
42.6
38.3
34.0
29.8
25.5
21.2
52.9
50.2
45.9
41.7
37.4
33.1
28.8
53.4
51.9
47.6
43.3
39.0
34.7
30.5
41.7
36.7
31.6
26.6
21.5
-
51.4
46.4
41.3
36.3
31.2
26.2
21.1
54.5
53.2
49.5
44.5
39.4
34.4
29.3
55.1
54.3
51.3
46.2
41.2
36.1
31.1
45.6
39.8
33.9
28.1
22.3
-
56.0
50.1
44.3
38.5
32.7
26.8
21.0
56.2
56.2
53.1
47.3
41.5
35.6
29.8
56.7
56.7
55.0
49.2
43.4
37.5
31.7
49.1
42.5
35.8
29.2
22.5
-
60.1
53.4
46.8
40.2
33.5
26.9
20.2
57.1
57.1
55.6
48.9
42.3
35.6
29.0
57.6
57.6
56.8
50.2
43.5
36.9
30.2
52.6
45.2
37.7
30.3
22.8
-
64.2
56.7
49.3
41.8
34.4
26.9
19.5
58.0
58.0
58.0
50.6
43.1
35.7
28.2
58.6
58.6
58.6
51.1
43.7
36.2
28.8
60.1 54.7 48.7 49.4 62.5 56.9 50.7 51.3 64.9 59.1 52.6 53.3 65.7 59.9 53.3 54.0 66.5 60.6 53.9 54.6
6.25 6.13 6.02 5.97 6.42 6.30 6.19 6.13 6.59 6.47 6.35 6.30 6.78 6.66 6.54 6.48 6.97 6.84 6.72 6.66
35.5
31.2
27.0
22.7
18.4
-
44.5
40.2
35.9
31.7
27.4
23.1
18.8
48.7
47.6
43.3
39.0
34.8
30.5
26.2
49.4
48.7
44.4
40.1
35.8
31.5
27.3
39.4
34.4
39.3
24.3
19.2
-
49.2
44.1
39.1
34.0
29.0
23.9
18.9
50.7
50.1
47.1
42.0
37.0
31.9
26.9
51.3
51.0
48.2
43.2
38.1
33.1
28.0
43.3
37.5
31.7
25.8
20.0
-
53.9
48.0
42.2
36.4
30.5
24.7
18.9
52.6
52.6
50.9
45.0
39.2
33.4
27.5
53.3
53.3
52.1
46.3
40.4
34.6
28.8
47.0
40.4
33.8
27.1
20.5
-
57.2
51.7
45.0
38.4
31.7
25.1
18.4
53.3
53.3
52.4
45.7
39.1
32.5
25.8
54.0
54.0
53.4
46.7
40.1
33.4
26.8
50.8
43.3
35.9
28.4
21.0
-
60.6
55.3
47.8
40.4
32.9
25.5
18.0
53.9
53.9
53.9
46.4
39.0
31.5
24.1
54.6
54.6
54.6
47.2
39.7
32.3
24.8
55.5 50.2 45.0 45.3 57.9 52.3 46.9 47.2 60.2 54.4 48.8 49.1 60.9 55.0 49.3 49.7 61.6 55.6 49.9 50.2
6.90 6.73 6.63 6.58 7.07 6.90 6.79 6.75 7.25 7.06 6.96 6.91 7.47 7.28 7.17 7.12 7.69 7.50 7.38 7.33
33.5
29.2
24.9
20.6
16.4
-
42.4
38.1
33.8
29.6
25.3
21.0
16.7
45.0
44.0
39.8
35.5
31.2
26.9
22.7
45.3
44.5
40.2
36.0
31.7
27.4
23.1
37.5
32.4
27.4
22.3
17.2
-
47.1
42.2
37.1
32.1
27.0
22.0
16.9
46.9
46.4
43.6
38.6
33.5
28.5
23.4
47.2
46.8
44.2
39.1
34.1
29.0
23.9
41.4
35.6
29.8
24.0
18.1
-
51.8
46.3
40.5
34.6
28.8
23.0
17.1
48.8
48.8
47.5
41.7
35.9
30.0
24.2
49.1
49.1
48.1
42.3
36.4
30.6
24.8
44.9
38.2
31.6
24.9
18.3
-
53.7
49.5
42.9
36.3
29.6
23.0
16.3
49.3
49.3
48.7
42.1
35.4
28.8
22.1
49.7
49.7
49.2
42.5
35.9
29.2
22.6
48.3
40.8
33.4
25.9
18.5
-
55.6
52.8
45.3
37.9
30.4
23.0
15.5
49.9
49.9
49.9
42.4
35.0
27.5
20.1
50.2
50.2
50.2
42.8
35.3
27.9
20.4
51.0 45.7 41.3 41.3 53.2 47.6 43.1 43.1 55.5 49.6 45.0 44.9 56.0 50.2 45.4 45.4 56.6 50.7 45.9 45.8
7.56 7.33 7.23 7.20 7.73 7.50 7.39 7.36 7.90 7.66 7.56 7.52 8.15 7.90 7.80 7.76 8.40 8.15 8.04 8.00
31.4
27.2
22.9
18.6
14.3
-
40.3
36.0
31.7
27.5
23.2
18.9
14.6
41.3
40.5
36.2
32.0
27.7
23.4
19.1
41.3
40.4
36.1
31.8
27.6
23.3
19.0
35.5
30.5
25.4
20.3
15.3
-
45.0
40.3
35.2
30.2
25.1
20.1
15.0
43.1
42.7
40.2
35.2
30.1
25.0
20.0
43.1
42.7
40.1
35.0
30.0
24.9
19.9
39.6
33.7
27.9
22.1
16.2
-
49.6
44.5
38.7
32.9
27.0
21.2
15.4
45.0
45.0
44.2
38.4
32.5
26.7
20.9
44.9
44.9
44.1
38.2
32.4
26.6
20.7
42.7
36.1
29.4
22.8
16.1
-
50.2
47.4
40.8
34.1
27.5
20.9
14.2
45.4
45.4
45.0
38.4
31.8
25.1
18.5
45.4
45.4
45.0
38.3
31.7
25.0
18.4
45.8
38.4
30.9
23.5
16.0
-
50.7
50.3
42.9
35.4
27.9
20.5
13.0
45.9
45.9
45.9
38.4
31.0
23.5
16.1
45.8
45.8
45.8
38.4
30.9
23.5
16.0
46.5 41.1 37.7 37.3 48.6 43.0 39.4 39.0 50.7 44.9 41.1 40.7 51.2 45.3 41.5 41.1 51.7 45.7 41.9 41.5
8.2
7.9
7.8
7.8
8.4
8.1
8.0
8.0
8.5
8.3
8.2
8.1
8.8
8.5
8.4
8.4
9.1
8.8
8.7
8.7
29.4
25.1
20.8
16.6
12.3
-
38.2
33.9
29.6
25.3
21.1
16.8
12.5
37.7
37.0
32.7
28.4
24.1
19.9
15.6
37.3
36.3
32.0
27.7
23.4
19.2
14.9
33.6
28.5
23.4
18.4
13.3
-
42.9
38.3
33.3
28.2
23.2
18.1
13.1
39.4
39.0
36.8
31.7
26.7
21.6
16.6
39.0
38.5
36.0
31.0
25.9
20.8
15.8
37.7
31.9
26.0
20.2
14.4
-
44.9
42.8
36.9
31.1
25.3
19.5
13.6
41.1
41.1
40.9
35.0
29.2
23.4
17.5
40.7
40.7
40.0
34.2
28.4
22.5
16.7
40.5
33.9
27.2
20.6
14.0
-
45.3
45.3
38.7
32.0
25.4
18.7
12.1
41.5
41.5
41.4
34.7
28.1
21.5
14.8
41.1
41.1
40.7
34.1
27.5
20.8
14.2
43.3
35.9
28.4
21.0
13.5
-
45.7
45.7
40.4
32.9
25.5
18.0
10.6
41.9
41.9
41.9
34.4
27.0
19.5
12.1
41.5
41.5
41.5
34.0
26.6
19.1
11.7
= These capacities are net capacities - indoor fan heat deducted.
ALL SENSIBLE CAPACITY
Unitary Products Group
11
036-21310-001-A-1001
SIDE AND BOTTOM SUPPLY AIR BLOWER PERFORMANCE
230/460/575 volts
030
036
042
048
060
WATTS
CFM
1.00
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
.90
- 659 401 552 386 - 654 233 541 209 - 702 220 641 205 536 183 - 987 507 873 493 760 480
- 935 339 867 322 800 304 733 286 667 268 900 290 850 277 800 265 750 252 697 235 643 218 - 1200 540 1100 520 987 507 873 493 760 480
1200 390 1134 397 1068 368 1002 357 935 339 867 322 800 304 900 290 850 267 800 243 - 1414 617 1317 588 1219 560 1116 533 1013 507 910 480
- 1472 547 1394 526 1297 495 1199 465 1102 435 985 397 1462 525 1400 506 1337 486 1275 467 1187 440 1100 414 1012 387 - 1697 740 1580 706 1463 672 1339 640 1216 608 1092 576
- 1673 630 1556 594 1439 558 1322 522 1182 476 - 1680 607 1605 584 1530 560 1425 528 1320 496 1214 464 1050 420 - 1847 882 1867 857 1786 832 1706 807 1637 782 1569 757 1500 732
1876 792 1829 772 1783 753 1736 733 1668 706 1599 680 1531 653 1434 622 1337 591 1240 560
1544 620 1508 610 1472 600 1436 590 1375 573 1313 557 1252 540 - 2499 1290 2391 1233 2283 1177 2175 1120 2067 1080 1958 1040 1850 1000
- 2454 1163 2387 1117 2320 1070 2229 1023 2137 977 2046 930 1950 887 1854 843 1758 800
2242 1090 2201 1053 2161 1017 2120 980 2041 927 1962 873 1883 820 1797 787 1711 753 1625 720
1.10
WATTS
024
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
EXTERNAL STATIC PRESSURE - IWG
.40
.50
.60
.70
.80
.30
CFM
018
MOTOR
SPEED
.20
WATTS
MODEL NO.
DEB
CFM
.10
-
-
NOTE: Above data includes allowances for a dry evaporator coil and no filters. For additional pressure drops, refer to the “Additional Static Pressure Resistance” table.
208 volts
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
060
CFM
048
WATTS
042
1.10
CFM
036
1.00
WATTS
030
- 689 374 593 361 497 347 - 690 231 659 210 487 188 741 226 686 212 632 198 577 185 453 165 - 990 468 888
- 961 331 902 321 841 305 781 290 720 274 660
810 261 765 250 720 238 675 227 627 212 - 1171 504 1080 486 990 468 888
1080 351 1021 341 961 331 902 321 841 305 781 290 810 261 765 240 - 1440 605 1361 581 1273 555 1185 530 1097 504 1004
1465 531 1395 512 1325 492 1255 473 1167 446 1079 419 992 392 1316 473 1260 455 1204 438 1148 420 1069 396 990 372 911 348 - 1728 725 1633 697 1527 666 1422 635 1317 605 1205
- 1674 614 1590 590 1506 567 1400 535 1295 502 1190 470 1063
1579 567 1512 546 1444 525 1377 504 1282 476 1188 447 1093 418 - 1985 870 1939 850 1897 830 1813 800 1728 770 1644 740 1559
1694 690 1662 673 1629 657 1597 640 1542 623 1486 607 1431 590 1336
1385 520 1349 510 1312 500 1276 490 1235 480 - 2450 1213 2366 1165 2282 1117 2198 1068 2114 1020 1989
2339 1170 2275 1118 2211 1067 2147 1015 2083 963 2019 912 1955 860 1854
1929 940 1877 903 1824 867 1772 830 1720 793 1667 757 1615 720 1586
.90
CFM
024
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
EXTERNAL STATIC PRESSURE - IWG
.40
.50
.60
.70
.80
.30
WATTS
018
MOTOR
SPEED
.20
WATTS
MODEL NO.
DEB
CFM
.10
456
257
456
480
576
428
707
563
993
824
706
786
786
912
1094
1474
1240
1864
1753
1557
444
444
456
547
673
537
967
788
691
684
1389
1739
1652
1528
432
640
940
752
677
-
-
NOTE: Above data includes allowances for a dry evaporator coil and no filters. For additional pressure drops, refer to the “Additional Static Pressure Resistance” table.
12
Unitary Products Group
036-21310-001-A-1001
ADDITIONAL STATIC PRESSURE RESISTANCE
RESISTANCE, IWG
DESCRIPTION
CFM
500
600
700
800
900
1,000
1,100
1,200
1,300
1,400
1,500
1,600
Wet Evaporator coil
.01
.01
.01
.02
.03
.04
.05
.06
.07
.08
.09
.09
Economizer
.00
.00
.00
.01
.01
.01
.01
.02
.03
.04
.05
.06
Filter/Frame Kit
.01
.02
.02
.02
.02
.02
.03
.03
.03
.03
.04
.05
Electric Heat
.02
.03
.03
.03
.04
.04
.05
.06
.07
.08
.09
.10
NOTE: 1. Deduct these resistance values from the available external static pressure shown in the respective Blower Performance Table.
2. The pressure thru the economizer is greater for 100% outdoor air then for 100% return air. If the resistance of the return air duct system is less then 0.25 IWG, the unit will deliver
less CFM during full economizer operation.
FIELD WIRING DIAGRAM
THERMOSTAT
UNIT TERMINAL STRIP
** = Minimum wire size of 18 AWG
wire should be used for all field
installed 24 volt wire.
4
4
**
/
/
;
PROGRAMMABLE
THERMOSTAT ONLY
;
*
9
* = Only required on units with
supplemental electric heat.
+
CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause
24 VOLT
improper and dangerous opTRANSFORMER
eration. Verify proper operation
after servicing.
NOTE:
HEAT ANTICIPATOR
SHOULD BE SET AT 0.25
AMPS FOR ALL MODELS.
9
+
CONTROL WIRING
REFER TO ELECTRICAL
DATA TABLES TO SIZE
THE DISCONNECT
REFER TO ELECTRICAL
DATA TABLES TO SIZE
THE DISCONNECT
POWER WIRING
ELECTRICAL DATA (BASIC UNIT)
MODEL POWER SUPDEB
PLY
018
024
030
036
042
048
060
036
042
048
060
036
042
048
060
036
042
048
060
1
208/230-1-60
208/230-1-60
208/230-1-60
208/230-1-60
208/230-1-60
208/230-1-60
208/230-1-60
208/230-3-60
208/230-3-60
208/230-3-60
208/230-3-60
460-3-60
460-3-60
460-3-60
460-3-60
575-3-60
575-3-60
575-3-60
575-3-60
VOLTAGE
LIMITATIONS COMPRESSOR
1
MIN.
MAX.
RLA
LRA
187
187
187
187
187
187
187
187
187
187
187
414
414
414
414
518
518
518
518
253
253
253
253
253
253
253
253
253
253
253
504
504
504
504
630
630
630
630
9.0
11.5
14.7
17.3
20.5
24.4
28.9
10.9
14.1
14.1
16.0
5.8
7.1
7.1
8.0
4.5
5.8
5.6
6.4
48.0
60.0
73.0
94.0
120.0
140.0
165.0
78.0
110.0
105.0
125.0
40.0
54.0
55.0
67.0
32.0
44.0
44.0
50.0
= Rated in accordance with ARI Standard 110, utilization range “A”.
Unitary Products Group
SUPPLY
COND.
AIR
MINIMUM
FAN
BLOWER CIRCUIT
MOTOR,
MOTOR, AMPACITY
FLA
FLA
1.1
2.6
14.9
1.1
2.6
18.1
1.1
2.6
22.1
1.1
3.5
26.2
1.1
3.5
30.2
1.3
4.0
35.8
1.3
4.0
44.4
1.1
3.5
18.2
1.1
3.5
22.2
0.7
4.0
22.3
1.3
7.0
28.3
0.6
1.8
9.6
0.6
1.8
11.2
0.6
2.0
11.5
0.7
3.5
14.2
0.4
1.5
7.6
0.4
1.5
9.1
0.6
1.6
9.3
0.6
2.8
11.4
2
MAX.
MAX.
HACR
UNIT
FUSE
SIZE, BREAKER POWER
SIZE, FACTOR
AMPS
2
AMPS
20
20
.96
25
25
.96
30
30
.96
35
35
.96
40
40
.96
45
45
.96
60
60
.96
25
25
.96
30
30
.96
30
30
.96
40
40
.96
15
15
.96
15
15
.96
15
15
.96
20
20
.96
15
15
.96
15
15
.96
15
15
.96
15
15
.96
TRANSFORMER
SIZE (VA)
40
40
40
40
40
40
40
75
75
75
75
75
75
75
75
75
75
75
75
= Dual element, time delay type.
13
NOMINAL VOLTAGE
ELECTRIC HEAT
CORRECTION
FACTORS
036-21310-001-A-1001
COMPRESSOR
POWER
SUPPLY
ELECTRIC HEAT ACCESSORY
SUPPLY
COND.
AIR
FAN
BLOWER
MOTOR
MOTOR,
FLA
TOTAL
FLA
MODEL NO.
KW
AMPS
STAGE
MODEL
DEB
ELECTRICAL DATA (COOLING / ELECTRIC HEAT)
RLA
LRA
018 208/230-1-60
9.0
48.0
1.1
2.6
024 208/230-1-60
11.2
60.0
1.1
2.6
030 208/230-1-60
12.0
73.0
1.1
2.6
036 208/230-1-60
17.3
94.0
1.1
3.5
042 208/230-1-60
20.5
120.0
1.1
3.5
048 208/230-1-60
24.4
140.0
1.3
4.0
060 208/230-1-60
28.9
165.0
1.3
7.0
036 208/230-3-60
10.9
78.0
1.1
3.5
042 208/230-3-60
14.1
110.0
1.1
3.5
048 208/230-3-60
14.1
105.0
0.7
4.0
060 208/230-3-60
16.0
125.0
1.3
7.0
036
460-3-60
5.8
40.0
0.6
1.8
042
460-3-60
7.1
54.0
0.6
1.8
048
460-3-60
7.1
55.0
0.6
2.0
060
460-3-60
8.0
67.0
0.7
3.5
036
575-3-60
4.5
32.0
0.4
1.5
042
575-3-60
5.8
44.0
0.4
1.5
048
575-3-60
5.6
44.0
0.6
1.6
060
575-3-60
6.4
50.0
0.6
2.8
1
2
= Dual element, time delay type.
= Standard circuit breakers may be used in Canada and on applications
over 60 amps where the heaters are separately fused.
14
2NH04500506
2NH04500706
2NH04500506
2NH04500706
2NH04501006
2NH04500506
2NH04500706
2NH04501006
2NH04501506
2NH04501006
2NH04501506
2NH04500506
2NH04500706
2NH04501006
2NH04501506
2NH04501006
2NH04501506
2NH04502006
2NH04502506
2NH04501006
2NH04501506
2NH04502006
2NH04502506
2NH04501025
2NH04501525
2NH04501025
2NH04501525
2NH04501025
2NH04501525
2NH04502025
2NH04502525
2NH04501025
2NH04501525
2NH04502025
2NH04502525
2NH04501046
2NH04501546
2NH04501046
2NH04501546
2NH04501046
2NH04501546
2NH04502046
2NH04502546
2NH04501046
2NH04501546
2NH04502046
2NH04502546
2NH04501058
2NH04501558
2NH04501058
2NH04501558
2NH04501058
2NH04501558
2NH04502058
2NH04502558
2NH04501058
2NH04501558
2NH04502058
2NH04502558
1
2
1
2
2
1
2
2
2
2
2
1
2
2
2
2
2
2
2
2
2
2
2
1
1
1
1
1
1
2
2
1
1
2
2
1
1
1
1
1
1
2
2
1
1
2
2
1
1
1
1
1
1
2
2
1
1
2
2
3.8/5.0 *
5.6/7.5 *
3.8/5.0 *
5.6/7.5 *
7.5/10.0 *
3.8/5.0 *
5.6/7.5 *
7.5/10.0 *
11.3/15.0 *
7.5/10.0 *
11.3/15.0 *
3.8/5.0 *
5.6/7.5 *
7.5/10.0 *
11.3/15.0 *
7.5/10.0 *
11.3/15.0 *
15.0/20.0 *
18.8/25.0 *
7.5/10.0 *
11.3/15.0 *
15.0/20.0 *
18.8/25.0 *
7.5/10.0 *
11.3/15.0 *
7.5/10.0 *
11.3/15.0 *
7.5/10.0 *
11.3/15.0 *
15.0/20.0 *
18.8/25.0 *
7.5/10.0 *
11.3/15.0 *
15.0/20.0 *
18.8/25.0 *
10.0 **
15.0 **
10.0 **
15.0 **
10.0 **
15.0 **
20.0 **
25.0 **
10.0 **
15.0 **
20.0 **
25.0 **
10.0 ***
15.0 ***
10.0 ***
15.0 ***
10.0 ***
15.0 ***
20.0 ***
25.0 ***
10.0 ***
15.0 ***
20.0 ***
25.0 ***
240
480
600
MINIMUM
CIRCUIT
AMPACITY
VOLTAGE
208
230
460
575
MAX.
FUSE
SIZE,1
AMPS
18.1/20.8
25.8/29.3
30/30
27.1/31.3
37.1/42.3
40/45
18.1/20.8
25.8/29.3
30/30
27.1/31.3
37.1/42.3
40/45
36.1/41.7
48.4/55.3
50/60
18.1/20.8
25.8/29.3
30/30
27.3/31.3
37.1/42.3
40/45
36.1/41.7
48.4/55.3
50/60
54.2/62.5
71.0/81.4
80/90
36.1/41.7
49.5/56.5
50/60
54.2/62.5
72.1/82.5
80/90
30.2/30.4
40/40
18.1/20.8
38.2/43.4
50/50
27.1/31.3
50/60
36.1/41.7
49.5/56.5
54.2/62.5
72.1/82.5
80/90
60/60
50.1/57.1
36.1/41.7
80/90
54.2/62.5
72.1/83.1
72.2/83.3 95.3/109.2 100/110
90.3/104.2 117.8/135.2 125/150
70/70
36.1/41.7
53.9/60.8
80/90
54.2/62.5
76.5/86.9
72.2/83.3 99.0/112.9 100/125
90.3/104.2 121.6/139.0 125/150
20.8/24.1
30.4/34.4
35/35
31.3/36.1
43.5/49.5
45/50
20.8/24.1
30.4/34.4
35/35
31.3/36.1
43.5/49.5
45/50
20.8/24.1
31.1/35.1
35/40
31.3/36.1
44.1/50.1
45/60
41.7/48.1
57.1/65.1
60/70
52.1/60.1
70.2/80.2
80/90
20.8/24.1
34.8/38.8
40/40
31.3/36.1
47.8/53.9
50/60
41.7/48.1
60.9/68.9
70/70
52.1/60.1
73.9/83.9
80/90
12.0
17.3
20
18.0
24.8
25
12.0
17.3
20
18.0
24.8
25
12.0
17.5
20
18.0
25.1
30
24.1
32.6
35
30.1
40.1
45
12.0
19.4
20
18.0
26.9
30
24.1
34.4
35
30.1
42.0
45
9.6
13.9
15
14.4
19.9
20
9.6
13.9
15
14.4
19.9
20
9.6
14.0
15
14.4
20.0
25
19.2
26.1
30
24.1
32.1
35
9.6
15.5
20
14.4
21.5
25
19.2
27.6
30
24.1
33.6
35
KW CAP. MULTIPLIER
.75
.92
.92
.92
MAX.
HACR2
BREAKER
SIZE
30/30
40/45
30/30
40/45
50/60
30/30
40/45
50/60
80/90
50/60
80/90
40/40
50/50
50/60
80/90
60/60
80/90
100/110
125/150
70/70
80/90
100/125
125/150
35/35
45/50
35/35
45/50
35/40
45/60
60/70
80/90
40/40
50/60
70/70
80/90
20
25
20
25
20
30
35
45
20
30
35
45
15
20
15
20
15
25
30
35
20
25
30
35
* = KW listed is for 240 volts, use table at top of page for 208 or 230 volts.
** = KW listed is for 480 volts, use table at top of page for 460 volts.
*** = KW listed is for 600 volts, use table at top of page for 575 volts.
Unitary Products Group
036-21310-001-A-1001
UNIT DIMENSIONS
HIGH VOLTAGE CONN.
7 " DIA. KNOCKOUT
8
FRONT
COMPRESSOR
SERVICE ACCESS
COMPARTMENT PANEL
HIGH VOLTAGE CONN.
13132" DIA. KNOCKOUT
LOW VOLTAGE CONN.
7 “ DIA. KNOCKOUT
8
“A”
UNIT SIZE
DIMENSION
“A”
018 - 042
33 12
048 - 060
4112
(OVERALL)
2 38
SIDE SUPPLY
AIR OPENING
REFRIGERANT
CONNECTIONS
SIDE RETURN
AIR OPENING
ELECTRICAL/FILTER
SERVICE ACCESS
COMPARTMENT PANEL
17 14
17 14
28 14
49 18
22
22 14
2 12
1
4
(OVERALL)
28 14
HIGH VOLTAGE CONN.
12364" DIA. KNOCKOUT
47 14
(OVERALL)
3 34
112
LOW VOLTAGE
CONN.
7 “ DIA. KNOCKOUT
8
FRONT
UNIT CONDENSATE
CONNECTION 34“ NPTI
(TRAP REQUIRED)
4 12
All dimensions are in inches. They are
subject to change without notice. Certified
dimensions will be provided upon request.
HIGH VOLTAGE
CONN. 1 332“ x 7 8" DIA.
KNOCKOUT
SIDE SUPPLY
AIR OPENING
14 12
43 12 40 12
28 38
26 34
6
14 12
22 12
BACK
CONDENSER
COIL
3 38
SIDE RETURN
AIR OPENING
CONDENSATE
DRAIN 34“ NPTI
BOTTOM SUPPLY
AIR OPENING
2 38
14 12
13 4
3 12
15
15
14
3
15
CLEARANCES
(Minimum)
12"
Front
Back
28 916
3 12
0"
1
24"
2
1
0"
2
36" (For Condenser
Air Discharge)
Below Unit
Above Unit
Unitary Products Group
BOTTOM RETURN
AIR OPENING
13 4
Left Side (Filter Access) 24"
Right Side
4
Units may be installed on combustible floors made from wood or class A,
B or C roof covering material.
Units must be installed outdoors. Overhanging structures or shrubs
should not obstruct condenser air discharge outlet.
15
036-21310-001-A-1001
TYPICAL APPLICATIONS
TYPICAL SLAB ON GROUND INSTALLATION
SUPPLY AIR
DUCT
RETURN AIR
DUCT
FIELD SUPPLIED
DISCONNECT SWITCH
LOCATED TO REAR OF UNIT
TO POWER SUPPLY
CONTROL WIRING
TO INDOOR
THERMOSTAT
TYPICAL ROOF CURB INSTALLATION
FIELD SUPPLIED
DISCONNECT SWITCH
MOUNTED ON UNIT
ROOF CURB
INSTALLATION
REAR DUCT
ROOF CURB
INSTALLATION
BOTTOM DUCT
TO POWER SUPPLY
CONTROL WIRING
TO INDOOR THERMOSTAT
SLAB ON GROUND
INSTALLATION
SUPPLY AIR
DUCT
RETURN AIR
DUCT
UNIT WEIGHTS AND CENTER OF GRAVITY
UNIT
UNIT SHIPPING
SIZE WEIGHT
(lbs.)
UNIT
OPERATING
WEIGHT
(lbs.)
CORNER OPERATING
WEIGHTS
(location, lbs.)
“A”
“B”
“C”
“D”
018
318
313
86
76
73
83
024
324
319
88
77
75
85
030
333
328
85
81
82
86
036
338
333
91
80
78
88
042
347
342
94
83
80
91
048
368
363
92
88
92
97
060
376
371
105
100
84
87
16
ECONOMIZER
(lbs.)
ROOF
CURB
(lbs.)
CENTER OF GRAVITY
FRONT
OF
UNIT
“D”
“C”
“A”
40
8" - 70
14" - 75
“B”
49 18
26
23 12
47 14
Unitary Products Group
036-21310-001-A-1001
ROOF CURB DIMENSIONS
(8" roof curb also available)
1
42 3 4
40 3 4
17 5 8
451/8
17 14
43
3 12
1
4
4
OPENING FOR
RETURN AIR DUCT
22
OPENING FOR
SUPPLY AIR DUCT
1
14
FRONT
WOOD NAILER
INSULATED
PANELS
RECOMMENDED DUCT SIZE
SUPPLY AIR DUCT
17 18" x 2112"
RETURN AIR DUCT
17 18" x 16 3 4"
ROOF CURB APPLICATION
3
4"
x 1" WIDE GASKETING FOR CURB FRAME
AND ALL DUCT SUPPORT SURFACES
1"
UNIT BASE RAIL
COUNTERFLASHING
UNIT BASE
WOOD NAILER
8" MIN. ABOVE FINISHED ROOF
CANT STRIP
14"
INSULATION AND ROOFING MATERIAL
CURB FRAME
INSULATION
ROOF DECK AND ROOFING MATERIAL
Unitary Products Group
17
036-21310-001-A-1001
TYPICAL WIRING DIAGRAM (208/230-1-60 POWER SUPPLY)
OPTIONAL CCH
SEE
DETAIL
"A"
S / P CONFIGURATION
CCH
BLK
L1
BLK
T1
D / P CONFIGURATION
CCH
BLK
BLK
L1
L2
M1 - 2
T2
L2
DETAIL "A"
15695BASH0301
18
Unitary Products Group
036-21310-001-A-1001
TYPICAL WIRING DIAGRAM (208/230-3-60 POWER SUPPLY)
TYPICAL WIRING DIAGRAM NOTES
TYPICAL WIRING DIAGRAM LEGEND
- F9
- 6
(NOT USED)
-
2 - M3
Unitary Products Group
, 230V COIL
19
036-21310-001-A-1001
TYPICAL WIRING DIAGRAM (460-3-60 AND 575-3-60 POWER SUPPLY)
DETAIL “A”
2
20
Unitary Products Group
036-21310-001-A-1001
MECHANICAL SPECIFICATIONS
GENERAL DESCRIPTION
INDOOR (EVAPORATOR) FAN ASSEMBLY
Units shall be factory-assembled, single packaged, Electric
Cooling units, designed for outdoor mounted installation. Units
shall have minimum SEER ratings of 10.0. They shall have built
in, equal size, field convertible duct connections for down
discharge supply/return or horizontal discharge supply/return.
1. Fan shall be direct drive, multi-speed design. Job site
selected (BHP) brake horse power shall not exceed the
motors nameplate horse power rating.
The units shall be factory wired, piped, charged with R-22
refrigerant and factory tested prior to shipment. All unit wiring
shall be both numbered and color coded.
All units shall be manufactured in a facility certified to ISO 9001
standards, and the cooling performance shall be rated in
accordance with DOE and ARI test procedures. Units shall be
certified to UL 1995/CAN/CSA C22.2 No. 236 standards.
2. Fan wheel shall be double-inlet type with forward-curved
blades, dynamically balanced to operate smoothly
throughout the entire range of operation. Airflow design
shall be constant air volume.
3. Bearings shall be sealed and permanently lubricated for
longer life and no maintenance.
4. Fan assembly shall be “Slip Track” (slide-out) design for
easy removal and cleaning.
UNIT CABINET
OUTDOOR (CONDENSER) FAN ASSEMBLY
1. Unit cabinet shall be constructed of G90 galvanized steel,
with exterior surfaces coated with a non-chalking, powered
paint finish, certified at 750 hours salt spray test per ASTMB117 standards.
1. The outdoor fan shall be of the direct-driven propeller type,
discharge air vertically, have aluminum blades riveted to
corrosion resistant steel spider bracket and shall be
statically balanced for smooth operation.
2. The unit top shall be a single piece “Water Shed” design,
with drip edges and no-seam corners to provide optimum
water integrity.
2. The outdoor fan motor shall be totally enclosed with
permanently lubricated bearings and internally protected
against overload conditions.
3. Unit shall have a rigidly mounted condenser coil guard to
provide protection from objects and personnel after
installation.
REFRIGERANT COMPONENTS
4. Indoor blower section shall be insulated with up to 3/4”
thick, aluminum, foil faced insulation, fastened to prevent
insulation from entering the air stream.
5. Cabinet panels shall be “large” size, easily removable for
servicing and maintenance, with built-in lift handles.
6. Unit shall be built on a formed, “Super-Structure” design
base pan, with embossments at critical points to add
strength, rigidity and aid in minimizing sound.
7. Full perimeter base rails shall be provided to assure reliable
transit of equipment, overhead rigging, fork truck access
and proper sealing on roof curb applications. Base rails
shall be removable, when required, to lower unit height.
8. Filters shall be furnished and be accessible through a
removable access door, sealed air tight. (Single phase
models - accessory kit available. Three phase models standard from factory.)
9. Units vertical discharge and return duct configuration shall
be designed to fit between standard 24” O.C. beams
without modification to building structure, duct work and
base unit.
1. Compressors:
A. Shall be fully hermetic reciprocating type, direct drive,
internally protected with internal high-pressure relief
and over temperature protection. The hermetic motor
shall be suction gas cooled and have a voltage range of
+ or - 10% of the unit nameplate voltage.
B. Shall have internal isolation and sound muffling to
minimize vibration and noise, and be externally isolated
on a dedicated, independent mounting.
2. Coils:
A. Evaporator and condenser coils shall have aluminum
plate fins mechanically bonded to seamless internallyenhanced copper tubes with all joints brazed.
B. Evaporator and Condenser coils shall be of the direct
expansion, draw-thru design.
3. Refrigerant Circuit and Refrigerant Safety Components
shall include:
A. Independent fixed-orifice expansion devices.
B. Filter/strainer to eliminate any foreign matter.
10. Condensate pan shall be internally sloped and conform to
ASHARE 62-89 self-draining standards, with 3 4” NPTI
copper, ridged mount connection.
C. Accessible service gage connections on both suction
and discharge lines to charge, evacuate, and measure
refrigerant pressure during any necessary servicing or
troubleshooting, without losing charge and without
disrupting condenser or evaporator air flow.
D. The refrigeration system shall provide at least 10° F of
liquid sub-cooling at design conditions.
Unitary Products Group
21
036-21310-001-A-1001
4. Unit Controls:
A. Unit shall contain a large, low voltage Terminal Board
for easy connection of field low voltage wiring.
B. Controls shall be mounted in a large control box with tiltout, hinged access door, allowing easy access for
trouble shooting and maintenance without affecting the
normal system operation pressures.
C. Unit shall have large, easily removable panels,
covering electrical controls and compressor, allowing
easy access for any necessary maintenance or
servicing.
ELECTRIC HEATING SECTION
1. An electric heating section, with nickel chromium elements,
shall be provided in a range of 5 thru 25 KW, offering two
stages of capacity - 7 KW and above on single phase
heaters, and 20 KW and above on three phase heaters.
2. The heating section shall have a primary limit control(s) and
automatic reset, to prevent the heating element system
from operating at an excessive temperature.
22
3. The heating section assembly shall slide out of the unit for
easy maintenance and service.
4. Units with electric heating sections shall be wired for a
single point power supply, with branch circuit fusing (where
required).
UNIT OPERATING CHARACTERISTICS
1. Unit shall be capable of starting and running at 125° F
outdoor temperature, exceeding maximum load criteria of
ARI Standard 210/240.
2. The compressor, with standard controls, shall be capable of
operation down to 45° F outdoor temperature. Accessory low
ambient kit shall be available for operation to 0° F.
ELECTRICAL REQUIREMENTS
All unit power wiring shall enter unit cabinet at a single factory
provided location and be capable of side or bottom entry, to
minimize roof penetrations and avoid unit field modifications.
Separate side and bottom openings shall be provided for the
control wiring.
Unitary Products Group
036-21310-001-A-1001
Unitary Products Group
23
Unitary Products Group
5005 York Drive, Norman, Oklahoma 73069
Subject to change without notice. Printed in U.S.A.
Copyright  by York International Corporation 2001. All Rights Reserved.
036-21310-001-A-1001
Supersedes: 530.46-TG1Y (500)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
