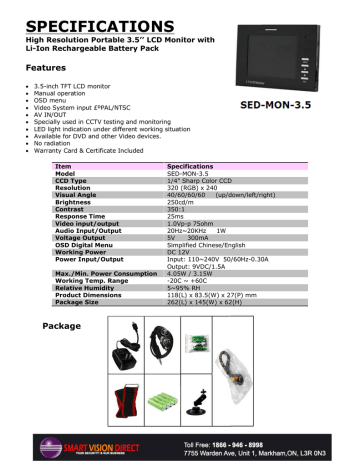

SPECIFICATIONS
High Resolution Portable 3.5’’ LCD Monitor with
Li-Ion Rechargeable Battery Pack
Features










3.5-inch TFT LCD monitor
Manual operation
OSD menu
Video System input £ºPAL/NTSC
AV IN/OUT
Specially used in CCTV testing and monitoring
LED light indication under different working situation
Available for DVD and other Video devices.
No radiation
Warranty Card & Certificate Included
Item
Model
CCD Type
Resolution
Visual Angle
Brightness
Contrast
Response Time
Video input/output
Audio Input/Output
Voltage Output
OSD Digital Menu
Working Power
Power Input/Output
Max./Min. Power Consumption
Working Temp. Range
Relative Humidity
Product Dimensions
Package Size
Package
Specifications
SED-MON-3.5
1/4" Sharp Color CCD
320 (RGB) x 240
40/60/60/60
(up/down/left/right)
250cd/m
350:1
25ms
1.0Vp-p 75ohm
20Hz~20KHz
1W
5V
300mA
Simplified Chinese/English
DC 12V
Input: 110~240V 50/60Hz-0.30A
Output: 9VDC/1.5A
4.05W / 3.15W
-20C ~ +60C
5~95% RH
118(L) x 83.5(W) x 27(P) mm
262(L) x 145(W) x 62(H)
