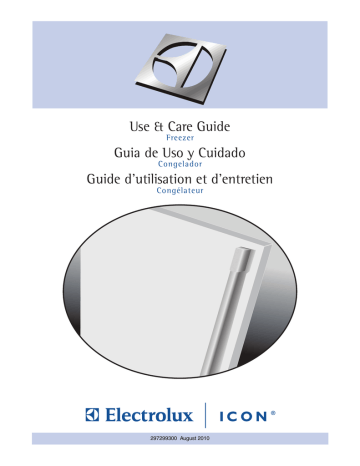

Use & Care Guide
Guia de Uso y Cuidado
Guide d’utilisation et d’entretien
297299300 August 2010
Finding Information
Please Read And Save This Guide
Thank you for choosing Electrolux, our new premium
brand in home appliances. This Use & Care Guide is
part of our commitment to customer satisfaction and
product quality throughout the service life of your new
Keep A Record For Quick
Purchase date
Electrolux model number
Table Of Contents
Electrolux serial number
Finding Information ................................................ 2
Safety ....................................................................... 3
Registering your product with Electrolux enhances
our ability to serve you. You can register online at
www.electroluxappliances.com or by sending your
Product Registration Card in the mail.
Feature Overview.................................................... 5
Installation............................................................... 6
Installing Door Handles ......................................... 7
Leveling ................................................................... 7
Door Removal and Temperature Control .............. 9
Electronic Control................................................. 10
For toll-free telephone support in the U.S. and Canada:
1-877-4ELECTROLUX (1-877-435-3287)
For online support and product information visit :
© 2010 Electrolux Home Products, Inc.
10200 David Taylor Drive
Charlotte, NC 28262
Alarms ................................................................... 11
Sabbath Mode and Air Filter ................................ 12
Theater™ LED Lighting and Water Supply ......... 13
Connecting Water Supply To Freezer .................. 14
Ice Service ............................................................. 15
Storage Components ........................................... 16
Storing Food & Saving Energy ............................ 18
Care & Cleaning .................................................... 18
Warranty Information ........................................... 20
Solutions To Common Problems......................... 21
Installation Checklist............................................ 22
Important Safety Instructions
Safety Precautions
Do not attempt to install or operate your unit until
you have read the safety precautions in this manual.
Safety items throughout this manual are labeled with a
Danger, Warning, or Caution based on the risk type.
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards. Obey
all safety messages that follow this symbol to avoid
possible injury or death.
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
Indicates installation, operation, or maintenance
information which is important but not hazard-related.
General Safety
Please read all safety instructions before using
your new freezer.
Do not store or use gasoline or other flammable
liquids near this or any other appliance. Read
product labels for warnings regarding flammability
and other hazards.
Do not operate the freezer in the presence of
explosive fumes.
Avoid contact with any moving parts of the
automatic ice maker.
Remove all staples from the carton to avoid injury.
Staples can also damage finishes if they come in
contact with other appliances or furniture.
Child Safety
Packing Materials:
• Packing cartons covered with rugs, bedspreads,
plastic sheets, or stretch wrap may become
airtight chambers and can quickly cause
• Destroy or recycle the product’s carton, plastic
bags, and any other exterior wrapping material
immediately after the freezer is unpacked.
Children should never play with these items.
Child Entrapment and Suffocation
These problems are not limited to the past.
Whether junked, abandoned, or temporarily stored
(even for a few hours), unattended refrigerators
and freezers are dangerous. Please take the
precautions listed below.
Proper Disposal of Refrigerators/Freezers
We strongly encourage responsible appliance
recycling/disposal methods. Check with your utility
company or visit www.recyclemyoldfridge.com for
more information on recycling your old refrigerator.
Before you recycle or dispose of your old refrigerator/
• Remove the doors.
• Leave the shelves and baskets in place so
children may not easily climb inside.
• Have refrigerant and compressor oil removed by a
qualified service technician.
Electrical Information
You must follow these guidelines to ensure
that your refrigerator’s safety mechanisms are
operating correctly.
The freezer must be plugged into its own
dedicated 115 Volt, 60 Hz, AC-only non-GFCI
electric outlet. The power cord of the appliance
is equipped with a three-prong grounding plug for
your protection against electrical shock hazards. It
must be plugged directly into a properly grounded
three-prong receptacle. The receptacle must
be installed in accordance with local codes and
ordinances. Consult a qualified electrician. Do
not use an extension cord or adapter plug.
If the power cord is damaged, it should be
replaced by the manufacturer, service technician,
or a qualified person.
Never unplug the freezer by pulling on the power
cord. Always grip the plug firmly and pull straight
out from the receptacle to prevent damaging the
power cord.
To avoid electrical shock, unplug the freezer
before cleaning and before replacing a light bulb
or LED light.
Performance may be affected if the voltage varies
by 10% or more. Operating the freezer with
insufficient power can damage the compressor.
Such damage is not covered under your warranty.
Do not plug the unit into an outlet controlled by a
wall switch or pull cord to prevent the freezer from
being turned off accidentally.
To disconnect power to the unit, unplug the unit or
switch the breaker that supplies power to the unit to
the off position.
Feature Overview
Understanding Features and Terms
Your Electrolux freezer is designed for optimal convenience and storage flexibility. The illustration below is
provided to assist you with familiarizing yourself with product features and terminology.
Features may vary according to model.
Ice Bin
Ice Maker
Custom Set™
Air Filter
Two Liter Bins
Custom Design
Glass Shelves
LED Ramp-up
Mid Level
Soft Freeze Bin
w/tall Bottle
LED Ramp-up
Tall Basket
Bottom Hinge
Toe Grille
Required Tools
You will need the following tools:
This Use & Care Guide provides general installation
and operating instructions for your model. We
recommend using a service or kitchen contracting
professional to install your freezer. Use the freezer
only as instructed in this Use & Care Guide. Before
starting the freezer, follow these important first
Choose a place that is near a grounded, nonGFCI, electrical outlet. Do Not use an extension
cord or an adapter plug.
If possible, place the freezer out of direct sunlight
and away from the range, dishwasher, or other
heat sources.
The freezer must be installed on a floor that is
level and strong enough to support a fully loaded
Consider water supply availability for models
equipped with an automatic ice maker.
DO NOT install the freezer where the temperature
will drop below 40°F (13°C) or rise above 110°F
(43°C). The compressor will not be able to
maintain proper temperatures inside the freezer.
DO NOT block the toe grille on the lower front of
your freezer. Sufficient air circulation is essential
for the proper operation of your freezer.
The exterior walls of the freezer may become quite
warm as the compressor works to transfer heat from
the inside. Temperatures as much as 30ºF warmer
than room temperature can be expected.
Allow the following clearances for ease of
installation, proper air circulation, and plumbing
and electrical connections:
Back & Top
3/8 inch (9.5 mm)
1 inch (25.4 mm)
Allow for trim kit if it to be installed with the unit.
If your freezer is placed with the door hinge against
a wall, you may have to allow additional space so the
door can be opened wider.
The freezer doors are designed to shut by
themselves within a 20 degree opening.
Installing Door Handle
Door Handle Mounting
1. Remove handles from carton and any other
protective packaging.
2. Position fresh food handle end caps over upper
and lower preinstalled shoulder bolts (A) that are
fastened into door.
3. While holding handle firmly against door, fasten
upper and lower Allen set screws (B) with supplied
Allen wrench until there is no gap between handle
and door.
All set screws should be tightened so the screw is
below the surface of the handle. The handles should
be drawn tight to freezer and refrigerator doors with
no gaps. Opening the opposite door while tightening
the Allen screw makes installation easier.
The door handle may loosen over time or if it was
installed improperly. If this happens, tighten the set
screws on the handles.
Toe Grille Removal
To remove the toe grille, use a Phillips head
screwdriver and remove the two screws holding the
toe grille to the cabinet. Then pull the toe grille away
from the unit.
The freezer must have all bottom corners resting
firmly on a solid floor.
The floor must be strong enough to support a fully
loaded freezer.
It is VERY IMPORTANT for your freezer to be
level in order to function properly. If the freezer
is not leveled during installation, the door may be
misaligned and not close or seal properly, causing
cooling, frost or moisture problems.
Leveling instructions continued on next page.
Toe Grille
To Level The Freezer:
While unit is lying on its back for wood skid removal,
note the location of the four (4) leg levelers installed at
each corner. These leg levelers will be used to level
the freezer and to adjust the height. Use a carpenter’s
level to level the freezer from front to back and side to
Make sure to allow for the Trim and Leveling Kit if it is
to be installed with the unit.
Slide second unit into place leaving a minimum
gap of 3/16” between units for door swing
This last step may require at least one extraction
of the second unit to properly align units in a
“built-in” application.
Leveling Door with Adjustable Hinge
Use the lower hinge adjustment to fine tune the door
height and for final cabinet spacing. Use a 7/16 inch
socket or wrench to adjust the screw at the bottom of
the lower hinge.
Adjusting Doors For Matching Tall
Refrigerator / Tall Freezer Pair
The doors may also be adjusted side to side with the
slotted hinge for aligning the doors parallel to each
other. Loosen the two bolts with a 3/8” wrench and
one screw with a Phillips screwdriver. Shift the doors
until parallel, then retighten the screws securely. (See
illustration below.)
Lower Hinge Adjustment For Leveling The
Doors Of The Matching Tall Refrigerator /
Tall Freezer Pair
To level the doors using the adjustable lower hinge
(some models):
Level Front to Back
& Side to Side
Leveling Instructions For Matching Tall
Refrigerator / Tall Freezer Pair:
Level door of first unit using all four levelers and
slide unit into place. Recheck for levelness and
adjust if necessary.
Measure distance from floor to bottom of door on
first unit. Adjust and level second unit so door
height matches.
Leg Level Adjustments:
One full turn of all four leg levelers will raise door
1. If the refrigerator door is lower than the freezer
door, raise the refrigerator door by turning the
adjustment screw clockwise using a 7/16 inch
socket wrench. (See illustration.)
2. If the freezer door is lower than the refrigerator
door, raise the freezer door by turning the
adjustment screw clockwise using a 7/16 inch
socket wrench. (See illustration.)
Door Removal and Temperature Control
Door Removal
If door must be removed:
Doors are heavy. It is recommended to have two people to remove or replace the door assembly from
the cabinet.
Unplug the unit or switch the breaker that supplies
power to the unit to the off position.
Remove the plastic top hinge cover.
Hold the door in place while removing the top
hinge from the cabinet.
Remove the two 3/8” hex head bolts from the top
hinge with a 3/8” wrench or socket.
Lift the door upwards and pull up and away from
the cabinet until free of the bottom hinge pin
mounted on the front of the cabinet.
To replace the door, reverse the above procedures
and securely tighten all screws to prevent hinge
Hinge Cover
Hinge Bolts (2)
Hinge Plate
Setting The Custom Set™ Electronic Control
For safe food storage, allow four (4) hours for freezer to cool down completely. The freezer will run continuously
for the first several hours.
The Custom Set™ Electronic Control is located inside the freezer. Temperature is factory preset to provide
satisfactory food storage temperatures. However, the temperature control is adjustable to provide a range of
temperatures for your personal satisfaction.
To adjust the temperature setting, press the UP (+) key for warmer temperature and DOWN (-) key for colder
temperature on the control panel. Allow several hours for the temperature to stabilize between adjustments.
The freezer can be adjusted between -10°F (-23°C) and 10°F (-12°C). By pressing the TEMP MODE key, the
temperature display will toggle between °F to °C.
To turn the freezer OFF, press the UP (+) key until the warmest temperature setting of 10Fº (-12Cº) shows in the
display. Then press the UP (+) key three (3) times within three (3) seconds to turn the freezer OFF. The display
will then scroll “OFF” across the display. To turn the unit back ON, press the DOWN key three (3) times within
three (3) seconds. The control will then display “10Fº (-12Cº)” and may be adjusted to the desired temperature.
10 Electronic Control
Adjust UP Key
Adjust DOWN Key
Air Filter Reset Key
Door Ajar
Temp Mode Key
Power Fail Indicator
Alarm Off Key
Replace Air Filter
Control Lock Key
Custom Set™ Electronic
Control Features
Replace Air Filter
When the “REPLACE AIR FILTER” LED is illuminated
yellow, the air filter needs to be replaced. The control
will signal for air filter replacement after 3600 hours
of refrigerator operation. After replacing the air filter,
reset the air filter timer by pressing the AIR FILTER
key for 3 seconds. The REPLACE AIR FILTER
LED will be illuminated green for three (3) seconds,
confirming a timer reset.
Resetting Air Filter Alarm
Control Lock
To disable the keypads on the control, begin by
pressing the CONTROL LOCK key for three seconds
until “LO” is displayed for 1 second. With the control
locked, when keys are pressed on the control panel,
“LO” will be displayed. To unlock the control, press the
CONTROL LOCK key for three seconds. The display
will show “UL” for one second.
Setting Control Lock
Power Fail
The POWER FAIL indicator light informs you that due
to a power failure the cabinet temperature exceeded
23ºF (-5ºC). If the power failure lasted more than one
(1) hour the display alternates between showing the
power failure duration (Hours and DURATION LED
illuminate in the display) and the cabinet temperature
(ºF or ºC illuminates) every ½ second. This safety
feature will aid in determining what food spoilage
action to take.
The Power Fail indicator light and duration display can
be turned off by pressing the Alarm Off Key.
36 °F
Power Fail Indicator
Alarms 11
There are four possible conditions that will cause the alarm tone to sound.
High Temp Alarm
If the temperature inside the cabinet has exceeded 23ºF (-5ºC) for 1 hour or more of normal operation, the
HI TEMP LED will illuminate, the HIGH TEMP Alarm will sound and the cabinet temperature is shown in the
display. The LED and temperature alarm will remain active until the cabinet temperature is below 23ºF (-5ºC).
The audible alarm can be turned off by pressing ALARM OFF key.
Turning Alarm Off
Door Ajar Alarm
This alarm will sound to alert you that the door has been open for 5 minutes or more. The DOOR AJAR LED
will illuminate and the audible alarm will sound until the door is closed.
The audible alarm can be turned off by pressing the ALARM OFF key or by closing the door. If the door is ajar
for 15 minutes, the interior light will turn off.
Temp Sensing Error Alarm
The sensor alarm signals you that a problem exists with a temperature sensor. The audible alarm will sound
after one (1) hour and the display will alternate between “E8” or “E9” and -10°F (-23°C) at ½ second intervals.
The control will then enter a mode that runs the freezer in a manner that maintains the factory set cabinet
The audible alarm can be turned off by pressing the ALARM OFF key.
Stuck Key Alarm
The stuck key alarm will sound if the control reads a keypress for longer than 30 seconds. The audible alarm
will sound and will be limited to one minute and will stop automatically. The display will alternate between “E7”
and -10°F (-23°C) at ½ second intervals and the control will run the freezer continuously until the condition is
The audible alarm can be turned off by pressing the ALARM OFF key.
12 Sabbath Mode and Air Filter
Sabbath Mode
The Sabbath Mode is a feature that disables portions of the freezer and its controls in accordance with the
observance of the weekly Sabbath and religious holidays within the Orthodox Jewish community.
To initiate or cancel Sabbath Mode, press the CONTROL LOCK and TEMP MODE keys at the same time and
hold for three (3) seconds. The display will now show “Sb” and the confirmation tone will sound. When AC
power is cycled while the control is in Sabbath mode, the control enters into Sabbath mode automatically. “Sb”
will again be displayed. While in Sabbath Mode, the display will show “Sb”.
In the interest of food safety, only the HIGH TEMP Alarm remains active and takes precedence over other
Sabbath Mode features.
For ice making, the wire signal arm of the ice maker must be lifted to its OFF position and ice cubes be made
using a standard ice tray.
For further assistance, guidelines for proper usage and a complete list of models with the Sabbath
feature, please visit the web at http:\\www.star-k.org.
Setting Sabbath Mode
Pure Advantage™ Air Filter
Your new Pure Advantage air filter is located inside one of the 2 Liter Door Bins. The air filter cover is located on
the upper right side of the control box. In general, you should change the air filter with Part Number “EAFCBF”
every six months to ensure optimal filtering of freezer odors. The replacement air filter can be purchased
on the Electrolux ICON website (http://www.electroluxicon.com) or call toll free in the U.S. and Canada:
1-877-4ELECTROLUX (1-877-435-3287). Your electronic control is equipped with a Change Filter Indicator to
remind you to change your filter. See page 10.
To Install Or Replace The Air Filter
Pull down on the front of the Pure Advantage™ air filter cover. This releases the hinged bottom cover to
drop open.
Remove the old filter and discard it.
Unpackage the new filter and place it inside the hinged bottom cover of the housing.
Push the hinged bottom cover upward until the tab snaps into closed position.
press &
air filter
Air Filter
Open Air Filter Cover
Remove Air Filter
Theater™ Lighting and Water Supply 13
Theater™ LED Lighting
The interior cabinet lighting features LED lights
that gradually ramp up in intensity after the door is
Unplug the unit or switch the breaker that
supplies power to the unit to the off position
before changing an LED light.
To replace an LED:
1. Unplug the electrical cord or switch OFF the
power supply breaker.
2. Push down on the LED cover and then pull away
from the cabinet interior.
3. From the inside of the LED cover, remove the
wire harness connector by pressing on the latch
with a small flat bladed screwdriver. Pull the wire
harness connector out of the LED.
4. Replace with a new LED and install in the reverse
Water Supply
To avoid electric shock, which can cause death
or severe personal injury, disconnect the freezer
from electrical power before connecting a water
supply line to the freezer.
To Avoid Property Damage:
• Copper or Stainless Steel braided tubing is
recommended for the water supply line. Water supply
tubing made of ¼ inch plastic is not recommended to
be used. Plastic tubing greatly increases the potential
for water leaks, and the manufacturer will not be
responsible for any damage if plastic tubing is used
for the supply line.
• DO NOT install water supply tubing in areas where
temperatures fall below freezing.
• Chemicals from a malfunctioning softener can
damage the ice maker. If the ice maker is connected
to soft water, ensure that the softener is maintained
and working properly.
Ensure that your water supply line connections
comply with all local plumbing codes.
Before Installing The Water Supply Line, You Will
Push on
Underside of
Connector to
Release Latch
Remove Wire
Basic Tools: adjustable wrench, flat-blade
screwdriver, and PhillipsTM screwdriver
Access to a household cold water line with water
pressure between 30 and 100 psi.
A water supply line made of ¼ inch (6.4 mm) OD,
copper or stainless steel tubing. To determine the
length of tubing needed, measure the distance
from the ice maker inlet valve at the back of the
freezer to your cold water pipe. Then add
approximately 7 feet (2.1 meters), so the freezer
can be moved out for cleaning (as shown).
A shutoff valve to connect the water supply line to
your household water system. DO NOT use a
self-piercing type shutoff valve.
A compression nut and ferrule (sleeve) for
connecting a copper water supply line to the ice
maker inlet valve.
14 Connecting Water Supply To Freezer
Check with your local building authority for
recommendations on water lines and associated
materials prior to installing your new freezer.
Depending on your local/state building codes,
Electrolux recommends for homes with existing
valves its Smart Choice® water line kit 5305513409
(with a 6 ft. Stainless Steel Water Line) and for homes
without an existing valve, Electrolux recommends its
Smart Choice® water line kit 5305510264 (with a 20
ft. Copper Water Line with selftapping saddle valve).
Please refer to www.electroluxicon.com for more
Plastic Water Tubing
to Ice Maker
Fill Tube
Include enough tubing
in loop to allow moving
freezer out for cleaning.
Water Valve
Valve Inlet
Water Valve
To Connect Water Supply Line To Ice Maker Inlet
1. Disconnect refrigerator from electric power source.
2. Place end of water supply line into sink or bucket.
Turn ON water supply and flush supply line until
water is clear. Turn OFF water supply at shutoff
3. Remove plastic cap from water valve inlet and
discard cap.
4. If you use copper tubing - Slide brass
compression nut, then ferrule (sleeve) onto water
supply line. Push water supply line into water
valve inlet as far as it will go (¼ inch / 6.4 mm).
Slide ferrule (sleeve) into valve inlet and finger
tighten compression nut onto valve. Tighten
another half turn with a wrench; DO NOT over
tighten. See Figure A.
If you use stainless steel tubing - The nut and
ferrule are already assembled on the tubing. Slide
compression nut onto valve inlet and finger tighten
compression nut onto valve. Tighten another half
turn with a wrench; DO NOT over tighten. See
Figure B.
5. With steel clamp and screw, secure water supply
line (copper tubing only) to rear panel of freezer
as shown.
6. Coil excess water supply line (copper tubing only),
about 2½ turns, behind freezer as shown and
arrange coils so they do not vibrate or wear
against any other surface.
7. Turn ON water supply at shutoff valve and tighten
any connections that leak.
8. Reconnect freezer to electrical power source.
9. To turn ice maker on, lower wire signal arm (side
mounted) or set the ice maker’s On/Off power
switch to the “I” position (rear mounted).
Copper Water Line
From Household Water Supply
Figure A. Copper Water Line Connection
Plastic Water Tubing
to Ice Maker
Fill Tube
Water Valve
Valve Inlet
Water Valve
6 ft. Stainless Steel Water Line
From Household Water Supply
Figure B. Stainless Steel Water Line Connection
Ice Service 15
Ice Service
If your freezer has an automatic icemaker, it will
provide a sufficient supply of ice for normal use.
During the initial startup of your freezer, however,
no ice will be produced during the first 24 hours of
operation. Automatic ice makers are also optional
accessories that may be installed in some models at
any time. Call your local dealer for information.
Turning Your Ice Maker On
After the plumbing connections have been completed,
the water supply valve must be opened. Place the ice
container under the ice maker, pushing it as far back
as possible. Lower the wire signal arm to its “down” or
ON position. New plumbing connections may cause
the first production of ice cubes to be discolored or
have an odd flavor. These first cubes should be
discarded until the cubes produced are free of
discoloration and taste.
Leveling Bracket
Turning Your Ice Maker Off
To stop the ice maker, lift the wire signal arm until
it clicks and locks in the “up” or OFF position. The
ice maker also turns off automatically when the ice
container is full. If your model has an adjustable
freezer shelf, place the shelf in the lower position,
so that the wire signal arm will hit the ice when the
container is full.
Ice Maker Tips
If the ice maker will be turned off for a long period
of time, turn the water supply valve to the closed
Ice cubes stored too long may develop an odd
flavor. Empty the ice container and ensure that
the wire signal arm is in its “down” or ON position.
The ice maker will then produce more ice.
Occasionally shake the ice container to keep ice
Keep the wire signal arm in its “up” or OFF
position until the freezer is connected to the water
supply or whenever the water supply is turned off.
The following sounds are normal when the ice
maker is operating:
• Motor running
• Ice loosening from tray
• Ice dropping into ice container
• Running water
• Water valve opening or closing
1” or less
Your ice maker is shipped with the wire signal arm in
the ON position. To ensure proper function of your
ice maker, hook up water supply immediately or turn
ice maker OFF by lifting the wire signal arm until it
clicks and locks in the UP position.
Check the leveling bracket on the ice maker to ensure
the ice maker is level. If the gap between the freezer
wall and the ice maker is the same at top and bottom,
then ice maker is level. If the ice maker is not level,
loosen the screw and slide the bracket to the correct
position to make it level. Retighten the screw. You
will need a 1/4 inch socket wrench for this task.
• DO NOT place the ice container in dishwasher.
• Wash the ice container in warm water with mild
detergent. Rinse well and dry.
• Stop the ice maker when cleaning the freezer
and during vacations.
16 Storage Components
Custom Design™ Glass Shelving
Multi-position adjustable slide out glass shelves
can be moved to any position for larger or smaller
packages. The shipping spacers that stabilize the
shelves for shipping may be removed and discarded.
To Adjust The Shelves
Lift front edge up.
Pull shelf out.
Replace the shelf by inserting the hooks at rear of
the shelf into the wall bracket. Lower the shelf into
the desired slots and lock into position.
Mid Level Baskets
This model is equipped two mid-level baskets for
convenient storage of small items.
Tall Lower Basket
The tall lower basket is ideal for large items or items
that do not store well on the shelves.
To remove the Mid Level and Tall Lower
Pull up on the front of the basket to release the basket
from the retainers on the interior sides of the freezer.
Insert Into
Storage Components 17
Adjustable Door Bins
This model is equipped with adjustable door bins that
can be moved to suit individual needs.
To Move Door Bins:
Lift the bin straight up.
Remove the bin.
Place the bin in desired position.
Lower the bin onto supports until locked in place.
Soft Freeze Tilt Out Bin
The soft freeze tilt out bin is designed to be warmer
than the freezer compartment. It is ideal for keeping
ice cream and frozen yogurt ready to serve.
Condiment Shelf
The condiment shelf is designed to hold small items to
help keep your freezer organized.
18 Storing Food & Saving Energy
Energy Saving Ideas
Vacation And Moving Tips
Short Vacations:
Locate the freezer in the coolest part of the room,
out of direct sunlight, and away from heating ducts
or registers. Do not place the freezer next to
heat-producing appliances such as a range, oven,
or dishwasher. If this is not possible, a section of
cabinetry or an added layer of insulation between
the two appliances will help the freezer operate
more efficiently.
Level freezer so that the door closes tightly.
CONTROL” section for the suggested temperature
control settings.
Do not overcrowd the freezer or block cold air
vents. Doing so causes the freezer to run longer
and use more energy.
Cover foods and wipe containers dry before
placing them in the freezer. This cuts down on
moisture build-up inside the unit.
Organize the freezer to reduce door openings.
Remove as many items as needed at one time
and close the door as soon as possible.
Leave the freezer operating during vacations of
less than three weeks.
Long Vacations:
If the freezer will not be used for several months:
• Remove all food and unplug the power cord.
• Clean and dry the interior thoroughly.
• Leave the freezer door open slightly, blocking
it open if necessary, to prevent odor and mold
Moving: When moving the freezer, follow
these guidelines to prevent damage:
Disconnect the power cord plug from the wall
Remove foods, then defrost, and clean the freezer.
Secure all loose items such as base panel,
baskets, and shelves by taping them securely in
place to prevent damage.
In the moving vehicle, secure freezer in an upright
position to prevent movement. Also protect outside
of freezer with a blanket, or similar item.
Care & Cleaning
Keep your freezer clean to prevent odor build-up.
Wipe up any spills immediately and clean at least
twice a year. Never use metallic scouring pads,
brushes, abrasive cleaners or strong alkaline solutions
on any surface. Do not wash any removable parts in a
dishwasher. Always unplug the electrical power.
When moving the freezer, pull straight out.
Do not shift the freezer, from side to side as
this may tear or gouge the floor covering.
Damp objects stick to cold metal surfaces.
Do not touch interior metal surfaces with wet
or damp hands.
Care & Cleaning 19
Turning the freezer temperature control to “OFF” (See Page 9) turns off the compressor, but does
not disconnect electrical power to the LED lights or other electrical components. Unplug the unit or
switch the breaker that supplies power to the unit to the off position.
Do not use razor blades or other sharp instruments which can scratch the appliance surface when
removing adhesive labels. Any glue left from tape or labels can be removed with a mixture of warm
water and mild detergent, or, touch the glue residue with the sticky side of tape you have already
removed. Do not remove the serial plate.
Do Not use abrasive cleaners such as window sprays, scouring cleansers, flammable fluids,
cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products
on plastic parts, interior doors, gaskets, or cabinet liners. Do not use paper towels, scouring pads
or other abrasive materials.
Never use metallic scouring pads, brushes, abrasive cleaners or strong alkaline solutions on any
Do not wash any removable parts in a dishwasher.
Always unplug the electrical power.
Cleaning Agents
Tips and Precautions
Interior & Door
• Soap and water
• Baking soda and water
Use 2 tablespoons of baking soda in 1 quart of warm water.
Be sure to wring excess water out of sponge or cloth before
cleaning around controls, light bulb or any electrical part.
Door Gaskets
• Soap and water
Wipe gaskets with a clean soft cloth.
Drawers & Bins
• Soap and water
Use a soft cloth to clean drawer runners and tracks.
Do not wash any removable items (bins, drawers, etc.) in
Glass Shelves
• Soap and water
• Glass cleaner
• Mild liquid sprays
Allow glass to warm to room temperature before immersing in
warm water.
Exterior &
• Soap and water
• Non Abrasive Glass
Do not use commercial household cleaners, ammonia, or alcohol
to clean handles.
Use a soft cloth to clean smooth handles.
Do not use a dry cloth to clean smooth doors.
• Soap and water
• Ammonia
• Stainless Steel
Exterior &
(Stainless Steel
Models Only)
Never use CHLORIDE to clean stainless steel.
Clean stainless steel front and handles with non-abrasive soapy
water and a dishcloth. Rinse with clean water and a soft cloth.
Wipe stubborn spots with an ammonia-soaked paper towel,
and rinse. Use a non-abrasive stainless steel cleaner. These
cleaners can be purchased at
most home improvement or major department stores. Always
follow manufacturer’s instruction.
NOTE: Always, clean, wipe and dry with grain to prevent crossgrain scratching.
Wash the rest of the cabinet with warm water and mild liquid
detergent. Rinse well, and wipe dry with a clean soft cloth.
20 Warranty Information
Solutions To Common Problems 21
Troubleshooting Guide
Before calling for service, review this list. It may save you time and expense. This list includes common
occurrences that are not the result of defective workmanship or materials in this Freezer.
Freezer Operation
Freezer does not run.
Freezer runs too much
or too long.
* Freezer is plugged into a circuit that
has a ground fault interrupt.
* Temperature control set to “OFF”.
* Freezer may not be plugged in, or
plug may be loose.
* House fuse blown or tripped circuit
* Power outage.
* Room or outside weather is hot.
* Freezer has recently been
disconnected for a period of time.
* Large amount of warm or hot food
have been stored recently.
* Door is opened too frequently or kept
open too long.
* Freezer door may be slightly open.
* Temperature control is set too low.
* Freezer gaskets are dirty, worn,
cracked or poorly fitted.
Interior Freezer
* Temperature control is set too low.
temperature is too cold.
* Use another circuit. If you are unsure about the outlet, have
it checked by a certified technician.
* Ensure plug is tightly pushed into outlet.
* Check/replace fuse with a 15 amp time delay fuse. Reset
circuit breaker.
* Check house lights. Call local Electric Company.
* It’s normal for the Freezer to work harder under these
* It takes 24 hours for the Freezer to cool down completely.
* Warm food will cause Freezer to run more until the
desired temperature is reached.
* Warm air entering the Freezer causes it to run more. Open
the door less often.
* Set control to a warmer setting. Allow several hours for the
temperature to stabilize.
* Clean Freezer gaskets (See Care and Cleaning Chart)
* Worn, cracked or poorly fitting gaskets should be replaced.
* Set control to a warmer setting. Allow several hours for the
temperature to stabilize.
* Temperature control is set too
* Door is opened too frequently or kept
open too long.
* Freezer door may be slightly open.
* Large amount of warm or hot food
have been stored recently.
* Freezer has recently been
disconnected for a period of time.
* The external Freezer walls can be
as much as 30ºF warmer than room
* Control has been locked.
* Set control to a colder setting. Allow several hours for the
temperature to stabilize.
* Warm air entering the Freezer causes it to run more. Open
the door less often.
* Wait until the Freezer has had a chance to reach its
selected temperature.
* Freezer requires 24 hours to cool down completely.
“E7”, “E8”, “E9” is
displayed on control.
* The control has registered an error
* For toll-free telephone support in the U.S. and Canada:
1-877-4ELECTROLUX (1-877-435-3287)
“Sb” is displayed on
* The control is in Sabbath Mode.
* Press the CONTROL LOCK and TEMP MODE keys to exit
Sabbath Mode.
Louder sound levels
whenever Freezer is
* Modern Freezers have increased
storage capacity and more stable
temperatures. They require heavy
duty compressors.
* This is normal. When the surrounding noise level is low,
you might hear the compressor running while it cools the
Louder sound levels
when compressor
comes on.
* Freezer operates at higher
pressures during the start of the
ON cycle.
* This is normal. Sound will level off or disappear as Freezer
continues to run.
Interior Freezer
temperature is too
Freezer external
surface temperature is
“LO” is displayed on
*This is normal while the compressor works to transfer heat
from inside the Freezer cabinet.
* Press CONTROL LOCK key for three seconds to unlock.
Sound And Noise
22 Solutions To Common Problems
Sound And Noise (Continued)
Popping or cracking
sound when
compressor comes on.
* Metal parts undergo expansion and
contraction, as in hot water pipes.
* This is normal. Sound will level off or disappear as
Freezer continues to run.
Bubbling or gurgling
* Freezer (used to cool refrigerator is
circulating throughout the system.
* This is normal.
Vibrating or rattling
* Freezer is not level. It rocks on the
floor when it is moved slightly.
* Level the Freezer. Refer to “LEVELING” section.
* Floor is uneven or weak.
* Ensure floor can adequately support Freezer. Level Freezer
by putting wood or metal shims under part of the Freezer.
* Freezer is touching the wall.
* Re-level Freezer or move Freezer slightly. Refer to
“LEVELING” section.
Water / Moisture / Frost Inside Freezer
Moisture forms on
Freezer walls.
* This is normal.
* Weather is hot and humid, which
increases internal rate of frost buildup.
* Door is slightly open.
* Door is kept open too long or is
opened too frequently.
* Open the door less often.
* Interior needs to be cleaned.
* Clean interior with sponge, warm water, and baking soda.
Replace air filter.
* Cover the food tightly.
Odor In Freezer
Odors in Freezer.
* Foods stored in Freezer have strong
Door Problems
Door will not close.
* Freezer is not level. It rocks on the
floor when it is moved slightly.
* This condition can force the cabinet out of square and
misalign the door. Refer to “LEVELING” section.
* Floor is uneven or weak.
* Ensure floor can adequately support Freezer. Level the
Freezer by putting wood or metal shims under part of the
* The LED or light bulb is
burned out.
* No electric current is reaching the
* Control is in Sabbath mode (Sb is
displayed on control)
* Follow directions under “INTERIOR LIGHTING” in the
Lighting Problems
Light is not on.
* Depress TEMP MODE key and CONTROL LOCK key for 3
Installation Checklist
 Handles are secure and tight
 Door seals completely to cabinet on all sides
 Freezer door is level across the top
 Freezer is level, side-to-side and front-toback
 Toe grille is properly attached to freezer
 Cabinet is setting solid on all corners
Electrical Power
 House power turned on
 Freezer plugged in
Air Filter
 Air Filter is installed
Final Checks
Shipping material removed
Freezer temperatures set
Water turned on
Registration card sent in
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
