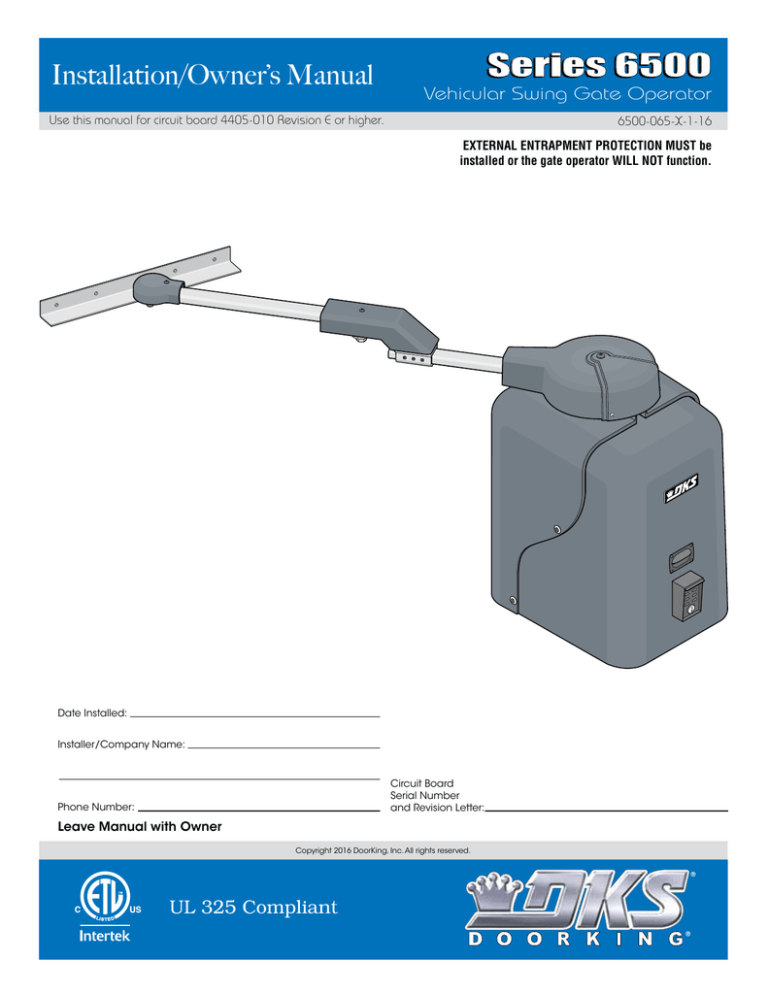

Installation/Owner’s Manual
Series 6500
Vehicular Swing Gate Operator
Use this manual for circuit board 4405-010 Revision E or higher.
6500-065-X-1-16
EXTERNAL ENTRAPMENT PROTECTION MUST be
installed or the gate operator WILL NOT function.
Date Installed:
Installer/Company Name:
Circuit Board
Serial Number
and Revision Letter:
Phone Number:
Leave Manual with Owner
Copyright 2016 DoorKing, Inc. All rights reserved.
UL 325 Compliant
Copyright 2009 DoorKing, Inc. All rights reserved.
QUICK GUIDE: DIP-Switches
See page 19 for more information about DIP-switches.
The two DIP-switches located on the circuit board are used to program the operator to operate in various modes and to turn on
or off various operating features. Whenever a switch setting is changed, power to the operator must be turned OFF and then
turned back on for the new setting to take affect. Check and review ALL switch settings prior to applying power to the operator.
Switch
Function
Primary 6500
Changes Gate
Opening
Direction
1
2
Setting
Opens
Clockwise
Secondary 6500
Changes Gate
Opening
Direction
3
Exit Loop Port
Output
Full Open Input
4
Auto-Close
Timer
Reverses Gate
5
6
7 and 8
External Shadow
Loop Detector
Single Operator
Dual Operators
Circuit
Board
Relay
SW 1 (Top 8 Switches)
Description
ON
OFF
Opens
Counter-Clockwise
Same as above, for secondary 6500 ONLY.
OFF The output wired to terminal #4 becomes the output from the exit loop detector
plugged into the EXIT Loop port.
ON Normal Setting. Terminal #4 is a normal full open input.
OFF Auto-close timer is OFF. Manual input required to close gate.
ON Normal Setting. Auto-close timer is ON. Adjustable from 1-23 seconds.
OFF Normal Setting. Input to terminal #6 and reverse loop will stop and reverse gate to
the full open position during the close cycle ONLY.
ON Input to terminal #6 becomes a SHADOW loop input. It is only active when the gate
is fully opened. (Shadow loop setting when external loop detector is used)
OFF Normal Setting. Switch must be OFF for single operator.
ON Switch must be ON when primary/secondary (dual) gates are used.
7-OFF 8-OFF Normal Setting. Relay activates when gate is at open limit.
(Shadow loop setting when DoorKing Plug-In loop detector is used)
7-OFF 8-ON Relay activates when gate is not closed.
7-ON 8-OFF Relay activates when gate is opening and open.
7-ON 8-ON Relay activates during opening and closing cycle.
See next page for ALL 12 switch definitions and typical settings.
Switch
Function
Setting
SW 2 (Bottom 4 Switches)
Description
1
Gate Overlap
OFF Primary and secondary operators start at the same time (Normal setting for single
gate operator).
ON The secondary operator will start 1.5 sec. before primary operator during open
cycle and the primary operator will start 1.5 sec. before the secondary operator
during the close cycle (Normal setting for bi-parting gate operators).
2
Magnetic lock
OFF Normal Setting. Magnetic lock is not used.
ON Magnetic lock is used and connected to terminals 9 and 12. See page 24 for wiring.
3
4
2 Quick Guide - 1
OFF Normal Setting. Switch 3 MUST be turned OFF for Model 6500 operator.
OFF Normal Setting. Switch 4 MUST be turned OFF for Model 6500 operator.
6500-065-X-1-16
QUICK GUIDE: Terminal Descriptions
See pages 24 and 25 for
terminal wiring.
Open N.O.
Close N.O.
Stop N.C.
Common
Jumper on top 2 pins
when NOT using
4-pin terminal.
• When gate is closed, input will open gate.
• When using a 3-button control
station AND a interlock device
together, #3 terminal (N.C.) must
be wired in series.
• When gate is open and auto close timer SW 1,
switch 4 is turned ON, input will re-set and hold
timer.
• See next page for wiring.
• When gate is open and auto close timer SW 1,
switch 4 is turned OFF, input will close gate.
SW 1
ON
Jumper on bottom
2 pins when using
4-pin terminal.
• Use a standard 4-wire 3-button
control station.
DoorKing’s 3-wire 3-button
control station cannot be used.
1 2 3 4 5 6 7 8
3-Pin with
Jumper
Notes:
ON
1
2
3
4
• lf SW 1, switch 3 is OFF, input to
terminal #4 becomes the output from the
EXIT loop detector plugged into the EXIT
loop port. (Used for specialized functions).
4
4-Pin Non-Removable Terminal
Open LED
Close LED
Stop LED
1 2 3 4 5 6 7 8
• lf SW 1, switch 3 is ON, functions as a
normal full open input (Normal setting).
SW 1
• When gate is closing, input will reverse gate.
20-Pin Main Terminal
2
3
4
4
1477-010
3 4
UL 325
Terminal
5
6
OB 7
CB
OE
8
CE
G
G
NC NO
6
7
8
9
Standard Reverse
10
11
12
Dry Relay Contact
13
14
15
16
17
18
19
Low Voltage Common
20
Circuit Board Power
Full Open
Full Open
6
SW 1
• SW 1, switch 5 ON, an input to terminal #6 (e.g.:
external loop detector connected) becomes a SHADOW
loop input. It is only active when the gate is fully opened.
Gate Tracker Data
Gate Tracker Busy
9
24 VDC Mag Lock Power
Dry Relay Contact
24-volt DC magnetic lock power is
provided constantly except when the
gate is opening or open (Normally
Closed function). 1 Amp Max.
Low Voltage Common
10 11
Entrapment Alarm
Alarm Reset
Secondary Current Sensor
Motor
Motor
Operation of the circuit board dry
relay contact is dependent on
setting of SW 1, switches 7 and 8.
Relay contacts can be set for
Normally Open (NO) or
NO
Normally Closed (NC) C
N
operation.
SW 1
Contact rating is
1 amp maximum
at 24-volts DC.
Relay Not Available when using DoorKing
plug-In shadow loop detector.
Circuit Board Power
DANGER
HIGH VOLTAGE!
6500-065-X-1-16
• When gate is closing: SW 1, switch 5 is
OFF, an input to terminal #6 (e.g.: photo
beam gets obstructed) will stop and reverse
and the gate to the full open position.
Note: If the auto-close timer is ON, when
gate reaches the open position, timer will
not close the gate. Another input command
is needed to reset and close the gate (Normal
Setting).
24 VAC - 250 ma max.
ON
20
Full Open
This input ONLY functions when gate is
fully opened or in the closing cycle.
1 2 3 4 5 6 7 8
Relay
Contacts
2
3
4
5
5
ON
1
Low Voltage Common
1 2 3 4 5 6 7 8
2
1
16
For dual operator applications
ONLY. Allows the secondary
reversing sensor to monitor
the current flow into the
secondary operator. See page
22 for more information.
Quick Guide - 2 3
SPECIFICATIONS
Use this manual for the Model 6500 operators with circuit board 4405-010 Rev E or higher ONLY.
Class of Operation
Type of Gate
Inherent Entrapment Protection Device
External Entrapment Protection Device Inputs
(Monitored Inputs)
Model 6500 - UL325 Class I, II, III, IV
Vehicular Swing Gates Only
Inherent Reverse Sensor System (Type A)
Connection inputs for Non-contact Sensor - Photo Sensor (Type B1)
Connection input for Contact Sensor - Reversing Edge (Type B2)
TWO (2) Entrapment Protection Devices are REQUIRED for UL 325 compliance.
Type B1 and B2 MUST be MONITORED when used.
Model #
Convenience
Open
Type
Operator
Horsepower - Volts
Phase
Amp
Max Gate
Weight
Max Gate
Length
6500-080
6500-081
6500-082
6500-083
6500-084
6500-085
6500-086
6500-087
No
No
Yes
Yes
No
No
Yes
Yes
Primary
Secondary
Primary
Secondary
Primary
Secondary
Primary
Secondary
1/2 HP - 115 VAC
1/2 HP - 115 VAC
1/2 HP - 115 VAC
1/2 HP - 115 VAC
1 HP - 115 VAC
1 HP - 115 VAC
1 HP - 115 VAC
1 HP - 115 VAC
1-Phase
1-Phase
1-Phase
1-Phase
1-Phase
1-Phase
1-Phase
1-Phase
5.4
5.4
5.4
5.4
9.7
9.7
9.7
9.7
600 Lbs.
600 Lbs.
600 Lbs.
600 Lbs.
800 Lbs.
800 Lbs.
800 Lbs.
800 Lbs.
18 Ft.
18 Ft.
18 Ft.
18 Ft.
22 Ft.
22 Ft.
22 Ft.
22 Ft.
Cycles Per
Hour
60
60
60
60
60
60
60
60
Speed
90°
12-14 Sec
12-14 Sec
12-14 Sec
12-14 Sec
12-14 Sec
12-14 Sec
12-14 Sec
12-14 Sec
Note: 208/230/460/575 VAC input voltage can be connected to the
operator by installing an “Optional” High Voltage Kit (P/N 2600-266).
31 5/8”
31”
28 3/8”
18 3/8”
23 1/4”
DoorKing, Inc. reserves the right to make changes in the products described in this manual without notice and without obligation of DoorKing, Inc. to notify any persons
of any such revisions or changes. Additionally, DoorKing, Inc. makes no representations or warranties with respect to this manual. This manual is copyrighted, all rights
reserved. No portion of this manual may be copied, reproduced, translated, or reduced to any electronic medium without prior written consent from DoorKing, Inc.
4
6500-065-X-1-16
TABLE OF CONTENTS
QUICK GUIDES
Quick Guide: DIP-Switches
Quick Guide: Terminal Descriptions
SPECIFICATIONS
ASTM F2200 Standard for Gate Construction
Important Safety Instructions
Instructions regarding intended installation:
Important Notices
UL 325 Entrapment Protection
Glossary
Swing Gate Requirements
Swing Gate Protection
SECTION 1 - INSTALLATION
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
Underground Conduit Requirements
Concrete Pad
Type of Installations
Securing Operator to Pad
Attach Gate Bracket
Determining Arm Lengths
Installation of Warning Signs
Entrapment Protection Installation
SECTION 2 - AC POWER TO OPERATOR(S)
2.1
2.2
2.3
High Voltage Wire Run
High Voltage Terminal Connection
Bi-Parting Gates Wiring - Dual Gate Operators
SECTION 3 - ADJUSTMENTS
3.1
3.2
3.3
3.4
3.5
4405 Circuit Board Descriptions and Adjustments
DIP-Switch Settings for 4405 Circuit Board
Limit Sensors
Inherent Reverse Sensors Adjustment
Secondary Current Sensor Adjustment
SECTION 4 - WIRING
4.1
4.2
4.3
4.4
Terminal Descriptions
Control Wiring
Entrapment Protection Wiring
Loop Detector Wiring
SECTION 5 - OPERATING INSTRUCTIONS
5.1
5.2
5.3
Power and Reset Switch
Shutdown Conditions
Manual Gate Operation
SECTION 6 - MAINTENANCE AND TROUBLESHOOTING
6.1
Maintenance
6.2
Troubleshooting
6.3
Built-in Diagnostics
6.4
Accessory Items
6.5
Gearbox Shaft Extension Replacement
Model 6500’s Wiring Diagrams
6500-065-X-1-16
Quick Guide - 1
Quick Guide - 2
Previous Page
2
2
2
3
4
5
6
7
8
8
8
9-10
11
11
12
12
13-14
15
15
15
16
17
17
18-19
20
21
22
23
23
24
25
26
27
27
28-29
30
31
31
32-33
34
35
36
37-39
1
ASTM F2200 Standard for Gate Construction
Vehicular gates should be constructed and installed in accordance with ASTM F2200; Standard Specification for Automated
Vehicular Gate Construction. For a copy of this standard, contact ASTM directly at 610-832-9585; [email protected]; or
www.astm.org.
Important Safety Instructions
WARNING - To reduce the risk of injury or death:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Never let children operate or play with gate controls. Keep the remote control away from children.
3. Always keep people and objects away from gate. NO ONE SHOULD CROSS THE PATH OF THE MOVING GATE.
4. Test the operator monthly. The gate MUST reverse on contact with a rigid object or stop or reverse when an object
activates the non-contact sensors. After adjusting the force or the limit of travel, retest the gate operator. Failure to adjust
and retest the gate operator properly can increase the risk of injury or death.
5. Use the emergency release only when the gate is not moving.
6. KEEP GATES PROPERLY MAINTAINED. Read the owner's manual. Have a qualified service person make repairs to gate
hardware.
7. The entrance is for vehicles only. Pedestrians must use separate entrance.
8. SAVE THESE INSTRUCTIONS!
Instructions regarding intended installation:
• Install the gate operator only if:
1. The operator is appropriate for the construction of the gate and the usage class of the gate.
2. All openings of a horizontal slide gate are guarded or screened from the bottom of the gate to a minimum of 6 feet
(1.83 m) above the ground to prevent a 2 ¼ inch (57.2 mm) diameter sphere from passing through the openings
anywhere in the gate, and in that portion of the adjacent fence that the gate covers in the open position.
3. All exposed pinch points are eliminated or guarded.
4. Guarding is supplied for exposed rollers.
• The operator is intended for installation only on gates used for vehicles. Pedestrians must be supplied with a separate
access opening. The pedestrian access opening shall be designed to promote pedestrian usage. Locate the gate such that
persons will not come in contact with the vehicular gate during the entire path of travel of the vehicular gate.
• The gate must be installed in a location so that enough clearance is supplied between the gate and adjacent structures
when opening and closing to reduce the risk of entrapment. Swinging gates should not open into public access areas.
• The gate must be properly installed and work freely in both directions prior to the installation of the gate operator. Do not
over-tighten the operator clutch, pressure relief valve or reduce reversing sensitivity to compensate for a damaged gate.
• For gate operators utilizing Type D protection:
1. The gate operator controls must be placed so that the user has full view of the gate area when the gate is moving.
2. A warning placard shall be placed adjacent to the controls.
3. An automatic closing device (such as a timer, loop sensor, or similar device) shall not be employed.
4. No other activation device shall be connected.
• Controls intended for user activation must be located at least six feet (6’) away from any moving part of the gate and
where the user is prevented from reaching over, under, around or through the gate to operate the controls. Outdoor or
easily accessible controls should have a security feature to prevent unauthorized use.
• The Stop and/or Reset button must be located in the line-of-sight of the gate. Activation of the reset control shall not
cause the operator to start.
• A minimum of two (2) WARNING SIGNS shall be installed, one on each side of the gate where easily visible.
• For gate operators utilizing a non-contact sensor:
1. See the instructions on the placement of non-contact sensors for each type of application.
2. Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle trips the sensor while the gate
is still moving in the opening direction.
3. One or more non-contact sensors shall be located where the risk of entrapment or obstruction exist, such as the
perimeter reachable by a moving gate or barrier.
2
6500-065-X-1-16
• For gate operators utilizing contact sensors:
1. One or more contact sensors shall be located where the risk of entrapment or obstruction exist, such as at the
leading edge, trailing edge, and post mounted both inside and outside of a vehicular horizontal slide gate.
2. One or more contact sensors shall be located at the bottom edge of a vehicular vertical lift gate.
3. One or more contact sensors shall be located at the pinch point of a vehicular vertical pivot gate.
4. A hardwired contact sensor shall be located and its wiring arranged so that the communication between the sensor
and the gate operator is not subjected to mechanical damage.
5. A wireless contact sensor such as one that transmits radio frequency (RF) signals to the gate operator for
entrapment protection functions shall be located where the transmission of the signals are not obstructed or
impeded by building structures, natural landscaping or similar obstructions. A wireless contact sensor shall function
under the intended end-use conditions.
6. One or more contact sensors shall be located at the bottom edge of a vertical barrier (arm).
Important Notices
Vehicular gate operator products provide convenience and security. However, gate operators must use high levels of force
to move gates and most people underestimate the power of these systems and do not realize the potential hazards associated with an incorrectly designed or installed system. These hazards may include:
• Pinch points
• Entrapment areas
• Reach through hazards
• Absence of entrapment protection devices
• Improperly located access controls
• Absence of vehicle protection devices
• Absence of controlled pedestrian access
In addition to these potential hazards, automated vehicular gate systems must be installed in accordance with the UL 325
Safety Standard and the ASTM F2200 Construction Standard. Most lay persons are unaware of, or are not familiar with,
these standards. If an automated vehicular gate system is not properly designed, installed, used and maintained, serious
injuries or death can result. Be sure that the installer has instructed you on the proper operation of the gate and gate
operator system.
Be sure that the installer has trained you about the basic functions of the required reversing systems associated with your
gate operating system and how to test them. These include reversing loops, inherent reversing system, electric edges,
photoelectric cells, or other external devices.
• This Owner’s Manual is your property. Keep it in a safe place for future reference.
• Be sure that all access control devices are installed a minimum distance of 6 feet away from the gate and gate
operator, or in such a way that a person cannot touch the gate or gate operator while using the device. If access
control devices are installed in violation of these restrictions, immediately remove the gate operator from service
and contact your installing dealer.
• Loops and loop detectors, photo-cells or other equivalent devices must be installed to prevent the gate from
closing on vehicular traffic.
• The speed limit for vehicular traffic through the gate area is 5 MPH. Install speed bumps and signs to keep
vehicular traffic from speeding through the gate area. Failure to adhere to posted speed limits can result in
damage to the gate, gate operator, and to the vehicle.
• Be sure that all persons who will use the gate system are familiar with the proper use of the gate and gate
operator and are familiar with the possible hazards associated with the gate system.
• Be sure that warning signs are permanently installed on both sides of the gate in an area where they are fully
visible to traffic.
• It is your responsibility to periodically check all entrapment protection devices. If any of these devices are
observed to function improperly, remove the operator from service immediately and contact your installing or
servicing dealer.
• Follow the recommended maintenance schedule.
• Do not allow children to play in the area of the operator or to play with any gate-operating device.
• To remove the gate operator from service, operate the gate to the full open position and then shut off power to
the operator at the service panel.
6500-065-X-1-16
3
UL 325 Entrapment Protection
UL 325 Classifications
Authorized
Personnel ONLY
Class I - Residential
Vehicular Gate Operator
Class III - Industrial/Limited Access
Vehicular Gate Operator
A vehicular gate operator (or system) intended for use in garages
or parking areas associated with a residence of one-to four single
families.
A vehicular gate operator (or system) intended for use in an
industrial location or building such as a factory or loading dock
area or other locations not accessible by or intended to service
the general public.
STATE PRISON
Class II - Commercial/General Access
Vehicular Gate Operator
A vehicular gate operator (or system) intended for use in a
commercial location or building such as a multi-family housing
unit (five or more single family units), hotel, garages, retail store,
or other buildings accessible by or servicing the general public.
Class IV Restricted Access
Vehicular Gate Operator
A vehicular gate operator (or system) intended for use in a
guarded industrial location or building such as an airport security
area or other restricted access locations not servicing the general
public, in which unauthorized access is prevented via supervision
by security personnel.
Gate Operator Category
Horizontal Slide, Vertical Lift, Vertical Pivot
Entrapment Protection Types
Swing, Vertical Barrier (Arm)
A, B1*, B2* or D
Type A - Inherent entrapment protection system.
Type B1 - Non-contact sensor (photoelectric sensor or the equivalent).
Type B2 - Contact sensor (edge device or equivalent).
A, B1*, B2*, C or D
Vertical Barrier Note: Barrier gate operators (arm)
that is not intended to move toward a rigid object
closer than 16 inches (406 mm) are not required to
be provided with a means of entrapment protection.
Type C - Inherent force limiting, inherent adjustable clutch or inherent pressure relief device.
Type D - Actuating device requiring constant pressure to maintain opening or closing motion of the gate.
* B1 and B2 means of entrapment protection must be MONITORED.
4
6500-065-X-1-16
Glossary
GATE - A moving barrier such as a swinging, sliding, raising, lowering, or the like, barrier, that is a stand-alone passage
barrier or is that portion of a wall or fence system that controls entrance and/or egress by persons or vehicles and
completes the perimeter of a defined area.
RESIDENTIAL VEHICULAR GATE OPERATOR – CLASS I - A vehicular gate operator (or system) intended for use in a home
of one-to four single family dwelling, or garage or parking area associated therewith.
COMMERCIAL / GENERAL ACCESS VEHICULAR GATE OPERATOR - CLASS II - A vehicular gate operator (or system)
intended for use in a commercial location or building such as a multi-family housing unit (five or more single family units),
hotels, garages, retail store, or other building servicing the general public.
INDUSTRIAL / LIMITED ACCESS VEHICULAR GATE OPERATOR - CLASS III - A vehicular gate operator (or system)
intended for use in an industrial location or building such as a factory or loading dock area or other locations not intended
to service the general public.
RESTRICTED ACCESS VEHICULAR GATE OPERATOR - CLASS IV - A vehicular gate operator (or system) intended for use in
a guarded industrial location or building such as an airport security area or other restricted access locations not servicing
the general public, in which unauthorized access is prevented via supervision by security personnel.
VEHICULAR BARRIER (ARM) OPERATOR (OR SYSTEM) - An operator (or system) that controls a cantilever type device (or
system), consisting of a mechanical arm or barrier that moves in a vertical arc, intended for vehicular traffic flow at
entrances or exits to areas such as parking garages, lots or toll areas.
VEHICULAR HORIZONTAL SLIDE-GATE OPERATOR (OR SYSTEM) - A vehicular gate operator (or system) that controls a
gate which slides in a horizontal direction that is intended for use for vehicular entrance and exit to a drive, parking lot, or
the like.
VEHICULAR SWING-GATE OPERATOR (OR SYSTEM) - A vehicular gate operator (or system) that controls a gate which
moves in an arc in a horizontal plane that is intended for use for vehicular entrance and exit to a drive, parking lot, or the
like.
SYSTEM - In the context of these requirements, a system refers to a group of interacting devices intended to perform a
common function.
WIRED CONTROL - A control implemented in a form of fixed physical interconnections between the control, the associated
devices, and an operator to perform predetermined functions in response to input signals.
WIRELESS CONTROL - A control implemented in means other than fixed physical interconnections (such as radio waves or
infrared beams) between the control, the associated devices, and an operator to perform predetermined functions in
response to input signals.
INHERENT ENTRAPMENT PROTECTION SYSTEM - A system, examples being a motor current or speed sensing system,
which provides protection against entrapment upon sensing an object and is incorporated as a permanent and integral part
of the operator.
EXTERNAL ENTRAPMENT PROTECTION DEVICE - A device, examples being an edge sensor, a photoelectric sensor, or
similar entrapment protection device, which provides protection against entrapment when activated and is not incorporated
as a permanent part of an operator.
ENTRAPMENT - The condition when an object is caught or held in a position that increases the risk of injury.
6500-065-X-1-16
5
Swing Gate Requirements
The operator is intended for installation only on gates used for vehicles. Pedestrians must be supplied with a separate
access opening. The pedestrian access opening shall be designed to promote pedestrian usage. Locate the gate such that
persons will not come in contact with the vehicular gate during the entire path of travel of the vehicular gate.
(ref. UL 325 56.8.4.b)
Closed Gates
Closed Gate
A If distance is greater than 4 inches,
With the hinge mounted on
the corner of the pilaster,
the entrapment area A is
eliminated and protection
is NOT required for this
area.
B If distance is less than 16 inches,
entrapment protection in this area
is required. ASTM F2200 7.1.1.2
Opened Gate
entrapment protection for this area is
required. ASTM F2200 7.1.1.1
Not Allowed
B
Opened Gate
Closed Gate
A
OK
Gates shall have smooth bottom edges, with vertical bottom edged protrusions not exceeding 0.50 inches. ASTM F2200 4.3
6
6500-065-X-1-16
Swing Gate Protection
C Standard
Non-contact Sensor
Minimizes the potential
of the gate closing on
vehicular or other traffic
that loops cannot sense.
Reverse Loop
Minimizes the potential of the gate
closing when a vehicle is present.
Number and placement of loops is
dependent on the application.
D Warning Signs
Moving Gate Can Cause
Serious Injury or Death
KEEP CLEAR! Gate may move at any time
without prior warning.
Do not let children operate the gate or play
in the gate area.
This entrance is for vehicles only.
Pedestrians must use separate entrance.
D
Permanently mounted
and easily visible from
either side of the gate.
C
D
Shadow Loop
E
E
Provides a hold open command to
the operator(s) only if the gate(s)
are at the full open position.
F
F
Reverse Loop
Minimizes the potential of the gate
closing when a vehicle is present.
Number and placement of loops is
dependent on the application.
Automatic Exit Loop
(Optional) will provide an open
command to the gate operator(s)
when a vehicle is exiting the
property.
E Monitored
Non-contact
Sensor
Minimizes the potential
of the gate striking
vehicular or other traffic
that loops cannot sense.
Monitored device helps
protect against
entrapment when
needed.
Located so
pedestrians
cannot come in
contact with the
vehicular gate.
F Contact Sensor
Minimizes the potential
of the gate striking
vehicular or other traffic
that loops cannot sense.
Monitored device helps
protect against
entrapment when
needed.
6500-065-X-1-16
Separate
Pedestrian
Walkway
E and/or F
is REQUIRED
for operator
to function.
7
SECTION 1 - INSTALLATION
Prior to beginning the installation of the swing gate operator, we suggest that you become familiar with the
instructions, illustrations, and wiring guide-lines in this manual. This will help insure that your installation is
performed in an efficient and professional manner compliant with UL 325 safety and ASTM F2200 construction
standards.
The proper installation of the vehicular swing gate operator is an extremely important and integral part of the
overall access control system. Check all local building ordinances and building codes prior to installing
this operator. Be sure your installation is in compliance with local codes.
1.1 Underground Conduit Requirements
Primary
Operator
Position
Secondary
Operator
Position
DoorKing’s Primary/Secondary Interconnection Cable (Dual Operator Application Only)
(Secondary Operator AC Power and Communication wires)
External Safety Devices, Controls and P.A.M.S. Wires (Low Voltage wire insulation)
Loop Lead-In Wires (Low Voltage wire insulation)
AC Input Power (High Voltage wire insulation)
Concrete Pad
Sweeps
• The conduit requirements are for a typical slide gate operator installation (the secondary operator is shown for those
applications where a secondary operator may be used). The conduit requirements for your application may vary from
this depending on your specific needs.
Sweep
YES
• Use only sweeps for conduit bends. Do not use 90° elbows as this will make wire pulls very
Elbow
NO
difficult and can cause damage to wire insulation. DoorKing recommends using 3/4-inch conduit.
• Installation of External Entrapment Protection Devices is REQUIRED (photo sensor and/or reversing edge).
• Be sure that all conduits are installed in accordance with local codes.
• Never run low voltage rated wire insulation in the same conduit as high voltage rated wire insulation.
1.2 Concrete Pad
Operator and Conduit Location
Center Line
CAUTION
11”
28” Concrete Pad Length
6” x 10”
21” to
center
of
conduit
area
Back-up
Motor,
Step-Down
Transformer
Plate
4” minimum
6” x 10”
Conduit Area
3.5”
AC Power, Reset Box
22” Concrete Pad Width
8
31”
Conduit Area
3.5”
Concrete pad
MUST be level.
Note: Bevel the
edges of concrete
pad to eliminate
water puddling
under the operator.
NEVER REMOVE HUB
after manual release.
7.5”
to
center
6.5”
Underground depth of the
concrete pad is determined
by soil conditions and local
building codes. Reinforced
concrete recommended.
22”
Approximate
Conduit Position
6500-065-X-1-16
1.3 Type of Installations
1 Standard Installation
Recommended for all gate lengths opening 90°.
46”
90°
14”
23”
38.5”
35”
3”
29.5”
28”
22”
Gate opens in approximately 15 seconds.
Concrete Pad
46”
Operator Installation
Concrete Pad Location
2 Alternate Installation
Recommended for gates up to 14 feet opening 90°.
42”
90°
13”
23”
32.5”
35”
2”
31.25”
28”
22”
Concrete Pad
Gate opens in approximately 12 seconds.
Space Gained from Alternate Installation
90°
Concrete Pad Location
36”
Operator Installation
6500-065-X-1-16
9
3 Compact Installation
Recommended for gates NO LARGER THAN 10 FEET opening 90°.
34”
90°
13”
16.5”
26.5”
29.5”
2”
26.5”
28”
22”
Concrete Pad
23”
Concrete Pad Location
Operator Installation
4 Gates Opening Wider than 90° Installation
90° Plus Installation requires the Standard Compact Installation’s concrete pad to be moved 2” away from the gate’s
open position. This distance of the gate’s arm will vary depending on how far the gate will open.
42”
Varies
23”
35”
Gate in
desired
open
position.
28”
22”
2”
Concrete Pad is 2”
away from open gate.
Concrete Pad Location
10
Operator Installation
6500-065-X-1-16
1.4 Securing Operator to Pad
Permanently attach the operator to the concrete pad
using four (4) 3/8” x 3” sleeve anchors (not supplied).
3/8
Sleeve Anchor
(Not supplied)
1.5 Attach Gate Bracket
A Release hub with release tool. DO NOT REMOVE HUB!
B Bolt crank arm to operator.
C Slide elbow assembly on crank arm.
D Bolt control arm to gate bracket.
E Slide control arm into elbow assembly. KEEP ARM ASSEMBLY LEVEL.
F Bolt gate bracket to gate.
D
Gate
Bracket
Arm assembly and gate bracket MUST
be level for gate to function correctly.
F
Control Arm
E
D
Control Arm
Elbow
Assembly
Gate Bracket
A
B
C
Crank Arm
CAUTION
DO NOT REMOVE HUB!
31”
6500-065-X-1-16
11
1.6 Determining Arm Lengths
Slide elbow assembly back and fourth, manually opening and closing gate until satisfied with the gate’s 90° open and fully
closed positions.
Mark and cut off excess arms. Secure arms to elbow assembly with 6 allen screws. Tighten hub and replace release tool. Install
safety covers.
excess
excess
1.7 Installation of Warning Signs
This DoorKing Swing Gate Operator is shipped with two warning
signs. The purpose of the warning sign is to alert uninformed
persons, and to remind persons familiar with the gate system, that
a possible hazard exists so that appropriate action can be taken to
avoid the hazard or to reduce exposure to the hazard. See page 7 for
suggested mounting positions of signs.
• Permanently install the supplied warning signs in locations so
that the signs are visible by persons on both sides of the gate.
• Use appropriate hardware such as wood or sheet metal screws
(not supplied) to install the warning signs.
12
6500-065-X-1-16
1.8 Entrapment Protection Installation
External Entrapment Protection Devices:
In addition to the inherent reversing sensor system, this operator has a 6-pin UL 325 terminal for the connection of photo sensors-Type B1
and/or reversing edges-Type B2 entrapment protection required by UL 325 standards. An external entrapment protection device MUST be
installed or the operator will NOT function. Install these devices where the risk of entrapment or a safety hazard exists while the gate is
moving. Specific installations will vary.
Typical UL Photo Sensor mounting height and distance away from gate.
Open-Direction Monitored Photo Sensors
Close-Direction Photo Sensors
Gate Frame (Closed)
5”
or less
Gate Frame (Closed)
UL sensor mounted just
above top of operator
Wall
21”
Typical
Wall
Potential
Entrapment
Area
1 OPEN Beam: Obstructed open-direction photo beam will STOP the gate
during the open-direction only. Gate will resume the open cycle when the
obstructed photo beam has been cleared.
Opening Gate
Potential Entrapment Area:
If the OPENING gate could cause an entrapment, then installation
of a MONITORED entrapment protection device is REQUIRED.
Open-Direction
Monitored Photo Beam
See page 25 for UL 325 terminal wiring
for a monitored photo sensor.
Close-Direction Photo Beam
Wall
2 CLOSE Beam: Obstructed close-direction photo beam will STOP the gate
during the close-direction only. Gate will resume the close cycle when the
obstructed photo beam has been cleared.
Note: The close-direction photo sensor typically should REVERSE the gate
when the photo beam gets obstructed. See the page 24 for “Reverse”
close-direction option.
6500-065-X-1-16
Potential Safety
Hazard Area
Closing Gate
13
1.8 Continued
Reversing
Edge
Gate Frame (Closed)
Edge
Transmitter
OPTIONAL wireless transmitter can be used.
Typical Reversing Edge mounted on end of gate.
Wall
Potential
Entrapment
Area
3 OPEN Edge: Obstructed open-direction reversing edge will Reverse the
gate 2 inches and STOP. Another input is needed to open the gate.
Opening Gate
Open-Direction
Reversing Edge
See page 25 for UL 325 terminal wiring for
a reversing edge.
Close-Direction Reversing Edge
Wall
Potential
Entrapment
Area
4 CLOSE Edge: Obstructed close-direction reversing edge will Reverse the
gate back to the open position. Another input is needed to close the gate.
Closing Gate
Potential Entrapment Area:
If the CLOSING gate could cause an entrapment, then installation
of a MONITORED entrapment protection device is REQUIRED.
Edge
Transmitter
OPTIONAL wireless transmitter can be used.
Typical Reversing Edge mounted on
bottom of gate when necessary.
If the bottom of gate is greater than 6” but less than
16” above the ground at any point in its arc of
travel, it is recommended mounting
a reversing edge for safety.
Reversing Edge
14
Greater than 6” but less than 16”
6500-065-X-1-16
SECTION 2 - AC POWER TO OPERATOR(S)
Before attempting to connect any wiring to the operator, be sure that the circuit breaker in the electrical panel is in the OFF
position. Permanent wiring must be installed to the operator as required by local electrical codes. It is recommended that a
licensed electrical contractor perform this work.
Since building codes vary from city to city, we highly recommend that you check with your local building department prior
to installing any permanent wiring to be sure that all wiring to the operator (both high and low voltage) complies with local
code requirements.
THIS GATE OPERATOR MUST BE PROPERLY GROUNDED!!
2.1 High Voltage Wire Run
The distance shown in the chart is measured in Feet from the operator to the power source. If power wiring is greater than the maximum
distance shown, it is recommended that a service feeder be installed. When large gauge wire is used, a separate junction box must be
installed for the operator connection. The wire table is based on stranded copper wire. The wire run calculations are based on a power source
with a 3% voltage drop on the power line, plus an additional 10% reduction in distance to allow for other losses in the system.
This table illustrates the high voltage AC power wire size and distance limitations for a single operator.
Model
Type
Voltage
Required
Amps
Required
6500 1/2 HP
6500 1 HP
115
115
5.4
9.7
Wire Size / Max Distance in Feet
12 AWG
180
100
10 AWG
290
162
8 AWG
485
270
6 AWG
725
405
Reduce the wire distance in half for a primary/secondary dual gate operator application
Never run low voltage rated wire insulation in the same conduit as high voltage rated wire insulation.
“Optional” High Voltage Kit Installation Note: When installing a high voltage kit for 208/230/460/575 VAC input power, refer to the “high voltage AC power
wire size and distance limitations” table on the instruction sheet with the high voltage kit (P/N 2600-266) for AC power wire run limitations.
“Optional” Heater Installation Note: When installing a heater, refer to the “high voltage AC power wire size and distance limitations” table on the
instruction sheet with the heater kit for AC power wire run limitations.
2.2 High Voltage Terminal Connection
115 VAC
AC Power Terminal
Chassis
Ground
Neu
Hot
• Route incoming high voltage power
through conduit and into the operator as
shown.
White - Neutral
Black - 115 VAC Hot
Green - Chassis Ground
High Voltage
AC Power Wire
DANGER
HIGH VOLTAGE!
P
te
U
S
H
ch TO
nic O
ia PE
n R
us A
e TE
on
ly
AC POWER
ON
High
Voltage
Conduit
External Power
Disconnect
Switch
Note: A separate power
disconnect
switch may be
High Voltage
AC Power Wire needed in your area. Check local
building codes before installation.
OFF
• Be sure wiring is installed in accordance
with local codes. Be sure to color code all
wiring.
• It is recommended that a surge
suppressor be installed on the high
voltage power lines to help protect the
operator and circuit board from surges
and power fluctuations.
• Secondary operator in a dual operator
application gets AC power through the
8-wire interconnection cable that connects
the 2 operators together. See next page.
DO NOT cycle the operator without the OPEN and CLOSE limit sensors in their specific open and close positions.
The limit sensors or the AC power switch are the only ways to STOP the operator once an open cycle has started. This could
cause damage to the gate and/or operator if the gate opens too far!
EXTERNAL ENTRAPMENT PROTECTION DEVICES MUST be connected or the gate operator WILL NOT function.
6500-065-X-1-16
15
2.3 Bi-Parting Gates Wiring - Dual Gate Operators
Connect the Primary/Secondary operators together with DoorKing’s interconnection cable as shown (Different lengths sold
separately P/N 2600-75x). High voltage power and low voltage communications are supplied to the secondary operator by
DoorKing’s UL approved cable that is run in a single conduit. Two conduits (High voltage and low voltage) will need to be
provided to the secondary operator when NOT using DoorKing’s UL listed, wet environment interconnection cable.
CB
OE
CE
G
G
NC NO
8
10
11
12
13
14
15
16
17
18
19
20
Primary Operator
20
Primary Operator
Chassis
8-Pin
Secondary Ground
Interface
Terminal
3
4
5
6
7
8
Motor
Neutral
24VAC
Limit
Spare
Limit
COM
Secondary Operator
(Red) Motor 1 High
(Blue) Motor 2 High
(White) Neutral 3 High
(Purple) 24VAC 4 Low
(Yellow) Limit 5 Low
(Brown) Spare 6 Low
(Orange) Limit 7 Low
(Gray) COM 8 Low
SW 1,
switches 1
and 2 will
be opposite
each other.
Switch 6
MUST be
ON, see
page 18.
2
Motor
Interconnection Cable Wiring
1
Motor 1 High (Red)
Motor 2 High (Blue)
Neutral 3 High (White) Operator
24VAC 4 Low (Purple) Chassis
Ground
Limit 5 Low (Yellow)
Spare 6 Low (Brown)
Limit 7 Low (Orange)
Conduit
COM 8 Low (Gray)
1
2
3
4
5
6
7
8
COM
OB 7
6
7
8
9
Limit
6
ON
5
1 2 3 4 5 6 7 8
1477-010
Spare
4
4
Limit
3
24VAC
2
• Secondary operator contains
NO control board.
• All loop detector, safety and access control devices
are wired to the primary operator.
Neutral
1
Secondary Operator Terminal
Primary Operator Control Board (4405)
Motor
2
2
3
4
5
Motor
1
Conduit
)
ent e
m
l
n
b
ro a
nvi ion C
E
et ct
(W onne
d
e
c
ist ter
L L ry In
U
g’s nda
Kin Seco
r
o
Do ary/
m
Pri
PU
SH
te TO
ch
nic OP
ian ER
us AT
e
E
on
ly
Secondary
Operator
Primary
Operator
AC power
conduit to primary
operator only.
er
ow
P
AC
16
ary le .
ond n cab nduit
c
e
o
/s tio
ary nnec und c
m
i
o
Pr terco ergr
in und
in
Optional Heater Installation Note:
If optional heaters are to be installed on
the operators, run two power wires through
the interconnection cable conduit to power the
secondary operator’s heater. Refer to the instruction
sheet with the heater kit for more information.
6500-065-X-1-16
SECTION 3 - ADJUSTMENTS
The switch settings and adjustments in this chapter should be made after your installation and wiring to the operator(s) is
complete. Whenever any of the programming switches on the circuit board are changed, power must be shut-off, and then
turned back on for the new setting to take effect.
3.1 4405 Circuit Board Descriptions and Adjustments
Auto-Close Timer
ON
SW 1
ON
See pages 23 and 24.
P8
EXIT
LOOP
1
2
LMT
1
Limit
LEDs
See
page
Power LED
20 POWER
2
3
1 2 3 4
ON SW2
EXIT Loop Port
P2
SW1
4
4
SW1 ON
1477-010
1 2 3 4
OB 7
Loop LEDs
TIME
DELAY
CB
OE
CE
G
G
REV SENSE
SECONDARY
REVERSE/SHADOW
Loop Terminals
REV SENSE
PRIMARY
NC NO
REVERSE
LOOP
6500-065-X-1-16
Primary
6
7
8
9
10
11
12
16
17
18
19
20
Adjust reversing sensitivity for
the open AND close direction of
the PRIMARY (single) and
SECONDARY (dual) operators,
See page 21.
8
2
3
4
5
13
14
15
4405-010
Secondary
5
6
REVERSE Loop Port
EXIT Loop Terminal
4-Pin
Non-Removable
Terminal
1 2 3 4 5 6 7 8
SHADOW Output Terminal
23
ON
Plug-In Loop Detectors (Sold separately)
1
Input LEDs
1 2 3 4
Adjust from 1 second
(full counter-clockwise)
to approximately 23
seconds (full clockwise).
See page 26.
Inherent
Reverse Sensors
Input LEDs should be OFF and will
only illuminate when the input is
activated.
Limit LEDs will only illuminate when
the respective limit sensor has been
activated.
Loop LEDs will only illuminate when a
reverse, shadow or exit loop is
activated (Vehicle passing over a
loop).
SW 1
Limit
Sensors
Plug P2
9409
Dual
Channel
Illuminated LEDs Indicates that
low voltage power is being
applied to the circuit board.
Time Delay:
SW 2
9410
Single
Channel
How LEDs Function
ON
Auto-close timer
(when turned on)
SW 1, switch 4.
1 2 3 4 5 6 7 8
Set the DIP-switches on
the circuit board to the
desired setting. See
switch-settings on next
2 pages.
1 2 3 4 5 6 7 8
DIP-Switches
Secondary
Interface
Terminal Plug
6-Pin UL 325
Removable
Terminal and
4 DIP-Switches
See pages 13,14, 25.
Dry Relay Contact
.
.
N.C
N.O
Terminals 10-11
can be set for
Normally Open
(NO) or Normally
Closed (NC) operation by placing
the relay shorting bar on the N.O. or
N.C. pins respectively.
(Standard shadow loop function, NO)
20
Secondary Current Sensor
Primary Current Sensor
Uses a sensing coil with a given
number of wire turns through it
to monitor the current flow of the
primary operator motor.
Factory Set:
1/2 HP Motor - 2 Turns
1 HP Motor - 1 Turn
Uses a sensing coil with a given number of
wire turns through it to monitor the current
flow of the secondary gate operator motor.
Factory Set:
1/2 HP Motor - 2 Turns
1 HP Motor - 1 Turn
See page 22.
17
3.2 DIP-Switch Settings for 4405 Circuit Board
The two DIP-switches located on the circuit board are used to program the operator to operate in various modes and to turn on
or off various operating features. Whenever a switch setting is changed, power to the operator must be turned OFF and then
turned back on for the new setting to take affect. Check and review ALL switch settings prior to applying power to the operator.
Switch
1
2
Function
Primary 6500
Changes Gate
Opening
Direction
Exit Loop Port
Output
Full Open Input
4
Auto-Close
Timer
Reverses Gate
5
7 and 8
Opens
Clockwise
Secondary 6500
Changes Gate
Opening
Direction
3
6
Setting
External Shadow
Loop Detector
Single Operator
Dual Operators
Circuit
Board
Relay
SW 1 (Top 8 Switches)
Description
ON
OFF
Opens
Counter-Clockwise
Same as above, for secondary 6500 ONLY.
OFF The output wired to terminal #4 becomes the output from the exit loop detector
plugged into the EXIT Loop port.
ON Normal Setting. Terminal #4 is a normal full open input.
OFF Auto-close timer is OFF. Manual input required to close gate.
ON Normal Setting. Auto-close timer is ON. Adjustable from 1-23 seconds.
OFF Normal Setting. Input to terminal #6 and reverse loop will stop and reverse gate to
the full open position during the close cycle ONLY.
ON Input to terminal #6 becomes a SHADOW loop input. It is only active when the gate
is fully opened. (Shadow loop setting when external loop detector is used)
OFF Normal Setting. Switch must be OFF for single operator.
ON Switch must be ON when primary/secondary (dual) gates are used.
7-OFF 8-OFF Normal Setting. Relay activates when gate is at open limit.
(Shadow loop setting when DoorKing Plug-In loop detector is used)
7-OFF 8-ON Relay activates when gate is not closed.
7-ON 8-OFF Relay activates when gate is opening and open.
7-ON 8-ON Relay activates during opening and closing cycle.
See next page for switch definitions and typical settings.
Switch
Setting
1
Gate Overlap
OFF Primary and secondary operators start at the same time (Normal setting for single
gate operator).
ON The secondary operator will start 1.5 sec. before primary operator during open
cycle and the primary operator will start 1.5 sec. before the secondary operator
during the close cycle (Normal setting for bi-parting gate operators).
2
Magnetic lock
OFF Normal Setting. Magnetic lock is not used.
ON Magnetic lock is used and connected to terminals 9 and 12. See page 24 for wiring.
3
4
18
Function
SW 2 (Bottom 4 Switches)
Description
OFF Normal Setting. Switch 3 MUST be turned OFF for Model 6500 operator.
OFF Normal Setting. Switch 4 MUST be turned OFF for Model 6500 operator.
6500-065-X-1-16
3.2 Continued
Switch Definitions
ON
1 2 3 4 5 6 7 8
SW 1 (Top 8 Switches)
Typical
Settings
Switch 1 Must OPEN the primary operator’s gate upon initial AC power up and open command. If the FIRST open command
begins to close the gate, turn AC power off and reverse this switch.
Switch 2 Must OPEN the secondary operator’s gate upon initial AC power up and open command. If the FIRST open command
begins to close the gate, turn AC power off and reverse this switch. This switch will be set the opposite of switch 1 (e.g. If
switch 1 is OFF, then switch 2 will be ON).
Switch 3 Determines that a device wired to terminal #4 is a normal full open command OR terminal #4 becomes the output
from the exit loop detector that is plugged into the EXIT Loop port in the circuit board (Used for specialized functions).
Switch 4 Turns the auto-close timer on or off. Maximum time that the close timer can be set for is approximately 23 seconds.
Switch 5 OFF setting is Standard Reverse for a CLOSING gate. An input to terminal #6 (e.g.: photo beam gets obstructed)
AND/OR reverse loops will stop and reverse the gate back to the full open position. If the auto-close timer is ON, when gate
reaches the open position, timer will not close the gate. Another input command is needed to reset and close the gate.
ON setting allows an input to terminal #6 (e.g.: external loop detector only) to become a SHADOW loop input. It is only active
when the gate is in the fully opened position.
Switch 6 Sets up the circuit board for a single gate operator or primary / secondary (dual) gate operators.
Switches 7-8 These work in conjunction with each other and determine when the relay on the board will be activated. This relay
can be used as a switch for various functions such as illuminating a warning light when the gate is moving, or turning on a
green light when the gate is full open. This relay is not available for these uses if it is being used for the DoorKing Plug-In
shadow loop function.
ON
1 2 3 4
SW 2 (Bottom 4 Switches)
Typical
Settings
Switch 1 When the gate overlap is OFF, the gate operator(s) will start the open and close cycles at the same time. This is the
normal setting for a single gate operator.
Turning the gate overlap ON when using dual gate operators will cause the secondary operator to start the open cycle 1.5
seconds before the primary operator. The primary operator will start the close cycle 1.5 seconds before the secondary operator.
Switch 2 If a magnetic lock is not used with the gate operator, leave this switch in the OFF position. Turn this switch ON if a
magnetic lock is used and connected to terminals 9 and 12. This applies magnetic lock power and logic to these terminals (NC).
Switch 3 MUST be turned OFF for the Model 6500.
Switch 4 MUST be turned OFF for the Model 6500.
6500-065-X-1-16
19
3.3 Limit Sensors
Important Limit Sensor Adjustment Note:
The hub must not slip
during operation. Tighten
nut to stop any slipping.
CAUTION
It is very important NOT to cycle the gate operator
before the limit sensors are in the correct position or
it could cause damage to the gate and operator.
DO NOT REMOVE HUB!
ONLY turn ON AC power. Manually release the gate
operator hub with the release tool (See page 30).
Physically move the gate to the desired open
position. Loosen the set screw on the OPEN limit
sensor and slowly slide it under the magnetic sensor
activator until the OPEN limit Sensor LED lights up
on the circuit board. Tighten the set screw and
repeat this process for the close gate position.
Secure the hub with the release tool and cycle the
operator a few times and readjust if necessary.
HUB
Loosen set screw to
adjust the limit
sensor.
Release Tool
E
OS
CL
Magnetic Sensor
Activator
Magnetic Close
Limit Sensor
OPEN
Magnetic Open
Limit Sensor
Magnetic sensor activator
must be directly above the
limit sensor to activate it.
CLOSE SENSOR
P2
P2
Limit
Sensors
Plug
Not Used
Note: If P2 plug is not connected
to the circuit board and AC power
is turned on, alarm will sound
and operator will NOT function.
P8
OPEN SENSOR
Limit Sensor LEDs
EXIT
LOOP
1
2
SW1
1 2 3 4 5 6 7 8
P8
ON
P2
EXIT
OOP
OP
P
LOOP
Open
Closee
2
3
1 2 3 4
Open
1
Primary Secondary
Limit Limit
Sensors Sensors
ON SW2
Closee
LMT
4
4
SW1 ON
1477-010
1 2 3 4
POWER
OB 7
TIME
DELAY
PRIMARY Operator DIP Switch OPENING Direction
CB
OE
CE
ON
Operator Opens
Counter-clockwise
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
SW 1
Switch 1 “OFF”
Switch 1 “ON”
G
G
REV SENSE
SECONDARY
REV SENSE
PRIMARY
NC NO
REVERSE
LOOP
SW 1
ON
20
Operator Opens
Counter-clockwise
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
SW 1
SW 1
Operator Opens
Clockwise
Switch 2 “ON”
20
4405-010
Operator Opens
Clockwise
8
6
7
8
9
10
11
12
13
14
15
16
17
18
19
SECONDARY Operator DIP Switch OPENING Direction
Switch 2 “OFF”
5
6
2
3
4
5
20
Dual Gate Operators Note: SW 1, switch 2 will be set the opposite
of SW 1, switch 1 (e.g. If switch 1 is OFF, then switch 2 will be ON).
6500-065-X-1-16
3.4 Inherent Reverse Sensors Adjustment
This vehicular gate operator is equipped with an inherent adjustable reversing sensor (Type A) used as entrapment protection
according to UL 325 standards. The gate will reverse direction after “physically” encountering an obstruction in either the
opening or closing gate cycle.
If the Auto-Close Timer (DIP-switch SW 1, switch 4) is ON and the gate physically encounters an obstruction during the
CLOSING cycle, it will reverse to the open position and HOLD the gate at this position (Soft shutdown condition). Another input
command is needed before the gate will reset and close again.
For the reverse sensors to function correctly, THE HUB MUST NOT SLIP when the gate encounters an obstruction. The gate
must be properly installed and work freely in both directions. A good set of roller bearing hinges is essential for proper swing
gate operation.
For the reverse system to function correctly, the gate must be properly installed and work freely in both directions and the limit
sensors must be properly adjusted BEFORE adjusting the reverse sensors. The ideal adjustment will allow the operator to
move the gate through its entire travel cycle without reversing, but will reverse upon contact with an obstruction with no more
than 40 Lbs of force. This force can be measured with a gate scale.
CAUTION: Keep pedestrians and vehicles clear of the gate while adjusting and testing sensors!
Note: “Push to Operate” button will use the
Auto-Close timer if turned ON (SW 1, switch 4 ON).
1 Press the “Push to Operate” button to OPEN the gate.
E
AT nly
ER
o
OP use
O
n
T
ia
SH hnic
U
P
tec
2 While gate is opening, slowly rotate the primary reverse sensor clockwise until the LED
lights up and the gate reverses direction. Rotate the primary reverse sensor back
counter-clockwise approximately 1/8 turn to decrease the sensitivity (LED will turn off).
Note: The LED will turn
on briefly when AC
power is turned on.
Primary
Max
Min
LED
Note: The LED will light up during the first seconds of gate travel.
Wait until it turns off before adjusting the reverse sensor.
Sensitivity
3 Press the “Push to Operate” button and CLOSE the gate.
E
AT nly
ER
o
OP use
O
n
H T nicia
S
PU tech
Make sure the gate closes completely. If it reverses and
opens (LED will turn on), rotate the primary reverse
sensor counter-clockwise a little more to decrease the
reverse sensitivity (LED will turn off).
Cycle the gate a few times to be sure that it cycles completely in both directions,
adjusting the primary sensor as necessary.
Safety Note: The LED will
remain ON after a cycling gate
gets obstructed during normal
operation to indicate that the
reverse sensor has been tripped.
Always check the gate area for
possible obstructions before
putting operator back in service.
Dual Operators:
Adjust reverse sensors for each operator when dual operators have been installed. Secondary
Primary
Note: If the minimum or maximum reverse sensor sensitivity adjustment is
reached and the Secondary Operator will not reverse properly, the Secondary
Operator Current Sensor’s wire turns will have to be altered.
See 3.5 Secondary Current Sensor Adjustment on the next page.
Test the operator reversing sensitivity:
Place an immobile object along the gate path, allowing the gate to strike it while in the open and close cycles. The gate must
reverse direction after striking the object. If it does not, increase the reverse sensitivity and repeat this testing until the correct
sensitivity has been achieved in BOTH directions. The operator will assume a soft shutdown (Hold the auto-close timer) after
striking and reversing the gate which will require pressing the “Push to Operate” button to cycle the operator again.
6500-065-X-1-16
21
3.5 Secondary Current Sensor Adjustment (Dual Gates ONLY)
The PRIMARY gate operator’s “secondary reversing sensor” uses a secondary current sensing device (Located only in the
primary operator) to detect any obstructions “physically” encountered in the SECONDARY gate path when using dual gates.
The secondary current sensor uses a sensing coil with a given number of turns through it to monitor the current flow into the
secondary operator. Each time the wire passes through the coil, it is considered a turn. The number of turns through the
sensing coil is dependant on the operating voltage of the operator and the weight of the gate. In general, light weight gates may
require additional turns of wire through the secondary current sensor, while heavier gates may require less turns. CAUTION –
HIGH VOLTAGE: Be sure power is turned OFF before changing the number of wire turns to the secondary current sensor. When
you are setting the secondary reverse sensor (section 3.4 on the previous page) and reach the MAXIMUM sensitivity position
on the reverse sensor without activating the secondary operator reversing function, add an additional turn of wire through the
secondary current sensor. If you set the secondary reverse sensor to the MINIMUM sensitivity position and the gate will not
cycle completely, reduce the number of turns through the secondary current sensor.
Sample Turns
Primary Operator
Typical Number of Turns for
Secondary Current Sensor
Secondary Operator Model Turns
115 - 1/2 HP - Single Phase
115 - 1 HP - Single Phase
1
2
1
1 Turn
Secondary
Current
Sensor
located
only in
primary
operator.
To AC power terminal.
12
TE
RA only
OPE use
n
TO
SH
nicia
PU tech
2 Turns
To AC power terminal.
Secondary
Operator
se
ver
e
R
le
cab
n
tio
Sh
nec uit.
n
o
d
rc on
inte nd c
y
r
u
da gro
con nder
e
s
se
ry/ in u
ver
ma
i
e
r
R
P
w
o
ad
Primary
Operator
er
ow
P
AC
22
6500-065-X-1-16
1
2
3
4
Open N.O.
Close N.O.
Stop N.C.
Common
Jumper on top 2 pins
when NOT using
4-pin terminal.
• Use a standard 4-wire 3-button
control station.
DoorKing’s 3-wire 3-button
control station cannot be used.
• When gate is closed, input will open gate.
• When using a 3-button control
station AND a interlock device
together, #3 terminal (N.C.) must
be wired in series.
• When gate is open and auto close timer SW 1,
switch 4 is turned ON, input will re-set and hold
timer.
• See next page for wiring.
• When gate is open and auto close timer SW 1,
switch 4 is turned OFF, input will close gate.
SW 1
ON
Jumper on bottom
2 pins when using
4-pin terminal.
Notes:
1 2 3 4 5 6 7 8
3-Pin with
Jumper
• lf SW 1, switch 3 is OFF, input to
terminal #4 becomes the output from the
EXIT loop detector plugged into the EXIT
loop port. (Used for specialized functions).
4
4-Pin Non-Removable Terminal
Open LED
Close LED
Stop LED
ON
• lf SW 1, switch 3 is ON, functions as a
normal full open input (Normal setting).
1 2 3 4 5 6 7 8
SECTION 4 - WIRING
4.1 Main Terminal Description
SW 1
• When gate is closing, input will reverse gate.
20-Pin Main Terminal
2
3
4
4
1477-010
3 4
UL 325
Terminal
5
6
Pages 13,14,25
OB 7
CB
OE
8
CE
G
G
NC NO
6
7
8
9
Standard Reverse
10
11
12
Dry Relay Contact
13
14
15
16
17
18
19
Low Voltage Common
20
Circuit Board Power
Full Open
Full Open
6
SW 1
• SW 1, switch 5 ON, an input to terminal #6 (e.g.:
external loop detector connected) becomes a SHADOW
loop input. It is only active when the gate is fully opened.
Gate Tracker Data
Gate Tracker Busy
9
24 VDC Mag Lock Power
Dry Relay Contact
24-volt DC magnetic lock power is
provided constantly except when the
gate is opening or open (Normally
Closed function). 1 Amp Max.
Low Voltage Common
10 11
Entrapment Alarm
Alarm Reset
Secondary Current Sensor
Motor
Motor
Operation of the circuit board dry
relay contact is dependent on
setting of SW 1, switches 7 and 8.
Relay contacts can be set for
Normally Open (NO) or
NO
Normally Closed (NC) C
N
operation.
SW 1
Contact rating is
1 amp maximum
at 24-volts DC.
Relay Not Available when using DoorKing
plug-In shadow loop detector.
Circuit Board Power
DANGER
HIGH VOLTAGE!
6500-065-X-1-16
• When gate is closing: SW 1, switch 5 is
OFF, an input to terminal #6 (e.g.: photo
beam gets obstructed) will stop and reverse
and the gate to the full open position.
Note: If the auto-close timer is ON, when
gate reaches the open position, timer will
not close the gate. Another input command
is needed to reset and close the gate (Normal
Setting).
24 VAC - 250 ma max.
ON
20
Full Open
This input ONLY functions when gate is
fully opened or in the closing cycle.
1 2 3 4 5 6 7 8
Relay
Contacts
2
3
4
5
5
ON
1
Low Voltage Common
1 2 3 4 5 6 7 8
2
1
16
For dual operator applications
ONLY. Allows the secondary
reversing sensor to monitor
the current flow into the
secondary operator. See page
22 for more information.
23
4.2 Control Wiring
4-Pin Non-Removable Terminal
Com
N.O.
Lock Engaged
Operator Stopped
N.C.
Com
N.O.
Lock Disengaged
2
1
2
3
4
4
N
1477-010
2 3 4
2
3
Safety
Open 4
Access
Device 5
Open
5
6
OB 7
OE
8
CE
#4 Normally Open
NC NO
#6 Normally Open Standard “REVERSE” Close Beam Photo Sensor
#9 Normally Close
10
11
Com 12
Com
SW 1
24 Volt
1 amp max.
20-Pin Main
Terminal
24
OFF- Reverses gate.
This input is NOT monitored and can
NOT be used as UL 325 entrapment
protection. See page 23.
Stand-Alone
Key Switch
Magnetic Lock
Power (24-Volt DC) and logic
output. Power is shut off .5 sec.
prior to gate starting and
remains off while gate is
opening and in the
open position.
SW 2, switch 2 ON.
Stand-Alone
Keypad
ON
20
#5 - Access Control
Devices
Telephone
Entry
SW 1, switch 5:
After photo sensor
beam gets obstructed:
1 2 3 4
13
14
15
16
17
18
19
SW 2
Stand-Alone
Card Reader
Note: All stand-alone
and telephone entry devices must
use a separate power source.
20
0
SW 1
SW 1, switch 3 Must be ON.
#5 Normally Open
G
G
#4 - Safety
Opening
Device
of 6-feet from the gate or installed in such a way
that the person using the control cannot come in
contact with the gate or gate operator.
ON
CB
(3) Three 115 VAC
Convenience Outlets
Important: Controls must be installed a minimum
1 2 3 4 5 6 7 8
6
7
8
9
3-Pin
Remote
Terminal
ON
Radio
Open
3
1 2 3 4 5 6 7 8
1
2
Power is
limited to
250 mamps.
To #4 Com
Com
1
P
U
S
H
te T
ch O
ni O
ci P
an E
R
us A
e TE
on
ly
Place jumper
on bottom
2 pins when
using 4-pin
terminal.
N.C.
3-Wire
Radio
Receiver
24 Volt
Use a standard 4-wire 3-button
control station. DoorKing’s
3-wire 3-button control station
Note: When
CANNOT be used.
using 3-button
control station
#1 Open N.O.
AND interlock
EN
OP
switch together,
#2 Close N.O.
SE
#3 terminal
CLO
(N.C.) must be
#3 Stop N.C.
OP
wired in series.
ST
#4 Com
To #3 Stop N.C.
Relay
3-Pin With
Jumper
Normally Closed Interlock Switch
Operator Cycling
Com
3-Button Control Station
Qu
a
Shd Box
ow
n
Gate Tracker - DoorKing Access Control System (Model 1833, 1835, 1837 or 1838)
tracker system can be connected. This system can keep track of gate operator cycle
count, shorted inputs, loop detector problems, any forced entry attempts, if the gate
has struck anything during the open or close cycle, power interruptions, etc. For more
detailed information refer to the Tracker Installation and Wiring Manual, DoorKing P/N
2351-010.
Terminal #2 (Full open) required only if the tracker board will activate the gate
operator. Refer to the manual 2351-065 for detailed information.
6500-065-X-1-16
4.3 Entrapment Protection Wiring
1
2
3
4
5
3
1 2 3 4
ON SW2
4
4
SW1 ON
1 2 3 4
POWER
5
6
7
8
9
6
OB 7
TIME
DELAY
CB
OE
8
CE
G
G
REV SENSE
SECONDARY
REV SENSE
PRIMARY
NC NO
REVERSE
LOOP
6-Pin UL 325 Terminal
Entrapment Protection Device Connection
1
2
3
4
5
6
10
11
12
13
14
15
16
17
18
19
CB CLOSE BEAM
OE OPEN EDGE
CE CLOSE EDGE
G
Ground (Common)
G
Ground (Common)
Notes:
ONLY connect monitored devices.
The 6-pin terminal can be unplugged from
circuit board for easy wire connections.
20
To Com
24 VAC
Wireless Receiver
for Reversing Edge
To wired Edge CE
To Com
Open Beam
OPTIONAL Wireless Note: Refer to the instruction sheet
that comes with the receiver/transmitter for more specific
wiring and mounting instructions.
Mointored Device Note: Only 1 monitored Device can be
connected to each input. An OPTIONAL Expansion Board
(sold separately) will allow connection for additional
devices.
UL 325 DIP Switches
1477-010
LED Notes: SW1 ON
LED OFF:
appropriate
1 2 3 4
device is
connected.
LED ON:
device has
been
activated.
Flashing LED:
Device NOT
connected.
Not
appropriate
device.
(3) Three 115 VAC
Convenience Outlets
To 24 VAC
20
4405-010
OB OPEN BEAM
O
ci P
an E
R
us A
e TE
on
ly
2
1477-010
U
S
H
ch TO
ni
1
P
LMT
te
2
SW1
1 2 3 4 5 6 7 8
P8
ON
P2
EXIT
LOOP
OB
CB
OE
Close Edge
Beam and Edge Inputs Notes:
Open and Close inputs will activate in EITHER direction of gate
travel.
Connect a second beam and edge when using dual operators.
CE
G
ON
1 2 3 4
Switches 1 and
4 MUST be ON
in this example.
G
UL 325 DIP-Switches
At least ONE of the DIP switches MUST be turned ON for EACH direction of gate travel or operator WILL NOT function.
Switch 1 OPEN BEAM, turn this switch ON when a monitored photo sensor is connected.
Switch 2 CLOSE BEAM, turn this switch ON when a monitored photo sensor is connected.
Switch 3 OPEN EDGE, turn this switch ON when a monitored reversing edge is connected.
Switch 4 CLOSE EDGE, turn this switch ON when a monitored reversing edge is connected.
6500-065-X-1-16
25
• Loop detector wiring is shown for DoorKing
plug-in loop detectors. If other loop detectors are
used, refer to the installation instructions supplied
with those detectors for wiring instructions.
• If other detectors are used, use a separate power
supply to power these detectors.
• Loop layout shown is for a typical swing gate
application with two-way traffic, or one-way exit
only traffic.
DoorKing offers a free “Loop and
Loop-Detectors Information
Manual” PDF located at
DoorKing’s web site for more
information. www.doorking.com
4.4 Loop Detector Wiring
To help protect the operator from accidentally closing on vehicles
in the gate’s path, DoorKing highly recommends that loops and
loop detectors be installed. Loops are laid underneath, cut into
asphalt or concrete driveways or buried beneath gravel and earth
driveways. A loop detection system will sense a vehicle like a
metal detector and send a signal to the gate operator preventing
the gate from automatically opening or closing on a vehicle
when it is in the gate’s path. DoorKing recommends that a
licensed installer perform this work.
se
ver
e
R
w
do
a
Sh
Automatic Exit Loop
ate e.
d g renc
i
o
av rfe
. to t inte
n
i
t. m en
se
4 F ovem
m
ver
e
ers
ev
dr
Re
voi ce.
a
to n
in. erfere
m
t
.
t
4 F oop in
l
Automatically opens the gate for exiting
vehicles without having to use a transmitter or
keypad. The exit loop can be placed a minimum of 4
feet away from the reverse loop or far enough away from
the gate so the gate has started opening or even completely
opened by the time you drive up to it (Free exit).
xit
E
tic
ma
to
Au
Exit Loop Port
EXIT
LOOP
2
SW1
main gates in the Full Open Position when
a vehicle is on the shadow loop. However,
it WILL NOT stop or reverse the main
gates once they start to close.
LMT
1
2
1 2 3 4
Shadow loop lead in wires are
twisted approx. 6 twists per foot.
LOOP 2
DoorKing Plug-In
Single Channel
Loop Detector
9410
POWER
NC
ON SW2
Shadow Loop Note:
Circuit board relay
MUST be used and
set to
NO
N.O.
3
4
4
SW1 ON
1477-010
TIME
DELAY
6
OB 7
CB
OE
CE
G
G
REV SENSE
SECONDARY
5
1 2 3 4
REV SENSE
PRIMARY
6
7
8
9
SW 1
Relay 10
Relay 11
NC NO
O
Reverse Loops are placed on
12
each side of the gate to prevent the gate
from closing on a vehicle in the gate’s
path. They will stop or reverse the
cycling of the gate while a vehicle is in
or near the gate’s pathway.
REVERSE
LOOP
13
14
15
16
17
18
19
Reverse Loop Port
Shadow Loop
Output
Reverse loop lead in wires
are twisted approx. 6 twists
per foot and are wired in
series.
LOOP 1
8
2
3
4
5
Jumper
P88
1 2 3 4 5 6 7 8
P2
ON
Shadow Loop will ONLY HOLD the
Relay Note:
SW 1, switches 7
1
and 8 must be OFF.
ON
Jumper Note:
SW 1, switch 5 OFF.
1 2 3 4 5 6 7 8
Automatic exit loop lead in wires
are twisted approx. 6 twists per
foot.
LOOP 1
DoorKing Plug-In
Dual Channel
Loop Detector
9409
20
4405-010
20
Com
N.O.
26
6500-065-X-1-16
SECTION 5 - OPERATING INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
WARNING - To reduce the risk of injury or death:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Never let children operate or play with gate controls. Keep the remote control away from children.
3. Always keep people and objects away from gate. NO ONE SHOULD CROSS THE PATH OF THE MOVING GATE.
4. Test the operator monthly. The gate MUST reverse on contact with a rigid object or stop or reverse when an object
activates the non-contact sensors. After adjusting the force or the limit of travel, retest the gate operator. Failure to
adjust and retest the gate operator properly can increase the risk of injury or death.
5. Use the emergency release only when the gate is not moving and power has been shut-off.
6. KEEP GATES PROPERLY MAINTAINED. Read the owner's manual. Have a qualified service person make repairs to gate
hardware.
7. The entrance is for vehicles only. Pedestrians must use separate entrance.
8. SAVE THESE INSTRUCTIONS.
5.1 Power and Reset Switch
Unlock the power switch cover and open to access the MAIN POWER and the operator RESET switch.
RESET
AC
POWER
Reset Switch - Used to turn off the
entrapment alarm and to reset the
operator after a hard shutdown has
occurred.
Alarm Siren
AC Power Switch - Powers the operator
ON (toggle up) or OFF (toggle down).
OFF
6500-065-X-1-16
27
5.2 Shutdown Conditions
Under various entrapment conditions the operator will assume either a soft or hard (alarm) shutdown. To determine what
type of reset action is required, you will need to understand how the different entrapment conditions affect the gate
operator.
Soft Shutdown
This occurs in various situations where the inherent or entrapment protection devices have been activated. In a soft
shutdown condition, the operator will not respond to any input that was present when the entrapment protection
device sensed an obstruction. If the gate stops at the open position, the operator will not respond to the automatic
close timer.
• Example 1 - A time clock keys the gate open in the morning and an entrapment protection device senses
an obstruction prior to the gate reaching the full open position. If the entrapment is sensed by the inherent
system, the gate will reverse and run back to the closed position. The time clock input is still present, but
the gate will not re-open.
NOTE: In some systems, the time clock input comes from the telephone entry system relay. This same relay may also
provide open commands for a card reader, MicroPLUS transmitters and the visitor telephone entry. If so, these devices
will also be disabled in a soft shutdown condition.
• Example 2 - If the gate is closing and an entrapment protection device is activated, the gate will either stop
or reverse and run back to the open position, depending upon if the secondary or inherent device was
activated. The automatic close timer will not close the gate.
• Example 3 - Vehicle arrives at open loop and gate runs towards the open position. The inherent entrapment
protection is activated. The gate reverses and runs back to the closed position. If the vehicle is still present
at the open loop a soft shutdown condition does not occur. The loop input provides an immediate reset of
the operator and the gate will again run to the open position.
Resetting a Soft Shutdown
In some conditions, a soft shutdown will reset as soon as the entrapment condition clears. For example, if a
non-contact sensor (photo sensor) is sensing an obstruction, the operator will stop the gate and assume a soft
shutdown condition. When the photocell clears, the operator will return to normal operation.
When the operator is in a soft shutdown, activation of any "intended input" will reset the operator. An "intended
input" includes any command, any standard safety input and any loop input. Activating any of these inputs will reset
the gate. At that point the gate will return to normal operation. If the gate is open, the automatic close timer will
then time out and close the gate.
Hard Shutdown (Alarm Activated)
A hard shutdown condition occurs when the inherent entrapment protection system has sensed TWO consecutive
obstructions before the gate reaches the full open or closed position.
• Example - The gate is closing and the inherent entrapment protection system senses an obstruction and
causes the gate to reverse direction. As the gate begins to run in the open direction, a second obstruction
is sensed prior to the gate reaching the full open position. Once the second obstruction has been sensed,
the operator will stop, the audio alarm will be activated and all standard inputs are shut down (including
open commands, safety commands, loop inputs, etc.).
The audio alarm will sound for five minutes, or until the operator’s reset button is pushed. After (5) five minutes the
alarm will “chirp every 5 sec.” and the hard shutdown condition will remain in affect until the reset button is pushed.
• After 5 minutes, the audio alarm will “chirp” every 5 seconds. This indicates that the operator is in a hard
shutdown condition and the reset switch must be activated to reset the operator and silence the alarm.
Continued on the next page
28
6500-065-X-1-16
Resetting a Hard Shutdown
When the operator is in a hard shutdown condition (audio alarm activated or audio alarm “chirps” every 5 seconds),
the only way to reset the gate operator and return it to normal operation is to activate the alarm reset input
(auxiliary terminals 2 and 3). An alarm-reset switch can be mounted external of the gate operator provided that it is
installed in the line of sight of the gate and gate operator.
• Before resetting a hard shutdown, determine why the shutdown occurred. Inspect the gate for any
obstructions along its path that could have activated the inherent entrapment sensing system. Inspect
the gate and gate hardware.
NOTE: DoorKing operators have a built-in alarm reset push button mounted on the operator above the power
ON-OFF toggle switch. Activating this button will return the gate operator to normal operation, but will not activate
the gate operator.
Once the gate has been reset, an open or close command is needed to start the gate operator. Most activating
commands will cause the gate operator to cycle to the open position. This includes activation of a key switch or
open command and activation of the automatic exit loop. Activation of a close command will run the gate to the
closed position.
5.3 Manual Gate Operation
This operator is equipped with a manual release system that will allow the gate to be pushed open in the event of a power
outage or equipment failure. NEVER remove the hub from the operator after manually releasing it.
This gate operator CAN NOT be manually forced open in the event of a
power failure without FIRST manually releasing the gate! (See next page)
Never attempt to manually push open any gate with an operator attached
to it until you have verified that power to the operator has been shut-off.
Emergency Vehicle Access Conditions
The automatic vehicular gate system must be designed to allow access to emergency vehicles under different operating
conditions.
1. During normal powered operation, emergency vehicles access the gate by use of the Emergency Vehicle
Access Device installed on your gate system. The type of device that is used in your community is dependent
on your city codes. These devices may include (but are not limited to) Fire Department lock boxes, Click-2Enter radio receivers, strobe light sensors, siren sensors, etc.
2. In the event of a primary (AC) power failure, the system must have a release system to allow the gate to
be Manually Operated (See next page).
6500-065-X-1-16
29
Manual Release
A Unlock the cover and
rotate sliding door.
Never attempt to manually push open
any gate with an operator attached to
it until you have verified that power to
the operator has been shut-off.
B Remove release tool and
place where shown.
C Release hub.
Gate can now be
manually operated.
CAUTION
DO NOT REMOVE HUB!
30
6500-065-X-1-16
SECTION 6 - MAINTENANCE AND TROUBLESHOOTING
Inspection and service of this gate operator by a qualified technician should be performed anytime a malfunction is observed or
suspected. High cycle usage may require more frequent service checks.
6.1 Maintenance
When servicing the gate operator, always check any external reversing devices (loops, photo eyes, etc.) for proper operation. If
external reversing devices cannot be made operable, do not place this operator in service until the malfunction can be identified
and corrected.
Always check the inherent reversing system when performing any maintenance. If the inherent reversing system cannot be
made operable, remove this operator from service until the cause of the malfunction is identified and corrected. Keeping
this operator in service when the inherent reversing system is malfunctioning creates a hazard for persons which can result
in serious injury or death should they become entrapped in the gate.
When servicing this gate operator, always turn power OFF!!
If gearbox requires oil, use only Mobil SYNTHETIC SHC-629 Oil. Do not completely fill gearbox with oil. Gearbox should
be half full only. Do not exceed this level.
Operator
Component
Monthly Interval
Maintenance
Alarm
Activate the primary (inherent) reverse system by blocking the
gate with a solid object. When the gate reverses, block the gate
in the opposite direction prior to the limit being reached. The
entrapment alarm should activate. Press the reset button to
silence the alarm.
Arms
Check set screws and nuts. Check bushings for wear.
Drive Belt
Check for alignment, tightness and wear.
Fire Dept.
Check emergency vehicle access device for proper operation.
Gate
Inspect for damage. Check gate hinges for wear and grease if
necessary.
Inherent Reverse System
Check that the gate reverses on contact with an object in both
the opening and closing cycles.
Adjust the reversing sensor if necessary.
Loop(s)
Check vehicular reverse and shadow loops for proper operation.
Release
Check manual release for proper operation.
External Reverse Device
Check external reverse device(s) stop or reverse the gate when
activated.
Complete System
Complete check of gate and gate operating system.
6500-065-X-1-16
3
6
12
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
31
6.2 Troubleshooting
Have a good VOM meter to check voltages and continuity. A Meg-Ohm meter capable of checking up to 500 meg-ohms of
resistance is necessary to properly check the integrity of the ground loops. When a malfunction occurs, isolate the problem to
one of three areas: 1) the operator, 2) the loop system, 3) the keying devices. Use caution when checking high voltage areas:
terminals 17 through 20, the motor capacitor and the motor.
1. Check the input indicator LEDs. They should only come ON when a keying device (card reader, push button, etc.) is
activated. If any of the input LEDs are ON continuously, this will cause the gate operator to hold open. Disconnect the
keying devices one at a time until the LED goes OFF.
2. Check any external entrapment protection devices. Any short or malfunction in these devices can cause the gate
operator to stop or to hold open.
3. A malfunction in a loop or loop detector can cause the gate operator to hold open, or to not detect a vehicle when it is
present over the loop. The LEDs next to the loop detector ports on the operator circuit board will light only when the
loop has detected an object above it. If the LEDs stays on after the object has gone, then the loop detector has malfunctioned. Pull the loop detector circuit boards from the loop ports on the operator circuit board. If the malfunction
persists, the problem is not with the loop system. For more information on trouble shooting loops and loop detectors,
refer to your loop detector instruction sheet and to the DoorKing Loop and Loop Detector Information Manual.
4. Check to be sure that there are no shorted or open control wires from the keying devices to the gate operator. If a
keying device fails to open the gate, momentarily jumper across terminals 1 and 2 (or 1 and 5) on the gate operator
circuit board. If the gate operator starts, this indicates that a problem exist with the keying device and is not with the
gate operator.
5. Check the high voltage supply. A voltage drop on the supply line (usually caused by using too small supply voltage
wires) will cause the operator to malfunction. Refer to the wire size chart in section 2.1 page 15.
Symptom
Possible Solution(s)
Operator will not run. • Check that power to the operator is turned ON.
Power LED is OFF.
• Transformer may be overheated. Turn power off and allow board to cool for several minutes then
retest. Check for low 115 VAC power and low voltage shorts.
• Check for 115 VAC at terminals 19 and 20. If voltage measures OK, check the terminal strip or
replace the circuit board.
Operator will not run. • Push test button or momentarily jumper terminal 1 to terminal 2 (or 1 to 5). If the input LED does
Power LED is ON.
not come ON, check the terminal strip or replace the circuit board. If LED does come ON, proceed
to next steps.
• Check Motor:
Remove circuit board. With power ON, momentarily jumper terminal 19 to terminal 18 with a
14 AWG insulated jumper wire. CAUTION – HIGH VOLTAGE. The motor should run.
• With power ON, momentarily jumper terminal 19 to terminal 17 with a 14 AWG insulated
jumper wire. CAUTION – HIGH VOLTAGE. The motor should run in the opposite direction of
the above step.
• If the motor runs in both steps above, replace the control board. If the motor does not run,
or runs in only one direction, problem can be a bad motor, motor capacitor, wire connections
from the control board to the motor or a bad control board.
Secondary operator
motor will not run.
32
• Check that SW-1, switch 6 is ON.
• Remove circuit board. Momentarily jumper terminal 19 to the primary/secondary connection
terminal block terminal 1, then to terminal 2 with a 14 AWG insulated jumper wire. CAUTION –
HIGH VOLTAGE. The secondary motor should run one way, then the other way as power is applied
to each terminal.
• If the secondary motor runs in both directions, replace the control board. If secondary motor does
not run, or runs in only one direction, problem can be in the wiring from the primary to secondary
operator, bad secondary motor or motor capacitor.
6500-065-X-1-16
Symptom
Possible Solution(s)
Gate will not reverse • Check ERD setting.
when an obstruction • Make sure operator hub does not slip when gate encounters an obstruction.
is encountered.
Gate opens a short
distance, then stops
and reverses.
• Check the reversing sensitivity.
• Disconnect gate from the gate operator and check that the gate swings freely without any binding.
• Continue troubleshooting or replace the circuit board.
Gate opens but will
not close.
• Check the input LEDs. Any ON will hold the gate open and indicates a problem with a keying device.
• Check the secondary safety devices. Any activated will hold the gate open and indicates a problem
with the safety device.
• Check the loop detectors. Any activated can hold the gate open and indicates a problem with the
loop detector or ground loop.
• Operator may be in a “soft shutdown.” Activate any keying device to determine if operator returns
to normal operation.
• If automatic close is desired, be sure SW-1, switch 4 is ON.
• Check motor as described on previous page.
Gate closes but will
not open.
• Operator may be in a “soft shutdown.” Check input LEDs. If any are ON, momentarily disconnect,
then re-connect the wire going to the respective terminal. Operator should open.
• Check to be sure that the operator is running in the proper direction. Turn power OFF, and then back
ON. Activate a keying device. Operator should run in the open direction. If operator runs in the
close direction, turn power OFF and change direction switch SW-1, switches 1 and/or 2. Go to
above section if operator now opens but will not close.
• Be sure that the respective LED on the control board lights when the keying device connected to the
respective terminal is activated. If LED does not light, momentarily place a jumper wire from
terminal 1 to the input terminal being checked. If LED lights and gate opens, problem is with the
keying device. If LED does not light, replace control board.
• Check motor as described on previous page.
Gate starts to close,
then reverses to
open.
•
•
•
•
Check that the reverse sensitivity is properly adjusted.
Disconnect the gate from the operator and check that the gate operates freely without any binding.
Check the loop detector LEDs and input LEDs. Any that flash ON will cause the gate to reverse.
If a shadow loop is used, check for proper wiring. A mis-wired shadow loop detector will cause the
gate to reverse.
• Continue troubleshooting or replace the circuit board.
Gate closes and then • Check for any input or loop detector LEDs that are ON.
• Check that operator is running in the proper direction (see “Gate closes but will not open” above).
re-opens.
Alarm sounds for 5
minutes and then
beeps once every 5
seconds. Operator
will not run.
6500-065-X-1-16
• Operator is in a “hard shutdown” condition. Reset switch must be activated to return operator to
normal operation.
33
6.3 Built-in Diagnostics
This gate operator is designed with built-in diagnostics that will alert you to potential or existing problems that the microprocessor has detected. Specific fault conditions are checked and the operator will signal that a fault exist through the built-in alarm.
Constant tone is heard when power is applied: This indicates that the limit switch wire harness is not connected to the circuit
board. In this condition, the operator will not run and the tone will continue until the fault is corrected. Check to be sure that
the limit switch plug is properly inserted into P2.
Constant tone is heard: This indicates that the operator is in a hard shutdown condition. The tone will continue to sound for
five minutes, and then will beep once every five seconds. The operator-reset button must be pressed or power must be
removed and then reapplied to return the operator to normal operation.
Short tone is heard every five seconds: This indicates that the operator has been in a hard shutdown condition in excess of five
minutes. This will continue until the operator-reset button is pressed or until power is removed from the operator.
Operator runs for 1 second and stops, two short tones are heard: This indicates that there may be a fault with the current
sensor circuit. Check that the black current sensor wire has been passed through the hole in the current sensor donut with the
correct number of loops (1/2 HP motor - 2 loops, 1 HP motor - 1 loop).
34
6500-065-X-1-16
6.4 Accessory Items
The following accessory items are available for the model 6500 swing gate operator.
Contact Sensors - For use as a entrapment protection device. Miller Edge, Inc., MGO20, MGR20, MGS20
Photo Cell - Non-contact (photo-cells) sensors for use as a entrapment protection device.
MMTC, Inc. Model IR55
P/N 8080-010
MMTC, Inc. Model 60-278
P/N 8080-011
Carlo Gavazzi Type PMP12
P/N 8080-030
Carlo Gavazzi Type PMT
P/N 8080-031
Loop Detector - Detectors plug directly into ports on circuit board simplifying wiring.
P/N 9410-010 - Single channel detector
P/N 9409-010 – Two-channel detector
Magnetic Lock - Magnetic Gate Lock Kit provides an excellent means to secure swing gates and is a fail-safe device allowing
emergency vehicle access upon power outage.
P/N 1216-080 and P/N 1216-081
Control Station - Interior station mounts into single-gang electrical box. Provides open and hold open manual operation of the
gate. P/N 1200-017.
115 VAC Heater and Fan Assembly - Cold weather climates where temperatures drop below 40°F (4°C). P/N 6500-480
Interconnection Cable - Interconnect wire cable contains all the necessary wires to interconnect primary / secondary operators.
Cable length 30 feet. P/N 2600-755
Cable length 40 feet. P/N 2600-756
Cable length 50 feet. P/N 2600-757
High Voltage Kit - Alter the input AC voltage on a 115 VAC 6500 to 208, 230, 460 or 575 VAC. P/N 2600-266
Time Clock - 7 day and 365 day time clocks can be used to automatically open gate at pre-set time and days. Compact clock fits
inside the operator.
P/N 2600-791 - 7 day clock
P/N 2600-795 - 365 day clock
Torsion Rods - Torsion rod assembly is used on uphill swing gates for counter balance.
P/N 1203-084
Hinges - Heavy-duty ball bearing hinges provide easy swing gate operation.
P/N 1200-009, P/N 1200-019, P/N 1200-039.
Surge Devices - High and low voltage surge suppressors help prevent circuit board failure caused by lightning strikes and
power surges.
P/N 1876-010 - High Voltage
P/N 1878-010 - Low Voltage
Speed Bumps - Prefabricated six-foot speed bump reduces traffic speed through gate system. P/N 1610-150
6500-065-X-1-16
35
6.5 Gearbox Shaft Extension Replacement
Crank Arm Only P/N 6500-255
Control Arm Only P/N 2600-714
Complete Arm Kit P/N 6500-430
2
Crank Arm
Hub Assembly Remove the TWO allen screws on
bottom of hub to remove the complete hub assembly.
1
Limit Sensors Collar P/N 6500-115
P/N 6500-135 Brass Bushing 1 1/8” ID
Key
Key
Gearbox Shaft Extension with 4 Keys P/N 6500-147
Key
Key
1
2
Set Screws
Stainless Steel Washer P/N 2620-075
Snap Ring P/N 2630-007
3
4
Gearbox Collar P/N 6500-146
Remove the FOUR allen screws to remove the gearbox collar.
36
Gearbox P/N 2600-717
OPEN
Loosen set screws on plastic
limit assemblies to remove
them. Be CAREFUL
not to damage limit sensor
wires after the assemblies
have been removed.
Note: Close Limit Sensor
assembly must be reinstalled
on TOP of Open Limit Sensor
assembly.
CLOSE
Limit Sensor Assemblies
6500-065-X-1-16
Model 6500 1/2 HP 115 VAC
Magnetic
Close
Sensor
Magnetic
Open
Sensor
Remote Terminal
White
Gray
Yellow
Gray
1/2 HP
Red
Brown
50uf Capacitor
Orange
Orange
Blue
Gray
Orange
Yellow
Red
Blue
EXIT
LOOP
2
3
4
5
2
LMT
1
2
3
1 2 3 4
ON SW2
4
4
1477-010
SW1 ON
1 2 3 4
POWER
5
6
7
8
9
6
OB 7
TIME
DELAY
CB
OE
Ground
White
1
SW1
1 2 3 4 5 6 7 8
P8
ON
P2
8
CE
G
G
REV SENSE
SECONDARY
REV SENSE
PRIMARY
NC NO
13
14
15
2 Loops
Current Sensor
REVERSE
LOOP
10
11
12
20
4405-010
16
17
18
19
20
Red
Black
Power
Push to Operate
Neutral
Power
NEU HOT
115 VAC
Red
Yellow
Chassis
Ground
Gray
Orange
Yellow
White
Blue
2 Loops
Red
Ground
Purple
Brown
Secondary
Current
Sensor
Secondary Interface Terminal
Reset
Alarm
AC Power
6500-065-X-1-16
37
Model 6500 1 HP 115 VAC
Magnetic
Close
Sensor
Magnetic
Open
Sensor
White
Brown
Gray
Yellow
Gray
1 HP
Remote Terminal
Orange
Red
Orange
Blue
White
Gray
Orange
Yellow
Ground
EXIT
LOOP
1
2
3
4
5
2
SW1
1 2 3 4 5 6 7 8
P8
ON
P2
LMT
1
2
3
1 2 3 4
ON SW2
4
4
1477-010
SW1 ON
1 2 3 4
POWER
5
6
7
8
9
6
OB 7
TIME
DELAY
CB
OE
8
CE
G
G
REV SENSE
SECONDARY
REV SENSE
PRIMARY
NC NO
2 Loops
Current Sensor
REVERSE
LOOP
20
4405-010
10
11
12
13
14
15
16
17
18
19
20
Red
Black
Power
Push to Operate
Neutral
Power
NEU HOT
115 VAC
Red
Yellow
Chassis
Ground
Gray
Orange
Yellow
White
Blue
1 Loop
Red
Ground
Purple
Brown
Secondary
Current
Sensor
Secondary Interface Terminal
Reset
Alarm
AC Power
38
6500-065-X-1-16
Model 6500 1/2 HP Secondary Operator
1/2 HP
Red
50uf Capacitor
Magnetic
Close
Sensor
Magnetic
Open
Sensor
Yellow
Orange
Blue
Red
Blue
Gray
White
Blue
White
Red
Ground
Model 6500 1 HP Secondary Operator
1 HP
Magnetic
Open
Sensor
Yellow
Orange
Magnetic
Close
Sensor
Red
Blue
White
6500-065-X-1-16
Gray
White
Blue
Red
Ground
39
Installation/Owner’s Manual
Series 6500
Vehicular Swing Gate Operator
Use this manual for circuit board 4405-010 Revision E or higher.
6500-065-X-1-16
www.doorking.com
DoorKing, Inc.
120 S. Glasgow Avenue
Inglewood, California 90301
U.S.A.
40
Phone: 310-645-0023
6500-065-X-1-16
Fax: 310-641-1586
Copyright 2009 DoorKing, Inc. All rights reserved.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
