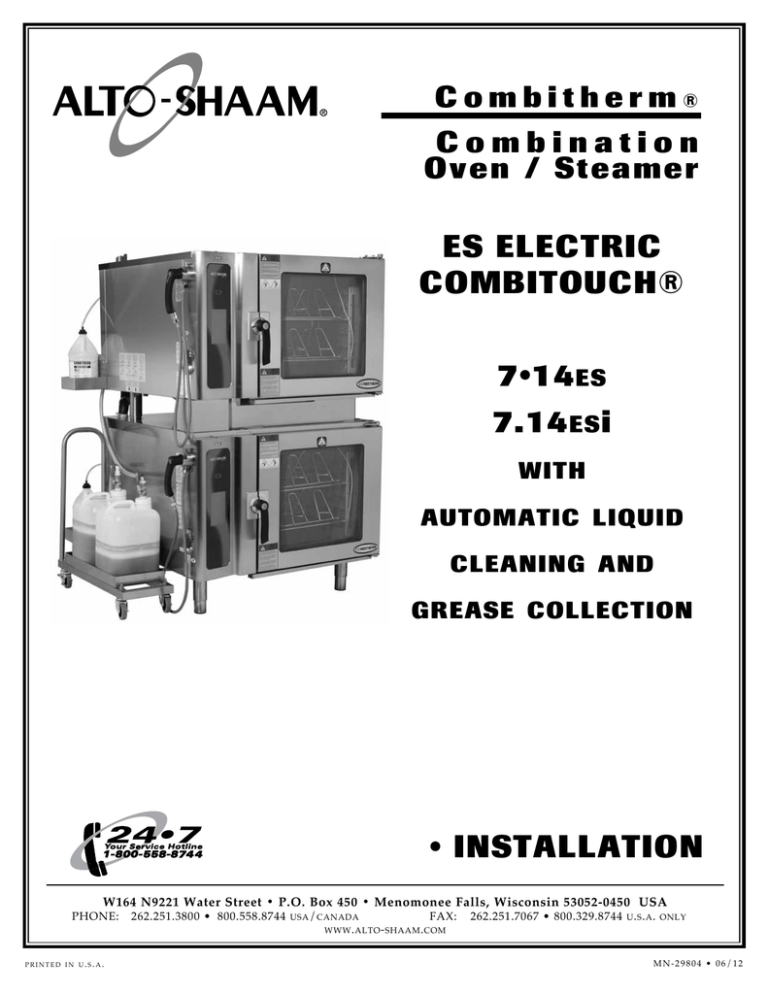

Combitherm®
Combination
Oven / Steamer
ES electric
combitouch®
7•14 es
7.14 es i
with
automatic liquid
cleaning and
grease collection
• Installation
W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 USA
PHONE: 262.251.3800 • 800.558.8744
printed in u.s.a.
usa / canada
FAX: 262.251.7067 • 800.329.8744
www . alto - shaam . com
u . s . a . only
MN-29804 • 06/12
Delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Procedures and Precautions. . . . . . . . . . . . . 2
Installation
Site Installation . . . . . . . . . . . . . . . . . . . .
Ventilation Requirements. . . . . . . . . . . . .
Positioning on Site. . . . . . . . . . . . . . . . . .
Lifting Instructions. . . . . . . . . . . . . . . . . .
Positioning Requirements . . . . . . . . . . . .
Accessories. . . . . . . . . . . . . . . . . . . . . . .
Specifications, 7•14esi. . . . . . . . . . . . . . .
Specifications, 7•14esi Stacked. . . . . . . .
Electrical Connection. . . . . . . . . . . . . . . .
Water Quality Requirement . . . . . . . . . . .
Water Connections . . . . . . . . . . . . . . . . .
Liquid Cleaner Hook-Up. . . . . . . . . . . . . .
Grease Collection Hook-Up. . . . . . . . . . .
Error Codes. . . . . . . . . . . . . . . . . . . . . . .
CombiTouch Motor Control Error Codes .
CombiTouch Installation Checklist. . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Wire Diagrams
Always refer to the wire diagram(s) included with the
unit for most current version.
Warranty
Original Equipment Limited Warranty. . . . . . . . . 24
Transportation Damage and Claims. . . . . . . . . . 25
3
3
4
5
6
7
8
9
10
12
13
15
16
17
21
23
i
delivery
unpacking
This alto-shaam appliance has been
thoroughly tested and inspected to ensure only
the highest quality unit is provided. upon
receipt, check for any possible shipping damage
and report it at once to the delivering carrier.
see transportation damage and claims section
located in this manual.
This appliance, complete with unattached
items and accessories, may have been delivered
in one or more packages. check to ensure that all
standard items and options have been received
with each model as ordered.
save all the information and instructions
packed with the appliance. complete and return
the warranty card to the factory as soon as
possible to ensure prompt service in the event of a
warranty parts and labor claim.
This manual must be read and understood
by all people using or installing the equipment
model. contact the alto-shaam Tech Team service
department if you have any questions concerning
installation, operation, or maintenance.
1. carefully remove the
appliance from the
carton or crate.
note:
all claims for warranty must include the
full model number and serial number of
the unit.
®
®
note: do not discard the
carton and other
packaging material
until you have
inspected the unit
for hidden damage
and tested it for
proper operation.
2. read all instructions in this manual carefully
before initiating the installation of this appliance.
do noT discard This Manual.
This manual is considered to be part of the
appliance and is to be provided to the owner
or manager of the business or to the person
responsible for training operators. additional
manuals are available from the alto-shaam
tech team service department.
3. remove all protective plastic film, packaging
materials, and accessories from the appliance
before connecting electrical power. store any
accessories in a convenient place for future use.
caution
TO PREVENT PERSONAL INJURY,
USE CAUTION WHEN MOVING OR
LEVELING THIS APPLIANCE.
the information contained in this
manual is important for the proper
installation of this oven. please
read carefully and retain for
future reference.
les informations contenues dans
ce manuel sont importantes pour
l’installation l’utilisation et
l’entretiend de ce four. s’il vous
plait lisez-le tres attentivement et
conservez-le.
improper connection of this
appliance will nullify all
warranties.
la non-application de ces consignes
annule toutes garanties.
CombiTouch® ES series – grease collection & automatic liquid cleaning • electric INSTALLATION • 1.
safety procedures
and precautions
Knowledge of proper procedures is essential to the
safe operation of electrically and/or gas energized
equipment. in accordance with generally accepted
product safety labeling guidelines for potential
hazards, the following signal words and symbols
may be used throughout this manual.
danger
Used to indicate the presence of
a hazard that WILL cause severe
personal injury, death, or substantial
property damage if the warning
included with this symbol is ignored.
warning
Used to indicate the presence of
a hazard that CAN cause personal
injury, possible death, or major
property damage if the warning
included with this symbol is ignored.
caution
Used to indicate the presence of a
hazard that can or will cause minor or
moderate personal injury or property
damage if the warning included with
this symbol is ignored.
caution
Used to indicate the presence of a hazard that
can or will cause minor personal injury, property
damage, or a potential unsafe practice if the
warning included with this symbol is ignored.
n o t e : used to notify personnel of
installation, operation, or
maintenance information that is
important but not hazard related.
1. This appliance is intended to cook, hold
or process foods for the purpose of human
consumption. no other use for this appliance is
authorized or recommended.
2. This appliance is intended for use in commercial
establishments where all operators are
familiar with the purpose, limitations, and
associated hazards of this appliance. operating
instructions and warnings must be read and
understood by all operators and users.
3. any troubleshooting guides, component views,
and parts lists included in this manual are for
general reference only and are intended for use
by qualified technical personnel.
4. This manual should be considered a permanent
part of this appliance. This manual and all
supplied instructions, diagrams, schematics,
parts lists, notices, and labels must remain with
the appliance if the item is sold or moved to
another location.
note
For equipment delivered for use
in any location regulated by the
following directive:
DO NOT DISPOSE OF ELECTRICAL
OR ELECTRONIC EQUIPMENT WITH
OTHER MUNICIPAL WASTE.
caution
WHEN WELDING ANY STAINLESS
STEEL COMPONENTS ON THIS
APPLIANCE, THE ELECTRONIC
CONTROL BOARDS MUST BE
ISOLATED FROM THE APPLIANCE.
CombiTouch® ES series – grease collection & automatic liquid cleaning • electric INSTALLATION • 2.
installation
s i t e INSTALLATION
danger
IMPROPER INSTALLATION,
ALTERATION, ADJUSTMENT,
SERVICE, OR MAINTENANCE COULD
RESULT IN SEVERE INJURY, DEATH,
OR CAUSE PROPERTY DAMAGE.
READ THE INSTALLATION,
OPERATING AND MAINTENANCE
INSTRUCTIONS THOROUGHLY
BEFORE INSTALLING OR SERVICING
THIS EQUIPMENT.
caution
TO PREVENT PERSONAL INJURY,
USE CAUTION WHEN MOVING OR
LEVELING THIS APPLIANCE.
danger
AVERTISSEMENT : UNE INSTALLATION,
UN AJUSTEMENT, UNE ALTÉRATION,
UN SERVICE OU UN ENTRETIEN NON
CONFORME AUX NORMES PEUT CAUSER
DES DOMMAGES À LA PROPRIÉTÉ, DES
BLESSURES OU LA MORT.
LIRE ATTENTIVEMENT LES DIRECTIVES
D’OPÉRATION ET D’ENTRETIEN
AVANT DE FAIRE L’INSTALLATION, OU
L’ENTRETIEN DE CET ÉQUIPEMENT.
danger
DO NOT store or use gasoline or other
flammable vapors or liquids in the
vicinity of this or any other appliance.
SITE INSTALLATION
ins t a l l a t i o n co des
& St a nd a r ds
The following codes and standards are required
for installation of this oven: air supply,
electrical connections, water
connections, and waste water
discharge.
NOTE :
Where automatically operated appliances are
vented through a ventilating hood or exhaust
system equipped with a damper or with a power
means of exhaust, provisions shall be made to
allow the equipment to operate only when the
ventilation requirements
A steam ventilation hood is mandatory for the
operation of the oven. The ventilation hood must
be installed in accordance with local building codes
for the steam exhaust and must protrude 12-inches
to 20-inches (300 to 500mm) over the front side of
the oven. A grease filter must be located in the
protruding area of the hood. Grease filters should
be thoroughly cleaned on a regular basis following
manufacturer's instruction. Ventilation hoods must
ensure an adequate amount of incoming air during
operation and must be operated whenever the
combination oven/steamer is used in order to avoid
the accumulation of condensation in the hood area.
damper is open to a position to properly vent the
appliance and when the power means of exhaust
is in operation.
in accordance with NFPA 54
commonwealth of massachusetts only.
CombiTouch® ES series – grease collection & automatic liquid cleaning • electric INSTALLATION • 3.
installation
s i t e INSTALLATION
caution
®
THE APPLIANCE MUST REMAIN ON
THE PALLET WHILE BEING MOVED
TO THE INSTALLATION SITE BY FORK
LIFT OR PALLET LIFT TRUCK.
NOTE :
Note dimensions required for doorways
and aisles for access of the oven and
pallet to the installation site. Transport
the oven in an upright and level position
only. Do not tilt the oven.
NOTE: T o avoid equipment damage, observe
attention label on oven for area to avoid
with lifting fork.
Positioning on site
Stand the oven in a level position. Use the
adjustable feet to overcome an uneven floor and
ensure that the unit is level.
It is strongly recommended that table top models be
mounted on a factory supplied stand or a stand that
is stable, open, and level. Recommended height is
23-inches (584mm).
Adjust the height of floor models for smooth access
of the trolley or cart. When positioning the oven,
observe the minimum space allocation requirements
shown.
To insure proper operation, the installation of this
oven must be completed by qualified technicians in
accordance with the instructions provided in this
manual. Failure to follow the instructions provided
may result in damage to the oven, building, or cause
personal injury to personnel.
MINIMUM CLEARANCE REQUIREMENTS
left side 6" (152mm)
minimum
18" (457mm)
20" (508mm) from
right side 4" (102mm)
back 4" (102mm)
top service access recommended
heat producing equipment
for plumbing
20" (508mm)
for air movement
NOTE: Additional clearance is needed for
service access. A minimum distance of 18-inches
is strongly recommended. If adequate service
clearance is not provided, it will be necessary to
disconnect the gas, water, and drain to move the
oven with a fork lift for service access. Charges
in connection with inadequate service access is
not covered under warranty.
CombiTouch® ES series – grease collection & automatic liquid cleaning • electric INSTALLATION • 4.
installation
s i t e INSTALLATION
Lifting Instructions
Remove banding before lifting.
Place a spacer board(s) 24” in
length, with a minimum height
of 1-1/2” (mobile base units
require 2-1/4” minimum
height), on each fork to prevent
damaging the door drip tray.
Lift the unit from the front
only, never from the side.
Front View
Fork
Fork
24”
Spacer
Boards
Adjust the forks so that
they do not damage
any of the components
under the unit. The left
Center
fork should be located
Leg
of
between the left legs
Gravity
and the door handle.
The right fork should
be located as close to
24”
the right legs as
Leg
Spacer
possible. Lift the unit
Board
high enough to remove
the wooden pallet.
Have a second person
hold the unit from
shifting. When moving
the unit, drive slowly,
Fork
keep it low to the
ground, and use
extreme caution.
Top View
Do not lift in
this area!
Damage to the
components
will result.
depth of
forks is
Leg
Leg
32”
Max.
24”
Spacer Fork
Board Depth
critical
for units
equipped
with grease
collection
to avoid
damaging
the pump
(Front)
Fork
Door Handle
LA- 29642
CombiTouch® ES series – grease collection & automatic liquid cleaning • electric INSTALLATION • 5.
installation
s i t e INSTALLATION
positioning requirements
q I n order to ensure proper ventilation, a minimum
distance of at least 6-inches (152mm) must be kept
from the control panels side (left) of the oven and any
adjoining surfaces.
NOTE: Additional clearance is needed for service
access. A minimum distance of 18-inches is strongly
recommended. If adequate service clearance is not
provided, it will be necessary to disconnect the gas,
water, and drain to move the oven with a fork lift for
service access. Charges in connection with inadequate
service access is not covered under warranty.
q A
llow a minimum of 4-inches (102mm) from the right
side of the oven to allow the door to open to at least a
90° angle. Fully opened, the door will extend up to a
225° angle If the oven is furnished with the retractable
door option, allow a minimum clearance of
6-1/2 inches (165mm).
q A
llow a minimum clearance of 4-inches (102mm) from
the back of the oven for plumbing connections.
q A
llow a 20-inch (500mm) clearance at the top of the
oven for free air movement and for the steam vent(s)
located at the top.
q D
o not install the oven adjacent to heat producing
equipment such as fryers, broilers, etc. Heat from such
appliances may cause damage to the controls of the
Combitherm. Minimum clearance recommended:
20-inches (500mm)
Place the Combitherm oven on a stable, non-combustible
level horizontal surface. For countertop
models, the oven stand must be level. Level
from front-to-back and side-to-side by means
of the adjustable legs. In addition, the overall
height of the oven should be positioned so the operating
controls and shelves may be conveniently reached from
the front.
CombiTouch® ES series – grease collection & automatic liquid cleaning • electric INSTALLATION • 6.
installation
ACCESSORIES
CombiGuard™ BWS Blended Water System ( includes 50
gallon tank ,
1
membrane
&3
filters )FI-28727
CombiGuard™ BWS Replacement Filter cartridge AMS-QTFI-29316
CombiGuard™ BWS Replacement Filter cartridge SCLX2-QFI-29317
CombiGuard™ BWS Replacement prefilter Filter cartridge CTO-QFI-29318
CombiGuard™ 10 Triple-Guard Water Filtration System (for single units, includes 1 cartridge)FI-23014
CombiGuard™ 10 triple-guard Replacement Filter (for single units)FI-26356
CombiGuard™ 20 Triple-Guard Water Filtration System (for stacked units, includes 1 cartridge)FI-28728
CombiGuard™ 20 triple-guard Replacement Filter (for stacked units)FI-28744
Combitherm Cleaning Liquid —
➥
four
(4)
containers / case ,
1
specially formulated for combitherm ovens
gallon each
[ special
handling required ]CE-26013
contact factory
extended one-year warranty
fry basket, 12"
x
20" (325mm x 530mm)
grilling grate, 12"
x
BS-26730
20" (325mm x 530mm)
sh-26731
Poultry grease Collection Container: 15" x 9-3/4" x 9-3/4" (381mm x 248mm x 248mm)
5014846
poultry Roasting Rack 6
5014438
scale free ™ ( citrus
chicken capacity , self - trussing
—
fits in side racks :
4
racks per oven based , non - corrosive deliming product )
Service Start-Up Check
CE-27889
available through an alto - shaam fasteam center specify as required
Shelf, Stainless Steel Wire
Stand, Stainless Steel ( h
stationary
37-3/4"
x
35-7/16"
Chicken Roasting Rack
x
5014438
SH-22584
x w x d ):
28" (957mm x 900mm x 710mm)
Fry Basket
BS-26730
5006170
Grilling Grate
SH-26731
CombiTouch® ES series – grease collection & automatic liquid cleaning • electric INSTALLATION • 7.
7•14 es i
Grease Collection
Pump
tWO (2) COld WAtER INlEtS - dRINkING QUAlIty
30 to 90 psi
lINE PRESSURE:
* can manifold off of
one 3/4" line.
2.8 to 6.2 bar
WAtER dRAIN: 1-1/2" connecTion wiTh a 2" MiniMuM air gap
insTalled as close To The oVen as possiBle
clearance requirements
20" (508mm) FROM HEAT PRODUCING EQUIPMENT
4" (102mm) tOP: 20" (508mm) For air MoVeMenT
BACk 4" (102mm) BOttOM: 5-1/8" (130mm)
electrical [DEDICATED CIRCUIT REQUIRED FOR EACH OVEN]
VolTage
phase
cycle/hZ
60
weight
using a waTer supply noT MeeTing alTo-shaaM’s MiniMuM
waTer qualiTy sTandards will Void This warranTy.
it is the responsibility of the purchaser to ensure that incoming water supply is
compliant with the specifications listed through adequate treatment measures.
installation of the combiguardTM water Filtration system is recommended, but
this system may not address all water quality issues present.
Contaminant
Free chlorine
hardness
chloride
ph
alkalinity
silica
Total dissolved solids (tds)
lEFt 6" (152mm) RECOMMENDED SERVICE ACCESS: 18" (457mm)
neT
ship
Grease Collection Pump
water quality minimum standards
ONE (1) tREAtEd WAtER INlEt:
3/4" npT*
ONE (1) UNtREAtEd WAtER INlEt: 3/4" npT*
3
Tray for Cleaner
EXtERIOR:
73-3/8" x 52-3/8" x 47-7/8" (1863mm x 1331mm x 1215mm)
INtERIOR:
20-5/16" x 23-1/2" x 28-7/8" (515mm x 596mm x 733mm)
water requirements
at 208
43-15/16" (1116mm)
Water Drain
35-3/4" (907mm)
Oven must be installed level.
Hood installation is required.
Water supply shut off valve and back flow preventer when
required by local code.
at 240
73-3/8" (1863mm)
37-3/4" (957mm)
Tray for Cleaner
dimensions: h x w x d
Installation requirements
RIGht
47-7/8" (1215mm)
52-3/8" (1331mm)
43-3/4" (1111mm)
41-15/16" (1064mm)
74-3/8" (1889mm)
Tray for Cleaner
15-3/4"
(400mm)
13"
(330mm)
22-5/8" (576mm)
2-1/4" (57mm)
3-3/4" (95mm)
For legs
Inlet Water Requirements (untreated water)
less than 0.1 ppm (mg/l)
less than 3 gpg (52 ppm)
less than 30 ppm (mg/l)
7.0 to 8.5
less than 50 ppm (mg/l)
less than 12 ppm (mg/l)
less than 60 ppm
awg
aMps
kw
Bare end, 3 wire plus ground, awg 6
40.3/ph
46.0/ph
14.5
19.0
capacity
405 lb
545 lb
(184 kg)
(247 kg)
craTe diMensions: (l x w x h)
56" x 45" x 51"
(1422 x 1143 x 1295mm)
Full-siZe pans: 20" x 12" x 2-1/2"
gn 1/1: 530 x 325 x 65mm
gn 2/1:
Full-siZe sheeT pans:*
650 x 530 x 65mm
18" x 26" x 1"
Fourteen (14)
Fourteen (14)
seven (7)
seven (7)
on wire shelVes only
168 lb (76 kg) MaXiMuM
VoluMe MaXiMuM: 105 quarts (133 liters)
*addiTional wire shelVes required For MaXiMuM capaciTy
CombiTouch® ES series – grease collection & automatic liquid cleaning • electric INSTALLATION • 8.
7•14 es i
52-7/16" (1331mm)
43-7/8" (1114mm)
41-15/16" (1064mm)
Water Drain
30" (760mm)
Tray for
Cleaner
over
47-7/8" (1215mm)
22-5/8"
(576mm)
15-3/4"
(400mm)
13" (330mm)
2-5/16" (58mm)
Steam Vent
Tray for
Cleaner
Tray for
Cleaner
25-5/8" (650mm)
dimensions: h x w x d
Installation requirements
Oven must be installed level.
Hood installation is required.
Water supply shut off valve and back flow preventer when
required by local code.
EXtERIOR:
68" x 49-7/16" x 45-1/4" (1727mm x 1255mm x 1150mm)
INtERIOR:
20-5/16" x 23-1/2" x 28-7/8" (515mm x 596mm x 733mm)
water requirements
water quality minimum standards
tWO (2) COld WAtER INlEtS - dRINkING QUAlIty
ONE (1) tREAtEd WAtER INlEt:
3/4" npT*
ONE (1) UNtREAtEd WAtER INlEt: 3/4" npT*
30 to 90 psi
lINE PRESSURE:
* can manifold off of
one 3/4" line.
2.8 to 6.2 bar
WAtER dRAIN: 1-1/2" connecTion wiTh a 2" MiniMuM air gap
insTalled as close To The oVen as possiBle
clearance requirements
20" (508mm) FROM HEAT PRODUCING EQUIPMENT
4" (102mm) tOP: 20" (508mm) For air MoVeMenT
BACk 4" (102mm) BOttOM: 5-1/8" (130mm)
using a waTer supply noT MeeTing alTo-shaaM’s MiniMuM
waTer qualiTy sTandards will Void This warranTy.
it is the responsibility of the purchaser to ensure that incoming water supply is
compliant with the specifications listed through adequate treatment measures.
installation of the combiguardTM water Filtration system is recommended, but
this system may not address all water quality issues present.
Contaminant
Free chlorine
hardness
chloride
ph
alkalinity
silica
Total dissolved solids (tds)
lEFt 6" (152mm) RECOMMENDED SERVICE ACCESS: 18" (457mm)
RIGht
For legs
electrical (EACH OVEN) [DEDICATED CIRCUIT REQUIRED FOR EACH OVEN]
VolTage
phase
cycle/hZ
awg
at 208
at 240
3
60
weight
Bare end, 3 wire plus ground, awg 6
capacity (EACH
850 lb (est.)
1,297 lb
Water
Drain
33-1/8" (840mm)
49-1/8" (1247mm)
37" (940mm)
68" (1728mm)
Water Drain
38-15/16" (988mm)
6-5/16" (159mm)
3-3/4" (95mm)
68-5/16" (1735mm)
77-3/16" (1960mm)
Untreated Water Intake
Treated Water Intake
Electrical Connection
neT
ship
7•14 es i
(386 kg)
(588 kg)
craTe diMensions: (l x w x h)
56" x 56" x 84"
(1422 x 1422 x 2134mm)
Inlet Water Requirements (untreated water)
less than 0.1 ppm (mg/l)
less than 3 gpg (52 ppm)
less than 30 ppm (mg/l)
7.0 to 8.5
less than 50 ppm (mg/l)
less than 12 ppm (mg/l)
less than 60 ppm
aMps
kw
40.3/ph
46.0/ph
14.5
19.0
OVEN )
Full-siZe pans: 20" x 12" x 2-1/2"
gn 1/1: 530 x 325 x 65mm
gn 2/1:
Full-siZe sheeT pans:*
650 x 530 x 65mm
18" x 26" x 1"
Fourteen (14)
Fourteen (14)
seven (7)
seven (7)
on wire shelVes only
168 lb (76 kg) MaXiMuM
VoluMe MaXiMuM: 105 quarts (133 liters)
*addiTional wire shelVes required For MaXiMuM capaciTy
CombiTouch® ES series – grease collection & automatic liquid cleaning • electric INSTALLATION • 9.
installation
electrical connection
danger
ENSURE POWER SOURCE
MATCHES VOLTAGE IDENTIFIED
ON APPLIANCE RATING TAG.
danger
APPLIANCES WITH NO CORD
PROVIDED BY FACTORY MUST
BE EQUIPPED WITH A CORD OF
SUFFICIENT LENGTH TO PERMIT
THE APPLIANCE TO BE MOVED
FOR CLEANING.
ELECTRICAL CONNECTIONS MUST
BE MADE BY A QUALIFIED SERVICE
TECHNICIAN IN ACCORDANCE WITH
APPLICABLE ELECTRICAL CODES.
hard wired models:
hard wired models must be equipped with a
country certified external allpole disconnection
switch with sufficient contact separation.
if a power cord is used for the connection of the
product an oil resistant cord like h05rn or h07rn
or equivalent must be used.
1.An electrical wiring diagram is located behind
the control panel on the left side of the oven.
This appliance must be branch circuit protected
with proper ampacities, in accordance with the
wiring diagram.
2.Wire size for the main incoming power to the
unit must match the minimum size listed in the
specifications applicable to the specific oven
model. For supply connections, locate the wire
size posted on the label located on the electrical
control box cover, behind the service panel.
3.When connecting to a Delta-B (wild leg) on a
3-phase system, the wild leg must be connected
to line 3.
4.Before operating the oven, check all cable
connections in the electrical connection area
for tightness since connections can loosen
during transport.
danger
To avoid electrical shock, this
appliance MUST be adequately
grounded in accordance with local
electrical codes or, in the absence of
local codes, with the current edition
of the National Electrical Code ANSI/
NFPA No. 70. In Canada, all electrical
connections are to be made in
accordance with CSA C22.1, Canadian
Electrical Code Part 1 or local codes.
danger
IMPROPER INSTALLATION,
ALTERATION, ADJUSTMENT,
SERVICE, OR MAINTENANCE COULD
RESULT IN SEVERE INJURY, DEATH,
OR CAUSE PROPERTY DAMAGE.
READ THE INSTALLATION,
OPERATING AND MAINTENANCE
INSTRUCTIONS THOROUGHLY
BEFORE INSTALLING OR SERVICING
THIS EQUIPMENT.
note: ce approved appliances must be
connected to an electrical circuit that is
protected by an external gFci outlet.
NOTE: A fter both water and electrical connections
have been completed, operate the oven
in any cooking mode for a period of 15
minutes and recheck the main power
connections at the terminal block to make
certain they remain tight. [The need to
check motor rotation no longer applies to
the Combitouch® model line.]
380-415V:
For CE approved units: To prevent an electrical
shock hazard between the appliance and other
appliances or metal parts in close vicinity, an
equalization-bonding stud is provided. an
equalization bonding lead must be connected to
this stud and the other appliances / metal parts
to provide sufficient protection against potential
difference. The terminal is marked
with the following symbol.
CombiTouch® ES series – grease collection & automatic liquid cleaning • electric INSTALLATION • 10.
installation
electrical connection
danger
danger
To avoid electrical shock, this
appliance MUST be adequately
grounded in accordance with local
electrical codes or, in the absence of
local codes, with the current edition
of the National Electrical Code ANSI/
NFPA No. 70. In Canada, all electrical
connections are to be made in
accordance with CSA C22.1, Canadian
Electrical Code Part 1 or local codes.
ELECTRICAL CONNECTIONS MUST
BE MADE BY A QUALIFIED SERVICE
TECHNICIAN IN ACCORDANCE WITH
APPLICABLE ELECTRICAL CODES.
Terminal Block
Ground
Electrical Connection
CREEN
CombiTouch® ES series – grease collection & automatic liquid cleaning • electric INSTALLATION • 11.
installation
w
a t e rquality
q u a l i trequirements
y requirement
water
Use a drinking quality, cold water supply only
USE A dRINkING QUAlIty, COld WAtER SUPPly ONly
water quality is of critical importance when
installing steam producing equipment of any kind,
particularly high temperature steam producing
equipment. water that is perfectly safe to drink is
composed of chemical characteristics that directly
affect the metal surfaces of steam producing
equipment. These chemical characteristics differ
greatly from region to region throughout the u.s. and
the world. varying combinations of ph; alkalinity;
hardness; chlorides; total dissolved solids; and other
chemical characteristics, when subjected to high
temperatures, will cause water to have a tendency to
either scale or corrode.
alto-shaam has consulted with people who
understand the properties of water in order to
provide water quality standards that meet the
broadest possible range of acceptable water quality
requirements to help protect your investment.
we strongly urge water testing to ascertain the water
quality on site prior to the installation of any steam
producing equipment. since water quality is an
important issue, alto-shaam is committed to provide
as much information as possible to help protect the
investment made in this equipment.
a combiguard™ water Filtration system can
be purchased as an option for installation on the
combitherm oven. This filter, when properly
installed, maintained, and combined with the
required levels of steam generating equipment
maintenance, will help lessen the affect water has
on metal surfaces. it will not, however, provide
complete protection against all water damage from
region to region.
due to the complexity of water chemistry, it
is important to understand that water quality
plays a significant role in the longevity of steam
producing equipment. water quality and required
maintenance of steam generating equipment is the
direct responsibility of the owner/operator. damage
incurred as a direct result of poor water quality
and/or surfaces affected by water quality is also the
responsibility of the owner/operator. damage due
to water quality that does not meet the minimum
standards shown below is not covered under the
alto-shaam combitherm warranty.
alto-shaam will continue our efforts to provide
viable solutions to ease the impact of water quality as
it relates to steam generating equipment.
ALTO-SHAAM COMBITHERM WATER QUALITY MINIMUM STANDARDS
CONTAMINANT
INLET WATER REQUIREMENTS (UNTREATED WATER)
Free Chlorine
Less than 0.1 ppm (mg\L)
Hardness
Less than 3 gpg (52 ppm)
Chloride
Less than 30 ppm (mg\L)
pH
7.0 to 8.5
Alkalinity
Less than 50 ppm (mg\L)
Silica
Less than 12 ppm (mg\L)
Total Dissolved Solids (tds)
warning
TO PREVENT WATER PIPES OR HOSES
FROM BURSTING, INCOMING WATER
SUPPLY SHOULD BE TURNED OFF
WHEN THE APPLIANCE IS NOT IN USE.
Less than 60 ppm
warning
WATER SUPPLY MUST BE OPEN WHEN
CLEANING PROGRAM IS ACTIVATED.
VERIFY WATER SUPPLY BEFORE STARTING
CLEANING PROGRAM.
CombiTouch® ES series – grease collection & automatic liquid cleaning • electric INSTALLATION • 12.
installation
water
installation
w
a t e rsupply
c o n n&
ec
tions
water requirements
Flush the water line at the installation site.
two (2) cold water inlets - drinking quality
install water intake filters (provided) [see Figure 1]
before connecting the oven to the water supply.
one (1) treated water inlet:
3/4" npT*
one (1) untreated water inlet:
3/4" npT*
line pressure:
30 to 90 psi
2.8 to 6.2 bar
* Can manifold off of one 3/4" line
REFER tO PUBlIShEd SPECIFIC WAtER REQUIREMENtS
water drain:
1-1/2" connection with air gap
a hose connector is supplied for flexible hose
connection to the COld water source.
Backflow Prevention — The equipment must be
installed with adequate backflow protection to
comply with applicable federal, state, and local
codes.
PiPe sealing taPe (teFlon®) must be used
at all connection Points. The use of a pipe
sealing compound is not recommended.
Install water
intake filters
one suggested
method of installation
Incoming cold
water connection
Water Filter
Figure 1
T connection
Cold water line
to untreated
oven connection
Cold water
line to filter
or treatment
system
Treated cold water
to backflow preventer
to treated connection
on oven
CombiGuard™
FI-23014 shown
alto-shaam now offers an improved water
filtration system for combitherm ®. The
combiguard™ 10 & 20 triple-guard water
filtration system filters dirt, sediment, and other
debris as small as 1/2 micron. This system also significantly reduces
chlorine content to protect against corrosive chorine compounds.
combiguard improves equipment efficiency, reduces service requirements
and extends the life of the combi oven. after installation, confirm that
water quality standards specified in this manual are being met. Filtration
systems include one filter cartridge. additional cartridges can be purchased
separately. refer to an earlier page for additional ordering information.
The combiguard™ Bws Blended water system utilizes reverse osmosis to
note:
both treated and untreated
water connections must
be connected For ProPer
oPeration oF the oven.
both connections can be
treated water, but should
never be connected to only
untreated water.
unions or FleXible lines
should be used to allow For
oven movement when being
serviced or cleaning
is needed.
remove more than 97% of the total dissolved solids from water which can be
precisely blended with filtered and treated water.
CombiTouch® ES series – grease collection & automatic liquid cleaning • electric INSTALLATION • 13.
installation
water Valve
shut-off valve shown
in the off position
NOTE:
The shut-off valve
must be in the OPEN position
when the oven is being used.
water drainage
The oven must discharge through an indirect waste pipe by means of an air gap. The drain fitting is
supplied with a 1-1/2-inch (41mm) NPT thread.
A union is required. Install a 1-1/2-inch (41mm)
diameter connection, drain line and clamp into place.
The drain line must always be a positive gradient
away from the Combitherm oven and not more than
12-inches (305mm) before an air gap.
NOTE: I n the U.S.A., this equipment is to be
installed to comply with the Basic Plumbing
Code of the Building Officials and Code
Administrators International, Inc. [BOCA],
and the Food Service Sanitation Manual of
the Food & Drug Administration [FDA].
If several units are to be
connected to one drain
pipe, the dimensions
of the pipe must be
sufficient to allow an
unobstructed water
drain system.
2" (51mm)
Air Gap
1-1/2" (41mm) diameter NPT
at back of oven
1-1/2" (41mm)
diameter connection
required
WASTE PIPE
1-1/2" to 2" minimum diameter
(c. 38mm to 51mm)
Condensate Pan
Clean Out
CombiTouch® ES series – grease collection & automatic liquid cleaning • electric INSTALLATION • 14.
installation
Liquid cleaner hook-up
Cleaner Cap and
Tubing Assembly
Support Tray
Mounting Studs
• Removable, cleaner support tray
does mount on the left exterior
wall of the oven. Slide slotted
openings on the tray over the
mounting studs.
• Support tray holds a 2-1/2-gallon
bottle and measures 10-1/2" x
7-3/4" (267mm x 194mm).
Support Tray
Slotted Opening
• Place liquid oven cleaner bottle
inside tray.
• Wearing protective rubber gloves
and eye wear, remove cap from
liquid oven cleaner bottle. Pull
out the Cleaner Cap and Tubing
Assembly from the back of the unit
screw on to liquid oven cleaner
bottle.
• Combitherm liquid oven cleaner
jugs are quickly and easily
replaced.
• Combitherm liquid oven cleaner
Support Tray
is automatically pumped through
the system, saving labor and
providing greater employee safety
by eliminating the need to handle
caustic cleaning liquids each day.
CombiTouch® ES series – grease collection & automatic liquid cleaning • electric INSTALLATION • 15.
installation
grease collection hook-up (IF
EQUIPPED WITH THIS FEATURE)
On/Off
Ball Valve
Grease Collection Hose
• grease collection hose assembly is
attached to the oven in the back.
• place grease collection containers
inside the tray of the Mobile grease
collection cart. roll into place next to
the oven.
• remove cap from container. pull out
28-1/2" (724mm)
Grease Collection Container
11-3/16" (284mm)
10-1/2" (267mm)
the grease collection hose assembly
from the back of the unit.
• screw on to collection container until
snug.
• Turn ball valve handle to the ON
Screw on
attachment
position.
• automatic grease collection system
is electronically activated during
the chicken cooking process [ PATENT
PENDING ]. it is designed to save labor
and provide greater employee safety
by eliminating the need to handle hot
grease in shallow pans.
22-3/16" (563mm)
20-1/4" (514mm)
Optional
Mobile
Grease
Collection
Cart
3-3/8" (86mm)
5014542
CombiTouch® ES series – grease collection & automatic liquid cleaning • electric INSTALLATION • 16.
installation
error codes
this section is provided for the assistance of qualified technicians only and is not intended for use by
untrained or unauthorized service personnel. if your alto-shaam ® unit is not operating properly, check the
following before calling your authorized alto-shaam service agent:
☛ check that unit is receiving power. circuit breaker turned on?
do not attempt to repair or service the oven beyond this point. contact alto-shaam for the nearest
authorized service agent. repairs made by any other service agents without prior authorization by
alto-shaam will void the warranty on the unit.
when the oven malfunctions, an error code will appear in the display.
PRESS thE StARt ICON tO ACkNOWlEdGE thE ERROR.
The icons that begin to flash represent operational modes that are still usable.
when the oven fault is corrected, the combitherm will return to normal operation.
error
code
error call out in display
description of error
possible cause
e01
Low Water boiler
Low water level in boiler
— Water supply is shut off .
— Low water pressure .
— Generator drain cap missing or loose .
— Generator drain pump is not sealing .
— Generator drain pump elbow leaking .
— Faulty or scaled water level probe .
— Faulty or plugged dual solenoid valve assembly .
— Wiring or connection issue .
— no output to dual solenoid from relay board .
— Relay board, high voltage is not operating .
e02
Control Temperature High
Relay board surface
temperature too high
— Wiring or connection issue .
— Cooling fan on Relay board assembly is
not operating .
— Cooling Fan on display board is not operating .
— Main Cooling fan is not operating .
— Cooling Fan on motor drive is not operating .
— Unit is less than 20” from a heat producing source
on its left hand side .
e03
Fan Motor Error
Fan motor does not work
— Exhaust hood is not operating properly .
— Check LED flashes on the Motor Control .
— see motor control error code list .
— Connection Issue on Hall Effect sensor .
— Fan whel is not operating .
— Hall sensor does not detect motor rotation .
e04
Fan Motor 2 Error
Lower fan motor on 20•20
does not work
— Exhaust hood is not operating properly .
— Check LED flashes on the Motor Control .
— see motor control error code list .
— Connection Issue on Hall Effect sensor .
— Fan wheel is not operating .
— Hall sensor does not detect motor rotation .
e11
Convection Temperature
High
Excess oven temperature
Convection Mode & Combi Mode:
— Convection Oven contactor(s) stuck closed .
— n6 Oven Cavity Temperature probe defective .
— n6 Cavity Probe connection problem .
— Relay board, high voltage is not operating .
— Wiring or connection issue .
Combi Mode Only:
— Insufficient water supply into oven for
steam production .
continued on next page
CombiTouch® ES series – grease collection & automatic liquid cleaning • electric INSTALLATION • 17.
installation
error codes
error
code
error call out in display
description of error
e13
boiler Temperature High
e15
Condensor Temperature High Excess condensor
temperature
— Untreated water supply line is shut off .
— Untreated water supply line is connected to
warm water .
— b3 probe connection problem .
— b3 probe is faulty .
— Single solenoid valve Y2 obstructed or faulty .
— Wiring or connection problem .
— Relay board, high voltage is not operating .
e20
HACCP Only - b11 Core
Temperature Probe Single
Point Fault
— Clean Probe Receptacle Pins with sand paper .
— b11 Single Point Core Temperature probe with
quick connect, defective .
— b11 Single Point Core Temperature probe wires
with quick connect, disconnected .
— b11 Single Point Core Temperature probe
receptacle, defective .
— b11 Single Point Core Temperature probe
receptacle wires disconnected .
boiler temperature overheats
Single point core temperature
probe defect or disconnected .
Error E20 is not shown in display.
Instead a probe sign with “?” is
shown as popup window. In case
the customer cooks in time mode
during first step and during second
step switches to probe mode but has
no probe in place, the error E20 will
be shown in the error code list and
HACCP list.
possible cause
— Scale build up inside steam generator .
— Scale build up on water level probe .
— b4 Probe connection problem .
— b4 probe faulty .
e21
n6 Cavity Probe Fault
Cavity temperature probe
defect or disconnected
— n6 Oven Cavity Temperature probe defective .
— n6 Oven Cavity Temperature connection problem .
e22
b10 Core Temperature Probe
Multipoint Fault
Multipoint core temperature
probe defect or disconnected
— b10 Multipoint Core Temperature probe defective .
— b10 Multipoint Core Temperature probe connection
problem .
e23
b4 boiler Probe Fault
boiler temperature probe
defect or disconnected
— b4 boiler temperature probe defective .
— b4 probe wires connection problem .
e24
b5 bypass Probe Fault
bypass steam temperature
probe defect or disconnected
— b5 bypass steam temperature probe defective .
— b5 bypass steam temperature connection problem .
e25
b3 Condensor Probe Fault
Condensor water
temperature probe defect or
disconnected
— b3 Condensor temperature probe defective .
— b3 Condensor probe connection problem .
e26
n8 boiler Safety
Temperature Probe Fault
Steam generator heating
element protection probe
defect or disconnected
— n8 boiler temperature probe defective .
— n8 probe connection problem .
e27
boiler Element
Temperature High
Excess steam generator
safety probe
— Scale build up inside steam generator .
— Scale build up on water level probe .
— Water level probe connection failure .
— n8 boiler temperature probe defective .
— n8 probe connection problem .
— Steam element contactor(s) stuck closed .
— Wiring or connection problem .
continued on next page
CombiTouch® ES series – grease collection & automatic liquid cleaning • electric INSTALLATION • 18.
installation
error codes
error
code
error call out in display
description of error
possible cause
e34
Steam Generator Drain
Pump Fault
Water level in steam
generator does not drop
during cleaning program
— Scale build up inside the steam generator
drain pump .
— Scale build up inside the steam generator affecting
water level probes .
— Generator drain pump is faulty .
— Connection issue at drain pump .
— no output to pump from relay board .
e36
Steam Temperature High
Oven cavity temperature is
too high when operating in
a steam mode or cleaning
program
— Water supply is shut off .
— Low water pressure .
— Wiring or connection issue .
— Water injection pipe obstructed .
— Water flow control valve plugged or defective .
— Dual solenoid valve Y-1 obstructed or defective .
— no output to solenoid valve form relay board .
e51
no Water In boiler
Water inside steam generator
does not reach low water
level
— Water supply is shut off .
— Low water pressure .
— Generator drain cap missing or loose .
— Generator drain pump is not sealing .
— Generator drain pump elbow leaking .
— Faulty or scaled water level probe .
— Faulty or plugged dual solenoid valve assembly .
— Wiring or connection issue .
— no output to dual solenoid from relay board .
e53
Fan Motor High
Temperature
Fan motor too hot
— Exhaust hood is not operating properly .
— Check LED flashes on the Motor Control .
— see motor control error code list .
— Connection Issue on Hall Effect sensor .
— Fan wheel is not operating .
— Hall sensor does not detect motor rotation .
e54
Fan Motor 2 High
Temperature
20•20 lower fan motor too hot
— Exhaust hood is not operating properly .
— Check LED flashes on the Motor Control .
— see motor control error code list .
— Connection Issue on Hall Effect sensor .
— Fan wheel is not operating .
— Hall sensor does not detect motor rotation .
e55
Vent not Open
browning valve does not open
— Alignment issue between motor cam and vent
motor safety switch (micro switch) .
— Fault vent valve (motor) .
— Fault vent valve safety switch (micro switch) .
— Wiring or connection problem .
continued on next page
CombiTouch® ES series – grease collection & automatic liquid cleaning • electric INSTALLATION • 19.
installation
error codes
error
code
error call out in display
description of error
possible cause
e57
no Rinse Water
During rinse no water
flow is detected through
solenoid valve
— Water supply is shut off .
— Low water pressure .
— Check wiring to all components mentioned below .
— Flow switch is dirty or defective .
— Dual water solenoid valve obstructed or faulty (Y3 .)
— Relay board, high voltage, defective .
e93
Communication Error,
FROM Display board
Communication error
between display board and
low voltage relay board
— Check ribbon cable connections mentioned below .
— Ribbon cable defective .
— Relay board, low voltage, connector defective .
— Display board connector defective .
e94
Communication Error,
TO Display board
Communication error
between display board and
low voltage relay board
— Check ribbon cable connections mentioned below .
— Ribbon cable defective .
— Relay board, low voltage, connector defective .
— Display board connector defective .
e98
Rb is in Cesius and Db is in
Fahrenheit
Conflict of unit configuration
in the setup menu
— Relay board and Data board do not match, use
setup menu to change format .
e99
Rb is in Fahrenheit and Db
is in Cesius
Conflict of unit configuration
in the setup menu
— Relay board and Data board do not match, use
setup menu to change format .
e100
Db is not equal to Rb
version . Error generated
by Db .
Software update may have
failed .
— Check ribbon cable connections .
— Ribbon cable defective .
— Relay board, low voltage, connector defective .
— Display board connector defective .
— Software may need to be updated again .
e101
Db is not equal to Rb
version . Error generated
by Rb .
Software update may have
failed .
— Check ribbon cable connections .
— Ribbon cable defective .
— Relay board, low voltage, connector defective .
— Display board connector defective .
— Software may need to be updated again .
CombiTouch® ES series – grease collection & automatic liquid cleaning • electric INSTALLATION • 20.
installation
combitouch motor control error codes
type of error
indication
release of error
Undervoltage
LED flashing sequence, with 1 flash per period.
Voltage of intermediate circuit is less than 250V
Overvoltage
LED flashing sequence, with 2 flashes per period.
Voltage of intermediate circuit exceeds 445V
Excess
Temperature
LED flashing sequence, with 3 flashes per period.
Temperature sensor in the power unit is more than 93°C
Overcurrent
LED flashing sequence, with 4 flashes per period.
Blocked motor, detected by current peak monitoring from
900 rpm rotating field
Overcurrent
LED flashing sequence, with 5 flashes per period.
Intermediate circuit current exceeds 4.0A
Short-circuit
LED flashing sequence, with 6 flashes per period.
Release of interrupt at intermediate circuit current larger
than 53A
Power on
LED flashing sequence, with 7 flashes per period.
Effective mains voltage does not correspond to jumper
setting 115V/230V
Watchdog
LED flashing sequence, with 8 flashes per period.
Watchdog of the microcontroller released, program crash
CombiTouch® ES series – grease collection & automatic liquid cleaning • electric INSTALLATION • 21.
installation
error codes
when the oven malfunctions, an error code will appear in the display.
PRESS thE StARt ICON tO ACkNOWlEdGE thE ERROR.
The icons that begin to flash represent operational modes that are still usable.
when the oven fault is corrected, the combitherm will return to normal operation.
error
code
model
display shows
es
esg
mode
steam
combination
convection
retherm
esi
e01
Low Water Boiler
Yes
No
No
No
To 365°F/185°C
No
e02
Control Temp High
Yes
Yes
No
No
No
No
e03
Fan Motor Error
Yes
Yes
No
No
No
No
e04
Fan Motor 2 Error
Yes
Yes
No
No
No
No
e11
Convection Temperature High
Yes
Yes
BOILER UNITS
ONLY
No
No
No
e13
Boiler Temperature High
Yes
No
No
No
Yes
No
e15
Condenser Temperature High
Yes
Yes
No
No
To 356°F/180°C
No
e20
B11 Core Temperature Probe Single Point
Fault - HACCP only
Yes
Yes
No
No
No
No
e21
N6 Cavity Probe Fault
Yes
Yes
BOILER UNITS
ONLY
No
No
No
e22
B10 Core Temp Probe Fault
Yes
Yes
BY TIME ONLY
BY TIME ONLY
BY TIME ONLY
BY TIME ONLY
e23
B4 Boiler Probe Fault
Yes
No
No
No
No
No
e24
B5 Bypass Probe Fault
Yes
Yes
No
No
Yes
No
e25
B3 Condenser Probe Fault
Yes
Yes
Yes
No
To 356°F/180°C
No
e26
N8 Boiler Safety Temperature Probe Fault
Yes
No
No
No
No
No
e27
Boiler Element Temperature High
Yes
No
No
No
Yes
No
e34
Steam Generator Drain Pump Fault
Yes
No
No
No
No
No
e36
Steam Temperature High
Yes
No
No
No
Yes
No
e51
No Water in Boiler
Yes
No
No
No
Yes
No
e53
Fan Motor High Temperature
Yes
Yes
No
No
No
No
e54
Fan Motor 2 High Temperature
Yes
Yes
No
No
No
No
e55
Vent Not Open
Yes
Yes
Yes
(NO BROWNING)
Yes
(NO BROWNING)
Yes
(NO BROWNING)
Yes
(NO BROWNING)
e57
No Rinse Water
Yes
Yes
Yes
Yes
Yes
Yes
e93
Communication Error FROM Display Board
Yes
Yes
No
No
No
No
e94
Communication Error TO Display Board
Yes
Yes
No
No
No
No
CombiTouch® ES series – grease collection & automatic liquid cleaning • electric INSTALLATION • 22.
installation
comBitouch® checklist
Use this list as a final check of oven installation conformance.
damage directly attributed to improper set up, installation, or cleaning can invalidate warranty claims.
CLEARANCES:
left:
6” (152mm) RECOMMENdEd SERvICE ACCESS OF 18” (457mm).
20” (508mm) FROM HEAT PRODUCING EQUIPMENT.
right: 4” (102mm)
Back: 4” (102mm) for plumbing
Top: 20” (508mm) for air movement
ARE All ClEARANCE
REQUIREMENtS MEt?
q
yES
q
NO
IF NO, EXPlAIN: _____________________________
_____________________________________________
WATER SUPPLY AND DRAINS:
Verify hook-up to two (2) separate cold water supply lines with a
3/4” (19mm) water connection supply line. Verify inlet water pressure
is at a minimum of 30 psi (2.8 bar). Maximum water pressure is not to
exceed 90 psi (6 bar). Verify drain diameter of 1-1/2” (41mm) with a
positive descending slope, and with a 2” (51mm) air gap which is free
of obstructions before connection to the site drain. Verify 1/8” (3,2mm)
pitch to 10’ (305cm) of drain line.
IMPORtANt: Alto-Shaam has listed Water Quality Requirements in
the installation manual for this equipment. It is the responsibility
of the end user to have the water connected to this appliance tested
to ensure these standards are met before putting the oven into use.
Failure to meet these standards will void the warranty if damage to the
oven is found to be related to water quality.
ELECTRICAL CONNECTIONS:
Verify electrical power
requirements for oven.
Verify voltage at terminal block.
ARE BOth WAtER SUPPly lINES
PROPERly CONNECtEd?
q yES
q
NO
IF NO, EXPlAIN:_____________________________
IS A FIltER SyStEM INStAllEd
q yES
ON thIS UNIt?
q
NO
StORE hAS SEEN thIS RECOMMENdAtION:
q
yES
q
NO
SIGNAtURE OF StORE REPRESENtAtIvE:
_____________________________________________
VOLTAGE: _____________ line VolTage aT TerMinal BlocK (To ground):
PHASE: _____________
➥ lINE 1: ________ lINE 2:________ lINE 3: _______
BREAKER SIZE: _____________ lINE vOltAGE (phase To phase):
lINE 1 to 2: _______
lINE 2 to 3: _______
check all terminals for tightness.
lINE 3 to 1: _______
ElECtRICAl SUPPly lINE SIZE: ________________
CONTROL BOARD CONNECTIONS & OPERATION:
with the power on, press the Set-Up key to access
software version, and record.
SOFtWARE vERSION:
RB_____________ dB_____________
All ElECtRICAl tERMINAlS tIGht:
q
yES
q
NO
All BOARd CONNECtIONS tIGht:
q
yES
q
NO
All FUNCtIONS ARE dISPlAyEd:
q
yES
q
NO
All FUNCtIONS ON CONtROl OPERAtE:
q
yES
q
NO
UNIt OPERAtES IN All MOdES:
q
yES
q
NO
iF no, eXplain: _____________________________________________
PHYSICAL CONDITION: *REFERENCE INSTALLATION INSTRUCTIONS FOR COMPLETE INFORMATION
✔
Bottom of oven has been checked for damage due to improper positioning on site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . q
Verify all gaskets, hoses, and carts* are in place and function properly . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . q
if oven includes a cart, verify proper installation of the rack guide on companion warmer or chiller* . . . . . . . . . . . . . . . . . . . . . . q
Verify the installation of drip pans*, racks, shelves, drain screen, spray hose* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . q
Verify the oven is level and installed on a solid, water resistant floor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . q
SERVICE AGENCY:
START-UP DATE:
INSTALLATION NAME:
MODEL NO.:
SERIAL NO.:
TECH SIGNATURE:
CUSTOMER SIGNATURE:
CombiTouch® ES series – grease collection & automatic liquid cleaning • electric INSTALLATION • 23.
original equipment limited warranty
Alto-Shaam, Inc. warrants to the original purchaser that any original part that is found to be defective in
material or workmanship will, at Alto-Shaam’s option, subject to provisions hereinafter stated, be replaced with
a new or rebuilt part.
The labor warranty remains in effect one (1) year from installation or fifteen (15) months from the shipping date,
whichever occurs first. Alto-Shaam will bear normal labor charges performed by an authorized Alto-Shaam service
agent during standard business hours, and excluding overtime, holiday rates or any additional fees.
The parts warranty remains in effect for one (1) year from installation or fifteen (15) months from the shipping
date, whichever occurs first.
THIS WARRANTY DOES NOT APPLY TO:
1. Replacement of light bulbs, door gaskets, and/or the replacement of glass due to damage of any kind.
2. Equipment damage caused by accident, shipping, improper installation or alteration.
3. Steam generator or steam generating system damage as a result of inadequate routine maintenance and
cleaning. Required maintenance and cleaning of steam generating equipment is the responsibility of the
owner/operator.
4. Equipment used under conditions of abuse, misuse, carelessness or abnormal conditions including, but not
limited to, equipment subjected to harsh or inappropriate chemicals including, but not limited to, compounds
containing chlorine, chlorides or quaternary salts, or equipment with missing or altered serial numbers.
5. Equipment that uses water must meet Alto-Shaam’s minimum water quality standards as shown below.
USE OF WATER NOT MEETING ALTO-SHAAM’S MINIMUM WATER QUALITY STANDARDS WILL VOID
THIS WARRANTY.
Water quality and required maintenance of steam generating equipment is the responsibility of the
owner/operator. The installation and use of Alto-Shaam’s CombiGuard™ Water Filtration System is
highly recommended.
ALTO-SHAAM COMBITHERM WATER QUALITY MINIMUM STANDARDS
CONTAMINANT
INLET WATER REQUIREMENTS (UNTREATED WATER)
Free Chlorine
Less than 0.1 ppm (mg\L)
Hardness
Less than 3 gpg (52 ppm)
Chloride
Less than 30 ppm (mg\L)
pH
7.0 to 8.5
Alkalinity
Less than 50 ppm (mg\L)
Silica
Less than 12 ppm (mg\L)
Total Dissolved Solids (tds)
Less than 60 ppm
6. Damage caused by use of any cleaning agent other than Alto-Shaam’s Combitherm® Oven Cleaner including,
but not limited to, damage due to chlorine, bleach, quaternary salts, scouring powders or other harmful
chemicals. Use of Alto-Shaam’s Combitherm Cleaner on Combitherm ovens is highly recommended.
7. Any losses or damage resulting from malfunction, including loss of product, food product, revenue, or other
consequential or incidental damages of any kind.
8. Equipment modified in any manner from original model, substitution of parts other than factory authorized
parts, removal of any parts including legs, or addition of any parts.
THIS WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,
INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT SHALL ALTO-SHAAM BE LIABLE FOR LOSS OF USE, LOSS OF REVENUE OR PROFIT, OR LOSS OF
PRODUCT, OR FOR ANY INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES.
No person except an officer of Alto-Shaam, Inc. is authorized to modify this warranty or to incur on behalf of
Alto-Shaam any other obligation or liability in connection with Alto-Shaam equipment.
Warranty effective November 1, 2011
CombiTouch® ES series – grease collection & automatic liquid cleaning • electric INSTALLATION • 24.
tRansportation damage and claims
All Alto-Shaam equipment is sold F.O.B. shipping point, and when accepted by the
carrier, such shipments become the property of the consignee.
Should damage occur in shipment, it is a matter between the carrier and the consignee.
In such cases, the carrier is assumed to be responsible for the safe delivery of the
merchandise, unless negligence can be established on the part of the shipper.
1. Make an immediate inspection while the equipment is still in the truck or immediately after it is moved to the
receiving area. Do not wait until after the material is moved to a storage area.
2.Do not sign a delivery receipt or a freight bill until you have made a proper count and inspection of all
merchandise received.
3.Note all damage to packages directly on the carrier’s delivery receipt.
4. Make certain the driver signs this receipt. If he refuses to sign, make a notation of this refusal on the receipt.
5.If the driver refuses to allow inspection, write the following on the delivery receipt:
Driver refuses to allow inspection of containers for visible damage.
6. Telephone the carrier’s office immediately upon finding damage, and request an inspection. Mail a written
confirmation of the time, date, and the person called.
7.Save any packages and packing material for further inspection by the carrier.
8.Promptly file a written claim with the carrier and attach copies of all supporting paperwork.
We will continue our policy of assisting our customers in collecting claims which have been properly filed and
actively pursued. We cannot, however, file any damage claims for you, assume the responsibility of any claims, or
accept deductions in payment for such claims.
Record the model and serial number of the appliance
for easy reference. Always refer to both model and serial number
in any contact with Alto-Shaam regarding this appliance.
Model:____________________________________________________
Serial Number:______________________________________________
Date Installed:______________________________________________
Voltage:___________________________________________________
Purchased From:____________________________________________
____________________________________________________
____________________________________________________
W164 N9221 Water Street
l
P.O. Box 450
l
Alto-Shaam has established a
twenty-four hour emergency service call
center to offer immediate customer access
to a local authorized service agency
outside of standard business hours. The
emergency service access is provided
exclusively for Alto-Shaam equipment
and is available throughout the United
States through the use of Alto-Shaam's
toll-free number. Emergency service
access is available seven days a week
including holidays.
Menomonee Falls, Wisconsin 53052-0450
l
U.S.A.
PHONE: 262.251.3800 • 800.558-8744 usa/canada FAX: 262.251.7067 • 800.329.8744 u.s.a. only
www.alto-shaam.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
