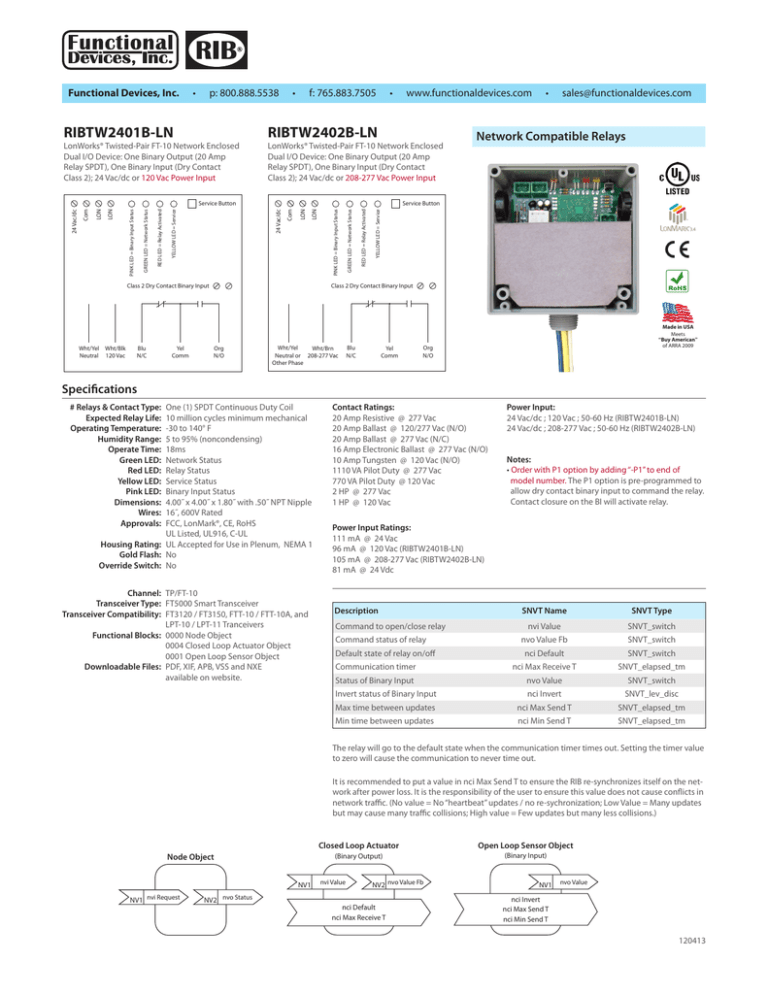

RIBTW2402B-LN Datasheet

RIBTW2402B-LN Datasheet
Functional Devices, Inc.
•
p: 800.888.5538
RIBTW2401B-LN
LonWorks® Twisted-Pair FT-10 Network Enclosed
Dual I/O Device: One Binary Output (20 Amp
Relay SPDT), One Binary Input (Dry Contact
Class 2); 24 Vac/dc or 120 Vac Power Input
•
f: 765.883.7505
•
RIBTW2402B-LN
LonWorks® Twisted-Pair FT-10 Network Enclosed
Dual I/O Device: One Binary Output (20 Amp
Relay SPDT), One Binary Input (Dry Contact
Class 2); 24 Vac/dc or 208-277 Vac Power Input
Network Compatible Relays
YELLOW LED = Service
RED LED = Relay Activated
GREEN LED = Network Status
PINK LED = Binary Input Status
LON
LON
Com
24 Vac/dc
YELLOW LED = Service
GREEN LED = Network Status
PINK LED = Binary Input Status
LON
LON
Com
24 Vac/dc
RED LED = Relay Activated
Yel
Comm
[email protected]
Class 2 Dry Contact Binary Input
Class 2 Dry Contact Binary Input
Blu
N/C
•
Service Button
Service Button
Wht/Yel Wht/Blk
Neutral 120 Vac
www.functionaldevices.com
Org
N/O
Wht/Yel
Wht/Brn
Neutral or 208-277 Vac
Other Phase
Blu
N/C
Yel
Comm
Made in USA
Meets
“Buy American”
of ARRA 2009
Org
N/O
Specifications
# Relays & Contact Type:
Expected Relay Life:
Operating Temperature:
Humidity Range:
Operate Time:
Green LED:
Red LED:
Yellow LED:
Pink LED:
Dimensions:
Wires:
Approvals:
One (1) SPDT Continuous Duty Coil
10 million cycles minimum mechanical
-30 to 140° F
5 to 95% (noncondensing)
18ms
Network Status
Relay Status
Service Status
Binary Input Status
4.00˝ x 4.00˝ x 1.80˝ with .50˝ NPT Nipple
16˝, 600V Rated
FCC, LonMark®, CE, RoHS
UL Listed, UL916, C-UL
Housing Rating: UL Accepted for Use in Plenum, NEMA 1
Gold Flash: No
Override Switch: No
Channel: TP/FT-10
Transceiver Type: FT5000 Smart Transceiver
Transceiver Compatibility: FT3120 / FT3150, FTT-10 / FTT-10A, and
LPT-10 / LPT-11 Tranceivers
Functional Blocks: 0000 Node Object
0004 Closed Loop Actuator Object
0001 Open Loop Sensor Object
Downloadable Files: PDF, XIF, APB, VSS and NXE
available on website.
Contact Ratings:
20 Amp Resistive @ 277 Vac
20 Amp Ballast @ 120/277 Vac (N/O)
20 Amp Ballast @ 277 Vac (N/C)
16 Amp Electronic Ballast @ 277 Vac (N/O)
10 Amp Tungsten @ 120 Vac (N/O)
1110 VA Pilot Duty @ 277 Vac
770 VA Pilot Duty @ 120 Vac
2 HP @ 277 Vac
1 HP @ 120 Vac
Power Input:
24 Vac/dc ; 120 Vac ; 50-60 Hz (RIBTW2401B-LN)
24 Vac/dc ; 208-277 Vac ; 50-60 Hz (RIBTW2402B-LN)
Notes:
• Order with P1 option by adding “-P1” to end of
model number. The P1 option is pre-programmed to
allow dry contact binary input to command the relay.
Contact closure on the BI will activate relay.
Power Input Ratings:
111 mA @ 24 Vac
96 mA @ 120 Vac (RIBTW2401B-LN)
105 mA @ 208-277 Vac (RIBTW2402B-LN)
81 mA @ 24 Vdc
Description
SNVT Name
Command to open/close relay
nvi Value
Node Object
nvo Value Fb
Command status of relay
Default state of relay on/off
Communication timer
SNVT Type
SNVT_switch
SNVT_switch
nci Default
SNVT_switch
nci Max Receive T
SNVT_elapsed_tm
NV1 nvi Request
nvo Status
nvoNV2
Value
SNVT_switch
Invert status of Binary Input
nci Invert
SNVT_lev_disc
Max time between updates
nci Max Send T
SNVT_elapsed_tm
Min time between updates
nci Min Send T
Closed Loop Actuator
SNVT_elapsed_tm
Status of Binary Input
(Binary Output)
The
relay
will go to the default state when the communication timer times out. Setting the timer value
Node
Object
to zero will cause the communication to never time out.
NV1
nvi Value
NV2 nvo Value Fb
It is recommended to put a value in nci Max Send T to ensure the RIB re-synchronizes itself on the netStatus
NV1 nvi Request
NV2 nvo
work after power
loss. It is the responsibility of the
to ensure this value does not cause conflicts in
nciuser
Default
network traffic. (No value = No “heartbeat” updates
no re-sychronization;
Low Value = Many updates
nci Max/ Receive
T
but may cause many traffic collisions; High value = Few updates but many less collisions.)
Closed Loop Actuator
(Binary Output)
Node Object
NV1
NV1 nvi Request
NV2 nvo Status
nvi Value
NV2 nvo Value Fb
nci Default
nci Max Receive T
Open Loop Sensor Object
(Binary Input)
NV1
nvo Value
nci Invert
nci Max Send T
nci Min Send T
120413
Closed Loop Actuator
(Binary Output)
Open Loop Sensor Object
(Binary Input)
