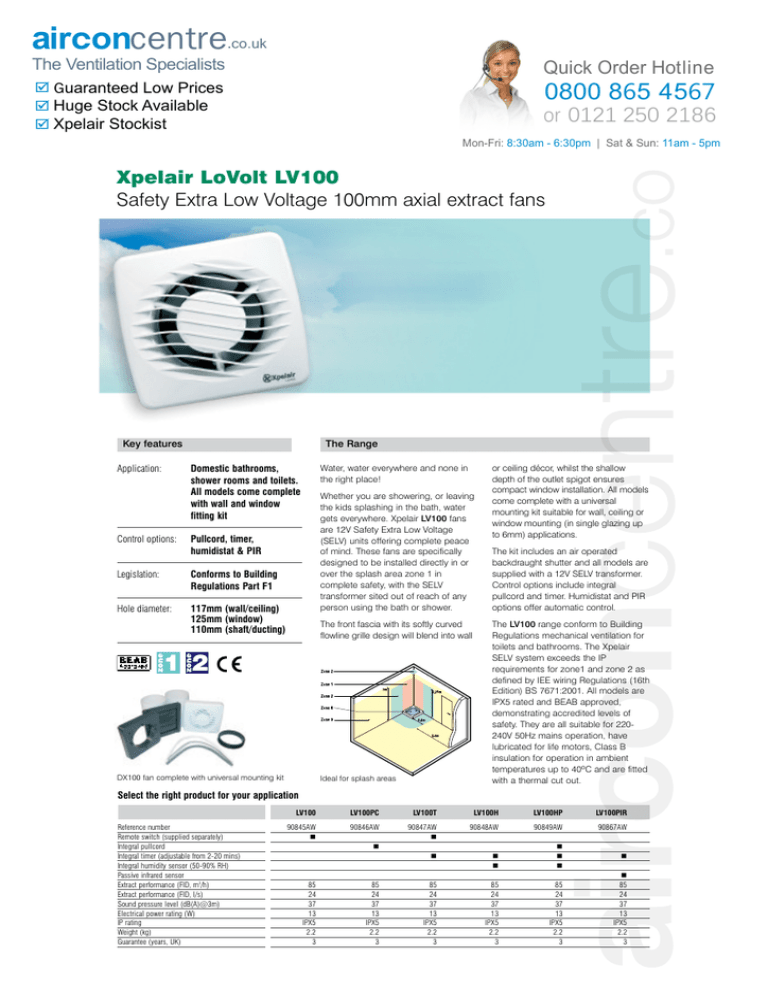

Xpelair LoVolt LV100
Safety Extra Low Voltage 100mm axial extract fans
The Range
Key features
Application:
Water, water everywhere and none in
the right place!
Domestic bathrooms,
shower rooms and toilets.
All models come complete
with wall and window
fitting kit
Control options:
Pullcord, timer,
humidistat & PIR
Legislation:
Conforms to Building
Regulations Part F1
Hole diameter:
117mm (wall/ceiling)
125mm (window)
110mm (shaft/ducting)
Whether you are showering, or leaving
the kids splashing in the bath, water
gets everywhere. Xpelair LV100 fans
are 12V Safety Extra Low Voltage
(SELV) units offering complete peace
of mind. These fans are specifically
designed to be installed directly in or
over the splash area zone 1 in
complete safety, with the SELV
transformer sited out of reach of any
person using the bath or shower.
The front fascia with its softly curved
flowline grille design will blend into wall
DX100 fan complete with universal mounting kit
Ideal for splash areas
or ceiling décor, whilst the shallow
depth of the outlet spigot ensures
compact window installation. All models
come complete with a universal
mounting kit suitable for wall, ceiling or
window mounting (in single glazing up
to 6mm) applications.
The kit includes an air operated
backdraught shutter and all models are
supplied with a 12V SELV transformer.
Control options include integral
pullcord and timer. Humidistat and PIR
options offer automatic control.
The LV100 range conform to Building
Regulations mechanical ventilation for
toilets and bathrooms. The Xpelair
SELV system exceeds the IP
requirements for zone1 and zone 2 as
defined by IEE wiring Regulations (16th
Edition) BS 7671:2001. All models are
IPX5 rated and BEAB approved,
demonstrating accredited levels of
safety. They are all suitable for 220240V 50Hz mains operation, have
lubricated for life motors, Class B
insulation for operation in ambient
temperatures up to 40ºC and are fitted
with a thermal cut out.
Select the right product for your application
Reference number
Remote switch (supplied separately)
Integral pullcord
Integral timer (adjustable from 2-20 mins)
Integral humidity sensor (50-90% RH)
Passive infrared sensor
Extract performance (FID, m3/h)
Extract performance (FID, l/s)
Sound pressure level (dB(A)@3m)
Electrical power rating (W)
IP rating
Weight (kg)
Guarantee (years, UK)
24
LV100
LV100PC
LV100T
LV100H
LV100HP
LV100PIR
90845AW
�
90846AW
90847AW
�
90848AW
90849AW
90867AW
�
�
�
�
�
�
�
85
24
37
13
IPX5
2.2
3
85
24
37
13
IPX5
2.2
3
85
24
37
13
IPX5
2.2
3
85
24
37
13
IPX5
2.2
3
�
85
24
37
13
IPX5
2.2
3
�
85
24
37
13
IPX5
2.2
3
airooncentre.co.uk
The Ventilation Specialists
Quick Order Hotline
airconcentre.co.uk
Specialists
0800 865 4567
or 0121 250 2186
Mon-Fri: 8:30am - 6:30pm | Sat & Sun: 11am - 5pm
Models
Controllers
LV100
Ref. 90845AW
• Single speed 12V SELV axial unit and
remote SELV transformer
• Operated by remote switch or sensor
(in a bathroom normally a separate pullcord
or lighting circuit)
• Includes universal mounting kit
• Colour: White
humidity sensor. Adjustable from 50-90% RH
• Adjustable timer function (2-20mins)
• Includes universal mounting kit
• Colour: White
LV100PC
Ref. 90846AW
• Single speed 12V SELV axial unit with
pullcord and remote SELV transformer
• Operated by integral pullcord
• Includes universal mounting kit
• Colour: White
LV100HP
Ref. 90849AW
• Single speed 12V SELV axial unit with
humidistat, pullcord and remote
SELV transformer
• Automatic On/Off operation by integral
humidity sensor. Adjustable from 50-90% RH
• Adjustable timer function (2-20mins)
• Pullcord On feature overrides the autohumidity sensor function
• Includes universal mounting kit
• Colour: White
LV100T
Ref. 90847AW
• Single speed 12V SELV axial unit with timer
and remote SELV transformer
• Timer triggered by a remote switch, for
example the lighting circuit. Timer variable
from 2-20mins
• Includes universal mounting kit
• Colour: White
LV100PIR
Ref. 90867AW
• Single speed 12V SELV axial unit with PIR
detector and remote SELV transformer
• Automatic On/Off operation
• Integral passive infrared sensor
• Adjustable timer function (2-20mins)
• Includes universal mounting kit
• Colour: White
LV100H
Ref. 90848AW
• Single speed 12V SELV axial unit with
humidistat and remote SELV transformer
• Automatic On/Off operation by integral
LoVolt Remote Humidistat LVH
Ref. 21863AW
• Stand alone humidistat switches fan On/Off
when the relative humidity reaches pre-set
levels. This level is user adjustable to
suit each application
Performance
LV100 Range
Typical Specifications on page 162.
Wiring Diagrams on page 181.
Domestic Accessories on page 56.
Dimensions (mm)
LV100 Range
Back Draught Shutter
LV100 Transformer
Installation and Accessories
Wall Mounting using
kit provided
Hole diameter: 117mm
Ducting size:
100mm
Alternative Accessories
Easy fit kit EFT
Ref. 90427AA
Air brick adaptor XAA
Ref. 89777AA
Ceiling Mounting
Hole diameter: 117mm
Ducting size:
100mm
Installation Accessories
Condensation trap XCT100
Ref. 89749AA
Vent cowl VC10
Ref. 89531AA
Window Mounting using
kit provided
Hole diameter: 125mm
Max. glass thickness: 6mm
Installation Accessories
Double glazing kit DXDG
Ref. 07439AA
Ventilation Shaft Mounting
Ducting Application
Hole diameter: 110mm
Hole diameter: 110mm
Ducting size:
100mm
Installation Accessories
Condensation trap XCT100
Ref. 89749AA
