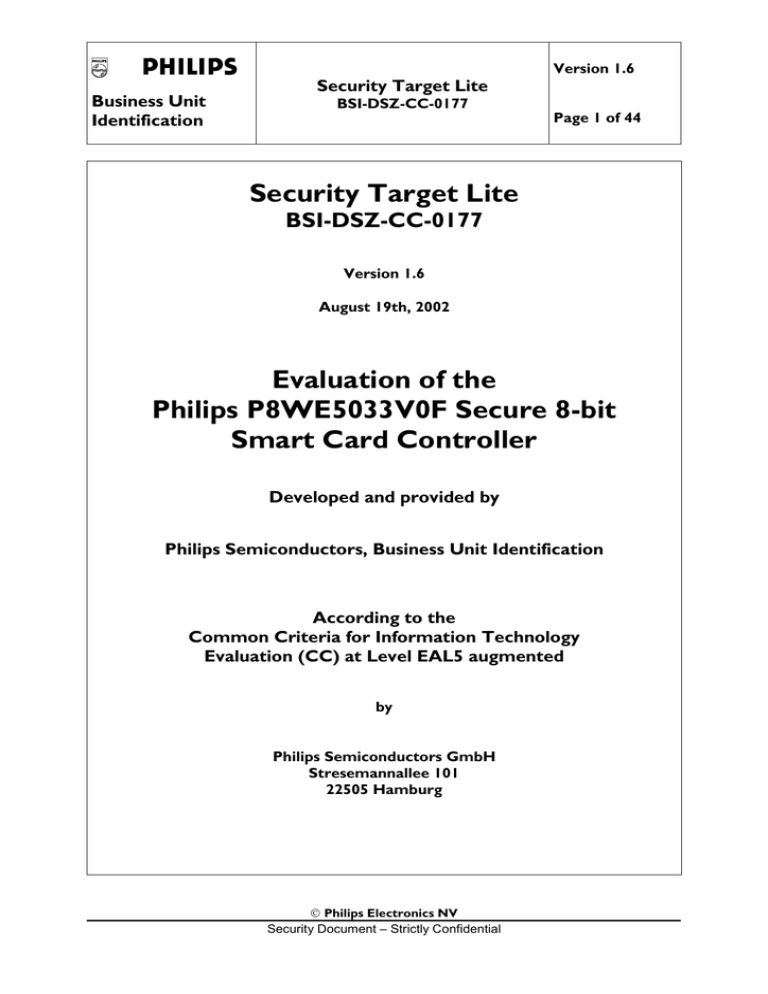

Security Target Lite
BSI-DSZ-CC-0177
Version 1.6
August 19th, 2002
Evaluation of the
Philips P8WE5033V0F Secure 8-bit
Smart Card Controller
Developed and provided by
Philips Semiconductors, Business Unit Identification
According to the
Common Criteria for Information Technology
Evaluation (CC) at Level EAL5 augmented
by
Philips Semiconductors GmbH
Stresemannallee 101
22505 Hamburg
 Philips Electronics NV
Security Document – Strictly Confidential
Version 1.6
Security Target Lite
Business Unit
Identification
BSI-DSZ-CC-0177
Page 2 of 44
Document Information
Document History
Version
Date
Changes
1.6
August 19th, 2002
Remarks
ST-lite, derived from ST
V1.5
Latest version is: Version 1.6 (August 19th, 2002)
Document Invariants
Name
Value (to be edited)
Test Output (to copy)
File name and length Automatically
st-lite_5033V0F_v1_6.doc (308224
Byte)
Latest version
Version 1.6
Version 1.6
th
Date of this version
August 19 , 2002
August 19th, 2002
Classification
Security Document – Strictly
Confidential
Security Document – Strictly
Confidential
TOE name (long)
Philips P8WE5033V0F Secure 8-bit Philips P8WE5033V0F Secure 8-bit
Smart Card Controller
Smart Card Controller
TOE name (short)
P8WE5033V0F
P8WE5033V0F
Developer (long)
Philips Semiconductors, Business
Unit Identification
Philips Semiconductors, Business
Unit Identification
Developer (short)
Philips
Philips
Sponsor (long)
Philips Semiconductors, Business
Unit Identification
Philips Semiconductors, Business
Unit Identification
Sponsor (short)
Philips
Philips
Certification ID
BSI-DSZ-CC-0177
BSI-DSZ-CC-0177
Evaluation facility
Prüfstelle IT-Sicherheit
T-Systems ISS GmbH
Prüfstelle IT-Sicherheit
T-Systems ISS GmbH
list of authors
Hans-Gerd Albertsen
Hans-Gerd Albertsen
certific. body (long)
Bundesamt für Sicherheit in der
Informationstechnik
Bundesamt für Sicherheit in der
Informationstechnik
certific. body (short) BSI
BSI
 Philips Electronics NV
Security Document – Strictly Confidential
Security Target Lite
Business Unit
Identification
BSI-DSZ-CC-0177
Version 1.6
Page 3 of 44
Table of Contents
1
ST Introduction
5
1.1
ST Identification
5
1.2
ST Overview
5
1.2.1
Introduction
5
1.2.2
Life-Cycle
6
1.2.3
Specific Issues of Smartcard Hardware and the Common
Criteria
7
1.3
2
4
5
7
TOE Description
8
2.1
TOE Definition
8
2.1.1
Hardware Description
9
2.1.2
Software Description
10
2.1.3
Documentation
10
2.1.4
Interface of the TOE
10
2.1.5
Life Cycle and Delivery of the TOE
11
2.1.6
TOE Intended Usage
11
2.1.7
TOE User Environment
12
2.1.8
General IT features of the TOE
13
2.2
3
CC Conformance and Evaluation Assurance Level
Further Definitions and Explanations
13
TOE Security Environment
14
3.1
Description of Assets
14
3.2
Assumptions
14
3.3
Threats
15
3.4
Organisational Security Policies
15
Security Objectives
17
4.1
Security Objectives for the TOE
17
4.2
Security Objectives for the Environment
18
IT Security Requirements
20
5.1
TOE Security Requirements
20
5.1.1
20
TOE Security Functional Requirements
 Philips Electronics NV
Security Document – Strictly Confidential
Security Target Lite
Business Unit
Identification
5.2
6
BSI-DSZ-CC-0177
Version 1.6
Page 4 of 44
5.1.2
TOE Security Assurance Requirements
23
5.1.3
Refinements of the TOE Security Assurance
Requirements
24
Security Requirements for the Environment
25
5.2.1
Security Requirements for the IT-Environment
26
5.2.2
Security Requirements for the Non-IT-Environment
26
TOE Summary Specification
28
6.1
TOE Security Functions
28
6.2
Assurance measures
30
7
PP Claims
33
8
Rationale
34
8.1
Security Objectives Rationale
34
8.2
Security Requirements Rationale
35
8.2.1
Rationale for the security functional requirements
35
8.2.2
Dependencies of security functional requirements
36
8.2.3
Rationale for the Assurance Requirements and the
Strength of Function Level
37
Security Requirements are Mutually Supportive and
Internally Consistent
37
8.2.4
8.3
8.4
9
TOE Summary Specification Rationale
37
8.3.1
Rationale for TOE security functions
37
8.3.2
Rationale for assurance measures
38
PP Claims Rationale
38
Annexes
40
9.1
Further Information contained in the PP
40
9.2
Glossary and Vocabulary
40
9.3
List of Abbreviations
42
9.4
Bibliography
43
9.4.1
Evaluation Documents
43
9.4.2
Developer Documents
44
9.4.3
Other Documents
44
 Philips Electronics NV
Security Document – Strictly Confidential
Security Target Lite
Business Unit
Identification
BSI-DSZ-CC-0177
Version 1.6
Page 5 of 44
1 ST Introduction
This chapter is divided into the following sections: “ST Identification”, “ST Overview” and “CC
Conformance and Evaluation Assurance Level”.
1.1
ST Identification
This Security Target (st-lite_5033V0F_v1_6.doc, Version 1.6, August 19th, 2002) refers to the
"Philips P8WE5033V0F Secure 8-bit Smart Card Controller" (TOE) provided by Philips
Semiconductors, Business Unit Identification for a Common Criteria evaluation.
1.2
ST Overview
1.2.1
Introduction
The TOE is the hardware of the microcontroller chip P8WE5033V0F composed of a processing
unit, security components, I/O ports, cryptographic co-processors and volatile and non-volatile
memories produced by Philips. The P8WE5033V0F includes IC Dedicated Software for test
purposes stored in the Test-ROM of the microcontroller. The TOE includes the documentation,
which consists of a Data Sheet and an additional Guidance Document. The documentation
contains a description of the architecture, the secure configuration of the chip by the application
software and the instruction set.
The security features of the P8WE5033V0F are mostly independent from the application
software and support the usage for a wide range of security applications within the information
technology. The TOE is embedded in a micro-module or another sealed package. The micromodules are embedded into a credit card sized plastic card.
The non-volatile EEPROM makes the TOE ideal for applications requiring non-volatile data
storage, including smart cards and portable data banks. Security functions protect data in the onchip ROM, EEPROM and RAM. In particular when being used in the banking and finance
market or in electronic commerce applications the smart card must provide security. Hence the
TOE shall
-
maintain the integrity and the confidentiality of data stored in the memory of the TOE
and
-
maintain the integrity, the correct operation and the confidentiality of security functions
(security mechanisms and associated functions) provided by the TOE.
This is ensured by the construction of the TOE and the security functions provided by the TOE.
Usually the smart card is assigned to a single individual only but may store and process secrets of
the system, too. So the TOE must meet security requirements to be applied to security modules.
 Philips Electronics NV
Security Document – Strictly Confidential
Business Unit
Identification
Security Target Lite
BSI-DSZ-CC-0177
Version 1.6
Page 6 of 44
The "Philips P8WE5033V0F Secure 8-bit Smart Card Controller" (TOE) mainly provides a
hardware platform for a smart card with
-
functions to calculate the Data Encryption Algorithm (Triple-DES) with two keys,
-
support for large integer arithmetic (multiplication, addition and logical operations) with
up to a length of 8192 bits,
-
a random number generator and
-
mode control regarding a test mode and an user mode.
In addition several security features independently implemented in hardware or controlled by
software will be provided to ensure proper operation as well as integrity and confidentiality of
stored data. This includes for example measures for memory protection and sensors to allow
operation only under specified conditions.
1.2.2
Life-Cycle
Regarding the life cycle of the smartcard (refer to the “Smartcard IC Platform Protection Profile”,
[5] section 8.1), the development and the production phase of the IC with its dedicated software
as described for the Target of Evaluation (TOE) is part of the evaluation.
Referring to the description in the PP [5], the TOE is delivered at the end of phase 3 in form of
wafers as described in section 2.1. Regarding the Application Note 1 of [5] the TOE supports the
authentic delivery using the Fabkey feature (see section 18.4 in the Data Sheet, P8WE5033
Secure 8-bit Smart Card Controller as well as section 2.4 in the Guidance, Delivery and
Operation Manual of the P8WE5033V0F).
Security during Development and Production
During the design and the layout process only people involved in the specific development
project for an IC have access to sensitive data. The trustworthiness of used components is ensured
with simulation and verification tools that use test patterns generated by Philips Semiconductors,
Business Unit Identification. Different people are responsible for the design data and for
customer related data. The security measures installed within Philips ensure a secure computer
system and provide appropriate storage equipment for the different development tasks.
The verified layout data for the wafer fab is provided by the developer of the chip. The wafer fab
provides the layout data of the different photomasks to the manufacturer of the photomasks. The
photomasks are generated off-site and verified against the design data of the development before
the usage. The accountability and the traceability is ensured among the wafer fab and the
photomask provider.
The production of the wafers includes two different steps regarding the production flow. In the
first step the wafers are produced with the fixed masks independent of the customer. After that
step the wafers are completed with the customer specific masks and the remaining masks. The
computer tracking ensures the control of the complete process including the storage of the semifinished wafers.
 Philips Electronics NV
Security Document – Strictly Confidential
Business Unit
Identification
Security Target Lite
BSI-DSZ-CC-0177
Version 1.6
Page 7 of 44
The test process of every die is performed by Philips. Delivery processes between the involved
Philips sites provide accountability and traceability of the produced wafers. Non-functional ICs
are marked on the wafer but will be delivered on the wafer to the customer.
1.2.3
Specific Issues of Smartcard Hardware and the Common Criteria
Regarding the Application Note 2 of [5] the TOE provides additional functionality which is not
covered in the “Smartcard IC Platform Protection Profile”. This additional functionality is added
using the policy “P.Add-Func” (see section 3.4 of this Security Target).
1.3
CC Conformance and Evaluation Assurance Level
The evaluation is based upon
-
Common Criteria for Information Technology Security Evaluation, Part 1: Introduction
and General Model; Version 2.1, August 1999, [1]
-
Common Criteria for Information Technology Security Evaluation, Part 2: Security
Functional Requirements; Version 2.1, August 1999, [2]
-
Common Criteria for Information Technology Security Evaluation, Part 3: Security
Assurance Requirements; Version 2.1, August 1999, [3]
For the evaluation the following methodology will be used:
-
Common Methodology for Information Technology Security Evaluation CEM-99/045
Part 2: Evaluation Methodology, Version 1.0, August 1999, [4]
The chosen level of assurance is EAL 5 augmented. The minimum strength level for the TOE
security functions is SOF-high (Strength of functions high).
This Security Target claims the following CC conformances:
-
Part 2 extended, Part 3 conformant, EAL 5 augmented
-
Conformance to the Protection Profile “Smartcard IC Platform Protection Profile”, [5]
The level of evaluation and the functionality of the TOE are chosen in order to allow the
confirmation that the TOE is suitable for use within devices compliant with the German Digital
Signature Law.
Note: The “Smartcard IC Platform Protection Profile”, [5] requires the assurance level EAL4
augmented. Regarding the Application Note 3 of [5] the changes which are needed for
EAL5 are described in the different relevant sections of this Security Target.
 Philips Electronics NV
Security Document – Strictly Confidential
Security Target Lite
Business Unit
Identification
BSI-DSZ-CC-0177
Version 1.6
Page 8 of 44
2 TOE Description
This chapter is divided into the following sections: “TOE Definition” and “Further Definitions
and Explanations”. TOE Definition has the sub-sections “Hardware Description”, “Software
Description”, “Documentation”, “Interface of the TOE”, “Life Cycle and Delivery of the TOE”,
“TOE Intended Usage”, “TOE User Environment” as well as “General IT features of the TOE”.
2.1
TOE Definition
The Target of Evaluation (TOE) is the smartcard integrated circuit depicted in figure 1 as block
diagram. The TOE named P8WE5033V0F is manufactured in an advanced CMOS process. The
TOE includes IC Designer/Manufacturer proprietary IC Dedicated Software in an 8kByte part
of the ROM. This software (also known as IC firmware) is used for testing purposes during
production only and does not provide additional services. All other software is called Smartcard
Embedded Software and is not part of the TOE.
Figure 1 Block Diagram of the P8WE5033V0F
The device is developed for most high-end safeguarded applications, and is designed for
embedding into chip cards according to ISO 7816 [12]. The secret data shall be used as input for
the calculation of authentication data, the calculation of signatures and the encryption of data
and keys. Each security measure is designed to act as an integral part of the complete system in
order to strengthen the design as a whole. The security measures can be divided into hardware
controlled security measures that do not allow for software guided exceptions and security
measures that shall be controlled by software.
 Philips Electronics NV
Security Document – Strictly Confidential
Security Target Lite
Business Unit
Identification
BSI-DSZ-CC-0177
Version 1.6
Page 9 of 44
The TOE is delivered in two different versions. The version P8WE5033V0G is an improved
version of the P8WE5033V0F. This improvement releases a minor restriction to a software
developer as stated in the user guidance manual for the P8WE5033V0F. Since both versions
P8WE5033V0F as well as P8WE5033V0G comprise the same functionality and provide the
same security features, both are addressed as “TOE” (Target of Evaluation) or named explicitly as
“P8WE5033V0F”.
The following table lists the TOE components.
Type
Name
Release Date
Form of delivery
Hardware
Philips P8WE5033V0F Secure 8bit Smart Card Controller
V0F
2001-10-16
(GDS2 File)
wafer
(dice include
reference C012F)
Software
Test ROM Software (the IC
dedicated software)
yl038
2001-04-19
Test ROM on the
chip
Document
Guidance, Delivery and Operation
Manual for V0F
Document
Data Sheet, P8WE5033 Secure 8- 3.2
bit Smart Card Controller
printed document
2002 July 05
printed document
Table 1: Components of the TOE
Note that the first character of the die reference for the P8WE5033V0F depends on the
production site of the wafer.
2.1.1
Hardware Description
The CPU of the P8WE5033V0F is a derivative of the 80C51 family and has the same instruction
set. The instruction set contains 255 different instructions, each instruction has a length of one
byte which can be followed by parameters consisting of one or two additional bytes. The on-chip
hardware is controlled by software via Special Function Registers. These registers are correlated to
the activities of the CPU, Interrupt, I/O, EEPROM, Timers, UART and the two co-processors.
The communication with the TOE can be performed through a serial interface I/O according to
ISO standard 7816-3 [13]. Two 16-bit timers and six vectorized interrupts provide further
functionality for I/O, timers, FameX and EEPROM.
The device includes ROM (96kByte User-ROM + 8kByte Test-ROM), RAM (2304 Byte) and
EEPROM (32kByte) memory. The EEPROM can be accessed as data memory as well as
program memory. The Triple-DES co-processor supports single DES and Triple-DES
operations, but only Triple-DES will be used in this evaluation. The FameX co-processor supplies
basic arithmetic functions to perform asymmetric crypto algorithms implemented by the
Smartcard Embedded Software. The random number generator provides true random numbers
without pseudo random calculation.
 Philips Electronics NV
Security Document – Strictly Confidential
Security Target Lite
Business Unit
Identification
BSI-DSZ-CC-0177
Version 1.6
Page 10 of 44
The P8WE5033V0F operates with a single 3V or 5V nominal power supply at a nominal
maximum external clock frequency of 8 MHz. The controller provides an internal clock to
perform security algorithms. The controller provides two power saving modes with reduced
activity: the IDLE Mode and the SLEEP Mode, which includes the CLOCK STOP Mode.
The TOE protects the secret data stored in and operated by the TOE against physical tampering.
Within the composition of this TOE, the operating system, and the smart card application the
security functionality is only partly provided by the TOE and causes dependencies between the
TOE security functions and the functions provided by the operating system or the smart card
application on top.
2.1.2
Software Description
The smart card operating system and the application are developed by the customer and called
Smartcard Embedded Software in the following. The Smartcard Embedded Software is stored in
the User-ROM and/or in the EEPROM and is not a part of the TOE. The application software
depends on the usage of the smartcard.
The code in the Test-ROM of the TOE is used by the TOE Manufacturer of the smart card to
check the chip function. This IC Dedicated Software is disabled before the operational use of the
smart card. The IC Dedicated Software (called firmware in the following) is developed by Philips
and embedded in the Test-ROM. The firmware includes the test operating system, test routines
for the various blocks of the circuitry, control flags for the status of the EEPROM’s security area
and shutdown functions to ensure that security relevant test operations cannot be executed
illegally after phase 3.
2.1.3
Documentation
The Data Sheet [8] of the P8WE5033V0F is also part of the TOE. It contains a functional
description needed to develop software, guidelines for the use of security features and the
instruction set of the TOE. Additional application notes describe aspects of the program interface
and the use of programming techniques to improve the security. The provided documentation
can be used by the application software developer to develop the Smartcard Embedded Software.
2.1.4
Interface of the TOE
In the user mode the electrical interface of the TOE are the pads to connect the lines power supply, reset input, clock input, ground and I/O1.
The software interface of the TOE depends on the operation mode of the TOE:
-
In the user mode the software interface is the set of instructions, the bits in the special
function registers that are related to the user mode and described in the data sheet as well
as the address map of the CPU including memories.
Note: The interface of the TOE after phase 3 is based on the embedded software
developed by the application software developer.
 Philips Electronics NV
Security Document – Strictly Confidential
Security Target Lite
Business Unit
Identification
-
BSI-DSZ-CC-0177
Version 1.6
Page 11 of 44
In the Test Mode the interface is the set of test functions based on the test operating
system in the Test-ROM and provided at the electrical interface.
The chip surface can be seen as an interface of the TOE, too. This is in the case of an attack
where the attacker manipulates the chip surface.
2.1.5
Life Cycle and Delivery of the TOE
For the usage phase the P8WE5033V0F chip will be implemented in a credit card sized plastic
card (micro-module embedded into the plastic card) or another sealed package. The chip provides
a hardware computing platform to run smart card applications executed by a smart card operating
system. Smart card applications will be used to store secret data and calculate cryptographic
functions.
The module and card embedding of the TOE provide external security mechanisms because they
make it harder for an attacker to access parts of the TOE for physical manipulation.
Regarding the Application Note 4 of [5] Philips will deliver the TOE at the end of phase 3 after
the production test in form of wafers. Module production and embedding (card production) shall
take place at the Card Manufacturer (see A.Process-Card).
Regarding the Application Note 5 of [5] Philips will deliver the TOE without IC Dedicated
Support Software. The IC Dedicated Software stored in the Test-ROM is disabled before the
TOE is delivered by Philips and cannot be used in the following phases.
The TOE is able to control two different logical phases. After production the chip is in the Test
Mode that means under the control of the test software. At the end of the production test the
chip will be switched into the User Mode so that the chip is under the control of the application
software.
2.1.6
TOE Intended Usage
Regarding to phase 7, the combination of the smartcard hardware and the application software is
used by the end-user. The method of use of the product in this phase depends on the application.
During the other phases of the product construction and product usage there are several
administrator- and user-functions.
Phase 1:
The smartcard embedded software developer develops software for the smartcard,
including a smartcard operating system and/or application specific software parts.
By using the software interface of the TOE (in user mode) as defined in section
2.1.4 he/she is the user of the smartcard hardware with the hardware features.
Phase 2:
The IC designer is responsible for the design of the chip that is developed within
this phase. In parallel the IC designer develops the IC Dedicated Software for the
production test of the chip that is included in the Test-ROM. Therefore the IC
designer takes the role of the administrator during this phase.
 Philips Electronics NV
Security Document – Strictly Confidential
Business Unit
Identification
Phase 3:
Security Target Lite
BSI-DSZ-CC-0177
Version 1.6
Page 12 of 44
The function of the administrator is split into two parts: The IC manufacturer is
responsible for the IC production itself. Regarding to the production test after the
manufacturing process the test engineer is the administrator.
Note: The definition of the user roles regarding the TOE for the phases 4 to 7 is provided here
as additional information and is not in the scope of the evaluation. However the operation
manuals address some of the user roles defined for phase 1 and the following phases.
Phase 4:
the IC packaging manufacturer (administrator),
the smartcard embedded software developer (user),
the system integrators such as the terminal software developer (user).
Phase 5:
the smartcard product manufacturer (administrator),
the smartcard embedded software developer (user),
the system integrators such as the terminal software developer (user).
Phase 6:
the personaliser (administrator),
the smartcard issuer (administrator),
the smartcard embedded software developer (user),
the system integrators such as the terminal software developer (user).
Phase 7:
the smartcard issuer (administrator),
the smartcard end-user (user),
the smartcard embedded software developer (user),
the system integrators such as the terminal software developer (user).
The smartcard embedded software developer and the system integrators such as the terminal
software developer are listed in Phases 4-7 because they may use samples of the TOE in these
phases for their testing purposes. It is not intended that they are able to change the behaviour of
the smartcard in another way than an user.
The IC manufacturer and the smartcard product manufacturer may receive ICs from different
phases for analysis purpose, if problems should occur during the smartcard usage.
2.1.7
TOE User Environment
The TOE user environment is the environment of phases 4 to 7. At phases 4, 5 and 6, the TOE
user environment must be a controlled environment.
In the end-user environment (phase 7) Smartcard ICs are used in a wide range of applications to
assure authorised conditional access. Examples of such are Pay-TV, Banking Cards, Portable
communication SIM cards, Health cards, Transportation cards. The end-user environment
therefore covers a wide spectrum of very different functions, thus making it difficult to avoid and
monitor any abuse of the TOE.
Phases 4 to 7 of the smart card life cycle are not part of the TOE construction process in the sense
of this Security Target. Information about those phases are just included to describe how the
 Philips Electronics NV
Security Document – Strictly Confidential
Security Target Lite
Business Unit
Identification
BSI-DSZ-CC-0177
Version 1.6
Page 13 of 44
TOE is used after its construction. Nevertheless the security features of the Smartcard IC
hardware that are independent of the software are active from the end of phase 3 and cannot be
disabled by the application software in the phases 4 to 7.
2.1.8
General IT features of the TOE
The TOE IT functionality consist of:
-
tamper resistant data storage
-
basic cryptographic functions (Triple-DES co-processor)
-
basic arithmetic functions (FameX co-processor for the calculation of asymmetric crypto
algorithms)
-
physical random number generator
-
data communication
2.2
Further Definitions and Explanations
Since the Security Target claims conformance to the PP “Smartcard IC Platform Protection
Profile”, the concepts are used in the same sense. For the definition of terms refer to the
Protection Profile [5]. This chapter does not need any supplement in the Security Target.
 Philips Electronics NV
Security Document – Strictly Confidential
Security Target Lite
Business Unit
Identification
BSI-DSZ-CC-0177
Version 1.6
Page 14 of 44
3 TOE Security Environment
This Security Target claims conformance to the Smartcard IC Platform Protection Profile. The
Assets, Assumptions, Threats and Organisational Security Policies are completely taken from the
Protection Profile. In the following only the extension of the different sections are listed. The
titles of the chapters that are not extended are cited here for completeness.
3.1
Description of Assets
Since this Security Target claims conformance to the PP “Smartcard IC Platform Protection
Profile”, the assets defined in section 3.1 of the Protection Profile apply to this Security Target.
Regarding the Application Notes 6 and 7 of [5] there are no additional assets defined in this
Security Target. The keys for the cryptographic co-processors are seen as User Data.
3.2
Assumptions
Since this Security Target claims conformance to the PP “Smartcard IC Platform Protection
Profile”, the assumptions defined in section 3.2 of the Protection Profile are valid for this Security
Target. The following table lists the assumptions of the Protection Profile.
Name
Title
A.Process-Card
Protection during Packaging, Finishing and Personalisation
A.Plat-Appl
Usage of Hardware Platform
A.Resp-Appl
Treatment of User Data
Table 2: Assumptions defined in the Protection Profile
Additionally, two more assumptions are defined considering the Application Notes 8 and 9 of [5]
related to the specialised encryption hardware of the P8WE5033V0F.
The personaliser or the smartcard issuer together with the developer of the Smartcard Embedded
Software must ensure the appropriate “Usage of Strong Keys (A.Strong-Key)” as specified below.
A.Strong-Key
Usage of Strong Keys
The Smartcard Embedded Software shall use only appropriate secret keys
(chosen from a large key space) as input for the cryptographic function of
the TOE to ensure the strength of cryptographic operation.
The developer of the Smartcard Embedded Software must ensure the appropriate “Keydependent Functions (A.Key-Fun)” as specified below.
 Philips Electronics NV
Security Document – Strictly Confidential
Security Target Lite
Business Unit
Identification
A.Key-Fun
BSI-DSZ-CC-0177
Version 1.6
Page 15 of 44
Key-dependent Functions
When the Smartcard Embedded Software is just being executed no
information about cryptographic keys can be gathered by analysing leakage
of the Smartcard IC. The different types of leakage are described in the
threat T.Leak-Inherent.
3.3
Threats
Since this Security Target claims conformance to the PP “Smartcard IC Platform Protection
Profile”, the threats defined in section 3.3 of the Protection Profile are valid for this Security
Target. The following table lists the threats defined by the PP:
Name
Subject
T.Leak-Inherent
Inherent Information Leakage
T.Phys-Probing
Physical Probing
T.Malfunction
Malfunction due to Environmental Stress
T.Phys-Manipulation
Physical Manipulation
T.Leak-Forced
Forced Information Leakage
T.Abuse-Func
Abuse of Functionality
T.RND
Deficiency of Random Numbers
Table 3: Threats defined by the Protection Profile
Considering the Application Notes 10 and 11 of [5] there are no additional high-level security
concerns or additional new threats defined in this Security Target.
3.4
Organisational Security Policies
Since this Security Target claims conformance to the PP “Smartcard IC Platform Protection
Profile”, the policy P.Process-TOE “Protection during TOE Development and Production” of
the Protection Profile is applied here also.
The TOE provides specific security functionality which can be used by the Smartcard Embedded
Software. In the following specific security functionality is listed which is not derived from threats
identified for the TOE’s environment because it can only be decided in the context of the
smartcard application, against which threats the Smartcard Embedded Software will use the
specific security functionality.
The IC Developer / Manufacturer must apply the policy “Additional Specific Security
Functionality (P.Add-Func)” as specified below.
 Philips Electronics NV
Security Document – Strictly Confidential
Security Target Lite
Business Unit
Identification
P.Add-Func
BSI-DSZ-CC-0177
Version 1.6
Page 16 of 44
Additional Specific Security Functionality
The TOE shall provide the following additional security functionality to
the Smartcard Embedded Software:
-
Triple DES encryption and decryption
-
Basic support for large integer arithmetic (calculation of e.g. RSA)
Regarding the Application Note 12 of [5] there are no other additional policies defined in this
Security Target.
 Philips Electronics NV
Security Document – Strictly Confidential
Security Target Lite
Business Unit
Identification
BSI-DSZ-CC-0177
Version 1.6
Page 17 of 44
4 Security Objectives
This chapter contains the following sections: Security Objectives for the TOE and Security
Objectives for the Environment.
4.1
Security Objectives for the TOE
The TOE shall provide the following security objectives, taken from the Protection Profile
Smartcard IC Platform Protection Profile:
O.Leak-Inherent
Protection against Inherent Information Leakage
O.Phys-Probing
Protection against Physical Probing
O.Malfunction
Protection against Malfunctions
O.Phys-Manipulation
Protection against Physical Manipulation
O.Leak-Forced
Protection against Forced Information Leakage
O.Abuse-Func
Protection against Abuse of Functionality
O.Identification
TOE Identification
O.RND
Random Numbers
Table 4: Security objectives defined in the PP
Regarding the Application Notes 13 and 14 of [5] the following additional security objectives are
defined based on the cryptographic functionality provided by the TOE as specified below.
O.DES3
Triple DES Functionality
The TOE shall provide the cryptographic functionality of Triple DES
encryption and decryption to the Smartcard Embedded Software.
Note: The TOE shall ensure the confidentiality of the User Data (and
especially cryptographic keys) during Triple DES operation. This is supported by O.Leak-Inherent.
O.MOD_ARITH
Basic support for modular arithmetic with large integer numbers
The TOE shall provide support for modular arithmetic (especially
modular exponentiation) with large integer numbers to the Smartcard
Embedded Software.
Note: Based on the principles of the co-processor, the confidentiality of
the User Data (and especially cryptographic keys) during arithmetic
operation must be ensured by the TOE together with suitable Smartcard
 Philips Electronics NV
Security Document – Strictly Confidential
Version 1.6
Security Target Lite
Business Unit
Identification
BSI-DSZ-CC-0177
Page 18 of 44
Embedded Software. The part provided by the TOE is supported by
O.Leak-Inherent.
4.2
Security Objectives for the Environment
According to the Protection Profile, the following security objectives for the environment are
specified:
Security objective
Description
Applies to phase...
OE.Plat-Appl
Usage of Hardware Platform
Phase 1
OE.Resp-Appl
Treatment of User Data
Phase 1
OE.Process-TOE
Protection during TOE Development and
Production
Phase 2 up to the TOE
Delivery
OE.Process-Card
Protection during Packaging, Finishing and Starting with delivery by the
Personalisation
TOE Manufacturer up to the
end of phase 6 *
Table 5: Security objectives for the environment, taken from the PP
Additionally, the Security Target defines three security objectives for the environment related to
the specialised encryption hardware of the P8WE5033V0F (Triple-DES co-processor, FameX coprocessor):
OE.Gen-Key
Generation of Keys
If a key or a key pair is generated, this process must be performed in a
confidential way and the keys generated must be unique with a very high
probability and cryptographically strong. In addition, it must not be
possible to derive the private key from a public key.
The objective is applicable to phase 1 when the Smartcard Embedded Software is developed
because the internal key generation is under control of the Smartcard Embedded Software.
OE.Key-Fun
Key-dependent Functions
Key-dependent functions shall be implemented in the Smartcard
Embedded Software in a way that they are not susceptible to attacks where
cryptographic keys are compromised for instance by analysing leakage of
the Smartcard IC. The different types of leakage are described in the threat
T.Leak-Inherent.
Note that here the routines which may compromise keys when being
executed are part of the Smartcard Embedded Software. In contrast to this
the threats T.Leak-Inherent and T.Leak-Forced address (see [5], section
3.3) the cryptographic routines being a part of the TOE.
 Philips Electronics NV
Security Document – Strictly Confidential
Business Unit
Identification
Security Target Lite
BSI-DSZ-CC-0177
Version 1.6
Page 19 of 44
The above objective is applicable to phases 4 to 7 when the Smartcard IC is under control of the
application software.
OE.Strong-Key
Usage of Strong Keys
The Smartcard Embedded Software will only use appropriate secret
cryptographic keys (chosen from a sufficient key space and with sufficient
entropy) as an input for the TOE’s cryptographic function.
This objective is applicable to phases 4 to 7 when the Smartcard IC is under control of the
application software. The objective must be supported by the Smartcard Embedded Software for
the keys that are generated within the Smartcard IC as well as by the personaliser and the
smartcard issuer since cryptographic keys can be loaded from the environment into the Smartcard
IC.
 Philips Electronics NV
Security Document – Strictly Confidential
Security Target Lite
Business Unit
Identification
BSI-DSZ-CC-0177
Version 1.6
Page 20 of 44
5 IT Security Requirements
5.1
TOE Security Requirements
This section consists of the subsections “TOE Security Functional Requirements”, “TOE
Security Assurance Requirements” and “Refinements of the TOE Security Assurance
Requirements”.
5.1.1
TOE Security Functional Requirements
To support a better understanding of the combination Protection Profile vs. Security Target, the
TOE SFRs are presented in the following two different sections.
5.1.1.1
SFRs of the Protection Profile
Table 6 below shows all SFRs which are specified in the Protection Profile Smartcard IC Platform
Protection Profile (in the order of definition in the PP). Some of the SFRs are CC Part 2
extended and defined in the Protection Profile. This is shown in the third column of the table.
SFR
Title
Defined in ...
FRU_FLT.2
Limited fault tolerance
CC, Part 2
FPT_FLS.1
Failure with preservation of secure state
CC, Part 2
FPT_SEP.1
TSF domain separation
CC, Part 2
FMT_LIM.1
Limited capabilities
PP, Section 8.5
FMT_LIM.2
Limited availability
PP, Section 8.5
FAU_SAS.1
Audit storage
PP, Section 8.6
FPT_PHP.3
Resistance to physical attack
CC, Part 2
FDP_ITT.1
Basic internal transfer protection
CC, Part 2
FPT_ITT.1
Basic internal TSF data transfer protection
CC, Part 2
FDP_IFC.1
Subset information flow control
CC, Part 2
FCS_RND.1
Quality metric for random numbers
PP, Section 8.4
Table 6: SFRs taken from the PP
With one exception, all assignment and selection operations are performed. The exception is the
left open definition of a quality metric for the random numbers required by FCS_RND.1. This
assignment operation is filled in by the following statement:
 Philips Electronics NV
Security Document – Strictly Confidential
Security Target Lite
Business Unit
Identification
BSI-DSZ-CC-0177
Version 1.6
Page 21 of 44
FCS_RND.1
Quality metric for random numbers
FCS_RND.1.1
The TSF shall provide a mechanism to generate random numbers that
meet the requirement to provide an entropy of at least 7 bit in each byte 1.
Dependencies:
No dependencies.
Note:
The entropy of the random number is measured by the Shannon-Entropy as
follows:
255
E = −å pi ⋅ log 2 pi , where pi is the probability that the byte (b7 , b6 , K , b0 ) is
i =0
equal to i as binary number. Here term “bit” means measure of the ShannonEntropy.
By this, all assignment/selection operations are performed. This Security Target does not perform
any other/further operations than stated in the Protection Profile.
Regarding the Application Note 16 of [5] an additional generation of audit is not defined for
“Limited fault tolerance” (FRU_FLT.2) and “Failure with preservation of secure state”
(FPT_FLS.1).
Considering the Application Note 17 of [5] no additional requirement is defined for the TOE,
since the Initialisation Data (refer to FAU_SAS.1) is protected by standard mechanisms of the
TOE and will not be further processed by the TOE itself.
5.1.1.2
Additional SFRs
Considering the Application Note 15 of [5] in the following paragraphs the additional
cryptographic functions are defined. The CC operation iteration will be used with the component
FCS_COP.1. To distinguish between the two, a label written in square brackets is attached to the
component name. If anywhere it happens that the label is missing, the statement refers to both
iterations of the component.
The following table lists the additional SFRs for cryptographic support which are taken from CC
Part 2 and which are not defined in the Protection Profile.
1
[assignment: a defined quality metric]
 Philips Electronics NV
Security Document – Strictly Confidential
Security Target Lite
Business Unit
Identification
BSI-DSZ-CC-0177
Version 1.6
Page 22 of 44
SFR
Title
Defined in ...
FCS_COP.1[DES]
Cryptographic operation
CC, Part 2
FCS_COP.1[Fame]
Cryptographic operation
CC, Part 2
Table 7: Additional SFRs
The (DES co-processor of the) TOE shall meet the requirement “Cryptographic operation
(FCS_COP.1[DES])” as specified below.
FCS_COP.1[DES]
Cryptographic operation
FCS_COP.1.1
2
The TSF shall perform encryption and decryption in accordance with a
specified cryptographic algorithm Triple Data Encryption Algorithm
(TDEA) 3 and cryptographic key sizes of 112 bit 4 that meet the following
list of standards 5:
FIPS PUB 46-3 FEDERAL INFORMATION PROCESSING
STANDARDS PUBLICATION DATA ENCRYPTION STANDARD
(DES) Reaffirmed 1999 October 25, keying option 2
Dependencies:
[FDP_ITC.1 Import of user data without security attributes or
FCS_CKM.1
Cryptographic
key
generation],
FCS_CKM.4
Cryptographic key destruction, FMT_MSA.2 Secure security attributes.
The (FameX co-processor of the) TOE shall meet the requirement “Cryptographic operation
(FCS_COP.1[Fame])” as specified below.
FCS_COP.1[Fame]
Cryptographic operation
FCS_COP.1.1
The TSF shall perform operations to support raising to a power modulo an
integer 6 in accordance with a specified cryptographic algorithm RivestShamir-Adleman (RSA) 7 and cryptographic key sizes of at least 1024 bit 8
that meet the following list of standards 9:
PKCS #1: RSA Cryptography Specifications, Version 2.0. RSA Laboratories,
September 1998
2
3
4
5
6
7
8
9
[assignment: list of cryptographic operations]
[assignment: cryptographic algorithm]
[assignment: cryptographic key sizes]
[assignment: list of standards]
[assignment: list of cryptographic operations]
[assignment: cryptographic algorithm]
[assignment: cryptographic key sizes]
[assignment: list of standards]
 Philips Electronics NV
Security Document – Strictly Confidential
Security Target Lite
Business Unit
Identification
Dependencies:
BSI-DSZ-CC-0177
Version 1.6
Page 23 of 44
[FDP_ITC.1 Import of user data without security attributes or
FCS_CKM.1
Cryptographic
key
generation],
FCS_CKM.4
Cryptographic key destruction, FMT_MSA.2 Secure security attributes.
Note that the mathematical function "exponentiation to a defined basis modulo an integer" may
be used in different cryptographic algorithms, e.g. RSA, DSA, SHA-1 and elliptic curve. The
padding algorithms are not performed by the function.
5.1.1.3
SOF claim for TOE security functional requirements
Since the assurance level is augmented with AVA_VLA.4 the required level for the Strength of
Function (SOF) of the above listed security functional requirements (refer to Table 6 and
Table 7) is “SOF-high”. Note that the cryptographic algorithms are not assessed as part of the
evaluation (refer to chapter 1 of [1]).
5.1.2
TOE Security Assurance Requirements
Table 8 below lists all security assurance components that are valid for this Security Target. These
security assurance components are required by EAL5 (see section 1.3) or by the Protection
Profile.
Considering the Application Note 18 of [5] the column “Required by” shows the differences in
the requirements of security assurance components between the PP and the Security Target. The
entry “EAL5 / PP” denotes that an SAR is required by both EAL5 and the requirement of the PP,
“EAL5” means that this requirement is due to EAL5 and beyond the requirement of the PP, and
“PP” identifies this component as a requirement of the PP which is beyond EAL5. The Security
Target does not include additional augmentations. The refinements of the PP “Smartcard IC
Platform Protection Profile” that must be adapted for EAL5 are described in section 5.1.3.
SAR
Title
Required by
ACM_AUT.1
Partial CM automation
EAL5 / PP
ACM_CAP.4
Generation support and acceptance procedures
EAL5 / PP
ACM_SCP.3
Development tools CM coverage
EAL5
ADO_DEL.2
Detection of modification
EAL5 / PP
ADO_IGS.1
Installation, generation, and start-up procedures
EAL5 / PP
ADV_FSP.3
Semiformal functional specification
EAL5
ADV_HLD.3
Semiformal high-level design
EAL5
ADV_IMP.2
Implementation of the TSF
EAL5 / PP
ADV_INT.1
Modularity
EAL5
ADV_LLD.1
Descriptive low-level design
EAL5 / PP
ADV_RCR.2
Semiformal correspondence demonstration
EAL5
 Philips Electronics NV
Security Document – Strictly Confidential
Security Target Lite
Business Unit
Identification
BSI-DSZ-CC-0177
Version 1.6
Page 24 of 44
SAR
Title
Required by
ADV_SPM.3
Formal TOE security policy model
EAL5
AGD_ADM.1
Administrator guidance
EAL5 / PP
AGD_USR.1
User guidance
EAL5 / PP
ALC_DVS.2
Sufficiency of security measures
PP
ALC_LCD.2
Standardised life-cycle model
EAL5
ALC_TAT.2
Compliance with implementation standards
EAL5
ATE_COV.2
Analysis of coverage
EAL5 / PP
ATE_DPT.2
Testing: low-level design
EAL5
ATE_FUN.1
Functional testing
EAL5 / PP
ATE_IND.2
Independent testing – sample
EAL5 / PP
AVA_CCA.1
Covert channel analysis
EAL5
AVA_MSU.3
Analysis and testing for insecure states
PP
AVA_SOF.1
Strength of TOE security function evaluation
EAL5
AVA_VLA.4
Highly resistant
PP
Table 8: Security Assurance Requirements EAL5 and PP augmentations
5.1.3
Refinements of the TOE Security Assurance Requirements
The ST claims conformance to the Protection Profile “Smartcard IC Platform Protection
Profile”, and therefore it has to be conform to the refinements of the TOE security assurance
requirements (see Application Note 19 of the PP). Because the refinements in the PP are defined
for the security assurance components of EAL4, some refinements have to be applied to assurance
components of the higher level EAL5 stated in the Security Target.
Table 9 lists the influences of the refinements of the PP on the ST. Most of the refined security
assurance components have the same level in both documents (Protection Profile and Security
Target). Note that section 5.1.3.10 “Additional Guidance regarding Vulnerability Analysis
(AVA_VLA) and Strength of Functions (AVA_SOF)” also applies to this Security Target and the
two assurance components, although it is not a refinement. The following two subsections apply
the refinements to ACM_SCP.3 and ADV_FSP.3 which are different between the PP and the
ST.
Refined in PP
Influence on ST
ACM_CAP.4
Same as in ST, refinement valid without change
ACM_SCP.2
ACM_SCP.3, refinements have to be applied
ADO_DEL.2
Same as in ST, refinement valid without change
 Philips Electronics NV
Security Document – Strictly Confidential
Business Unit
Identification
Security Target Lite
BSI-DSZ-CC-0177
Version 1.6
Page 25 of 44
Refined in PP
Influence on ST
ADO_IGS.1
Same as in ST, refinement valid without change
ADV_FSP.2
ADV_FSP.3, refinements have to be applied
AGD_ADM.1
Same as in ST, refinement valid without change
AGD_USR.1
Same as in ST, refinement valid without change
ALC_DVS.2
Same as in ST, refinement valid without change
ATE_COV.2
Same as in ST, refinement valid without change
Table 9: Security Assurance Requirements, overview of differences of refinements
5.1.3.1
Refinements regarding CM scope (ACM_SCP)
This Security Target requires a higher evaluation level for the CC family ACM_SCP, namely
ACM_SCP.3 instead of ACM_SCP.2. The refinement of the PP regarding ACM_SCP.2 is a
clarification of the configuration item “TOE implementation representation”. Since in
ACM_SCP.3, the content and presentation of evidence element ACM_SCP.3.1C only adds a
further configuration item to the list of items to be tracked by the CM system, the refinement can
be applied without changes.
The refinement of the configuration item “TOE implementation representation” of ACM_SCP.2
can be found in section 5.1.3.3 of the Protection Profile [5] and is not cited here.
5.1.3.2
Refinements regarding functional specification (ADV_FSP)
This Security Target requires a higher evaluation level for the CC family ADV_FSP, namely
ADV_FSP.3 instead of ADV_FSP.2. The refinement of the PP regarding ADV_FSP.2 is
concerned with the description of the TSF and its external interfaces, the purpose and method of
use of all external TSF interfaces, the complete representation of the TSF and the accuracy and
completeness of the TOE SFR instantiations. The refinement is not a change in the wording of
the action elements, but a more detailed definition of the above items.
Since the higher level ADV_FSP.3 requires a Functional Specification in a “semiformal style,
supported by informal, explanatory text where appropriate” (ADV_FSP.3.1C) the changes only
affect the style of description, the refinements can be applied without changes and are valid for
ADV_FSP.3.
The refinement of the original component ADV_FSP.2 can be found in section 5.1.3.5 of the
Protection Profile [5] and is not cited here.
5.2
Security Requirements for the Environment
This chapter consists of the sections Security Requirements for the IT-Environment and Security
Requirements for the Non-IT-Environment
 Philips Electronics NV
Security Document – Strictly Confidential
Security Target Lite
Business Unit
Identification
5.2.1
BSI-DSZ-CC-0177
Version 1.6
Page 26 of 44
Security Requirements for the IT-Environment
There are no Security Requirements for the IT-Environment defined in the PP “Smartcard IC
Platform Protection Profile”. This Security Target does not define Security Requirements for the
IT-Environment, too.
5.2.2
Security Requirements for the Non-IT-Environment
Since this ST claims conformance to the PP “Smartcard IC Platform Protection Profile”, the
following security requirements for the Non-IT-Environment are taken from the PP:
-
RE.Phase-1
-
RE.Process-Card
The Security Target specifies the following additional security requirements for the Non-ITEnvironment.
The Smartcard Embedded Software shall meet the requirements “Key-dependent Functions
(RE.Key-Fun)” and “Usage of Strong Keys (RE.Strong-Key)” as specified below.
RE.Key-Fun
Key-dependent Functions
The developers of Smartcard Embedded Software must not implement
routines in a way which may compromise keys when the routines are
executed as part of the Smartcard Embedded Software.
Performing functions which access cryptographic keys could allow an
attacker to misuse these functions to gather information about the key
which is used in the computation of the function.
RE.Strong-Key
Usage of Strong Keys
The developers must design the Smartcard Embedded Software in a way
that it will use only appropriate cryptographic keys as input of the TOE’s
cryptographic function as required in FCS_COP.1.
This may be ensured by generating cryptographic keys with the support of
the random number generator provided by the TOE (see FCS_RND.1).
However there are other possibilities to work with strong keys, i. e.
securely loading them from outside of the smart card, by derivation from
Masterkeys or by other key exchange protocols. In this case the
personaliser or the smartcard issuer must ensure that the Masterkeys meet
the requirements for strong keys.
In addition this requirement implies that an appropriate key management
has to be realised in the environment.
 Philips Electronics NV
Security Document – Strictly Confidential
Business Unit
Identification
RE.Gen-Key
Security Target Lite
BSI-DSZ-CC-0177
Version 1.6
Page 27 of 44
Generation of Keys
The developer must ensure that keys or key pairs are treated confidential
when they are generated by the Smartcard Embedded Software running on
the TOE. The generation procedure must ensure that the keys are unique
with a very high probability and cryptographically strong. In addition, it
must be ensured that it is not possible to derive the private key from a
public key.
 Philips Electronics NV
Security Document – Strictly Confidential
Business Unit
Identification
Security Target Lite
BSI-DSZ-CC-0177
Version 1.6
Page 28 of 44
6 TOE Summary Specification
This chapter is divided in the sections TOE Security Functions and Assurance measures.
6.1
TOE Security Functions
The TOE Security Functions (TSF) directly correspond to the TOE security functional
requirements defined in chapter 5.1.1.
The following security functions are applicable to the phases 4 to 7.
Note: Some of the security functions are configured at the end of phase 3 and all security
functions are already active during the delivery from phase 3 to phase 4.
F.RNG:
The random number generator continuously produces random numbers with a
length of one byte. Each byte will at least contain a 7 bit entropy. The TOE
implements the F.RNG by means of a physical hardware random number
generator working stable within the limits guaranteed by F.OPC (operational
conditions).
The TOE provides random numbers according to the functionality class P2 as
defined in [6] with a strength of function (consistently with other claims) SOFhigh.
Note: The application software shall observe a minimum of 4800 internal clocks between reading
two random numbers.
F.DEA:
The TOE provides the Triple Data Encryption Algorithm (TDEA) according to
the Data Encryption Standard (DES). F.DEA is a modular basic cryptographic
function which provides the TDEA algorithm as defined by FIPS PUB 46 by
means of a hardware co-processor and supports the 2-key Triple DEA algorithm
according to keying option 2 in FIPS PUB 46-3 [10]. The two 56 bit keys (112
bit) for the 2-key Triple DES algorithm shall be provided by the application
software. For encryption the application software provides 8 bytes of the plain text
and F.DEA calculates 8 bytes cipher text. The calculation output is read by the
application software. For decryption the application software also provides 8 bytes
of cipher text and F.DEA calculates 8 bytes plain text. The calculation output is
read by application software.
The TSF provides specific implementation features to reduce leakage of
confidential user and TSF data to ensure that attackers are unable to observe the
keys and plain text by measuring the external behaviour during the Triple-DESoperation.
F.FAME:
The TOE provides basic support for large integer modular arithmetic. The
arithmetic functions can be used to accelerate asymmetric crypto algorithms, e.g.
 Philips Electronics NV
Security Document – Strictly Confidential
Business Unit
Identification
Security Target Lite
BSI-DSZ-CC-0177
Version 1.6
Page 29 of 44
RSA. The Smartcard Embedded Software must select the appropriate functions of
the co-processor and provide the operands for the arithmetic functions.
Note that the TOE does not calculate e.g. the RSA algorithm itself in a single
operation. In fact, it provides functions for modular multiplication, modular
addition and bit operations, and is therefore not limited to RSA. The functions
can be used by the application software, maybe in form of a special crypto library.
This software is not part of the evaluation.
The TSF provides specific implementation features to reduce leakage of
confidential user and TSF data. These features must be supplemented by measures
of the Smartcard Embedded Software, since F.FAME only provides support for
modular arithmetic and not for a single/specific algorithm.
F.OPC:
The function F.OPC has the following sub-functions: A function that filters
power supply and clock input and a function that monitors the power supply, the
frequency of the clock and the temperature of the chip by means of sensors.
If one of these parameters is out of the specified range a reset of the actual running
program and a CPU reset will be initiated. Before TOE delivery the mode-switch
is set to user mode. In user mode the TOE enables the sensors automatically when
operated. Furthermore it prevents that the application software disables the
sensors.
Beside these sensors the security function comprises an additional sensor to check
the high voltage for the write process to the EEPROM during every write
sequence. The result of this sensor must be read from a Special Function Register
and does not force an automatic event (e.g. reset).
F.PHY:
The function F.PHY protects the TOE against manipulation of (i) the hardware,
(ii) the IC Dedicated Test Software in the ROM, (iii) the Smartcard Embedded
Software in the ROM and the EEPROM, (iv) the application data in the
EEPROM and RAM, (v) the configuration data in the security row and (vi) the
mode-switch. It also protects secret user data against disclosure when stored in
EEPROM and RAM or while being processed by the TOE.
The protection of the TOE comprises different features of the construction which
makes a tamper attack more difficult. By this the security function F.PHY also
supports in general the secure implementation of all Security Functional
Requirements defined in chapter 5.1.1.
F.COMP:
The function F.COMP provides access control by means of TOE modes of
operation selected by a mode-switch: (i) Test Mode and (ii) User Mode. The TSF
F.COMP has two aspects:
-
Access control: In the Test Mode the TOE (i) allows to execute the IC
Dedicated Test Software and (ii) prevents to execute the Smartcard
 Philips Electronics NV
Security Document – Strictly Confidential
Business Unit
Identification
Security Target Lite
BSI-DSZ-CC-0177
Version 1.6
Page 30 of 44
Embedded Software. In the User Mode the TOE (i) allows to execute the
Smartcard Embedded Software and (ii) prevents to execute the IC
Dedicated Test Software.
-
Mode switch: The initial TOE mode is the Test Mode. The TOE allows
to change the mode-switch only one time from the Test Mode into the
User Mode. The TOE prevents to change the mode-switch from the User
mode into the Test Mode.
Further the security function F.COMP maintains the security domain for its own
execution that protects it from interference and tampering by untrusted subjects
both in the Test Mode and in the User Mode. It also enforces the separation
between the security domains of subjects within each mode.
The function F.COMP also provides test personnel during Phase 3 with the
capability to store the identification and/or pre-personalisation data and/or
supplements of the Smartcard Embedded Software in the EEPROM.
SOF claim
According to the CEM [4] a Security Target shall identify all mechanisms which can be assessed
according to the assurance requirement AVA_SOF.1.
The following mechanisms contributing to these functions were identified, which can be analysed
for their permutational or probabilistic properties:
1.
The output of the Random Number Generator F.RNG can be analysed with probabilistic
methods.
2.
The quality of the mechanism contributing to the leakage attacks of F.DEA can be
analysed using probabilistic methods on power consumption of the TOE.
Therefore an explicit SOF claim of “high” is made for these mechanisms.
Note, that the cryptographic algorithm of F.DEA can also be analysed with permutational or
probabilistic methods but that this is not in the scope of CC evaluations.
6.2
Assurance measures
Appropriate assurance measures will be employed to satisfy the security assurance requirements
defined in section 5.1.2. The developer will provide documents containing the measures and
further information needed to examine conformance of the measures to the assurance
requirements. The following table gives a mapping between the assurance requirements and the
documents containing the information needed for the respective requirement either directly or
referring to further documents containing this information.
 Philips Electronics NV
Security Document – Strictly Confidential
Business Unit
Identification
Version 1.6
Security Target Lite
BSI-DSZ-CC-0177
Page 31 of 44
Document(s) containing
or referring the relevant
information
Input evidence according to CC Part 3, Input for assurance
which is contained or referred to in the families (according to
document(s)
developer actions in CC
Part 3)
Functional Specification,
Data Sheet
semiformal functional specification
ADV_FSP
correspondence analysis between the
TOE summary specification and the
functional specification
ADV_RCR
Formal Model
TSP model (formal)
ADV_SPM
High Level Design,
Design Report
high-level design (semiformal)
ADV_HLD
Correspondence
Demonstration,
Design Report
low level design
ADV_LLD
architectural description
ADV_INT
correspondence analysis between highlevel design and low-level design
ADV_RCR
correspondence analysis between lowlevel design and implementation
representation
ADV_RCR
Implementation
representation, Source
Code
implementation representation
ADV_IMP
Quality Management
Manual and Security
Management Manual
configuration management
documentation
ACM
development tools documentation
ALC
correspondence analysis between func- ADV_RCR
tional specification and high-level design
development security documentation
life cycle definition documentation
parts of the delivery documentation
 Philips Electronics NV
Security Document – Strictly Confidential
ADO
Business Unit
Identification
Version 1.6
Security Target Lite
BSI-DSZ-CC-0177
Page 32 of 44
Document(s) containing
or referring the relevant
information
Input evidence according to CC Part 3, Input for assurance
which is contained or referred to in the families (according to
document(s)
developer actions in CC
Part 3)
Guidance, Delivery and
Operation Manual, Data
Sheet
administrator guidance
Vulnerability Assessment
AGD_ADM, AVA_MSU
secure installation, generation, and start- ADO_IGS
up procedures
user guidance
AGD_USR, AVA_MSU
parts of the delivery documentation
ADO_DEL
vulnerability assessment
AVA
covert channel analysis
strength of function claims analysis
Test Documentation
Roadmap, Verification
Test, Characterisation
Report, Electrical Test
Specification
test documentation
ATE
test coverage analysis
depth of testing analysis
Table 10: List of documents describing the measures regarding the assurance requirements
 Philips Electronics NV
Security Document – Strictly Confidential
Business Unit
Identification
Security Target Lite
BSI-DSZ-CC-0177
Version 1.6
Page 33 of 44
7 PP Claims
This Security Target claims conformance to the following Protection Profile:
Smartcard IC Platform Protection Profile, Version 1.0, July 2001; registered and certified by
Bundesamt für Sicherheit in der Informationstechnik (BSI) under the reference
BSI-PP-0002-2001, [5]
The short term for this Protection Profile used in this document is “Smartcard IC Platform
Protection Profile”.
 Philips Electronics NV
Security Document – Strictly Confidential
Business Unit
Identification
Security Target Lite
BSI-DSZ-CC-0177
Version 1.6
Page 34 of 44
8 Rationale
This chapter contains the following sections: Security Objectives Rationale, Security
Requirements Rationale, TOE Summary Specification Rationale and PP Claims Rationale.
8.1
Security Objectives Rationale
Section 7.1 of the Protection Profile provides a rationale of the security objectives that are subject
of the PP “Smartcard IC Platform Protection Profile”. Table 1 in section 7.1 of [5] lists the
objectives.
The justification provided in the Protection Profile is completely valid for this Security Target.
The additional security objective are in line with the security objectives of the Protection Profile
and supplement these according to the additional functionality.
Assumption/Policy
Security Objective
Note
P.Add-Func
O.DES3
O.MOD_ARITH
A.Strong-Key
OE.Gen-Key
OE.Strong-Key
(Phase 1) or (Phases 4 to 6)
A.Key-Fun
OE.Key-Fun
(Phase 1)
Table 11: Additional Security Objectives versus Assumptions or Policies
The justification related to the policy “Additional Specific Security Functionality (P.Add-Func)”
is as follows:
Since the objectives O.DES3 and O.MOD_ARITH defines the functionality required by P.AddFunc, this policy is covered by the two objectives.
The justification related to the assumption “Usage of Strong Keys (A.Strong-Key)” is as follows:
OE.Gen-Key requires the software developer to implement the functions for the generation of
keys in a way that they ensure the confidentiality and strongness of the key. In addition
OE.Strong-Key requires the software developer to use only appropriate keys as input for the
cryptographic functions. OE.Strong-Key shall be applied for keys generated using external
equipment and loaded from outside into the Smartcard IC as well as for keys generated by the
TOE inside the Smartcard IC. Therefore the assumption is covered by the objectives.
The justification related to the assumption “Key-dependent Functions (A.Key-Fun)” is as follows:
Since OE.Key-Fun requires the developer of the Smartcard Embedded Software to implement
functions which perform operations on keys in such a manner that they do not disclose
information on the key when being executed, the assumption is covered by the objective.
 Philips Electronics NV
Security Document – Strictly Confidential
Business Unit
Identification
Security Target Lite
BSI-DSZ-CC-0177
Version 1.6
Page 35 of 44
The justification of the additional policy and the additional assumptions show that they do not
contradict to the rationale already given in the Protection Profile for the assumptions, policy and
threats defined there.
8.2
Security Requirements Rationale
8.2.1
Rationale for the security functional requirements
Section 7.2 of the PP “Smartcard IC Platform Protection Profile” provides a rationale for the
security functional requirements defined in this Protection Profile.
The Security Target additionally defines two SFRs for the TOE and three Security Requirements
for the Environment. The following table gives an overview, how the requirements are combined
to meet the security objectives.
Objective
TOE Security Functional
Requirement
O.DES3
FCS_COP.1[DES]
O.MOD_ARITH
FCS_COP.1[Fame]
Security Requirements for
the environment
OE.Key-Fun
RE.Key-Fun
OE.Strong-Key
RE.Strong-Key
OE.Gen-Key
RE.Gen-Key
Table 12: Mapping of Security Objectives and Requirements
The justification related to the security objective “Triple DES Functionality” (O.DES3) is as
follows:
O.DES3 requires the TOE to support Triple DES encryption and decryption. Exactly this is the
requirement of FCS_COP.1[DES]. Therefore FCS_COP.1[DES] is suitable to meet O.DES3.
The justification related to the security objective “Basic support for modular arithmetic with large
integer numbers” (O.MOD_ARITH) is as follows:
O.MOD_ARITH requires the TOE to support the calculation of asymmetric cryptographic
functions providing modular arithmetic operations. Exactly this is the requirement of
FCS_COP.1[Fame]. Therefore FCS_COP.1[Fame] is suitable to meet O.MOD_ARITH.
The justification related to the security objective “Generation of Keys” (OE.Gen-Key) is as
follows:
The requirements for the generation of keys that are defined for the developer by RE.Gen-Key
are suitable for to meet the objective OE.Gen-Key.
 Philips Electronics NV
Security Document – Strictly Confidential
Business Unit
Identification
Security Target Lite
BSI-DSZ-CC-0177
Version 1.6
Page 36 of 44
The justification related to the security objective “Key-dependent Functions” (OE.Key-Fun) is as
follows:
RE.Key-Fun requires the Smartcard Embedded Software developer to design and implement the
software in a way, which is suitable to meet OE.Key-Fun.
The justification related to the security objective “Usage of Strong Keys” (OE.Strong-Key) is as
follows:
RE.Strong-Key addresses the usage of keys generated inside the Smartcard IC as well as keys
downloaded into the Smartcard IC. The requirement for the usage of appropriate cryptographic
keys for the cryptographic functions is suitable to meet OE.Strong-Key.
8.2.2
Dependencies of security functional requirements
The following discussion demonstrates how the dependencies defined by Part 2 of the Common
Criteria for the requirement FCS_COP.1 (both iterations) are satisfied.
The dependencies defined in the Common Criteria are
-
[FDP_ITC.1 Import of user data without security attributes or FCS_CKM.1
Cryptographic key generation],
-
FCS_CKM.4 Cryptographic key destruction,
-
FMT_MSA.2 Secure security attributes.
The dependency requirements completely address the appropriate management of cryptographic
keys used by the specified cryptographic function. All requirements concerning key management
shall be fulfilled by the environment (Smartcard Embedded Software in this case) according to
the requirements RE.Resp-Appl and RE.Strong-Key.
It was decided not to include the functional requirements [FDP_ITC.1 or FCS_CKM.1],
FCS_CKM.4 and FMT_MSA.2 explicitly as security functional requirements for the
environment because this would mean a restriction for the realisation of the Smartcard
Embedded Software that is not justifiable. The possibility was seen that special smart card
applications may be designed that are able to resolve the dependencies without use of all the
explicit functional requirements (for example by moving some of the functional responsibilities to
organisational measures outside of the smart card). So the more abstract requirements RE.RespAppl, RE.Strong-Key and RE.Gen-Key were chosen to give the developers of the Smartcard
Embedded Software the freedom to choose how to fulfil them.
The same argument holds for further indirect dependencies of FCS_COP.1.1 according to [2]
(FDP_ACC.1, FDP_IFC.1, FDP_ACF.1, FDP_IFF.1, FMT_MSA.3, FCS_CKM.2,
FMT_MSA.1, FMT_SMR.1, FIA_UID.1 and ADV_SPM.1).
 Philips Electronics NV
Security Document – Strictly Confidential
Business Unit
Identification
8.2.3
Level
Security Target Lite
BSI-DSZ-CC-0177
Version 1.6
Page 37 of 44
Rationale for the Assurance Requirements and the Strength of Function
The selection of assurance components is based on the underlying Protection Profile [5]. The
Security Target uses the same augmentations as the PP, but chooses a higher assurance level. The
level EAL5 is chosen in order to meet assurance expectations of digital signature applications and
electronic payment systems. Additionally, the requirement of the PP to choose at least EAL4 is
fulfilled.
The rationale for the augmentations is the same as in the PP. The assurance level EAL5 is an
elaborated pre-defined level of the CC, part 3 [3]. The assurance components in an EAL level are
chosen in a way that they build a mutually supportive and complete set of components. The
requirements chosen for augmentation do not add any dependencies, which are not already
fulfilled for the corresponding requirements contained in EAL 5. Therefore, these components
add additional assurance to EAL 5, but the mutual support of the requirements is still guaranteed.
As stated in the Protection Profile, section 7.2.3, it has to be assumed that attackers with high
attack potential try to attack smart cards used for digital signature applications or payment
systems. Therefore specifically AVA_VLA.4 was chosen by the PP in order to assure that even
these attackers cannot successfully attack the TOE. For the same reason the Strength of Function
level “high” is required.
Note that for the augmentation to EAL5 the document “ Smartcard Integrated Circuit Platform
Augmentations” as supposed by Application Note 21 was not considered because at the time of
writing the document has not reached a final state.
8.2.4
Security
Consistent
Requirements
are
Mutually
Supportive
and
Internally
The discussion of security functional requirements and assurance components in the preceding
sections has shown that mutual support and consistency are given for both groups of
requirements. The arguments given for the fact that the assurance components are adequate for
the functionality of the TOE also shows that the security functional requirements and assurance
requirements support each other and that there are no inconsistencies between these groups.
8.3
8.3.1
TOE Summary Specification Rationale
Rationale for TOE security functions
Note: The rational is present here in a tabular form. The remainder of this chapter (8.3.1) was
not intended to be published.
 Philips Electronics NV
Security Document – Strictly Confidential
Security Target Lite
Business Unit
Identification
BSI-DSZ-CC-0177
F.RNG
FCS_RND.1
F.DEA
F.FAME
Version 1.6
Page 38 of 44
F.OPC
X
F.PHY
F.COMP
X
FCS_COP.1[DES]
X
FCS_COP.1[Fame]
X
X
X
FDP_ITT.1
X
X
X
FPT_ITT.1
X
X
X
FDP_IFC.1
X
X
X
FPT_PHP.3
X
FRU_FLT.2
X
X
FPT_FLS.1
X
X
FPT_SEP.1
X
X
X
FMT_LIM.1
X
X
FMT_LIM.2
X
X
FAU_SAS.1
X
X
Table 13: Mapping of Security Functional Requirements and the TOE Security Functions
The "X" means that the TOE Security Function realises or supports the functionality required by
the respective Security Functional Requirement.
8.3.2
Rationale for assurance measures
Note: This chapter (8.3.2) was not intended to be published.
8.4
PP Claims Rationale
According to chapter 7 this Security Target claims conformance to the Protection Profile
“Smartcard IC Platform Protection Profile, Version 1.0, July 2001; registered and certified by
Bundesamt für Sicherheit in der Informationstechnik (BSI) under the reference
BSI-PP-0002-2001” [5].
The sections of this document where threats, objectives and security requirements are defined,
clearly state which of these items are taken from the Protection Profile and which are added in
this ST. Therefore this is not repeated here. Moreover all additional stated items in this ST do
not contradict to the items included from the PP (see the respective sections in this document).
The operations done for the SFRs taken from the PP are also clearly indicated.
The assurance level claimed for this target (EAL5+) is shown in section 5.1.2 to include resp.
exceed the requirements claimed by the PP (EAL4+).
 Philips Electronics NV
Security Document – Strictly Confidential
Business Unit
Identification
Security Target Lite
BSI-DSZ-CC-0177
Version 1.6
Page 39 of 44
These considerations show that the Security Target correctly claims conformance to the
Smartcard IC Platform Protection Profile.
 Philips Electronics NV
Security Document – Strictly Confidential
Business Unit
Identification
Security Target Lite
BSI-DSZ-CC-0177
Version 1.6
Page 40 of 44
9 Annexes
9.1
Further Information contained in the PP
The Annex of the Protection Profile ([5], chapter 9) provides further information. Section 8.1 of
the PP describes the development and production process of smartcards, containing a detailed
life-cycle description and a description of the assets of the Integrated Circuits
Designer/Manufacturer. Section 8.2 is concerned with security aspects of the Smartcard
Embedded Software (further information regarding A.Resp-Appl and examples of specific
Functional Requirements for the Smartcard Embedded Software). Section 8.3 gives examples of
Attack Scenarios.
9.2
Glossary and Vocabulary
Note: To ease understanding of the used terms the Glossary of the Protection Profile [5] is
reproduced here. Readers familiar with the Protection Profile may skip this subsection.
Administrator
(in the sense of the Common Criteria) The TOE may
provide security functions which can or need to be
administrated (i) by the Smartcard Embedded Software or
(ii) using services of the TOE after delivery to Phases 4-6.
Then a privileged user (in the sense of the Common
Criteria, refer to definition below) becomes an
administrator.
Card Manufacturer
The customer of the TOE Manufacturer who receives the
TOE during TOE Delivery. The Card Manufacturer
includes all roles after TOE Delivery up to Phase 7 (refer to
[5], Figure 4 on page 17 and Section 8.1.1).
The Card Manufacturer has the following roles (i) the
Smartcard Product Manufacturer (Phase 5) and (ii) the
Personaliser (Phase 6). If the TOE is delivered after Phase 3
in form of wafers or sawn wafers (dice) he has the role of
the IC Packaging Manufacturer (Phase 4) in addition.
Integrated Circuit (IC)
Electronic component(s) designed to perform processing
and/or memory functions.
IC Dedicated Software
IC proprietary software embedded in a smartcard IC (also
known as IC firmware) and developed by the IC
Developer. Such software is required for testing purpose
(IC Dedicated Test Software) but may provide additional
services to facilitate usage of the hardware and/or to
 Philips Electronics NV
Security Document – Strictly Confidential
Security Target Lite
Business Unit
Identification
BSI-DSZ-CC-0177
Version 1.6
Page 41 of 44
provide additional services (IC Dedicated Support
Software).
IC Dedicated Test Software
That part of the IC Dedicated Software (refer to above)
which is used to test the TOE before TOE Delivery but
which does not provide any functionality thereafter.
IC Dedicated Support Software
That part of the IC Dedicated Software (refer to above)
which provides functions after TOE Delivery. The usage of
parts of the IC Dedicated Software might be restricted to
certain phases.
Initialisation Data
Any data defined by the TOE Manufacturer and injected
into the non-volatile memory by the Integrated Circuits
manufacturer (Phase 3). These data are for instance used
for traceability and for TOE identification (identification
data).
Pre-personalisation Data
Any data supplied by the Card Manufacturer that is
injected into the non-volatile memory by the Integrated
Circuits manufacturer (Phase 3). These data are for
instance used for traceability and/or to secure shipment
between phases.
Smartcard
(as used in the Protection Profile [5]) Composition of the
TOE, the Smartcard Embedded Software, User Data and
the package (the smartcard carrier).
Smartcard Embedded Software
Software embedded in a smartcard IC and not being
developed by the IC Designer. The Smartcard Embedded
Software is designed in Phase 1 and embedded into the
Smartcard IC in Phase 3 or in later phases of the smartcard
product life-cycle.
Some part of that software may actually implement a
smartcard application others may provide standard services.
Nevertheless, this distinction doesn’t matter here so that
the Smartcard Embedded Software can be considered as
being application dependent whereas the IC Dedicated
Software is definitely not.
Test Features
All features and functions (implemented by the IC
Dedicated Test Software and/or hardware) which are
designed to be used before TOE Delivery only and
delivered as part of the TOE.
 Philips Electronics NV
Security Document – Strictly Confidential
Business Unit
Identification
Security Target Lite
BSI-DSZ-CC-0177
Version 1.6
Page 42 of 44
TOE Delivery
The period when the TOE is delivered which is (refer to
[5], Figure 4 on page 17) either (i) after Phase 3 (or before
Phase 4) if the TOE is delivered in form of wafers or sawn
wafers (dice) or (ii) after Phase 4 (or before Phase 5) if the
TOE is delivered in form of modules.
TOE Manufacturer
The TOE Manufacturer must ensure that all requirements
for the TOE (as defined in Section 2.1) and its
development and production environment are fulfilled
(refer to [5], Figure 4 on page 17).
The TOE Manufacturer has the following roles: (i) IC
Developer (Phase 2) and (ii) IC Manufacturer (Phase 3). If
the TOE is delivered after Phase 4 in form of modules, he
has the role of the (iii) IC Packaging Manufacturer (Phase
4) in addition.
TSF data
Data created by and for the TOE, that might affect the
operation of the TOE (for example configuration data).
Note that the TOE is the Smartcard IC.
Initialisation Data defined by the Integrated Circuits
manufacturer to identify the TOE and to keep track of the
product’s production and further life-cycle phases are also
considered as belonging to the TSF data.
User
(in the sense of the Common Criteria) The TOE serves as
a platform for the Smartcard Embedded Software.
Therefore, the “user” of the TOE (as used in the Common
Criteria assurance class AGD: guidance) is the Smartcard
Embedded Software. Guidance is given for the Smartcard
Embedded Software Developer.
On the other hand the Smartcard (with the TOE as a
major element) is used in a terminal where communication
is performed through the ISO interface provided by the
TOE. Therefore, another “user” of the TOE is the terminal
(with its software).
User Data
9.3
DEA
All data managed by the Smartcard Embedded Software in
the application context. User data comprise all data in the
final Smartcard IC except the TSF data.
List of Abbreviations
Data Encryption Algorithm.
 Philips Electronics NV
Security Document – Strictly Confidential
Security Target Lite
Business Unit
Identification
BSI-DSZ-CC-0177
Version 1.6
Page 43 of 44
DES
Data Encryption Standard.
CC
Common Criteria Version 2.0 or Version 2.1. Note that the Version 2.1 (ISO
15408) is technically identical with Version 2.0 of the Common Criteria.
EAL
Evaluation Assurance Level.
IC
Integrated circuit.
IT
Information Technology.
NDA
Non Disclosure Agreement.
PP
Protection Profile.
SAR
Security Assurance Requirement.
SFR
Security Functional Requirement.
SF
Security function.
SIM
Subscriber Identity Module.
SOF
Strength of function.
ST
Security Target.
TOE
Target of Evaluation.
TSC
TSF Scope of control.
TSF
TOE Security functions.
TSFI
TSF Interface.
TSP
TOE Security Policy.
UART
Universal Asynchronous Receiver and Transmitter.
9.4
9.4.1
Bibliography
Evaluation Documents
[1]
Common Criteria for Information Technology Security Evaluation, Part 1: Introduction
and General Model; Version 2.1, August 1999
[2]
Common Criteria for Information Technology Security Evaluation, Part 2: Security
Functional Requirements; Version 2.1, August 1999
[3]
Common Criteria for Information Technology Security Evaluation, Part 3: Security
Assurance Requirements; Version 2.1, August 1999
[4]
Common Methodology for Information Technology Security Evaluation CEM-99/045
Part 2: Evaluation Methodology, Version 1.0, August 1999
 Philips Electronics NV
Security Document – Strictly Confidential
Security Target Lite
Business Unit
Identification
BSI-DSZ-CC-0177
Version 1.6
Page 44 of 44
[5]
Smartcard IC Platform Protection Profile, Version 1.0, July 2001; registered and certified
by Bundesamt für Sicherheit in der Informationstechnik (BSI) under the reference
BSI-PP-0002-2001
[6]
Anwendungshinweise und Interpretationen zum Schema, AIS31: Funktionalitätsklassen
und Evaluationsmethodologie für physikalische Zufallszahlengeneratoren, Version 1,
25.09.2001, Bundesamt für Sicherheit in der Informationstechnik
9.4.2
Developer Documents
[7]
Security Target for the P8WE5033V0F,
Philips Semiconductors, 19.08.2002
[8]
Data Sheet, P8WE5033 Secure 8-bit Smart Card Controller, Product Specification,
Philips Semiconductors, Revision 3.2, Document Number: 047632, 2002 July 05
[9]
Guidance, Delivery and Operation Manual of the P8WE5033V0F, Secure 8-bit Smart
Card Controller
9.4.3
BSI-DSZ-CC-0177,
Version 1.5,
Other Documents
[10]
FIPS PUB 46-3 FEDERAL INFORMATION PROCESSING STANDARDS
PUBLICATION DATA ENCRYPTION STANDARD (DES) Reaffirmed 1999
October 25
[11]
PKCS #1: RSA Cryptography Specifications, Version 2.0. RSA Laboratories, September
1998
[12]
ISO/IEC 7816-2:1996 Information technology – Identification cards – Integrated
circuit(s) cards with contacts – Part 2: Dimensions and location of contacts
[13]
ISO/IEC 7816-3:1997 Information technology – Identification cards – Integrated
circuit(s) cards with contacts – Part 3: Electronic signals and transmission protocols
 Philips Electronics NV
Security Document – Strictly Confidential
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
