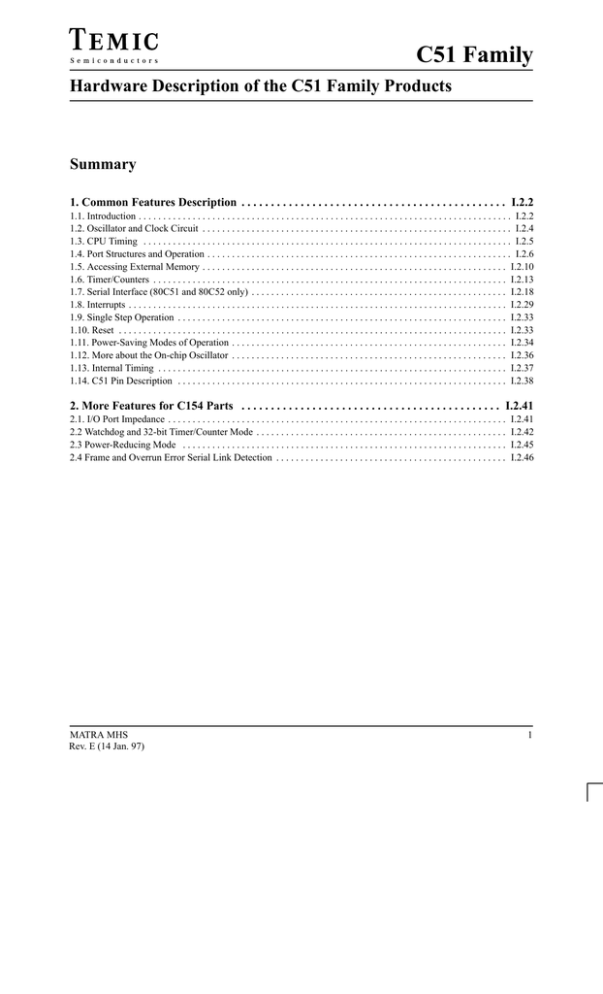

C51 Family
Hardware Description of the C51 Family Products
Summary
1. Common Features Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I.2.2
1.1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I.2.2
1.2. Oscillator and Clock Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I.2.4
1.3. CPU Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I.2.5
1.4. Port Structures and Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I.2.6
1.5. Accessing External Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I.2.10
1.6. Timer/Counters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I.2.13
1.7. Serial Interface (80C51 and 80C52 only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I.2.18
1.8. Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I.2.29
1.9. Single Step Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I.2.33
1.10. Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I.2.33
1.11. Power-Saving Modes of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I.2.34
1.12. More about the On-chip Oscillator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I.2.36
1.13. Internal Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I.2.37
1.14. C51 Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I.2.38
2. More Features for C154 Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I.2.41
2.1. I/O Port Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.2 Watchdog and 32-bit Timer/Counter Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.3 Power-Reducing Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.4 Frame and Overrun Error Serial Link Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MATRA MHS
Rev. E (14 Jan. 97)
I.2.41
I.2.42
I.2.45
I.2.46
1
C51 Family
1. Common Features Description
1.1. Introduction
This chapter presents a comprehensive description of the
on-chip hardware features of the TEMIC C51
microcontrollers. Included in this description are :
The port drivers and how they function both as ports
and, for Ports 0 and 2, in bus operations
The Timer/Counters
The serial Interface
The Interrupt System
Reset
The reduced Power Modes
Figure 1. C51 Architecture Block Diagram.
2
MATRA MHS
Rev. E (14 Jan. 97)
C51 Family
Table 1. The TEMIC C51 Family of Microcontrollers.
DEVICE
NAME
ROMLESS
VERSION
ROM
BYTES
RAM
BYTES
16–BIT
TIMERS
PROCESS
TYPE
80C51, TSC80C51
80C31
4K
128
2
CMOS
80C52
80C32
8K
256
3
CMOS
83C154
80C154
16K
256
3*
CMOS
32K
256
3*
CMOS
83C154D
* included watchdog and Timer 32 bits.
The devices under consideration are listed in Table 1. As
it becomes unwieldy to be constantly referring to each of
these devices by their individual names, we will adopt a
convention of refering to them generically as 80C51s,
80C52s and 83C154s, unless a specific member of the
group is being refered to, in which case it will be
specifically named. The 80C51s include the TSC80C51,
80C51 and 80C31. The 80C52s are the 80C52 and 80C32.
The 83C154s are the 83C154, the 80C154 and the
83C154D.
Figure 1. shows a functionnal block diagram of the
80C51s, 80C52s and 83C154s.
Special Function Registers
A map of the on-chip memory area called SFR (Special
Function Register) space is shown in Figure 2. SFRs
marked by parentheses are resident in the 80C52s and
83C154s but not in the 80C51s. IOCON marked by a star
is only resident in the 83C154s.
Note that not all of the addresses are occupied.
Unoccupied addresses are not implemented on the chip.
Read accesses to these addresses will in general return
random data, and write accesses will have no effect.
Figure 2. SFR Map. (...) Indicates Resident in 80C52s and 83C154s, not in 80C51s.
8 Bytes
F8
*IOCON
FF
F0
B
F7
E8
E0
EF
ACC
E7
D8
DF
D0
PSW
C8
(T2CON)
D7
(RCAP2L)
(RCAP2H)
(TL2)
(TH2)
CF
C0
C7
B8
IP
BF
B0
P3
B7
A8
IE
AF
A0
P2
A7
98
SCON
90
P1
88
TCON
TMOD
TL0
TL1
80
P0
SP
DPL
DPH
SBUF
9F
97
TH0
TH1
8F
PCON
87
* 83C154s only.
MATRA MHS
Rev. E (14 Jan. 97)
3
C51 Family
User software should not write 1s to theses
unimplemented locations, since they may be used in
future TEMIC C51 products to invoke new features. In
that case the reset or inactive values of the new bits will
always be 0, and their active values will be 1.
1.1.8. Timer registers
The functions of the SFRs are described as below.
1.1.9. Capture registers
1.1.1. Accumulator
The register pair (RCAP2H, RCAP2L) are the capture
register for the Timer 2 “capture mode.” In this mode, in
response to a transition at the 80C52’s T2EX pin, TH2 and
TL2 are copied into RCAP2H and RCAP2L. Timer 2 also
has a 16-bit auto-reload mode, and RCAP2H and
RCAP2L hold the reload value for this mode. More about
Timer 2’s features in Section 1.6.
ACC is the Accumulator register. The mnemonics for
accumulator-specific instructions, however, refer to the
accumulator simply as A.
1.1.2. B Register
Register pairs (TH0, TL0), (TH1, TL1), and (TH2, TL2)
are the 16-bit counting registers for Timer/Counters 0, 1,
and 2, respectively.
The B register is used during multiply and divide
operations. For other instructions it can be treated as
another scratch pad register.
1.1.10. Control registers
1.1.3. Program status word
Special Function Registers IP, IE, TMOD, TCON,
T2CON, SCON, and PCON contain control and status
bits for the interrupt system, the timer/counters, and the
serial port. They are described in later sections.
The PSW register contains program status information as
detailed in Figure 3.
1.1.4. Stack pointer
The Stack Pointer register is 8 bits wide. It is incremented
before data is stored during PUSH and CALL executions.
While the stack may reside anywhere in on-chip RAM,
the Stack Pointer is initialized to 07H after a reset. This
causes the stack to begin at location 08H.
1.1.5. Data pointer
The Data Pointer (DPTR) consists of a high byte (DPH)
and a low byte (DPL). Its intended function is to hold a
16-bit address. It may be manipulated as a 16-bit register
or as two independent 8-bit registers.
1.2. Oscillator and Clock Circuit
XTAL1 and XTAL2 are the input and output of a
single-stage on-chip inverter, which can be configured
with off-chip components as a Pierce oscillator, as shown
in Figure 4. The on-chip circuitry, and selection of
off-chip components to configure the oscillator are
discussed in Section 1.12.
Figure 3. Crystal/Ceramic Resonator Oscillator.
1.1.6. Ports 0 to 3
P0, P1, P2 and P3 are the SFR latches of Ports 0, 1, 2 and
3, respectively.
1.1.7. Serial data buffer
The Serial Data Buffer is actually two separate registers,
a transmit buffer and a receive buffer register. When data
is moved to SBUF, it goes to the transmit buffer where it
is held for serial transmission. (Moving a byte to SBUF
is what initiates the transmission.) When data is moved
from SBUF, it comes from the receive buffer.
4
MATRA MHS
Rev. E (14 Jan. 97)
C51 Family
Figure 4. PSW : Program Status Work Register.
(MSB)
CY
(LSB)
AC
F0
Symbol
Position
CY
AC
PSW.7
PSW.6
F0
PSW.5
RS1
PSW.4
RS0
PSW.3
Symbol
Position
OV
–
P
PSW.2
PSW.1
PSW.0
Note :
RS1
OV
–
P
Name and Significance
Carry flag
Auxiliary Carry flag.
(For BCD operations.)
Flag 0
(Available to the user for general purposes.)
Register bank Select control bits 1 & 0. Set/cleared by software to
determine working register bank (see Note).
Name and Significance
Overflow flag.
(reserved)
Parity flag.
Set/cleared by hardware each instruction cycle to indicate and odd/even
number of “one” bits in the accumulator, i.e., even parity.
the contents of (RS1, RS0) enable the working register banks as follows
(0.0)–Bank 0
(00H-07H)
(0.1)–Bank 1
(08H-0FH)
(1.0)–Bank 2
(10H-17H)
(1.1)–Bank 3
(18H-1FH)
The oscillator, in any case, drives the internal clock
generator. The clock generator provides the internal
clocking signals to the chip. The internal clocking signals
are at half the oscillator frequency, and define the internal
phases, states, and machine cycles, which are described
in the next section.
MATRA MHS
Rev. E (14 Jan. 97)
RS0
1.3. CPU Timing
A machine cycle consists of 6 states (12 oscillator
periods). Each state is divided into a Phase 1 half, during
which the Phase 1 clock is active, and a Phase 2 half,
during which the Phase 2 clock is active. Thus, a machine
cycle consists of 12 oscillator periods, numbered S1P1
(State 1, Phase 1), through S6P2 (State 6, Phase 2). Each
phase lasts for one oscillator period. Each state lasts for
two oscillator periods. Typically, arithmetic and logical
operations take place during Phase 1 and internal
register-to-register transfers take place during Phase 2.
5
C51 Family
The diagrams in Figure 5 show the fetch/execute timing
referenced to the internal states and phases. Since these
internal clock signals are not user accessible, the XTAL2
oscillator signal and the ALE (Address Latch Enable)
signal are shown for external reference. ALE is normally
activated twice during each machine cycle : once during
S1P2 and S2P1, and again during S4P2 and S5P1.
Execution of one-cycle instruction begins at S1P2, when
the opcode is latched into the Instruction Register. If it is
a two-byte instruction, the second byte is read during S4
of the same machine cycle. If it is one-byte instruction,
there is still a fetch at S4, but the byte read (which would
be the next opcode), is ignored, and the Program Counter
is not incremented. In any case, execution is complete at
the end of S6P2. Figures 1-5A and 1-5B show the timing
for a 1-byte, 1-cycle instruction and for a 2-byte, 1-cycle
instruction.
Most 80C51 instructions execute in one cycle. MUL
(multiply) and DIV (divide) are the only instructions that
take more than two cycles to complete. They take four
cycles.
6
Normally, two codes bytes are fetched from Program
Memory during every machine cycle. The only exception
to this is when a MOVX instruction is executed. MOVX
is a 1-byte 2-cycle instruction that accesses external Data
Memory. During a MOVX, two fetches are skipped while
the external Data Memory is being addressed and strobed.
Figure 1-5C and 1-5D show the timing for a normal
1-byte, 2-cycle instruction and for a MOVX instruction.
1.4. Port Structures and Operation
All four ports in the 80C51 are bidirectional. Each
consists of a latch (Special Function Register P0 through
P3), an output driver, and an input buffer.
The output drivers of Ports 0 and 2, and input buffers of
Port 0, are used in accesses to external memory. In this
application, Port 0 outputs the low byte of the external
memory address, time-multiplexed with the byte being
written or read. Port 2 outputs the high byte of the external
memory address when the address is 16 bits wide.
Otherwise the Port 2 pins continue to emit the P2 SFR
content.
MATRA MHS
Rev. E (14 Jan. 97)
C51 Family
Figure 5. 80C51 fetch/Execute Sequences.
All the Port 3 pins, and (in the 80C52) two Port 1 pins are
multifunctional. They are not only port pins, but also
serve the functions of various special features as listed
below :
Port Pin
*P1.0
*P1.1
P3.0
P3.1
P3.2
P3.3
P3.4
P3.5
P3.6
P3.7
Alternate Function
T2 (Timer/Counter 2 external input)
T2EX (Timer/Counter 2 capture/reload
trigger)
RXD (serial input port)
TXD (serial output port)
INT0 (external interrupt)
INT1 (external interrupt)
T0 (Timer/Counter 0 external input)
T1 (Timer/Counter 1 external input)
WR (external Data memory write strobe)
RD (external Data memory read strobe)
* P1.0 and P1.1 serve these alternate functions only on the 80C52,
83C154 and 83C154D.
MATRA MHS
Rev. E (14 Jan. 97)
The alternate functions can only be activated if the
corresponding bit latch in the port SFR contains a 1.
Otherwise the port pin is stuck at 0.
1.4.1. I/O Configurations
Figure 6. shows a functional diagram of a typical bit latch
and I/O buffer in each of the four ports. The bit latch (one
bit in the port’s SFR) is represented as a Type D flip-flop,
which will clock in a value from the internal bus in
response to a “write to latch” signal from the CPU. The
Q output of the flip-flop is placed on the internal bus in
response to a “read latch” signal from the CPU. The level
of the port pin itself is placed on the internal bus in
response to a “read pin” signal from the CPU. Some
instructions that read a port activate the “read latch”
signal, and others activate the “read latch” signal, and
others activate the “read pin” signal.
7
C51 Family
Figure 6. 80C51 Port Bit Latches and I/O Buffers.
* See Figure 7. for details of the internal pullup.
As shown in Figure 6., the output drivers of Ports 0 and
2 are switchable to an internal ADDR and ADDR/DATA
bus by an internal CONTROL signal for use in external
memory accesses. During external memory accesses, the
P2 SFR remains unchanged, but the P0 SFR gets 1s
written to it.
Also shown in Figure 6., is that if a P3 bit latch contains
a 1, then the output level is controlled by the signal
labeled “alternate output function.” The actual P3.X pin
level is always available to the pin’s alternate input
function, if any.
Ports 1, 2, and 3 have internal pull-ups. Ports 0 has
open-drain outputs. Each I/O line can be independently
used as an input or an output. (Ports 0 and 2 may not be
used as general purpose I/O when being used as the
ADDR/DATA BUS). To be used as an input, the port bit
latch must contain a 1, which turns off the output driver
FET. Then, for Ports 1, 2, and 3, the pin is pulled high by
the internal pull-up, but can be pulled low by an external
source.
8
Port 0 differs in not having internal pullups. The pullup
FET in the P0 output driver (see Figure 1-6A) is used only
when the Port is emitting 1s during external memory
accesses. Otherwise the pullup FET is off. Consequently
P0 lines that are being used as output port lines are open
drain. Writing a 1 to the bit latch leaves both output FETs
off, so the pin floats. In that conditions it can be used as
a high-impedance input.
Because Ports 1, 2, and 3 have fixed internal pullups they
are sometimes called “quasi-bidirectional” ports. When
configured as inputs they pull high and will source current
(IIL, in the data sheets) when externally pulled low. Port
0, on the other hand, is considered “true” bidirectional,
because when configured as an input it floats.
All the port latches in the 80C51 have 1s written to them
by the reset function. If a 0 is subsequently written to a
port latch, it can be reconfigured as an input by writing a
1 to it.
MATRA MHS
Rev. E (14 Jan. 97)
C51 Family
1.4.2. Writing to a Port
In the execution of an instruction that changes the value
in a port latch, the new value arrives at the latch during
S6P2 of the final cycle of the instruction. However, port
latches are in fact sampled by their output buffers only
during Phase 1 of any clock period. (During Phase 2 the
output buffer holds the value it saw during the previous
Phase 1). Consequently, the new value in the port latch
won’t actually appear at the output pin until the next
Phase 1, which be at S1P1 of the next machine cycle.
If the change requires a 0-to-1 transition in Port 1, 2, or
3, an additional pull-up is turned on during S1P1 and
S1P2 of the cycle in which the transition occurs. This is
done to increase the transition speed. The extra pull-up
can source about 100 times the current that the normal
pull-up can. It should be noted that the internal pull-ups
are field-effect transistors, not linear resistors. The
pull-up arrangements are shown in Figure 7.
In the CMOS versions, the pull-up consists of three
pFETs. It should be noted that an n-channel FET (nFET)
is turned on when a logical 1 is applied to its gate, and is
turned off when a logical 0 is applied to its gate. A
p-channel FET (pFET) is the opposite : it is on when its
gate sees a 0, and off when its gate sees a 1.
pFET 1 in Figure 7. is the transistor that is turned on 2
oscillator periods after a 0-to-1 transition in the port latch.
While it’s on, it turns on pFET 3 (a weak pull-up), through
the inverter. This inverter and pFET form a latch which
hold the 1.
Note that if the pin is emitting a 1, a negative glitch on the
pin from some external source can turn off pFET 3,
causing the pin to go into a float state, pFET 2 is a very
weak pull-up which is on whenever the nFET is off, in
traditional CMOS style. It’s only about 1/10 the strenght
of pFET3. Its function is to restore a 1 to the pin in the
event the pin had a 1 and lost it to a glitch.
Figure 7. Ports 1 and 3 CMOS Internal Pull-up Configurations.
Port 2 is similar except that it holds the strong pullup on while emitting 1s that are address bits.
(See test, “Accessing External Memory”.)
CMOS Configuration. pFET 1 is turned on
for 2 osc. periods after Q makes a 1-to-0
transition. During this time, pFET 1 also turns
on pFET 3 through the inverter to form a
latch which holds the 1. pFET 2 is also on.
1.4.3. Port loading and interfacing
Figure 8. Port Interfacing.
The output buffer of Ports 1, 2 and 3 can each drive 3LS
TTL inputs. The pins can be driven by open-collector and
open-drain outputs, but note that 0-to-1 transition will not
be fast. In the CMOS device, an input 0 turns off pullup
P3, leaving only the weak pullup P2 to drive the transistor.
The Figure 8. shows an example where the port is driven
by an open drain transistor tN. The parasitic capacitance
is equal to 100pF.
MATRA MHS
Rev. E (14 Jan. 97)
9
C51 Family
The Figure 9. shows the behaviour of the port during
0-to-1 transition.
In the area A only pullup P2 sinks the capacitor and takes
5 µs to switch from 0 volt to 2 volts. In the area B, pullup
P2 and P3 feed the capacitor and the time to charge the
capacitor is divide roughly by ten. So this figure shows it
takes some machine cycles before having a true high level
during a 0-to-1 transition.
Figure 9. Port Behaviour During 0-to-1
Transition.
The reason that read-modify-write instructions are
directed to the latch rather than the pin is to avoid a
possible misinterpretation of the voltage level at the pin.
For example, a port bit might be used to drive the base of
a transistor. When a 1 is written to the bit, the transistor
is turned on. If the CPU then reads the same port bit at the
pin rather than the latch, it will read the base voltage of
the transistor and interpret it as a 0. Reading the latch
rather than the pin will return the correct value of 1.
Further details are given in the next chapter concerning
the powerful functions of the 83C154 I/O PORTS.
1.5. Accessing External Memory
Accesses to external memory are of two types : accesses
to external Program Memory and accesses to external
Data Memory. Accesses to external Program Memory use
signal PSEN (program store enable) as the read strobe.
Accesses to external Data Memory use RD or WR
(alternate function of P3.7 and P3.6) to strobe the
memory.
Fetches from external Program memory always use a
16-bit address. Accesses to external Data Memory can
use either a 16-bit address (MOVX @DPTR) or an 8-bit
address (MOVX @Ri).
1.4.4. Read-Modify-Write Feature
Some instructions that read a port read the latch and
others read the pin. Which ones do which ? The
instructions that read the latch rather than the pin are the
ones that read a value, possibly change it, and then rewrite
it to the latch. These are called “read-modify-write”
instructions. The instructions listed below are
read-modify-write instructions. When the destination
operand is a port, or a port bit, these instructions read the
latch rather than the pin :
ANL
ORL
XRL
JBC
CPL
INC
DEC
DJNZ
MOV PX.Y,C
CLR PX.Y
SETB PX.Y
(logical AND, e.G., ANL P1,A)
(logical OR, e.g., ORL P2,A)
(logical EX-OR, e.g., XRL P3,A)
(jump if bit = 1 and clear bit, e.g., JBC
P1.1, LABEL)
(complement bit, e.g., CPL P3.0)
(increment, e.g., INC P2)
(decrement, e.g., DEC P2)
(decrement and jump if not zero, e.g.,
DJNZ P3, LABEL)
(move carry bit to bit Y of Port X)
(clear bit Y of Port X)
(set bit Y of Port X)
Whenever a 16-bit address is used, the high byte of the
address comes out on Port 2, where it is held for the
duration of the read or write cycle. Note that the Port 2
drivers use the strong pullups during the entire time that
they are emitting address bits that are 1s. This is during
the execution of a MOVX @DPTR instruction. During
this time the Port 2 latch (the Special Function register)
does not have to contain 1s, and the contents of the Port
2 SFR are not modified. If the external memory cycle is
not immediately followed by another external memory
cycle, the undisturbed contents of the Port 2 SFR will
reappear in the next cycle.
If an 8-bit address is being used (MOVX @Ri), the
contents of the Port 2 SFR remain at the Port 2 pins
throughout the external memory cycle. This will facilitate
paging.
It is not obvious that the last three instructions in this list
are read-modify-write instructions, but they are. They
read the port byte, all 8 bits, modify the addressed bit, then
write the new byte back to the latch.
10
MATRA MHS
Rev. E (14 Jan. 97)
C51 Family
In any case, the low byte of the address is
time-multiplexed with the data byte on Port 0. The
ADDR/DATA signal drives both FETs in the Port 0 output
buffers. Thus, in this application the Port 0 pins are not
open-drain outputs, and do not require external pull-ups.
Signal ALE (address latch enable) should be used to
capture the address byte into an external latch. The
address byte is valid at the negative transitions of ALE.
Then, in a write cycle, the data byte to be written appears
on Port 0 just before WR is activated, and remains there
until after WR is deactivated. In a read cycle, the
incoming byte is accepted at Port 0 just before the read
strobe is desactivated.
During any access to external memory, the CPU writes
0FFH to the Port 0 latch (the Special Function Register),
thus obliterating whatever information the Port 0 SFR
may have been holding.
External program Memory is accessed under two
conditions :
1) Whenever signal EA is active ; or
2) Whenever the program counter (PC) contains a
number that is larger than 0FFFH (1FFFH for the
80C52, 3FFFH for the 83C154 and 7FFFH for the
83C154D.
This requires that the ROMless versions have EA wired
low to enable the lower 4K (8K for the 80C32, 16K for the
80C154 and 32K for the 80C154D) program bytes to be
fetched from external memory.
MATRA MHS
Rev. E (14 Jan. 97)
When the CPU is executing out of external Program
Memory, all 8 bits of Port 2 are dedicated to an output
function and may not be used for general purpose I/O.
During external program fetches they output the high byte
of the PC. During this time the Port 2 drivers use the
strong pullups to emit PC bits that are 1s.
PSEN
The read strobe for external fetches is PSEN. PSEN is not
activated for internal fetches. When the CPU is accessing
external Program Memory, PSEN is activated twice every
cycle (except during a MOVX instruction) whether or not
the byte fetched is actually needed for the current
instruction. When PSEN is activated its timing is not the
same as RD. A complete RD cycle, including activation
and deactivation of ALE and RD, takes 12 oscillator
periods. A complete PSEN cycle, including activation
and deactivation of ALE and PSEN, takes 6 oscillator
periods. The execution sequence for these two types of
read cycles are shown in Figure 10 for comparison.
11
C51 Family
Figure 10. External Program Memory Execution.
ALE
The main function of ALE is to provide a properly timed
signal to latch the low byte of an address from P0 to an
external latch during fetches from external Program
Memory. For that purpose ALE is activated twice every
machine cycle. This activation takes place even when the
cycle involves no external fetch. The only time an ALE
pulse doesn’t come out is during an access to external
Data Memory. The first ALE of the second cycle of a
MOVX instructions is missing (see Figure 10.).
Consequently, in any system that does not use external
Data Memory, ALE is activated at a constant rate of 1/6
the oscillator frequency, and can be used for external
clocking or timing purposes.
12
Overlapping External Program and Data Memory
Spaces
In some applications it is desirable to execute a program
from the same physical memory that is being used to store
data. In the 80C51, the external Program and Data
Memory spaces can be combined by ANDing PSEN and
RD. A positive-logic AND of these two signals produces
an active-low read strobe that can be used for the
combined physical memory. Since the PSEN cycle is
faster than the RD cycle, the external memory needs to be
fast enough to accomodate the PSEN cycle.
MATRA MHS
Rev. E (14 Jan. 97)
C51 Family
1.6. Timer/Counters
The 80C51 has two 16-bit timer/counter registers : Timer
0 and Timer 1. The 80C52, 83C154 and 83C154D have
these two plus one more : Timer 2. All three can be
configured to operate either as timers or event counters.
In addition to the “timer” or “counter” selection, Timer
0 and Timer 1 have four operating modes from which to
select. Timer 2, in the 80C52, 83C154 and 83C154D has
three modes of operation : “capture,” “auto-reload” and
“baud rate generator.”
In the “timer” function, the register is incremented every
machine cycle. Thus, one can think of it as counting
machine cycles. Since a machine cycle consists of 12
oscillator periods, the count rate is 1/12 of the oscillator
frequency.
In the “counter” function, the register is incremented in
response to a 1-to-0 transition at its corresponding
external input pin, T0, T1 or (in the 80C52, 83C154 and
83C154D) T2. In this function, the external input is
sampled during S5P2 of every machine cycle. When the
samples show a high in one cycle and a low in the next
cycle, the count is incremented. The new count value
appears in the register during S3P1 of the cycle following
the one in which the transition was detected. Since it takes
2 machine cycles (24 oscillator periods) to recognize a
1-to-0 transition, the maximum count rate is 1/24 of the
oscillator frequency. There are no restrictions on the duty
cycle of the external input signal, but to ensure that a
given level is sampled at least once before it changes, it
should be held for at least one full machine cycle.
Figure 11. TMOD : Timer/Counter Mode Control Register.
(MSB)
(LSB)
GATE
C/T
M1
TIMER 1
GATE
C/T
GATE
C/T
M1
M0
TIMER 0
Gating control When set. Timer/counter “x” is enabled only while “INTx” pin is high and “TRx” control pin is
set. When cleared Timer “x” is enabled whenever “TRx” control bit is set.
Timer or Counter Selector Cleared for Timer operation (input from internal system clock.) Set for Counter
operation (input from “Tx” input pin).
M1
0
0
1
M0
0
1
0
1
1
1
1
MATRA MHS
Rev. E (14 Jan. 97)
M0
Operatong Mode
MCS-48 Timer “TLx” serves as five-bit prescaler.
16 bit Timer/Counter “THx” and “TLx” are cascaded ; there is no prescaler
8 bit auto-reload timer-counter “THx” holds a value which is to be reloaded into “TLx”
each timer it overflows.
(Timer 0) TL0 is an eight bit timer counter-controlled by the standard Timer 0 control
bits TH0 is an eight-bit timer only controlled by Timer 1 control bits.
(Timer 1) Timer-counter 1 stopped.
13
C51 Family
Timer 0 and Timer 1
These timer/counter are present in both the 80C51, the
80C52, the 83C154 and the 83C154D. The “timer” or
“counter” function is selected by control bits C/T in the
Special Function Register TMOD (Figure 11.). These two
timer/counters have four operating modes, which are
selected by bit-pairs (M1, M0) in TMOD. Modes 0, 1, and
2 are the same for both timer/counters. Modes 3 is
different. The four operating modes are described below.
Mode 0
Putting either Timer into mode 0 makes it look like an
8048 Timer, which is an 8-bit counter with a divide-by-32
prescaler. Figure 12. shows the mode 0 operation as it
applies to Timer 1.
In this mode, the timer register is configured as a 13-bit
register. As the count rolls over from all 1s to all 0s, it sets
the timer interrupt flag TF1. The counted input is enabled
to the Timer when TR1 = 1 and either GATE = 0 or
INT1 = 1. (Setting GATE =1 allows the Timer to be
controlled by external input INT1, to facilitate pulse
width measurements). TR1 is a control bit in the Special
Function register TCON (Figure 1-10). GATE is in
TMOD.
The 13-bit register consists of all 8 bits of TH1 and the
lower 5 bits of TL1. The upper 3 bits of TL1 are
indeterminate and should be ingored. Setting the run flag
(TR1) does not clear the registers.
Mode 0 operation is the same for Timer 0 as for Timer 1.
Substitute TR0, TF0 and INT0 for the corresponding
Timer 1 signals in Figure 12. There are two different
GATE bits, one for Timer 1 (TMOD.7) and one for Timer
0 (TMOD.3).
Mode 1
Mode 1 is the same as Mode 0, except that the Timer
register is being run with all 16 bits.
Mode 2
Mode 2 configures the timer register as an 8-bit counter
(TL1) with automatic reload, as shown in Figure 14.
Overflow from TL1 not only sets TF1, which is preset by
sofware. The reload leaves TH1 unchanged.
Mode 2 operation is the same for Timer/Counter 0.
Mode 3
Timer 1 in Mode 3 simply holds its count. The effect is the
same as setting TR1 = 0.
Figure 12. Timer/Counter 1 Mode 0 : 13-bit Counter.
14
MATRA MHS
Rev. E (14 Jan. 97)
C51 Family
Figure 13. TCON : Timer/Counter Control Register.
(MSB)
TF1
(LSB)
TR1
TF0
Symbol
Position
TF1
TCON.7
TR1
TCON.6
TF0
TCON.5
TR0
TCON.4
Symbol
Position
IE1
TCON.3
IT1
TCON.2
IE0
TCON.1
IT0
TCON.0
TR0
Timer 0 in Mode 3 establishes TL0 and TH0 as two
separate counters. The logic for Mode 3 on Timer 0 is
shown in Figure 15. TL0 uses the Timer 0 control bits :
C/T, GATE, TR0, INT0, and TF0. TH0 is locked into a
timer function (counting machine cycles) and takes over
the use of TR1 and TF1 from Timer 1. Thus TH0 now
controls the “Timer 1” interrupt.
IE1
IT1
IE0
IT0
Name and Significance
Timer 1 overflow Flag. Set by hardware on timer/counter overflow.
Cleared by hardware when processor vectors to interrupt routine.
Timer 1 Run control bit. Set/cleared by software to turn timer/counter
on/off.
Timer 0 overflow Flag. Set by hardware on timer/counter overflow.
Cleared by hardware when processor vectors to interrupt routine.
Timer 0 Run control bit. Set/cleared by software to turn timer/counter
on/off.
Name and Significance
Interrupt 1 Edge flag. Set by hardware when external interrupt edge
detected. Cleared when interrupt processed.
Interrupt 1 Type control bit. Set/cleared by software to specify falling
edge/low level triggered external interrupts.
Interrupt 0 Edge flag. Set by hardware when external interrupt edge
detected. Cleared when interrupt processed.
Interrupt 0 Type control bit. Set/cleared by software to specify falling
edge/low level triggered external interrupts.
Timer 2
Timer 2 is a 16-bit timer/counter which is present only in
the 80C52, 83C154 and 83C154D. Like Timers 0 and 1,
it can operate either as a timer or as an event counter.
Mode 3 is provided for applications requiring an extra
8-bit timer or counter. With Timer 0 in Mode 3, an 80C51
can look like it has three timer/counters, and an 80C52,
an 83C154 and 83C154D, like it has four. When Timer 0
is in Mode 3, Timer 1 can be turned on and off by
switching it out of and into its own Mode 3, or can still be
used by the serial port as a baud rate generator, or in fact,
in any application not requiring an interrupt.
MATRA MHS
Rev. E (14 Jan. 97)
15
C51 Family
Figure 14. Timer/Counter 1 Mode 2 : 8-bit Auto-reload.
INT1 PIN
Figure 15. Timer/Counter 0 Mode 3 : Two 8-bit Counters.
1/12fOSC
1/12fOSC
16
MATRA MHS
Rev. E (14 Jan. 97)
C51 Family
Figure 16. T2CON : Timer/Counter 2 Control Register.
(MSB)
TF2
(LSB)
EXF2
RCLK
TCLK
EXEN2
TR2
C/T2
CP/RL2
Symbol
Position
Name and Significance
TF2
T2CON.7
Timer 2 overflow flag set by a Timer 2 overflow and must be cleared by software. TF2 will not
be set when either RCLK = 1 or TCLK = 1
EXF2
T2CON.6
Timer 2 external flag set when either a capture or reload is caused by a negative transition on
T2EX and EXEN2 = 1. When Timer 2 interrupt is enabled, EXF2 = 1 will cause the CPU to
vector to the Timer 2 interrupt routine. EXF2 must be cleared by software.
RCLK
T2CON.5
Receive clock flag. When set, causes the serial port to use Timer 2 overflow pulses for its
receive clock in modes 1 and 3. RCLK = 0 causes Timer 1 overflow to be used for the receive
clock.
TCLK
T2CON.4
Transmit clock flag. When set, causes the serial port to use Timer 2 overflow pulses for its
transmit clock in modes 1 and 3. TCLK = 0 causes Timer 1 overflows to be used for the
transmit clock.
EXEN2
T2CON.3
Timer 2 external enable flag. When set, allows a capture or reload to occur as a result of a
negative transition on T2EX if Timer 2 is not being used to clock the serial port. EXEN2 = 0
causes Timer 2 to ignore events at T2EX.
TR2
T2CON.2
Start/stop control for Timer 2. A logic 1 starts the timer.
C/T2
T2CON.1
Timer or counter select. (Timer 2) 0 = Internal timer (OSC/12) 1 = External event counter
(falling edge triggered).
CP/RL2
T2CON.0
Capture/Reload flag. When set, captures will occur on negative transitions at T2EX if EXEN2
= 1. When cleared, auto reloads will occur either with Timer 2 overflows or negative
transitions at T2EX when EXEN2 = 1. When either RCLK = 1 or TCLK = 1, this bit is ignored
and the timer is forced to auto–reload on Timer 2 overflow.
This is selected by bit C/T2 in the Special Function
Register T2CON (Figure 16). It has three operating
modes : “capture,” “autoload” and “baud rate generator,”
which are selected by bits in T2CON as shown in Table 2.
Table 2. Timer 2 Operating Modes.
RCLK + TCLK
CP/RL2
TR2
0
0
1
16–bit auto–reload
0
1
1
16–bit capture
1
X
1
baud rate generator
X
X
0
(off)
MATRA MHS
Rev. E (14 Jan. 97)
MODE
In the capture mode there are two options which are
selected by bit EXEN2 in T2CON. If EXEN2 = 0, then
Timer 2 is a 16-bit timer or counter which upon
overflowing sets bit TF2, the Timer 2 overflow bit, which
can be used to generate an interrupt. If EXEN2 = 1, then
Timer 2 still does the above, but with the added feature
that a 1-to-0 transition at external input T2EX causes the
current value in the Timer 2 registers, TL2 and TH2, to
be captured into registers RCAP2L and RCAP2H,
respectively. (RCAP2L and RCAP2H are new Special
Function Registers in the 80C52, 83C154 and 83C154D.
In addition, the transition at T2EX causes bit EXF2 in
T2CON to be set, and EXF2, like TF2, can generate an
interrupt.
The capture mode is illustrated in Figure 17.
17
C51 Family
Figure 17. Timer 2 in Capture Mode.
In the auto-reload mode there are again two options,
which are selected by bit EXEN2 in T2CON. If EXEN2 =
0, then when Timer 2 rolls over it not only sets TF2 but
also causes the Timer 2 registers to be reloaded with the
16-bit value in registers RCAP2L and RCAP2H, which
are preset by software. If EXEN2 = 1, then Timer 2 still
does the above, but with the added feature that a 1-to-0
transition at external input T2EX will also trigger the
16-bit reload and set EXF2.
The auto-reload mode is illustrated in Figure 18.
The baud rate generator mode is selected by RCLK = 1
and/or TCLK = 1. It will be described in conjunction with
the serial port.
18
1.7. Serial Interface (80C51 and 80C52 only)
The serial port is full duplex, meaning it can transmit and
receive simultaneously. It is also receive-buffered,
meaning it can commence reception of a second byte
before a previoulsy received byte has been read from the
receive register. (However, if the first byte still hasn’t
been read by the time reception of the second byte is
complete, one of the bytes will be lost). The serial port
receive and transmit registers are both accessed at Special
Function Register SBUF. Writing to SBUF loads the
transmit register, and reading SBUF accesses a physically
separate receive register.
MATRA MHS
Rev. E (14 Jan. 97)
C51 Family
Figure 18. Timer 2 in Auto-Reload Mode.
RELOAD
The serial port can operate in 4 modes :
1.7.1. Multiprocessor Communications
Mode 0 : Serial data enters and exits through RXD. TXD
outputs the shift clock. 8 bits are transmitted/received : 8
data bits (LSB first). The baud rate is fixed at 1/12 the
oscillator frequency.
Modes 2 and 3 have a special provision for
multiprocessor, communications. In these modes, 9 data
bits are received. The 9th one goes into RB8. Then comes
a stop bit. The port can be programmed such that when the
stop bit is received, the serial port interrupt will be
activated only if RB8 = 1. This feature is enabled by
setting bit SM2 in SCON. A way to use this feature in
multiprocessor systems is as follows.
Mode 1 : 10 bits are transmitted (through TXD) or
received (through RXD) : a start bit (0), 8 data bits (LSB
first), and a stop bit (1). On receive, the stop bit goes into
RB8 in Special Function Register SCON. The baud rate
is variable.
Mode 2 : 11 bits are transmitted (through TXD) or
received (through RXD) : a start bit (0), 8 data bits (LSB
first), a programmable 9th data bit, and a stop bit (1). On
transmit, the 9th data bit (TB8 in SCON) can be assigned
the value of 0 or 1. Or, for example, the parity bit (P, in the
PSW) could be moved into TB8. On receive, the 9th data
bit goes into RB8 in Special Function register SCON,
while the stop bit is ignored. The baud rate is
programmable to either 1/32 or 1/64 the oscillator
frequency.
Mode 3 : 11 bits are transmitted (through TXD) or
received (through RXD) : a start bit (0), 8 data bits (LSB
first), a programmable 9th data bit and a stop bit (1). In
fact, Mode 3 is the same as Mode 2 in all respects except
the baud rate. The baud rate in Mode 3 is variable.
In all four modes, transmission is initiated in Mode 0 by
the condition RI = 0 and REN = 1. Reception is initiated
in Mde 0 by the condition RI = 0 and REN = 1. Reception
is initiated in the other modes by the incoming start bit if
REN = 1.
MATRA MHS
Rev. E (14 Jan. 97)
When the master processor wants to transmit a block of
data to one of several slaves, it first sends out an address
byte which identifies the target slave. An address byte
differs from a data byte in that the 9th bit is 1 in an address
byte and 0 in a data byte. With SM2 = 1, no slave will be
interrupt by a data byte. An address byte, however, will
interrupt all slaves, so that each slave can examine the
received byte and see if it is being addressed. The
addressed slave will clear its SM2 bit and prepare to
receive the data bytes that will be coming. The slaves that
weren’t being addressed leaved their SM2s set and go on
about their business, ignoring the coming data bytes.
SM2 has no effect in Mode 0, and in Mode 1 can be used
to check the validity of the stop bit. In a Mode 1 reception,
if SM2 = 1, the receive interrupt will not be activated
unless a valid stop bit is received.
Serial port Control Register
The serial port control and status register is the Special
Function Register SCON, shown in Figure 19. This
register contains not only the mode selection bits, but also
the 9th data bit for transmit and receive (TB8 and RB8),
and the serial port interrupts bits (TI and RI).
19
C51 Family
Figure 19. SCON : Serial Port Control Register.
(MSB)
(LSB)
SM0
SM1
SM2
REN
where SM0, SM1 specify the serial port mode, as follows :
SM0
SM1
Mode
Description
Baud Rate
0
0
0
shift register
fOSC./12
0
1
1
8 bit UART
variable
1
0
2
9 bit UART
fOSC./64 or
fOSC./32
1
1
3
9 bit UART
variable
• SM2
enables the multiprocessor communication feature in
modes 2 and 3. In mode 2 or 3, if SM2 is set to 1 then RI
will not be activated if the received 9th data bit (RB8) is 0.
In mode 1, if SM2 = 1 then RI will not be activated if a
valid stop bit is not received. In mode 0, SM2 should be 0.
• REN
enables serial reception. Set by software to enable
reception. Clear by software to disable reception.
1.7.2. Baud Rates
The baud rate in Mode 0 is fixed :
Mode 0 Baud Rate Oscillator Frequency
12
The baud rate in Mode 2 depends on the value of bit
SMOD in Special Function Register PCON. If SMOD =
0 (which is its value on reset), the baud rate is 1/64 the
oscillator frequency. If SMOD = 1, the baud rate is 1/32
the oscillator frequency.
Mode 2 Baud Rate 2
SMOD
64
(Oscillator Frequency)
In the 80C51, the baud rates in Modes 1 and 3 are
determined by the Timer 1 overflow rate. In the 80C52,
83C154 and 83C154D, these baud rates can be
determined by Timer 1, or by Timer 2, or by both (one for
transmit and the other for receive).
TB8
RB8
TI
RI
• TB8
is the 9th data bit that will be transmitted in modes 2 and 3.
Set or clear by software as desired.
• RB8
in modes 2 and 3, is the 9th data bit that was received. In
mode 1, if SM2 = 0, RB8 is the stop bit that was received.
In mode 0, RB8 is not used.
• TI
is transmit interrupt flag. Set by hardware at the end of the
8th bit time in mode 0, or at the beginning of the stop bit in
the other modes, in any serial transmission. Must be
cleared by software.
• RI
is receive interrupt flag. Set by hardware at the end of the
8th bit time in mode 0, or halfway through the stop bit time
in the other modes, in any serial reception (except see
SM2). Must be cleared by software.
The Timer 1 interrupt should be disabled in this
application. The Timer itself can be configured for either
“timer” or “counter” operation, and in any of its 3 running
modes. In the most typical applications, it is configured
for “timer” operation, in the auto-reload mode (high
nibble of TMOD = 0010B). In that case, the baud rate is
given by the formula
Modes 1, 3
2 SMOD Oscillator Frequency
Baud rate 32 12 [256 (TH1)]
One can achieve very low baud rates with Timer 1 by
leaving the Timer 1 interrupt enabled, and configuring the
Timer to run as a 16-bit timer (high nibble of TMOD =
0001B), and using the Timer 1 interrupt to do a 16-bit
software reload.
Figure 20. lists various commonly used baud rates and
how they can be obtained from Timer 1.
1.7.3. Using Timer 1 to Generate Baud Rates
When Timer 1 is used as the baud rate generator, the baud
rates in Modes 1 and 3 are determined by the Timer 1
overflow rate and the value of SMOD as follows :
Modes 1, 3
2 SMOD
Baud rate 32 (Timer 1 Overflow rate)
20
MATRA MHS
Rev. E (14 Jan. 97)
C51 Family
Figure 20. Timer 1 Generated Commonly Used Baud
Rates.
TIMER 1
Baud Rate
fOSC
S O
SMOD
C/T Mode
MODE 0 MAX : 1MHZ
MODE 2 MAX : 375K
MODES 1,3 : 62.5K
19.2K
9.6K
4.8K
2.4K
1.2K
137.5
110
110
12 MHZ
12 MHZ
12 MHZ
11.059 MHZ
11.059 MHZ
11.059 MHZ
11.059 MHZ
11.059 MHZ
11.986 MHZ
6 MHZ
12 MHZ
x
1
1
1
0
0
0
0
0
0
0
x
x
0
0
0
0
0
0
0
0
0
x
x
2
2
2
2
2
2
2
2
1
Reload
Value
x
x
FFH
FDH
FDH
FAH
F4H
E8H
1DH
72H
FEEBH
1.7.4. Using Timer 2 to Generate Baud Rates
In the 80C52, 83C154 and 83C154D, Timer 2 is selected
as the baud rate generator by setting TCLK and/or RCLK
in T2CON (Figure 16.). Note then the baud rates for
transmit and receive can be simultaneously different.
Setting RCLK and/or TCLK puts Timer 2 into its baud
rate generator mode, as shown in Figure 21.
Figure 21. Timer 2 in Baud Rate Generator Mode.
The baud rate generator mode is similar to the auto-reload
mode, in that a rollower in TH2 causes the Timer 2
registers to be reloaded with the 16-bit value in registes
RCAP2H and RCAP2L, which are preset by software.
Now, the baud rates in Modes 1 and 3 are determined by
Timer 2’s overflow rate as follows :
Modes 1, 3 Baud Rate Timer 2 Overflow rate
16
MATRA MHS
Rev. E (14 Jan. 97)
The Timer can be configured for either “timer” or
“counter” operation. In the most typical applications, it is
configured for “timer” operation (C/T2 = 0). “Timer”
operation is a little different for Timer 2 when it’s being
used as a baud rate generator. Normally as a timer it would
increment every machine cycle (thus at 1/12 the oscillator
frequency). As a baud rate generator, however, it
increment every state time (thus at 1/2 the oscillator
frequency). In that case the baud rate is given by the
formula
21
C51 Family
Modes 1, 3
Oscillator Frequency
Baud rate 32 [65536–(RCAP2H, RCAP2L)]
where (RCAP2H, RCAP2L) is the content of RCAP2H
and RCAP2L taken as a 16-bit unsigned integer.
Timer 2 as a baud rate generator is shown in Figure 21.
This Figure is valid only if RCLK + TCLK = 1 in T2CON.
Note that a rollover in TH2 does not set TF2, and will not
generate an interrupt. Therefore, the Timer 2 interrupt
does not have to be disabled when Timer 2 is in the baud
rate generator mode. Note too, that if EXEN2 is set, a
1-to-0 transition in T2EX will set EXF2 but will not cause
a reload from (RCAP2H, RCAP2L) to (TH2, TL2). Thus
when Timer 2 is in use as a baud rate generator, T2EX can
be used as an extra external interrupt, if desired.
It should be noted that when Timer 2 is running (TR2 =
1) in “timer” function in the baud rate generator mode,
one should not try to read or write TH2 or TL2. Under
these conditions the Timer is being incremented every
state time, and the results of a read or write may not be
accurate. The RCAP registers may be read, but shouldn’t
be written to, because a write might overlap a reload and
cause write and/or reload errors. Turn the Timer off (clear
TR2) before accessing the Timer 2 or RCAP registers, in
this case.
More About Mode 0
Serial data enters and exits through RXD. TXD outputs
the shift clock. 8 bits are transmitted/received : 8 data bits
(LSB first). The baud rate is fixed at 1/12 the oscillator
frequency.
Figure 22. shows a simplified functional diagram of the
serial port in mode 0, and associated timing.
Transmission is initiated by any instruction that uses
SBUF as a destination register. The “write to SBUF”
signal at S6P2 also loads a 1 into the 9th bit position of the
transmit shift register and tells the TX Control block to
commence a transmission. The internal timing is such
that one full machine cycle will elapse between “write to
SBUF”, and activation of SEND.
SEND enables the output of the shift register to the
alternate output function line of P3.0, and also enables
SHIFT CLOCK to the alternate output function line of
P3.1. SHIFT CLOCK is low during S3, S4, and S5 of
every machine cycle, and high during S6, S1 and S2. At
S6P2 of every machine cycle in which SEND is active,
the contents of the transmit shift register are shifted to the
right one position.
22
As data bits shift out to the right, zeros come in from the
left. When the MSB of the data byte is at the output
position of the shift register, then the 1 that was initially
loaded into the 9th position, is just to the left of the MSB,
and all positions to the left of that contain zeros. This
condition flags the TX Control block to do one last shift
and then deactivate SEND and set T1. Both of these
actions occur at S1P1 of the 10th machine cycle after
“write to SBUF.”
Reception is initiated by the condition REN = 1 and RI =
0. At S6P2 of the next machine cycle, the RX Control unit
writes the bits 11111110 to the receive shift register, and
in the next clock phase activates RECEIVE.
RECEIVE enables SHIFT CLOCK to the alternate output
function line of P3.1. Shift CLOCK makes transitions at
S3P1 and S6P1 of every machine cycle. At S6P2 of every
cycle in which RECEIVE is active, the contents of the
receive shift register are shifted to the left one position.
The value that comes in from the right is the value that
was sampled at the P3.0 pin at S5P2 of the same machine
cycle.
As data bits come in from the right, 1s shift out to the left.
When the 0 that was initially loaded into the rightmost
position arrives at the leftmost position in the shift and
load SBUF. At S1P1 of the 10th machine cycle after the
write to SCON that cleared RI, RECEIVE is cleared and
RI is set.
More About Mode 1
Ten bits are transmitted (through TXD), or received
(through RXD) : a start bit (0), 8 data bits (LSB first), and
a stop bit (1). On receive, the stop bit goes into RB8 in
SCON. In the 80C51 the baud rate is determined by the
Timer 1 overflow rate. In the 80C52, 83C154 and
83C154D it is determined either by the Timer 1 overflow
rate, or the Timer 2 overflow rate, or both (one for
transmit and the other for receive).
Figure 23. shows a simplified functional diagram of the
serial port in Mode 1, and associated timings for transmit
and receive.
Transmission is initiated by any instruction that uses
SBUF as a destination register. The “write to SBUF”
signal also loads a 1 into the 9th bit position of the
transmit shift register and flags the TX Control unit that
a transmission is requested. Transmission actually
commences at S1P1 of the machine cycle following the
next rollower in the divide-by-16 counter. (Thus, the bit
MATRA MHS
Rev. E (14 Jan. 97)
C51 Family
times are synchronized to the divide-by-16 counter, not to
the “write to SBUF” signal).
The transmission begins with activation of SEND, which
puts the start bit at TXD. One bit time later, DATA is
activated, which enables the output bit of the transmit
shift register to TXD. The fisrt shift pulse occurs one bit
time after that.
Reception is initiated by a detected 1-to-0 transition at
RXD. For this purpose RXD is sampled at a rate of 16
times whatever baud rate has been established. When a
transition is detected, the divide-by-16 counter is
immediately reset, and 1FFH is written into the input shift
register. Resetting the divide-by-16 counter aligns its
rollovers with the boundaries of the incoming bit times.
As data bits shift out to the right, zeros are clocked in from
the left. When the MSB of the data byte is at the output
position of the shift register, then the 1 that was initially
loaded into the 9th position is just to the left of the MSB,
and all positions to the left of that contain zeroes. This
condition flags the TX Control unit to do one last shift and
then deactivate SEND and set TI. This occurs at the 10th
divide-by-16 rollower after “write to SBUF”.
MATRA MHS
Rev. E (14 Jan. 97)
23
C51 Family
Figure 22. Serial Port Mode 0.
24
MATRA MHS
Rev. E (14 Jan. 97)
C51 Family
Figure 23. Serial Port Mode 1. TCLK, RCLK, and Timer 2 are present in the 80C32/80C52, 80C154/83C154
and 83C154D.
MATRA MHS
Rev. E (14 Jan. 97)
25
C51 Family
The 16 states of the counter divide each bit time into
16ths. At the 7th, 8th, and 9th counter states of each bit
time, the bit detector samples the value of RXD. The
value accepted is the value that was seen in at least 2 of
the 3 samples. This is done for noise rejection. If the value
accepted during the first bit time is not 0, the receive
circuits are reset and the unit goes back to looking for
another 1-to-0 transition. This is to provide rejection of
false start bits. If the start bit proves valid, it is shifted into
the input shift register, and reception of the rest of the
frame will proceed.
As data bits come in from the right, 1s shift out to the left.
When the start bit arrives at the leftmost position in the
shift register, (which in mode 1 is a 9-bit register), it flags
the RX Control block to do one last shift, load SBUFF and
RB8, and set RI. Will be generated if, and only if, the
following conditions are met at the time the final shift
pulse is generated.
1) RI = 0, and
2) Either SM2 = 0, or the received stop bit = 1
If either of these two confitions is not met, the received
frame is irretrievably lost. If both conditions are met, the
stop bit goes into RB8, the 8 data bits go into SBUF, and
RI is activated. At this time, whether the above conditions
are met or not, the unit goes back to looking for a 1-to-0
transition in RXD.
More About Modes 2 and 3
Eleven bits are transmitted (through TXD), or received
(through RXD) : a start bit (0), 8 data bits (LSB first), a
programmable 9th data bit, and a stop bit (1). On transmit,
the 9th data bit goes into RB8 is SCON. The baud rate is
programmable to either 1/32 or 1/64 the oscillator
frequency in mode 2. Mode 3 may have a variable baud
rate generated from either Timer 1 or 2 depending on the
state of TCLK and RCLK.
Figures 1-24 A and B show a functional diagram of the
serial port in modes 2 and 3. The receive portion is exactly
the same as in mode 1. The transmit portion differs from
mode 1 only in the 9th bit of the transmit shift register.
Transmission is initiated by any instruction that uses
SBUF as a destination register. The “write to SBUF”
signal also loads TB8 into the 9th bit position of the
transmit shift register and flags the TX Control unit that
a transmission is requested. Transmission commences at
S1P1 of the machine cycle following the next rollover in
the divide-by-16 counter. (Thus, the bit times are
synchronized to the divide-by-16 counter, not to the
“write to SBUF” signal.)
26
The transmission begins with activation of SEND, which
puts the start bit at TXD. One bit time later, DATA is
activated, which enables the output bit of the transmit
shift register to TXD. The first shift pulse occurs one bit
time after that. The first shift clocks a 1 (the stop bit) into
the 9th bit position of the shift register. Thereafter, only
zeroes are clocked in. Thus, as data bits shift out to the
right, zeroes are clocked in from the left. When TB8 is at
the output position of the shift register, then the stop bit
is just to the left of TB8, and all positions to the left of that
contain zeroes. This condition flags the TX Control unit
to do one last shift and then deactivate SEND and set TI.
This occurs at the 11th divide-by-16 rollover after “write
to SBUF”.
Reception is initiated by a detected 1-to-0 transition at
RXD. For this purpose RXD is sampled at a rate of 16
times whatever is detected, the divide-by-16 counter is
immediately reset, and 1FFH is written to the input shift
register.
At the 7th, 8th and 9th counter states of each bit time, the
bit detector samples the value of RXD. The value
accepted is the value that was seen in at least 2 of the 3
samples. If the value accepted during the first bit time is
not 0, the receive circuits are reset and the unit goes back
to looking for another 1-to-0 transition. If the start bit
proves valid, it is shifted into the input shift register, and
reception of the rest of the frame will proceed.
As data bits come in from the right, 1s shift out to the left.
When the start bit arrives at the leftmost position in the
shift register (which in modes 2 and 3 is a 9-bit register),
it flags the RX Control block to do one last shift, load
SBUF and RB8, and set RI. The signal to load SBUF and
RB8, and to set RI, will be generated if, and only if, the
following conditions are met at the time the final shift
pulse is generated :
1) RI = 0, and
2) Either SM2 = 0 or the received 9th data bit = 1
If either of these conditions is not met, the received frame
is irretrievably lost, and RI is not set. If both conditions
are met, the received 9th data bit goes into RB8, and the
first 8 data bits go into SBUF. One bit time later, whether
the above conditions were met or not, the unit goes back
to looking for a 1-to-0 transition at the RXD input.
Note that the value of the received stop bit is irrelevant to
SBUF, RB8, or RI.
MATRA MHS
Rev. E (14 Jan. 97)
C51 Family
Figure 24. Serial Port Mode 2.
MATRA MHS
Rev. E (14 Jan. 97)
27
C51 Family
Figure 25. Serial Port Mode 3. TCLK, RCLK and Timer 2 are present in the 80C32/80C52, 80C154/83C154 and
in the 83C154D.
28
MATRA MHS
Rev. E (14 Jan. 97)
C51 Family
1.8. Interrupts
The 80C51 provides 5 interrupt sources. The 80C52
83C154 and 83C154D provide 6. Theses are shown in
Figure 25.
Figure 26. TEMIC C51 Interrupt Sources.
The Timer 0 and Timer 1 Interrupts are generated by TF0
and TF1, which are set by a rollover in their respective
timer/counter registers (except see Section 1.6 for Timer
0 in mode 3). When a timer interrupt is generated, the flag
that generated it is cleared by the on-chip hardware when
the service routine is vectored to.
The Serial Port Interrupt is generated by the logical OR
of RI and TI. Neither of these flags is cleared by hardware
when the service routine is vectored to. In fact, the service
routine will normally have to determine whether it was RI
or TI that generated the interrupt, and the bit will have to
be cleared in software.
In the 80C52, 83C154 and 83C154D, the Timer 2
Interrupt is generated by the logical OR of TF2 and EXF2.
Neither of these flags is cleared by hardware when the
service routine is vectored to. In fact, the service routine
may have to determine whether it was TF2 or EXF2 that
generated the interrupt, and the bit will have to be cleared
in software.
All of the bits that generate interrupts can be set or cleared
by sofware, with the same result as though it had been set
or cleared by hardware. That is, interrupts can be
generated or pending interrupts can be canceled in
sofware.
Each of these interrupt sources can be individually
enabled or disabled by setting or clearing a bit in Special
Function Register IE (Figure 26.). Note that IE contains
also a global disable bit, EA, which disables all interrupts
at once.
The external interrupts INT0 and INT1 can each be either
level-activated or transition-activated, depending on bits
IT0 and IT1 in Register TCON. The flags that actually
generate these interrupts are bits IE0 and IE1 in TCON.
When an external interrupt is generated, the flag that
generated it is cleared by the hardware when the service
routine is vectored to only if the interrupt was
transition-activated. If the interrupt was level-activated,
then the external requesting source is what controls the
request flag, rather than the on-chip hardware.
MATRA MHS
Rev. E (14 Jan. 97)
29
C51 Family
Figure 27. IE : Interrupt Enable Register.
(MSB)
(LSB)
EA
X
ET2
ES
ET1
EX1
ET0
EX0
Symbol
Position
Function
EA
IE.7
disables all interrupts. If EA = 0, no interrupt will be acknowledged. If EA = 1, each interrupt
source is individually enabled or disabled by setting or clearing its enables bit.
–
IE.6
reserved.
ET2
IE.5
enables or disables the Timer 2 overflow or capture interrupt. If ET2 = 0, the Timer 2 interrupt is
disabled.
ES
IE.4
enables or disables the Serial Port interrupt is disabled.
ET1
IE.3
enables or disables the Timer 1 Overflow interrupt. If ET1 = 0, the Timer 1 interrupt is disabled.
EX1
IE.2
enables or disables External Interrupt 1. If EX1 = 0, External interrupt 1 is disabled.
ET0
IE.1
enables or disables the Timer 0 Overflow interrupt. If ET0 = 0, the Timer 0 interrupt is disabled.
EX0
IE.0
enables or disables External Interrupt 0. If EX0 = 0, External Interrupt 0 is disabled.
Priority Level Structure
Each interrupt source can also be individually
programmed to one of two priority levels by setting or
clearing a bit in Special Function Register IP (Figure 27.).
A low-priority interrupt can itself be interrupted by a
high-priority interrupt, but not by another low-priority
interrupt. A high-priority interrupt can’t be interrupted by
any other interrupt source.
Figure 28. IP : Interrupt Priority Register.
(MSB)
(LSB)
X
30
X
PT2
Symbol
Position
–
IP.7
reserved
PS
PT1
PX1
PT0
PX0
Function
–
IP.6
reserved
PT2
IP.5
defines the Timer 2 interrupt priority level. PT2 = 1 programs it do the higher priority level.
PS
IP.4
defines the Serial Port Interrupt priority level. PS = 1 programs it to the higher priority level.
PT1
IP.3
defines the Timer 1 interrupt priority level. PT1 = 1 programs it to the higher priority level.
PX1
IP.2
defines the external interrupt 1 priority level. PX1 = 1 programs it to the higher priority level.
PT0
IP.1
defines the Timer 0 interrupt priority level. PT0 = 1 programs it to the higher priority level.
PX0
IP.0
defines the External Interrupt 0 priority level. PX0 = 1 programs it to the higher priority level.
MATRA MHS
Rev. E (14 Jan. 97)
C51 Family
If two requests of different priority levels are received
simultaneoulsy, the request of higher priority level is
serviced. If requests of the same priority level are
received simultaneously, an internal polling sequence
determine which request is serviced. Thus within each
priority level is a second priority structure determined by
the polling sequence, as follows :
1.
2.
3.
4.
5.
6.
SOURCE
PRIORITY WITHIN LEVEL
IE0
TF0
IE1
TF1
RI + TI
TF2 + EXF2
(highest)
Note that the “priority within level” structure is only used
to resolve simultaneous requests of the same priority
level.
How Interrupts Are Handled
The interrupt flags are sampled at S5P2 of every machine
cycle. The samples are polled during the following
machine cycle. If one of the flags was in a set condition
at S5P2 of the preceding cycle, the polling cycle will find
it and the interrupt system will generate an LCALL to the
appropriate
service
routine,
provided
this
hardware-generated LCALL is not clocked by any of the
following conditions :
1. An interrupt of equal or higher priority level is already
in progress.
2. The current (polling) cycle is not the final cycle in the
execution of the instruction in progress.
(lowest)
3. The instruction in progress is RETI or any access to the
IE or IP registers.
The polling cycle is repeated with each machine cycle,
and the values polled are the values that were present at
S5P2 of the previous machine cycle. Note then that if an
interrupt flag is active but not being responded to for one
of the above conditions, if the flag is not still active when
the blocking condition is removed, the denied interrupt
will not be serviced. In other words, the facts that the
interrupt flag was once active but not serviced is not
remembered. Every polling cycle is new.
The polling cycle/LCALL sequence is illustrated in
Figure 28.
Note that if an interrupt of higher priority level goes
active prior to S5P2 of the machine cycle labeled C3 in
Figure 28., then in accordance with the above rules it will
be vectored to during C5 and C6, without any instruction
of the lower priority routine having been executed.
Figure 29. Interrupt response Timing Diagram.
MATRA MHS
Rev. E (14 Jan. 97)
31
C51 Family
Thus the processor acknowledges an interrupt request by
executing a hardware-generated LCALL to the
appropriate servicing routine. In some cases it also clears
the flag that generated the interrupt, and in other cases it
doesn’t. It never clears the Serial Port or Timers 2 flags.
This has to be done in the user’s software. It clears an
external interrupt flag (IE0 or IE1) only if it was
transition-activated. The hardware-generated LCALL
pushes the contents of the Program Counter onto the stack
(but it does not save the PSW) and reloads the PC with an
address that depends on the source of the interrupt being
vectored to, as shown below.
SOURCE
VECTOR ADDRESS
IE0
TF0
IE1
TF1
RI + TI
TF2 + EXF2
0003H
000BH
0013H
001BH
0023H
002BH
Execution proceeds from that location until the RETI
instruction is encountered. The RETI instruction informs
the processor that this interrupt routine is no longer in
progress, then pops the top two bytes from the stack and
reloads the Program Counter. Execution of the
interrupted program continues from where it left off.
Note that a simple RET instruction would also have
returned execution to the interrupted program, but it
would have left the interrupt control system thinking an
interrupt was still in progress.
External Interrupts
The external sources can be programmed to be
level-activated or transition-activated by setting or
clearing bit IT1 or IT0 in Register TCON. If ITx = 0,
external interrupt x is triggered by a detected low at the
INTx pin. If ITx = 1, external interrupt x is
edge-triggered. In this mode if successive samples of the
INTx pin show a high in one cycle and a low in the next
cycle, interrupt request flag IEx in TCON is set. Flag bit
IEx then requests the interrupt.
32
Since the external interrupt pins are sampled once each
machine cycle, an input high or low should hold for at
least 12 oscillator periods to ensure sampling. If the
external interrupt is transition-activated, the external
source has to hold the request pin high for at least one
cycle, and then hold it low for at least one cycle to ensure
that the transition is seen so that interrupt request flag IEx
will be set. IEx will be automatically cleared by the CPU
when the service routine is called.
If the external interrupt is level-activated, the external
source has to hold the request active until the requested
interrupt is actually generated. Then it has to deactivate
the request before the interrupt service routine is
completed, or else another interrupt will be generated.
Response Time
The INT0 and INT1 levels are inverted and latched into
IE0 and IE1 and S5P2 of every machine cycle. The values
are not actually polled by the circuitry until the next
machine cycle. If a request is active and conditions are
right for it to be acknowledged, a hardware subroutine
call to the requested service routine will be the next
instruction to be executed. The call itself takes two
cycles. Thus, a minimum of three complete machine
cycles elapse between activation of an external interrupt
request and the beginning of execution of the service
routine. Figure 28. shows interrupt response timings.
A longer response time would result if the request is
blocked by one of the 3 previously listed conditions. If an
interrupt of equal or higher priority level is already in
progress, the additional wait time obviously depends on
the nature of the other interrupt’s service routine. If the
instruction in progress is not in its final cycle, the
additional wait time cannot be more than 3 cycles, since
the longest instructions (MUL and DIV) are only 4 cycles
long, and if the instruction in progress is RETI or an
access to IE or IP, the additional wait time cannot be more
than 5 cycles (a maximum of one more cycle to complete
the instruction in progress, plus 4 cycles to complete the
next instruction if the instruction is MUL or DIV).
Thus, in a single-interrupt system, the response time is
always more than 3 cycles and less than 8 cycles.
MATRA MHS
Rev. E (14 Jan. 97)
C51 Family
1.9. Single Step Operation
The 80C51 interrupt structure allows single-step
execution with very little software overhead. As
previously noted, an interrupt request will not be
responded to while an interrupt of equal priority level is
still in progress, nor will it be responded to after RETI
until at least one other instruction has been executed.
Thus, once an interrupt routine has been entered, it cannot
be re-entered until at least once instruction of the
interrupted program is executed. One way to use this
feature for single-step operation is to program one of the
external interrupts (say, INT0) to be level-activated. The
service routine for the interrupt will terminate with the
following code :
JNB
JB
P3.2,$
P3.2,$
RETI
WAIT HERE TILL INTO
GOES HIGH
NOW WAIT HERE TILL
IT GOES LOW
GO BACK AND EXECUTE
ONE INSTRUCTION
Now, if the INT0 pin, which is also the P3.2 pin, is hold
normally low, the CPU will go right into the External
interrupt 0 routine and stay there until INT0 is pulsed
(from low to high to low). Then it will execute RETI, go
back to the task program, execute one instruction, and
immediately re-enter the External Interrupt 0 routine to
await the next pulsing of P3.2. One step of the task
program is executed each time P3.2 is pulsed.
1.10. Reset
The reset input is the RST pin, which is the input to a
Schmitt Trigger.
Figure 30. Power on Reset Circuit.
A reset accomplished by holding the RST pin high for at
least two machine cycles (24 oscillator periods), while the
oscillator is running. The CPU responds by executing an
internal reset. It also configures the ALE and PSEN pins
as inputs. (They are quasi-bidirectional). The internal
reset is executed during the second cycle in which RST
is high and is repeated every cycle until RST goes low. It
leaves the internal registers as follows :
REGISTER
PC
ACC
B
PSW
SP
DPTR
P0-P3
IP (80C51)
IP (80C52, 83C154 and 83C154D)
IE (80C51)
IE (80C52, 83C154 and 83C154D)
TMOD
TCON
T2CON (80C52, 83C154 and 83C154D)
TH0
TL0
TH1
TL1
TH2
TL2
RCAP2H (80C52 83C154 and 83C154D)
RCAP2L (80C52, 83C154 and 83C154D)
SCON
SBUF
IOCON
PCON (80C51 and 80C52)
PCON (83C154 and 83C154D)
CONTENT
0000H
00H
00H
00H
07H
0000H
0FFH
XXX00000B
XX000000B
0XX00000B
0X000000B
00H
00H
00H
00H
00H
00H
00H
00H
00H
00H
00H
00H
Indeterminate
00H
0XXX0000B
000X0000B
The internal RAM is not affected by reset. When VCC is
turned on, the RAM content is indeterminate unless the
part is returning from a reduced power mode of operation.
MATRA MHS
Rev. E (14 Jan. 97)
33
C51 Family
Power-on reset
Idle Mode
An automatic reset can be obtained when VCC is turned
on by connecting the RST pin to VCC through a 1 µf
capacitor providing the VCC risetime does not exceed a
millisecond and the oscillator start-up time does not
exceed 10 milli-seconds. This power-on reset circuit is
shown in Figure 1-29. When power comes on, the current
drawn by RST commences to charge the capacitor. The
voltage at RST is the difference between VCC and the
capacitor voltage, and decreases from VCC as the cap
charges. The larger the capacitor, the more slowly VRST
decreases. VRST must remain above the lower threshold
of the Schmitt Trigger long enough to effect a complete
reset. The time required is the oscillator start-up time,
plus 2 machine cycles.
An instruction that sets PCON.0 causes that to be the last
instruction executed before going into the Idle mode. In
the Idle mode, the internal clock signal is gated off to the
CPU, but not to the interrupt, Timer, and Serial Port
functions. The CPU status is preserved in its entirely : the
Stack Pointer, Program Counter, Program Status Word,
Accumulator and all other registers maintain their data
during Idle. The port pins hold the logical states they had
at the time Idle was activated. ALE and PSEN hold at
logic high levels.
1.11. Power-Saving Modes of Operation
For applications where power consumption is a critical
factor, the TEMIC C51 parts provide two power mode :
power-down and idle mode. The first one reduces the
consumption up to few microamperes and the second one
divides the consumption roughly by 25 %. Both of the
modes are controlled by software via the PCON register.
In Power-Down mode (PD = 1, PCON = 87H => XXXX
XX1X) the oscillator is frozen. In idle mode (IDL = 1,
PCON = 87H => XXXX XX01). The oscillator
continues to run and the interrupt, serial port, and timer
blocks continue to be clocked but the clock signal is gated
off the CPU. The activities of the CPU no longer exists
unless waiting for an interrupt request. Both Power-Down
and Idle mode are explained below. Further function
concerning the TEMIC C154 parts will be explain in the
next chapter.
There are two ways to terminate the Idle. Activation of
any enabled interrupt will cause PCON.0 to be cleared by
hardware, terminating the Idle mode. The interrupt will
be serviced, and following RETI the next instruction to be
executed will be the one following the instruction that put
the device into idle.
The flag bits GF0 and GF1 can be used to give and
indication if an interrupt occured during normal operation
or during and Idle. For example, an instruction that
activates Idle can also set one or both flag bits. When Idle
is terminated by an interrupt, the interrupt service routine
can examine the flag bits.
The over way of terminating the Idle mode is with a
hardware reset. Since the clock oscillator is still running,
the hardware reset needs to be held active for only two
machine cycles (24 oscillator periods) to complete the
reset.
Figure 31. PCON : Power Control Register.
(MSB)
(LSB)
SMOD
–
–
–
GF1
GF0
PD
IDL
Symbol
Position
Name and Function
SMOD
PCON.7
Double Baud rate bit. When set to a 1, the baud rate is doubled when the serial port is being used in
either modes 1, 2 or 3.
–
PCON.6
(Reserved)
–
PCON.5
(Reserved)
–
PCON.4
(Reserved)
GF1
PCON.3
General-purpose flag bit.
GF0
PCON.2
General-purpose flag bit.
PD
PCON.1
Power Down bit. Setting this bit activates power down operation.
IDL
PCON.0
Idle mode bit. Setting this bit activates idle mode operation.
If 1s are written to PD and IDL at the same time, PD takes precedence. The reset value of PCON is (0XXX0000).
34
MATRA MHS
Rev. E (14 Jan. 97)
C51 Family
Power Down Mode
An instruction that sets PCON.1 causes that to be the last
instruction executed before going into the Power Down
mode. In the Power Down mode, the on-chip oscillator is
stopped. With the clock frozen, all functions are stopped,
but the on-chip RAM and Special Function Registers are
held. The port pins output the values held by their
respective SFRs. ALE and PSEN output lows.
Figure 32. Idle and Power Down Hardware.
The only exit from Power Down is a hardware reset. Reset
redefines all the SFRs, but does not change the on-chip
RAM.
In the Power down mode of operation, VCC can be
reduced to minimize power consumption. Care must be
taken, however, to ensure that VCC is not reduced before
the Power Down mode is invoken, and that VCC is
restored to its normal operating level, before the Power
Down mode is terminated. The reset that terminates
Power Down also frees the oscillator. The reset should not
be activated before VCC is restored to its normal
operating level, and must be held active long enough to
allow the oscillator to restart and stabilize (normally less
than 10 msec).
MATRA MHS
Rev. E (14 Jan. 97)
35
C51 Family
This table shows the state of ports during idle and power-down modes.
MODE
PROGRAM
MEMORY
ALE
PSEN
PORT0
PORT1
PORT2
PORT3
Idle
Internal
1
1
Port Data
Port Data
Port Data
Port Data
Idle
External
1
1
Floating
Port Data
Address
Port Data
Power Down
Internal
0
0
Port Data
Port Data
Port Data
Port Data
Power Down
External
0
0
Floating
Port Data
Port Data
Port Data
1.12. More about the On-chip Oscillator
The on-chip oscillator circuitry for 80C51’s family,
shown in Figure 32., consists of a single stage linear
inventer for use as a crystal-controlled, positive reactance
oscillator.
The on-chip oscillator is able to run with a crystal or with
ceramic resonnator. The Figure 33. shows the schematic
to work which a crystal and a ceramic resonnator working
on a fundamental mode.
Figure 33. On-chip oscillator Circuit.
36
MATRA MHS
Rev. E (14 Jan. 97)
C51 Family
Figure 34. Fundamental Resonance.
The TEMIC-51 parts can by controlled by an external
clock. In this case the external clock signal is connected
directly on XTAL1 input and XTAL2 in left floating
(Figure 35.).
1.13. Internal Timing
Figure 36. through Figure 39. show when the various
strobe and port signals are clocked internally. The figures
do not show rise and fall times of the signals, nor do they
show propagation delays between the XTAL2 signal and
events at other pins.
The Figure 34. shows the use of a crystal working on an
overtone 3 resonance.
Figure 36. Driving the C51 parts with an external
clock source.
An overtone 3 crystal doesn’t work on its fundamental
resonance but on its third overtone. So it’s necessary to
catch in its fundamental frequency. The trap consists of
the inductor L and the capacitance C. The trap frequency
is the running frequency of the crystal divides by 3. An
external resistor of 1 MΩ is connected on the both side of
the crystal to decrease the gain on the amplifier. Cause the
equivalent inductor for a overtone 3 crystal is more larger
than a fundamental crystal, the oscillator needs less
energy. Without external resistor the level on pin XTAL1
isn’t enough to control the internal clock circuitry.
Figure 35. Overtone 3 Resonance.
Rise and gall times are dependent on the external loading
that each pin must drive. They are often taken to be
something in the neighborhood of 10 nsec, measured
between 0.8 V and 2.0 V.
Propagation delays are different for different pins. For a
given pin they vary with pin loading, temperature, VCC,
and manufacturing lot. If the XTAL2 waveform is taken
as the timing reference, prop delays may vary from 25 to
125 nsec.
The AC Timings section of the data sheets do not
reference any timing to the XTAL2 waveform. Rather,
they relate the critical edges of control and input signals
to each other. The timing published in the data sheets
include the effects of propagation delays under the
specified test conditions.
MATRA MHS
Rev. E (14 Jan. 97)
37
C51 Family
1.14. C51 Pin Description
VCC : Supply voltage.
VSS : Circuit ground potential.
Port 0 : Port 0 is an 8-bit open drain bidirectional I/O
Port. As an open drain output port it can sink 8 LS TTL
loads. Port 0 pins that have 1s written to them float, and
in that state will functions as high-impedance inputs. Port
0 is also the multiplexed low-order address and data bus
during accesses to external memory. In this application it
uses strong internal pullups when emitting 1s. Port 0 also
emits code bytes during program verification. In that
application, external pullups are required.
Port 1 : Port 1 is an 8-bit bidirectional I/O port with
internal pullups. The port 1 output buffers can sink/source
4 LS TTL loads. Port 1 pins that have 1s written to them
are pulled high by the internal pullups, and in that state
can be used as inputs. As inputs, Port 1 pins that are
externally being pulled low will source current (IIL, on
the data sheet) because of the internal pullups.
In the 80C52, 83C154 and 83C154D pins P1.0 and P1.1
also serve the alternate functions of T2 and T2EX. T2 is
the Timer 2 external input. T2EX is the input through
which a Timer 2 “capture” is triggered.
Port 2 : Port 2 is an 8-bit bidirectional I/O port with
internal pullups. The port 2 output buffers can sink/source
4 LS TTL loads. Port 2 emits the high-order addres byte
during accesses to external memory that use 16-bit
addresses. In this application it uses the strong internal
pullups when emitting 1s.
Port 3 : Port 3 is an 8-bit bidirectional I/O port with
internal pullups. It also serves the functions of various
special features of the TEMIC-C51 Family, as listed
below :
38
PORT PIN
P3.0
P3.1
P3.2
P3.3
P3.4
P3.5
P3.6
P3.7
ALTERNATE FUNCTION
RXD (serial input port)
TXD (serial output port)
INT0 (external interrupt 0)
INT1 (external interrupt 1)
T0 (Timer 0 external input)
T1 (Timer 1 external input)
WR (external data memory write strobe)
RD (external data memory read strobe)
The Port 3 output buffers can source/sink 4 LS TTL loads.
RST : reset input. A high on this pin for two machine
cycles while the oscillator is running resets the device.
ALE : Address Latch Enable output pulse for latching the
low byte of the address during accesses to external
memory. ALE is emitted at a constant rate of 1/6 of the
oscillator frequency, for external timing or clicking
purposes, even when there are no accesses to external
memory. (However, one ALE pulse is skipped during
each access to external Data Memory).
PSEN : Program Store Enable is the read strobe to
external Program Memory. When the device is executing
out of external Program Memory, PSEN is activated twice
each machine cycle (except that two PSEN activations
are skipped during accesses to external Data Memory).
PSEN is not activated when the deviced is executing out
of internal Program Memory.
EA : When EA is held high, the CPU executes out of
internal Program Memory (unless the Program Counter
exceeds 0FFFH in the 80C51, or 1FFFH in the 80C52, or
3 FFFH in the 83C154 or 7FFFH in the 83C154D).
Holding EA low forces the CPU to execute out of external
memory regardless of the Program Counter value. In the
80C31, 80C32 and 80C154. EA must be externally wired
low.
XTAL1 : Input to the inverting oscillator amplifier.
XTAL2 : Output from the inverting oscillator amplifier.
MATRA MHS
Rev. E (14 Jan. 97)
C51 Family
Figure 37. External Program Memory Fetches.
Figure 38. External Data Memory Read Cycle.
MATRA MHS
Rev. E (14 Jan. 97)
39
C51 Family
Figure 39. External Data Memory Write Cycle.
Figure 40. Port Operation.
40
MATRA MHS
Rev. E (14 Jan. 97)
C51 Family
2. More Features for C154 Parts
This chapter explains, in details, the new features of the
83C154 and 83C154D. The only one difference between
83C154 and 83C154D is the internal ROM size
(respectively 16 K bytes and 32 K bytes long).
The major new features of TEMICC154 is listed below :
I/O part impedance selection
Watchdog and 32-Bit TIMER/Counter Mode
Power-down mode
Software control
Hardware control
Frame and Overrun error serial link detection.
All these new features are controlled via the IOCON
register (new one) and the PCON register.
2.1. I/O Port Impedance
The structure and behaviour of the 83C154s’ports P1, P2
and P3 are indentical to those of the 80C52. Only the
control block for the different pullups and pulldowns has
been changed. The pullup resistance value can be
programmed by means of the IOCON register.
There are three possible values :
– three states (P1, P2, P3 and N are OFF),
– high impedance (100 kΩ, P2 = ON),
– low impedance (10 kΩ, P3 = ON).
Figure 41. is a functional diagram of the PORT.
Figure 42. shows the configuration of the IOCON register
which is used to set the right value of the impedance port.
Figure 41. I/O Port Block Diagram.
MATRA MHS
Rev. E (14 Jan. 97)
41
C51 Family
Figure 42. IOCON Register Configuration.
(MSB)
WDT
(LSB)
T32
SERR
IZC
P2HZ
P1HZ
Symbol
Position
ALF
IOCON.0
– Set to 1 and in Power mode PORTS 1, 2 and 3 are floating.
P1HZ
IOCON.1
– If P1HZ = 0 and IZC = 0, PORT P1 is at low impedance.
– If P1HZ = 0 and IZC = 0, PORT P1 is at high impedance.
– If P1HZ = 1, PORT P1 is floating.
P2HZ
IOCON.2
– If P2HZ = 0 and IZC = 0, PORT P2 is at low impedance.
– If P2HZ = 0 and IZC = 0, PORT P2 is at high impedance.
– If p2HZ = 1, PORT P2 is floating.
P3HZ
IOCON.3
– If P3HZ = 0 and IZC = 0, PORT P3 is at low impedance.
– If P3HZ = 0 and IZC = 0, PORT P3 is at high impedance.
– If P3HZ = 1, PORT P3 is floating.
IZC
IOCON.4
– In conjunction with PnHZ selects the output pullup value.
ALF
Function
Low impedance
This mode is the default mode upon a reset and it is
compatible with C51 parts. The configuration of IOCON
is explained by the Figure 42. Whenever PnHZ and IZC
are equal to zero, P1, P2 and P3 are in this mode. In this
case 3 LS TTL loads can be interfaced.
High impedance
This mode is invoked by setting PnHZ = 0 and IZC = 1.
Only the transistor PZ of the Figure 41. is on and one LS
TTL load can be interfaced.
Three states mode
Two different modes can be used. The first one allows to
set each of the 3 ports in three states during a normal
operation. The second one allows to set all the 3 parts in
three states by entering in the Power-Down mode.
42
P3HZ
Whenever PnHZ is set to 1, the part is in three states
mode. If ALF is set to 1, at each time the Power-Down
mode is called all the three parts are in the three states.
When the C154 part exist from the Power-Down mode,
the part impedance is the impedance just before entering
in this mode (the part switches as soon as the interrupt
request is generated, not after the oscillator start-up). The
three states mode switch-off all the transistor.
2.2 Watchdog and 32-bit Timer/Counter
Mode
TIMER/COUNTER of C51 family can be configured in
four modes. With C154 parts, two new modes can be used.
Both of them use TIMER0 and/or TIMER 1. The first one
is used like a 32-Bit Timer/Counter and the second one is
used like a 8/13/16/32-Bit Watch-Dog. Both of this two
modes is programmed by software by using the IOCON
register. The 32-Bit mode is on by setting the Bit T32. The
Watchdog mode is on by setting the bit WDT. The
Figure 43. shows the configuration of the register
IOCON.
MATRA MHS
Rev. E (14 Jan. 97)
C51 Family
Figure 43. 32 Bit/Watchdog Mode.
(MSB)
WDT
(LSB)
T32
SERR
IZC
P3HZ
P2HZ
P1HZ
ALF
Symbol
Position
Function
T32
IOCON.6
– If T32 = 1 and if C/T0 = 0, T1 and T0 are programmed as a 32 bit TIMER.
– If T32 = 1 and if C/T0 = 1, T1 and T0 are programmed as a 32 bit COUNTER.
WDT
IOCON.7
– If WDT = 1 and according to the mode selected by TMOD, and 8 bit or 32 bit WATCHDOG
is configured from TIMERS 0 and 1.
Figure 44. 32 Bit Mode.
32 Bit Mode
32 Bit Timer
T32 = 1 enables access to this mode. As shown in Figure
44. this 32 bit mode consists in cascading TIMER 0 for the
LSBs and TIMER 1 for the MSBs.
Figure 45 illustrates the 32 Bit TIMER mode.
T32 = 1 starts the timer/counter and T32 = 0 stops it.
It should be noted that as soon as T32 = 0, TIMERs 0 and
1 assume the configuration specified by register TMOD.
Moreover, if TR0 = 1 or if TR1 = 1, the content of the
TIMERs evolves. Consequently, in 32 bit mode, if the
TIMER/COUNTER must be stopped (T32 = 0). TR0 and
TR1 must be set to 0.
Figure 45.
In this mode, T32 = 1 and C/T0 = 0, the 32 bit timer is
incremented on each S3P1 state of each machine cycle.
An overflow of TIMER 0 (TF0 has not been set to 1)
increments TIMER 1 and the overflow of the 32 bit
TIMER is signalled by setting TF1 (S5P1) to 1.
MATRA MHS
Rev. E (14 Jan. 97)
The following formula should be used to calculate the
required frequency :
f
OSC
12 (65536–(T0, T1))
43
C51 Family
32 Bit Counter
Figure 46. illustrates the 32 BIT COUNTER mode.
Figure 46. 32 Bit Counter Configuration.
In this mode, T32 = 0 and C/T0 = 1. Before it can make
an increment, the 83C154 must detect two transitions on
its T0 input. As shown in Figure 47. input T0 is sampled
on each S5P2 state of every machine cycle or, in other
words, every OSC ÷ 12.
Figure 47. Counter Incrementation Condition.
The counter will only evolve if a level 1 is detected during
state S5P2 of cycle Ci and if a level 0 is detected during
state S5P2 of cycle Ci + n.
Consequently, the minimal period of signal fEXT
admissible by the counter must be greater than or equal
to two machine cycles. The following formula should be
used to calculate the operating frequency.
fEXT
(65536–(T0, T1))
fEXT OSC
24
f
44
watchdog Mode
WDT = 1 enables access to this mode. As shown in
Figure 48. all the modes of TIMERs 0 and 1, of which the
overflows act on TF1 (TF1 = 1), activate the watchdog
Mode.
If C/T = 0, the watchdog is a TIMER that is incremented
every machine cycle. If C/T = 1, the watchdog is a
counter that is incremented by an external signal of which
the frequency cannot exceed OSC ÷ 24.
MATRA MHS
Rev. E (14 Jan. 97)
C51 Family
The overflow of the TIMER/COUNTER is signalled by
raising flag TF1 to 1. The reset of the 83C154/83C154D
is executed during the next machine cycle and lasts for the
next 5 machine cycles. The results of this reset are
identical to those of a hardware reset. The internal RAM
is not affected and the special register assume the values
shown in Table 2.
Table 3. Content of the SFRs after a reset
triggered by the WATCHDOG.
REGISTER
PC
ACC
B
PSW
SW
SP
DPTR
P0–P3
IP
IE
TMOD
TCON
T2CON
TH0
0
TL0
TH1
TL1
TH2
TL2
RCAP2H
RCAP2L
SCON
SBUF
IOCON
CONTENT
0000H
00H
00H
00H
00
00H
0000H
0FFH
00H
0X000000B
00H
00H
00H
00H
00
00H
00H
00H
00H
00H
00H
00H
00H
Indeterminate
I d t
i t
00H
As there are no precautions for protecting bit WDT from
spurious writing in the IOCON register, special care must
be taken when writing the program. In particular, the user
should use the IOCON register bit handing instructions :
– SETB and CLR x
in preference to the byte handling instructions :
– MOV IOCON, # XXH, ORL IOCON, # XXH,
– ANL IOCON, # XXH,
External Counting in Power-down Mode
(PD = PCON.1 = 1)
In the power-down mode, the oscillator is turned off and
the 83C154s’activity is frozen. However, if an external
clock is connected to one of the two inputs, T1/T0,
TIMER/COUNTERS 0 and 1 can continue to operate. In
this case, counting becomes asynchronous and the
maximum, admissible frequency of the signal is OSC : 24.
The overflow of either counter TF0 or TF1 causes an
interrupt to be serviced or forces a reset if the counter is
in the watchdog MODE (T32 = ICON.7 = 1).
MATRA MHS
Rev. E (14 Jan. 97)
2.3 Power-Reducing Mode
Basically the Power-Reducing Mode of the TEMIC C154
parts are 100 % compatible with the 80C51 and 80C52
parts. However both Idle and Power-Down mode are
improved with some new powerful features.
Idle mode is improved by giving the software possibility
to execute or not the software interrupt routine when an
interrupt request occurs (Recover Power Mode).
Power-Down mode is now more powerful because an
interrupt request can avake the TEMIC C154 parts. In
addition an external hardware signal can control entirely
the mode (Hardware Power Mode).
Details on these new features are given below.
Idle Mode
This mode is basically compatible with the TEMIC C51
parts (refer to the chapter 1.11). The new feature concerns
the way to exit from this mode. Now with the Recover
Power Mode, the software interrupt routine is or not
executed when the interrupt routine occurs. This mode is
activated by setting the bit RPD in PCON register. In this
case the next instruction executed is the next following
the IDLE instruction (MOV PLON, # 01).
Power-Down Mode
Software control
This mode is basically compatible with the C51 parts
(refer to the chapter 1.11). The new features concern the
way to exit from this mode.
With the C51 parts the only way to complete this mode is
to apply an hardware reset. The newest thing is the
possibility to exist from this mode by an interrupt request
coming from the both external interrupts and the both
counter 0 and 1 if an external clock is connected on pin
T1 or T0.
Likewise IDLE mode, it is possible to execute or not the
software interrupt routine. By setting the RPD bit the next
instruction executed, after the interrupt request has been
processed, will be the instruction following the
POWER-DOWN intruction. If the RPD bit is not set, the
program will continue by executing the software interrupt
routine. The Figure 48. shows the behaviour of the
Recover Power Mode.
45
C51 Family
Figure 48. Example in Recover Power Mode.
ex :
; The Recover Mode is enable
; The Power-Down is enable
Adr n MOV PCON, #001XXX10...
; The CPU waits for an asynchronous
; event












; An interrupt request occurs and
; the instruction located at the
; address Adr n + 1 is executed
Adr n + 1
Hardware control
This mode is new and controls the Power-Down by an
external hardware signal connected on pin T1 (P3.5). This
mode is called by setting HPD bit in the PCON register.
The 83C154 will be in Power-Down as soon as









T1 input will be drive by a falling edge and will remain
in this state until T1 input will be drive by a rising edge.
The Figure 49. shows the behaviour of the Hardware
Power Mode.
Figure 49. Behaviour of the Hardware Power Mode (HPD = 1).
The time takes by the oscillator to restart depends of the
crystal and the capacitors connected on both side of the
crystal (typically 10 ms).
Software and hardware control
This two modes can be mixed to control the Power-Down
Mode. Entry to the mode can be made either by setting PD
bit to 1 or by setting HPD bit to 1 and presenting a falling
edge on T1 input. Exit from this mode can be made if the
software and hardware conditions are met : a rising edge
on T1 input and an interrupt request. If these two
conditions are not satisfied, only an hardware reset can
complete the mode.
46
2.4 Frame and Overrun Error
Serial Link Detection
This feature is new and allows to the user to detect a serial
link error. Two kinds of error can be detected during a
reception : OVERRUN ERROR and FRAME ERROR.
Both of them set the SERR bit in the IOCON register at
the half of the stop bit. This must be cleared by software.
Frame error
This error occurs when the format of the received Data is
wrong. The Figure 50. shows an example of a Frame error.
MATRA MHS
Rev. E (14 Jan. 97)
C51 Family
Figure 50. FRAME ERROR example, STOP BIT is missing.
In this example the receiver waits for a STOP BIT to
complete the frame reception. Unfortunately the stop bit
isn’t there and the receiver indicates the frame error by
setting to 1 the SERR bit in the IOCON register.
Overrun Error
This error occurs, when a character received and not read
by the C.P.U, is overwritten by a new one. The Figure 51.
shows an example of OVERRUN ERROR.
Figure 51. OVERRUN ERROR example.
In this example the character 1 is received and the RI bit
is set to 1. A second character is sent before the CPU reads
the first one. The character 1 is overwritten and SERR bit
is set to 1 to indicate the loss of the first character.
MATRA MHS
Rev. E (14 Jan. 97)
Note
With the C154 parts the RI bit isn’t set on the same time
than the C51 parts. With the C51 parts the RI bit is set on
the last data bit. With the C154 the RI bit is set on the stop
bit.
47
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
