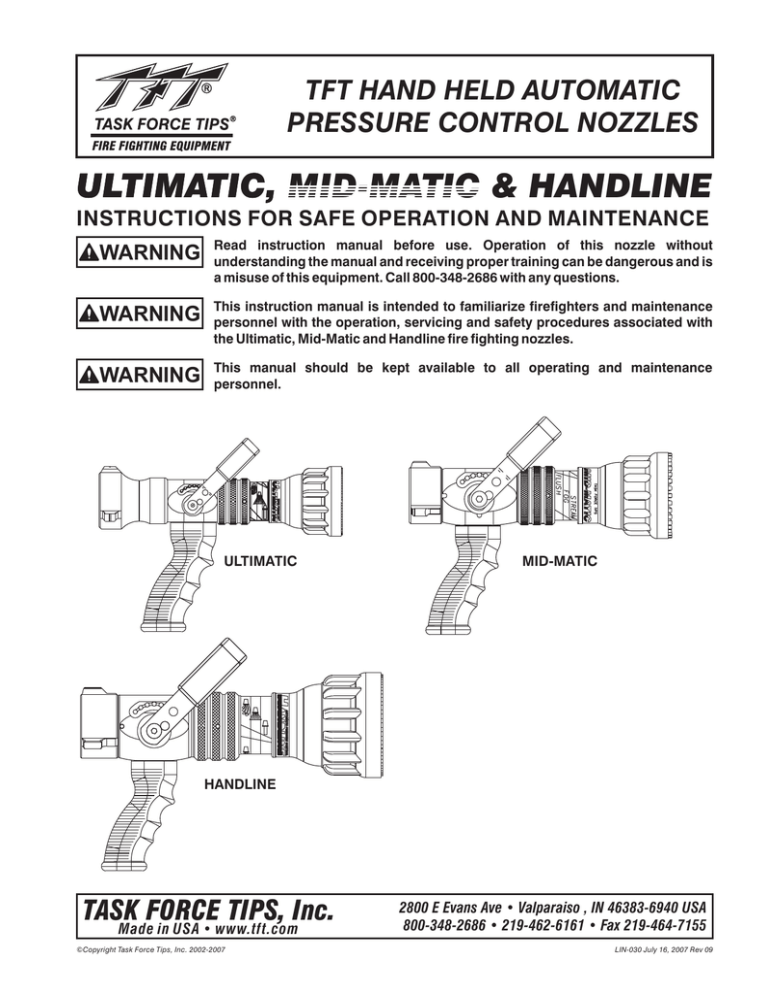

TFT HAND HELD AUTOMATIC
PRESSURE CONTROL NOZZLES
ULTIMATIC, MID-MATIC & HANDLINE
INSTRUCTIONS FOR SAFE OPERATION AND MAINTENANCE
WARNING
Read instruction manual before use. Operation of this nozzle without
understanding the manual and receiving proper training can be dangerous and is
a misuse of this equipment. Call 800-348-2686 with any questions.
WARNING
This instruction manual is intended to familiarize firefighters and maintenance
personnel with the operation, servicing and safety procedures associated with
the Ultimatic, Mid-Matic and Handline fire fighting nozzles.
WARNING
This manual should be kept available to all operating and maintenance
personnel.
ULTIMATIC
MID-MATIC
HANDLINE
TASK FORCE TIPS, Inc.
Made in USA • www.tft.com
©Copyright Task Force Tips, Inc. 2002-2007
2800 E Evans Ave • Valparaiso , IN 46383-6940 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
LIN-030 July 16, 2007 Rev 09
TABLE OF CONTENTS
1.0 MEANING OF SIGNAL WORDS
2.0 GENERAL INFORMATION
2.1 VARIOUS MODELS AND TERMS
2.2 COLOR CODED VALVE HANDLE COVERS MIDMATIC & HANDLINE ONLY
DANGER
PERSONAL RESPONSIBILITY CODE
3.0 FLOW CHARACTERISTICS
The member companies of FEMSA that provide emergency response
equipment and services want responders to know and understand the
following:
1. Firefighting and Emergency Response are inherently dangerous
activities requiring proper training in their hazards and the use of extreme
caution at all times.
2. It is your responsibility to read and understand any user's instructions,
including purpose and limitations, provided with any piece of equipment
you may be called upon to use.
3. It is your responsibility to know that you have been properly trained in
Firefighting and /or Emergency Response and in the use, precautions,
and care of any equipment you may be called upon to use.
4. It is your responsibility to be in proper physical condition and to maintain
the personal skill level required to operate any equipment you may be
called upon to use.
5. It is your responsibility to know that your equipment is in operable
condition and has been maintained in accordance with the
manufacturer’s instructions.
6. Failure to follow these guidelines may result in death, burns or other
severe injury.
4.0 NOZZLE CONTROLS
4.1 FLOW CONTROL
4.1.1 LEVER TYPE FLOW CONTROL
4.1.2 TWIST SHUTOFF
4.1.3 TIP ONLY NOZZLES
4.2 PATTERN AND FLUSH CONTROL
4.2.1 PATTERN CONTROL
4.2.2 FLUSH CONTROL5
5.0 USE OF ULTIMATIC, MIDMATIC & HANDLINE
NOZZLES
6.0 FIELD INSPECTION
7.0 WARRANTY
8.0 ANSWERS TO YOUR QUESTIONS
9.0 NOZZLE FLOW CHARTS
FEMSA
10.0 INSPECTION CHECKLIST
Fire and Emergency Manufacturers and Services Association, Inc.
P.O. Box 147, Lynnfield, MA 01940 • www.FEMSA.org
1.0 MEANING OF SIGNAL WORDS
A safety related message is identified by a safety alert symbol and a signal word to indicate the level of risk involved
with a particular hazard. Per ANSI standard Z535.4-1998 the definitions of the three signal words are as follows:
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
©Copyright Task Force Tips, Inc. 2002-2007
2
LIN-030 July 16, 2007 Rev 09
2.0 GENERAL INFORMATION
The Task Force Tips Ultimatic, MID-MATIC and Handline nozzles are designed to provide excellent performance under
most fire fighting conditions. Their rugged construction is compatible with the use of fresh water (see section 5.0 for
saltwater use) as well as fire fighting foam solutions. Other important operating features are:
- Slide valve with valve handle detent flow control for excellent stream quality at all valve positions
- Quick-acting pattern control from straight stream to wide fog
- "Power fog teeth" for full-fill fog
- "Gasket grabber" inlet screen to keep large debris from entering nozzle
- Easily flushable while flowing to clear trapped debris
- TFT's five-year warranty and unsurpassed customer service
2.1 VARIOUS MODELS AND TERMS
SERIES
FLOW RANGE
ULTIMATIC
NOMINAL PRESSURE
GPM
L/min
PSI
BAR
10-125
40-500
100
7
1, 1-1/2 NH or 1-1/4 NPSH
10-100
40-400
75
6
1 or 1-1/2 NH or 1-1/4 NPSH
70-200
MID-MATIC
HANDLINE
STANDARD COUPLING*
100
1-1/2 NH
70-200
100-600
75
6
1-1/2 NH
95-300
190-1350
100
7
1-1/2 or 2-1/2 NH
95-250
200-950
75
6
1-1/2 or 2-1/2 NH
* Other threads, coupling sizes, or connector styles can be specified at time of order.
Ultimatic, MID-MATIC and Handline nozzles are available in several models. Some common models are shown
in figure 1.
CAUTION
Nozzle must be mated to a hose line with matched threads. Mismatched or
damaged threads may cause nozzle to leak or uncouple from hose under
pressure and could cause injury.
OW
FL
COUPLING
ON
CONTR
OL
BARREL LABEL
STREAM
SHAPER
OFF
NAME LABEL
RUBBER
GASKET
PISTOL
GRIP
NOZZLE WITH VALVE
and INTEGRAL PISTOL GRIP
TIP ONLY NOZZLE
FIGURE 1 COMMON MODELS AND TERMS
©Copyright Task Force Tips, Inc. 2002-2007
3
LIN-030 July 16, 2007 Rev 09
VALVE HANDLE
DETENTS
VALVE POSITION
LABEL
VALVE RING
GASKET
GRABBER
INLET
SCREEN
NOZZLE WITH VALVE
TIP ONLY NOZZLE
WITH TWIST SHUTOFF
FIGURE 1 COMMON MODELS AND TERMS
2.2 COLOR CODED VALVE HANDLE COVERS MID-MATIC & HANDLINE ONLY
The TFT MID-MATIC & HANDLINE with lever type valve handles are supplied with black valve handle covers. The handle
covers are available from TFT in various colors for those departments wishing to color code the nozzle to the discharge
controls. A colored handle cover set will be sent upon receipt of the warranty card by TFT. Your department's name can
also be engraved on the covers (see warranty card for more information).
Handle covers are replaceable by removing the four screws that hold the handle covers in place. Use a 3/32" allen
wrench when replacing screws.
For standardization NFPA 1901 (A-4-9.3) recommends the following color code scheme:
Preconnect #1 or Bumper Jump Line
Preconnect or discharge #2
Preconnect or discharge #3
Preconnect or discharge #4
Preconnect or discharge #5
Preconnect or discharge #6
Preconnect or discharge #7
Foam Lines
Orange
Red
Yellow
White
Blue
Black
Green
Red w/ White border (Red/White)
3.0 FLOW CHARACTERISTICS
The graphs in figure 2 show the typical performance of ULTIMATIC, MID-MATIC and HANDLINE nozzles.
FLOW (LPM)
200
400
600
800
1000
1200
ULTIMATIC
FLOW RANGE
120
MID-MATIC
ULTIMATIC
8
100
HANDLINE
80
6
MID-MATIC
FLOW RANGE
60
4
HANDLINE
FLOW RANGE
40
2
20
NOZZLE PRESSURE (BAR)
NOZZLE PRESSURE (PSI)
140
0
0
20
40
60
80
100 120 140 160 180 200 220 240 260 280 300 320 340 360
FLOW (GPM)
100 PSI ULTIMATIC, MID-MATIC & HANDLINE
©Copyright Task Force Tips, Inc. 2002-2007
4
LIN-030 July 16, 2007 Rev 09
FLOW (LPM)
200
400
600
800
1000
ULTIMATIC
FLOW RANGE
120
75 PSI MID-MATIC
75 PSI ULTIMATIC
100
75 PSI HANDLINE
8
6
80
60
MID-MATIC
FLOW RANGE
4
40
HANDLINE
FLOW RANGE
20
2
NOZZLE PRESSURE (BAR)
NOZZLE PRESSURE (PSI)
140
0
0
20
40
60
80
100 120 140 160 180 200 220 240 260 280
FLOW (GPM)
75 PSI ULTIMATIC, MID-MATIC & HANDLINE
FIGURE 2
The charts in section 8.0 of this document give specific examples of maximum flow rates for particular situations. Friction
losses may vary due to differences in hose construction resulting in flows different than those shown. For situations or
lengths of hose not listed on the chart, approximate flows can be calculated using conventional hydraulics.
DANGER
CAUTION
WARNING
WARNING
An inadequate supply of nozzle pressure and/or flow will cause an
ineffective stream and can result in injury, death or loss of property. See
flow chart in section 8.0 or call 800-348-2686 for assistance.
Fire streams are capable of injury and damage. Do not direct water stream
to cause injury or damage to persons or property.
Failure to restrain nozzle reaction can cause firefighter injury from loss of
footing and/or stream protection. Nozzle reaction will vary as supply
conditions change: such as opening or closing other nozzles, hose line
kinks, changes in pump settings, etc. Changes in spray pattern or flushing
will also affect nozzle reaction. The nozzle operator must always be
positioned to restrain the nozzle reaction in the event of those changes.
Injury from whipping can occur. If nozzle gets out of control or away from
operator, retreat from nozzle immediately. Do not attempt to regain control
of nozzle while flowing water.
4.0 NOZZLE CONTROLS
4.1 FLOW CONTROL
4.1.1 LEVER TYPE FLOW CONTROL
On models that use a lever type valve handle, the nozzle is shut off when the handle is fully forward. The valve handle has
six detent flow positions. These detent positions allow the nozzle operator to regulate the flow of the nozzle depending on
the need or what can be safely and effectively handled. TFT recommends the use of a pistol grip for easier handling. For
additional stress reduction, a hose rope or strap may also be used. This permits more effective use and ease of
advancement, while minimizing strain and fatigue.
5
©Copyright Task Force Tips, Inc. 2002-2007
LIN-030 July 16, 2007 Rev 09
4.1.2 TWIST SHUTTOFF
On models that use a twist flow control. The valve is opened or
closed by rotating the valve ring. Rotating the ring clockwise (as
seen from the operating position behind the nozzle) closes the
valve, while counterclockwise rotation opens it. Detents are
provided at four intermediate positions and the position of the
valve is shown by the exposed valve position label.
4.1.3 TIP ONLY NOZZLES
Tip only nozzles have NO shut off valve contained within the
nozzle and MUST be used with a separate ball valve attached to
the nozzle.
4.2 PATTERN AND FLUSH CONTROL
4.2.1 PATTERN CONTROL
TFT's ULTIMATIC, MID-MATIC and HANDLINE have full pattern control from straight stream to wide fog. Turning the
STREAM SHAPER clockwise (as seen from the operating position behind the nozzle) moves the SHAPER to the straight
stream position. Turning the SHAPER counterclockwise will result in an increasingly wider pattern.
Since the stream trim point varies with the flow, the stream should be "trimmed" after changing the flow to obtain the
straightest and farthest reaching stream. To properly trim a stream, first open the pattern to a narrow fog. Then close the
stream to parallel to give maximum reach. NOTE: Turning the shaper further forward will cause stream crossover
and reduce the effective reach of the nozzle.
The nozzle reaction is greatest when the shaper is in the straight stream position. The nozzle operator must be prepared
for a change in reaction as the pattern is changed.
4.2.2 FLUSH CONTROL
Small debris passes through the gasket grabber and may get caught inside the nozzle. This trapped material will cause
poor stream quality, shortened reach and reduced flow. To remove this trapped debris the nozzle can be flushed as
follows; while still flowing water, turn the SHAPER counterclockwise past the full fog position (increased resistance will be
felt on the SHAPER as the nozzle goes into flush). This will open the nozzle allowing debris to pass through. Rotate the
SHAPER clockwise and out of flush to continue normal operation. During flush the nozzle reaction will decrease as the
pattern becomes wider and the pressure drops. The nozzle operator must be prepared for an increase of nozzle reaction
when returning the nozzle from the flush position to retain control of the nozzle.
WARNING
Large amounts of debris can reduce
the flow of the nozzle resulting in an
ineffective flow. In the event of a
blockage it may be necessary to
retreat to a safe area, uncouple
nozzle and remove debris.
FIGURE 3 - GASKET GRABBER
©Copyright Task Force Tips, Inc. 2002-2007
6
LIN-030 July 16, 2007 Rev 09
5.0 USE OF ULTIMATIC, MID-MATIC and HANDLINE NOZZLES
IT IS THE RESPONSIBILITY OF THE INDIVIDUAL FIRE DEPARTMENT OR AGENCY TO DETERMINE PHYSICAL
CAPABILITIES AND SUITABILITY FOR AN INDIVIDUAL'S USE OF THIS EQUIPMENT.
Many factors contribute to the extinguishment of a fire. Among the most important is delivering water at a flow rate
sufficient to absorb heat faster than it is being generated. The flow rate depends largely on the pump discharge pressure
and hose friction loss. The pump discharge pressure may be found by use of the chart in section 8.0. It can also be
calculated using a hydraulic equation such as:
PDP = NP+FL+DL+EL
For additional information on calculating specific hose
layouts, consult an appropriate fire service training manual, A
Guide to Automatic Nozzles, or call TFT's "Hydraulics Hotline"
at 800-348-2686.
PDP = Pump discharge pressure in PSI
NP = Nozzle pressure in PSI
FL = Hose friction loss in PSI
DL = Device loss in PSI
EL = Elevation loss in PSI
6.0 FIELD INSPECTION
TFT's ULTIMATIC, MID-MATIC and HANDLINE are designed and manufactured to be damage resistant and require
minimal maintenance. However, as the primary fire fighting tools upon which your life depends, they should be treated
accordingly.
Use with saltwater is permissible provided nozzle is thoroughly cleaned with fresh water after each use. The service life of
the nozzle may be shortened due to the effects of corrosion and is not covered under warranty.
WARNING
Nozzle must be inspected for proper operation and function according to
inspection checklist on last page before each use. Any nozzle that fails
inspection is dangerous to use and must be repaired before using.
Performance tests shall be conducted on the Ultimatic, Mid-Matic and Handline nozzle after a repair, or anytime a
problem is reported to verify operation in accordance with TFT test procedures. Consult factory for the procedure that
corresponds to the model and serial number of the nozzle. Any equipment which fails the related test criteria should be
removed from service immediately. Troubleshooting guides are available with each test procedure or equipment can be
returned to the factory for service and testing.
Factory service is available with repair time seldom exceeding one day in our facility. Factory serviced nozzles are
repaired by experienced technicians to original specifications, fully tested and promptly returned. Any returns should
include a note as to the nature of the problem, who to reach in case of questions and if a repair estimate is required.
Repair parts and service procedures are available for those wishing to perform their own repairs. Task Force Tips
assumes no liability for damage to equipment or injury to personnel that is a result of user service.
TFT Item#
LIB-020
LHM-020
LIH-020
LDH-020
CAUTION
Title
Ultimatic 125 Service Procedure
Mid-Matic & Mid-Force Service Procedure
Handline Service Procedure
Handline & Dual-Force Service Procedure
Any alterations to the nozzle and its markings could diminish safety and
constitutes a misuse of this product.
All Task Force Tip nozzles are factory lubricated with high quality silicone grease. This lubricant has excellent washout
resistance and long term performance. If your department has unusually hard or sandy water, the moving parts may be
affected. Foam agents and water additives contain soaps and chemicals that may break down the factory lubrication.
The moving parts of the nozzle should be checked on a regular basis for smooth and free operation, and signs of
damage. IF THE NOZZLE IS OPERATING CORRECTLY, THEN NO ADDITIONAL LUBRICATION IS NEEDED. Any
nozzle that is not operating correctly should be immediately removed from service and the problem corrected.
©Copyright Task Force Tips, Inc. 2002-2007
7
LIN-030 July 16, 2007 Rev 09
7.0 WARRANTY
Task Force Tips, Inc., 2800 East Evans Avenue, Valparaiso, Indiana 46383 ("TFT") warrants to the original purchaser of its
Ultimatic, Mid-Matic, and Handline series nozzles ("equipment"), and to anyone to whom it is transferred, that the
equipment shall be free from defects in material and workmanship during the five (5) year period from the date of
purchase.
TFT's obligation under this warranty is specifically limited to replacing or repairing the equipment (or its parts) which are
shown by TFT's examination to be in a defective condition attributable to TFT. To qualify for this limited warranty, the
claimant must return the equipment to TFT, at 2800 East Evans Avenue, Valparaiso, Indiana 46383, within a reasonable
time after discovery of the defect. TFT will examine the equipment. If TFT determines that there is a defect attributable to
it, TFT will correct the problem within a reasonable time. If the equipment is covered by this limited warranty, TFT will
assume the expenses of repair.
If any defect attributable to TFT under this limited warranty cannot be reasonably cured by repair or replacement, TFT
may elect to refund the purchase price of the equipment, less reasonable depreciation, in complete discharge of its
obligations under this limited warranty. If TFT makes this election, claimant shall return the equipment to TFT free and
clear of any liens and encumbrances.
This is a limited warranty. The original purchaser of the equipment, any person to whom it is transferred, and any person
who is an intended or unintended beneficiary of the equipment, shall not be entitled to recover from TFT any
consequential or incidental damages for injury to person and/or property resulting from any defective equipment
manufactured or assembled by TFT. It is agreed and understood that the price stated for the equipment is in part
consideration for limiting TFT's liability. Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above may not apply to you.
TFT shall have no obligation under this limited warranty if the equipment is, or has been, misused or neglected (including
failure to provide reasonable maintenance) or if there have been accidents to the equipment or if it has been repaired or
altered by someone else.
THIS IS A LIMITED EXPRESS WARRANTY ONLY. TFT EXPRESSLY DISCLAIMS WITH RESPECT TO THE
EQUIPMENT ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND ALL IMPLIED WARRANTIES OF FITNESS
FOR A PARTICULAR PURPOSE. THERE IS NO WARRANTY OF ANY NATURE MADE BY TFT BEYOND THAT
STATED IN THIS DOCUMENT.
This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
8.0 ANSWERS TO YOUR QUESTIONS
We appreciate the opportunity of serving you and making your job easier. If you have any problems or questions, our tollfree "Hydraulics Hotline", 800-348-2686, is normally available to you 24 hours a day, 7 days a week.
©Copyright Task Force Tips, Inc. 2002-2007
8
LIN-030 July 16, 2007 Rev 09
9.0 NOZZLE FLOW CHARTS
100 PSI
= 100 PSI ULTIMATIC
FLOW (GPM)
= 75 PSI ULTIMATIC
3/4" HOSE
150 ft.
100 PSI
PUMP DISCHARGE PRESSURE (PSI)
75 PSI
200 ft.
ULTIMATIC 125 Flow Chart
1" HOSE
250 ft.
150 ft.
75 PSI 100 PSI 75 PSI 100 PSI 75 PSI 100 PSI
200 ft.
1 1/2" HOSE
250 ft.
150 ft.
200 ft.
250 ft.
75 PSI 100 PSI 75 PSI 100 PSI 75 PSI 100 PSI 75 PSI 100 PSI 75 PSI 100 PSI 75 PSI
125 10
22
—
19
—
17
23
53
20
47
18
42
150 16
25
13
21
11
19
34
61
29
54
26
49 100 125 85 114 75 106
175 20
27
17
24
15
21
42
68
36
60
32
55 125 — 110 —
200 23
30
20
26
18
23
50
75
42
66
38
60
—
— 125 — 110 —
225 26
32
22
28
20
25
56
82
48
71
42
65
—
—
—
— 125 —
250 29
34
25
30
22
27
62
88
52
77
46
69
—
—
—
—
—
—
300 34
38
29
33
26
30
72
99
62
86
54
78
—
—
—
—
—
—
350 38
42
33
37
29
33
80 109 70
95
62
85
—
—
—
—
—
—
400 42
45
36
39
32
35
90 117 78 103 68
93
—
—
—
—
—
—
450 46
49
39
42
34
38
98
99
—
—
—
—
—
—
500 49
52
42
45
37
40 105 —
90 117 80 106 —
—
—
—
—
—
600 55
57
48
50
42
44 120 — 100 —
—
—
—
—
—
—
84 110 74
70 108 60
90 117 —
97
50
89
95 118
(1) Number in each box indicates flow (GPM). (2) Flows may vary with brand or condition of hose.
(3) Flows are approximate and do not reflect losses in preconnect piping.
7 BAR
= 7 BAR ULTIMATIC
6 BAR
19mm HOSE
PUMP DISCHARGE PRESSURE (BAR)
FLOW (LPM)
45M
ULTIMATIC 125 Flow Chart
= 6 BAR ULTIMATIC
60M
25mm HOSE
75M
7 BAR
6 BAR
45M.
7 BAR
6 BAR
60M
7 BAR
6 BAR
38mm HOSE
75M
7 BAR
6 BAR
45M
7 BAR
6 BAR
60M
7 BAR
6 BAR
75M
7 BAR
6 BAR
7 BAR
6 BAR
7 BAR
6 BAR
8.6
40
85
----
70
---- 65
10
60
95
50
80
40
70 130 230 110 205 100 185 380 475 320 430 285 400
12
75 100 65
90
55
80 160 255 135 225 120 210 475 ---- 415 ---- 360 445
14
85 115 75 100 70
85 190 285 160 250 145 225 ---- ---- 475 ---- 415 ----
15.5 100 120 85 105 75
95 210 310 180 270 160 245 ---- ---- ---- ---- 475 ----
85 200 75 180 70 160 265 410 225 365 190 335
17 110 130 95 115 85 100 235 335 195 290 175 260 ---- ---- ---- ---- ---- ---21 130 145 110 125 100 115 275 375 235 325 205 295 ---- ---- ---- ---- ---- ---24 145 160 125 140 110 125 305 415 265 360 235 320 ---- ---- ---- ---- ---- ---28 160 170 135 150 120 130 340 445 295 390 255 350 ---- ---- ---- ---- ---- ---31 175 185 150 160 130 145 370 ---- 320 415 280 375 ---- ---- ---- ---- ---- ---34 185 195 160 170 140 150 395 ---- 340 445 305 400 ---- ---- ---- ---- ---- ---41 210 215 180 190 160 165 455 ---- 380 ---- 340 445 ---- ---- ---- ---- ---- ----
(1) Number in each box indicates flow (LPM). (2) Flows may vary with brand or condition of hose.
(3) Flows are approximate and do not reflect losses in preconnect piping. (4) 1 BAR = 100 KPA
©Copyright Task Force Tips, Inc. 2002-2007
9
LIN-030 July 16, 2007 Rev 09
MID-MATIC
100 PSI
FLOW (GPM)
REACTION
(LBS)
= 100 PSI MID-MATIC
1 1/2" HOSE
150 ft.
100 PSI
PUMP DISCHARGE PRESSURE (PSI)
Flow & Nozzle Reaction Chart
200 ft.
75 PSI
= 75 PSI MID-MATIC
1 3/4" HOSE
250 ft.
150 ft.
75 PSI 100 PSI 75 PSI 100 PSI 75 PSI 100 PSI
200 ft.
2" HOSE
250 ft.
150 ft.
200 ft.
250 ft.
75 PSI 100 PSI 75 PSI 100 PSI 75 PSI 100 PSI 75 PSI 100 PSI 75 PSI 100 PSI 75 PSI
50
21
49
21
48
21
46
21
51
21
50
21
49
22
52
22
52
22
51
8
16
7
15
7
14
8
17
8
16
7
16
8
18
8
18
8
17
75
31
61
29
59
28
57
23
65
32
62
31
60
36
69
35
68
34
66
13
24
12
23
12
21
14
27
14
25
13
24
15
29
15
28
15
27
100
65
86
59
77
55
71
72
102
67
91
63
84
84
137
79
120
75
108
30
37
27
33
25
30
34
45
32
40
29
36
41
61
38
35
36
48
115
84
101
77
92
97
124
91
51
40
44
37
40
48
55
44
96
110
47
49
125 93
45
108 142
54
63
111 135 216 122 175 113 155
49
150
117 141 105 123
175
140 165 124 142 112 128 174 214 151 179 136 159
200
225
59
63
73
72
162 187
84
81
52
63
55
63
57
57
71
65
64
183 208 158 176 142 157
94
88
82
78
70
73
250 202 221 174 198 155 179
104
96
72
90
141 160 128 143 204
73
90
79
69
80
69
91
141 178 125 153 114 137 196
79
90
---
63
78
68
79
57
70
61
70
175 204 157 179
91
87
81
79
---
101
---
---
---
62
77
57
69
168 221 151 195
87
95
212
---
---
---
109
---
---
---
---
---
---
---
---
---
---
---
---
---
78
85
187 224
97
98
222
---
113
---
---
---
105
---
---
---
---
---
102
95
---
---
---
---
---
---
---
---
218
---
194 215
---
---
---
---
---
---
---
---
112
---
100
---
---
---
---
---
---
198 222 176 198
91
86
91
(1) Number on top in each box indicates flow (GPM), and number on bottom indicates nozzle reaction (LBS).
(2) Flows may vary with brand or condition of hose. (3) Flows are approximate and do not reflect losses in preconnect piping.
MID-MATIC
= 7 BAR MID-MATIC
7 BAR
PUMP DISCHARGE PRESSURE (BAR)
FLOW (LPM)
REACTION
(KG)
Flow & Nozzle Reaction Chart
38mm HOSE
45M
60M
6 BAR
= 6 BAR MID-MATIC
45mm HOSE
75M
45M
60M
50mm HOSE
75M
45M
75M
60M
7 BAR
6 BAR
7 BAR
6 BAR
7 BAR
6 BAR
7 BAR
6 BAR
7 BAR
6 BAR
7 BAR
6 BAR
7 BAR
6 BAR
7 BAR
6 BAR
7 BAR
6 BAR
3.5
80
210
80
190
80
175
80
245
80
225
80
205
85
310
85
285
85
255
4
8
3
7
3
6
4
10
4
9
3
8
4
12
4
11
4
10
5.2
115 350 110 315 105 285
6
14
5
12
5
11
85
6
420 120 380 115 345 135 535 130 485 130 450
17
6
15
6
14
7
23
7
20
7
19
7
245 460 225 405 210 365 275 540 255 490 240 445 320 695 300 630 285 580
8.6
350 540 320 475 290 430 410 650 365 575 345 520 510 805 460 750 430 690
10
445 615 395 540 365 490 535 740 475 660 430 600 740
12
530 680 470 600 425 540 660 805 570 725 515 660
14
615 740 535 655 485 590 770
14
20
27
33
38
19
24
28
31
35
12
18
24
29
33
16
20
24
27
30
11
17
21
26
30
15
18
21
24
26
15.5
695 790 600 705 535 635
17
765 835 660 750 585 680
43
47
40
44
37
41
33
36
33
36
29
31
15
25
33
41
24
30
35
41
----
15
22
29
35
20
25
30
35
13
20
26
32
18
23
26
30
660 785 595 715
48
----
----
----
41
----
----
46
44
----
----
825
----
----
----
51
----
39
37
34
750 835 665 770
41
38
735 815
45
41
19
31
33
17
29
41
28
36
16
26
25
32
570 775
----
635
----
46
----
40
43
----
----
800
----
----
----
50
----
44
45
----
----
----
----
840
----
35
38
710 845
----
----
----
----
51
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
(1) Number on top in each box indicates flow (LPM), and number on bottom indicates nozzle reaction (KG).
(2) Flows may vary with brand or condition of hose. (3) Flows are approximate and do not reflect losses in preconnect piping.
©Copyright Task Force Tips, Inc. 2002-2007
10
LIN-030 July 16, 2007 Rev 09
HANDLINE Flow & Nozzle Reaction Chart
100 PSI
PUMP DISCHARGE PRESSURE (PSI)
FLOW
(GPM)
REACTION
(LBS)
= 100 PSI HANDLINE
1 1/2" HOSE
150 ft.
200 ft.
Note: For Nozzles with Serial # TFT-H465101
and/or Manufactured after 12/01/2003
= 75 PSI HANDLINE
75 PSI
1 3/4" HOSE
250 ft.
150 ft.
200 ft.
2" HOSE
250 ft.
150 ft.
200 ft.
2-1/2" HOSE
250 ft.
150 ft.
200 ft.
250 ft.
100 PSI
75 PSI
100 PSI
75 PSI
100 PSI
75 PSI
100 PSI
75 PSI
100 PSI
75 PSI
100 PSI
75 PSI
100 PSI
75 PSI
100 PSI
75 PSI
100 PSI
75 PSI
100 PSI
75 PSI
100 PSI
75 PSI
100 PSI
75 PSI
50
48
16
71
20
47
15
65
18
45
14
60
16
50
17
84
25
49
16
75
22
48
15
70
20
51
18
107
33
51
17
96
29
50
17
88
26
53
19
157
52
53
19
148
48
53
18
140
45
75
64
25
104
31
60
23
91
27
58
22
82
24
73
29
126
39
67
26
112
34
63
25
101
30
88
36
162
54
81
33
145
47
76
31
133 123 230 116 221 111 212
42
52
89
49
83
46
77
100 96
39
130
41
85
34
114
35
77
31
103 115 157 103 136
31
48
52
42
44
93
38
126 148 203 132 182 121 166 252 269 224 260 206 251
39
64
72
57
63
51
56 114 120 101 112 92 105
151 108 133
125 122
52
49
45
42
98
40
120 149 183 131 162 119 147 197 232 173 212 158 194 300 300 290 290 282 281
37
64
63
56
54
50
48
88
90
76
77
69
68 150 150 140 140 131 131
170 127 149 115 135 177 206 156 182 141 165 239 256 210 234 189 218 343 341 317 335 307 307
150 145
63
57
54
48
48
43
78
74
68
63
61
55 108 108 94
92
84
81 185 185 167 173 157 157
187 144 164 130 148 203 225 178 201 160 182 276 276 242 255 217 236 356 355 349 348 343 342
175 165
72
65
62
55
56
48
91
86
79
71
70
63 127 127 109 108 98
94 210 209 198 197 186 186
202 160 178 144 160 227 241 198 217 178 197 295 295 270 272 243 254 369 368 362 361 356 354
200 183
81
72
70
61
62
53 102 98
88
80
79
70 145 145 123 123 110 107 235 234 222 221 210 209
216 174 190 157 172 249 257 216 231 195 211 312 313 289 288 266 269
225 200
89
80
77
66
68
58 113 109 97
90
87
77 163 163 138 138 121 120
—
—
—
—
375 373 368 367
245 245 232 232
250 216 229 188 202 169 182 269 271 234 244 210 223 329 336 304 304 284 284 ---
-----
-----
97
88
83
72
74
63
123
122
106
99
94
85
181
180
154
154
133
134
---
-----
380 378
255 255
(1) Number on top in each box indicates flow (G PM), and number on bottom indicates nozzle rea ction (LB S).
(2) Flows may va ry with bran d or condition of hose . (3) Flows are appro xi mate and do not refl ect loss es in prec onnect piping.
HANDLINE Flow & Nozzle Reaction Chart
7 BAR
PUMP DISCHARGE PRESSURE (BAR)
FLOW
(GPM)
REACTION
(LBS)
= 7 BAR HANDLINE
38mm HOSE
45M
7 BAR
6 BAR
6 BAR
45mm HOSE
75M
60M
7 BAR
7 BAR
Note: For Nozzles with Serial # TFT-H465101
and/or Manufactured after 12/01/2003
= 6 BAR HANDLINE
6 BAR
6 BAR
45M
7 BAR
6 BAR
60M
7 BAR
6 BAR
50mm HOSE
75M
7 BAR
6 BAR
45M
7 BAR
6 BAR
60M
7 BAR
6 BAR
65mm HOSE
75M
7 BAR
6 BAR
45M
7 BAR
6 BAR
60M
7 BAR
6 BAR
75M
7 BAR
6 BAR
3.5 182 269 178 246 170 227 189 318 185 284 182 265 193 405 193 363 189 333 201 594 201 560 201 530
7
9
7
8
6
7
8
11
7
10
7
9
8
15
8
13
8
12
9
24
9
22
8
20
394 227 344 220 310 276 477 254 424 238 382 333 613 307 549 588 503 466 871 439 836 420 802
5.2 242
11
14
10
12
10
11
13
18
12
15
11
14
16
24
15
21
14
19
24
40
22
38
21
35
7
363 492 322 431 291 390 435 594 390 526 352 477 560 768 500 689 458 628 954 1018 848 984 780 950
18
19
15
16
14
14
22
24
19
20
17
18
29
33
26
29
23
25
52
54
46
51
42
48
572 409 503 371 454 564 693 496 613 450 556 746 878 655 802 598 734 1136 1136 1098 1098 1067 1064
8.6 462
24
22
20
19
18
17
29
29
25
24
23
22
40
41
34
35
31
31
68
68
64
64
59
59
643 481 564 435 511 670 780 590 689 534 625 905 969 795 866 715 825 1298 1291 1200 1268 1162 1162
10 549
29
26
24
22
22
20
35
34
31
29
28
25
49
49
43
42
38
37
84
84
76
78
71
71
708 545 621 492 560 768 852 674 761 606 689 1045 1045 916 965 821 893 1347 1344 1321 1317 1298 1294
12 625
33
29
28
25
25
22
41
39
36
32
32
29
58
58
49
49
44
43
95
95
90
89
84
84
765 606 674 545 606 859 912 749 821 674 746 1117 1117 1022 1030 920 961 1397 1393 1370 1366 1347 1340
14 693
37
33
32
28
28
24
46
44
40
36
36
32
66
66
56
56
50
49 107 106 101 100 95
95
818 659 719 594 651 942 973 818 874 738 799 1181 1185 1094 1090 1007 1018 —
15.5 757
40
36
35
30
31
26
51
49
44
41
39
35
74
74
63
63
55
54
—
17 818 867 712 765 640 689 1018 1026 866 924 795 844 1245 1272 1151 1151 1075 1075 --44
40
38
33
34
29
56
55
48
45
43
39
82
82
70
70
60
61
---
— 1419 1412 1393 1389
— 111 111 105 105
-----
-----
--- 1438 1431
--- 116 116
(1) Number on top in each box indicates flow (LP M), and number on bottom indicates nozzl e rea ction (K G).
(2) Flows may va ry with bran d or condition of hose . (3) Flows are approx imate and do not refl ect loss es in prec onnect piping.
©Copyright Task Force Tips, Inc. 2002-2007
11
LIN-030 July 16, 2007 Rev 09
10.0 INSPECTION CHECKLIST
Nozzle must be inspected for proper operation and function according to this checklist before each use.
Check that:
1) There is no obvious damage such as missing, broken or loose parts, damaged labels etc.
2) Gasket grabber is free of debris.
3) Coupling is tight and leak free.
4) Valve operates freely through full range and regulates flow.
5) "OFF" position does fully shut off and flow is stopped.
6) Nozzle flow is adequate as indicated by pump pressure and nozzle reaction.
7) Shaper turns freely and adjusts pattern through full range.
8) Shaper turns into full flush and out of flush with normal flow and pressure restored.
WARNING
Any Ultimatic, Mid-Matic or Handline nozzle failing any part of the
inspection checklist is unsafe and must have the problem corrected
before use. Operating a nozzle that fails any of the above inspections is a
misuse of this equipment.
TASK FORCE TIPS, Inc.
WHERE NEW IDEAS FLOW
©Copyright Task Force Tips, Inc. 2002-2007
®
2800 E Evans Ave • Valparaiso , IN 46383-6940 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
LIN-030 July 16, 2007 Rev 09
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
