Yamaha Tyros5 User manual

Yamaha Tyros5 User manual

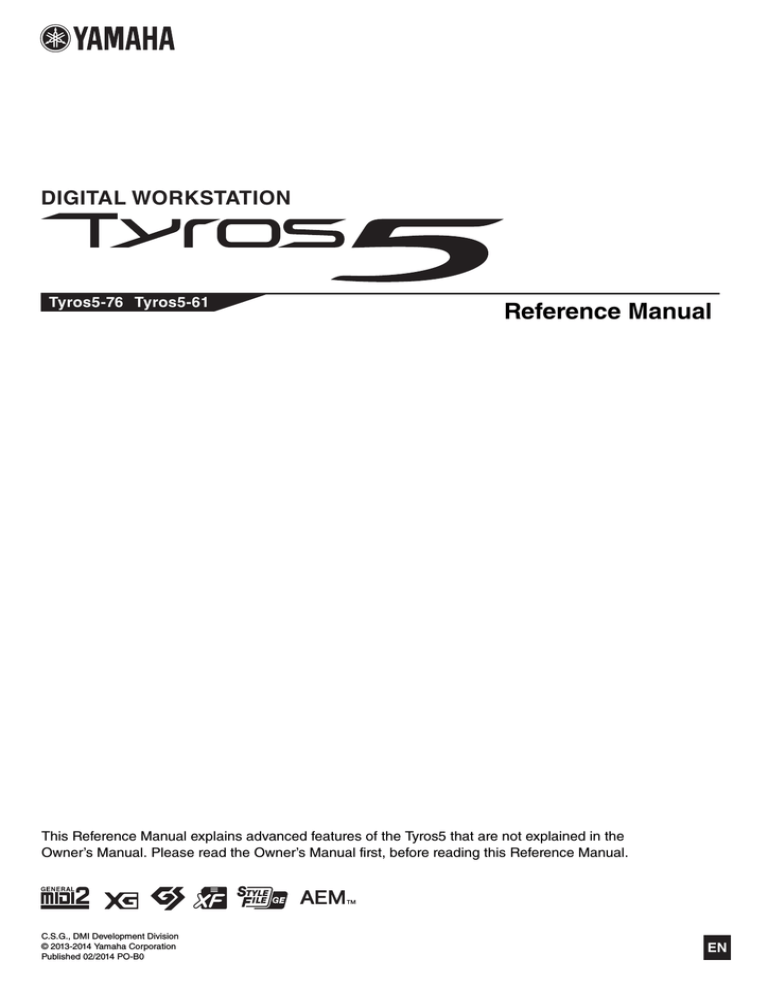

DIGITAL WORKSTATION
Tyros5-76 Tyros5-61
Reference Manual
This Reference Manual explains advanced features of the Tyros5 that are not explained in the
Owner’s Manual. Please read the Owner’s Manual first, before reading this Reference Manual.
C.S.G., DMI Development Division
© 2013-2014 Yamaha Corporation
Published 02/2014 PO-B0
EN
Contents
* Each chapter in this Reference Manual corresponds to the relevant chapters in the Owner’s Manual.
1
Voices – Playing the Keyboard –
4
Voice Types (Characteristics) .................................................................................................................. 4
Selecting GM, XG and Other Voices ....................................................................................................... 6
Touch Response and Effect-Related Settings ......................................................................................... 7
Pitch-Related Settings ........................................................................................................................... 10
Editing Voices (Voice Set) ..................................................................................................................... 12
Editing Organ Voices (Organ World) ..................................................................................................... 17
Editing Ensemble Voices (Ensemble Voice Edit)................................................................................... 19
2
Styles – Playing Rhythm and Accompaniment –
25
Selecting the Chord Fingering Type ...................................................................................................... 26
Style Playback Related Settings ............................................................................................................ 28
Memorizing Original Settings to a One Touch Setting ........................................................................... 30
Creating/Editing Styles (Style Creator) .................................................................................................. 31
3
Multi Pads – Adding Musical Phrases to Your Performance –
46
Multi Pad Creating (Multi Pad Creator) .................................................................................................. 46
Multi Pad Editing .................................................................................................................................... 48
4
Songs – Recording Your Performances as MIDI Songs –
50
Editing Music Notation Settings ............................................................................................................. 51
Editing Lyrics/Text Display Settings....................................................................................................... 53
Using the Auto Accompaniment Features with Song Playback ............................................................. 54
Song Playback Related Parameters (Repeat Settings, Channel Settings, Guide Function) ................. 55
Creating/Editing Songs (Song Creator) ................................................................................................. 59
5
Audio Recorder/Player – Recording and Playback Audio Files –
76
Recording Your Performance ................................................................................................................ 76
Converting a file ..................................................................................................................................... 80
Editing the Recorded Data (Multi Track Recording File)........................................................................ 82
Re-recording the Multi Track Recording File ......................................................................................... 84
Setting the Start/End Points of the Audio (Multi Track Recording File) ................................................. 87
Playlist Mode.......................................................................................................................................... 88
6
Music Finder – Calling Up Ideal Panel Settings for Your Performance –
91
Creating a Set of Favorite Records........................................................................................................ 91
Editing Records...................................................................................................................................... 92
Saving the Records as a Single File (Music Finder File) ....................................................................... 93
7
Registration Memory – Saving and Recalling Custom Panel Setups –
95
Editing a Registration Memory............................................................................................................... 95
Disabling Recall of Specific Items (Freeze) ........................................................................................... 96
Calling Up Registration Memory Numbers in Order (Registration Sequence)....................................... 97
8
Microphone – Adding Harmony Vocals and Synth Vocoder to Your Singing –
100
Vocal Harmony and Talk Setting ......................................................................................................... 100
Making and Saving the Microphone Settings (Vocal/Talk) .................................................................. 101
Setting and Editing Vocal Harmony Types .......................................................................................... 104
Editing the Synth Vocoder Types......................................................................................................... 111
2
Tyros5 Reference Manual
9
Mixing Console – Editing the Volume and Tonal Balance –
115
Editing VOL/VOICE Parameters .......................................................................................................... 115
Editing FILTER Parameters ................................................................................................................. 116
Editing TUNE Parameters.................................................................................................................... 117
Editing EFFECT Parameters ............................................................................................................... 118
Editing EQ Parameters ........................................................................................................................ 122
Editing Master Compressor Settings ................................................................................................... 123
Line Out Settings ................................................................................................................................. 124
Block Diagram...................................................................................................................................... 125
10 Utility – Making Global Settings –
126
CONFIG 1 ............................................................................................................................................ 126
CONFIG 2 ............................................................................................................................................ 128
MEDIA.................................................................................................................................................. 129
OWNER ............................................................................................................................................... 130
SYSTEM RESET ................................................................................................................................. 131
11 Connections – Using Your Instrument with Other Devices –
133
Footswitch/Foot Controller Settings ..................................................................................................... 133
MIDI Settings ....................................................................................................................................... 136
MFC10 Settings ................................................................................................................................... 142
Connecting to a Network (Bundled USB Wireless LAN Adaptor) ........................................................ 144
Appendix
148
Expansion Pack Related Operations ................................................................................................... 148
Index
150
Using the PDF manual
• To quickly jump to items and topics of interest, click on the desired items in the “Bookmarks” index to the left of
the main display window. (Click the “Bookmarks” tab to open the index if it is not displayed.)
• Click the page numbers that appear in this manual to go directly to the corresponding page.
• Select “Find” or “Search” from the Adobe Reader “Edit” menu and enter a keyword to locate related information in
the document.
NOTE
The names and positions of menu items may vary according to the version of Adobe Reader being used.
• The illustrations and LCD screens as shown in this manual are for instructional purposes only, and may appear somewhat different
from those on your instrument. Note that all display examples shown in this manual are in English.
• The company names and product names in this manual are the trademarks or registered trademarks of their respective companies.
Tyros5 Reference Manual
3
1
Voices
– Playing the Keyboard –
Contents
Voice Types (Characteristics) ........................................................................... 4
Selecting GM, XG and Other Voices................................................................ 6
Touch Response and Effect-Related Settings .................................................. 7
• Setting the Touch Response of the Keyboard............................................... 7
• Using Keyboard Harmony/Echo .................................................................. 8
Pitch-Related Settings ..................................................................................... 10
• Fine-tuning the Pitch of the Entire Instrument........................................... 10
• Scale Tuning............................................................................................... 10
• Changing the Part Assignment of the TRANSPOSE Buttons ................... 11
Editing Voices (Voice Set)................................................................................ 12
• Editable Parameters in the VOICE SET Displays...................................... 13
• Disabling Automatic Selection of Voice Sets (Effects, etc.) ...................... 16
Editing Organ Voices (Organ World) ............................................................ 17
Editing Ensemble Voices (Ensemble Voice Edit)........................................... 19
Voice Types (Characteristics)
The particular type of Voice is indicated at the upper left of the Voice name in the Voice Selection display. The defining
characteristics of these Voices and their performance advantages are described below.
S.Art!
(Super Articulation)
These Voices provide many benefits with great playability and expressive control in real time.
For example, with the Saxophone Voice, if you play a C and then a D in a very legato way, you will
hear the note change seamlessly, as though a saxophone player played it in a single breath.
Similarly with the Concert Guitar Voice and play the D note strongly, the D note would sound as a
“hammer on,” without the string being plucked again. Depending on how you play, other effects
such as “shaking” or breath noises (for the Trumpet Voice), or finger noises (for the Guitar Voice)
are produced.
For details on how to best play each S.Art! Voice, call up the information window (pressing the
[6 ] (INFO) button in the Voice Selection display).
S.Art2!
(Super Articulation2)
For wind instrument Voices and Violin Voices, a special technology called AEM (see below) has
been used, which features detailed samples of special expressive techniques used on those specific
instruments—to bend or slide into notes, to “join” different notes together, or to add expressive
nuances at the end of a note, etc. You can add these articulations by playing legato or non-legato, or
by jumping in pitch by around an octave. For example, using the Clarinet Voice, if you hold a C
note and play the Bb above, you’ll hear a glissando up to the Bb. Some “note off” effects are also
produced automatically when you hold a note for over a certain time. Each S.Art2! Voice has its
own default vibrato setting, so that when you select a S.Art2! Voice, the appropriate vibrato is
applied regardless of the Modulation wheel position. You can adjust the vibrato by moving the
Modulation wheel.
For details on how to best play each S.Art2! Voice, call up the information window (pressing the
[6 ] (INFO) button in the Voice Selection display).
Live!
NEXT PAGE
4
Tyros5 Reference Manual
These acoustic instrument sounds were sampled in stereo, to produce a truly authentic, rich
sound—full of atmosphere and ambience.
These Voices use sophisticated programming to capture the dynamic textures and subtle nuances of
electric instruments.
Sweet!
These acoustic instrument sounds also benefit from Yamaha’s sophisticated technology—and feature a finely detailed and natural sound.
Drums
Various drum and percussion sounds are assigned to individual keys, letting you play the sounds
from the keyboard.
SFX
Various special effect sounds and percussion sounds are assigned to individual keys, letting you
play the sounds from the keyboard.
Live! Drums
These are high-quality drum sounds that take full advantage of Stereo Sampling and Dynamic Sampling.
Live! SFX
These are various high-quality special effect sounds and percussion sounds that take full advantage
of Stereo Sampling and Dynamic sampling.
Organ Flutes!
These authentic organ Voices let you adjust the various footages and craft your own original organ
sounds. See page 17 for details.
MegaVoice
These Voices make special use of velocity switching. Each velocity range (the measure of your
playing strength) has a completely different sound.
For example, a guitar MegaVoice includes the sounds of various performance techniques. In conventional instruments, different Voices having those sounds would be called up via MIDI and
played in combination to achieve the desired effect. However, now with MegaVoices, a convincing
guitar part can be played with just a single Voice, using specific velocity values to play the desired
sounds. Because of the complex nature of these Voices and the precise velocities need to play the
sounds, they’re not intended for playing from the keyboard. They are, however, very useful and
convenient when creating MIDI data—especially when you want to avoid using several different
Voices just for a single instrument part.
1
Voices – Playing the Keyboard –
Cool!
NOTE
S.Art!, S.Art2! and Mega Voices are not compatible with other instrument models. For this reason, any Song or Style you’ve created on this instrument using these Voices
will not sound properly when played back on the instruments which do not have these types of Voices.
NOTE
S.Art!, S.Art2! and Mega Voices sound differently depending on keyboard range, velocity, touch, etc. Hence, if you apply a HARMONY/ECHO effect, change the transpose
setting or change the Voice Set parameters, unexpected or undesired sounds may result.
NOTE
The characteristics of S.Art2! Voices (default vibrato setting and articulation effects applied by the [ART] buttons) are effective for real-time performance; however, these
effects may not be completely reproduced when you play back a MIDI Song which has been recorded using S.Art2! Voices.
For a list of preset Voices of this instrument, refer to the “Voice List” in the Data List, available at the online Yamaha
Library.
Converting the Voices of a MIDI Song to MegaVoices (MEGAEnhancer)
MEGAEnhancer is a software program that converts XG/GM song data (Standard MIDI File) to song data specially
enhanced to be played back using an instrument or tone generator containing MegaVoices. With the use of the
sophisticated MegaVoices, MEGAEnhancer automatically makes conventional song files with guitar, bass, and other
parts sound much more realistic and authentic. MEGAEnhancer can be downloaded from the Yamaha website.
http://download.yamaha.com/
Tyros5 Reference Manual
5
AEM Technology
When you play the piano, pressing a “C” key produces a definite and relatively fixed C note. When you play a wind
instrument, however, a single fingering may produce several different sounds depending on the breath strength, the
note length, the adding of trills or bend effects, and other performance techniques. Also, when playing two notes continuously—for example “C” and “D”—these two notes will be smoothly joined, and not sound independent as they
would on a piano.
AEM (Articulation Element Modeling) is the technology for simulating this characteristic of instruments. During
performance, the most appropriate sound samples are selected in sequence in real time, from huge quantities of sampled data. They are smoothly joined and sounded—as would naturally occur on an actual acoustic instrument.
This technology to smoothly join different samples enables the application of realistic vibrato. Conventionally on
electronic musical instruments, vibrato is applied by moving the pitch periodically. AEM technology goes much further by analyzing and disaggregating the sampled vibrato waves, and smoothly joins the disaggregated data in real
time during your performance. If you move the Modulation wheel when you play the S.Art2! Voice (using AEM
technology), you can also control the depth of the vibrato, and still maintain remarkable realism.
Selecting GM, XG and Other Voices
This instrument features Voices provided specially for Style playback and XG/GM compatibility. These Voices cannot
be called up directly from the VOICE category selection buttons. However, they can be called up as described below.
1
Press the PART SELECT button corresponding to the Part you want to use.
2
Press one of the VOICE category selection buttons (other than the [ORGAN WORLD],
[ENSEMBLE] and [EXPANSION/USER] buttons) to call up the Voice Selection display.
3
Press the [8 ] (UP) button to call up the Voice categories.
3
4
Press the [2 ] (P2) button to display Page 2.
5
Press the desired [A]–[J] button to call up the Voice Selection
display of GM&XG Voices, GM2 Voices, etc.
6
6
4
Select the desired Voice.
Tyros5 Reference Manual
NOTE
You can also find the “Legacy” folder in
this display. This folder contains previous Yamaha keyboards’ Voices (such as
Tyros, Tyros2, Tyros3, Tyros4, etc.) for
data compatibility with other models.
Touch Response and Effect-Related Settings
Setting the Touch Response of the Keyboard
Touch Response determines how the sound responds to your playing strength. The
touch response type becomes the common setting for all Voices.
1
NOTE
Call up the operation display.
[FUNCTION]  [D] CONTROLLER  TAB [E][F] KEYBOARD/PANEL
2
Some Voices are purposely designed
without touch response, in order to
emulate the true characteristics of the
actual instrument (for example, conventional organs, which have no touch
response).
1
Use the [A]/[B] buttons to select the desired parameter: “1 INITIAL TOUCH” or “2 AFTER TOUCH.”
Voices – Playing the Keyboard –
Touch Response is applied to the
checkmarked parts.
2
3
3
Use the [1 ]–[8 ] buttons to set the touch response.
1 INITIAL TOUCH
[1 ]/
[2 ]
TOUCH
Determines the Initial Touch Response type.
HARD 2: Requires strong playing to produce high volume. Best for players with a
heavy touch.
HARD 1: Requires moderately strong playing for higher volume.
MEDIUM: Standard Touch Response.
SOFT 1: Produces high volume with moderate playing strength.
SOFT 2: Produces relatively high volume even with light playing strength. Best for
players with a light touch.
[4 ]
TOUCH OFF
LEVEL
Determines the fixed volume level when Touch is set to “OFF.”
[5 ]–
[8 ]
LEFT–RIGHT3
Turns Initial Touch on or off for each keyboard part.
2 AFTER TOUCH
[1 ]/
[2 ]
TOUCH
Determines the After Touch response type.
HARD: Relatively strong After Touch pressure is needed to produce changes.
MEDIUM: Produces a fairly standard After Touch response.
SOFT: Allows you to produce relatively large changes with very light After Touch
pressure.
[5 ]–
[8 ]
LEFT–RIGHT3
Turns After Touch on or off for each keyboard part.
Tyros5 Reference Manual
7
Using Keyboard Harmony/Echo
You can select the desired Harmony/Echo effect from a variety of types.
1
2
NOTE
When the [MONO] button is turned to
on or you use the S.Art!/S.Art2! Voices,
the Harmony/Echo effect may not work
properly.
Turn the [HARMONY/ECHO] button on.
Call up the operation display.
[FUNCTION]  [F] HARMONY/ECHO
3
Use the [1 ]–[3 ] buttons to select the Harmony/Echo
type.
The Harmony/Echo types are divided into three groups (Harmony Types, Multi
Assign Type, and Echo types), depending on the particular effect applied.
4
NOTE
The available Harmony/Echo types differ when an Ensemble Voice is selected.
Use the [4 ]–[8 ] buttons to select various Harmony/Echo settings.
The available settings differ depending on the Harmony/Echo type.
Harmony Types (see below)
Multi Assign Type (see below)
Echo Types (see below)
3
4
[4 ]
VOLUME
This parameter is available for all types with the exception of “Multi Assign.” It determines the volume level of the Harmony/Echo notes generated by the Harmony/Echo
effect.
[5 ]
SPEED
This parameter is only available when Echo, Tremolo, or Trill is selected in Type
above. It determines the speed of the Echo, Tremolo, and Trill effects.
[6 ]
ASSIGN
Determines the keyboard Part that the effect is assigned.
AUTO: Applies the effect to the part for which PART ON/OFF is on. When more
than one parts are on, the RIGHT 1 part is given priority over the RIGHT 2/3 part.
In a similar way the RIGHT 2 part is given priority over the RIGHT 3 part.
MULTI: When more than one parts are on, the note played on the keyboard is
sounded by the RIGHT 1 part and the harmonies (effect) are divided to the RIGHT
1, RIGHT 2 and RIGHT 3 parts. When only one part is on, the note played on the
keyboard and effect are sounded by that part.
R1–R3: Applies the effect to the selected part (RIGHT 1, RIGHT 2 or RIGHT 3).
NOTE
This parameter is not available for the Multi Assign type.
8
[7 ]
CHORD NOTE
ONLY
This parameter is available when one of the Harmony Types is selected. When this is
set to “ON,” the Harmony effect is applied only to the notes (played in the right-hand
section of the keyboard) that belongs to a chord played in the chord section of the keyboard.
[8 ]
TOUCH LIMIT
This parameter is available for all types with the exception of “Multi Assign.” It determines the lowest velocity value at which the harmony note will sound. This allows
you to selectively apply the harmony by your playing strength, letting you create harmony accents in the melody. The harmony effect is applied when you play the key
strongly (above the set value).
Tyros5 Reference Manual
 Harmony Types
NOTE
The harmony effect is applied to the note played in the right-hand section of the
keyboard according to the chord specified in the chord or left-hand section shown
below.
You can make these different Split Point settings according to your performance
preferences.
The “1+5” and “Octave” settings are not
affected by the chord.
NOTE
The actual operation depends on the
Split Point settings. For more information, refer to “Specifying Chords with
Your Right Hand while Playing Bass
with Your Left Hand” in the Owner’s
Manual.
1
Voices – Playing the Keyboard –
Split Point
Split Point
RIGHT 1–3 Voices
Chord section for Style playback
and Harmony effect
Split Point
(for Style playback)
LEFT Voice and chord section
for Harmony effect
Split Point
(for the Voice)
LEFT Voice
RIGHT 1–3 Voices
Chord section for
Style playback and
Harmony effect
 Multi Assign Type
The Multi Assign effect automatically assigns the notes of chords you play on the
right-hand section of the keyboard to separate parts (Voices). For example, if you
play a three-note chord, the first note you press is played by the RIGHT 1 Voice,
the second by the RIGHT 2 Voice, and the third by the RIGHT 3 Voice. The Multi
Assign effect is not affected by the [ACMP] and LEFT part on/off status.
 Echo Types
The Echo, Tremolo or Trill effect is applied to the note played in the right-hand section of the keyboard in time
with the currently set tempo, regardless of the [ACMP] and the LEFT part on/off status. Keep in mind that Trill
works when you hold down two notes on the keyboard simultaneously (or the last two notes, if more than two
notes are held), and it plays those notes alternately.
Tyros5 Reference Manual
9
Pitch-Related Settings
Fine-tuning the Pitch of the Entire Instrument
You can fine-tune the pitch of the entire instrument such as the keyboard, Style and Song parts (except the keyboard
part played by the Drum Kit or SFX Kit Voices, and audio playback)—a useful feature when playing the Tyros5 along
with other instruments or CD music.
1
Call up the operation display.
[FUNCTION]  [A] MASTER TUNE/SCALE TUNE  TAB [E][F] MASTER TUNE
2
Use the [4 ]/[5 ] buttons to set the tuning in 0.2 Hz steps.
Press both [] and [] buttons (of 4 and 5) simultaneously to reset the value to the factory setting of 440.0 Hz.
Scale Tuning
You can select various scales for playing in custom tunings for specific historical periods or music genres.
1
Call up the operation display.
[FUNCTION]  [A] MASTER TUNE/SCALE TUNE  TAB [E][F] SCALE TUNE
2
Use the [A]/[B] buttons to select the desired scale.
The tuning of each note for the currently
selected scale is shown.
Preset Scale types
EQUAL
The pitch range of each octave is divided equally into twelve parts, with each half-step
evenly spaced in pitch. This is the most commonly used tuning in music today.
PURE MAJOR, PURE
MINOR
These tunings preserve the pure mathematical intervals of each scale, especially for triad
chords (root, third, fifth). You can hear this best in actual vocal harmonies—such as choirs
and a cappella singing.
PYTHAGOREAN
This scale was devised by the famous Greek philosopher and is created from a series of perfect fifths, which are collapsed into a single octave. The 3rd in this tuning are slightly unstable, but the 4th and 5th are beautiful and suitable for some leads.
MEAN-TONE
This scale was created as an improvement on the Pythagorean scale, by making the major
third interval more “in tune.” It was especially popular from the 16th century to the 18th century. Handel, among others, used this scale.
WERCKMEISTER,
KIRNBERGER
This composite scale combines the Werckmeister and Kirnberger systems, which were
themselves improvements on the mean-tone and Pythagorean scales. The main feature of
this scale is that each key has its own unique character. The scale was used extensively during the time of Bach and Beethoven, and even now it is often used when performing period
music on the harpsichord.
ARABIC1, ARABIC2
Use these tunings when playing Arabic music.
NEXT PAGE
10
Tyros5 Reference Manual
3
Change the following settings as necessary.
NOTE
To register the Scale Tune settings to
Registration Memory, be sure to checkmark the SCALE item in the REGISTRATION MEMORY CONTENTS display.
BASE NOTE
Determines the base note for each scale. When the base note is changed, the pitch of
the keyboard is transposed, yet maintains the original pitch relationship between the
notes.
[3 ]–
[5 ]
TUNE
Select the desired note to be tuned by using the [3 ] buttons and tune it in cents by
using the [4 ]/[5 ] buttons.
1
Voices – Playing the Keyboard –
[2 ]
NOTE
In musical terms a “cent” is 1/100th of a semitone. (100 cents equal one semitone.)
[6 ]/
[7 ]
PART SELECT
[8 ]
MARK ON/OFF
Select the part to which the Scale Tune setting is applied by using the [6 ]/
[7 ] buttons. Then press the [8 ] button to add a checkmark or press the [8 ]
button to remove the checkmark.
Changing the Part Assignment of the TRANSPOSE Buttons
You can determine to which parts the TRANSPOSE [-]/[+] buttons are applied.
1
Call up the operation display.
[FUNCTION]  [D] CONTROLLER  TAB [E][F] KEYBOARD/PANEL
2
Use the [B] button to select “4 TRANSPOSE ASSIGN.”
3
Press the [4 ]/[5 ] buttons to select the desired part assignment.
KEYBOARD
The TRANSPOSE [-]/[+] buttons affect the pitch of keyboard played Voices, Style playback
(controlled by the performance in the chord section of the keyboard), and Multi Pad playback (when Chord Match is on, and left-hand chords are indicated)—but they do not affect
Song playback.
SONG
The TRANSPOSE [-]/[+] buttons affect only the pitch of Song playback.
MASTER
The TRANSPOSE [-]/[+] buttons affect the overall pitch of the instrument, except audio
playback.
The assignment can be confirmed by the pop-up window called up via the TRANSPOSE [-]/[+] buttons.
Tyros5 Reference Manual
11
Editing Voices (Voice Set)
The Voice Set function allows you to create your own Voices by editing some parameters of the existing Voices. Once
you’ve created a Voice, you can save it as a file to internal memory (User drive) or external devices for future recall.
1
Select the desired Voice (other than an Organ World Voice/Ensemble Voice).
Organ World Voices/Ensemble Voices have different editing methods than described here. For instructions on editing the Organ World Voices, see page 17. For instructions on editing the Ensemble Voices, see page 19.
2
Press the [5 ] (VOICE SET) button to call up the VOICE SET display.
3
Use the TAB [E][F] buttons to call up the relevant setting page.
For information on the available parameters in each page, see the “Editable Parameters in the VOICE SET Displays” on page 13.
3
5
4
4
As necessary, use the [A]/[B] buttons to select the item (parameter) to be edited and edit
the Voice by using the [1 ]–[8 ] buttons or sliders.
By pressing the [D] (COMPARE) button, you can compare the sound of the edited Voice with the original
(unedited) Voice.
5
12
Press the [I] (SAVE) button to save your edited Voice.
NOTICE
For details on the Save operation, refer to the Owner’s Manual, Basic Operations.
The settings will be lost if you
select another Voice or turn the
power to the instrument off without executing the Save operation.
Tyros5 Reference Manual
Editable Parameters in the VOICE SET Displays
The Voice Set parameters are organized into five different pages. The parameters in
each page are described separately, below.
NOTE
The available parameters differ depending on the Voice.
 COMMON Page
[1 ]
VOLUME
Adjusts the volume of the current edited Voice.
[2 ]/
[3 ]
TOUCH SENSE
Adjusts the touch sensitivity (velocity sensitivity), or how greatly the volume
responds to your playing strength.
TOUCH SENSE OFFSET
Changes to velocity curve according to
VelOffset (with Depth set to 64)
Actual Velocity for
tone generator
Actual Velocity for
tone generator
Offset = 96 (+64)
Offset = 127 (+127)
Depth = 127 (twice)
127
1
Voices – Playing the Keyboard –
TOUCH SENSE DEPTH
Changes to velocity curve according to
VelDepth (with Offset set to 64)
127
Depth = 64 (normal)
64
Offset = 64 (normal)
64
Depth = 32 (half)
Depends
on offset
Offset = 32 (-64)
Depth = 0
0
64
127
Received Velocity
(Actual KeyOn speed)
0
Depends
on offset
64
127
Received Velocity
(Actual KeyOn speed)
Offset = 0 (-127)
DEPTH: Determines the velocity sensitivity, or how much the level of the Voice
changes in response to your playing strength (velocity).
OFFSET: Determines the amount by which received velocities are adjusted for the
actual velocity effect.
[4 ]/
[5 ]
PART OCTAVE
Shifts the octave range of the edited Voice up or down in octaves. When the edited
Voice is used as any of the RIGHT 1–3 parts, the R1/R2/R3 parameter is available;
when the edited Voice is used as the LEFT part, the LEFT parameter is available.
[6 ]
MONO/POLY
Determines whether the edited Voice is played monophonically or polyphonically.
This setting can also be made from the VOICE EFFECT [MONO] button on the
panel.
[7 ]
PORTAMENTO
TIME
Determines the pitch transition time when the edited Voice is set to MONO above.
NOTE
Portamento is a function that creates a smooth transition in pitch from the first note played on the keyboard
to the next.
 CONTROLLER Page
1 MODULATION
The MODULATION wheel can be used to modulate the parameters below as well as the pitch (vibrato). Here, you
can set the degree to which the MODULATION wheel modulates each of the following parameters.
[2 ]
FILTER
Determines the degree to which the MODULATION wheel modulates the Filter Cutoff Frequency. For details about the filter, see below.
[3 ]
AMPLITUDE
Determines the degree to which the MODULATION wheel modulates the amplitude
(volume).
[5 ]
LFO PMOD
Determines the degree to which the MODULATION wheel modulates the pitch, or
the vibrato effect.
[6 ]
LFO FMOD
Determines the degree to which the MODULATION wheel modulates the Filter modulation, or the wah effect.
[7 ]
LFO AMOD
Determines the degree to which the MODULATION wheel modulates the amplitude,
or the tremolo effect.
Tyros5 Reference Manual
13
2 AFTER TOUCH
After Touch can be used to modulate the parameters below. Here, you can set the degree to which After Touch
modulates each of the following parameters.
[2 ]
FILTER
Determines the degree to which After Touch modulates the Filter Cutoff Frequency.
See below for details about Filter.
[3 ]
AMPLITUDE
Determines the degree to which After Touch modulates the amplitude (volume).
[5 ]
LFO PMOD
Determines the degree to which After Touch modulates the pitch, or the vibrato effect.
[6 ]
LFO FMOD
Determines the degree to which After Touch modulates the Filter modulation, or the
wah effect.
[7 ]
LFO AMOD
Determines the degree to which After Touch modulates the amplitude, or the tremolo
effect.
 SOUND Page
FILTER
Filter is a processor that changes the timbre or tone of a sound by either blocking or passing a specific frequency
range. The parameters below determine the overall timbre of the sound by boosting or cutting a certain frequency
range. In addition to making the sound either brighter or mellower, Filter can be used to produce electronic, synthesizer-like effects.
[1 ]
BRIGHT
(Brightness)
Determines the cutoff frequency or effective frequency range of the filter (see diagram). Higher values result in a brighter
sound.
Volume
Cutoff Frequency
These frequencies are
“passed” by the filter.
[2 ]
HARMO.
(Harmonic Content)
Determines the emphasis given to the
cutoff frequency (resonance), set in
BRIGHT. above (see diagram). Higher
values result in a more pronounced effect.
Frequency
(pitch)
Cutoff
range
Volume
Resonance
Frequency (pitch)
EG
Level
The EG (Envelope Generator) settings determine how the level of the
sound changes in time. This lets you reproduce many sound characteristics of natural acoustic instruments—such as the quick attack and
decay of percussion sounds, or the long release of a sustained piano
tone.
Sustain
Level
ATTACK
Key on
14
DECAY
RELEASE
Time
Key off
[3 ]
ATTACK
Determines how quickly the sound reaches its maximum level after the key is played.
The lower the value, the quicker the attack.
[4 ]
DECAY
Determines how quickly the sound reaches its sustain level (a slightly lower level than
maximum). The lower the value, the quicker the decay.
[5 ]
RELES. (Release)
Determines how quickly the sound decays to silence after the key is released. The
lower the value, the quicker the decay.
Tyros5 Reference Manual
VIBRATO
Pitch
SPEED
Vibrato is a quavering, vibrating sound effect that is produced by regularly modulating the pitch of the Voice.
DEPTH
DELAY
Time
[6 ]
DEPTH
Determines the intensity of the Vibrato effect. Higher settings result in a more pronounced Vibrato.
[7 ]
SPEED
Determines the speed of the Vibrato effect.
[8 ]
DELAY
Determines the amount of time that elapses between the playing of a key and the start
of the Vibrato effect. Higher settings increase the delay of the Vibrato onset.
1
Voices – Playing the Keyboard –
 EFFECT / EQ Page
1 REVERB DEPTH / CHORUS DEPTH / DSP DEPTH / PANEL SUSTAIN
[1 ]/
[2 ]
REVERB DEPTH
Adjusts the reverb depth.
[3 ]/
[4 ]
CHORUS DEPTH
Adjusts the chorus depth.
[5 ]
DSP ON/OFF
Determines whether the DSP effect is on or off.
This setting can also be made from the VOICE EFFECT [DSP] button on the panel.
[6 ]
DSP DEPTH
Adjusts the DSP depth.
If you want to re-select the DSP type, you can do so in the “2 DSP” menu explained
on page 15.
[7 ]
PANEL SUSTAIN
Determines the sustain level applied to the edited Voice when the VOICE EFFECT
[SUSTAIN] button on the panel is turned on.
[1 ]–
[4 ]
DSP TYPE
Selects the DSP effect category and type. Select a type after selecting a category.
[5 ]–
[8 ]
VARIATION
Two variations are provided for each DSP type. Here, you can edit the VARIATION
on/off status and the variation’s parameter value setting.
[5 ]
ON/OFF
Turns the DSP Variation on or off for the selected Voice. This setting can also be made
from the VOICE EFFECT [VARIATION] button on the panel. (This button is effective only when the [DSP] button is on.)
PARAMETER
Displays the variation parameter. (This differs depending on the effect type and cannot be changed.)
VALUE
Adjusts the value of the DSP variation parameter.
2 DSP
[6 ]–
[8 ]
3 EQ
Determines the Frequency and Gain of the Low and High EQ bands. For information about EQ, refer to page 122.
 HARMONY Page
Same as in the [FUNCTION]  [F] HARMONY/ECHO display. See “Using Keyboard Harmony/Echo” on
page 8.
Tyros5 Reference Manual
15
Disabling Automatic Selection of Voice Sets (Effects, etc.)
Each Voice is linked to its default VOICE SET parameter settings. Usually these settings are automatically called up
when a Voice is selected. However, you can also disable this feature by the operation in the relevant display as
explained below. For example, if you want to change the Voice yet keep the same Harmony effect used with the
previous Voice, set the HARMONY/ECHO parameter to OFF (in the display explained below).
1
Call up the operation display.
[FUNCTION]  [E] REGIST SEQUENCE/FREEZE/VOICE SET  TAB [E][F] VOICE SET
2
Use the [A]/[B] buttons to select the desired keyboard part.
2
3
3
Use the [4 ]–[7 ] buttons to turn on or off of each item for the selected Part.
When the button is set to ON, the corresponding parameter settings are called up automatically together with the
Voice selection. For information on which parameters are linked to each item, see below.
16
[4 ]
VOICE
Corresponds to the parameter settings of the COMMON, CONTROLLER, and
SOUND pages.
[5 ]
EFFECT
Corresponds to the parameter settings of 1 and 2 in the EFFECT/EQ page.
[6 ]
EQ
Corresponds to the parameter settings of 3 in the EFFECT/EQ page.
[7 ]
HARMONY/
ECHO
Corresponds to the HARMONY page.
Tyros5 Reference Manual
Editing Organ Voices (Organ World)
The Organ World Voices can be edited by adjusting the footage levers, adding the
attack sound, applying effects and equalizer, etc. If you want, you can also change the
Rotary Speaker speed and adjust the Vibrato setting.
1
Select the desired Organ Voice in the Organ World display.
1-1 Press the [ORGAN WORLD] button.
1-2 Use the TAB [E][F] buttons to select the organ type which you want to
1-3 Press the [D]/[I] button several times until the Preset Select display is called
After editing, go to the Registration Memory function and save
the setting. The settings will be
lost if you select another Voice or
turn the power of the instrument
off without executing the Save
operation. For details on the
operation, refer to the Owner’s
Manual.
1
NOTE
Voices – Playing the Keyboard –
edit.
If you selected the CONCERT or THEATRE type, go on to step 3. Only
effect/EQ parameters can be edited for those types.
NOTICE
The available parameters differ depending on the Organ type.
up.
1-4 Use [1 ]–[8 ] buttons to select the desired preset.
2
Press the [D]/[I] button several times to call up the relevant setting display (FOOTAGES
or VOLUME&ATTACK)
For information on the available parameters in each display, see pages 17 and 18.
3
Use the [A] (EFFECT) buttons to call up the effect/EQ setting display.
For information on the available parameters in each display, see pages 15 and 18.
4
As necessary, use the [A]/[B] buttons to select the item (parameter) to be edited and edit
the Voice by using the [1 ]–[8 ] buttons or sliders.
5
Play the keyboard.
 FOOTAGES Page
For details on how to adjust the
Footage levels, refer to the
Owner’s Manual, chapter 1.
[A]
EFFECT
Opens the effect/EQ setting display (page 18).
[C]
ROTARY (Rotary
Speaker Speed)/
TREMOLO
(Vintage/Home type
only)
Alternately switches between the slow and fast rotary speaker speeds when a rotary
speaker effect is selected for the Organ Flutes (DSP TYPE parameter in the effect/
EQ setting display), and the VOICE EFFECT [DSP] button is turned on.
[F]
VIBRATO
(Vintage/Home type
only)
Alternately turns the vibrato effect for the Organ Flutes Voice ON or OFF.
NEXT PAGE
Tyros5 Reference Manual
17
[G]/[H]
VIBRATO DEPTH
(Vintage/Home type
only)
Sets the Vibrato depth to one of three levels: 1 (low), 2 (mid), or 3 (high).
[D]/[I]
FOOTAGES/
VOLUME &
ATTACK / PRESETS
Opens the Preset Select display or the relevant setting display (FOOTAGES or VOLUME & ATTACK)
 VOLUME&ATTACK
Same as the
FOOTAGES display
[1 ]
VOL (Volume)
Adjusts the overall volume of the Organ Flutes. The longer the graphic bar, the
greater the volume.
[2 ]
RESP (Response)
Affects both the attack and release (page 14) portion of the sound, increasing or
decreasing the response time of the initial swell and release, based on the FOOTAGES controls. The higher the value, the slower the swell and release.
[3 ]
VIBRATO SPEED
(Vibrato Speed)
(Vintage/Home type
only)
Determines the speed of the vibrato effect controlled by the Vibrato On/Off ([F] button) and Vibrato Depth ([G]/[H] buttons).
[4 ]
MODE
The MODE control selects between two modes: FIRST and EACH. In the FIRST
mode, attack (percussive sound) is applied only to the first notes played and held
simultaneously; while the first notes are held, any subsequently played notes have no
attack applied. In the EACH mode, attack is applied equally to all notes.
[5 ]–
[7 ]
4’, 2 2/3’, 2’
These determine the attack sound volume of the Organ Flutes Voice. The 4’, 2-2/3’
and 2’ controls increase or reduce the volume of attack sound at the corresponding
footages. The longer the graphic bar, the greater the attack sound volume.
[8 ]
LENG (Length)
Affects the attack portion of the sound producing a longer or shorter decay immediately after the initial attack. The longer the graphic bar, the longer the decay.
 Effect/EQ related display
Same parameters as in the VOICE SET “EFFECT/EQ” Page explained on page 15.
18
Tyros5 Reference Manual
Editing Ensemble Voices (Ensemble Voice Edit)
In addition to enjoying the Presets, you can create your original Ensemble Voice by editing various parameters as
described here. These relevant parameters determine which note is played by each Part, which Preset Voice is used with
each Part, when sounds are actually produced, and how the pitch envelope is produced. These settings result in a highly
realistic ensemble sound, as if acoustic instruments were played by real artists.
1
Select the desired Ensemble Voice.
1-1 Press the [ENSEMBLE] button.
1-2 Press one of the [1 ]–[8 ] buttons to select the Ensemble Voice which you want to edit.
1
2
Press the [E] (EDIT) button to call up the Ensemble Voice (edit) display.
3
Use the TAB [][] buttons to call up the relevant setting page.
Voices – Playing the Keyboard –
If necessary, press the [J] (PRESETS) button, then select the desired one from the various Preset Ensemble
Voices.
For information on how to select more Ensemble Voices, refer to the Owner’s Manual.
For information on the available parameters in each page, see pages 20–24.
3
2
1
6
4
5
4
Use the [A]–[E] buttons to select a parameter, then use the [1 ]–[8 ] buttons or
sliders to set the value for each part.
5
Press the [EXIT] button to exit from the edit display.
6
Press the [J] (PRESET) button to save your edited Voice.
NOTICE
For details on the Save operation, refer to the Owner’s Manual, Basic Operations.
The edited data will be lost if you
change to another Voice or you
turn the power off without executing the Save operation.
Tyros5 Reference Manual
19
 ASSIGN / HARMONY
Orange: Active keys
Gray: Ignored keys
Octave
Key Assign Status (page 21)
Filter 1
Key off retrigger
Filter 2 Assign
(Assignment)
[1 ]–
[5 ]
KEY ASSIGN
TYPE
Determines the Key Assignment type. This is applied commonly to all Voice parts.
For details, refer to the Ensemble Voice Key Assign Type List below.
[6 ]–
[7 ]
HARMONY
(Harmony Type)
Same as in the [FUNCTION]  [F] HARMONY/ECHO display. See “Using Keyboard Harmony/Echo” on page 8. Only two types (“4-WAY CLOSE 1” and “4-WAY
CLOSE 2”) are available.
[8 ]
ON/OFF
Turns the Harmony effect on or off.
Ensemble Voice Key Assignment Structure
Each Part monitors all the pressed notes and plays the appropriate notes according to the settings you made.
For details about the settings, refer to the Ensemble Voice Key Assign Status List. You can conveniently call
up the settings for all parts at once. The current setting of each Part (Key Assignment Status) is displayed at the
bottom of its own keyboard figure (see above) on the screen.
Part 4
Part 3
All Notes
Part 2
Part 1
Filter 1
Filter 2
Assign
20
Tyros5 Reference Manual
Ensemble Voice Key Assign Status List (Indication only)
Parameter
On-screen
display
Full name
Description
Filter 1/
Filter 2
F*D
First * in Descending
The highest * notes (“*” indicates the number of notes) are selected from the input
notes and sent to the next stage.
A*D
F*A
After *-th in
Descending
First * in Ascending
*=2
The *th highest note and any higher notes
do not sound, but all lower notes are
selected from the input notes and sent to the
next stage.
*=2
1
The lowest * notes are selected from the
input notes and sent to the next stage.
A*A
Assign
Key off
retrigger
After *-th in
Ascending
The *th lowest note and any lower notes do
not sound, but all higher notes are selected
from the input notes and sent to the next
stage.
Voices – Playing the Keyboard –
*=2
*=2
THRU
Through
All input notes are sent as is to the next stage.
HI
Highest
Of the notes remaining after Filter 2, the highest is selected.
LO
Lowest
Of the notes remaining after Filter 2, the lowest is selected.
EA
Earliest
Of the notes remaining after Filter 2, the one input first of all is
selected.
LA
Latest
Of the notes remaining after Filter 2, the one input last of all is selected.
RTG
Retrigger
Key Assign is updated whenever some of the keys are released (and
notes satisfying all applicable conditions are played).
(Not displayed)
-
Whenever keys are released, the corresponding voices simply stop
playing and are not reassigned. However, when you play in legato,
notes will be retriggered regardless of whether Key off retrigger is off
or on (Yes or No in the table below).
* Indicates an integer of 1 or higher.
Ensemble Voice Key Assign Type List
No.
Key Assign Type
Description
1
Unison 1—latest
This setting results in complete unison. If one key is
played, all four parts will produce the same note. If
multiple keys are played, the unison note will be
selected based on the last one played.
Part 1
Part 2
Part 3
Part 4
Unison 2—highest and
lowest
This setting produces unison or a two-note harmony.
If one key is played, all four parts will produce the
same note; however, if two or more are played, the
parts will be split between the lowest and highest.
Part 1
Part 2
Part 3
Part 4
3
4 Voice Close—all parts on
retrigger
4
4 Voice Close—all parts on
This setting is suitable for closed chords. If one key is played, all four
parts will produce a sound. If two or more keys are played, the parts will
be divided among the various notes of the chord.
2
Key off retrigger (*3)
Part 1
Part 2
Part 3
Part 4
Part 1
Part 3
Part 2
Part 4
Part 1
Part 2
Part 3
Part 4
Yes
Yes
Yes
No
Part 1
Part 2
Part 3
Part 4
NEXT PAGE
Tyros5 Reference Manual
21
5
4 Voice Open—all parts on
retrigger
6
4 Voice Open—all parts on
This setting is suitable for open chords. If one key is played, all four
parts will produce a sound. If two or more keys are played, the parts will
be divided among the various notes of the chord.
Part 1
Part 2
Part 3
Part 4
7
4 Voice Incremental 1
—from highest retrigger
8
4 Voice Incremental 1
—from highest
9
4 Voice Incremental 2
—from lowest retrigger
10
4 Voice Incremental 2
—from lowest
3 Voice Close—all parts on
retrigger
12
3 Voice Close—all parts on
13
3 Voice Open—all parts on
retrigger
14
3 Voice Open—all parts on
15
3 Voice Incremental 1
—from highest retrigger
16
3 Voice Incremental 1
—from highest
17
3 Voice Incremental 2
—from lowest retrigger
18
3 Voice Incremental 2
—from lowest
19
2 Voice Close—all parts on
retrigger
20
2 Voice Close—all parts on
21
2 Voice Incremental 1
—from highest retrigger
22
2 Voice Incremental 1
—from highest
23
2 Voice Incremental 2
—from lowest retrigger
24
2 Voice Incremental 2
—from lowest
Part 1
Part 2
Part 3
Part 4
Part 1
Part 1
Part 2
Part 1
Part 2
Part 3
Part 2
Part 3
Part 4
Yes
No
Part 1
Part 2
Part 3
Part 4
The more keys played, the greater the number of parts that produce a
sound, with priority given to lower parts. For example, Part 4 is played
for one key, Part 4 and Part 3 are played for two keys, and so on.
Part 3
Part 4
No
Part 1
Part 3
Part 2
Part 4
The more keys played, the greater the number of parts that produce a
sound, with priority given to higher parts. For example, Part 1 is played
for one key, Part 1 and Part 2 are played for two keys, and so on.
Part 4
11
Part 1
Part 2
Part 3
Part 4
Yes
Yes
No
Part 1
Part 2
Part 3
Part 4
This setting produces a three-note ensemble for closed chords. (*1)
Yes
No
This setting produces a three-note ensemble for open chords. (*1)
Yes
No
Three-note version of an ensemble with priority given to higher parts.
For example, Parts 1 & 4 are played for one key, Parts 1 & 4 and Part 2
are played for two keys, and so on. (*1)
Yes
Three-note version of an ensemble with priority given to lower parts.
For example, Part 3 is played for one key, Part 3 and Part 2 are played
for two keys, and so on. (*1)
Yes
This setting produces a two-note ensemble for closed chords. (*2)
Yes
No
No
No
Two-note version of an ensemble with priority given to higher parts. For
example, Parts 1 & 3 are played for one key, and Parts 1 & 3 and Parts 2
& 4 are played for two keys. (*2)
Yes
Two-note version of an ensemble with priority given to lower parts. For
example, Parts 2 & 4 are played for one key, and Parts 1 & 3 and Parts 2
& 4 are played for two keys. (*2)
Yes
No
No
*1: In three-voice ensembles, Part 4 moves in the same way as Part 1.
*2: In two-voice ensembles, Part 3 moves in the same way as Part 1; Part 4 moves in the same way as Part 2.
*3: With ensemble types that support key off retriggering, whenever a part stops playing because the corresponding key is released, it will be
reassigned based on the keys still held down and will play the appropriate note.
NEXT PAGE
22
Tyros5 Reference Manual
 VOLUME / PAN
1
VOICE
Voices – Playing the Keyboard –
[A]
Allows you to re-select the Voices for each part. You can also select this by using the
PART SELECT buttons. The PART 1–4 settings correspond to the PART SELECT
[LEFT], [PART 1-3] buttons.
NOTE
Only the recommended Voices that are suitable for Ensemble Voices can be selected.
[C]
PART ON/OFF
Turns each part on or off. The PART 1–4 settings correspond to the PART ON/OFF
[LEFT], [PART 1-3] buttons.
[D]
PANPOT
Determines the stereo position of the selected part.
[E]
VOLUME
Determines the volume of each part or channel, giving you fine control over the balance of all the parts. These parameters correspond to the LEFT and RIGHT 1–3
parameters of the VOL/VOICE tab in the MIXING CONSOLE display.
[3 ]–
[6 ]
Selects the part to which the editing is applied, then set the value for each part.
 TUNE / EFFECT
[B]
OCTAVE
Determines the range of the pitch change in octaves, over two octaves up or down for
each keyboard part. The value set here is added to the setting made via the OCTAVE
[-]/[+] buttons.
[C]
TUNING
Determines the pitch of each keyboard part in cents.
NOTE
In musical terms, a “cent” is 1/100th of a semitone. (100 cents equal one semitone.)
[D]
REVERB DEPTH
Adjusts the reverb depth.
NEXT PAGE
Tyros5 Reference Manual
23
[E]
VIBRATO
SENSITIVITY
[3 ]–
[6 ]
Determines the intensity of the Vibrato effect. Higher settings result in a more pronounced Vibrato.
Selects the part to which the editing is applied, then set the value for each part.
 HUMANIZE
[B]
TIMING
Determines the delay time between the moment the actual sound for each Part is produced and the moment a few notes are pressed.
[C]
PITCH RANGE
Determines the pitch vibration (pitch range) when the sound is being produced. The
higher the value, the greater the pitch range.
[D]
ATTACK PITCH
RANGE
Determines the actual pitch envelope immediately after the sound is produced. The
higher the value, the greater the pitch range.
[E]
ATTACK PITCH
ADJUST TIME
Determines the time between the moment the sound is produced and the moment the
pitch envelope reaches the correct value.
Pitch Change Range
[3 ]–
[6 ]
Selects the part to which the editing is applied, then set the value for each part.
While a note is held
Attack Pitch Range
Time
Attack Pitch Adjust Time
24
Tyros5 Reference Manual
Pitch Range
2
Styles
– Playing Rhythm and Accompaniment –
Contents
Selecting the Chord Fingering Type .............................................................. 26
Style Playback Related Settings ..................................................................... 28
Memorizing Original Settings to a One Touch Setting................................. 30
Creating/Editing Styles (Style Creator) ......................................................... 31
• Realtime Recording.................................................................................... 33
• Step Recording ........................................................................................... 37
• Style Assembly........................................................................................... 37
• Editing the Rhythmic Feel (GROOVE)...................................................... 39
• Editing Data for Each Channel (CHANNEL)............................................ 41
• Making Style File Format Settings (PARAMETER) ................................. 42
2
Styles – Playing Rhythm and Accompaniment –
Style Types (Characteristics)
The particular type of Style is indicated at the upper left of the Style name in the Style Selection display. The defining
characteristics of these Styles and their performance advantages are described below.
• Pro: These Styles provide professional and exciting arrangements combined with perfect playability. The resulting
accompaniment exactly follows the chords of the player. As a result, your chord changes and colorful harmonies
are instantly transformed into lifelike musical accompaniment.
• Session: These Styles provide even greater realism and authentic backing by mixing in original chord types and
changes, as well as special riffs with chord changes, with the Main sections. These have been programmed to add
“spice” and a professional touch to your performances of certain songs and in certain genres. Keep in mind, however, that the Styles may not necessarily be appropriate—or even harmonically correct—for all songs and for all
chord playing. In some cases for example, playing a simple major triad for a country song may result in a “jazzy”
seventh chord, or playing an on-bass chord may result in inappropriate or unexpected accompaniment.
• Free Play: These Styles are characterized by rubato performance. You can perform freely with remarkably expressive accompaniment, without being constrained by a strict tempo.
• +Audio: Indicates the Audio Style. For more information on Audio Styles, refer to the Owner’s Manual.
For the Preset Style List, refer to the Data List downloadable from Yamaha Manual Library.
Tyros5 Reference Manual
25
Selecting the Chord Fingering Type
The Chord Fingering type determines how chords are specified for Style playback. You can select desired one from
the seven types.
1
Call up the operation display.
[FUNCTION]  [C] STYLE SETTING/SPLIT POINT/CHORD FINGERING  TAB [E][F] CHORD FINGERING
2
Press the [1 ]–[3 ] buttons to select a fingering.
For information on each fingering type, see page 27.
Chord Tutor Function
With this function shown in the right half of this display, you can see which notes to press for specifying the
chord. If you know a chord name but don’t know how to play it, use this function. Although this function
shows how to play a chord only in case of “Fingered,” the indication is useful also when a type other than “Single Finger” is selected.
Use the [6 ] buttons to select the chord root then use the [7 ]–[8 ] buttons to select the chord
type. The notes you need to play are shown in the display.
NOTE
Depending on the chord, some notes may be omitted.
26
Tyros5 Reference Manual
Chord Fingering Types
SINGLE FINGER
Makes it simple to produce orchestrated accompaniment using major, seventh, minor and
minor-seventh chords by pressing only one, two or three keys on the Chord section of the
keyboard.
C
Cm
For a major chord,
press the root key only.
For a minor chord,
simultaneously press
the root key and a black
key to its left.
C7
Cm 7
For a seventh chord,
simultaneously press the
root key and a white key to
its left.
For a minor-seventh chord,
simultaneously press the root
key and both a white and black
key to its left.
Automatically detects Single Finger or Fingered chord fingerings, so you can use either type
of fingering without having to switch fingering types.
FINGERED
Lets you specify the chord by pressing the notes making up a chord in the left hand section
of the keyboard when ACMP is turned on or the Left part is turned on. For information on
which notes to press for each chord, refer to the Data List (Chord Types Recognized in the
Fingered Mode) downloadable from Yamaha Manual Library, or use the Chord Tutor function on the right-half of this display.
FINGERED ON BASS
Accepts the same fingerings as Fingered; however, the lowest note played in the Chord section of the keyboard is used as the bass note, allowing you to play “on bass” chords. (In the
Fingered type, the root of the chord is always used as the bass note.)
FULL KEYBOARD
Detects chords in the entire key range. Chords are detected in a way similar to Fingered,
even if you split the notes between your left and right hands—for example, playing a bass
note with your left hand and a chord with your right, or by playing a chord with your left
hand and a melody note with your right.
AI FINGERED
Basically the same as Fingered, with the exception that less than three notes can be played to
indicate the chords (based on the previously played chord, etc.).
AI FULL KEYBOARD
This type is similar to Full Keyboard, with the exception that less than three notes can be
played to indicate the chords (based on the previously played chord, etc.). 9th, 11th and 13th
chords cannot be played.
FINGERED*
This type is called up automatically when the CHORD DETECTION AREA is set to
“UPPER.” In this status, the whole right-hand (UPPER) section works as the Chord section
as well as melody performance. As to which key should be pressed, this is basically same as
“FINGERED,” except that “1+5,” “1+8” and Chord Cancel are not available. For more
information, refer to “Specifying Chords with Your Right Hand while Playing Bass with
Your Left Hand” in the Owner’s Manual.
2
Styles – Playing Rhythm and Accompaniment –
MULTI FINGER
NOTE
“AI” stands for “Artificial Intelligence.”
Tyros5 Reference Manual
27
Style Playback Related Settings
The instrument has a variety of settings for Style playback which can be accessed in the display below.
1
Call up the operation display.
[FUNCTION]  [C] STYLE SETTING/SPLIT POINT/CHORD FINGERING  TAB [E][F] STYLE SETTING
2
Use the [1 ]–[8 ] buttons for each setting.
[1 ]
STOP ACMP
When [ACMP] is turned on and [SYNC START] is off, you can play chords in the
chord section of the keyboard with the Style stopped, and still hear the accompaniment chord. In this condition—called “Stop Accompaniment”—any valid chord fingerings are recognized and the chord root/type are shown in the display. Here, you can
determine whether the chord played in the chord section will sound or not in the Stop
Accompaniment status.
OFF: The chord played in the chord section will not sound.
STYLE: The chord played in the chord section will sound via the Voices for the Pad
part and the Bass channel of the selected Style.
FIXED: The chord played in the chord section will sound via the specified Voice,
regardless of the selected Style.
NOTE
When the selected Style contains MegaVoices, unexpected sounds may result when this is set to “STYLE.”
NOTE
When you record a Song, the chord detected by playing the Stop Accompaniment can be recorded regardless of the setting here. Please note that both the sounding Voice and chord data is recorded when set to
“STYLE,” and only the chord data is recorded when set to “OFF” or “FIXED.”
[2 ]
OTS LINK
TIMING
This applies to the OTS Link function. This parameter determines the timing in which
the One Touch Settings change with the MAIN VARIATION [A]–[D] change. (The
[OTS LINK] button must be on.)
REAL TIME: One Touch Setting is immediately called up when you press a MAIN
VARIATION button.
NEXT BAR: One Touch Setting is called up at the next measure, after you press a
MAIN VARIATION button.
[3 ]
SYNCHRO STOP
WINDOW
NEXT PAGE
28
Tyros5 Reference Manual
This determines how long you can hold a chord before the Synchro Stop function is
automatically cancelled. When the [SYNC STOP] button is turned on and this is set to
a value other than “OFF,” this automatically cancels the Synchro Stop function if you
hold a chord for longer than the time set here. This conveniently resets Style playback
control to normal, letting you release the keys and still have the Style play. In other
words, if you release the keys sooner than the time set here, the Synchro Stop function
works.
[4 ]
STYLE TOUCH
Turns touch response for the Style playback on/off. When this is set to “ON,” the Style
volume changes in response to your playing strength in the chord section of the keyboard.
[5 ]/
[6 ]
SECTION SET
Determines the default section that is automatically called up when selecting different
Styles (when Style playback is stopped). When set to “OFF” and Style playback is
stopped, the active section is maintained even if the different Style is selected. When
any of the MAIN A–D sections is not included in the Style data, the nearest section is
automatically selected. For example, when MAIN D is not contained in the selected
Style, MAIN C will be called up.
[7 ]
TEMPO
This determines whether the tempo setting of the Style changes or not when you
change Styles.
LOCK: The previous tempo setting is always maintained.
HOLD: During Style playback, the previous tempo setting is maintained. When Style
playback is stopped, the tempo changes to that of the initial default tempo for the
selected Style.
2
[8 ]
PART ON/OFF
Styles – Playing Rhythm and Accompaniment –
RESET: The tempo always changes to that of the initial default tempo for the selected
Style.
This determines whether the Style Channel On/Off status changes or not when you
change Styles.
LOCK: The Channel On/Off status of the previous Style is always maintained.
HOLD: During Style playback, the Channel On/Off status of the previous Style is
maintained. When Style playback is stopped, all Style Channels are set to On.
RESET: All Style Channels are set to On.
Tyros5 Reference Manual
29
Memorizing Original Settings to a One Touch Setting
You can memorize your original panel settings to a One Touch Setting (OTS). The newly created One Touch Setting
will be saved in the User drive as a Style, and you can call up the One Touch Setting as a part of the Style.
1
Select the desired Style to memorize your One Touch Setting.
2
Make the desired panel settings, such as those for Voices and effects.
3
Press the [MEMORY] button in the REGISTRATION MEMORY section.
The REGISTRATION MEMORY CONTENTS display appears. However, you do not need to set these items,
since the On/Off settings in this display do not affect the One Touch Settings.
4
Press the ONE TOUCH SETTING [1]–[4] button to which you
wish to memorize your panel settings.
Follow the onscreen message. To memorize various panel settings to other buttons,
press the [G] (NO) button, then repeat steps 2–4.
5
Press the [F] (YES) button to call up the Style Selection display
and save the One Touch Setting as a Style.
For instructions on saving, refer to the Owner’s Manual, Basic Operations.
30
Tyros5 Reference Manual
NOTE
For OTS buttons to which your original
panel settings have not been memorized, the OTS settings of the original
Style will be maintained.
NOTICE
The memorized One Touch Settings will be lost if you change the
Style or turn the power off without
executing the Save operation.
Creating/Editing Styles (Style Creator)
The Style Creator function lets you create your original Style by recording the rhythm pattern via the keyboard and
using already-recorded Style data. Basically, select a preset Style that is closest to the type you want to create, then
record the rhythm pattern, bass line, chord backing, or phrase (referred to as “Source Pattern” in the Style Creator) for
each channel of each Section.
 Style Data Structure—Consisting of Source Patterns
A Style is made up of the different Sections (Intro, Main, Ending, etc.) and each Section has eight separate channels,
each of which is referred to as “Source Pattern.” With the Style Creator feature, you can create a Style by separately
recording the Source Pattern for each channel, or by importing pattern data from other existing Styles.
2
Ending 3
Styles – Playing Rhythm and Accompaniment –
Ending 2
Intro
Fill In
Main B
Main A
Used as is when selecting an Audio Style as starting
data. This cannot be edited or deleted.
Audio Part
Rhythm 1
Recorded or copied from another Style
Rhythm 2
Recorded or copied from another Style
Bass
Recorded or copied from another Style
Chord 1
Recorded or copied from another Style
Chord 2
Recorded or copied from another Style
Pad
Recorded or copied from another Style
Phrase 1
Recorded or copied from another Style
Phrase 2
Recorded or copied from another Style
Create a Source Pattern for
each channel separately
Limitations on the Audio part:
• If you select a preset Audio Style as starting data, the Audio part will be used as is. The Audio part cannot be
deleted, edited or created from scratch.
• The created Style containing the Audio part can be used only via an instrument that supports Audio Styles as well
as the SFF GE format.
• The Audio part cannot be copied from another Style or Section in the ASSEMBLE page. If you want to use a specific Audio part, make sure to select the corresponding Audio Style before calling up the Style Creator display.
Tyros5 Reference Manual
31
 Basic Procedure for creating a Style
1
Select the desired Style for the starting data.
2
Press the [CREATOR] button, then the [B] (STYLE CREATOR) button to call up the Style
Creator display.
3
From the BASIC page, select a Section, then make other settings as necessary.
• Select a Section to be edited or recorded. If the REC CHANNEL indication is shown in the lower half section of
the display, press the [EXIT] button, press the [A] to select “1 SECTION,” then use the [3 ]–[4 ] buttons to select a Section.
• If you want to create a Style entirely from scratch, press the [C] (NEW STYLE) button to call up an empty new
Style.
• For the current Section, select the pattern length via the [5 ]–[6 ] buttons. After selecting, press the [D]
(EXECUTE) button to actually enter the specified length.
Note that if an Audio Style is selected as starting data, changing the pattern length deletes the corresponding
Audio part.
• For the entire current Style, set the Tempo and Time Signature in the display called up via the [B] button.
4
Create the Source Pattern for each channel.
• Realtime Recording on the BASIC page (page 33)
Lets you record the Style by simply playing the keyboard.
• Step Recording on the EDIT page (page 37)
Lets you enter each note individually.
• Style Assembly on the ASSEMBLY page (page 37)
Lets you copy various patterns from other preset Styles or Styles you have already created.
5
Edit the already recorded channel data.
• Editing the channel data on the GROOVE (page 39), CHANNEL (page 41), and EDIT (page 37) pages
Lets you change the rhythmic feel, quantizing and velocity, etc.
• Editing the SFF parameters on the PARAMETER page (page 42)
Lets you copy various patterns from another preset Styles or Styles you have already created.
6
Repeat steps 3–5 as desired.
7
Press the [I] (SAVE) button to save the created Style.
For details, refer to “Basic Operations” in the Owner’s Manual.
32
Tyros5 Reference Manual
Realtime Recording
In the BASIC page, you can record your original rhythm pattern from the keyboard.
Realtime Recording Characteristics in the Style Creator
• Loop Recording
Style playback repeats the rhythm patterns of several measures in a “loop,” and Style recording is also done using
loops. For example, if you start recording with a two-measure MAIN section, the two measures are repeatedly
recorded. Notes that you record will play back from the next repetition (loop), letting you record while hearing
previously recorded material.
• Overdub Recording
This lets you record new material to a channel already containing recorded data, without deleting the original data.
In Style recording, the recorded data is not deleted, except when using functions such as Rhythm Clear (page 34)
and Delete (page 35). For example, if you start recording with a two-measure MAIN section, the two measures are
repeated many times. Notes that you record will play back from the next repetition, letting you overdub new
material to the loop while hearing previously recorded material. When creating a Style based on an existing
internal Style, overdub recording is applied only to the rhythm channels. For all other channels (except rhythm),
you need to delete the original data before recording.
2
Styles – Playing Rhythm and Accompaniment –
 Recording Rhythm Channels 1–2
The procedure below applies to Step 4 in the Basic Procedure on page 32.
• If you select an Audio Style as starting data:
Playback of the Audio part can be turned on or off via the [H] button, but it cannot be edited or deleted. Note that
the rhythm pattern of this part will be used in the new Style you intend to create. If you want to create a rhythm
phrase in addition to the Audio part, follow the steps below.
1
From the BASIC page, while holding down the [F] (REC CH) button, press the [1 ] or
[2 ] button to select the desired channel as Record target.
A Rhythm channel can be selected as Record target no matter whether already recorded data is included or not. If
already recorded data is included in the selected channel, you can record notes additionally to the existing data.
NEXT PAGE
Tyros5 Reference Manual
33
2
If necessary, select a Voice then practice the rhythm pattern to be recorded.
Press the [1 ] or [2 ] button (selected channel) to call up the Voice Selection display then select the desired
Voice such as Drum Kit. After selecting, press the [EXIT] button to return to the original display. With the selected
Voice, practice the rhythm pattern to be recorded.
• Available Voices for recording
For the RHY1 channel, any except the Organ World Voices can be used for recording.
For the RHY2 channel, only drum/SFX kits can be used for recording.
3
Press the STYLE CONTROL [START/STOP] button to start recording.
As the already recorded data plays back, use the [1 ]–[8 ] buttons to turn each channel on or off as desired. If
you selected an Audio Style as starting data, turn the Audio part on or off via the [H] button.
4
As soon as loop playback returns to the first beat in the first measure, start playing the
rhythm pattern to be recorded.
If the rhythm is difficult to play in real time, break it up into individual parts and play each separately as the playback loops, as shown in the example below.
Loop 1st round
Bass Drum
Loop 2nd round
Snare Drum
Bass Drum
Loop 3rd round
Hi-Hat
Snare Drum
Bass Drum
If you make a mistake or play any wrong notes:
You can delete notes of a specific drum instrument. While holding down the [E] (RHY CLEAR) button, press the
corresponding key on the keyboard.
5
Press the [START/STOP] button to stop playback.
If you want to add more notes, press the [START/STOP] button again to continue recording.
6
34
Press the [1 ] or [2 ] button to disengage Record.
Tyros5 Reference Manual
 Recording Bass, Chord 1–2, Pad and Phrase 1–2
The procedure below applies to Step 4 in the Basic Procedure on page 32.
1
From the BASIC page, while holding down the [F] (REC CH) button, press one of the
[3 ]–[8 ] buttons to select the desired channel as Record target.
A confirmation message appears, prompting you whether or not to delete the already recorded data of the selected
channel. Press the [G] (YES) button to delete data and the selected channel is specified as the Record target. Note
that channel data of the preset Style cannot be overdubbed.
2
If necessary, select a Voice then practice the bass line, chord backing, or phrase to be
recorded.
Press one of the [3 ]–[8 ] buttons (selected channel) to call up the Voice Selection display then select the
desired Voice. After selecting, press the [EXIT] button to return to the original display. With the selected Voice,
practice the phrase or chord backing to be recorded.
• Available Voices for recording
Any except for the Organ World Voices/Drum Kit/SFX kit Voices can be used for recording.
• Record a phrase in C Maj7 (for playing appropriate notes while chords change during performance)
Rules when recording a Main or Fill
With the default initial settings, the Source Root/Chord is set to CMaj7. This means that you should record a
Source Pattern using a CMaj7 scale, which will change according to the chords you specify during normal performance. Record a bass line, phrase or chord backing which you want to hear when CMaj7 is specified. See
below for details.
• Use only the CMaj7 scale tones when recording the BASS and PHRASE channels (i.e., C, D, E, G, A, and B).
• Use only the chord tones when recording the CHORD and PAD channels (i.e., C, E, G, and B).
C R C
C R C
C = Chord note
C, R = Recommended note
If you observe this rule, Style playback notes are appropriately converted depending on the chord changes you
make during your performance.
Rules when recording an Intro or Ending
These Sections are designed assuming that the chord is not changed during playback. This is why you need not
observe the rule for Main and Fill-In Sections described above, and you can create special chord progressions
when recording. However, follow the rules below since the Source Root/Chord is set to CMaj7.
• When recording the Intro, make sure that the recorded phrase leads properly into the CMaj7 scale.
• When recording the Ending, make sure that the recorded phrase begins with or properly follows a CMaj7
scale.
NEXT PAGE
Tyros5 Reference Manual
35
Styles – Playing Rhythm and Accompaniment –
2
• Setting the Source Root/Chord if necessary
Although the Source Root/Chord is set to CMaj7 as described above, you can change this to any desired key or
chord. Use the TAB [E][F] buttons to call up the PARAMETER page, and set the SOURCE ROOT and
CHORD to the desired Root and Chord type. Keep in mind that when you change the Source Chord from the
default CMaj7 to another chord, the chord notes and recommended notes will also change. For details, refer to
page 43.
3
Press the STYLE CONTROL [START/STOP] button to start recording.
Since already recorded data plays back, use the [1 ]–[8 ] buttons to turn on or off each channel as desired. If
you selected an Audio Style as starting data, turn the Audio part on or off via the [H] button.
4
As soon as loop playback returns to the first beat in the first measure, start playing the
bass line, chord backing or phrase to be recorded.
5
Press the [START/STOP] button to stop playback.
If you want to add more notes, press the [START/STOP] button again to continue recording.
• To hear the playback sound of the already recorded channels with another Source Chord/Root:
1) Use the TAB [E][F] buttons to call up the PARAMETER page.
2) While holding down the [F] (REC CH) button, press the [1 ] or [2 ] button to set a Rhythm channel to
REC.
3) Press the STYLE CONTROL [START/STOP] button to start playback.
4) On the PARAMETER page, set the PLAY ROOT and CHORD to the desired Chord root and Chord type.
The above operation lets you hear how the Source Pattern is played back via chord changes during normal performance.
6
36
Press the [1 ] or [2 ] button to disengage Record.
Tyros5 Reference Manual
Step Recording
This section applies to Step 4 of the Basic Procedure on page 32. After selecting a Section and making other settings
on the BASIC page, call up the STEP RECORD display via the instructions below, then execute Step Recording.
1) From the BASIC page, while holding down the [F] (REC CH) button, press one of the [1 ]–[8 ] buttons to
select the desired channel as Record target.
2) Use the TAB [F] button to call up the EDIT page.
3) If “SYS/EX.” is shown at the position corresponding to the [F] button, press the [F] button to call up the Channel
Edit display.
4) Press the [G] (STEP REC) button to call up the STEP RECORD display.
The Step Recording procedure in the Style Creator is essentially same as that in Song Creator (page 59), with the
exception of the following points:
• Unlike in Song Creator, the End Mark position cannot be changed in the Style Creator. This is because setting the
Pattern Length on the BASIC page determines the End Mark position. For example, if you select a Section of four
measures or you set the Pattern Length to “4” on the BASIC page, the End Mark position is automatically set to the
end of the fourth measure, and cannot be changed.
• Unlike in Song Creator, a Recording channel can be set on the BASIC page. It cannot be set on the EDIT page.
• Unlike in Song Creator, Chord and Lyrics data cannot be entered. This is because such data is not necessary for
Style playback.
2
Styles – Playing Rhythm and Accompaniment –
For instructions on Step Recording, refer to pages 60–63. For information on the EDIT page (Event List display in
Song Creator), refer to page 72.
Style Assembly
This allows you to copy channel data as a Source Pattern from another preset Style to
the currently created Style. Use this function if you find a favorite rhythm pattern,
bass line, chord backing or phrase from another Style.
The instructions below apply to Step 4 of the Basic Procedure on page 32. After
selecting a Section and making other settings on the BASIC page, execute the
instructions below.
1
NOTE
An Audio part cannot be copied from
another Style.
NOTE
If you select an Audio Style as starting
data, the Audio part cannot be replaced
with different data.
Call up the operation display.
[CREATOR]  [B] STYLE CREATOR  TAB [E][F] ASSEMBLY
2
If necessary, select the Section to be edited.
Even if the Section to be edited has already been selected on the BASIC page, you
can change the Section also on this page. Press the desired Section button on the
panel to call up the SECTION window, use the [6 ]–[7 ] buttons if you
want to select a Fill in, then press the [8 ] (OK) button to actually enter the
selection.
NOTE
Intro 4 and Ending 4 can be selected on
the display then created as part of your
original Style although they are not
available on the panel.
NEXT PAGE
Tyros5 Reference Manual
37
3
Replace the Source Pattern of the specific channel with that of another Style.
3-1
3-2
3-3
3-4
3-5
Select the desired channel to be replaced via the [A]–[D] and [F]–[I] buttons.
Press the same button of the selected channel to call up the Style Selection display.
Select the desired Style, then press the [EXIT] button to return to the original display.
Select the Section and Channel of the selected Style via the [2 ]–[5 ] buttons.
Confirm the sound with the newly assigned Source Pattern via the [6 ]–[7 ] buttons.
For details, see “Playing the Style During Style Assembly” below.
3-1,
3-2
[A]–[D],
[F]–[I]
buttons
3-3
3-4
4
3-5
As desired, execute the same operations for another channel.
Playing the Style During Style Assembly
While you are assembling a Style, you can play back the Style and select the method of playback. Use the
[6 ]/[7 ] (PLAY TYPE) buttons in the Style Assembly display to select the playback method.
• SOLO: Plays back the selected channel in the ASSEMBLY Page. Any channels set to REC in the REC
CHANNEL display on the BASIC Page are played back simultaneously.
• ON: Plays back the selected channel in the ASSEMBLY Page. Any channels set to other than OFF in the
REC CHANNEL display on the BASIC Page are played back simultaneously.
• OFF: Mutes the selected channel in the ASSEMBLY Page.
38
Tyros5 Reference Manual
Editing the Rhythmic Feel (GROOVE)
By changing the timing of all the notes and velocities, you can edit the rhythmic feel for each channel of the current
Section selected on the BASIC page or the panel button. The instructions below apply to Step 5 of the Basic Procedure
on page 32.
1
3
2
2
1
Styles – Playing Rhythm and Accompaniment –
1
In the GROOVE Page, use the [A]/[B] buttons to select the edit menu, then edit the data
by using the [1 ]–[8 ] buttons.
1 GROOVE
This lets you add swing to the music or change the “feel” of the beat by making subtle shifts in the timing (clock)
of the Style. The Groove settings are applied to all channels of the Section selected on the BASIC page.
[1 ]/
[2 ]
ORIGINAL BEAT
Specifies the beats to which Groove timing is to be applied. In other words, if “8
Beat” is selected, Groove timing is applied to the 8th notes; if “12 Beat” is selected,
Groove timing is applied to 8th-note triplets.
[3 ]/
[4 ]
BEAT
CONVERTER
Actually changes the timing of the beats (specified in the ORIGINAL BEAT parameter above) to the selected value. For example, when ORIGINAL BEAT is set to “8
Beat” and BEAT CONVERTER is set to “12,” all 8th notes in the section are shifted
to 8th-note triplet timing. The “16A” and “16B” Beat Converter which appear when
ORIGINAL BEAT is set to “12 Beat” are variations on a basic 16th-note setting.
[5 ]/
[6 ]
SWING
Produces a “swing” feel by shifting the timing of the back beats, depending on the
ORIGINAL BEAT parameter above. For example, if the specified ORIGINAL BEAT
value is “8 Beat,” the Swing parameter will selectively delay the 2nd, 4th, 6th, and 8th
beats of each measure to create a swing feel. The settings “A” through “E” produce
different degrees of swing, with “A” being the most subtle and “E” being the most
pronounced.
[7 ]/
[8 ]
FINE
Selects a variety of Groove “templates” to be applied to the selected section. The
“PUSH” settings cause certain beats to be played early, while “HEAVY” settings
delay the timing of certain beats. The numbered settings (2, 3, 4, 5) determine which
beats are to be affected. All beats up to the specified beat—but not including the first
beat—will be played early or delayed (for example, the 2nd and 3rd beats, if “3” is
selected). In all cases, “A” types produce minimum effect, “B” types produce medium
effect, and “C” types produce maximum effect.
NEXT PAGE
Tyros5 Reference Manual
39
2 DYNAMICS
This changes the velocity/volume (or accent) of certain notes in Style playback. The Dynamics settings are applied
to each channel or all channels of the Section selected on the BASIC page.
2
[1 ]/
[2 ]
CHANNEL
Selects the desired channel (part) to which Dynamics is to be applied. The selected
channel is shown at the upper left of the display.
[3 ]/
[4 ]
ACCENT TYPE
Determines the type of accent applied—in other words, which notes in the part(s) are
emphasized with the Dynamics settings.
[6 ]
STRENGTH
Determines how strongly the selected Accent Type (above) will be applied. The
higher the value, the stronger the effect.
[7 ]
EXPAND/COMP.
Expands or compresses the range of velocity values. Values higher than 100% expand
the dynamic range, while values lower than 100% compress it.
[8 ]
BOOST/CUT
Boosts or cuts all velocity values in the selected section/channel. Values above 100%
boost the overall velocity, while values below 100% reduce it.
Press the [D] (EXECUTE) button to actually enter the edits for each display.
The values which are shown in the STRENGTH, EXPAND/COMP. and BOOST/CUT parameters are expressed as
a percentage of the last set value.
After the operation is completed, this button changes to “UNDO,” letting you restore the original data if you are
not satisfied with the Groove or Dynamics results. The Undo function only has one level; only the previous operation can be undone.
40
Tyros5 Reference Manual
Editing Data for Each Channel (CHANNEL)
You can edit recorded data for each channel of the current Section selected on the BASIC page or via the panel
buttons. The instructions below apply to Step 5 of the Basic Procedure on page 32.
1
5
4
2
1
3
In the CHANNEL Page, use the [A]/[B] buttons to select the particular edit operation.
1 QUANTIZE
Same as in the Song Creator (page 70), with the exception of the two additional available parameters below.
Eighth notes with swing
Sixteenth notes with swing
2 VELOCITY CHANGE
Boosts or cuts the velocity of all notes in the specified channel, according to the percentage specified here.
3 BAR COPY
This function allows data to be copied from one measure or group of measures to another location within the specified channel.
[4 ]
TOP
[5 ]
LAST
[6 ]
DEST
Specifies the first (TOP) and last (LAST) measures in the region to be copied.
Specifies the first measure of the destination location, to which the data is to be copied.
4 BAR CLEAR
This function clears all data from the specified range of measures within the selected channel.
5 REMOVE EVENT
This function lets you remove specific events from the selected channel.
2
Use the [1 ]/[2 ] (CHANNEL) buttons to select the channel to be edited.
The selected channel is shown at the upper left of the display.
3
4
Use the [4 ]–[8 ] buttons to edit the data.
Press the [D] (EXECUTE) button to actually enter the edits for each display.
After the operation is completed, this button changes to “UNDO,” letting you restore the original data if you are
not satisfied with the results of the edit. The Undo function only has one level; only the previous operation can be
undone.
5
Press the [I] (SAVE) button to execute the Save operation.
NOTICE
The edited Style will be lost if you
change to another Style or turn
the power to the instrument off
without executing the Save operation.
Tyros5 Reference Manual
41
Styles – Playing Rhythm and Accompaniment –
2
Making Style File Format Settings (PARAMETER)
The Style File Format (SFF) combines all of Yamaha’s auto accompaniment (Style playback) know-how into a single
unified format. Setting the SFF related parameters determines how the original notes are converted to the actual
sounded notes based on the chord you specify in the Chord area of the keyboard. The conversion flow is shown below.
Source Pattern settings
• Source Root
• Source Chord
Determines what key and what chord type are used for playing.
Set these parameters
before recording.
Chord changes during normal performance
Note Conversion from the Source Pattern
• NTR (Conversion via the Chord Root change) …page 44
• NTT (Conversion via the Chord Type change) … page 44
Octave Setting of the Converted Notes
Set these parameters
after recording.
• High Key (Upper octave limit of the Note Transposition)
• Note Limit (Note range between the highest and lowest notes)
Others
• RTR (How the note pitch changes in response to chord changes)
Actual Sounded Notes
The instructions below apply to Step 5 of the Basic Procedure on page 32.
1
NOTE
In the PARAMETER Page, use the [A]/[B] buttons to select the
particular edit operation.
For details on the edit operations, see page 43.
The parameters you can set here are
compatible with the SFF GE format. This
is why the Style files created on this
instrument can be played back only on
instruments which are compatible with
SFF GE.
1
4
2
NEXT PAGE
42
Tyros5 Reference Manual
3
2
Use the [1 ]/[2 ] (CHANNEL) buttons to select the channel to be edited.
The selected channel is shown at the upper left of the display.
3
Use the [3 ]–[8 ] buttons to edit the data.
For details on editable parameters, see the explanations following Step 4 below.
4
Press the [I] (SAVE) button to execute the Save operation.
NOTICE
The edited Style will be lost if you
change to another Style or turn
the power to the instrument off
without executing the Save operation.
IMPORTANT
2
Styles – Playing Rhythm and Accompaniment –
The parameters here should be
set before recording. If you
change the settings after recording, the appropriate note conversion cannot be done even when
you specify various chord types.
1 SOURCE (PLAY) ROOT/CHORD
Before recording, you should set these parameters. They determine what key is used for playing when you record
the Source Pattern to the Bass, Chord, Pad or Phrase channel. If you set this to “Fm7,” your recorded original
phrase (Source Pattern) will be triggered by specifying Fm7 during normal performance. CMaj7 (Source Chord
Root = C and Source Chord Type = Maj7) is set by default. Depending on the settings here, the playable notes
(chord notes and recommended scale notes) will differ. For details, see below.
When the Source Root is C:
C6
CMaj
CM 7 #11
CM 7
CM 7 (9)
C add9
C 6 (9)
C
C R C
C R
C R C
C C R
Cm
Caug
R C R
Cm 7 (11)
C R
C
C
C R
C 7 b5
C
C
C C C
C
C
R C
C
R C
C
C
C R C
C R
C
C R C
C C
C 1+5
C
C
C
R C
C 7 sus4
C
C
C 7 (b13)
C
C
C C
C
C R
C
C
C C R
C
R C
C R
C 7 (b9)
C
C
C C
R
C C C
Cm 7 (9)
C7
C
R
C R C
Cm add9
R
C R
C 7 (13)
C R
C C C
C R
Cdim 7
C
C
C R C
C 1+8
C 7 aug
R C
C C
C
R C
Cdim
C 7 #11
C
CM 7 aug
C R C R
C
C 7 (9)
C R C
C
C
C C C
Cm 7 b5
C
R C C
CmM 7 (9)
R C
C R C
Cm 7
C
C R
C C
C R C
C
R C
CmM 7
C
C R C
Cm 6
C R
C R C
C R C
C C
C 7 (#9)
R
C
C
C
C
C C
C R C
C
C
R
C
C
Csus 2
Csus 4
R C C
C R C
C
C
C
C R
C C
C C R
C R
C = Chord notes
C, R = Recommended notes
NOTE
When Rhy1 or Rhy2 is selected as
Record target, the parameter name here
is shown as “PLAY ROOT” instead of
“CHORD ROOT.” In this situation, you
can confirm the actual sound in
response to each Chord type by changing the Chord Root and Type.
NOTE
The settings here are not applied when
NTR is set to GUITAR.
Tyros5 Reference Manual
43
2 NTR/NTT
The settings here determine how the original notes of the Source Pattern are converted in response to the Chord
change during normal performance.
[3 ]/
[4 ]
NTR (Note Transposition Rule)
Determines the relative position of the root note in the chord, when converted from the
Source Pattern in response to chord changes. Refer to the list below.
[5 ]–
[7 ]
NTT (Note Transposition Table)
Sets the note transposition table for the source pattern. Refer to the list below.
[8 ]
NTT BASS ON/
OFF
The channel for which this is set to ON will be played back by the bass root note,
when on-bass chords are recognized by the instrument. When NTR is set to GUITAR
and this parameter is set to ON, only notes which are assigned to the bass will be
played back by the bass root note.
NTR (Note Transposition Rule)
ROOT TRANS
(Root Transpose)
ROOT FIXED
GUITAR
When the root note is transposed, the interval between
notes is maintained. For example, the notes C3, E3 and G3
in the key of C become F3, A3 and C4 when they are transposed to F. Use this setting for channels that contain melody lines.
The note is kept as close as possible to the previous note
range. For example, the notes C3, E3 and G3 in the key of
C become C3, F3 and A3 when they are transposed to F.
Use this setting for channels that contain chord parts.
When playing
a C major
chord.
When playing
an F major
chord.
When playing
a C major
chord.
When playing
an F major
chord.
This is exclusively for transposing guitar accompaniment. Notes are transposed to
approximate the chords played with natural guitar fingering.
NTT (Note Transposition Table)
When NTR is set to ROOT TRANS or ROOT FIXED
BYPASS
When NTR is set to ROOT FIXED, the transposition table used does not do any note
conversion. When NTR is set to ROOT TRANS, the table used only converts the notes
by maintaining the pitch relationship between notes.
MELODY
Suitable for melody line transposition. Use this for melody channels such as Phrase 1
and Phrase 2.
CHORD
Suitable for chordal parts transposition. Use this for the Chord 1 and Chord 2 channels,
especially when they contain piano or guitar-like chordal parts.
MELODIC MINOR
When the played chord changes from a major to a minor chord, this table lowers the
third interval in the scale by a semitone. When the chord changes from a minor to a
major chord, the minor third interval is raised by a semitone. Other notes are not
changed. Use this for melody channels of Sections which respond only to major/minor
chords, such as Intros and Endings.
MELODIC MINOR 5th
In addition to the Melodic Minor transposition above, augmented and diminished chords
affect the 5th note of the Source Pattern.
HARMONIC MINOR
When the played chord changes from a major to a minor chord, this table lowers the
third and sixth intervals in the scale by a semitone. When the chord changes from a
minor to a major chord, the minor third and flatted sixth intervals are raised by a semitone. Other notes are not changed. Use this for chord channels of Sections which
respond only to major/minor chords, such as Intros and Endings.
HARMONIC MINOR 5th
In addition to the Harmonic Minor transposition above, augmented and diminished
chords affect the 5th note of the Source pattern.
NATURAL MINOR
When the played chord changes from a major to a minor chord, this table lowers the
third, sixth and seventh intervals in the scale by a semitone. When the chord changes
from a minor to a major chord, the minor third, flatted sixth and flatted seventh intervals
are raised by a semitone. Other notes are not changed. Use this for chord channels of
Sections which respond only to major/minor chords such as in Intros and Endings.
NEXT PAGE
44
Tyros5 Reference Manual
NATURAL MINOR 5th
In addition to the Natural Minor transposition above, augmented and diminished chords
affect the 5th note of the Source pattern.
DORIAN
When the played chord changes from a major to a minor chord, this table lowers the
third and seventh intervals in the scale by a semitone. When the chord changes from a
minor to a major chord, the minor third and flatted seventh intervals are raised by a
semitone. Other notes are not changed. Use this for chord channels of Sections which
respond only to major/minor chords such as in Intros and Endings.
DORIAN 5th
In addition to the Dorian transposition above, augmented and diminished chords affect
the 5th note of the Source pattern.
When NTR is set to GUITAR
ALL-PURPOSE
This table covers both strummed- and arpeggio-played sounds.
STROKE
Suitable for strumming sounds of the guitar. Some notes may sound as if they are
muted—this is normal when chords are strummed on an actual guitar.
ARPEGGIO
Suitable for arpeggio-played sound of the guitar, resulting in beautiful four-note arpeggio sounds.
2
Styles – Playing Rhythm and Accompaniment –
3 HIGH KEY / NOTE LIMIT
The settings here adjust the octave of the notes converted from the original ones through NTT and NTR.
[4 ]/
[5 ]
HIGH KEY
This sets the highest key (upper octave limit) of the note transposition for the chord
root change. Any notes calculated to be higher than the highest key are transposed
down to the next lowest octave. This setting is available only when the NTR parameter (page 44) is set to “Root Trans.”
Example—When the highest key is F.
Root changes
Notes played
[6 ]
NOTE LIMIT LOW
[7 ]
NOTE LIMIT
HIGH
CM
C3-E3-G3
♯
♯
♯
CM
♯
C 3-E 3-G 3
FM
F3-A3-C4
♯
♯
♯
FM
♯
F 2-A 2-C 3
These set the note range (highest and lowest notes) for Voices recorded to the Style
channels. By judicious setting of this range, you can ensure that the Voices sound as
realistic as possible—in other words, that no notes outside the natural range are
sounded (e.g., high bass sounds or low piccolo sounds).
Example—When the lowest note is C3 and the highest is D4.
♯
Root changes
CM
CM
FM
♯
♯
♯
Notes played
E3-G3-C4
E 3-G 3-C 4
F3-A3-C4
High Limit
Low Limit
4 RTR (Retrigger Rule)
These settings determine whether notes stop sounding or not and how they change pitch in response to chord
changes.
STOP
The notes stop sounding.
PITCH SHIFT
The pitch of the note will bend without a new attack to match the type of the new chord.
PITCH SHIFT TO ROOT
The pitch of the note will bend without a new attack to match the root of the new chord.
RETRIGGER
The note is retriggered with a new attack at a new pitch corresponding to the next chord.
RETRIGGER TO ROOT
The note is retriggered with a new attack at the root note of the next chord. However, the
octave of the new note remains the same.
Tyros5 Reference Manual
45
Multi Pads
3
– Adding Musical Phrases to Your Performance –
Contents
Multi Pad Creating (Multi Pad Creator)....................................................... 46
• Multi Pad—Realtime Recording via MIDI ................................................ 46
• Multi Pad—Step Recording via MIDI ....................................................... 48
Multi Pad Editing............................................................................................. 48
Multi Pad Creating (Multi Pad Creator)
This feature lets you create your original Multi Pad phrases, and also allows you to edit existing Multi Pad phrases to
create your own. As with Song Creator, Multi Pad Creator features Realtime Recording and Step Recording. However,
with Song Creator, each Multi Pad consists of only one channel and convenient functions such as Punch In/Out are not
available.
Multi Pad—Realtime Recording via MIDI
Before starting operation, note the following points:
• Since only the Right 1 part performance will be recorded as a Multi Pad phrase, you should select the desired Voice
for the Right 1 part beforehand.
• The Super Articulation Voices and the Organ Flutes Voices cannot be used for Multi Pad Recording. If one of these
Voices is set for the Right 1 part, it will be replaced with the Grand Piano Voice when recording.
• Since recording can be done along with and synchronized to Style playback, you should select the desired Style
beforehand. However, keep in mind that the Style is not recorded.
1
If you want to create a new Multi Pad in the existing Bank, select the desired Multi Pad
Bank.
If you want to create a new Multi Pad in an empty new Bank, this step is unnecessary.
2
Call up the operation display.
[CREATOR]  [C] MULTI PAD CREATOR
5
4
12
6
14
10
NEXT PAGE
46
Tyros5 Reference Manual
11
3
If necessary, select the desired Voice with the VOICE category selection buttons.
After selecting the Voice, press the [EXIT] button to return to the previous display.
4
If you want to create a new Multi Pad in an empty new Bank, press the [C] (NEW BANK)
button.
5
Select a particular Multi Pad for recording by pressing any of the [A], [B], [F] and [G] buttons.
6
Press the [H] (REC) button to enter recording standby status for the Multi Pad selected
in step 5.
7
Play the keyboard to start recording.
If you want to insert silence before the actual phrase, press the STYLE CONTROL [START/STOP] to start both
the Recording and rhythm playback (of the current Style). Keep in mind that the rhythm part of the current Style
plays back during recording although it is not recorded.
3
Recommended notes for the Chord Match phrase
Multi Pads – Adding Musical Phrases to Your Performance –
If you intend to create a Chord Match phrase, use the notes of C, D, E, G, A and B, or in other words, play the
phrase in the key of C major. This ensures that the phrase will stay harmonically constant and match whichever
chord you play in the left hand section of the keyboard.
C = Chord note
C R C
8
C R C C, R = Recommended note
Stop recording.
Press the [H] (STOP) button or the panel MULTI PAD CONTROL [STOP] button or the STYLE CONTROL
[START/STOP] button to stop recording when you’ve finished playing the phrase.
9
10
Listen back to your newly recorded phrase, by pressing the appropriate MULTI PAD button, [1]–[4]. To re-record the phrase, repeat steps 6–8.
Turn the Repeat parameter of each pad On or Off by using the [1 ]–[4 ] buttons.
If the Repeat parameter is on for the selected pad, playback of the corresponding pad will continue until the
MULTI PAD [STOP] button is pressed. When you press a Multi Pad for which Repeat is turned on during Song or
Style playback, playback will start and repeat in sync with the beat.
If the Repeat parameter is off for the selected pad, playback will end automatically as soon as the end of the phrase
is reached.
11
Turn Chord Match of each pad On or Off by using the [5 ]–[8 ] buttons.
If the Chord Match parameter is on for the selected pad, the corresponding pad is played back according to the
chord specified in the chord section of the keyboard generated by turning [ACMP] on.
12
Press the [D] (NAME) button, then enter the desired name for each Multi Pad.
13
If you want to record other Multi Pads, repeat steps 5–12.
14
Press the [I] (SAVE) button to save the Multi Pad, then save the Multi Pad data as a Bank
containing a set of four Pads.
Tyros5 Reference Manual
47
Multi Pad—Step Recording via MIDI
Step Recording can be executed in the EDIT page. After selecting a Multi Pad in step 5 on page 47, press the TAB [F]
button to select the EDIT page.
The EDIT page indicates the Event list, which lets you record notes with absolutely precise timing. This Step
Recording procedure is essentially the same as that for Song Recording (pages 60–63), with the exception of the
points listed below:
• There is no LCD button for switching channels, since Multi Pads contain data for only a single channel.
• In the Multi Pad Creator, only channel events and System Exclusive messages can be entered. Chord and Lyrics
events are not available. You can switch between the two types of Event Lists by pressing the [F] button.
Multi Pad Editing
You can manage (rename, copy, paste and delete) your created Multi Pad Bank and each of the Multi Pads belonging
to the Bank. For instructions on managing the Multi Pad Bank, refer to the Basic Operations of the Owner’s Manual.
This section covers how to manage each Multi Pad.
1
Select the Multi Pad Bank containing the Multi Pad to be edited.
Press the MULTI PAD CONTROL [SELECT] button to call up the Multi Pad
Bank Selection display, use the TAB [E][F] buttons to call up “PRESET,”
“USER” or “USB” (when USB flash memory is connected), then use the [A]–[J]
buttons to select the desired Multi Pad Bank.
2
Press the [7 ] (EDIT) button of Menu 1 to call up the MULTI PAD EDIT display.
3
Select a particular Multi Pad to be edited by pressing any of the [A], [B], [F] and [G] buttons.
4
Edit the selected Pad.
[1 ]
NAME
Changes the name of each Multi Pad.
[3 ]
COPY
Copies the Multi Pad(s). See below.
[4 ]
PASTE
Pastes the Multi Pad(s) copied by the [3 ] button.
[5 ]
DELETE
Deletes the selected Multi Pads.
NEXT PAGE
48
NOTE
If you select a Preset Multi Pad Bank
then edit the Multi Pads, save your edits
to “USER” or “USB” (when USB flash
memory is connected) as a User Bank.
Tyros5 Reference Manual
Copying the Multi Pad
1 Press the [3 ] button of Menu 2 in step 4 above.
2 Select the Multi Pad to be copied by using the [A], [B], [F] and [G] buttons, then press the [7 ] (OK)
button.
The selected Multi Pad is copied to the clipboard.
3 Select the destination location by using the [A], [B], [F] and [G] buttons. If you want to copy the
selected Pad to another bank, press the [8 ] (UP) button to call up the Multi Pad Bank Selection display, select the desired bank, press the [7 ] (EDIT) button of Menu 1, then select the destination.
4 Press the [4 ] (PASTE) button of Menu2 button to execute the Copy operation.
5
Save the current Bank containing the edited Multi Pads.
Press the [8 ] button to call up the confirmation window, press the [G] (YES) button to call up the USER page,
then press the [6 ] (SAVE) button of Menu2 to execute the Save operation. For details, refer to the Basic Operations of the Owner’s Manual.
3
Multi Pads – Adding Musical Phrases to Your Performance –
Tyros5 Reference Manual
49
4
Songs
– Recording Your Performances as MIDI Songs –
Contents
Editing Music Notation Settings..................................................................... 51
Editing Lyrics/Text Display Settings .............................................................. 53
Using the Auto Accompaniment Features with Song Playback................... 54
Song Playback Related Parameters (Repeat Settings, Channel Settings,
Guide Function) ............................................................................................... 55
• Keyboard and Vocal Practice Using the Guide Function ........................... 56
• Playing Backing Parts with the Performance Assistant Technology ......... 58
Creating/Editing Songs (Song Creator) ......................................................... 59
• Recording Melodies (Step Recording) ....................................................... 60
• Recording Chords (Step Recording) .......................................................... 64
• Re-Recording a Specific Section—Punch In/Out (Realtime Recording) .. 67
• Editing Channel Events of Existing Song Data.......................................... 69
• Editing Chord Events, Notes, System Exclusive Events and Lyrics .......... 72
• Editing Song Position Markers................................................................... 75
Restrictions for protected Songs
To prevent illegal copy or accidental erasure, protection is applied depending on the Song. The protection indication
is marked at the upper left of the protected Song name on the display.
• Prot.1: Indicates that the Preset Song is saved to the User drive. This type of Song cannot be copied, moved and
transferred to external devices such as a USB flash memory and a computer.
• Prot.2 Orig: Indicates Yamaha-protection-formatted Songs (commercially available Songs). This type of Song
(which cannot be copied) can be only moved and saved to the User drive or USB storage device with ID.
• Prot.2 Edit: Indicates the edited “Prot.2” Song. This type of Song (which cannot be copied) can be only moved and
saved to the User drive or USB storage device with ID.
IMPORTANT
Make sure that the “Prot.2 Orig” Song and the corresponding “Prot.2 Edit” Song reside in the same folder. Otherwise, the “Prot.2 Edit”
Song cannot be played back. If you move this type of Song, make sure to move both the “Prot.2 Orig” and “Prot.2 Edit” Songs to the same
folder.
IMPORTANT
Never change the “Prot2.Orig” Song name and icon on the display. Otherwise, the corresponding “Prot.2 Edit” Song cannot be played back.
50
Tyros5 Reference Manual
Editing Music Notation Settings
To view the music notation of the selected Song, press the [SCORE] button. You can
change the Score display as desired to suit your personal preferences. The settings
here are maintained even when the power is turned off.
NOTE
You can save the setting here as a part
of a Song by accessing [CREATOR] 
[A] SONG CREATOR  TAB [E][F]
CHANNEL  [A]/[B] SETUP. See
page 71.
NOTE
Depending on the particular commercially available Song, Score display may
not be possible.
NOTE
The score of an Audio Song cannot be
shown because the score is created
based only on MIDI events.
4
LEFT ON/OFF
Enables/disables display of the left-hand notation. Depending on other settings, this parameter
may be unavailable and may appear grayed out. If this is the case, go to the detailed setting display (on page 52) and set the LEFT CH parameter to any channel except “AUTO.” Or, go to the
display [FUNCTION]  [B] SONG SETTING and set the TRACK 2 parameter to any channel
except “OFF” (page 55). RIGHT (next parameter) and LEFT cannot be turned off at the same
time.
[2 ]
RIGHT ON/
OFF
Enables/disables display of the right-hand notation. RIGHT and LEFT (above) cannot be turned
off at the same time.
[3 ]
CHORD ON/
OFF
Enables/disables display of the chords. If the selected Song does not contain chord data, chords
are not displayed.
[4 ]
LYRICS ON/
OFF
Enables/disables display of the lyrics. If the selected Song does not contain lyric data, lyrics are
not displayed. When the Song contains Pedal events, pressing these buttons can display the Pedal
events, instead of displaying Lyrics.
[5 ]
NOTE ON/OFF
Enables/disables display of the note name (pitch). The note name is indicated at the left of the
note. When the space between the notes is too small, the indication may be moved to the top left
of the note. When the Song contains Fingering events, pressing these buttons can display the fingering, instead of displaying note names.
[6 ]
COLOR ON/
OFF
When this is set to ON, the notes in the display appear in color (C: red, D: yellow, E: green, F:
orange, G: blue, A: purple, and B: gray).
[7 ]
SIZE
Determines the display zoom level of the notation.
[8 ]
SET UP
Calls up the detailed setting display. See page 52.
Tyros5 Reference Manual
Songs – Recording Your Performances as MIDI Songs –
[1 ]
51
1
Pressing the [8 ] (SET UP) button calls up the detailed setting display. You can set
the view type by using the [1 ]–[6 ] buttons, then press the [8 ] (OK) button.
[1 ]
LEFT CH
[2 ]
RIGHT CH
Determines which MIDI channel in the Song data is used for the left-hand/right-hand part.
This setting returns to AUTO when a different Song is selected.
AUTO: The MIDI channels in the Song data for the right- and left-hand parts are assigned
automatically—setting the parts to the same channel as the channel which is specified
in [FUNCTION]  [B] SONG SETTING (page 55).
1–16: Assigns the specified MIDI channel (1–16) to each of the left- and right-hand parts.
OFF (Available setting only for LEFT CH): Assigns no channel to the left-hand part.
This disables display of the left-hand key range.
[3 ]/
[4 ]
KEY
SIGNATURE
This lets you enter key signature changes in the middle of a Song, at the stopped position.
This menu is useful when the selected Song contains no key signature settings for displaying notation.
[5 ]
QUANTIZE
This gives you control over the note resolution in the notation, letting you shift or correct
the timing of all displayed notes so that they line up to a particular note value. Make sure
to select the smallest note value used in the Song.
[6 ]
NOTE NAME
Selects the type of the note name indicated at the left of the note in the notation from
among the following three types. The settings here are available when the NOTE ON/OFF
parameter above is set to ON.
A, B, C: Note names are indicated as letters (C, D, E, F, G, A, B).
Fixed DO: Note names are indicated in solfeggio, with the note of C fixed to DO. The
notes “C, D, E, F, G, A, B” are always indicated as “Do, Re, Mi, Fa, So, La, Ti” when
the language is set to English. Note that the note name indication differs depending on
the current language (page 56).
Movable DO: Note names are indicated in solfeggio according to the key of the current
Song. When the Song with the D Major key is selected, for example, the notes “D, E,
F#, G, A, B, C#” are indicated as “Do, Re, Mi, Fa, Sol, La, Ti” when the language is
set to English. Note that the note name indication differs depending on the current language (page 56).
52
Tyros5 Reference Manual
Editing Lyrics/Text Display Settings
To view the lyrics of the selected Song, press the [LYRICS/TEXT] button. If the
selected Song contains lyric data, you can have the lyrics shown in the display. Even if
the Song does not contain lyrics data, you can show the lyrics and other text by using
a text file (.txt file less than 60KB) created on a computer.
NOTE
When the lyrics are garbled or unreadable, you may need to change the Lyrics
Language setting from the [FUNCTION]
 [B] SONG SETTING.
NOTE
When you create a text file on a computer, make sure to enter line breaks
manually. This is necessary because
auto line breaks cannot be executed on
this instrument. When you find that the
text extends beyond the display and
cannot be shown properly, revise the
text data by manually entering appropriate line breaks.
Lyrics display
Text display
The lyrics in the Song data are shown.
The text created on a computer is shown.
Press the
[1 ] buttons
4
Songs – Recording Your Performances as MIDI Songs –
Press the [5 ]/[6 ] button to
actually call up the desired text file.
[1 ]
TEXT/LYRICS
Switches the screen between the Lyrics display (lyrics data in the Song is shown) and the
Text display (a text file selected via the [5 ]/[6 ] buttons).
[5 ]/
[6 ]
TEXT FILE
Calls up the text File Selection display. After selecting, press the [EXIT] button to return
back to the Lyrics/Text display.
[7 ]/
[8 ]
BACK GROUND
Allows changing of the background picture of the Lyrics/Text display. After making the setting, press the [EXIT] button to return back to the Lyrics/Text display.
NOTE
When the background picture is specified in the Song data, the BACKGROUND setting cannot be changed.
NOTE
For information on available image files, refer to the MAIN PICTURE parameter on page 130.
Tyros5 Reference Manual
53
Using the Auto Accompaniment Features with Song Playback
When playing back a Song and a Style at the same time, channels 9-16 in the Song data are replaced with Style
channels—allowing you to play the accompaniment parts of the Song yourself. Try playing chords along with the
Song playback as shown in the instructions below.
1
Select a Song.
2
Select a Style.
3
While holding down the SONG [J] (STOP) button, press the [F/ K] (PLAY/PAUSE) button to enable synchronized start of the Song.
4
Press the STYLE CONTROL [ACMP] button to turn on the auto accompaniment function,
then press the [SYNC START] button to enable synchronized start of the accompaniment.
5
Press the STYLE CONTROL [START/STOP] button or play
chords in the chord section.
The Song and Style starts playing. When you play chords, pressing the [SCORE]
button and turning CHORD on (page 51) allows you to see the chord information.
When the Song playback is stopped, Style playback is also stopped at the same
time.
54
Tyros5 Reference Manual
NOTE
When playing back a Song and a Style
at the same time, the tempo value set in
the Song is automatically used.
Song Playback Related Parameters (Repeat Settings, Channel Settings,
Guide Function)
The instrument has a variety of Song playback functions—repeat playback, various guide settings, etc.—which can be
accessed in the display below.
1
Call up the operation display.
[FUNCTION]  [B] SONG SETTING
4
GUIDE MODE
[1 ]
GUIDE ON/OFF
[G]
REPEAT MODE
Songs – Recording Your Performances as MIDI Songs –
[A]/[B]
See page 56.
Determines the method of repeat playback.
OFF: Plays through the selected Song, then stops.
SINGLE: Plays through the selected Song repeatedly.
ALL: Continues playback through all the Songs in the specified folder repeatedly.
RANDOM: Continues playback at random through all the Songs in the specified
folder repeatedly.
[H]
REPEAT FOLDER
Determines the directory in which the contained Songs are played in sequence when
REPEAT MODE is set to “ALL” or “RANDOM.” Here, the directory refers to the
path memorized to each of the SONG [I]–[IV] buttons.
CURRENT: Sequentially plays all Songs in the directory containing the currently
selected Song, starting with the currently selected Song.
ALL: Sequentially plays all Songs in all directories (memorized to the SONG [I]–
[IV] buttons). Playback starts with the currently selected Song, then the remainder
of the Songs in the current directory, followed by the Songs in the other directories.
[I]
PHRASE MARK
REPEAT
This parameter is available only when the current Song contains Phrase Marks, which
specify certain locations (of several measures each) in the Song. When this is set to
ON, the section corresponding to the Phrase Mark (specified via the SONG [G]
(REW) and [H] (FF) buttons) is played back repeatedly. Note that this parameter
can be set only when Song playback is stopped.
NEXT PAGE
Tyros5 Reference Manual
55
[2 ]
LEFT CH
[3 ]
RIGHT CH
[4 ]
AUTO CH SET
When set to “ON,” this automatically sets the proper MIDI channels for the Rightand Left hand parts pre-programmed in the commercially available Song data. Normally, this should be set to “ON.”
[5 ]/
[6 ]
LYRICS
LANGUAGE
Determines the language displayed in the Lyrics display.
These parameters determine which MIDI channel in the Song data is assigned to the
Left- or Right-hand part of the Guide function and the Song Score function.
AUTO: When the language is specified in the Song data, the lyrics are displayed
accordingly. When the language is not specified in the Song data, the lyrics language is regarded as INTERNATIONAL below.
INTERNATIONAL: Handles the displayed lyrics as a western language.
JAPANESE: Handles the displayed lyrics as Japanese.
[7 ]
QUICK START
On some commercially available Song data, certain settings related to the Song (such
as Voice selection, volume, etc.) are recorded to the first measure, before the actual
note data. When Quick Start is set to “ON,” the instrument reads all initial non-note
data of the Song at the highest possible speed, then automatically slows down to the
appropriate tempo at the first note. This allows you to start playback as quickly as possible, with a minimum pause for reading of data.
[8 ]
P.A.T. (Performance
Assistant Technology)
See page 58.
Keyboard and Vocal Practice Using the Guide Function
With the Guide function, the instrument indicates the timing you need to play notes in the Score display for ease in
learning. This instrument also features convenient vocal practice tools that automatically adjust the timing of Song
playback to match your vocal performance.
1
Select the desired Song for practicing the keyboard or singing.
2
Call up the Song Setting display.
[FUNCTION]  [B] SONG SETTING
3
Use the [A]/[B] buttons to select the desired Guide function type.
3
4
NEXT PAGE
56
Tyros5 Reference Manual
Guide menu for keyboard practice
• Follow Lights
When this is selected, Song playback pauses, waiting for you to play the notes correctly. When you play the correct notes, Song playback continues. Follow Lights was developed for the Yamaha Clavinova series. This function is used for practicing purposes, with built-in lamps on the keyboard indicating the notes to be played. Even
though the Tyros5 does not have these lamps, you can use the same function by following the indications in the
displayed notation with the Song Score function.
• Any Key
With this function, you can play the melody of a Song just by pressing a single key (any key is OK) in time with
the rhythm. Song playback pauses and waits for you to play any key. Simply play a key on the keyboard in time
with the music and Song playback continues.
• Your Tempo
The same as Follow Lights, except that Song playback matches the speed at which you play.
Guide menu for singing
• Karao-Key
This function lets you control the Song playback timing with just one finger, while you sing along. This is useful
for singing to your own performance. Song playback pauses, waiting for you to sing. Simply play any key on the
keyboard (playing the keyboard produces no sound) and Song playback continues.
4
Use the [1 ] button to turn the Guide function ON.
4
“G” indication is shown in the Song name box on the Main display.
Call up the Score display by pressing the [SCORE] button.
6
Press the SONG [F/ K] (PLAY/PAUSE) button to start playback.
Songs – Recording Your Performances as MIDI Songs –
5
Practice playing the keyboard or singing, along with the Guide type selected in step 3.
7
Press the [J] (STOP) button to stop playback.
NOTE
You can save the Guide settings as a
part of the Song data (page 71). For
Songs to which the Guide settings have
been saved, the Guide function will be
automatically turned on and the related
settings will be recalled when the Song
is selected.
Tyros5 Reference Manual
57
Playing Backing Parts with the Performance Assistant Technology
This feature lets you play your own backing parts on the keyboard along with Song playback, and have them sound
perfectly appropriate (even though you might be playing wrong notes).
1
Select a Song containing chord data.
The Performance Assistant Technology function can be applied only to Songs containing chord data. To confirm
whether the selected Song contains chord data or not, return to the Main display then start playback. If the current
Song contains chord data, the Main display shows the current chord type. After stopping playback, go to the next
step.
2
Call up the operation display.
[FUNCTION]  [B] SONG SETTING
3
Press the [8 ] button to turn P.A.T. (Performance Assistant Technology) on.
4
Press the SONG [F/ K] (PLAY/PAUSE) button to start playback.
5
Play the keyboard.
Along with Song playback, try playing the bass line with the left hand area while playing various phrases or chords
with the right hand area. Even if you do not know what notes should be played, don’t worry and play any keys as
desired! Only the harmonically “correct” notes matching the current chord are sounded, regardless of the notes you
actually play.
Current chord
6
Press the [J] (STOP) button to stop playback.
7
Press the [8 ] button to turn P.A.T. off.
NOTE
Selecting another Song may reset P.A.T.
to OFF.
58
Tyros5 Reference Manual
Creating/Editing Songs (Song Creator)
The Owner’s Manual covers how to create an original Song by recording your keyboard performance (called
“Realtime Recording”). This Reference Manual shows how to create an original Song by entering notes one by one
(called “Step Recording”) and how to improve an already created Song by editing the detailed parameters.
 Realtime Recording and Step Recording
When creating a Song, these two Recording methods are available. With Realtime Recording, this instrument records
the performance data as it is played. With Step Recording, you can compose your performance by “writing” it down
one event at a time.
This chapter primarily covers the instructions for Step Recording.
 MIDI Song Data Structure
A MIDI Song consists of 16 MIDI channels. You can create data of a MIDI Song by recording your performance to a
specific channel or channels in realtime, or by executing the Step Recording.
Song
Recording Part
(Default settings)
Channel 1
Right 1
Channel 2
Left
Channel 3
Right 2
Keyboard Performance
 Realtime Recording:
By default, your keyboard performance will be recorded to MIDI channels 1–4.
If you use an Ensemble Voice when recording, the performances of Parts 1, 2, 3 and
4 will be recorded to Channels 2, 1, 3, and 4 respectively.
4
 Step Recording:
Channel 4
Right 3
Channel 5
Multi Pad 1
Channel 6
Multi Pad 2
Channel 7
Multi Pad 3
Multi Pad playback
Channel 8
Multi Pad 4
By default, Multi Pad playback will be recorded to MIDI channels 5–8.
Channel 9
Rhythm 1
 Step Recording:
Channel 10
Rhythm 2
Multi Pad playback events cannot be input via Step Recording.
Songs – Recording Your Performances as MIDI Songs –
Without specifying the keyboard part, you can input the melodies or notes on the
music notation sheet one by one to the desired channel.
 Realtime Recording:
Channel 11
Bass
Style playback
Channel 12
Chord 1
 Realtime Recording:
Channel 13
Chord 2
Channel 14
Pad
Channel 15
Phrase 1
Channel 16
Phrase 2
By default, Style playback will be recorded to MIDI channels 9–16.
 Step Recording:
After inputting the Chord change/Section change events, touch [Expand] to actually
record the note data to MIDI channels 9–16.
System Exclusive
Lyrics
 Song Creator Display Structure
The Song Creator can be called up via [CREATOR]  [A] SONG CREATOR.
There are six Pages (tabs) in the Song Creator display.
• REC MODE ........... For re-recording a Song. See page 67.
• CHANNEL ............. For editing Channel events. See page 69.
• CHORD .................. For recording chords and Sections with precise timing (page 64) or edits them
(page 72).
• 1-16.......................... For recording melodies (Step Recording; see below) or edits the recorded melodies
(page 72).
• SYS/EX................... For editing System Exclusive events (tempo, time signature, etc.). See page 72.
• LYRICS .................. For inputting/editing a Song name and lyrics. See page 72.
Tyros5 Reference Manual
59
Recording Melodies (Step Recording)
1
From the Main display, press the SONG [REC] and SONG [J] (STOP) buttons simultaneously.
A blank Song (“New Song”) is called up for recording.
2
Call up the operation display.
[CREATOR]  [A] SONG CREATOR  TAB [E][F] 1-16
3
4
3
Press the [F] button to select the channel for recording.
4
Press the [G] (STEP REC) button to call up the STEP RECORD display.
5
To execute Step Recording, use the [A]–[J] buttons and [1 ]–[8 ] buttons, as well
as the keyboard.
Refer to the example on page 62 for specific instructions.
When a note is input, the location
(bar: beat: clock), note name, velocity
and length are listed in succession.
NEXT PAGE
60
Tyros5 Reference Manual
[A]/[B]/
[C]
For moving the cursor through the event list.
[G]
Determines the velocity (loudness) of the note to be entered. The velocity value can be
specified within a range from 1 to 127. The higher the velocity value, the louder the sound
becomes.
KBD.VEL: Actual resulting velocity
fff: 127
ff: 111
f: 95
mf: 79
mp: 63
p: 47
pp: 31
ppp: 15
[H]
Determines the gate time (actual length) of the note to be entered.
Normal: 80%
Tenuto: 99%
Staccato: 40%
Staccatissimo: 20%
Manual: The gate time can be set to any desired percentage by using the [DATA ENTRY]
dial.
[I]
DELETE
Deletes the data of the current line.
[1 ]
BAR
[2 ]
BEAT
Sets the position of the note to be entered. Note that a quarter note has a resolution of
1,920 clocks.
[3 ]
CLOCK
Songs – Recording Your Performances as MIDI Songs –
[J]
[4 ]–
[8 ]
4
Determines the note type to be entered: normal, dotted or triplet.
Determines the note length to be entered: whole-note, half-note, quarter-note, eighth-note
or sixteenth-note.
6
Press the SONG [J] (STOP) button (or press the [C] button) to return to the top of the
Song, then play back the newly entered Song by pressing the [F/ K] (PLAY/PAUSE) button.
7
Press the [EXIT] button to exit from the Step Recording display.
8
Press the [I] (SAVE) button to execute the Save operation.
NOTICE
The recorded Song data will be
lost if you select another Song or
turn the power to the instrument
off without executing the Save
operation.
NEXT PAGE
Tyros5 Reference Manual
61
Example of Step Recording—Melodies (detailed instructions of Step 5 on page 60)
1
2
3
4
* The numbers shown in the illustration correspond to
the following operation step numbers.
In this example, keep in mind that one of the steps (Step 4) involves holding down
a key on the keyboard while executing the operation.
Before executing the instructions below, select the desired Voice on the STEP
RECORD display. Note that only the Voice selection and Note input are possible
during Step Recording.
1
NOTE
Since the actual note length (determined
via the Gate Time) may differ from the
note length on the notation, the Score of
the Song recorded here may be different
from the notation above.
Enter the first and second notes with a slur.
1-1
1-2
1-3
1-4
1-5
Press the [G] button to select “f.”
Press the [H] button to select “Tenuto.”
Press the [I] button to select the “dotted” note type.
Select the dotted quarter-note by using the [6 ] buttons.
Play the C3 key.
This enters the first note.
1-6 Press the [I] button to select the “normal” note type.
1-7 Press the [7 ] button to select the eight-note length.
1-8 Play the D3 key.
This enters the second note.
2
Enter the next notes and apply staccato.
2-1 Press the [H] button to select “Staccato.”
2-2 Press the [6 ] button to select the quarter-note length.
2-3 Play the keys E3 and F3 in order.
This completes the first measure.
3
To enter a quarter-note rest, press the [6 ] button again.
To enter the rest, use the [4 ]–[8 ] buttons. (Press the button once to select the rest value, and once again
to actually enter it.) The BAR:BEAT:CLOCK indication at the lower left lets you confirm that a rest having the
specified note length has been entered.
NEXT PAGE
62
Tyros5 Reference Manual
4
Enter the next notes and apply a tie.
4-1 Press the [G] button to select “mp.”
4-2 Press the [H] button to select “Normal.”
4-3 While holding G3 key on the keyboard, press the [6 ] button.
This operation advances the input position from the current 2nd beat to the next 3rd beat. Do not release the
G3 key yet. Keep holding it while executing the following steps.
4-4 While holding the G3 key, press the C4 key.
Do not release the G3 and C4 keys yet. Keep holding the notes while executing the following step.
4-5 While holding the keys G3 and C4, press the [5 ] button.
After pressing the button, release the keys.
This enters the notes G3 and C4 notes have been entered as shown in the notation on the previous page.
5
4
Tyros5 Reference Manual
Songs – Recording Your Performances as MIDI Songs –
To play back your newly entered Song, press the SONG [J] (STOP) button (or press the
[C] button) to return to the top of the Song, then press the [F/ K] (PLAY/PAUSE) button.
63
Recording Chords (Step Recording)
In Step Recording, you can record the precise change timing of chords and Sections (such as Intro, Main and Ending)
of the current Style on the single display. After the operations are finished, the recorded events or settings will be
converted to `actual MIDI notes or Song data.
1
From the Main display, press the SONG [REC] and SONG [J]
(STOP) buttons simultaneously.
A blank Song (“New Song”) is called up for recording.
2
Select the Style you want to use in the Song.
3
Call up the operation display.
NOTE
Selecting a blank Song initializes the
panel settings.
[CREATOR]  [A] SONG CREATOR  TAB [E][F] CHORD
4
Press the [G] (STEP REC) button to call up the STEP RECORD display.
5
Execute Step Recording by using the [A]–[J] buttons and [1 ]–[8 ] buttons.
Refer to the example on page 65 for specific instructions.
For details on these functions,
refer to page 61.
6
Press the SONG [J] (STOP) button (or press the [C] button) to return to the top of the
Song, then play back the newly entered Song by pressing the [F/ K] (PLAY/PAUSE) button.
NEXT PAGE
64
Tyros5 Reference Manual
7
Press the [EXIT] button to exit from the Step Recording display.
8
Press the [F] (EXPAND) button to convert the recorded data to actual MIDI notes (Song
data).
9
Press the [I] (SAVE) button to execute the Save operation.
NOTICE
The recorded Song data will be
lost if you select another Song or
turn the power to the instrument
off without executing the Save
operation.
Example of Step Recording—Chord (detailed instructions of Step 5 on page 64)
1
2
3
MAIN A
BREAK
MAIN B
4
C
F
G
F
G7
C
Songs – Recording Your Performances as MIDI Songs –
* The numbers shown in the illustration correspond to
the following operation step numbers.
Before executing the instructions below, make sure that the [AUTO FILL IN] button is turned off since no Fill in is included in the notation example above.
1
NOTE
This example uses a Style in 4/4 time.
Enter the chords for the Main A section.
1-1 Press the STYLE CONTROL [MAIN A] button.
1-2 Press the [5 ] button to select the half-note length.
1-3 Play the chords C, F and G in the chord section of the keyboard.
C
1-1
F
G
1-2
1-3
NEXT PAGE
Tyros5 Reference Manual
65
2
Enter the chords for the Break section.
NOTE
2-1 Press the STYLE CONTROL [BREAK] button.
2-2 Press the [6 ] button to select the quarter-note length.
2-3 Play the chords F and G7 in the chord section of the keyboard.
If you want to record a Fill In Section,
turn on the [AUTO FILL IN] button, then
press one of the MAIN VARIATION [A]–
[D] buttons.
2-1
F
G7
2-2
3
2-3
Enter the chords for the Main B section.
3-1 Press the STYLE CONTROL [MAIN B] button.
3-2 Press the [4 ] button to select the whole-note length.
3-3 Play the chord C in the chord section of the keyboard.
3-1
3-3
C
3-2
66
Tyros5 Reference Manual
Re-Recording a Specific Section—Punch In/Out (Realtime Recording)
When re-recording a specific section of an already-recorded Song, use the Punch IN/OUT function. In this method,
only the data between the Punch In point and the Punch Out point is overwritten with the newly recorded data. Keep in
mind that the notes before and after the Punch In/Out points are not recorded over, although you will hear them play
back normally to guide you in the Punch In/Out timing.
1
Select the desired Song for re-recording.
2
Call up the operation display.
[CREATOR]  [A] SONG CREATOR  TAB [E][F] REC MODE
3
Determine the settings for recording.
4
REC START
(Punch In)
Determines the Punch In timing.
Songs – Recording Your Performances as MIDI Songs –
[1 ]–
[3 ]
NORMAL: Overwrite recording starts when the Song playback is started via the
SONG [F/ K]] (PLAY/PAUSE) button or when you play the keyboard in the Synchro Standby mode.
FIRST KEY ON: The Song plays back normally, then starts overwrite recording as
soon as you play the keyboard.
PUNCH IN AT: The Song plays back normally up to the beginning of the indicated
Punch In measure, then starts overwrite recording at that point. You can set the
Punch In measure by pressing the [3 ] button.
[4 ]–
[6 ]
REC END (Punch
Out)
Determines the Punch Out timing.
REPLACE ALL: This deletes all data after the point at which recording is stopped.
PUNCH OUT: The Song position at which recording is stopped is regarded as the
Punch Out point. This setting maintains all data after the point at which recording
is stopped.
PUNCH OUT AT: Actual overwrite recording continues until the beginning of the
specified Punch Out measure (set with the corresponding display button), at which
point recording stops and normal playback continues. This setting maintains all
data after the point at which recording is stopped. You can set the Punch Out measure by pressing the [6 ] buttons.
[7 ]/
[8 ]
PEDAL PUNCH
IN/OUT
When this is set to ON, you can use Foot Pedal 2 to control the Punch In and Punch
Out points. While a Song is playing back, pressing (and holding) Foot Pedal 2
instantly enables Punch In recording, while releasing the pedal stops recording (Punch
Out). You can press and release Foot Pedal 2 as often as you want during playback to
punch in/out of overwrite recording. Note that the current function assignment of the
Foot Pedal 2 is cancelled when the Pedal Punch In/Out function is set to ON.
NOTE
Pedal Punch In/Out operation may be reversed depending on the particular pedal you’ve connected to the
instrument. If necessary, change the pedal polarity to reverse the control (page 134).
NEXT PAGE
Tyros5 Reference Manual
67
4
While holding the SONG [REC] button, select the desired channel from 1–16 on the display via the [1 ]–[8 ] buttons.
5
Press the SONG [F/ K] (PLAY/PAUSE) button to start Punch In/Out recording.
According to the settings in Step 3, play the keyboard between the Punch In and Punch Out points. Refer to the
examples of various settings illustrated below.
6
Press the [I] (SAVE) button to execute the Save operation.
NOTICE
The recorded Song data will be
lost if you select another Song or
turn the power to the instrument
off without executing the Save
operation.
Examples of re-recording with various Punch In/Out settings
This instrument features several different ways you use the Punch In/Out function. The illustrations below indicate
a variety of situations in which selected measures in an eight-measure phrase are re-recorded.
REC START setting
REC END setting
Original data
1
2
3
4
5
Start overwrite recording *1
NORMAL
REPLACE ALL
1
2
1
3
2
4
5
1
2
Play back
original data
FIRST KEY ON
REPLACE ALL
3
4
5
1
2
FIRST KEY ON
PUNCH OUT
1
FIRST KEY ON
PUNCH OUT AT=006
1
2
1
2
1
2
2
1
3
4
7
3
4
3
4
3
4
3
4
3
4
6
5
8
7
8
Deleted
Stop recording *2
5
6
7
8
Stop overwrite recording/play original data
5
6
7
8
Stop recording *2
5
Deleted
Stop recording *2
5
Start overwrite recording
2
6
Stop recording *2
Start overwrite recording
Play back
original data
PUNCH IN AT=003
PUNCH OUT AT=006
5
Start overwrite recording
Play back
original data
PUNCH IN AT=003
PUNCH OUT
4
Play the keyboard to start
overwrite recording
Play back
original data
PUNCH IN AT=003
REPLACE ALL
3
Play the keyboard to start
overwrite recording
Play back
original data
Deleted
*1 If you want to re-record from the 3rd
measure in this setting, move the
Song position to the 3rd measure
then start Recording to avoid overwriting measures 1–2.
*2 To stop recording, press the [REC]
button at the end of measure 5.
Stop overwrite recording/play original data
Play the keyboard to start
overwrite recording
Play back
original data
8
Stop recording *2
Start overwrite recording *1
NORMAL
PUNCH OUT AT=006
7
Stop recording *2
Start overwrite recording *1
NORMAL
PUNCH OUT
6
6
7
8
Stop overwrite recording/play original data
5
6
7
8
Previously recorded data
Newly recorded data
Deleted data
68
Tyros5 Reference Manual
Editing Channel Events of Existing Song Data
You can apply various useful functions to already recorded data, such as Quantize and Transpose, on the CHANNEL
page.
1
3
2
1
Select a Song to be edited.
2
Call up the operation display.
4
Songs – Recording Your Performances as MIDI Songs –
1
[CREATOR]  [A] SONG CREATOR  TAB [E][F] CHANNEL
3
Use the [A]/[B] buttons to select the edit menu, then edit the data by using the [1 ]–
[8 ] buttons.
For details of the edit menu and available settings, see page 70.
4
Press the [D] (EXECUTE) button to execute the operation for the current display.
After the operation (with the exception of the SETUP menu) is completed, this button changes to “UNDO,” letting
you restore the original data if you are not satisfied with the operation results. The Undo function only has one
level; only the previous operation can be undone.
5
Press the [I] (SAVE) button to execute the Save operation.
NOTICE
The recorded Song data will be
lost if you select another Song or
turn the power to the instrument
off without executing the Save
operation.
Tyros5 Reference Manual
69
1 QUANTIZE
The Quantize function allows you to align the timing of all the notes in a channel. For example, if you record the
musical phrase shown at right, you may not play it with absolute precision, and your performance may have been
slightly ahead of or behind the precise timing. Quantize is a convenient way of correcting for this.
[2 ]/
[3 ]
CHANNEL
Determines which MIDI channel in the Song data is to be quantized.
[4 ]–
[6 ]
SIZE
Selects the quantize size (resolution). For optimum results, you should set the Quantize size to the shortest note value in the channel. For example, if eighth notes are the
shortest in the channel, you should use eighth note as the Quantize size.
After 1/8 note quantization
Quarter-note length
Settings:
1/4 note
1/8 note
1/16 note
1/32 note
1/16 note+
1/8 note triplet*
1/4 note
triplet
1/8 note
triplet
1/16 note
triplet
1/8 note+
1/8 note triplet*
1/16 note+
1/16 note triplet*
The three Quantize settings marked with asterisks (*) are exceptionally convenient,
since they allow you to quantize two different note values at the same time. For example, when the straight eighth notes and eighth notes triplet are contained in the same
channel, if you quantize by the straight eighth notes, all notes in the channel are quantized to straight eighth notes—completely eliminating any triplet feel. However, if you
use the eighth note + eighth note triplet setting, both the straight and triplet notes will
be quantized correctly.
[7 ]/
[8 ]
STRENGTH
Determines how strongly the notes will be quantized. A setting of 100% produces
exact timing. If a value less than 100% is selected, notes will be moved toward the
specified quantization beats according to the specified percentage. Applying less than
100% quantization lets you preserve some of the “human” feel in the recording.
Quarter-note length
Original data
(assuming 4/4 meter)
Quantizing
strength =100
Quantizing
strength =50
70
Tyros5 Reference Manual
2 DELETE
You can delete the data of the specified channel in the Song. Select the channel whose data to be deleted by using
the [1 ]–[8 ] buttons, then press the [D] (EXECUTE) button to execute the operation.
3 MIX
This function lets you mix the data of two channels and place the results in a different channel. It also lets you copy
the data from one channel to another.
[2 ]/
[3 ]
SOURCE 1
Determines the MIDI channel (1–16) to be mixed. All MIDI events of the channel
specified here are copied to the destination channel.
[4 ]/
[5 ]
SOURCE 2
Determines the MIDI channel (1–16) to be mixed. Only note events of the channel
specified here are copied to the destination channel. In addition to the values 1–16,
there is a “COPY” setting that allows you to simply copy the data from Source 1 to the
destination channel.
[6 ]/
[7 ]
DESTINATION
Determines the channel into which the mix or copy results will be placed.
4 CHANNEL TRANSPOSE
NOTE
This allows you to transpose the recorded data of individual channels up or down
by a maximum of two octaves in semitone increments.
CH 1–8/CH 9–16
Toggles between the two channel displays: Channels 1–8, and Channels 9–16.
[G]
ALL CH
To simultaneously set all channels to the same
value, adjust the Channel Transpose for one of the
channels while holding down this button.
5 SETUP
NOTE
The current settings of the Mixing Console display and other panel settings can be
recorded to the top position of the Song as the Setup data. The Mixing Console
and panel settings recorded here are automatically recalled when the Song starts.
[1 ]–
[7 ]
4
Songs – Recording Your Performances as MIDI Songs –
[F]
Make sure not to transpose channels 9
and 10. In general, Drum Kits are
assigned to these channels. If you
transpose the channels of Drum Kits,
the instruments assigned to each key
will be changed.
SELECT
Before executing the Setup operation,
move the Song position to the top of the
Song by pressing the SONG []
(STOP) button.
Determines which playback features and functions will be automatically called up
along with the selected Song. The items selected here can be recorded only to the top
position of the Song, except for the KEYBOARD VOICE.
SONG: Records the tempo setting and all settings made from the Mixing Console.
KEYBOARD VOICE: Records the panel settings, including the Voice selection of
the keyboard parts (RIGHT 1, 2, and LEFT) and their on/off status. Panel settings
recorded here are same as the ones memorized to the One Touch Setting. This can
be recorded at any point in a Song.
SCORE SETTING: Records the settings in the Score display.
GUIDE SETTING: Records the settings of the Guide functions including the Guide
ON/OFF setting.
LYRICS SETTING: Records the settings in the Lyrics display.
VH/MIC: Records the microphone and the Vocal Harmony settings. For details about
the parameters, refer to the Parameter Chart in the Data List.
[8 ]
MARK ON
[8 ]
MARK OFF
Add or remove a checkmark to the selected item. Checked items are recorded to the
Song.
Tyros5 Reference Manual
71
Editing Chord Events, Notes, System Exclusive Events and Lyrics
You can edit chord events, note events, System Exclusive events and lyrics in the same
manner on the corresponding displays: CHORD, 1-16, SYS/EX and LYRICS. These
are called “Event List” displays because the recorded events are shown in a list view.
NOTE
After you edit events in the CHORD tab
display, press the [F] (EXPAND) button
to convert the data into Song data.
Event List display
NOTE
Chord section data recorded with Realtime Recording cannot be indicated and
edited on this display.
Indicates the
location (position) of the corresponding
event.
Indicates the
event value.
Indicates the
event type.
See page 73.
72
[A]/[B]
Moves the cursor up/down and selects the desired event.
[C]
Moves the cursor to the top (beginning of the Song).
[D]/[E]
Moves the cursor left/right and selects the desired parameter of the highlighted event.
[H]
FILTER
Calls up the Filter display (page 74), letting you select only the events you wish to be
shown in the event list.
[I]
SAVE
Press to save the edited Song.
[J]
MULTI SELECT
Holding this button while using the [A]/[B] buttons lets you select multiple events.
[1 ]
BAR
[2 ]
BEAT
Determines the position (bar/beat/clock) of the data. One clock is equal to 1/1920th of
a quarter note.
[3 ]
CLOCK
[4 ]/
[5 ]
DATA ENTRY
Adjusts the event value. For coarse adjustment, use the [4 ] buttons. For fine
adjustment, use the [5 ] buttons or the [DATA ENTRY] dial.
[6 ]
CUT
Executes the cut/copy/delete/paste operation.
[7 ]
COPY
[7 ]
DELETE
[8 ]
PASTE
[6 ]
INS (INSERT)
Adds a new event.
[8 ]
CANCEL
Cancels editing and restores the original value.
Tyros5 Reference Manual
Chord Events (CHORD Page)
Style
Style
Tempo
Tempo
Chord
Chord root, Chord type, On Bass Chord
Sect
Style Section (Intro, Main, Fill In, Break, Ending)
OnOff
On/off status for each part (channel) of the Accompaniment Style
CH.Vol
Volume for each part (channel) of the Accompaniment Style
S.Vol
Overall volume of the Accompaniment Style
Note Events (1-16 Page)
An individual note within a Song. Includes the note number which corresponds to the key
which was played, plus a velocity value based on how hard the key is played, and the gate
time value (note length).
Ctrl (Control Change)
Settings to control the Voice, such as volume, pan, filter and effect depth (edited via the Mixing Console described in chapter 8), etc.
Prog (Program Change)
MIDI program change number for selecting a Voice.
P.Bnd (Pitch Bend)
Data for changing the pitch of a Voice continuously. This event is generated by controlling
the PITCH BEND wheel.
A.T. (After Touch)
This event is generated when pressure is applied to a key after the note is played.
4
Songs – Recording Your Performances as MIDI Songs –
Note
System Exclusive Events (SYS/EX. Page)
ScBar (Score Start Bar)
Determines the top measure of a Song.
Tempo
Determines the tempo value.
Time (Time signature)
Determines the time signature.
Key (Key signature)
Determines the key signature, as well as the major/minor setting, for the music score shown
on the display.
XGPrm (XG parameters)
Allows you to make various detailed changes to the XG parameters. For details, refer to the
“MIDI Data Format” in the Data List, available at the Yamaha website.
SYS/EX. (System Exclusive)
Displays the System Exclusive data in the Song. Keep in mind that you cannot create new
data or change the contents of the data here; however, you can delete, cut, copy, and paste
the data.
Meta (Meta event)
Displays the SMF meta events in the Song. Keep in mind that you cannot create new data or
change the contents of the data here; however, you can delete, cut, copy, and paste the data.
Lyrics Events (LYRICS Page)
Name
Allows you to enter the Song name.
Lyrics
Allows you to enter lyrics.
Code
CR: Enters a line break in the lyrics text.
LF: Clears the currently displayed lyrics and displays the next set of lyrics.
Tyros5 Reference Manual
73
Displaying Specific Types of Events
In the Event List displays, various types of events are shown. It may sometimes be difficult to pinpoint the
ones you want to edit. This is where the Filter function comes in handy. It lets you determine which event types
will be shown in the Event List displays.
1 Press the [H] (FILTER) button in the CHORD, 1-16, SYS/EX. or LYRICS displays.
2 Checkmark the desired item to be displayed.
[C]
MAIN
Displays all main types of events.
[D]
CTRL. CHG
Displays all types of Control Change message events.
[E]
STYLE
Displays all types of Style playback related events.
[H]
ALL ON
Checkmarks all event types.
[I]
NOTE/ALL OFF/
CHORD
“NOTE” (shown when [C] (MAIN) is on) selects only the NOTE data.
“CHORD” (shown when [E] (STYLE) is on) selects only the CHORD
data. “ALL OFF” (shown when [D] (CTRL.CHG) is on) removes all
checkmarks.
[J]
INVERT
Reverses the checkmark settings for all boxes. In other words, this
enters checkmarks to all boxes that were previously unchecked and vice
versa.
[2 ]–
[5 ]
Select and event type to be checked or unchecked.
[6 ]/
[7 ]
MARK ON
[6 ]/
[7 ]
MARK OFF
Enters/removes the checkmark for the selected event type. The checked
event types can be shown on the CHORD, 1-16, SYS/EX or LYRICS
pages.
3 Press the [EXIT] button to execute the settings.
74
Tyros5 Reference Manual
Editing Song Position Markers
This section covers two additional Marker-related features and details. For basic information on using the Markers for
jump playback and loop playback, refer to the Owner’s Manual.
 Jump Markers
The Markers explained in the Owner’s Manual are also called “Jump Markers.” In the Event List display (page 72),
they are indicated as “SPJ-01”–“SPJ-04.” In the Event List, they can be moved freely to other positions and can even
copied to create identical Marker numbers at other positions. When the same Marker number is contained at different
locations in the Song, the latest occurring one is used as a “Loop End Marker” (below).
 Loop End Marker
Loop End Markers can be used for putting additional Markers in Song data, providing even greater versatility.
Creating a Loop End Marker is done within the Event List (and not with the [SP 1]–[SP 4] buttons on the panel), by
simply copying one “SPJ” Jump Marker event to another position in the Song.
For basic information on loop playback between successive Jump Markers, refer to the Owner’s Manual.
The examples below show how Loop End Markers can be used in Song playback.
Example 1
Copied within
the Event List.
Top of the
song
[SPJ-01]
(1)
[SPJ-02]
[SPJ-03]
[SPJ-04]
End of the
song
Songs – Recording Your Performances as MIDI Songs –
[SPJ-01]
4
Copied event becomes
Loop End Marker
(2)
(1) If the Song is playing back between the two SPJ-01 points, turning on [LOOP] will result in a playback loop
between those points.
(2) If the Song is playing back between the second SPJ-01 and SPJ-02 and [LOOP] is turned on, playback jumps
back to the first SPJ-01 and loops between two SPJ-01 points.
Example 2
Copied event becomes
Loop End Marker
Copied within
the Event List.
Top of the
song
(2)
[SPJ-01]
[SPJ-02]
(2)
[SPJ-01]
(1)
[SPJ-03]
[SPJ-04]
End of the
song
(3)
(1) If the Song is playing back between SPJ-02 and the second SPJ-01, turning on
[LOOP] will result in a playback loop between those points.
(2) If the [LOOP] button is turned on while the Song is playing back between the
top of the Song and SPJ-02, playback will loop between SPJ-01 and SPJ-02.
(3) If the Song is playing back between the second SPJ-01 and SPJ-03 and
[LOOP] is turned on, playback jumps back to SPJ-02 and loops between SPJ02 and the second SPJ-01 (Loop End Marker).
In the examples above, the actual data of the Loop End Marker is identical to the event
it was copied from—only the location of the copied Marker provides it with this
different function.
In Song playback, the markers formatted as “SPJ-xxxxx” (xxxxx: any character
except 01–04 and any number of letters is OK) are handled as Loop End Markers.
Since the Event List in the Song Creator function does not let you freely name
Markers, the instructions above are recommended for creating new Markers.
However, with sequence software on a computer, you can create new Markers and
assign appropriate names to them. By naming Markers in this way, you can easily
distinguish between Loop End Markers and Jump Markers in the Event List.
NOTE
Loop playback problems may occur if
successive Markers are too close to one
another.
NOTE
When the effect settings of the jump
destination (the position you’re jumping
to) differ from those at the jump source,
glitches or drop-outs in the sound may
result. This is because of limitations in
the effect processors of the Tyros5.
NOTE
When using the Guide function
(page 56) with jump playback, keep in
mind that the Guide indication may not
be able to stay in time with the jumps.
Tyros5 Reference Manual
75
Audio Recorder/Player
5
– Recording and Playback Audio Files –
Contents
Recording Your Performance ......................................................................... 76
• Multi Track Recording ............................................................................... 76
Converting a file ............................................................................................... 80
• Converting an Audio File (.wav/.mp3) to a Multi Track recording file (.aud) ....... 80
• Converting a Multi Track Recording File (.aud) to an Audio File (.wav) ............. 81
Editing the Recorded Data (Multi Track Recording File) ........................... 82
• (1) Normalize ............................................................................................. 83
• (2) Adjusting the Volume Balance ............................................................. 83
• (3) Deleting a Track.................................................................................... 83
Re-recording the Multi Track Recording File............................................... 84
• NORMAL REC / NORMAL REC (PLUS PLAYBACK) ......................... 84
• PUNCH IN OUT / PUNCH IN OUT (MERGE) ....................................... 85
Setting the Start/End Points of the Audio (Multi Track Recording File) ... 87
Playlist Mode .................................................................................................... 88
• Creating a Playlist ...................................................................................... 88
• Playing a Playlist ........................................................................................ 88
• Playlist Controls ......................................................................................... 89
Recording Your Performance
With Multi Track recording, you can record your performance several times to make up the complete song. For example,
1) record your keyboard performance to the Main track, 2) record your vocal via the microphone to the Sub track.
Multi Track File formats that can be used:
Mode
Multi
Track
Available
location
File extension
Recording
.aud (Tyros5 original: 44.1 kHz sample rate, 16 bit resolution, stereo)
Playback
.aud (Tyros5 original: 44.1 kHz sample rate, 16 bit resolution, stereo)
Internal HDD
Various recording
methods (Bounce,
Punch In/Out, etc.)
Yes
Multi Track Recording
This section covers the basic procedure of Multi Track recording. The operation steps can
be summarized as follows: 1) Record your keyboard performance to the Main track, 2)
record your vocal sound to the Sub track.
1
Up to 80 minutes can be recorded continuously in a single recording operation.
Make the necessary settings such as Voice/Style selection and the microphone connection (if you want to record your vocal).
NEXT PAGE
76
NOTE
Tyros5 Reference Manual
2
Press the AUDIO RECORDER/PLAYER [MODE] button, repeatedly if necessary, to call up
the AUDIO RECORDER/PLAYER display.
3
Press the [F] (MULTI TRACK) button to call up the Multi Track Recorder display.
4
Press the AUDIO RECORDER/PLAYER [REC] and [STOP] buttons simultaneously.
This operation will create a new empty audio file named “M_Audio_***.AUD.”
Record to the Main track.
If the TRACK SELECT [F3] is not selected “MAIN” in the display, press the [F]
button to select the “MAIN” as destination.
5-1 Press the [PLAY/PAUSE] button to start recording.
5-2 When your performance is finished, press the [STOP] button to stop record-
Audio Recorder/Player – Recording and Playback Audio Files –
5
5
NOTICE
The data is automatically saved in
the internal HDD, but you may
want to backup your data from
time to time. Copying is the easiest way to do this. However, since
copying within a folder in the HDD
is not possible, you need to create a new folder.
For details on file management,
refer to the Owner’s Manual.
ing.
5-3 To hear your new recording, press the [PLAY/PAUSE] button.
Undo/Redo
If you’ve made a mistake or you’re not completely satisfied with your performance, you can press the Undo function to erase the take and try again.
1 Press the [G] (UNDO) button.
The latest recording that you made is cancelled. If you want to restore
the operation, press the [G] (REDO) button.
2 Press the [REC] button to enable recording.
3 Start again with Step 4 in “Multi Track Recording”.
NEXT PAGE
Tyros5 Reference Manual
77
Next, let’s record your singing to the Sub track. You can record your vocals while listening to playback of the Main track.
6
Practice the part (sing into the microphone) to check the level
and adjust the recording volume on the REC MONITOR meter
by using the [1 ] buttons or sliders.
Adjust so that the volume doesn’t constantly go into the “red” and light up the
indicator. If it does, you may have to turn the microphone input level down a bit.
7
NOTE
• Press the 1’s [] and [] buttons
simultaneously to instantly reset the
recording volume to 90.
• If you call up a different display, press
the [MODE] button to return to the
Multi Track Recorder display.
Record to the Sub track.
7-1 Press the [F] (TRACK SELECT) button to select “SUB” as destination.
NOTE
Make sure that the RECORDING MODE
(upper left of the display) is set to
“NORMAL REC” here.
7-2 Press the [REC] button to enable recording.
7-2 7-4 7-3, 7-5
7-3 Press the [PLAY/PAUSE] button to start recording.
Immediately after this operation, start singing along with the Main track playback.
7-4 When your performance is finished, press the [STOP] button to stop recording.
7-5 To hear your new recording, press the [PLAY/PAUSE] button.
Adjusting the volume balance
On the TRACK PLAY meter, you can adjust the volume of Main and Sub tracks separately. Use the [4 ]/
[6 ] buttons or sliders to adjust the Main/Sub track volume. By using the [3 ]/[5 ] buttons, you
can also mute the Main/Sub tracks.
NEXT PAGE
78
Tyros5 Reference Manual
Next, mix all data from the Main track and Sub track to one track (Main track). This procedure (below) is called Bounce
recording.
8
Press the [B] (REC MODE), and then use the [B]/[C] buttons to
select “BOUNCE.”
After selection, press the [EXIT] button to return to the previous display.
9
NOTE
When the Recording Mode is set to
“BOUNCE,” the selected track is automatically changed to Main.
Press the [REC] button then press the [G] (YES) button.
If you do not want to delete the recorded data of the Sub track, press the [H] (NO) button instead of the [G] (YES)
button above.
10
Press the [PLAY/PAUSE] button to start Bounce recording.
All data in Main and Sub tracks are mixed and recorded to the Main track. When
playback of the Main and Sub tracks is finished, Bounce recording automatically
stops.
11
To hear your new recording, press the [PLAY/PAUSE] button.
If you did not delete the recorded data of the Sub track in Step 9, the data of Sub
track is recorded to both Main and Sub tracks. To avoid duplicate playback of Sub
track, press the [5 ] (MUTE) button in the Multi Track Recorder display.
12
Press the [EXIT MULTI TRACK] button, then press the [G] (YES)
button to exit from the Multi Track Recorder display.
At this point, the recorded data have not been processed with the Mixdown operation (converting a Multi Track recording file to a Simple recording file).
If Mixdown is necessary, refer to the “Converting a Multi Track Recording File
(.aud) to an Audio File (.wav)” on page 81.
5
NOTE
Audio Recorder/Player – Recording and Playback Audio Files –
The Sub track is now empty, you can continue recording another part to the Sub
track, repeating Steps 6–7.
NOTE
If you sing or play the keyboard during
Bounce recording, your performance is
also recorded to the Main track.
• The Multi Track recording file (.aud)
can be played back only on the
Tyros5.
• The .aud file saved with the Multi
Track recording can be converted to
.wav file format (Simple recording
file) by using the Mixdown function.
NOTE
You can convert the Multi Track recording file (.aud) to a Simple recording file
.(wav). For details, see the “Converting
a Multi Track Recording File (.aud) to an
Audio File (.wav)” on page 81.
Tyros5 Reference Manual
79
Converting a file
Converting an Audio File (.wav/.mp3) to a Multi Track recording file (.aud)
You can convert audio files (.wav/.mp3), such as commercially available samples, loops, sound effects, etc., to a Multi
Track recording file (.aud)—allowing you to work with the two tracks or use the various recording methods of the instrument (Bounce, Punch In/Out, etc.).
1
Connect the USB flash memory containing the audio file to the USB TO DEVICE terminal.
2
Press the AUDIO RECORDER/PLAYER [MODE] button several times to call up AUDIO
RECORDER/PLAYER display.
3
Press the [A] (FILE) button.
4
Use the TAB [][] buttons to select the USB flash memory, then use the [A]–[J] buttons to select the desired audio file.
5
Press the [EXIT] button to return to the AUDIO RECORDER/PLAYER display.
6
Press the [F] (MULTI TRACK) button, then press the [F] (YES)
button.
The conversion of the audio files (.wav/.mp3) to the Main track of the Multi Track
recording file (.aud) is completed.
7
80
NOTE
The conversion time to a Multi Track
recording file depends on the size of the
audio file (.wav/.mp3).
NOTICE
Execute the same operations from Step 7 in “Multi Track
Recording” on page 78.
Tyros5 Reference Manual
If the same file name already
exists, a message appears
prompting you to overwrite.
Selecting [YES] converts the file
and overwrites the Main track.
The data of Sub track will be
deleted.
Converting a Multi Track Recording File (.aud) to an Audio File (.wav)
You can convert a Tyros5 Multi Track recording file (.aud) to a Simple recording file
(.wav)—allowing you to playback on devices other than the Tyros5, and also playback on
the Tyros5 from the USB flash memory.
NOTE
If you want to save the file to a USB
flash memory, connect the USB flash
memory to the [USB TO DEVICE] terminal.
Press the AUDIO RECORDER/PLAYER [MODE] button several
times to call up AUDIO RECORDER/PLAYER display.
2
Press the [F] (MULTI TRACK) button.
3
Press the [A] (FILE) button.
4
Use the TAB [][] buttons to select the USB flash memory, then use the [A]–[J] buttons to select the desired audio file.
5
Press the [EXIT] button to return to the AUDIO RECORDER/PLAYER display.
6
Press the [J] (MIXDOWN) button to call up the MIXDOWN display.
7
If necessary, press the [B] (FILE NAME) button, change the file name, then press the [8
] (OK) button.
8
If necessary, press the [C] (SAVE TO) button, use the TAB [][] and [A]–[J] buttons to
select the destination (to which the converted file is to be saved), then press the [8 ]
(OK) button.
9
Press the [G] (START) button to start playback. As soon as playback is finished, conversion from .aud to .wav will be started.
Tyros5 Reference Manual
5
Audio Recorder/Player – Recording and Playback Audio Files –
1
81
Editing the Recorded Data (Multi Track Recording File)
You can edit the data which is recorded in Multi Track Recording.
1
Press the AUDIO RECORDER/PLAYER [MODE] button several times to call up the AUDIO
RECORDER/PLAYER display and select the recorded data to be edited.
2
Press the [F] (MULTI TRACK) button to call up the Multi Track
Recorder display.
3
Press [A] (FILE) button
4
Select the desired audio file by using [A]–[J] buttons.
5
Press [EXIT] button to return to the AUDIO RECORDER/PLAYER
display.
(3)
(1)
(2)
82
Tyros5 Reference Manual
NOTICE
The data is automatically saved in
the internal HDD, but you may
want to backup your data before
editing. Copying is the easiest
way to do this. However, since
copying within a folder in the HDD
is not possible, you need to create a new folder. For details on
file management, refer to the
Owner’s Manual.
(1) Normalize
Normalize raises the volume of the recorded audio to the optimum level. Use this to make the recorded audio as loud as
possible, without distortion. Technically, this operation scans the recorded file for the highest level, then raises the volume of the entire file so that the highest peak is set to the maximum, non-distorting level. Normalization is calculated for
the loudest signal found in either channel of the stereo recording and the same gain is applied to both channels.
1
Press the [F] (TRACK SELECT) button to select the track to be normalized.
2
Press the [I] (NORMALIZE) button.
3
At the prompt, press the [G] (OK) button to start normalizing the selected track.
To cancel the operation, press the [H] (CANCEL) button.
(2) Adjusting the Volume Balance
On the TRACK PLAY meter, you can adjust the volume of Main and Sub tracks separately. Use the [4 ]/[6 ] buttons or sliders to adjust the Main/Sub track volume.
By using the [3 ]/[5 ] buttons, you can also mute the Main/Sub tracks.
NOTE
To control overall volume of the audio
file, press the [BALANCE] button once
or twice to call up the BALANCE (2/2)
display, then use the [4 ] slider or
buttons.
5
1
Press the [F] (TRACK SELECT) button to select the track to be deleted.
2
Press the [H] (TRACK DELETE) button.
3
At the prompt, press the [G] (OK) button to start deleting the selected track.
Audio Recorder/Player – Recording and Playback Audio Files –
(3) Deleting a Track
To cancel the operation and leave the track intact, press the [G] (UNDO) button, before executing any other operation.
Tyros5 Reference Manual
83
Re-recording the Multi Track Recording File
The created Multi Track recording data can be re-recorded in the following five ways.
• Replace the whole data: NORMAL REC ........................................................See below
• Mix the recorded data: NORMAL REC (PLUS PLAYBACK).......................See below
• Replace a certain range of the data: PUNCH IN/OUT.................................See page 85
• Overdub a certain range of the data: PUNCH IN/OUT (MERGE) ..............See page 85
• Merge the Main and Sub tracks to the Main track: BOUNCE
............................................................................................. See Multi Track Recording
NOTE
Re-recording of the data repeatedly will
result in deterioration of the sound
quality.
NOTICE
The data is automatically saved in
the internal HDD, but you want to
backup your data before rerecording. Copying is the easiest
way to do this. However, since
copying within a folder in the HDD
is not possible, you need to create a new folder. For details on
file management, refer to the
Owner’s Manual.
NORMAL REC / NORMAL REC (PLUS PLAYBACK)
You can replace the whole audio data of a track by NORMAL REC or mix the audio data
with the previous one by NORMAL REC (PLUS PLAYBACK). The NORMAL REC
(PLUS PLAYBACK) method does not add any tracks but simply mixes the new recording
to the existing data. After stopping recording, any data following the stop point will be
erased.
NOTE
Since you will be overdubbing parts
onto this audio, it’s best to keep the first
recording simple. For example, you may
want to record just a rhythm pattern
(such as by playing back a Style) or a
simple bass riff over which you can add
other parts.
1
Execute Steps 1–5 in “Editing the Recorded Data (Multi Track
Recording File)” on page 82 to select the data to be rerecorded.
2
Use the [F] (TRACK SELECT) button to select the track to be re-recorded.
2
3
3
Use the [B]/[C] buttons to select a recording method.
• Replace the whole data: NORMAL REC
• Mix the recorded data: NORMAL REC (PLUS PLAYBACK)
4
If you select “NORMAL REC (PLUS PLAYBACK),” play back the recorded audio and
practice the part that you want to overdub while the audio is playing. Change the volume
settings if necessary.
If you wish to add a keyboard-played Voice from the Tyros5, select the desired Voice. If you wish to record your
singing voice or an external instrument, connect a microphone or instrument and make the appropriate settings.
Adjust the Track Play and Rec Monitor levels here as desired.
5
Press the [REC] button to enable recording.
NEXT PAGE
84
Tyros5 Reference Manual
6
Press the [PLAY/PAUSE] button to start recording.
NOTE
Play the keyboard (or sing, etc.) and record your performance.
7
When finished recording, press the [STOP] button.
The playback sound of the other (not yet
rerecorded) track is not recorded to the
track.
After stopping recording, the data will be erased from the stop point.
8
To hear your new recording, press the [PLAY/PAUSE] button.
If you’ve made a mistake or you’re not completely satisfied with your performance, press the [EXIT] button to return to the AUDIO RECORDER/PLAYER
display, then undo the NORMAL REC/NORMAL REC (PLUS PLAYBACK)
operation by pressing the [G] (UNDO) button.
NOTE
The Audio Recorder/Player automatically reduces the level of the previous
track by a certain, slight amount to
accommodate the new recording. This
is done to minimize possible distortion.
You can use the Normalize effect to
maximize the volume of the overall
sound. For details, see page 83.
PUNCH IN OUT / PUNCH IN OUT (MERGE)
This method of recording can only be used on an existing recording. It allows you to rerecord over a specific part of the already-recorded material. You can replace the original
part with the new recording by PUNCH IN/OUT, or keeping the original and mixing it
with the new by PUNCH IN/OUT (MERGE). This lets you either correct a mistake in the
recording or overdub new parts onto the original recording.
Keep in mind that the parts before and after the Punch In/Out section are not recorded over
and remain as the original data—they play back normally to guide you in and out of the
recording.
Start Recording
Re-recorded Data
Punch In
Original Data
Punch Out
Stop Recording
You can re-record over only one range
at one time.
NOTE
The beginning and ending of the
recorded data using the Punch In/Out
function is faded in/out automatically.
This is done to minimize possible noise
at the beginning and ending of the
recorded data. We recommend that you
specify the beginning and ending points
at sections in the data where the volume
is low.
1
Execute Steps 1–5 in “Editing the Recorded Data (Multi Track Recording File)” on
page 82 to select the recorded data to be re-recorded.
2
Use the [F] (TRACK SELECT) button to select the track to be re-recorded.
5
Audio Recorder/Player – Recording and Playback Audio Files –
Original Data
NOTE
2
3
3
Use the [B]/[C] buttons to select a recording method.
• Replace a certain range of the data: PUNCH IN/OUT
• Overdub a certain range of the data: PUNCH IN/OUT (MERGE)
NEXT PAGE
Tyros5 Reference Manual
85
4
Select the desired Punch In/Out Mode, using the [1 ]/[2 ] (MODE) buttons.
4
• MANUAL ............... This lets you manually execute Punch In/Out recording by using the Audio Recorder/Player
transport buttons ([REC], [PLAY/PAUSE], etc.).
• PEDAL.................... This lets you manually execute Punch In/Out recording by using a connected footswitch to
the FOOT PEDAL 2 jack.
• AUTO...................... This lets you specify the Punch In and Out points, allowing automatic Punch In/Out recording (see below).
Specifying the recording range in AUTO mode
If you select AUTO as the punch in/out recording method, specify the recording range and practice the recording by using the Rehearsal function.
1 Specify the punch in/out range by pressing the [3 ]/[5 ] (SET) buttons at the punch in/out point
during the audio song playback.
2 If you move the punch in/out point slightly, use the Nudge function.
In this Nudge function, you can move the punch in/out point slightly (even in millisecond units) while
listening to the playback.
2-1 Press the [7 ] (NUDGE) button to show the Nudge Play display.
2-2 Use the [DATA ENTRY] dial and AUDIO
RECORDER/PLAYER [PREV]/[NEXT] button to
move the NUDGE DATA POSITION to the desired
punch in/out position while listening to the playback
(500 milliseconds loop playback before/after the specified point). The [DATA ENTRY] dial lets you adjust the
point in seconds and the [PREV]/[NEXT] buttons lets
you adjust in milliseconds.
2-3 Press the [7 ] (MODE) button to select After/Before. “After” repeats 500 milliseconds after
the Nudge Data Position and “Before” repeats 500 milliseconds before the Nudge Data Position
when you playback the data in the next step.
2-4 Press the [3 ]/[5 ] (SET) button to set the moved point. To reset the point to the start/end
point of the data, press the [4 ]/[6 ] (RESET) button.
2-5 Press the [8 ] (CLOSE) button.
NOTE
The smallest possible range of the Auto punch in/out function is 100 milliseconds.
3 Use the REHEARSAL function to practice the recording before the actual recording.
3-1 Press the [8 ] (REHEARSAL) button. “EXECUTING” is shown above the [8 ] buttons.
3-2 Press the AUDIO RECORDER/PLAYER [REC] button and press the [PLAY/PAUSE] button.
The audio song is played back repeatedly starting four seconds before the punch in point to four
seconds after the punch out point. Play the keyboard or sing the desired part in practice. In this
rehearsal function, recording is not started.
3-3 Press the AUDIO RECORDER/PLAYER [STOP] button.
NOTE
Repeat playback of the rehearsal function is automatically stopped after playing back 99 times.
NEXT PAGE
86
Tyros5 Reference Manual
5
Record the specific part of the audio song using the one of the
methods below.
NOTE
The playback sound of the other (not yet
rerecorded) track is not recorded to the
track.
Manual
Press the AUDIO RECORDER/PLAYER [REC] button and press the [PLAY/PAUSE] button to engage the record
mode, then press the [REC] and [PLAY/PAUSE] buttons simultaneously to actually record. To stop recording,
press the AUDIO RECORDER/PLAYER [STOP] button. Pressing the AUDIO RECORDER/PLAYER [PLAY/
PAUSE] button during recording pauses the recording.
Pedal
Press the AUDIO RECORDER/PLAYER [REC] button and press the [PLAY/PAUSE] button to engage the record
mode, then press and hold the footswitch. The point at which you press the footswitch is the punch in point and the
point at which you release the pedal is the punch out point.
Auto
Press the AUDIO RECORDER/PLAYER [REC] button and press the [PLAY/PAUSE] button. Recording automatically starts and stops at the specified point in “Specifying the recording range in AUTO mode” on page 86. The
audio song playback automatically stops four seconds after the punch out point.
6
To hear your new recording, press the [PLAY/PAUSE] button.
If you’ve made a mistake or you’re not completely satisfied with your performance, press the [EXIT] button to
return to the Multi Track Recorder display then undo the Punch In/Out operation by pressing the [G] (UNDO) button.
5
Audio Recorder/Player – Recording and Playback Audio Files –
Setting the Start/End Points of the Audio (Multi Track Recording File)
This function lets you set the Start and End points for the audio file. This action is non-destructive and affects only the
playback of the data; it does not actually delete any data from the start or end of the file.
1
Execute Step 1–5 in “Editing the Recorded Data (Multi Track
Recording File)” on page 82 to select the desired audio data.
2
Press the [C] (START/END POINT) button.
3
Specify the Start/End point.
The operation of specifying the Start/End points is same as specifying the punch
in/out points. For instructions, see “Specifying the recording range in AUTO
mode” on page 86.
4
NOTICE
The data is automatically saved in
the internal HDD, but you want to
backup your data before rerecording. Copying is the easiest
way to do this. However, since
copying within a folder in the HDD
is not possible, you need to create a new folder. For details on
file management, refer to the
Owner’s Manual.
Press the [F] (OK) button to enter the new settings to the file.
To cancel the operation, press the [G] (CANCEL) button.
Tyros5 Reference Manual
87
Playlist Mode
The Playlist is a convenient feature within the Audio Recorder/Player that lets you collect and organize audio files for
automatic playback in “jukebox” fashion. The Playlist mode can be active in the background (for example, when the Main
display is selected), letting you play the listed files whenever you wish during your performance.
The “REPEAT” icon (see page 89) at the upper left of the display shows that the Audio Recorder/Player is set to the Playlist mode (automatic playback of multiple files).
Creating a Playlist
Once you have a number of audio files on the internal hard disk drive, you can add those
files to the Playlist. The files can be put in any order and can be entered any number of
times (in other words, a single file can have multiple instances in a Playlist).
1
Press the AUDIO RECORDER/PLAYER [MODE] button several
times to call up the AUDIO PLAYER/RECORDING display.
2
Press [A] (FILE) button, then use the TAB [][] buttons to
select the location (HD or USB) of the desired audio file.
3
Add the desired audio file to the Playlist.
3-1 Press the [6 ] (ADD TO PLAYLIST) button.
The selected file name is highlighted. You can continue to select additional
files here, as many as desired. If multiple pages (P1, P2, ...) are shown at the
bottom, you can select files from these displays, too. To select all the files in
the current folder, press the [6 ] (ALL) button.
NOTE
A Playlist can contain a maximum of
500 audio files.
NOTE
You cannot add the Multi Track (.aud)
audio data to the Playlist.
NOTE
If you want to select all but a few of the
files in the folder, a quick method is to
use the [6 ] (ALL) button to select all
of the files, then use the [A]–[J] buttons
to de-select specific files.
3-2 Press the [7 ] (OK) button to confirm the selection.
4
5
Press the [EXIT] button.
Press the AUDIO RECORDER/PLAYER [MODE] button several
times to call up the PLAYLIST display, then check the Playlist to
confirm that the files have been added.
If the Playlist already has audio files, additional files are automatically put at the
end of the list. Added files are also automatically selected (checkmarked) for playback.
6
NOTE
If you change the file icon after adding
to the Playlist, the audio file cannot be
recognized from the Playlist.
Save the Playlist.
Press the [1 ] (FILES) button, then save the Playlist to the USER drive, internal hard disk drive or USB flash
memory.
Playing a Playlist
Once you’ve created and/or edited a Playlist and you’ve enabled the Playlist mode, you can play back the files in the
list—at any time during your performance.
Keep in mind that playback of files is not instantaneous. Since the Audio Recorder/Player needs to load each file before
playing it, playback pauses roughly one or two seconds between files.
1
Press the AUDIO RECORDER/PLAYER [MODE] button several times to call up the PLAYLIST display.
NEXT PAGE
88
Tyros5 Reference Manual
2
Press the [1 ] (FILES) buttons to call up the PLAYLIST FILE
display, then select the desired Playlist by using the [A]–[J]
buttons.
NOTE
The [SELECT] button toggles between
the Audio and Playlist displays within
the Audio Recorder/Player function.
3
Press the [EXIT] button to return to the PLAYLIST display.
4
Use the [5 ]/[6 ] buttons to select a file for playback, then actually enter it by
pressing the [7 ] (SELECT) button.
You can also use the [DATA ENTRY] dial to move the cursor and press the [ENTER] button to actually select the
song.
To have the files play back from the beginning of the Playlist, select the first file. A check mark indicates the file is
enabled for playback, a minus sign ( - ) indicates the file will be skipped, and an exclamation mark indicates the
file does not contain data.
5
Press the AUDIO RECORDER/PLAYER [PLAY/PAUSE] button to start playback of the
Playlist from the selected file.
While the Playlist mode is active (the indicator at the top left of the display shows the “REPEAT” icon; page 89),
the AUDIO RECORDER/PLAYER [PREV]/[NEXT] buttons function as Previous/Next controls for the Playlist.
Pressing the appropriate button calls up a pop-up window and selects the previous or next audio file in the Playlist.
You can use the AUDIO RECORDER/PLAYER [PLAY/PAUSE] button to pause and resume play at any time during your performance.
6
Press the AUDIO RECORDER/PLAYER [STOP] button to stop playback.
5
To disengage the Playlist mode, press the AUDIO RECORDER/PLAYER [MODE] button several times to call up
the Audio Recorder/Player display, then select an audio file.
Audio Recorder/Player – Recording and Playback Audio Files –
Playlist Controls
Shown here is a sample Playlist display, with short explanations of the various controls.
[A]
REPEAT
Determines how the audio files will be played back:
All files are played in sequence once through to the end (no repeat).
All files are played in sequence repeatedly.
One selected file is played repeatedly.
[B]
SORT
Determines whether the audio files are sorted in ascending or descending order by name.
[C]
SHUFFLE
Pressing this button randomly rearranges the order of the files.
[D]
UNDO/REDO
Pressing this button (Undo) cancels the last action made to the Playlist. Pressing it again
(Redo) restores the cancelled action. Only one level of Undo/Redo is available.
[F]
PROPERTY
Calls up the Property popup window which shows the file name and path of the audio song at
the cursor position.
Tyros5 Reference Manual
89
[G]–[J]
Playlist navigation controls.
[G]: Moves cursor/selection to the top of the list.
[H]: Moves cursor/selection one page up (when there are multiple pages).
[I]: Moves cursor/selection one page down (when there are multiple pages).
[J]: Moves cursor/selection to the bottom of the list (just below last entered file).
[1 ]
FILES
Opens the PLAYLIST FILE display. From this display, you can rename, copy, delete or save
the playlists.
[2 ]
MOVE Up/Down
Use these buttons to move the selected file to another location in the list.
[3 ]
CUT
[3 ]
INSERT
These operations let you copy or cut and paste individual list entries. Keep in mind that these
have no effect on the actual audio data, but just entries in the list.
[4 ]
COPY
Cut and Insert
1 Press the [3 ] (CUT) button.
2 Select the desired file entry by using the [5 ] buttons and press the [6 ] button
to actually select it. Then press the [8 ] (OK) button. The entry is deleted.
3 Move the cursor to the desired location in the list (with the [5 ]/[6 ] buttons)
and press the [3 ] (INSERT) button.
Copy and Insert
1 Press the [4 ] (COPY) button.
2 Select the desired file entry by using the [5 ] buttons and press the [6 ] button
to actually select it. Then press the [8 ] (OK) button. The entry is copied.
3 Move the cursor to the desired location in the list (with the [5 ]/[6 ] buttons)
and press the [3 ] (INSERT) button.
90
[4 ]
DELETE
Deletes files from the Playlist. Keep in mind that this does not affect the actual audio data, but
simply deletes an entry of the file from the list.
[5 ]/
[6 ]
Up/Down
Use these buttons to move the cursor in the list. Use the [DATA ENTRY] dial to quickly move
the cursor (red border) through the entries and press the [ENTER] button.
[7 ]
SELECT
Actually selects the file at the cursor position.
[8 ]
MARK
Adds or removes the checkmark to/from the selected data. Only the checkmarked files will be
played. Holding this button adds (or removes) the checkmark to (or from) all files.
Tyros5 Reference Manual
6
Music Finder
– Calling Up Ideal Panel Settings for Your Performance –
Contents
Creating a Set of Favorite Records ................................................................ 91
Editing Records................................................................................................ 92
• Deleting the Record.................................................................................... 93
Saving the Records as a Single File (Music Finder File) .............................. 93
• Calling up the Records from a Music Finder file....................................... 94
Creating a Set of Favorite Records
Even though the Search function lets you efficiently look for Music Finder Records, you may want to create a custom
“folder” of your favorite Records—so you can quickly call up the panel settings, Song data and Style data you use frequently.
1
Select the desired Record from the MUSIC FINDER display.
2
Press the [H] (ADD TO FAVORITE) button, then press the [G] (YES) button to add the
selected Record to the FAVORITE page.
6
Music Finder – Calling Up Ideal Panel Settings for Your Performance –
3
2
3
Select the FAVORITE page by using the TAB [E][F] buttons, and check to see if the
Record has been added.
As with the ALL page, you can select the Record in the FAVORITE page then start your performance.
Deleting Records from the FAVORITE Page
1 Select the Record you want to delete from the FAVORITE page.
2 Press the [H] (DELETE FROM FAVORITE) button, then press the [G] (YES) button to actually delete
the Record.
Tyros5 Reference Manual
91
Editing Records
You can create your original Record by editing an existing Record. Your edits can be replaced with those of the current
Record, or can be saved as a new separate Record.
1
Select the desired Record to be edited in the MUSIC FINDER display.
2
Press the [8 ] (RECORD EDIT) button to call up the EDIT display.
3
Edit the Record.
[A]
MUSIC
For entering the music title. Pressing the [A] button calls up the display for entering
the music title.
[B]
KEYWORD
For entering the keyword to be used when executing the Search operation. Pressing
the [B] button calls up the display for entering the keyword.
[C]
STYLE/SONG/
AUDIO
Changes the Style. Pressing the [C] button calls up the Style Selection display. After
selecting the desired Style, press the [EXIT] button to return back to the EDIT display.
For SONG or AUDIO Records, this field cannot be edited.
[D]
BEAT
Changes the beat (time signature) of the Record for search purposes.
For SONG or AUDIO Records, this field cannot be edited.
NOTE
Keep in mind that the Beat setting made here is only for the Music Finder search function; this does not
affect the actual Beat setting of the Style itself.
[E]
FAVORITE
Selects whether the edited Record is added to the FAVORITE page or not.
[1 ]
TEMPO
Changes the Tempo. For SONG or AUDIO Records, this field cannot be edited.
[2 ]
SECTIONS
Selects the Style sections that are called up as a set when the Record is selected. You
can start the Record with the section selected by the [2 ] buttons. When the section finishes, Style playback automatically shifts to the section selected by the
[4 ] buttons. For SONG or AUDIO Records, this field cannot be edited.
[5 ]/
[6 ]
GENRE
Selects the desired genre.
[7 ]
GENRE NAME
Creates a new genre.
[4 ]
To cancel and quit the Edit operation, press the [8 ] (CANCEL) button.
NEXT PAGE
92
Tyros5 Reference Manual
4
Save the edited Record.
When creating a new Record
Press the [J] (NEW RECORD) button. The Record is added to the ALL page.
When overwriting an existing Record
Press the [8 ] (OK) button.
Deleting the Record
By executing the Delete operation, you can delete the desired Record from all pages (ALL, FAVORITE and SEARCH
1/2).
1
Select the Record to be deleted from the MUSIC FINDER display.
2
Press the [8 ] (RECORD EDIT) button to call up the EDIT display.
3
Press the [I] (DELETE RECORD) button.
To cancel the Delete operation and return to the MUSIC FINDER display in Step 1, press [G] (NO); to return to
the EDIT display in Step 2, press [H] (CANCEL).
4
Press the [F] (YES) button to delete the current Record.
6
Saving the Records as a Single File (Music Finder File)
Music Finder – Calling Up Ideal Panel Settings for Your Performance –
The Music Finder feature handles all the Records including the presets and additionally created Records as a single
Music Finder file. Keep in mind that individual Records (panel settings, Song, audio and Style files) cannot be handled as
separate files.
1
Press the [7 ] (FILES) button in the MUSIC FINDER display to call up the File Selection display.
2
Press the TAB [E][F] buttons to select the location for saving (USER/HD/USB).
3
Press the [6 ] (SAVE) button.
4
Press the [8 ] (OK) button to actually save the file.
All Records are saved together as a single Music Finder file.
Tyros5 Reference Manual
93
Calling up the Records from a Music Finder file
By selecting a Music Finder file, you can recall the Records saved to the User, Hard disk or USB drive as a file.
1
Press the [7 ] (FILES) button in the MUSIC FINDER display to call up the File Selection display.
2
Use the TAB [E][F] buttons to select the location to which the file is saved.
3
Press the [A]–[J] buttons to select the desired Music Finder file.
A message appears, prompting you to select one of the following options.
[F]
REPLACE
All Music Finder Records currently in the instrument are deleted and replaced with
the Records of the selected file.
NOTICE
Selecting “REPLACE” automatically deletes all your original Records from internal memory. Make sure that all important data has been archived to another location beforehand.
94
[G]
APPEND
The Records called up are added to the Records currently in the instrument.
[H]
CANCEL
Cancels the file selection operation.
Tyros5 Reference Manual
7
Registration Memory
– Saving and Recalling Custom Panel Setups –
Contents
Editing a Registration Memory ...................................................................... 95
Disabling Recall of Specific Items (Freeze) ................................................... 96
Calling Up Registration Memory Numbers in Order (Registration
Sequence) .......................................................................................................... 97
• Saving the Registration Sequence Settings ................................................ 98
• Using the Registration Sequence................................................................ 99
Editing a Registration Memory
You can edit (rename and delete) each of Registration Memories contained in the Bank.
1
Select the Registration Memory Bank containing the Registration Memory to be edited.
Press the REGISTRATION BANK [+]/[-] buttons simultaneously to call up the Registration Bank Selection display, then press one of the [A]–[J] buttons to select the desired Bank.
Make sure the MENU 1 is shown at the bottom right corner of the display.
3
Press the [7 ] (EDIT) button to call up the REGISTRATION EDIT display.
4
Select a particular Registration Memory to be edited by pressing any of the [A]–[D] and
[F]–[I] buttons.
5
Press the [1 ] button to rename or the [5 ] button to delete the selected Registration
Memory.
7
Registration Memory – Saving and Recalling Custom Panel Setups –
2
For details on the Rename and Delete operations, refer to the Basic Operations of the Owner’s Manual.
6
Save the current Bank containing the edited Registration Memories.
Press the [8 ] button to call up the Registration Memory Selection display. Change MENU 1 to MENU 2 by
pressing the [8 ] button, then press the [6 ] (SAVE) button to execute the Save operation.
Tyros5 Reference Manual
95
Disabling Recall of Specific Items (Freeze)
Registration Memory lets you recall all the panel setups you made with a single button press. However, there may be
times that you want certain items to remain the same, even when switching Registration Memory setups. When you
want to switch the Voice settings but still maintain the Style settings, for example, you can “freeze” only the Style
settings and have those Style settings remain, even when you select another Registration Memory number.
1
Call up the operation display.
[FUNCTION]  [E] REGIST SEQUENCE/FREEZE/VOICE SET  TAB [E][F] FREEZE
2
Use the [2 ]–[7 ] buttons to select the desired item, then use the [8 ] buttons
to enter or remove the checkmark.
Items having checkmarks will be frozen when [FREEZE] is turned on.
3
4
Press the [EXIT] button to exit from the operation display.
Press the [FREEZE] button on the panel to turn the Freeze function on.
With this operation, you can “freeze” or maintain checkmarked items, even when
you select another Registration Memory number. To turn off the Freeze function,
press the [FREEZE] button again.
96
Tyros5 Reference Manual
NOTICE
Settings in the REGISTRATION
FREEZE display are automatically
saved to the instrument when you
exit from this display. However, if
you turn the power off without
exiting from this display, the settings will be lost.
Calling Up Registration Memory Numbers in Order (Registration
Sequence)
As convenient as the Registration Memory buttons are, there may be times during a performance when you want to
even more easily switch between settings. The convenient Registration Sequence function lets you call up the eight
setups in any order you specify, by simply using the TAB [E][F] buttons (in the Main display) or the pedal as you
play.
1
If you intend to use a pedal or pedals to switch the Registration Memory number, connect the optional pedals to the appropriate FOOT PEDAL jacks.
For instructions, refer to Chapter 11 of the Owner’s Manual.
2
In the REGISTRATION BANK display, select the desired Bank to be programmed.
3
Call up the operation display.
[FUNCTION]  [E] REGIST SEQUENCE/FREEZE/VOICE SET  TAB [E][F] REGISTRATION
SEQUENCE
4
If you use a pedal, specify here how the pedal will be used—to advance or to reverse
through the sequence.
Use the [C] or [D] button to select the pedal for advancing or reversing through the Registration Sequence. For
example, if two pedals are connected, Pedal 1 is used for advancing while Pedal 2 is used for reversing. Note that
the pedal settings here (other than OFF) will take priority over the settings in the FOOT PEDAL display
(page 133). If you want to use the pedal for a function other than Registration Sequence, make sure to set this to
OFF.
Indicates the name of the currently selected
Registration Memory Bank.
7
7
5
Program the Sequence order, from left to right.
Press one of the REGISTRATION MEMORY [1]–[8] buttons on the panel, then press the [6 ] (INSERT) button to input the number.
Indicates the Registration Memory
numbers, in the order of the current
Registration Sequence.
NEXT PAGE
Tyros5 Reference Manual
97
Registration Memory – Saving and Recalling Custom Panel Setups –
4
6
[1 ]–
[4 ]
CURSOR
Moves the cursor.
[5 ]
REPLACE
Replaces the number at the cursor position with the currently selected Registration Memory
number.
[6 ]
INSERT
Inserts the number of the currently selected Registration Memory number to the cursor position.
[7 ]
DELETE
Deletes the number at the cursor position.
[8 ]
CLEAR
Deletes all numbers in the sequence.
6
Use the [E] (SEQUENCE END) button to determine how Registration Sequence behaves
when reaching the end of the sequence.
• STOP ......................Pressing the TAB [F] button or the “advance” pedal has no effect. The sequence is
“stopped.”
• TOP ........................The sequence starts again at the beginning.
• NEXT BANK .........The sequence automatically moves to the beginning of the next Registration Memory
Bank in the same folder.
7
Press the [F] (REGISTRATION SEQUENCE ENABLE) button to turn the Registration
Sequence function on.
8
Press the [EXIT] button to exit from the operation display.
After the confirmation message appears, press the [G] (YES) button to store the Registration Sequence program
temporarily.
Saving the Registration Sequence Settings
The settings for the Sequence order and how Registration Sequence behaves when reaching the end of the sequence (SEQUENCE END) are included as part of the Registration
Memory Bank file. To store your newly programmed Registration Sequence, save the current Registration Memory Bank file.
98
NOTICE
Keep in mind that all Registration
Sequence data is lost when
changing Registration Memory
Banks, unless you’ve saved it
with the Registration Memory
Bank file.
1
Press the REGIST BANK [+] and [-] buttons simultaneously to
call up the REGISTRATION BANK Selection display.
2
Make sure the MENU 2 is shown at the bottom right corner of the display.
3
Press the [6 ] button to save the Bank file.
Tyros5 Reference Manual
Using the Registration Sequence
1
Select the desired Registration Bank.
2
At the upper right of the Main display, confirm the Registration Sequence.
The Registration Sequence is indicated at the
upper right of the Main display, letting you confirm
the currently selected numbers.
3
Press the TAB [E] or [F] button, or press the Foot Pedal to select the first Registration
Memory number.
The box appears around the left-most number, indicating that this Registration Memory number is currently
selected.
4
Use the TAB buttons or Foot Pedal during your keyboard performance.
To return to the status in which no Registration Memory number is selected, press
the [E] and [F] buttons simultaneously in the Main display.
NOTE
The pedal can be used for Registration
Sequence no matter which display is
called up (except for the REGIST
SEQUENCE display).
7
Registration Memory – Saving and Recalling Custom Panel Setups –
Tyros5 Reference Manual
99
8
Microphone
– Adding Harmony Vocals and Synth Vocoder to Your Singing –
Contents
Vocal Harmony and Talk Setting ................................................................. 100
Making and Saving the Microphone Settings (Vocal/Talk)........................ 101
• Saving the Microphone Settings............................................................... 101
• VOCAL Page............................................................................................ 102
• TALK Page ............................................................................................... 103
Setting and Editing Vocal Harmony Types ................................................. 104
• Setting up the Vocal Harmony Control Parameters.................................. 104
• Editing the Vocal Harmony Types............................................................ 106
Editing the Synth Vocoder Types ................................................................. 111
• Editing the Overview Tab Parameters ...................................................... 112
• Editing the Detail Tab Parameters............................................................ 114
Vocal Harmony and Talk Setting
q
w
r
t
e
q [VOCAL HARMONY] button
Turns on or off the Vocal Harmony.
w [VOCAL EFFECT] button
Turns on or off the Vocal Effect which can be set on the display called up via [VH TYPE SELECT] [8 ] (EDIT).
For details, refer to page 104.
e [TALK] button
Switches the microphone setup between the Vocal setup (used during microphone performance) and Talk setup (used
during talk or between a certain performance and the next performance). When set to ON, only the Talk settings are
active. When set to OFF, only the Vocal Harmony settings are active.
r [VH TYPE SELECT] button
For selecting the desired Vocal Harmony type.
t [MIC SETTING] button
For setting various microphone-related parameters, for Vocal Harmony and Talk independently.
100
Tyros5 Reference Manual
Making and Saving the Microphone Settings (Vocal/Talk)
This section explains how to make and save the detailed settings for the microphone.
Connect the microphone, press the [MIC SETTING/VOCAL HARMONY] button to call up
the operation display, then press the [F] button to set the MIC to ON.
This lets you talk into the microphone and hear the changes made while setting the parameters.
2
Select the desired page, VOCAL or TALK, by using the TAB
[E][F] buttons.
NOTE
2
The settings on the TALK page are
microphone settings that are active
when the Talk function is on.
3
4
3
Use the [A]–[E] buttons to select the specific row (or group) of parameters to be
adjusted.
4
Set the value of specific parameters in the row by using the
[1 ]–[6 ] buttons.
For information on each parameter, see pages 102–103.
NOTICE
After setting, go to the Mic Setting
Memory display by pressing the
[H] (USER MEMORY) button and
save the settings (see page 102).
The settings will be lost if you exit
from this display or turn the
power to the instrument off without executing the Save operation.
Microphone – Adding Harmony Vocals and Synth Vocoder to Your Singing –
1
8
Saving the Microphone Settings
All the settings (VOCAL/TALK pages) are saved together as a single file. Up to ten files can be saved.
1
On the MIC SETTING display (in step 3 above), press the [H] (USER MEMORY) button.
2
Press the [6 ] (SAVE) button to save the file to USER.
For details on the naming and deleting procedures, refer to the Basic Operations
section in the Owner’s Manual.
Calling Up the Microphone Settings Saved to USER
1 [MIC SETTING] button  [H] USER MEMORY
2 Press the [A]–[J] buttons to select the desired setting file.
NOTE
The microphone setting file can be
saved only to internal USER drive. If you
want to save this setting USB flash
memory, save the User Effect file on the
display called up via [FUNCTION] 
[H] (UTILITY)  SYSTEM RESET 
[H] (USER EFFECT).
Tyros5 Reference Manual
101
VOCAL Page
3-BAND EQ (selected by [A]/[B] buttons)
EQ (Equalizer) is a processor that divides the frequency spectrum into multiple bands which can be boosted or cut
as required to tailor the overall frequency response. This instrument features a high-grade three-band (LOW, MID
and HIGH) digital equalizer function for the microphone sound.
[1 ]/
[3 ]/
[5 ]
Hz
Adjusts the center frequency of the corresponding band.
[2 ]/
[4 ]/
[6 ]
dB
Boosts or cuts the level of the corresponding band by up to 12 dB.
NOISE GATE (selected by [C]/[D] buttons)
This effect mutes the input signal when the input from the microphone falls below a specified level. This effectively cuts off extraneous noise, allowing the desired signal (vocal, etc.) to pass.
[1 ]
SW (Switch)
Turns the Noise Gate on or off.
[2 ]
TH. (Threshold)
Adjusts the input level at which the gate begins to open.
COMPRESSOR (selected by [C]/[D] buttons)
This effect holds down the output when the input signal from the microphone exceeds a specified level. This is
especially useful for smoothing out vocals that have widely varying dynamics. It effectively “compresses” the signal, making soft parts louder and loud parts softer. For a maximum compression effect, set RATIO to a high setting
and adjust the OUT parameter for optimum volume.
[3 ]
SW (Switch)
Turns the Compressor on or off.
[4 ]
TH. (Threshold)
Adjusts the input level above which the Compressor is applied.
[5 ]
RATIO
Adjusts the compression ratio. Higher ratios result in a more compressed sound, with
a reduced dynamic range.
[6 ]
OUT
Adjusts the final output level.
PITCH DETECT (selected by [E] button)
Determines how this instrument detects or recognizes the pitch of the microphone sound you input during performance.
[1 ]/
[2 ]
VOCAL TYPE
Set this to obtain the most natural vocal harmony, depending on your voice.
LOW: Setting for lower voices. This setting is also appropriate for growling and
shouting.
MID: Setting for mid-range voices.
HIGH: Setting for higher voices. This setting is also appropriate for singing close to
the microphone.
FULL: Setting for vocalists having a wide range, from low to high.
[3 ]/
[4 ]
BACKGROUND
NOISE CUT
THRU, 200Hz, 300Hz, 400Hz, 500Hz: This allows you to filter out low noises that
would interfere with the Vocal Harmony effect. A setting of “THRU” turns the
noise filter off.
[5 ]/
[6 ]
SPEED
1 (SLOW) – 4 (NORMAL) – 15 (FAST): Adjusts the response of the Vocal Harmony effect, or how quickly harmonies are generated in response to your voice.
NOTE
When the Vocal Harmony’s Pitch Detect Speed of one or both parts of Lead and Harm. are set to “as Mic
Setting” in the Detail tab (page 110), this parameter is effective. In other settings, the setting of the Vocal
Harmony’s Pitch Detect Speed is effective.
102
Tyros5 Reference Manual
TALK Page
The settings here are for your speech or announcements (NOT your singing performance), and are active when the
TALK (page 100) is set to ON. All indications and parameters (with the exception of TALK MIXING below) are the
same as in the VOCAL page. However, the settings are independent from those in the VOCAL page.
[1 ]
VOLUME
Determines the output volume of the microphone sound.
[2 ]
PAN
Determines the stereo pan position of the microphone sound.
[3 ]
REVERB DEPTH
Determines the depth of the reverb effects applied to the microphone sound.
[4 ]
CHORUS DEPTH
Determines the depth of the chorus effects applied to the microphone sound.
[5 ]/
[6 ]
REDUCTION
LEVEL
Determines the amount of reduction to be applied to the overall sound (excepting the
microphone input)—allowing you to effectively adjust the balance between your
voice and the overall instrument sound.
Microphone – Adding Harmony Vocals and Synth Vocoder to Your Singing –
TALK MIXING (selected by [E] button)
8
Tyros5 Reference Manual
103
Setting and Editing Vocal Harmony Types
Setting up the Vocal Harmony Control Parameters
You can set which part controls the Vocal Harmony regardless of the current Vocal Harmony Type.
1
2
Press the [VH TYPE SELECT] button to call up the Vocal Harmony Type Selection display.
NOTE
Check that the microphone is properly
connected (Owner’s Manual, chapter 8)
and the settings (Reference Manual,
page 101) are adjusted correctly before
setting the Vocal Harmony Control
parameters here.
Press the [8 ] (SETUP) button to call up the Setup display, then set the value by using
the [2 ]–[5 ] and [7 ] buttons.
For information on each parameter, see page 105.
3
After you finish setting the value, press the [EXIT] button to close the Setup display.
NEXT PAGE
104
Tyros5 Reference Manual
Setup Parameters
VOCODER
CONTROL
The Vocal Harmony effect in the Vocoder and Vocoder-Mono modes is controlled
by the notes you play on the keyboard and/or Song data.
[2 ]
SONG
CHANNEL MUTE/
PLAY
When set to “MUTE,” the channel selected below (to control Harmony) is muted
(turned off) during Song playback. This enables you to sing a song with harmony,
even without backing or accompaniment.
[3 ]
SONG
CHANNEL
OFF/1–16
When set to OFF, Song playback does not affect the Vocal Harmony. When set to
one of the values 1–16, note data (played from a Song on this instrument or external MIDI sequencer) contained on the corresponding channel is used to control the
harmony.
[4 ]
/[5 ]
KEYBOARD
OFF: Keyboard performance does not affect the Vocal Harmony.
UPPER: Notes played to the right of the Split Point control the harmony.
LOWER: Notes played to the left of the Split Point control the harmony.
NOTE
The separate point of the Keyboard settings (OFF/UPPER/LOWER) is Split Point (L).
NOTE
When the settings of both keyboard performance and Song data are applied, those settings are merged
to control the harmony.
[7 ]
CHORD
In Chordal mode, the following parameters determine which data in a Song is used
for chord detection.
OFF: Chords are not detected from the Song data.
XF: Chords of XF format are used for the Vocal Harmony.
1–16: Chords are detected from note data in the specified Song channel.
NOTE
The Vocal Harmony may not work properly regardless of the setting here depending on the Song data.
This occurs when the selected Song contains no chord data or has insufficient note data for chord
detection.
Microphone – Adding Harmony Vocals and Synth Vocoder to Your Singing –
[2 ]–
[5 ]
8
Tyros5 Reference Manual
105
Editing the Vocal Harmony Types
This section explains briefly how to create your own Vocal Harmony types, and lists the detailed parameters for
editing. A sum total of sixty types can be created and saved.
1
Press the [VH TYPE SELECT] button to call up the Vocal Harmony Type Selection display.
2
Select a Vocal Harmony type to be edited by using the [A]–[J] buttons.
To call up the other display pages for further selections, press one of the [1 ]–[5 ] buttons.
4
2
5
2
3
4
3
Press the [8 ] (EDIT) button to call up the Vocal Harmony Edit display.
4
Use the TAB [E][F] buttons to call up the desired tab, then edit
the Vocal Harmony by using [A]–[G] buttons and [1 ]–
[8 ] buttons.
There are three tabs in the Vocal Harmony Edit display; refer to pages 107–110 for
editing each tab.
NOTICE
The settings here will be lost if
you change to another Vocal Harmony type or you turn the power
off without executing the Save
operation.
• OVERVIEW...........Edits basic parameters for Vocal Harmony type, includ-
ing Mode, Chordal Type and Vocal Effect, etc.
• PART ......................Adjusts volume and panning, etc. for each of the harmony notes (Harm.1, 2, 3 and Lead).
• DETAIL .................Detailed editing for Vocal Harmony type.
5
Press the [I] (SAVE) button to save your edited Vocal Harmony
type.
For details on the Save operation, refer to the Owner’s Manual, Basic Operations.
106
Tyros5 Reference Manual
NOTE
The edited Vocal Harmony Type can be
saved only to internal USER drive as a
file. If you want to save this to USB flash
memory, save the User Effect file on the
display called up via [FUNCTION] 
[H] (UTILITY)  SYSTEM RESET 
[H] (USER EFFECT).
 Editing the Overview Tab Parameters
1
2
3
1
Set the value by using the [A]–[C] buttons, [1 ] and [3 ]–[8 ] buttons.
For information on each parameter, see page 108.
2
Press the [F] (HARMONY ASSIGN) button to set how the Vocal Harmony is applied to
your singing voice.
For information on each parameter, see page 108.
3
Press the [G] (VOCAL EFFECT EDIT) button to edit the Vocal Effect.
Microphone – Adding Harmony Vocals and Synth Vocoder to Your Singing –
1
On the display called up via this operation, use the [3 ]–[5 ] buttons to select the parameter then use the
[6 ]–[7 ] buttons to set the value. If necessary, you can change the Effect Type from the one selected in
Step 1 also on this display via the [1 ]/[2 ] buttons.
For information on each parameter, refer to the Data List (Vocal Harmony Parameter List) on the website.
8
NEXT PAGE
Tyros5 Reference Manual
107
Overview Tab Parameters
[A]
MODE
Determines the mode of the Vocal Harmony effect: Chordal, Vocoder or VocoderMono. Chordal is for conventional vocal harmonies, while Vocoder and VocoderMono are for Vocoder effects. (Vocoder-Mono is for single-note melodies.) When
Vocoder or Vocoder-Mono is selected, the Chordal Type parameter below is not
available.
[B]/[C]
CHORDAL TYPE
Determines the particular notes and voicings used for generating the vocal harmonies. The harmony and lead notes are also shown as notation in the display. For a
list of the Chordal Types, refer to the Data List (Vocal Harmony Parameter List) on
the website.
[1 ]
BALANCE
Lets you set the balance between the lead vocal (your own voice) and Vocal Harmony. Raising this value increases the volume of the Vocal Harmony and decreases
that of the lead vocal. When this is set to L<H63 (L: Lead Vocal, H: Vocal Harmony), only the Vocal Harmony is output; when it is set to L63>H, only the lead
vocal is output.
[3 ]–
[6 ]
VOCAL EFFECT
Determines the Vocal Effect type and the amount of the effect applied to the lead
and harmony vocal sounds.
[3 ]
–[4 ]
TYPE
Determines the specific Vocal Effect type applied to the lead and harmony vocal
sounds. A wide range of reverb, delay, modulation, distortion and other special
effects are available. For a list of the effect types, refer to the Data List (Vocal Harmony Parameter List) on the website.
[5 ]
LEAD
Determines the amount of Vocal Effect that is applied to the lead vocal sound.
[6 ]
HARM.
(Harmony)
Determines the amount of Vocal Effect that is applied to the harmony vocal sound.
[7 ]
REVERB
Determines the amount of reverb applied to the overall Vocal Harmony sound, both
lead and harmony.
[8 ]
CHORUS
Determines the amount of chorus effect applied to the overall Vocal Harmony
sound, both lead and harmony.
HARMONY ASSIGN
For detailed information on each parameter, refer to the Data List (Vocal Harmony Parameter List) on the website.
[1 ]/
[2 ]
TRANS.
(TRANSPOSE)
MODE
Determines the amount by which the harmony parts are transposed. A setting of
“0” results in no transposition, while the “Auto” setting results in automatic transposition. When the mode is set to Vocoder or Vocoder-Mono, this parameter is
available.
Settings: 0, Auto, -3 – +3
[3 ]/
[4 ]
SESSION TABLE
Determines how the harmonies will be voiced, or what type of chord will be used
in creating the harmonies, according to different musical styles. This parameter is
available only when the mode is set to Chordal and the type is set to something
other than ScaleDiatonic or Parallel.
Settings: Normal, Simple, R&R, UrbanA, UrbanB, Blues7, UrbanC
[5 ]/
[6 ]
KEY ROOT
Determines the root key for the transposition. Use this in combination with Key
Type below to enable modal scale harmony transposition. When the Chordal Type
parameter is set to ScaleDiatonic, this parameter is available.
Settings: C, C#, D, D#, E, F, F#, G, G#, A, A#, B
[7 ]/
[8 ]
KEY TYPE
Determines the scale type for the transposition. Use this in combination with Key
Root above to enable modal scale harmony transposition. When the Chordal Type
parameter is set to ScaleDiatonic, this parameter is available.
Settings: Maj, Min (Natural), Min (Harmonic)
108
Tyros5 Reference Manual
 Editing the Part Tab Parameters
The parameters are arranged in a matrix.
For information on each parameter, see below.
 TRANSPOSE (selected by [A] button)
Determines the pitch transposition for each part. The range for all parts is the same; however, the lead vocal sound
can only be adjusted in octaves. When the Chordal Type is set to ScaleDiatonic, this parameter changes to Degree.
When Pitch Correct is set to Off, the Lead part is not available. When the Vocoder or Vocoder-Mono mode is
selected, the Harmony parts are not available.
TRANSPOSE Settings
Lead: -3 octaves – +3 octaves
Harmony 1, 2, 3: -36 semitones – +36 semitones
DEGREE Settings
Lead: -3 octaves – +3 octaves
Harmony 1, 2, 3: -3 octaves (-22 scale degrees) – Unison – +3 octaves (+22 scale degrees)
Microphone – Adding Harmony Vocals and Synth Vocoder to Your Singing –
Use the [A]–[E] buttons to select the desired parameter, then edit each of the Vocal Parts
including the Harmony notes (Harm.1, 2, 3) and Lead voice (your own voice) via the
[3 ]–[8 ] buttons.
8
 DETUNE (selected by [B] button)
Determines the fine pitch setting for each part. Adjust this to produce a warm chorusing effect, or to achieve a natural, less-than-perfect vocal sound. When Pitch Correct is set to Off, the Lead part is not available.
Settings: -50 cents – +50 cents
 FORMANT (selected by [C] button)
Determines the formant setting for each part. This parameter can be used to finely change the character of the
vocal sound. The higher the value, the more “feminine” the harmony voice becomes. The lower the value, the more
“masculine” the voice. When Pitch Correct is set to Off, the Lead part is not available.
Settings: -62 – +62
 PAN (selected by [D] button)
Determines the pan position setting for each part. Setting each vocal part to a different pan position, with the lead
vocal at center, for example, results in a naturally wide stereo sound.
Settings: L63 (Left) – C (Center) – R63 (Right)
 VOLUME (selected by [E] button)
Determines the volume setting for each part. Use this to adjust the relative level balance among the vocal parts.
Settings: 0–127
Tyros5 Reference Manual
109
 PITCH CORRECT MODE (set by [7 ]–[8 ] buttons)
Determines how Pitch Correct affects your voice. For information on each parameter, refer to the Data List (Vocal
Harmony Parameter List) on the website.
Settings: OFF, SOFT 1, SOFT 2, HARD
 Editing the Detail Tab Parameters
Use the [2 ]–[5 ] buttons to select the desired parameter, then set the value of
the selected parameter by using the [6 ]/[7 ] buttons.
For information on each parameter, refer to the Data List (Vocal Harmony Parameter List) on the website.
110
Tyros5 Reference Manual
Editing the Synth Vocoder Types
NOTE
For information on “Editing the Vocal
Harmony Types,” refer to page 106.
1
Press the [VH TYPE SELECT] button to call up the Vocal Harmony Type Selection display.
2
Use the TAB [][] buttons to select the Synth Vocoder tab.
2
5
3
6
4
5
Microphone – Adding Harmony Vocals and Synth Vocoder to Your Singing –
This section explains how to create your own Synth Vocoder types, and lists the detailed
parameters for editing. A sum total of sixty types (Synth Vocoder and Vocal Harmony
types) can be created and saved.
8
3
Select a Synth Vocoder type to be edited by using the [A]–[J] buttons.
4
Press the [8 ] (EDIT) button to call up the Synth Vocoder Edit display.
5
Use the TAB [][] buttons to call up the desired tab, then edit
the Synth Vocoder by using [A]–[E], [G] and [J] buttons and [1
]–[8 ] buttons or sliders.
There are two tabs in the Synth Vocoder Edit display; refer to pages 112–114 for
editing each tab.
NOTICE
The settings here will be lost if
you change to another Synth
Vocoder type or you turn the
power off without executing the
save operation.
• OVERVIEW........... Edits basic parameters for Synth Vocoder type, including
Carrier, Vocoder Attack/Release and HPF (High Pass Filter), etc.
• DETAIL .................. Detailed editing for Synth Vocoder type.
6
Press the [I] (SAVE) button to save your edited Synth Vocoder type.
Tyros5 Reference Manual
111
Editing the Overview Tab Parameters
2
1
Use the [A]–[E] (or [J]) buttons to select the parameter to be adjusted, then set the value
by using the [1 ]–[8 ] buttons or sliders.
For information on each parameter, see page 113.
2
Press the [G] (VOCAL EFFECT EDIT) button to edit the Vocal Effect.
Use the [1 ]–[5 ] buttons to select the desired effect type and parameter, then set the value of the selected
parameter by using the [6 ]/[7 ] buttons.
For information on each parameter, refer to the Data List on the website.
NEXT PAGE
112
Tyros5 Reference Manual
CARRIER (set by [A]/[B] buttons)
Selects the musical instrument sound used as the source (Carrier) for the Synth Vocoder. (The Carrier serves as the
basic sound over which the vocal characteristics are applied.)
VOCODER parameters (selected by [C]/[D] buttons)
ATTACK
Determines the attack time of the Synth Vocoder sound. The higher the value, the
slower the attack.
Settings: 1ms – 200ms
[2 ]
RELEASE
Determines the release time of the Synth Vocoder sound. The higher the value, the
slower the decay.
Settings: 10ms – 3000ms
HPF (High Pass Filter) parameters (selected by [C]/[D] buttons)
[3 ]
FREQ. (Frequency)
Determines the HPF cutoff frequency for the microphone input sound. Setting this
to a low value results in a minimally processed input sound—in other words, close
to the original. Setting this to higher values emphasizes the higher frequency consonant and sibilant sounds (making words easier to understand).
Settings: Thru, 500Hz – 16kHz
[4 ]
LEVEL
Determines the level of the microphone sound output from the HPF.
Settings: 0 – 127
FORMANT parameters (selected by [C]/[D] buttons)
[5 ]
SHIFT
Determines the amount (in BPF) by which the cutoff frequency value of the BPFs
(for the Inst Input) is shifted. This parameter can be used to change the character of
the Vocoder sound.
Settings: -2, -1, +0, +1, +2
[6 ]
OFFSET
Adjusts the cutoff frequencies of all BPFs (for the Inst Input) finely. This parameter
can be used to finely change the character of the Vocoder sound.
Microphone – Adding Harmony Vocals and Synth Vocoder to Your Singing –
[1 ]
Settings: -63 – +0 – +63
8
CARRIER parameters (selected by [E]/[J] buttons)
[1 ]
VOLUME
Determines the level of the Carrier for the Synth Vocoder sound.
Settings: 0–127
[2 ]
OCTAVE
Determines the octave setting of the Carrier for the Synth Vocoder sound.
Settings: -2 – +2
[3 ]
NOISE
Determines the noise level which is input to the Synth Vocoder. This can be used to
emphasize sibilant and plosive sounds, and make the speech-like characteristics
more pronounced.
Settings: 0 – 127
EFFECT parameters (selected by [E]/[J] buttons)
[4 ]/
[5 ]
TYPE
Determines the specific type of effect applied to the lead Synth Vocoder sound. A
wide range of reverb, delay, modulation, distortion and other special effects are
available. You can edit the vocal effect by pressing the [G] (VOCAL EFFECT
EDIT) button (step 2 on page 112).
For a list of the effect types, refer to the Data List on the website.
[6 ]
DEPTH
Determines the amount of effect applied to the overall Synth Vocoder sound.
[7 ]
REVERB
Determines the amount of reverb applied to the overall Synth Vocoder sound.
[8 ]
CHORUS
Determines the amount of chorus effect applied to the overall Synth Vocoder sound.
Tyros5 Reference Manual
113
Editing the Detail Tab Parameters
Use the [B]–[E] buttons to select the BAND PASS FILTER 1–5 or
6–10, then set the value by using the [1 ]–[5 ] buttons or
sliders.
NOTE
Feedback (howling) may result depending on the setup settings. Be careful
especially when you increase values.
BAND PASS FILTER 1–10 parameters
Determines each output gain of the BPF 1 – 10 for the Inst Input (keyboard performance sound). The BPF 1 corresponds to the lowest Formant while the BPF 10 corresponds to the highest Formant.
Settings: -18dB – +18dB
114
Tyros5 Reference Manual
9
Mixing Console
– Editing the Volume and Tonal Balance –
Contents
Regarding the Mixing Console, the Reference Manual covers detailed descriptions of each parameter while the Owner’s
Manual covers the basic instructions including the Save operation. You can edit various parameters for the Parts called up
via the [MIXING CONSOLE] button, then save your edits for future recall.
Editing VOL/VOICE Parameters
Mixing Console – Editing the Volume and Tonal Balance –
Editing VOL/VOICE Parameters ................................................................ 115
Editing FILTER Parameters ........................................................................ 116
Editing TUNE Parameters............................................................................ 117
Editing EFFECT Parameters ....................................................................... 118
• Adjusting the Effect Depth for Each Part................................................. 118
• Selecting an Effect Type for Each Block ................................................. 118
• Editing and Saving Your Original Effect Type......................................... 120
Editing EQ Parameters ................................................................................. 122
• Editing and Saving Your Original Master EQ Type................................. 123
Editing Master Compressor Settings ........................................................... 123
Line Out Settings ........................................................................................... 124
Block Diagram ............................................................................................... 125
9
[C]/[H]
VOICE
Allows you to re-select the Voices for each part.
NOTE
• Note the following operation limitations.
• For each Style part, you can select the Voices for recording (pages 34 and 35).
• For each Style or Song channel, you cannot select Voices in the User drive.
• For each Multi Pad, you cannot change the Voice.
• When a GM Song is selected, only a Drum Kit Voice can be selected for channel 10 (in the SONG CH916 page).
NOTE
For a Style or Song channel, calling up a rhythm/percussion Voice (Drum Kit, etc.) will replace the channel
settings with those for the new Voice. In such a case, the original settings may not be restored even if you
re-select the original Voice. To restore the original sound, select the same Style or Song again without executing the Save operation.
[D]/[I]
PANPOT
Determines the stereo position of the selected part (channel).
[E]/[J]
VOLUME
Determines the volume of each part or channel, giving you fine control over the balance of all the parts.
Tyros5 Reference Manual
115
Editing FILTER Parameters
116
[D]/[I]
HARMONIC
CONTENT
Allows you to adjust the Resonance (page 14) for each part.
[E]/[J]
BRIGHTNESS
Determines the brightness of the sound for each part by adjusting the Cutoff Frequency (page 14).
Tyros5 Reference Manual
Editing TUNE Parameters
PORTAMENTO
TIME
Portamento is a function that creates a smooth transition in pitch from the first note
played on the keyboard to the next. The Portamento Time determines the pitch transition time. Higher values result in a longer pitch change time. Setting this to “0” results
in no effect. This parameter is available only when the selected keyboard part is set to
Mono.
[C]/[H]
PITCH BEND
RANGE
Determines the range of the PITCH BEND wheel for each keyboard part. The range is
from “0” to “12” with each step corresponding to one semitone.
[D]/[I]
OCTAVE
Determines the range of the pitch change in octaves, over two octaves up or down for
each keyboard part. The value set here is added to the setting made via the OCTAVE []/[+] buttons.
[E]/[J]
TUNING
Determines the pitch of each keyboard part in cents.
NOTE
In musical terms a “cent” is 1/100th of a semitone. (100 cents equal one semitone.)
[1 ]–
[3 ]
TRANSPOSE
Allows you to set transposition for overall sound of the instrument (MASTER), Song
playback (SONG), or keyboard pitch (KBD), respectively. Please note that the “KBD”
setting also transposes the pitch of Style playback and the Multi Pads (since these are
also affected by keyboard play in the left-hand section).
Tyros5 Reference Manual
Mixing Console – Editing the Volume and Tonal Balance –
[A]/[B]/
[F]/[G]
9
117
Editing EFFECT Parameters
This instrument features eleven Effect Blocks, giving you powerful tools to richly enhance the sounds of the
instrument or completely transform them. The Effects are divided into the following groups:
 Reverb, Chorus
The Effects of these Blocks are applied to the overall sound or all Parts. In each of these Effect Blocks, you can select
only one Effect Type at a time and adjust the Send Level (Depth) for each Part as well as the Return Level for all Parts.
 DSP1
When the Connection is set to “System” on the EFFECT PARAMETER EDIT display (page 120), the Effects of this
Block are applied only to the Style and Song sounds. In this status, you can select only one Effect Type at a time and
adjust the Send Level (Depth) for each Part as well as Return Level for all Parts. When the Connection is set to
“Insertion” on the EFFECT PARAMETER EDIT display, the Effect of this Block is applied to a specific channel of
the Style and Song.
 DSP2-9
The Effects of these Blocks are applied to a specific Part or Channel, with the exception of the Multi Pads and
microphone input. Different Effect Types can be selected for each of the available Parts or Channels.
Adjusting the Effect Depth for Each Part
Use the [B]–[E] or [G]–[J] buttons to select the desired Effect Block, then use the [1 ]–[8 ] buttons to adjust
the Effect Depth for each Part.
Selecting an Effect Type for Each Block
This section covers how to change the Effect Type of each Effect Block. The settings here can be saved to a
Registration Memory, Song or Style.
1
Call up the desired page from PANEL, SONG or STYLE via the [MIXING CONSOLE] button.
NEXT PAGE
118
Tyros5 Reference Manual
2
In the EFFECT page, press the [F] (TYPE) button to call up the Effect Type Selection display.
3
6
4
Press the [A] button.
4
Use the [1 ]/[2 ] buttons to select the Effect Block.
5
7
Effect
Block
Effect-applicable parts
Effect characteristics
REVERB
All parts
Reproduces the warm ambience of playing in a concert hall or jazz club.
CHORUS
All parts
Produces a rich, “fat” sound as if several parts are being played simultaneously. In addition, other type effects (such as reverb, delay, etc.) can also be
selected in this effect block.
DSP1
STYLE PART,
SONG CHANNEL 1–16
This effect is applied only to Style/Song parts.
DSP2,
DSP3,
DSP4,
DSP5,
DSP6
RIGHT 1, RIGHT 2,
RIGHT 3, LEFT,
SONG CHANNEL 1–16
Any unused DSP blocks are automatically assigned to the appropriate parts
(channels) as needed. Only one DSP block can be assigned to each keyboard
or Song part.
DSP7
Microphone sound,
SONG CHANNEL 1–16
This effect is applied to the MIC input (in addition to the Vocal Harmony
effect)/Song parts.
DSP8,
DSP9
STYLE PART
These effects are applied only to Style parts.
Mixing Console – Editing the Volume and Tonal Balance –
3
5
9
Use the [3 ]/[4 ] buttons to select the Part to which you want to apply the effect.
Note that a Part cannot be selected if “REVERB,” “CHORUS,” or “DSP1” is selected. This is because only one of
the Effect Types can be selected to be commonly applied to all available Parts.
6
Press the [B] button.
7
Use the [1 ]/[2 ] buttons to select the Category then use the [3 ]–[5 ] buttons to select the Effect Type.
Note that the Reverb Block is not divided into any Categories.
If you want to edit detailed Parameters of the selected Effect Type, press the [H] (DETAIL) button. For details,
refer to the next section.
8
Save the Effect Settings to a Registration Memory, Song or Style.
For instructions, refer to the Owner’s Manual.
Tyros5 Reference Manual
119
Editing and Saving Your Original Effect Type
You can edit detailed parameters of the selected Effect Type. The parameter settings can be saved as your original
Effect Type as well as to a Registration Memory, Style or Song as described in the previous section. This section
covers how to save the settings as an original Effect Type.
1
Once you’ve selected an Effect Block and Effect Type above, press the [H] (DETAIL) button to call up the display for editing the effect parameters.
2
Use the [4 ]/[5 ] buttons to select a parameter then use the [6 ]/[7 ] buttons to edit the value.
When Reverb, Chorus, or DSP1 is selected as the Effect Block, you can adjust the Return Level via the [8 ]
button. If you want to change the Effect Block and Type, use the [1 ]–[3 ] buttons.
3
4
2
3
If DSP 2–9 is selected as the Effect Block, edit the Variation parameter if desired.
Press the [E] button to move the cursor to the Variation parameter, then edit the value via the [6 ]/[7 ] buttons. This parameter is effective only when the [VARIATION] button lamp lights on the panel. To move the cursor
to the normal parameters, press the [B] button.
NEXT PAGE
120
Tyros5 Reference Manual
4
Press the [I] (SAVE) button to call up the User Memory menu.
6
5
Use the [3 ]–[6 ] buttons to select the destination for saving the settings as a
User Effect.
6
Press the [I] (SAVE) button again to execute the Save operation.
In the Naming window called up via this operation, assign the name to the User Effect Type then press the [8 ]
(OK) button to save the User Effect Type. If you want to call up the User Effect Type saved here, select the corresponding Effect Block and “USER” Category in the Effect Type Selection display.
Mixing Console – Editing the Volume and Tonal Balance –
5
9
Tyros5 Reference Manual
121
Editing EQ Parameters
Equalizer (also called “EQ”) is a sound processor that divides the frequency spectrum into multiple bands that can be
boosted or cut as required to tailor the overall frequency response. Usually an equalizer is used to correct the sound
from speakers to match the special character of the room. For example, you can cut some of the low range frequencies
when playing in large spaces where the sound is too “boomy,” or boost the high frequencies in rooms and close spaces
where the sound is relatively “dead” and free of echoes.
As shown below, this instrument possesses a high grade five-band Master EQ which is applied to the entire sound. You
can select one of five preset EQ types and create two User Master EQ types by editing the related parameters. In
addition to the Master EQ, Part EQ is available, letting you boost/cut the high band or low band for each Part.
Q (also called “Bandwidth” or “Shape”)
GAIN
0
FREQ
(Frequency)
5 bands 
EQ1
(Low)
EQ2
(Low
Mid)
EQ3
(Mid)
EQ4
(High
Mid)
EQ5
(High)
The parameters of this diagram correspond to those edited in Steps 3–4 on
the next page.
MASTER EQ
[B]/[C]
TYPE
Selects the desired Master EQ type. This affects the overall sound of the instrument.
[F]
EDIT
For editing the Master EQ. See page 123.
[D]/[I]
EQ HIGH
Boosts or attenuates the high EQ band for each part.
[E]/[J]
EQ LOW
Boosts or attenuates the low EQ band for each part.
PART EQ
122
Tyros5 Reference Manual
Editing and Saving Your Original Master EQ Type
1
Press the [F] (EDIT) button in the EQ Page.
The MASTER EQ EDIT display is called up.
2
5
2
3
Use the [B]/[C] buttons to select a preset EQ type.
The set parameters of the selected EQ type are automatically shown at the bottom of the display.
3
Use the [3 ]–[7 ] buttons to boost or cut each of the five bands.
Use the [8 ] buttons to boost or cut all the five bands at the same time.
4
If desired, adjust the Q (bandwidth) and the FREQ (center frequency) of the band
selected in step 3.
To adjust the bandwidth (also called “Shape” or “Q”), use the [1 ] buttons. The higher the value of Q, the narrower the band width.
To adjust the FREQ (center frequency), use the [2 ] buttons. The available FREQ range is different for each
band.
5
Press the [H] or [I] (STORE 1 or 2) button to execute the Store operation.
In the Naming display called up via this operation, assign the name then press the [8 ] (OK) button to store your
settings as a User Master EQ Type, which can be called up via the [B]/[C] buttons.
Mixing Console – Editing the Volume and Tonal Balance –
4
9
Editing Master Compressor Settings
For details, refer to the Owner’s Manual.
Tyros5 Reference Manual
123
Line Out Settings
PANEL Page
DRUM & PERCUSSION Page
Press [A]
button
[A]
DRUM&PERC./
PANEL
Switches the displayed menu: PANEL parts or DRUM & PERCUSSION instruments.
[F]
SUB3–4/AUX
OUT
Switches the displayed menu: SUB3–4 or AUX OUT.
This also actually switches the role of the LINE OUT SUB [3]–[4] jacks or AUX
OUT jacks accordingly.
[1 ]–
[3 ]
PART
(PANEL Page)
Selects the desired part/drum instrument.
[1 ]/
[2 ]
INSTRUMENTS
(DRUM &
PERCUSSION
Page)
[3 ]
DEPENDS ON
PART (DRUM &
PERCUSSION
Page)
When this is checked, the selected drum instrument will be output via the jacks set
from the PANEL page at left.
[4 ]
MAIN
When this is checked, the selected part/drum instruments will be output from LINE
OUT MAIN jacks, PHONES jacks, LOOP SEND jack, and optional speaker.
[5 ]
SUB1
When one of these columns (jacks) is checked, the selected part/drum instruments
will be output from only the selected SUB jack(s).
NOTE
124
[6 ]
SUB2
[7 ]
SUB3
[8 ]
SUB4
Tyros5 Reference Manual
Only the DSP 2–9 and Vocal Harmony effects can be applied to the sound output from the SUB jacks. Other
effects (Reverb, Chorus and DSP 1) will not be applied. (If the “Connection” parameter of DSP 1 is set to
“Insertion,” DSP 1 will also be applied.)
Block Diagram
Mixing Console – Editing the Volume and Tonal Balance –
9
125
Tyros5 Reference Manual
10
Utility
– Making Global Settings –
Contents
CONFIG 1 ...................................................................................................... 126
CONFIG 2 ...................................................................................................... 128
MEDIA............................................................................................................ 129
OWNER .......................................................................................................... 130
SYSTEM RESET........................................................................................... 131
• Factory Reset—Restoring the Factory Programmed Settings.................. 131
• Custom Reset—Backup/Restore .............................................................. 132
CONFIG 1
Select the desired parameter:
1 Fade In/Out
2 Metronome
3 Parameter Lock
4 Tap
5 Auto Power Off
1 Fade In/Out
These parameters determine how Style or Song playback is faded in/out when using the [FADE IN/OUT] button.
[3 ]
FADE IN TIME
Determines the time it takes for the Style/Song volume to fade in, or go from minimum to maximum (range of 0–20.0 seconds).
[4 ]
FADE OUT TIME
Determines the time it takes for the Style/Song volume to fade out, or go from maximum to minimum (range of 0–20.0 seconds).
[5 ]
FADE OUT HOLD
TIME
Determines the time the volume is held at 0 following the fade out (range of 0–5.0
seconds).
2 Metronome
126
[2 ]
VOLUME
Determines the volume of the metronome sound.
[3 ]–
[5 ]
SOUND
Determines whether a bell accent is sounded or not at the first beat of each measure.
[6 ]/
[7 ]
TIME
SIGNATURE
Determines the time signature of the metronome sound.
Tyros5 Reference Manual
3 Parameter Lock
This lets you lock or maintain the settings of specific parameters (such as Effect and Split Point), even when the
panel setups are changed by Registration Memory, One Touch Setting, etc. To set this function, use the [1 ]–
[7 ] (SELECT) buttons to select the desired parameter then use the [8 ]/[8 ] (MARK ON/OFF) buttons to
enter or remove the checkmarks. Repeat this step as desired. Items having checkmarks will be locked.
4 Tap
This allows you to set the percussion sound and the velocity which sounds when the [TAP TEMPO] button is
tapped.
[2 ]–
[4 ]
PERCUSSION
Selects the percussion sound.
[5 ]/
[6 ]
VELOCITY
Sets the velocity.
5 Auto Power Off
For details, refer to the Owner’s Manual.
Utility – Making Global Settings –
10
Tyros5 Reference Manual
127
CONFIG 2
1 Line Out (MAIN) / Screen Content
[3 ]/
[4 ]
LINE OUT
(MAIN)
Determines whether or not the sound is output via LINE OUT (MAIN).
HEADPHONE SW: LINE OUT (MAIN) sounds normally, but is cut off when headphones
are inserted to the PHONES jack.
ON: Sound is output via LINE OUT (MAIN), even if headphones are connected.
OFF: LINE OUT (MAIN) sound is off.
[5 ]/
[6 ]
SCREEN
CONTENT
Selects display contents for the external monitor. For details, refer to the Owner's Manual.
2 Display-related settings / Voice Category Button Options
[1 ]
STYLE TEMPO
Selects whether or not the default tempo of each preset Style is displayed above the preset
Style name in the Style Selection display.
[2 ]
VOICE
NUMBER
Determines whether or not the Voice bank and number are shown in the Voice Selection display. This is useful when you want to check which bank select MSB/LSB values and program
change number you need to specify when selecting the Voice from an external MIDI device.
NOTE
The numbers displayed here start from “1.” Accordingly the actual MIDI program change numbers are one lower,
since that number system starts from “0.”
NOTE
For the GS Voices, the Display Voice Number is not available (the program change numbers are not shown).
[3 ]
TIME STAMP
Determines whether or not the Updated Date and Updated Time are shown on the File Selection display.
[5 ]/
[6 ]
VOICE
CATEGORY
BUTTON
OPTIONS
Determines how the Voice Selection display is opened when one of the VOICE buttons is
pressed.
OPEN & SELECT: Opens the Voice Selection display with the previously selected Voice in
the Voice category automatically selected (when one of the VOICE buttons is pressed).
OPEN ONLY: Opens the Voice Selection display with the currently selected Voice (when
one of the VOICE buttons is pressed).
[7 ]/
[8 ]
POPUP DISPLAY
TIME
Determines the time in which the popup windows close. (Popup windows are displayed when
you press buttons such as TEMPO, TRANSPOSE or UPPER OCTAVE, etc.)
3 S.Art2 Auto Articulation
Determines whether articulation is added to S.Art2 Voices automatically.
128
Tyros5 Reference Manual
NOTE
This affects not only S.Art2 Voices of
your keyboard performance, but also the
S.Art2 Voices in Songs or Styles.
MEDIA
You can set or execute important media-related operations for the Tyros5. The word “media” refers to both the USB
storage device and internal hard disk drive.
[A]/[B]
DEVICE LIST
Selects the desired media for which you want to check the remaining memory (see “PROPERTY” below) or format the media (see the Owner’s Manual).
[F]
PROPERTY
Opens the Property display of the media selected by [A]/[B] buttons. You can check the
amount of remaining memory on the media.
The displayed remaining memory value is an approximate value.
[H]
FORMAT
Formats the media selected by [A]/[B] buttons. Refer to the Owner’s Manual, chapter 11.
[1 ]/
[2 ]
HARD DISK
SLEEP TIME
The hard disk unit will go into a “sleep” mode after a specified time of inactivity, both to
maximize the lifetime of the hard disk and to minimize unnecessary mechanical noise. This
parameter determines the sleep time.
NOTE
When using the Audio Recorder/Player function or the Audio Link Multi Pad, make sure to set this to “NEVER.”
[3 ]/
[4 ]
SONG AUTO
OPEN
Turns the Song Auto Open function on or off. When this is set to “ON” and the media
selected in the Device List above is inserted, the Tyros5 automatically calls up the first Song
in the media.
Utility – Making Global Settings –
NOTE
10
Tyros5 Reference Manual
129
OWNER
[C]
BACKUP
Lets you backup all data on the instrument to a USB flash memory. For instructions, refer to
the Basic Operation section in the Owner’s Manual.
[D]
RESTORE
For loading backup files from the USB flash memory. For instructions, refer to the Basic
Operation section in the Owner’s Manual.
[E]
EXPORT
INSTRUMENT
INFO
For exporting identification information of the instrument, which is necessary for purchasing
Expansion Contents, to the root directory of the USB flash memory device. The exported file
is named “TYROS5_InstrumentInfo.n27.”
[H]
OWNER NAME
Lets you enter your name as the owner. The Owner name is indicated on the opening display
when you turn the power on. For instructions, refer to the Basic Operation section in the
Owner’s Manual.
[I]
MAIN PICTURE
Lets you select a background picture for the Main display. You can select a picture from
among various pictures provided on the Preset Page. After selecting, press the [EXIT] button
to close the Selection display.
If you want to use an original picture, prepare the desired file (a bitmap “.BMP” file no
greater than 320 x 240 pixels) in the USB flash memory, copy it from the USB flash memory
to the USER page, then select it from the USER page. Due to access speed limitations, it is
not recommended to select the desired file from the USB flash memory.
NOTE
The explanation about picture compatibility above applies also to the background of the Song Lyric display (page 53).
130
[1 ]/
[2 ]
PANEL LOCK
For details, refer to the Owner’s Manual.
[4 ]/
[5 ]
LANGUAGE
Determines the language used for the display messages. Once you change this setting, all
messages will be shown in the selected language.
[7 ]/
[8 ]
VERSION
Displays the program version and the hardware ID of this instrument.
Tyros5 Reference Manual
SYSTEM RESET
In this display, you can execute one of two reset methods: Factory Reset and Custom Reset. Factory Reset lets you call
up the default initial settings for each item while Custom Reset lets you call up your original settings with a single
touch.
Custom Reset
(Backup/Restore;
see page 132)
Factory Reset
(see below)
Factory Reset—Restoring the Factory Programmed Settings
This function lets you restore the status of the instrument to the original factory settings.
Use the [1 ]–[3 ] buttons to select the desired item, then press the [4 ] buttons to enter or remove the checkmark.
When an item is checkmarked, the corresponding parameters will be reset as described below:
SYSTEM SETUP
Resets the System Setup parameters to the original factory settings. Refer to the Data List
(Parameter Chart) for details about which parameters belong to System Setup.
MIDI SETUP
Resets the MIDI settings including the MIDI Setups on the USER tab display to the original
factory status.
USER EFFECT
Resets the current Effect settings and the following data:
• User Effect Types............................................................................................... page 120
• User Master EQ Types....................................................................................... page 123
• User Compressor Types .................................................................................... page 123
• User Vocal Harmony Types .............................................................................. page 106
• User Microphone Settings ................................................................................. page 101
MUSIC FINDER
Resets the Music Finder data (all Records) to the original factory settings.
FILES & FOLDERS
Deletes all files and folders including the Expansion folder stored in the HD1 tab display.
REGIST
Turns off all the Registration Memory [1]–[8] lamps, indicating that no Registration Memory Bank is selected although all the Registration Memory Bank files are maintained. In this
status, you can create Registration Memory setups from the current panel settings.
Utility – Making Global Settings –
1
10
NOTE
The same operation can be done by turning the power on while holding the highest key. In this case, you can create
Registration Memory setups from the default panel settings.
2
Press the [D] (FACTORY RESET EXECUTE) button to execute the Factory Reset operation for all checkmarked items.
Tyros5 Reference Manual
131
Custom Reset—Backup/Restore
For the items below, you can save your original settings to USER or USB drive as a single file for future recall.
1
Make all desired settings on the instrument.
2
Call up the operation display.
[FUNCTION]  [H] UTILITY  TAB [E][F] SYSTEM RESET
3
Press one of the [F]–[I] buttons to call up the relevant display for saving your data.
[F]
SYSTEM SETUP
FILES
Parameters set on the various displays such as the [FUNCTION]  [H] UTILITY and
microphone setting display are handled as a single System Setup file. Refer to the
Data List (Parameter Chart) for details on which parameters belong to System Setup.
[G]
MIDI SETUP
FILES
The MIDI settings including the MIDI Setups on the USER tab display are handled as
a single file.
[H]
USER EFFECT
FILES
The following data can be managed as a single file.
• User Effect Types........................................................................................page 120
• User Master EQ Types................................................................................page 123
• User Compressor Types ............................................................................. page 123
• User Vocal Harmony Types ....................................................................... page 106
• User Microphone Settings ..........................................................................page 101
[I]
MUSIC FINDER
FILES
All the preset and created Records of the Music Finder are handled as a single file.
4
Use the TAB [E][F] buttons to select one of the tabs (USER or USB) to which your settings will be saved.
5
Press the [6 ] (SAVE) button to save your file.
6
To recall your file, press the desired [F]–[I] buttons in the SYSTEM RESET display, then
select the desired file.
When the file is selected, a message is displayed according to the content of the file. Press the desired button.
132
Tyros5 Reference Manual
Connections
11
– Using Your Instrument with Other Devices –
Contents
Footswitch/Foot Controller Settings
Assigning a Specific Function to Each Pedal
The functions of the foot pedals connected to the ASSIGNABLE FOOT PEDAL 1/2/3
jacks can be changed individually from the default settings (sustain, etc.)—for
example, letting you use the footswitch to start/stop Style playback, or use the foot
controller to produce pitch bends.
1
NOTE
For information on how to connect a
foot pedal or what kinds of pedals can
be connected, refer to the Owner’s Manual, chapter 11.
Call up the operation display.
[FUNCTION]  [D] CONTROLLER  TAB [E][F] FOOT PEDAL
2
Use the [A]/[B] buttons to select one of the three foot pedals to which the function is to
be assigned.
On the display, the numbers 1, 2 and 3 correspond to the FOOT PEDAL jacks 1, 2 and 3 respectively.
Connections – Using Your Instrument with Other Devices –
Footswitch/Foot Controller Settings............................................................. 133
• Assigning a Specific Function to Each Pedal........................................... 133
MIDI Settings ................................................................................................. 136
• MIDI System Settings .............................................................................. 138
• MIDI Transmit Settings............................................................................ 139
• MIDI Receive Settings ............................................................................. 140
• Bass Note Settings for Style Playback via MIDI Receive ....................... 141
• Chord Type Settings for Style Playback via MIDI Receive..................... 141
MFC10 Settings.............................................................................................. 142
Connecting to a Network (Bundled USB Wireless LAN Adaptor) ........... 144
• Displaying Available Networks and Making Connections ...................... 144
• Entering the SSID, Security and Password Settings in Manual Setup. .... 145
• Starting WPS from the Tyros5 ................................................................. 146
• Manually Setting the Access Point Mode ................................................ 146
• Setting the Time Zone .............................................................................. 147
11
2
3
5
4
NEXT PAGE
Tyros5 Reference Manual
133
3
Use the [C]/[D] buttons to select the function to be assigned to
the pedal specified in step 2.
For information on available functions, see pages 134–135.
4
Use the [1 ]–[8 ] buttons to set the details of the selected
functions (the part for which the function is applied, etc.).
The available parameters differ depending on the function selected in step 3.
5
NOTE
You can also assign other functions to
the pedal—Punch in/out of Song
(page 67) and Registration Sequence
(page 97). If you assign multiple functions to the pedal, the priority is: Punch
in/out of Song  Registration
Sequence  Functions assigned here.
If necessary, set the polarity of the pedal by using the [I] button.
Pedal on/off operation may differ depending on the particular pedal you’ve connected to the instrument. For example, pressing down on one pedal may turn the selected function on, while pressing a different make/brand of pedal
may turn the function off. If necessary, use this setting to reverse the operation.
Assignable Pedal Functions
For functions indicated with an asterisk (*), use only a foot controller; proper operation cannot be done with a
footswitch.
ARTICULATION 1/2
When you use a Super Articulation Voice that has an effect assigned to the pedal/footswitch,
you can enable the effect by pressing the pedal/footswitch. You can turn this function on or off
for each keyboard part on this display.
VOLUME*
Allows you to use a foot controller to control the volume. You can turn this pedal function on
or off for each part on this display.
SUSTAIN
Allows you to use a pedal to control the sustain. When you press and hold the pedal, all notes
played on the keyboard have a longer sustain. Releasing the pedal immediately stops (damps) any
sustained notes. You can turn this pedal function on or off for each keyboard part on this display.
SOSTENUTO
Allows you to use a pedal to control the Sostenuto effect. If you play a note or chord on the
keyboard and press the pedal while holding the note(s), the notes will sustain as long as the
pedal is held. However, all subsequent notes will not sustain. This makes it possible to sustain
a chord, for example, while other notes are played staccato. You can turn this pedal function on
or off for each keyboard part on this display.
NOTE
This function will not affect any of the Organ Flutes and only some of the Super Articulation Voices, even if this has
been assigned to the foot pedals.
SOFT
Allows you to use a pedal to control the Soft effect. Pressing this pedal reduces the volume and
changes the timbre of the notes you play. This is effective only for certain appropriate Voices.
You can turn this pedal function on or off for each keyboard part on this display.
GLIDE
When the pedal is pressed, the pitch changes, and then returns to normal pitch when the pedal
is released. The following parameters can be set for this function on this display.
UP/DOWN: Determines whether the pitch change goes up (is raised) or down (is lowered).
RANGE: Determines the range of the pitch change, in semitones.
ON SPEED: Determines the speed of the pitch change when the pedal is pressed.
OFF SPEED: Determines the speed of the pitch change when the pedal is released.
LEFT, RIGHT 1, 2, 3: Turns this pedal function on or off for each keyboard part.
PORTAMENTO
The portamento effect (a smooth slide between notes) can be produced while the pedal is
pressed. Portamento is produced when notes are played legato style (i.e., a note is played while
the preceding note is still held). The portamento time can also be adjusted form the Mixing
Console display (page 117). You can turn this pedal function on or off for each keyboard part
on this display.
NOTE
This function affects only certain Voices, especially synth lead and some bass Voices. It will not affect any of the Organ
Flutes, Super Articulation 2 Voices and only some of the Super Articulation Voices, even if the function has been
assigned to the Foot Pedals.
PITCH BEND*
Allows you to bend the pitch of notes up or down by using the pedal. The following parameters
can be set for this function on this display.
UP/DOWN: Determines whether the pitch change goes up (is raised) or down (is lowered).
RANGE: Determines the range of the pitch change, in semitones.
LEFT, RIGHT 1, 2, 3: Turns this pedal function on or off for each keyboard part.
NEXT PAGE
134
Tyros5 Reference Manual
Applies vibrato and other effects to notes played on the keyboard. You can turn this pedal function on or off for each keyboard part on this display.
MODULATION (ALT)
This is a slight variation on MODULATION above, in which the effects (waveform) can be
switched on/off by each press of the pedal/footswitch. The modulation effect is alternately
turned on and off each time the pedal/footswitch is pressed. You can turn this function on or off
for each keyboard part on this display.
DSP VARIATION
Same as the [DSP VARIATION] button on the panel.
PEDAL CONTROL
(WAH)
Allows you to use a foot controller to control the Pedal Wah effect.
HARMONY/ECHO
Same as the [HARMONY/ECHO] button.
VOCAL HARMONY
Same as the [VOCAL HARMONY] button.
VOCAL EFFECT
Same as the [EFFECT] button.
TALK
Same as the [TALK] button.
SCORE PAGE +/-
While the Song is stopped, you can turn to the next/previous score page (one page at a time).
LYRICS PAGE +/-
While the Song is stopped, you can turn to the next/previous lyrics page (one page at a time).
TEXT PAGE +/-
You can turn to the next/previous text page (one page at a time).
AUDIO PLAY/PAUSE
Same as the AUDIO RECORDER/PLAYER [PLAY/PAUSE] button.
SONG PLAY/PAUSE
Same as the SONG [PLAY/PAUSE] button.
STYLE START/STOP
Same as the STYLE CONTROL [START/STOP] button.
TAP TEMPO
Same as the [TAP TEMPO] button.
SYNCHRO START
Same as the [SYNC START] button.
SYNCHRO STOP
Same as the [SYNC STOP] button.
INTRO 1–3
Same as the INTRO [I]–[III] buttons.
MAIN A–D
Same as the MAIN VARIATION [A]–[D] buttons.
FILL DOWN
Plays a fill-in, which is automatically followed by the previous Main section (that of the button
on the immediate left).
FILL SELF
Plays a fill-in.
FILL BREAK
Plays a break.
FILL UP
Plays a fill-in, followed by the next Main section (that of the button on the immediate right).
ENDING1–3
Same as the ENDING/rit. [I]–[III] buttons.
FADE IN/OUT
Same as the [FADE IN/OUT] button.
FINGERD/FING ON
BASS
The pedal alternately switches between the Fingered and On Bass modes (page 27).
BASS HOLD
While the pedal is pressed, the Accompaniment Style bass note will be held even if the chord is
changed during Style playback. If the fingering is set to “AI FULL KEYBOARD,” the function
does not work.
PERCUSSION
The pedal plays a percussion instrument selected by the [4 ]–[8 ] buttons. You can
use the keyboard to select the desired percussion instrument.
Connections – Using Your Instrument with Other Devices –
MODULATION*
11
NOTE
When you select the percussion instrument by pressing a key on the keyboard, the velocity with which you press the
key determines the percussion volume.
RIGHT 1 ON/OFF
Same as the PART ON/OFF [RIGHT 1] button.
RIGHT 2 ON/OFF
Same as the PART ON/OFF [RIGHT 2] button.
RIGHT 3 ON/OFF
Same as the PART ON/OFF [RIGHT 3] button.
LEFT ON/OFF
Same as the PART ON/OFF [LEFT] button.
OTS +/-
Calls up the next/previous One Touch Setting.
Tyros5 Reference Manual
135
MIDI Settings
In this section, you can make MIDI-related settings for the instrument. The Tyros5
gives you a set of ten pre-programmed templates that let you instantly and easily
reconfigure the instrument to match your particular MIDI application or external
device. Also, you can edit the pre-programmed templates and save up to ten of your
original templates to USER memory.
1
NOTE
You can save all your original templates
as a single file to internal memory (User
drive) or a USB flash memory: [FUNCTION]  [H] UTILITY  TAB [E][F]
SYSTEM RESET  [G] MIDI SETUP
FILES. See page 132.
Call up the operation display.
[FUNCTION]  [G] MIDI
2
6
2
3
Select a pre-programmed template from the Preset page (page 137).
If you have already created your original template and saved it to the User page, you can also select that template
from the User page.
3
To edit the template, press the [8 ] (EDIT) button to call up the MIDI display.
4
Use the TAB [E][F] buttons to call up the relevant page, then set various parameters to
edit the current MIDI template.
• SYSTEM ...................MIDI System Settings (page 138)
• TRANSMIT ..............MIDI Transmit Settings (page 139)
• RECEIVE .................MIDI Receive Settings (page 140)
• BASS .........................Bass Note Settings for Style Playback via MIDI Receive (page 141)
• CHORD DETECT ....Chord Type Settings for Style Playback via MIDI Receive (page 141)
• MFC10 ......................Settings for a connected MFC10 MIDI Foot Controller (page 142)
136
5
When you’ve finished editing, press the [EXIT] button to return to the MIDI template
Selection display.
6
Select the User page by using the TAB [E][F] buttons, then press the [6 ] (SAVE) button to save the edited template.
Tyros5 Reference Manual
Pre-programmed MIDI Templates
Transmits all parts including the keyboard parts (RIGHT 1, 2, 3, LEFT), with the exception of
the Song parts.
KBD & STYLE
Basically the same as “ALL PARTS” with the exception of how keyboard parts are managed.
The right-hand parts are handled as “UPPER” instead of RIGHT 1–3 and the left-hand part is
handled as “LOWER.”
Master KBD1
In this setting, the Tyros5 functions as a “master” keyboard, for playing and controlling one or
more connected tone generators or other devices (such as a computer/sequencer).
Master KBD2
Basically the same as “Master KBD1” above, with the exception that After Touch messages
are not transmitted.
Clock Ext. A
Playback or recording (Song, Style, Multi Pad, etc.) synchronizes with an external MIDI clock
instead of the Tyros5’s internal clock. This template should be used when you wish to set the
tempo on the MIDI device connected to the Tyros5. Playback or recording of the Tyros5 synchronizes with an external clock received via MIDI A.
MIDI Accord 1
MIDI accordions allow you to transmit MIDI data and play connected tone generators from the
keyboard and bass/chord buttons of the accordion. This template lets you play melodies from
the keyboard and control Style playback on the Tyros5 with the left-hand buttons.
MIDI Accord 2
Basically the same as “MIDI Accord1” above, with the exception that the chord/bass notes you
play with your left hand on the MIDI Accordion are recognized also as MIDI note events.
MIDI Pedal 1
MIDI pedal units allow you play connected tone generators with your feet (especially convenient for playing single note bass parts). This template lets you play/control the chord root in
Style playback with a MIDI pedal unit (connected to MIDI B only).
MIDI Pedal 2
This template lets you play the bass part for Style playback by using a MIDI pedal unit (connected to MIDI B only).
MIDI OFF
No MIDI signals are sent or received.
Connections – Using Your Instrument with Other Devices –
All Parts
11
Tyros5 Reference Manual
137
MIDI System Settings
The explanations here apply to the SYSTEM page in step 4 on page 136.
Use the [A]/[B] buttons to select the parameters (below), then set the ON/OFF status by using the [1 ]–[8 ]
buttons.
 1 Local Control
Turns the Local Control for each part on or off. When Local Control is set to “ON,” the keyboard of the instrument
controls its own (local) internal tone generator, allowing the internal Voices to be played directly from the keyboard. If
you set Local to “OFF,” the keyboard and controllers are internally disconnected from the instrument’s tone generator
section so that no sound is output when you play the keyboard or use the controllers. For example, this allows you to
use an external MIDI sequencer to play the instrument’s internal Voices, and use the instrument keyboard to record
notes to the external sequencer and/or play an external tone generator.
 2 Clock setting, etc.
CLOCK
Determines whether the tempo of the Songs, Styles, etc. are controlled by the
instrument’s own internal clock or a MIDI clock signal received from an external
device. INTERNAL is the normal Clock setting when the instrument is being used
alone or as a master keyboard to control external devices. If you are using the
instrument with an external sequencer, MIDI computer, or other MIDI device, and
you want to synchronize it to that device, set this parameter to the appropriate setting: MIDI, USB 1, or USB 2. In this case, make sure that the external device is
connected properly (e.g., to the instrument’s MIDI IN terminal), and that it is
properly transmitting a MIDI clock signal.
TRANSMIT CLOCK
Turns MIDI clock (F8) transmission on or off. When set to OFF, no MIDI clock or
Start/Stop data is transmitted even if a Song or Style is played back.
NOTE
• When CLOCK is set to a value other
than INTERNAL, the tempo is indicated as “EXT.” on the Main display.
This means that playback of this
instrument is controlled only from an
external MIDI device or computer. In
this condition, Styles, Songs, Multi
Pads or the Metronome cannot be
played back even if you execute the
start operation.
• When the Wireless LAN Adaptor is
connected to the USB TO DEVICE terminal, the “WIRELESS LAN” parameter appears.
RECEIVE TRANSPOSE
Determines whether or not the instrument’s transpose setting is applied to the note events received by the instrument via MIDI.
START/STOP
Determines whether incoming start and stop messages (FA, FC) affect Song or Style playback.
 3 MESSAGE SW (Message Switch)
SYS/EX.
The “Tx” setting turns MIDI transmission of MIDI System Exclusive messages on or off. The “Rx” setting turns
MIDI reception and recognition of MIDI System Exclusive messages generated by external equipment on or off.
CHORD SYS/EX.
The “Tx” setting turns MIDI transmission of MIDI chord exclusive data (Chord Detect, root and type) on or off.
The “Rx” setting turns MIDI reception and recognition of MIDI chord exclusive data generated by external equipment on or off.
138
Tyros5 Reference Manual
MIDI Transmit Settings
The explanations here apply to the TRANSMIT page in step 4 on page 136. This determines which parts will be sent
as MIDI data and over which MIDI channel the data will be sent.
1
The dots corresponding to each channel
(1–16) flash briefly whenever any data is
transmitted on the channel(s).
NOTE
1
1
2
3
If “WLAN” is shown in the PORT1 line, this instrument can handle MIDI messages received via a Wireless LAN Adaptor connected to the USB TO DEVICE terminal. When “WLAN” is not
shown although the Wireless LAN Adaptor is connected, turn the
instrument off then on again.
Use the [A]/[B] buttons or [1 ]/[2 ] buttons to select the part for changing transmit settings.
UPPER
Refers to a keyboard part played on the right side of the keyboard from the Split Point for the Voices (RIGHT 1, 2,
and 3).
LOWER
Refers to a keyboard part played on the left side of the keyboard from the Split Point for the Voices. This is not
affected by the on/off status of the [ACMP] button.
2
3
Use the [3 ] buttons to select the channel via which the
selected part will be transmitted.
Use the [4 ]–[8 ] button to determine the types of data
to be sent.
The following MIDI messages can be set on the TRANSMIT/RECEIVE display.
NOTE (Note events) .........................................page 73
CC (Control Change).......................................page 73
PC (Program Change) .....................................page 73
NOTE
If the same transmit channel is assigned
to several different parts, the transmitted
MIDI messages are merged to a single
channel—resulting in unexpected
sounds and possible glitches in the
connected MIDI device.
NOTE
Protected Songs cannot be transmitted
even if the proper Song channels 1–16
are set to be transmitted.
PB (Pitch Bend)................................................page 73
Connections – Using Your Instrument with Other Devices –
The Parts listed on this display are the same as those shown in the MIXING CONSOLE display and CHANNEL
ON/OFF display with the exception of the two parts below.
11
AT (After Touch)..............................................page 73
Tyros5 Reference Manual
139
MIDI Receive Settings
The explanations here apply to the RECEIVE page in step 4 on page 136. This determines which parts will receive
MIDI data and over which MIDI channels the data will be received.
1
The dots corresponding to each channel
(1–16) flash briefly whenever any data is
received on the channel(s).
NOTE
1
1
2
3
If “WLAN” is shown in the PORT1 line, this instrument can handle MIDI messages received via a Wireless LAN Adaptor connected to the USB TO DEVICE terminal. When “WLAN” is not
shown although the Wireless LAN Adaptor is connected, turn
the instrument off then on again.
Use the [A]/[B] buttons or [1 ]/[2 ] buttons to select the channel to be received.
The instrument can receive MIDI messages over 32 channels (16 channels x 2 ports) by USB connection.
2
Use the [3 ] buttons to select the part via which the selected channel will be
received.
The Parts listed on this display are the same as those shown in the MXING CONSOLE display and CHANNEL
ON/OFF display with the exception of the following parts.
KEYBOARD
The received note messages control the instrument’s keyboard performance.
EXTRA PART 1–4
These are five parts specially reserved for receiving and playing MIDI data. Normally, these parts are not used by
the instrument itself. The instrument can be used as a 32-channel multi-timbral tone generator by using these five
parts in addition to the other parts (excepting the microphone sound).
3
Use the [4 ]–[8 ] button to determine the types of data to be received.
MIDI transmission/reception via the USB terminal and MIDI terminals
The relationship between the [MIDI] terminals and the [USB] terminal which can be used for transmitting/
receiving 32 channels (16 channels x 2 ports) of the MIDI messages is as follows:
 MIDI reception
MIDI A IN
terminal
 MIDI transmission
USB
connector
MIDI B IN
terminal
Wireless
LAN
MIDI A OUT
terminal
USB
connector
MIDI B OUT
terminal
Wireless
LAN
Port handling
USB1
Merge
MIDI A 01–16
USB2
Merge
MIDI B 01–16
MIDI A 01–16
NOTE
The USB wireless LAN adaptor may not be included depending on your locale due to local regulations.
140
Tyros5 Reference Manual
MIDI B 01–16
Bass Note Settings for Style Playback via MIDI Receive
The explanations here apply to the BASS page in step 4 on page 136. These settings let you determine the bass note
for Style playback, based on the note messages received via MIDI. The note on/off messages received at the
channel(s) set to “ON” are recognized as the bass note of the chord of Style playback. The bass note will be detected
regardless of the [ACMP] or split point settings. When several channels are simultaneously set to “ON,” the bass note
is detected from merged MIDI data received over the channels.
1
2
Use the [A]/[B] buttons to select the desired row of channels.
2
Use the [1 ]–[8 ] buttons to set specific channels to ON or OFF.
You can also set all channels to OFF by pressing the [I] (ALL OFF) button.
Chord Type Settings for Style Playback via MIDI Receive
The explanations here apply to the CHORD DETECT page in step 4 on page 136. This page lets you select the MIDI
channels over which the MIDI data from the external device will be used to detect the Chord Type for Style playback.
The note on/off messages received at the channel(s) set to “ON” are recognized as the notes for detecting chords in
Style playback. The chords to be detected depend on the fingering type. The chord types will be detected regardless of
the [ACMP] or split point settings. When several channels are simultaneously set to “ON,” the chord type is detected
from merged MIDI data received over the channels.
Connections – Using Your Instrument with Other Devices –
1
11
The operation procedure is basically the same as that of the BASS display above.
Tyros5 Reference Manual
141
MFC10 Settings
The explanations here apply to the MFC10 Page in step 4 on page 136.
By connecting an optional MFC10 MIDI Foot Controller to the Tyros5, you can conveniently control a wide range of
operations and functions by using your feet—perfect for changing settings and controlling the sound while you perform
live. Different functions can be assigned to each of the footswitches and up to five foot controllers (optional) can be connected to the MFC10, for additional sound-shaping possibilities.
1
Connect the MIDI IN terminal of the MFC10 to one of the MIDI OUT terminals of the
Tyros5 by using a MIDI cable.
MFC10
MIDI IN
MIDI OUT
If desired, connect
additional foot controllers to the MFC10.
2
Set the MFC10 to the normal mode and turn the [FUNCTION] lamp of the MFC10 on.
3
Perform steps 1–4 on page 136 to call up the MFC10 Page.
4
Set the parameters on this display as desired.
4-1
4-5
4-6
5
4-2
4-3
4-4
On this display, two settings (below) can be made:
• Each footswitch (F00–F29) on the MFC10 sends a note number to the Tyros5, and the Tyros5 determines how it
responds to (which function is executed by) that note number.
• Each foot controller on the MFC10 sends control change messages over a specific control change number to the
Tyros5, and the Tyros5 determines how it responds to (which parameter is changed by) that control change number.
4-1 Use the [A]/[E] buttons to select “FOOTSWITCH” or “FOOT CONTROLLER.”
4-2 Use the [2 ]/[3 ] buttons to select a footswitch number (F00–F29) or a foot controller number (1–
5) to which the function is assigned.
Please note that a note number is assigned to each footswitch and a control change number is assigned to
each foot controller beforehand and the settings cannot be changed.
NEXT PAGE
142
Tyros5 Reference Manual
4-3 Use the [4 ]–[6 ] buttons to specify the function assigned to the footswitch (actually the note number), or the function assigned to the foot controller (actually the control change number). About the functions which can be assigned to the footswitch or foot controller, refer to page 134.
4-4 (Only for the FOOT CONTROLLER Setting) Determine the part to which the foot-controller assigned function is applied by using the [7 ]/[8 ] buttons.
4-5 Use the [F]/[G] buttons to determine the MIDI port which is to be used when communicating with the
MFC10.
Here, the USB port (USB1, USB2) can be selected even though the MFC10 does not have a USB connector.
This is because a computer can be used instead of the MFC10. (The computer can transmit the same type of
data that the MFC10 transmits to the Tyros5. For details, see the bottom of this page.)
4-6 Use the [H] (CH SELECT) button to determine the MIDI channel which is to be used when communicating
with the MFC10.
5
6
Press the [I] (SEND MFC10 SETUP) button to send the settings
made here to the MFC10.
Disconnect the MIDI cable from the Tyros5 and the MFC10, and
connect the MIDI OUT terminal of the MFC10 to the MIDI IN terminal of the Tyros5 according to the setting above by using a
MIDI cable.
NOTE
Actually the pair of the footswitch number and the note number, the pair of the
foot controller number and the control
change number, and the MIDI channel
for communication set above are transmitted to the MFC10.
MFC10
MIDI OUT
MIDI IN
Transmitting control
change messages
7
Operate the MFC10 to confirm whether you can properly control the Tyros5 from the
MFC10 as set in step 4.
8
Press the [EXIT] button to return to the MIDI Template Selection display and save the
settings above to the USER tab.
Using a computer or another MIDI instrument instead of the MFC10
Keep in mind that the following two settings on the MFC10 Page are for saving not to the MFC10 but to the
Tyros5 as a MIDI template.
• Note number/Tyros5 function assignment pairs
• Control change number/Tyros5 parameter change assignment pairs
Connections – Using Your Instrument with Other Devices –
Transmitting note messages
11
If you are not using an MFC10, you can have note numbers and control change messages from any other
appropriate MIDI device (such as a computer, sequencer or master keyboard) control the Tyros5. Make sure to
set the appropriate channel in this display for control by the external device.
Tyros5 Reference Manual
143
Connecting to a Network (Bundled USB Wireless LAN Adaptor)
The bundled USB Wireless LAN Adaptor lets your Tyros5 connect to a network.
This section covers the operations which may be needed to operate the instrument
directly on the way of connecting to a network.
For connecting with an iPhone/iPad, see both the iPhone/iPad Connection Manual and
the following instructions.
First, connect the bundled USB Wireless LAN Adaptor to the rear-side [USB TO
DEVICE] terminal of Tyros5.
NOTE
Wi-Fi and Wi-Fi Protected Setup are
registered trademarks of Wi-Fi Allianceare.
NOTE
If the USB wireless LAN Adaptor is not
recognized by the instrument, [J]
(WIRELESS LAN) button will not appear,
even if you press the [FUNCTION] button.
Displaying Available Networks and Making Connections
1
Press the [FUNCTION] button.
2
Press the [J] (WIRELESS LAN) button to call up the available networks in the Wireless
LAN display.
4
3
3
5
Confirm that the MODE parameter is set to “INFRASTRUCTURE MODE.”
If necessary, use the [1 ]/[2 ] (MODE CHANGE) buttons to set this to “INFRASTRUCTURE MODE.”
4
Use the [A]/[B] buttons to select the desired network.
5
Use the [7 ]/[8 ] (CONNECT) buttons to connect to the selected network.
If necessary, enter the appropriate password.
144
Tyros5 Reference Manual
Entering the SSID, Security and Password Settings in Manual Setup.
1
Press the [FUNCTION] button.
2
Press the [J] (WIRELESS LAN) button to call up the available networks in the Wireless
LAN display.
3
Confirm that the MODE parameter is set to “INFRASTRUCTURE MODE.”
If necessary, use the [1 ]/[2 ] (MODE CHANGE) buttons to set this to “INFRASTRUCTURE MODE.”
4
Use the [A]/[B] buttons to select “Other.”
4
5
5
Use the [7 ]/[8 ] (CONNECT) buttons to call up the Manual Setup display.
6
Enter the SSID, Security and Password settings for the network.
Connections – Using Your Instrument with Other Devices –
3
11
Use [B] to select SSID, [C] to select Security and [D] to select Password.
7
Use the [7 ]/[8 ] (CONNECT) buttons to connect to the network.
Tyros5 Reference Manual
145
Starting WPS from the Tyros5
Press and hold the button on the bundled USB Wireless LAN Adaptor until a WPS-related message appears on the
Tyros5 display.
[WPS] button
Manually Setting the Access Point Mode
When an available access point cannot be found, you can connect the Tyros5 and the smart device directly.
1
Press the [FUNCTION] button  [J] (WIRELESS LAN)  [1 ] or [2 ] (MODE
CHANGE).
2
Press the [G] (YES) button.
This calls up the network information on of the Tyros5.
3
NOTE
To change to the Infrastructure Mode.
follow Steps 1 and 2 again.
If necessary, press the [I] (DETAIL) button and enter the SSID, Security and Password
settings.
Use the [B] (SSID) button, [C] (SECURITY) button and [D] (PASSWORD) button to enter each setting.
4
Press [7 ] or [8 ] (SAVE) button and follow the onscreen instructions.
The Tyros5 is now available as an access point.
146
Tyros5 Reference Manual
Setting the Time Zone
Once the instrument has accessed the network via the USB Wireless LAN Adaptor, the current time is shown on the display.
You can set the Time Zone and Daylight Saving Time for your local time.
1
Press the [FUNCTION] button  [J] (WIRELESS LAN)  [I] (DETAIL).
2
Use the TAB [][] buttons to call up the “OTHERS” display.
3
Select your Time Zone and set the Daylight Saving Time.
Use [B] to select the Time Zone, and [C] to set the Daylight Saving Time.
3
4
Press one of the [7 ] or [8 ] (SAVE) buttons and follow the onscreen instructions.
Connections – Using Your Instrument with Other Devices –
4
11
Tyros5 Reference Manual
147
Appendix
Expansion Pack Related Operations
Installing an Expansion Pack lets you add a variety of optional contents such as Songs, Styles, Voices and so on to the
“Expansion” folder in the HD1 drive. You can install the Expansion Pack in two different ways—using a USB flash
memory or via wireless network. This section covers the operations which may be necessary to add new contents to
the instrument.
For overall general instructions, access the Tyros5 page at the Yamaha Music Soft website:
http://www.yamahamusicsoft.com
The following two instructions are not necessary when you install the Expansion pack via wireless network.
Saving the Instrument Info File to the USB Flash Memory
In order to get the Expansion Pack data for the Tyros5, you’ll need to retrieve the Instrument Info file from the Tyros5
as described below.
1
Connect the USB flash memory to the [USB TO DEVICE] terminal.
2
Call up the OWNER display.
[FUNCTION]  [H] UTILITY  TAB[E][F] OWNER
3
Press the [E] (EXPORT INSTRUMENT INFO) button.
4
Follow the onscreen instructions.
This saves the Instrument Info file to the root directory in the USB flash memory.
Installing the Expansion Pack Data from the USB Flash Memory
Follow these instructions to install Expansion Pack data from the USB flash memory.
1
Connect the USB flash memory in which the Pack data are saved to the [USB TO
DEVICE] terminal.
2
Press the [FUNCTION] button.
3
Press the [I] (PACK INSTALLATION) button.
4
Use the [A]–[J] and [1 ]–[6 ] buttons to select the desired Pack file.
5
Press the [6 ] (INSTALL) button.
6
Follow the onscreen instructions.
This installs the selected Pack data to the “Expansion” folder in the HD1.
148
Tyros5 Reference Manual
Uninstalling the Expansion Pack data.
You can uninstall the Expansion Pack data by Factory Reset FILES & FOLDERS (see page 131).
Appendix
Tyros5 Reference Manual
149
Index
Symbols
+Audio .................................................... 25
Numerics
3-BAND EQ (Microphone Setting)........ 102
A
A.T. (After Touch) ................................... 73
A*A (Ensemble Voice) ............................ 21
A*D (Ensemble Voice)............................ 21
ACCENT TYPE ...................................... 40
Access Point Mode............................... 146
AEM Technology ...................................... 6
AFTER TOUCH .................................. 7, 14
AI FINGERED......................................... 27
AI FULL KEYBOARD ............................. 27
AMPLITUDE ..................................... 13–14
Any Key .................................................. 57
ARABIC 1/2 ............................................ 10
ASSIGN (Harmony/Echo)......................... 8
ASSIGN / HARMONY
(Ensemble Voice) ............................... 20
Assignable Pedal Functions ................. 134
ATTACK ................................................. 14
ATTACK (Voice Set)............................... 14
ATTACK PITCH ADJUST TIME
(Ensemble Voice) ............................... 24
ATTACK PITCH RANGE
(Ensemble Voice) ............................... 24
Audio File.......................................... 80–81
Audio part ............................................... 31
AUTO...................................................... 86
AUTO mode............................................ 86
Auto Power Off (Utility) ......................... 127
B
Backup/Restore .................................... 132
BAR .................................................. 61, 72
BAR CLEAR ........................................... 41
BAR COPY ............................................. 41
BASS (MIDI) ......................................... 136
Bass Note Settings ............................... 141
BEAT ................................................ 61, 72
BEAT CONVERTER............................... 39
BOOST/CUT........................................... 40
BRIGHT (Brightness).............................. 14
C
CANCEL ................................................. 72
CARRIER parameters
(Synth Vocoder)................................ 113
CH.Vol .................................................... 73
CHANNEL .................................. 40–41, 70
CHANNEL TRANSPOSE ....................... 71
Chord...................................................... 73
CHORD DETECT (MIDI) ...................... 136
Chord Events.......................................... 73
Chord Fingering...................................... 26
150
Tyros5 Reference Manual
Chord Fingering Types ...........................27
CHORD NOTE ONLY (Harmony/Echo) ....8
Chord Tutor.............................................26
Chord Type Settings .............................141
Chorus (Mixing Console) ......................118
CHORUS DEPTH (Voice Set) ................15
CLOCK..............................................61, 72
Clock setting (MIDI) ..............................138
Code .......................................................73
COMMON (Voice Set) ............................13
COMPARE..............................................12
CONFIG 1 .............................................126
CONFIG 2 .............................................128
Connections ..........................................133
CONTROLLER ...................................7, 11
CONTROLLER (Voice Set).....................13
Converting...............................................80
Cool! (Voice) .............................................5
COPY................................................72, 90
Copy (Multi Pad) .....................................49
Ctrl (Control Change) ..............................73
CUT...................................................72, 90
D
DATA ENTRY .........................................72
DECAY (Voice Set).................................14
DELETE ................................61, 71–72, 90
DETAIL (Synth Vocoder) ......................111
DETAIL (Vocal Harmony) .....................106
DETUNE (Vocal Harmony) ...................109
Displaying Available Networks ..............144
Display-related settings /
Voice Category Button Options
(Utility) ...............................................128
Drums (Voice) ...........................................5
DSP.........................................................15
DSP DEPTH (Voice Set).........................15
DSP1 (Mixing Console).........................118
DSP2-9 (Mixing Console) .....................118
DYNAMICS .............................................40
E
EA (Ensemble Voice) ..............................21
Echo Types (Harmony/Echo) ....................9
Edit (Multi Pad) .......................................48
EFFECT Parameters ............................118
EFFECT parameters (Synth Vocoder) ..113
EFFECT/EQ (Voice Set) .........................15
EG (Voice Set) ........................................14
Ensemble Voice ......................................19
Ensemble Voice Key Assign Status List .21
Ensemble Voice Key Assign Type List ...21
Ensemble Voice Key Assignment
Structure..............................................20
Envelope Generator................................14
EQ (Voice Set) ........................................15
EQ Parameters .....................................122
EQUAL (SCALE TUNE) ..........................10
Event List display ....................................72
EXPAND/COMP. ....................................40
Expansion Pack.................................... 148
F
F*A (Ensemble Voice) ............................ 21
F*D (Ensemble Voice) ............................ 21
Factory Reset ....................................... 131
Fade In/Out (Utility) .............................. 126
Favorite Record ...................................... 91
FILES...................................................... 90
FILTER ....................................... 13–14, 72
FILTER Parameters.............................. 116
FINE ....................................................... 39
Fine-tuning.............................................. 10
FINGERED ............................................. 27
FINGERED ON BASS ............................ 27
FINGERED*............................................ 27
Follow Lights........................................... 57
FOOTAGES (Organ World).................... 17
Footswitch/Foot Controller Settings...... 133
FORMANT (Vocal Harmony)................ 109
FORMANT parameters
(Synth Vocoder)................................ 113
Free Play ................................................ 25
Freeze .................................................... 96
FULL KEYBOARD.................................. 27
G
GM............................................................ 6
GROOVE................................................ 39
Guide ...................................................... 55
H
HARMO. (Harmonic Content)................. 14
HARMONY (Ensemble Voice)................ 20
Harmony Types (Harmony/Echo) ............. 9
Harmony/Echo.......................................... 8
HI (Ensemble Voice)............................... 21
HIGH KEY .............................................. 45
HPF parameters (Synth Vocoder) ........ 113
HUMANIZE (Ensemble Voice) ............... 24
I
INITIAL TOUCH........................................ 7
INS (INSERT) ......................................... 72
INSERT .................................................. 90
Installing the Expansion Pack............... 148
Instrument Info File............................... 148
J
Jump Markers......................................... 75
K
KBD.VEL ................................................ 61
Key (Key signature) ................................ 73
KEY ASSIGN TYPE ............................... 20
Key Assign Type..................................... 21
Key Assignment Status .......................... 20
Key Assignment Structure ...................... 20
Key off retrigger ...................................... 21
KEYBOARD (Transpose) ....................... 11
KEYBOARD/PANEL........................... 7, 11
KIRNBERGER........................................ 10
L
LA (Ensemble Voice).............................. 21
LENG (Length) ....................................... 18
LFO................................................... 13–14
Line Out (MAIN) / Screen (Utility) ......... 128
Line Out Settings .................................. 124
Live! (Voice).............................................. 4
Live! Drums (Voice) .................................. 5
Live! SFX (Voice)...................................... 5
LO (Ensemble Voice) ............................. 21
Local Control (MIDI) ............................. 138
Loop End Marker .................................... 75
Loop Recording ...................................... 33
Lyrics ...................................................... 73
Lyrics display .......................................... 53
Lyrics Events .......................................... 73
M
N
Name ......................................................73
Network .................................................144
NOISE GATE (Microphone Setting)......102
NORMAL REC ........................................84
Normalize................................................83
Note ........................................................73
Note Events ............................................73
NOTE LIMIT ............................................45
NTR (Note Transposition Rule)...............44
NTT (Note Transposition Table) .............44
O
OCTAVE (Ensemble Voice) ....................23
One Touch Setting ..................................30
OnOff ......................................................73
Organ Flutes (Editing Organ Voices) ......17
Organ Flutes (Organ World) ...................17
Organ Flutes! (Voice) ................................5
Organ World............................................17
ORIGINAL BEAT ....................................39
OTS LINK TIMING ..................................28
Overdub Recording.................................33
OVERVIEW (Synth Vocoder)................111
OVERVIEW (Vocal Harmony)...............106
OWNER ................................................130
P
P.Bnd (Pitch Bend) .................................73
PAN (Vocal Harmony)...........................109
PANEL SUSTAIN (Voice Set) .................15
PANPOT (Ensemble Voice) ....................23
Parameter Lock (Utility) ........................127
PART (Vocal Harmony) ........................106
PART EQ (Mixing Console) ..................122
PART OCTAVE (Voice Set) ....................13
PART ON/OFF ........................................29
PART ON/OFF (Ensemble Voice) ..........23
Password ..............................................145
PASTE ....................................................72
PEDAL ....................................................86
PEDAL PUNCH IN/OUT .........................67
Performance Assistant Technology ........58
PITCH CORRECT MODE
(Vocal Harmony) ...............................110
PITCH DETECT (Microphone Setting) .102
PITCH RANGE (Ensemble Voice) ..........24
Playlist.....................................................88
PLUS PLAYBACK...................................84
PORTAMENTO TIME (Voice Set) ..........13
Pro ..........................................................25
Prog (Program Change)..........................73
PROPERTY ............................................89
Prot.1 ......................................................50
Prot.2 ......................................................50
Prot.2 Orig...............................................50
Protected Songs .....................................50
Punch In..................................................67
PUNCH IN OUT ......................................85
Punch In/Out ...........................................67
Punch Out ...............................................67
PURE MAJOR ........................................10
PURE MINOR......................................... 10
PYTHAGOREAN .................................... 10
Q
QUANTIZE ....................................... 41, 70
R
Realtime Recording .................... 33, 46, 59
Realtime Recording (Multi Pad).............. 46
REC END ............................................... 67
REC START ........................................... 67
RECEIVE (MIDI)................................... 136
Recording Chords (Step Recording) ...... 64
Recording Melodies (Step Recording).... 60
Recording Part........................................ 59
Redo ....................................................... 77
Registration Memory .............................. 95
Registration Sequence ........................... 97
RELES. (Release) (Voice Set) ............... 14
REMOVE EVENT ................................... 41
REPEAT ................................................. 89
Repeat .................................................... 55
RESP (Response) (Organ World) .......... 18
Retrigger................................................. 21
Reverb (Mixing Console) ...................... 118
REVERB DEPTH (Ensemble Voice) ...... 23
REVERB DEPTH (Voice Set)................. 15
Rotary Speaker....................................... 17
RTG (Ensemble Voice)........................... 21
RTR (Retrigger Rule).............................. 45
S
S.Art! (Voice) ............................................ 4
S.Art2 Auto Articulation (Utility) ............ 128
S.Art2! (Voice) .......................................... 4
S.Vol ....................................................... 73
SAVE ...................................................... 72
Scale Tune ............................................. 10
Scale types ............................................. 10
ScBar (Score Start Bar).......................... 73
Sect ........................................................ 73
SECTION SET........................................ 29
Security................................................. 145
SELECT............................................ 71, 90
SEQUENCE END................................... 98
Session................................................... 25
SETUP.................................................... 71
SFX (Voice) .............................................. 5
SHUFFLE ............................................... 89
SINGLE FINGER.................................... 27
SIZE........................................................ 70
SOFT (Touch)........................................... 7
Song ....................................................... 50
SONG (Transpose)................................. 11
Song Creator .......................................... 59
Song Position Markers ........................... 75
SORT...................................................... 89
SOUND (Voice Set)................................ 14
SOURCE (PLAY) ROOT/CHORD .......... 43
SPEED (Harmony/Echo) .......................... 8
SSID ..................................................... 145
Staccatissimo ......................................... 61
Staccato.................................................. 61
Start/End Points...................................... 87
Tyros5 Reference Manual
Index
MANUAL................................................. 86
Manual Setup ....................................... 145
MARK ............................................... 71, 90
MASTER (Transpose) ............................ 11
Master Compressor Settings ................ 123
MASTER EQ (Mixing Console) ............ 122
MEAN-TONE .......................................... 10
MEDIA .................................................. 129
MEGAEnhancer........................................ 5
MegaVoice (Voice) ................................... 5
MERGE .................................................. 85
MESSAGE SW (MIDI) .......................... 138
Meta event.............................................. 73
Metronome (Utility) ............................... 126
MFC10 (MIDI)....................................... 136
MFC10 Settings.................................... 142
Microphone........................................... 100
Microphone Settings............................. 101
MIDI Receive Settings .......................... 140
MIDI Settings ........................................ 136
MIDI Song Data Structure ...................... 59
MIDI Songs............................................. 50
MIDI System Settings ........................... 138
MIDI Templates .................................... 137
MIDI Transmit Settings ......................... 139
MIX ......................................................... 71
Mixing Console ..................................... 115
MODE (Organ World) ............................. 18
MODULATION (Voice Set)..................... 13
MONO/POLY (Voice Set) ....................... 13
MOVE Up/Down ..................................... 90
Multi Assign Type (Harmony/Echo) .......... 9
MULTI FINGER ...................................... 27
Multi Pad................................................. 46
Multi Pad Creator.................................... 46
MULTI SELECT...................................... 72
Multi Track .............................................. 76
Multi Track File ....................................... 76
Music Finder ........................................... 91
Music Finder File .................................... 93
Music Notation ........................................51
151
Step Recording........................... 37, 48, 59
Step Recording (Multi Pad) .................... 48
STOP ACMP .......................................... 28
STRENGTH...................................... 40, 70
Style.................................................. 25, 73
Style Assembly ....................................... 37
Style Creator........................................... 31
Style Data Structure ............................... 31
STYLE TOUCH ...................................... 29
Style Types............................................. 25
Super Articulation (Voice)......................... 4
Super Articulation2 (Voice)....................... 4
Sweet! (Voice) .......................................... 5
SWING ................................................... 39
SYNCHRO STOP WINDOW .................. 28
Synth Vocoder Types ........................... 111
SYS/EX................................................... 73
SYS/EX. (System Exclusive) .................. 73
SYSTEM (MIDI).................................... 136
System Exclusive ................................... 72
System Exclusive Events ....................... 73
SYSTEM RESET.................................. 131
W
WERCKMEISTER...................................10
Wireless LAN Adaptor...........................144
WPS......................................................146
X
T
Talk....................................................... 100
TALK MIXING (Microphone Setting) .... 103
Tap (Utility) ........................................... 127
TEMPO................................................... 29
Tempo .................................................... 73
Tenuto .................................................... 61
Text display ............................................ 53
THRU (Ensemble Voice) ........................ 21
Time (Time signature) ............................ 73
Time Zone ............................................ 147
TIMING (Ensemble Voice)...................... 24
TOUCH LIMIT (Harmony/Echo) ............... 8
Touch Response ...................................... 7
TOUCH SENSE (Voice Set)................... 13
TRANSMIT (MIDI) ................................ 136
TRANSPOSE (Vocal Harmony) ........... 109
TRANSPOSE ASSIGN........................... 11
TREMOLO (Organ World) ...................... 17
TUNE / EFFECT (Ensemble Voice) ....... 23
TUNE Parameters ................................ 117
Tuning..................................................... 10
TUNING (Ensemble Voice) .................... 23
U
Undo ....................................................... 77
UNDO/REDO.......................................... 89
Up/Down................................................. 90
USB Wireless LAN Adaptor.................. 144
USER MEMORY
(Microphone Setting) ........................ 101
Utility..................................................... 126
V
VARIATION (DSP) ................................. 15
VELOCITY CHANGE ............................. 41
VIBRATO (Organ World) ........................ 17
VIBRATO (Voice Set) ............................. 15
VIBRATO SENSITIVITY
(Ensemble Voice) ............................... 24
VIBRATO SPEED (Organ World)........... 18
152
Vocal Harmony .....................................100
Vocal Harmony Types...................104, 106
VOCODER parameters
(Synth Vocoder) ................................113
VOICE (Ensemble Voice) .......................23
Voice Set.................................................12
Voice Types ..............................................4
VOL (Organ World) .................................18
VOLUME (Ensemble Voice) ...................23
VOLUME (Harmony/Echo)........................8
VOLUME (Vocal Harmony) ...................109
VOLUME (Voice Set) ..............................13
VOLUME / PAN (Ensemble Voice) .........23
Volume Balance................................78, 83
VOLUME&ATTACK (Organ World) ........18
Tyros5 Reference Manual
XG.............................................................6
XGPrm (XG parameters) ........................73
Y
Your Tempo ............................................57
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
