Security Target: FQR 110 6731 Ed1

Security Target: FQR 110 6731 Ed1

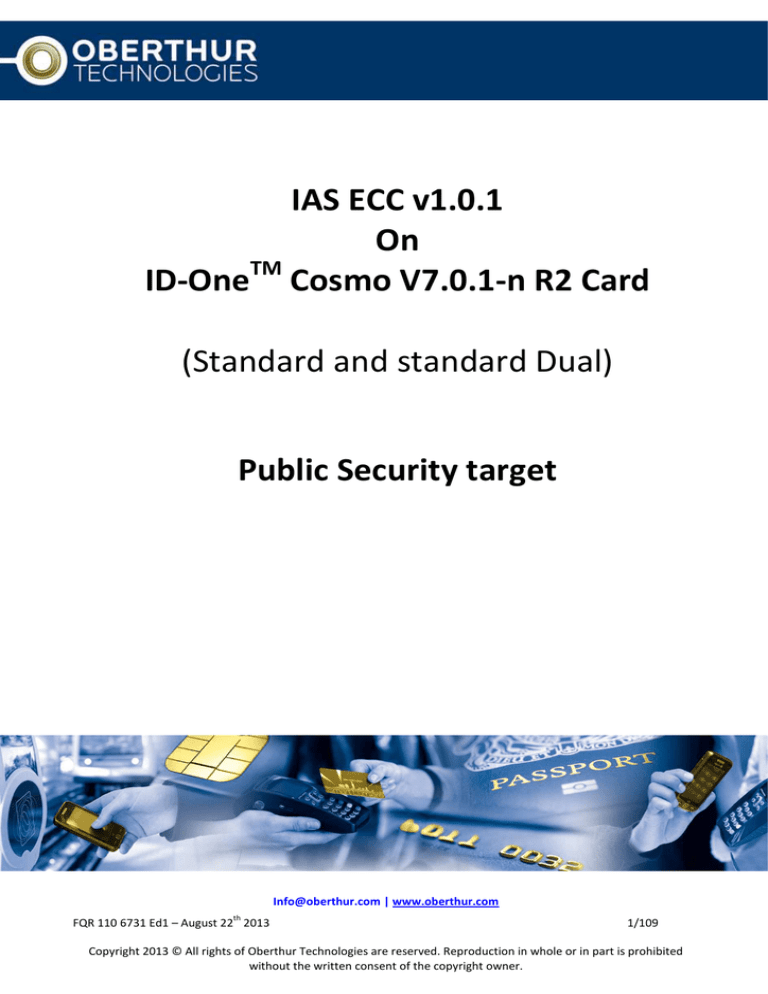

IAS ECC v1.0.1
On
ID-OneTM Cosmo V7.0.1-n R2 Card
(Standard and standard Dual)
Public Security target
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
1/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
2/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
3/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
TABLE OF CONTENTS
1
INTRODUCTION ................................................................................................................................................ 8
1.1
1.2
1.3
2
SECURITY TARGET REFERENCE .................................................................................................................. 8
REFERENCES ............................................................................................................................................. 8
ABBREVIATIONS .......................................................................................................................................... 9
TARGET OF EVALUATION DESCRIPTION .................................................................................................. 11
2.1
TARGET OF EVALUATION OVERVIEW ......................................................................................................... 11
2.1.1
TOE type........................................................................................................................................................... 11
2.1.2
Logical scope .................................................................................................................................................. 11
2.1.3
Physical scope................................................................................................................................................. 12
2.1.3.1
Physical overview.................................................................................................................................... 12
2.1.4
Usage and major security features of the TOE ................................................................................................. 13
2.2
TARGET OF EVALUATION REFERENCE ....................................................................................................... 15
2.3
DESCRIPTION OF THE EMBEDDED SOFTWARE ............................................................................................. 16
2.3.1
Description of data structure ............................................................................................................................. 16
2.3.1.1
File and File System ................................................................................................................................ 16
2.3.1.2
Security Environment.............................................................................................................................. 18
2.3.1.3
Security data Objects............................................................................................................................... 18
2.3.2
Access Control Management ............................................................................................................................ 19
2.3.3
Authentication of entities .................................................................................................................................. 20
2.3.4
eServices ........................................................................................................................................................... 20
2.3.5
Administration of the TOE ............................................................................................................................... 20
2.3.6
Single Sign on feature (SSO) ............................................................................................................................ 21
2.3.7
Scope of evaluation........................................................................................................................................... 21
2.4
INTENDED USAGE ..................................................................................................................................... 21
2.5
LIFE CYCLE .............................................................................................................................................. 23
2.5.1
Description of the TOE Environment ............................................................................................................... 24
2.5.2
Development environment................................................................................................................................ 24
2.5.2.1
Software development (phase 1) ............................................................................................................. 24
2.5.2.2
Hardware development (Phase 2)............................................................................................................ 24
2.5.3
Production environment.................................................................................................................................... 25
2.5.3.1
Javacard platform manufacturing (phase 3) ............................................................................................ 25
2.5.3.2
Javacard platform (JOP) packaging and initialization (phase 4) ............................................................. 25
2.5.3.3
Javacard platform (JOP) pre-personnnalization (phase 5)....................................................................... 25
2.5.4
Operational environment .................................................................................................................................. 26
2.5.4.1
TOE personalization (phase 6) ................................................................................................................ 26
2.5.4.2
TOE Usage (phase 7) .............................................................................................................................. 26
2.5.5
Coverage of the different Life cycle state by the assurance components AGD & ALC ................................... 26
2.5.6
State of the TOE depending on the phase ......................................................................................................... 27
2.5.7
Mapping with the life cycle and Subjects described in [SSCD2] and [SSCD3] ............................................... 27
2.5.8
Presentation of the different subjects interacting with the TOE ....................................................................... 28
3
TARGET OF EVALUATION SECURITY ENVIRONMENT ............................................................................. 30
3.1
3.2
3.3
3.4
3.5
3.5.1
3.5.2
3.6
3.6.1
3.6.2
3.7
REMOTE IT ENTITY.................................................................................................................................... 30
SUBJECTS ................................................................................................................................................ 31
USER DATA .............................................................................................................................................. 32
TSF DATA ................................................................................................................................................ 34
ASSUMPTION ............................................................................................................................................ 35
Standard Assumption ........................................................................................................................................ 35
Complementary Assumption ............................................................................................................................ 36
THREATS.................................................................................................................................................. 36
Standard threats................................................................................................................................................. 36
Complementary threats ..................................................................................................................................... 37
ORGANIZATIONAL SECURITY POLICIES ........................................................................................................ 38
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
4/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
3.7.1
Standard organizational security policies.......................................................................................................... 38
3.7.2
Complementary organizational security policies .............................................................................................. 38
3.8
SECURITY OBJECTIVES FOR THE TOE ....................................................................................................... 39
3.8.1
Standard security objectives of the TOE........................................................................................................... 39
3.8.2
Complementary security objectives of the TOE ............................................................................................... 40
3.9
SECURITY OBJECTIVES FOR THE ENVIRONMENT ......................................................................................... 41
3.9.1
Standard security objectives of the Environment.............................................................................................. 41
3.9.2
Complementary security objectives of the Environment .................................................................................. 42
3.10
TOE SECURITY FUNCTIONAL REQUIREMENTS ............................................................................................. 43
3.10.1
FCS: CRYPTOGRAPHIC SUPPORT.............................................................................................................. 43
3.10.1.1
FCS_CKM.1 Cryptographic key generation ........................................................................................... 43
3.10.1.2
FCS_CKM.4 Cryptographic key destruction .......................................................................................... 44
3.10.1.3
FCS_COP Cryptographic operation ........................................................................................................ 44
3.10.1.4
FCS_RNG Random Number Generation ................................................................................................ 47
3.10.2
FDP : USER DATA PROTECTION ................................................................................................................ 47
3.10.2.1
FDP_ACC Access Control Policy........................................................................................................... 47
3.10.2.2
FDP_ACF Security attribute based access control .................................................................................. 49
3.10.2.3
FDP_ETC : Export to outside TSF control ............................................................................................. 62
3.10.2.4
FDP_ITC Import from outside TSF control ............................................................................................ 63
3.10.2.5
FDP_RIP Residual information protection.............................................................................................. 64
3.10.2.6
FDP_SDI Stored data integrity................................................................................................................ 64
3.10.2.7
FDP_UCT Inter-TSF user data confidentiality transfer protection ......................................................... 66
3.10.2.8
FDP_UIT Inter-TSF user data integrity transfer protection .................................................................... 66
3.10.3
FIA: IDENTIFICATION AND AUTHENTICATION .................................................................................... 67
3.10.3.1
FIA_AFL Authentication failure............................................................................................................. 67
3.10.3.2
FIA_ATD User attribute definition ......................................................................................................... 68
3.10.3.3
FIA_UAU User authentication................................................................................................................ 69
3.10.3.4
FIA_UID User Identification .................................................................................................................. 69
3.10.4
FMT: SECURITY MANAGEMENT ............................................................................................................... 70
3.10.4.1
FMT_MOF Management of functions in TSF ........................................................................................ 70
3.10.4.2
FMT_MSA Management of security attributes....................................................................................... 70
3.10.4.3
FMT_MTD Management of TSF data .................................................................................................... 71
3.10.4.4
FMT_SMF Specification of Management Functions .............................................................................. 72
3.10.4.5
FMT_SMR Security management roles .................................................................................................. 72
3.10.5
FPT: PROTECTION OF THE TSF .................................................................................................................. 74
3.10.5.1
FPT_EMSEC TOE Emanation................................................................................................................ 74
3.10.5.2
FPT_FLS Failure secure.......................................................................................................................... 74
3.10.5.3
FPT_PHP TSF physical Protection ......................................................................................................... 74
3.10.5.4
FPT_TST TSF self test............................................................................................................................ 74
3.10.6
FTP: TRUSTED PATH/CHANNELS.............................................................................................................. 75
3.10.6.1
FTP_ITC Inter-TSF trusted channel........................................................................................................ 75
3.10.6.2
FTP_TRP Trusted path............................................................................................................................ 76
3.11
SECURITY REQUIREMENTS FOR THE IT ENVIRONMENT................................................................................. 77
3.11.1
Signature key generation (SSCD Type1) .......................................................................................................... 77
3.11.1.1
Cryptographic key generation (FCS_CKM.1)......................................................................................... 77
3.11.1.2
Cryptographic key destruction (FCS_CKM.4)........................................................................................ 77
3.11.1.3
Cryptographic operation (FCS_COP.1) .................................................................................................. 78
3.11.1.4
Random Number Generation (FCS_RNG).............................................................................................. 79
3.11.1.5
Subset access control (FDP_ACC.1)....................................................................................................... 79
3.11.1.6
Basic data exchange confidentiality (FDP_UCT.1) ................................................................................ 79
3.11.1.7
Inter-TSF trusted channel (FTP_ITC.1) .................................................................................................. 79
3.11.2
Certification generation application (CGA)...................................................................................................... 80
3.11.2.1
Cryptographic key generation (FCS_CKM.1)......................................................................................... 80
3.11.2.2
Cryptographic key distribution (FCS_CKM.2) ....................................................................................... 80
3.11.2.3
Cryptographic key access (FCS_CKM.3) ............................................................................................... 80
3.11.2.4
Cryptographic key destruction (FCS_CKM.4)........................................................................................ 80
3.11.2.5
Cryptographic operation (FCS_COP.1) .................................................................................................. 81
3.11.2.6
Random Number Generation (FCS_RNG).............................................................................................. 82
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
5/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
3.11.2.7
Data exchange integrity (FDP_UIT.1) .................................................................................................... 82
3.11.2.8
Inter-TSF trusted channel (FTP_ITC.1) .................................................................................................. 82
3.11.3
Signature creation application (SCA) ............................................................................................................... 82
3.11.3.1
Cryptographic key generation (FCS_CKM.1)......................................................................................... 82
3.11.3.2
Cryptographic key destruction (FCS_CKM.4)........................................................................................ 82
3.11.3.3
Cryptographic operation (FCS_COP.1) .................................................................................................. 83
3.11.3.4
Random Number Generation (FCS_RNG).............................................................................................. 84
3.11.3.5
Data exchange integrity (FDP_UIT.1) .................................................................................................... 84
3.11.3.6
Inter-TSF trusted channel (FTP_ITC.1) .................................................................................................. 84
3.11.3.7
Trusted path (FTP_TRP.1) ...................................................................................................................... 84
3.11.4
Interface Device (IFD) ...................................................................................................................................... 85
3.11.4.1
Cryptographic key generation (FCS_CKM.1)......................................................................................... 85
3.12
SECURITY REQUIREMENTS FOR THE ADMINISTRATOR ................................................................................. 85
3.12.1.1
Cryptographic operation (FCS_COP.1) .................................................................................................. 85
3.13
SECURITY REQUIREMENTS FOR THE PERSONALIZER AND TOE_ADMINISTRATOR ......................................... 85
3.13.1.1
Cryptographic operation (FCS_COP.1) .................................................................................................. 85
3.14
SECURITY REQUIREMENTS FOR THE NON-IT ENVIRONMENT ......................................................................... 86
3.14.1
Standard security requirements......................................................................................................................... 86
3.14.2
Complementary security requirements ............................................................................................................. 86
4
TOE SUMMARY SPECIFICATION.................................................................................................................. 87
4.1
SECURITY FUNCTION OF THE TOE ............................................................................................................. 87
4.1.1
Security functions provided by the javacard open platform.............................................................................. 87
4.1.2
Security functions added by the composite TOE .............................................................................................. 88
4.1.3
Composition with the Security functions provided of the javacard Open platform.......................................... 92
4.1.4
Dependencies of the Security functions............................................................................................................ 93
4.2
SECURITY ASSURANCE REQUIREMENTS ..................................................................................................... 96
4.2.1
Evaluation Assurance Level rationale............................................................................................................... 96
4.2.2
ADV : Development ......................................................................................................................................... 96
4.2.3
AGD : Guidance ............................................................................................................................................... 96
4.2.4
ALC : Life Cycle .............................................................................................................................................. 96
4.2.5
ASE : Security target ........................................................................................................................................ 97
4.2.6
ATE : Tests ....................................................................................................................................................... 97
4.2.7
AVA : Vulnerability Analysis........................................................................................................................... 97
4.3
EAL AUGMENTATIONS RATIONALE ............................................................................................................. 97
4.3.1
AVA_VAN.5 Advanced methodical vulnerability analysis ............................................................................. 97
4.3.2
ALC_DVS.2 Sufficiency of security measures................................................................................................. 98
4.3.3
ATE_DPT.2 Testing: security enforcing modules............................................................................................ 98
5
CONFORMANCE CLAIMS.............................................................................................................................. 98
5.1
CONFORMANCE CLAIM TO CC ................................................................................................................... 98
5.2
PROTECTION PROFILE REFERENCE ............................................................................................................ 98
5.3
CONFORMANCE CLAIM RATIONALE............................................................................................................. 99
5.3.1
Rationale for TOE objectives............................................................................................................................ 99
5.3.2
Rationale for threats.......................................................................................................................................... 99
5.3.3
Rationale for Assumptions.............................................................................................................................. 100
5.3.4
Rationale for Organisational Security Policies ............................................................................................... 100
5.3.5
Rationale for Environment objectives............................................................................................................. 100
5.3.6
Rationale for Security requirements ............................................................................................................... 101
5.4
SECURITY OBJECTIVES RATIONALE .......................................................................................................... 101
5.4.1
Security Objectives coverage.......................................................................................................................... 101
5.4.2
Security objectives sufficiency ....................................................................................................................... 104
5.4.2.1
Policies and Security Objective Sufficiency.......................................................................................... 104
5.4.2.2
Threats and Security Objective Sufficiency .......................................................................................... 105
5.4.2.3
Assumption and Security Objective Sufficiency ................................................................................... 108
6
ANNEX A : EXTENDED FAMILY .................................................................................................................. 108
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
6/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
6.1
6.2
DEFINITION OF FPT_EMSEC ................................................................................................................. 108
DEFINITION OF FCS_RNG...................................................................................................................... 109
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
7/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
1
Introduction
1.1
Security Target Reference
The Security target is identified as follows:
Title:
IAS ECC v1.0.1 on ID-OneTM Cosmo V7.0.1-n R2 – Public Security target
Reference:
FQR 110 6731 edition 1
Editor:
Oberthur Technologies
CC version:
3.1 revision 4
EAL:
EAL4 augmented with AVA_VAN.5, ATE_DPT.2 and ALC_DVS.2
1.2
References
[SSCD2]
[SSCD3]
[AGD_PRE]
[AGD_OPE]
[AGD_PRE_PLATFORM]
[AGD_OPE_PLATFORM]
[PP9911]
[AIS31]
[FIPS180-2]
Secure Signature-Creation Device Type2, 1.04,
EAL 4+
Secure Signature-Creation Device Type3, 1.05,
EAL 4+
FQR 110 5171 Ed7 - AGD_PRE
FQR 110 5170 Ed5 - AGD_OPE
FQR 110 6407 Ed2 - ID-One Cosmo V7.0.1-n R2.0 Pre-Perso Guide
FQR 110 6408 Ed2 - ID-One Cosmo V7.0.1-n R2.0 Reference Guide
Smart Card Integrated Circuit With Embedded
Software Protection Profile, version 2.0, June 1999.
Certified under the reference PP/9911, DCSSI
Anwendungshinweise und Interpretationen zum
Schema, AIS31: Funktionalitätsklassen und
Evaluationsmethodologie für physikalische
Zufallszahlengeneratoren, Version 1, 25.09.2001,
Bundesamt für Sicherheit in der
Informationstechnik
FIPS PUB 180-2, Secure Hash Standard", August
2002 , National Institute of Standards and
Technology
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
8/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
[CC31-1]
“Common Criteria for information Technology
Security Evaluation, Part 1: Introduction and
general model", September 2012, Version 3.1
revision 4
“Common Criteria for information Technology
Security Evaluation, Part 2: Security Functional
requirements", September 2012, Version 3.1 revision
4
“Common Criteria for information Technology
Security Evaluation, Part 3: Security Assurance
requirements", September 2012, Version 3.1 revision
4
PKCS#1 The public Key Cryptography standards,
RSA Data Security Inc. 1993
PKCS#3
IAS ECC v1.0.1
Identification Cards - Integrated Circuits Card - Part
4 : Organisation, security and commands for
interchange : 2005
The underlying javacard platform has not been
evaluated on its own and therefore does not have
any security target. However, the underlying
javacard platform fulfils the same SFRs, TSFs ,… as
[ANSSI-CC-2009/48],
[ANSSI-CC-2010/40]
and
[ANSSI-CC-2012/30]. Therefore, the security target
of these javacard platform can be considered
Card Specification - Version 2.1.1 - Mars, 2003
[CC31-2]
[CC31-3]
[PKCS#1]
[PKCS#3]
[IASECC]
[ISO7816-4]
[ST_PLATFORM]
[GP]
1.3
Abbreviations
ADF
AES
AID
AMB
APDU
chip)
API
CA
CBC
CGA
qualified certificate(s) )
C/S
CSE
DAP
Application Dedicated File
Advanced Encryption Standard
Application Identifier
Access Mode Byte
Application Protocol Data Unit (command received/Data sent by the
Application Programming Interfaces
Certification authority
Cipher Block Chaining
Certificate Generation Authority (Authority in charge of generating the
Client / Server
Current Security Environment
Data Authentication Pattern (enable to ensure integrity & authenticity of
javacard package when loaded)
Device Authentication with Privacy Protection
DAPP
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
9/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
DES
DF
DH
DTBS
DTBS Representation
EAL
EF
EEPROM
FID
GP
HI
IC
ICC
IFD
MAC
PIN
PKI
RAD
RCA
ROM
RSA
RSA CRT
SCA
signature to the chip)
SCB
SCD
SCP
SDO
SE
SHA
SSCD
SSE
SSESP
SSO
SVD
TOE
URL
USB
VAD
XML
Data Encryption Standard
Dedicated File
Diffie Hellman
Data to be signed (Sent by the SCA)
Representation of the Data to be signed
Evaluation Assurance Level
Elementary File
Electrically Erasable Programmable Read Only Memory
File identifier
Global Platform
Human Interface (used to enter the RAD and VAD by the user)
Integrated Chip
Integrated Chip card
Interface Device
Message Authentication code
Personal Identification Number
Public Key Infrastructure
Reference Authentication Data (PIN stored)
Root Certification Authority
Read Only Memory
Rivest Shamir Adleman
Rivest Shamir Adleman – Chinese Remainder Theorem
Signature creation Application (Application requiring a qualified
Security Condition Byte
Signature Creation Data (Signature key)
Secure Channel Procotol
Security Data Object
Security Environment
Secure hashing Algorithm
Secure Signature Creation Device
Static Security Environment
Static Security Environment for Security Policies
Single Sign On
Signature Verification Data (Signature Verification key)
Target of evaluation
Uniform Resource Locator
Universal Serial Bus
Verification Authentication Data (PIN submitted by the holder)
eXtensible Markup Language
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
10/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
2
Target Of Evaluation Description
2.1
2.1.1
Target Of Evaluation Overview
TOE type
The Target of Evaluation is embedded software made of
• a javacard Applet ([Applet]) developed by Oberthur Technologies
• a javacard API ([API]) developed by Oberthur Technologies
• a javacard Interface ([Interface]) developed by Oberthur Technologies
Composed with a javacard platform developed by Oberthur Technologies, on which it is running. The javacard
platform is locked, i.e. it does not allow the loading of any other applets.
The javacard Applet provides to the outside the whole set of security services described herein. To do so, [Applet]
relies on
• [API] which provides a wide range of services enabling to manage the files and cryptographic objects
• [Interface] which provides the mechanisms for data sharing with other applet
• Javacard API provided by the underlying javacard platform
2.1.2
Logical scope
The logical scope of the TOE may be depicted as follows:
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
11/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
TOE
[Applet]
[API]
[Interface]
Javacard Platform
Limits of the TOE
2.1.3
Physical scope
The TOE is made of a javacard platform [PLATFORM], set in Pre-personalization state, which contains in its
ROM code the three javacard packages [Applet], [API] and [Interface]
2.1.3.1 Physical overview
Once constructed, the TOE is a bare microchip with its external interfaces for communication.
It may be used on several physical medium
• within an inlay, or eCover
• in a plastic card
• within a USB key
• ….
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
12/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
The physical medium on which the microchip is mounted is not part of the target of evaluation
TOE
[Applet]
[API]
[Interface]
Javacard Platform
Limits of the TOE
2.1.4
Usage and major security features of the TOE
The TOE intended usage is to be used as a “secure signature creation device” of type 2 or 3, with respect to the
European regulation EU/1999/93.
Within the framework described by [SSCD2] and [SSCD3], the TOE enables
• To perform qualified signature
• to authenticate the cardholder based on a RAD verification
• to authenticate one (or several) administrator(s) of the TOE, that may have special rights to administrate
the SCD and SVD (generation, import), using either symmetric and/or asymmetric mechanisms or PIN
verification
• to establish a trusted channel, protected in integrity and confidentiality, with remote entities such as a
SCA, a CGA or a SSCD type 1. It may be realized by means of symmetric and/or asymmetric
mechanisms
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
13/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
The scope of [SSCD2] and [SSCD3] is extended in several ways:
• A super Administrator has special rights to administrate the signature creation function, the mode of
communication, and the type of cryptographic mechanisms to use.
• The TOE may hold more than one SCD. Several SCDs may be used by the holder to sign documents
• SCD/SVD pairs and other cryptographic objects may be generated and/or imported after issuance at
any time according to the access rules required.
• RAD may be created at any time according to the access rules required.
• The TOE may be used to realize digital signature in contact and/or contactless mode. To do so, the
Personalization Agent shall ensure a correct security policy is applied to each object/data.
• eServices features are added, enabling the cardholder to perform C/S authentication, Encryption key
decipherment….
• A complete access control over object is ensured, whatever their type is : File or cryptographic objects
(PIN, keys,…), ensuring it is not possible to bypass the access rules.
The security functions the TOE provides are the following:
• SF.PIN_MGT: Management of the PIN. The TOE enable to create, set, change, reset the PIN both trought
APDU commands or by Shared interfaces. In any case, the same security policy is applied.
• SF.SIG : Management of electronic signature according to the security requirement of [SSCD2] and
[SSCD3]
• SF.DEV_AUTH: provision of cryptographic means to perform mutual authentication with remote
entities such as the SCA, the CGA, the SSCD type 1 and initiate a trusted channel with them. It may use
symmetric and asymmetric scheme.
• SF.ADM_AUTH: provision of cryptographic means to perform authentication of external entities to
grant them some administration rights (on the TOE, personalization rights, on the SCD management…).
It may use symmetric and asymmetric scheme.
• SF.SM : provision of cryptographic mechanisms to ensure a trusted channel with remote entities such as
the SCA, the CGA, the SSCD type 1
• SF.KEY_MGT: provision of the keys management. It enables to create, import and generate the SCD and
SVD, to export the SVD. It manages as well the authentications and the eServices keys stored in the TOE
and enable their import, export and generation.
• SF.CONF: provides configuration management of the TOE. It enables to activate/deactivate the use of
hash off card for signature computation, the use of symmetric and/or asymmetric authentication
schemes, and the ability to communicate in contactless mode.
• SF.ESERVICE: provision of eServices. The TOE enables to perform C/S authentication, encryption key
decipherment and certificate verification.
• SF.EAVESDROPPING_PROTECTION: Enforcement of the eavesdropping protection in contactless
mode. When used in contactless mode, the TOE applies a restrictive security policy ensuring the sensitive
data exchanged can not be read or sent by an unauthenticated entity.
• SF.SAFESTATE_MGT : Insurance of a safe state. The TOE always remains in a safe state, ensuring the
protection of all the assets it contains.
• SF.PHYS: physical protection. The TOE provides protection against tampering and the assets it stores can
not be retrieved or altered by physical manipulation
The TOE is compliant with the specification [IASECC] and may be used for various applications requiring
qualified signature:
• Electronic signature application
• Electronic health card
• Electronic services cards
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
14/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
•
……
Depending on the use case and or the ability of the underlying javacard platform, this embedded software may
be used
• in contact mode (T=0 and/or T=1 protocol)
• in contactless protocol (T=CL)
• in USB protocol
2.2
Target Of Evaluation Reference
The TOE is identified as follows:
IAS ECC v1.0.1 on ID-OneTM Cosmo V7.0.1-n R2 Card
(Standard and Standard Dual)
Javacard applet : “6179”
Javacard platform mask = “7101”
TOE name
(commercial name)
Software Identification
Guidance document for
preparation
Guidance document for
use
Guidance document for
preparation of
PLATFORM
Guidance document for
operational user of
PLATFORM
Identification of the
underlying IC
Reference of the CC
certificates of the
underlying IC
FQR 110 5171 Ed7 - AGD_PRE
FQR 110 5170 Ed5 - AGD_OPE
FQR 110 6407 Ed2 - ID-One Cosmo V7.0.1-n R2.0 - Pre-Perso Guide
FQR 110 6408 Ed2 - ID-One Cosmo V7.0.1-n R2.0 - Reference Guide
P5CD081, P5CC081
BSI-DSZ-CC-0555-2009, November 10th 2009
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
15/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
2.3
2.3.1
Description of the embedded software
Description of data structure
The IAS ECC application manages two types of structures:
• The File, compliant with [ISO7816-4]
• The Security Data Objects, which are secure container storing cryptographic data (PINs, Keys,….)
2.3.1.1 File and File System
The IAS ECC Application handles the following type of file (described in [ISO7816-4]):
• Transparent File - EF
• Application Dedicated File - ADF
• Dedicated File - DF
All these files are organized within a so called File System. It represents the hierarchy between all the files. This
Structure is compliant with [ISO7816-4].
At the top of the structure stands the Root, it is the default selected file at reset. Under the Root, are located the
Application Dedicated File.
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
16/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
Root File
dedicated file
Transparent file
Application dedicated
file
Application dedicated
file
Transparent file
dedicated file
Transparent file
Example of FileSystem Structure
The ADF and the Root may be selected by Application Identifier (AID) or by File identifier (FID).
The Root, as well as each ADF and DF, may contain up to 255 files (EF or DF).
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
17/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
The Application enables to
• create, delete, activate, deactivate terminate all type of file (except the Application dedicated file) to
update the File System
• read, update, resize any transparent file (EF)
• Move within the File Structure by use of file selection.
Each file is characterised by its own attributes, such as:
• Access conditions
• File identifier
• Location within the File System
• Size (for transparent file)
All the action to be performed on file is fully described in [IASECC].
2.3.1.2 Security Environment
The IAS ECC Application handles Security Environments. Three types of Security Environment may be
identified:
• Static Security Environment - SSE
• Static Security Environment for Security Policies – SSESP
• Current Security Environment - CSE
Basically a security environment contains several couple of cryptographic data. Each cryptographic data contains:
• One or several key identifier : KEY_ID
• an algorithm identifier : ALGO_ID
• a mode of use : USE
These cryptographic data may be used
• to set up a ready to use cryptographic context to perform a cryptographic operation (for signature, for
C/S authentication,…). It is the case of SSE
• to define an access condition to fulfil: the key defined by the identifier KEY_ID shall be used with the
algorithm ALGO_ID and with the mode USE to grant an access right... It is the case of the SSESP
• to define the current cryptographic context to apply to realize a given service. It is the case of the CSE. In
particular, the CSE may be initialized from a SSE
The SSESP and SSE are attributes of the ADF and are stored in security Data Objects located within an
Application dedicated file (ADF)
The CSE is unique for the TOE at any moment
2.3.1.3 Security data Objects
The IAS ECC Application handles as well cryptographic data objects, called Security Data Objects (SDO),
dedicated to store the keys, the PIN, the Diffie Hellmann parameters and the Security Environments, as well as
their attributes. The following types of SDO exist
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
18/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
•
•
•
•
•
•
SDO PIN contains a Personal identification Number
SDO RSA Public Key contains a RSA Public Key
SDO RSA Private Key contains a RSA Private Key
SDO Security Environment contains a Security Environment
SDO Symmetric Key Set contains a Symmetric Key Set
SDO Diffie Hellmann parameters contains a set of Diffie Helmann Domain parameters
They may be located in any dedicated file (DF) or Application Dedicated file (ADF).
The Application enables to create, update and use any of these SDO. The way the SDO may be used depends on
its type:
• SDO PIN may be changed, reset, verified
• SDO RSA Public Key may be used to verify a certificate
• SDO RSA Private Key may be used to sign, perform a C/S authentication or decrypt a cryptogram
• SDO Security Environment may be changed, reset, verified
• SDO Symmetric Key Set may be used to verify an external authentication or to perform a mutual
authentication and establish a trusted channel.
• SDO Diffie Hellmann parameters may be used to establish a secure channel (without authentication)
Each SDO is characterised by its own attributes, such as:
• Access conditions
• Location within the File System
• Size
• Type
• Content (Key, PIN or Diffie Hellman Parameters)
• Usage counter and tries counter
• Algorithm to be used
All the action to be performed on file is fully described in [IASECC].
2.3.2
Access Control Management
One of the Core features of IAS ECC is to provide access condition management on any access mode of any
objects it handles:
• Files
• Security Data Objects
Access condition may be assigned to access mode on any of these objects.
The Access conditions encoding is the compact encoding described in [ISO7816-4], enhanced as described in
[IASECC]. It relies on access rules encoded by means on Access Mode Bytes (AMB) and Security Conditions
Bytes (SCB) described in [ISO7816-4] and [IASECC].
Prior to any operation, the application checks the requested access rights are fulfilled.
Basically, the Access condition is granted if the security conditions are fulfilled.
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
19/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
Any access condition to fulfil is a combination of security conditions based on identified keys/PIN/secrets:
• User Authentication (by PIN). May be used to authenticate the cardholder or a remote administrator.
• Authentication of a remote administrator
• Mutual authentication with a remote IT
• Communication protected in integrity and confidentiality
2.3.3
Authentication of entities
The IAS ECC application enables to authenticate several entities to grant them some rights:
•
User Authentication (by PIN). May be used to authenticate the cardholder or a remote administrator.
• Authentication of a remote administrator (based on symmetric or asymmetric scheme)
• Mutual authentication with a remote IT and establishment of a trusted channel protected in integrity and
confidentiality (based on symmetric or asymmetric scheme)
• Personalization Agent authentication (for the phase 6)
• TOE Administrator authentication (in phase 7)
These features of authentication are key factor as they are needed to grant access to resources (Files or SDO) the
IAS ECC application holds.
2.3.4
eServices
The IAS ECC application offers as well eServices features:
• C/S authentication: this feature enables to authenticate the TOE on behalf of the cardholder’s PC to a
remote web server.
• Digital signature: this feature enables the cardholder to electronically signs documents. The signature
may be either advanced or qualified (compliant with [SSCD2] and [SSCD3]).
• Encryption key decipherment: this feature enables the cardholder to store secret data on an electronic
vault. The key needed to decipher the key encrypting these data is securely stored in the TOE. The
cardholder’s PC sends the encrypted encryption key to the TOE to get the plain encryption key.
• Certificate verification: this feature enables the TOE to verify a certificate issued by a certification
authority the TOE trusts. The trust is established by the transfer to the TOE of a public RSA key of an
authority certified by an authority whose public key is present in the TOE (either permanently stored,
either imported through a certificate). This feature is used when the authentication key of a remote entity
is certified by a Root certification Authority (RCA)
2.3.5
Administration of the TOE
The IAS ECC application offers administration services. Upon successful authentication, the TOE Administrator
may modify the following attributes
• Communication medium: the administrator may restrict the ability to communicate with the TOE in
contact and/or contactless mode. If the TOE is to be used in contactless mode, the TOE issuer shall ensure
the security policy applied to files and SDO is relevant. In particular, there should not be any free
readable data that could be used to track the holder, and any sensitive data shall be transmitted through
a trusted channel ensuring protection against eavesdropping.
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
20/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
•
•
•
2.3.6
Hashing method to be used for digital signature: the administrator may restrict the ability to perform
electronic signature (advanced or qualified) on DTBS-representation partly computed by the TOE. In
such case, the digital signature will only be done with last round of data hashing done on the TOE.
Authentication mechanism to be used: the administrator may restrict the cryptographic means to be
used by the TOE to authenticate remote entities (Administrator or Remote IT): either symmetric and/or
asymmetric cryptography.
Identification of the TOE : the administrator is entitled to identify the TOE
Single Sign on feature (SSO)
The IAS ECC application may behave as a Single Sign on (SSO). It provides access points to any other applet
willing to use a PIN stored in the Root. In particular it is possible to:
• Check a PIN
• Change a PIN
• Reset a PIN
• Retrieve the remaining tries counter
• Retrieve the validation status
This feature is very convenient when the PIN(s) will be shared with a legacy application
Even though the IAS ECC application offers these entry points, it does still perform access control it the same
way it does when it receives incoming APDU to manage a PIN. The access conditions on the PINs that are
accessed by these entry points are still enforced.
2.3.7
Scope of evaluation
The scope of evaluation encompasses all the features of the TOE. The File System management is out of the scope
of the evaluation, even though the access control management (common to SDO and File) is covered.
2.4
Intended Usage
The TOE intended usage is to be used as a “secure signature creation device” of type 2 or 3, with respect to the
European regulation EU/1999/93.
Within the framework described by [SSCD2] and [SSCD3], the TOE enables
• To perform electronic qualified signature
• to authenticate the cardholder based on a RAD verification
• to authenticate one (or several) administrator(s) of the TOE, that may have special rights to administrate
the SCD and SVD (generation, import), using either symmetric and/or asymmetric mechanisms or PIN
verification
• to establish a trusted channel, protected in integrity and confidentiality, with remote entities such as a
SCA, a CGA or a SSCD type 1. It may be realized by means of symmetric and/or asymmetric mechanisms
The scope of [SSCD2] and [SSCD3] is extended in several ways:
• A super Administrator has special rights to administrate the signature creation function, the mode of
communication, and the type of cryptographic mechanisms to use.
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
21/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
•
•
•
•
•
•
The TOE may hold more than one SCD. Several SCDs may be used by the holder to sign documents
SCD/SVD pairs and other cryptographic objects may be generated and/or imported after issuance at
any time according to the access rules required.
RAD may be created at any time according to the access rules required.
The TOE may be used to realize digital signature in contact and/or contactless mode. To do so, the
Personalization Agent shall ensure a correct security policy is applied to each object/data.
eServices features are added, enabling the cardholder to perform C/S authentication, Encryption key
decipherment….
A complete access control over object is ensured, whatever their type is: File or cryptographic objects
(PIN, keys,…), ensuring it is not possible to bypass the access rules.
The TOE is compliant with the specification [IASECC] and may be used for various applications requiring
qualified signature:
• Electronic signature application
• Electronic health card
• Electronic services cards
• ……
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
22/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
2.5
Life Cycle
With respect to the Life cycle envisioned in [PP9911], seven different phases may be sorted out.
The life cycle of the composite TOE may be depicted as follows:
c
p ha se 1
ID O n e I A S E C C
p ha se 2
IC p ho to m as k
f abr ic atio n
p ha se 3
IC
m an u fa cturing
I D O ne C o sm o v7.0 . 1
IC d ataba se
con stru c tion
I C M a n u fa c tu r er
NXP
I C testing
p ha se 4
C ar d pr intin g
p ha se 5
T es tin g
m ic ro m od ule
E m bed d in g
P r e-p er so nalis atio n
p ha se 6
p ha se 7
T e stin g
T es ting
Per so n alisatio n
S m a rtca rd pr oduc t
E n d- usa ge
A pp lica tio n
E n d-us age
Sm a rtca rd
E n d of lif e
A p plica tio n
E nd of life
Figure 1 : life cycle state of the composite TOE
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
23/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
2.5.1
Description of the TOE Environment
The TOE environment may be spitted into two different parts:
• The Development environment, in which the parts of TOE are designed, tested and manufactured.
• The Production environment, in which the TOE is under construction. The security requirements of
the javacard platform (JOP) are fulfilled and assurance levels are met.
• The Operational environment, in which the TOE is self protected and can be used as stated
(personalized and used). Once personalized according to [AGD_PRE], the TOE is constructed: the
security requirements of the TOE are fulfilled and the assurance levels are met.
2.5.2
Development environment
The development environment encompasses the environment in which the TOE is developed, i.e.
• the javacard platform components;
• the javacard packages (applet and interface);
2.5.2.1 Software development (phase 1)
This development environment of the Javacard Applet and javacard platform (JOP) is enforced by
OBERTHUR TECHNOLOGIES.
The confidentiality and integrity of the cap files and of the javacard platform is covered by the evaluation of
the development premises of OBERTHUR TECHNOLOGIES.
To ensure security, access to development tools and products elements (PC, card reader, documentation,
source code...) is protected. The protection is based on measures for prevention and detection of
unauthorized access. Two levels of protection are applied:
• Access control to OBERTHUR TECHNOLOGIES offices and sensitive areas.
• Access to development data through the use of a secure computer system to design, implement and
test software
At the end of this phase, the javacard packages together with the javacard platform are transferred to the
chip manufacturer in order to be masked on silicium.
At the end of this phase 1, the javacard packages are protected in integrity and confidentiality.
This phase takes place in OBERTHUR TECHNOLOGIES premises and is covered by [ALC]
2.5.2.2 Hardware development (Phase 2)
In this phase, the javacard platform (JOP) is being built.
The javacard packages are stored in the ROM code of the javacard platform (JOP).
This phase takes place at the manufacturing site of the silicium provider and is covered by [ALC].
The confidentiality and integrity of the javacard packages and javacard platform is covered by the evaluation
of the development premises of the silicium manufacturer (see [PLATFORM])
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
24/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
2.5.3
Production environment
The production environment encompasses the environments in which the TOE is prepared.
It corresponds to the following steps:
• Software is engraved in the silicium to get the javacard platform (JOP).
• The chip is mounted on a physical layout (card, USB token...)
• The javacard platform is prepersonalized
• The javacard platform is personalized
• The application is instantiated
2.5.3.1 Javacard platform manufacturing (phase 3)
In this phase, the javacard platform (JOP) is self protected. The javacard packages are self protected as they
are present in the ROM code of the javacard platform (JOP)
This phase takes place at the manufacturing site of the silicium provider and is covered by [ALC].
At the end of phase 3, the javacard packages are self protected: their integrity and confidentiality is
ensured as they are present in the ROM code of the javacard platform
2.5.3.2 Javacard platform (JOP) packaging and initialization (phase 4)
The Javacard platform (JOP) is under the control of the Manufacturing Agent. This subject is in charge of the
Javacard platform (JOP) packaging.
This phase takes place in the manufacturing site of Vitré (France – 35) and is covered by [ALC].
2.5.3.3 Javacard platform (JOP) pre-personnnalization (phase 5)
The Javacard platform (JOP) is under the control of the Manufacturing Agent.
This phase is done in the manufacturing site of Vitré (France – 35) and is covered by [ALC].
During this phase, the javacard platform is pre-personnalized and personalized by the Manufacturing
Agent. This subject shall be authenticated prior to any action on the javacard platform.
The main operations performed by the Manufacturing Agent during this phase are the following:
• Configuration of the javacard platform (ATR,..)
• Configuration and activation of the Card Manager
• Loading of the keys of the Card Manager
• Locking of the javacard platform (to ban any applet loading)
Moreover, the manufacturing site ensures a secure management of the keys used to prepare the TOE. The
procedures, the security measures and the IT infrastructure ensure the integrity and authenticity of the keys.
At the end of this phase, the TOE is produced and self protected.
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
25/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
At the end of this phase, the TOE is delivered together with its personalisation keys (keys of the Card
Manager).
The point of delivery is the end of phase 5
2.5.4
Operational environment
The operational environment encompasses the environments in which the TOE is constructed. It corresponds to
the following steps:
• Personalization of the IAS ECC Application
• Use of the IAS ECC Application
2.5.4.1 TOE personalization (phase 6)
The TOE is under the control of the Personalization Agent in charge of personalizing the Applet. This
subject shall be authenticated prior to any action on the Javacard platform.
This phase may not necessarily take place in a manufacturing site, but may be performed anywhere. The
Personalization Agent is responsible for ensuring a sufficient level of security during this phase.
During this phase, the applet is personalized according to [AGD_PRE]: creation of applicative data (SCD,
SVD, RAD, File,…) and the TOE_Administrator Agent key is loaded.
At the end of phase 6, the TOE is constructed
2.5.4.2 TOE Usage (phase 7)
The TOE is under the control of the User (Signatory and/or Administrator) and TOE_Administrator.
During this phase, the TOE may be used to create a secure signature and manage the SCD, the SVD and the
RAD.
During this phase, the TOE may be used both in contact and/or contactless mode.
2.5.5
Coverage of the different Life cycle state by the assurance components AGD & ALC
The following steps of the life cycle are covered as follows:
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
26/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
Life cycle phase
Phase 1
Phase 2
Phase 3
Phase 4
Phase 5
Environment
Development
Development
Development
Production of TOE
Production of TOE
Point of delivery of the TOE
TOE is self protected
Phase 6
Operational
Covered by
ALC
ALC
ALC
ALC
ALC
AGD_OPE [PLATFORM]
AGD_PRE
TOE is constructed
Phase 7
Operational
AGD_OPE [PLATFORM]
AGD_OPE
The point of delivery of the TOE is the end of phase 5. The TOE is delivered with its personalisation key
(keys of the Card Manager), required to use it in phase 6 and 7.
2.5.6
State of the TOE depending on the phase
This chapter describes when the TOE is self protected
Life cycle phase
Phase 1
Phase 2
Phase 3
Phase 4
Phase 5
Phase 6
Phase 7
2.5.7
State of the TOE at the end of the phase
In construction
In construction
In construction
In construction
In construction and self protected
Point of delivery of the TOE
Constructed and self protected
Constructed and self protected
Mapping with the life cycle and Subjects described in [SSCD2] and [SSCD3]
The life cycle of the TOE is based on the one described in [PP9911]. This chapter focuses on mapping it to the
one described in [SSCD2] and [SSCD3].
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
27/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
Life cycle phase with respect to [SSCD2] and
[SSCD3]
Design
Fabrication
Fabrication
N/A
Loading of application data
Point of delivery of the TOE
TOE is self protected
Personalization
TOE is constructed
Usage
Destruction
Life cycle phase of the TOE
Phase 1
Phase 2
Phase 3
Phase 4
Phase 5
Phase 6
Phase 7
For each of these phases, the following subjects may interact with the TOE
Life cycle phase of the TOE
Phase 1
Phase 2
Phase 3
Phase 4
Phase 5
Phase 6
Phase 7
2.5.8
Subject interacting with the TOE
OBERTHUR TECHNOLOGIES
OBERTHUR TECHNOLOGIES
OBERTHUR TECHNOLOGIES
Manufacturing Agent (OBERTHUR TECHNOLOGIES)
Offcard
Manufacturing Agent (OBERTHUR TECHNOLOGIES)
Offcard
Point of delivery of the TOE
TOE is self protected
Personalization Agent
Offcard
TOE is constructed
User (Signatory or Administrator)
TOE_Administrator
Offcard
Presentation of the different subjects interacting with the TOE
In phase 1 up to 3, the TOE is under the control of OBERTHUR TECHNOLOGIES. It is in charge of designing
and manufacturing the TOE.
In phase 4, the TOE is under the control of OBERTHUR TECHNOLOGIES which acts as the Manufacturing
Agent. It is in charge of loading data within the TOE to make it operational. During this phase, the
Manufacturing Agent ensures a sufficient level of security.
In phase 5, the TOE is under the control of OBERTHUR TECHNOLOGIES which acts as the Manufacturing
Agent. Once the phase 5 is successfully completed, the TOE is delivered together with its personalisation key.
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
28/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
In phase 6, the TOE is under the control of the Personalization Agent. It is in charge of loading data within the
TOE to make it operational. During these phase, the Personalization agent ensures a sufficient level of security.
In particular, in phase 6, the Personalization Agent may:
• Create and load the RAD
• Create and load the SCD/SVD
• Create and generate the SCD/SVD
• Export the SVD
• Create the security policies to be applied to files and objects
The Personalization Agent behaves as the Administrator and Signatory for the key management features for this
phase
In phase 7, the TOE is under the control of the Signatory and Administrator.
In particular, the Administrator may:
• Create the RAD
• Create the SCD/SVD
• Create the SCD/SVD
The Signatory or the Administrator may:
• Load the RAD
• Load the SCD/SVD
• Generate the SCD/SVD
• Export the SVD
and Signatory may
• sign DTBS/DTBS-representation
• change its RAD
During phase 7, another entity may manage the TOE: TOE_Administrator. It is in charge of managing some
features of the TOE such as:
• Allowing signing DTBS representation computed off card
• Allowing the authentication of remote IT or administrator by means of symmetric and/or asymmetric
scheme
• Allowing to restrict the contact and/or contactless interface for communication
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
29/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
3
Target Of Evaluation Security Environment
3.1
Remote IT entity
The following remote IT entity may interact with the TOE
Remote IT
SCA
CGA
SSCD type 1
IFD
HI
Description
This remote IT is in charge of sending the
DTBS/DTBS representation to the TOE
This remote IT is present in phase 7 of the life
cycle of the TOE
This remote IT is in charge of issuing a (qualified)
certificate as well as a link enabling to find the
(qualified) certificate matching the SCD.
This remote IT is present in phase 6 and 7 of the
life cycle of the TOE
This remote IT is in charge of importing a
SCD/SVD pair on the TOE as well as a link
enabling to find the (qualified) certificate
matching the SCD.
This remote IT is present in phase 6 and 7 of the
life cycle of the TOE
In case the contactless is used to establish
communication with the TOE, the communication
shall be established with an IFD, ensuring the
communications are protected by a secure
channel.
The IFD is in charge as well the remote entity
interacting with the TOE in case eServices are
used
This entity shall be recognized by the TOE issuer.
The IFD is considered as being part of the remote
IT (CGA, SSCD type 1 and SCA) with which the
TOE wants to communicate in a secure manner.
This remote IT is present in phase 7 of the life
cycle of the TOE
Human interface used by local users to enter RAD
or VAD.
The data entered are transmitted to the TOE via a
trusted path
It is very important to stress to these Remote IT are just an abstract point of view. Depending on the use case, the
following situation may arise
• Several Remote IT are realized by a single entity (e.g. SCA, CGA and SSCD type 1)
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
30/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
•
A remote IT is as well a subject (e.g. the SCA is the Administrator, the CGA is the TOE_Administrator...)
Moreover, in phase 6, the SSCD type 1 remote IT is tightly linked to the subject operating during this phase (i.e.
S.Personnalizer). The SSCD securely transmits the SCD to the TOE by mean of an encryption key. The encryption
key is deduced from diversifying data agreed during the authentication of the “Personalizer” with the TOE.
Therefore, in phase 6, the import of SCD from a SSCD type 1 requires S.Personnalizer to be authenticated in a
first step.
The Human interface (HI) used to enter the PIN is considered as being part of the SCA, CGA or SSCD,
depending on the case. It benefits from the trusted channel between the TOE and the SCA, or the SSCD type 1 or
the CGA to transmit the RAD or VAD to the TOE.
3.2
Subjects
The following Subject interact with the TOE
Subject
S.User
S.Admin
S.Signatory
S.TOE_Admin
S.Personalizer
S.DAP_Admin
Description
End User of the TOE that can be identified as
S.Admin or S.Signatory
It is named User
User(s) who is in charge to perform the TOE
initialization, TOE personalization or other TOE
administrative functions
This User may operate during phase 7.
Depending on the use case envisioned, the
subject(s) S.SCA, S.CGA, S.SSCD or S.IFD may
be the subject S.Admin.
It is named Administrator
User who holds the TOE and uses it on his own
behalf or on behalf of the natural or legal person
or entity he represents
It is named Signatory
User who is in charge to perform the
configuration management of the TOE
It is named TOE_Administrator
User who operates in Phase 6 of the life cycle. It is
in charge to perform the TOE initialization and
TOE personalization
It is named Personalizer
User who operates as soon as the DAP feature is
activated on the javacard platform: in phase 6
(optionally) & 7 of the life cycle. It holds the DAP
signature key and is in charge of controling the
applet to be loaded on the javacard platform.
It is named DAP_Admin
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
31/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
User who operates in Phase 5. It is in charge of
physically building the javacard platform, e.g.
mounting the chip on the antenna
physically building the card
performing the graphical personalization
and performing some basic prepersonalisation
operation it is only entitled to perform
The action of this subject is covered by
[PLATFORM]
It is named Manufacturer
It is the SCA seen as a subject interacting with the
TOE.
As such, depending on the use case, it might
belong to the category S.Admin.
It is named SCA
It is the CGA seen as a subject interacting with the
TOE.
As such, depending on the use case, it might
belong to the category S.Admin.
It is named CGA
It is the SSCD seen as a subject interacting with
the TOE.
As such, depending on the use case, it might
belong to the category S.Admin.
It is named SSCD
It is the IFD seen as a subject interacting with the
TOE.
As such, depending on the use case, it might
belong to the category S.Admin.
It is named IFD
Attacker as being a human or process acting on
his behalf being located outside the TOE. The
main goal of the attacker is to access the SCD or to
false the electronic signature. The attacker has a
high attack potential and knows no secret
S.Manufacturer
S.SCA
S.CGA
S.SSCD
S.IFD
S.Offcard
3.3
User data
The following user data are managed by the TOE
User Data
D.DTBS
D.VAD
Description
DTBS and DTBS representation ; set of data or its
representation which is intended to be signed
VAD : PIN code data entered by the End User (S.Signatory
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
32/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
D.AUTH_CRYPTOGRAM
D.SIGNATURE
D.DTBS
D.RAD
D.SCD
D.SVD
D.TOE_SerialNumber
D.AUTH_KEYS
or S.Admin) to authenticate itself or to perform a signature
operation
Authentication data used to authenticate subjects such as
S.Admin
S.TOE_Admin.
S.Personalizer
S.SCA
S.CGA
S.SSCD
S.IFD
It is a cryptogram sent by the outside the TOE checks with
D.AUTH_KEYS
Electronic signature (Unforgeabilty of electronic signatures
must be assured)
DTBS and DTBS representation stored within the TOE; set
of data or its representation which is intended to be signed
RAD : Reference PIN code authentication data used to
authenticate the End User (S.Signatory or S.Admin)
There might be several RAD within the TOE
SCD : private key used to perform an electronic signature
operation There might be several SCD within the TOE
SVD :public key linked to the SCD and used to perform an
electronic signature verification There might be several
SVD within the TOE
Serial number of the TOE. This data is required to perform
device
and
external
authentication.
It
is
an
IDENTIFICATION_DATA
Group of keys stored on the TOE used to perform a mutual
authentication with subjects such as :
S.Admin
S.TOE_Admin.
S.Personalizer
S.SCA
S.CGA
S.SSCD
S.IFD
Or used to authenticate external entities such as
SSCD type 1 used to import a SCD
SCA for signature creation
CGA for certificate generation.
IFD in case of contactless communication
These keys are secret data shared by the TOE and the
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
33/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
other entity (symmetric keys)
Group of keys/Parameters stored on the TOE used to
perform eServices such as
Certificate verification – first key stored in the TOE
Key Agreement Domain parameters
Key Decryption keys
D.ESERVICES_KEYS
Some are public :
Certificate verification – first key stored in the TOE
Key Agreement Domain parameters
Public portion of key decryption key
D.TOE_AUTH_PUBLIC_KEYS
D.TOE_AUTH_PRIVATE_KEYS
D.IDENTIFICATION_DATA
User Data
D.DTBS
3.4
Some shall remain secret
Private key of key decryption key
Group of public key matching the private authentication
key of the TOE
Group of authentication private key(s) of the TOE.
The authentication mechanism involved are
C/S authentication
DAPP Internal authentication
Data or group of data stored in the TOE, which may be
used to uniquely identify the TOE and therefore the TOE
holder.
Description
DTBS and DTBS representation ; set of data or its
representation which is intended to be signed
TSF data
The following TSF data are managed by the TOE
TSF Data
D.APPLI
D.SCD_ID
D.EPHEMERAL_KEYS
Description
The quality of the signature creation application (IAS
ECC) must be maintained so that it can participate to the
legal validity of electronic signature
Identifier of the SCD. In order to identify the matching
certificate, each SCD shall be associated with an identifier
The ephemeral key extracted from a certificate (CVC). It
may be used to
Verify another certificate
Authenticate a subject or a remote IT entity
The ephemeral key is a public portion of a RSA key pair. It
can only be extracted with a trusted key, i.e. a key whose
issuer is trusted (the public key is either stored in the TOE
or extracted from another certificate).
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
34/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
This category key is said to be ephemeral as it is not stored
in the TOE but has to be directly used to verify another
certificate or authenticate a subject or a remote IT
In case of authentication protocol relying on asymmetric
scheme, it is used to authenticate entities such as
a certificate issuer
S.Admin
S.SCA
S.CGA
S.SSCD
S.IFD
D.STATE
D.Medium
D.HashOffCard
D.SymAuthMechanisms
D.AsymAuthMechanisms
D.SM_DATA
3.5
Or used to authenticate external entities such as
SSCD type 1 used to import a SCD
SCA for signature creation
CGA for certificate generation.
IFD in case of contactless communication
Life Cycle state of the TOE. Its value is either
“SELECTABLE” (in phase 6) or “PERSONALIZED”. (in
phase 7)
Attribute of the TOE indicating which communication
medium can be used (contact and/or contactless)
Attribute of the TOE indicating if qualified signature can
be performed on a hash computed off card
Attribute of the TOE indicating if authentication
mechanisms based on symmetric scheme can be used
Attribute of the TOE indicating if authentication
mechanisms based on asymmetric scheme can be used
Keys and data used by the TOE to establish and manage a
trusted channel in phase 7.
These data ensure identification of both parties (TOE and
the entity) and the protection in integrity and
confidentiality of data exchanged.
Assumption
3.5.1
Standard Assumption
A.CGA
Trustworthy certification-generation application
The CGA protects the authenticity of the signatory’s name and the SVD in the qualified certificate by an
advanced signature of the CSP.
A.SCA
Trustworthy signature-creation application
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
35/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
The signatory uses only a trustworthy SCA. The SCA generates and sends the DTBS-representation of data the
signatory wishes to sign in a form appropriate for signing by the TOE.
A.SCD_Generate
Trustworthy SCD/SVD generation
If a party other than the signatory generates the SCD/SVD-pair of a signatory, then
(a) this party will use a SSCD for SCD/SVD-generation,
(b) confidentiality of the SCD will be guaranteed until the SCD is under the sole control of the signatory
and
(c) the SCD will not be used for signature-creation until the SCD is under the sole control of the signatory.
(d) The generation of the SCD/SVD is invoked by authorised users only
(e) The SSCD Type1 ensures the authenticity of the SVD it has created and exported
3.5.2
Complementary Assumption
N/A
3.6
3.6.1
Threats
Standard threats
T.Hack_Phys
Physical attacks through the TOE interfaces
An attacker interacts with the TOE interfaces to exploit vulnerabilities, resulting in arbitrary security
compromises. This threat addresses all the assets.
T.SCD_Divulg
Storing ,copying, and releasing of the signature-creation data
An attacker can store, copy the SCD outside the TOE. An attacker can release the SCD during generation, storage
and use for signature-creation in the TOE.
T.SCD_Derive
Derive the signature-creation data
An attacker derives the SCD from public known data, such as SVD corresponding to the SCD or signatures
created by means of the SCD or any other data communicated outside the TOE, which is a threat against the
secrecy of the SCD.
T.Sig_Forgery
Forgery of the electronic signature
An attacker forges the signed data object maybe together with its electronic signature created by the TOE and the
violation of the integrity of the signed data object is not detectable by the signatory or by third parties. The
signature generated by the TOE is subject to deliberate attacks by experts possessing a high attack potential with
advanced knowledge of security principles and concepts employed by the TOE.
T.Sig_Repud
Repudiation of signatures
If an attacker can successfully threaten any of the assets, then the non repudiation of the electronic signature is
compromised. The signatory is able to deny having signed data using the SCD in the TOE under his control even
if the signature is successfully verified with the SVD contained in his un-revoked certificate.
T.SVD_Forgery
Forgery of the signature-verification data
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
36/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
An attacker forges the SVD presented by the TOE. This result in loss of SVD integrity in the certificate of the
signatory.
T.DTBS_Forgery
Forgery of the DTBS-representation
An attacker modifies the DTBS-representation sent by the SCA. Thus the DTBS-representation used by the TOE
for signing does not match the DTBS the signatory intends to sign.
T.SigF_Misuse
Misuse of the signature-creation function of the TOE
An attacker misuses the signature-creation function of the TOE to create Signed Data Object for data the
signatory has not decided to sign. The TOE is subject to deliberate attacks by experts possessing a high attack
potential with advanced knowledge of security principles and concepts employed by the TOE.
3.6.2
Complementary threats
T.TOE_ID_Contactless
Identification of the TOE
When the TOE is configured to be used in contactless mode, an attacker tries to trace the movement of the TOE
by identifying it remotely by establishing or listening a communication through the contactless communication
interface.
T.Skimming_Contactless
Skimming of the TOE in contactless
When the TOE is configured to be used in contactless mode, an attacker imitates the device to retrieve data from
the TOE via the contact less communication channel of the TOE.
T.Eavesdropping_Contactless
Eavesdropping of the communication between TOE and device
When the TOE is configured to be used in contactless mode, an attacker listens to the communication between the
TOE and a device in order to retrieve sensitive data.
T.Key_Divulg
Storing ,copying, and releasing of a key stored in the TOE
An attacker can store, copy an authentication or eService key stored in the TOE outside the TOE. An
authentication key may be either used to authenticate an external entity or the TOE, and may be symmetric or
asymmetric. An attacker can release an authentication or eService key during generation, storage and use in the
TOE.
T.Key_Derive
Derive a key
An attacker derives an authentication key (of the TOE or an external entity) or eService key from public known
data, such as the corresponding public key or cryptogram created by means of the key or any other data
communicated outside the TOE, which is a threat against the secrecy of the key.
T.TOE_PublicAuthKey_Forgery
Forgery of the public key of a TOE authentication key
An attacker forges the public key of a TOE authentication key presented by the TOE. This results in loss of the
public key integrity in the authentication certificate of the TOE.
T.Authentication_Replay
Replay of an authentication of an external entity
An attacker retrieves by observation authentication data used by a third party during an authentication sequence.
The attacker tries to replay this authentication sequence to grant access to the TOE.
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
37/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
3.7
3.7.1
Organizational security policies
Standard organizational security policies
P.CSP_QCert
Qualified certificate
The CSP uses a trustworthy CGA to generate the qualified certificate for the SVD generated by the SSCD. The
qualified certificates contains at least the elements defined in Annex I of the Directive, i.e., inter alia the name of
the signatory and the SVD matching the SCD implemented in the TOE under sole control of the signatory. The
CSP ensures that the use of the TOE is evident with signatures through the certificate or other publicly available
information.
P.QSign
Qualified electronic signatures
The signatory uses a signature-creation system to sign data with qualified electronic signatures. The DTBS are
presented to the signatory by the SCA. The qualified electronic signature is based on a qualified certificate and is
created by a SSCD.
P.Sigy_SSCD
TOE as secure signature-creation device
The TOE stores the SCD used for signature creation under sole control of the signatory. The SCD used for
signature generation can practically occur only once.
3.7.2
Complementary organizational security policies
P.EMSEC_Design
The TOE is designed to reduce the E.M emanation
The cryptographic computation, memory access, and software execution are implemented in such a way that
they are not susceptible to leakage attacks
P.SecurityPolicy_Contactless
Security policy definition.
All the data that may be accessed in contactless mode and that would lead to unambiguously identify and track
the TOE shall not be accessible in free mode. They shall be accessed upon successful authentication of the entity
willing to access it. Moreover, the TOE shall enforce these data to be accessed through a communication channel
protected in confidentiality (for the sole recipient) and ensuring the authentication of the sender. The subject in
charge of creating these data that might be accessed in contactless mode (Administrator, Signatory, Personalizer)
shall enforce this security policy.
P.LinkSCD_QualifiedCertificate
qualified certificate
Link between a SCD stored in the TOE and the relevant
The Subject in charge of creating and updating the SCD (Personalization Agent, Administrator, Signatory), or
the remote IT entity involved in the updating process (the SSCD, the CGA) shall ensure an unambiguous link
between the SCD(s) and the matching qualified certificate(s). This link might be figured out by a PKCS#15
structures, an XML structure, an identifier .linking a SCD to the file containing the qualified certificate or the URL
hosting them. In particular, it implies it is updated, each time the SCD is created, imported, erased or generated.
P.ControlOfAppletToBeLoaded_Contactless
the javacard open platform
Control of the other applet that may be loaded on
When the TOE is configured to be used in contactless mode, the Manufacturing Agent (for phase 5), the
Personalization Agent (for phase 6), and the DAP_Administrator (for phase 6 & 7) shall ensure that any applet
that is loaded on the javacard open platform does not enable to track/identify the TOE.
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
38/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
P.TOE_PublicAuthKey_Cert
Certificate for asymmetric TOE authentication keys
The TOE contains certificate(s) issued by a known entity ensuring its public key corresponding to its private key
used for authentication is genuine.
P.TOE_Construction
Construction of the TOE by the Personnalization Agent
The recommendations indicated in [AGD_PRE] required to construct the TOE are correctly applied.
3.8
3.8.1
Security Objectives for the TOE
Standard security objectives of the TOE
OT.EMSEC_Design
Provide physical emanations security
Design and build the TOE in such a way as to control the production of intelligible emanations within specified
limits.
OT.Lifecycle_Security
Lifecycle security
The TOE shall detect flaws during the initialisation, personalisation and operational usage. The TOE shall
provide safe destruction techniques for the SCD in case of re-import or re-generation.
OT.SCD_Secrecy
Secrecy of the signature-creation data
The secrecy of the SCD (used for signature generation) is reasonably assured against attacks with a high attack
potential.
OT.SCD_SVD_Corresp
Correspondence between SVD and SCD
The TOE shall ensure the correspondence between the SVD and the SCD. The TOE shall verify on demand the
correspondence between the SCD stored in the TOE and the SVD if it has been sent to the TOE.
OT.SVD_Auth_TOE
TOE ensures authenticity of the SVD
The TOE provides means to enable the CGA to verify the authenticity SVD that has been exported by that TOE.
OT.Tamper_ID
Tamper detection
The TOE provides system features that detect physical tampering of a system component, and use those features
to limit security breaches.
OT.Tamper_Resistance
Tamper resistance
The TOE prevents or resists physical tampering with specified system devices and components.
OT.Init
SCD/SVD generation
The TOE provides security features to ensure that the generation of the SCD and the SVD is invoked by
authorized users only.
OT.SCD_Unique
Uniqueness of the signature-creation data
The TOE shall ensure the cryptographic quality of the SCD/SVD pair for the qualified electronic signature. The
SCD used for signature generation can practically occur only once and cannot be reconstructed from the SVD. In
that context ‘practically occur once’ means that the probability of equal SCDs is negligible low.
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
39/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
OT.SCD_Transfer
Secure transfer of SCD between SSCD
The TOE shall ensure the confidentiality of the SCD transferred between SSCDs.
OT.DTBS_Integrity_TOE
Verification of the DTBS-representation integrity
The TOE shall verify that the DTBS-representation received from the SCA has not been altered in transit between
the SCA and the TOE. The TOE itself shall ensure that the DTBS representation is not altered by the TOE as well.
Note, that this does not conflict with the signature-creation process where the DTBS itself could be hashed by the
TOE.
OT.Sigy_SigF
Signature generation function for the legitimate signatory only
The TOE provides the signature generation function for the legitimate signatory only and protects the SCD
against the use of others. The TOE shall resist attacks with high attack potential.
OT.Sig_Secure
Cryptographic security of the electronic signature
The TOE generates electronic signatures that cannot be forged without knowledge of the SCD through robust
encryption techniques. The SCD cannot be reconstructed using the electronic signatures. The electronic signatures
shall be resistant against these attacks, even when executed with a high attack potential.
3.8.2
Complementary security objectives of the TOE
OT.Authentication_Secure Secure authentication mechanisms
The TOE enables to create/erase authentication keys used to provide authentication mechanisms enabling to
• authenticate remote entities in order to grant them some access rights
• authenticate the TOE towards external entities, ensuring it is not cloned
The TOE generates and uses from remote entities authentication cryptogram that cannot be forged without
knowledge of the authentication key through robust encryption techniques. The authentication key cannot be
reconstructed using the authentication cryptogram. The cryptogram shall be resistant against these attacks, even
when executed with a high attack potential. Moreover, the TOE uses freshly generated random in authentication
protocols in order to avoid replay attacks.
OT.Privacy_Contactless
Privacy of sensitive data exchanged in contactless
When used in contactless, the TOE protects the access to sensitive data (identification data,..). It enforces the data
to be sent from an authenticated device in a manner protected from disclosure, ensuring it can not be retrieved by
an attacker. Moreover, any identification data can only be returned to successfully authenticated entities, in a way
ensuring they are protected from disclosure and are issued by the TOE.
OT.SCD/SVD_Management
Management of SCD/SVD
The TOE enables to manage SCD/SVD. Each key (pair) and RAD may be created at any time and used to perform
qualified signature during the TOE life time. Several SCD, SVD, and RAD may be present on the TOE and used
by the same holder. The TOE guarantees the SCD, SVD and RAD are independent from each other.
OT.Key_Lifecycle_Security Lifecycle security of the key(s) stored in the TOE
The TOE shall detect flaws during the initialisation, personalisation and operational usage. The TOE shall
provide safe destruction techniques for the authentication keys (of the TOE and/or the external entities) and
eServices keys it stores in case of erasure, re-import or re-generation.
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
40/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
OT.Key_Secrecy
Secrecy of the key(s) stored in the TOE
The secrecy of the authentication keys (of the TOE and/or the external entities) and eServices keys stored in the
TOE is reasonably assured against attacks with a high attack potential.
OT.TOE_AuthKey_Unique
Uniqueness of the TOE authentication key(s)
The TOE shall ensure the cryptographic quality of the asymmetric authentication key pair used for the TOE
authentication. The private key used for TOE authentication can practically occur only once and cannot be
reconstructed from the public key. In that context ‘practically occur once’ means that the probability of equal TOE
authentication key is negligible low.
OT.LifeCycle_Management
Management of the life cycle
The TOE provides a life cycle management enabling to separate its life cycle in two main phases.
The first one (phase 6) is the one during the TOE is under the sole control of the Personalization Agent. The
following operation may be realized:
• The SCD, SVD may be created, generated, imported or erased
• The
ESERVICES_KEYS,AUTH_KEYS,
TOE_AUTH_PUBLIC_KEYS
and
TOE_AUTH_PRIVATE_KEYS may be created, imported, generated or erased
• The RAD (s) may be created and loaded
• SVD may be exported
• TOE_AUTH_PUBLIC_KEYS may be exported
Once performed, the Personalization Agent switches the TOE in phase 7. This transition is irreversible leaving the
TOE under the sole control of the signatory, the administrator (including the SCA, CGA, SSCD, IFD) and the
TOE_Administrator according to the security rules set by the Personalization Agent.
OT.eServices
Provision of eServices
The TOE provides eServices Mechanisms enabling to create, import, generate, export the matching public key
and erase eServices keys. These keys are used to
• decrypt encryption keys
• authenticate the TOE
• verify CVC certificates
3.9
3.9.1
Security objectives for the Environment
Standard security objectives of the Environment
OE.SCD_SVD_Corresp
Correspondence between SVD and SCD
The SSCD Type1 shall ensure the correspondence between the SVD and the SCD. The SSCD Type1 shall verify
the correspondence between the SCD sent to the TOE and the SVD sent to the CGA or TOE.
OE.SCD_Transfer
Secure transfer of SCD between SSCD
The SSCD Type1 shall ensure the confidentiality of the SCD transferred to the TOE. The SSCD Type1 shall
prevent the export of a SCD that already has been used for signature generation by the SSCD Type2. The SCD
shall be deleted from the SSCD Type1 whenever it is exported into the TOE.
OE.SCD_Unique
Uniqueness of the signature-creation data
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
41/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
The SSCD Type1 shall ensure the cryptographic quality of the SCD/SVD pair for the qualified electronic
signature. The SCD used for signature generation can practically occur only once and cannot be reconstructed
from the SVD. In that context ‘practically occur once’ means that the probability of equal SCDs is negligible low.
OE.CGA_QCert
Generation of qualified certificates
The CGA generates qualified certificates which include inter alia
(a) the name of the signatory controlling the TOE,
(b) the SVD matching the SCD implemented in the TOE under sole control of the signatory,
(c) the advanced signature of the CSP.
OE.SVD_Auth_CGA
CGA verifies the authenticity of the SVD
The CGA verifies that the SSCD is the sender of the received SVD and the integrity of the received SVD. The CGA
verifies the correspondence between the SCD in the SSCD of the signatory and the SVD in the qualified
certificate.
OE.HI_VAD
Protection of the VAD
If an external device provides the human interface for user authentication, this device will ensure confidentiality
and integrity of the VAD as needed by the authentication method employed.
OE.SCA_Data_Intend
Data intended to be signed
The SCA
(a) generates the DTBS-representation of the data that has been presented as DTBS and which the
signatory intends to sign in a form which is appropriate for signing by the TOE,
(b) sends the DTBS-representation to the TOE and enables verification of the integrity of the DTBSrepresentation by the TOE
(c) attaches the signature produced by the TOE to the data or provides it separately.
3.9.2
Complementary security objectives of the Environment
OE.SecurityPolicy_Contactless
Security policy definition.
All the data that may be accessed in contactless mode and that would lead to unambiguously identify and track
the TOE shall not be accessible in free mode. They shall be assigned a relevant security policy ensuring they can
only be accessed by a successfully authenticated entity. Moreover, they shall only be transferred in a manner
ensuring protection in confidentiality (can only be retrieved by the entitled recipient) and proving the
authenticity of the sender.
OE.LinkSCD_QualifiedCertificate Link between a SCD stored in the TOE and the relevant
qualified certificate
The Subject in charge of creating and updating the SCD (Personalization Agent, Administrator, Signatory), or
the remote IT entity involved in the updating process (the SSCD, the CGA) shall ensure an unambiguous link
between the SCD(s) and the matching (qualified) certificate(s). This link might be figured out by a PKCS#15
structures, an XML structure, an identifier .linking a SCD to the file containing the qualified certificate or the URL
hosting them. In particular, it implies it is updated, each time the SCD is created, imported, erased or generated.
OE.ControlOfAppletToBeLoaded_Contactless
the javacard open platform
Control of the other applet that may be loaded on
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
42/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
Prior to any applet loading, the entity in charge of administrating the javacard open platform shall make sure the
applet does not disclose identification data that may be used by an attacker to track the TOE in contactless mode
(e.g. a static identifier in free access,…)
OE.AuthKey_Transfer
Secure transfer of Authentication key(s) to the TOE
The entity in charge of generating the authentication keys to be loaded in the TOE shall ensure the confidentiality
of the key(s) transferred to the TOE.
OE.AuthKey_Unique
Uniqueness of the authentication key(s)
The entity in charge of generating the authentication keys to be loaded in the TOE shall ensure the cryptographic
quality of the authentication key(s). The authentication key used for authentication can practically occur only
once and, in case of a TOE authentication key cannot be reconstructed from its public portion. In that context
‘practically occur once’ means that the probability of equal keys is negligible low.
OE.TOE_PublicAuthKey_Transfer Secure transfer of Public Authentication key(s) of the TOE
The entity in charge of generating the authentication certificate from the TOE’s authentication public key
generated in the TOE shall ensure the authenticity of this data when transferred from the TOE. This may be
achieved by the retrieval of the public key according to certain rules imposed to the TOE holders.
OE.TOE_Construction
Construction of the TOE by the Personnalization Agent
The Personalization Agent in charge of administrating the TOE in phase 6 shall be a trusted person and shall be
skilled enough to correctly apply the recommendations indicated in [AGD_PRE]. These recommendations are
required to construct the TOE
3.10 TOE Security functional requirements
3.10.1 FCS: CRYPTOGRAPHIC SUPPORT
3.10.1.1 FCS_CKM.1 Cryptographic key generation
FCS CKM.1.1 / RSA
The TSF shall generate cryptographic keys in accordance with a specified cryptographic key generation algorithm
[RSA key generation] and specified cryptographic key sizes [1024 bits or 1536 bits or 2048 bits] that meet the
[ANSI X9.31]
FCS CKM.1.1 / DES session keys
The TSF shall generate cryptographic keys in accordance with a specified cryptographic key generation algorithm
[DES key generation] and specified cryptographic key sizes [128 bits] that meet the [IASECC]
Refinement Note:
The hashing algorithm used by the TOE to generate the session keys from the Seed is the SHA-1 and
SHA-256.
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
43/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
3.10.1.2 FCS_CKM.4 Cryptographic key destruction
FCS_CKM.4.1 / SCD/SVD
The TSF shall destroy cryptographic keys in accordance with a specified cryptographic key destruction method
[overwriting the buffer containing the key with zero] that meets the following: [none].
Refinement:
This SFR applies to all asymmetric keys, whether it is a qualified signature key (SCD or SVD), a TOE
authentication key (TOE_AUTH_PUBLIC_KEYS and TOE_AUTH_PRIVATE_KEYS), an eServices key
(ESERVICES_KEYS except the Diffie Hellman Domain parameters).
Application note:
The cryptographic key SCD will be destroyed on demand of the Signatory or Administrator. The
destruction of the SCD is mandatory before the SCD is re-imported into the TOE.
FCS_CKM.4.1 / Symmetric keys
The TSF shall destroy cryptographic keys in accordance with a specified cryptographic key destruction method
[overwriting the buffer containing the key with zero] that meets the following: [none].
Application note:
The Symmetric DES key includes the keys used for the device authentication and the External Role
authentication based on the symmetric scheme (both belonging to AUTH_KEYS) as well as the secure
messaging session keys.
The destruction of the previous keys is mandatory when they are updated
3.10.1.3 FCS_COP Cryptographic operation
FCS_COP.1 Cryptographic operation
FCS_COP.1.1/ CORRESP
The TSF shall perform [SCD/SVD correspondence verification] in accordance with a specified cryptographic
algorithm [PKCS #1 V1.5 Block Type 1 with Message Digest Info with RSA CRT] and cryptographic key sizes
[1024 bits, 1536 bits or 2048 bits] that meet the following: [PKCS #1 v1.5].
FCS_COP.1.1/ SIGNING
The TSF shall perform [Digital signature-generation] in accordance with a specified cryptographic algorithm
[PKCS #1 V1.5 Block Type 1 with Message Digest Info addition with RSA CRT key] and cryptographic key
sizes [1024 bits, 1536 bits or 2048 bits] that meet the following: [PKCS #1 v1.5].
FCS_COP.1.1/ Diffie Hellman computation
The TSF shall perform [Key Agreement] in accordance with a specified cryptographic algorithm [Diffie
Hellmann] and cryptographic key sizes [1024 bits, 1536 bits or 2048 bits] that meet the following: [PKCS#3].
FCS_COP.1.1/ Secure Messaging in Confidentiality
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
44/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
The TSF shall perform [Secure Messaging in confidentiality] in accordance with a specified cryptographic
algorithm [Retail MAC] and cryptographic key sizes [128 bits] that meet the following: [IASECC].
Application Note: This algorithm is used during secure Messaging: in confidentiality of incoming and
outgoing data
FCS_COP.1.1/ Secure Messaging in Integrity
The TSF shall perform [Secure Messaging in integrity] in accordance with a specified cryptographic algorithm
[Triple DES CBC encryption/decryption] and cryptographic key sizes [128 bits] that meet the following:
[IASECC].
Application Note: This algorithm is used during secure Messaging: in integrity of incoming and outgoing
data
FCS_COP.1.1/ Data hashing
The TSF shall perform [data hashing] in accordance with a specified cryptographic algorithm [SHA-1 and SHA256] and cryptographic key sizes [none] that meet the following: [FIPS 140-2].
Application Note: This SFR corresponds to the data hashing used by the TOE.
FCS_COP.1.1/ C/S Authentication
The TSF shall perform [C/S Authentication] in accordance with a specified cryptographic algorithm [PKCS #1
V1.5 Block Type 1 without Message Digest Info addition with RSA CRT key] and cryptographic key sizes
[1024 bits, 1536 bits or 2048 bits] that meet the following: [PKCS#1 v1.5].
FCS_COP.1.1/ Encryption key decipherment
The TSF shall perform [Encryption key decipherment] in accordance with a specified cryptographic algorithm
[PKCS #1 V1.5 Block Type 2 without Message Digest Info addition with RSA CRT key] and cryptographic
key sizes [1024 bits, 1536 bits or 2048 bits] that meet the following: [PKCS#1 v1.5].
FCS_COP.1.1/ Symmetric Role Authentication
The TSF shall perform [Symmetric Role Authentication] in accordance with a specified cryptographic algorithm
[based on Triple DES] and cryptographic key sizes [128 bits] that meet the following: [IASECC].
FCS_COP.1.1/ Symmetric Device Authentication
The TSF shall perform [Symmetric Device Authentication] in accordance with a specified cryptographic
algorithm [based on Triple DES] and cryptographic key sizes [128 bits] that meet the following: [IASECC].
FCS_COP.1.1/ Certificate Verification
The TSF shall perform [Certificate verification] in accordance with a specified cryptographic algorithm [RSA
with ISO9796-2 padding with partial recovery and with SHA-1 or SHA-256] and cryptographic key sizes [1024
bits, 1536 bits or 2048 bits] that meet the following: [IASECC].
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
45/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
FCS_COP.1.1/ Asymmetric Role Authentication
The TSF shall perform [Asymmetric Role Authentication] in accordance with a specified cryptographic
algorithm [RSA with ISO9796-2 padding with partial recovery and with SHA-1 or SHA-256] and cryptographic
key sizes [1024 bits, 1536 bits or 2048 bits] that meet the following: [IASECC].
FCS_COP.1.1/ Asymmetric Internal DAPP Authentication
The TSF shall perform [Asymmetric Internal DAPP Authentication] in accordance with a specified
cryptographic algorithm [RSA with ISO9796-2 padding with partial recovery and with SHA-1 or SHA-256] and
cryptographic key sizes [1024 bits, 1536 bits or 2048 bits] that meet the following: [IASECC].
FCS_COP.1.1/ Asymmetric External DAPP Authentication
The TSF shall perform [Asymmetric External DAPP Authentication] in accordance with a specified
cryptographic algorithm [RSA with ISO9796-2 padding with partial recovery and with SHA-1 or SHA-256] and
cryptographic key sizes [1024 bits, 1536 bits or 2048 bits] that meet the following: [IASECC].
FCS_COP.1.1/ GP Authentication
The TSF shall perform [GP Authentication] in accordance with a specified cryptographic algorithm [assignment:
cryptographic algorithm] and cryptographic key sizes [128 bits] that meet the following: [assignment: list of
standards].
Refinement:
cryptographic algorithm
Triple DES
list of standards
SCP1 and SCP02 as defined in [GP]
Application Note: The type of algorithm used by the TOE depends on the configuration set during the
platform personalisation (For more details see [AGD_PRE_PLATFORM]. The algorithm selection is
performed by the subject R.Prepersonalizer and is covered by FMT_MTD.1/JCRE
FCS_COP.1.1/ GP secret data encryption
The TSF shall perform [GP secret data encryption] in accordance with a specified cryptographic algorithm
[assignment: cryptographic algorithm] and cryptographic key sizes [128 bits] that meet the following:
[assignment: list of standards].
Refinement:
cryptographic algorithm
Triple DES
list of standards
SCP1 and SCP02 as defined in [GP]
Application Note: The type of algorithm used by the TOE depends on the configuration set during the
javacard open platform personalisation (For more details see [AGD_PRE_PLATFORM]). The algorithm
selection is performed by the subject R.Prepersonalizer and is covered by FMT_MTD.1/JCRE
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
46/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
3.10.1.4 FCS_RNG Random Number Generation
FCS_RNG.1 / Random Number Generation
FCS_RNG.1.1
The TSF shall provide a [hybrid] random number generator that implements: [none].
FCS_RNG.1.2
The TSF shall provide random numbers that meet [khi 2 test].
3.10.2 FDP : USER DATA PROTECTION
3.10.2.1 FDP_ACC Access Control Policy
FDP_ACC.1.1/SVD transfer SFP
The TSF shall enforce the [SVD transfer SFP] on [import and export of SVD by User or Personalizer].
FDP_ACC.1.1/Initialisation SFP
The TSF shall enforce the [Initialisation SFP] on [Generation of SCD/SVD pair by User or Personalizer].
FDP_ACC.1.1/ Personalisation SFP
The TSF shall enforce the [Personalisation SFP] on [Creation of PIN RAD by Administrator or Personalizer].
FDP_ACC.1.1/Signature-creation SFP
The TSF shall enforce the [Signature-creation SFP] on
[Sending of DTBS representation by SCA]
[Signing of DTBS-representation by Signatory].
FDP_ACC.1.1/SCD Import SFP
The TSF shall enforce the [SCD Import SFP] on [Import of SCD by User or Personalizer].
FDP_ACC.1.1/IAS ECC Administration SFP
The TSF shall enforce the [IAS ECC Administration SFP] on [Management of Medium, HashOffCard,
SymAuthMechanisms and AsymAuthMechanisms by the TOE Administrator or Personalizer].
FDP_ACC.1.1/Key Management SFP
The TSF shall enforce the [Key Management SFP] on [import of AUTH_KEYS, TOE_AUTH_PRIVATE_KEYS,
TOE_AUTH_PUBLIC_KEYS
and
ESERVICES_KEYS,
generation
of
TOE_AUTH_PRIVATE_KEYS/TOE_AUTH_PUBLIC_KEYS and ESERVICES_KEYS (except Diffie Hellman
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
47/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
Domain parameters), export of TOE_AUTH_PUBLIC_KEYS, public portion of ESERVICES_KEYS
(including Diffie Hellman Domain parameters ) by the User or Personalizer].
FDP_ACC.1.1/Protection against eavesdropping SFP
The TSF shall enforce the [Protection against eavesdropping SFP] on [receiving RAD, VAD, SVD, DTBS,
ESERVICES_KEYS, AUTH_KEYS, TOE_AUTH_PUBLIC_KEYS , TOE_AUTH_PRIVATE_KEYS and
exporting IDENTIFICATION_DATA, SVD, TOE_AUTH_PUBLIC_KEYS, public portion of ESERVICES_KEYS
(except Diffie Hellman Domain parameters) and SIGNATURE].
Application note:
It is very important to stress the following point. When used in contactless, the TOE will have to apply this
policy to receive the VAD, RAD, DTBS, AUTH_KEYS, ESERVICES KEYS, TOE_AUTH_PRIVATE_KEYS
and TOE_AUTH_PUBLIC_KEYS and return the signature, the SVD, the eServices keys (except the Diffie
Hellman Domain parameters), the TOE_AUTH_PUBLIC_KEYS, the identification data. It does not conflict
with the existing security policies set for SCD import, signature creation, SVD export. It only enhances the
security policies. In such case, the IFD will be considered as a unique entity acting as a SCA, CGA and
SSCD. However, the IFD may afterwards dispatch the data to the true SCA, CGA and SSCD, provided it
does ensures a trusted channel between the IFD and the SCA, CGA and SSCD.
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
48/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
3.10.2.2 FDP_ACF Security attribute based access control
Here is a mapping between the user, subject, objet, attribute and attached status as defined in [SSCD2] &
[SSCD3].
General Attribute
Subject
Attribute
Status
S.Admin
User,
Personalizer
Remark
Several User with the
status S.Admin may be
distinguished by the
TOE
The Role S.Admin may
be granted upon
successful
authentication based
on a cryptographic
mean or on a RAD
(PIN) verification
This subject can only
interact in phase 7 of
the life cycle
S.Signatory
The Role S.Signatory
may be granted upon
successful
authentication based
on a RAD verification
This subject can only
interact in phase 7 of
the life cycle
S.Personalizer
The Role
S.Personalizer may be
granted upon
successful GP
authentication based
on a cryptographic
mean
This subject can only
interact in phase 6 of
the life cycle
Role
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
49/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
Administration group
TOE Attributes
Meaning
Status
Contact
Communication
medium allowed
Medium
Contactless
Authorized
Qualified signature
computed over hash
computed off card
HashOffCard
Not authorized
Authorized
SymAuthMechanisms
Authentication
mechanisms based on
symmetric scheme
allowed
Not authorized
Authorized
AsymAuthMechanisms
Authentication
mechanisms based on
asymmetric scheme
allowed
Not authorized
Remark
The TOE may be
configured to allow
communication in
contact and/or
contactless mode.
The
communication to
be used by the
TOE may be
changed in phase
6 by
S.Personalizer
and in phase 7 by
S.TOE_Admin
The TOE may be
configured to allow
the qualified
signature to be
computed from a
hash off card. It
may be changed in
phase 6 by
S.Personalizer
and in phase 7 by
S.TOE_Admin
The TOE may be
configured to
enable/disable the
authentication
mechanism based
on symmetric
scheme. It may be
changed in phase
6 by
S.Personalizer
and in phase 7 by
S.TOE_Admin
The TOE may be
configured to
enable/disable the
authentication
mechanism based
on asymmetric
scheme. It may be
changed in phase
6 by
S.Personalizer
and in phase 7 by
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
50/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
S.TOE_Admin
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
51/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
Initialisation attribute group
Subject
Security Attribute
Status
Authorized
In phase 6, the subject
with
the
role
S.Personalizer has the
attribute
SCD/SVD
Management
set
to
Authorized.
In Phase 7, two access
mode
may
be
distinguished by the TOE
SCD/SVD
generation
(type 3)
SCD/SVD import (type 2)
The access condition is
granted to a User if the
following conditions are
fulfilled:
The User is successfully
authenticated
The User was given the
right to manage the SCD
& SVD (import and/or
generation) by the TOE
issuer.
SCD/SVD
Management
User, Personalizer
Remark
The TOE controls the
access on every object it
possess, in particular the
SCD and the SVD.
Not authorized
If theses two conditions
are fulfilled, the attribute
SCD/SVD management
is set to authorized,
otherwise it is set to not
authorized
This subject can only
interact in phase 7 of the
life cycle
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
52/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
User Data
Security Attribute
Status
No
In phase 6, the key is imported
from a SSCD type 1. The
SSCD securely transmits the
SCD to the TOE by mean of an
encryption key. The encryption
key
is
deduced
from
diversifying data agreed during
the
authentication
of
S.Personnalizer with the TOE.
Therefore, the security attribute
Secure SCD import is set to
Yes when the Subject has the
role S.Personalizer
In phase 7, the access mode
SCD Import may be refined to
ensure the SCD is imported
from an entitled entity (SSCD
type 1)
through a trusted channel
ensuring the confidentiality and
integrity of the data exchanged
Secure SCD Import
Allowed
SCD
Remark
The TOE controls the access
on every object it possesses, in
particular the SCD.
Yes
This refinement
conflict
with
Management
does not
SCD/SVD
The access condition is
granted to a remote entities if
the following conditions are
fulfilled:
The
remote
entities
is
successfully authenticated
The remote entities sends the
SCD through a secure channel
ensuring confidentiality and
integrity
If theses two conditions are
fulfilled, the attribute Secure
SCD Import Allowed is set to
Yes, otherwise it is set to No
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
53/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
Signature-creation attribute group
User Data
Security Attribute
SCD
SCD operational
Status
No
Yes
No
Sent by an authorized
SCA
DTBS
Yes
Remark
The attribute SCD operational is granted by
the submission of the RAD by the User
S.Signatory
The TOE imposes the DTBS to be sent just
before the signature computation request.
As the TOE controls the access on every
object it possess, in particular the SCD and
the SVD, requesting the SCD to be sent by
an authorized SCA will ensure the attribute
Sent by an authorized SCA for the DTBS is
controlled.
Key Management group
Subject
Security Attribute
User
SCA
CGA
SSCD type 1
IFD
Personalizer
Status
Remark
In phase 6, the subject with the
role S.Personalizer has the
attribute
Key
import
Management set to Authorized
Authorized
In phase 7, the TOE controls
the access on every object it
possess, in particular a key
belonging to the AUTH_KEYS,
ESERVICES_KEYS,
TOE_AUTH_PRIVATE_KEYS
or
TOE_AUTH_PUBLIC_KEYS.
The access condition is
granted to User, SCA, CGA,
SSCD type 1 or IFD if the
following
conditions
are
fulfilled:
The Subject is successfully
authenticated
The Subject was given the
right to import a key (belonging
to groups indicated above)
If theses two conditions are
fulfilled, the attribute Key
import management is set to
authorized, otherwise it is set
to not authorized
This subject can only interact
in phase 7 of the life cycle
Key
import
Management
Not authorized
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
54/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
In phase 6, the subject with the
role S.Personalizer has the
attribute
Key
generation
Management set to Authorized
Authorized
In phase 7, the TOE controls
the access on every object it
possess, in particular a key
belonging
to
the
ESERVICES_KEYS (including
Diffie
Hellmann
Domain
parameters)
TOE_AUTH_PRIVATE_KEYS
or
TOE_AUTH_PUBLIC_KEYS.
Key generation
Management
Not authorized
The access condition is
granted to User, SCA, CGA,
SSCD type 1 or IFD if the
following
conditions
are
fulfilled:
The Subject is successfully
authenticated
The Subject was given the
right to generate a key
(belonging to groups indicated)
If theses two conditions are
fulfilled, the attribute Key
generation management is set
to authorized, otherwise it is
set to not authorized
This subject can only interact
in phase 7 of the life cycle
In phase 6, the subject with the
role S.Personalizer has the
attribute
Key
export
Management set to Authorized
Authorized
Key export
Management
Not authorized
In phase 7, the TOE controls
the access on every object it
possess, in particular a key
belonging to the public portions
of
ESERVICES_KEYS
(including
Diffie
Hellmann
Domain
parameters,
and
TOE_AUTH_PUBLIC_KEYS.
The access condition is
granted to User, SCA, CGA,
SSCD type 1 or IFD if the
following
conditions
are
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
55/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
fulfilled:
The Subject is successfully
authenticated
The Subject was given the
right to export a key (belonging
to groups indicated)
If theses two conditions are
fulfilled, the attribute Key
export management is set to
authorized, otherwise it is set
to not authorized
This subject can only interact
in phase 7 of the life cycle
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
56/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
Protection against eavesdropping group
User
Security Attribute
IFD
Data exchange in
contactless
3.10.2.2.1
Status
Remark
The TOE controls the access on
every object it possesses, in
particular
the
DTBS,
VAD,
SIGNATURE,
RAD,
SVD,
AUTH_KEYS,
ESERVICES_KEYS,
Not
TOE_AUTH_PRIVATE_KEYS or
authorized
TOE_AUTH_PUBLIC_KEYS.
The access condition is granted to
IFD if the following conditions are
fulfilled:
The
Subject
is
successfully
authenticated
The Subject was given the right to
import/export the data
A secure channel exists in order to
protect the data exchange
authorized If theses three conditions are
fulfilled,
the
attribute
“Data
exchange in contactless “ is set to
authorized, otherwise it is set to not
authorized
SVD transfer SF P
F DP_ACF .1.1/ SVD transfer SF P
The TSF shall enforce the [ SVD transfer SF P] to objects based on [G en eral at trib ut e]
F DP_ACF .1.2/ SVD transfer SF P
The TSF shall enforce the following rules to determine if an operation among controlled subjects and controlled
objects is allowed:
(a) [In phase 7, the User with the security attribute "role" set to “Administrator” or "Signatory" is
allowed to export SVD]
(b) [In phase 6, the subject with the security attribute "role" set to “Personalizer” is allowed to
export SVD in phase 6.]
Refinement note:
Depending on the use case, the “role” allowed to export the SVD may be restricted to “Administrator” (or
one of its sub-subjects: SCA, CGA, SSCD, IFD) or to “Signatory”
F DP_ACF .1.3/ SVD transfer SF P
The TSF shall explicitly authorise access of subjects to objects based on the following additional rules: [none]
F DP_ACF .1.4/ SVD transfer SF P
The TSF shall explicitly deny access of subjects to objects based on the following additional rules: [none]
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
57/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
Application note:
The SVD may be exported in phase 6 & 7 of the life cycle
3.10.2.2.2 Initialisation SFP
F DP_ACF .1.1/ Initialisation SF P
The TSF shall enforce the [Initialisation SFP] to objects based on [General attribute] and [Initialisation
attribute group].
F DP_ACF .1.2/ Initialisation SF P
The TSF shall enforce the following rules to determine if an operation among controlled subjects and controlled
objects is allowed:
(a) [In phase 7, the user with the security attribute "role" set to "Administrator" or set to
"Signatory" and with the security attribute "SCD/SVD management" set to "authorised" is allowed to
generate SCD/SVD pair.]
(b) [In phase 6, the subject with the security attribute "role" set to "Personalizer" is allowed to
generate SCD/SVD pair.]
Refinement note:
Depending on the use case, the “role” allowed to generate the SCD/SVD may be restricted to
“Administrator” (or one of its sub-subjects : SCA, CGA, SSCD, IFD) or to “Signatory”
F DP_ACF .1.3/ Initialisation SF P
The TSF shall explicitly authorise access of subjects to objects based on the following additional rules: [none]
F DP_ACF .1.4/ Initialisation SF P
The TSF shall explicitly deny access of subjects to objects based on the following additional rules:
(a) [In phase 7, the user with the security attribute "role" set to "Administrator" or set to
"Signatory" and with the security attribute "SCD/SVD management" set to "not authorised" is not allowed
to generate SCD/SVD pair.]
(b) [In phase 6, the subject without the security attribute "role" set to " Personalizer " is not
allowed to generate SCD/SVD pair.]
Application note:
The Initialization SFP applies in phase 6 & 7 of the life cycle
3.10.2.2.3 SCD Import SFP
FDP_ACF.1.1/ SCD Import SFP
The TSF shall enforce the [SCD Import SFP] to objects based on [General attribute] and [Initialisation
attribute group].
FDP_ACF.1.2/ SCD Import SFP
The TSF shall enforce the following rules to determine if an operation among controlled subjects and controlled
objects is allowed:
(a) [In phase 7, the user with the security attribute "role" set to "Administrator" or set to
"Signatory" and with the security attribute "SCD/SVD management" set to "authorised" is allowed to
import SCD if the security attribute "secure SCD import allowed" is set to "yes".]
(b) [In phase 6, the subject with the security attribute "role" set to "Personalizer" is allowed to
import SCD]
Refinement note:
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
58/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
Depending on the use case, the “role” allowed to import the SCD may be restricted to “Administrator” (or
one of its sub-subjects: SCA, CGA, SSCD, IFD) or to “Signatory”
The role “Personalizer” implies that the security attribute “SCD/SVD Management” is set to “authorized”
and “secure SCD import allowed” is set to Yes.
FDP_ACF.1.3/ SCD Import SFP
The TSF shall explicitly authorise access of subjects to objects based on the following additional rules: [none]
FDP_ACF.1.4/ SCD Import SFP
The TSF shall explicitly deny access of subjects to objects based on the following additional rules:
(a) [In phase 7, the user with the security attribute "role" set to "Administrator" or to "Signatory"
and with the security attribute "SCD/SVD management" set to "not authorised" is not allowed to import
SCD if the security attribute "secure SCD import allowed" is set to "yes".]
(b) [In phase 7, the user with the security attribute "role" set to "Administrator" or to "Signatory"
and with the security attribute "SCD/SVD management" set to "authorised" is not allowed to import
SCD if the security attribute "secure SCD import allowed" is set to "no".]
(c) [In phase 6, the user without the security attribute "role" set to " Personalizer " is not allowed
to import SCD.]
Application note:
The SCD Import SFP applies in phase 6 & 7 of the life cycle
The SCD import SFP enables as well to erase the SCD
3.10.2.2.4 Personalisation SFP
FDP_ACF.1.1/ Personalisation SFP
The TSF shall enforce the [Personalisation SFP] to objects based on Personalisation SFP [General attribute
group]
FDP_ACF.1.2/ Personalisation SFP
The TSF shall enforce the following rules to determine if an operation among controlled subjects and controlled
objects is allowed:
(a) [In phase 7, the User with the security attribute "role" set to "Administrator" is allowed to
create the RAD]
(b) [In phase 6, the subject with the security attribute "role" set to "Personalizer" is allowed to
create the RAD]
Refinement note:
Depending on the use case, the “role Administrator” allowed to create the PIN may be restricted to a subsubjects or Administrator (SCA, CGA, SSCD, IFD)
FDP_ACF.1.3/ Personalisation SFP
The TSF shall explicitly authorise access of subjects to objects based on the following additional rules: [none]
FDP_ACF.1.4/ Personalisation SFP
The TSF shall explicitly deny access of subjects to objects based on the following additional rules: [none]
Application note:
The Personalization SFP applies in phase 6 & 7 of the life cycle
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
59/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
3.10.2.2.5 Signature Creation SFP
FDP_ACF.1.1/ Signature-creation SFP
The TSF shall enforce the [Signature-creation SFP] to objects based on [General attribute group] and
[Signature-creation attribute group].
FDP_ACF.1.2/ Signature-creation SFP
The TSF shall enforce the following rules to determine if an operation among controlled subjects and controlled
objects is allowed:
[In phase 7, the User with the security attribute "role" set to "Signatory" is allowed to create electronic
signatures for DTBS sent by an authorized SCA with SCD by the Signatory which security attribute "SCD
operational" is set to "yes"]
FDP ACF.1.3/ Signature-creation SFP
The TSF shall explicitly authorise access of subjects to objects based on the following additional rules: [none]
FDP_ACF.1.4/ Signature-creation SFP
The TSF shall explicitly deny access of subjects to objects based on the following additional rules:
(a) [In phase 6 and 7, User with the security attribute "role" set to "Signatory" is not allowed to create
electronic signatures for DTBS which is not sent by an authorized SCA with SCD by the Signatory
which security attribute "SCD operational" is set to "yes".]
(b) [In phase 6 and 7, User with the security attribute "role" set to "Signatory" is not allowed to create
electronic signatures for DTBS sent by an authorized SCA with SCD by the Signatory which security
attribute "SCD operational" is set to "no".]
(c) [In phase 6, User with the security attribute "role" set to "Signatory" is not allowed to create
electronic signatures for DTBS sent by an authorized SCA with SCD by the Signatory which security
attribute "SCD operational" is set to "yes".]
Application note:
The Signature creation SFP applies in phase 6 and 7 of the life cycle
3.10.2.2.6 IAS ECC Administration SFP
FDP_ACF.1.1/ IAS ECC Administration SFP
The TSF shall enforce the [IAS ECC Administration SFP] to objects based on [Administration group].
FDP_ACF.1.2/ IAS ECC Administration SFP
The TSF shall enforce the following rules to determine if an operation among controlled subjects and controlled
objects is allowed:
(a) [In phase 7, Subject with the security attribute "role" set to "TOE_Administrator" is allowed to
modify the TOE attributes]
(b) [In phase 6, Subject with the security attribute "role" set to “Personalizer” is allowed to modify
the TOE attributes]
FDP ACF.1.3/ IAS ECC Administration SFP
The TSF shall explicitly authorise access of subjects to objects based on the following additional rules: [none]
FDP_ACF.1.4/ IAS ECC Administration SFP
The TSF shall explicitly deny access of subjects to objects based on the following additional rules:
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
60/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
(a) [In phase 7, Subject without the security attribute "role" set to "TOE_Administrator" is allowed
to modify the TOE attributes]
(b) [In phase 6, Subject without the security attribute "role" set to “Personalizer” is allowed to
modify the TOE attributes]
Application note:
The IAS ECC Administration SFP applies in phase 6 & 7 of the life cycle
3.10.2.2.7 Key Management SFP
FDP_ACF.1.1/ Key Management SFP
The TSF shall enforce the [Key Management SFP] to objects based on [Key Management group].
FDP_ACF.1.2/ Key Management SFP
The TSF shall enforce the following rules to determine if an operation among controlled subjects and controlled
objects is allowed:
(a) [In phase 7, the subject with the security attribute "role" set to "Administrator", "Signatory",
“SCA”, CGA”, “IFD” or “SSCD type 1” and with the security attribute "Key import Management" set to
"authorised".]
(b) [In phase 6, the subject with the security attribute "role" set to “Personalizer” is allowed to
import a AUTH_KEYS, ESERVICES_KEYS, TOE_AUTH_PRIVATE_KEYS, and TOE_AUTH_PUBLIC_KEYS.]
(c) [In phase 7, the subject with the security attribute "role" set to "Administrator", "Signatory",
“SCA”, CGA”, “IFD” or “SSCD type 1” and with the security attribute "Key generation Management" set
to "authorised".]
(d) [In phase 6, the subject with the security attribute "role" set to “Personalizer” is allowed to
generate
a
ESERVICES_KEYS
(except
Diffie
Hellman
Domain
parameters),
TOE_AUTH_PRIVATE_KEYS/TOE_AUTH_PUBLIC_KEYS.]
(e) [In phase 7, the subject with the security attribute "role" set to "Administrator", "Signatory",
“SCA”, CGA”, “IFD” or “SSCD type 1” and with the security attribute "Key export Management" set to
"authorised".]
(f) [In phase 6, the subject with the security attribute "role" set to “Personalizer” is allowed to
export a public portion of an ESERVICES_KEYS (including Diffie Hellman Domain parameters), and
TOE_AUTH_PUBLIC_KEYS.]
Refinement note:
Depending on the use case considered, the list of subjects allowed to import, generate or export the keys
may be reduced to several of them (Some may be excluded)
The role “Personalizer” implies that the security attributes are set to “authorized”.
FDP ACF.1.3/ Key Management SFP
The TSF shall explicitly authorise access of subjects to objects based on the following additional rules: [none]
FDP_ACF.1.4/ Key Management SFP
The TSF shall explicitly deny access of subjects to objects based on the following additional rules: [none]
Application note:
The Key Management SFP applies in phase 6 & 7 of the life cycle
The Key Management SFP enables as well to erase the RSA keys (public and private portion)
3.10.2.2.8 Protection against eavesdropping SFP
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
61/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
FDP_ACF.1.1/ Protection against eavesdropping SFP
The TSF shall enforce the [Protection against eavesdropping SFP] to objects based on [Protection against
eavesdropping group].
FDP_ACF.1.2/ Protection against eavesdropping SFP
The TSF shall enforce the following rules to determine if an operation among controlled subjects and controlled
objects is allowed:
[In phase 7, the user with the security attribute "role" set to "IFD" and with the security attribute " data
exchange in contactless allowed " set to "authorised" is allowed to import and export data]
FDP ACF.1.3/ Protection against eavesdropping SFP
The TSF shall explicitly authorise access of subjects to objects based on the following additional rules: [none]
FDP_ACF.1.4/ Protection against eavesdropping SFP
The TSF shall explicitly deny access of subjects to objects based on the following additional rules:
(a) [In phase 7, the user without the security attribute "role" set to "IFD" and with the security
attribute "data exchange in contactless" set to "authorised" is not allowed to import and export data]
(b) [In phase 7, the user with the security attribute "role" set to "IFD" and without the security
attribute "data exchange in contactless" set to "not authorised" is not allowed to import and export data]
Application note:
The Protection against eavesdropping SFP applies in phase 7 of the life cycle
3.10.2.3 FDP_ETC : Export to outside TSF control
3.10.2.3.1 SVD Transfer
FDP_ETC.1.1/ SVD transfer
The TSF shall enforce the [SVD transfer SFP] when exporting user data, controlled under the SFP(s), outside of
the TOE.
FDP_ETC.1.2/ SVD transfer
The TSF shall export the user data without the user data's associated security attributes.
Application note:
The Export of user data applies in phase 6 & 7 of the life cycle
3.10.2.3.2 Keys Transfer
FDP_ETC.1.1/ Keys transfer
The TSF shall enforce the [Key Management SFP] when exporting user data, controlled under the SFP(s),
outside of the TOE.
FDP_ETC.1.2/ Keys transfer
The TSF shall export the user data without the user data's associated security attributes.
Application note:
The Export of user data applies in phase 6 & 7 of the life cycle
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
62/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
3.10.2.3.3 Transfer protected against eavesdropping
FDP_ETC.1.1/ Transfer protected against eavesdropping
The TSF shall enforce the [Protection against eavesdropping SFP] when exporting user data, controlled under
the SFP(s), outside of the TOE.
FDP_ETC.1.2/ Transfer protected against eavesdropping
The TSF shall export the user data without the user data's associated security attributes.
Application note:
The Export of user data applies in phase 7 of the life cycle
3.10.2.4 FDP_ITC Import from outside TSF control
3.10.2.4.1.1 SCD Import
FDP_ITC.1.1/ SCD
The TSF shall enforce the [SCD Import SFP] when importing user data, controlled under the SFP, from outside of
the TOE.
FDP_ITC.1.2/ SCD
The TSF shall ignore any security attributes associated with the user data when imported from outside the TOE.
FDP_ITC.1.3/ SCD
The TSF shall enforce the following rules when importing user data controlled under the SFP from outside the TOE:
[SCD shall be sent by an Authorised SSCD].
Application note:
A SSCD of Type 1 is authorized to send SCD to a SSCD of Type 2, if it is designated to generate the
SCD for this SSCD of Type 2 and to export the SCD for import into this SSCD of Type 2. Authorized
SSCD of Type 1 is able to establish a trusted channel to the SSCD of Type 2 for SCD transfer as required
by FTP_ITC.1.3/SCD export.
In phase 6, an authorized SSCD is the one that received from S.Personnalizer the correct diversification
data to correctly encrypt the SCD to transmit to the TOE.
3.10.2.4.1.2 DTBS import
FDP_ITC.1.1/ DTBS
The TSF shall enforce the [Signature-creation SFP] when importing user data, controlled under the SFP, from
outside of the TOE.
FDP_ITC.1.2/ DTBS
The TSF shall ignore any security attributes associated with the user data when imported from outside the TOE.
FDP_ITC.1.3/ DTBS
The TSF shall enforce the following rules when importing user data controlled under the SFP from outside the TOE:
[DTBS-representation shall be sent by an Authorised SCA].
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
63/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
Application note:
A SCA is authorized to send the DTBS-representation if it is actually used by the Signatory to create an
electronic signature and able to establish a trusted channel to the SSCD as required by FTP_ITC.1.3/SCA
DTBS.
3.10.2.4.1.3 Keys import
FDP_ITC.1.1/ Keys
The TSF shall enforce the [Key Management SFP] when importing user data, controlled under the SFP, from
outside of the TOE.
FDP_ITC.1.2/ Keys
The TSF shall ignore any security attributes associated with the user data when imported from outside the TOE.
FDP_ITC.1.3/ Keys
The TSF shall enforce the following rules when importing user data controlled under the SFP from outside the TOE:
[Keys belonging to AUTH_KEYS or ESERVICES_KEYS groups shall be sent by the administrator, the
Personalizer, the SCA, the CGA, the IFD or the SSCD type 1].
Application note:
These SFRs only applies for the import of user data envisioned by the Key Management SFP
Depending on the use case considered, a choice may be done between the administrator, the Personalizer,
the SCA, the CGA, the IFD or the SSCD type 1...
3.10.2.5 FDP_RIP Residual information protection
FDP_RIP.1.1
The TSF shall ensure that any previous information content of a resource is made unavailable upon the [deallocation of the resource from] the following objects: [SM_DATA, AUTH_CRYPTOGRAM, AUTH_KEYS,
ESERVICES_KEYS, EPHEMERAL_KEYS, TOE_AUTH_PUBLIC_KEYS, TOE_AUTH_PRIVATE_KEYS, SCD,
VAD, and RAD].
3.10.2.6 FDP_SDI Stored data integrity
3.10.2.6.1 Persistent data
The following data persistently stored by TOE have the user data attribute "integrity checked persistent stored data"
• SCD
• RAD
• SVD
• AUTH_KEYS
• ESERVICES_KEYS
FDP_SDI.2.1/ Persistent
The TSF shall monitor user data stored in containers controlled by the TSF for [integrity error] on all objects,
based on the following attributes: [integrity checked persistent stored data].
FDP_SDI.2.2/ Persistent
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
64/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
Upon detection of a data integrity error, the TSF shall:
[ 1. prohibit the use of the altered data
2. inform the Signatory about integrity error.]
3.10.2.6.2 DTBS-representation
The Protection Profiles [SSCD2] and [SSCD3] specify that the DTBS representation temporarily stored by TOE
have the user data attribute "integrity checked stored data".
FDP_SDI.2.1/ DTBS
The TSF shall monitor user data stored in containers controlled by the TSF for [integrity error] on all objects,
based on the following attributes: [integrity checked stored data].
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
65/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
FDP_SDI.2.2/ DTBS
Upon detection of a data integrity error, the TSF shall:
[ 1. prohibit the use of the altered data
2. inform the Signatory about integrity error.]
3.10.2.7 FDP_UCT Inter-TSF user data confidentiality transfer protection
3.10.2.7.1 SCD Import
FDP_UCT.1.1/ Receiver
The TSF shall enforce the [SCD Import SFP] to [receive] user data in a manner protected from unauthorised
disclosure.
Application note:
The TSF ensures protection of the SCD against unauthorized disclosure in phase 6 & 7 of the life cycle
3.10.2.7.2 Protection against eavesdropping in contactless
FDP_UCT.1.1/ TOE Contactless
The TSF shall enforce the [Protection against eavesdropping SFP] to [receive and transmit] user data in a
manner protected from unauthorised disclosure.
Application Note:
This SFRs only applies in phase 7, when the SSCD features are used in contactless.
3.10.2.8 FDP_UIT Inter-TSF user data integrity transfer protection
3.10.2.8.1 SVD transfer
FDP_UIT.1.1/ SVD transfer
The TSF shall enforce the [SVD transfer SFP] to [transmit] user data in a manner protected from [modification
and insertion] errors.
Refinement
This SFR only applies in phase 7
FDP_UIT.1.2/ SVD transfer
The TSF shall be able to determine on receipt of user data, whether [modification and insertion] has occurred.
3.10.2.8.2 DTBS transfer
FDP_UIT.1.1/ TOE DTBS
The TSF shall enforce the [Signature-creation SFP] to [receive] user data in a manner protected from
[modification, deletion and insertion] errors.
FDP_UIT.1.2/ TOE DTBS
The TSF shall be able to determine on receipt of user data, whether [modification, deletion and insertion] has
occurred.
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
66/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
3.10.2.8.3 Protection against eavesdropping in contactless
FDP_UIT.1.1/ TOE Contactless
The TSF shall enforce the [Protection against eavesdropping SFP] to [receive and transmit] user data in a
manner protected from [modification, deletion and insertion] errors.
FDP_UIT.1.2/ TOE Contactless
The TSF shall be able to determine on receipt of user data, whether [modification, deletion and insertion] has
occurred.
Application Note:
These SFRs only applies in phase 7, when the SSCD features are used in contactless
3.10.3 FIA: IDENTIFICATION AND AUTHENTICATION
3.10.3.1 FIA_AFL Authentication failure
FIA_AFL is specific to the RAD and the Authentication keys.
• RAD used by the Signatory
• RAD used by the Administrator.
• The Symmetric key(s) used by the Personalization Agent
• The Symmetric key(s) used by the TOE Administrator
• Symmetric external authentication keys used by the Administrator
• Symmetric device authentication keys used by the Administrator or a remote IT
• Asymmetric external authentication keys used by the Administrator
• Asymmetric device authentication keys used by the Administrator or a remote IT
FIA AFL.1.1/RAD
The TSF shall detect when [an administrative configurable positive integer within 1 and 15] unsuccessful
authentication attempts occur related to [consecutive failed authentication attempts].
FIA AFL.1.2/RAD
When the defined number of unsuccessful authentication attempts has been [met or surpassed], the TSF shall
[block RAD].
Application Note:
The Authentication Try Limit N, defined during personalisation, must verify 1 ≤ N ≤ 15.
FIA AFL.1.1/ Authentication keys
The TSF shall detect when [selection :[assignment: positive integer number], an administrator configurable
positive integer within [assignment: range of acceptable values]] unsuccessful authentication attempts occur
related to [consecutive failed authentication attempts].
FIA AFL.1.2/ Authentication keys
When the defined number of unsuccessful authentication attempts has been [met or surpassed], the TSF shall
[assignment : list of actions].
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
67/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
Refinements:
The Authentication or external entities (subjects or remote IT entities) may be performed with the
D.AUTH_KEYS or with D.EPHEMERAL_KEYS. Depending on the cases, several cases may occur:
Entity to be
authenticated
Type of TSF data
Selection for FIA_AFL.1.1
/Authentication keys
D.AUTH_KEYS
S.Personalizer
Positive integer number ‘1’
D.AUTH_KEYS
S.TOE_Admin
Positive integer number ‘1’
D.AUTH_KEYS
S.Admin
(when using symmetric
role authentication)
D.AUTH_KEYS
D.EPHEMERAL_KEYS
D.EPHEMERAL_KEYS
S.Admin or
Remote IT entity
(when using symmetric
device authentication)
S.Admin
(when using
asymmetric role
authentication)
Administrator or
Remote IT entity
(when using
asymmetric device
authentication)
Administrator
configurable positive
integer ‘N’
0 ≤ N ≤ 15
Administrator
configurable positive
integer ‘N’
0 ≤ N ≤ 15
List of action
Time of next
authentication
increases
Time of next
authentication
increases
If N= ‘0’, no actions
are taken.
If N != ‘0’, the key is
blocked
If N= ‘0’, no actions
are taken.
If N != ‘0’, the key is
blocked
Positive integer number ‘1’
The key is deallocated
with respect to
FDP_RIP.1.1
Positive integer number ‘1’
The key is deallocated
with respect to
FDP_RIP.1.1
It is important to note that the subject S.Admin may be the SCA, CGA, SSCD or IFD if they act as a
subject.
3.10.3.2 FIA_ATD User attribute definition
FIA ATD.1.1 / S.Signatory
The TSF shall maintain the following list of security attributes belonging to individual users [RAD]
FIA ATD.1.1 / S.Admin
The TSF shall maintain the following list of security attributes belonging to individual users [RAD]
Application Note:
This is mandated if the User “Administrator” is authenticated by mean of a RAD.
FIA ATD.1.1 / S.Admin, S.TOE_Admin, S.Personalizer
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
68/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
The TSF shall maintain the following list of security attributes belonging to individual users [AUTH_KEYS and
EPHEMERAL_KEYS]
Application Note:
Each subject is authenticated thanks to a dedicated authentication key and a dedicated authentication
scheme. The key to use is a TSF data that is either permanently stored in the TOE (AUTH_KEYS), or an
ephemeral key extracted from a certificate (EPHEMERAL_KEYS).
3.10.3.3 FIA_UAU User authentication
FIA UAU.1.1
The TSF shall allow
[Identification of the user by means of TSF required by FIA_UID.1]
[Establishing a trusted channel between the TOE and a SSCD of type 1 by means of TSF required
by FTP_ITC.1/SCD import]
[Establishing a trusted path between local user and the TOE by means of TSF required by
FTP_TRP.1/TOE to transmit the VAD if the TOE is used in contact in phase 7]
[Establishing a trusted channel between an IFD and the TOE by means of TSF required by
FTP_ITC.1/ TOE Contactless to transmit the VAD if the TOE is used in contactless in phase 7]
[Establishing a trusted channel between the SCA and the TOE by means of TSF required by
FTP_ITC.1/DTBS import in phase 7]
On behalf of the user to be performed before the user is authenticated.
FIA_UAU.1.2
The TSF shall require each user to be successfully authenticated before allowing any other TSF-mediated actions
on behalf of that user.
Application note:
"Local user" mentioned in component FIA_UAU.1.1 is the user using the trusted path provided between the
SCA in the TOE environment and the TOE as indicated by FTP_TRP.1/SCA and FTP TRP.1/TOE.
This trusted path enables to authenticate the role Signatory and Administrator (if it is authenticated with a
RAD).
3.10.3.4 FIA_UID User Identification
FIA UID.1.1
The TSF shall allow
[Establishing a trusted channel between the TOE and a SSCD of type 1 by means of TSF required
by FTP_ITC.1/SCD import]
[Establishing a trusted path between local user and the TOE by means of TSF required by
FTP_TRP.1/TOE to transmit the VAD if the TOE is used in contact in phase 7]
[Establishing a trusted channel between an IFD and the TOE by means of TSF required by
FTP_ITC.1/ TOE Contactless to transmit the VAD if the TOE is used in contactless in phase 7]
[Establishing a trusted channel between the SCA and the TOE by means of TSF required by
FTP_ITC.1/DTBS import in phase 7]
on behalf of the user to be performed before the user is identified.
FIA_UID.1.2
The TSF shall require each user to be successfully identified before allowing any other TSF-mediated actions on
behalf of that user.
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
69/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
3.10.4 FMT: SECURITY MANAGEMENT
3.10.4.1 FMT_MOF Management of functions in TSF
FMT_MOF.1.1
The TSF shall restrict the ability to [enable] the functions [signature-creation function] to [Signatory].
3.10.4.2 FMT_MSA Management of security attributes
FMT_MSA.1.1/ Administrator - Initialisation
The TSF shall enforce the [Initialisation SFP] to restrict the ability to [modify] the security attributes [SCD/SVD
management] to [Administrator and Personalizer].
FMT_MSA.1.1/ Administrator - Import
The TSF shall enforce the [SCD Import SFP] to restrict the ability to [modify] the security attributes [SCD/SVD
management and secure SCD import allowed] to [Administrator and Personalizer].
FMT_MSA.1.1/ Signatory
The TSF shall enforce the [Signature-creation SFP] to restrict the ability to [modify] the security attributes [SCD
operational] to [Signatory].
FMT_MSA.1.1/ Management of TOE
The TSF shall enforce the [IAS ECC Administration SFP] to restrict the ability to [modify] the security attributes
[Medium, HashOffCard, SymAuthMechanism and AsymAuthMechanism] to [TOE_Administrator or
Personalizer].
FMT_MSA.1.1/ Key Management
The TSF shall enforce the [Key Management SFP] to restrict the ability to [modify] the security attributes [Key
import management, Key generation management and Key export Management] to [User, SCA, CGA,
SSCD, IFD].
FMT_MSA.1.1/ Protection against eavesdropping
The TSF shall enforce the [Protection against eavesdropping SFP] to restrict the ability to [modify] the security
attributes [data exchange in contactless] to [IFD].
FMT_MSA.2.1
The TSF shall ensure that only secure values are accepted for [SCD/SVD management, SCD operational,
Medium, HashOffCard, SymAuthMechanism, AsymAuthMechanism, Key import management, Key
generation management and Key export Management, data exchange in contactless].
FMT_MSA.3.1
The TSF shall enforce the [Initialisation SFP, Signature-creation SFP, SCD Import SFP, IAS ECC
Administration SFP and Key Management SFP, Protection against eavesdropping SFP] to provide
[restrictive] default values for security attributes that are used to enforce the SFP.
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
70/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
Refinement:
The security attribute of the SCD "SCD operational" is set to "no" after generation or import of the SCD.
FMT_MSA.3.2
The TSF shall allow the [assignment : the authorised identified role] to specify alternative initial values to
override the default values when an object or information is created.
Refinement:
The following refinement applies:
Security attributes
SCD/SVD Management
SCD Operational
Medium
HashOffCard
SymAuthMechanism
AsymAuthMechanism
data exchange in contactless
Key import Management
Key generation Management
Key export Management
Secure SCD import Allowed
Sent by an authorized SCA
Role
Authorized identified role
Administrator
Personalizer
Administrator
Personalizer
TOE_Administrator
IFD
User, SCA, CGA, SSCD, IFD
SSCD
SCA
User
Personalizer
3.10.4.3 FMT_MTD Management of TSF data
3.10.4.3.1 Signatory
FMT_MTD.1.1/ Signatory
The TSF shall restrict the ability to [modify] the [RAD] to [Signatory].
Refinement:
This requirement applies only if the RAD is the one used for the Authentication of the Role Signatory
3.10.4.3.2 Association between SCD and SCD_ID
FMT_MTD.1.1/ Association between SCD and SCD_ID
The TSF shall restrict the ability to [associate] the [SCD and a SCD_ID] to [Administrator and Personalizer].
Application note:
At creation, the SCD is given a SCD identifier that will be permanently associated to it.
3.10.4.3.3 Protection against traceability
FMT_MTD.1.1/ Disabling identification data retrieval
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
71/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
The TSF shall restrict the ability to [to disable read access for users to] the [IDENTIFICATION_DATA] to
[Manufacturer].
Application note:
The requirement is only needed in case the TOE is used in contactless mode. It ensures it is not possible
to retrieve identification data such as CPLC data, TOE identifier, FCI of the Card Manager,
Rely on the SFRs provided by [ST_PLATFORM] :
• FMT_MOF.1/PP_TOE enable to disable identification data retrieval
• FDP_ACC.2/PP restricts the access to this feature to the Manufacturer
3.10.4.3.4 TOE Serial number
FMT_MTD.1.1/ TOE Serial number
The TSF shall restrict the ability to [set] the [TOE_SerialNumber] to [Personalizer in phase 6].
Application note:
The Personalizer only interacts with the TOE in phase 6
3.10.4.3.5 TOE State
FMT_MTD.1.1/ TOE State
The TSF shall restrict the ability to [modify] the [STATE] to [Personalizer in phase 6].
Application note:
The Personalizer shall set D.STATE to “PERSONALIZED” at the end of phase 6 to switch the life cycle
to phase 7.
3.10.4.3.6 RAD Unblocking
FMT_MTD.1.1/ Unblock
The TSF shall restrict the ability to [unblock] the [RAD] to [the Administrator in phase 7].
Application note:
This SFR only applies to the RAD when it is a PIN.
3.10.4.4 FMT_SMF Specification of Management Functions
FMT_SMF.1.1
The TSF shall be capable of performing the following management functions: [SCD/SVD Generation, SCD import,
RAD personalization, Signature creation, Management of the TOE, Key Management, Protection against
eavesdropping, RAD unblocking].
3.10.4.5 FMT_SMR Security management roles
FMT_SMR.1.1
The TSF shall maintain the roles [Administrator, TOE_Administrator, SCA, CGA, SSCD, IFD, Personalizer and
Signatory].
FMT SMR.1.2
The TSF shall be able to associate users with roles.
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
72/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
Application note:
The SCA, CGA, SSCD, and IFD may be seen as subjects. As such, the TOE maintains their Role.
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
73/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
3.10.5 FPT: PROTECTION OF THE TSF
3.10.5.1 FPT_EMSEC TOE Emanation
FPT_EMSEC.1.1
The TOE shall not emit [Side channel emission] in excess of [limits specified by the state-of-the-art attacks
on smart card IC] enabling access to [ESERVICES_KEY, AUTH_KEY,RAD and SCD] and [none].
FPT_EMSEC.1.2
The TSF shall ensure [all users] are unable to use the following interface [external contacts emanations] to
gain access to [ESERVICES_KEY, AUTH_KEY,RAD and SCD] and [none].
3.10.5.2 FPT_FLS Failure secure
FPT_FLS.1.1
The TSF shall preserve a secure state when the following types of failures occur: [
those associated to the potential security violations described in FAU_ARP.1 of the underlying
javacard open platform,
the applet deletion manager fails to delete a package/applet,
the object deletion functions fail to delete all the unreferenced objects owned by the applet that
requested the execution of the method,
1. Invalid reference exception; 2. Code or data integrity failure; 3. Power loss while processing. 4.
worm on or dead EEPROM, full security area, false CRC
For each problem the TOE sends a specific exception status or doesn't start,].
3.10.5.3 FPT_PHP TSF physical Protection
FPT_PHP.1.1
The TSF shall provide unambiguous detection of physical tampering that might compromise the TSF.
FPT_PHP.1.2
The TSF shall provide the capability to determine whether physical tampering with the TSF's devices or TSF's
elements has occurred.
FPT_PHP.3.1
The TSF shall resist [changing operational conditions every times: the frequency of the external clock,
power supply, and temperature] to the [chip elements] by responding automatically such that the SFRs are
always enforced
3.10.5.4 FPT_TST TSF self test
FPT_TST.1.1
The TSF shall run a suite of self-tests [during initial start-up and periodically during normal operation] to
demonstrate the correct operation of [the TSF].
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
74/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
FPT_TST.1.2
The TSF shall provide authorised users with the capability to verify the integrity of [TSF data].
FPT_TST.1.3
The TSF shall provide authorised users with the capability to verify the integrity of [TSF executable code].
3.10.6 FTP: TRUSTED PATH/CHANNELS
3.10.6.1 FTP_ITC Inter-TSF trusted channel
3.10.6.1.1 SCD Import
FTP_ITC.1.1/ SCD import
The TSF shall provide a communication channel between itself and another trusted IT product that is logically
distinct from other communication channels and provides assured identification of its end points and protection of
the channel data from modification or disclosure.
FTP_ITC.1.2/ SCD import
The TSF shall permit [another trusted IT product] to initiate communication via the trusted channel.
FTP_ITC.1.3/ SCD import
The TSF shall initiate communication via the trusted channel for [SCD import]
Refinement:
This requirement applies in phase 6 & 7.
3.10.6.1.2 SVD Transfer
FTP_ITC.1.1/ SVD transfer
The TSF shall provide a communication channel between itself and another trusted IT product that is logically
distinct from other communication channels and provides assured identification of its end points and protection of
the channel data from modification or disclosure.
FTP_ITC.1.2/ SVD transfer
The TSF shall permit [another trusted IT product] to initiate communication via the trusted channel.
FTP_ITC.1.3/ SVD transfer
The TSF shall initiate communication via the trusted channel for [SVD transfer]
Refinement:
The mentioned remote trusted IT product is a CGA in phase 7
Application note:
FTP_ITC.1/SVD Transfer will be required only, if the TOE is to import the SVD from a SSCD Type1 so it
will be exported to the CGA for certification.
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
75/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
3.10.6.1.3 DTBS Import
FTP_ITC.1.1/ DTBS import
The TSF shall provide a communication channel between itself and another trusted IT product that is logically
distinct from other communication channels and provides assured identification of its end points and protection of
the channel data from modification or disclosure.
FTP_ITC.1.2/ DTBS import
The TSF shall permit [another trusted IT product] to initiate communication via the trusted channel.
FTP_ITC.1.3 DTBS import
The TSF shall initiate communication via the trusted channel for [signing DTBS-representation]
Refinement:
The mentioned remote trusted IT product is a SCA.
This requirement applies in phase 7 only.
3.10.6.1.4 Protection against traceability in contactless
FTP_ITC.1.1/ TOE Contactless
The TSF shall provide a communication channel between itself and another trusted IT product that is logically
distinct from other communication channels and provides assured identification of its end points and protection of
the channel data from modification or disclosure.
FTP_ITC.1.2/ TOE Contactless
The TSF shall permit [another trusted IT product] to initiate communication via the trusted channel.
FTP_ITC.1.3 TOE Contactless
The TSF shall initiate communication via the trusted channel for [performing any operation that may disclose
any information about the holder, such as identification or traceability]
Refinement:
The mentioned remote trusted IT product is an interface device (IFD)
3.10.6.2 FTP_TRP Trusted path
FTP_TRP.1.1/ TOE
The TSF shall provide a communication path between itself and [local] users that is logically distinct from other
communication paths and provides assured identification of its end points and protection of the communicated
data from [modification or disclosure].
FTP_TRP.1.2/ TOE
The TSF shall permit [local users] to initiate communication via the trusted path.
FTP_TRP.1.3/ TOE
The TSF shall require the use of the trusted path for [initial user authentication].
[email protected]berthur.com | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
76/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
Application note:
The Trusted path is required to send the VAD to the TOE in order to identify & authenticate the Signatory,
and the Administrator (if it was authenticated with a RAD),
During phase 7, if the TOE is used in contactless mode, in order to protect the VAD against eavesdropping
and prevent the traceability risks, the trusted path is removed and replaced by the trusted channel defined
by:
• FTP_ITC.1.1/ TOE Contactless (against traceability)
• FTP_ITC.1.2/ TOE Contactless (against traceability)
• FTP_ITC.1.3/ TOE Contactless (against traceability)
• FDP_UCT.1.1/ TOE Contactless (against disclosure)
• FDP_UIT.1.1/ TOE Contactless (against eavesdropping)
• FDP_UIT.1.2/ TOE Contactless (against eavesdropping)
3.11 Security requirements for the IT environment
This section describes the IT security requirements that are to be met by the IT environment of the TOE. The IT
environment of the TOE is composed of the Certification Generation Application (CGA) and the Signature
Creation Application (SCA).
These requirements are as stated in [SSCD2] & [SSCD3].
3.11.1 Signature key generation (SSCD Type1)
3.11.1.1 Cryptographic key generation (FCS_CKM.1)
FCS CKM.1.1
The TSF shall generate cryptographic keys in accordance with a specified cryptographic key generation algorithm
[RSA key generation] and specified cryptographic key sizes [1024 bits or 1536 bits or 2048 bits] that meet the
[ANSI X9.31]
FCS CKM.1.1 / DES session keys
The TSF shall generate cryptographic keys in accordance with a specified cryptographic key generation algorithm
[DES key generation] and specified cryptographic key sizes [128 bits] that meet the [IASECC]
3.11.1.2 Cryptographic key destruction (FCS_CKM.4)
FCS_CKM.4.1 / Type1
The TSF shall destroy cryptographic keys in accordance with a specified cryptographic key destruction method
[overwriting the buffer containing the key with zero] that meets the following: [assignment: list of
standards].
Application notes:
The cryptographic key SCD will be destroyed automatically after export.
FCS_CKM.4.1 / DES Session keys
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
77/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
The TSF shall destroy cryptographic keys in accordance with a specified cryptographic key destruction method
[overwriting the buffer containing the key with zero] that meets the following: [assignment: list of
standards].
3.11.1.3 Cryptographic operation (FCS_COP.1)
FCS_COP.1.1/ CORRESP
The TSF shall perform [SCD/SVD correspondence verification] in accordance with a specified cryptographic
algorithm [assignment: cryptographic algorithm] and cryptographic key sizes [1024 bits, 1536 bits or 2048
bits] that meet the following: [assignment: list of standards].
FCS_COP.1.1/ Diffie Hellman computation
The TSF shall perform [Key Agreement] in accordance with a specified cryptographic algorithm [Diffie
Hellmann] and cryptographic key sizes [1024 bits, 1536 bits or 2048 bits] that meet the following: [PKCS#3].
FCS_COP.1.1/ Secure Messaging in Confidentiality
The TSF shall perform [Secure Messaging in confidentiality] in accordance with a specified cryptographic
algorithm [Retail MAC] and cryptographic key sizes [128 bits] that meet the following: [IASECC].
Application Note: This algorithm is used during secure Messaging: in confidentiality of incoming and
outgoing data
FCS_COP.1.1/ Secure Messaging in Integrity
The TSF shall perform [Secure Messaging in integrity] in accordance with a specified cryptographic algorithm
[Triple DES CBC encryption/decryption] and cryptographic key sizes [128 bits] that meet the following:
[IASECC].
Application Note: This algorithm is used during secure Messaging: in integrity of incoming and outgoing
data
FCS_COP.1.1/ Data hashing
The TSF shall perform [data hashing] in accordance with a specified cryptographic algorithm [SHA-1 and SHA256] and cryptographic key sizes [none] that meet the following: [FIPS 140-2].
FCS_COP.1.1/ Certificate computation
The TSF shall perform [Certificate computation] in accordance with a specified cryptographic algorithm [RSA
with ISO9796-2 padding with partial recovery and with SHA-1 or SHA-256] and cryptographic key sizes [1024
bits, 1536 bits or 2048 bits] that meet the following: [IASECC].
FCS_COP.1.1/ Asymmetric Internal DAPP Authentication
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
78/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
The TSF shall perform [Asymmetric Internal DAPP Authentication] in accordance with a specified
cryptographic algorithm [RSA with ISO9796-2 padding with partial recovery and with SHA-1 or SHA-256] and
cryptographic key sizes [1024 bits, 1536 bits or 2048 bits] that meet the following: [IASECC].
FCS_COP.1.1/ Asymmetric External DAPP Authentication
The TSF shall perform [Asymmetric External DAPP Authentication] in accordance with a specified
cryptographic algorithm [RSA with ISO9796-2 padding with partial recovery and with SHA-1 or SHA-256] and
cryptographic key sizes [1024 bits, 1536 bits or 2048 bits] that meet the following: [IASECC].
FCS_COP.1.1/ GP secret data encryption
The TSF shall perform [GP secret data encryption] in accordance with a specified cryptographic algorithm
[assignment: cryptographic algorithm] and cryptographic key sizes [128 bits] that meet the following:
[assignment: list of standards].
Refinement:
cryptographic algorithm
Triple DES
list of standards
SCP1 and SCP02 as defined in [GP]
Application Note: The type of algorithm used by the TOE depends on the configuration set during the
javacard open platform personalisation (For more details see [AGD_PRE_PLATFORM]). The algorithm
selection is performed by the subject R.Prepersonalizer and is covered by FMT_MTD.1/JCRE
3.11.1.4 Random Number Generation (FCS_RNG)
FCS_RNG.1 / Random Number Generation
FCS_RNG.1.1
The TSF shall provide a [hybrid] random number generator that implements: [none].
FCS_RNG.1.2
The TSF shall provide random numbers that meet [assignment: list of standards].
3.11.1.5 Subset access control (FDP_ACC.1)
FDP_ACC.1.1/ SCD Export SFP
The TSF shall enforce the [SCD Export SFP] on [export of SCD by Administrator].
3.11.1.6 Basic data exchange confidentiality (FDP_UCT.1)
FDP_UCT.1.1/ Sender
The TSF shall enforce the [SCD Export SFP] to [transmit] user data in a manner protected from unauthorised
disclosure.
3.11.1.7 Inter-TSF trusted channel (FTP_ITC.1)
FTP_ITC.1.1/ SCD Export
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
79/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
The TSF shall provide a communication channel between itself and another trusted IT product that is logically
distinct from other communication channels and provides assured identification of its end points and protection of
the channel data from modification or disclosure.
FTP_ITC.1.2/ SCD Export
The TSF shall permit [the TSF] to initiate communication via the trusted channel.
FTP_ITC.1.3/ SCD Export
The TSF shall initiate communication via the trusted channel for [SCD export]
Refinement:
The mentioned remote trusted IT product is a SSCD Type2
Application note:
If the TOE exports the SVD to a SSCD Type2 and the SSCD Type 2 holds the SVD then the trusted
channel between the TOE and the SSCD type 2 will be required.
3.11.2 Certification generation application (CGA)
3.11.2.1 Cryptographic key generation (FCS_CKM.1)
FCS CKM.1.1 / DES session keys
The TSF shall generate cryptographic keys in accordance with a specified cryptographic key generation algorithm
[DES key generation] and specified cryptographic key sizes [128 bits] that meet the [IASECC]
3.11.2.2 Cryptographic key distribution (FCS_CKM.2)
FCS_CKM.2.1/ CGA
The TSF shall distribute cryptographic keys in accordance with a specified cryptographic key distribution method
[qualified certificates] that meets the following: [assignment: list of standards].
3.11.2.3 Cryptographic key access (FCS_CKM.3)
FCS_CKM.3.1/ CGA
The TSF shall perform [import the SVD] in accordance with a specified cryptographic key access method
[import through a secure channel] that meets the following: [IASECC].
3.11.2.4 Cryptographic key destruction (FCS_CKM.4)
FCS_CKM.4.1 / DES Session keys
The TSF shall destroy cryptographic keys in accordance with a specified cryptographic key destruction method
[overwriting the buffer containing the key with zero] that meets the following: [assignment: list of
standards].
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
80/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
3.11.2.5 Cryptographic operation (FCS_COP.1)
FCS_COP.1.1/ Diffie Hellman computation
The TSF shall perform [Key Agreement] in accordance with a specified cryptographic algorithm [Diffie
Hellmann] and cryptographic key sizes [1024 bits, 1536 bits or 2048 bits] that meet the following: [PKCS#3].
FCS_COP.1.1/ Secure Messaging in Confidentiality
The TSF shall perform [Secure Messaging in confidentiality] in accordance with a specified cryptographic
algorithm [Retail MAC] and cryptographic key sizes [128 bits] that meet the following: [IASECC].
Application Note: This algorithm is used during secure Messaging: in confidentiality of incoming and
outgoing data
FCS_COP.1.1/ Secure Messaging in Integrity
The TSF shall perform [Secure Messaging in integrity] in accordance with a specified cryptographic algorithm
[Triple DES CBC encryption/decryption] and cryptographic key sizes [128 bits] that meet the following:
[IASECC].
Application Note: This algorithm is used during secure Messaging: in integrity of incoming and outgoing
data
FCS_COP.1.1/ Data hashing
The TSF shall perform [data hashing] in accordance with a specified cryptographic algorithm [SHA-1 and SHA256] and cryptographic key sizes [none] that meet the following: [FIPS 140-2].
FCS_COP.1.1/ Certificate computation
The TSF shall perform [Certificate computation] in accordance with a specified cryptographic algorithm [RSA
with ISO9796-2 padding with partial recovery and with SHA-1 or SHA-256] and cryptographic key sizes [1024
bits, 1536 bits or 2048 bits] that meet the following: [IASECC].
FCS_COP.1.1/ Asymmetric Internal DAPP Authentication
The TSF shall perform [Asymmetric Internal DAPP Authentication] in accordance with a specified
cryptographic algorithm [RSA with ISO9796-2 padding with partial recovery and with SHA-1 or SHA-256] and
cryptographic key sizes [1024 bits, 1536 bits or 2048 bits] that meet the following: [IASECC].
FCS_COP.1.1/ Asymmetric External DAPP Authentication
The TSF shall perform [Asymmetric External DAPP Authentication] in accordance with a specified
cryptographic algorithm [RSA with ISO9796-2 padding with partial recovery and with SHA-1 or SHA-256] and
cryptographic key sizes [1024 bits, 1536 bits or 2048 bits] that meet the following: [IASECC].
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
81/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
3.11.2.6 Random Number Generation (FCS_RNG)
FCS_RNG.1 / Random Number Generation
FCS_RNG.1.1
The TSF shall provide a [hybrid] random number generator that implements: [none].
FCS_RNG.1.2
The TSF shall provide random numbers that meet [assignment: list of standards].
3.11.2.7 Data exchange integrity (FDP_UIT.1)
FDP_UIT.1.1/ SVD Import
The TSF shall enforce the [SVD import SFP] to [receive] user data in a manner protected from [modification
and insertion] errors.
FDP_UIT.1.2/ SVD Import
The TSF shall be able to determine on receipt of user data, whether [modification and insertion] has occurred.
3.11.2.8 Inter-TSF trusted channel (FTP_ITC.1)
FTP_ITC.1.1/ SVD Import
The TSF shall provide a communication channel between itself and another trusted IT product that is logically
distinct from other communication channels and provides assured identification of its end points and protection of
the channel data from modification or disclosure.
FTP_ITC.1.2/ SVD Import
The TSF shall permit [the TSF] to initiate communication via the trusted channel.
FTP_ITC.1.3/ SVD Import
The TSF shall initiate communication via the trusted channel for [SVD import]
3.11.3 Signature creation application (SCA)
3.11.3.1 Cryptographic key generation (FCS_CKM.1)
FCS CKM.1.1 / DES session keys
The TSF shall generate cryptographic keys in accordance with a specified cryptographic key generation algorithm
[DES key generation] and specified cryptographic key sizes [128 bits] that meet the [IASECC]
3.11.3.2 Cryptographic key destruction (FCS_CKM.4)
FCS_CKM.4.1 / DES Session keys
The TSF shall destroy cryptographic keys in accordance with a specified cryptographic key destruction method
[overwriting the buffer containing the key with zero] that meets the following: [assignment: list of
standards].
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
82/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
3.11.3.3 Cryptographic operation (FCS_COP.1)
FCS_COP.1.1/ SCA Hash
The TSF shall perform [hashing the DTBS] in accordance with a specified cryptographic algorithm [SHA-1 and
SHA-256] and cryptographic key sizes [none] that meet the following: [FIPS 140-2].
FCS_COP.1.1/ Diffie Hellman computation
The TSF shall perform [Key Agreement] in accordance with a specified cryptographic algorithm [Diffie
Hellmann] and cryptographic key sizes [1024 bits, 1536 bits or 2048 bits] that meet the following: [PKCS#3].
FCS_COP.1.1/ Secure Messaging in Confidentiality
The TSF shall perform [Secure Messaging in confidentiality] in accordance with a specified cryptographic
algorithm [Retail MAC] and cryptographic key sizes [128 bits] that meet the following: [IASECC].
Application Note: This algorithm is used during secure Messaging: in confidentiality of incoming and
outgoing data
FCS_COP.1.1/ Secure Messaging in Integrity
The TSF shall perform [Secure Messaging in integrity] in accordance with a specified cryptographic algorithm
[Triple DES CBC encryption/decryption] and cryptographic key sizes [128 bits] that meet the following:
[IASECC].
Application Note: This algorithm is used during secure Messaging: in integrity of incoming and outgoing
data
FCS_COP.1.1/ Certificate computation
The TSF shall perform [Certificate computation] in accordance with a specified cryptographic algorithm [RSA
with ISO9796-2 padding with partial recovery and with SHA-1 or SHA-256] and cryptographic key sizes [1024
bits, 1536 bits or 2048 bits] that meet the following: [IASECC].
FCS_COP.1.1/ Asymmetric Internal DAPP Authentication
The TSF shall perform [Asymmetric Internal DAPP Authentication] in accordance with a specified
cryptographic algorithm [RSA with ISO9796-2 padding with partial recovery and with SHA-1 or SHA-256] and
cryptographic key sizes [1024 bits, 1536 bits or 2048 bits] that meet the following: [IASECC].
FCS_COP.1.1/ Asymmetric External DAPP Authentication
The TSF shall perform [Asymmetric External DAPP Authentication] in accordance with a specified
cryptographic algorithm [RSA with ISO9796-2 padding with partial recovery and with SHA-1 or SHA-256] and
cryptographic key sizes [1024 bits, 1536 bits or 2048 bits] that meet the following: [IASECC].
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
83/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
3.11.3.4 Random Number Generation (FCS_RNG)
FCS_RNG.1 / Random Number Generation
FCS_RNG.1.1
The TSF shall provide a [hybrid] random number generator that implements: [none].
FCS_RNG.1.2
The TSF shall provide random numbers that meet [assignment: list of standards].
3.11.3.5 Data exchange integrity (FDP_UIT.1)
FDP_UIT.1.1/ SCA DTBS
The TSF shall enforce the [Signature-creation SFP] to [transmit] user data in a manner protected from
[modification, deletion and insertion] errors.
FDP_UIT.1.2/ SCA DTBS
The TSF shall be able to determine on receipt of user data, whether [modification, deletion and insertion] has
occurred.
3.11.3.6 Inter-TSF trusted channel (FTP_ITC.1)
FTP_ITC.1.1/ SCA DTBS
The TSF shall provide a communication channel between itself and another trusted IT product that is logically
distinct from other communication channels and provides assured identification of its end points and protection of
the channel data from modification or disclosure.
FTP_ITC.1.2/ SCA DTBS
The TSF shall permit [the TSF] to initiate communication via the trusted channel.
FTP_ITC.1.3/ SCA DTBS
The TSF shall initiate communication via the trusted channel for [signing DTBS-representation by means of the
SSCD]
3.11.3.7 Trusted path (FTP_TRP.1)
The trusted path between the TOE and the SCA will be required only if the human interface for user
authentication is not provided by the TOE itself but by the SCA.
FTP_TRP.1.1/ SCA
The TSF shall provide a communication path between itself and [local] users that is logically distinct from other
communication paths and provides assured identification of its end points and protection of the communicated
data from [modification or disclosure].
FTP_TRP.1.2/ SCA
The TSF shall permit [the TSF or local users] to initiate communication via the trusted path.
FTP_TRP.1.3/ SCA
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
84/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
The TSF shall require the use of the trusted path for [initial user authentication].
3.11.4 Interface Device (IFD)
3.11.4.1 Cryptographic key generation (FCS_CKM.1)
FCS CKM.1.1 / Authentication keys
The TSF shall generate cryptographic keys in accordance with a specified cryptographic key generation algorithm
[RSA key generation] and specified cryptographic key sizes [1024 bits or 1536 bits or 2048 bits] that meet the
[ANSI X9.31]
3.12 Security requirements for the Administrator
This section describes the Administrator security requirements that are to be met when they use cryptographic
mean to authenticate themselves.
3.12.1.1 Cryptographic operation (FCS_COP.1)
FCS_COP.1.1/ Data hashing
The TSF shall perform [data hashing] in accordance with a specified cryptographic algorithm [SHA-1 and SHA256] and cryptographic key sizes [none] that meet the following: [FIPS 140-2].
FCS_COP.1.1/ Symmetric Role Authentication
The TSF shall perform [Symmetric Role Authentication] in accordance with a specified cryptographic algorithm
[based on Triple DES] and cryptographic key sizes [128 bits] that meet the following: [IASECC].
FCS_COP.1.1/ Certificate computation
The TSF shall perform [Certificate computation] in accordance with a specified cryptographic algorithm [RSA
with ISO9796-2 padding with partial recovery and with SHA-1 or SHA-256] and cryptographic key sizes [1024
bits, 1536 bits or 2048 bits] that meet the following: [IASECC].
FCS_COP.1.1/ Asymmetric Role Authentication
The TSF shall perform [Asymmetric Role Authentication] in accordance with a specified cryptographic
algorithm [RSA with ISO9796-2 padding with partial recovery and with SHA-1 or SHA-256] and cryptographic
key sizes [1024 bits, 1536 bits or 2048 bits] that meet the following: [IASECC].
3.13 Security requirements for the Personalizer and TOE_Administrator
This section describes the Personalizer and TOE_Administrator security requirements that are to be met as they
use cryptographic mean to authenticate themselves.
3.13.1.1 Cryptographic operation (FCS_COP.1)
FCS_COP.1.1/ GP Authentication
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
85/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
The TSF shall perform [GP Authentication] in accordance with a specified cryptographic algorithm [assignment:
cryptographic algorithm] and cryptographic key sizes [128 bits] that meet the following: [assignment: list of
standards].
Refinement:
cryptographic algorithm
Triple DES
list of standards
SCP1 and SCP02 as defined in [GP]
Application Note: The type of algorithm used by the TOE depends on the configuration set during the
platform personalisation (For more details see [AGD_PRE_PLATFORM]. The algorithm selection is
performed by the subject R.Prepersonalizer and is covered by FMT_MTD.1/JCRE
3.14 Security requirements for the non-IT environment
3.14.1 Standard security requirements
R.Administrator_Guide Application of Administrator Guidance
The implementation of the requirements of the Directive, ANNEX II "Requirements for certification serviceproviders issuing qualified certificates", literal (e), stipulates employees of the CSP or other relevant entities to
follow the administrator guidance provided for the TOE. Appropriate supervision of the CSP or other relevant
entities shall ensure the ongoing compliance.
R.Sigy_Guide
Application of User Guidance
The SCP implementation of the requirements of the Directive, ANNEX II "Requirements for certification serviceproviders issuing qualified certificates", literal (k), stipulates the signatory to follow the user guidance provided
for the TOE.
R.Sigy_Name
Signatory's name in the Qualified Certificate
The CSP shall verify the identity of the person to which a qualified certificate is issued according to the Directive
[1], ANNEX II "Requirements for certification-service-providers issuing qualified certificates", literal (d). The CSP
shall verify that this person holds the SSCD, which implements the SCD corresponding to the SVD to be included
3.14.2 Complementary security requirements
R.Keys_Protection
Protection of the authentication keys and TOE’s public authentication keys during transfer
The environment shall ensure the protection of authentication keys when transferred to the TOE in order to
protect it from disclosure and ensure they are not modified nor altered. The TOE’s public authentication key shall
be protected against modification when exported from the TOE to the outside when an authentication certificate
request is made.
R.Contactless_Personalization Specific rules when used in contactless
When the TOE is used in contactless, the entity in charge of issuing the TOE (the Personalizer) shall ensure the
security policy applied to protect the identification data (stored in the TOE) is restrictive. The TOE shall either
refuse the access, or mandate the authentication of the outside. When exchanged, the data shall be protected in
confidentiality and authenticate the sender.
Furthermore, if another applet is loaded on the javacard open platform, the entity in charge of issuing the TOE
shall make sure the applet does not endanger the privacy of the TOE by enabling it to be tracked. It shall either
control the applet behaviour, either ban it.
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
86/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
This requirement applies to
• The manufacturer, if the applet is loaded in phase 5
• The personaliser, if the applet is loaded in phase 6 while DAP is not activated
• The DAP_Admin, if the applet is loaded while DAP control is activated
R.LinkBetweenSCDandCertificate
Link between the SCD(s) stored in the TOE and qualified certificates
The environment shall ensure at any time a valid link between the SCD(s) stored in the TOE and the matching
(qualified) certificates. Each time the SCD is modified (by import or generation), an unambiguous link between
the SCD(s) and the matching (qualified) certificate(s) shall be maintained. This link might be figured out by a
PKCS#15 structures, an XML structure, an identifier .linking a SCD to the file containing the qualified certificate
or the URL hosting them. In particular, it implies it is updated, each time the SCD is created, imported, erased or
generated.
R.TOE_Construction
Construction of the TOE
The Construction of the TOE shall be done by the Personalization Agent who acts in phase 6 of the TOE life
Cycle. The Personalization Agent shall be a trusted person and shall apply the recommendations indicated in
[AGD_PRE].
4
TOE summary specification
4.1
Security function of the TOE
4.1.1
Security functions provided by the javacard open platform
All the security functions provided by the javacard open platform are described in [ST_PLATFORM].
They are listed in the following table.
Security function
SF_Firewall
SF_Card_Content_Management
SF_Card_Management_Environment
SF_Signature
SF_Encryption_and_Decryption
SF_Message_Digest_Generation
SF_Random_Number_Generation
SF_Key_Destruction
SF_data_integrity
SF_Clearing_of_Sensitive_Information
SF_Atomic_Transactions
SF_Key_Generation
SF_Key_Distribution
SF_Cardholder_Verification
SF_Hardware_Operating
Description
Firewall Security policy
Control of loading, deletion and installation of
applet and packages
Initialization and management of internal data
structure of the Card Manager
Generation/Verification of signature
Encryption/Decryption of Data
Message Digest computation
Random number generation
Destruction of keys
Integrity of keys, PIN, packages, …
Clearing of sensitive data when not used anymore
Execution of atomic operations
Generation of Asymmetric keys
Distribution of keys
Authentication of the cardholder with PIN
Hardware self tests at start up or before first use
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
87/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
SF_Memory_failure
SF_Data_Coherency
SF_Exception
SF_DAP_Verification
SF_TOKEN
SF_Manufacturer_Authentication
SF_Resident_Application_Dispatcher
SF_Entity_Authentication/Secure_Channel
SF_GP_Dispatcher
SF_KEY_MANAGEMENT
SF_Security_Functions_of_the IC
SF_Unobservability
SF_Prepersonalization
SF_Key_Access
SF_Key_Agreement
4.1.2
Management of non volatile memory
Transaction mechanism
Management of abnormal execution
DAP verification for applet loading
Validity of card content management
Authentication of the manufacturer agent
Control of security level when communicating with
resident application
GP Secure Channel management
Control of security level when communicating with
the Card manager
Management of the keys of the Card Manager
Security function of the IC
Unobservability of secure element processing
Prepersonalization of the TOE
Secure Access to keys and PINs
Key agreement
Security functions added by the composite TOE
The TOE provides the following security functions on top of the one provided by the underlying javacard open
platform.
Security function
SF.PIN_MGT
SF.SIG
SF.DEV_AUTH
SF.ADM_AUTH
SF.SM
SF.KEY_MGT
SF.CONF
SF.ESERVICE
SF.EAVESDROPPING_PROTECTION
SF.SAFESTATE_MGT
SF.PHYS
Description
PIN Management
Signature Computation
Device Authentication
Administrator Authentication
Secure messaging
Key Management
Configuration of TOE
Execution of eServices
Protection of communication against
eavesdropping (when the TOE is used in
contactless)
Safe State Management
Physical protection
SF.PIN_MGT
This security function is involved in the PIN (RAD) management. In particular, it provides access control over the
creation, update, reset and verification of the PIN, depending on the subject and the life cycle state.
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
88/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
In phase 6, this security function only allows the RAD(s) to be created and its value to be loaded in an encrypted
way by the Personalizer Agent. It can not be checked.
In phase 7, this security function enables to create the RAD, to verify, unblock, and change the RAD according to
the security policies set at RAD creation
This security function enables to authenticate the subject Signatory and Administrator (if it is authenticated with
a RAD). It manages as well an error counter for each RAD, ensuring protection against brute force attacks.
This security function ensures the deallocation of the RAD when it is updated and of the VAD when it is sent to
the TOE for checking
This security function enables the RAD management either directly through the IAS ECC applet with APDU
command, or through shared interfaces. The shared interfaces enable, other applets loaded on the javacard open
platform to use the services provided by the security function.
However, in any case, whether shared interfaces or APDU commands are used, the same security policy is
applied to access RAD management features.
SF.SIG
This security function manages the signature computation.
In phase 6, it ensures the Personalizer Agent can not sign on behalf of the Signatory
In phase 7, it enforces the correct security policy for the DTBS import and for the signature computation,
depending on the subjects
It performs the signature computation and ensures the SCD and SVD correspond.
SF.DEV_AUTH
This security function manage the (mutual) device authentication between the TOE and a remote IT. It is only
active in phase 7.
It enables the TOE to establish a trusted channel with remote IT entities such as the SCA, the CGA, the SSCD type
1 and the IFD. The device authentication may be either realized with symmetric or asymmetric scheme.
This security function ensures the mutual authentication of both entities (TOE and remote IT entity). Upon
successful authentication, it computes a shared secret (called the seed) used by SF.SM to generate the session key
to ensure the protection in integrity and confidentiality of the data exchanged. This seed is computed from
random numbers partly generated by the TOE, partly generated by the remote IT.
This security function manages as well an error counter for each key used for the authentication of the remote IT
entity.
This security function ensures the deallocation of
• the authentication cryptogram received once processed
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
89/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
•
in case the asymmetric scheme is used, it ensures as well the deallocation of the ephemeral public keys
extracted form the certificates processed by the TOE after use
SF.ADM_AUTH
This security function enables the TOE to authenticate external entities. It is active in phase 6 and 7.
In phase 6, it enables the TOE to authenticate the Personalization Agent and in phase 7, it enables to authenticate
the TOE_Administrator, and the Administrator.
The authentication of the Administrator may be either realized with symmetric or asymmetric scheme.
This security function manages as well an error counter for each key used for the authentication of the external
entity.
This security function ensures the deallocation of
• the authentication cryptogram received once processed
• in case the asymmetric scheme is used, it ensures as well the deallocation of the ephemeral public keys
extracted form the certificates processed by the TOE after use
SF.SM
This security function applies only in phase 7. It ensures the protection of communication between the TOE and
Remote IT entities.
This security function requires the TOE and the entity between which a trusted channel shall be established to be
authenticated with SF.DEV_AUTH.
This security function ensures the following properties:
• The TOE can detect any modification or deletion when receiving data
• The incoming data are protected against disclosure
• The TOE can return data in a manner protected from modification and deletion
• The TOE can return data in a manner protected against disclosure
• Upon reception of the data, the recipient can check the data were issued by the expected sender
(authenticated by SF.DEV_AUTH).
The integrity and confidentiality of data exchanged are ensured by cryptographic means: data are encrypted and
their integrity is ensured by a MAC computed with session keys.
This security function builds session keys from the seed computed by SF.DEV_AUTH. These session keys are
ephemeral and unique as the seed is computed from random numbers generated by the TOE and the external
entity. In order to ensure a protection against replay attacks, the MAC is computed from an ICV which is
generated randomly by the TOE and by the external entity once the device authentication is successful.
When the secure messaging session is closed or when an error is detected by the TOE, the session keys and the
ICV are erased.
SF.KEY_MGT
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
90/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
This security function applies in phase 6 & 7. It provides the mean to
• Create any kind of keys and the DH parameters
• generate asymmetric key pairs (used for signature computation or TOE authentication)
• update the keys (symmetric key used for authentication of external entity, SCD/SVD, eServices keys,
asymmetric keys for TOE’s authentication) and the DH Domain parameters
• export the SVD and the TOE’s authentication public key
It provides access control over these operations and means to set at creation the relevant security policy to apply
for the key use.
In particular, in case of SCD/SVD key pair update (by import or generation), this security function ensures the
“SCD operational” state is reset.
When a key value is updated (by import or generation), the former key value is destroyed.
SF.CONF
This security function applies in phase 6 & 7. It manages the initialization of TSF data and administration features
of the TOE.
It provides access control on the modification of the following TOE attributes:
• Communication medium : contact and/or contactless
• Type of cryptography to be used for the remote IT entities and remote subject authentication (symmetric
or asymmetric)
• Type of DTBS to be used: the DTBS representation fully computed outside the TOE may be used.
Only the Personalization Agent can modify them in phase 6, and the TOE_Administrator in phase 7.
It restricts the initialization of the following TSF data to the Personalization Agent/Manufacturing Agent only:
• TOE serial number – shall be initialized in phase 6 by the Personalization Agent
• identification data of the TOE – Retrieval can be locked in phase 5 by the Manufacturing or
Personalization Agent
• TOE State – it shall be set at the end of phase 6 to PERSONNALIZED by the Personalization Agent
SF.ESERVICE
This security function applies in phase 7. It enables to perform eservices such as
• C/S authentication
• Decryption key decipherment
• Certificate verification
SF.EAVESDROPPING_PROTECTION
This security function applies in phase 7. It enables to ensure protection of sensitive data against eavesdropping
when the TOE is used in contactless.
This security function requires P.SecurityPolicy_Contactless to be applied.
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
91/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
It enforces the keys, the PIN (RAD and VAD) as well as the identification data to be transferred through a trusted
channel established with an interface device.
SF.SAFESTATE_MGT
This security function applies in phase 6 & 7. It performs the following operations:
• Monitoring the integrity of the TOE and the TSF data by performing selftests
• Ensuring the TOE returns in a safe state when an unexpected event occurs (loss of power, tearing,…): all
sensitive data are erased and the TOE returns in a restrictive and secure state.
In case a major error is detected, the security function destroys the TOE.
SF.PHYS
This security function applies in phase 6 & 7. It ensures
• the TOE detects physical manipulation (I/O manipulation, EM perturbation, temperature
perturbation,…) and takes countermeasures.
• The TOE is protected against probing and that there is no information leakage that my be used to
reconstruct sensitive data
In case a major error is detected, the security function destroys the TOE.
4.1.3
Composition with the Security functions provided of the javacard Open platform
The .following table shows how the security functions of the Composite TOE are supported by the security
functions of the underlying javacard open platform:
Security function
SF.PIN_MGT
SF.SIG
SF.DEV_AUTH
SF.ADM_AUTH
Depends on
SF_Cardholder_Verification
SF_Clearing_of_Sensitive_Information
SF_Key_Access
SF_Clearing_of_Sensitive_Information
SF_Message_Digest_Generation
SF_Encryption_and_Decryption
SF_Key_Access
SF_Clearing_of_Sensitive_Information
SF_Key_Destruction
SF_Random_Number_Generation
SF_Message_Digest_Generation
SF_Encryption_and_Decryption
SF_Signature
SF_Key_Access
SF_KEY_MANAGEMENT
SF_Entity_Authentication/Secure_Channel
SF_Clearing_of_Sensitive_Information
SF_Key_Destruction
SF_Random_Number_Generation
SF_Message_Digest_Generation
SF_Encryption_and_Decryption
SF_Signature
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
92/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
SF.SM
SF.KEY_MGT
SF.CONF
SF.ESERVICE
SF.EAVESDROPPING_PROTECTION
SF.SAFESTATE_MGT
SF.PHYS
4.1.4
SF_Key_Access
SF_Clearing_of_Sensitive_Information
SF_Key_Destruction
SF_Random_Number_Generation
SF_Encryption_and_Decryption
SF_Signature
SF_Key_Access
SF_Key_Generation
SF_Clearing_of_Sensitive_Information
SF_Key_Destruction
N/A
SF_Key_Access
SF_Message_Digest_Generation
SF_Encryption_and_Decryption
SF_Signature
SF_Prepersonalization
SF_Resident_Application_Dispatcher
SF_Manufacturer_Authentication
SF_Exception
SF_Data_Coherency
SF_Memory_failure
SF_Hardware_Operating
SF_Atomic_Transactions
SF_data_integrity
SF_Random_Number_Generation
SF_Signature
SF_Unobservability
SF_Security_Functions_of_the IC
Dependencies of the Security functions
This section shows that the security functions are complete and internally consistent by showing that they are
mutually supportive and provide an ‘integrated effective whole’ also with the javacard open platform, on which
it is built
ID
Security function
1
SF.PIN_MGT
2
SF.SIG
Supported by
SF_Cardholder_Verification
SF_Clearing_of_Sensitive_Information
SF.PHYS
SF.SAFESTATE_MGT
SF.EAVESDROPPING_PROTECTION
SF_Key_Access
SF_Clearing_of_Sensitive_Information
SF_Message_Digest_Generation
SF_Encryption_and_Decryption
SF.PHYS
SF.SAFESTATE_MGT
SF.EAVESDROPPING_PROTECTION
SF.CONF
SF.KEY_MGT
SF.SM
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
93/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
#25
#21
#11
#10
#9
#40
#21
#17
#16
#11
#10
#9
#7
#6
#5
3
SF.DEV_AUTH
4
SF.ADM_AUTH
5
SF.SM
6
SF.KEY_MGT
7
SF.CONF
8
SF.ESERVICE
9
SF.EAVESDROPPING_PROTECTION
SF_Key_Access
SF_Clearing_of_Sensitive_Information
SF_Key_Destruction
SF_Random_Number_Generation
SF_Message_Digest_Generation
SF_Encryption_and_Decryption
SF_Signature
SF.SAFESTATE_MGT
SF.PHYS
SF.CONF
SF.KEY_MGT
SF_Key_Access
SF_KEY_MANAGEMENT
SF_Entity_Authentication/Secure_Channel
SF_Clearing_of_Sensitive_Information
SF_Key_Destruction
SF_Random_Number_Generation
SF_Message_Digest_Generation
SF_Encryption_and_Decryption
SF_Signature
SF.PHYS
SF.SAFESTATE_MGT
SF.CONF
SF.KEY_MGT
SF_Key_Access
SF_Clearing_of_Sensitive_Information
SF_Key_Destruction
SF_Random_Number_Generation
SF_Encryption_and_Decryption
SF_Signature
SF.PHYS
SF.SAFESTATE_MGT
SF.DEV_AUTH
SF_Key_Access
SF_Key_Generation
SF_Clearing_of_Sensitive_Information
SF_Key_Destruction
SF.PHYS
SF.SAFESTATE_MGT
SF.EAVESDROPPING_PROTECTION
SF.SM
SF.PHYS
SF.SAFESTATE_MGT
SF_Key_Access
SF_Message_Digest_Generation
SF_Encryption_and_Decryption
SF_Signature
SF.PHYS
SF.SAFESTATE_MGT
SF.EAVESDROPPING_PROTECTION
SF_Prepersonalization
SF_Resident_Application_Dispatcher
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
94/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
#40
#21
#19
#18
#17
#16
#15
#11
#10
#7
#6
#40
#36
#34
#21
#19
#18
#17
#16
#15
#11
#10
#7
#6
#40
#21
#19
#18
#16
#15
#11
#10
#3
#40
#23
#21
#19
#11
#10
#9
#5
#11
#10
#40
#17
#16
#15
#11
#10
#9
#39
#33
10
SF.SAFESTATE_MGT
11
SF.PHYS
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
SF_Firewall
SF_Card_Content_Management
SF_Card_Management_Environment
SF_Signature
SF_Encryption_and_Decryption
SF_Message_Digest_Generation
SF_Random_Number_Generation
SF_Key_Destruction
SF_data_integrity
SF_Clearing_of_Sensitive_Information
SF_Atomic_Transactions
SF_Key_Generation
SF_Key_Distribution
SF_Cardholder_Verification
SF_Hardware_Operating
SF_Memory_failure
SF_Data_Coherency
SF_Exception
SF_DAP_Verification
SF_TOKEN
SF_Manufacturer_Authentication
SF_Resident_Application_Dispatcher
SF_Entity_Authentication/Secure_Channel
SF_GP_Dispatcher
SF_KEY_MANAGEMENT
SF_Security_Functions_of_the IC
SF_Unobservability
SF_Prepersonalization
SF_Key_Access
SF_Key_Agreement
SF_Manufacturer_Authentication
SF.PHYS
SF.SAFESTATE_MGT
SF.CONF
SF.SM
SF_Exception
SF_Data_Coherency
SF_Memory_failure
SF_Hardware_Operating
SF_Atomic_Transactions
SF_data_integrity
SF_Random_Number_Generation
SF_Signature
SF.PHYS
SF_Unobservability
SF_Security_Functions_of_the IC
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
95/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
#32
#11
#10
#7
#5
#29
#28
#27
#26
#22
#20
#18
#15
#11
#38
#37
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
4.2
Security assurance requirements
This chapter defines the list of the assurance measures required for the TOE security assurance requirements. The
EAL4+ is claimed.
4.2.1
Evaluation Assurance Level rationale
The following assurance packages are required:
Measure
AM_ADV
AM_AGD
AM_ALC
AM_ASE
AM_ATE
AM_VAN
4.2.2
Name
Development
Guidance
Life Cycle
Security target
Tests
Vulnerability
ADV : Development
The following components are included:
Component
ADV_ARC
ADV_FSP
ADV_IMP
ADV_INT
ADV_SPM
ADV_TDS
4.2.3
Level
1
4
1
N/A
N/A
3
AGD : Guidance
The following components are included:
Component
AGD_OPE
AGD_PRE
4.2.4
Level
1
1
ALC : Life Cycle
The following components are included:
Component
ALC_CMC
ALC_CMS
ALC_DEL
ALC_DVS
ALC_FLR
ALC_LCD
ALC_TAT
Level
4
4
1
2 – enhanced component
N/A
1
1
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
96/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
Note : ALC_DVS is enhanced
4.2.5
ASE : Security target
The following components are included:
Component
ASE_CCL
ASE_ECD
ASE_INT
ASE_OBJ
ASE_REQ
ASE_SPD
ASE_TSS
4.2.6
Level
1
1
1
2
2
1
1
ATE : Tests
The following components are included:
Component
ATE_COV
ATE_DPT
ATE_FUN
ATE_IND
Level
2
2 – enhanced component
1
2
Note : ATE_DPT is enhanced
4.2.7
AVA : Vulnerability Analysis
The following component is included:
Component
AVA_VAN
Level
5 –enhanced component
Note : AVA_VAN is enhanced
4.3
4.3.1
EAL augmentations rationale
AVA_VAN.5 Advanced methodical vulnerability analysis
Due to the definition of the TOE, it must be shown to be highly resistant to penetration attacks. This assurance
requirement is achieved by the AVA_VAN.5 component. Independent vulnerability analysis is based on highly
detailed technical information. The attacker is assumed to be thoroughly familiar with the specific
implementation of the TOE. The attacker is presumed to have a high level of technical sophistication.
AVA_VAN.5 has dependencies:
• ADV_ARC.1
• ADV_FSP.4
• ADV_TDS.3
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
97/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
•
•
•
•
ADV_IMP.1
AGD_OPE.1
AGD_PRE.1
ATE_DPT.1
All these dependencies are fulfilled.
4.3.2
ALC_DVS.2 Sufficiency of security measures
In order to protect the TOE on development Phase, the component ALC_DVS.2 was added. This latter requires
security documentation justifying that the security measures provide the necessary level of protection to maintain
the confidentiality and integrity of the TOE.
4.3.3
ATE_DPT.2 Testing: security enforcing modules
The selection of the component ATE_DPT.2 provides a higher assurance than the predefined EAL4 package due
to requiring the functional testing of SFR-enforcing modules.
ATE_DPT.2 has dependencies:
• ADV_ARC.1
• ADV_TDS.3
• ATE_FUN.1
All these dependencies are fulfilled.
5
Conformance Claims
5.1
Conformance Claim to CC
This Security Target claims conformance to CC version 3.1 with the following documents:
• "Common Criteria for information Technology Security Evaluation, Part 1: Introduction and general
model", September 2012, Version 3.1 revision 4
• "Common Criteria for information Technology Security Evaluation, Part 2: Security Functional
requirements", September 2012, Version 3.1 revision 4
• "Common Criteria for information Technology Security Evaluation, Part 3: Security Assurance
requirements", September 2012, Version 3.1 revision 4
Conformance is claimed as follows:
• Part 1: conformant
• Part 2: extended with the FCS_RNG.1 and FPT_EMSEC.1. All the other Security requirements have been
drawn from the catalogue of requirements in Part 2
• Part 3: conformant EAL4 augmented with ALC_DVS.2, ATE_DPT.2, and AVA_VAN.5.
5.2
Protection Profile reference
This Security Target claims conformance with the following protection profiles
• Protection Profile «Secure Signature Creation Device Type 2, version 1.04», reference BSI-PP-0005-2002.
• Protection Profile «Secure Signature Creation Device Type 3, version 1.05», reference BSI-PP-0006-2002.
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
98/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
5.3
Conformance Claim rationale
The TOE described in this Security target is conformant with the TOE type described in [SSCD2] and [SSCD3].
The security problem definition of this Security Target is consistent with the one defined in [SSCD2] and [SSCD3]
as it was extracted from them.
The TOE claims a demonstrable conformance
However the security problem definition was extended to consider the following behaviour of the TOE
• the various authentication features
• the management of keys
• the life cycle management which separates the phase 6 (under the personalization Agent control) and the
phase 7
5.3.1
Rationale for TOE objectives
All the TOE objectives described in [SSCD2] and [SSCD3] are included. The following ones are added:
• OT.Authentication_Secure : The TOE enable secure authentication of itself and external entities
• OT.Privacy_Contactless : When used in contactless, the TOE ensures privacy of data
• OT.SCD/SVD_Management : The TOE does not consider only one couple SCD/SVD but considers
several that may be created, erased and loaded all along the TOE life cycle
• OT.Key_Lifecycle_Security ; The Toe protects the authentication and eServices keys all over its life cycle
• OT.Key_Secrecy : The TOE ensures the secrecy of the authentication and eServices keys
• OT.TOE_AuthKey_Unique : When the TOE generates an asymmetric key pair used to authenticate itself,
it ensures it will be unique
• OT.LifeCycle_Management : The Life cycle of the TOE is splitted in two phases : the first one in which
the TOE is under the Personalization Agent control and during which data are loaded in the TOE and
during which the TOE can not sign, and the second one in which the TOE can be used by the Signatory to
sign
• OT.eServices : The TOE realize eServices
None of these new objectives interfere with the security problem definition stated by [SSCD2] and [SSCD3].
5.3.2
Rationale for threats
All the threats present in [SSCD2] and [SSCD3] are included. The following ones are added:
• T.TOE_ID_Contactless : Identification of the TOE when used in contactless
• T.Skimming_Contactless : Skimming of the TOE when used in contactless
• T.Eavesdropping_Contactless : Eavesdropping of the communication when used in contactless
• T.Key_Divulg : Divulgation of an authentication of eService key
• T.Key_Derive : Derivation of an authentication of eServices key
• T.TOE_PublicAuthKey_Forgery : Forgery of the authentication public key of the TOE
• T.Authentication_Replay : replay of an authentication protocol
Moreover, T.Hack_Phys is extended to address all the threats over the keys stored in the TOE (SCD, SVD,
authentication keys and eServices keys)
None of these new threats interfere with the security problem definition stated by [SSCD2] and [SSCD3].
[email protected]erthur.com | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
99/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
5.3.3
Rationale for Assumptions
No assumptions were added
5.3.4
Rationale for Organisational Security Policies
All the OSPs present in [SSCD2] and [SSCD3] are included. The following ones are added:
• P.EMSEC_Design : The development of the TOE was made in order to avoid any exploitable information
leakage
• P.SecurityPolicy_Contactless :If the TOE is to be used in contactless, a relevant security policy shall be
set to protect TOE against traceability and to protect it from skimming.
• P.LinkSCD_QualifiedCertificate : there shall exist a link between the SCD used to create the signature
and the matching qualified certificate
• P.ControlOfAppletToBeLoaded_Contactless : the other applets that might be present shall not enable to
trace the TOE when used in contactless
• P.TOE_PublicAuthKey_Cert : the TOE contains certificate enabling to use the authentication features of
the TOE.
• P.TOE_Construction : the recommendations indicated in [AGD_PRE] shall be applied to ensure the
correct construction of the TOE. This OSP is just added for conformance reasons and does not modify the
SPD
None of these new OSPs interfere with the security problem definition stated by [SSCD2] and [SSCD3].
5.3.5
Rationale for Environment objectives
All the Environment objectives present in [SSCD2] and [SSCD3] are included. The following ones are added:
• OE.AuthKey_Transfer : the environment ensures the confidentiality and integrity of the authentication
keys when transferred in the TOE
• OE.AuthKey_Unique : the environment ensures the uniqueness of each TOE authentication keys loaded
in the TOE
• OE.TOE_PublicAuthKey_Transfer : the environment ensures the authenticity of the authentication
public keys when transferred from the TOE
• OE.SecurityPolicy_Contactless : The security policy applied by the environment on sensitive data that
may be accessed in contactless is correctly defined
• OE.LinkSCD_QualifiedCertificate : The environment ensures that when the SCD is updated, the link
with the qualified certificate is maintained
• OE.ControlOfAppletToBeLoaded_Contactless : When an applet is loaded on the javacard open
platform, the applet shall ensure the privacy of the TOE (no tracking)
• OE.TOE_Construction : the Personalization Agent shall be a trusted person and be skilled enough to
apply the recommendations indicated in [AGD_PRE]. This OE is just added for conformance reasons and
does not modify the SPD.
None of these new environment objectives interfere with the security problem definition stated by [SSCD2] and
[SSCD3].
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
100/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
5.3.6
Rationale for Security requirements
Security requirement of the {SSCD2] and {SSCD3] are defined in this Security target. However, as they are based
on previous Common Criteria version (v2.1), some requirements are adapted to CC v3.1 (mainly wording) as well
as some dependencies that were modified. In particular, FPT_AMT is replaced by FPT_TEE in CC v3.1.
In the case of the TOE, FPT_TEE is non applicable. With respect to the definition of this SFR, it implies the TOE to
perform test on external entities. However, as the TOE does not rely on any external mechanisms to realize the
security services and as all the security features are present in the TOE scope, this SFR is non applicable and is
withdrawn from the current security target.
Moreover, due to compliance with the CC v3.1, FMT_SMF.1 is added in this current security target
5.4
5.4.1
Security Objectives rationale
Security Objectives coverage
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
101/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
T.Hack_Phys
T.SCD_Divulg
T.SVD_Forgery
T.DTBS_Forgery
T.SigF_Misuse
FQR 110 6731 Ed1 – August 22 2013
th
X
X
X X
T.SCD_Derive
T.Sig_Forgery
X X X X X X X
T.Sig_Repud
X X X X X X X
X
X
X
X
X
X
T.Skimming_Contactless
T.Key_Derive
T.Authentication_Replay
X X
X X X X X
X
X
X X
T.TOE_ID_Contactless
T.Eavesdropping_Contactless
T.Key_Divulg
X
A.CGA
A.SCA
X X
X
X X X X X
X
X
X
X X
X
T.TOE_PublicAuthKey_Forgery
X
X X
X
[email protected] | www.oberthur.com
102/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner.
OE.AuthKey_Unique
OE.AuthKey_Transfer
OE.SCA_Data_Intend
OE.HI_VAD
OE.SVD_Auth_CGA
OE.CGA_QCert
OE.SCD_Unique
OE.SCD_Transfer
OE.SCD_SVD_Corresp
OT.eServices
OT.LifeCycle_Management
OT.TOE_AuthKey_Unique
OT.Key_Secrecy
OT.Key_LifeCycle_Security
OT.SCD/SVD_Management
OT.Privacy_Contactless
OT.Authentication_Secure
OT.Sig_Secure
OT.Sigy_SigF
OT.DTBS_Integrity_TOE
OT.SCD_Transfer
OT.SCD_Unique
OT.Init
OT.Tamper_Resistance
OT.Tamper_ID
OT.SVD_Auth_TOE
OT_SCD_SVD_Corresp
OT_SCD_Secrecy
OT.Lifecycle_Security
OT.EMSEC_Design
X
X
X
X
X
X
X X
X
X
X
X
X
X X
X
OE.TOE_Construction
Contactless
OE.ControlOfAppletToBeLoaded_
OE.LinkSCD_QualifiedCertificate
OE.SecurityPolicy_Contactless
OE.TOE_PublicAuthKey_Transfer
X
X X X
A.SCD_Generate
X
P.CSP_QCert
X
X
X X
P.QSign
X X
P.Sigy_SSCD
X
X
X
X
X
P.EMSEC_Design
X
P.SecurityPolicy_Contactless
X
X
P.LinkSCD_QualifiedCertificate
X
P.ControlOfAppletToBeLoaded_Contactless
X
P.TOE_PublicAuthKey_Cert
X
P.TOE_Construction
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
103/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner.
5.4.2
Security objectives sufficiency
In the following chapter, all refinements to the OSP, Threats and Assumptions of the [SSCD2] and [SSCD3] are
indicated in blue italic letters.
5.4.2.1 Policies and Security Objective Sufficiency
P.CSP_QCert (CSP generates qualified certificates)
establishes the qualified certificate for the signatory and provides that the SVD matches the SCD that is
implemented in the SSCD under sole control of this signatory. P.CSP_QCert is addressed by the TOE by
OT.SCD_SVD_Corresp and OE.SCD_SVD_Corresp concerning the correspondence between the SVD and the
SCD, in the TOE IT environment, by OE.CGA_QCert for generation of qualified certificates by the CGA,
respectively.
P.QSign (Qualified electronic signatures)
provides that the TOE and the SCA may be employed to sign data with qualified electronic signatures, as defined
by the Directive [1], article 5, paragraph 1. Directive [1], recital (15) refers to SSCDs to ensure the functionality of
advanced signatures. The requirement of qualified electronic signatures being based on qualified certificates is
addressed by OE.CGA_QCert. OE.SCA_Data_Intend provides that the SCA presents the DTBS to the signatory
and sends the DTBS-representation to the TOE. OT.Sig_Secure and OT.Sigy_SigF address the generation of
advanced signatures by the TOE.
P.Sigy_SSCD (TOE as secure signature-creation device)
establishes the TOE as secure signature-creation device of the signatory with practically unique SCD. This is
addressed by OT.Sigy_SigF ensuring that the SCD is under sole control of the signatory and OE.SCD_Unique
and OT.SCD_Unique ensuring the cryptographic quality of the SCD/SVD pair for the qualified electronic
signature. OT.Init provides that generation of the SCD/SVD pair is restricted to authorised users
P.EMSEC_Design (TOE designed to reduce the E.M. emanations)
ensures that all the sensitive operations that may disclose information through electromagnetic signal are
protected. In particular it ensures the memory access, the cryptographic computation, the software execution do
not emit any usable data that may be used to find any assets. It addresses OT.EMSEC_Design
P.SecurityPolicy_Contactless (Security policy definition)
ensures that the TOE identification data, the access to the RAD, the sending of the VAD is protected against
disclosure and eavesdropping. It requires these data to be exchanged through a communication channel ensuring
identification of both entity (sender and the TOE) and ensuring protection against disclosure. It is addressed by
OE.SecurityPolicy_Contactless that guarantees the correct security policy is set to objects/files and by
OT.Privacy_Contactless that ensures the TOE does apply this security policy.
P.LinkSCD_QualifiedCertificate (Link between a SCD and its qualified certificate)
ensures that the SCA can unambiguously find the qualified certificate matching a SCD chosen to perform a SDO.
It is addressed by OE.LinkSCD_QualifiedCertificate that ensures a link between the SCD and a unique
identifier within the TOE file structure
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
104/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
P.ControlOfAppletToBeLoaded_Contactless (Control of the other applet that may be used on the javacard open
platform)
ensures that there is no malicious applet loaded in the TOE that may be used to trace it (by emitting a unique
identifier for instance) in case it is used in contactless mode. This is the responsibility of the SSCD Service
provider
to
control
the
applet
loaded
in
the
TOE.
It
is
addressed
by
OE.ControlOfAppletToBeLoaded_Contactless .
P.TOE_PublicAuthKey_Cert (Certificate for asymmetric TOE authentication keys)
ensures that each private key(s) of the TOE for authentication matches the public key stored within the relevant
certificate issued by an entitled entity. The authentication public key is exported thanks to
OE.TOE_PublicAuthKey_Transfer.
P.TOE_Construction (TOE construction)
ensures that all the recommendations indicated in [AGD_PRE] are applied. It is addressed by
OE.TOE_Construction.
5.4.2.2 Threats and Security Objective Sufficiency
T.Hack_Phys (Exploitation of physical vulnerabilities)
deals with physical attacks exploiting physical vulnerabilities of the TOE. OT.SCD_Secrecy preserves the secrecy
of the SCD, OT.Key_Secrecy preserves the secrecy of all the authentication and eServices keys stored in the TOE. Physical
attacks through the TOE interfaces or observation of TOE emanations are countered by OT.EMSEC_Design.
OT.Tamper_ID and OT.Tamper_Resistance counter the threat T.Hack_Phys by detecting and by resisting
tamper attacks.
T.SCD_Divulg (Storing and copying and releasing of the signature-creation data)
addresses the threat against the legal validity of electronic signature due to storage and copying of SCD outside
the TOE, as expressed in the Directive [1], recital (18). This threat is countered by OT.SCD_Secrecy which assures
the secrecy of the SCD used for signature generation. OT.SCD_Transfer and OE.SCD_Transfer ensures the
confidentiality of the SCD transferred between SSCDs.
T.SCD_Derive (Derive the signature-creation data)
deals with attacks on the SCD via public known data produced by the TOE. This threat is countered by
OE.SCD_Unique (in case of SCD import) and OT.SCD_Unique (in case of key generation) that provides
cryptographic secure generation of the SCD/SVD-pair. OT.Sig_Secure ensures cryptographic secure electronic
signatures.
T.Sig_Forgery (Forgery of the electronic signature)
deals with non-detectable forgery of the electronic signature. This threat is in general addressed by
OT.Sig_Secure (Cryptographic security of the electronic signature), OE.SCA_Data_Intend (SCA sends
representation of data intended to be signed), OE.CGA_QCert (Generation of qualified certificates),
OT.SCD_SVD_Corresp and OE.SCD_SVD_Corresp (Correspondence between SVD and SCD),
OT.SVD_Auth_TOE (TOE ensures authenticity of the SVD), OE.SVD_Auth_CGA (CGA proves the authenticity
of the SVD), OT.SCD_Secrecy and OT.SCD_Transfer (Secrecy of the signature-creation data), OT.SCD_Transfer
(Secure transfer of SCD between SSCD), OT.EMSEC_Design (Provide physical emanations security),
OT.Tamper_ID (Tamper detection), OT.Tamper_Resistance (Tamper resistance) and OT.Lifecycle_Security
(Lifecycle security), as follows: OT.Sig_Secure ensures by means of robust encryption techniques that the signed
data and the electronic signature are securely linked together. OE.SCA_Data_Intend provides that the methods
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
105/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
used by the SCA (and therefore by the verifier) for the generation of the DTBS-representation is appropriate for
the cryptographic methods employed to generate the electronic signature. The combination of OE.CGA_QCert,
OT.SCD_SVD_Corresp, OT.SVD_Auth_TOE, and OE.SVD_Auth_CGA provides the integrity and authenticity
of the SVD that is used by the signature verification process. OT.Sig_Secure, OT.SCD_Secrecy,
OT.SCD_Transfer, OT.EMSEC_Design, OT.Tamper_ID, OT.Tamper_Resistance, and OT.Lifecycle_Security
ensure the confidentiality of the SCD implemented in the signatory's SSCD and thus prevent forgery of the
electronic signature by means of knowledge of the SCD.
T.Sig_Repud (Repudiation of electronic signatures)
deals with the repudiation of signed data by the signatory, although the electronic signature is successfully
verified with the SVD contained in his un-revoked certificate. This threat is in general addressed by
OE.CGA_QCert (Generation of qualified certificates), OT.SVD_Auth_TOE (TOE ensures authenticity of the
SVD), OE.SVD_Auth_CGA (CGA proves the authenticity of the SVD), OT.SCD_SVD_Corresp and
OE.SCD_SVD_Corresp
(Correspondence
between
SVD
and
SCD),
OT.SCD_Unique
and
OE.SCD_Unique(Uniqueness of the signature-creation data), OT.SCD_Transfer and OE.SCD_Transfer (Secure
transfer of SCD between SSCD), OT.SCD_Secrecy (Secrecy of the signature-creation data), OT.EMSEC_Design
(Provide physical emanations security), OT.Tamper_ID (Tamper detection), OT.Tamper_Resistance (Tamper
resistance), OT.Lifecycle_Security (Lifecycle security), OT.Sigy_SigF (Signature generation function for the
legitimate signatory only), OT.Sig_Secure (Cryptographic security of the electronic signature),
OE.SCA_Data_Intend (SCA sends representation of data intended to be signed) and OT.DTBS_Integrity_TOE
(Verification of the DTBS-representation integrity). OE.CGA_QCert ensures qualified certificates which allow to
identify the signatory and thus to extract the SVD of the signatory. OE.CGA_QCert, OT.SVD_Auth_TOE and
OE.SVD_Auth_CGA ensure the integrity of the SVD. OE.CGA_QCert and OT.SCD_SVD_Corresp ensure that
the SVD in the certificate correspond to the SCD that is implemented by the SSCD of the signatory.
OT.SCD_Unique provides that the signatory’s SCD can practically occur just once. OT.Sig_Secure,
OT.SCD_Transfer, OT.SCD_Secrecy, OT.Tamper_ID, OT.Tamper_Resistance, OT.EMSEC_Design, and
OT.Lifecycle_Security ensure the confidentiality of the SCD implemented in the signatory's SSCD.
OT.Sigy_SigF provides that only the signatory may use the TOE for signature generation. OT.Sig_Secure
ensures by means of robust cryptographic techniques that valid electronic signatures may only be generated by
employing the SCD corresponding to the SVD that is used for signature verification and only for the signed data.
OE.SCA_Data_Intend and OT.DTBS_Integrity_TOE ensure that the TOE generates electronic signatures only
for DTBS-representations which the signatory has decided to sign as DTBS.
OT.LifeCycle_Management ensures that when the TOE is under the Personalizer control, it can not be misused to sign on
behalf of the legitimate Signatory.
T.SVD_Forgery (Forgery of the signature-verification data)
deals with the forgery of the SVD exported by the TOE to the CGA for the generation of the certificate.
T.SVD_Forgery is addressed by OT.SVD_Auth_TOE which ensures that the TOE sends the SVD in a verifiable
form to the CGA, as well as by OE.SVD_Auth_CGA which provides verification of SVD authenticity by the
CGA.
T.DTBS_Forgery (Forgery of the DTBS-representation)
addresses the threat arising from modifications of the DTBS-representation sent to the TOE for signing which
then does not correspond to the DTBS-representation corresponding to the DTBS the signatory intends to sign.
The TOE counters this threat by the means of OT.DTBS_Integrity_TOE by verifying the integrity of the DTBSrepresentation. The TOE IT environment addresses T.DTBS_Forgery by the means of OE.SCA_Data_Indent.
T.SigF_Misuse (Misuse of the signature-creation function of the TOE)
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
106/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
addresses the threat of misuse of the TOE signature-creation function to create Signed Data Object by others than
the signatory to create SDO for data the signatory has not decided to sign, as required by the Directive [1],Annex
III, paragraph 1, literal (c). This threat is addressed by the OT.Sigy_SigF (Signature generation function for the
legitimate signatory only), OE.SCA_Data_Intend (Data intended to be signed), OT.DTBS_Integrity_TOE
(Verification of the DTBS-representation integrity), and OE.HI_VAD (Protection of the VAD) as follows:
OT.Sigy_SigF ensures that the TOE provides the signature-generation function for the legitimate signatory only.
OE.SCA_Data_Intend ensures that the SCA sends the DTBS-representation only for data the signatory intends to
sign. The combination of OT.DTBS_Integrity_TOE and OE.SCA_Data_Intend counters the misuse of the
signature generation function by means of manipulation of the channel between the SCA and the TOE. If the SCA
provides the human interface for the user authentication, OE.HI_VAD provides confidentiality and integrity of
the VAD as needed by the authentication method employed.
OT.LifeCycle_Management ensures that when the TOE is under the Personalizer control, it can not be misused to sign on
behalf of the legitimate Signatory..
T.TOE_ID_Contactless (Identification of the TOE)
deals with the threats for the TOE to be traced when used in contactless. This threat is addressed by
OE.SecurityPolicy_Contactless that ensures that identification data stored by TOE can not be disclosed to an
unauthenticated entity, and OT.Privacy_Contactless that ensures that this security policy is enforced: sensitive
data (including the identification data) managed by the TOE are protected against retrieval by an unauthorized
entity. OE.ControlOfAppletToBeLoaded_Contactless ensures that when an applet is loaded in the javacard
open platform, it does not endanger the privacy of the TOE and of the holder.
T.Skimming_Contactless (skimming of the TOE)
deals with the threats of an attacker accessing the TOE by imitating an entitled device.
OT.Authentication_Secure ensures it is very difficult for the attacker to imitate an entitled device as the
cryptographic techniques are very resistant. OE.SecurityPolicy_Contactless ensures a suitable security policy is
applied, so that authentication of the TOE and the external entity is applied prior to access data, and that
exchanges are protected in confidentiality (for the sole recipient) and proves the authenticity of the sender.
OT.Privacy_Contactless ensures this security policy is enforced.
T.Eavesdropping_Contactless (eavesdropping of the communication)
deals with the threats of an attacker listening to communication between the TOE and a device to get sensitive
information. This is addressed by OT.Privacy_Contactless that ensures sensitive data are exchanged through an
encrypted channel with an authenticated entity.
T.Key_Divulg (storing, copying and releasing a key)
addresses the threat against the (1) authentication key of the TOE, (2) the authentication keys of entities and (3)
the eServices keys stored in the TOE due to storage and copying of key(s) outside the TOE. This threat is
countered by OT.Key_Secrecy which assures the secrecy of the keys stored and used by the TOE.
OE.AuthKey_Transfer ensures the confidentiality of the authentication keys transferred to the TOE.
OT.Key_Lifecycle_Security (Lifecycle security) ensures the secrecy of the keys stored in the TOE during the
whole life of the TOE.
T.Key_Derive (Derive a key)
deals with attacks on authentication and eServices keys via public known data produced or received by the TOE
(public key, authentication cryptogram,…). This threat is countered by OE.AuthKey_Unique (in case of import)
and OT.TOE_AuthKey_Unique (in case of TOE’s authentication key generation) that provides cryptographic
secure generation of the keys. OT.Authentication_Secure ensures secure authentication cryptograms.
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
107/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
T.TOE_PublicAuthKey_Forgery (Forgery of the public key of a TOE authentication key)
deals with the forgery of the TOE’s public key used for authentication exported by the TOE to an entitled entity
for the generation of the certificate. This is addressed by OE.TOE_PublicAuthKey_Transfer which ensures the
authenticity of the TOE’s public key for authentication.
T.Authentication_Replay (Replay of an authentication of an external entity)
deals with the threats an attacker retrieves an authentication cryptogram presented to the TOE by an entity and
present it again to the TOE is order to grant some rights in order to gain access to some data on the TOE. This is
addressed by OT.Authentication_Secure that ensures the authentication cryptogram can not be replayed as they
rely on random data internally generated by the TOE;
5.4.2.3 Assumption and Security Objective Sufficiency
A.CGA (Trustworthy certification-generation application)
establishes the protection of the authenticity of the signatory's name and the SVD in the qualified certificate by
the advanced signature of the CSP by means of the CGA. This is addressed by OE.CGA_QCert (Generation of
qualified certificates) which ensures the generation of qualified certificates and by OE.SVD_Auth_CGA (CGA
proves the authenticity of the SVD) which ensures the verification of the integrity of the received SVD and the
correspondence between the SVD and the SCD that is implemented by the SSCD of the signatory.
A.SCA (Trustworthy signature-creation application)
establishes the trustworthiness of the SCA according to the generation of DTBS-representation. This is addressed
by OE.SCA_Data_Intend (Data intended to be signed) which ensures that the SCA generates the DTBSrepresentation of the data that has been presented to the signatory as DTBS and which the signatory intends to
sign in a form which is appropriate for being signed by the TOE
A.SCD_Generate (Trustworthy SCD/SVD generation)
establishes a trustworthy SCD/SVD pair. This that the SCD must be unique, objective met by OE.SCD_Unique,
that the SCD and the SVD must correspond, objective met by OE.SCD_SVD_Corresp. The secrecy of the SCD
must be maintained while it is transferred to the TOE before being deleted, OE.SCD_Transfer.
6
Annex A : Extended Family
6.1
Definition of FPT_EMSEC
The sensitive family FPT_EMSEC (TOE Emanation) of the Class FPT (Protection of the TSF) is defined here to
describe the IT security functional requirements of the TOE. The TOE shall prevent attacks against the TOE and
other secret data where the attack is based on external observable physical phenomena of the TOE. Examples of
such attacks are evaluation of TOE’s electromagnetic radiation, simple power analysis (SPA), differential power
analysis (DPA), timing attacks, etc. This family describes the functional requirements for the limitation of
intelligible emanations which are not directly addressed by any other component of CC part 2.
The family “TOE Emanation (FPT_EMSEC)” is specified as follows.
[email protected] | www.oberthur.com
th
FQR 110 6731 Ed1 – August 22 2013
108/109
Copyright 2013 © All rights of Oberthur Technologies are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
Family behaviour
This family defines requirements to mitigate intelligible emanations.
Component levelling:
FPT_EMSEC TOE emanation
1
FPT_EMSEC.1
TOE emanation has two constituents:
FPT_EMSEC.1.1
Limit of Emissions requires to not emit intelligible emissions enabling access to
TSF data or user data.
FPT_EMSEC.1.2
Interface Emanation requires to not emit interface emanation enabling access to
TSF data or user data.
Management:
FPT_EMSEC.1
There are no management activities foreseen.
Audit:
FPT_EMSEC.1
There are no actions defined to be auditable.
FPT_EMSEC.1 TOE Emanation
Hierarchical to: No other components.
Dependencies:
FPT_EMSEC.1.1
FPT_EMSEC.1.2
6.2
No dependencies.
The TOE shall not emit [assignment: types of emissions] in excess of
[assignment: specified limits] enabling access to [assignment: list of types
of TSF data] and [assignment: list of types of user data].
The TSF shall ensure [assignment: type of users] are unable to use the
following interface [assignment: type of connection] to gain access to
[assignment: list of types of TSF data] and [assignment: list of types of
user data].
Definition of FCS_RNG
See [ST_PLATFORM] for definition
