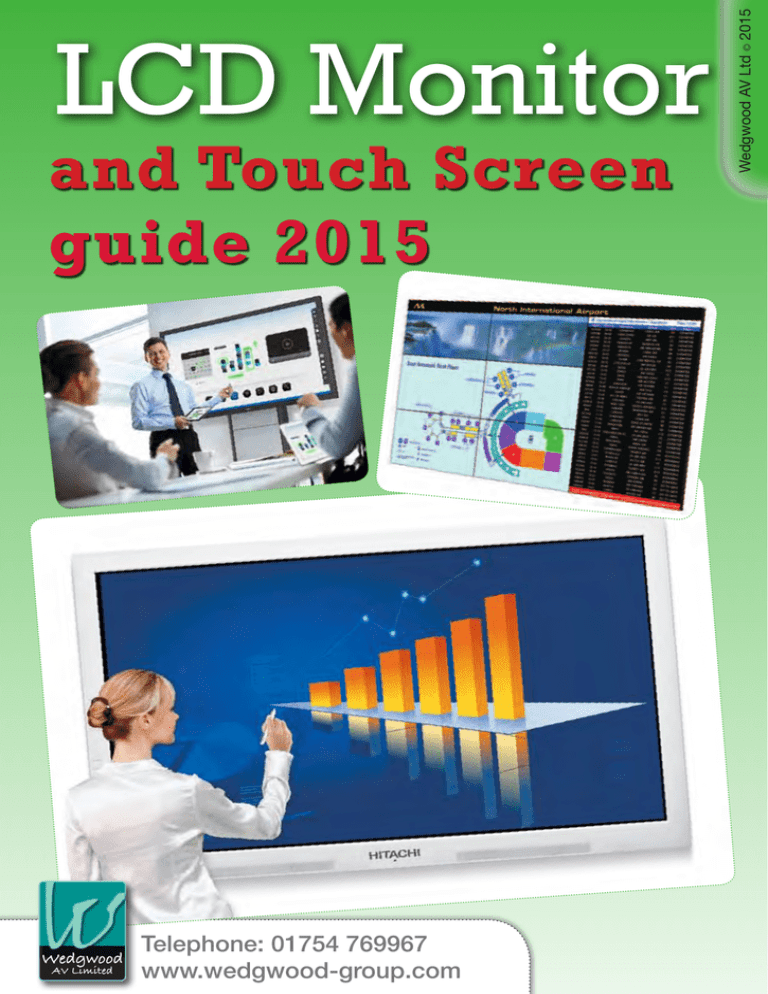

LCD Monitor and Touch Screen guide

LCD Monitor and Touch Screen guide
and Touch Screen
guide 2015
Wedgwood
AV Limited
Telephone: 01754 769967
www.wedgwood-group.com
Wedgwood AV Ltd © 2015
LCD Monitor
LCD Monitor
and Touch Screen guide
Audio visual guides
Wedgwood AV Ltd - UK suppliers to education, healthcare and businesses
www.wedgwood-group.com Free guide request
Teaching Technology series
Download free at
www.teachingtechnology.co.uk
02 Copyright © 2015 Wedgwood AV Ltd. www.wedgwood-group.com www.lcd-monitors.co.uk
Wedgwood AV Ltd - 01754 769967
NEC V-Series large format touch screen display
lcd monitor &
touch screen guide
Copyright © 2002, 2004,
2005, 2006, 2008, 2011, 2015
MARK A. Adams
linda s. adams
All rights reserved.
This edition published in
Great Britain 2015
Wedgwood AV Ltd.
Skegness Business Centre
Heath Road, Skegness,
Lincolnshire, England
www.wedgwood-group.com
Original ISBN:
978-1-906418-04-5
Wedgwood
AV Limited
Permission is granted for this publication to
be given away to colleagues and business
associates, provided that this publication
is NOT amended in any form whatsoever.
This publication is NOT to be sold under any
circumstances.
Untitled-1 1
9/11/10 10:10:25
Disclaimer: The purpose of this guide is to
give a general overview and acts as a
guideline only. Information, to the best of our
knowledge, is correct at the time of
writing. However, changes do occur with
some models being discontinued whilst
newer models and features come onto the
market. Comparison charts are
available at the websites mentioned. We
accept no liability, therefore, as to the
accuracy of completeness of the information
provided here. E. & O.E.
The Wedgwood IT Group takes no
responsibility for any problems or accidents
resulting from installation of equipment.
A qualified electrician or other competent
person should perform installation and
measurements.
Copyright 2015 Wedgwood AV Ltd. All rights
reserved. Corporate names and trademarks
are the property of their respective companies.
Specifications subject to change without notice.
Sharp 9-screen video wall
LCD Monitor and
Touch Screen guide
There are so many LCD monitors on the market, it can be difficult to
know where to start to find the right ones for your application. From
desktop monitors, medical monitors, colour accurate displays to large
format displays for public areas and video walls to touch screens.
The terminology doesn’t always help, as people refer to LCD monitors as
LCD displays, LFD’s (large format displays) and LED monitors. The latter
are LCD monitors with LED back lights which means these monitors
have lower power consumption, therefore are energy efficient with
slimmer design.
The aim of this guide is to give you an overview of LCD monitors and
touch screens, keeping technology simple with solution ideas and
hopefully help you make the right choice for your requirements.
Wedgwood AV Ltd., supply a wide range of LCD monitors and touch
screens for education, healthcare and businesses: projectors, interactive
whiteboards, lecterns, visualisers, digital signage and other audio
visual and IT equipment, across the UK. For product comparisons,
manufacturers’ brochures and sales support please visit our website
www.wedgwood-group.com or call 01754 769967. Contact form.
www.lcd-monitors.co.uk www.touch-screens.co.uk
UK suppliers of audio visual equipment. Telephone: 01754 769967 [email protected] 03
LCD monitor and touch screen guide
LCD monitor
overview
NEC video wall
LCD monitors range in size from around 15” upwards
for desktop monitors and from 32” upwards for public displays
This LCD monitor and touch
screen guide is intended to give an
overview of the different types of
LCD monitors on the market, from
desktop models to large format
displays designed for video walls
and digital signage advertising in
public areas.
Specialist medical monitors are
available for healthcare for diagnostic,
review and reporting of medical
images. For example, X-Rays, CAT
scans and MRI images can be viewed
on desktop medical monitors, perhaps
with students observing on large
format portrait (vertical) displays for
medical training.
We look at the differences between
buying a consumer TV intended for
4-5 hours viewing a day, compared
to professional displays some of
which are designed to be used
24/7 for a range of applications.
Other specialist desktop LCD monitors
include colour correction models for
CAD, photographic, publishing and
other colour critical applications.
Desktop computer monitors are
available in 4:3 video format and
16:9 or 16:10 widescreen formats. A
wide range of mounting options are
available on the market, including
multiple screen desktop stands so
you can mount dual monitors, triple
monitors, quad monitors, 6 or 8
monitors, ideal for financial and
control room applications.
Large format displays start from 32”
upwards and are used for a variety of
applications across several industries.
You can buy IP (Ingress Protection)
rated outdoor screens or TVs for hotel
gardens, pub patios and spa and pool
areas; dust and grease proof monitors
for fast food restaurants and factories;
and high brightness ‘sunlight readable’
models, for displaying information in
shop and office windows, especially
for digital signage applications.
LCD monitors are sometimes referred
to as TFT LCD monitors. A Thin Film
Transistor (TFT) is a variant of Liquid
Crystal Display (LCD) and is widely
used for TVs, computer monitors,
projectors and mobile phones.
In-Plane Switching (IPS) panels
give wide viewing angles and good
colour and can be found in high-end
monitors.
ViewSonic LED desktop monitor
More common these days are LED
monitors, also referred to as LED TV’s
or LED panels. These monitors are
LCD monitors with LED (light emitting
diode) back lights. LED display
04 Copyright © 2015 Wedgwood AV Ltd. www.wedgwood-group.com www.lcd-monitors.co.uk
Wedgwood AV Ltd - 01754 769967
screens are much thinner in design
than traditional LCD monitors, use
less power consumption, therefore
saving energy, and the LED’s can be
controlled, for example, dimming the
light in bright environments.
We are also seeing curved display
screens on the market, especially
curved LED TVs for the consumer
market. Coupled with high contrast,
LED TVs and LED monitors display
images with deeper blacks and richer
colours.
Large format display screens for
public areas can often be used
(depending on make and model) in
either landscape (horizontal) or portrait
(vertical) mode. Large screens in
portrait mode are particularly useful
when reviewing medical images for
medical training, or for life size images
in museums and galleries or in retail for
displaying fashion show videos.
Large widescreen LCD monitors are
impressive for exhibition stands and
reception areas. Four, nine, twelve
or sixteen 32” to 80” (diagonal inch)
screens wall mounted to form a video
wall are ideal for shopping malls,
sporting events and concerts.
The size of the bezel (the screen’s
surround) is important when using
display screens in video walls. Some
screens have an almost seamless
bezel, but these tend to be more
expensive than standard size bezels.
Some manufacturers large format
displays have Open Pluggable
Specification (OPS) slots to
accommodate a slot-in PC, ideal for
displaying digital signage presentations
at varying times of the day in bars,
restaurants, schools and retail stores.
LCD TVs are designed for home users
and generally have a manufacturer
1 year RTB (return to base) warranty.
They are designed for watching TV
4-5 hours a day. Commercial LCD
monitors, especially those that are
warranted for 24/7 usage, are of much
better build, have more inputs, and
better manufacturer warranties, such
as 3 year RTB or 3 year swap-out
where the manufacturer swaps your
faulty LCD for a working one of similar
age and usage.
Hotel TVs are available for hospitality
and hotels and these can include
clocks and provision for hotel logo
and menus. Models that allow cloning
save time, for once you’ve chosen
settings such as maximum volume,
then you can save the settings onto
a USB memory stick, which can then
be inserted into all the hotel TVs in
the establishment and the settings
transferred simply and quickly.
Touch screen overlays are available
for LCD monitors. However in recent
years there has been a growth of
touch screen monitors. Single touch,
dual touch, and now multi-touch
which let you use gesturing such as
zoom and pinch, are in use for many
applications. 4-point, 6-point, 10-point
and even 20-point touches or more
are available on the market.
NEC medical monitors
iiyama multi-touch monitors
Large widescreen touch screens with
anti-bacterial coating, so they can be
wiped down, are ideal for medical
applications such as on hospital wards
for bed management. Anti-bacterial
wall brackets and trolleys are available
to complement medical monitors.
When choosing touch screens it is
advisable to seek specialist advise
before purchasing, as there are several
types of touch technology including
infrared (IR), optical sensing (OS) and
AG Neovo LED
projected capacitive (PCAP). Some
surveillance monitors
are best for drag and drop
applications whilst others are
CleverTouch LCD displays
better when using gloved hands
such as in hospitals, science
laboratories and factories.
High resolution surveillance
displays are designed with
control centres, security
command centres and other
security environments in mind.
Typical features may include
hard glass protection, anti-burn
protection, robust for 24/7
usage and technology that reproduces
CCTV images at high resolutions.
For LCD monitor and touch screen comparisons please visit:
www.computermonitors.co.uk Telephone 01754 769967
UK suppliers of audio visual equipment. Telephone: 01754 769967 [email protected] 05
LCD monitor and touch screen guide
LCD technology
Toshiba 3D TV
Displaying video and LCD televisions
LCD monitors are normally designed for computer use and
so anything that can be run on the computer will appear on
the monitor. If the computer has a DVD drive, then you can
play DVD movies with DVD player software...
LCD monitors normally have a
High-Definition Multimedia Interface
(HDMI) or Digital Visual Interface (DVI)
port on the back to connect a DVD
player, Freeview box or other video
source into them. Prior to these
video ports, you would normally have
connected devices using component
video inputs.
LCD televisions are video compatible
LCD monitors that have a TV tuner
built in. A TV tuner allows television
signals to be received. An external
TV tuner box can be purchased for
use with any video compatible LCD
monitor which will effectively turn it
into a television. You can connect
satellite systems and digital set-top
boxes on any video compatible LCD
monitor to receive digital television
signals, such as Sky. Games
consoles such as the PlayStation 3
or the Microsoft X-Box, can also be
connected.
In the UK, we usually look in high street
retailers, such as Argos, when we want
a new television. You can buy 32” LED
TV’s (LCD TVs with LED backlights) for
around £249 including VAT, and a 42”
Full HD Freeview HD 3D Smart TV for
around £399 including VAT. Other sizes
include 40”, 50”, 55” 60”, 65”, 70” and
84” diagonal. Being TVs, they come
with speakers, a desktop stand and
built in digital TV tuner, most come with
Freeview or Freeview HD.
Netflix for watching digital movies,
YouTube for uploading and watching
videos, Skype for instant messages
and communication and Facebook, a
social media website, for keeping in
touch with family and friends. You can
share content from your laptop, tablet
or smartphone with your TV.
Full high definition (Full HD 1920x1080
pixels) Smart LED TVs are slim models
which normally include Freeview
HD, an Internet browser and Apps
(Applications) and a USB connection
which lets you view your digital photos,
music and movies on a large screen
and even play your digital music
from a USB memory stick. You can
also pause live TV. Smart Apps may
include BBC iPlayer, for catching up
on missed BBC TV programmes,
A Smart 3D LED TV, for example, lets
you view television programmes in 3D.
There are two types of 3D, passive or
active. Passive 3D is cinema-like 3D
that you view with inexpensive passive
3D glasses. Active 3D uses battery
operated shutter glasses, which are
more expensive than passive 3D
glasses.
Smart TVs with an in-built HDD
recorder (digital video recorder) allows
you to pause and rewind live TV.
Combi TVs are televisions with builtin DVD player and are ideal for a
bedroom, study or small room.
06 Copyright © 2015 Wedgwood AV Ltd. www.wedgwood-group.com www.lcd-monitors.co.uk
Wedgwood AV Ltd - 01754 769967
Toshiba Smart TV Cloud and Toshiba Smart TV both give you access to a wide range of premium apps
Commercial LCD TV models are
designed for use in business premises,
such as bars, hotels and restaurants.
Commercial TVs with hotel mode allow
you to customise display settings such
as setting a maximum volume control,
and then copy the settings onto a
USB Flash memory, which can then be
copied to other hotel mode TVs.
LCD monitors
LCD desktop monitors are commonly
used in education and business
administration, whilst large format
displays (LFD), which are generally 32”
diagonal and upwards, are designed
for commercial applications, especially
in reception areas, museums and
galleries, airports, retail and other
public areas. These usually do not
include a TV tuner. Most do not
include speakers or any sort of stand
in the basic price. When you add
speakers or a soundbar and a stand
or wall mount bracket, you are looking
at paying around 50% more for what
looks like an LCD TV.
The reason for paying around 50%
more for the widescreen LCD monitor,
is the usage. LCD TV’s are for home
use and are designed to be used
4-5 hours per day and usually have a
manufacturer 1 year RTB warranty.
Commercial LCD / LED monitors are
designed to be used 12-24 hours
per day (depending on make and
model) as information displays and
usually come with 2 or more years
manufacturer warranty and have a
far higher build quality and choice of
inputs. For example, a London retail
chain put consumer TVs in their shops
to display video advertisements during
opening hours. After a few months
the TVs began to fail, as they were not
up to the task of being used 10 hours
per day. Large format displays (LFD),
as these LCD screens are commonly
called, which 24/7 warranty are
available, often with landscape and
portrait mounting options.
Another difference is the connectors
(inputs) on the back of the monitor
display screens, there being normally
more connectivity on commercial
models than on consumer ones.
If you want to run digital signage
software on a display screen in a shop
window, then buy an LCD monitor
not an LCD TV. However, if you want
to show TV in reception areas, then
a commercial TV would be a better
option than a consumer TV. AquaLite,
for example, specialise in Ingress
Protection (IP) rated TVs and sunlight
readable TVs for outdoor use. They
manufacture both weather-proof and
waterproof televisions suitable for
indoor and outdoor entertainment,
digital signage and advertising
displays. Samsung include MagicInfo
Lite with their LFDs, which an uses
HTML5 browser to display basic digital
signage presentations on screen, with
an option to upgrade to their Premium
editions of MagicInfo signage software.
Video cameras and visualisers
(document cameras) can also be
connected into an LCD monitor with
a video port. Visualisers are desktop
cameras with a flexible neck, flatbed
or ceiling mounted, the latter being
used in operating theatres for
displaying live images, in higher
education for demonstrations and
in the corporate world for video
conferencing. Visualisers allow you to
display small objects and documents
such as papers and book or magazine
pages, onto an LCD monitor or large
format display screen. Images or video
can also be captured to a computer.
AVer flexible arm visualiser
Monitor
brightness
and contrast
Brightness is measured in candelas
(cd/m2) and LCD monitors normally
range from 250 to 700 cd/m2. The
brightness doesn’t usually matter
if you are using an LCD monitor on
your desk, but if you are using one
as a display board in a reception area
for example, the brighter the better.
High brightness models are available,
sometimes referred to as ‘sunlight
readable’, which have around 1,500
cd/m2, designed for use in retail stores
where ambient light is very bright and
for shop and office windows, especially
south facing where bright sunlight can
be a problem.
The contrast ratio is the difference in
definition between the colours black
and white when displayed on screen.
The higher the number, the better the
definition and the better the colour
black is displayed on screen which
gives a better image especially if you
are playing DVD movies.
For LCD monitor comparisons
and manufacturers’ specification
sheets, please visit:
www.lcd-monitors.co.uk
For visualiser comparisons please
visit: www.visualisers.co.uk
Lumens LadiBug visualiser
UK suppliers of audio visual equipment. Telephone: 01754 769967 [email protected] 07
LCD monitor and touch screen guide
Aspect ratios and screen resolutions
Computer screen images are made up of pixels (dots)
Pixels
Resolution name
Aspect ratio (screen shape)
800x600SVGANon-widescreen 4:3
1024x768
XGA Non-widescreen 4:3
1280x720
WXGA
1280x800
WXGA
Used by
Used on some older computers
Used by most computers with 15” LCD monitors and most non-widescreen notebooks
Widescreen 16:9HD Ready video
Widescreen 16:10 1280x1024SXGANon-widescreen 5:4
Used by many 15.4” widescreen notebooks.
Used by some medium format LCD monitors, e.g. 19” monitors
1366x768
WXGA
Widescreen 16:9HD, used by some desktops which connecting to display screens
1440x900
WXGA+
Widescreen 16:10
Common for widescreen monitors
1400x1050SXGA+Non-widescreen 4:3
Commonly used on 14” or 15” laptops
1680x1050
WSXGA+
Commonly used on widescreen 20”, 21” and popular 22” LCD monitors
1600x1200
UXGANon-widescreen 4:3
1920x1080
Full HD
Widescreen 16:9True HD (high definition)
1920x1200
WUXGA
Widescreen 16:10
2048x1526
QXGANon-widescreen 4:3
Quad XGA, four times the pixels of XGA
2048x1152
QWXGA
Widescreen16:9
A wide version of QXGA 3840x2160
UHD 4K
Widescreen 16:9
Ultra HD, also known as 4K
Widescreen 16:10
Used by many computers with LCD monitors above 19”
A wide version of UXGA and can be used for viewing HD TV content
XGA (Extended Graphics Array); WXGA (Wide Extended Graphics Array); SXGA (Super Extended Graphics Array); SXGA+ (Super Extended Graphics Array Plus) WSXGA (Wide Super Extended
Graphics Array); UXGA (Ultra Extended Graphics Array); WUXGA (Wide Ultra Extended Graphics Array). QXGA (Quad Extended Graphics Array); QWXGA (Quad Wide Extended Graphics Array);
Ultra HD (four times HD), known as 4K.
You can find out which resolution your computer is using on Windows based
machines by opening the Windows Control Panel and searching for the
adjust screen resolution option.
Do this for all the computers you may be using with your LCD monitor.
On any type of screen, the more pixels
there are, the finer the image. Fine
images, made up of lots of pixels (dots),
are important for detailed images.
Generally, 15” LCD monitors have
a maximum computer resolution of
1024x768 pixels. This would not be a
problem as a higher resolution would
result in text and icons being too small
to display properly on the screen. 17”
and above LCD monitors usually have
a maximum resolution of 1280x1024
pixels or 1600x1200 in some cases.
Aspect ratios - shape
4:3 video format
Image courtesy of iiyama
The number of pixels makes a
difference normally only if you are
involved in graphic design and need
high resolutions for creating very fine
images. If you need a resolution
of 1280x1024 then you need to
purchase at least a 17” monitor.
Please note, that if you know which
resolution you want to work at, then
make sure you get a screen with
exactly that number of pixels. For
example, don’t buy a screen with
1600x1200 pixels if you are going
For comparisons please visit:
www.lcd-monitors.co.uk
5:4 wider than 4:3
NEC LCD monitors
to work at 1280x1024, as dropping
the screen resolution using Windows
control panel will give poor results.
This is because the screen would
have to stretch 1280x1024 pixels to fit
the larger 1600x1200 physical pixels
and you end up with a grainy screen
image.
Aspect ratio shapes:
4:3 aspect ratio - the width of the screen
being 4 parts long and 3 parts high.
Similarly, 16:9 is 16 parts long and
9 parts high.
16:9 widescreen
16:10 widescreen
Images courtesy of NEC Display Solutions
08 Copyright © 2015 Wedgwood AV Ltd. www.wedgwood-group.com www.lcd-monitors.co.uk
Wedgwood AV Ltd - 01754 769967
Toshiba Ultra HD 4K display screens
Full HD v Ultra HD
Full HD (high definition) resolution
has 1920x1080 pixels which is
the equivalent of 2.1 megapixels.
This is a viewing aspect ratio of
16:9 and gives a widescreen
image and is the typical shape of
most commercial displays and
consumer TVs today.
Ultra HD has four times as many
pixels as Full HD (3840x2160) and
can deliver stunning picture quality,
regardless of screen size.
Traditionally, Full HD images
can begin to break up and lose
detail on TV screens of 55" or
140cm and above. With an
Ultra HD TV, you get incredible
resolution allowing you to enjoy
uncompromisingly crisp, clear
images and text - even when
sitting close to the screen.
Ultra HD is also known as 4k2k - and
is one of the most talked about and
desirable new technologies on the
market. This technology will have a
huge effect on how we watch things
in the future. This is because Ultra
HD delivers by far the most incredible
picture quality to date.
This will effect everything you watch
from movies to TV shows and from
documentaries to sports - all in new
levels of details.
SD (Standard definition) 640x480
HD (High definition) 1280x720
Full HD (High definition) 1920x1080
Ultra HD also known as 4K 3840x2160
It will definitely have an effect
on business presentations and
educational content - especially and
on a screen that's virtually cinema size.
Ultra HD is the equivalent quality of an
8mp image. Great for images taken
via digital cameras, smartphones or
even tablets. Plus, if connected to a
laptop with the ability to output 4k via
HDMI, you can watch videos as well
as images in Ultra HD quality. Perfect
where detail is everything!
Please click here to read the Toshiba
feature “What is Ultra HD?”.
For LCD monitor and touch screen comparisons please visit:
www.computermonitors.co.uk Telephone 01754 769967
UK suppliers of audio visual equipment. Telephone: 01754 769967 [email protected] 09
LCD monitor and touch screen guide
Inputs and connectors
When you want to connect your
computer to a TV or LCD monitor you
can use the analogue VGA connector,
or the digital connectors - DVI, HDMI
or DisplayPort. Not all of these ports
will be available on your LCD monitor
or TV as it depends on individual
makes and models. It is useful to
check the manufacturer’s specification
sheet prior to purchase.
Speakers
CYP HDMI 1 to 2 distribution amplifier
distributing, the CYP QU-12S has
signal amplification and equalisation
to provide high performance input /
output of high resolution audio and
video. CYP comparisons
NEC side speakers for LFD
DVI port - VGA 15-pin
The above picture shows a DVI port
on the left and a normal monitor (VGA)
port on the right.
The majority of TVs and many LCD
monitors have HDMI (high definition
multimedia interface). Being
multimedia it carries video and audio
signals.
DVI (digital video input) carries video
signals but not audio. As most LCD
monitors do not include speakers, this
isn’t likely to be a problem.
DisplayPort connector
DisplayPort is a video and audio
interface standard developed by and
for the personal computer industry as
the next generation A/V interface. It is
administered by the Video Electronics
Standards Association (VESA).
DisplayPort products currently support
up to 4K video, and the release of
DisplayPort 1.3 will enable higher
resolution including 5K monitors
(5120x2880), using a single cable.
The Thunderbolt connector now used
by Apple and others is also based
on DisplayPort, and Thunderbolt
is backwards-compatible with
DisplayPort cables and monitors. See
www.vesa.org for more information.
There are many solutions on the
market for splitting and distributing
signals. For example, CYP’s HDMI
1 to 2 distribution amplifier supports
4K resolutions. Besides splitting and
USB hubs
The picture on the left shows a 4 port
USB hub (Universal Serial Bus) on the
back of an LCD monitor. The picture
on the right shows a two port version.
In a normal computer set-up a mouse
and a keyboard are connected to the
computer. The mouse and keyboard
wires trail across the desk and back to
the computer, which could be on the
desk or under it. Most computers now
have USB keyboards and mice which
plug into a USB port on the computer.
Some LCD monitors have a USB
hub built-in, which is then connected
by a single USB cable back to the
computer base unit. You can then
connect your USB keyboard, USB
mouse, USB web cam, USB digital
camera, etc, into the monitor base.
The USB hub therefore simplifies your
cabling especially if the computer
base unit is ever removed for repair or
upgrading.
Edis mini PC
Devices such as digital signage
players (mini PCs) have USB
connectors, for the connecting
of a keyboard and mouse to
allow you to create your signage
presentation onto your LCD
monitor or large format display.
NEC rear speakers for LFD
Unlike televisions which include
speakers, most LCD monitors do
not come with speakers. Some
makes and models offer optional
speakers or soundbars.
A cable comes from the speakers
on the monitor to plug into the
speaker socket on the computer.
NEC MultiSync® Soundbar Pro
Soundbars, designed to be in line
with the display, normally require
only a few clips for easy installation
and removal, using convenient
USB power source.
For comparisons please visit
LCD accessories at:
www.lcd-monitors.co.uk
10 Copyright © 2015 Wedgwood AV Ltd. www.wedgwood-group.com www.lcd-monitors.co.uk
Wedgwood AV Ltd - 01754 769967
Energy saving and technology Warranties
Manufacturer warranties for consumer
televisions tend be a standard 1 year
RTB (Return to Base), which means
you return it to the repair centre.
iiyama light sensor feature
Most LCD desktop monitors and large
format displays (LFD) now have energy
saving features. You may see TCO
(total cost of ownership), followed by
a number, for example, TCO 5.0 This
tells you what level of energy saving
the LCD monitor is. This is a bit like the
A, B, C energy ratings you now see
when you buy a new fridge or washing
machine at home. Displays also have
to be less than a certain wattage when
on standby.
LED TVs and LED monitors are
actually LCD TVs and LCD monitors
with LED (light emitting diode) backlight. LEDs are energy saving,
economical and rather than the
old-style CCFL lighting, LEDs can be
controlled, therefore you see some
displays, such as iiyama ProLite large
format displays, have ambient light
sensors. The ambient light sensor
detects changes in environmental
lighting conditions and automatically
adjusts the screens backlight
brightness to compensate for and
increase or decrease in light. LED
TVs and LED monitors also are much
slimmer in design.
As technology develops and
continually improves, you will see
display manufacturers using different
technologies for their panels. For
example, the iiyama ProLite 65”
touch screen display uses AMVA3
technology. AMVA3 technology
offers higher contrast, darker blacks
and much better viewing angles
than standard TN (twisted nematic)
technology. The screen will look good
no matter what angle you look at it.
IPS panel technology also offers higher
contrast, with darker blacks and much
better viewing angles than standard
TN technology.
Another function available on LFDs
and most televisions, depending on
make and model, is PiP. PIP (Picture
in Picture) function allows you to watch
images coming from two different
sources at the same time.
iiyama display with PIP (Picture in Picture)
iiyama display with AMVA3 technology
Warranties on commercial LCD
monitors and large format displays,
are usually 2 year RTB or more.
Some manufacturers offer an on-site
warranty, which normally means a visit
to your premises within a set number
of hours to repair the display. C&R
(Collect and Repair) warranty is when
a courier collects the faulty display
and once repaired the manufacturer’s
repair centre will ship it back to you.
Swap-out warranty is where your faulty
display will be taken away and you are
given a replacement of similar model
and age as a swap.
For education, a manufacturer
warranty may be 3 year de/reinstall.
This means that the display will be
de-installed from its mounting, taken
away for repair and then re-installed.
This saves time and expense on the
educational establishment and gives
peace of mind for 3 years.
Many of the manufacturers of leading
brands of large format displays have
models in their range that are designed
for 24/7 (24 hours a day, 7 days a
week) applications, such as in airports
and 24/7 supermarkets. However, it
is important to read the manufacturer’s
warranty to check whether their
warranty does covers you if the LCD
monitor is in use for the full 24 hours
every day, or whether they recommend
it be switched off periodically.
NEC Displays, for instance, offer a
range of large format displays that
offer 24/7 or 16/7 warranties (16 hours
a day, 7 days a week). Ideal for cost
efficient retail signage, conferencing
applications and lobby or reception
installations not exceeding 16/7
operation time.
NEC also have models with 12/7
warranties. These are suitable for light
retail environments, such as leisure
and museums, hospitality, education
and conferencing applications.
iiyama display with IPS technology
For LCD monitor comparisons
and manufacturers’ specification
sheets, please visit:
www.lcd-monitors.co.uk
UK suppliers of audio visual equipment. Telephone: 01754 769967 [email protected] 11
LCD monitor and touch screen guide
Landscape and portrait modes
Samsung large format display in landscape mode
Samsung kiosk
Manufacturers such as AG Neovo,
CleverTouch, Hitachi, iiyama, LG, NEC,
Sharp, Sony and Toshiba, have large
format displays in their range that
allow you to change from landscape
(horizontal) to portrait (vertical) mode.
Portrait mode is especially useful
in medical training so that students
can view X-Rays and other medical
images. Museums can benefit from
using large format displays in portrait,
to bring history to life. Retail fashion
shows is another example.
NEC Displays landscape to portrait
Unicol Rota-Mount wall bracket allows
smooth rotation between landscape
and portrait and anywhere in between
Desktop LCD monitors are normally
in landscape mode, although you can
obtain landscape to portrait models.
Two or more monitors on a multimonitor landscape or portrait stand
are ideal for financial and trading
applications.
Video walls are commonly 4, 9, 12 or
16 large format displays in landscape
mode. Ideal for retail and public areas.
Samsung, utilised 250 screens in a
large single video wall display. You
can also create a matrix of screens of
varying sizes into a video wall.
Four or more displays in landscape
mode mounted side-by-side are
favoured in fast food restaurants.
LCD monitors LFDs are also available
in protective (hard) glass.
www.lcd-monitors.co.uk
NEC Display in portrait format
NEC XUN series video wall in portrait
12 Copyright © 2015 Wedgwood AV Ltd. www.wedgwood-group.com www.lcd-monitors.co.uk
Wedgwood AV Ltd - 01754 769967
Privacy filters
Touch screen
overlays
TouchGENiE overlays
3M™ privacy filters
Privacy filters keep information private.
When you walk into a high street bank
there is normally a privacy filter fitted
to the receptionist’s LCD monitor.
Teachers and school administration
staff working on sensitive data such
as students' personal information,
students' examination results, school
accounts and online banking, etc.,
may be interested to learn that
privacy filters are available for LCD
monitors, laptops and tablets to help
protect sensitive information from
unauthorised viewing.
In colleges and universities, libraries
and museums, where there are open
plan reception and office areas,
on-screen privacy may well be an
issue. The use of privacy filters is
beneficial during exam times as a lot
of exams are now moving down the
e-assessment (on-line examinations)
route. With guidelines that exist
stating that desks need to be placed a
certain distance apart and separated
by dividers, it can be an expensive
and laborious process for schools
to implement. Privacy filters offer an
easier and less expensive solution,
allowing more computers and
students in a smaller space (the filters
also comply with JCQ regulations).
3M™ have developed a black filter
to fit widescreen desktop monitors
available in varying sizes. With a
simple attachment system the filter
can be removed for screen sharing.
Using 3M™ microlouver technology
the filter gives you full 60 degree
privacy protection from either side
of the monitor, thus protecting your
information. The filter is available in
reversible glossy finish or matte finish,
the latter reduces discomfort from
screen glare. LCD desktop monitors
and touchscreens already fitted with
3M™ privacy filter are also available.
3M™ black privacy filters and gold
privacy filters are also available for
Notebook computers and Macbooks,
whilst 3M™ black privacy screen
protector is available for use on
Apple® iPad® 2/3/4, iPad Air and
iPad Mini. 3M™ gold privacy
filters offer nearly twice the privacy;
protecting from above and below, as
well as the side and offer 14% better
viewing clarity compared to the black
filters. They also appear a vibrant
gold colour from the side view, giving
an obvious privacy warning.
Furthermore, there is privacy
protection for tablets and mobile
phones. For dual orientation tablets
(landscape/portrait), you can keep
your information private or share it
with others by simply changing the
orientation of your tablet screen.
3M privacy filter comparisons
TouchGENiE touch screen overlays
attach to your monitor, transforming it
into a touch screen.
You attach the touch screen overlay to
your monitor using the strap provided,
plug the cable from the touch screen
overlay into a USB port in your
computer, and your monitor is now a
touch screen.
TouchGENiE have brought out a
range of touch screen overlays for
desktop screen sizes from 17” to large
format screens up to 132” diagonal.
These are available in various aspect
ratios, namely, 4:3, 16:9 and 16:10,
with either 2-point touch, 6-point
touch or 10-point touch when used
with Windows 7 or Windows 8/8.1.
Compatible with Windows, Mac and
Android software.
TouchGENIE comparisons
Privacy filters can be purchased
already fitted to LCD monitors or
separately to fit existing monitors.
For comparisons please visit:
www.lcd-monitors.co.uk
3M™ black privacy filter
for laptops and tablets
UK suppliers of audio visual equipment. Telephone: 01754 769967 [email protected] 13
LCD monitor and touch screen guide
Touch screens
NEC 65” touch screen
In this article we look at the uses of
touch screens and also the different
technologies available to make touch
screens “touchable”.
Touch screen technologies
This is primarily a guide to touch
screen monitors to be attached to a
PC and other computers.
Introduction
From the first version of Windows and
with Apple computers, a mouse has
been used to control the mouse cursor
on the computer’s screen. Then touch
screen monitors became available,
which then allowed the mouse cursor
to be controlled by touching the
screen with either a finger or stylus
instead. Programmers could then
create programs/applications with
large buttons on screen and hide the
mouse cursor altogether when using
their programs, if necessary. Then
we got multi-touch, which allows
additional control by allowing more
than one finger to control the screen at
the same time. Movements such as
pinching the index finger and thumb
on the screen allowed the resizing of
pictures, etc. With the latest operating
systems, such as Windows 8, touch
screens are used with swipeing
motions on screen to scroll around.
The majority of us with mobile phones
have moved to smartphones with
Android or the iPhone. These also
have a touch screen interface, without
any sign of a mouse cursor in sight.
There are many different technologies
that are used to make screens into
touch screens. We are assuming that
many you reading this has a smart
phone, so let us start by looking at
the technology used in many phones
which then gives us a yard stick for
comparing the other technologies.
Capacitive technology
The majority of smart phones use
a capacitive technology. What this
means is that the screen has a small
electric current over the surface and
when you touch it with your finger
a circuit is created as your finger
conducts electric currents. If you have
ever tried to use your smart phone
with gloves on, then you will find
that it doesn’t work (unless you buy
special touch screen gloves). This is
because your finger is insulated within
the glove. This is the main draw back
of capacitive technology. You have
to either use a body part, or a special
stylus (that conducts electric) to use
it. You will also find that if it is raining
and you try to use your smartphone
that you have trouble if the screen
gets rain drops on or your fingers
are wet. This is because liquids and
moisture interferes with the capacitive
technology. That said, your phone will
Projected capacitive
touch (PCT)
Images courtesy of 3M and Mentor Distribution
14 Copyright © 2015 Wedgwood AV Ltd. www.wedgwood-group.com www.lcd-monitors.co.uk
Wedgwood AV Ltd - 01754 769967
be very sensitive and responsive and
allows you to use multi-touch gestures
(using more than one finger at a time)
to control the phone with ease.
There are basically two types of
capacitive technology - projected
capacitive sometimes known as PCAP,
and surface capacitive. The latter
tend to be used in large touch screen
panels, whilst projected capacitive is
often used in smaller screen sizes.
The iPhone and iPad, for example, use
projected capacitive technology.
OK, so hopefully you now (if you
have a smartphone) have a grasp of
capacitive technology. The next major
technology, that has been around for a
long time, is resistive technology.
Resistive Technology
Resistive touch screens are made by
having a hard but slightly flexible top
layer, then a small gap and another
layer underneath. When the flexible
layer is touched, it presses through
to the layer underneath so that the
touch screen knows where the screen
was pressed. The great thing about
this is that you don’t need a finger
like in the capacitive technology. You
can use practically anything to touch
the screen including gloved hands
or any kind of stylus. This is single
touch technology. On the downside,
since you are continually flexing the
front layer when touching it, then the
lifespan, i.e. the amount of times it can
be touched, is a lot lower as effectively
you have a moving part. The capacitive
technology is a lot longer lasting in that
respect.
Infrared (IR) Technology
Many of the first interactive
whiteboards on the market used ether
electromagnetic (pen) or resistive
(touch) technology. Infrared uses the
same technology as in your infrared
TV remote control at home to create
a curtain of light across the board’s
surface. You can use either a finger or
a stylus to operate the board and the
surface of the board can be replaced
if damaged, unlike resistive, which if
damaged is unusable.
Optical Touch Technology
Optical touch (or optical sensing)
technology has cameras in the
corner of the screen and a reflective
strip, so that it knows when you are
touching the screen. Some screens
have two cameras and others have
four cameras, one in each corner.
The bezel (surround) on optical
sensing touch screens is a little bigger
to incorporate the cameras. One
advantage of optically sensed touch
systems is that it can function with
light scratches and surface wear,
as can projected capacitive. Touch
is activated by bare fingers, gloved
fingers or a stylus.
Optical sensing technology is ideal
when handwriting annotation is
required. In the training room, an
optical sensing technology LCD touch
screen can also be used in the same
way as an interactive whiteboard.
Obviously, you would need touch
screen software.
In hospitals where regular cleaning
takes place, care is needed with the
cleansing of optical touchscreens as
the cameras in the corners tend to
collect dust.
Some universities and science
museums have installed “graffiti
walls”. These are basically large touch
screens that people scribble on by
controlling applications like Windows
Paint with their fingers to draw on.
Now the technology used by the touch
screen does make a big difference
here. Drawing a line with your finger on
any capacitive screen is fine, however
if you try to annotate this gives you a
jerky line. Optical sensing would be a
better choice, especially as sizes are
currently available up to 82” diagonal.
You would also need an annotation
package such as Windows Paint or a
bespoke annotation package.
Infrared Acrylic Projection
Infrared acrylic projection also uses
cameras to detect the positions of
touches on the screen. This is a
multi-touch technology and is used
in Microsoft PixelSense (Microsoft
Surface) and allows multiple users to
use a screen at the same time.
Dispersive Signal Technology
Dispersive Signal Technology (DST)
from 3M™, radiates bending waves
to Piezoelectric receptors around
the edge of the screen. It is mainly
used for annotation applications and
tabletop touch screens. You can put
your hand on the table touch screen
and it recognises that and would not
act as a mouse until you tapped the
touchscreen. The disadvantage of
bending wave is that it is not suitable
for drag and drop routines and external
vibration will interfere with the touch
operation. These are not affected by
dust or scratches on the surface of
the screen and allow any object to be
used to touch the screen including a
stylus. Table touch screens are used
in primary and early learning centres
where several children can touch and
move digital objects around, whilst
in bars and restaurants table touch
screens can be used to display menus
and drinks for customers to place
orders by swipeing across the table.
Touch screen comparisons
Touch screen overlays
Interactive whiteboards
Whiteboard projector systems
Surface capacitive
touch (SCT)
Resistive
Optical sensing (OS)
Infrared (IR)
UK suppliers of audio visual equipment. Telephone: 01754 769967 [email protected] 15
LCD monitor and touch screen guide
Single, dual and multi-touch
A single-touch screen is one that will
only detect a single position being
touched at one time. If you touch
this type of screen with more than
one finger then it will get confused.
With Windows based computers this
allows the control of the mouse cursor,
and the mouse cursor will follow your
finger around the screen. You can
use some touch gestures such as tap
(tap the screen once with your finger
to perform a single mouse click) or
double tap (where you tap the screen
twice in one location to simulate a
double mouse click).
Dual-touch is where a touch screen
will allow two (but no more) positions
on screen to be touched as once. If
you think about using a Windows
based notebook computer (before the
latest versions) then when you used
a touch pad on a laptop computer it
just controls the cursor’s position on
screen. This is a good example of
dual touch as most of these will allow
dual touch gestures. For example,
the pinch gesture where the thumb
and the index finger are placed on
the screen at the same time and
then ‘pinched’ together. This also
allows the zooming out when viewing
something like a website page, and
then ‘spread’ gesture is the opposite
of this where the thumb and index
finger and pinched together, then the
screen touched and then the thumb
and index finger and spread apart.
Multi-touch is where you can use 3 or
more fingers at a time. For example
the three-finger drag is where you
touch the top of the screen or a touch
pad with your 3 middle fingers (slightly
spread) and then drag these around
the screen and the selected object will
be moved with it.
Touch screens with interactive
whiteboard software
Large format LCD / LED Interactive
panels are available with touch pen,
eraser and pen annotation software
(interactive whiteboard software).
Interactive whiteboard (IWB) software
allows you to use the touch screen
in the same way as teachers do
with interactive whiteboards in the
classroom. It allows you to write over
the top of information displayed on
screen and then save your annotations
to a picture file on disk which can then
either be printed or emailed. This is a
good tool for brainstorming sessions
and meetings. Touch screens with
interactive whiteboard software
These can be a good choice for
schools rather than going for the
traditional whiteboards. The standard
interactive whiteboards use a projector
to shine the image on the screen. If a
teacher or child using the whiteboard
turns around, they may end up looking
into the projector’s light which can hurt
their eyes. Short throw and ultra short
throw projectors solve the problem of
light shining in your eyes and you can
purchase an interactive whiteboard
with short throw or ultra short
throw projector on a fixed or height
adjustable stand. Projectors also use
expensive projector lamps that will
require changing every few thousand
hours of use.
SMART Technologies, one of the
largest whiteboard manufacturers,
manufacture large touch screens with
their interactive whiteboard software
(SMART Notebook) included. If the
teachers in a school already use
SMART Boards, then changing to a
touch screen panel (display screen)
will mean the same software is used,
hence saving learning new software.
The main thing to weigh up is the cost
of an interactive projector and bracket;
an interactive whiteboard, projector,
projector bracket and on-going cost
of replacing projector bulbs; a large
format (60” diagonal or over) LCD /
LED interactive (touch screen) display
with interactive whiteboard software.
Other factors come into play, such as
ultra-short throw, room space, product
durability, quality of the interactive
software and budget. Don’t forget that
interactive whiteboards are just big
touch screens, even though you tend
to use touch or special pens and the
manufacturer’s interactive whiteboard
software. It’s the software that comes
with them that makes them useful for
class and meeting rooms.
Interactive whiteboards
Earlier models of interactive
whiteboards used either resistive or
electromagnetic technology. The latter
used special pens to transmit a signal
to the receiver in the whiteboard. The
downside to this is that because the
pens are electronic, they tended to be
expensive to replace and if you lose
the pens you can’t use the whiteboard.
The plus side is that you can replace
the surface if it gets damaged as the
electronics are in the pen and the
whiteboard’s surround.
Interactive whiteboards tend
nowadays to use Infrared or Optical
Sensing technology. Some interactive
whiteboards, such as PolyVision eno
are 3-in-1 boards, in that they can be
used as a standard dry-erase board, a
magnetic board, and with a projector
as an interactive whiteboard.
With whiteboards, the quality of the
software that is shipped with them
makes all the difference, rather than
the actual technology used. You
may find that a particular hospital,
university or business has all one make
of interactive whiteboards so that
you only need to learn one piece of
whiteboard software. ‘Open platform’
lets you run many other third party
software programmes. Whiteboards
Any other touch solutions?
Portable devices such as eBeam
and mimio turn dry-wipe boards
into interactive whiteboards. Some
manufacturers have interactive
projectors in their range, so you
can project large images onto most
surfaces such as plain white walls.
Portable whiteboard systems
Wedgwood Whiteboard guide
NEC touch screens
Elo Touch Solutions
iiyama touch screens
16 Copyright © 2015 Wedgwood AV Ltd. www.wedgwood-group.com www.lcd-monitors.co.uk
Wedgwood AV Ltd - 01754 769967
Touch screens in reception areas
Let’s imagine that you decide it is a
good idea to have a touch screen
on the wall in your reception area to
promote your products or services.
Your IT manager (or outsourced IT
company) may create the software,
which surprisingly can be made
with Microsoft PowerPoint, which
costs around £100+VAT in the UK.
PowerPoint presentations can be
created with buttons (so that someone
using a touch screen can easily
press them with their finger) that
allow the user to navigate between
different PowerPoint slides. You can
use videos, PDF’s, pictures, etc., in
PowerPoint slides, to create a good
information system quite easily.
The IT manager could look at other
commercial touch screen software or
by programming it with software such
as Microsoft Visual Basic, but this may
be quite costly either in terms of the
cost of software or the time it takes to
write a program.
Next, a computer base unit is needed
to play the touch screen presentation,
which could be an old one laying
around (it would need Windows®
XP, Vista or Windows® 7/8) or you
could use a digital signage player.
Some signage players have Windows
Embedded software, which is a
cut-down version of a full Windows®
operating system and is normally
found in small mobile devices such as
signage players. Windows Embedded
Pro 8.1, for example, is designed
specifically for building automated
solutions and embedded devices,
such as kiosks, medical devices and
digital signage solutions.
Then the touchscreen itself is needed.
This will look like any other LCD
monitor but will also have a mouse
cable that goes back to the computer
base unit. This cable sends back
where the user has touched on the
screen, so that the computer knows
where the mouse cursor should be.
You can now start searching the
Internet looking at different touch
screens which will usually range in size
from 15” to 84” diagonal. A good 17”
on the reception desk may do the job
costing around £300+VAT. Whilst a
42” touch screen used for way finding
in a large reception area will cost from
£990+VAT upwards. Touch screens.
The size of the screen is really going to
be determined by your budget. So you
narrow it down to the size and screens
you can afford. Then you come to the
choice of different technologies.
Which technology do I choose for
the reception area touch screen?
In this example, as your visitors using it
will be in a nice warm reception waiting
area and using their fingers, then it
really doesn’t matter. Go for one within
your budget, as large as you can
afford and with the best warranty. Look
for a warranty with 3 years (or better)
and with the highest number of pixels
in your price range. The other thing
to watch out for is the cable type. We
mentioned that you need a “mouse
cable” going back to the computer.
You need to make sure the touch
screen uses USB, which will work
with all your computers, unless you
specifically need serial and understand
the difference.
Keep in mind that touch screens
are not vandal proof and should be
installed in areas that are monitored.
By monitored, we mean areas where
there are usually members of staff,
such as in a reception area. Some
touch screens have reinforced glass
and although the glass is vandal
resistant the actual product isn’t. Even
the touch screen kiosks you may
have seen in shopping centres are not
completely vandal proof. Here too, a
shopping centre is a monitored area,
often with security guards and CCTV.
You can buy protective overlays but
these do not work with touch screens.
There are LCD touch screen kiosks
sealed for weather resistance with
protective glass to deter vandalism,
ideal for unsupervised public areas.
What if I want a video wall of
touch screens?
Video walls are made of multiple
screens either close together such as
a 2x2 video wall which has 4 screens
(or a matrix of various size screens).
The computer or video image is then
spread across all of the screens. The
downside is that there is a small gap
between screens. When you watch
the news on a TV channel, you often
see presenters standing in front of a
giant screen, but when you look at the
screen you can see lines which are the
gaps between the screens that make
up the video wall. The size of the bezel
(surround) determines how big a gap
you get between the screens. Some
manufacturers have LCD screens
which are almost seamless.
What happens if I need to wear
surgical or disposable gloves?
If you are installing touch screens
in areas such as a biology lab in a
university teaching hospital, then you
would need to choose the technology
carefully. Using a touchscreen to
control a computer, instead of using a
keyboard and mouse, in areas where
medical style gloves are needed,
then out goes surface capacitive
technology as gloves will not give the
conduction that they need. In this
situation, you are left with Resistive,
Projected Capacitive or Optical
Sensing Technology. Optical Touch
and Projected capacitive are normally
available in screen sizes 32” to 84”.
Surface Capacitive touch technology
allows only single touch and is used
on small screens up to 32” diagonal.
Surface Capacitive touch technology
has been around for a long time
and is mainly used for public access
applications and contaminant prone
environments. This is because it is
largely unaffected by contaminants
such as grease, dirt and water. Whilst
this is good in biology labs or medical
teaching hospitals, the disadvantage
is it supports only finger touch (no
gloves) or a tethered pen and a severe
scratch can affect operation in the
damaged area.
For comparisons please visit: www.touch-screens.co.uk
UK suppliers of audio visual equipment. Telephone: 01754 769967 [email protected] 17
LCD monitor and touch screen guide
LCD monitor solutions
iiyama ProLite CCTV LED back-lit LCD displays
LCD monitors for CCTV and control rooms
iiyama LED back-lit LCD displays,
designed for demanding CCTV and
broadcast applications, offer fast
response time, high contrast ratio
and clear and vivid images. VESA
compliance allows for easy installation
in a surveillance and security
environment. iiyama comparisons
AG Neovo RX-Series with hard glass protection and Anti-Burn-in™ technology
AG Neovo RX-Series helps Leeds City Council and Metro build a more efficient and
reliable monitoring system. The new control room has been designed to provide
the city with a long term public safety facility. Leeds City Council / West Yorkshire
Metro installed 78 units of AG Neovo Display of 22” and 42” screens.
iiyama ProLite 19” CCTV LCD display
AG Neovo Displays for Science Labs
Science labs
AG Neovo Displays
for Science Labs
TX-Series multitouch displays;
X-Series and
U-Series
280 AG Neovo Displays helping to
advance education and science
in London Metropolitan University.
Their 1,800 square metre ‘Super
Lab’ featuring a customised audiovisual system, the lab is capable of
handling up to 280 students at one
time as well as 12 different classes
ranging from undergraduate to
doctorate. AG Neovo Displays
18 Copyright © 2015 Wedgwood AV Ltd. www.wedgwood-group.com www.lcd-monitors.co.uk
Wedgwood AV Ltd - 01754 769967
Medical
Elo Touch Solutions are specialist
manufacturers of touch screen
solutions with over 40 years
experience and sales of over 20
million touch screens around the
world.
touch monitors, open frame monitors
and desktop touchcomputers for
healthcare automation, patient
self-service, medical OEMS, kiosks,
system control and office automation
and large format displays for interactive
digital signage and wayfinding.
Elo has the widest portfolio of touch
technologies, each optimised for
different operating characteristics
and environments. Their range
includes a choice of touch
technology, size, and form factor.
Elo develops touch products
for specific applications in retail,
hospitality, industrial, medical,
digital signage, gaming and
transportation, covering such
uses as ticketing kiosks, in-flight
entertainment cabin management,
patient self-service, and in the
industrial sector - light industrial
system control and office
automation, control and clean room
applications, etc., with choice of
touch technology, size and form
factor.
For medical applications, Elo Touch
Solutions have a range of desktop
Using Elo touch products including
touchmonitors and all-in-one
touchcomputers, patients can
conveniently order meals, surf the
Internet, and view movies on demand,
all from their bedside. Also using the
same unit, caregivers have convenient
real-time access to electronic patient
records. Elo product comparisons
Interactive public access kiosks can
automate patient registration, reduce
paper workflow, and significantly
speed up the check-in process. A
kiosk also frees up valuable staff to
pursue other functions.
NEC Displays medical solutions
include display screens for medical
imaging, administration, backoffice, way-finding, infotainment,
queue management and bed
management.
NEC Diagnostic Displays are
designed in Japan, built to the
highest quality standards and are
trusted in hospitals throughout
the world. Proven medical display
technology from NEC give you the
confidence that your diagnosis
is based upon clear, reliable, and
verifiable images allowing you to
focus on your patients and not on
your equipment.
Modalities for which NEC’s
displays are suited are for example,
computed tomography, magnetic
resonance, nuclear medicine,
interventional radiology, PET,
mammography and digital radiology
as well as surgery.
NEC MD series is for diagnostics, whils
the MDView series is for clinical review.
NEC Displays
NEC medical specialists can visit you
on-site (UK mainland) to recommend
solutions. Contact form
UK suppliers of audio visual equipment. Telephone: 01754 769967 [email protected] 19
LCD monitor and touch screen guide
Energy and Utility
NEC has a range of hardware and software platforms that
include various display solutions, high performance PCs and
utility software for monitoring and control.
MultiSync P, XS and XUN series of large format displays are
ideal for traffic surveillance and monitoring stations.
For CCTV monitoring, the NEC MultiSync EA, P and PA
desktop monitors are designed for these applications, whilst
for hardware solutions with different processor platforms are
available for control rooms. NEC comparisons
NEC solutions for energy and utility
Industrial
Elo touch technologies are rugged
and reliable enough to be used in
industrial environments where dust
and liquids are prevalent, are sealable
to industrial requirements, and they
can be operated by a gloved-hand.
Their touch solutions provide reliable
interaction making them ideal for use
in industrial applications.
From the clean room to foodprocessing or the dusty factory floor;
from portable applications to complex
IPCs, Elo offers the largest selection of
touch technologies and touch-enabled
monitors and displays to the industrial
market. Elo product comparisons
Elo 12-22-inch open frame
touch monitors for clean rooms
Elo desktop monitors for light
industrial system control and
office automation
Whether in a factory control room or the clean room, Elo touchscreens and
touchmonitors are simplifying complex light industrial tasks by replacing multiple
buttons, knobs, gauges, meters, and other interfaces with a single touch display
capable of multifaceted monitoring and machine control.
While light industrial touch solutions are available in a host of touch technologies, customer feedback indicates that surface
wave is the most widely used technology for control/clean room applications where meeting NEMA 4/IP65 requirements is not
a prerequisite. IntelliTouch clear glass overlay touchscreens provide superior optical and image quality along with resistance to
scratches, breakage, accidental spillage, and vandalism. And they can be activated by a gloved hand or soft stylus.
20 Copyright © 2015 Wedgwood AV Ltd. www.wedgwood-group.com www.lcd-monitors.co.uk
Wedgwood AV Ltd - 01754 769967
Finance Desktop monitors are suitable for
financial institutions, whilst multimonitor configurations are ideal
for trading rooms, with large format
displays for front and back office.
As a visual interace between traders
and global markets, NEC Display
Solutions give clear and accurate
visual data when fortunes can be
made or lost in seconds.
NEC desktop displays for financial
institutes and trading rooms
NEC Displays
Corporate
There are numerous solutions to choose from for the
corporate and business world, here are a few:
Hitachi large format interactive panels are ideal
for corporate and higher education. Come with a
choice of StarBoard software or RM Easyteach.
iiyama desktop monitors range in size from 17” to
30” from widescreen WXGA 1280x1024, Full HD
1920x1080 to UHF 4K models, to suit a wide range
of office applications. Plus large format displays.
ViewSonic VP Professional Series
NEC corporate desktop range includes Commercial
Entry Displays, Commercial Enterprise Displays up
to 30”, and Professional Displays up to 32”, plus a
wide range of large format displays, touch screens
and industry specific solutions.
SMART Board® 8000 series e-LED LCD interactive
flat panel displays, which include Full HD and 4K
resolution models, come with Meeting Pro software
which enables collaboration. SMART has optional
software such as SMART Bridgit® which allows you
to take part in meetings from anywhere in the world.
Sony BRAVIA Professional displays range from 40”
to 85” diagonal, with Full HD and 4K models. These
are ideal for a range of applications in education,
corporate and retail video walls.
ViewSonic VP Professional series with WQHD
(2560x144) high resolution for flicker-free images,
IPS wide-viewing angles and multiple connectors
are ideal for high-end corporate solutions.
For comparisons, prices and brochures of LCD monitors and
large format displays please visit: www.lcd-monitors.co.uk
By manufacturer:
Hitachi
Samsung
3M
iiyama
Sharp
AG Neovo
InFocus
SMART
AquaLite TV
LG
Sony
BenQ
NEC
Toshiba
CleverTouch
Panasonic
Toshiba LED TV
CTOUCH
Philips
Triumph Board
CleverVision TV
Promethean
ViewSonic
CYP
ALL LCD monitors
Elo Touch Solutions Sahara
iiyama desktop monitors
Sony BRAVIA Professional
SMART Board® 8070i with
Meeting Pro software for corporate
NEC desktop monitors
Hitachi interactive panels with software
UK suppliers of audio visual equipment. Telephone: 01754 769967 [email protected] 21
LCD monitor and touch screen guide
Education
SMART Board® interactive whiteboards for the education
market include SMART Notebook™ collaborative learning
software, multi-touch capabilities and gesture controls for
a collaborative classroom experience. SMART Board®
Each SMART Board® is shipped with the latest version
of SMART Notebook™ and 1 year Notebook Advantage
licence which is an annual paid subscription for education
customers using SMART Notebook Collaborative learning
software. It covers upgrades, add-ons and technical
support for SMART Notebook software. Site licences are
available, however, the education establishment must
maintain 100% SMART Notebook adoption to qualify for
site licence purchasing. SMART software
SMART Boards® are also available as a system with an
ultra short throw projector.
SMART Board® projector system
SMART Boards® also include LCD interactive flat panels
with Ultra HD 4K resolution for classrooms. Unlike
interactive whiteboards which need a projector, the
interactive panels have no on-going costs as there is no
projector nor replacement lamps to purchase.
SMART Board® flat panels
SMART Podium
SMART Board®
interactive panel
SMARTTable for primary
CTOUCH laser 4K displays
BenQ’s interactive displays are designed to encourage collaborative
learning and team building in education and business.
The majority of manufacturers’ large format displays and interactive
touch screen displays can be used with a media player and digital
signage software. For interactive displays however, the digital signage
software needs to have touchscreen support. BenQ comparisons
CTOUCH LED 10 point touch, True 4K
resolution displays with anti-reflective
glass comes with manufacturer 7 year
warranty and Oktopus collaborative
software for classroom use.
CTOUCH comparisons
22 Copyright © 2015 Wedgwood AV Ltd. www.wedgwood-group.com www.lcd-monitors.co.uk
Wedgwood AV Ltd - 01754 769967
Education
Promethean’s ActivPanel Touch’s suite of large, highdefinition displays support multi-touch interaction
where up to 10 students can collaborate and learn
together. (10 point touch only available on 55” and
84” ActivPanel Touch sizes.) ActivPanel are ideal as
replacements for interactive whiteboards as you don’t
need to use a projector, thus saving on projector costs
and replacement lamps. ActivPanel comparisons
ActivPanel Touch
ActivInspire Professional Edition software and access
to Promethean Planet’s 90,000+ free teaching
resources and online professional development
provide teachers with tools and support for active and
inspired learning.
Prometheans’s ActivBoard range of interactive whiteboards, and whiteboard
systems (whiteboard and projector), are ideal for schools, colleges, universities,
local authorities and government departments for education and training, fostering
communication building teamwork. ActivBoard comparisons
Their interactive whiteboard systems (whiteboard and projector) range includes
ActivBoard 500 Pro series multi-user system for up to 4 users with touch or pen,
ideal for education and government; and ActivBoard Touch for up to 6 users for
Mac, Linux and Windows 7/8.
Wedgwood Whiteboard guide Wedgwood Projector guide
ActivBoard 500 Pro
Panasonic LFC70 Series network displays
With the trend of BYOD (Bring Your Own Device), a large display
screen makes team communication more efficient and effective.
With the Panasonic LFC70 Series of network LED displays, you
can share media content from smartphone, PC, and tablet. A
number of next-generation wireless technologies are included to
support a wide variety of media formats, so all members of your
team can contribute to the flow of ideas. Panasonic displays
InFocus Mondopad
InFocus touch screens are ideal for the classroom
or conference room. InFocus range includes
J-Touch a giant touch screen display for your PC;
BigTouch series of giant touch screen PCs for
presentation and collaboration; and Mondopad
series of collaboration touch screen PC for visual
collaboration in the conference room or classroom.
InFocus Q Tablets have a 10.1-inch touch screen
with Windows 8.1 operating system for work or
school. InFocus touch screens
For comparisons please visit: www.touch-screens.co.uk
UK suppliers of audio visual equipment. Telephone: 01754 769967 [email protected] 23
LCD monitor and touch screen guide
Hospitality
CleverVision LED TV’s with super narrow bezel, are
ideal solutions for hospitality and business applications
where the look and functionality of a high end consumer
television is required but the peace of mind of a
commercial warranty is a must.
Featuring HDMI, VGA and USB cloning for mass rollouts, this solution is ideal for hotels and hospitality
suites.
CleverVision LED TV
USB cloning is a great time-saving feature, for once
you have set up volume control and other features, you
simply save to USB memory stick and copy to all your
other TVs of the same make and model.
CleverVision comparisons
Toshiba Professional D1 series is a range of LED
TVs with built-in FreeView digital TV (Saorview in
Eire) and built-in DVD player, along with hotel mode
for control over functionalities.
Video, photo and audio playback via USB, whilst
HDMI connectivity and PC input make it easy to
connect to other devices. Ideal hospitality suites
and hotels. Toshiba comparisons
LG provides hospitality solutions for in-room
entertainment, including LED televisions, as well
as LED interactive hotel TVs that allow guests to
watch movies on demand, check email, surf the
web and more. LG comparisons
For comparisons, prices and brochures of LCD monitors and
large format displays please visit: www.lcd-monitors.co.uk
By manufacturer:
3M
Sahara
Hitachi
AG Neovo
Samsung
iiyama
AquaLite TV
Sharp
InFocus
BenQ
SMART
LG
CleverTouch
Sony
NEC
CTOUCH
Toshiba
Panasonic
CleverVision TV
Toshiba LED TV
Philips
Elo Touch Solutions Promethean ViewSonic
ALL LCD monitor
LG Hotel TVs
24 Copyright © 2015 Wedgwood AV Ltd. www.wedgwood-group.com www.lcd-monitors.co.uk
Wedgwood AV Ltd - 01754 769967
Samsung Smart TV
Designed specifically for premier 5-star hotel accommodation, Samsung’s ultraslim HC890 series of ultra-slim Smart TVs deliver an elevated guest viewing
experience. Deliver and manage in-room TV content easily with Samsung LYNK
SINC 3.0 solution without the need for set-top boxes. Hotels can create unique
channel lists and edit the channel mapping of available channels to tailor them
to specific needs. Software clock and USB cloning and 3D Full 3D images.
Samsung comparisons
Leisure and Museums
NEC P-Series 4-screen video wall
NEC enhances the visitor experience
in museums and exhibitions as well
as other leisure venues. Solutions
include installation projectors for
museums and large format displays
in video walls; conventional projectors
for exhibitions; short throw, ultra short
throw and interactive projectors for
galleries, SpectraView series for hotels,
MultiSync PA desktop displays for
recreation parks and MultiSync P, XS
and XUN Series large format displays
for cruise ships. NEC comparisons
For comparisons please visit: www.lcd-monitors.co.uk
UK suppliers of audio visual equipment. Telephone: 01754 769967 [email protected] 25
LCD monitor and touch screen guide
Airports and transportation
Sharp professional display screens
for retail and signage include
models with ultra slim bezels for
video walls with 5x5 capability and
module slot for Slot-in PC. Ideal
for 24/7 usage with up to 50,000
hours life time.
Content displayed on single large
format displays or video walls,
help keep travellers informed with
flight information, wayfinding and
infotainment. Airport restaurants
and fast food outlets can promote
menu changes throughout the
day, whilst the retail stores can
introduce innovative new ways to
engage with travellers and drive
incremental sales with seasonal
promotional messages and offers.
Sharp comparisons
Sharp 9-screen video wall
NEC Display airport solutions include display
screens for flight information display systems,
split flap board replacements for way finding,
indoor and outdoor giant LED screens, signage displays and media walls for retail, LCD videowall moduels and
desktop displays for airport operation control centres and CUTE common user terminal displays. NEC comparisons
26 Copyright © 2015 Wedgwood AV Ltd. www.wedgwood-group.com www.lcd-monitors.co.uk
Wedgwood AV Ltd - 01754 769967
Media and Colour
NEC’s SpectraView and SpectraView Reference
colour accurate display screens are designed
specifically for pre-press and press professional
photography. The demands on the creative
industry has changed considerably in recent years,
with an increasing recognition and protective
attitude of leading corporates towards their brand
colours, with graphic designers needing to have a
colour handling process. NEC SpectraView series
are also ideal for video and film post-production,
media and advertising agencies, mail order
houses, and industries such as car plants, textiles
and cosmetics. NEC comparisons
NEC SpectraView and SpectraView Reference
NEC has industry specific specialists in many areas
such as media and colour, medical displays, museums
and leisure, education, DOOH, etc., and no-obligation
demonstration appointments can be made in mainland
UK. Please telephone: Wedgwood AV 01754 769967
Outdoor solutions
AquaLite outdoor displays
AquaLite Outdoor specialise in outdoor
LCD and LED TV screens. Their IP66
rated waterproof and weatherproof
outdoor TV screens come in a
choice of standard brightness or high
brightness (3 times brighter for sunlight
readable conditions). Examples
of applications are theme parks,
motorsport events, for outdoor event
advertising and signage, for watching
football in pubs with beer gardens and
waterproof TV for kitchen, bathroom,
shower, jacuzzi or pool area. Also
available are sun, salt and sea proof
TV screens for luxury yacht
installations. AquaLite comparisons
Panasonic outdoor displays
Panasonic LFX Series of outdoor LCD displays
are dustproof and waterproof to withstand even
harsh conditions, and usable even under direct
sunlight.
With high brightness and wide viewing angle
IPS panel and LED backlight, images are clear
even in brightly lit places. Outdoor displays are
ideal for street signage, outdoor sports facilities,
transportation and parking lots.
Panasonic weatherproof displays are suitable
for open cafes, train stations, transportation,
stadiums, indoor sports facilities, zoos and
botanical gardens. Panasonic comparisons
UK suppliers of audio visual equipment. Telephone: 01754 769967 [email protected] 27
LCD monitor and touch screen guide
QSR - Quick Service Restaurants
With the growing number of fast food restaurants
the challenge is to deliver; through display screens
and signage; greater brand and product impact
and faster response to specific events, season
and daytime menu changes.
In a consumer survey conducted by ‘Digital
Signage Today’, 61% of chains saw a sales lift
from installing signage with 21.4% over 5%.
(Information courtesy of NEC Displays)
NEC P-Series of large format displays are
designed for non-stop operation 24/7 in bright
environments. Ideal for menu board displays.
Their XS-Series are ideal for back-to-back
installations, totem and kiosk integration and
installations in recessed walls.
NEC large format displays for signage - and below, order ready board
For restaurants with open hours 16/7 the
V-Series is ideal for life-size advertising with some
interactive (touch screen) models. The NEC
E-Series is for light signage applications and
infotainment with 12/7 usage.
Solutions for display screens for restaurants:
- Indoor digital menu boards
- Promotion boards (indoors and outdoors)
- Outdoor digital drive-thru menu boards
- Price board - Guest kiosks
- Presale boards - Nutrition / calories board
- Order ready boards - Kitchen displays
- In-store digital advertising
- Infotainment and dining room signage
- Outdoor LED advertising boards
For outdoor displays you need IP rated models.
NEC comparisons
Retail
BenQ LCD display screens for retail stores
BenQ digital signage displays are ideal in retail stores, shopping
malls and other public areas, offering a range of large format LCD
monitors perfect for landscape or portrait. For video walls, their
range includes models with extremely thin bezels, which means that
the gap between each screen is very small. BenQ comparisons
28 Copyright © 2015 Wedgwood AV Ltd. www.wedgwood-group.com www.lcd-monitors.co.uk
Wedgwood AV Ltd - 01754 769967
Retail
The benefits of touch computing have
expanded well beyond increasing
check out throughput and accelerating
new associate training. Elo Touch
Solutions are collaborating with
leading retailers to create, innovate
and develop new retail offerings
and interactive brand experiences,
including: mobile point of service,
customer guided shopping, interactive
digital signage, customer facing
displays and virtual stores.
Their range spans from 10” mobile
retail tablets to 70” interactive digital
signage display screens. Options
include touch displays 7” to 32”,
interactive digital signage 32” to 70”,
all-in-one touch computers 15” to 22”,
open frame kiosk solutions 12” to 42”,
and retail mobile tablets and dock
solutions 10.1”.
At retail point-of-sale (POS) the
goal of store automation is to make
checkout fast and easy for both the
cashier and the customer. Touch
POS systems speed and simplify
cash register functions and reduce
operator errors. In an industry in which
employee turnover is high, touch POS
can dramatically reduce training time,
empowering sales staff and service
staff to provide higher quality customer
interactions. Ideal for department
stores, speciality chains, grocery
stores and convenience stores.
Versatile Elo touchmonitors can also
manage and streamline vital day-today business operations, performing
inventory control, client management,
appointment book, employee roster,
clubs and client incentive and client
marketing functions.
Elo product comparisons
Elo kiosk touch display
Elo kiosk touch display
UK suppliers of audio visual equipment. Telephone: 01754 769967 [email protected] 29
LCD monitor and touch screen guide
Retail
Panasonic Professional video wall displays
Panasonic professional, large format displays include indoor displays for high reliability, 24/7 usage; network displays with
wireless and network capabilities; multi-touch displays with wireless and network capability; outdoor displays for high visibilty in
bright environments with durability against rain and dust; video wall displays with super narrow bezels and 24/7 usage; and 4K
LED displays for outstanding picture quality. Panasonic comparisons
Philips videowall displays
Repeat Signage software presentation
Repeat Signage digital signage software helps you
promote your products and services in retail stores
and public areas. The Repeat Signage presentation
above was displayed on a Unicol Rhobus 2x2 video
wall trolley, and Rhobus 4x4 video wall stand, an ideal
solution for retail and exhibition booths, where it is not
practical to wall mount display screens.
Unicol comparisons Repeat Signage
Philips professional display solutions include Clinical
Review displays, Office monitors, Hospitality TV and
Signage Solutions. For retail and signage solutions
the Q-Line basic series is ideal for 16/7 usage; E-Line
is for 24/7 usage, V-Line is high-end for demanding
environments. Multi-touch, 3D Display series and
Videowall Series complete the line-up.
Philips videowall displays have ultra thin bezels for
seamless video walls with Smart Control for total
control of your video wall and OPS slot for a slot-in
PC. Philips comparisons
30 Copyright © 2015 Wedgwood AV Ltd. www.wedgwood-group.com www.lcd-monitors.co.uk
Wedgwood AV Ltd - 01754 769967
LCD monitor and touch screen comparisons
LCD / LED monitors
LCD / LED monitors
LCD accessories
By manufacturer:
Comparisons by size
Accessories
3M
15" desktop and below
Digital signage distribution
AG Neovo
17" desktop monitors
Digital signage players
AquaLite Outdoor
19” to 29” monitors
Digital signage software
BenQ
30" and over large format displays
Installation accessories
Installations - UK
CleverTouch
CTOUCH
LED monitors and LED TV
LCD components
Elo Touch Solutions
LED monitors
LCD monitor speakers
Hitachi
LED TV - hotel TV - outdoor TV
Privacy filters
Touch screen overlays
iiyama
InFocus
IP rated monitors
LG
Weather-resistant monitors
Visualisers
LCD mounts and trolleys
NEC
Panasonic
Medical monitors
Ceiling mounts
Philips
DICOM medical displays for
Desk arms and stands
Promethean
PACS, reviewing and reporting
Floor stands
iPad mounts
Sahara
Samsung
Touch screens
Medical - Dental mounts
Sharp
LCD touch with IWB software
Medical - PACS / EPRS mounts
SMART
LCD touch screens
Medical - Patient bedside mounts
Sony
LCD touch screen overlays
Multiple monitor stands
ViewSonic
Touch screen tablets
Pole mounts
Trolleys
Collaborative working tables
Video wall mounts
AV working tables and desks
Wall arms
Wall mounts
UK demonstrations
As an authorised UK supplier
of brand manufacturer display
products, Wedgwood AV are
able to arrange no obligation
demonstrations of some brands of
LCD products. Please contact us.
Telephone 01754 769967
Interactive whiteboards
UK sales and enquiries
Interactive whiteboards
Please contact Wedgwood AV
Whiteboard projector systems
[email protected]
Portable whiteboard systems
Tel: 01754 769967 Contact form
UK suppliers of audio visual equipment. Telephone: 01754 769967 [email protected] 31
LCD monitor and touch screen guide
Signage Solutions
Caxton & CTP Publishers and Printers, South Africa, use Repeat Signage™ digital signage software as an electronic notice board for staff and visitors
See success stories
To promote your products and
services using digital signage, you will
need a display screen, a computer or
signage player and software to create
your presentation.
you to decide whether PowerPoint,
or another presentation graphics
package, is a better option than digital
signage software.
The advantages of PowerPoint are:
Large format display screens over 30”
Digital signage distribution products
Digital signage players
Digital signage software
- Very easy to use and many people
are already familiar with this software
package.
Manufacturers supply a wide range
of large format displays and touch
screens for signage applications in a
whole range of industries.
- Large number of effects and
transitions between slides, which are
generally not seen in all digital signage
packages.
Many schools and businesses use
Microsoft PowerPoint® on their PC’s
for creating presentations to display on
screens.
- Is already in use every day in
education establishments and many
businesses.
Microsoft PowerPoint® does an
excellent job of allowing you to design
and display presentations. PowerPoint
is presentation graphics software
and is one of the best presentation
graphics packages available.
Digital signage software is different to
presentation graphics software.
Understanding the difference will allow
- Licences may already have been
bought and PowerPoint is available
for around £100+VAT in the UK,
compared to professional digital
signage software that can range from
£245 to over £1,000 +VAT.
- Supports a huge variety of audio/
video formats, PDF documents,
Microsoft Office documents, etc, some
of which are not supported in all digital
signage software.
Most digital signage software packages
have the following advantage over
PowerPoint:
- Scheduling on an hourly, daily or
weekly basis what is displayed on
screen.
- Update of screen information over
the local network or over the Internet
(cloud server). PowerPoint needs the
presentation changing and then you
have to set it playing again (at time of
writing).
- Some digital signage packages allow
any application to ‘print’ to screens.
- Generally, support for RSS news feeds,
for example, to display news from the
BBC website your own website, and
live video sources such as webcams.
- Some digital signage systems allow
dual monitor support for displaying
different presentations on separate
screens or displaying a single
presentation that spans both screens.
-Some digital signage software allows
PowerPoint scheduling.
-Some digital signage software offers
touch screen support
32 Copyright © 2015 Wedgwood AV Ltd. www.wedgwood-group.com www.lcd-monitors.co.uk
Wedgwood AV Ltd - 01754 769967
Samsung large format displays include
MagicInfo Lite, a remote control
technology enabling you to play a
range of content including videos,
images, PowerPoint and Flash onto the
display screen, using a USB memory
or after connecting to a server. You
can easily play files from, or transfer
between the large internal memory
or external USB devices plugged into
the in-built port. There is an option to
upgrade to other MagicInfo services.
Samsung comparisons
Samsung large format displays with MagicInfo Lite
NEC Slot-in PC
Some manufacturers, such as NEC,
have an Open Pluggable Specification
(OPS) compliant expansion slot on their
large format displays which allow you to
use a Slot-in PC that slots into the back
or side of the display screen or a highend projector.
NEC large format displays
Having a PC that slots into the back of a
display screen, especially where space
is at a premium, means you do not have
to worry about finding space to install a
separate digital signage player.
Often Slot-in PCs and standalone
digital signage media players
include Microsoft Windows
embedded software or Microsoft
Windows Professional, for you
to play your presentations using
digital signage software.
NEC Displays
NEC OPS Slot-in PCs
Edis Mini PC quad core signage
player is a silent running Windows
7 mini PC that plugs directly into a
digital display screen.
Digital signage players, also referred
to as Mini PC’s or media players, are
small standalone players that plug
into desktop or large format display
screens dedicated to playing digital
signage software presentations.
Supplied on its own or supplied
fully loaded with Repeat Signage
digital signage software for the PC
for connection to a network drive,
website or an on-line hosted server.
LCD monitor brackets are available
that allow space between the back
of the wall or ceiling mount for a
small form digital signage player
(mini PC) to sit.
Once the media player is connected
to your LCD monitor (display screen),
you can attach a keyboard and
mouse, install your digital signage
software onto the media player and
design your presentation onto the
display screen.
NEC Slot-in PCs, for example,
include Intel® Atom or Intel®
Celeron processors with a choice
of hard disk drive size for single
projection/screen use, up to more
demanding retail signage and
multi-touch applications.
Edis PC quad core signage player
Edis signage players
UK suppliers of audio visual equipment. Telephone: 01754 769967 [email protected] 33
LCD monitor and touch screen guide
Digital Signage Software
Displaying menu options at Velo Restaurants Ltd.,
with Repeat Signage™ digital signage software
Repeat Signage™ digital signage software at Caxton & CTP
Publishers and Printers, South Africa Success story
Repeat Signage™ digital signage
software is very easy to use and
you can create, edit and play a
presentation in minutes. 2 min video
Repeat Signage lets you design your
presentation for the resolution of your
screen. For example, you may want
to display information in a reception
area on an LCD display which has
1920x1080 pixels. Repeat Signage
allows you to design on this screen
in full screen mode (landscape or
portrait), allowing you to place pictures,
videos, PDF files, website pages, etc.,
exactly where you want them. Repeat
Signage will automatically scale
presentations to your screens as well.
Repeat Signage helps you get your
message across and promote your
products and services. You just need
a Windows based PC and a display
screen or monitor. Features include
touch screen support, remote updating
and scheduling of presentations, and
it supports Windows 8/8.1, 7, Vista
and XP.
Repeat Signage allows you to collect
content from Internet websites and
network drives. This means if you have
offices in London, New York and Paris,
you can upload new presentations,
files and play lists to a website and the
remote players (when connected to
the Internet) can download and display
the new information.
Digital signage is about using small
and large computer screens to display
still and moving posters which have
different information scheduled at
varying times and can be updated
from a computer somewhere in the
building or over the Internet.
Repeat Signage is used in over 26
countries. Their team will give you an
outstanding level of support with free
training videos, sample presentations
and templates, and have satisfied
customers across the globe.
Repeat Signage licence is per PC
playing the software, with no on-going
costs, unless you decide to upgrade.
RepeatServer.com is a free and secure
service that allows you to create and
host RSS feeds online. You can use
these for your websites, with desktop
RSS readers or in Repeat Signage
digital signage software. Our news
feeds can support Chinese, Japanese,
Greek and other characters.
RepeatServer.com was designed with
users of Repeat Signage in mind so
you can create, host and maintain
RSS feeds to be displayed on LCD
screens in public areas. This online
portal provides a way for Repeat
Signage screens to be updated from
anywhere in the world.
Repeat Signage evaluation download
34 Copyright © 2015 Wedgwood AV Ltd. www.wedgwood-group.com www.lcd-monitors.co.uk
Wedgwood AV Ltd - 01754 769967
Repeat Signage is used to create digital signage presentations to promote
products and services in a wide range of applications, here are a few examples...
Education
Radio Stations
Radio Stations can use digital signage to
display outside broadcasts and a digitised
version of public service announcements. Image
Schools, academies, colleges and universities use digital signage to
promote courses and school activities, celebrate student birthdays and
visitor announcements as well emergency information such as fire drills.
Adult Care
Image courtesy of The Onion Lake Radio Station
(KR102.5 FM) Success story
Promoting menu of the day, activities, date and time, and a playlist of
pictures of events for visitors, staff and clients. Success story
Finance and Banking
Estate Agents
Image courtesy of the Asian Institute of Finance, Kuala Lumpur
Publishing the CEO’s agenda on a day to day basis,
incorporating a live video stream of Bloomberg TV and a
Flash RSS feed at the bottom of the video. Success story
Image courtesy of Hunters Estate Agents Success story
UK suppliers of audio visual equipment. Telephone: 01754 769967 [email protected] 35
LCD monitor and touch screen guide
Multiple monitors
and video walls
Panasonic 4x4 video wall of 12 display screens (above and right)
Create eye-catching displays with multi-screen video walls
whilst multiple desktop monitors expand your working space
Multi-screen LCD monitors allow
you to expand the working space
on your computer. A good
example would be that you can
have a dual screen monitor with
Microsoft Word running on one
screen and Microsoft Excel on
another screen.
Usually when you are working with two
programs, you have to switch between
them when working. A two screen
multiple LCD monitor would allow you
to see both at the same time. Two
Microsoft Word documents could also
be displayed which would allow you to
read one while working on the other.
The picture on the right shows three
multiple LCD monitor screens with
a single computer’s display image
spread between them. The important
thing is, this is created from one
computer and not three different
computers.
ErgoMounts multi-screen stands
36 Copyright © 2015 Wedgwood AV Ltd. www.wedgwood-group.com www.lcd-monitors.co.uk
Wedgwood AV Ltd - 01754 769967
Multiple monitors
A computer with multiple monitors
attached spreads the working area of
the Windows desktop across all the
monitors to create one big working
area.
Imagine a computer is running three
programs: Word, Excel and Windows
Explorer, all at the same time on
different screens, you can then copy
and paste information between
programs with ease.
Extending the Windows desktop
onto multiple monitors
You need to have two monitors (or
more) monitors attached to your
system to be able to do this.
Desktop computers - connecting
additional monitors
Many new desktops come with two
ports on the graphics card, either VGA,
DVI or HDMI. You can plug monitors
into each of these. If you only have a
single monitor port, then you can either
replace the existing graphics card with
a dual port one, or in some cases you
could install a second graphics card.
Most local computer shops will be able
to do this for you if you do not have an
IT Department.
Extending the Windows desktop
onto multiple screens
Once you have two monitors attached
to your system, you can then tell
Windows to extend the desktop onto
both monitors. The image below shows
the display settings on Windows Vista
from the Display Settings screen.
ErgoMounts multi-screen stands
Windows XP
- Click on the ‘Start’ button then ‘Control panel’
- Double click the ‘Display’ icon to open up the ‘Display Properties’ screen
- Click on the ‘Settings’ tab
- Click on monitor number 2
- Put a tick in the ‘Extend my Windows desktop onto this monitor’ tick box and then
click on the ‘Apply’ button.
Windows Vista
- Click on the ‘Start’ button orb then ‘Control panel’
- If on Vista, then make sure you are on ‘Control Panel Home’ rather than ‘Class
View’
- In the ‘Appearance and Personalization’ section click on ‘Adjust screen resolution’
- Click on monitor number 2
- Put a tick in the ‘Extend the desktop onto this monitor’ tick box and then click on
the ‘Apply’ button.
Windows 7
- Click on the ‘Start’ button, then ‘Control panel’
- In the ‘Appearance and Personalization’ section click on ‘Adjust screen resolution’
- In the ‘Multiple displays’ drop down box, choose the ‘Extend these displays’ option
and then click on the ‘Apply’ button
Windows 8
On your keyboard, press the Windows key + R, then on the Run dialog type control
and press return.
- In the ‘Appearance and Personalization’ section click on ‘Adjust screen resolution’
- In the ‘Multiple displays’ drop down box, choose the ‘Extend these displays’ option
and then click on the ‘Apply’ button
Physical monitor positioning
Usually, when you add a second monitor, then you put this on the right side of the
first monitor. However, for digital signage, you may want to mount the second
monitor above, below, to the left or even diagonal to the first monitor. On the
Display Settings screen (see the animated gif above for the Vista one), you can drag
and drop the monitors displayed to match the physical monitor arrangement.
Portrait and landscape
See Portrait and landscape on how to alter Windows so that a screen is mounted
vertically. You can then extend to multiple monitors in the same way as above.
Display settings screen
Please click to see animated gif of the
Display settings screen
LCD monitors
Multiple-monitor desktop stands
Video wall mounts
UK suppliers of audio visual equipment. Telephone: 01754 769967 [email protected] 37
LCD monitor and touch screen guide
NEC video wall of 6 display screens
Video walls
Large format displays, over 32”
diagonal, are installed in a video wall to
create impact in public areas. Video
walls can be installed in landscape
(horizontal) format, using all the same
size display screens in combinations
of 2x2, 3x3 (as shown above in the
NEC video wall), 4x4, 5x5 or more.
Content can be displayed across
all the display screens or different
content on each display screen or a
combination.
NEC’s videowall displays support video
and signal daisy chaining for up to 100
units, including LAN daisy chaining
with network switching capabilities.
Requiring less cabling, installation time
and cost is reduced especially on large
roll-outs, enabling any signal to be sent
via DisplayPort and daisy chained to
the next display. NEC Displays
Repeat Signage Professional digital signage software
Video walls can also be created using
a matrix of varying size display screens
to create stunning effects. The
pictures opposite show a video wall in
a US hospital who wanted to create a
‘donor wall’ and used Repeat Signage
Professional edition digital signage
software to display the content.
Repeat Signage success story
Repeat Signage Professional edition digital signage software displaying a ‘donor wall’ of
donors names in a US hospital. The names have been removed for data protection.
38 Copyright © 2015 Wedgwood AV Ltd. www.wedgwood-group.com www.lcd-monitors.co.uk
Wedgwood AV Ltd - 01754 769967
Multiple monitor mounting solutions
The Unicol Adapta-Wall system is broken down into pop-out wall mounts,
VWP1 (landscape) & VWP2 (portrait), that fix directly to a wall and the separate
components to make the structure to support these mounts when a wall is not
available such as suspending from a ceiling.
Unicol Screen-Rail is ideal
for wall mounting a row of
horizontal display screens
Unicol VWP1 Adapta-Wall wall mount
Unicol Rhobus
Assembling a Unicol Rhobus 4x3 video wall
Unicol Rhobus 3x3 video wall
The Unicol Rhobus range
has multi-screen stands and
trolleys in landscape and
portrait and also a freestanding video wall option.
Comparisons: Unicol trolleys Unicol video wall mounts
ErgoMounts UltraView
dual vertical monitor stand
ErgoMounts multi-screen mounts
UK suppliers of audio visual equipment. Telephone: 01754 769967 [email protected] 39
Wedgwood AV
Please telephone on
01754 769967 for
manufacturer
brochures and
quotations.
No obligation onsite
demonstrations on
many brands.
LCD monitors & touch screens
Sony large format displays
NS
CREE uk
S
H
C
TOU
s.co.
•LCD uch-screen ktop
s
to
www. creens - de ns, iiyama,
s
tio
h
•Touc Touch Solu
lo
at
3M, E arp
e form ,
h
g
S
r
,
la
C
NE
ns
enQ
hscree Neovo, B lutions,
c
u
o
T
G
•
o
uch S
anel, A
ActivP uch, Elo To cus,
To
o
hiba
Clever iiyama, InF
T, Tos
R
A
M
i,
S
Hitach nic, Sharp, co.uk
o
s.
s
n
Pana uch-scree
to
www.
Unicol mounts
•LCD
MO
www.lc NITORS
d-mon
it
•LCD
Monito ors.co.uk
rs
3M, AG
Clever Neovo, BenQ
To
,
Elo Tou uch, CTOUC
H, CYP
ch Solu
,
iBoard
tions, H
To
it
LG, NE uch, iiyama, achi,
In
C
Prome , Panasonic Focus,
,P
th
Sharp, ean, Sahara hilips,
, Sams
SMAR
un
T,
Triump
h Boar Sony, Toshib g,
d
a,
•LCD
, ViewS
Co
o
AquaL mmercial TV nic
ite
LG, To Outdoors, C
shiba
leverVis
www.lc
ion,
d-mon
itors.c
o.uk
Elo Touch Solutions
•LCD ACCESSORIES
www.lcd-monitors.co.uk
•Ceiling mounts, desk
stands, multi-screen
mounts, wall mounts...
www.lcd-monitors.co.uk
•DIGITA
LS
www.lcd IGNAGE
-monito
rs
•Digital
signage .co.uk
distribut
•Digital
ion
signage
p
AOPEN
la
, CYP, E yers
dis,
Nexcom
, Spinet
iX
•Digital
signage
s
oft
DigiSHO
W, Repe ware
www.lcd
a
-monito t Signage
rs.co.uk
Free Repeat Signage™ Standalone - UK offer
FREE copy of Repeat Signage™ Standalone Edition 2015
Free digital signage software with every LCD monitor, touch screen, interactive whiteboard or
projector order value of £500+VAT or over from Wedgwood AV Ltd.
Tel: 01754 769967 [email protected] www.wedgwood-group.com
UK offer only.
Repeat Signage™ is truly flexible digital signage software for Windows. It allows pixel-by-pixel control of
displays including plasma screens, LCD monitors and projectors. Easy to use. Touch screen support.
Download evaluation software from www.repeatsoftware.com
40 Copyright © 2015 Wedgwood AV Ltd. www.wedgwood-group.com www.lcd-monitors.co.uk
Please quote
LCD2015-RS
Wedgwood AV
FREE
Repeat Signage™
Standalone Edition 2015
digital signage software with
every projector, whiteboard,
LCD monitor or touch screen
order of £500+VAT from
Wedgwood AV Ltd.
UK only
Shopping list
•INTER
ACTIVE
www.in
WHITE
BO
te
•Intera ractive-whiteb ARDS
ctive w
oards.c
hite
o.uk
Promet
hean A boards
ctivBoa
•Intera
rds,
ctiv
Promet e whiteboard SMART Boa
rds
he
sy
•Portab an ActivBoard stems
le white
s, SMA
RT Boa
board s
eBeam
rds
,H
ys
www.in itachi, Triump tems
teractiv
h Board
e-white
boards
.co.uk
Epson interactive projectors
TORS
o.uk
•PROJEC
rojectors.c
p
ia
d
e
im
lt
n,
www.mu
asio, Epso
C
,
n
o
n
a
a,
C
BenQ,
EC, Optom
N
,
s
u
c
o
F
Hitachi, In
Sony,
, SMART,
ic
itek
n
o
s
a
n
a
P
Sonic, Viv
w
ie
V
,
rd
a
o
o.uk
Triumph B
rojectors.c
p
ia
d
e
im
lt
www.mu
VISUAL
IS
www.v ERS
isu
ActiVie alisers.co.uk
w, AVer,
Elmo, E
Genee
ps
W
Optom orld, Lumens, on,
a,
www.v PolyVision, SM
isualise
ART
rs.co.u
k
Promethean ActivBoards
•LECTERNS
www.lecterns.co.uk
•ALL audio visual products
www.wedgwood-group.com
Lumens visualiser
Turning Leaf AV lectern
Wedgwood AV Ltd www.wedgwood-group.com
UK supplier of LCD monitors, touch screens and other AV products
Wedgwood AV supply audio visual equipment to education, local authorities, government,
healthcare, retail and businesses. Products include LCD monitors, touch screens, projectors,
projector lamps and projector screes, interactive whiteboards, lecterns, visualisers, and other
AV and presentation equipment. Full list of products. We do not supply to home users.
Wedgwood
AV Limited
Tel: 01754 769967 Fax orders: 01754 768036 [email protected]
www.wedgwood-group.com
UK suppliers of audio visual equipment. Telephone: 01754 769967 [email protected] 41
Chance for you to
win prizes in our
free prize draws
Subscribe free to
Teaching Technology™ or
FREE audio visual guides
Wedgwood AV Ltd, suppliers of audio visual
equipment throughout the UK, publish free guides
for our customers. You can request a free guide by:
Telephone 01754 769967
Email [email protected] Contact form
Website www.wedgwood-group.com
Digital Signage guide
Induction Loop, Soundfield and PA System guide
Interactive Whiteboard and Interactive Products guide
LCD Monitor and Touch Screen guide
Projector and Presentation Equipment guide
www.wedgwood-group.com
Healthcare Technology™ or
Business Technology™ publications for automatic entry into
monthly prize draws to win a Repeat Signage™ Standard Edition
digital signage software licence
Repeat Signage: Caxton Publishers, South Africa
On-going monthly free prize draw open to worldwide entrants.
Merryhill School, California, USA
Onion Lake Cree Nation, Saskatchewan, Canada
Repeat Signage digital
signage software for Windows
- one of the easiest to use
Repeat Signage is truly flexible digital signage software for Windows.
It allows pixel-by-pixel control of displays including LCD monitors,
touch screens and projectors. It is one of the easiest to use
digital signage packages on the market. You simply design the
presentation for the resolution of your screen. Includes touch screen
capability. See 2 min video. Download Repeat Signage trial version.
Win fabulous prizes for your education, healthcare or business
premises
Each issue of Teaching Technology for Education™, and Business Technology™
magazine includes a competition to win prizes.
For details of how to enter (UK only) please download the current issue free at
www.teachingtechnology.co.uk
Wedgwood
AV Limited
Copyright © 2015 Wedgwood AV Ltd. Telephone 01754 769967. www.wedgwood-group.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
