Pomona

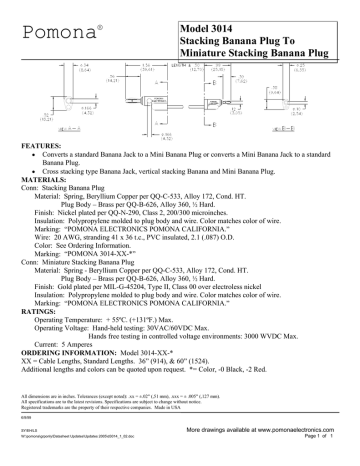

Model 3014
Stacking Banana Plug To
Miniature Stacking Banana Plug
FEATURES:
Converts a standard Banana Jack to a Mini Banana Plug or converts a Mini Banana Jack to a standard
Banana Plug.
Cross stacking type Banana Jack, vertical stacking Banana and Mini Banana Plug.
MATERIALS:
Conn: Stacking Banana Plug
Material: Spring, Beryllium Copper per QQ-C-533, Alloy 172, Cond. HT.
Plug Body Brass per QQ-B-626, Alloy 360, ½ Hard.
Finish: Nickel plated per QQ-N-290, Class 2, 200/300 microinches.
Insulation: Polypropylene molded to plug body and wire. Color matches color of wire.
Marking: POMONA ELECTRONICS POMONA CALIFORNIA.
Wire: 20 AWG, stranding 41 x 36 t.c., PVC insulated, 2.1 (.087) O.D.
Color: See Ordering Information.
Marking: POMONA 3014-XX-*
Conn: Miniature Stacking Banana Plug
Material: Spring - Beryllium Copper per QQ-C-533, Alloy 172, Cond. HT.
Plug Body Brass per QQ-B-626, Alloy 360, ½ Hard.
Finish: Gold plated per MIL-G-45204, Type II, Class 00 over electroless nickel
Insulation: Polypropylene molded to plug body and wire. Color matches color of wire.
Marking: POMONA ELECTRONICS POMONA CALIFORNIA.
RATINGS:
Operating Temperature: + 55ºC. (+131ºF.) Max.
Operating Voltage: Hand-held testing: 30VAC/60VDC Max.
Hands free testing in controlled voltage environments: 3000 WVDC Max.
Current: 5 Amperes
ORDERING INFORMATION: Model 3014-XX-*
XX = Cable Lengths, Standard Lengths. 36 (914), & 60 (1524).
Additional lengths and colors can be quoted upon request. *= Color, -0 Black, -2 Red.
All dimensions are in inches. Tolerances (except noted): .xx = ±.02 (,51 mm), .xxx = ± .005 (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
W:\pomona\grponly\Datasheet Updates\Updates 2005\d3014_1_02.doc
More drawings available at www.pomonaelectronics.com
Page 1 of 1
