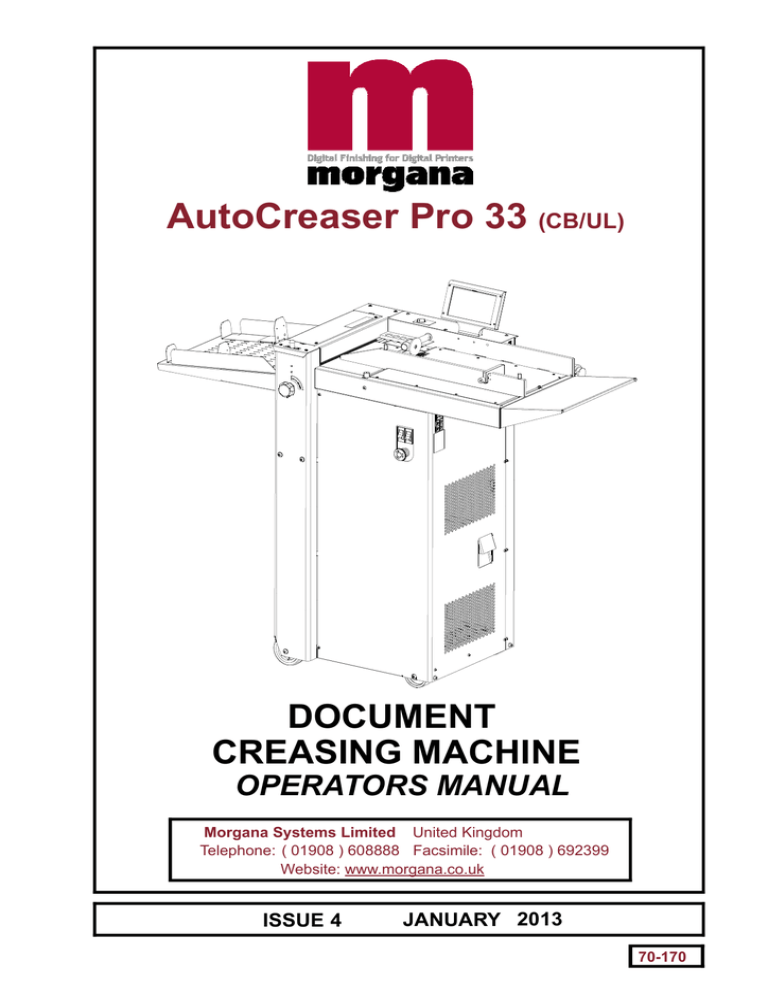

AutoCreaser Pro 33 (CB/UL)
DOCUMENT
CREASING MACHINE
OPERATORS MANUAL
Morgana Systems Limited United Kingdom
Telephone: ( 01908 ) 608888 Facsimile: ( 01908 ) 692399
Website: www.morgana.co.uk
ISSUE 4
JANUARY 2013
70-170
INDEX
INTRODUCTION
The Morgana AutoCreaser Pro 33
PAGE 3
SAFETY Do’s & Don’ts
4
THE AUTOCREASER PRO 33
Labeled Photograph
6
THE CONTROLS
The switch panel
Features on the switch panel
7
7
QUICK START GUIDE
9
OPERATING THE AUTOCREASER PRO 33
Setting the machine
Programming the machine
Reading stored programmes
Paper jamming
20
24
25
27
THE STACKER ASSEMBLY
Setting the Stacker unit
28
PERFORATING
Equipment, spares
Setting the machine
30
31
THE BLADE ASSEMBLY
Setting the blade pressure
Setting the blade alignment
33
34
REPLACING CREASING BLADE SETS
Installing new blade sets
Spares
35
37
TROUBLE SHOOTING
DISPATCH KIT
ACCESSORIES & OPTIONS
RECOMMENDED SPARES
FUSE POSITIONS AND RATINGS
PRODUCT RECYCLING & DISPOSAL
38
46
47
48
50
51
Page 2
CREASING
AutoCreaser Pro 33
INTRODUCTION
AutoCreaser Pro 33
The Morgana AutoCreaser Pro 33 is a fully automatic suction feeding creasing
system designed for use with both conventional litho and digital printers.
The feed on the AutoCreaser Pro 33 can also be manually operated for use
with heavy stock, very small or very large sheets, embossed or even irregular
sheets.
The crease is programmed from the leading edge of the sheet using the
controls on the front panel.
The blade and anvil are mechanically controlled over their entire length
and can be adjusted to accommodate various weights of media.
IMPORTANT
The operating environment should be controlled to a temperature between
16° C and 27° C Maximum
Specification
Feeding System ................................................ Bottom suction feed
Max. Sheet Size ................................................ 700mm x 330mm (27.5” x 12.6”)
Min. Sheet Size (in automatic mode)................. 210mm x 140mm (8.5” x 5.5”)
Max. Paper Thickness .......................................0.4mm (varies according to hardness,
type of fold, and substrate)
Max. No. Creases per Sheet ............................ 16
Min. Distance Between Creases ....................... 0.1mm
Max. No. Stored Programmes .......................... Unlimited
Min. Crease Distance from Leading Edge ........ 2.5mm
Min. Crease Distance from Tail Edge ................35mm
In Hand Feed Mode up to 2499.9mm to Last Crease can be Programmed.
Speed per Hour (A4 in half)...............................8500
Speed per Hour (A5 in half)...............................11000
Dimensions ....................................................... L: 1450mm H: 1224mm W: 522mm
L: (57”)
H: (48.2”) W: (20.5”)
Weight ............................................................... 121Kgs (+50Kgs packing)
Power Requirement .......................................... 1 phase 230v 50Hz
1 phase 220v 60Hz
Sound Power Level ........................... 78.0 decibels
*As part of our continued product improvement plan, specifications and information
published in this manual are subject to change without notice.
All specifications are dependant on application, type of stock, temperature, RH and print
engine used.
Specifications quoted were measured on uncoated and unprinted stock. E & OE.
SYSTEM
Page 3
Safety Do’s & Don’ts
Safety Do’s & Don’ts
REGLES DE SECURITE : « A FAIRE » ET « A NE PAS FAIRE »
Do - read this operator manual fully before operating the machine.
Lire ce mode d'emploi avant d'utiliser la machine.
Do - operate with the designated AC current only. Use an exclusive outlet, as
overloading may cause fire or an electric shock.
Respecter l'alimentation électrique indiquée. Brancher sur une prise séparée
car une surcharge peut entraîner un incendie ou un choc électrique.
Do - install the power cord out of the way to avoid a tripping hazard.
Installer le cordon d'alimentation de manière à ne pas pouvoir
trébucher par dessus.
Do - make sure that the mains inlet connector is always easily accessible.
Ménager un accès libre à la prise de courant.
Do - Fit the yellow outrigger feet, (supplied in the Dispatch Kit), to the front and back
of the machine as shown on Page 6; to comply with safety regulations.
Fixer les pieds stabilisateurs jaune, (fourni dans le kit d'expédition), à l'avant et
l'arrière de la machine comme indiqué sur la page 6; pour se conformer aux
règlements de sécurité.
Do not - install the machine in an unstable place such that it tilts or shakes.
Ne pas installer la machine sur une surface non plane, afin d'éviter
qu'elle ne penche ou ne vibre.
Do not - unplug the plug or unplug the power cord from the outlet with a wet hand,
this can cause an electric shock.
Ne pas installer la machine sur une surface non plane, afin d'éviter
qu'elle ne penche ou ne vibre.
Do not - unscrew and remove any covers from the machine, as it can cause an
electric shock or injury.
Ne démonter et enlever aucun carter de la machine, par crainte de décharge
électrique ou de blessure.
Do not - place receptacles containing liquids on any surface.
Ne pas placer de récipient contenant un liquide sur la machine.
Do not - adjust any part of the machine whilst rollers are running
N'effectuer aucun réglage pendant que les rouleaux fonctionnent.
Do not - operate the machine with loose or trailing clothing or loose hair.
Ne pas porter de vêtements flottants et rassembler les cheveux longs
lors de l'utilisation de la machine.
Do not - under any circumstances adjust the paper gate when the machine is
switched on.
En aucune circonstance, régler le séparateur de papier lorsque la
machine est branchée.
Page 4
CREASING
AutoCreaser Pro 33
Warning Labels
Do - be aware of any finger traps and rotating parts when operating
the machine.
Attention au risque de se coincer les doigts, et aux pièces en
mouvement lors du fonctionnement de la machine.
Do - read this operator manual fully before operating the machine.
Lire ce mode d’emploi avant d’utiliser la machine.
Do not - operate the machine with loose or trailing clothing.
Ne pas porter de vêtements flottants lors de l'utilisation de la machine
Do not - operate the machine with loose hair.
Rassembler les cheveux longs lors de l'utilisation de la machine.
Do - be aware of any finger traps and rotating parts when operating
the machine.
Attention au risque de se coincer les doigts, et aux pièces en
mouvement lors du fonctionnement de la machine.
Do - be aware of sharp points and blades.
Attention aux éléments tranchants et aux couteaux.
Do - be aware of rotating rollers.
Attention aux rouleaux en fonctionnement
Do - be aware of low current anti-static shock.
Attention aux faibles chocs d'électricité statique
SYSTEM
Page 5
AUTOCREASER PRO 33
AutoCreaser Pro 33
DOCUMENT CREASING MACHINE
Key to photograph below
1
2
3
4
5
Roller tilt handle
Stacker assembly
Suction slot knob
Touchscreen
Air distribution knob
Page 6
6
7
8
9
10
Air seperation knob
Adjustable side lay
Back stop
Fixed side lay
Roller tilt knob
11
12
13
14
15
Paper Gate
Exit Guard
Switch Panel
Fuses
Outrigger Foot
CREASING
AutoCreaser Pro 33
THE CONTROLS
THE SWITCH PANEL
The Switch Panel houses the Compressor switch, System switch, and an
industry standard Emergency Stop switch which will stop all power going to
the machine when activated.
Compressor Switch
System Switch
Emergency Stop Switch
Features on the Switch Panel
System switch
When activated the system switch will operate the motors in order to begin the
creasing sequence.
Compressor switch
Allows the operator to switch off the compressor unit in order to utilise the machine
to manually feed sheets.
SYSTEM
Page 7
THE CONTROLS
BLANK
PAGE
Page 8
CREASING
AutoCreaser Pro 33
Quick Start Guide
Setting the machine to operate in automatic sheet feed mode
1.
Set the gap between the paper gate and the vacuum roller to approximately twice
the thickness of the stock to be creased.
2.
Place the stock to be creased onto the loading table against the fixed side lay.
3.
Release the clamps on the adjustable side lay and slide up to the paper stack
allowing a gap of approximately 0.5mm (1/64 inch) between the paper and the side
lay.
4.
Position the backstop and slide it up to the paper stack, also allowing a gap (as
stated in the above step).
5.
Turn the Emergency Stop button clockwise to switch the power on. After the
system start up procedure the touch screen will be displayed as shown below.
IMPORTANT.
If you have not been trained to operate this machine, we strongly advise that you select
the red cross icon.
We recommend that you either seek training or ask a trained operator to run the machine
for you.
Select the green tick icon only if you have been trained to operate this machine.
If you have not been trained to operate this machine and you select the green tick icon,
Morgana Systems Ltd accept no responsibility for personal injury, damage to the
machine or damage to materials being processed by the machine.
WARNING:Wait at least 10 seconds, after making any selection on the Touchscreen
panel, before switching the machine OFF. Failure to do so could result in the
data storage being corrupted, and the machine not operating.
SYSTEM
Page 9
Quick Start Guide
The touch screen is laid out into 3 main areas as shown below:
Status of
machine &
data entry
area. Also
used for
quick links
to setting
pages.
Setting
page
Tabs to enable switching between setting
pages - choose either Paper Settings,
Crease Setting, Store or Tools
Settings Pages.
Paper Settings Page.
Vacuum Suck - There
are two selections
available - 1 short
suck & 2 continuous
for stream feeding.
Highlighted number is
type currently
selected. The status
area also shows
currently selected
suck.
Fold Selection - For quick setting of crease positions on standard size sheets.
Highlighted fold is type currently selected, other folds may be selected.
Currently selected fold is shown in the status area.
Page Length - On
selection the status
area is replaced with
a calculator for
inputting new values.
Batch Button - Image
is identical to that
shown in the status
area. On selection the
status area is replaced
with a calculator for
inputting new values.
Batches of any
numerical value.
Min Length = 190mm
Current Job Name
Toggle between, Delay between batches
and stop after batch
Page 10
Arrows may be
selected to increase
or decrease the page
size in 0.1mm
increments
CREASING
AutoCreaser Pro 33
Quick Start Guide
Crease settings Pages.
To get to the crease setting page click the lower tab
the status area.
or
from
If you have selected a predefined standard crease type from the paper settings
page the crease positions will be set for you. These positions can be fine tuned
by ± 0.1 mm increments by pressing side arrow buttons
Number of creases – if
more than 6 creases are
added a scroll bar will
appear to enable
viewing of all creases
Arrows may be selected
to increase or decrease
the crease position
in 0.1mm increments
Plus box for inserting
additional creases. On
selection following
creases will move down
by one place a
maximum number of 6
creases can be seen at
any one time further
creases can be
accessed by use of the
scroll bar.
Crease position - On selection
the status area is replaced with
a calculator for inputting new
values.
for each crease.
Cross box for deletion of crease.
On deletion of crease following
creases will move up by one
place. You will be asked to
confirm deletion of the crease.
Press to remove all
creases – you will be
asked to confirm
deletion.
Scroll bar - use to bring
required crease into
view.
Crease on/off selector
green is on & red is off.
This is also indicated in
the status area.
Additional creases
added – scroll bar
appears for more than
six creases.
SYSTEM
Page 11
Quick Start Guide
Creasing turned off Greyed out areas are
unselectable. Status
area will show
creasing is off with
red icon
Page 12
CREASING
AutoCreaser Pro 33
Quick Start Guide
Run Job
Click to start machine with
settings currently shown you will receive a
notification if system
switch is not on. Press
again to stop Job
System Switch Not On
Push System Switch down to start the machine.
The machine running screen will appear.
Click to stop machine
SYSTEM
Page 13
Quick Start Guide
Cover Crease Mode.
1. Select the Paper Settings Tab.
2. Enter the Paper Length and then select the Cover Crease button.
Cover Crease button
Paper Length
3. Select the Crease Settings Tab.
Spine Offset
Spine Width
Arrow Button
Hinge Distance
4. Enter the Spine Width dimension. If necessary, adjust the Spine Offset from the
centre of the sheet.
5. Select the arrow button to set the hinge Dimension.
Page 14
CREASING
AutoCreaser Pro 33
Quick Start Guide
6. Enter the Hinge Dimension.
Hinge Dimension
7. Select the arrow button to highlight the Spine Offset and the Spine Width
dimensions.
8. Run the sheets of paper through the machine to make the Spine creases.
TO MAKE THE HINGE CREASES.
9. Remove the sheets of paper from the stacker tray. TURN THE SHEETS OVER,
and put them back onto the loading table. MAKE SURE THAT THE LEAD EDGE
OF THE SHEETS POINT IN THE SAME DIRECTION AS BEFORE.
10. Select the arrow button to highlight the Hinge Dimension.
11. Run the sheets of paper through the machine to make the Hinge creases.
SYSTEM
Page 15
Quick Start Guide
Status Screen
Paper length - input from
the paper setting screen
Currently selected Vacuum
Clicking in this area will take you
to the paper setting page
Suck setting - for stream
setting choose selection 2
Currently selected fold type
- can be one of the
following.
Lead Edge Sensor Strength,
Indicator Bar
Number of creases - this
may alter automatically if
a pre - defined fold is
selected. Adjustments
may be made in the
crease setting screen
Clicking in this area will take
you to the Crease setting
page
Green icon indicates
settings are saved - a red
icon would show that
settings have been
changed but the job has
not been saved.
Current machine speed setting
Clicking in this area will take
you to the Tools page
Batch quantity - this is
input from the batch
calculator on the paper
setting screen - max. 999
Select this button to produce
3 test sheets with the
settings currently shown.
Clicking in this area will take
you to the Job Store page
Sheet count -click to zero
A screen will appear to
confirm that you want to
reset the count.
Batch count - click to zero
A screen will appear to confirm that
you want to reset the count.
Page 16
Clicking in this area will take
you to the paper setting
page.
Click to start machine with settings currently
shown - you will receive a notification if
system switch is not on. Press again to stop
Job
CREASING
AutoCreaser Pro 33
Quick Start Guide
The Status Screen will on occasions be replaced with an Input Calculator Screen
as shown below.
Pre - set Paper sizes for quick
insertion – Standard sizes for
country origin would be shown
Paper size
input calculator
Pre - set Batch sizes for quick
insertion.
Batch size
input calculator
Crease position
input calculator
NOTE:
The green tick or the red cross must be selected on the Calculator Screen to
make the left hand side of the touchscreen active again.
SYSTEM
Page 17
Quick Start Guide
Tools Screen
Machine Speed Adjustment:Speed setting 3 will give the fastest throughput of
stock through the machine.
Use speed setting 1 or 2 for troublesome stocks,
or to synchronise the speed of the AutoCreaser to a
Morgana Autofold Pro, when they are used together.
Inch paper in direction
of arrow to clear jams
Click on Up Arrow to
put Anvil into Top
Dead Centre position
(TDC)
Clean Lead Edge Sensor
Inch paper in direction
of arrow to clear jams
Touch Screen Calibration
See Page 19
Change Machine measurement
settings, Imperial / Metric
Clicking this icon will
show Machine
program revision &
Touch Screen
software revision.
Touch screen software
version
Main Processor Program
version
Page 18
CREASING
AutoCreaser Pro 33
Touch Screen Calibration.
1.
Switch the mains power on and wait for the main screen to appear before
commencing to check the horizontal and vertical position of the display.
The position of the display within the surround is achieved by operating the button
at the rear of the housing, press this a number of times to obtain the correct
orientation required, move to the next button to move the position to centralize
horizontal.
2.
(i) Select the tools menu tab, and then Select the Touch Screen calibration icon.
(ii) Using a plastic pointer, soft leaded pencil, biro cap etc. and with gentle pressure.
Touch the centre of the cross in each corner of the Touch Screen, as prompted, by
the hand graphics. This procedure will calibrate the Touch Screen.
SYSTEM
Page 19
Operating the Autocreaser Pro 33
Setting the Machine
Adjusting the Paper Gate
Set the height of the Paper Gate to approximately two thicknesses of paper, by turning the
disc j. An excessive gap is a most likely cause of double sheet feeding.
This setting is only intended as a guide, for instance, sheets with an upward curl will
require this setting to be increased.
J
TWO THICKNESSES
OF PAPER
WARNING.
DO NOT ADJUST THE
PAPER GATE WHILE THE
MACHINE IS RUNNING OR
THE SUCTION DRUM MAY
BECOME DAMAGED.
Setting the Suction Slot
The suction slot is located inside the vacuum roller and can be adjusted by releasing and
moving the suction knob horizontally in either direction to the required position.
For light stocks set the knob to the left and for heavier stocks set the knob to the right.
FIG 8.1
Adjustable
Side Lay
Suction
Slot Knob
Page 20
CREASING
AutoCreaser Pro 33 Operating the Autocreaser Pro 33
Setting the Adjustable Side Lay
Place the paper stack on to the loading table and slide up to the fixed side lay and paper
gate. Release the clamps located at each end of the side lay and slide up towards the
paper stack as demonstrated in fig 8.1. Allow a gap of approximately 0.5mm (1/64 inch)
between the paper and the side lay.
Setting the Back Stop
Position the backstop and slide up towards the paper stack allowing a gap (as specified
in the above step).
Setting the Air Distribution
Depending on the length of the sheet to be creased, the air distribution knob can be
rotated to various positions in order to supply air to different ports. Position 2 is
recommended for most sheet sizes. However, a better result may be obtained by using
the settings below or by experimentation.
Position 0 - For sheets longer than A3 (17”) in order to supply air to the centre of the
stack, ports 2 and 3 open.
1 - For A5 sheets or 8 inches long, ports 1 and 2 open.
2 - For A4 sheets or 11 inches long, ports 1 and 3 open.
3 - For sheets longer than A3 (17”) in order to supply air evenly along the stack,
ports 1 and 4 open.
Port 1
Port 4
Air Distribution
Knob Shown
Set To Posn. 1
Setting the Air Separation Pressure
To control the amount of air supplied to the ports, the air separation knob can be rotated
clockwise to decrease the pressure or anti-clockwise to increase the pressure.
SYSTEM
Page 21
Operating the Autocreaser Pro 33
Setting the Roller Tilt Mechanism
The roller tilt mechanism has been designed to compensate for when the creasing
position on the sheet is not square. This could be due to an inaccuracy in the media or if
the roller tilt mechanism has been incorrectly set. The mechanism will be set to zero
(square) when the machine is supplied.
To set the mechanism, unlock the roller tilt knob located below the roller tilting handle by
turning anti-clockwise. Move the roller tilt handle left or right in order to compensate for
any inaccuracy. When the position is set, ensure to lock the roller tilt knob before
operating the machine. Repeat the above procedure until the creasing position is square.
Setting the positions of drive wheels and hubs
It is important that the drive wheels and drive hubs on the roller shafts are arranged evenly
across the width of the media being creased. This is done to ensure that the media is
accurately driven and supported through the rollers.
The drive wheels and hubs are fixed to the rollers by means of a grub screw. To locate this
grub screw the rollers can be rotated by operating the motor manually.
DO NOT ROTATE THE DRIVE ROLLERS BY HAND.
To operate the motors manually, switch the machine ‘on’ at the Emergency Stop switch.
Select the Tools tab
that shown below.
Inch paper in
direction
Left
arrow
of arrow to clear jams
at the bottom of the touch screen, the display will change to
Inch paper
inarrow
direction
Right
of arrow to clear jams
Press the system switch down and then select the right or left arrows, to rotate the rollers in
short pulses.
Lift the exit guard to see if the grub screws in the drive wheels and hubs can be seen. If the
grub screws cannot be seen, lower the exit guard and rotate the rollers by selecting the
right or left arrows. Loosen the drive wheels and hubs with a 2mm allen key. Arrange the
drive wheels and hubs as shown in FIG 10.1. In order to avoid marking on some types of
media ensure a gap between the drive wheels and hubs.
This procedure should be repeated when installing perforating blades and anvils onto the
drive wheels and hubs.
Page 22
CREASING
AutoCreaser Pro 33 Operating the Autocreaser Pro 33
FIG 10.1
Set Feed
The length of suction on the sheet of paper being fed can be adjusted by setting the feed
type as follows:Select 1 for short suck, select 2 for continuous suck (stream feeding).
Vacuum Suck
Select 1 for short suck
Select 2 for continuous suck
(Stream feeding)
NOTES.
1. Stream Feed will give the quickest through put of stock through the machine.
2. When the first crease is less than 37mm from the leading edge of the paper the feed will
be noticeably slower when using speeds 2 and 3.
3. When the first crease is less than 50mm from the leading edge of the paper the feed will
be noticeably slower when using speed 3.
SYSTEM
Page 23
Operating the Autocreaser Pro 33
Programming the machine
1.
Switch the power ‘on’ by turning the Emergency stop button clockwise
to release the safety latch.
Setting the page length
2.
Set the page length of the paper as described on page 10.
Setting the vacuum suck
3.
Set the vacuum suck as described on page 10. Setting number 1 for short suck and
setting number 2 for continuous suck (stream feed).
Setting the batch quantity
4.
Select the
button. On selection the status area is replaced with a calculator for
inputting new values.
Setting the crease positions
5. (i) Select the lower tab
or
from the status area to get to the
Crease Settings Page.
(ii) Set the creases as described on pages 11 and 12.
Storing the Job
6.
The job that has been set can now be stored as follows.
(i) Select the lower tab
or
from the status area to get to the
Store Settings Page.
(ii) The job can be given a name and stored as described below. You can also retrieve
previously saved jobs, modify them or delete jobs that are no longer required.
To create a new job name click in text area &
keyboard will open to input job name.
Load existing job from
store
Clicking to search
currently stored jobs
Clicking to delete
currently stored jobs
Current Job Name
Yellow Text Denotes Saved Job
Red Text Denotes Unsaved Job
Clicking to save job
shown.
Page 24
CREASING
AutoCreaser Pro 33 Operating the Autocreaser Pro 33
Keyboard for entering job name.
Delete all characters
Delete last character
click save icon
job to store
to save
Save confirmation screen.
To confirm saving
of Job click here.
Search for current jobs to load or modify.
You can search for jobs by clicking the search icon
keyboard for text input.
, this will bring up the search
Typein job description
or first few characters
Press search icon
to start search
To change your mind &
return to the previous
screen click here.
SYSTEM
Page 25
Operating the Autocreaser Pro 33
Jobs matching
characters in text box
will be shown in this
area - selecting job
from this area will
show job settings in
the right hand status
area. Job selected will
be shown in text box.
Toggle between search
results &full list of
jobs
Press to load job
shown in text box.
Loading job confirmation screen.
The loaded job can be run or modified and saved as the same job name.
Overwrite job confirmation screen.
To cancel overwrite of
Job press here.
To confirm overwrite
of Job press here.
Page 26
CREASING
AutoCreaser Pro 33 Operating the Autocreaser Pro 33
Delete job confirmation screen.
Tocancel deletion of
Job press here.
To confirm deletion of
Job press here.
Running the machine
Run the job as described on page 13. The machine will complete its creasing operation if a
sheet has already been fed through the paper gate.
Paper jamming
In the event of a paper jam occurring whilst the machine is operating, select the Tools
tab
at the bottom of the touch screen, the display will change to that shown
below. Press the system switch down and then select the right or left arrows, to inch the
paper forwards or backwards.
Inch paper in direction
of arrow to clear jams
Inch paper in direction
of arrow to clear jams
Setting the machine to operate in manual sheet feed mode
In order to feed heavy stock, very small or very large sheets, embossed or even irregular
shaped sheets, it may be necessary to feed the sheets manually. The machine can be
programmed and set up in exactly the same way as explained when operating the machine
automatically. However, the paper gate must be raised to its highest position for the sheets
to be fed freely. Operating the machine in manual sheet feed mode will also require the
suction length to be continuous in order to accommodate various types of stock. Therefore,
the feed should be set to Stream Feed (Vacuum Drum position 2) see page 10.
The machine can now be started by activating the System switch to ‘on’. Do not activate
the Compressor switch.
Select the
icon on the touch screen and begin to slide the sheets individually through
the paper gate until they are driven by the drive belts.
To stop feeding the sheets, select the
System Switch off.
SYSTEM
icon on the touch screen and switch the
Page 27
The Stacker Assembly
The stacker unit on the machine is used to catch the sheets once they have been
creased or perforated.
Setting the Stacker assembly
1.
Assemble the stacker unit to the machine as shown in fig 13.1 below.
Important
Ensure that the stacker unit has been assembled to the machine properly. However,
if it has not, the connection on the magnetic switch will be broken and the machine
will not operate (see Trouble shooting pages for details).
There are two side guides on the stacker unit; a left handed (fixed) guide and a right
handed (movable) guide held on by a magnetic strip. There is also a left hand extension
guide. The guides will control the way in which the paper is collated by setting their
positions on the stacker bed.
2.
Place a single sheet (from the stack to be creased / perforated) on to the stacker bed
against the fixed ‘left hand’ guide.
3.
Position the ‘right hand’ side guide on to the stacker bed leaving a minimum
clearance of approximately 1mm each side of the sheet.
LEFT HAND
BACK STOP
LEFT HAND
SIDE GUIDE
RIGHT HAND
BACK STOP
RIGHT HAND
SIDE GUIDE
Page 28
CREASING
AutoCreaser Pro 33 The Stacker Assembly
4.
Whilst the sheet is between the two guides on the stacker bed, set the distance
between the top of the sheet and the backstop flanges to approximately 5mm.
5.
For shorter sheets, the back stop can be used (as shown in FIG 13.1) to adjust the
position of the paper stack.
TIPS
l
SYSTEM
The magnetic back stop supplied with the machine
can also be used as a tool holder as demonstrated
in the photograph (left).
Page 29
Perforating
Once the machine is set-up, the Autocreaser Pro 33 can be used to perforate or crease.
Note
1. Perforating and creasing can be carried out simultaneously. However, if any
adjustment is made to the roller tilt mechanism in order to compensate for the
perforation line being ’out of square’, this may effect the accuracy of the crease. If
this occurs creasing and perforating must be carried out as separate operations.
2. By adjusting the outfeed drive tyres relative to the drive hubs it is possible to stear
the sheet, (i.e. By placing the tyre on top of the hub one side of the paper will stear
faster on that side).
The components and tools required to install the perforator are contained in the despatch
kit supplied with the machine, they are listed below.
1 off Set of standard perforation ‘56 tooth’ blades.
1 off Set of standard hardened anvils.
1 off Perforator stripper.
1 off 3mm bondhus wrench / allen key
1 off 2mm bondhus wrench / allen key
The perforator blades are split into two matching halves
and are fitted to the drive wheels as shown in the
photograph using the four screws supplied.
A hardened anvil is fitted to the drive hub as shown in the
photograph also using the four screws supplied. Again the
anvils are made from matching halves.
Important: The perforator blades are very sharp and
care must be taken whilst handling.
Do not mix the matching pairs of blades or anvils.
Perforating ‘Spares’ kits
For perforating and other types of paper, various spares kits are available which can be
assembled to the machine in the same fashion. They are listed below along with a range
of scoring wheels,
Perforating blades 56 teeth Part Number 1-99-41 - Standard stock /
fine perforations.
28 teeth Part Number 1-99-12 - Medium stock /
medium perforations.
20 teeth Part Number 1-99-10 - Heavy stock /
coarse perforations.
Anvils
Page 30
Standard Part Number 1-99-35 - For all blade types
CREASING
AutoCreaser Pro 33
Perforating
All of the blades and anvils are supplied with fixings.
*Perforator stripper Standard Part Number 78-013
*It is recommended that for multiple perforations, a separate perforator stripper is used for
every perforating blade set fitted in the creasing unit.
Setting the machine
1.
Turn the mains supply to the machine ‘off’.
2.
Remove the stacker unit and open the exit guard.
3.
Locate and remove the blades / anvils from the despatch kit supplied with the
machine.
4.
Using the 2mm allen key (supplied), loosen the drive wheel that is to accommodate
the blades.
5.
Slide the drive wheel away from any obstructing drive wheels or hubs in order to
mount the blades.
6.
Using the 2.5mm allen key (supplied), take one
of the matching pairs and mount on to the drive
wheel. Do not secure the blade.
7.
Mount the other matching pair to the drive wheel
as shown (fig 16.1). Secure the blades to the
wheel ensuring not to over tighten grub screw.
8.
Mark on a single sheet the desired perforating
position. Feed the sheet through the machine
manually until the mark can be seen. Use this
mark to assist in fixing the position of the
perforating drive wheel to the roller drive shaft.
9.
Using the 2mm allen key, loosen the drive hub
nearest the perforating drive. Slide the drive hub
away from any obstructing drive wheels or hubs
in order to mount the anvils.
FIG 16.1
10. Using the 2.5mm allen key, take one of the
matching pairs of anvils and mount to the drive
hub. Do not secure the anvil.
FIG 16.2
SYSTEM
Page 31
Perforating
11.
12.
13.
14.
15.
Mount the other anvil ensuring that they have matched on the drive hub. Secure the
anvil to the hub ensuring not to over tighten grub screw as shown in fig 16.2.
Slide the drive hub towards the perforating drive wheel until there is a clearance
of 0.5mm.
To prevent damage to the blades or the anvils, do not force the drive wheel against
the hub.
Fix the perforator stripper adjacent to the drive wheel and blade as shown.
Operate the machine and test the perforations for form.
It is important that the drive hubs are arranged evenly across the width of the paper
in order to reduce the risk of jamming.
For multiple perforations repeat the above procedure.
2
1
3
5
4
Fig 17.1
FIG 17.1
Demonstrates a typical set-up for perforating sheets.
1 - Perforating drive wheel with mounted blades
2 - Perforator stripper
3 - Standard drive wheel
4 - Drive hub with mounted anvils
5 - Standard drive hub
Always remove blades and anvils once the perforating operation has been
completed to avoid marking on digital or delicate media.
Page 32
CREASING
AutoCreaser Pro 33
The Blade Assembly
Adjusting the blade pressure (no paper required)
1. (i) Switch the power ‘on’ by turning the Emergency stop button clockwise to release the
safety latch.
(ii) Select the Tools tab
at the bottom of the touch screen, the display will
change to that shown below.
(iii) Select the up arrow to move the blade to the Top Dead Centre position.
Click on Up Arrow to
put Anvil into Top
Dead Centre position
(TDC)
2. Raise the exit guard
3. Using a 6mm allen key, unlock the shoulder bolts (labelled with scale transfer)
positioned at each end of the creasing blade.
4. Turn the adjustment cam to adjust the blade pressure. Increasing the gradient on the
scale will increase the blade pressure.
5. Ensure that the shoulder bolts are locked after setting.
The diagram below demonstrates the adjustment of the blade pressure
SYSTEM
Page 33
The Blade Assembly
Adjusting the blade alignment
It is extremely important that the blade and anvil assembly within the creasing unit is
correctly aligned. Misalignment of the blade or anvil can lead to damaged profiles and
subsequently poor quality creasing so it must, therefore, be corrected immediately.
If the blade set is misaligned, the media being driven will be subject to scoring or even
tearing at any point along the crease line. Please note that to avoid damage to the
blade set, adjustment should only be made in small increments. The below sketch
demonstrates how the blade alignment can be carried out.
Adjustment can be made at either of the blade or anvil. The two clearance holes positioned above the roller tilt mechanism are the front alignment (one for blade, one for anvil).
The two holes are repeated on the back of the machine for the back alignment.
1. Remove the stacker unit.
2. Unlock and centralise the roller tilt mechanism in order to locate the heads of the
front alignment screws.
3. Using a 3mm allen key, loosen the cap head type locking screws located on the
front face at both ends of the blade /anvil as shown below.
4. Using a 4mm allen key, locate the two front or back alignment screws in the side
frame in order to adjust the blade / anvil.
5. The upper screw of the two, will adjust the upper blade / anvil whereas the
lower screw will adjust the lower blade / anvil both in very small increments.
6. In order to obtain the required position, adjust either the blade or the anvil by a
small amount and then operate the machine to test the form of the crease.
Repeat the exercise until centralisation is located.
7. Using a 3mm allen key, lock the cap head type screws (as per step 3) on both the
upper and lower blade / anvil.
Page 34
CREASING
AutoCreaser Pro 33
Replacing Blade Set
1.
Before removing the blade assembly, ensure that the lower blade / anvil is NOT
at ‘top dead centre’, Switch the machine off.
2.
Remove the stacker unit and lift the exit guard.
Blade Extractor Tools
3.
Using a 6mm allen key, loosen the socket
head screws located inside the blade
adjustment cams. Remove the screws and
the blade adjustment cams.
4. Insert the blade extractor tools (70-055-01 &
70-055-02) into the holes in the adjustment
links, as shown. Push downwards on the
handles of the blade extractor tools to
release the blade assembly from the power
links.
5. Slide the blade assembly out of the creasing
unit and lay it on a flat surface.
6. Slide the adjustment links away from the
dowels located in the ends of the blades /
anvils as shown in the photograph (left)
7. Place the new blade set into position.
Check that the eccentric shoulder bolts on
the link plates have been positioned as
shown in fig 20.1.
8. (Upper blade / anvil only)
Slide the adjustment links onto the dowels.
FIG 20.1
SYSTEM
Page 35
The Blade Assembly
9. Slide the new blade set into the slots of the creasing unit as shown in fig. 21.1.
FIG 21.1
NOTE.
The blade set can be fitted with the ANVIL at the bottom or with the ANVIL at the top.
The blade set is supplied from the factory with the ANVIL at the bottom as shown in
FIG22A.
The blade set can be changed to have the ANVIL at the top (as shown in FIG22B), this can
improve the repeatability of the fold relative to the crease for certain fold types or when
using lighter stocks.
FIG22A
FIG22B
Locate the blade extractor tools into the holes in the adjustment links as shown. Pull the
handles of the blade extractor tools upwards to engage the blade assembly back into the
power links.
10. Set the cam graphics for both ends of the blade / anvil to their lowest point on the
scale (ie. When the mark on the scale reaches the mark on cam holder) Fasten the socket
head screws on the adjustment cams until they are tight.
Page 36
CREASING
AutoCreaser Pro 33
Replacing Blade Set
11. Push the exit guard down and replace the stacker assembly before operating the
machine.
12. Switch the machine on and test the crease for form.
If the pressure and the alignment of the crease is not to a satisfactory level,
see pages 33 - 35 to adjust the creasing line.
‘Spares’ kits
In the event of any damaged or lost components within the blade assembly, spares kits
are available on request. However, components within the blade set can not be ordered
separately ie single blade or anvil.
The following Blade sets are supplied with the Autocreaser Pro 33 as standard.
Standard Blade set
Part number 76 - 213 - 01
Consisting of a standard blade and anvil, blade brushes, blade links and alignment bolts.
When running lighter stocks it is recommended that an Extra Narrow Blade Set is used,
this can be purchased from Morgana Systems Ltd, Part number 76-213-03.
SYSTEM
Page 37
Trouble Shooting
Paper crease out of square
l
Check that the sheets are all square and exactly the same size before loading the
stack on to the table.
l
Check that the roller tilt mechanism is correctly set and locked in position.
l
Check that the adjustable side lay has been correctly positioned ie. No further than
0.5mm from the paper stack.
Paper jamming
l
Check that the leading edge of the paper is not being damaged by the paper gate. If
this is occurring, check that the suction slot and the paper gate have been correctly
set.
l
Check that the first crease position is not too close to the leading edge of the paper.
A minimum distance of 32mm is recommended.
Machine will not start
l
Check the power supply to the machine.
l
Check that the emergency stop button has been released.
l
Check that the exit guard is down.
l
Check that the stacker unit is located correctly and has not been disconnected from
the magnetic switch.
l
Check that the lower blade / anvil is connecting to the home switch (mounted below
the lower blade / anvil).
Paper not feeding
l
Check that the paper stack is not too high or too heavy for the feeder. The height of
the paper stack should be defined by the weight and the size of the stock being
creased.
l
Ensure that the adjustable side lay is not pressed against the paper stack. However,
if the clearance between the adjustable side lay and the paper stack is too great, the
air supply will escape instead of blowing through the paper thus making it difficult to
feed.
l
Check that the clearance between the paper gate and the suction roller is not set too
low.
l
On digital media, the feeding performance may be improved if the leading edge of
the stack is trimmed before loading onto the Machine.
Page 38
CREASING
AutoCreaser Pro 33
Trouble Shooting
l
Check that the air distribution has been correctly set.
l
Check that the air separation has been set high enough to feed the sheets.
l
For heavy stocks, very small or very large sheets, embossed or even irregular stock,
it may be required to feed the sheets manually - see page 25 for instructions.
Machine not counting
Open the exit and remove the blade set
(see pages 35-36) to access the dual
sensor post located in between the drive
rollers. Using a soft brush, clean the
visible sensor on the end of the post.
Use the brush to clean the sensors
between the post and the bottom paper
guide which are not visible.
Photograph (left) shows the dual sensor
post containing the sensors.
Paper jammed under paper gate.
If paper gets jammed under the paper gate the vacuum drum will stop rotating, this is a
safety feature. Remove the paper and re-adjust the paper gate.
SYSTEM
Page 39
Trouble Shooting
Error Screens
Sheet did not arrive.
If the machine stops and error message 01 is displayed on the touch screen, this
indicates that the paper did not arrive at the end of the suck process; so the machine
timed out. Press the green tick button and then press the start button.
Paper Crunch
If the machine stops and error message 02 is displayed on the touch screen, this
indicates that a paper jam has been detected.
Press the system switch down and then select the right or left arrows, to inch the
paper forwards or backwards. See page 27 that describes how to remove paper jams.
Press the green tick button and then press the start button.
This error message could also mean that the crunch sensors are faulty or need
cleaning.
Double Sheet Feed
If the machine stops and error message 03 is displayed on the touch screen, this
indicates that a double sheet feed has been detected. Check that the paper gate has
been set correctly. Press the green tick button and then press the start button.
Page 40
CREASING
AutoCreaser Pro 33
Trouble Shooting
Error Screens (Continued)
Blade Not Home
If the machine stops and error message 04 is displayed on the touch screen, this
indicates that the lower blade / anvil has not made contact with the HOME switch.
i.e. blade still in top position. Switch the machine off and remove the blade set and
ensure that the area is free from obstructions. Return the blade set to the creasing unit
and switch the machine on. Operate the machine in the normal sequence, if the
display continues to read error message 04 it is advised to contact a Service Engineer
immediately.
Overlap
If the machine stops and error message 13 is displayed on the touch screen, this
indicates that the ‘Lead Edge Sensor’ has seen a sheet subsequent to the first
one as being longer. Again this could actually be a longer sheet, OR it could be a
sensor problem (if it is a recurring problem). Check that the paper gate has been set
correctly.
Lead Edge Sensor Blocked
If the machine stops and error message 60 is displayed on the touch screen, this
indicates that the lead edge sensor is blocked.
Press the system switch down and then select the right or left arrows, to inch the
paper forwards or backwards.
Press the green tick button and then press the start button.
This error message could also mean that the lead edge sensors are faulty or need
cleaning.
SYSTEM
Page 41
Trouble Shooting
Error Screens (Continued)
Clean Lead Edge Sensor - Warning Screens.
1. The Clean Lead Edge Sensor warning screen, shown below, will appear when the
Run button is pressed and the strength of the Lead Edge Sensor Beam is at about
50% (i.e. the slider is at about the mid-point position along the Indicator Scale).
SENSOR CLEANING WARNING SCREEN
Press the Tools button to clean the
Sensors, as described on Pages 43 & 44.
Press the Run button to ignore the Warning,
and continue running the job.
2. The Clean Sensor, Error 65 warning screen, shown below, will appear if the strength
of the Lead Edge Sensor Beam is allowed to get down to about 25%. The Lead Edge
Sensors should ideally be cleaned before this warning screen appears.
NOTE.
The Lead Edge Sensors can be cleaned at any time by selecting the Tools Tab
at the bottom of the Touchscreen and cleaning the Sensors as described on Pages 43 &
44.
Page 42
CREASING
AutoCreaser Pro 33
Trouble Shooting
Error Screens (Continued)
Lead Edge Sensor Cleaning.
Select the Tools menu on the Touchscreen Display, and then select the clean sensor
icon
The screen now shown is a visual indication of the strength of the Lead Edge Sensor beam.
FLASHING (GREEN/BLACK) TO
INDICATE THAT THE SOFTWARE
IS INTERROGATING THE SENSOR
BEAM
SLIDER
INDICATOR SCALE
The vertical indicator scale is divided into four sections, the position of the slider indicates
the strength of the beam. The strength of the beam is at its strongest towards the top half of
the indicator scale (green) and at its weakest towards the bottom half of the indicator scale
(red). Note the position of the slider on the indicator scale and then clean the sensors as
described on Page 44.
NOTE:- This vertical indicator scale is repeated as a horizontal indicator scale on the right
hand side of the Touchscreen Display as shown below.
HORIZONTAL INDICATOR SCALE
SYSTEM
Page 43
Trouble Shooting
Error Screens (Continued)
To clean the lead edge sensors open the exit guard to expose the blade set. Using the
Sensor Cleaning Brush (Morgana part number 601-185), supplied in the dispatch kit, insert
the brush between the blade brushes and the top and bottom blades to reach the upper
and lower lead edge sensors. (See FIG.1 and FIG.2 below). Move the brush backwards
and forwards several times across the sensors to clean them. Note the position of the slider
on the indicator scale; the slider should have moved nearer to the top of the scale,
indicating that dust has been removed from the sensors. This sensor cleaning operation
can be repeated again to see if the sensor beam strength can be further improved. The
Sensors can also be cleaned with a can of compressed air purchased from Farnell (Farnell
Part No. 166-3191), or an equivalent product.
Page 44
CREASING
AutoCreaser Pro 33
Trouble Shooting
Recommended weekly operator maintenance
l
l
l
l
Clean all sensors
Clean in feed rollers and output drive hubs using the cleaning kit provided
(Cleaning kit part number 90-018)
Remove and clean the blade assembly
With the blade assembly removed, clean the slots and surrounding area within
the creasing unit.
Technician Maintenance
It is recommended that your machine is fully serviced at least once every six months
by a factory trained Service Engineer.
SYSTEM
Page 45
7-95-28
ITEM
DISPATCH KIT
PART NUMBER
QTY
DESCRIPTION
1
70-170
1
OPERATORS MANUAL - AUTOCREASER Pro 33 (CB)
2
90-018
1
ROLLER CLEANING KIT
3
650-040
1
POWER CORD CE UK C19 3Pin 16A 2.5Mtrs.
4
617-003
5
STEEL BALL - Ø20
5
78-007
1
MAGNETIC BACK STOP ASSY.
6
403-01-030-006
12
SCREW - SOCKET CAP HEAD - M3 x 6 LG
7
409-01-040-004
1
SCREW - SKT. SET FLAT PT. - M4 x 4 LG
8
9
620-007
1
HEXAGON BALL DRIVER 2mm
620-020
1
HEXAGON BALL DRIVER 2.5mm
10
620-004
1
ALLEN KEY 4mm
11
620-026
1
BONDUS L WRENCH 4mm
12
620-028
1
BONDUS L WRENCH 3mm
13
620-033
1
BONDUS L WRENCH 6mm
14
624-018
1
DISPATCH BOX
15
70-055-01
1
BLADE EXTRACTION TOOL - OP SIDE
16
70-055-02
1
BLADE EXTRACTION TOOL - LAY SIDE
17
08-041-02
1
SLITTING ANVIL - UNDERSIZE.
18
1-99-12
1
SLITTER PERF BLADE 28T
20
7 1- 0 83 -01
2
OUTRIGGER FOOT
21
4 01- 02- 05 0-0 08
2
SCREW - PAN POZI TAPTITE - M5 X 8 LONG
WARNING......
THE BLADES FOR ANVIL AND PERFORATING SETS ARE SUPPLIED AS
MATCHING PAIRS AND SHOULD NOT BE MIXED OR LEFT
UNPROTECTED OR SERIOUS DAMAGE MAY RESULT.
Page 46
CREASING
AutoCreaser Pro 33
ITEM
1
2
3
4
5
6
7
ACCESSORIES AND OPTIONS
PART NUMBER
1-99-10
1-99-12
1-99-41
1-99-35
76-213-03
70-082-02
94-073-02
DESCRIPTION
PERFORATING BLADE SET 20T (Card)
PERFORATING BLADE SET 28T (Single sheets)
PERFORATING BLADE SET 56T (Fine perforations)
ANVIL SET USED WITH ABOVE BLADE SETS
BLADE SET - EXTRA NARROW
ANTI-STATIC KIT
SIDELAY EXTENSION - NARROW SHEET
ACCESSORIES....
....May be obtained from
your dealer and fitted to your
machine using the instructions
supplied, or by reading your
operators manual.
SYSTEM
OPTIONS....
....May also be obtained and
fitted by your dealer. You should
not attempt to fit options as
specialist tools and knowledge are
required.
Page 47
RECOMMENDED SPARES
PART NUMBER
DESCRIPTION
93-021
FEED BELT
609-011
‘O’ RING Ø20
94-028
LOCK PIN ASSEMBLY - Side Lay
613-365
EMERGENCY STOP SWITCH
652-011
SWITCH - LOW CURRENT COIL - BLACK ROCKER
75-500-05
MINI ITX MOTHERBOARD - A/C PRO 33
75-455-01
CONTROL PCB ASSEMBLY
174-06-01
SMALL STEPPER DRIVER - LOW POWER - PCB ASSY
174-19-01
RS232 ADAPTOR PCB ASSY
125-21-02
DUAL STEPPER DRIVE PCB ASSEMBLY
75-06-02
TOUCH SCREEN ASSEMBLY - 7”
76-272
PSU ASSEMBLY - ATX12V - 300W
655-015
PSU UNIT - SWITCH MODE - 24V
655-016
PSU UNIT - SWITCH MODE - 48V
76-156
BLADE POSITION SENSOR
76-155
PAPER JAM SENSOR ASSEMBLY
76-154
UPPER SENSOR ASSEMBLY
76-156
BLADE POSITION SENSOR-LEAD
76-255
LEAD - FOLD COMPENSATION SENSOR
76-230-03
LEAD - PAPER GUIDE SENSOR
98-013
ANTI-STATIC BRUSH
609-022
‘O’ RING Ø32
606-035
KNOB - Roller Tilt
76-109
POWER LINK BEARING
76-213-01
BLADE SET - Standard
76-042
DRIVE BELT - FEED BED
607-017
TIMING BELT - 120XL 037
607-042
TIMING BELT 160XL
607-048
TIMING BELT TWIN GRIP - 200 DXL 050
608-019
SHOULDER BOLT
76-082
175-28-01
PERFORATOR - DRIVE HUB ASSEMBLY
BUTTERFLY VALVE - STEPPER
76-240
STEPPER DRIVE MOTOR ASSEMBLY
76-241
75-425
STEPPER BLADE MOTOR ASSEMBLY
LEAD VACUUM DRUM ASSEMBLY
75-530-01
TRANSFORMER ASSEMBLY 230V TO 110V
Page 48
CREASING
AutoCreaser Pro 33
RECOMMENDED SPARES
PART NUMBER
DESCRIPTION
76-083
PERFORATOR - DRIVE WHEEL
76-175-01
INPUT ROLLER - Lower
76-177-01
INPUT ROLLER - Upper
76-019-03
OUTPUT SHAFT
78-013
PERFORATOR STRIPPER ASSEMBLY
613-351
MICRO SWITCH - Guard Circuit
613-191
MICRO SWITCH - Home Circuit
78-071-01
ACTUATOR ASSY. - STACKER
602-085
BEARING-DRAWN CUP NEEDLE ROLLER Ø10xØ14x10
681-020
FUSE 500mA - Anti-surge
681-011
FUSE 315mA - Anti-surge
681-015
FUSE 4A - Anti-surge
652-047
FUSE 15A - Anti-surge
NOTE.....
The items listed above represent parts which are subject to wear, loss, or accidental
damage, and are included for your guidance only.
Replacement of parts fitted to your machine require specialist knowledge and should
therefore be entrusted to your dealer.
SYSTEM
Page 49
FUSE POSITIONS & RATINGS
(POSITION ET CLASSIFICATION DES FUSIBLES)
TRANSFORMER ASSY.
T500mAH 250V (681-020)
PSUs (24V & 48V)
(FUSIBLE PSUs (24 V & 48 V)
T4.0AH 250V (681-015)
Page 50
ANTI-STATIC UNIT
(IF FITTED)
(FUSIBLE ANTI-STATIQUE
(si installé)
T315mAH 250V (681-011)
MAINS IN
F15AH 250V (652-047)
CREASING
AutoCreaser Pro 33
PRODUCT RECYCLING & DISPOSAL
European Union
Disposal Information for Commercial Users
Application of this symbol on your equipment is confirmation that you
must dispose of this equipment in compliance with agreed national
Procedures.
In accordance with European legislation end of life electrical and
electronic equipment subject to disposal must be managed within
agreed procedures.
Prior to disposal please contact your local dealer or representative for
end of life take back information.
Disposal Information for Domestic Users
Application of this symbol on your equipment is confirmation that
you should not dispose of the equipment in the normal household
waste stream.
In accordance with European legislation, end of life electrical and
electronic equipment subject to disposal must be segregated
from household waste.
Private households within EU Member States may return used
electrical and electronic equipment to designated collection
facilities free of charge. Please contact your local disposal
authority for information.
In some Member States when you purchase new equipment your
local retailer may be required to take back your old equipment
free of charge. Please ask your retailer for information.
Other Countries
Please contact your local waste authorities and request disposal information.
SYSTEM
Page 51
REVISION HISTORY
Rev.
4
Mod No.
Mod Description
Date
Mod By
Screen shot graphics changed to show the Lead Edge Sensor Indicator
Bar, on all relative pages. New pages inserted to describe how to use the
ECO2809 Cover Crease Mode for Perfect Bound Covers. (Pages 14 & 15). New
02/01/13
pages inserted to show the Clean Lead Edge Sensor Warning Screens
and how to clean the Lead Edge Sensors. (Pages 42 to 44)
Page 52
CREASING
BAL
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
