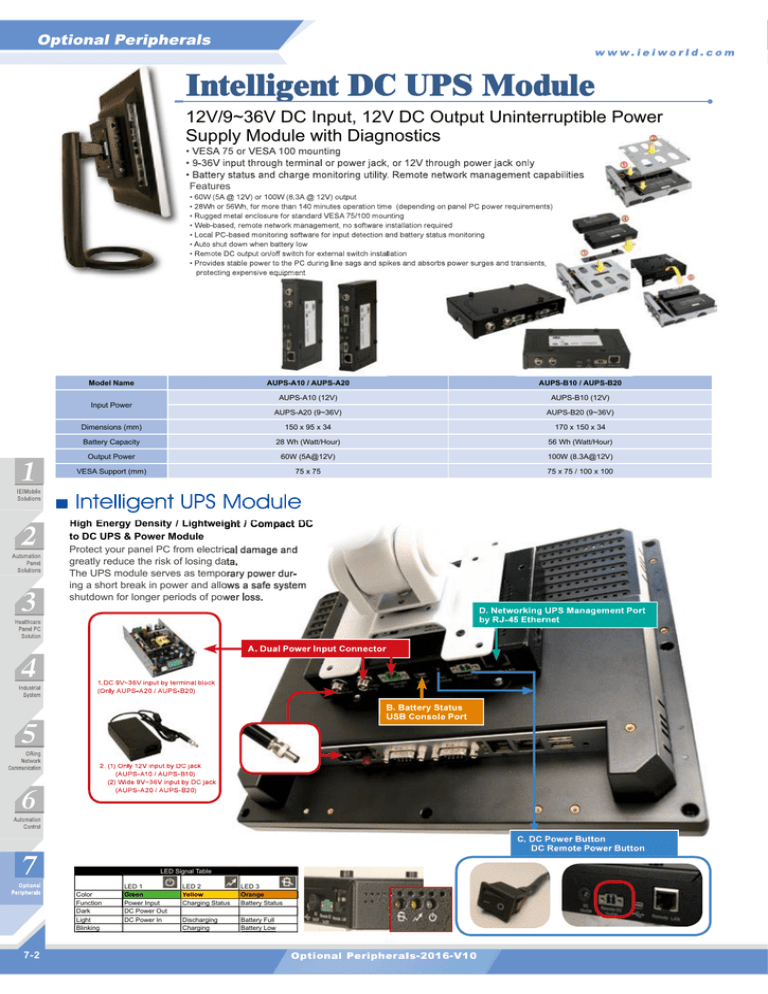

Intelligent DC UPS Module
12V/9~36V DC Input, 12V DC Output Uninterruptible Power
Supply Module with Diagnostics
Features
Model Name
AUPS-A10 / AUPS-A20
Input Power
AUPS-B10 (12V)
AUPS-A20 (9~36V)
AUPS-B20 (9~36V)
Dimensions (mm)
150 x 95 x 34
170 x 150 x 34
Battery Capacity
28 Wh (Watt/Hour)
56 Wh (Watt/Hour)
Output Power
60W ([email protected])
100W ([email protected])
VESA Support (mm)
75 x 75
75 x 75 / 100 x 100
High Energy Density / Lightweight / Compact DC
to DC UPS & Power Module
Protect your panel PC from electrical damage and
greatly reduce the risk of losing data.
The UPS module serves as temporary power during a short break in power and allows a safe system
shutdown for longer periods of power loss.
LED Signal Table
Color
Function
Dark
Light
Blinking
7-2
AUPS-B10 / AUPS-B20
AUPS-A10 (12V)
LED 1
Green
Power Input
DC Power Out
DC Power In
LED 2
Yellow
Charging Status
LED 3
Orange
Battery Status
Discharging
Charging
Battery Full
Battery Low
Management Anywhere
Management Software
Battery Capacity Status
Power On/OFF
Email Status Report
UPS Status Monitoring
Remote control DC output ON/OFF via web interface.
The remote management software utility
and application program allow users to
easily get the status of the AUPS and to
control the AUPS power functions from
anywhere with internet connection.
Click ALARM to get each AUPS
status via internet
Network Remote Management Software
STATUS
Send E-mail
Battery Monitoring Utility
product that serves as emergency power when you suffer from electric event.
Networking Remote Management
Auto
Shutdown
SDK and command list for customer
programming under DOS or Linux system.
AUPS API Content
AUPS API SDK
AUPS API SDK/Content
7-3
Model Name
AUPS-A10
AUPS-A20
AUPS-B10
AUPS-B20
VESA Type
VESA 75
VESA 75
VESA 75 and 100
VESA 75 and 100
DC +12V
DC +9V~+36V
DC +12V
DC +9V~+36V
Input voltage Uinated/range
1. Adapter is 12V-6A (Load is 60W)
2. Battery is 6V-12A (Load is 60W)
Input current rated
Standby power consumption
Input Data
1. Adapter is 12V-9A (Load is 100W)
2. Battery is 12V-9A (Load is 100W)
0.3A (0.2A if Network Management disabled)
Operation with charging current
500mA
Operation with charging power consumption
6W
10W
Charging time with system ON/OFF
8hrs / 2hrs (Battery empty)
Output voltage for normal operation
DC +12V +/-5%
Output voltage for battery operation(approx).
Output Data
6~8.4V DC6 V (exhaustive discharge protection)
Output current
Efficiency (nominal operation) / power loss at
Vin=12V, Iout=80% of full loading
0A~8.3A
89%
93%
95%
Short-circuit protection
Protection
1. Battery low is 10% of battery capacity
2. Shuntdown 5% of battery capacity (Default)
3. The end of battery discharge voltage is 6V
EMC / Safety certification
CE, FCC
Ethernet interface
Web-based, specification 10/100Mbps with RJ-45 connection, Cat. 5 cable
PC-capable, specification 2.0 with full speed, i.e. 2 Mbit/s. Standard 4-core shielded cable, USB Series "mini B" connector to DC-UPS
USB interface
Dimensions (LxWxH)
Physical
152mm x 96mm x 28mm
Weight
174mm x 147mm x 35mm
1.2 kg
1.8 kg
Green
LED Indicator
Environment
94%
Yes
Exhaustive discharge protection
Monitoring
12~16.8V DC12 V (exhaustive discharge protection)
0A~5A
DC power input
Yellow
Battery charging
Orange
Bettery discharging
Operating Tem.
0°C~40°C
Storage Tem.
-20°C~50°C
Note1: Connecting DC input constantly is recommended. Battery will be drained after 14 hours.
Note2: System power consumption + AUPS charging power consumption = Total watts of power source
Model Name
AUPS-A10
Battery Model Name
AUPS-A20
AUPS-B20
BAT-LI-4S2P3800
Battery type
Li-Ion 2S2P 7.4V
Li-Ion 4S2P 14.8V
Battery capacity
7.4V 3800 mAH
14.8V, 3800 mAH
Maximum charge voltage
8.4V
16.8V
The end of discharging voltage
5.6V
11.2V
Recommended charging current (max.)
System continuous discharging current (max.)
The end of charge condition
Battery
AUPS-B10
BAT-LI-2S2P3800
2A
2A
7.6A
7.6A
250mA / 1Min
200mA / 1Min
Discharge protection
Under voltage protection / Over current protection
Charge protection
Over voltage protection / Over current protection
Ambient temperature
0°C~40°C
Storage temperature
-20°C~60°C
Self-discharge rate
340uA~440uA
Dimensions (LxWxH)
139mm x 47mm x 26mm
Weight
165mm x 76mm x 26mm
236g
Cycle life
450g
300 charge / discharge cycles
Backup
60W / 10Min
100W / 10Min
Safety class
CE, FCC
Note: Replacing battery module every 2 years is recommended.
AFOLUX PPC
AUPS-A10
AUPS-A20
AUPS-B10
AUPS-B20
Under 50W solution
AFL-057-LX (15W~20W)
145min
145min
290min
290min
AFL-07A-N270 (20W~25W)
100min
100min
200min
200min
AFL-08AH-N270 (25W~30W)
70min
70min
140min
140min
AFL-10A-N270 (25~30W)
70min
70min
140min
140min
AFL-10A-9103 (40W~45W)
50min
50min
100min
100min
AFL-10A-LX (25W~30W)
70min
70min
140min
140min
AFL-12A-LX (25W~30W)
70min
70min
140min
140min
AFL-12B-CX2 (38W~42W)
50min
50min
100min
100min
AFL-12A-N270 (25W~30W)
70min
70min
140min
140min
AFL-12B-9103 (45W~48W)
45min
45min
90min
90min
50W ~ 100W solution
AFL-15B-915-CM370 (58W~63W)
-
-
35min
35min
AFL-15C-9652-T7500 (65W~70W)
-
-
30min
30min
AFL-17B-915-CM370 (75W~80W)
-
-
25min
25min
AFL-17C-9652-T7500 (85W~90W)
-
-
20min
20min
AFL-19B-915-CM370 (75W~80W)
-
-
25min
25min
AFL-19C-9652-T7500 (85W~90W)
-
-
20min
20min
Note: The backup time could be varied on different models or operating temperature.
7-4
BAT-LI-2S2P3800
BAT-LI-4S2P3800
DC Power Cable (DC plug to DC plug) with lock
32000-115300-RS
AUPS-A10/20



Remote Switch Cable
32000-124600-RS


USB Connection Cable
32000-115500-RS

DC Power Cable (DC plug to DC plug) without lock
32000-120400-RS
Connector for AFOLUX
Panel PC:
AFL-LX PPC series
AFL-N270 PPC series
AUPS-B10/20




DC Power Cable (DC plug to mini DIN)
32002-002201-100-RS




Connector for AFOLUX
Panel PC:
AFL-HM55 PPC series
Description
AUPS-A10-R11
VESA 75, DC 12V input, 12V output 60W UPS module with 3800mAH, 2S2P Li-ion battery
AUPS-A20-R11
VESA 75, DC 9~36V input, 12V output 60W UPS module with 3800mAH, 2S2P Li-ion battery
AUPS-B10-R11
VESA 100, DC 12V input, 12V output 100W UPS module with 3800mAH, 2S4P Li-ion battery
AUPS-B20-R11
VESA 100, DC 9~36V input, 12V output 100W UPS module with 3800mAH, 2S4P Li-ion battery
BAT-LI-2S2P3800 (AUPS-A10/20)
Smart battery; TE9IC032K1002; Lithium ion battery (S2P); 7.4V; 3800mAh; RoHS
BAT-LI-4S2P3800 (AUPS-B10/B20/C20)
Smart battery; TE9IC042K1002; Lithium ion battery (4S2P); 14.8V; 3800mAh; RoHS
Item
Part
Number
Q’ty
DC power cable, 300mm, male
4-pin mini-DIN to DC plug 5.0 x 2.1
(AUPS-B10/B20/C20 only)
DC power cable, 150mm, DC plug
5.5 x 2.1 to DC plug
5.0 x 2.5 without lock
USB cable, 200mm, USB
type A male to mini USB
Remote switch cable,
1200mm
Screw kit
Utility CD (including
utility software and user's
guide)
32002-002201-100-RS
32000-120400-RS
32000-115500-RS
32000-124600-RS
44013030041-RS
7B000-000087-RS
1
1
1
1
1
1
7-5
IDD-930160-KIT
