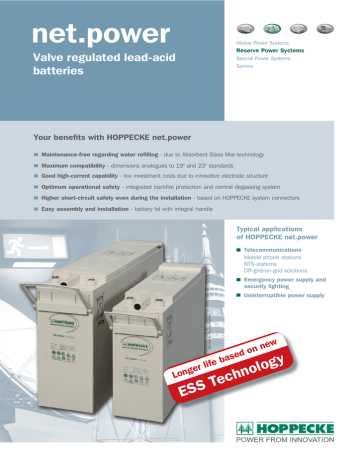

net.power
Motive Power Systems
Reserve Power Systems
Valve regulated lead-acid
batteries
Special Power Systems
Service
Your benefits with HOPPECKE net.power
■
Maintenance-free regarding water refilling - due to Absorbent Glass Mat-technology
■
Maximum compatibility - dimensions analogues to 19" and 23" standards
■
Good high-current capability - low investment costs due to innovative electrode structure
■
Optimum operational safety - integrated backfire protection and central degassing system
■
Higher short-circuit safety even during the installation - based on HOPPECKE system connectors
■
Easy assembly and installation - battery lid with integral handle
Similar to the illustration
Typical applications
of HOPPECKE net.power
■
Telecommunications
Mobile phone stations
BTS-stations
Off-grid/on-grid solutions
■
Emergency power supply and
security lighting
■
Uninterruptible power supply
ew
n
n
o
ed
as
ge
b
r life
Lon
ES
ch
e
T
S
y
g
o
l
no
net.power
Type overview
Capacities, dimensions and weights
net.power 12 V 92
net.power 12 V 100
net.power 12 V 150
net.power 12 V 170
Fig.
A
B
C
C
C10, C5, C3, C1, C1/2 and C1/6 = Capacity at 10 h, 5 h, 3 h, 1 h, 1/2 h and 1/6 h discharge
Fig. A
W
net.power 12 V 92
H
L
Fig. B
W
L
W
net.power 12 V 100
H
L
Fig. C
Printed in Germany
H
net.power 12 V 150 net.power 12 V 170
Design life: * 12 years (according to EUROBAT)
Optimal environmental compatibility - closed loop for recovery of materials in an accredited recycling system.
HOPPECKE Batterien GmbH & Co. KG
P.O. Box 1140 · D-59914 Brilon · Germany
Bontkirchener Straße 1 · D-59929 Brilon-Hoppecke
All details in this brochure are based on state-of-the-art technology. Our products are subject to constant development. We therefore reserve the right to make changes.
C10/1.80 V C5/1.75 V C3/1.70 V C1/1.70 V C1/2/1.65 V C1/6/1.60 V Max. Weight Length L Width W Height H
Ah
Ah
Ah
Ah
Ah
Ah
kg
mm
mm
mm
85.0
75.0
69.0
54.0
44.1
34.5
30.0
396
105
273
100.0
96.5
89.7
73.9
64.5
45.7
42.8
541
125
217
155.0
143.0
133.8
111.0
95.5
67.5
61.9
541
125
302
166.0
156.0
146.7
121.0
101.4
71.1
64.5
541
125
302
Phone: + 49 (0) 29 63 61-3 74
Fax:
+ 49 (0) 29 63 61-2 70
Email: [email protected]
Internet: www.hoppecke.com
Form net.power EN/12.11/2 K
