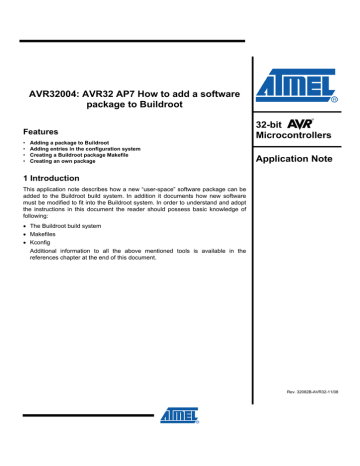

AVR32004: AVR32 AP7 How to add a software
package to Buildroot
Features
•
•
•
•
Adding a package to Buildroot
Adding entries in the configuration system
Creating a Buildroot package Makefile
Creating an own package
32-bit
Microcontrollers
Application Note
1 Introduction
This application note describes how a new “user-space” software package can be
added to the Buildroot build system. In addition it documents how new software
must be modified to fit into the Buildroot system. In order to understand and adopt
the instructions in this document the reader should possess basic knowledge of
following:
• The Buildroot build system
• Makefiles
• Kconfig
Additional information to all the above mentioned tools is available in the
references chapter at the end of this document.
Rev. 32082B-AVR32-11/08
1 Adding a package to Buildroot
This part of the application note describes how user-space software can be added to
the Buildroot system.
The Buildroot build system provided by Atmel already contains an example package
which can be used as a template for your packages. This example package is located
in the directory package/dummy. All further steps in this application note are based on
this example package. If you are implementing your own package just follow the
described steps and replace every “dummy” or “DUMMY” with your package name.
The first thing to do is to create a new directory in the package directory for the new
software. After that you should copy the example files contained in package/dummy/
to your new directory. Now you have two new files in your new directory. These are
Config.in and dummy.mk.
1.1
Adding the package to the configuration system
The Config.in file is needed by the Buildroot configuration system to make your
package available upon configuration. The Buildroot configuration system is based on
the Linux® kernel configuration system and uses therefore the same syntax.
Documentation about the syntax is available in the kernel sources in the directory
Documentation/kbuild. The content of the Config.in file from the dummy package
looks as follows:
config BR2_PACKAGE_DUMMY
bool "dummy"
default n
help
This is a dummy package to show how to integrate a new
package into Buildroot. The syntax for this file is the
default kbuild from the Linux kernel, more information at
http://git.kernel.org/?p=linux/kernel/git/torvalds/linux2.6.git;a=tree;f=Doc
umentation/kbuild
BR2_PACKAGE_DUMMY is the configuration option for the package
following lines define attributes for this option. This name is used by
internally as a reference to your package. Change this reference name to
package by removing “DUMMY” and replacing it with your package name
letters instead.
and the
Buildroot
your own
in capital
The next line specifies the package name. This name will appear later in the Buildroot
configuration menu as a selectable entry. Remove “dummy” and replace it with your
package name.
The “n” after default makes this package not selected by default. This means that this
package is not selected in the configuration menu if you create a new clean
configuration. To enable the package by default replace the “n” with a “y”.
The text after the “help” attribute is the package description. This text will appear in
the Buildroot configuration menu when you enter the help section of your package.
For a simple package, that does not depend on others or provides functionalities to
others, it is enough to edit the above mentioned attributes. But if your package relies
2
AVR32004
32082B-AVR32-11/08
AVR32004
on others or you want to enable another package upon selection of your package in
the menu you have to add dependencies in the Config.in file.
To enable a package upon selection if your package add
select BR2_PACKAGE_PACKAGE_NAME
Replace “PACKAGE_NAME” with the package name you want to enable. For
instance to enable the wget package use BR2_PACKAGE_WGET.
If your package can not be build without having already build another package you
have to add a dependency. This avoids a broken build process beforehand. To add
such a dependency add
depends on BR2_PACKAGE_PACKAGE_NAME
and replace as above described “PACKAGE_NAME”. More detailed information can
be found in the kernel documentation.
After you have edited the Config.in file you have to make Buildroot aware of your new
package. Therefore you have to edit the file package/Config.in. The position where
you insert the reference to your packages decides where the entry in menu system is
going to be later on. A good position is after the line:
comment “Other stuff”
After the above line insert:
source “package/dummy/Config.in”
Replace “dummy” in the above path with the directory you have created for your
package. The dummy package is not registered in this file as this would confuse a
Buildroot user unnecessarily. Figure 2-1 shows the menu entry for the dummy
package if you insert the line above unchanged.
3
32082B-AVR32-11/08
Figure 2-1 Buildroot menu entry of the dummy package
1.2
Creating a Buildroot package Makefile
After adding your package to the Buildroot configuration system a Makefile is needed
that contains rules for downloading, configuring, compiling and installing the software.
The dummy.mk file which you have already copied to your own package directory can
be used as a Makefile template. This Makefile example fits all simple applications
which consist of a single binary. For other software such as libraries or more complex
projects with multiple binaries, it must be adapted. Take a look at the other *.mk files
in the package subdirectories for more examples on how to write a Buildroot package
Makefile.
The following variables are defined on the top of the Makefile:
DUMMY_VERSION=1.2.3
DUMMY_SOURCE=dummy-$(DUMMY_VERSION).tar.bz2
DUMMY_SITE=http://www.example.net/dummy/source
DUMMY_DIR=$(BUILD_DIR)/dummy-$(DUMMY_VERSION)
DUMMY_CAT:=$(BZCAT)
DUMMY_BINARY:=dummy
DUMMY_TARGET_BINARY:=usr/bin/$(DUMMY_BINARY)
4
AVR32004
32082B-AVR32-11/08
AVR32004
• DUMMY_VERSION: Version of the software package.
• DUMMY_SOURCE: File name of the tarball containing the dummy package on the
website, ftp location or in the local download directory. The DUMMY_VERSION
value is used to build the archive name.
• DUMMY_SITE: The HTTP or FTP site address from where the package is
available for download. Must include the complete path to the directory where
DUMMY_SOURCE is located. It is also possible to just place the archive in the
download directory (src/dl/) and omit this entry as the package does not need to be
downloaded any more.
• DUMMY_DIR: The directory into which the software will be decompressed. After
extraction the package is configured and compiled there. Actually DUMMY_DIR is
a subdirectory of the BUILDROOT internal BUILD_DIR (BUILD_DIR is build_avr32/
for the AVR32).
• DUMMY_BINARY: Name of the binary. This file will be copied to the target file
system.
• DUMMY_TARGET_BINARY: Relative path to the binary on the target file system.
In this location the compiled binary will be installed.
• DUMMY_CAT: Decompression tool to use in conjunction with the package archive.
Valid values are $(BZCAT) for the bz2 algorithm, $(ZCAT) for the gz algorithm.
The rest of the Makefile are rules for downloading, unpacking, configuring and so
forth. The first rule looks as follows:
$(DL_DIR)/$(DUMMY_SOURCE):
$(WGET) -P $(DL_DIR) $(DUMMY_SITE)/$(DUMMY_SOURCE)
This rule downloads the package from the earlier specified website and stores it in the
download directory (src/dl by default). If the package exists already in this directory
the downloading rule will not be executed.
$(DUMMY_DIR)/.unpacked: $(DL_DIR)/$(DUMMY_SOURCE)
$(DUMMY_CAT) $(DL_DIR)/$(DUMMY_SOURCE) | \
tar -C $(BUILD_DIR)
$(TAR_OPTIONS) –
toolchain/patch-kernel.sh $(DUMMY_DIR) package/dummy/ \
dummy-$(DUMMY_VERSION)-\*.patch\*
$(CONFIG_UPDATE) $(DUMMY_DIR)
touch [email protected]
This rule tests if the hidden file “.unpacked” exists in the dummy build directory. If this
file does not exist the package is unpacked from the download directory to the build
directory, all available patches are applied, config.guess and config.sub are updated
and the file “.unpacked” is created. If you create this file in the dummy build directory
Buildroot never tries to download, unpack and patch the sources. This is useful if you
want to add your package locally. If you do not have to patch the package or you
don’t work with configure scripts you can remove these commands. Otherwise adapt
these lines to your needs.
A lot of software makes use of configuration scripts to prepare itself for the build
process. Especially large open source projects on the internet (e.g. GNU GCC) have
many build options available and a lot of dependencies which need to be resolved
before a build. The next rule addresses these configuration scripts.
$(DUMMY_DIR)/.configured: $(DUMMY_DIR)/.unpacked
5
32082B-AVR32-11/08
(cd $(DUMMY_DIR); rm -rf config.cache; \
$(TARGET_CONFIGURE_OPTS) \
$(TARGET_CONFIGURE_ARGS) \
./configure \
--target=$(GNU_TARGET_NAME) \
--host=$(GNU_TARGET_NAME) \
--build=$(GNU_HOST_NAME) \
--prefix=/usr \
--sysconfdir=/etc \
$(DISABLE_NLS) \
$(DISABLE_LARGEFILE) \
)
touch [email protected]
The example above includes the most commonly used configuration options.
Depending on your package you might have to add others. By running “./configure -help” in the package build directory all available configuration options are listed.
You can remove most of the above lines if your software has no configuration script.
In this case the rule could look like this:
$(DUMMY_DIR)/.configured: $(DUMMY_DIR)/.unpacked
touch [email protected]
This will only create the file “.configured” in the source build directory to indicate that
this package is configured.
The last rule needed to build a package is the call to the actual Makefile of the
sources. This is done by the following lines:
$(DUMMY_DIR)/$(DUMMY_BINARY): $(DUMMY_DIR)/.configured
$(MAKE) -C $(DUMMY_DIR)
If needed, you can pass values to the Makefile by adding them to the command line.
An example of a Makefile that can be used with Buildroot is described in chapter 2.
After the build the package needs to be installed on the target file system. Following
rule copies the dummy binary to the target file system and strips any unneeded
symbols from it to reduce its size.
(TARGET_DIR)/$(DUMMY_TARGET_BINARY): $(DUMMY_DIR)/$(DUMMY_BINARY)
$(INSTALL) -D $(DUMMY_DIR)/$(DUMMY_BINARY) [email protected]
$(STRIPCMD) [email protected]
If you have to copy more files add respective copy commands here. Another
approach is to let the sources Makefile handle the installation process. This approach
is useful when the package is configured by scripts and has its own installation rules.
In this case you have to call the installation routine from here and let the package
handle this process itself. The following lines call the installation routine in the
sources Makefile:
$(TARGET_DIR)/$(DUMMY_TARGET_BINARY): $(DUMMY_DIR)/$(DUMMY_BINARY)
$(MAKE) DESTDIR=$(TARGET_DIR) -C $(DUMMY_DIR) install
Additional lines may be needed here to strip the binaries or remove any unneeded
parts, such as man pages, from the target file system.
All software needed by your package should be available before the compilation or
configuration of your package. In order to make Buildroot aware of these
6
AVR32004
32082B-AVR32-11/08
AVR32004
dependencies you have to specify them. The uclibc library is for instance a software
part on which your package most likely depends on. Therefore you have to name the
package before your package.
dummy: uclibc $(TARGET_DIR)/$(DUMMY_TARGET_BINARY)
Also consider to register any dependencies with the configuration system. If you do
that, all needed software is selected for the build upon the selection of your package.
This results in a build without broken dependencies. Also take a look at the kbuild
(and kconfig) documentation in the kernel sources on how to add dependencies to
your package. A short introduction is available in chapter 1.1.
Since it should be possible to work with Buildroot offline, it is mandatory to implement
a rule which downloads your package without building it. In addition is it useful to
check if all package-sources are available. Because of these reasons following line is
mandatory.
dummy-source: $(DL_DIR)/$(DUMMY_SOURCE)
The last two rules serve as cleanup. The purpose of the first rule (dummy-clean) is to
clean the build directory by calling the source Makefile. This will force a new build of
the package upon a new Buildroot build. The second clean rule (dummy-dirclean)
removes the whole build directory and thus forcing a new extraction, patching and
rebuild of the package the next time the Buildroot build process is initiated.
dummy-clean:
-$(MAKE) -C $(DUMMY_DIR) clean
dummy-dirclean:
rm -rf $(DUMMY_DIR)
The last lines of the file add the target dummy to the list of targets to be compiled by
Buildroot by first checking if the configuration option for this package has been
enabled with the configuration tool. If that is the case, Buildroot adds this package to
its TARGETS global variable and it will be built upon the next build.
ifeq ($(BR2_PACKAGE_DUMMY),y)
TARGETS+=dummy
endif
After adapting Config.in and dummy.mk for your package, Buildroot should be able to
download, patch, configure, compile and copy it to the target file system. This is not
an “absolute” example which you have to follow in detail. There are many ways to do
things but the above example gives a basic overview. Take a look at the other
packages and compare their implementations. A similar example is also available
from http://buildroot.uclibc.org/buildroot.html.
2 Creating a package
Unless you are not using automake and its buddies which take care of most of the
configuration, compilation and clean processes you have to take care of this by
yourself. The integral part in your software is the Makefile and this file must be
adapted for Buildroot. An example Makefile for the dummy package could look like
this:
GCC := $(CROSS_COMPILE)gcc
CFLAGS := -Wall -Os -g
.PHONY: all install clean
7
32082B-AVR32-11/08
all: dummy
dummy: dummy.o
$(GCC) $(CFLAGS) $(LDFLAGS) -o [email protected] $^ $(LIBS)
%.o: %.c
$(GCC) -c $< -o [email protected] $(CFLAGS)
install:
install -m 755 dummy $(DESTDIR)/usr/bin
clean:
rm -f dummy dummy.o
Especially important is the install rule. If you do not want to take care of it in the
Buildroot package Makefile (dummy.mk) you have to add the DESTDIR path variable
to the copy command to ensure that it is copied to the right place. This variable points
to the root of the target root filesystem.
Pack the Makefile its associated sources in a tar archive, compress it either with the
gz or bz2 algorithm and name it according to your package name and version. Place
this archive in the download folder or on the internet site which you have specified.
Alternatively copy your sources to the build directory and create the files “.unpacked”
and ”.configured”. This omits the download, decompression and configuring but you
have to do this again if you make a clean. At last run make menuconfig, select your
package in the configuration and run make to build it for the target.
3 References
Description of the kernel configuration system (Kconfig):
http://git.kernel.org/?p=linux/kernel/git/torvalds/linux2.6.git;a=tree;f=Documentation/kb
uild
AVR®32 Buildroot application note:
http://www.atmel.com/dyn/resources/prod_documents/doc32062.pdf
An example of extending Buildroot with more software:
http://buildroot.uclibc.org/buildroot.html
8
AVR32004
32082B-AVR32-11/08
Disclaimer
Headquarters
International
Atmel Corporation
2325 Orchard Parkway
San Jose, CA 95131
USA
Tel: 1(408) 441-0311
Fax: 1(408) 487-2600
Atmel Asia
Unit 1-5 & 16, 19/F
BEA Tower, Millennium City 5
418 Kwun Tong Road
Kwun Tong, Kowloon
Hong Kong
Tel: (852) 2245-6100
Fax: (852) 2722-1369
Atmel Europe
Le Krebs
8, Rue Jean-Pierre Timbaud
BP 309
78054 Saint-Quentin-enYvelines Cedex
France
Tel: (33) 1-30-60-70-00
Fax: (33) 1-30-60-71-11
Atmel Japan
9F, Tonetsu Shinkawa Bldg.
1-24-8 Shinkawa
Chuo-ku, Tokyo 104-0033
Japan
Tel: (81) 3-3523-3551
Fax: (81) 3-3523-7581
Technical Support
[email protected]
Sales Contact
www.atmel.com/contacts
Product Contact
Web Site
www.atmel.com
Literature Request
www.atmel.com/literature
Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any
intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN ATMEL’S TERMS AND
CONDITIONS OF SALE LOCATED ON ATMEL’S WEB SITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED
OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL ATMEL BE LIABLE FOR ANY DIRECT, INDIRECT,
CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS,
BUSINESS INTERRUPTION, OR LOSS OF INFORMATION) ARISING OUT OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Atmel makes no representations or warranties with respect to the accuracy or completeness of the
contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. Atmel does not make any
commitment to update the information contained herein. Unless specifically provided otherwise, Atmel products are not suitable for, and shall not be used in,
automotive applications. Atmel’s products are not intended, authorized, or warranted for use as components in applications intended to support or sustain life.
© 2008 Atmel Corporation. All rights reserved. Atmel®, logo and combinations thereof, AVR® and others, are the registered trademarks or
trademarks of Atmel Corporation or its subsidiaries. Other terms and product names may be trademarks of others.
32082B-AVR32-11/08
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
