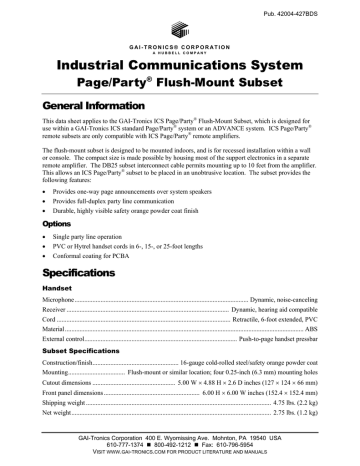

Pub. 42004-427BDS
GAI-TRONICS® CORPORATION
A HUBBELL COMPANY
Industrial Communications System
Page/Party® Flush-Mount Subset
General Information
This data sheet applies to the GAI-Tronics ICS Page/Party® Flush-Mount Subset, which is designed for
use within a GAI-Tronics ICS standard Page/Party® system or an ADVANCE system. ICS Page/Party®
remote subsets are only compatible with ICS Page/Party® remote amplifiers.
The flush-mount subset is designed to be mounted indoors, and is for recessed installation within a wall
or console. The compact size is made possible by housing most of the support electronics in a separate
remote amplifier. The DB25 subset interconnect cable permits mounting up to 10 feet from the amplifier.
This allows an ICS Page/Party® subset to be placed in an unobtrusive location. The subset provides the
following features:



Provides one-way page announcements over system speakers
Provides full-duplex party line communication
Durable, highly visible safety orange powder coat finish
Options



Single party line operation
PVC or Hytrel handset cords in 6-, 15-, or 25-foot lengths
Conformal coating for PCBA
Specifications
Handset
Microphone ........................................................................................................... Dynamic, noise-canceling
Receiver .................................................................................................... Dynamic, hearing aid compatible
Cord ........................................................................................................... Retractile, 6-foot extended, PVC
Material ................................................................................................................................................... ABS
External control .............................................................................................. Push-to-page handset pressbar
Subset Specifications
Construction/finish ..................................................... 16-gauge cold-rolled steel/safety orange powder coat
Mounting ................................... Flush-mount or similar location; four 0.25-inch (6.3 mm) mounting holes
Cutout dimensions ................................................... 5.00 W  4.88 H  2.6 D inches (127  124  66 mm)
Front panel dimensions ........................................................... 6.00 H  6.00 W inches (152.4  152.4 mm)
Shipping weight .................................................................................................................. 4.75 lbs. (2.2 kg)
Net weight ........................................................................................................................... 2.75 lbs. (1.2 kg)
GAI-Tronics Corporation 400 E. Wyomissing Ave. Mohnton, PA 19540 USA
610-777-1374  800-492-1212  Fax: 610-796-5954
VISIT WWW.GAI-TRONICS.COM FOR PRODUCT LITERATURE AND MANUALS
ICS Page/Party® Flush-Mount Subset
Pub. 42004-427BDS
PAGE 2 of 2
Environmental
Temperature range (operation and storage) ............................................ −22º F to 158º F (−30º C to 70º C)
Humidity ...................................................................................................................... 95% non-condensing
Approvals
NRTL certified for use in US and Canada ............................................................................. UL/CSA 60950
CE Mark
Figure 1. ICS Page/Party® Flush-Mount Subset
e:\standard ioms - current release\data sheets\42004-427bds\42004-427bds.doc
11/13
