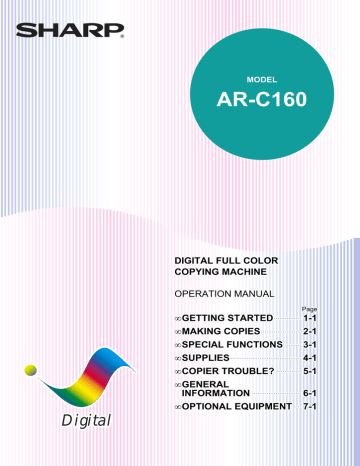

MODEL
AR-C160
DIGITAL FULL COLOR
COPYING MACHINE
OPERATION MANUAL
• GETTING STARTED
• MAKING COPIES
• SPECIAL FUNCTIONS
• SUPPLIES
• COPIER TROUBLE?
• GENERAL
INFORMATION
• OPTIONAL EQUIPMENT
Digital
Page
1-1
2-1
3-1
4-1
5-1
6-1
7-1
❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧
❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧
❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧
The power switch positions are marked “I” to indicate power “ON” and
“ ” to indicate stand-by.
In the stand-by position, power is being supplied to a drying heater
within the optical system of the copier.
Caution:
For complete electrical disconnection, pull out the main plug.
The socket-outlet shall be installed near the equipment and shall be
easily accessible.
❧
❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧❧
➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣
FOR YOUR RECORDS ...
To protect against loss or theft, record and retain for reference the
copier’s serial number located on the right hand side at the rear corner
of the copier.
Model Number
AR-C160
Serial Number
Date of Purchase
Place of Purchase
Authorized Sharp Copier
Service Department Number
➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣
➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣
➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣
COLOR COPY SAMPLES
The following pages contain samples of the various color copying functions described in this manual. They are
designed to demonstrate the wide range of capabilities and applications for the Sharp AR-C160 digital full color
copying machine.
Note that the samples shown on page 1 to page 8 are not actual copies from the AR-C160 copier. The colors displayed
may differ from those of actual copies.
Color Copying with Special Features
1. Single color copying (See page 3-26.)
The single color function is used to produce copies using a selected single color.
Original
Red
Green
Blue
Purple
Orange
Brown
1
2. Neg./Pos. Reverse (See page 3-28.)
The NEG./POS. REVERSE function is used to transform a color original into its complementary colors. If this function
is selected in the black/white mode, the black and white areas of the original will be reversed.
Original
Color copy
Black/white copy
3. Photo repeat (See page 3-32.)
PHOTO REPEAT is used to produce multiple copies of a photo on a single sheet of copy paper.
Copy (8-1/2" x 11")
Original (3" x 5")
Copy (11" x 17")
Original (5" x 7")
2
4. Multi-page Enlargement (See page 3-36.)
This function is used to enlarge an original image to a size larger than 11" x 17" and to print portions of the image onto
multiple sheets of paper.
Copies (2 sheets of 11" x 17")
Original (8.5" x 11")
Copies (4 sheets of 11" x 17")
Original (11" x 17")
3
Adjustments for Color Copying
1. Exposure adjustments (See page 2-16.)
Exposure selections for this copier should be selected according to the type of originals being copied: TEXT/PRTD.
PHOTO, TEXT/PHOTO, TEXT, PHOTO, PRINTED PHOTO or MAP. Also COLOR TONE ENHANCEMENT can be
specified.
Text/prtd. photo mode, Text/photo mode:
These modes provide the best balance for copying
originals which contain text, printed photos and photos.
Text mode:
This mode is useful for enhancing low density
areas of an original or suppressing high density
background areas.
KEY OPERATOR CODE NUMBER
A key operator code number must be registered
before a key operator program can be used. The
key operator must remember this number. Only
this registered number will allow access to
the key operator programs.
Registering the key operator code number.
1 Press the CUSTOM SETTINGS key.
Photo mode:
Printed photo mode:
KEY
OP ER
ATOR
E NUM
BE
R
COD
A k
be
e
st r
r e g y operat
r mu t o
o
pro i s t e r e d r c o d e nu m b e o p e r a tor
gram
before a key
a
r
mus
pe this
can b
ey o
reg t r e m e m e used. The k O n l y to
b
i
.
s
the s t e r e d n e r t h i s n u m b e r a c c e s
umber will allow
key o
Re
perato
de
g
r
co
num i s t e r i n g programs.
r
be r
the key operato
1 Pr
This mode provides the best quality reproduction of
photographs with fine detail.
es s t
he CU
.
STOM SETTINGS key
This mode is useful for copying printed photographs.
Color tone enhancement:
This mode is used to make full color image more vivid.
Original
4
P h oto
Copy
2. RGB Adjust (See page 3-16.)
RGB adjustments function to increase or decrease the overall amount of a single primary color. The amount of change
depends upon the characteristics of the particular original being copied. Generally, lighter toned areas will be affected
to a greater degree than will darker toned areas.
Original
Red +
Green +
Blue +
Red -
Green -
Blue -
5
3. Sharpness (See page 3-18.)
This function is used to sharpen or soften image outlines.
Original
Softer
Sharper
4. Suppress background (See page 3-20.)
This copier can suppress unnecessary background colors on the original image when copying. This function is used
to adjust the density level of background colors to be erased.
Original
6
Copy
5. Color Balance (See page 3-22.)
The Color Balance function allows the density of colors to be adjusted. Adjusted color samples are shown below.
Original
Cyan adjustment +
Magenta adjustment +
Yellow adjustment +
Black adjustment +
Cyan adjustment-
Magenta adjustment -
Yellow adjustment -
Black adjustment -
7
6. Brightness/intensity/contrast (See page 3-24.)
This copier allows the level of brightness, intensity or contrast of images to be adjusted. If brightness is selected, color
tone can be darkened or lightened. If intensity is selected, the level of color saturation can be modified between vivid
and dull. If contrast is selected, the contrast between two image areas can be adjusted higher or lower.
Original
8
Brightness +
Intensity +
Contrast +
Brightness -
Intensity -
Contrast -
CONTENTS
Page
INTRODUCTION .................... 10
●
USING THIS MANUAL ................ 10
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
CHAPTER 7
OPTIONAL EQUIPMENT
●
●
●
●
SYSTEM CONFIGURATION .......... 7-2
20-BIN STAPLE SORTER (AR-SS2) ..... 7-3
LARGE CAPACITY TRAY (AR-LC2N) ... 7-15
FINISHER (AR-FN4) ............... 7-19
7
●
6-7
6-8
CHAPTER
●
XY ZOOM ........................ 3-2
MARGIN SHIFT .................... 3-4
ERASE .......................... 3-6
DUAL PAGE COPYING .............. 3-8
CENTERING ..................... 3-10
TRANSPARENCY FILM WITH
INSERT SHEETS ................. 3-12
COVERS ....................... 3-14
COLOR ADJUSTMENTS ............ 3-16
RGB adjust ...................... 3-16
Sharpness ....................... 3-18
Suppress background .............. 3-20
Color balance .................... 3-22
Brightness/intensity/contrast .......... 3-24
6-2
6-2
6-3
6-4
6-5
6-6
6
CHAPTER 3
SPECIAL FUNCTIONS
●
PART NAMES AND FUNCTIONS .......
Exterior ..........................
Interior ..........................
Operation panel ....................
Touch panel (Basic screen) ...........
USER MAINTENANCE ..............
TOUCH PANEL CONTRAST
ADJUSTMENT ....................
SPECIFICATIONS ..................
CHAPTER
●
●
5
●
CHAPTER
●
CHAPTER 6
GENERAL INFORMATION
4
●
AUDITING ACCOUNTS .............. 2-2
COPYING FROM THE DOCUMENT
GLASS .......................... 2-3
USING THE RADF ................. 2-6
REDUCTION/ENLARGEMENT/ZOOM .. 2-11
SPECIAL PAPERS (manual feed) ...... 2-14
Two-sided copying with bypass tray .... 2-15
EXPOSURE ADJUSTMENTS ......... 2-16
JOB MEMORY ................... 2-18
INTERRUPTING A COPY RUN ....... 2-20
●
MISFEED REMOVAL ................ 5-2
MAINTENANCE REQUIRED ......... 5-11
TONER COLLECTING CONTAINER OF
TRANSFER UNIT ................. 5-12
TROUBLESHOOTING .............. 5-13
CHAPTER
●
3
●
●
●
4-2
4-2
4-2
4-5
4-8
4-9
CHAPTER 5
COPIER TROUBLE?
●
CHAPTER 2
MAKING COPIES
PAPER ..........................
Types and sizes of copy paper .........
Loading copy paper .................
ADDING TONER ...................
USED TONER DISPOSAL ............
STORAGE OF SUPPLIES ............
CHAPTER
●
CHAPTER 4
SUPPLIES
2
●
INSTALLATION REQUIREMENTS ...... 1-2
CAUTIONS ....................... 1-3
POWER ON AND OFF ............... 1-5
Power save modes ................. 1-6
INFORMATION FUNCTION ........... 1-7
USING THE TOUCH PANEL .......... 1-8
How to use the touch panel ........... 1-8
Selection of function ................. 1-8
Function setting icons ............... 1-9
COPY MODE AND PRINT MODE ...... 1-10
Printing documents from the computer .. 1-10
Using the operation panel in the
print mode ....................... 1-11
How to select the paper type for the
bypass tray ...................... 1-11
General operation steps for the
scanner use ..................... 1-12
CHAPTER
●
1
CHAPTER 1
GETTING STARTED
Page
IMAGE EDITING FUNCTIONS ........ 3-26
Single color ...................... 3-26
Neg./pos. reverse ................. 3-28
Mirror image ..................... 3-30
Photo repeat ..................... 3-32
11x17 full-bleed ................... 3-34
Multi-page enlargement ............. 3-36
Extra size ....................... 3-38
CHAPTER
●
9
INTRODUCTION
The AR-C160 copier is a digital color image processing copier which provides
high productivity at a color copy speed of 16 copies/minute and convenient
features including intelligent image-editing functions.
Amongst its many useful features and functions are the document feeder
(optional), photo copying, internal auditor, and various special functions such as
dual page copying, margin shift, erase, XY zoom, and NEG./POS. reverse
functions. This copier can be equipped with an optional large capacity tray which
holds 3,000 sheets of copy paper. The machine can also be equipped with an
optional staple sorter or an optional finisher with offset stack function to provide
finished copy sets ready for distribution.
This copier was also designed with ease of use in mind. The easy-to-understand
operation panel with touch panel system and INFORMATION function will guide
the user through most operations. To gain the maximum benefit of all the copier
features, however, it is recommended that users first read this manual to become
familiar with all the copier features.
NOTES:
● This manual describes only copier features. For a description of optional
printer features, see the separate relevant manual. A brief description of
operation in the PRINT mode is, however, written on pages 1-10 to 1-12.
● This copier can be equipped with an optional document cover or reversing
automatic document feeder (RADF). The illustrations in this manual are
mainly for the copier with an optional RADF installed.
● The display on the touch panel varies with installation of optional equipment.
The illustrations of the touch panel in this manual are mainly for the copier with
an optional RADF (AR-RF1) installed.
USING THIS MANUAL
This manual is intended as an operation guide for both general users and key
operators.
For General Users
It is recommended that you read the GETTING STARTED, MAKING COPIES,
and SPECIAL FUNCTIONS sections to become familiar with the available
features and functions of your copier. Then refer to the manual as needed to
become thoroughly familiar with those features you will normally use.
For Key Operators
Please read all sections thoroughly to become familiar with all features and
functions of your copier. Throughout the manual, information which is relevant
to key operator functions is noted by “★ KEY OPERATOR.” Please pay close
attention to these notes and to the SUPPLIES, COPIER TROUBLE?, GENERAL
INFORMATION, and OPTIONAL EQUIPMENT sections so you can ensure
smooth and efficient operation of your machine.
A separate KEY OPERATOR’S GUIDE has been written especially for you. It
contains the programs and programming information that will enable you to tailor
functions for maximum benefit to your company.
10
1
CHAPTER
CHAPTER 1
GETTING STARTED
This chapter describes the basic information on the use of this copier.
●
●
●
●
●
●
Page
INSTALLATION REQUIREMENTS . . . . . . . . . . . . . . . . . . . . . . . 1-2
CAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
POWER ON AND OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Power save modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
INFORMATION FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
USING THE TOUCH PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
How to use the touch panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Selection of function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Function setting icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
COPY MODE AND PRINT MODE . . . . . . . . . . . . . . . . . . . . . . . 1-10
Printing documents from the computer . . . . . . . . . . . . . . . . . . . . 1-10
Using the operation panel in the print mode . . . . . . . . . . . . . . . . 1-11
How to select the paper type for the bypass tray . . . . . . . . . . . . 1-11
General operation steps for the scanner use . . . . . . . . . . . . . . . 1-12
1-1
1
CHAPTER
INSTALLATION REQUIREMENTS
To ensure safety and proper machine performance, please note the following
before initial installation and whenever the machine is to be relocated.
GETTING STARTED Installation requirements
1.
The copier should be installed near an accessible power outlet for easy
connection.
2.
Be sure to connect the power cord only to a power outlet that meets the
specified voltage and current requirements.
Also make certain the outlet is properly grounded.
3.
Do not install the machine where it is:
● damp or humid,
● exposed to direct sunlight,
● extremely dusty,
● poorly ventilated,
● subject to extreme temperature or humidity changes (e.g., near an air
conditioner or heater).
4.
Ensure that the area chosen for the machine location is level.
5.
Be sure to allow the required space around the machine for servicing and
proper ventilation.
11-13/16"
(30 cm)
23-5/8"
(60 cm)
A small amount of ozone is produced within the copier during operation.
The emission level is insufficient to cause any health hazard.
NOTE:
The present recommended long term exposure limit for ozone is 0.1 ppm
(0.2 mg/m3) calculated as an 8 hr. time-weighted average concentration.
However, since the small amount that is emitted may have an objectionable
odor, it is advisable to place the copier in a ventilated area.
1-2
11-13/16"
(30 cm)
23-5/8"
(60 cm)
2.
The fusing unit is extremely hot. Exercise care in this area.
Paper transport
Fusing unit
3. Do not look directly at the light source. Doing so may damage
your eyes.
4.
Installation adjusters.
When moving the machine, be sure to raise the installation
adjusters. After moving the machine, lower the installation
adjusters until they reach the floor.
This copier contains fusing oil that is very slippery if leaked
on the floor. Ensure that the machine is located at level
position and take care if it is to be moved that oil leakage does
not occur.
Lock
5. This copier is equipped with a forgery prevention feature. If paper
that closely resembles paper money is used as an original,
copying may not be performed properly.
Release
Adjuster
“BATTERY DISPOSAL”
THIS MACHINE CONTAINS A MANGANESE DIOXIDE BATTERY WHICH MUST BE DISPOSED
OF PROPERLY. CONTACT YOUR SHARP DEALER OR SERVICER FOR INSTRUCTIONS.
This product utilizes tin-lead solder, and a fluorescent lamp containing a small amount of mercury.
Disposal of these materials may be regulated due to environmental considerations.
For disposal or recycling information, please contact your local authorities or the Electronics Industries
Alliance: www.eia.org
1-3
GETTING STARTED Cautions
Do not touch the photoconductive drums or paper transport.
Scratches or smudges on them will cause copy defects.
1
1.
CHAPTER
CAUTIONS
CAUTIONS
1
CHAPTER
Cautions on laser
GETTING STARTED Cautions
Wave length
nm
785 nm +10
- 15 nm
Pulse times
(4.374 µs ±4.4 ns)/7 mm
Output power
0.20 mW - 0.45 mW
SAFETY PRECAUTIONS
This Digital Copier is rated Class 1 and complies with 21 CFR
1040.10 and 1040.11 of the CDRH standards. This means that
the copier does not produce hazardous laser radiation. For your
safety, observe the precautions below.
●
Do not remove the cabinet, operation panel or any other
covers.
●
The copier’s exterior covers contain several safety interlock
switches. Do not bypass any safety interlock by inserting
wedges or other items into switch slots.
Caution
Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation
exposure.
1-4
●
Be sure to extend the tray when paper sizes 8-1/2"
x 14" or larger are to be received.
1-5
GETTING STARTED Power on and off
Power off
1
Power on
The power switch is located on the left side of the copier. When the
power switch is turned to the “ON” position, the message “WARMING
UP. PLEASE WAIT.” will appear in the message display. Warming
up takes about 330 seconds. Once the copier is ready, the message
display will change to “READY TO COPY.”, and the START key
indicators will light up, indicating that copying is possible.
If the copier has been programmed in the auditing mode, the message
“ENTER YOUR ACCOUNT NUMBER. -----” will appear after warming
up. Once a valid account number has been entered, copying will
become possible.
CHAPTER
POWER ON AND OFF
POWER ON AND OFF
1
CHAPTER
Power save modes
GETTING STARTED Power on and off
The copier has two power save modes to reduce overall power
consumption and thereby reduce the cost of operation and to conserve
natural resources to help reduce environmental pollution. The two
power save modes are preheat mode and sleep mode.
★ KEY OPERATOR
The preheat activation time and the sleep activation time have been
preset at the factory to 15 min. for preheat mode and 60 min. for sleep
mode. These times can be changed as described in the key operator’s
guide. It is suggested that you set appropriate times according to the
actual usage of the copier.
Sleep mode
If the sleep mode is enabled, the copier will enter the mode once a
programmed length of time has elapsed without any copier
operation after the last copy of a run is made or the power is first
turned on. When the copier enters the sleep mode, the display on
the touch panel will disappear. In this condition, power is not
supplied to the fuser in the copier. To exit from the sleep mode,
press the COPY key.
★ KEY OPERATOR See page 25 of the KEY OPERATOR’S GUIDE for
setting the sleep mode timer. See page 30 of the KEY OPERATOR’S
GUIDE for enabling or disabling the sleep mode.
Preheat mode
The copier will enter the mode once the set time has elapsed without
any copier operation after the last copy of a run is made or power is
turned on.
When the copier enters the preheat mode, the message “PREHEAT
MODE. PLACE ORIGINALS.” will appear.
In this condition, the fuser in the copier is maintained at a lower heat
level thereby saving power. The preheat level is, however, high
enough to allow the copier to come to a ready condition or begin
copying approximately 30 seconds after any key input is made.
To copy from the preheat mode, make desired copier selections and
press a START key using the normal copying procedure.
As an ENERGY STAR® Partner,
SHARP has determined that this
product meets the E NERGY
S TAR ® guidelines for energy
efficiency.
1-6
★ KEY OPERATOR See page 26 of the KEY OPERATOR’S GUIDE for
information on setting the preheat mode.
CHAPTER
INFORMATION FUNCTION
1
The information function provides a quick reference guide to the use
of the various features and functions of this copier. The information
mode can be entered when the copier is in the standby mode.
2
Select the “COPIER” key to display the first screen of
the copier feature items.
●
) key in the standby mode.
The screen for the information categories will appear.
INFORMATION
1
CUSTOM
SETTINGS
4
INFORMATION
SELECT INFORMATION.
EXIT
●
COPIER
If the toner supply is low, press the ADDING TONER key for
toner replenishment instructions.
ADDING TONER
INFORMATION
EXIT
MAKING 2-SIDED COPIES (2-SIDED COPY)
SORTING COPIES INTO SETS OR STAPLING
FINISHED SETS OF COPIES (OUTPUT)
USING THE DOCUMENT FEEDER
(DOCUMENT FEEDER)
REDUCTION/ENLARGEMENT/ZOOM
(COPY RATIO)
STORING FREQUENTLY USED JOB PROGRAMS
(PROGRAM)
3
Select the feature you would like to know about by
pressing a copier feature item key on the touch panel.
●
If the feature you would like to know about is not displayed on the
touch panel, press the scroll (
) key on the touch panel until
the feature is displayed.
●
If a copier feature item key is pressed, the description for that
feature will appear. Use the scroll (
) key to display additional
information until all information for that feature has been displayed.
●
To return to the copier feature item screen, press the “INDEX”
key.
●
To exit the INFORMATION mode, press the “EXIT” key on the
touch panel.
1/5
1-7
GETTING STARTED Information function
1
Press the INFORMATION (
1
CHAPTER
USING THE TOUCH PANEL
How to use the touch panel
GETTING STARTED Using the touch panel
READY TO COPY.
PAPER TYPE
16~28 lbs.
28+~35 lbs.
35+~75 lbs.
TRANSPARENCY
1.8/12 11
2.11 17
3.8/12 14
AUTO
EXPOSURE
100%
COPY RATIO
PAPER SELECT
You can set or cancel a function displayed on the touch
panel by pressing (touching) a key with a finger. The touch
key operation can be confirmed with a beep tone (and
highlighting of the touch key).
★ KEY OPERATOR For the beep tone to be heard, the beep tone must be
enabled by a key operator program. See page 27 of the KEY OPERATOR’S
GUIDE.
A grayed out function key represents unavailability of that
function. If a grayed out key is pressed, two short beeps will
sound.
RECALL
STORE/DELETE
Selection of function
OK
CANCEL
ERASE
OK
1/2
EDGE ERASE
To register the selected settings for a function, press the
“OK” key on the setting screen. The settings indicated by
a highlighted display will be registered as a selected function.
(0~1)
inch
CENTER ERASE
EDGE+CENTER
ERASE
READY TO COPY.
SPECIAL MODES
OK
MARGIN SHIFT
DUAL PAGE
COPY
CENTERING
COVERS
AUTO
EXPOSURE
1-8
ERASE
TRANSPARENCY INSERTS
COLOR
ADJUSTMENTS
1
2
AUTO
8/ 11
PAPER SELECT
IMAGE EDIT
100%
COPY RATIO
Some special functions can be selected by pressing the
relevant keys on the SPECIAL MODES screen (page 3-4) or
on the IMAGE EDIT menu (page 3-26) to highlight the keys.
To cancel these functions, press the relevant keys again to
return the keys to the normal display. These functions are:
Dual page copying, Centering, Transparency inserts, Neg./
pos. reverse, Mirror image, and 11x17 full-bleed.
USING THE TOUCH PANEL
1
CHAPTER
Function setting icons
5
1.812 11
2.11 17
3 81 14
The content of the icons of functions indicated by (*) will
vary depending upon particular settings selected for these
functions. The other functions are on or off type functions
and have no associated setting screens.
OK
ERASE
CANCEL
OK
1/2
EDGE ERASE
(0~1)
inch
CENTER ERASE
EDGE+CENTER
ERASE
* Margin shift (p.3-4)
* Erase (p.3-6)
Dual page copying (p.3-8)
Centering (p.3-10)
Transparency film with insert sheets
(p.3-12)
* Covers (p.3-14)
Color adjustments (p.3-16)
* Single color (p.3-26)
Neg./pos. reverse (p.3-28)
Mirror image (p.3-30)
* Photo repeat (p.3-32)
11 x 17 full-bleed (p.3-34)
Multi-page enlargement (p.3-36)
Extra size (p.3-38)
1-9
GETTING STARTED Using the touch panel
Icons representing special functions which have been
selected will appear on the basic screen. The functions and
their associated icons are listed below.
READY TO COPY.
1
CHAPTER
COPY MODE AND PRINT MODE
An optional power supply kit (AR-PX4) and an optional printer
controller board (AR-PE2) must be installed to use this copier as a
printer.
GETTING STARTED Copy mode and print mode
Printing documents from the computer
In most cases, it is not necessary to use the operation panel when
printing documents from the computer. When a document is sent to
the printer from the computer, the printer will automatically print the
document. However, following the procedure specified below can
help the user ensure that documents are printed accurately. The
procedure assumes that the printer has been properly connected to a
computer, and that a printer driver has been installed.
1
Check the operation panel to confirm that the ON LINE
indicator is lit. If the ON LINE indicator is not lit, press
the PRINT key to select the print mode and then press
the “ONLINE/OFFLINE” key on the touch panel to set
the printer to the on-line condition.
2
3
Check the paper tray(s) to ensure that the desired
paper is loaded.
4
The printer will print the document.
Using the computer and any appropriate application
software, load the document to be printed, set any
desired features using the installed printer driver, and
give the command to print the document. If necessary,
refer to the documentation for the computer and/or the
application software for help on issuing the necessary
commands.
NOTE:
When the printer feature is used, if the ON LINE indicator is
blinking red, this machine cannot execute printing from some
cause. Press the PRINT key to select the print mode. A message
indicating the cause for the error such as no paper or no toner will
be displayed. Check the message and take proper measures.
Selecting the on-line mode
If the printer is in the off-line mode, printing cannot be performed. To
select the on-line mode, follow the procedure below.
1-10
1
If the printer is in the copy mode, press the PRINT key
to select the print mode.
2
3
Press the “ONLINE/OFFLINE” key on the touch panel
to switch the printer to the on-line mode.
●
The basic screen of the print mode will appear.
To return to the copy mode, press the COPY key.
COPY MODE AND PRINT MODE
Using the operation panel in the print mode
READY TO PRINT.
ONLINE
OFFLINE
PAPER SELECT
100%
2
3
4
Press the “ONLINE/OFFLINE” key on the touch panel to
switch the printer to the off-line mode.
●
Press the “fiery” key on the touch panel.
Use the keys on the touch panel to select the desired
operation.
●
●
FIERY PRINTER SCREEN
The basic screen of the print mode will appear.
For details of the functions in the print mode, see the printer
operation manual.
To return to the printer basic screen, press the return (
)
key.
AR-C160 PRINTER
idle
5348MB
V1.0
info
How to select the paper type for the bypass tray
Before the paper type can be selected, paper must be placed in the
bypass tray and the key operator program “Enable Bypass-Tray
Type Detection” must be used to enable the selection (see page 33 of
the KEY OPERATOR’S GUIDE). Proceed as follows.
1
2
Press the PRINT key to select the print mode.
3
4
Press the “PAPER” key.
5
Press the “ONLINE/OFFLINE” key to restore the on-line
mode.
Press the “ONLINE/OFFLINE” key to enter the off-line
mode.
Use the touch panel to enter the paper type to match the
paper set in the bypass tray.
1-11
GETTING STARTED Copy mode and print mode
DUPLEX
1.812 11
2.11 17
3.812 14
1
If the printer is in the copy mode, press the PRINT key to
select the print mode.
1
CHAPTER
The operation panel provides access to many of the printer’s features
and functions. The basic procedure to access the printer’s features
and functions is shown below.
COPY MODE AND PRINT MODE
1
CHAPTER
General operation steps for using the scanner
To scan, process or edit document images by using the scanning
feature of the machine, Adobe Photoshop 5.0 or later is needed.
GETTING STARTED Copy mode and print mode
1
Install the required driver software in your computer in
accordance with the operation manual for the Printer
Controller.
2
3
Press the PRINT key to display the print mode screen.
4
Place the original on the document glass or in the
document feeder (optional).
Check the operation panel to confirm that the ONLINE
key is selected. If not , touch the “ONLINE/OFFLINE” key
to select the online status.
NOTE:
Even if multiple originals are set in the document feeder images
must be processed one at a time.
5
Acquire the image using the application software. For
the details, refer to the operation manual supplied with
the application software.
6
Edit or store the scanned image. Refer to the instructions
supplied with the application software for details.
NOTE:
For detailed instructions on using the machine as a scanner, refer
to the operation manual supplied with the Printer Controller.
1-12
2
CHAPTER
CHAPTER 2
MAKING COPIES
This chapter describes the basic copying functions such as normal
copying, reduction/enlargement, and exposure adjustments.
●
●
●
●
●
●
●
●
Page
AUDITING ACCOUNTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
COPYING FROM THE DOCUMENT GLASS . . . . . . . . . . . . . . . 2-3
USING THE RADF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
REDUCTION/ENLARGEMENT/ZOOM . . . . . . . . . . . . . . . . . . . 2-11
SPECIAL PAPERS (manual feed) . . . . . . . . . . . . . . . . . . . . . . . 2-14
Two-sided copying with bypass tray . . . . . . . . . . . . . . . . . . . . . . 2-15
EXPOSURE ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16
JOB MEMORY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18
INTERRUPTING A COPY RUN . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
2-1
AUDITING ACCOUNTS
If this copier has been programmed in the auditing mode, it will not function until an assigned 5-digit account number
has been entered.The auditing mode can be set for both the color and black/white (B/W) copy modes or for only the
color copy mode.
★ KEY OPERATOR See page 9 of the KEY OPERATOR’S GUIDE for setting the auditing mode.
CHAPTER
If the auditing mode has been set for both the color and B/W copy
modes, the initial status of the message display will be:
2
ENTER YOUR ACCOUNT NUMBER. -----
MAKING COPIES Auditing accounts
If the auditing mode has been set for only the color copy mode, the
following display will appear when the AUDIT key or the COLOR
COPY START (
) key is pressed.
ENTER YOUR ACCOUNT NUMBER
FOR COLOR COPYING.
-----
N
1
2
3
4
5
6
INTERRUPT
CLEAR
ALL
7
8
AUDIT
0
9
PROGRAM
C
P
CLEAR
CA
●
Enter your account number using the 10-key pad.
●
As each digit is entered, the dashes in the display will change to
asterisks.
The following message will appear after the number is entered.
ACCOUNT STATUS: COPIES MADE /REMAINING
B/W: 000,000/000,000 CL: 000,000/000,000
“COPIES REMAINING” will appear only if account limit has been
set using a key operator program.
★ KEY OPERATOR
See page 16 of the KEY OPERATOR’S
GUIDE for account limit settings.
●
The message will be displayed for several seconds, then change
to the following message.
READY TO COPY.
●
When a copy run is performed, the following message will
appear.
READY TO COPY.
PRESS [AUDIT] WHEN FINISHED.
●
In the interrupt copy mode (see page 2-20), the following
message will appear instead of the message above.
READY TO COPY. WHEN COPYING IS
FINISHED, PRESS [INTERRUPT].
NOTE:
If an unassigned number is entered, the message display will show
“ENTER YOUR ACCOUNT NUMBER.-----”, indicating that the
number was not accepted.
When the key operator program of account number security has
been set:
If an unassigned number is entered three successive times, the
copier will not accept another number for one minute, and the
following message will appear.
PLEASE SEE YOUR KEY OPERATOR FOR
ASSISTANCE.
★ KEY OPERATOR
See page 17 of the KEY OPERATOR’S
GUIDE for account number security.
2-2
COPYING FROM THE DOCUMENT GLASS
●
Image loss (max. 13/64" (5 mm)) can occur along
the leading edge of the copies. Image loss (max. 9/
32" (7mm)) can occur along the trailing edge of the
copies. Also image loss (max. 1/4" (6 mm) in total)
can occur along the other edges of the copies.
2
CHAPTER
1-sided copies of 1-sided originals
1
Original size detector
Open the document cover and place an original face
down on the document glass, using the centering scale
to position it.
When copying multi-page documents, copy from the last page to
the first page.
NOTE:
Do not place objects under the original size detector, because they
may damage it.
●
Centering scale
2
Close the document cover.
3
Ensure that the 1-sided to 1-sided copying mode is
selected on the touch panel.
●
The original size will be indicated on the touch panel, and the paper
tray with the corresponding paper size will be automatically selected.
READY TO COPY.
ORIGINAL
812 11
1.812 11
2.11 17
3.812 14
AUTO
EXPOSURE
●
AUTO
8/12 11
PAPER SELECT
100%
COPY RATIO
N
1
4
2
5
3
INTERRUPT
7
8
0
4
9
PROGRAM
C
P
CLEAR
CA
When no icon is displayed in the area indicated in the illustration
(
), the 1-sided to 1-sided copying mode is selected.
If the 1-sided to 1-sided mode is not selected, press the
2-SIDED COPY key and then press the 1-sided to 1-sided key
(
) on the touch panel. Press the “OK” key to return to the
basic screen.
Use the 10-key pad to enter the desired number of
copies.
●
6
CLEAR
ALL
AUDIT
●
●
●
The number will be shown in the copy quantity display of the
touch panel.
A single copy can be made with the initial setting, i.e., when “0”
is displayed.
Use the CLEAR ( C ) key to cancel an entry if a mistake is made.
2-3
MAKING COPIES Copying from the document glass
Use the document glass for copying single originals,
bound documents, and other originals that cannot be set
in the optional RADF.
● Only 1-sided to 1-sided and 1-sided to 2-sided
copying can be selected when copying from the
document glass.
● Duplex copying will not work when a non-standard
sized paper or 5-1/2" x 8-1/2"R paper is used.
● 2-sided to 2-sided or 2-sided to 1-sided copying
cannot be selected when copying from the
document glass. These operations can, however,
be performed simply by turning over the original
manually.
COPYING FROM THE DOCUMENT GLASS
2
CHAPTER
3
5
INTERRUPT
Press the COLOR COPY START (
COPY START (
) key.
●
6
CLEAR
ALL
CA
●
9
PROGRAM
C
P
CLEAR
MAKING COPIES Copying from the document glass
●
) key or BLACK
To perform color copying, press the COLOR COPY START
(
) key. To perform black/white copying, press the BLACK
) key.
COPY START (
The number in the copy quantity display will decrease by 1 each
time a copy is made. To repeat the same copy sequence with a
different original, simply replace the original and press the
START key.
To cancel a copy run, press the CLEAR ALL ( CA ) key. Copying
will stop and the number in the copy quantity display will be reset
to 0.
2-sided copies from 1-sided originals
To copy in the 1-sided to 2-sided copy mode, an optional duplex module
(AR-DU2N) must be installed.
For an odd number of originals:
Original size detector
1
Set the last page of the document onto the document
glass, and copy it in the 1-sided to 1-sided mode.
2
Press the 2-SIDED COPY key.
3
Press the
(EVEN NUMBER ORIGINALS) key on the
touch panel and then press the “OK” key.
Centering scale
2-SIDED
COPY
OUTPUT
AUTO
READY TO COPY.
2-SIDED COPY
OK
PRE-COUNT
EVEN NUMBER ODD NUMBER
MBER
ORIGINALS ORIGINALS
ALS
AUTO
EXPOSURE
2-4
11
AUTO
8/
22 11
TO
8/
PAPER
APER SELE
SELECT
100%
COPY RATIO
COPYING FROM THE DOCUMENT GLASS
INTERRUPT
Copy the reminder of the originals in reverse order.
●
6
CA
9
C
P
CLEAR
MAKING COPIES Copying from the document glass
PROGRAM
For an even number of originals:
2-SIDED
COPY
1
Press the 2-SIDED COPY key.
2
Press the
(EVEN NUMBER ORIGINALS) key on the
touch panel and then press the “OK” key.
3
Copy the originals in reverse order.
OUTPUT
AUTO
READY TO COPY.
2-SIDED COPY
OK
PRE-COUNT
EVEN NUMBER ODD NUMBER
MBER
ORIGINALS ORIGINALS
ALS
11
AUTO
8/
22 11
TO
8/
PAPER
APER SELE
SELECT
AUTO
EXPOSURE
3
INTERRUPT
6
CLEAR
ALL
9
PROGRAM
C
P
CLEAR
CA
100%
COPY RATIO
●
2
CLEAR
ALL
When making color copies in the duplex mode or making B/W
copies in the duplex mode onto paper 8-1/2" x 14" or larger, only
one copy per original can be made. Even if a multiple number of
copies is set, the number will be changed to 1 when a START key
is pressed.
CHAPTER
3
4
When making color copies in the duplex mode or making B/W
copies in the duplex mode onto paper 8-1/2" x 14" or larger, only
one copy per original can be made. Even if a multiple number of
copies is set, the number will be changed to 1 when a START key
is pressed.
2-5
USING THE RADF
2
CHAPTER
MAKING COPIES Using the RADF
This copier can be equipped with an optional reversing
automatic document feeder (RADF).
The RADF will handle multiple originals.
● Before loading originals into the document feeder
tray, be sure to remove any staples or paper clips
from them.
● Damaged or crumpled originals or originals which
have been folded may misfeed in the RADF or cause
incorrect size detection. It is recommended that these
be copied from the document glass and the copies be
used as original documents.
● When feeding originals which have closely spaced
binding holes punched along an edge, place the
originals so that the punched edge is positioned to the
right or along the side guides.
● Special originals such as transparency film and tracing
paper should not be fed from the RADF, but should be
placed on the document glass.
Duplex copying will not work when a non-standard
sized paper or 5-1/2" x 8-1/2" paper is used.
● Image loss (max. 13/64" (5 mm)) can occur along the
leading edge of the copies. Image loss (max. 9/32"
(7mm)) can occur along the trailing edge of the
copies. Also image loss (max. 1/4" (6 mm) in total)
can occur along the other edges of the copies.
● The RADF can handle a maximum of 50 originals of
5-1/2" x 8-1/2" to 8-1/2" x 11" sizes and 30 originals
of 8-1/2" x 14" to 11" x 17" sizes.
● 2-sided to 1-sided copying and 2-sided to 2-sided*
copying can be performed.
* For 2-sided to 2-sided copying, an optional duplex
module (AR-DU2) must be installed.
● The originals must be set face up in the document
feeder tray.
● Different size originals with the same width can be
placed in the document feeder tray and automatically
copied onto copy paper of their respective sizes.
The automatic copy ratio selection will not function in
this case.
●
Stream feeding mode
If the stream feeding mode has been enabled using a key operator
program, the message “NEWLY PLACED ORIGINALS WILL BE FED
AND COPIED AUTOMATICALLY.” will appear and the original feed
indicator will continue to blink for approximately 5 seconds after
feeding of all originals is completed. While this message is displayed,
any new originals placed in the document feeder tray will be fed and
copied automatically.
★ KEY OPERATOR See page 24 of the KEY OPERATOR’S GUIDE
for information on setting the stream feeding mode.
2-6
USING THE RADF
Original
Copy
1-sided copies of 1-sided originals
●
LOAD
●
READY TO COPY.(DOCUMENT FEEDER MODE)
ORIGINAL 812 11
2
AUTO
8/12 11
PAPER SELECT
1
2
4
5
3
INTERRUPT
When no icon is displayed in the area indicated in the illustration
(
), the 1-sided to 1-sided copying mode is selected.
●
If the 1-sided to 1-sided mode is not selected, press the
2-SIDED COPY key and then press the 1-sided to 1-sided key
(
) on the touch panel. Press the “OK” key to return to the
basic screen.
7
8
0
3
INTERRUPT
Use the 10-key pad to enter the desired number of
copies.
●
6
CLEAR
ALL
AUDIT
3
●
CA
9
PROGRAM
C
P
CLEAR
4
9
PROGRAM
C
P
CLEAR
The number will be shown in the copy quantity display of the
touch panel.
Use the CLEAR ( C ) key to cancel an entry if a mistake has been
made.
Press the COLOR COPY START (
) key.
COPY START (
) key or BLACK
●
To perform color copying, press the COLOR COPY START
(
) key. To perform black/white copying, press the BLACK
COPY START (
) key.
●
To cancel a copy run, press the CLEAR ALL ( CA ) key. Copying
will stop and the RADF will output any originals which have been
fed. Also, the number in the copy quantity display will be reset to
0.
6
CLEAR
ALL
If a tray of the required size is not installed, use the bypass tray
and press the “PAPER SELECT” key on the touch panel to select
the bypass tray.
To copy onto a different size paper, use the “PAPER SELECT”
key to make the selection.
●
100%
COPY RATIO
N
" PAPER.
Ensure that the 1-sided to 1-sided copying mode is
selected on the touch panel.
1.812 11
2.11 17
3.812 14
AUTO
EXPOSURE
" x
CA
2-7
MAKING COPIES Using the RADF
●
2
●
The original size will be indicated on the touch panel, and the
paper tray with the corresponding paper size will be automatically
selected.
Be sure to remove any original from the document glass before
setting the originals in the document feeder tray. If an original is
left on the document glass, the original reminder indicator will
blink. Remove the original from the document glass in this case.
If copy paper of the required size is not installed in any of the
trays, the following message will appear.
CHAPTER
1
Adjust the original guides to the size of the originals and
set the originals face up in the document feeder tray.
USING THE RADF
2-sided copies from 1-sided originals
Originals (1-sided)
Copy (2-sided)
To copy in the 1-sided to 2-sided copy mode, an optional duplex module
(AR-DU2N) must be installed.
CHAPTER
Maximum height
line
2
Press the 2-SIDED COPY key.
3
If the number of originals is known, use the
(EVEN
NUMBER ORIGINALS) key or
(ODD NUMBER
ORIGINALS) key on the touch panel, then proceed to
step 4. If the number of originals is not known, select
“PRE-COUNT” for an automatic count by the RADF and
) key or BLACK
press the COLOR COPY START (
) key.
COPY START (
2
1
Adjust the original guides to the size of the originals and
set the originals face up in the document feeder tray.
MAKING COPIES Using the RADF
2-SIDED
COPY
OUTPUT
AUTO
READY TO COPY.(DOCUMENT FEEDER MODE)
OK
2-SIDED COPY
PRE-COUNT
●
EVEN NUMBER ODD NUMBER
ORIGINALS ORIGINALS
AUTO
8/12 11
PAPER SELECT
AUTO
EXPOSURE
100%
COPY RATIO
READY TO COPY.(DOCUMENT FEEDER MODE)
●
If the number of originals exceeds the limit, other messages will
appear .
●
When the count is complete and the number is known, replace
the originals in the document feeder tray and select “EVEN
NUMBER ORIGINALS” or “ODD NUMBER ORIGINALS” as
above.
OK
2-SIDED COPY
PRE-COUNT
EVEN
EVEN NUMBER ODD NUMBER
ORIGINALS ORIGINALS
8/12 11
AUTO
PAPER SELECT
AUTO
EXPOSURE
1
2
INTE
3INTERRUPT
4
5
6
CLEAR CLE
CA
AL
ALL
7
8
9
C C
PROGRAM
AUDIT
0
P
CLEAR
100%
COPY RATIO
4
Press the “OK” key.
5
Enter the desired number of copies.
6
Press the COLOR COPY START (
) key.
COPY START (
●
●
CL
●
2-8
The following message will appear.
PRE-COUNT MODE
NUMBER OF ORIGINALS IS **.
When making color copies in the duplex mode or making B/W
copies in the duplex mode onto paper 8-1/2" x 14" or larger, only
one copy per original can be made. Even if a multiple number of
copies is set, the number will be changed to 1 when a START key
is pressed.
) key or BLACK
To perform color copying, press the COLOR COPY START
(
) key. To perform black/white copying, press the BLACK
COPY START (
) key.
To cancel a copy run during duplex copying, press the CLEAR
ALL ( CA ) key.
USING THE RADF
2-sided copies from 2-sided originals
Original (2-sided)
Copy (2-sided)
To copy in the 2-sided to 2-sided mode, an optional duplex module (ARDU2N) must be installed.
2
Press the 2-SIDED COPY key.
3
Press the
4
Press the “OK” key.
5
Enter the desired number of copies.
6
Press the COLOR COPY START (
) key.
COPY START (
2
1
CHAPTER
Maximum height
line
Adjust the original guides to the size of the originals and
set the originals face up in the document feeder tray.
MAKING COPIES Using the RADF
2-SIDED
COPY
OUTPUT
AUTO
READY TO COPY.(DOCUMENT FEEDER MODE)
OK
2-SIDED COPY
key on the touch panel.
PRE-COUNT
EVEN NUMBER ODD NUMBER
ORIGINALS ORIGINALS
AUTO
8/12 11
PAPER SELECT
AUTO
EXPOSURE
100%
COPY RATIO
READY TO COPY.(DOCUMENT FEEDER MODE)
OK
2-SIDED COPY
PRE-COUNT
EVEN NUMBER ODD NUMBER
ORIGINALS ORIGINALS
AUTO
8/12 11
PAPER SELECT
AUTO
EXPOSURE
1
2
INTE
3INTERRUPT
4
5
6
CLEAR CLE
CA
AL
ALL
7
8
9
C C
100%
COPY RATIO
●
0
) key or BLACK
●
To perform color copying, press the COLOR COPY START
(
) key. To perform black/white copying, press the BLACK
COPY START (
) key.
●
To cancel a copy run during duplex copying, press the CLEAR
ALL ( CA ) key.
PROGRAM
AUDIT
When making color copies in the duplex mode or making B/W
copies in the duplex mode onto paper 8-1/2" x 14" or larger, only
one copy per original can be made. Even if a multiple number of
copies is set, the number will be changed to 1 when a START key
is pressed.
P CLEAR CL
2-9
USING THE RADF
Original (2-sided)
Copies (1-sided)
CHAPTER
Maximum height
line
1-sided copies from 2-sided originals
Adjust the original guides to the size of the originals and
set the originals face up in the document feeder tray.
2
Press the 2-SIDED COPY key.
3
Press the
4
Press the “OK” key.
5
6
Enter the desired number of copies.
2
1
MAKING COPIES Using the RADF
2-SIDED
COPY
OUTPUT
AUTO
READY TO COPY.(DOCUMENT FEEDER MODE)
OK
2-SIDED COPY
key on the touch panel.
PRE-COUNT
EVEN NUMBER ODD NUMBER
ORIGINALS ORIGINALS
AUTO
8/12 11
PAPER SELECT
AUTO
EXPOSURE
100%
COPY RATIO
READY TO COPY.(DOCUMENT FEEDER MODE)
OK
2-SIDED COPY
PRE-COUNT
EVEN NUMBER ODD NUMBER
ORIGINALS ORIGINALS
AUTO
8/12 11
PAPER SELECT
AUTO
EXPOSURE
1
2
INTE
3INTERRUPT
4
5
6
CLEAR CLE
CA
AL
ALL
7
8
Press the COLOR COPY START (
) key.
COPY START (
To perform color copying, press the COLOR COPY
START(
) key. To perform black/white copying, press the
BLACK COPY START (
) key.
●
To cancel a copy run, press the CLEAR ALL ( CA ) key. Copying
will stop and the RADF will output any originals which have been
fed. Also, the number in the copy quantity display will be reset to
0.
9
C C
0
P
CLEAR
CL
) key or BLACK
●
PROGRAM
AUDIT
2-10
100%
COPY RATIO
REDUCTION/ENLARGEMENT/ZOOM
2
CHAPTER
Reduction and enlargement ratios can be selected either
automatically with the “AUTO IMAGE” key or manually with the
reduction, enlargement or “ZOOM” keys on the touch panel. The
zoom function enables precise copy ratio selection from 25% to
400% in 1% increments.
★ KEY OPERATOR A total of four extra preset copy ratios, two each
for reduction and enlargement, can be added. See page 19 of the KEY
OPERATOR’S GUIDE.
1
Place the original on the document glass or in the
optional document feeder tray.
●
2
READY TO COPY.
1.8/12 11
2.11 17
3.8/12 14
AUTO
EXPOSURE
PAPER SELECT
PAPER TYPE
16~28 lbs.
28+~35 lbs.
35+~75 lbs.
TRANSPARENCY
100%
COPY RATIO
AUTO IMAGE
100%
COPY RATIO
11 17
SELECT
INTE
1
2
3INTERRUPT
4
5
6
CLEAR CLE
CA
AL
ALL
7
8
9
C C
PROGRAM
AUDIT
0
P CLEAR CL
Press the “PAPER SELECT” key on the touch panel and
select the paper tray with the desired paper size.
NOTE:
This feature will not work when original or copy paper is of nonstandard size.
3
11
17
14
The original size will be detected and indicated on the touch
panel.
Press the “AUTO IMAGE” key on the touch panel.
●
The best reduction or enlargement ratio for the selected paper
size will be automatically set and displayed on the touch panel.
●
If the originals and the selected copy paper are not facing the
same direction, the following message will appear to indicate
how the original should be placed.
ROTATE ORIGINAL FROM
TO
.
4
Enter the desired number of copies.
5
Press the COLOR COPY START (
) key.
COPY START (
●
) key or BLACK
To cancel the automatic reduction/enlargement mode, press the
“AUTO IMAGE” key again.
2-11
MAKING COPIES Reduction/Enlargement/Zoom
Automatic selection
REDUCTION/ENLARGEMENT/ZOOM
Manual selection
Place the original on the document glass or in the
optional document feeder tray.
2
Press the “COPY RATIO” key on the touch panel.
3
Use the MENU 1 2 key to select menu 1 or menu 2 for copy
ratio selection.
Menu 1
A. Preset reduction copy ratios are: 77% and 64%.
B. Preset enlargement copy ratios are: 121% and 129%.
Menu 2
A. Preset reduction copy ratios are: 95%, 50%, and 25%.
B. Preset enlargement copy ratios are: 141%, 200%
and 400%.
Use the reduction, enlargement, and “ZOOM” keys on
the touch panel to set the desired copy ratio.
2
CHAPTER
1
MAKING COPIES Reduction/Enlargement/Zoom
CUSTOM
SETTINGS
1.812 11
2.11 17
3.812 14
AUTO
8/12 14
PAPER SELECT
100%
COPY RATIO
MENU 1
READY TO COPY.
77%
111 17 8/112
8/2 14 8/2
64%
111 17 8/112
8/2 11 5/2
XY ZOOM
AUTO
EXPOSURE
14
11
111
8/2
100 %
ZOOM
100%
MENU 1 2
AUTO
8/12 14
PAPER SELECT
OK
121%
8/12 14 11 17
129%
8/112 111 111 17
5/2 8/2 8/2 11
AUTO IMAGE
100%
COPY RATIO
MENU 2
READY TO COPY.
100 %
95%
50%
25%
ZOOM
OK
141%
200%
4
Zoom ratios: Any ratio from 25% to 400% can be set in
1% increments.
400%
●
100%
XY ZOOM
AUTO
EXPOSURE
MENU 1 2
AUTO
8/12 14
PAPER SELECT
AUTO IMAGE
100%
COPY RATIO
●
●
READY TO COPY.
77%
111 17 8/112
8/2 14 8/2
64%
111 17 8/112
8/2 11 5/2
XY ZOOM
AUTO
EXPOSURE
2-12
14
11
111
8/2
129 %
ZOOM
100%
MENU 1 2
AUTO
11 17
PAPER SELECT
●
OK
121%
8/12 14 11 17
129%
8/112 111 111 17
5/2 8/2 8/2 11
AUTO IMAGE
100%
COPY RATIO
5
Press a reduction or enlargement key to set the approximate
ratio, then press the
key to decrease the ratio or the
key
to increase the ratio.
To set the horizontal and vertical copy ratios separately, use the
XY ZOOM feature. See page 3-2.
To reset the copy ratio to 100%, press the “100%” key on the
touch panel.
The message “IMAGE IS LARGER THAN COPY PAPER.” may
appear, indicating that the selected copy ratio is too large for the
copy paper size. However, if you press the START key, a copy
will be made.
Press the “OK” key.
REDUCTION/ENLARGEMENT/ZOOM
PAPER SELECT
2
3
4
5
6
INTERRUPT
CLEAR
ALL
7
8
AUDIT
0
3
INTERRUPT
●
If a tray of the required size is not installed, use the bypass tray
and press the “PAPER SELECT” key to select the bypass tray.
129%
COPY RATIO
N
1
If the AUTO PAPER SELECT mode is on, the appropriate copy
paper size will have been automatically selected based on the
original size and selected copy ratio.
7
Enter the desired number of copies.
8
Press the COLOR COPY START (
) key.
COPY START (
CA
9
PROGRAM
C
P
CLEAR
) key or BLACK
6
CLEAR
ALL
CA
9
PROGRAM
C
P
CLEAR
2-13
MAKING COPIES Reduction/Enlargement/Zoom
AUTO
EXPOSURE
●
2
PAPER TYPE
16~28 lbs.
28+~35 lbs.
35+~75 lbs.
TRANSPARENCY
1.8/12 11
2.11 17
3.8/12 14
Use the “PAPER SELECT” key to select the paper tray
with the desired paper size.
CHAPTER
6
READY TO COPY.
SPECIAL PAPERS (manual feed)
2
CHAPTER
The bypass tray is used to copy onto transparency film and other
special purpose papers. Up to 50 sheets of standard copy paper can
be set in the bypass tray.
● When copying onto transparency film, the maximum image loss on
the copies will be 13/32" (10 mm) along the leading and trailing
edges and 1/4" (6 mm) in total along the other edges.
Transparency film must be fed long edge into the feed slot.
●
MAKING COPIES Special papers (manual feed)
Automatic duplex copying will not work when a non-standard sized
paper is used even if an optional duplex module (AR-DU2N) is
installed. If a duplex copying mode is selected and a non-standard
sized paper is used from the bypass tray, the corresponding onesided mode will be selected automatically when a START key is
pressed.
1
Place the original on the document glass or in the
optional document feeder tray.
2
Open the bypass tray.
3
Set the bypass tray guides to the width of the copy
paper.
4
INFORMATION
INTERRUPT
.8/12 11
11 17
8/12 14
ER SELECT
2-14
8/12 11
PAPER TYPE
16~28 lbs.
28+~35 lbs.
35+~55 lbs.
TRANSPARENCY
100%
COPY RATIO
5
CUSTOM
SETTINGS
●
Be sure to extend the tray when feeding paper larger than
8-1/2" x 11" size.
●
If the bypass tray guides are set wider than the copy paper, the
inside of the machine may become soiled, resulting in smudges
on succeeding copies.
Insert the copy paper all the way into the bypass tray.
●
Special purpose papers other than SHARP recommended
transparency film must be fed individually. Multiple sheets of
SHARP recommended transparency film can be loaded in the
bypass tray.
●
Up to 50 sheets of standard copy paper measuring from
5-1/2" x 8-1/2" to 12" x 18" can be loaded into the bypass tray.
●
When adding paper, first remove remaining paper, combine it
with the paper to be added and then reload as a single stack.
Press the “PAPER SELECT” key on the touch panel and
then select the desired paper type in the bypass tray
section.
●
CLEAR
ALL
C
CLEAR
CA
6
7
“16 ~ 28 lbs.” (“PLAIN PAPER”), “28+ ~ 35 lbs.” (“HEAVY
PAPER 1”), “35+ ~ 75 lbs.” (“HEAVY PAPER 2”) or
“TRANSPARENCY” can be set.
Set the number of copies.
Press the COLOR COPY START (
) key.
COPY START (
) key or BLACK
SPECIAL PAPERS (manual feed)
CHAPTER
Two-sided copying with bypass tray
Place the first original face down on the document glass
and make a copy.
●
The first side of the copy can be made using any of the paper feed
stations.
12
21
2
43
3
Remove the first original and place the second original
face down on the document glass.
●
Make sure the first and second originals are oriented in the same
way on the document glass.
●
If an optional document feeder is used, the originals must be fed
one at a time.
Turn the first copy over without changing its top-bottom
orientation and place it into the bypass tray.
●
12
Be sure to feed the copies one sheet at a time.
43
INFORMATION
INTERRUPT
.8/12 11
11 17
8/12 14
ER SELECT
8/12 11
PAPER TYPE
16~28 lbs.
28+~35 lbs.
35+~55 lbs.
TRANSPARENCY
100%
COPY RATIO
4
Press the “PAPER SELECT” key and select the desired
paper type in the bypass tray section.
5
Press the COLOR COPY START (
) key.
COPY START (
CUSTOM
SETTINGS
CLEAR
ALL
C
CA
) key or BLACK
CLEAR
2-15
MAKING COPIES Special papers (manual feed)
1
2
Two-sided copies can be made manually using the bypass tray. The
procedure described below is useful for users of the copier without an
optional duplex module (AR-DU2N).
EXPOSURE ADJUSTMENTS
2
CHAPTER
MAKING COPIES Exposure adjustments
Exposure selections for this copier should be selected according to
the type of originals being copied: TEXT/PRTD. PHOTO, TEXT,
TEXT/PHOTO, PHOTO, PRINTED PHOTO or MAP. (Refer to the
samples on page 4 to see the effects on copy images in relation to
the EXPOSURE ADJUSTMENTS.) If the original image type is
TEXT/PRTD. PHOTO, TEXT or TEXT/PHOTO, the exposure can be
adjusted automatically or manually. If the original image type is
PHOTO, PRINTED PHOTO or MAP, the exposure can be adjusted
manually only. If the COPY OF COPY mode is selected only TEXT/
PRTD. PHOTO, TEXT, or PRINTED PHOTO exposure can be
selected and these can only be manually adjusted. If the COLOR
TONE ENHANCEMENT mode is selected, color copies will be more
vivid. The standard initial setting of the original image type for this
copier is TEXT/PRTD. PHOTO.
When copying a colored original in the Black/White copy mode, a
colored background with text in the background area may be
copied with the text obscured. Check with the key operator for the
setting of “Disabling of Pre-scan in B/W Copy” program (see page
30 of the Key Operator’s Guide). If pre-scan is enabled, such
obscuring may be reduced.
Automatic
AUTO
EXPOSURE
This is the standard initial setting for this copier. In this mode, the
characteristics of an original being copied are “read” by the exposure
system, and exposure adjustments are made automatically.
This optimizes the contrast of the copied images.
Original image type
TEXT/PRTD. PHOTO:
This mode provides the best balance for copying
an original which contains both text and printed
photographs.
TEXT:
This mode is useful in enhancing very low density
areas of an original or in suppressing unusually
high-density background areas.
TEXT/PHOTO:
This mode provides the best balance for copying
an original which contains both text and
photographs.
PRINTED PHOTO: This mode is useful for copying printed
photographs.
PHOTO:
This mode provides the best copies of photographs
with fine details.
MAP:
This mode is useful to provide the best shading
and fine details found on most maps.
COPY OF COPY: This mode provides the best result for originals
such as copied text or copied photos. If the check
box is checked, only Text/prtd. photo, Text and
Printed photo mode keys will be shown on the
touch panel and the exposure can only be adjusted
manually.
2-16
EXPOSURE ADJUSTMENTS
UTPUT
1...3...5
EXPOSURE
OK
2
TEXT/PHOTO
●
MAP
●
100%
COPY RATIO
●
ENHANCEMENT
AUTO
SIDED
OPY
MANUAL
UTPUT
1...3...5
2-SIDED
COPY
COLOR TONE
ENHANCEMENT
AUTO
MANUAL
OUTPUT
1 . . . 3. . . 5
EXPOSURE
PRTD.
TE
PRI
PH
COP
OF
AUTO
TEXT/
PRTD.PHOT
TEXT
PRINTED
COPY
OF COPY
AUTO
8/12 1
PAPER SELECT
3
If “TEXT/PRTD. PHOTO”, “TEXT” or “TEXT/PHOTO”
has been selected in step 2, select “AUTO” or “MANUAL”.
●
4
When making a copy from a copy made by the AR-C160,
checking the box of COPY OF COPY then choosing the proper
alternatives depending upon the content of the original allows for
the best result.
When checking the COPY OF COPY check box, TEXT/
PRTD.PHOTO, TEXT and PRINTED PHOTO can be selected.
If COLOR TONE ENHANCEMENT is checked, color copies will
be more vivid. COLOR TONE ENHANCEMENT and COPY OF
COPY cannot be selected at the same time. The COLOR TONE
ENHANCEMENT mode cannot be selected with the single color
function. This mode, however, can be used with the RGB adjust
function.
When the COPY OF COPY check box is checked, the exposure
is automatically set to “MANUAL”.
If the manual mode has been selected, use the
and
keys to adjust the copy density as desired.
2-17
MAKING COPIES Exposure adjustments
MANUAL
TEXT/
PRTD.PHOTO
TEXT
PRINTED
COPY
OF COPY
AUTO
8/12 11
PAPER SELECT
Select “TEXT/PRTD. PHOTO”, “TEXT”, “TEXT/PHOTO”,
“PRINTED PHOTO”, “PHOTO”, or “MAP” depending
upon the original type.
AUTO
PAPE
2
COLOR TONE
ENHANCEMENT
AUTO
Press the “EXPOSURE” key on the touch panel.
CHAPTER
AUTO
EXPOSURE
1
JOB MEMORY
2
CHAPTER
Frequently used job programs can be stored in one of nine storage
registers. This is convenient for quick job recall without losing time
manually reprogramming each aspect of the job.
● All functions that can be set in the copy mode except the copy
quantity setting can be stored in the job memory.
● If any function which has been stored in a job program is modified
by a key operator program, the key operator settings will supercede
the previous setting.
★ KEY OPERATOR Job memory replacement/deletion can be
prohibited. See page 28 of the KEY OPERATOR’S GUIDE.
MAKING COPIES Job memory
Storing a job program
8
IT
9
PROGRAM
C
P
CLEAR
0
RECALL
1
Press the PROGRAM key.
2
Press the “STORE/DELETE” key on the touch panel.
3
Select a program number from 1 to 9 on the touch panel.
●
●
The JOB PROGRAMS screen will appear on the touch panel.
To cancel the job memory mode, press the “EXIT” key or the
CLEAR ALL ( CA ) key.
STORE/DELETE
EXIT
JOB PROGRAMS
PRESS PROGRAM NUMBER.
RECALL
STORE/DELETE
MAKE COPIER SELECTIONS AND PRESS
[OK].
OK
CANCEL
●
The numbers which are highlighted are job registers which
already contain job programs.
●
If a program number containing a registered job program is
selected, a message will appear to confirm the selection. To
replace a stored job program with a new program, press the
“STORE” key and proceed to the next step.
To cancel replacement, press the “CANCEL” key.
4
Make all copier selections to be stored.
5
Press the “OK” key to complete the storage.
NOTE:
When you store color balance settings, make settings before
pressing the PROGRAM key in step 1 because sample copies
cannot be made after pressing the PROGRAM key.
1.812 11
2.11 17
3.812 14
AUTO
EXPOSURE
2-18
AUTO
8/12 11
PAPER SELECT
100%
COPY RATIO
JOB MEMORY
Deleting a stored job program
PRESS PROGRAM NUMBER.
2
Select the storage register number of the program to be
deleted.
●
STORE/DELETE
JOB PROGRAMS
PRESS PROGRAM NUMBER.
JOB PROGRAM HAS BEEN ALREADY STORED.
STORE ANOTHER PROGRAM?
OR DELETE?
CANCEL
DELETE
STORE
RECALL
Press the “DELETE” key or the “CANCEL” key.
●
If the “DELETE” key is pressed, the program will be deleted from
memory.
●
Press the “CANCEL” key to keep the program.
STORE/DELETE
EXIT
JOB PROGRAMS
PRESS PROGRAM NUMBER.
RECALL
4
Press the “EXIT” key to exit the job memory mode.
STORE/DELETE
8
IT
3
Recalling a job program
9
PROGRAM
C
P
CLEAR
0
JOB PROGRAMS
1
EXIT
PRESS PROGRAM NUMBER.
2
Press the PROGRAM key.
●
The JOB PROGRAMS screen will appear on the touch panel.
●
The numbers which are highlighted are program numbers which
contain stored programs.
Select a stored program from 1 to 9 on the touch panel.
●
●
RECALL
Be sure to select a number which contains a stored program. If
not, “Storing a job program” operation will start.
All selections stored in the program will appear on the touch
panel.
The recalled settings may be modified for a particular job run, but
any changes made will not be stored in the job memory. To store
the new settings, follow the “Storing a job program” procedure.
STORE/DELETE
2-19
MAKING COPIES Job memory
RECALL
2
1
Follow steps 1 and 2 in “Storing a job program” on the
previous page. (1. Press the PROGRAM key. 2. Press
the “STORE/DELETE” key.)
CHAPTER
EXIT
JOB PROGRAMS
INTERRUPTING A COPY RUN
2
CHAPTER
INTERRUPT can be used to temporarily stop a long copy run so that
another job can be run.
● INTERRUPT will not function during duplex copying (when an
optional duplex module (AR-DU2N) is installed).
● Duplex copying, sort, group, staple sort and offset cannot be
selected during interrupt copying. Also job program recall cannot be
selected.
MAKING COPIES Interrupting a copy run
1
Press the INTERRUPT key.
●
INTERRUPT
3
6
CLEAR
ALL
3
CA
INTERRUPT
6
CLEAR
ALL
CA
●
When the optional document feeder is being used, the copier will
stop after copying any originals which have been fed into the
document feeder. The INTERRUPT indicator will blink until the
copier stops.
When the copier stops, it will return to its initial settings and the
INTERRUPT indicator will light steadily. At this time, the copier
is ready for interrupt copying.
If the copier has been programmed in the auditing mode, the
account number entry message will appear. Enter your account
number using the 10-key pad. The number of copies of the
interrupt copying will be accumulated against this account
number.
2
When the copier stops, remove the original(s) and set
the original(s) for interrupt copying on the document
glass or in the optional document feeder tray.
3
4
Select the desired available copier functions.
5
When the interrupt copy run is complete, press the
INTERRUPT key again to cancel the mode and remove
the original(s) used for interrupt copying.
Press the COLOR COPY START (
) key.
COPY START (
) key or BLACK
9
PROGRAM
C
P
CLEAR
3
INTERRUPT
●
6
CLEAR
ALL
2-20
CA
6
The copier will reset itself to the functions which were in use
before the INTERRUPT key was first pressed.
Replace the original(s) for the interrupted job and press
the COLOR COPY START (
) key or BLACK COPY
) key to resume copying.
START (
CHAPTER 3
SPECIAL FUNCTIONS
●
●
●
●
●
●
●
●
Page
XY ZOOM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
MARGIN SHIFT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
ERASE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
DUAL PAGE COPYING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
CENTERING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
TRANSPARENCY FILM WITH INSERT SHEETS . . . . . . . . . . . 3-12
COVERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
COLOR ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
RGB adjust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
Sharpness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18
Suppress background . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20
Color balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-22
Brightness/intensity/contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-24
IMAGE EDITING FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . 3-26
Single color . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-26
Neg. /pos. reverse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-28
Mirror image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30
Photo repeat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-32
11 x 17 full-bleed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-34
Multi-page enlargement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-36
Extra size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-38
3-1
3
●
CHAPTER
This chapter describes the special copying functions including various
image editing functions which have been made possible by digital image
processing technology.
XY ZOOM
Original
The XY ZOOM feature allows the horizontal and vertical copy ratios to
be changed independently. If this feature is selected, the copy ratios
can be set from 25% to 400%.
Copy
3
CHAPTER
SPECIAL FUNCTIONS XY zoom
8/12 11
ELECT
COPY
OUTPUT
/
/
64%
11 17 8/12 11
8/12 11 5/12 8/12
X
Y
3-2
Press the “XY ZOOM” key.
●
77%
100%
100%
CANCEL
8/12 11
AUTO
PAPER SELECT
OK
129%
200%
400%
100%
COPY RATIO
The following screen will appear.
READY TO COPY.
X
Y
100 %
100 %
ZOOM
64%
MENU
AUTO
PAPER S
100 %
100 %
ZOOM
64%
XY ZOOM
AUTO
EXPOSURE
3
ZOOM
READY TO COPY.
50%
2
Press the “COPY RATIO” key on the touch panel.
100%
COPY RATIO
XY ZOOM
AUTO
EXPOSURE
77%
1
Place the original on the document glass or in the
optional document feeder tray.
50%
XY ZOOM
AUTO
EXPOSURE
4
100%
CANCEL
AUTO
8/12 11
PAPER SELECT
OK
129%
200%
400%
100%
COPY RATIO
Use the reduction, enlargement , and ZOOM (
,
)
keys to change the copy ratio in the horizontal (X)
direction.
●
Press a reduction key or an enlargement key to set the
approximate ratio, then press the
key to decrease the ratio
or
key to increase the ratio.
XY ZOOM
TO COPY.
5
Press the
6
Use the reduction, enlargement, and ZOOM (
,
)
keys to change the copy ratio in the vertical (Y) direction.
●
Y
key.
The copy ratio in the vertical (Y) direction will be highlighted.
50 %
100 %
ZOOM
X
Y
READY TO COPY.
50 %
100 %
ZOOM
64%
OK
141%
XY ZOOM
AUTO
EXPOSURE
CANCEL
AUTO
8/12 11
PAPER SELECT
AUTO
EXPOSURE
1
2
INTE
3INTERRUPT
4
5
6
CLEAR CLE
CA
AL
ALL
7
8
9
PROGRAMC
C
AUDIT
0
P
CLEAR
CL
The message “IMAGE IS LARGER THAN COPY PAPER.” may
appear, indicating that the selected copy ratio is too large for the
copy paper size. However, if you press a START key, a copy will
be made.
400%
PAPER TYPE
16~28 lbs.
28+~35 lbs.
35+~75 lbs.
TRANSPARENCY
PAPER SELECT
●
200%
READY TO COPY.
1.8/12 11
2.11 17
3.8/12 14
To change the copy ratio in the horizontal direction again, press
the X key.
7
8
Press the “OK” key.
9
Enter the desired number of copies.
Press the “PAPER SELECT” key and select the paper
tray with the desired paper size.
●
If the AUTO PAPER SELECT mode is on, the appropriate copy
paper size will have been automatically selected based on the
original size and selected copy ratios.
X-50% Y-77%
COPY RATIO
10
Press the COLOR COPY START (
COPY START (
) key.
●
) key or BLACK
To cancel this function, press the “CANCEL” key or the “XY
ZOOM” key again as in step 3.
3-3
SPECIAL FUNCTIONS XY zoom
100%
50%
●
3
X
Y
77%
CHAPTER
100%
MARGIN SHIFT
Original
Copy
Expanded margin
(Initial setting:
copy image shifted to the right)
The MARGIN SHIFT feature, in its initial setting, shifts the text or image to
the right on one-sided copies and on the front side of two-sided copies. The
text or image is shifted to the left on the reverse side of two-sided copies.
Shift direction can be changed to left or right as described in step 4 below.
● The standard shift amount is 1/2", but can be changed from 0" to 1" in
1/8" increments.
★ KEY OPERATOR
The initial shift setting can be changed from 0" to 1"
in 1/8" increments. See page 20 of the KEY OPERATOR’S GUIDE.
NOTE:
The front side and reverse side are referred to as “SIDE 1” and “SIDE 2”
respectively on the touch panel.
3
CHAPTER
SPECIAL FUNCTIONS Margin shift
1
Place an original on the document glass or in the
optional document feeder tray.
2
Press the SPECIAL MODES key.
Margin is expanded
here.
Margin is expanded
here.
SPECIAL
MODES
READY TO
●
The SPECIAL MODES screen will appear.
READY TO COPY.
SPECIAL MODES
MARGIN SHIFT
CENTERING
2-SIDED
COPY
3-4
OK
ERASE
DUAL PAGE
COPY
TRANSPARENCY INSERTS
COVERS
COLOR
ADJUSTMENTS
AUTO
EXPOSURE
AUTO
8/12 11
PAPER SELECT
IMAGE EDIT
100%
COPY RATIO
MARGIN SHIFT
READY TO COPY.
SPECIAL MODES
OK
CENTERING
Press the “MARGIN SHIFT” key on the touch panel.
●
DUAL PAGE
COPY
ERASE
MARGIN SHIFT
3
The setting screen for MARGIN SHIFT will appear.
READY TO COPY.
OK
TRANSPARENCY INSERTS
COLOR
ADJUSTMENTS
IMAGE EDIT
AUTO
EXPOSURE
AUTO
8/12 11
PAPER SELECT
100%
COPY RATIO
CANCEL
MARGIN SHIFT
SIDE 1
RIGHT
MARGIN SHIFT
1/2
(0~1)
inch
3
●
1/2
(0~1)
inch
DED
PY
SIDE 1
LEFT
If an optional duplex module (AR-DU2N) is not installed, the
margin shift setting for the reverse side will not be displayed.
4
Select the shift direction.
5
Select the desired shift amounts using the
keys.
6
Press the upper “OK” key on the touch panel.
7
Make all other desired copier selections and press the
COLOR COPY START (
) key or BLACK COPY
START (
) key.
●
Select “RIGHT” or “LEFT” on the touch panel. The selected shift
direction will be highlighted.
and
PUT
1/2 (0~1)
inch
INFORMAT
INTERRUPT
OK
OK
SIDE 2
CUSTO
SETTING
CLEAR
ALL
C
CLEAR
CA
●
To cancel the MARGIN SHIFT function, select the MARGIN
SHIFT function again and press the “CANCEL” key.
3-5
SPECIAL FUNCTIONS Margin shift
LEFT
OUTPUT
RIGHT
(0~1)
inch
CANCEL
SIDE 1
RIGHT
SIDE 2
LEFT
1/2
2-SIDED
COPY
OK
CHAPTER
COVERS
ERASE
(Original)
(Copy)
Erase function can be used to eliminate shadow lines around the edges and
the center part of copies as shown in the illustrations, which are caused
when such originals as thick paper, books or bound documents are used.
3 patterns of erase function, EDGE ERASE, CENTER ERASE and
EDGE+CENTER ERASE can be selected.
● The standard erase width is 1/2", but can be changed from 0" to 1" in
1/8" increments.
Edge erase
A
A
★ KEY OPERATOR The initial setting of the width for edge erase and center
erase can be changed. See page 20 of the KEY OPERATOR’S GUIDE.
Center erase
AB
AB
3
CHAPTER
Edge + center erase
AB
AB
SPECIAL FUNCTIONS Erase
SPECIAL
MODES
READY TO
2-SIDED
COPY
CENTERING
2
Press the SPECIAL MODES key.
3
Press the “ERASE” key on the touch panel.
●
●
The SPECIAL MODES screen will appear.
The setting screen for ERASE will appear.
OK
ERASE
DUAL PAGE
COPY
OK
ERASE
TRANSPARENCY INSERTS
EDGE ERASE
COVERS
COLOR
ADJUSTMENTS
IMAGE EDIT
AUTO
EXPOSURE
AUTO
8/12 11
PAPER SELECT
100%
COPY RATIO
3-6
Place an original on the document glass or in the
optional document feeder tray.
READY TO COPY.
READY TO COPY.
SPECIAL MODES
MARGIN SHIFT
1
CENTER ERASE
EDGE+CENTER
ERASE
CANCEL
OK
1/2 (0~1)
inch
ERASE
OK
CANCEL
ERASE
OK
1
EDGE ERASE
4
Select the desired erase mode.
5
Adjust the amount of edge erase and/or center erase if
needed.
●
(0~1)
inch
Select “EDGE ERASE”, “CENTER ERASE” or “EDGE+CENTER
ERASE” on the touch panel. The selected erase mode will be
highlighted.
CENTER ERASE
EDGE+CENTER
ERASE
OK
The amount can be adjusted between 0" and 1" in 1/8" increments.
SPECIAL FUNCTIONS Erase
1/2
EDGE ERASE
●
(0~1)
inch
CENTER ERASE
EDGE+CENTER
ERASE
INFORMATION
6
Press the upper “OK” key on the touch panel.
7
Make all other desired copier selections and press the
COLOR COPY START (
) key or BLACK COPY
START (
) key.
OK
CANCEL
OK
1/2
3
INTERRUPT
CUSTOM
SETTINGS
(0~1)
inch
●
6
CLEAR
ALL
CA
To cancel the ERASE function, select the ERASE function again
and press the “CANCEL” key.
9
PROGRAM
C
P
CLEAR
3
CANCEL
ERASE
CHAPTER
OK
3-7
DUAL PAGE COPYING
Original
Copies
The DUAL PAGE COPY feature produces separate copies of two
documents placed side by side on the document glass. It is especially
useful when copying books and other bound documents.
This feature can be used in the one-sided to two-sided copying mode.
CHAPTER
3
1
Place the originals on the document glass with the
center of the two pages aligned with the paper size index
81/2. Close the document cover.
●
SPECIAL FUNCTIONS Dual page copying
Set the page to be copied first on the left part of the document
glass.
81 / 2
Paper size index
SPECIAL
MODES
READY TO
2
Press the SPECIAL MODES key.
3
Press the “DUAL PAGE COPY” key on the touch panel.
●
The SPECIAL MODES screen will appear.
2-SIDED
COPY
READY TO COPY.
SPECIAL MODES
MARGIN SHIFT
CENTERING
COVERS
AUTO
EXPOSURE
3-8
OK
DUAL PAGE
COPY
ERASE
●
The “DUAL PAGE COPY” key will be highlighted.
●
8-1/2" x 11" sized copy paper will be automatically selected.
If 8-1/2" x 11" copy paper is not loaded, copying can be done on
another size.
TRANSPARENCY INSERTS
COLOR
ADJUSTMENTS
1
2
AUTO
8/ 11
PAPER SELECT
IMAGE EDIT
100%
COPY RATIO
●
To leave a binding margin on the copy, select the MARGIN
SHIFT function. See page 3-4.
●
To erase shadows caused by document binding, use the EDGE
ERASE feature. See page 3-6.
●
The CENTER ERASE feature is not available with the DUAL
PAGE COPY feature.
DUAL PAGE COPYING
INFORMATION
4
Press the “OK” key.
5
Ensure that the desired tray is selected.
6
Enter the desired number of copies.
7
Press the COLOR COPY START (
COPY START (
) key.
OK
DUAL PAGE
COPY
CUSTOM
SETTINGS
SPARENCY INSERTS
3
CHAPTER
TO COPY.
SPECIAL FUNCTIONS Dual page copying
1.812 11
2.11 17
3.812 14
AUTO
8/12 11
AUTO
100%
N
1
2
3
4
5
6
INTERRUPT
CLEAR
ALL
7
8
AUDIT
0
3
INTERRUPT
CA
9
PROGRAM
C
P
CLEAR
●
6
CLEAR
ALL
) key or BLACK
To cancel the DUAL PAGE COPY function, press the “DUAL
PAGE COPY” key again on the SPECIAL MODES screen.
CA
9
PROGRAM
C
P
CLEAR
3-9
CENTERING
Original
Copy
When the original and copy paper are of different sizes, CENTERING
is used to shift the image as a whole to the center of the copy paper.
The image will shift only in the left to right direction, not in the top to
bottom direction.
● This function can be used to reduce a larger sized original image and
center it on a copy of smaller paper size, as well as center a smaller
original onto a larger sized copy.
● This function will not work when non-standard size originals or copy
paper are used. This function cannot be selected when enlargement
copying has been selected.
3
CHAPTER
SPECIAL FUNCTIONS Centering
READY TO COPY.
1.8/12 11
2.11 17
3.8/12 14
AUTO
EXPOSURE
PAPER SELECT
SPECIAL
MODES
2-SIDED
COPY
3-10
1
Place the originals on the document glass or in the
optional document feeder tray.
2
Press the “PAPER SELECT” key on the touch panel and
select the desired paper size.
3
Press the SPECIAL MODES key.
PAPER TYPE
16~28 lbs.
28+~35 lbs.
35+~75 lbs.
TRANSPARENCY
100%
COPY RATIO
READY TO
●
The SPECIAL MODES screen will appear.
CENTERING
READY TO COPY.
SPECIAL MODES
OK
MARGIN SHIFT
DUAL PAGE
COPY
ERASE
CENTERING
4
Press the “CENTERING” key on the touch panel.
5
Press the “OK” key.
6
Make all other desired copier selections and enter the
desired number of copies.
7
Press the COLOR COPY START (
COPY START (
) key.
●
The “CENTERING” key will be highlighted.
TRANSPARENCY INSERTS
COLOR
ADJUSTMENTS
IMAGE EDIT
AUTO
EXPOSURE
AUTO
8/12 11
PAPER SELECT
100%
COPY RATIO
3
CHAPTER
COVERS
OK
TRANSPARENCY INSERTS
N
1
2
3
4
5
6
INTERRUPT
CLEAR
ALL
7
8
AUDIT
0
3
INTERRUPT
6
CLEAR
ALL
CA
9
PROGRAM
C
P
CLEAR
●
) key or BLACK
To cancel the CENTERING function, press the “CENTERING”
key again on the SPECIAL MODES screen.
CA
9
PROGRAM
C
P
CLEAR
3-11
SPECIAL FUNCTIONS Centering
DUAL PAGE
COPY
ERASE
TRANSPARENCY FILM WITH INSERT SHEETS
When copying onto transparency film, blank insert sheets can be
placed following each transparent sheet.
Originals (1-sided)
4
3
2
4
●
Insert sheets cannot be copied on in any mode.
●
This mode can be selected only in the 1-sided to 1-sided and 2-sided
to 1-sided modes.
●
A multiple number of copies cannot be selected in this mode.
●
Transparency film must be fed from the bypass tray.
●
Insert sheets must be the same size as the transparency film.
●
For best results, use SHARP recommended transparency film.
1
3
2
1
Originals (2-sided)
3
Insert sheets
2
4
1
3
CHAPTER
SPECIAL FUNCTIONS Transparency film with insert sheets
SPECIAL
MODES
READY TO
1
Place the originals on the document glass or in the
optional document feeder tray.
2
Press the SPECIAL MODES key.
3
Press the “TRANSPARENCY INSERTS” key on the touch
panel.
●
The SPECIAL MODES screen will appear.
2-SIDED
COPY
READY TO COPY.
SPECIAL MODES
MARGIN SHIFT
CENTERING
OK
ERASE
DUAL PAGE
COPY
TRANSPARENCY INSERTS
COVERS
COLOR
ADJUSTMENTS
IMAGE EDIT
AUTO
EXPOSURE
AUTO
8/12 11
PAPER SELECT
100%
COPY RATIO
3-12
●
The “TRANSPARENCY INSERTS” key will be highlighted.
TRANSPARENCY FILM WITH INSERT SHEETS
INFOR
4
Press the “OK” key.
5
Load transparency film into the bypass tray.
6
Ensure that the tray selected for the insert sheets
contains paper of the same size and orientation of the
transparency films.
7
Make all other selections and press the COLOR COPY
START (
) key or BLACK COPY START (
) key.
OK
DUAL PAGE
COPY
SE
CUS
SET
RANSPARENCY INSERTS
8 11
TRANSPARENCY
1.812 11
2.11 17
3.812 14
AUTO
8/12 11
PAPER SELECT
3
INTERRUPT
100%
COPY RATIO
●
6
CLEAR
ALL
9
PROGRAM
C
P
CLEAR
CA
●
When copying is completed, remove remaining transparency
film.
To cancel the TRANSPARENCY INSERTS function, press the
“TRANSPARENCY INSERTS” key again on the SPECIAL
MODES screen.
3-13
SPECIAL FUNCTIONS Transparency film with insert sheets
CUSTOM
SETTINGS
1
2
3
812 11
Set the long edge of the film to be fed into the machine.
CHAPTER
ORIGINAL
●
COVERS
The COVERS mode is used to place covers on the front, back, or both
the front and back of multipage documents.
● To use the COVERS mode, an optional RADF must be installed.
●
Covers
●
●
●
3
CHAPTER
Front cover sheets can be copied on, but only on the front side even
in the 1-sided to 2-sided and 2-sided to 2-sided copy modes.
The back side of the original designated as the cover will not be
copied.
Back cover sheets cannot be copied on, either on the front side or on
the back side.
Cover sheets must be fed from the bypass tray and must be the same
size as the copy paper being used to copy the document.
When the COVERS mode is selected, the stream feeding mode of
the RADF will always be off.
SPECIAL FUNCTIONS Covers
1
Place the originals in the optional document feeder tray.
2
Press the 2-SIDED COPY key and select the desired
duplex mode if needed. Press the “OK” key to close the
duplex selection window.
2-SIDED
COPY
●
To copy in the 1-sided to 2-sided or 2-sided to 2-sided copy
mode, an optional duplex module (AR-DU2N) must be installed.
OUTPUT
AUTO
SPECIAL
MODES
READY TO
2-SIDED
COPY
OK
MARGIN SHIFT
DUAL PAGE
COPY
ERASE
TRANSPARENCY INSERTS
COVERS
COLOR
ADJUSTMENTS
IMAGE EDIT
AUTO
EXPOSURE
AUTO
8/12 11
PAPER SELECT
100%
COPY RATIO
3-14
4
Press the “COVERS” key on the touch panel.
●
●
The SPECIAL MODES screen will appear.
The setting screen for COVERS will appear.
LOAD COVER STOCK INTO BYPASS-TRAY.
READY TO COPY.
SPECIAL MODES
CENTERING
3
Press the SPECIAL MODES key.
OK
COVERS
FRONT
BACK
FRONT+BACK
CANCEL
OK
PRINT ON FRONT COVER?
YES
NO
COVERS
O
CANCEL
O
PRINT ON FRONT
COVERS
FRONT
5
Select cover placement.
6
Indicate whether the front cover sheets are copied on or
not.
●
Select “FRONT”, “BACK” or “FRONT+BACK” on the touch
panel.
YES
BACK
NO
FRONT+BACK
YES
Select “YES” or “NO” on the touch panel. If “YES” is selected, the
first page of the document will be copied onto the front cover
sheet.
●
If “BACK” has been selected in step 5, this selection is not
needed.
NO
T+BACK
OK
NCEL
OK
T ON FRONT COVER?
7
Press the upper “OK” key.
8
Load the cover stock into the bypass tray, making sure
that the cover stock is the same size as the copy paper.
CUS
SETT
●
9
INTE
1
2
3INTERRUPT
4
5
6
CLEAR CLE
CA
AL
ALL
7
8
9
C C
PROGRAM
AUDIT
0
P CLEAR CL
10
The message “SELECT PAPER TYPE FOR BYPASS-TRAY.”
will appear if “16 ~ 28 lbs.” (“PLAIN PAPER”), “28+ ~ 35 lbs.”
(“HEAVY PAPER 1”) or “35+ ~ 75 lbs.” (“HEAVY PAPER 2”) has
not been selected.
Select the paper type for the bypass tray.
●
Transparency film cannot be selected as cover stock.
●
The START key indicators will light up.
Enter the desired number of copies and press the
COLOR COPY START (
) key or BLACK COPY
START (
) key.
●
To cancel the COVERS function, select the COVERS function
again and press the “CANCEL” key.
3-15
SPECIAL FUNCTIONS Covers
T
●
3
CANCEL
OK
PRINT ON FRONT COVER?
CHAPTER
OK
COLOR ADJUSTMENTS
The color adjustments include the following items.
● RGB adjust: Strengthens or weakens one of three primary colors, red (R), green (G), or blue (B).
● Sharpness: Sharpens or softens image outlines.
● Suppress background: Suppresses copying of lighter background areas.
● Color balance: Adjusts the color, tone, and density of color copies.
● Brightness/intensity/contrast: These adjust the level of brightness, intensity or contrast of images.
This function can be used to strengthen or weaken the three primary
colors, red (R), green (G), or blue (B).
Only one primary color can be adjusted at a time.
If a second primary color is adjusted, the first adjustment will be
cancelled.
(Refer to the samples on page 5 to see the effect on copy images in
relation to the RGB ADJUST.)
3
CHAPTER
RGB ADJUST
SPECIAL FUNCTIONS Color adjustments
SPECIAL
MODES
READY TO
2-SIDED
COPY
1
Place the original on the document glass or in the
optional document feeder tray.
2
Press the SPECIAL MODES key.
3
Press the “COLOR ADJUSTMENTS” key on the touch
panel.
●
●
OK
MARGIN SHIFT
DUAL PAGE
COPY
ERASE
TRANSPARENCY INSERTS
COVERS
COLOR
ADJUSTMENTS
IMAGE EDIT
AUTO
EXPOSURE
AUTO
8/12 11
PAPER SELECT
100%
COPY RATIO
3-16
The COLOR ADJUSTMENTS menu will appear.
READY TO COPY.
READY TO COPY.
SPECIAL MODES
CENTERING
The SPECIAL MODES screen will appear.
OK
SPECIAL MODES
OK
COLOR ADJUSTMENTS
RGB ADJUST
SHARPNESS
SUPPRESS
BACKGROUND
INTENSITY
CONTRAST
COLOR
BALANCE
BRIGHTNESS
COLOR ADJUSTMENTS
READY TO COPY.
OK
SPECIAL MODES
Press the “RGB ADJUST” key on the touch panel.
●
OK
COLOR ADJUSTMENTS
RGB ADJUST
4
SHARPNESS
READY TO COPY.
SUPPRESS
BACKGROUND
COLOR
BALANCE
BRIGHTNESS
INTENSITY
The setting screen for RGB ADJUSTMENTS will appear.
CONTRAST
SPECIAL MODES
OK
CANCEL
RGB ADJUST
ONLY ONE COLOR CAN BE ADJUSTED.
OK
READY TO COPY.
B(BLUE)
-2 · -1 · · 0 · · 1 · 2
OK
CANCEL
RGB ADJUST
ONLY ONE COLOR CAN BE ADJUSTED.
OK
B(BLUE)
5
Select a color to be adjusted.
6
Press the “+” to strengthen the selected color or press
the “-” key to weaken the color.
●
Select a color from R (RED), G (GREEN), and B (BLUE).
-2 · -1 · · 0 · · 1 · 2
CANCEL
RGB ADJUST
ONLY ONE COLOR CAN BE ADJUSTED.
R(RED)
G(GREEN)
OK
●
B(BLUE)
The level can be adjusted from -2 to 2 in eleven steps.
-2 · -1 · · 0 · · 1 · 2
READY TO COPY.
OK
CANCEL
RGB ADJUST
ONLY ONE COLOR CAN BE ADJUSTED.
R(RED)
G(GREEN)
7
Press the upper “OK” key.
8
9
Make all other desired copier selections and enter the
desired number of copies.
OK
B(BLUE)
+
-2 · -1 · · 0 · · 1 ·
INTE
1
2
3INTERRUPT
4
5
6
CLEAR CLE
CA
AL
ALL
7
8
9
C C
PROGRAM
AUDIT
0
P
CLEAR
CL
2
Press the COLOR COPY START (
) key.
● The BLACK COPY START (
) key can be pressed for copying.
However, the RGB ADJUST setting will be ignored.
●
To cancel the RGB ADJUST function, select the RGB ADJUST
function again and press the “CANCEL” key.
3-17
SPECIAL FUNCTIONS Color adjustments
G(GREEN)
3
SPECIAL MODES
R(RED)
G(GREEN)
CHAPTER
R(RED)
COLOR ADJUSTMENTS
SHARPNESS
This function is used to sharpen or soften image outlines.
(Refer to the samples on page 6 to see the effect on copy images in
relation to the SHARPNESS.)
3
CHAPTER
SPECIAL FUNCTIONS Color adjustments
SPECIAL
MODES
READY TO
1
Place the original on the document glass or in the
optional document feeder tray.
2
Press the SPECIAL MODES key.
3
Press the “COLOR ADJUSTMENTS” key on the touch
panel.
●
The SPECIAL MODES screen will appear.
2-SIDED
COPY
READY TO COPY.
SPECIAL MODES
OK
MARGIN SHIFT
DUAL PAGE
COPY
ERASE
CENTERING
COLOR
ADJUSTMENTS
1
2
AUTO
8/ 11
PAPER SELECT
IMAGE EDIT
100%
COPY RATIO
SPECIAL MODES
OK
COLOR ADJUSTMENTS
OK
SHARPNESS
SUPPRESS
BACKGROUND
COLOR
BALANCE
BRIGHTNESS
3-18
4
Press the “SHARPNESS” key on the touch panel.
●
The setting screen for SHARPNESS will appear.
READY TO COPY.
READY TO COPY.
RGB ADJUST
The COLOR ADJUSTMENTS menu will appear.
TRANSPARENCY INSERTS
COVERS
AUTO
EXPOSURE
●
OK
CENTERING
CANCEL
SHARPNESS
SOFT
INTENSITY
CONTRAST
SHARP
OK
COLOR ADJUSTMENTS
CANCEL
SHARPNESS
OK
CANCEL
SHARPNESS
SOFT
1
2
3
4
5
6
8
AUDIT
0
6
CLEAR
ALL
CA
Make all other desired copier selections and enter the
desired number of copies.
8
Press the COLOR COPY START (
SHARP
INTERRUPT
CLEAR
ALL
3
7
OK
N
INTERRUPT
Press the upper “OK” key.
SHARP
READY TO COPY
7
6
OK
SPECIAL FUNCTIONS Color adjustments
SOFT
5
CA
9
PROGRAM
C
P
CLEAR
) key.
●
The BLACK COPY START (
) key can be pressed for
copying. However, the SHARPNESS setting will be ignored.
●
To cancel the SHARPNESS function, select the SHARPNESS
function again and press the “CANCEL” key.
9
PROGRAM
C
P
CLEAR
3
OK
Press the “SOFT” key to soften image outlines or press
the “SHARP” key to sharpen them.
CHAPTER
READY TO COPY
3-19
COLOR ADJUSTMENTS
SUPPRESS BACKGROUND
This copier can suppress unwanted background areas on the original
images when copying. This function is used to adjust the density
level of background images to be erased.
(Refer to the samples on page 6 to see the effect on copy images in
relation to the SUPPRESS BACKGROUND.)
3
CHAPTER
SPECIAL FUNCTIONS Color adjustments
SPECIAL
MODES
READY TO
1
Place the original on the document glass or in the
optional document feeder tray.
2
Press the SPECIAL MODES key.
3
Press the “COLOR ADJUSTMENTS” key on the touch
panel.
●
The SPECIAL MODES screen will appear.
2-SIDED
COPY
READY TO COPY.
SPECIAL MODES
OK
MARGIN SHIFT
DUAL PAGE
COPY
ERASE
CENTERING
COLOR
ADJUSTMENTS
1
2
AUTO
8/ 11
PAPER SELECT
IMAGE EDIT
100%
COPY RATIO
SPECIAL MODES
OK
COLOR ADJUSTMENTS
OK
SHARPNESS
SUPPRESS
BACKGROUND
INTENSITY
CONTRAST
COLOR
BALANCE
BRIGHTNESS
3-20
4
Press the “SUPPRESS BACKGROUND” key on the touch
panel.
●
READY TO COPY.
RGB ADJUST
The COLOR ADJUSTMENTS menu will appear.
TRANSPARENCY INSERTS
COVERS
AUTO
EXPOSURE
●
The setting screen for SUPPRESS BACKGROUND will appear.
READY TO COPY.
CENTERING
OK
OK
CANCEL
SUPPRESS BACKGROUND
LIGHT AREAS OF THE ORIGINAL MAY BE SUPPRESSED
AS BACKGROUND.
COLOR ADJUSTMENTS
OK
●
If level 1 is selected, darker background areas will be erased.
The level can be adjusted in three steps. The default setting is
level 3.
6
Press the upper “OK” key.
7
Make all other desired copier selections and enter the
desired number of copies.
8
Press the COLOR COPY START (
OK
CANCEL
SUPPRESS BACKGROUND
LIGHT AREAS OF THE ORIGINAL MAY BE SUPPRESD
AS BACKGROUND.
N
1
2
3
4
5
6
INTERRUPT
CLEAR
ALL
7
8
AUDIT
0
3
INTERRUPT
CA
9
PROGRAM
C
P
CLEAR
●
The BLACK COPY START (
) key can be pressed for
copying. However, the SUPPRESS BACKGROUND setting will
be ignored.
●
To cancel the SUPPRESS BACKGROUND function, select the
SUPPRESS BACKGROUND function again and press the
“CANCEL” key.
6
CLEAR
ALL
9
PROGRAM
C
P
CLEAR
CA
) key.
3-21
SPECIAL FUNCTIONS Color adjustments
READY TO COPY.
5
3
CANCEL
OK
SUPPRESS BACKGROUND
LIGHT AREAS OF THE ORIGINAL MAY BE SUPPRESSED
AS BACKGROUND.
Use the “-” and “+” keys to select the desired background
suppression level.
CHAPTER
OK
COLOR ADJUSTMENTS
COLOR BALANCE
This function is used to adjust the color, tone, and density of color
copies.
The Color Balance setting allows you to adjust the densities of four
colors: cyan, magenta, yellow, and black. The density range is
divided into eight levels for each color, from 1 (lowest density areas)
to 8 (highest density areas). The density can be adjusted one level at
a time or eight levels at once. (Refer to the samples on page 7 to see
the effect on copy images in relation to the COLOR BALANCE.)
3
CHAPTER
SPECIAL FUNCTIONS Color adjustments
SPECIAL
MODES
READY TO
1
Place the original on the document glass or in the
optional document feeder tray.
2
Press the SPECIAL MODES key.
3
Press the “COLOR ADJUSTMENTS” key on the touch
panel.
●
The SPECIAL MODES screen will appear.
2-SIDED
COPY
READY TO COPY.
SPECIAL MODES
OK
MARGIN SHIFT
ERASE
CENTERING
DUAL PAGE
COPY
COLOR
ADJUSTMENTS
IMAGE EDIT
AUTO
EXPOSURE
AUTO
8/12 11
PAPER SELECT
100%
COPY RATIO
Press the “COLOR BALANCE” key on the touch panel.
READY TO COPY.
OK
SPECIAL MODES
OK
COLOR ADJUSTMENTS
SHARPNESS
SUPPRESS
BACKGROUND
INTENSITY
CONTRAST
COLOR
BALANCE
BRIGHTNESS
3-22
The COLOR ADJUSTMENTS menu will appear.
TRANSPARENCY INSERTS
COVERS
RGB ADJUST
●
4
CENTERING
COLOR ADJUSTMENTS
●
The setting screen for COLOR BALANCE will appear.
READY TO COPY.
OK
SPECIAL MODES
COLOR BALANCE
CANCEL
OK
C
M
Y
Bk
CANCEL
COLOR BALANCE
5
C
M
Use these keys to adjust the densities of each of the eight
density levels.
When one of the keys is pressed, the corresponding indicator
line will move up or down one step. Press the
key to
increase the density of the corresponding level, or the
key
to decrease the density.
Use these keys to change the densities of all eight levels at
once.
When either key is pressed, the indicator lines of all eight levels
will move up or down one step.
Press the
key to increase the density, or the
key to
decrease the density.
Use this key to return the densities of all eight levels to the
initial settings.
The initial color balance settings are the values set with key
operator program “Initial Color Balance Setting”. For this reason,
the initial settings may not necessarily be 0 (the middle indicator
position) for all levels. The initial setting of each level is shown
by a gray indicator. See page 22 of the KEY OPERATOR'S
GUIDE.
N
1
2
3
4
5
6
INTERRUPT
CLEAR
ALL
7
8
AUDIT
0
3
INTERRUPT
6
CLEAR
ALL
9
PROGRAM
C
P
CLEAR
CA
CA
9
PROGRAM
C
P
CLEAR
6
Make all other desired copier selections and enter the
desired number of copies.
7
Press the COLOR COPY START (
) key.
●
The BLACK COPY START (
) key can be pressed for
copying. However, the COLOR BALANCE settings will be ignored.
●
You can also store color balance settings for repeated use in the
future. (Refer to “Storing a Job Program” on page 2-18). In this
case, complete the color balance setting before pressing the
PROGRAM key bacause color copy samples cannot be made
after the PROGRAM key is pressed.
3-23
SPECIAL FUNCTIONS Color adjustments
Use these keys to select the color to be adjusted ( C = cyan,
M = magenta, Y = yellow, Bk = black).
If only the area around the letter inside a key is highlighted, the
settings have been changed from the factory default settings.
OK
3
OK
Use the keys indicated in the illustration above to adjust
the color balance settings.
CHAPTER
READY TO COPY
COLOR ADJUSTMENTS
BRIGHTNESS /INTENSITY /CONTRAST
This copier allows the level of brightness, intensity or contrast of
images to be adjusted. If brightness is selected, color tone can be
darkened or lightened. If intensity is selected, color saturation can be
made to be more vivid or more dull. If contrast is selected, the
contrast between image areas can be made to be higher or lower.
(Refer to the samples on page 8 to see the effect on copy images in
relation to the BRIGHTNESS /INTENSITY /CONTRAST
adjustments.)
3
CHAPTER
SPECIAL FUNCTIONS Color adjustments
SPECIAL
MODES
READY TO
1
Place the original on the document glass or in the
optional document feeder tray.
2
Press the SPECIAL MODES key.
3
Press the “COLOR ADJUSTMENTS” key on the touch
panel.
●
The SPECIAL MODES screen will appear.
2-SIDED
COPY
READY TO COPY.
SPECIAL MODES
OK
MARGIN SHIFT
DUAL PAGE
COPY
ERASE
CENTERING
COLOR
ADJUSTMENTS
IMAGE EDIT
AUTO
EXPOSURE
AUTO
8/12 11
PAPER SELECT
100%
COPY RATIO
SPECIAL MODES
OK
COLOR ADJUSTMENTS
OK
SHARPNESS
SUPPRESS
BACKGROUND
COLOR
BALANCE
BRIGHTNESS
The COLOR ADJUSTMENTS menu will appear.
TRANSPARENCY INSERTS
COVERS
RGB ADJUST
●
INTENSITY
CONTRAST
4
Press the “BRIGHTNESS/INTENSITY/CONTRAST” key
on the touch panel.
●
The setting screen for BRIGHTNESS/INTENSITY/CONTRAST
will appear.
READY TO COPY.
SPECIAL MODES
OK
CANCEL
BRIGHT INTENS CONT
ONLY ONE FUNCTION IS SELECTABLE.
OK
BRIGHTNESS
3-24
INTENSITY
CONTRAST
COLOR ADJUSTMENTS
READY TO COPY.
SPECIAL MODES
OK
CANCEL
BRIGHT INTENS CONT
ONLY ONE FUNCTION IS SELECTABLE.
OK
BRIGHTNESS
INTENSITY
OK
3
4
5
6
7
8
0
3
INTERRUPT
9
Press the COLOR COPY START (
CONTRAST
INTERRUPT
CLEAR
ALL
AUDIT
8
Make all other desired copier selections and enter the
desired number of copies.
OK
N
2
CA
9
PROGRAM
C
P
CLEAR
9
PROGRAM
C
P
CLEAR
CA
) key.
●
The BLACK COPY START (
) key can be pressed for
copying. However, the BRIGHTNESS/INTENSITY/CONTRAST
setting will be ignored.
●
To cancel the BRIGHTNESS/INTENSITY/CONTRAST function,
select the BRIGHTNESS/INTENSITY/CONTRAST function
again and press the “CANCEL” key.
6
CLEAR
ALL
SPECIAL FUNCTIONS Color adjustments
CANCEL
BRIGHT INTENS CONT
ONLY ONE FUNCTION IS SELECTABLE.
3
OK
1
7
Press the upper “OK” key.
Select “BRIGHTNESS”, “INTENSITY” or “CONTRAST” on the
touch panel.
CONTRAST
READY TO COPY.
INTENSITY
6
Use the “-” and “+” keys to adjust the level of the
selected item.
●
CHAPTER
INTENSITY
BRIGHTNESS
Select the desired item to be adjusted.
CONTRAST
CANCEL
BRIGHT INTENS CONT
ONLY ONE FUNCTION IS SELECTABLE.
BRIGHTNESS
5
3-25
IMAGE EDITING FUNCTIONS
The image editing functions include the following items.
● Single color: Produces copies with a selected single color.
● Neg./pos. reverse: Copies original image in complementary colors.
● Mirror image: A mirror image of the original is printed.
● Photo repeat: Produces repeated images of a photo on a single sheet of copy paper.
● 11 x 17 full-bleed: Produces 11" x 17" full image copies onto 12" x 18" copy paper.
● Multi-page enlargement: Enlarges an original image to a size larger than 11" x 17" and prints divided images onto
multiple sheets of copy paper for assembly into large composite copy.
● Extra size: Allows copying from an extra sized original or onto extra sized paper.
These functions are selected by pressing the “IMAGE EDIT” key on the SPECIAL MODES screen and pressing the
key of an individual function.
3
CHAPTER
SINGLE COLOR
SPECIAL FUNCTIONS Image editing functions
The single color function is used to produce copies with a selected
single color.
(Refer to the samples on page 1 to see the effect on copy images in
relation to the SINGLE COLOR function.)
SPECIAL
MODES
READY TO
1
Place the originals on the document glass or in the
optional document feeder tray.
2
Press the SPECIAL MODES key.
3
Press the “IMAGE EDIT” key on the touch panel.
●
The SPECIAL MODES screen will appear.
2-SIDED
COPY
OK
MARGIN SHIFT
DUAL PAGE
COPY
ERASE
TRANSPARENCY INSERTS
COVERS
COLOR
ADJUSTMENTS
IMAGE EDIT
AUTO
EXPOSURE
AUTO
8/12 11
PAPER SELECT
100%
COPY RATIO
3-26
The IMAGE EDIT menu will appear.
READY TO COPY.
READY TO COPY.
SPECIAL MODES
CENTERING
●
OK
SPECIAL MODES
IMAGE EDIT
SINGLE COLOR
PHOTO REPEAT
EXTRA SIZE
NEG./POS.
REVERSE
11 17
FULL-BLEED
OK
MIRROR
MULTI-PAGE
ENLARGEMENT
IMAGE EDITING FUNCTIONS
READY TO COPY.
OK
SPECIAL MODES
IMAGE EDIT
NEG./POS.
REVERSE
11 17
FULL-BLEED
SINGLE COLOR
PHOTO REPEAT
4
Press the “SINGLE COLOR” key on the touch panel.
●
The setting screen for SINGLE COLOR will appear.
READY TO COPY.
OK
MIRROR
MULTI-PAGE
ENLARGEMENT
OK
SPECIAL MODES
SINGLE COLOR
EXTRA SIZE
2
4
6
OK
GREEN
PURPLE
BROWN
CHAPTER
1 RED
3 BLUE
5 ORANGE
CANCEL
READY TO COPY.
SINGLE COLOR
OK
CANCEL
2 GREEN
4 PURPLE
6 BROWN
READY TO COPY.
OK
SINGLE COLOR
1
2
3
4
5
6
INTERRUPT
CLEAR
ALL
7
8
0
6
Press the upper “OK” key.
7
Make all other desired copier selections and enter the
desired number of copies.
8
Press the COLOR COPY START (
●
The selected color key will be highlighted.
2 GREEN
4 PURPLE
6 BROWN
N
AUDIT
Select the desired color.
OK
CANCEL
1 RED
3 BLUE
5 ORANGE
5
SPECIAL FUNCTIONS Image editing functions
1 RED
3 BLUE
5 ORANGE
3
OK
SPECIAL MODES
CA
9
PROGRAM
C
P
CLEAR
●
) key.
To cancel the SINGLE COLOR function, select the SINGLE
COLOR function again and press the “CANCEL” key.
RUPT
AR
C
3-27
IMAGE EDITING FUNCTIONS
NEG./POS. REVERSE
Original
Copy
3
CHAPTER
SPECIAL FUNCTIONS Image editing functions
SPECIAL
MODES
READY TO
The NEG./POS. REVERSE function is used to copy the original image
in complementary colors. If this function is selected in the black/white
mode, the black and white areas will be reversed.
(Refer to the samples on page 2 to see the effect on copy images in
relation to the NEG./POS. REVERSE.)
● When this function is selected, neither the COLOR ADJUSTMENTS
nor the SINGLE COLOR functions can be selected.
1
Place the original on the document glass or in the
optional document feeder tray.
2
Press the SPECIAL MODES key.
3
Press the “IMAGE EDIT” key on the touch panel.
4
Press the “NEG./POS. REVERSE” key on the touch
panel.
●
The SPECIAL MODES screen will appear.
2-SIDED
COPY
READY TO COPY.
SPECIAL MODES
MARGIN SHIFT
CENTERING
OK
ERASE
TRANSPARENCY INSERTS
COLOR
ADJUSTMENTS
IMAGE EDIT
AUTO
EXPOSURE
AUTO
8/12 11
PAPER SELECT
100%
COPY RATIO
READY TO COPY.
OK
SPECIAL MODES
IMAGE EDIT
PHOTO REPEAT
EXTRA SIZE
3-28
The IMAGE EDIT menu will appear.
DUAL PAGE
COPY
COVERS
SINGLE COLOR
●
NEG./POS.
REVERSE
11 17
FULL-BLEED
OK
MIRROR
MULTI-PAGE
ENLARGEMENT
●
The “NEG./POS. REVERSE” key will be highlighted.
IMAGE EDITING FUNCTIONS
CHAPTER
6
Make all other desired copier selections and enter the
desired number of copies.
7
Press the COLOR COPY START (
COPY START (
) key.
3
5
Press the upper “OK” key.
OK
N
1
2
3
4
5
6
INTERRUPT
CLEAR
ALL
7
8
AUDIT
0
3
INTERRUPT
6
CLEAR
ALL
CA
9
PROGRAM
C
P
CLEAR
●
) key or BLACK
To cancel the NEG./POS. REVERSE function, press the “NEG./
POS. REVERSE” key again on the IMAGE EDIT menu screen.
CA
9
PROGRAM
C
P
CLEAR
3-29
SPECIAL FUNCTIONS Image editing functions
OK
NEG./POS.
MIRROR
REVERSE
11 17
MULTI PAGE
IMAGE EDITING FUNCTIONS
MIRROR IMAGE
Original
This function is used to print a mirror image of the original. The images
will be inverted in the right to left direction on the copies.
Copy
A
B
B
A
C
D
D
C
3
CHAPTER
SPECIAL FUNCTIONS Image editing functions
SPECIAL
MODES
READY TO
1
Place the originals on the document glass or in the
optional document feeder tray.
2
Press the SPECIAL MODES key.
3
Press the “IMAGE EDIT” key on the touch panel.
●
The SPECIAL MODES screen will appear.
2-SIDED
COPY
READY TO COPY.
SPECIAL MODES
MARGIN SHIFT
CENTERING
COVERS
AUTO
EXPOSURE
3-30
OK
DUAL PAGE
COPY
ERASE
TRANSPARENCY INSERTS
COLOR
ADJUSTMENTS
1
2
AUTO
8/ 11
PAPER SELECT
IMAGE EDIT
100%
COPY RATIO
●
The IMAGE EDIT menu will appear.
IMAGE EDITING FUNCTIONS
IMAGE EDIT
SINGLE COLOR
PHOTO REPEAT
5
Press the upper “OK” key.
6
Make all other desired copier selections and enter the
desired number of copies.
7
Press the COLOR COPY START (
COPY START (
) key.
●
The “MIRROR IMAGE” key will be highlighted.
OK
MIRROR
MULTI-PAGE
ENLARGEMENT
SPECIAL FUNCTIONS Image editing functions
NEG./POS.
REVERSE
11 17
FULL-BLEED
4
3
OK
SPECIAL MODES
Press the “MIRROR IMAGE” key on the touch panel.
EXTRA SIZE
OK
OK
MIRROR
MULTI PAGE
NEG./POS.
REVERSE
11 17
N
1
2
3
4
5
6
INTERRUPT
CLEAR
ALL
7
8
AUDIT
0
3
INTERRUPT
CA
9
PROGRAM
C
P
CLEAR
●
6
CLEAR
ALL
) key or BLACK
To cancel the MIRROR IMAGE function, press the MIRROR
IMAGE again on the IMAGE EDIT menu screen.
CA
9
PROGRAM
C
P
CLEAR
CHAPTER
READY TO COPY.
3-31
IMAGE EDITING FUNCTIONS
PHOTO REPEAT
Original
PHOTO REPEAT is used to produce repeated images of a photo on a
single sheet of copy paper.
(Refer to the samples on page 2 to see the effect on copy images in relation
to the PHOTO REPEAT mode.)
Copy
C
C
C
B
C
B
B
B
C
●
Up to 24 repeats can be made on a single copy sheet. The number of
copies on a single sheet depends on the original size and copy paper
size.
●
Reduction or enlargement cannot be selected with this function. If
reduction or enlargement has been selected, the copy ratio will be reset
to 100% when this function is selected.
●
This function will not work when non-standard size paper is used.
B
3
CHAPTER
SPECIAL FUNCTIONS Image editing functions
1
Place the original on the document glass.
●
●
The optional document feeder cannot be used with this function.
Place 2 ½" x 4" and 2 ½" x 2 ½" originals as shown below.
Centering scale
Centering scale
Placing a
~2 " x 4"
original
SPECIAL
MODES
READY TO
Placing a
~2 " x 2
original
2
Press the SPECIAL MODES key.
3
Press the “IMAGE EDIT” key on the touch panel.
●
The SPECIAL MODES screen will appear.
2-SIDED
COPY
READY TO COPY.
SPECIAL MODES
MARGIN SHIFT
CENTERING
COVERS
AUTO
EXPOSURE
3-32
OK
DUAL PAGE
COPY
ERASE
TRANSPARENCY INSERTS
COLOR
ADJUSTMENTS
1
2
AUTO
8/ 11
PAPER SELECT
IMAGE EDIT
100%
COPY RATIO
●
The IMAGE EDIT menu will appear.
"
IMAGE EDITING FUNCTIONS
4
READY TO COPY.
OK
SPECIAL MODES
IMAGE EDIT
PHOTO REPEAT
●
The setting screen for PHOTO REPEAT will appear.
PLEASE SELECT REPEAT TYPE.
OK
MIRROR
MULTI-PAGE
ENLARGEMENT
NEG./POS.
REVERSE
11 17
FULL-BLEED
SINGLE COLOR
Press the “PHOTO REPEAT” key on the touch panel.
OK
SPECIAL MODES
PHOTO REPEAT
ORIGINAL SIZE
EXTRA SIZE
CANCEL
OK
REPEAT TYPE
8/1 2 11 11 17 1/2
CHAPTER
~3 5"
~5 7"
LEASE SELECT REPEAT TYPE.
INFOR
CUS
SETT
5
~3 5"
Select the desired repeat type.
●
Select the copy paper size depending on the original size.
●
When making PHOTO REPEAT copies of a ~2 ½" x4" or ~2 ½"
x 2 ½" original, press the
key to change the screen, and then
press the desired repeat type key (8 ½" x 11" or 11" x 17") as
appropriate for the original to be copied.
~5 7"
EAT TYPE.
INFORMATIO
OK
Press the upper “OK” key.
7
Make all other desired copier selections and enter the
desired number of copies.
8
Press the COLOR COPY START (
COPY START (
) key.
CUSTOM
SETTINGS
CANCEL
OK
REPEAT
TYPE
8/1 2 11 11 17
E
6
11 17
N
1
2
3
4
5
6
INTERRUPT
CLEAR
ALL
7
8
AUDIT
0
3
INTERRUPT
6
CLEAR
ALL
●
CA
If the copier has another paper tray (including the bypass tray)
that holds paper of the same size as the selected paper tray, the
tray can also be selected.
9
PROGRAM
C
P
CLEAR
●
) key or BLACK
To cancel the PHOTO REPEAT function, select the PHOTO
REPEAT function again and press the “CANCEL” key.
CA
9
PROGRAM
C
P
CLEAR
3-33
SPECIAL FUNCTIONS Image editing functions
CANCEL
OK
REPEAT TYPE
1
8/2 11 11 17 1/2
3
OK
PECIAL MODES
HOTO REPEAT
ORIGINAL SIZE
IMAGE EDITING FUNCTIONS
11 x 17 FULL-BLEED
Original
Copy
In other copy modes, image loss will occur along the copy edges. When the
11 x 17 FULL-BLEED function is used, the full image of an 11" x 17" size
original will be copied onto 12" x 18" size copy paper.
●
11" x 17"
Reduction or enlargement cannot be selected with this function. If
reduction or enlargement has been selected, the copy ratio will be reset
to 100% when this function is selected.
12" x 18"
3
CHAPTER
SPECIAL FUNCTIONS Image editing functions
1
Place the original on the document glass and close the
document cover.
●
SPECIAL
MODES
READY TO
The optional document feeder cannot be used with this function.
2
Press the SPECIAL MODES key.
3
Press the “IMAGE EDIT” key on the touch panel.
●
The SPECIAL MODES screen will appear.
2-SIDED
COPY
READY TO COPY.
SPECIAL MODES
MARGIN SHIFT
CENTERING
OK
ERASE
DUAL PAGE
COPY
TRANSPARENCY INSERTS
COVERS
COLOR
ADJUSTMENTS
IMAGE EDIT
AUTO
EXPOSURE
AUTO
11 17
PAPER SELECT
100%
COPY RATIO
3-34
●
The IMAGE EDIT menu will appear.
IMAGE EDITING FUNCTIONS
READY TO COPY.
OK
SPECIAL MODES
IMAGE EDIT
NEG./POS.
REVERSE
11 17
FULL-BLEED
SINGLE COLOR
PHOTO REPEAT
4
Press the “11 x 17 FULL-BLEED” key on the touch panel.
5
Press the upper “OK” key.
6
Load 12" x 18" copy paper into the bypass tray.
7
Press the “PAPER SELECT” key on the touch panel and
then select the paper type (16 ~ 28 lbs., 28+ ~ 35 lbs. or
35+ ~ 75 lbs.) in the bypass tray.
8
Make all other desired copier selections and enter the
desired number of copies.
9
Press the COLOR COPY START (
COPY START (
) key.
●
The “11 x 17 FULL-BLEED” key will be highlighted.
OK
MIRROR
MULTI-PAGE
ENLARGEMENT
EXTRA SIZE
3
CHAPTER
OK
NEG./POS.
REVERSE
N
1
2
3
4
5
6
INTERRUPT
CLEAR
ALL
7
8
AUDIT
0
3
INTERRUPT
6
CLEAR
ALL
CA
9
PROGRAM
C
P
CLEAR
●
) key or BLACK
To cancel the 11 x 17 FULL-BLEED function, press the “11 x 17
FULL-BLEED” key again on the IMAGE EDIT menu screen.
CA
9
PROGRAM
C
P
CLEAR
3-35
SPECIAL FUNCTIONS Image editing functions
OK
MIRROR
IMAGE EDITING FUNCTIONS
MULTI-PAGE ENLARGEMENT
This function is used to enlarge an original image to a size larger than 11"
x 17" and print divided images onto multiple sheets of copy paper.
(Refer to the samples on page 3 to see the effect on copy images in relation
to the MULTI-PAGE ENLARGEMENT.)
CHAPTER
3
SPECIAL
MODES
READY TO
SPECIAL FUNCTIONS Image editing functions
1
Press the SPECIAL MODES key.
2
Press the “IMAGE EDIT” key on the touch panel.
3
Press the “MULTI-PAGE ENLARGEMENT” key on the
touch panel.
●
The SPECIAL MODES screen will appear.
2-SIDED
COPY
READY TO COPY.
SPECIAL MODES
MARGIN SHIFT
CENTERING
OK
ERASE
TRANSPARENCY INSERTS
COLOR
ADJUSTMENTS
IMAGE EDIT
AUTO
EXPOSURE
AUTO
8/12 11
PAPER SELECT
100%
COPY RATIO
READY TO COPY.
OK
SPECIAL MODES
IMAGE EDIT
PHOTO REPEAT
NEG./POS.
REVERSE
11 17
FULL-BLEED
●
OK
MIRROR
MULTI-PAGE
ENLARGEMENT
OUTPUT
3-36
MULTI-PAGE ENLARGEMENT
ENLARGEMENT SIZE ORIGINAL
11 1
22 17 22 34
8/12 1
34 44 44 68
8/12 1
The setting screen for MULTI-PAGE ENLARGEMENT will
appear.
PLEASE SELECT ENLARGEMENT SIZE AND
ORIGINAL SIZE.
SPECIAL MODES
EXTRA SIZE
2-SIDED
COPY
The IMAGE EDIT menu will appear.
DUAL PAGE
COPY
COVERS
SINGLE COLOR
●
OK
CANCEL
OK
MULTI-PAGE ENLARGEMENT
ENLARGEMENT SIZE ORIGINAL SIZE & ORIENTATION
11 17
22 17 22 34
8/12 14
34 44 44 68
8/12 11
4
Select the desired enlargement size.
●
Select the desired size among the sizes displayed on the touch
panel.
IMAGE EDITING FUNCTIONS
CANCEL
OK
AGE ENLARGEMENT
EMENT SIZE ORIGINAL SIZE & ORIENTATI
11 17
7 22 34
8/12 14
4 44 68
8/12 11
5
Select the original size.
●
The original sizes that can be used depend on the selected
enlargement size.
●
The original orientation will be indicated depending on the
selected enlargement size and original size.
CHAPTER
7
Place the original on the document glass in accordance
with the indicated orientation.
3
6
Press the upper “OK” key.
CANCEL
OK
T
ORIGINAL SIZE & ORIENTATION
11 17
●
●
N
1
2
4
5
3
INTERRUPT
7
8
AUDIT
0
3
INTERRUPT
8
Make all other desired copier selections and enter the
desired number of copies.
9
Press the COLOR COPY START (
COPY START (
) key.
●
6
CLEAR
ALL
CA
9
PROGRAM
C
P
CLEAR
●
6
CLEAR
ALL
CA
●
9
PROGRAM
C
P
CLEAR
The area of the original that has been specified on the touch
panel will be scanned.
The optional document feeder cannot be used with this function.
The paper tray will be automatically selected. If the copier has
another paper tray (including the bypass tray) that holds the
paper of the same size as the selected paper tray, the tray can
also be selected.
) key or BLACK
The original image will be divided and copied onto multiple
sheets of paper. Overlapped areas will be made along the
leading and trailing edges of each copy.
To cancel the MULTI-PAGE ENLARGEMENT function, select
the MULTI-PAGE ENLARGEMENT function again and press
the “CANCEL” key.
3-37
SPECIAL FUNCTIONS Image editing functions
OK
IMAGE EDITING FUNCTIONS
EXTRA SIZE
The EXTRA SIZE function provides a method for entering the dimensions
of non-standard size copy paper and non-standard size originals for the
purpose of automatic enlargement or reduction of the image for a best fit
onto the copy paper.
★ KEY OPERATOR Extra paper size setting for each individual paper tray
of the copier can be made. See page 22 of the KEY OPERATOR’S GUIDE.
CHAPTER
3
1
Place the non-standard original on the document glass
or the non-standard copy paper into the bypass tray.
●
Either one or both can be set.
SPECIAL FUNCTIONS Image editing functions
SPECIAL
MODES
READY TO
2
Press the SPECIAL MODES key.
3
Press the “IMAGE EDIT” key on the touch panel.
●
The SPECIAL MODES screen will appear.
2-SIDED
COPY
READY TO COPY.
SPECIAL MODES
MARGIN SHIFT
CENTERING
OK
ERASE
DUAL PAGE
COPY
TRANSPARENCY INSERTS
COVERS
COLOR
ADJUSTMENTS
IMAGE EDIT
AUTO
EXPOSURE
AUTO
8/12 11
PAPER SELECT
100%
COPY RATIO
3-38
●
The setting screen for IMAGE EDIT selections will appear.
IMAGE EDITING FUNCTIONS
READY TO COPY.
OK
SPECIAL MODES
IMAGE EDIT
NEG./POS.
REVERSE
11 17
FULL-BLEED
SINGLE COLOR
PHOTO REPEAT
4
OK
MIRROR
MULTI-PAGE
ENLARGEMENT
Press the “EXTRA SIZE” key on the touch panel.
●
The setting screen for EXTRA SIZE will appear.
●
If an original on the document glass or paper in the bypass tray
is set on opening the EXTRA SIZE screen, the original and paper
dimensions in X (horizontal) and Y (vertical) will be shown
respectively on the ORIGINAL SIZE tab and the PAPER SIZE
FOR BYPASS tab.
EXTRA SIZE
As a starting point, the dimensions shown for extra size originals
or paper will be the closest match to standard sizes.
CHAPTER
READY TO COPY.
OK
EXTRA SIZE
CANCEL
8 1/2
5 1/2
3
X
Y
OK
(5 1/2~17)
inch
(4~11 3/4)
inch
SPECIAL FUNCTIONS Image editing functions
ENABLE AUTO SIZE DETECTION
ORIGINAL SIZE
PAPER SIZE FOR BYPASS
READY TO COPY.
OK
EXTRA SIZE
CANCEL
X
Y
8 1/2
5 1/2
OK
(5 1/2~17)
inch
(4~11 3/4)
inch
ENABLE AUTO SIZE DETECTION
PAPER SIZE FOR BYPASS
ORIGINAL SIZE
READY TO COPY.
OK
EXTRA SIZE
CANCEL
X
Y
1
OK
5
Adjust the original size on the “ORIGINAL SIZE” tab and
paper size on the “PAPER SIZE FOR BYPASS” tab,
respectively.
●
Adjust each X (horizontal) and Y (vertical) dimension using the
and
keys.
●
If the “ENABLE AUTO SIZE DETECTION” check box is checked
on either tab, the size detection function will be activated. In this
case, the “X/Y” keys and “
/
” keys will be grayed out not
to allow any input.
(5 1/2~17)
4 inch
12 /
4
(4~11 3/4)
inch
ENABLE AUTO SIZE DETECTION
ORIGINAL SIZE
PAPER SIZE FOR BYPASS
READY TO COPY.
OK
EXTRA SIZE
CANCEL
X
Y
OK
(5 1/2~17)
inch
(4~11 3/4)
inch
ENABLE AUTO SIZE DETECTION
ORIGINAL SIZE
PAPER SIZE FOR BYPASS
3-39
IMAGE EDITING FUNCTIONS
I
6
Press the upper “OK” key on the touch panel.
7
Press the “AUTO IMAGE” key on the touch panel.
8
Enter the desired number of copies and press either of
the COLOR COPY START (
) key or BLACK COPY
START (
) key.
OK
CANCEL
3
CHAPTER
2 1/4
OK
(5 1/2~17)
inch
SPECIAL FUNCTIONS Image editing functions
11
17
14
/4 Y-4
SELECT
1
2
INTE
3INTERRUPT
4
5
6
CLEAR CLE
CA
AL
ALL
8
9
C C
PROGRAM
AUDIT
0
3-40
Refer to page 2-11 for the AUTO IMAGE function.
AUTO IMAGE
100%
COPY RATIO
1
7
●
P
CLEAR
CL
CHAPTER 4
SUPPLIES
This chapter describes the supplies for this copier such as paper and
toner.
●
●
4-1
4
●
CHAPTER
●
Page
PAPER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Types and sizes of copy paper . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Loading copy paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
ADDING TONER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
USED TONER DISPOSAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
STORAGE OF SUPPLIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
PAPER
Types and sizes of copy paper
●
Size
Weight
Capacity
(20 lb. bond paper)
Paper trays
5-1/2" x 8-1/2"
to 11" x 17"
16 lbs. to 28 lbs.
500 sheets
Bypass tray
5-1/2" x 8-1/2"
to 12" x 18"
16 lbs. to 75 lbs.
(Ordinary paper)
50 sheets
For best results, use only paper recommended by SHARP.
4
CHAPTER
SUPPLIES Paper
Loading copy paper
“OPEN TRAY
AND ADD PAPER.” will be displayed when there is
no copy paper in a selected paper feed station.
When a selected paper tray is not installed or is improperly installed,
“PUSH PAPER TRAY
INTO MACHINE UNTIL IT LATCHES.”
will be displayed. Install it or push it back firmly into place.
For best results, use only Sharp recommended paper.
4-2
Special paper
Transparency film, cover stock
(104 lbs.), index stock (155 lbs.)
PAPER
Loading paper in the paper trays
2
Fan the copy paper and insert it into the tray.
4
CHAPTER
1
Gently lift and pull out the paper tray.
SUPPLIES Paper
●
Maximum height line
3
The tray holds 500 sheets of 20 lb. bond paper.
Do not load paper above the maximum height line.
Push the paper tray firmly back into the copier.
4-3
PAPER
Changing the copy paper size in the tray
1
Gently lift and pull out the paper tray until it stops.
2
Adjust the paper size indicator to match the paper size
to be set.
●
Slide the paper size indicator to the right or left to match the paper
size.
CHAPTER
Paper size indicator
4
SUPPLIES Paper
3
Adjust the front guide and left guide while squeezing
their lock levers.
●
Left guide
Maximum height line
Paper size card
4-4
Slide the front and left guides to match the width and length of the
copy paper.
Front guide
4
Load copy paper into the tray.
5
Place the paper size card in the front of the paper tray.
6
Push the paper tray firmly back into the copier.
●
The paper size card has three faces. Fold the card properly to
show the selected paper size. The paper size indication which
shows through the slot on the front of the copier should match the
selected paper size.
ADDING TONER
The message “
TONER SUPPLY IS LOW.
” will appear in
the message display before the toner supply is completely empty.
(
indicate toner types. Y : yellow, M : magenta, C : cyan, BK :
black) If copying is continued, copies will gradually become lighter until
the copier stops and the message display changes to “ADD
TONER.PRESS
.” indicating that the toner supply is empty. Toner
can be added any time after the message “
TONER SUPPLY IS
LOW. ” appears. To add toner, stop the copier and proceed as below.
When either message appears, you can use the INFORMATION key
for detailed information as necessary.
If any color toner supply is empty, color copying cannot be performed.
However, black/white copying can be performed unless the black
toner supply is empty.
During long copy runs of multiple originals containing many images
and/or dark shades, “TONER REPLENISHMENT IN PROGRESS.” may
appear and the copier may stop making copies even though toner is
left.
The copier will automatically cycle and replenish the toner to the
normal level and then the START key indicator will light up. Press the
START key to resume copying.
For best copying results, be sure to use
only Sharp Genuine Supplies which are
designed, engineered, and tested to
maximize the life and performance of
Sharp copiers.
Look for the Genuine Supplies label on
the toner package.
GENUINE SUPPLIES
4
CHAPTER
2
Push the lock release buttons on both sides of the toner
box and pull the toner box out slowly until it stops.
SUPPLIES Adding toner
1
Open the front cover.
●
The toner hoppers are located as below.
Magenta
Black
Cyan
Yellow
4-5
ADDING TONER
20 x
3
5x
Tap on the top of the new toner cartridge 5 times. Then
hold the toner cartridge horizontally and vigorously
shake it about 20 times. This will loosen the toner and
allow it to flow more easily into the toner hopper.
CHAPTER
CAUTION
Be sure to perform these steps. If not, toner may not flow easily into
the toner hopper.
4
SUPPLIES Adding toner
4
Place the new toner cartridge with the protrusions into
the notches of the relevant toner hopper as shown.
●
5
Slide the toner cartridge along the guides over the toner
hopper.
6
Hold the toner cartridge with one hand while pulling on
the sealing tape to remove it.
●
Sealing tape
4-6
The left example shows the toner hopper of black toner.
It will take about 40 seconds for the cartridge to empty.
ADDING TONER
7
Tap on the top of the toner cartridge to ensure that the
cartridge completely empties.
CAUTION
4
CHAPTER
Be sure to perform this step. If not, some toner may be scattered
when the cartridge is removed.
●
9
10
The cartridge opening will be closed as it is moved back along
the guides.
Push the toner box back into the copier.
Close the front cover.
NOTE:
Add only one cartridge of the color toner indicated as being low or
empty.
4-7
SUPPLIES Adding toner
8
Slide the empty toner cartridge back along the guides
and remove it.
USED TONER DISPOSAL
“REPLACE USED TONER CONTAINER. PRESS
FOR GUIDANCE.”
will appear when the toner collecting container is full.
The copier will stop and will not operate until a new container has been
installed. Replace the toner collecting container as described below.
When the above message is displayed, you can use the INFORMATION
key for detailed information as necessary.
1
Open the toner collecting container cover.
2
Disengage and remove the container from the copier.
●
Push once on the door to unlatch and open it.
4
CHAPTER
SUPPLIES Used toner disposal
New container
4-8
●
Toner cannot be reused. Do not transfer used toner to the toner
hopper.
●
Remove the cap from a new toner collecting container and use
it to cover the full toner collecting container.
●
Keep the full toner collecting container until the next regular
service call. Your authorized Sharp Service Technician will
collect the container for disposal.
Removed container
3
Install a new toner collecting container until it clicks into
place.
4
Close the toner collecting container cover.
STORAGE OF SUPPLIES
The supplies of this copier replaced by the user include copy paper,
toner, toner collecting container, and staple cartridges for the optional
staple sorter (AR-SS2) and the finisher (AR-FN4).
For best copying results, be sure to use
only Sharp Genuine Supplies which are
designed, engineered, and tested to
maximize the life and performance of
Sharp copiers. Look for the Genuine
Supplies label on the toner package.
GENUINE SUPPLIES
Photoconductive drum
1
2
Store the supplies in a location that is:
●
clean and dry,
●
at a stable temperature,
●
not exposed to direct sunlight.
Store copy paper in the wrapper and lying flat.
●
Paper stored in packages standing up or out of the wrapper may
curl or become damp, resulting in paper misfeeds.
4-9
SUPPLIES Storage of supplies
Proper storage
4
WARNING
This feature requires drums containing the special reflectance area
(recommended Sharp genuine photoconductive drum), to prevent
low image density copies from poor process control and possible
damage to the machine. If you use other drums, the process control
system cannot run properly.
CHAPTER
The AR-C160 Copier has advanced process control technology
which improves copy quality uniformity. This feature stabilizes copy
quality throughout the life of the photoconductive drum by automatically
compensating for the changes in drum characteristics due to wear,
operator use patterns, and environmental conditions. The automatic
adjustments are made in response to a sensor that detects the
reflectance characteristics of the drum.
CHAPTER 5
COPIER TROUBLE?
This chapter describes how to remove misfed originals and paper and
other common trouble remedies.
●
●
●
●
Page
MISFEED REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
MAINTENANCE REQUIRED . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11
TONER COLLECTING CONTAINER OF TRANSFER UNIT . . . 5-12
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13
5
CHAPTER
5-1
MISFEED REMOVAL
When a misfeed occurs, the copier will stop.
The message “MISFEED HAS OCCURRED. CLEAR
INDICATED AREA. PRESS
FOR RECOVERY
INSTRUCTIONS.” will appear with a display of paper
misfeed locations. Press the INFORMATION key for
more detailed information as necessary.
If paper becomes accidentally torn during removal, be
sure to remove all pieces. Be careful not to damage the
photoconductive drum or the corona wires.
First confirm the misfeed locations.
For misfeeds in an optional staple sorter, see page 7-13.
For misfeeds in an optional large capacity tray, see page
7-17.
For misfeeds in an optional finisher, see page 7-26.
(
(
P. 5-2)
P. 5-6)
P. 5-3)
(
P. 5-5)
P. 5-9)
5
CHAPTER
(
(
COPIER TROUBLE? Misfeed removal
Misfeed in the optional RADF
MISFEED HAS OCCURRED.
When the optional RADF misfeeds an original sheet, the copier will
stop and the misfeed message will appear.
CLEAR INDICATED AREA.
PRESS FOR RECOVERY INSTRUCTIONS.
An original misfeed may occur at one of three locations:
(A) in the RADF feed section, (B) in the exit roller, or (C)
under the transport belt.
A
5-2
C
B
MISFEED REMOVAL
(A) Open the feeding roller cover and pull the original gently
to the right and out from the document feeder tray.
Feeding roller cover
●
Be sure to open and close the document feeder cover to cancel
the misfeed display.
(B) Open the exit roller cover and gently pull the original
out.
●
Be sure to open and close the document feeder cover to cancel
the misfeed display.
Exit roller cover
(C) Open the feeding roller cover and the document feeder
cover, and remove the original.
COPIER TROUBLE? Misfeed removal
Misfeed in the bypass tray
CLEAR INDICATED AREA.
PRESS FOR RECOVERY INSTRUCTIONS.
1
5
MISFEED HAS OCCURRED.
CHAPTER
NOTE:
After misfed originals are removed from locations A, B and/or C, a
message may appear indicating the number of originals which must
be returned to the document feeder tray. Return the originals and
press the START key to resume copying.
Open the front cover.
5-3
MISFEED REMOVAL
2
Turn the transport lever to the left.
3
Turn roller rotating knob A in the direction of the arrow
to feed the misfed paper into the copier.
●
●
Do not pull out the paper transport in this step.
Do not pull the misfed paper out through the bypass tray because
unfixed toner may soil the inside of the copier.
Roller rotating knob A
Pull out the paper transport.
5
Remove the misfed paper.
6
Push the paper transport back securely into the copier
and turn the transport lever back.
5
CHAPTER
4
COPIER TROUBLE? Misfeed removal
5-4
MISFEED REMOVAL
7
MISFEED HAS OCCURRED.
Close the front cover.
Misfeed in the paper trays
CLEAR INDICATED AREA.
PRESS FOR RECOVERY INSTRUCTIONS.
1
Open the right side covers.
2
Remove the misfed paper.
3
If the paper cannot be seen from the side, pull out the
paper tray which was in use and remove the misfed
paper.
●
Grasp the handle and gently open the cover.
5
CHAPTER
●
Be careful not to tear the misfed paper during removal.
Be careful not to tear the misfed paper during removal.
5-5
COPIER TROUBLE? Misfeed removal
●
MISFEED REMOVAL
4
MISFEED HAS OCCURRED.
Close the paper tray and the side covers.
●
Confirm that the misfeed display is cleared.
Misfeed in the transport area, exit area and
fusing area
CLEAR INDICATED AREA.
PRESS FOR RECOVERY INSTRUCTIONS.
2
Turn the transport lever to the left.
3
Check to see if any paper is misfed in the exit area.
5
CHAPTER
1
Open the front cover.
COPIER TROUBLE? Misfeed removal
Roller rotating knob B
●
●
Do not pull out the paper transport in this step.
If any paper is misfed, turn roller rotating knob
of the arrow to remove the misfed paper.
B
in the direction
NOTE:
Be sure to turn roller rotating knob B only in the direction of the
arrow. If the knob is turned in the opposite direction, the copier may
malfunction.
5-6
MISFEED REMOVAL
4
Open the upper right side cover to check to see if any
paper is misfed.
1
Grasp the handle and open the cover.
2
If any misfed paper is seen, turn roller rotating knob A in the
direction of the arrow to feed the misfed paper into the copier.
3
Gently close the upper right side cover.
Roller rotating knob A
5
CHAPTER
Caution
6
Remove any misfed paper from the paper transport.
●
If misfed paper has been fed into the copier in step 4 or paper has
misfed on the transport belt, gently remove misfed paper not to
touch the belt.
5-7
COPIER TROUBLE? Misfeed removal
5
Pull out the paper transport.
MISFEED REMOVAL
If the misfed paper is in the fusing unit:
1
Open the fusing unit cover in the direction of the arrow.
CAUTION
The fusing unit is hot. Use care in removing paper.
2
Roller rotating knob B
Turn roller rotating knob
remove the misfed paper.
B
in the direction of the arrow to
NOTE:
Be sure to turn roller rotating knob B only in the direction of the
arrow. If the knob is turned in the opposite direction, the copier may
malfunction.
3
Return the fusing unit cover securely to its original position.
5
CHAPTER
COPIER TROUBLE? Misfeed removal
5-8
7
Push the paper transport back securely into the copier
and turn the transport lever back.
8
Close the front cover.
●
Confirm that the misfeed display is cleared.
MISFEED REMOVAL
Misfeed in the optional duplex module
MISFEED HAS OCCURRED.
NOTES:
CLEAR INDICATED AREA.
PRESS FOR RECOVERY INSTRUCTIONS.
●
For misfeed removal from an optional staple sorter (AR-SS2) or an
optional finisher (AR-FN4), please refer to chapter 7 Optional
Equipment.
●
If any other misfeed locations are indicated, be sure to remove any
misfed paper from these locations before pulling out the duplex
module. If not, a sheet of paper in another location may become torn
and difficult to remove.
2
Remove the misfed paper.
3
Close the left side cover
4
Pull out the duplex module.
5
CHAPTER
1
Open the left side cover.
COPIER TROUBLE? Misfeed removal
5-9
MISFEED REMOVAL
5
Remove the misfed paper.
●
Turn roller rotating knob C in the direction of the arrow and
remove the misfed paper.
●
Slide the paper guide if needed.
Roller rotating knob C
6
5
CHAPTER
COPIER TROUBLE? Misfeed removal
5-10
Push the duplex module back into the copier.
MAINTENANCE REQUIRED
When the message “READY TO COPY. (MAINTENANCE REQUIRED.
CODE: )” appears in the message display, service by an authorized
Sharp Service Technician will be required soon. Contact your Service
Center as soon as possible.
5
CHAPTER
COPIER TROUBLE? Maintenance required
5-11
TONER COLLECTING CONTAINER OF
TRANSFER UNIT
When the message “TONER COLLECTING CONTAINER OF TRANSFER
UNIT IS FULL. CALL FOR SERVICE.” appears in the message
display, contact your Service Center.
5
CHAPTER
COPIER TROUBLE? Toner collecting container of transfer unit
5-12
TROUBLESHOOTING
Always check the message display whenever the copier stops or
operation is not possible. The messages will give you easy-to-follow
directions. If the messages do not give specific instructions, check the
list below.
Problem
Solution
●
Copier plugged in?
Plug the copier into a grounded outlet.
●
Power switch on?
Turn the power switch on.
●
Copy density properly adjusted?
See page 2-16.
●
Is the original placed face down on
the document glass or face up in
the optional RADF?
Place the original face down on the
document glass or face up in the RADF.
●
Paper too heavy?
Use copy paper within the specified
range. See page 4-2.
●
Paper damp?
Replace with dry copy paper. Be sure
to store copy paper in a dry location.
●
Paper size indicator properly set?
When changing the copy paper size in
a tray, be sure to adjust the paper size
indicator. See page 4-4.
Copier does not operate.
Copies are too dark or too
light.
Blank copies.
COPIER TROUBLE? Troubleshooting
5-13
5
Copy size is different from
the selected paper size.
CHAPTER
Copies smear if rubbed.
TROUBLESHOOTING
Problem
Solution
●
Non-standard paper used?
Use standard paper.
If using special papers, feed the paper
through the bypass tray.
●
Is paper properly installed?
See pages 2-14 and 4-2.
●
Pieces of paper inside copier?
Remove all pieces of misfed paper. See
page 5-2.
●
Paper curled or damp?
Store copy paper flat in the wrapper in a
dry location. See page 4-9.
Dust, dirt, smudges appear
on copies.
●
Document glass, optional
document cover or optional
RADF transport belt dirty?
Clean regularly. See page 6-6.
Touch panel is too dark or
too light.
●
Is LCD contrast properly
adjusted?
Adjust the LCD contrast.
See page 6-7.
Paper misfeeds frequently.
5
CHAPTER
COPIER TROUBLE? Troubleshooting
If a problem persists after checking the above, please consult your
authorized Sharp Service Center.
Self-diagnostic function
An automatic self-diagnostic function is built into this copier. Should the
copier malfunction, the self-diagnostic function will locate the problem
and stop the copier to prevent damage. An alphanumeric code will
appear in the message display.
Example
Should the copier stop completely, and the message “CALL FOR
SERVICE. CODE: - ” appear in the message display, contact
your authorized Sharp Service Center.
★ KEY OPERATOR
5-14
See page 35 of the KEY OERATOR’S GUIDE.
CHAPTER 6
GENERAL INFORMATION
This chapter describes general information for using this copier.
●
●
●
●
Page
PART NAMES AND FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
Operation panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
Touch panel (Basic screen) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
USER MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
TOUCH PANEL CONTRAST ADJUSTMENT . . . . . . . . . . . . . . . 6-7
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
6
CHAPTER
6-1
PART NAMES AND FUNCTIONS
Exterior
[AR-C160 with optional document cover]
[Optional RADF]
6
CHAPTER
Exit tray
Finished copies are deposited in the exit tray.
Paper trays
Each tray holds 500 sheets of 20 lb. bond paper.
Power switch
Press to turn copier power on and off.
Front cover
Open to remove misfeeds and to service the
copier.
Operation panel
All copier controls are located here for easy
operation.
Original holder (optional)
Keep originals here.
GENERAL INFORMATION
Part names and functions
Document cover (optional)
Place the original on the document glass and close
the document cover before copying starts.
Right side covers
Open to remove misfeeds in the paper feed area.
Document glass
All originals which cannot be copied from the
optional RADF must be copied here.
Paper clip tray
Keep paper clips here.
Toner collecting container cover
Open to replace the toner collecting container.
Bypass tray paper guides
Adjust to the width of the copy paper.
Duplex module or 500-sheet paper drawer
(optional)
The copier can be equipped with either a duplex
module or a 500-sheet paper drawer. When
neither is installed, the opening is covered. The
duplex module provides duplex copying capability.
Bypass tray
Special papers (including transparency film) and
copy paper can be fed from the bypass tray.
6-2
PART NAMES AND FUNCTIONS
Interior
Fusing unit
The fusing unit is hot. Exercise care in this area.
Document feeder indicators (document feeder
is optional)
Original feed indicator
Indicates the originals in the tray will be fed.
Original reminder
Indicates an original is still on the document glass.
Roller rotating knobs
Turn to remove misfed paper.
Paper transport
Pull out to remove misfed paper.
NOTE:
Follow information messages for misfeed removal
procedure. (See page 5-2 to 5-10.)
RADF exit area (RADF is optional)
Finished originals are output here.
Accessories
RADF exit roller cover (RADF is optional)
Open to remove misfed originals.
Toner box
Contains four toner hoppers. Each toner hopper
contains relevant color toner or black toner.
Operation manual . . . . . . . . . . . . . . . . . . . . . 1
Key operator’s guide . . . . . . . . . . . . . . . . . . . 1
Toner collecting containers
(including 1 pre-installed at the factory) . . . . . 2
6-3
GENERAL INFORMATION
Part names and functions
Document feeder tray (optional)
Holds up to 50 originals.
Transport lever
Turn to pull out the paper transport.
6
Original guides (optional)
Adjust to the size of the originals.
CHAPTER
RADF feeding roller cover (optional)
Open to remove misfed originals.
PART NAMES AND FUNCTIONS
Operation Panel
SPECIAL
MODES
DATA
INFORMATION
ON LINE
1
2
3
4
5
6
INTERRUPT
CUSTOM
SETTINGS
PRINT
COPY
2-SIDED
COPY
OUTPUT
CLEAR
ALL
7
8
AUDIT
0
CA
9
PROGRAM
C
P
CLEAR
The key and
indicators are not
used for the copier
features.
LCD touch panel
Displays information to assist the operator.
Various operation keys are included in the touch
panel depending on the particular screen being
displayed.
CLEAR ( C ) key
Press to clear the copy quantity display, or press
during a copy run to terminate copying. The
copier will stop after copies in progress are
finished.
10-key pad
Used to set the copy quantity.
COLOR COPY START (
) key and
indicator
Color copying is possible when the indicator is on.
Press to start color copying.
INTERRUPT key and indicator (p. 2-20)
Interrupts a copy run.
6
CHAPTER
CLEAR ALL ( CA ) key
Clears all selected settings and returns the copier
to the initial settings.
GENERAL INFORMATION
Part names and functions
COPY key
Press to return to the COPY mode when the
PRINT mode is active. If pressed in the COPY
mode, the total output count will be displayed
during the key press.
Press to exit the sleep mode.
BLACK COPY START (
) key and indicator
Black/white copying is possible when the
indicator is on.
Press to start black/white copying.
SPECIAL MODES key (p.3-1)
Press to select special functions.
Message display
Messages are displayed regarding copier status
and operation.
AUDIT key
Press to enter the account number if the auditing
mode has been set for only the color copy mode.
Also closes an open account.
Paper size display
The sizes of loaded copy paper are displayed and
the selected paper feed location is highlighted.
indicates the amount of copy paper.
PROGRAM ( P ) key (p. 2-18)
Press to select the job memory mode.
Copy quantity display
Displays the specified number of copies.
Original size display
The original paper size is displayed.
6-4
PART NAMES AND FUNCTIONS
Touch Panel (Basic screen)
SPECIAL
MODES
READY TO COPY.
INFORMATION
ORIGINAL
812 11
CUSTOM
SETTINGS
812 11R
2-SIDED
COPY
1.812 11
2.11 17
3.812 14
OUTPUT
AUTO
EXPOSURE
AUTO
8/12 11
PAPER SELECT
INFORMATION key (p. 1-7)
Press for operation guidance on use of various
features of this copier.
Press for guidance when a misfeed occurs, when
adding toner, or when used toner must be
disposed of.
CUSTOM SETTINGS key
Press to set key operator programs or adjust the
contrast of the touch panel.
EXPOSURE key (p. 2-16)
Press to select the exposure mode: AUTO or
MANUAL and TEXT/PRTD. PHOTO, TEXT/
PHOTO, TEXT, PHOTO, PRINTED PHOTO or
MAP. The COPY OF COPY and COLOR TONE
ENHANCEMENT modes can also be selected
with this key.
COPY RATIO display
Displays the copy ratios for reductions or
enlargements.
COPY RATIO key
Press to select a reduction or enlargement copy
ratio or select the automatic copy ratio selection
mode.
Initial settings
The copier assumes the initial settings when it is
turned on, when the CLEAR ALL ( CA ) key is pressed,
and approximately 1 minute after the last copy is
made in any mode.
● Copy ratio: 100%
● Automatic exposure, TEXT/PRTD. PHOTO mode
● Copy quantity: 0
● All special copier modes are set to off.
● Tray select: Paper tray 1.
Optional large capacity tray will be selected when
installed.
★ KEY OPERATOR
Initial settings can be
programmed as desired. The auto clear time can also
be changed. See pages 21 and 25 of the KEY
OPERATOR’S GUIDE.
6-5
GENERAL INFORMATION
Part names and functions
EXPOSURE display
Indicates the selected exposure mode.
PAPER SELECT key
Press to select the desired paper tray.
6
OUTPUT key
Press to select the sorter mode when an optional
staple sorter (AR-SS2) is installed.
PAPER SELECT display
Displays the selected paper size. When “AUTO”
is displayed, paper size matching the original and
copy ratio will be automatically selected.
CHAPTER
2-SIDED COPY key
Press to select the 1-sided to 1-sided, 1-sided to
2-sided*, 2-sided to 2-sided* or 2-sided to
1-sided* copy mode.
* To select the 1-sided to 2-sided or 2-sided to
2-sided copy mode, an optional duplex module
(AR-DU2N) must be installed. To select the
2-sided to 1-sided or 2-sided to 2-sided copy
mode, an optional RADF must be installed.
100%
COPY RATIO
USER MAINTENANCE
The document glass, the optional document cover or the transport belt
of the optional RADF must be kept clean to avoid dirty areas from being
copied onto the copies.
Document glass and document cover
Wipe the document glass, the optional document cover
or the transport belt of the optional RADF with a soft,
clean cloth.
●
6
CHAPTER
GENERAL INFORMATION
User maintenance
6-6
If necessary, dampen the cloth with water. Do not use thinner,
benzene, or similar volatile cleaning agents.
TOUCH PANEL CONTRAST ADJUSTMENT
The contrast of the touch panel can be adjusted as below.
1
CUSTOM
SETTINGS
1
Press the CUSTOM SETTINGS key.
2
Press the “DISPLAY CONTRAST” key on the touch
panel.
3
Press the “LIGHTER” or “DARKER” key to adjust the
contrast.
4
Press the “OK” key.
4
7
AUDIT
EXI
ETTINGS
KEY OPERATOR
PROGRAMS
DISPLAY
CONTRAST
TTINGS
ONTRAST
6
CHAPTER
/
GENERAL INFORMATION
Touch panel contrast adjustment
LIGHTER
DARKER
OK
R
DARKER
6-7
SPECIFICATIONS
COPIER
6
CHAPTER
GENERAL INFORMATION
Specifications
6-8
Type
Console
Copy system
Dry, electrostatic transfer system
Originals
Sheets, bound documents
Original sizes
Max. 11" x 17"
Copy paper sizes
Max. 12" x 18", min. 5-1/2" x 8-1/2"
Image loss: Max. 13/64" (5 mm) (leading edge)
Max. 9/32" (7 mm) (trailing edge)
Max. 1/4" (6 mm) (along all other edges in total)
Copying speed
Color:
16 copies/min. (8-1/2" x 11")
11 copies/min. (8-1/2" x 11"R)
9 copies/min. (8-1/2" x 14")
7 copies/min. (11" x 17")
Continuous copy
Max. 999 copies; subtractive counter
First-copy time*
Color : 9.8 sec. , Black/White : 19.5 sec.
*From the first tray. In the default setting.
Warm-up time
Approx. 330 sec. (at 68°F)
Copy ratio
Variable: 25 to 400% in 1% increments, total 376 steps
(can be set in the horizontal and vertical directions independently)
Fixed presets: 25%, 50%, 64%, 77%, 95%, 100%, 121%, 129%,
141%, 200%, 400%
Exposure system
Moving optical source (stationary platen) with automatic exposure
function
Copy paper feed
Three paper trays with automatic paper feed (500 sheets each);
one bypass tray with 50-sheet automatic feed capability
Fusing system
Heat rollers
Developer system
Magnetic brush development
Light source
Halogen lamp
Resolution
Scan: 600 dpi
Output: 600 dpi
Gradation
Scan: 256 levels
Output: 256 levels
Required power supply
AC 120V, 60 Hz, 12 amperes
Power consumption
Max. 1.5 kW
Overall dimensions
55-19/32" (W) x 27-3/8" (D)
(1412 mm (W) x 695 mm (D))
Weight
Approx. 335 lbs. (152 kg)
Black/White:
32 copies/min. (8-1/2" x 11")
22 copies/min. (8-1/2" x 11"R)
17 copies/min. (8-1/2" x 14")
15 copies/min. (11" x 17")
SPECIFICATIONS
Copier dimensions
(with optional document
cover)
29-17/32" (W) x 27-3/8" (D) x 41-47/64" (H)
(750 mm (W) x 695 mm (D) x 1060 mm (H))
Opperating conditions*
Temperature: 59°F to 95°F (15°C to 35°C)
Humidity:
20% to 80%
* If the temperature is higher than 86°F (30°C), the humidity should be
lower than 60%.
Optional equipment
Document cover (AR-VR2)
Reversing automatic document feeder (AR-RF1)
20-bin staple sorter (AR-SS2)
Finisher (AR-FN4)
Large capacity tray (AR-LC2N)
500-sheet paper drawer (AR-CS2N)
Duplex module (AR-DU2N)
Fiery print controller (AR-PE2)
Print engine power supply unit (AR-PX4)
REVERSING AUTOMATIC DOCUMENT FEEDER (optional)
Acceptable originals
Weight:
Size:
Capacity:
Single-sided originals: 14 to 34 lbs.
Two-sided originals: 14 to 34 lbs. for 5-1/2" x 8-1/2"and
8-1/2" x 11" originals.
14 to 29 lbs. for 8-1/2"x 14" and 11" x 17" originals.
5-1/2" x 8-1/2" to 11" x 17"
Up to 50 sheets for 5-1/2" x 8-1/2" and 8-1/2" x 11" originals provided
the total aggregate thickness does not exceed 1/4" or 6.5 mm (14 to
20 lbs.) or 3/16" or 5 mm (21 to 34 lbs.) Up to 30 sheets for 8-1/2" x
14" and 11" x 17" originals.
CHAPTER
Ordinary paper only
Number of copies
1 (trayless system)
Copy paper size
5-1/2" x 8-1/2", 7-1/4" x 10-1/2"R, 8-1/2" x 11", 8-1/2" x 11"R,
8-1/2" x 13", 8-1/2" x 14", 11" x 17"
Copy paper weight
15 lbs. to 28 lbs.
GENERAL INFORMATION
Specifications
Paper type
6
DUPLEX MODULE (optional)
6-9
SPECIFICATIONS
Acoustic Noise Emission (measurement according to ISO7779)
Printing mode
Color
6.4B
6.3B
5.2B
Bystander positions
50dB(A)
48dB(A)
24dB(A)
Operator position
50dB(A)
49dB(A)
24dB(A)
Sound power level LwA
Sound pressure
level LpA
Emission Concentration (measurement according to RAL UZ62)
Ozone
0.02 mg/m3 or less
Dust
0.075 mg/m3 or less
Styrene
0.07 mg/m3 or less
Specifications are subject to change for improvement without notice.
6
CHAPTER
GENERAL INFORMATION
Specifications
6-10
Standby mode
Black/White
CHAPTER 7
OPTIONAL EQUIPMENT
This chapter describes operating instructions for the 20-Bin Staple Sorter
(AR-SS2), Large Capacity Tray (AR-LC2N) and Finisher (AR-FN4).
●
●
●
●
7
7-1
CHAPTER
Page
SYSTEM CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
20-BIN STAPLE SORTER (AR-SS2) . . . . . . . . . . . . . . . . . . . . . . 7-3
Part names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Using the staple sorter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Sorter capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
Staple sort . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
Manual stapling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8
Staple cartridge replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9
Staple jam removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-11
Misfeed removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-13
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-14
LARGE CAPACITY TRAY (AR-LC2N) . . . . . . . . . . . . . . . . . . . . 7-15
Part names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-15
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-15
Loading copy paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-16
Misfeed removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-17
FINISHER (AR-FN4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19
Part names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19
Offset stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-20
Staple print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-21
Staple cartridge replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-22
Staple jam removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-24
Misfeed removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-26
SYSTEM CONFIGURATION
The options which are available for this copier are shown below.
20-bin staple sorter (AR-SS2)
Reversing automatic
document feeder (AR-RF1)
Document cover (AR-VR2)
Finisher (AR-FN4)
Duplex module
(AR-DU2N)
500-sheet paper drawer (AR-CS2N)
Large capacity tray (AR-LC2N)
OPTIONAL EQUIPMENT
System configuration
The front cover is to be
transferred from the main unit.
7
CHAPTER
NOTE:
The specifications of the 500-sheet
paper drawer (AR-CS2N) are the same
as those of the paper trays in the copier.
See page 4-2.
7-2
Print engine power supply unit (AR-PX4)
Fiery print controller (AR-PE2)
The operation manuals for the printer
controller are supplied with this controller.
20-BIN STAPLE SORTER (AR-SS2)
There are two sorter modes for different copying jobs: one sorts
copies into sets matching the sequence of the originals and the
second groups copies from different originals into separate sort bins.
The AR-SS2 20-Bin Staple Sorter has, in addition to the above two
modes, a STAPLE SORT mode. Sorted copies can be automatically
stapled together.
The maximum allowable number of copies varies with the selected
mode.
The number of copies will be automatically reset to the maximum
number allowable for the selected mode when copying begins if this
maximum is exceeded.
★KEY OPERATOR
In the default setting, if the number of copies
exceeds the bin capacity in the SORT or the STAPLE SORT mode, the
copying will be automatically stopped. To cancel this setting, see page 24
of the KEY OPERATOR'S GUIDE.
PART NAMES
Staple required indicator
Manual staple key
OPTIONAL EQUIPMENT
20-bin staple sorter (AR-SS2)
Stapler cover
7
CHAPTER
Sort bins
CAUTION
●
●
Do not put pressure on the sorter or subject it to undue force.
Do not place your hands on the sorter during copying because the sorter moves up and down.
7-3
20-BIN STAPLE SORTER (AR-SS2)
Using the staple sorter
SORT
GROUP
Press the OUTPUT key and select the desired mode.
To cancel the mode, press the OUTPUT key and select “NON
SORT” on the touch panel.
READY TO COPY.
NON-SORT
OK
OUTPUT
NON SORT
AUTO
EXPOSURE
SORT
STAPLE
SORT
AUTO
8/12 11
PAPER SELECT
GROUP
100%
COPY RATIO
READY TO COPY.
When none of the three sorter modes, SORT, STAPLE SORT or
GROUP is selected, the copier is in the NON-SORT mode. In this
mode, all copies will be deposited in the top bin of the sorter.
Be sure to use the NON-SORT mode when copying onto special
papers such as transparency film or label stock.
SORT
OK
OUTPUT
Press the OUTPUT key and select the SORT mode.
NON SORT
OPTIONAL EQUIPMENT
20-bin staple sorter (AR-SS2)
AUTO
EXPOSURE
SORT
STAPLE
SORT
AUTO
8/12 11
PAPER SELECT
GROUP
SORT is used for automatic copy collating. Copies of each original
will be sequentially deposited in the sort bins.
100%
COPY RATIO
READY TO COPY.
STAPLE SORT
OK
OUTPUT
Press the OUTPUT key and select the STAPLE SORT mode.
NON SORT
7
CHAPTER
AUTO
EXPOSURE
SORT
AUTO
8/12 11
PAPER SELECT
STAPLE
SORT
GROUP
100%
COPY RATIO
READY TO COPY.
In this mode, copies will be automatically sorted and finished sets of
copies can be stapled with the manual staple key.
When used in conjunction with an optional RADF, sorted copies will
be automatically stapled.
GROUP
OK
OUTPUT
Press the OUTPUT key and select the GROUP mode.
NON SORT
AUTO
EXPOSURE
7-4
SORT
8/12 11
AUTO
PAPER SELECT
STAPLE
SORT
GROUP
100%
COPY RATIO
In the GROUP mode, all copies of the same original will be
deposited in the same bin.
20-BIN STAPLE SORTER (AR-SS2)
SORTER CAPACITY
Sort bins
Sort Mode:
Bin capacity
(max.)
Paper size
5-1/2" x 8-1/2", 8-1/2" x
11", 8-1/2" x 11"R
8-1/2" x 13", 8-1/2" x 14",
11" x 17"
Staple Sort Mode:
25
Paper size
Bin capacity
(max.)
8-1/2" x 11", 8-1/2" x
11"R
8-1/2" x 13", 8-1/2" x 14",
11" x 17"
Group Mode:
50
Top bin
100 sheets in the NON-SORT mode
(60 sheets for 8-1/2" x 13, 8-1/2" x 14", 11" x 17", and
12" x 18" )
30
25
Bin capacity
(max.)
Paper size
5-1/2" x 8-1/2", 8-1/2" x
11", 8-1/2" x 11"R
8-1/2" x 13", 8-1/2" x 14",
11" x 17"
30
25
The limits for the number of originals which can be used and the number of copies that can be set for each
paper size are as follows:
Mode
Paper size
NONSORT
Min.: 5-1/2" x 8-1/2"
Max.: 12" x 18"
–
100
SORT
5-1/2" x 8-1/2", 8-1/2" x
11", 8-1/2" x 11"R
8-1/2" x 13", 8-1/2" x 14",
11" x 17"
50
20
OPTIONAL EQUIPMENT
20-bin staple sorter (AR-SS2)
Max. No. Max. No.
of
of copies
originals to be set
25
8-1/2" x 11", 8-1/2" x 11"R
8-1/2" x 13", 8-1/2" x 14",
11" x 17"
30
25
20
GROUP
5-1/2" x 8-1/2", 8-1/2" x
11", 8-1/2" x 11"R
8-1/2" x 13", 8-1/2" x 14",
11" x 17"
20
30
CHAPTER
STAPLE
SORT
25
7
NOTES:
●
●
●
●
When color copying is performed, much toner may be put on copy paper depending on the image. In this case,
the copies may be curled, resulting in improper stapling or improperly aligned copies.
If the specified number of copies is more than the maximum number of copies that can be set, the copy quantity
display will change to the corresponding number in the above table in the SORT, STAPLE SORT, or GROUP
mode after copying starts.
When making single-sided copies from two-sided originals, the maximum number of originals that can be copied
is half the number shown in the above table.
Do not use special paper in the SORT, STAPLE SORT, or GROUP mode.
7-5
20-BIN STAPLE SORTER (AR-SS2)
Staple sort
The STAPLE SORT mode staples copies of 8-1/2" x 11", 8-1/2" x
11"R, 8-1/2" x 14", and 11" x 17" sizes. For other paper sizes, use the
manual stapling mode. See page 7-8.
Using the document glass
1
Stapling position
2-SIDED
COPY
OK
2
Set the original on the document glass with the corner
to be stapled to the upper right.
●
Copy from the last page to the first page.
●
If the number of copies to be delivered into each bin is more than
30 for 8-1/2" x 11" or 8-1/2" x 11"R paper or 25 for 8-1/2" x 14"
or 11" x 17" paper, the copies will not be stapled.
Press the OUTPUT key and select the STAPLE SORT
mode.
●
OUTPUT
SORT
INTE
1
2
3INTERRUPT
4
5
6
GROUP
100%
COPY RATIO
3
Set the number of copies.
4
Press the COLOR COPY START (
COPY START (
) key.
5
When all copies are made and sorted, press the manual
staple key.
●
Up to 20 sets can be made.
CLEAR CLE
CA
AL
ALL
7
8
C C
0
7-6
9
PROGRAM
AUDIT
7
OPTIONAL EQUIPMENT
20-bin staple sorter (AR-SS2) CHAPTER
AUTO
8/12 11
PAPER SELECT
STAPLE
SORT
Make sure that there is no paper in any sort bin before selecting
the STAPLE SORT mode.
P CLEAR CL
) key or BLACK
●
Each set of copies will be stapled.
●
Sets of copies containing copies of different width will not be
stapled.
20-BIN STAPLE SORTER (AR-SS2)
Using the optional RADF
1
Stapling position
Set the originals in the document feeder tray face up
with the stapling position in the upper left corner.
●
2-SIDED
COPY
OK
2
Press the OUTPUT key and select the STAPLE SORT
mode.
●
OUTPUT
STAPLE
SORT
SORT
GROUP
100%
COPY RATIO
N
1
2
3
4
5
6
INTERRUPT
CLEAR
ALL
7
8
0
4
Press the COLOR COPY START (
COPY START (
) key.
●
CA
9
PROGRAM
C
P
CLEAR
9
PROGRAM
C
P
CLEAR
CA
) key or BLACK
●
When copying and sorting are completed, each set of copies will
be automatically stapled.
●
Sets of copies containing copies of different width will not be
stapled.
6
CLEAR
ALL
Up to 20 sets can be made.
7-7
7
3
INTERRUPT
3
Set the number of copies.
CHAPTER
AUDIT
Make sure that there is no paper in any sort bin before selecting
the STAPLE SORT mode.
OPTIONAL EQUIPMENT
20-bin staple sorter (AR-SS2)
AUTO
8/12 11
PAPER SELECT
If the number of copies to be delivered into each bin is more than
30 for 8-1/2" x 11" or 8-1/2" x 11"R paper or 25 for 8-1/2" x 14"
or 11" x 17" paper, the copies will not be stapled.
20-BIN STAPLE SORTER (AR-SS2)
Manual stapling
To use the stapling feature only, without using the STAPLE SORT
mode, follow the procedure below.
Copies
1
2
Align the edges of the copies to be stapled.
Place the set of copies into the top bin, making sure the
edges are flush with the inner right corner, as shown in
the figure.
●
Make sure that there is no paper in the other sort bins. If there
is, the manual staple key will not light up.
●
Up to 30 sheets of paper can be stapled together. Exceeding this
maximum may result in damage to the stapler.
Stapling location
3
7
OPTIONAL EQUIPMENT
20-bin staple sorter (AR-SS2) CHAPTER
7-8
Press the manual staple key when it lights up.
●
The set of copies will be stapled.
20-BIN STAPLE SORTER (AR-SS2)
Staple cartridge replacement
When the staple cartridge becomes empty, the message “ADD
STAPLES.” will appear. Replace the staple cartridge as follows:
1
Open the stapler cover.
2
Lift the release lever and pull out the staple box.
3
Remove the empty staple cartridge from inside the
staple box.
4
Insert the new staple cartridge into the box until it clicks
in place.
●
Lift the release lever to unlock the staple box. Then pull out the
box.
The cartridge holds 5,000 staples.
NOTE:
Be sure not to remove the rear paper and tape before inserting
the cartridge.
7-9
7
●
CHAPTER
Insert the new cartridge by aligning the arrows on the cartridge
with those on the box. Check that the cartridge locks in place by
pulling it slightly.
OPTIONAL EQUIPMENT
20-bin staple sorter (AR-SS2)
●
20-BIN STAPLE SORTER (AR-SS2)
OPTIONAL EQUIPMENT
20-bin staple sorter (AR-SS2)
7
CHAPTER
7-10
5
Remove the rear paper and tape from the cartridge.
6
Insert the staple box into the stapler until it clicks in
place.
7
Close the stapler cover.
8
Place a sheet of paper into the top bin. Press the manual
staple (
) key on the staple sorter when it lights up.
●
Pull them straight. If they are pulled obliquely, the tape may be
torn.
●
Check to see whether the sheet is stapled.
If it is not stapled, press the manual staple key again.
●
If the stapler does not operate properly even after
replacement, a staple may be jammed in it. See next page.
●
Staples for the staple sorter are available from your Sharp
dealer.
20-BIN STAPLE SORTER (AR-SS2)
Staple jam removal
If staples become jammed in the stapler, the message “CHECK
STAPLER POSITION OR STAPLE JAM.” will appear. Remove the
jammed staples in the manner described below:
1
Open the stapler cover.
2
Lift the release lever and pull out the staple box.
3
Lower the lever at the end of the staple box and remove
the jammed staples.
4
Return the lever to its original position.
●
Lift the release lever to unlock the staple box. Then pull out the
box.
OPTIONAL EQUIPMENT
20-bin staple sorter (AR-SS2)
7
CHAPTER
7-11
20-BIN STAPLE SORTER (AR-SS2)
OPTIONAL EQUIPMENT
20-bin staple sorter (AR-SS2)
5
Insert the staple box into the stapler unit until it clicks in
place.
6
Close the stapler cover.
7
Following the stapling procedure on page 7-8, staple a
copy to check that the stapler works properly.
●
7
CHAPTER
7-12
If it does not, repeat this procedure until it does.
20-BIN STAPLE SORTER (AR-SS2)
Misfeed removal
MISFEED HAS OCCURRED.
The copier will stop when a misfeed occurs.
The message “MISFEED HAS OCCURRED. CLEAR INDICATED
AREA. PRESS
FOR RECOVERY INSTRUCTIONS.” will appear
with a display of paper misfeed locations. Press the INFORMATION
key for more detailed information as necessary.
CLEAR INDICATED AREA.
PRESS FOR RECOVERY INSTRUCTIONS.
2
Remove the misfed paper from the sorter or from the
exit area of the copier.
3
Slide the sorter back toward the copier and latch it into
place.
OPTIONAL EQUIPMENT
20-bin staple sorter (AR-SS2)
1
Push the sorter release button and slide the sorter
carefully along the guides away from the copier.
●
If the message indicating a misfeed is still displayed, check the
inside of the copier and remove any remaining misfed paper.
7-13
7
Confirm that the misfeed display is cleared.
CHAPTER
●
20-BIN STAPLE SORTER (AR-SS2)
Specifications
No. of bins
20
Paper size
Max. 12" x 18"
Min. 5-1/2" x 8-1/2"
Stapling capacity
30 sheets (28 lbs.)
Power supply
Drawn from the copier
Weight*
Approx. 58.2 lbs. (26.4kg)
Dimensions
16-37/64" (W) x 23-25/64" (D) x 24-37/64" (H)
(421 mm (W) x 594 mm (D) x 624 mm (H))
*with mounting kit
Bin capacity
Bin
Top Bin
Top Bin and Other Bins
Mode
NON-SORT
SORT
Paper Weight
13 ~ 28 lbs. 28+ ~ 75 lbs. 17 ~ 28 lbs.* 17 ~ 28 lbs.
GROUP
STAPLE SORT
17 ~ 28 lbs.*
Paper Size
OPTIONAL EQUIPMENT
20-bin staple sorter (AR-SS2)
8-1/2" x 13",
8-1/2" x 14",
11" x 17"
60
10
25
25
25
12" x 18"
60
10
-
-
-
8-1/2" x 11",
8-1/2" x 11R"
100
10
50
30
30
5-1/2" x 8-1/2"
100
10
50
30
-
7-1/4" x
10-1/2"R
100
10
-
-
-
* In the COVERS mode, 2 sheets of 75 lb, paper can be fed for each set from by-pass.
If the stapler capacity limits are exceeded, stapling jams, poorly stapler sets or damage may
occur to the stapler.
Use SHARP recommened paper for best performance.
Specifications are subject to change for improvement without notice.
7
CHAPTER
7-14
LARGE CAPACITY TRAY (AR-LC2N)
The large capacity tray provides the added convenience of having
3,000 additional sheets of 8-1/2" x 11" paper available.
PART NAMES
Paper tray control button
OPTIONAL EQUIPMENT
Large capacity tray (AR-LC2N)
Specifications
Paper weight
15 lbs. to 28 lbs.
Paper capacity
3,000 sheets (20 lbs.)
Weight
Approx. 70.6 lbs. (32 kg)
Dimensions
13" (W) x 21-17/64" (D) x 23-7/16" (H)
(330 mm (W) x 540 mm (D) x 595 mm (H))
7
8-1/2" x 11"
CHAPTER
Paper size
Specifications are subject to change for improvement without notice.
7-15
LARGE CAPACITY TRAY (AR-LC2N)
Loading copy paper
The large capacity tray will automatically lower when the tray runs out
of paper.
1
Press the paper tray control button on the large capacity
tray.
●
OPTIONAL EQUIPMENT
Large capacity tray (AR-LC2N)
Maximum height line
2
When the button lamp goes out, pull the paper tray out.
3
Fan the copy paper.
4
Load the paper onto the feed table.
CHAPTER
7
5
7-16
The button lamp will blink while the feed table is lowering and
will go out when the tray is ready to be opened.
●
Do not pull the paper tray out before the button lamp goes out.
●
Be sure to load paper appropriate for the large capacity tray.
See page 7-15.
●
Do not exceed the maximum height line.
Gently push the large capacity tray back into place.
●
The paper tray control button lamp will blink as the feed table
returns to the feed position and will light up steadily when it is in
position to feed.
LARGE CAPACITY TRAY (AR-LC2N)
Misfeed removal
The copier will stop when a misfeed occurs.
The message “MISFEED HAS OCCURRED. CLEAR INDICATED
AREA. PRESS
FOR RECOVERY INSTRUCTIONS.” will appear with
a display of paper misfeed locations. Press the INFORMATION key for
more detailed information as necessary.
MISFEED HAS OCCURRED.
CLEAR INDICATED AREA.
PRESS FOR RECOVERY INSTRUCTIONS.
Release lever
While holding the tray release lever, carefully slide the
large capacity tray away from the copier until it stops.
2
Remove any misfed paper from the copier and the large
capacity tray.
●
Be sure not to tear the misfed paper during removal.
●
Open and close the upper right side cover of the copier after
removing the misfed paper from the copier.
7
CHAPTER
If the misfed paper cannot be removed easily, open the upper
right side cover to remove the paper.
OPTIONAL EQUIPMENT
Large capacity tray (AR-LC2N)
Upper right
side cover
1
7-17
LARGE CAPACITY TRAY (AR-LC2N)
OPTIONAL EQUIPMENT
Large capacity tray (AR-LC2N)
7
CHAPTER
7-18
3
Push the large capacity tray toward the copier and latch
it into place.
4
If misfed paper is not found in step 2, pull the tray out.
5
Remove the misfed paper.
6
Gently push the tray back into place.
●
●
When pulling the large capacity tray out, be sure to pull it out after
the paper tray control button lamp goes out.
Confirm that the misfeed display is cleared.
FINISHER (AR-FN4)
FINISHER (AR-FN4)
The AR-FN4 finisher provides an offset stack mode of the output for
both copying and printing. A staple print mode is provided for the print
mode only and will not function in the copy mode.
PART NAMES
Offset tray
Finisher release lever
Staple cartridge
Pull out the tray extension
when 8-1/2" x 14" or
larger paper is to be output.
Specifications
Paper
Ordinary
capacity/size paper
(16~28 lbs.)
Face-up
Non offset: 1,000 sheets 5-1/2" x 8-1/2", 5-1/2" x 8-1/2"R, 8-1/2" x 11",
8-1/2" x 11"R, 7-1/4" x 10-1/2"R
700 sheets 8-1/2" x 13", 8-1/2" x 14"
500 sheets 11" x 17", 12" x 18"
Offset:
Non offset: 1,000 sheets 5-1/2" x 8-1/2", 5-1/2" x 8-1/2"R, 8-1/2" x 11",
8-1/2" x 11"R, 7-1/4" x 10-1/2"R
700 sheets 8-1/2" x 13", 8-1/2" x 14"
500 sheets 11" x 17", 12" x 18"
Offset:
Heavy paper*
(*Transparency
film)
Paper weight
1,000 sheets 5-1/2" x 8-1/2", 8-1/2" x 11", 8-1/2" x 11"R
700 sheets 8-1/2" x 13", 8-1/2" x 14"
500 sheets 11" x 17"
Non offset: 10 sheets
Face-up
16-75 lbs.
Face-down
(*For printer
use)
17-34 lbs.
8-1/2" x 11", 8-1/2" x 11"R, 11" x 17"
0.8 inches (20 mm)
Paper size for stapling
(*For printer use)
5-1/2" x 8-1/2", 8-1/2" x 11", 8-1/2" x 11"R, 8-1/2" x 13", 8-1/2" x 14",
11" x 17"
Stapling capacity*
(*For printer use /for 28 lbs. paper)
20 sheets 5-1/2" x 8-1/2", 8-1/2" x 11", 8-1/2" x 11"R, 8-1/2" x 13",
8-1/2" x 14"
15 sheets 11" x 17"
Power supply
24V, 2.5A
Weight
Approx. 30.9 lbs. (14kg) *without mounting kit
Max. 6.5A (drawn from the copier)
Dimensions
20.3"(W) x 22.6"(D) x 15.0"(H) *without mounting kit
(515mm(W) x 574mm(D) x 381mm(H))
Specifications are subject to change for improvement without notice.
7-19
7
Offset
CHAPTER
Face-up
OPTIONAL EQUIPMENT
Finisher (AR-FN4)
Face-down
(*For printer
use)
1,000 sheets 5-1/2" x 8-1/2", 8-1/2" x 11", 8-1/2" x 11"R
700 sheets 8-1/2" x 13", 8-1/2" x 14"
500 sheets 11" x 17"
FINISHER (AR-FN4)
Offset stack
In the initial settings, the offset stack function is set to off. To enable
the offset stack function, press the “OUTPUT” key and then touch the
“OFFSET” icon on the touch panel. To disable the “OFFSET”
function, press the “OUTPUT” key and then touch the “NON
OFFSET” icon. When the offset function is selected, the output tray
will move side to side each time a set is output so that each set is
offset by approximately 0.8 inches (20 mm) from the previous set.
NOTE:
Some type or quality of paper might cause tight curl when it is output.
In this case, remove the paper out of the paper tray or the bypass tray
and reload it upside down.
OFFSET mode
READY TO COPY.
OK
OUTPUT
NON OFFSET
AUTO
EXPOSURE
8/12 11
AUTO
PAPER SELECT
OFFSET
When making copies, the output tray will shift from its
previous position by approximately 0.8 inches (20 mm)
each time a “START” key is pressed. In this way, the set in
progress will be offset from the previous set. Copies in the
size of 5-1/2" x 8-1/2", 8-1/2" x 11", 8-1/2" x 11"R, 8-1/2" x
13", 8-1/2" x 14" and 11"x 17" can be offset.
100%
COPY RATIO
READY TO COPY.
OK
OUTPUT
NON OFFSET
AUTO
EXPOSURE
7
OPTIONAL EQUIPMENT
Finisher (AR-FN4) CHAPTER
NON OFFSET mode
7-20
1
8/
AUTO
2 11
PAPER SELECT
OFFSET
100%
COPY RATIO
All copies will be aligned in one stack in the tray with no
offset.
FINISHER (AR-FN4)
Staple print*
(*In the PRINT mode only)
The staple print mode can be selected for stapling printed sets in the
size of 5-1/2" x 8-1/2", 8-1/2" x 11", 8-1/2" x 11"R, 8-1/2" x 13", 8-1/2"
x 14", and 11" x 17".
NOTE:
In the COPY mode, which delivers the paper face up, this function is
not available.
DATA
1
ON LINE
PRINT
Check the operation panel to confirm that the ONLINE
indicator is lit. If not lit, press the “PRINT” key to enter
the print mode and then press the ONLINE key on the
touch panel.
●
COPY
2
READY TO PRINT.
Check the paper tray(s) to ensure that the desired paper
is loaded.
The maximum number of sheets for stapling is 20 for paper in the
size of 5-1/2" x 8-1/2", 8-1/2" x 11", 8-1/2" x 11"R, 8-1/2" x 13",
or 8-1/2" x 14" paper and 15 for 11" x 17" paper. If the maximum
is exceeded, the sheets will not be stapled.
ONLINE
OFFLINE
●
Ensure that no paper remains in the output tray. Stapling will not
be done if paper remains at the start of the print job.
PAPER SELECT
3
Make all print selections by the printer driver at your
computer and give the print command.
●
The printed output will be stapled.
●
The printed sets will be delivered face down with one staple in
their top left edge.
7-21
7
CHAPTER
4
Refer to the documentation for the computer and/or the application
software for help on issuing the necessary commands.
OPTIONAL EQUIPMENT
Finisher (AR-FN4)
●
812 11R
1.812 11
2.11 17
3.812 14
An optional power supply kit (AR-PX4) and an optional printer
controller (AR-PE2) are needed for the printing from computer.
FINISHER (AR-FN4)
Staple cartridge replacement
When the staple cartridge is empty, the message “SLIDE THE
FINISHER AWAY FROM THE COPIER AND ADD STAPLES.” will
appear.
Replace the staple as follows:
1
While holding the finisher release lever, slide the finisher
away from the copier.
2
Pull out the staple box.
●
To prevent bumping or scraping your hand during removal of the
staple box, proceed as shown in the illustration and as follows:
Grasp the staple box with your thumb and index finger, and place
the heel of your hand against the finisher frame as shown with
arrow 1 in the illustration.
Remove the staple box in the direction of the arrow 2 by
squeezing with your fingers and rotating against the heel of your
hand.
7
OPTIONAL EQUIPMENT
Finisher (AR-FN4) CHAPTER
3
Remove the empty staple cartridge from inside the
staple box.
4
Insert the new staple cartridge into the box until it clicks
in place.
●
Insert the new cartridge by aligning the arrows on the cartridge
with those on the box. Check that the cartridge locks in place by
pulling it slightly.
●
The cartridge holds 3,000 staples.
NOTE:
Be sure to remove the rear paper and tape before inserting the
cartridge.
7-22
FINISHER (AR-FN4)
5
Remove the rear paper and tape from the cartridge.
6
Insert the staple box into the stapler until it clicks in
place.
7
Push the finisher toward the copier and latch it in place.
●
Pull them straight. If they are pulled obliquely, the tape may be
torn.
●
If the stapler does not work properly after cartridge installation,
it may have a jammed staple in it. See next page.
●
Staples for the finisher are available from your Sharp dealer.
CAUTION
Use caution while latching the finisher into place.
OPTIONAL EQUIPMENT
Finisher (AR-FN4)
To prevent pinching your fingers, do not place your hand or fingers
on the release lever while moving the finisher toward the copier.
7
CHAPTER
7-23
FINISHER (AR-FN4)
Staple jam removal
If staples become jammed in the stapler, the message “CHECK
STAPLER POSITION OR STAPLE JAM” will appear. Remove the
jammed staples in the manner described below:
1
While holding the finisher release lever, slide the finisher
away from the copier.
2
Pull out the staple box.
●
To prevent bumping or scraping your hand during removal of the
staple box, proceed as shown in the illustration and as follows:
Grasp the staple box with your thumb and index finger, and place
the heel of your hand against the finisher frame as shown with
arrow 1 in the illustration.
Remove the staple box in the direction of arrow 2 by squeezing
with your fingers and rotating against the heel of your hand.
7
OPTIONAL EQUIPMENT
Finisher (AR-FN4) CHAPTER
7-24
3
Lower the lever at the end of the staple box and remove
the jammed staples.
4
Return the lever to its original position.
FINISHER (AR-FN4)
5
Insert the staple box into the stapler unit until it clicks in
place.
6
Push the finisher toward the copier and latch it in place.
CAUTION
Use caution while latching the finisher into place.
To prevent pinching your fingers, do not place your hand or fingers
on the release lever while moving the finisher toward the copier.
OPTIONAL EQUIPMENT
Finisher (AR-FN4)
7
CHAPTER
7-25
FINISHER (AR-FN4)
Misfeed removal
MISFEED HAS OCCURRED.
The copier will stop when a misfeed occurs.
The message “MISFEED HAS OCCURRED. CLEAR INDICATED
AREA. PRESS
FOR RECOVERY INSTRUCTIONS.” will appear
with a display of paper misfeed locations. Press the INFORMATION
( ) key for more detailed information as necessary.
CLEAR INDICATED AREA.
PRESS FOR RECOVERY INSTRUCTIONS.
1
While holding the finisher release lever, slide the finisher
away from the copier.
2
Remove the misfed paper from the finisher or from the
exit area of the copier.
OPTIONAL EQUIPMENT
Finisher (AR-FN4) CHAPTER
Misfeed in the finisher
When a misfeed occurs in the finisher, turn the roller rotating knob in
the direction of arrow. The misfed paper will be delivered to the offset
tray. If the paper is not delivered to the offset tray, open the paper guide
as shown and remove the paper.
7
7-26
FINISHER (AR-FN4)
Misfeed in the exit area of the copier
When misfed paper is lodged in the fusing roller of the copier and can
not be pulled out, open the front cover of the copier and turn the roller
rotating knob in the direction of arrow to remove the misfed paper.
3
Push the finisher toward the copier and latch it in place.
●
Confirm that the misfeed display is cleared.
●
If the message indicating a misfeed is still displayed, check the
inside of the copier and remove any remaining misfed paper.
CAUTION
Use caution while latching the finisher into place.
To prevent pinching your fingers, do not place your hand or fingers
on the release lever while moving the finisher toward the copier.
OPTIONAL EQUIPMENT
Finisher (AR-FN4)
7
CHAPTER
7-27
WARNING:
FCC Regulations state that any unauthorized changes or modifications to
this equipment not expressly approved by the manufacturer could void the
user's authority to operate this equipment.
Note:
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the operation manual, may cause
harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
NOTICE
BE SURE TO ASK YOUR AUTHORIZED SHARP DEALER ABOUT THE
WARRANTY THAT YOUR SELLING DEALER EXTENDS TO YOU. In order to
assure you, the end-user, of warranty protection, Sharp extends a limited
warranty to each of its authorized dealers and, in turn, requires each of its
authorized dealers to extend its own warranty to you on terms that are no less
favorable than those given to the dealer by Sharp. You should be aware,
however, that Sharp does not itself extend any warranties, either express or
implied, directly to you, the end-user and no one is authorized to make any
representations or warranties on behalf of Sharp. Specifically, SHARP DOES
NOT EXTEND TO YOU, THE END-USER, ANY EXPRESS WARRANTY OR
ANY IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR USE OR
FITNESS FOR ANY PARTICULAR PURPOSE IN CONNECTION WITH THE
HARDWARE, SOFTWARE OR FIRMWARE EMBODIED IN, OR USED IN
CONJUNCTION WITH THIS PRODUCT. Sharp is not responsible for any
damages or loss, either direct, incidental or consequential, which you, the enduser, may experience as a result of your purchase or use of the hardware,
software or firmware embodied in or used in conjunction with this Product. Your
sole remedy, in the event that you encounter any difficulties with this Product, is
against the authorized dealer from which you purchased the Product.
In the event that this authorized dealer does not honor its warranty
commitments, please contact the General Manager , Business Products Group,
Sharp Electronics Corporation, Sharp Plaza, Mahwah, NJ 07430-2135, so that
Sharp can try to help assure complete satisfaction of all the warranty rights to
which you are entitled from the authorized dealer.
AR-C160
SHARP ELECTRONICS CORPORATION
Sharp Plaza, Mahwah, New Jersey 07430-2135.
SHARP CORPORATION
PRINTED IN JAPAN
2001E
KS1
TINSE2098FCZZ
Download PDF
