A music and Internet radio player - all in the... design. In the range of WiFi connection, LARA can play music...

A music and Internet radio player - all in the... design. In the range of WiFi connection, LARA can play music...

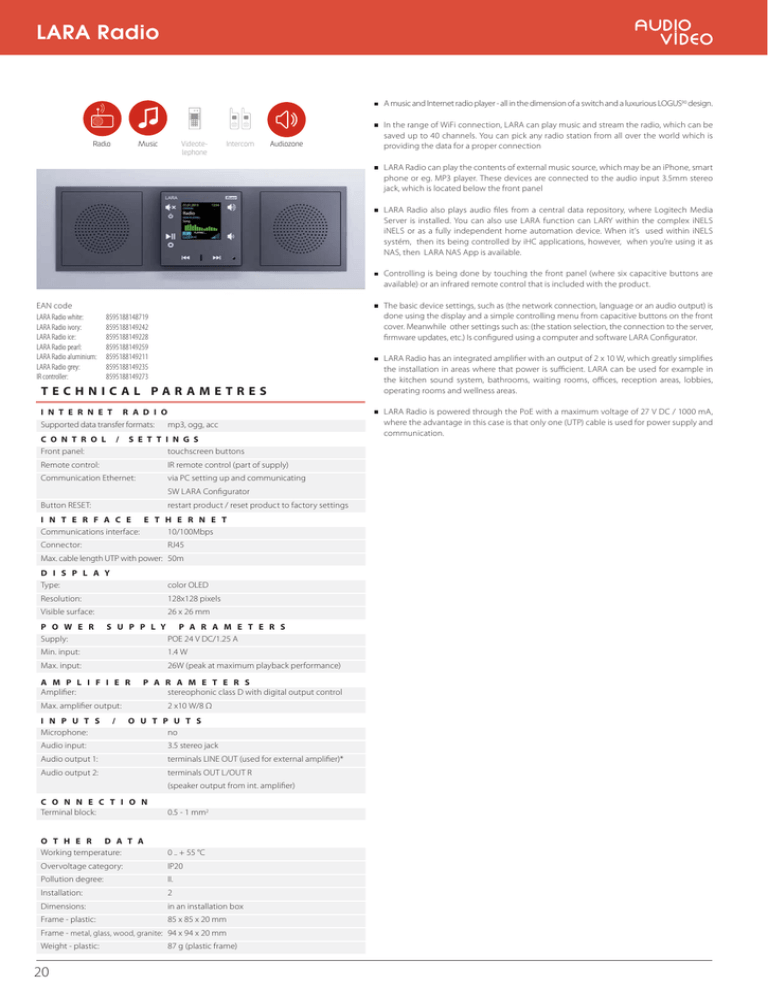

LARA Radio
A music and Internet radio player - all in the dimension of a switch and a luxurious LOGUS90 design.
Radio
Videotelephone
Music
Intercom
Audiozone
In the range of WiFi connection, LARA can play music and stream the radio, which can be
saved up to 40 channels. You can pick any radio station from all over the world which is
providing the data for a proper connection
LARA Radio can play the contents of external music source, which may be an iPhone, smart
phone or eg. MP3 player. These devices are connected to the audio input 3.5mm stereo
jack, which is located below the front panel
LARA Radio also plays audio files from a central data repository, where Logitech Media
Server is installed. You can also use LARA function can LARY within the complex iNELS
iNELS or as a fully independent home automation device. When it’s used within iNELS
systém, then its being controlled by iHC applications, however, when you’re using it as
NAS, then LARA NAS App is available.
Controlling is being done by touching the front panel (where six capacitive buttons are
available) or an infrared remote control that is included with the product.
EAN code
LARA Radio white:
LARA Radio ivory:
LARA Radio ice:
LARA Radio pearl:
LARA Radio aluminium:
LARA Radio grey:
IR controller:
The basic device settings, such as (the network connection, language or an audio output) is
done using the display and a simple controlling menu from capacitive buttons on the front
cover. Meanwhile other settings such as: (the station selection, the connection to the server,
firmware updates, etc.) Is configured using a computer and software LARA Configurator.
8595188148719
8595188149242
8595188149228
8595188149259
8595188149211
8595188149235
8595188149273
TECHNICAL PARAMETRES
I N T E R N E T
R A D I O
Supported data transfer formats:
C O N T R O L
Front panel:
/
mp3, ogg, acc
S E T T I N G S
touchscreen buttons
Remote control:
IR remote control (part of supply)
Communication Ethernet:
via PC setting up and communicating
SW LARA Configurator
Button RESET:
restart product / reset product to factory settings
I N T E R F A C E E T H E R N E T
Communications interface:
10/100Mbps
Connector:
RJ45
Max. cable length UTP with power: 50m
D I S P L A Y
Type:
color OLED
Resolution:
128x128 pixels
Visible surface:
P O W E R
Supply:
26 x 26 mm
S U P P L Y
P A R A M E T E R S
POE 24 V DC/1.25 A
Min. input:
1.4 W
Max. input:
26W (peak at maximum playback performance)
A M P L I F I E R
Amplifier:
P A R A M E T E R S
stereophonic class D with digital output control
Max. amplifier output:
I N P U T S
Microphone:
/
2 x10 W/8 Ω
O U T P U T S
no
Audio input:
3.5 stereo jack
Audio output 1:
terminals LINE OUT (used for external amplifier)*
Audio output 2:
terminals OUT L/OUT R
(speaker output from int. amplifier)
C O N N E C T I O N
Terminal block:
0.5 - 1 mm2
O T H E R D A T A
Working temperature:
0 .. + 55 °C
Overvoltage category:
IP20
Pollution degree:
II.
Installation:
2
Dimensions:
in an installation box
Frame - plastic:
85 x 85 x 20 mm
Frame - metal, glass, wood, granite: 94 x 94 x 20 mm
Weight - plastic:
20
87 g (plastic frame)
LARA Radio has an integrated amplifier with an output of 2 x 10 W, which greatly simplifies
the installation in areas where that power is sufficient. LARA can be used for example in
the kitchen sound system, bathrooms, waiting rooms, offices, reception areas, lobbies,
operating rooms and wellness areas.
LARA Radio is powered through the PoE with a maximum voltage of 27 V DC / 1000 mA,
where the advantage in this case is that only one (UTP) cable is used for power supply and
communication.
LARA Intercom
LARA Intercom offers users 5 different functions and expands even more options to Lara
Radio - music players and internet radio stations within the range of LOGUS90 switch designs.
Radio
Videotelephone
Music
Intercom
Audiozone
LARA Intercom provides an extra functionality and videophone intercom.
Thanks to videophone function, now it is possible to have a voice communication between
Lara and the sound of the door (IP Intercom), so with someone visiting and standing in front
of the house, we can see that on LARA display as part of this function which increases the
security feeling and safety besides of course, the comfort for the user.
LARA Intercom is equipped with an OLED colored display with the size of 1.5“, which is used
to transfer images and sounds from the door camera properly. The display also shows basic
information about playing music, which also serves the orientation in the menu settings, etc.
The intercom function can also be used for communications between all the family members
throughout the whole house, thanks to two way voice communications possibilities
between differnt Lara units.
EAN code
LARA Intercom white:
LARA Intercom ivory:
LARA Intercom ice:
LARA Intercom pearl:
LARA Intercom aluminium:
LARA Intercom grey:
IR controller:
LARA intercom can also play music and stream the radio, which can be saved up to 40
channels. You can pick any radio station from all over the world which is providing the data
for a proper connection
8595188149389
8595188149419
8595188149396
8595188149426
8595188149372
8595188149402
8595188149273
LARA intercom can also play the contents of external music source, which may be an iPhone,
smart phone or eg. MP3 player. These devices are connected to the audio input 3.5mm
stereo jack, which is located below the front panel
TECHNICAL PARAMETRES
I N T E R N E T
R A D I O
Supported data transfer formats:
C O N T R O L
Front panel:
/
mp3, ogg, acc
S E T T I N G S
touchscreen buttons
Remote control:
IR remote control (part of supply)
Communication Ethernet:
via PC setting up and communicating
SW LARA Configurator
Button RESET:
restart product / reset product to factory settings
I N T E R F A C E E T H E R N E T
Communications interface:
10/100Mbps
Connector:
RJ45
Max. cable length UTP with power: 50m
D I S P L A Y
Type:
color OLED
Resolution:
128x128 pixels
Visible surface:
P O W E R
Supply:
Controlling is being done by touching the front panel ( where six capacitive buttons are
available) or an infrared remote control that is included with the product.
The basic device settings, such as (the network connection, language or an audio output) is
done using the display and a simple controlling menu from capacitive buttons on the front
cover. Meanwhile other settings such as: (the station selection, the connection to the server,
firmware updates, etc.) Is configured using a computer and software LARA Configurator.
LARA Radio has an integrated amplifier with an output of 2 x 10 W, which greatly simplifies
the installation in areas where that power is sufficient. LARA can be used for example in the
kitchen sound system, bathrooms, waiting rooms, offices, reception areas, lobbies, operating
rooms and wellness areas.
LARA Radio is powered through the PoE with a maximum voltage of 27 V DC / 1000 mA,
where the advantage in this case is that only one (UTP) cable is used for power supply and
communication.
26 x 26 mm
S U P P L Y
P A R A M E T E R S
POE 24 DC/1.25 A
Min. input:
1.4 W
Max. input:
26W (peak at maximum playback performance)
A M P L I F I E R
Amplifier:
P A R A M E T E R S
stereophonic class D with digital output control
Max. amplifier output:
I N P U T S
Microphone:
LARA intercom can also play audio files from a central data repository, where Logitech Media
Server is installed. You can also use LARA function can LARY within the complex iNELS iNELS
or as a fully independent home automation device. When it’s used within iNELS systém,
then its being controlled by iHC applications, however, when you’re using it as NAS, then
LARA NAS App is available.
/
2 x10 W/8 Ω
O U T P U T S
yes
Audio input:
3.5 stereo jack
Audio output 1:
terminals LINE OUT (used for external amplifier)*
Audio output 2:
terminals OUT L/OUT R
(speaker output from int. amplifier)
C O N N E C T I O N
Terminal block:
0.5 - 1 mm2
O T H E R D A T A
Working temperature:
0 .. + 55 °C
Overvoltage category:
IP20
Pollution degree:
II.
Installation:
2
Dimensions:
in an installation box
Frame - plastic:
85 x 85 x 20 mm
Frame - metal, glass, wood, granite: 94 x 94 x 20 mm
Weight - plastic:
87 g (plastic frame)
21
Specifications LARA
LARA
Videophone
John
hn
Tim
T
i / Lisa
LAN
LAN
Sophy
y
Control possibilities
John
Tim / Lisa
Sophy
Intercom
Door
lock
Garage door /
Gate
Intercom
- main entrance
LARA
Intercom
Tim / Lisa
a
Joh
John
LAN
Sophy
y
Eva
a
John
Tim / Lisa
Sophy
22
Specifications LARA
Control possibilities
Touch control
IR controller
Applications for Android and iOS provides control options: Audiozone / Select music / Create a playlist / Repeat
Android
LARA DIO
iOS
iHC-MI
Android
LARA NAS
iOS
iHC-TI
Android
iHC-MA
Android
iHC-TA
Connection
speaker cables
speaker cables
(5209)
(5209)
Speakers + cover + 1 frame
(21581 + 90710 TBR + 90910 TBR)
Ceiling speaker 5"
(7502 3)
PoE switch 5 port (6605)
audio cable (6704)
(6701)
power cable
(7 212)
cinch cable (5208)
NAS
Speakers
PoE Adapter
(6191)
WiFi
AC 230
PSB-10-24
WiFi bridge
(4378)
(5210)
Amplifier
External music source
23
Design LARA
LARA in LOGUS90 switch design
Choose from color combinations
Cover: white
Frame: white (animato)
Cover: grey
Frame: grey (animato )
Cover: ice
Cover: ice
Frame: aluminium (aquarella) Frame: glass (crystal)
Cover: ice
Frame: green (animato)
Cover: aluminium
Frame: aluminium(aquarella)
Cover: ivory
Frame: titan (metallo)
Cover: pearl
Frame: cherry (arbore)
You cand all different types of color combinations including the ordering codes on our website
www.elkoep.com/lara or in our e-shop on www.eshop.elkoep.com
Code
Name
EAN
Code
Name
EAN
LARA-R/BR
LARA Radio_white
8595188148719
LARA-IC/BR
LARA Intercom_white
8595188149389
LARA-R/AL
LARA Radio_aluminium
8595188149211
LARA-IC/AL
LARA Intercom_aluminium
8595188149372
LARA-R/GE
LARA Radio_ice
8595188149228
LARA-IC/GE
LARA Intercom_ice
8595188149396
LARA-R/PE
LARA Radio_pearl
8595188149259
LARA-IC/PE
LARA Intercom_pearl
8595188149426
LARA-R/MF
LARA Radio_ivory
8595188149242
LARA-IC/MF
LARA Intercom_ivory
8595188149419
LARA-R/IS
LARA Radio_grey
8595188149235
LARA-IC/IS
LARA Intercom_grey
8595188149402
24
Accessories LARA
Speakers and cables
Installation material
order code
AUX CABLE LARA (LARA CINCH CABLE)
Used to connect LARA with exter. amplifier. Reduction 4pin from LARA
LINE OUT to 2x CINCH plug into amplifier, length 2 x 20 cm.
POWER SUPPLY (PSB-10-24)
Switching stabilized power supplies with fixed output voltage, intended for mounting into an installation box (e.g. KU-68). PSB-10-24 - stabilized power supply 24V/10 W.
AUX CABLE LARA (LARA AUDIO CABLE)
Used to connect LARA with external music source (smart phone mp3
player). The length is 20cm terminated with 2x stereo jack 3.5mm.
CEILING SPEAKER
Speaker is suitable for the installation in suspended ceilings and hollow walls. Mounting hole diameter 143 mm, Power 15W, 32Ω speaker
impedance.
SURFACE SPEAKER
Two-way speaker intended for mounting in a ceiling or on the walls:
Power 15W, 32 Ω speaker impedance, dimensions 270x183x37 mm.
Color: White
NAS EXTERNAL STORAGE
Two-chamber NAS server with the function of hosting, sharing and
data security.
NETWORK CABLE, 0.2 M
Flat white LAN cable CAT5, length 20 cm, terminated with 2x RJ45
plugs.
NETWORK CABLE, 1 M
Flat white LAN cable CAT5, length 1 m, terminated with 2x RJ45 plugs.
1-FRAME
90910
TBR
2-FRAME
90920
TBR
3-FRAME
90930
TBR
4-FRAME
90940
TBR
5-FRAME
90950
TBR
SURFACE MOUNT BOX
10976
ABR
INSTALLATION BOX 1 GANG (KP 67/2)
6705
75106
CBR
INSTALLATION BOX 2 GANG (KP 64/2)
6706
7212
INSTALLATION BOX 3 GANG (KP 64/3)
6707
INSTALLATION BOX 4 GANG (KP 64/4)
6708
INSTALLATION BOX 5 GANG (KP 64/5)
6709
INSTALLATION BOX 1 GANG (KP 64/LD)
6710
INSTALLATION BOX 2 GANG (KP 64/2L)
6711
INSTALLATION BOX 3 GANG (KP 64/3L)
6712
INSTALLATION BOX 4 GANG (KP 64/4L)
6713
INSTALLATION BOX 5 GANG (KP 64/5L)
6714
UNIVERSAL BOX 1068-02
6716
UNIVERSAL BOX KUH 1/L NA
6717
5208
4378
6704
75023
CMF
6702
6700
Power supply and network
WiFi BRIDGE
Used for LARA wireless connection via WiFi network.
PoE SWITCH - 5x RJ45
5210
Provides LAN connectivity and PoE power supply for up to 5 x LARA.
6605
PoE SWITCH - 8x RJ45
6606
Provides LAN connectivity and PoE power supply for up to 8x LARA.
order code
Power sets
POWER SUPPLY PoE + WiFi INTO OR THE BOX
WiFi bridge with PoE and power supply into an installation box.
Power supply 230V.
5224
POWER SUPPLY PoE INTO A BOX
PoE injector with power supply intended for an installation box.
Power supply 230 V.
PoE SUPPLY
5226
Power injector with plug-in adapter 230V.
5225
POWER SUPPLY PoE + WiFi
5227
WiFi bridge with PoE plug in adapter 230 V.
25
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
