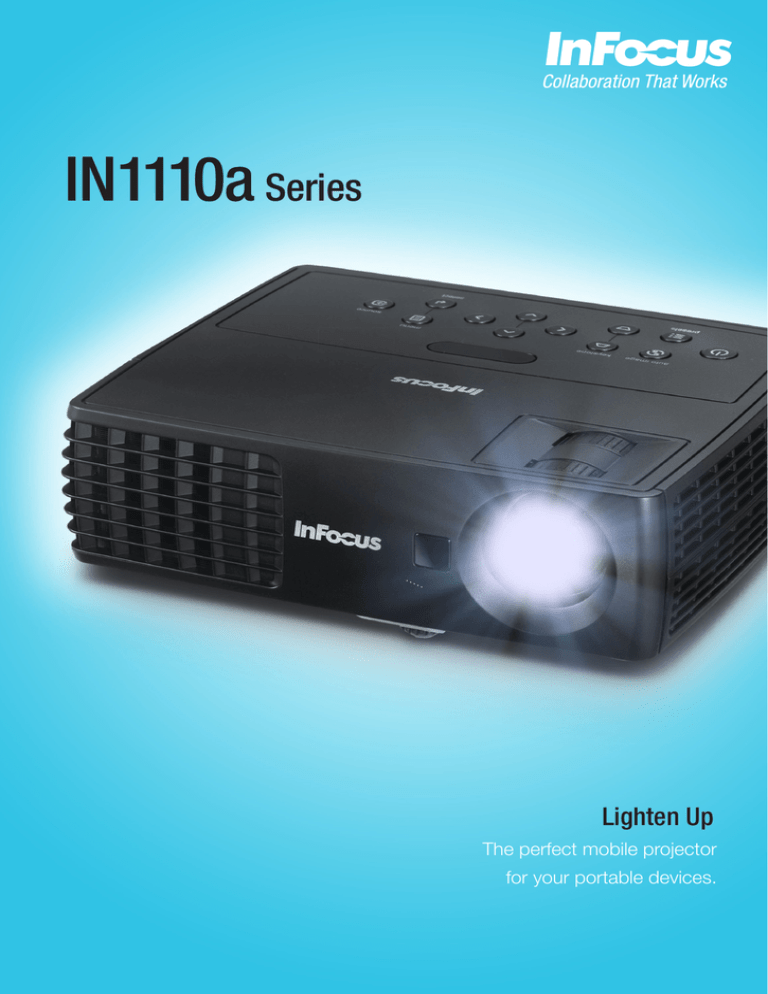

IN1110a Series Lighten Up The perfect mobile projector

IN1110a Series Lighten Up The perfect mobile projector
IN1110a Series
Lighten Up
The perfect mobile projector
for your portable devices.
IN1110a Series
Part#s: IN1110a, IN1112a
So small, light and bright, it’s
the perfect mobile projector
The InFocus IN1110a Series of projectors deliver bright, clear images
from your notebook, tablet, smartphone, USB drive, or the projector’s
internal memory no matter where you are. In fact, weighing in at only
1.2 kg and shining up to 2200 lumens, they’re our brightest
projectors gram-for-gram.
The combination of high brightness, light weight and compact size is ideal
for the travelling professional that faces unpredictable environments every
day. Whether you’re in a brightly lit room or cramped for time and space, the
IN1110a Series is the mobile projector you can count on to perform every time.
MODELS
IN1110a
IN1112a
XGA
1024 x 768
2100 lumens
1.2 kg
WXGA
1280 x 800
2200 lumens
1.2 kg
Why Choose the IN1110a Series?
• Compact and light weight (only 1.2 kg) for easy travel
• Up to 2200 lumens of brightness to combat any lighting situation
• Wireless connectivity with optional adapter and mobile app compatibility
• PC-less display from USB drive or 4GB of internal memory
• Present Office docs, video, audio, photos and more wirelesslyfrom your mobile device
• Annotate on documents you’re presenting and save the changes with mobile app
• Connect via HDMI and USB with ease
• Durable, road-tested design that’s built to last
Easy Display from Any Device
Built-in apps and optional wireless adapter quickly
displays files from your Apple or Android notebook,
tablet or smartphone without messy cables.
Display from No Device at All
P roject images, audio and video directly from the
projector’s on-board 4GB of memory. Just
load it and go.
www.infocus.com
Optional Wireless
Connect and present wirelessly w
ith all your favorite devices with the optional wireless network adapter (SP-WIFIUSB-2) a nd free presentation app. Leave the cables at home!
Present photos, Office documents, PDFs, audio, video, a live camera feed, and more!
Document Annotation
Free wireless presentation app lets you annotate on documents you’re presenting
with a wide variety of coloured pens and shapes and then save the changes.
No Computer Needed
Present photos, PPT presentations, spreadsheets, PDFs, audio, video, and more directly from a USB thumb drive.
Compact and Light
At only 1.2 kg, the IN1110a/ IN1112a is easy to pack, easy to carry and won’t weigh you down.
Connect Fast
Connect your notebook or tablet via HDMI or USB to present full HD quality video (and audio too) in just
seconds. VGA and Composite Video ports are also included for when the need arises. You can even
connect it to an external audio system with the audio out port.
3D Capable
Display Blu-ray 3D content via HDMI and other PC-based 3D content created in the top emerging 3D standards.
Built for the Road
The projector has a recessed lens and tethered lens c ap to keep it safe from impact. Plus,
its smooth e xterior leaves nothing to snag or break off when taking it in and out of its case.
Brightness Adds Confidence
Padded carrying
case included
Room lighting can be a wildcard for the business traveler. You never know what you’ll get.
Gram-for-gram these powerful little projectors pump out the most lumens of most any
other projector. So you know your content will be brightly displayed regardless of ambient light.
No Projector Screen? No Problem.
Because a projector screen won’t always be available, the Presets button
on top of the projector lets you choose a mode to get the best image
quality on a beige wall, whiteboard, blackboard, or other surface.
Plus, you can point the projector at
the wall and its a utomatic vertical
keystone correction will instantly
fix the image to be squarecornered and true.
Connectivity
• VGA (D-Sub HD15)
• USB-A (for thumb drive
or wireless adapter) • USB Mini-B (for display
over USB, internal memory file loading, wired remote,
and firmware updates)
•HDMI
• Composite video
• 3.5 mm audio in
• 3.5 mm audio out
www.infocus.com
Specifications*
Native Resolution
Maximum Input Resolution
Display Technology
Brightness
Lamp Life**
Contrast Ratio
Audio
Input Connections
Output Connections
Control
Internal Memory
File Formats Supported
(via any source)
Documents Supported
- via USB drive or internal memory
- via EZ Display for Android
- via EZ Display for iOS
Aspect Ratio
Lamp Power
Power Consumption
Power Supply
Video Compatibility
Synch - Scan Freq
Throw Ratio (distance/image width)
Zoom Ratio
Projection Distance
Image Size (width)
Image Offset
Projection Methods
Keystone Correction
3D
Audible Noise
Operating Temperature
Maximum Altitude
Product Weight
Product Dimensions - W×D×H
Shipping Weight
Shipping Dimensions - W×D×H
Ships with - Accessories
Menu Languages
Approvals
Security
IN1110a
IN1112a
XGA 1024 × 768
WXGA 1280 × 800
WUXGA^ 1920 × 1200
DLP®
2100 ANSI lumens (1550 lumens Eco Mode)
2200 ANSI lumens (1650 lumens Eco Mode)
4000 Hours Eco Mode (3000 Hours Normal)
2600:1
1W
VGA, HDMI, USB-A (for USB thumb drive or wireless network adapter), USB mini-B (for d isplay over USB and internal memory file management)
Composite, Audio in 3.5 mm
Audio out 3.5 mm
USB mini-B (for presentation control and firmware updates)
4 GB
Photo (JPG, JPEG, BMP); Video (at 1080: XVID, MPEG4, H.264, H.263, M-JPEG, WMV3, MPEG-1)(at 720: RV3, RV4);
Audio (MP1, MP2, MP3, WMA, OGG, ADPCM-WAV, AAC)
PDF, docs from Office 95, 97, 2000, 2003, 2007, 2010
Adobe PDF 1.6 or later, docs from Office 2003, 2007 or 2010
Adobe PDF 1.6 or later, docs from Office 2003, 2007 or 2010, docs from iWork ’09 or later
Native 4:3 (Supports 5:4, 16:9, 16:10)
Native 16:10 (Supports 4:3, 5:4, 16:9)
165 W
Bright: 220 W, Eco: 180 W, Standby: <0.5 W
90 - 264 Vac, 50/60 Hz
NTSC/NTSC4.43/PAL/PAL-M/PAL-N/SECAM, 480i/p, 576i/p, 720p, 1080i/p
Horizontal: 31.4 - 91.1 KHz / Vertical: 23.5 - 85 Hz , 120 Hz (3D)
1.95 - 2.15
1.55 - 1.7
1.1:1
3.9 - 39 ft / 1.2 - 12 m
22 - 242 in / 56 - 615 cm
28 - 299 in / 71 - 760 cm
15%
12%
Front, Rear, Ceiling
Automatic, vertical ± 30°
Supports Blu-ray 3D content (over HDMI only) and PC-based 3D content configured a t 720p running at 120Hz signal. DLP Link 3D glasses required.
29 dBA Eco Mode (33 dBA High Power)
5°- 35° C
2,286 m
1.2 kg
213 × 181 × 65 mm
3.4 kg
185 × 395 × 290 mm
Power Cord, VGA Cable, Remote, USB Cable, Lens Cap with tether, Carry Case
English, French, German, Dutch, Italian, Korean, Norwegian, Portuguese, Russian, Spanish, Simplified Chinese, Traditional Chinese,
Swedish, Polish, Turkish, Danish, Finnish, Bahasa Indonesia, Persian, Vietnamese, Arabic
FCC (USA), cULus (USA and Canada), WEEE (European Union), C-Tick mark (Australia), S-Mark (Argentina), NOM (Mexico), CE (Europe), Gost (Russian),
CECP/CCC (China), CE/TUV-GS (Germany), KC Mark (Korea), SASO (Saudi Arabia), PSB (Singapore), SABS (South Africa)
Kensington Lock, User PIN
* Product specifications, terms, and offerings are subject to change at any time without notice.
** Actual lamp life may vary based on the ambient environment and projector usage. Conditions that may affect lamp life include temperature, altitude, and rapidly switching the projector on and off. ^ Reduced blanking.
Wireless Software System Requirements
EZ WiFi (download from projector)
Operating System: Windows XP SP3, Vista SP2, Win 7 SP1 and
Win 8 (Starter versions not supported; Mac OS X 10.7 and above
CPU: Windows: Dual Core Intel Core i 1.6 GHz or higher (ATOM
not supported); Mac: Dual Core Intel Core i 1.4 GHz or higher
(PowerPC not supported)
Graphic card: Intel, nVIDIA or ATI graphic card with 64MB VRAM
or above
Warranty
Optional Accessories
EZ Display (Free download from iTunes)
Compatible with iPhone 3GS, iPhone 4, iPhone 4S, iPhone 5,
iPod touch (4th generation), iPod touch (5th generation), iPad 2
Wi-Fi, iPad 2 Wi-Fi + 3G, iPad (3rd generation), iPad Wi-Fi + 4G,
iPad (4th generation), iPad Wi-Fi + Cellular (4th generation), iPad
mini and iPad mini Wi-Fi + Cellular. Requires iOS 5.1 or later.
This app is optimized for iPhone 5.
Replacement Lamp (SP-LAMP-043)
Wireless Network Adapter (SP-WIFIUSB-2)
Presenter RF Remote with USB Receiver (HW-PRESENTER-2)
Extended warranties (PROJ-EW1YR-MC, PROJ-EW2YR-MC)
Security Lock (SEC-LOCK-01)
Projector Screens
EZ Display (Free download from Google Play store)
Requires Android 4.0 and up
The IN1110a and IN1112a projectors come standard with a 2-year factory warranty, a 1-year lamp replacement warranty, and 90-day limited accessories
warranty. Warranty terms may vary by region. Extended product warranty programs are also available.
©2014 InFocus Corporation. All rights reserved. Specifications are subject to change without further notice. InFocus and InFocus Collaboration That Works are either trademarks or
registered trademarks of InFocus Corporation in the United States and other countries. DLP, the DLP logo, and the DLP medallion are trademarks of Texas Instruments. All trademarks
are used with permission or are for identification purposes only and are the property of their respective companies. InFocus-IN1110a-IN1112a-Datasheet-EU-29DEC14.
