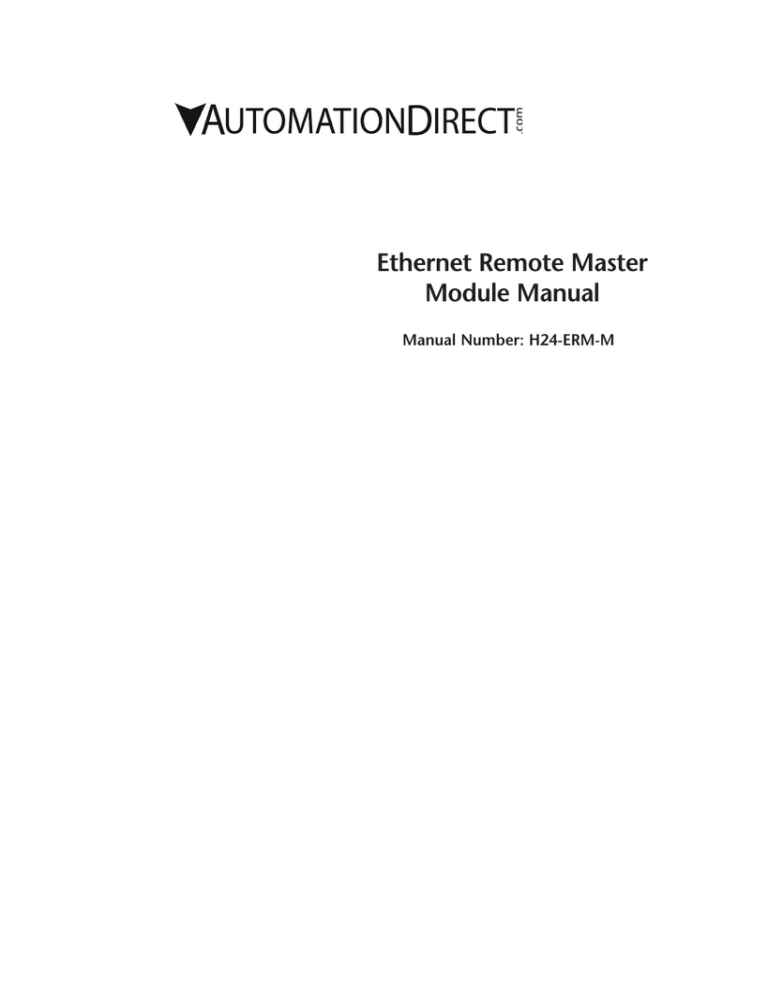

Ethernet Remote Master
Module Manual
Manual Number: H24-ERM-M
WARNING Thank you for purchasing automation equipment from Automationdirect.com®, doing business as,
AutomationDirect. We want your new automation equipment to operate safely. Anyone who installs or
uses this equipment should read this publication (and any other relevant publications) before installing or
operating the equipment.
To minimize the risk of potential safety problems, you should follow all applicable local and national codes
that regulate the installation and operation of your equipment. These codes vary from area to area and
usually change with time. It is your responsibility to determine which codes should be followed, and to
verify that the equipment, installation, and operation is in compliance with the latest revision of these
codes.
At a minimum, you should follow all applicable sections of the National Fire Code, National Electrical
Code, and the codes of the National Electrical Manufacturer's Association (NEMA). There may be local
regulatory or government offices that can also help determine which codes and standards are necessary for
safe installation and operation.
Equipment damage or serious injury to personnel can result from the failure to follow all applicable codes
and standards. We do not guarantee the products described in this publication are suitable for your
particular application, nor do we assume any responsibility for your product design, installation, or
operation.
Our products are not fault-tolerant and are not designed, manufactured or intended for use or resale as online control equipment in hazardous environments requiring fail-safe performance, such as in the
operation of nuclear facilities, aircraft navigation or communication systems, air traffic control, direct life
support machines, or weapons systems, in which the failure of the product could lead directly to death,
personal injury, or severe physical or environmental damage ("High Risk Activities"). AutomationDirect
specifically disclaims any expressed or implied warranty of fitness for High Risk Activities.
For additional warranty and safety information, see the Terms and Conditions section of our catalog. If
you have any questions concerning the installation or operation of this equipment, or if you need
additional information, please call us at 770-844-4200.
This publication is based on information that was available at the time it was printed. At
AutomationDirect we constantly strive to improve our products and services, so we reserve the right to
make changes to the products and/or publications at any time without notice and without any obligation.
This publication may also discuss features that may not be available in certain revisions of the product.
Trademarks
This publication may contain references to products produced and/or offered by other companies. The
product and company names may be trademarked and are the sole property of their respective owners.
AutomationDirect disclaims any proprietary interest in the marks and names of others.
Copyright 2014, Automationdirect.com® Incorporated
All Rights Reserved
No part of this manual shall be copied, reproduced, or transmitted in any way without the prior, written
consent of Automationdirect.com® Incorporated. AutomationDirect retains the exclusive rights to all
information included in this document.
ADVERTENCIA Gracias por comprar equipo de automatización de Automationdirect.com®. Deseamos que su nuevo equipo de
automatización opere de manera segura. Cualquier persona que instale o use este equipo debe leer esta
publicación (y cualquier otra publicación pertinente) antes de instalar u operar el equipo.
Para reducir al mínimo el riesgo debido a problemas de seguridad, debe seguir todos los códigos de seguridad
locales o nacionales aplicables que regulan la instalación y operación de su equipo. Estos códigos varian de área
en área y usualmente cambian con el tiempo. Es su responsabilidad determinar cuales códigos deben ser
seguidos y verificar que el equipo, instalación y operación estén en cumplimiento con la revisión mas reciente
de estos códigos.
Como mínimo, debe seguir las secciones aplicables del Código Nacional de Incendio, Código Nacional
Eléctrico, y los códigos de (NEMA) la Asociación Nacional de Fabricantes Eléctricos de USA. Puede haber
oficinas de normas locales o del gobierno que pueden ayudar a determinar cuales códigos y normas son
necesarios para una instalación y operación segura.
Si no se siguen todos los códigos y normas aplicables, puede resultar en daños al equipo o lesiones serias a
personas. No garantizamos los productos descritos en esta publicación para ser adecuados para su aplicación en
particular, ni asumimos ninguna responsabilidad por el diseño de su producto, la instalación u operación.
Nuestros productos no son tolerantes a fallas y no han sido diseñados, fabricados o intencionados para uso o
reventa como equipo de control en línea en ambientes peligrosos que requieren una ejecución sin fallas, tales
como operación en instalaciones nucleares, sistemas de navegación aérea, o de comunicación, control de tráfico
aéreo, máquinas de soporte de vida o sistemas de armamentos en las cuales la falla del producto puede resultar
directamente en muerte, heridas personales, o daños físicos o ambientales severos ("Actividades de Alto Riesgo").
Automationdirect.com específicamente rechaza cualquier garantía ya sea expresada o implicada para
actividades de alto riesgo.
Para información adicional acerca de garantía e información de seguridad, vea la sección de Términos y
Condiciones de nuestro catálogo. Si tiene alguna pregunta sobre instalación u operación de este equipo, o si
necesita información adicional, por favor llámenos al número 770-844-4200 en Estados Unidos.
Esta publicación está basada en la información disponible al momento de impresión.
En
Automationdirect.com nos esforzamos constantemente para mejorar nuestros productos y servicios, así que
nos reservamos el derecho de hacer cambios al producto y/o a las publicaciones en cualquier momento sin
notificación y sin ninguna obligación. Esta publicación también puede discutir características que no estén
disponibles en ciertas revisiones del producto.
Marcas Registradas
Esta publicación puede contener referencias a productos producidos y/u ofrecidos por otras compañías. Los nombres de las
compañías y productos pueden tener marcas registradas y son propiedad única de sus respectivos dueños. Automationdirect.com,
renuncia cualquier interés propietario en las marcas y nombres de otros.
PROPIEDAD LITERARIA 2014, AUTOMATIONDIRECT.COM® INCORPORATED
Todos los derechos reservados
No se permite copiar, reproducir, o transmitir de ninguna forma ninguna parte de este manual sin previo consentimiento por escrito de
Automationdirect.com® Incorprated. Automationdirect.com retiene los derechos exclusivos a toda la información incluida en este
documento. Los usuarios de este equipo pueden copiar este documento solamente para instalar, configurar y mantener el equipo
correspondiente. También las instituciones de enseñanza pueden usar este manual para propósitos educativos.
AVERTISSEMENT Nous vous remercions d'avoir acheté l'équipement d'automatisation de Automationdirect.com®, en faisant des
affaires comme, AutomationDirect. Nous tenons à ce que votre nouvel équipement d'automatisation fonctionne en
toute sécurité. Toute personne qui installe ou utilise cet équipement doit lire la présente publication (et toutes les
autres publications pertinentes) avant de l'installer ou de l'utiliser.
Afin de réduire au minimum le risque d'éventuels problèmes de sécurité, vous devez respecter tous les codes locaux et
nationaux applicables régissant l'installation et le fonctionnement de votre équipement. Ces codes diffèrent d'une
région à l'autre et, habituellement, évoluent au fil du temps. Il vous incombe de déterminer les codes à respecter et
de vous assurer que l'équipement, l'installation et le fonctionnement sont conformes aux exigences de la version la
plus récente de ces codes.
Vous devez, à tout le moins, respecter toutes les sections applicables du Code national de prévention des incendies,
du Code national de l'électricité et des codes de la National Electrical Manufacturer's Association (NEMA). Des
organismes de réglementation ou des services gouvernementaux locaux peuvent également vous aider à déterminer
les codes ainsi que les normes à respecter pour assurer une installation et un fonctionnement sûrs.
L'omission de respecter la totalité des codes et des normes applicables peut entraîner des dommages à l'équipement
ou causer de graves blessures au personnel. Nous ne garantissons pas que les produits décrits dans cette publication
conviennent à votre application particulière et nous n'assumons aucune responsabilité à l'égard de la conception, de
l'installation ou du fonctionnement de votre produit.
Nos produits ne sont pas insensibles aux défaillances et ne sont ni conçus ni fabriqués pour l'utilisation ou la revente
en tant qu'équipement de commande en ligne dans des environnements dangereux nécessitant une sécurité absolue,
par exemple, l'exploitation d'installations nucléaires, les systèmes de navigation aérienne ou de communication, le
contrôle de la circulation aérienne, les équipements de survie ou les systèmes d'armes, pour lesquels la défaillance du
produit peut provoquer la mort, des blessures corporelles ou de graves dommages matériels ou environnementaux
(«activités à risque élevé»). La société AutomationDirect nie toute garantie expresse ou implicite d'aptitude à
l'emploi en ce qui a trait aux activités à risque élevé.
Pour des renseignements additionnels touchant la garantie et la sécurité, veuillez consulter la section Modalités et
conditions de notre documentation. Si vous avez des questions au sujet de l'installation ou du fonctionnement de cet
équipement, ou encore si vous avez besoin de renseignements supplémentaires, n'hésitez pas à nous téléphoner au
770-844-4200.
Cette publication s'appuie sur l'information qui était disponible au moment de l'impression. À la société
AutomationDirect, nous nous efforçons constamment d'améliorer nos produits et services. C'est pourquoi nous
nous réservons le droit d'apporter des modifications aux produits ou aux publications en tout temps, sans préavis ni
quelque obligation que ce soit. La présente publication peut aussi porter sur des caractéristiques susceptibles de ne
pas être offertes dans certaines versions révisées du produit.
Marques de commerce
La présente publication peut contenir des références à des produits fabriqués ou offerts par d'autres entreprises. Les
désignations des produits et des entreprises peuvent être des marques de commerce et appartiennent exclusivement à
leurs propriétaires respectifs. AutomationDirect nie tout intérêt dans les autres marques et désignations.
Copyright 2014, Automationdirect.com® Incorporated
Tous droits réservés
Nulle partie de ce manuel ne doit être copiée, reproduite ou transmise de quelque façon que ce soit sans le
consentement préalable écrit de la société Automationdirect.com® Incorporated. AutomationDirect conserve les
droits exclusifs à l'égard de tous les renseignements contenus dans le présent document.
Ethernet Remote Master Module
Please include the Manual Number and the Manual Issue, both shown below,
when communicating with Technical Support regarding this publication.
Manual Number:
H24-ERM-M
Issue:
2nd Edition. Rev. A
Issue Date:
5/14
Publication History
Issue
Date
Description of Changes
1st Edition
6/01
Original
1st Edition, Revision A
9/02
Added DL250–1 and DL260 CPUs; removed
DL250 references; added new ERM
Workbench 1.1 and NedtEdit 2.4 features;
added Appendix E
2nd Edition
2/13
Added H2-ERM100 and H4-ERM100;
updated format
2nd Edition, Revision A
5/14
Added Appendix F. H2-EBC(100) Analog
Module Addressing
Notes:
TABLE OF CONTENTS
Chapter 1: Introduction
Purpose of this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–2
Other Reference Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–2
Who Should Read this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–2
Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–2
Conventions Used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–3
Key Topics for Each Chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–3
Ethernet Remote Master (ERM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–4
Ethernet Remote Slaves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–4
Configuring the Ethernet Remote I/O Network . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–5
Running the Ethernet Remote I/O Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–5
ERM / ECOM Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–6
How the PLC CPU Updates Remote I/O Points . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–7
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–8
Chapter 2: ERM / Slave Network Addressing Modes
ERM / Remote Slave Network Identifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2–2
ERM / Slave Configuration Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2–2
ERM / Slave Module ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2–3
IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2–4
Ethernet Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2–4
Using Multiple Network Identifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2–4
Chapter 3: Installation and Network Layouts
Inserting the ERM Module in the I/O Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–2
DL205/Do-more Slot Choices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–2
H2–ERM (100, –F) Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–2
Table of Contents
DL405 Slot Choices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–3
H4–ERM (100, –F) Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–4
Which Modules are Supported in the Ethernet Slaves . . . . . . . . . . . . . . . . . . . . . . .3–4
ERM Network Layouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–5
Configuring the Ethernet Remote I/O Network . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–5
Running the Ethernet Remote I/O Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–5
ERM / ECOM Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–6
Network Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–7
ERM Supports Three Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–7
10/100BaseT Networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–7
10/100BaseT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–8
UTP Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–8
10BaseFL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–8
Fiber Optic Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–8
Fiber Optic Module ST Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–8
Maximum Cable Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–9
Chapter 4: Configuring the ERM and Slave Modules with ERM
Workbench
ERM Workbench Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–3
Launching ERM Workbench . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–3
Adding IPX Network Protocol Support (Windows XP/32 bit or earlier) . . . . . . . . . .4–4
Running ERM Workbench PLC Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–5
Step 1: Choosing the ERM Network Configuration . . . . . . . . . . . . . . . . . . . . . . . . .4–5
Step 2: Connecting the ERM Workbench PC to the ERM Network . . . . . . . . . . . . . .4–5
Establishing Communication with the ERM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–6
Step 3: Select and Configure the Slaves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–6
Step 4: Map I/O to PLC Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–7
Step 5: Download Configuration to ERM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–7
ERM Workbench Main Configuration Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–8
Running ERM Workbench . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–9
Connecting the ERM Workbench PC to the Network Modules . . . . . . . . . . . . . . . .4–9
Configure the ERM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–10
Configuring the ERM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–10
ii
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Table of Contents
Selecting PLC as Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–10
PLC Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–11
Advanced ERM Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–11
Select the Slaves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–12
Selecting the Slaves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–12
Configure the Slaves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–13
Setting the Slave’s Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–13
Write Configuration to ERM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–15
Analog I/O Data Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–16
Analog I/O Data Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–16
Reserved PLC Memory for ERM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–17
ERM Status Word / Reset Slave Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–17
Saving ERM Configuration to Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–18
Clear ERM Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–18
Printing/Exporting the ERM Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–18
Chapter 5: Using NetEdit
Using NetEdit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–2
The NetEdit Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–2
Ethernet Communication Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–2
Adding IPX Network Protocol Support (Windows XP/32 bit or earlier) . . . . . . . . . .5–3
Ethernet Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–3
Module ID / IP Address / Name / Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–4
Module Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–4
Using NetEdit to Configure the EBC Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–5
EBC Settings Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–5
General Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–6
Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–6
I/O Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–6
Show Base Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–7
Update Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–8
Update Booter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–8
Restore Factory Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–8
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
iii
Table of Contents
Chapter 6: Maintenance and Troubleshooting
Isolating a Communication Problem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–2
Diagnostic Tools and Techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–2
Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–2
ERM Module Diagnostic LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–4
ERM LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–4
Link Good Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–4
ACT Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–4
Error Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–4
Slave Module Diagnostic LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–4
EBC LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–4
Error Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–4
Using ERM Workbench for Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–5
Read from ERM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–5
Reserved PLC Memory for ERM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–6
Detailed ERM Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–6
Select Slaves Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–7
Using NetEdit for Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–8
Select a Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–8
Module Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–8
Change Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–9
Replacing the ERM / Slave Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–9
Diagnosing Network Cable Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–10
Appendix A: General Specifications
General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-2
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-2
Ethernet Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-4
Appendix B: ERM / Slave Diagnostics and Error Codes
ERM Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-2
ERM Status Word / Resetting the Slave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-2
iv
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Table of Contents
DirectLOGIC Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-3
Do-more Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-3
ERM Status Word Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-4
Reading ERM Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-5
Reading ERM Statistics using Ladder Logic with DirectLOGiC . . . . . . . . . . . . . . . . . .B-5
Reading ERM Statistics using Ladder Logic with Do-more . . . . . . . . . . . . . . . . . . . .B-6
Reading Error Codes from Slaves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-7
Reading Error Codes from Slaves with DirectLOGIC . . . . . . . . . . . . . . . . . . . . . . . . .B-7
Reading Error Codes from Slaves with Do-more . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-9
Slave Diagnostic Word Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-10
Current / Last State Slave Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-12
Extended Slave Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-13
Appendix C: ERM and ERM Workbench Default Settings
ERM and ERM Workbench Factory Default Settings . . . . . . . . . . . . . . . . . . . . . . . .C–2
Appendix D: Mapping ERM Slave I/O in a Think & Do WinPLC System
Mapping ERM Slave I/O Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D–2
Launching Connectivity Center Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D–2
Connecting to the WinPLC Base I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D–2
Connecting to the ERM Slave I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D–3
Mapping I/O Points to Data Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D–3
Appendix E: Configuring Terminator I/O Analog Output Modules
Analog Output Module Control Byte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E–2
Appendix F: H2-EBC(100) Analog Module Addressing
H2-EBC(100) Analog Module Addressing (H2/4-ERM(100) . . . . . . . . . . . . . . . .F–2
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
v
Table of Contents
Notes:
vi
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
CHAPTER
INTRODUCTION
In This Chapter:
1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–2
Purpose of this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–2
Other Reference Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–2
Who Should Read this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–2
Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–2
Conventions Used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–3
Key Topics for Each Chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–3
Ethernet Remote Master (ERM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–4
Ethernet Remote Slaves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–4
Configuring the Ethernet Remote I/O Network . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–5
Running the Ethernet Remote I/O Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–5
ERM / ECOM Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–6
How the PLC CPU Updates Remote I/O Points . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–7
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–8
Chapter 1: Introduction
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
Introduction
1–2
Purpose of this Manual
This manual describes how to use the Ethernet Remote Master (ERM) Modules. You will
find information about:
• Configuring the ERM module
• Network layouts and cabling
• Maintenance and troubleshooting
Other Reference Materials
• Do-more User Manual, part number H2-DM-M
• DL205 User Manual, part number D2-USER-M
• DL405 User Manual, part number D4-USER-M
• Ethernet Base Controller Manual (205/405), part number H24-EBC-M
• Terminator I/O Ethernet Base Controller User Manual, part number T1H-EBC-M
• Terminator I/O Installation and I/O User Manual, part number T1K-INST-M
• WinPLC User Manual, part number H2-WPLC-M
Who Should Read this Manual
If you need a high-speed Ethernet remote I/O communications link between a DirectLogic
PLC or WinPLC local base and remote ethernet slaves and you understand the basics of
installing and programming PLCs, this is the right manual for you. This manual provides the
information needed to setup and configure the ERM module and its Ethernet slaves.
Technical Support
We strive to make our manuals the best in the industry. We rely on your feedback to let us
know if we are reaching our goal. If you cannot find the solution to your particular
application, or, if for any reason you need technical assistance, please call us at:
770-844-4200
Our technical support group will work with you to answer your questions. They are available
Monday through Friday from 9:00 A.M. to 6:00 P.M. Eastern Time. We also encourage you
to visit our web site where you can find technical and non-technical information about our
products and our company.
http://www.automationdirect.com
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Chapter 1: Introduction
Conventions Used
When you see the “note pad” icon in the left-hand margin, the paragraph to its immediate right will be a
special note. Notes represent information that may make your work quicker or more efficient. The word
NOTE: in boldface will mark the beginning of the text.
When you see the “exclamation point” icon in the left-hand margin, the paragraph to its immediate right
will be a warning. This information could prevent injury, loss of property, or even death in extreme cases.
Any warning in this manual should be regarded as critical information that should be read in its entirety.
The word WARNING in boldface will mark the beginning of the text.
Key Topics for Each Chapter
The beginning of each chapter will list the key topics
that can be found in that chapter.
Getting Started!
1
CHAPTER
In This Chapter...
Introduction .............................................................................1-2
Purpose of this Manual ....................................................................1-2
About Getting Started! ......................................................................1-2
Supplemental Manuals and Other Help ............................................1-2
Technical Support .............................................................................1-2
Conventions Used ....................................................................1-3
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
1–3
Chapter 1: Introduction
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
Ethernet Remote Master (ERM)
The Ethernet Remote Master (ERM) module provides a low-cost, high-speed Ethernet
Remote I/O link for DirectLogic 205/405 and Do-more PLC systems, and WinPLC systems.
The ERM connects the local CPU base(s) to the ethernet remote slave modules via a
10/100BaseT (twisted pair, copper wire) or 10BaseFL (fiber optic) Ethernet link. Each ERM
module can support up to sixteen slaves when used in DirectLogic 205/405 or Do-more PLC
systems. When used in Think & Do WinPLC systems, a limitation of one ERM with one
slave applies per system.
H2-ERM(100)
H2-ERM-F
H4-ERM(100)
H4-ERM-F
Note: The H2-ERM module was
discontinued in 2014 but is still
covered in this manual.
Ethernet Remote Slaves
The following Ethernet Base Controller (EBC) slave modules and Ethernet Interfaces for AC
Drives are supported by the ERM module. The remote I/O network may consist of a
combination of these slaves. The ERM module can support up to sixteen slaves when used in
DirectLogic 205/405 or Do-more PLC systems. When used in Think & Do WinPLC
systems, the ERM module is limited to supporting one slave.
The EBC slave updates all of its I/O data (including analog I/O) internally at a high rate that
is independent of the rate that the ERM may poll the EBC for its I/O data. This allows the
ERM to read the most current I/O data regardless of PLC scan times or other slave I/O cycle
times.
GS-EDRV*
H2-EBC (100, -F)
T1H-EBC(100)
H4-EBC (-F)
GS-EDRV100*
*For use with AC Drives
1–4
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Chapter 1: Introduction
Configuring the Ethernet Remote I/O Network
Use a PC equipped with a 10/100BaseT or 10BaseFL network adapter card and the Ethernet
Remote Master (ERM) Workbench software configuration utility that comes with this
manual to configure the ERM module and its slaves over the ethernet remote I/O network.
Warning: We recommend using a dedicated Ethernet remote I/O network for the ERM and its slaves.
While Ethernet networks can handle a very large number of data transmissions, and normally handle
them very quickly, heavy Ethernet traffic can adversely affect the reliability of the slave I/O and the
speed of the network.
Running the Ethernet Remote I/O Network
Once the ERM I/O network is configured and running, the PC can be removed from the
network.
PC running ERM Workbench to
configure the ERM network
DirectLogic or
Do-more PLC
Dedicated
hub(s) for ERM
Network
ERM Module
DL205 I/O
GS-EDRV,
GS-EDRV100
AC Drive
DL405 I/O
Terminator I/O
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
1–5
Chapter 1: Introduction
ERM / ECOM Systems
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
Keep ERM networks, multiple ERM networks and ECOM / office networks isolated from
one another as shown below. Do not attempt to connect an ECOM module or non ERM
Workbench PC to a hub that the dedicated ERM network is using. Having an ECOM
module(s) on an ERM Ethernet network can adversely affect the reliability and the speed of
the ERM slave I/O.
PC for HMI,
SCADA, etc.
Dedicated
ERM Network
ERM
ECOM
ECOM or
Office Network
Dedicated
hub(s) for ERM
Network
GS-EDRV
1–6
ECOM Module
AC Drive
PC for Data Acquisition,
MES, ERP or other
business systems
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Chapter 1: Introduction
How the PLC CPU Updates Remote I/O Points
The PLC CPU, ERM and Remote Slave (EBC) modules work together to update the remote
I/O points. There are three asynchronous scan cycles working together to transfer the remote
I/O data between the PLC and the I/O modules: the EBC scan, the ERM scan and the PLC
scan. These are described below.
During each PLC CPU scan, the ERM is allowed one access to the PLC’s memory. The access
can be a write to the PLC or a read from the PLC, but not both. There are four types of data
that are processed: discrete inputs, discrete outputs, analog inputs and analog outputs. The
ERM can only process one of these four data types on any given scan. If all data types are
used, it will take four PLC scans to completely update all of the remote I/O points. The
largest amount of data that the PLC can process in a single request is 128 bytes. If any of the
four I/O types exceeds 128 bytes of data, it will take multiple scans to process that type’s data.
It is possible for the PLC’s scan to be faster than the ERM’s processing scan. This is largely
dependent on the size of the application program, as well as the type and number of remote
I/O points. If there are I/O points that must be updated every PLC scan, it is recommended
that those points be placed in the CPU base or local expansion base.
1) PLC CPU Scan: executes program logic and scans local I/O. The PLC User Manual
describes the PLC scan in detail.
2) ERM Scan: there are four I/O types that can be processed by the ERM: discrete inputs,
discrete outputs, analog inputs and analog outputs. It takes a least one for each of the four
I/O types present to complete an ERM scan The typical ERM cycle is as follows:
PLC Scan
N
Read discrete output data from the PLC
N+1
Read analog output data from the PLC
Write all of the output data to the EBCs
Collect input data from the EBCs
N+2
Write discrete inputs to the PLC
N+3
Write analog inputs to the PLC
3) Remote Slave Scan (EBC): constantly collects all discrete and analog input data from the
input modules in the base. This keeps the most recent input data available whenever the
ERM requests it. The EBC writes to the output modules as the data is received from the
ERM.
In general, it will take four PLC scans to completely update the remote I/O. You can use the
ladder logic example on page B–4 to get the ERM update statistics. This will provide detailed
information about the ERM’s processing time.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
1–7
Chapter 1: Introduction
Frequently Asked Questions
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
1–8
Q. Which protocols are supported by the ERM module?
A. A protocol is a set of rules that allows computers to connect with one another specifying the
format, timing, sequencing, and error checking for data packet transmission. The ERM module
supports Novell IPX and UDP/IP (Universal Datagram Protocol/Internet Protocol). When
configuring the ERM and EBCs, your PC must support one of these protocols. However, the
ERM and slaves can utilize their own protocol selection regardless of the protocols supported by
your PC.
Q. Can I create multiple remote I/O networks by putting more than one ERM
in a single PLC / WinPLC base?
A. Yes, for DirectLogic and Do-more PLCs, but Think & Do WinPLC systems are limited to one
ERM module with one slave per system to ensure reliable system performance. If more than one
EBC slave is desired in a Think & Do WinPLC system, please contact Entivity’s technical support
at 734–205–5000 or e–mail [email protected] Be sure to consult Chapter 2 for important
installation information, and be sure not to exceed the PLC power budget (see the module
specifications in Appendix A and the PLC User Manual). Also, it is very important to keep each
ERM and its slave(s) isolated from other ERMs and their slaves.
Q. What
does it mean to “set up” the ERM module?
A. The ERM module must be configured using the Ethernet Remote Master Workbench to know
how many slaves and I/O points there will be on the remote I/O network. There are also other
advanced ERM settings to configure.
Q.
How much remote I/O can I have?
A. The ERM module supports up to 16 additional DL205/Do-more EBC bases, 16 Terminator I/O
EBC systems, 16 fully expanded DL405 EBC systems, Ethernet Interfaces for AC Drives or any
combination of the four. If a WinPLC is the system interface, the ERM can only support one
slave.
Q. Can
I reserve slots in a base for future I/O expansion?
A. Yes, the “Padding” feature within the Slave Configuration window of the ERM Workbench allows
reserving addresses for future I/O modules at the end of each of the EBC slave systems (not
between modules).
Q.
Can I program or use an operator interface on the EBC slave when used with
an ERM?
A. No, the serial port on the EBC slave is not supported at this time when used with an ERM
module.
Q. Which
LAN topology should I use?
A. ERM modules are available for connecting to 10/100BaseT or 10BaseFL (fiber optic) networks.
The cable distances and environmental conditions often dictate which media type should be used.
The most popular and flexible topology currently is 10/100BaseT, but 10/100BaseT is susceptible
to electrical noise and is limited to relatively short cable runs. On the other hand, it is very simple
and inexpensive, and repeaters can be used to extend its cable length limitations. 10BaseFL allows
much longer cable runs with immunity to electrical noise. The fiber optic cable and hubs are
currently more expensive than those for 10/100BaseT.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
ERM / SLAVE NETWORK
ADDRESSING MODES
In This Chapter:
CHAPTER
2
ERM / Remote Slave Network Identifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2–2
ERM / Slave Configuration Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2–2
ERM / Slave Module ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2–3
IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2–4
Ethernet Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2–4
Using Multiple Network Identifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2–4
Chapter 2: ERM / Slave Network Addressing Modes
ERM / Remote Slave Network Identifiers
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
2–2
This chapter describes the various network identifiers used by the ERM and its slave
modules. Each module on a network must be uniquely identified. There are three indentifiers
that can be used to make a module unique.
The three module identifiers are:
• Module ID
• IP (Internet Protocol) Address (a slave may be used on the Internet, but I/O cycle time may
be very high)
• Ethernet Address (MAC Address)
The first two are user-selectable. The third one is set at the factory. A Name may be assigned
to a module, but the ERM cannot address a slave by its Name.
The identifiers are used to link the ERM module to its remote slaves The decision about
which type of identifier to use is an important one. Much of the decision depends on the
protocol requirements of your particular application. Ease of maintenance and
troubleshooting also must be considered before deciding which type to use.
Identifiers
Module ID
IP Address
Protocol
How to Set
Ethernet Address IPX
Restrictions/Notes
DIP Switch
ID can be changed
Slave Number 1–63, Module
without NetEdit. Disables
Set ERM to 0
Module ID in NetEdit.
NetEdit
Slave Number 165535
Set ERM to 0
DIP Switch must be set to
“0”. Must use NetEdit to set
Module ID.
NetEdit
4 Three-digit
Numbers
xxx.xxx.xxx.xxx
(See Page 2–4)
See Your Network
Administrator, Only for
UDP/IPAdminist
Set at Factory
12 Hex digits
Factory-assigned
IPX
UDP/IP
Format
ERM / Slave Configuration Tools
ERM Workbench software utility must be used to configure the ERM and its slave modules.
If either Module ID (set by dip switch) or Ethernet Address is used for network
identification, then ERM Workbench is all that is needed to configure the network modules.
ERM Workbench is described in detail in Chapter 3.
NetEdit software utility will be needed in addition to the ERM Workbench if IP Addressing
(UDP/IP) is necessary or if the Module ID is software set. If the H4–EBC slave is used with
analog I/O or the high speed counter, NetEdit will be required to configure the H4–EBC.
NetEdit is described in detail in Chapter 4.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Chapter 2: ERM / Slave Network Addressing Modes
ERM / Slave Module ID
You can assign the Slave Module ID:
• using the DIP switches on the module (1–63).
• using the configuration tools in NetEdit that is included within the ERM Workbench
utility (1–65535).
Use the DIP switch if you want the ability to install or change slave modules without using a
PC to set the Module ID. Set the module’s DIP switch, insert the module in the base, and
connect the network cable. Your Module ID is set on powerup, and your module is ready to
communicate on the network.
Ignore these numbers
1 2 3
4 5 6 7 8
7 6 5 4 3 2
. . . .
25 24 23 22
. . . .
Not Used (32)(16)(8) (4)
ON
ON
1 0
. .
21 20
. .
(2) (1)
Binary Value
The numbers (0–7) printed
on the circuit board indicate
the power of 2 represented
by each slide switch.
H2–EBC
If you prefer to be able to set or change all Module IDs on your network from a single PC,
use the tools in NetEdit. In chapter 4, we step through the use of NetEdit and the network
identifier options.
The Module ID equals the sum of the binary values of the slide switches set in the ON
position. For example, if you set slide switches 1, 2, and 3 to the ON position, the Module
ID will be 14. This is found by adding 8+4+2=14. The maximum value you can set on the
DIP switch is 32+16+8+4+2+1=63. This is achieved by setting switches 0 through 5 to the
ON position.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
2–3
Chapter 2: ERM / Slave Network Addressing Modes
IP Address
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
2–4
An IP Address can be assigned to the ERM module or its slaves if your network requires one.
Normally, a network administrator will assign an IP Address to each device on the network.
Since it is recommended to use a separate dedicated network for your ERM , you do not have
to use the IP Address, unless you are using the UDP/IP protocol. Use the Module ID or
Ethernet Address for each module when using the IPX protocol.
You can use NetEdit within the ERM Workbench utility to give the ERM or its slave
modules an IP Address. Each ERM and slave must have a unique IP Address.
The module ships from the factory with an IP Address of 255.255.255.255. This is not a
usable IP Address for normal communications. It only serves as a default setting which can be
changed using NetEdit. The valid settings are 0 through 254. You do not have to change
the default IP Address unless you are using IP Address protocol. The default setting does not
cause conflicts with other network communications.
If you change the default IP Address for linking to other network devices, you must change
all four “255” fields. If any field contains the number 255 and other fields have been
changed, the module will not be recognized on the network.
Example
Valid IP Address:
No!
192.168.100.002
255.168.100.002
WARNING: There cannot be duplicate IP Addresses on your network. If you are using the IP Address,
all modules must have a unique number.
Ethernet Address
A unique Ethernet Address is assigned to each module at the factory and will not change. It is
printed on a label attached to each module. The Ethernet Address is recognized by ERM
Workbench and NetEdit. The Ethernet Address is a twelve digit number with no deliberate
relationship to your network or functional areas of your plant. It does not usually serve as a
convenient and easily remembered identifier for the module.
Factory-assigned Ethernet Address
Host Auto Prod
H2–ERM
00 E0 62 20 00 84
Host Auto Prod
H4–ERM
00 E0 62 20 00 85
Using Multiple Network Identifiers
Using one type of identifier does not limit your use of the other identifier types. IP
addressing, Module ID and Ethernet Addressing may be used on one dedicated remote I/O
network.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
INSTALLATION AND
NETWORK LAYOUTS
In This Chapter:
CHAPTER
3
Inserting the ERM Module in the I/O Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–2
DL205/Do-more Slot Choices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–2
H2–ERM (100, –F) Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–2
DL405 Slot Choices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–3
H4–ERM (100, –F) Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–4
Which Modules are Supported in the Ethernet Slaves . . . . . . . . . . . . . . . . . . . . . . .3–4
ERM Network Layouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–5
Configuring the Ethernet Remote I/O Network . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–5
Running the Ethernet Remote I/O Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–5
ERM / ECOM Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–6
Network Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–7
ERM Supports Three Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–7
10/100BaseT Networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–7
10/100BaseT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–8
UTP Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–8
10BaseFL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–8
Fiber Optic Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–8
Fiber Optic Module ST Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–8
Maximum Cable Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–9
Chapter 3: Installation and Network Layout
Inserting the ERM Module in the I/O Base
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
3–2
DL205/Do-more Slot Choices
The DL205 and Do-more systems support placement of the ERM module in the CPU-base
only. It does not support installation of the ERM in local expansion or remote I/O bases. The
number of usable slots depends on how many slots your base has. See the chart below for
limitations on slot selection. The D2–230 CPU does not support the ERM modules.
205
CPU
Slot 0
Slot 1 Slot 2
Slot 3
Slot 4
No!
WARNING: Your system can be damaged if you install or remove system components before
disconnecting the system power. To minimize the risk of equipment damage, electrical shock, or
personal injury, always disconnect the system power before installing or removing any system
component.
Module Type
H2–ERM(100, -F)
CPU
DL240
DL250-1
DL260
Base
Usable Slots
D2–03B–1, D2–03BDC1–1
D2–04B–1, D2–04BDC1–1
1
1, 2
D2–06B–1, D2–06BDC1–1, D2–06BDC2–1
1, 2, 3, 4
D2–09B–1, D2–09BDC1–1, D2–09BDC2–1
1, 2, 3, 4, 5, 6, 7
Any Base
Any Slot
H2-DM1 / H2-DM1E
H2–ERM (100, -F) Module Installation
205
Retaining Clips
To install the ERM module, line up the module’s printed circuit board with the grooves in
the base and push the module until it is flush with face of the base power supply. If you feel
more than moderate resistance when you push the module into the base, the circuit board
may not be aligned with the grooves in the base. When the module is firmly seated in the slot,
depress the top and bottom retaining clips to lock the module in place.
NOTE: When adding modules to your PLC always confirm that your power budget will accommodate the
added module. See the User Manual for your PLC for more information about calculating the power
budget. See Appendix A for the power consumption of the ERM modules.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Chapter 3: Installation and Network Layout
DL405 Slot Choices
For PLC systems with D4–430 and D4–440 CPUs, the ERM modules can reside in any I/O
slot but only in the CPU-base. The D4–450 CPU allows the installation of the ERM module
in the CPU-base or in local expansion bases. If the ERM module is used in a local expansion
base, all bases in the system must be the “–1” type bases. The valid part numbers for these
bases are D4–04B–1, D4–06B–1, and D4–08B–1. The “–1” on the end of the part number
indicates that the base supports specialty modules including the ERM. The “–1” bases can be
connected as local expansion bases or remote bases. They are not the same thing. Remote bases
do not support the ERM modules!
405
CPU
Slot 0
Slot 1
Slot 2
Slot 3
WARNING: Your system can be damaged if you install or remove system components before
disconnecting the system power. To minimize the risk of equipment damage, electrical shock, or
personal injury, always disconnect the system power before installing or removing any system
component.
Module Type
H4–ERM(100, -F)
H4–ERM(100, -F)
H4–ERM(100, -F)
Usable CPU-Base Usable Expansion
Slots
Base Slots
CPU
Base
D4–430/440
D4–04B, D4–04B–1
0, 1, 2, 3
N/A
D4–06B, D4–06B–1
0, 1, 2, 3, 4, 5
N/A
D4–08B, D4–08B–1
0, 1, 2, 3, 4, 5, 6, 7
N/A
D4–04B
0, 1, 2, 3
N/A
D4–06B
0, 1, 2, 3, 4, 5
N/A
D4–08B
0, 1, 2, 3, 4, 5, 6, 7
N/A
D4–04B–1
0, 1, 2, 3
0, 1, 2, 3*
D4–450
D4–450
D4–06B–1
0, 1, 2, 3, 4, 5
0, 1, 2, 3, 4, 5*
D4–08B–1
0, 1, 2, 3, 4, 5, 6, 7
0, 1, 2, 3, 4, 5, 6, 7*
* You must use the “–1” base for the CPU-base and all local expansion bases.
NOTE: Before installing the ERM module, confirm that your power budget will accommodate the added
module. See the PLC user manual for your PLC for more information about calculating the power budget.
See Appendix A for the power consumption of the ERM modules.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
3–3
Chapter 3: Installation and Network Layout
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
3–4
H4-ERM(100, -F) Module Installation
To insert the ERM module in a DL405 base, place the bottom tab of the module into the
notch at the bottom of the base. Pivot the module toward the base as shown below. Ensure
that each module is tightly seated and secured with the captive screw at the top of the
module.
DL405 Base
Disconnect power before installing module!
Which Modules are Supported in the Ethernet Slaves
The Ethernet remote I/O slaves accept the most commonly used I/O modules for the
DL205/Do-more, DL405 systems and Terminator I/O systems (AC, DC, AC/DC, Relay an
Analog). The table below lists by category those modules that you may use in a remote I/O
slave. A few specialty modules that are supported in the slaves are listed below.
Module/Unit
Remote Slave
Module/Unit
Remote Slave
PLC CPUs
DC Input Modules
AC Input Modules
AC/DC Input Modules
No
H2–CTRIO(2)
Yes
Yes
D2–CTRINT
No
Yes
H4–CTRIO, D4–HSC
Yes
Yes
No
DC Output Modules
Yes
D2–EM
Communications and
Networking Modules
AC Output Modules
Relay Output Modules
Analog I/O Modules
Thermocouple Module
RTD Module
Yes
No
Yes
Yes
Yes
Yes
NOTE: The User Manual for Analog I/O Modules discusses scan times for updating analog I/O data for
modules installed in local bases. Please be aware that the scan times for updating are different for remote
I/O modules installed in remote bases. The CPU scan is asynchronous with the remote scan by the
master module. Thus, an analog input module installed in a remote base, for example, may not have its
data updated by the CPU “once every scan per channel” as stated in the user manual. The CPU scan may,
in fact, cycle several times while the remote scan is taking place. Take this into account in applications
where the timing is critical.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Chapter 3: Installation and Network Layout
ERM Network Layouts
Each ERM module can support up to 16 remote slaves (if a WinPLC system is used, only one
slave can be supported by the ERM module). The slaves supported are the H4–EBC(–F),
H2–EBC(–F), T1H–EBC, GS–EDRV100 and HA–EDRV2. A hub or repeater connects
multiple slaves into a star topology. Multiple hubs or repeaters can be used to create a
star–bus–star topology. Once the ERM I/O network is configured and running, the PC can
be removed from the network.
Configuring the Ethernet Remote I/O Network
Use a PC equipped with a 10/100BaseT or 10BaseFL network adapter card and the Ethernet
Remote Master (ERM) Workbench software configuration utility that comes with this
manual to configure the ERM module and its slaves over the ethernet remote I/O network.
PC running ERM Workbench to
configure the ERM network
DirectLogic or
Do-more PLC
Dedicated
hub(s) for ERM
Network
ERM Module
DL205 I/O
GS-EDRV,
GS-EDRV100
AC Drive
DL405 I/O
Terminator I/O
Running the Ethernet Remote I/O Network
Once the ERM I/O network is configured and running, the PC can be removed from the
network.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
3–5
Chapter 3: Installation and Network Layout
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
3–6
ERM / ECOM Systems
Keep ERM networks, multiple ERM networks and ECOM / office networks isolated from
one another as shown below. Do not attempt to connect an ECOM module or non ERM
Workbench PC to a hub that the dedicated ERM network is using. Having an ECOM
module(s) on an ERM Ethernet network can adversely affect the reliability and the speed of
the ERM slave I/O.
Keep ERM and ECOM
modules on separate
Networks
E
R
M
PC for HMI or
SCADA, etc.
E
C
O
M
Dedicated
ERM Network
ECOM or
Office Network
ECOM
Dedicated Hub(s)
for ERM Network
PC for Data Acquisition
in MES, ERP or other
business systems
Warning: We recommend using a dedicated Ethernet remote I/O network for the ERM and its slaves.
While Ethernet networks can handle a very large number of data transmissions, and normally handle
them very quickly, heavy Ethernet traffic can adversely affect the reliability of the slave I/O and the
speed of the network.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Chapter 3: Installation and Network Layout
Network Cabling
ERM Supports Three Standards
Three types of ERMs are available. The H2-ERM and H4-ERM support the 10BaseT
standard. The H2-ERM100 and H4-ERM100 support the 10/100BaseT standard. The H2ERM-F supports the 10BaseFL standard. The 10/100BaseT standard uses twisted pairs of
copper wire conductors, and the 10BaseFL standard is for fiber optic cabling.
10/100BaseT
Unshielded twisted-pair
cable with RJ45
connectors
10BaseFL
62.5 / 125 MMF fiber
optics cable with ST-style
connectors
10/100BaseT Networks
The cable used to connect a PLC (or PC) to a hub or repeater is called a patch (straightthrough) cable. The cable used to connect two Ethernet devices (Point–to–Point) together is a
crossover cable. We recommend that you purchase cables pre-assembled with connectors for
convenient and reliable networking.
This diagram illustrates the standard wire positions in the RJ45 connector. We recommend all
ERM 10/100BaseT cables to be Category 5, UTP cable.
Patch (Straight–through) Cable
10/100BaseT
TD+ 1
TD– 2
RD+ 3
4
5
RD– 6
7
8
OR/WHT
OR
GRN/WHT
BLU
BLU/WHT
GRN
BRN/WHT
BRN
RJ45
OR/WHT
OR
GRN/WHT
BLU
BLU/WHT
GRN
BRN/WHT
BRN
1
2
3
4
5
6
7
8
TD+
TD–
RD+
RD–
RJ45
Crossover Cable
1 2 3 4 5 6 78
8-pin RJ45 Connector
(8P8C)
TD+ 1
TD– 2
RD+ 3
4
5
RD– 6
7
8
RJ45
OR/WHT
OR
GRN/WHT
BLU
BLU/WHT
GRN
BRN/WHT
BRN
GRN/WHT
GRN TD+ 1
OR/WHT TD– 2
RD+ 3
BLU
4
BLU/WHT
5
OR
RD– 6
BRN/WHT
7
BRN
8
RJ45
This diagram illustrates the standard wire positions in the RJ45 connector.
We recommend all ERM 10/100BaseT cables to be Category 5, UTP cable.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
3–7
Chapter 3: Installation and Network Layout
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
10/100BaseT
Most 10/100BaseT hubs or repeaters use a patch (straight-through) cable for connecting the
network devices (PLCs or PCs). For hub-to-hub connections a crossover type cable is
commonly required. The figures on page 3–6 show pin assignments and insulation color
codes for patch (straight-through) and crossover type Ethernet cables.
UTP Cable
The ERM has an eight-pin modular port that accepts RJ45 type connectors. UTP
(Unshielded Twisted-Pair) cable is rated according to its data-carrying ability (bandwidth) and
is given a “category” number. We strongly recommend using a category 5 cable for all ERM
connections.
10BaseFL
Each module has two bayonet ST-style connectors. The ST-style connector uses a quick
release coupling which requires a quarter turn to engage or disengage. The connectors provide
mechanical and optical alignment of fibers. Each cable segment requires two strands of fiber:
one to transmit data and one to receive data. The ST-style connectors are used to connect the
H2–ERM–F or H4–ERM–F module to another H2–ERM–F or H4–ERM–F module or a
fiber optic hub or repeater.
Fiber Optic Cable
The H2–ERM–F and H4–ERM–F modules accept 62.5/125 multimode fiber optic (MMF)
cable. The glass core diameter is 62.5 micrometers and the glass cladding is 125 micrometers.
The fiber optic cable is highly immune to noise and permits communications over much
greater distances than 10/100BaseT.
Fiber Optic Module ST Connector
Ferrule
Transmit
Sheathing
Core
Receive
62.5/125 MMF cable with
bayonet ST-style connectors
Transmit
Receive
3–8
Fiber cross-section
Multimode Fiber Optic (MMF) Cable
Cladding
Connecting ERM
to Slave
Transmit
Receive
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Chapter 3: Installation and Network Layout
Maximum Cable Length
The maximum distance per 10/100BaseT cable segment is 100 meters or 328 feet. Repeaters
extend the distance. Each cable segment attached to a repeater can be 100 meters. Two
repeaters connected together extend the total range to 300 meters. For really long distances,
consider using Ethernet/Fiber media converters like the SE-MC2U-ST.
The maximum distance per 10BaseFL cable segment is 2,000 meters or 6,560 feet (1.2
miles). Repeaters extend the distance. Each cable segment attached to a repeater can be 2,000
meters. Two repeaters connected together extend the total range to 6,000 meters.
10/100Base-T Ethernet Control Network shown
(also supports 10Base–FL Networks)
100 meters
(328 ft.)
100 meters
(328 ft.)
10/100Base-T Hub (required
if using more than one
Ethernet slave)
100 meters
(328 ft.)
100 meters
(328 ft.)
100 meters
(328 ft.)
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
3–9
Chapter 3: Installation and Network Layout
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
Notes
3–10
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
CONFIGURING THE ERM
AND SLAVE MODULES
WITH ERM WORKBENCH
CHAPTER
4
In This Chapter:
ERM Workbench Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–3
Launching ERM Workbench . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–3
Adding IPX Network Protocol Support (Windows XP/32 bit or earlier) . . . . . . . . . .4–4
Running ERM Workbench PLC Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–5
Step 1: Choosing the ERM Network Configuration . . . . . . . . . . . . . . . . . . . . . . . . .4–5
Step 2: Connecting the ERM Workbench PC to the ERM Network . . . . . . . . . . . . . .4–5
Establishing Communication with the ERM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–6
Step 3: Select and Configure the Slaves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–6
Step 4: Map I/O to PLC Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–7
Step 5: Download Configuration to ERM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–7
ERM Workbench Main Configuration Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–8
Running ERM Workbench . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–9
Connecting the ERM Workbench PC to the Network Modules . . . . . . . . . . . . . . . .4–9
Configure the ERM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–10
Configuring the ERM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–10
Selecting PLC as Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–10
PLC Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–11
Advanced ERM Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–11
Select the Slaves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–12
Selecting the Slaves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–12
Configure the Slaves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–13
Setting the Slave’s Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–13
Write Configuration to ERM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–15
Table of Contents
Analog I/O Data Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–16
Analog I/O Data Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
Reserved PLC Memory for ERM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–17
ERM Status Word / Reset Slave Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–17
Saving ERM Configuration to Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–18
Clear ERM Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–18
Printing/Exporting the ERM Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–18
ii
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Chapter 4: Configuring the ERM And Slave Modules with ERM Workbench
ERM Workbench Software
Ethernet Remote Master (ERM) Workbench is a software utility that must be used to
configure the ERM and its remote Ethernet slaves. The ERM Workbench supports two
methods of configuring the ERM I/O network. Both methods are explained later in this
chapter.
The two configuration methods are:
• ERM Workbench PLC Wizard – simplifies the ERM I/O network configuration procedure when a
PLC is used as the CPU Interface.
• ERM Workbench – configures an ERM I/O network whether the CPU Interface is a PLC or
WinPLC, and allows access to all ERM I/O network parameters.
NetEdit, a software utility within ERM Workbench, can be used to set the Ethernet
master/slave Module ID, set an IP address if necessary or configure 405 EBCs with analog
I/O modules. Both ERM Workbench and NetEdit can be used to monitor the remote I/O
network and to perform diagnostic and troubleshooting tasks.
ERM Workbench software is installed as a utility program when you install DirectSOFT or
Do-more Designer. The latest version of ERM Workbench is also available for download from
Host Engineering’s web site (www.hosteng.com). ERM Workbench consists of several files, all
of which must be located in the same directory. The installation process places the files in the
C:\HAPTools directory (default). The files may be placed in another directory, but remember
all of the ERM Workbench files must be placed within the same directory.
Launching ERM Workbench
There are four methods to launch ERM Workbench:
• using the Windows Start menu
Programs>AutomationDirect Tools>ERM Workbench
(on right)
• launching DirectSOFT, then select PLC
>Tools>ERM Workbench
• launching DirectSOFT, then select
Utilities>ERM Workbench (on left)
• launching Do-more Designer, then
select ERM Workbench from the
Launchpad (on left)
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
4-3
Chapter 4: Configuring the ERM And Slave Modules with ERM Workbench
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
4-4
Adding IPX Network Protocol Support on PCs with Windows XP (32 bit only)
or Earlier Operating Systems
You may have already set up your PC with selected networking protocols for Ethernet
communications. If not, you will need to select the protocols now for communication with
the ERM module. We strongly recommend that you include the IPX protocol. The
description below applies to Windows 2000 (Windows 98/NT/XP have slightly different
steps). If you are not familiar with this procedure, you may need to have your Network
Administrator perform this task.
For Windows 2000, go from My Computer on your Windows desktop to Control Panel.
Double click on Network and Dial–up Connections, then double click on the desired
Network Device to see the installed Protocols. If IPX is not listed among the protocols already
loaded, add it now by clicking on the Install button. For Windows XP, go from
Start>Settings>Control Panel. The steps are the same as Windows 2000 from this point.
Add the TCP/IP protocol if it is necessary for your application. The TCP/IP selection will
give you support for the UDP/IP protocol. Also, add the IPX protocol if it is not already
active.
NOTE: We strongly recommend you load IPX protocol on your PC for the connectionfrom your PC to the
ethernet modules. Use UDP/IP in your application, if required,but also add IPX to your list of active
protocols. Having IPX loaded on your PC gives you a backup for troubleshooting communication problems.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Chapter 4: Configuring the ERM And Slave Modules with ERM Workbench
Running ERM Workbench PLC Wizard
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
Run ERM Workbench PLC Wizard by launching DirectSOFT or Do-more Designer, then
select ERM Workbench as mentioned on the prevous page. The Wizard allows the ERM
network to be easily and completely configured without having to use the more advanced
ERM Workbench utility.
NOTE: The ERM module and ERM Workbench utility factory default settings are located in Appendix C.
These defaults will be applied during the ERM network configuration unless otherwise changed. Some of
the settings can be changed within the ERM PLC Wizard, but all can be changed using the ERM
Workbench utility.
Step 1: Choosing the ERM Network Configuration
Select either Hub or Point–to–point to describe the ERM network system that will be used.
This example assumes that a Hub network is used. Once a selection has been made, click on
the Next button.
Step 2: Connecting the ERM Workbench PC to the ERM Network
Connect the ERM Workbench PC to the dedicated ERM network hub. If only one slave is
used, connect the PC directly to that slave. Then click on the Next button.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
4-5
Chapter 4: Configuring the ERM And Slave Modules with ERM Workbench
Establishing Communication with the ERM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
4-6
The following window will be displayed if an ERM module is found on the network. Click
on the Flash Error Light button to confirm that the correct ERM module has been found
(the ERM’s LED will flash for 3 seconds). If the PC is connected directly to the slave in a
Point–to–point network, this window will not be displayed until the PC is connected directly
to the ERM module.
Step 3: Select and Configure the Slaves
The Select and Configure Slaves window will display all of the slaves found on the dedicated
ERM network. The order of how the I/O is mapped into the PLC is based on the slave order.
The ERM to Slave Address Mode selection determines the address mode in which the ERM
module will use to communicate with its slaves. Chapter 2 describes the ERM / Slave
Addressing Modes. Click on the Next button once the slave list is configured.
NOTE: Due to the manner in which I/O is grouped into PLC addresses, it is advisable, for future expansion
purposes, to pad the base with extra I/O. The wizard does not offer the option to add unused addresses. To
pad the addresses, add extra I/O before running the wizard. If the padding is not created, adding an I/O
module to the base in the future will offset a wide range of I/O in the PLC’s memory map.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Chapter 4: Configuring the ERM And Slave Modules with ERM Workbench
Step 4: Map I/O to PLC Memory
Select the starting PLC memory addresses for each of the four I/O types: Discrete Inputs,
Discrete Outputs, Analog Inputs and Analog Outputs. Be sure that the selected starting
addresses do not conflict with any local I/O or any memory locations used in the ladder logic
program. Note that the first two words of memory in the Discrete Input table is reserved for
ERM status information and the first word of memory in the Discrete Output table is
reserved for Disable Slave Command bits. For more detailed information on PLC I/O
mapping, refer to the “PLC Map” section on page 4–10 and the “Reserved PLC Memory for
ERM” section on page 4–15. Click on the Next button once the starting PLC addresses have
been selected.
DirectLOGIC
Do-more
Step 5: Download Configuration to ERM
The following window displays how the slave I/O will be mapped into the PLC memory. The
network I/O modules and I/O points are listed by slave and slot number. This configuration
is written to the ERM by clicking on the “Write to ERM” button. If any advanced
configuration needs to be done, click on the ERM Workbench button. The modified
configuration can then be downloaded from the ERM Workbench utility to the ERM
module.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
4-7
Chapter 4: Configuring the ERM And Slave Modules with ERM Workbench
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
4-8
ERM Workbench Main Configuration Window
The ERM Workbench main configuration window will be displayed once the configuration is
written to the ERM. Refer to the “Write Configuration to ERM” section on page 4–14 for a
complete description of the window fields.
In the Slave Status box, the status of a specific slave can be displayed by clicking on the slave
number 1–16. The numbers are highlighted in either normal, green, yellow or red. Normal
(default) indicates that the slave is not configured. Green indicates the ERM is successfully
communicating with that particular slave. Yellow indicates I/O is being updating, but some
error exists within the I/O of that slave (i.e. module missing 24VDC, unused analog channels
exist, broken transmitter or module missing terminal block, etc.). Red indicates I/O is not
being updating and that the ERM is not communicating with that slave. Clicking on the
Slave’s Error List button will display the error conditions for that particular slave. The error
codes are then defined under the Error List button.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Chapter 4: Configuring the ERM And Slave Modules with ERM Workbench
Running ERM Workbench
First, run the ERM Workbench PLC Wizard by launching DirectSOFT or Do-more
Designer, then select ERM Workbench as previously mentioned in the Launching ERM
Workbench Section. With the wizard opened, click the ERM Workbench button in the lower
left hand side of the ERM Workbench PLC Wizard window. Checking the “Please do Not
Launch PLC Wizard at startup” box will disable the Wizard from launching, but can be
accessed from View menu>PLC Wizard. The following window will be displayed.
Connecting the ERM Workbench PC to the Network Modules
The ERM Workbench PC will need to be connected to the ERM network to configure the
modules as described in this chapter. A hub is not necessary if only one network slave is used.
In this case, the PC will need to be connected directly to the slave module to configure the
slave. Then, the PC will need to be connected directly to the ERM module to configure the
ERM.
Stride
Ethernet
Switch
Do-more PLC
ERM
Module
H2-DM1E
DirectLogic
DL205 I/O with
EBC Module
405EBC
AC
Drive
H4-EBC
POWER
ERROR
RELAY
110/220VAC
LINK GOOD
ACTIVITY
BATT LOW
GS-EDRV100
DirectLogic
DL405 I/O with
EBC Module
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
Terminator I/O
with EBC Module
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
4-9
Chapter 4: Configuring the ERM And Slave Modules with ERM Workbench
Configure the ERM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
4-10
NOTE: The ERM module and ERM Workbench utility factory default settings are located in Appendix C.
These defaults will be applied during the ERM network configuration unless otherwise changed. The default
settings can be changed during configuration, module by module, within the ERM Workbench. Also, the
ERM Workbench> View menu>Options allows the default settings to be change at a system level that will
apply to all the new module configurations.
Configuring the ERM
Click on “1. Configure ERM” button. Then select either DirectLOGIC PLC, Do-more PLC
or WinPLC as the ERM / CPU Interface.
Selecting PLC as Interface
If either PLC is selected, the
PLC Map is enabled. If
WinPLC is selected, the PLC
Map will remain disabled.
The PLC Map is explained
on the next page. Clicking on
the PLC Memory Map
button displays the valid
memory ranges for each PLC
that supports the ERM
module.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Chapter 4: Configuring the ERM And Slave Modules with ERM Workbench
PLC Map
A starting PLC memory address must be specified for each of the four types of I/O. The
ending address for each I/O type is determined by the amount of each I/O type used by the
slaves. The PLC Map is divided into 4 separate tables.
1. Discrete Inputs: This is where the ERM will Write all of the slaves’ Discrete Input data.
2. Discrete Outputs: The ERM will Read this from the PLC and Write it to the slaves
Discrete Outputs.
3. Analog Inputs: This is where the ERM will Write all of the slaves’ Analog Input data.
4. Analog Outputs: The ERM will Read this from the PLC and Write it to the slaves Analog
Outputs.
It is recommended to use the V404xx or DLX3xx (X’s) for Discrete inputs and V405xx or
DLY3xx (Y’s) for Discrete Outputs that are beyond the expansion base I/O that exists. The
default addresses are V40414 (X300) and V40514 (Y300) for DirectLOGIC users and
DLX300 and DLY300 for Do-more users. Note that the Starting PLC address and the
Starting Discrete I/O Address are not the same. The first two words of memory in the
Discrete Input table is used for ERM/slave status information, and the first word of memory
in the Discrete Output table is for Disable Slave Command bits. Adjust these address as
needed, but do not map over local I/O used and be sure the PLC supports the alternate
addresses selected.
Advanced ERM Configuration
Clicking on the ERM Configuration “Advance” button displays the following window.
Standby Cycle Time is the time the ERM will wait before trying to communicate with a slave
that had a communication error. Enabling this feature will help overall I/O throughput when
one slave errors in a multi–slave network. If the Standby Cycle Time is disabled, the ERM
will try to communicate with the slave in error every I/O cycle. If enabled, the ERM will try
to communicate with the slave in error at the given time interval.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
4-11
Chapter 4: Configuring the ERM And Slave Modules with ERM Workbench
PLC Scan Timeout is the time for the ERM to wait on the PLC when the PLC is not
responding due to long PLC scan times. It is recommended to keep it at the default of 100ms
or twice the maximum PLC scan time, whichever is greater.
Unsupported Slave Cycle Time is the time the ERM will wait before trying to communicate
with a slave that cannot be supported by the ERM. An unsupported slave may have an I/O
configuration that does not match the ERM’s or may have obsolete firmware. If disabled, the
ERM will not try to communicate with the unsupported slave again until ERM power is
cycled. If enabled, the ERM will check slave support at the given time interval. If the slave is
then supported, the slave will be included in the ERM’s I/O cycle.
Advanced ERM Network Settings are used to configure the ERM’s UDP/IP subnet mask for
IP address handling. Consult your network administrator if needed.
1
2
3
4
5 Select the Slaves
Selecting the Slaves
6
Select “2. Select Slaves” button. In order to select and configure the slaves, the PC running
ERM Workbench needs to be connected to the specific remote Ethernet slave network.
7
NOTE: A Think & Do WinPLC can only support one slave per ERM module. A PLC can support up to
sixteen slaves per ERM modules.
8
9
10
11
12
13
14
A
B
A. In the upper left corner of the Select Slaves window is a “PC Network Slaves on Protocol
Group List”. Clicking on either the IPX or UDP/IP radio button determines which
C
protocol is used by the PC running ERM Workbench to communicate with the remote
master and slave modules. The ERM and its slave modules understand either protocol.
D
Only one of the protocols needs to be installed on the PC to configure the ERM.
B. The left column displays the Ethernet Address, IP Address, Module ID and Model number
of the slaves currently on the remote I/O network. If slaves are added or removed from the
network, click on the Query Network button (1) to update the list.
4-12
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Chapter 4: Configuring the ERM And Slave Modules with ERM Workbench
C. The center column displays the ERM’s Slave List. To add a slave to the ERM’s List, either
double click on a slave in the PC Network Slave List or select the slave and click on the
Add to Slave List button (2). Slaves can also be removed from the ERM’s List by clicking
on the Remove button. One ERM can support up to 16 remote slaves.
D. The right column displays the Slave Configuration of the slave that is selected in the
ERM’s Slave List.
E. NetEdit can be used to assign IP Addresses to the remote I/O network modules if required.
NetEdit is also required if Module ID is to be software set or if the 405 EBC is used with
analog I/O modules. Normally, a network administrator will assign an IP Address to each
module on the network. Since it is recommended to use a dedicated remote I/O network,
it is not necessary to assign IP Address unless the UDP/IP protocol must be used. Refer to
Chapter 4 “Using NetEdit” for more information.
Configure the Slaves
Setting the Slave’s Parameters
Remote slave parameters (protocol, address mode, timeout, etc.) are set individually for each
slave. To configure a slave, select a specific slave in the ERM’s Slave List by either double
clicking on that slave or by clicking on the “Configure” button once the slave is highlighted.
The following window will display the settings of the selected slave module.
A. The left column, ERM to Slave Communication Settings, determines the protocol, address
mode and the communication Timeout Settings the ERM module will use to
communicate with the specific slave selected.
B. In the Protocol box, click on either the IPX or UDP/IP radio button to select which
protocol the ERM will use to communicate with the selected slave. If UDP/IP protocol is
selected, a valid IP address must be assigned using NetEdit. The Address Mode determines
which network identifier will be used by the ERM to address the selected slave. IPX
protocol supports either Module ID or Ethernet Address. UDP/IP protocol supports only
IP Addressing.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
4-13
Chapter 4: Configuring the ERM And Slave Modules with ERM Workbench
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
4-14
C. ERM Timeout to Slave Response, Retries and Consecutive Failures Before Standby Mode
times can be set for each slave. The default time values should be adequate for most
applications. The values may need to be raised in applications where IP addressing and
routers are used or if a dedicated remote I/O network is not used.
D. Enabling the Slave’s Watchdog Timeout runs in the slave and allows the slave to turn off
all outputs when the slave no longer receives any I/O requests from the ERM module.
Any outputs that were on at the time of the error will turn off after the specified time
elapses. Set the ERM Pet Frequency runs in the ERM to reset the watchdog timer in the
slave to avoid any nuisance timeouts due to main CPU inconsistent logic times or ERM
I/O cycle times. Disabling the the slave’s WatchDog timer will cause all of the outputs to
remain in their last state indefinitely (hold) when the slave no longer receives any I/O
requests.
E. Reserve PLC Addresses for Expansion allows future I/O modules to be added or existing
modules to be removed from a slave without affecting the PLC addresses of the other slaves
on the network. Pad the discrete inputs and outputs using bytes (8 points per byte) and the
analog I/O using words (2 bytes). Padding can only be done for I/O at the end of a slave
I/O base, not between two I/O modules on the slave.
F. The Make Offline Feature may be useful for users or OEMs that require duplicating a
system several times. For example, a system may consist of 3 EBCs. An offline ERM
configuration allows each additional ERM to be configured without actually connecting its
slaves at configuration time. Once the initial ERM system is configured, its ERM
Workbench configuration file can be used to create another configuration file with different
slave addresses. Checking the Make Offline checkbox allows slave addresses to be manually
set that should be used by the ERM. This does not change the address in the slave, but
changes the ERM configuration to address a different slave without connecting it on the
network when configuring the ERM.
Once the CPU Interface and Slaves have been selected and configured, the network I/O
modules and I/O points will be listed by slave and slot number as shown on the next page
(A.). The next step will be to write the configuration to the ERM module.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Chapter 4: Configuring the ERM And Slave Modules with ERM Workbench
Write Configuration to ERM
After the ERM CPU interface has been selected and the slaves have been configured, click on
the “3. Write to ERM” button to write the configuration information to the ERM module.
Once the download is complete, the following window can be used to check slave status and
view detailed ERM status, etc.
A. Once the CPU Interface and Slaves have been configured using the steps on the previous
pages, the network I/O modules and I/O points will be listed by slave and slot number.
This configuration will be written to the ERM by clicking on the “3. Write to ERM”
button. If using a PLC CPU as the interface, note that the Starting PLC address and the
Starting Discrete I/O Address are not the same. The first two words of memory in the
Discrete Input table is reserved for ERM/slave status information, and the first word of
memory in the Discrete Output table is reserved for Disable Slave Command bits. The
PLC memory map information is not displayed if a WinPLC is selected as the CPU
interface. See the following section “Reserved PLC Memory for ERM” for detailed
information. This table can be sorted by I/O module address or PLC Memory Address.
B. The top row lists the ERM’s Ethernet Address, IP Address and Module ID. It is highly
recommended that the Ethernet Address of the modules is place on a label near the
module in a visible location.
C. The PLC CPU or WinPLC Interface information is listed.
D. In the Slave Status box, the status of a specific slave can be displayed by clicking on the
slave number 1–16. The numbers are highlighted in either normal, green, yellow or red.
Normal (default) indicates that the slave is not configured. Green indicates the ERM is
successfully communicating with that particular slave. Yellow indicates I/O is being
updating, but some error exists within the I/O of that slave (i.e. module missing 24VDC,
unused analog channels exist, broken transmitter or module missing terminal block, etc.).
Red indicates I/O is not being updating and that the ERM is not communicating with
that slave. Clicking on the Slave’s Error List button will display the error conditions for
that particular slave. The error codes are then defined under the Error List button.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
4-15
Chapter 4: Configuring the ERM And Slave Modules with ERM Workbench
E. When the CPU Interface is in the Run Mode, the “Read ERM Status” button will be
highlighted. Each time the button is clicked, the most current ERM Status information
will be read and displayed.
F. “Detailed ERM Status” provides status
of the module including ERM I/O
Cycle Times. This is the time required
for the ERM module to update all of
its I/O points. Remember the ERM
and the PLC CPU operate
asynchronously from one another. The
PLC CPU scan will be faster than the
ERM I/O Cycle Time. Thus, the
remote I/O points will not be updated
every PLC CPU scan.
1
2
3
4
5
6 Analog I/O Data Registers
7
Analog I/O Data Registers
Analog input data is mapped channel by channel in decimal format (binary) into consecutive
memory locations when used in an EBC base. Each individual analog I/O channel has its
8
own 16–bit memory location. For example, an 8 channel analog input module with starting
DirectLOGIC PLC V memory address of V2000 would map the 8 channels of analog data
9
into V2000 – V2007, respectively.
Analog output data needs to be in decimal format (binary). For DirectLOGIC users, be sure
10
to convert any BCD values to decimal before sending the data to the analog output registers.
Refer to the Analog I/O Manuals for conversion examples. Terminator analog I/O modules
consume two (Double) words per channel (32–bits). See Appendix E for configuring
11
Terminator I/O analog output module control byte.
The EBC slave modules automatically maps the analog I/O data in/out of memory, thus
12
multiplexing ladder logic or pointer method is not necessary.
13
14
A
B
C
D
Note that the 205/405 analog I/O
channels are listed as 16-bit Binary
consecutive data registers (1 word) and
the Terminator analog I/O channels are
listed as 32-bit Binary non-consecutive
data registers (Double Word).
4-16
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Chapter 4: Configuring the ERM And Slave Modules with ERM Workbench
Reserved PLC Memory for ERM
The first two words of memory in the Discrete Input table is used for ERM/slave status
information, and the first word of memory in the Discrete Output table is for Disable Slave
Command bits. The default memory addresses DLX300/X300 and DLY300/Y300 are used
in this example.
Do-more
DirectLOGIC
Slave Status Bits
Slave Status Bits
MSB
Slave 16
DLX
3
1
7
LSB
Slave 1
DLX
3
0
0
ERM Status Word
MSB
LSB
DLX
33
32
07
DLX
3
3
7
Status Bits
DLX
3
2
0
Error Code
Disable Slave Bits
MSB
Slave 16
DLY
3
1
7
LSB
Slave 1
DLY
3
0
0
The Slave Status Bits can
be monitored to detect if a
slave is in error.
The ERM Status Word
contains the ERM error
code and Status Bits (see
the following description
and Error Codes in
Appendix B). Bit 8
indicates that the ERM is
disabling a slave.
The Disable Slave Bits can
be used to disable a slave
from communicating with
the ERM module. Bit ON
= disable that specific slave.
RESET = re-enable the
specific slave.
V40414
MSB
Slave 16
X
3
1
7
LSB
Slave 1
X
3
0
0
ERM Status Word
MSB
V40415
LSB
X
3
3
7
XX
33
32
07
X
3
2
0
Status Bits
Error Code
Disable Slave Bits
MSB
V40514
Slave 16 Y
3
1
7
LSB
Y Slave 1
3
0
0
ERM Status Word / Reset Slave Code
The ERM Status Word contains the current ERM Error Code in the Least Significant Byte
and the Status Bits in the Most Significant Byte. When using the Slave Disable Bits, the
ERM must recognize the request to disable a slave before attempting to re–enable that slave.
This closed loop feedback is necessary due to the asynchronous scans of the ERM and PLC.
X330 (DLX330 for Do-more) is the only feedback bit for ALL slave disabling bits (Y300 –
Y317 or DLY300 - DLY317). Either disable multiple slaves all on the same scan or serialize
the disable process by using ladder logic interlocks.
Use the following ladder logic code to manually reset a slave. For example, use this resetting
method when “Hot Swapping” a Terminator I/O module on a slave that is set up to be
manually reset using ladder logic. The default for the Terminator EBC is automatic rescan
after “Hot Swapping” and I/O module.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
4-17
Chapter 4: Configuring the ERM And Slave Modules with ERM Workbench
Direct SOFT
1
2
3
4
5
6
7
8
9
Saving ERM Configuration to Disk
10
The ERM configuration can be saved to disk as an ERM Workbench File (*.erm). The Save
command allows you to specify a name and location for the configuration. See File>Save.
11 Clear ERM Configuration
The Clear ERM command allows you to clear the existing configuration from an ERM
12
module. This function is useful when changing the ERM network configuration or
experiencing configuration difficulties. See File>Clear ERM.
13
Printing/Exporting the ERM Configuration
14
The ERM Configuration can be printed or exported as a text(.txt) or comma separated
variable(.csv) file. The ERM Configuration can be sorted by either the Slave/Base/Slot
A
Address or the PLC Memory Address. The ERM/Slave Status can also be included with the
print or export. See File>Print/Export.
B
C
D
C200
C0
PD
Y300
C0
SET
Y300
Event occurs to reset Slave 1
X330
Y300
RST
Disable Slave 1
Wait to re–enable Slave 1 until X330 (ERM
Disable Request Bit) is ON.
Do-more Designer
C200
C0
PD
Event occurs to reset Slave 1
Disable Slave 1
Wait to re–enable Slave 1 until DLX330 (ERM
Disable Request Bit) is ON.
4-18
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
CHAPTER
USING NETEDIT
In This Chapter:
5
Using NetEdit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–2
The NetEdit Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–2
Ethernet Communication Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–2
Adding IPX Network Protocol Support (Windows XP/32 bit or earlier) . . . . . . . . . .5–3
Ethernet Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–3
Module ID / IP Address / Name / Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–4
Module Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–4
Using NetEdit to Configure the EBC Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–5
EBC Settings Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–5
General Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–6
Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–6
I/O Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–6
Show Base Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–7
Update Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–8
Update Booter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–8
Restore Factory Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–8
Chapter 5: Using NetEdit
Using NetEdit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
5–2
The NetEdit Window
NetEdit is a software utility which can be used to set network identifiers (Module ID, or IP
Address) for the network master and slave modules. NetEdit is accessed from the ERM
Workbench “Select Slaves” window or the View>NetEdit Window. NetEdit can also be used
for diagnostic and troubleshooting tasks. This section steps through the individual segments of
the NetEdit utility and the function of each.
Ethernet Communication Protocol
In the upper left corner of the NetEdit window,
under the toolbar, you will find there are two
protocol choices: IPX and TCP/IP. The ERM and
its slave modules understand IPX and TCP/IP
protocols. Both protocols are permanently resident
in the firmware of the modules.
When you click on one of these buttons, you are selecting the protocol you want your PC to
use to allow NetEdit to communicate with the master or slave modules. You are not telling
the module which protocol to use. IPX is a Novell standard in widespread use, and TCP/IP is
a popular protocol supported by the configured protocols in your PC.
NOTE: The protocol choice in NetEdit tells your PC which protocol to use to link NetEdit to the master or
slave modules. You are not selecting which protocol the remote I/O network will use.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Chapter 5: Using NetEdit
Adding IPX Network Protocol Support on PCs with Windows XP (32 bit only)
or Earlier Operating Systems
You may have already set up your PC with selected networking protocols for Ethernet
communications. If not, you will need to select the protocols now for communication with
the ERM module. We strongly recommend that you include the IPX protocol. The
description below applies to Windows 2000 (Windows 98/NT/XP have slightly different
steps). If you are not familiar with this procedure, you may need to have your Network
Administrator perform this task.
For Windows 2000, go from My Computer on your Windows desktop to Control Panel.
Double click on Network and Dial–up Connections, then double click on the desired
Network Device to see the installed Protocols. If IPX is not listed among the protocols
already loaded, add it now by clicking on the Install button. For Windows XP, go from
Start>Settings>Control Panel. The steps are the same as Windows 2000 from this point.
Add the TCP/IP protocol if it is necessary for your application. The TCP/IP selection will
give you support for the UDP/IP protocol. Also, add the IPX protocol if it is not already
active.
NOTE: We strongly recommend you load IPX protocol on your PC and use it for your module links. Use
TCP/IP in your application, if required, but also add IPX to your list of active protocols. Having IPX loaded
on your PC gives you a backup for troubleshooting communication problems.
Ethernet Address
NetEdit lists the Ethernet Addresses along with Module Type, IP Address, Module ID,
Module Name and Module Description of any modules currently on the remote I/O
network.
If modules are added or removed from the network, click on the Scan Network button to
update the list. Notice that the Ethernet Address is the factory-assigned address that is on the
permanent label on the module.
Select a specific module here by clicking on the Ethernet Address or by using the arrow keys.
The selected module is highlighted.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
5–3
Chapter 5: Using NetEdit
Module ID / IP Address / Name / Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
5–4
To assign a Module ID, IP Address, Name and Description to the module, double-click on
the specific module to get the General Settings window. In this window you can configure
the available options.
Module IDs must be unique for each module, but they do not have to be in sequence. The
DIP switches must all be set to zero to enable any software to change the Module ID. If not
set to zero then the Module ID will be read only.
The Name field and Description field are optional. The ERM cannot address a slave by
Name or Description.
To set an IP Address, highlight the number in each of the four boxes, and overwrite the
number. Use the twelve-digit number assigned to the module by your network administrator.
If you change the IP Address, do not use the number “255” in any field. Doing so will cause
communication problems.
Clicking the OK button sends all entries to the module’s flash memory.
Module Information
The Module Information box provides the module Version, Booter and Dip switch settings,
as well as, Ethernet Stats and Errors.
The Version and Booter refers to the module’s firmware version. The Dip switch setting
reflects the Module ID.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Chapter 5: Using NetEdit
NOTE: The module information and settings on this page apply to the selected (highlighted) module. To
select a module, click on its Ethernet Address in the Module list.
The Ethernet Stats are statistics related to communication errors. These statistics are explored
in Chapter 6, Maintenance and Troubleshooting.
Click on the Reset Stats button to reset all categories to 0 (zero).
Using NetEdit to Configure the EBC Base
NOTE: The following configuration information applies only to the H4–EBC(–F) and the DL405 I/O. The
H2–EBC(–F) and associated DL205 I/O are self-configuring and do not require this additional step.
EBC Settings Tab
When an EBC is selected from the module list, an EBC Settings tab becomes available, as
seen below.
The following options are available through this tab:
• General Settings: Set Module ID, Name, Description and IP Address
• Serial Port: Configure Serial port communication parameters (Note: the serial port is not
compatible with an Hx-ERM as the master)
• I/O Base: Specify installed analog cards
• Show Base Contents: Generate, print and save a report of installed modules
• Update Firmware: Load new firmware from file
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
• Update Booter: Load a new booter from file
• Restore Factory Defaults: Return configurable options to factory defaults
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
5–5
Chapter 5: Using NetEdit
General Settings
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
5–6
Assign a module ID: The module ID is only required when the master's address mode is set
to Module ID.
Assign a meaningful name and description: These will appear when browsing for convenient
identification.
Assign an IP address: An IP Address is only required when the master's address mode is set to
IP Address.
Serial Port
Set the desired parameters for the serial port.
NOTE: The serial port is not supported when used with an Hx-ERM or Hx-ERM100 master.
I/O Base
When you click on the I/O Base button, the H4–EBC Base Configuration screen pops up, as
shown below. The H2–EBC and the T1H–EBC are self-configuring and do not require this
step.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Chapter 5: Using NetEdit
The default symbol “----------” appears on the configuration screen where digital or analog
modules are present. For digital modules, you do not need to make any changes. The
H4–EBC recognizes the digital modules and is self-configuring for the digital modules.
If you are using analog modules, you must let the H4–EBC know that by doing the
following. Click on the slot location where the analog module is located. Continue clicking
on the same slot location until the part number of your analog module appears. You can also
right-click on the slot location to pick the desired module from a list.
Once the correct part numbers are chosen for each of your analog modules, click the OK
button to save the configuration into flash memory onboard the module. Leave the symbol “---------” wherever you have a digital module.
If you are using a D4–HSC High Speed Counter module, the word “Intelligent” will appear
in gray. The High Speed Counter module is configured automatically and no other action is
required other than clicking on the OK button.
Show Base Contents
Opens a report of the installed modules which can then be printed or saved.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
5–7
Chapter 5: Using NetEdit
Update Firmware
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
5–8
Use this dialog to update the module's firmware. Pick the firmware file from disk. Firmware
files may be downloaded from www.HostEng.com.
Update Booter
Use this dialog to update the module's booter. Pick the booter file from disk. Booter files may
be downloaded from www.HostEng.com.
Restore Factory Defaults
Use this button to reset all user configurable settings to the factory defaults. A warning dialog
will appear to verify this action. Select OK to restore to the defaults.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
MAINTENANCE AND
TROUBLESHOOTING
In This Chapter:
CHAPTER
6
Isolating a Communication Problem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–2
Diagnostic Tools and Techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–2
Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–2
ERM Module Diagnostic LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–4
ERM LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–4
Link Good Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–4
ACT Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–4
Error Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–4
Slave Module Diagnostic LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–4
EBC LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–4
Error Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–4
Using ERM Workbench for Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–5
Read from ERM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–5
Reserved PLC Memory for ERM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–6
Detailed ERM Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–6
Select Slaves Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–7
Using NetEdit for Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–8
Select a Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–8
Module Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–8
Change Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–9
Replacing the ERM / Slave Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–9
Diagnosing Network Cable Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6–10
Chapter 6: Maintenance and Troubleshooting
Isolating a Communication Problem
If you are experiencing a problem communicating with an ERM module or one of its
1
slaves, the problem can usually be isolated to one of four components of the
2
communication link:
•the Ethernet module itself (hardware or firmware)
3
•the setup of the ethernet module
•the cabling or connections
4
•other external influences, such as electrical noise, heavy communication traffic on the network or
exceeding the power budget
5
Diagnostic Tools and Techniques
Several available tools and techniques can help you isolate a communication
6
problem:
•The LEDs on the face of the module indicate the status of the link, the module, and the
7
network communications.
•Replacing the module may determine whether the problem is in the module.
8
•NetEdit and the ERM Workbench display a list of the active modules on the network and
their protocol and configuration settings.
9
•Cable testing devices can pinpoint short or open circuits or diagnose attenuation problems
and other cabling problems.
10 Troubleshooting Chart
The following chart summarizes the different types of communication failures you could
11
experience. In each case the CPU PWR LED must be on, and you must be attempting to
communicate with the module in question.
12
NOTE: The ERM Workbench Utility allows the user to flash the error LED for 3 seconds to help identify the
ERM module visually. Do not mistake this user initiated event with a true ERM error condition.
13
The meaning of the diagnostic LEDs is explained on page 6-4.
14
Troubleshooting Chart
Legend:
Off
On
Flash
A
ERM Module LEDs
Corrective Action
B
1. Cycle power on the CPU Interface unit. This will clear
the ERROR if it was due to a transient condition.
OR
C
2. Try another cable that you know works. Check pinouts
(see page 3–7).
3.
Try another port on the hub or another hub.
D
Error ON
Error Flashing
4. Replace module.
LINKGD
ACT
ERROR
6–2
LINKGD
ACT
ERROR
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Chapter 6: Maintenance and Troubleshooting
Troubleshooting Chart (Continued)
Legend:
ERM Module LEDs
LINKGD
ACT
ERROR
Off
On
Flash
Corrective Action
1. Try another cable that you know works. Check pinouts
(see page 3–6).
2. Try another port on the hub or another hub.
3. Replace module.
No LEDs
LINKGD
ACT
ERROR
Only LINKGD ON
1. Try another cable between PC and hub.
2. Try another port on the hub or another hub.
3. Make sure you have not exceeded the recommended
cable length for your network cable. The link signal
could arrive with sufficient strength even though the
data transmission does not.
4. Could be related to Windows configuration. Consult
Windows documentation.
Note: This is also the indication of
proper operation! Troubleshoot only if
you are failing to exchange data.
LINKGD
ACT
ERROR
OR
LINKGD ON
ACT Flashing
LINKGD
ACT
ERROR
LINKGD ON
ACT ON
1. Try another cable between PC and hub or other
module and hub.
2. Try another port on the hub or another hub.
3. Confirm that ERM module is in a usable slot in the
PLC base (see pages 3–2 and 3–3) and that the CPU
Interface and its firmware support the ERM module.
4. Look for errors in the setup of the ERM module or in
the communication program.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
6–3
Chapter 6: Maintenance and Troubleshooting
ERM Module Diagnostic LEDs
1
LED
H2-ERM, H4-ERM
H2-ERM100
H4-ERM100
2
STATUS
3
LINKGD
4
ACTIVE
5
ERROR
6
100MBIT
7
8
Note 1: The ERROR LED on H2-ERM or H4-ERM modules indicates a fatal internal error. Cycle power to
clear the error. If the error will not clear, replace the module.
9
Note 2: The ERROR LED on H2-ERM100 or H4-ERM100 modules indicates that some error is present.
Refer to troubleshooting section of this manual to determine the error. Example errors:
10
• Cannot communicate with an ECOM or GS-EDRV(100).
• Hardware installed in a base does not match the hardware configuration.
11
• An analog module error bit is ON.
• Fatal error. If a fatal error has occurred ERM Workbench and NetEdit are unlikely to successfully
communicate with the ERM. Try cycling power to the ERM. If the error will not clear, replace the module.
12
13 Slave Module Diagnostic LEDs
EBC LEDs
14
Hx–EBCs LED Diagnostic information is located in the Troubleshooting Guidelines chapter
in the Ethernet Base Controller Manual (H24–EBC–M) and for the T1H–EBC in
A
(T1H–EBC–M) manual.
Error Indicator
B
A specific ERM network condition that can cause the EBCs ERROR LED indicator to
illuminate is if the watchdog timer times out. This can result from the slave being
C
disconnected from the ERM network.
D
N/A
Blinks while module is booting. N/A
On solid when module is ready.
On when module has established communications with the connected Ethernet
device, typically a switch.
Indicates network activity. May appear solid ON during heavy traffic.
6–4
Indicates an internal fatal
error of the ERM module.
See Note 1.
Indicates an error from a network device or a fatal
internal error of the ERM module. See Note 2.
N/A
On solid when linked at 100Mbps.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Chapter 6: Maintenance and Troubleshooting
Using ERM Workbench for Troubleshooting
ERM Workbench can be used for troubleshooting an ERM Ethernet remote I/O system. It
allows you to:
• View slave status and Detailed ERM Statistics.
• See active modules on the network.
• Examine or change the slave module’s configuration settings.
Read from ERM
To view the current configuration in the ERM module, launch ERM Workbench and click
on “Read from ERM” under the File menu or tool bar. The following ERM main
configuration window will be displayed.
The ERM main configuration window lists the ERM’s Ethernet Address, IP Address, Module
ID just below the menu to identify the connected ERM. If the fields are blank, select File >
Read From ERM to read a specific ERM’s configuration.
In the Slave Status box, the status of a specific slave can be displayed by clicking on the slave
number 1–16. The numbers are highlighted in either normal, green, yellow or red. Normal
indicates that the slave is not configured. Green indicates the ERM is successfully
communicating with that particular slave. Yellow indicates I/O is being updating, but some
error exists within the I/O of that slave and that there are no I/O module errors in the slave.
Red indicates I/O is not being updating or that the ERM is not communicating with that
slave. A description of the error will be listed.
The network I/O modules and I/O points are listed by slave and slot number. For a PLC, the
first two words of memory in the Discrete Input table is used for ERM/slave status
information, and the first word of memory in the Discrete Output table is for Disable Slave
Command bits. The PLC memory map information is not displayed if a WinPLC is selected
as the CPU interface.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
6–5
Chapter 6: Maintenance and Troubleshooting
Reserved PLC Memory for ERM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
The first two words of memory in the Discrete Input table is used for ERM/slave status
information, and the first word of memory in the Discrete Output table is for Disable Slave
Command bits. The default memory addresses DLX300/X300 and DLY300/Y300 are used
in this example.
Do-more
DirectLOGIC
Slave Status Bits
Slave Status Bits
MSB
Slave 16
DLX
3
1
7
LSB
Slave 1
DLX
3
0
0
ERM Status Word
MSB
LSB
DLX
33
32
07
DLX
3
3
7
Status Bits
DLX
3
2
0
Error Code
Disable Slave Bits
MSB
Slave 16
DLY
3
1
7
6–6
LSB
Slave 1
DLY
3
0
0
The Slave Status Bits can
be monitored to detect if a
slave is in error.
The ERM Status Word
contains the ERM error
code and Status Bits (see
the following description
and Error Codes in
Appendix B). Bit 8
indicates that the ERM is
disabling a slave.
The Disable Slave Bits can
be used to disable a slave
from communicating with
the ERM module. Bit ON
= disable that specific slave.
RESET = re-enable the
specific slave.
MSB
Slave 16
X
3
1
7
V40414
LSB
Slave 1
X
3
0
0
ERM Status Word
MSB
V40415
LSB
X
3
3
7
XX
33
32
07
X
3
2
0
Status Bits
Error Code
Disable Slave Bits
MSB
V40514
Slave 16 Y
3
1
7
LSB
Y Slave 1
3
0
0
Detailed ERM Statistics
Detailed ERM Statistics provides I/O Cycle Times, Total Retries to All Slaves and CPU
Interface information. This information may be helpful when trying to diagnose a remote
I/O network problem. The maximum I/O Cycle Time is the time for the ERM to 1) read the
remote slave inputs and write the data to the CPU and 2) for the ERM to read the output
data from the CPU and write the data to the remote slaves.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Chapter 6: Maintenance and Troubleshooting
Select Slaves Window
The left column displays the Ethernet Address, IP Address, Module ID and Model number of
the modules currently on the remote I/O network. This means you are linking to the modules
from your PC. If you are linking to a module but the ERM is failing to communicate with
the module, you can conclude that:
• The module is working.
• The cabling is satisfactory from the PC to the hub and from the hub to the ERM module
• The hub is working.
• The problem may be an addressing issue. If the ERM is configured to use IP protocol, make
sure that the IP Address for the ERM and slave is valid and unique. If the ERM is configured
to use IPX protocol, make sure that either the Module ID or Ethernet Address in the slave is
correct and unique.
If the ERM or slave module is not on the list, try clicking on either the IPX or UDP/IP radio
button (Query is automatically done when the protocol in the center column is changed).
Confirm that your PC has IPX and TCP/IP protocol loaded.
Make sure the desired network slaves are in the ERM’s Slave List. The right column displays
the Slave Configuration of the the specific slave that is selected in the ERM’s Slave List.
NetEdit can be accessed from this window. NetEdit is a software utility that can be used to set
the Module ID, set an IP Address or configure the 405 EBCs for analog I/O modules if
necessary. See the following section for details on NetEdit.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
6–7
Chapter 6: Maintenance and Troubleshooting
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
Using NetEdit for Troubleshooting
6–8
NetEdit is a software utility within ERM Workbench which came with this manual. To
review the procedures for accessing and using NetEdit, see Chapter 5. It allows you to:
• See active modules on the network.
• Examine and change the modules’ configuration settings.
• See the firmware revision number.
• Review statistical information about communication errors by type.
If you can see the ERM and slave modules on the list in the Module box (described below),
you are linking to the module from your PC. If you are linking to the module but failing to
communicate with the module, you can conclude that:
• The module is working.
• The cabling is satisfactory from the PC to the hub and from the hub to the ERM module.
• The hub is working.
• The problem is in one of the other components of the communication link.
Select a Module
The Module box shows the Ethernet
Addresses of all modules which are
currently linked to the NetEdit utility.
If your ERM or slave module is not on
this list, try the following:
• Change Protocol selection and click
on Query Network. See Change Protocol on the next page.
• Confirm that your PC has IPX or TCP/IP protocol loaded.
• Confirm that the module’s LINKGD LED is on.
NOTE: The Ethernet Address is permanently assigned at the factory, and it is recorded on a label on the
side of the ERM module. See page 2-4 if you need help locating the label. It is recommended to record the
module’s Ethernet Address on a label and affix it near the module in a visible location.
Module Information
The Module Information box provides the module Version, Booter and Dip switch settings,
as well as, Ethernet Stats and Errors. Verify that all modules of the same type have the same
firmware version.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Chapter 6: Maintenance and Troubleshooting
Ethernet Stats
If you are able to see the problem module on the list of modules currently active on the
network, you can select the module to see the Ethernet Stats for that module. Select the
module by clicking on the Ethernet Address in the Module box.
To begin a new statistical record, click the Reset Stats button.
The diagnostic information available in the Ethernet Stats box is:
• Missed Frames – frames lost due to unavailability of buffer space.
• TX Collisions – detected when RXD+ and RXD– become active during a data
transmission. Two devices are trying to communicate at the same time.
• Lost Packets – packets that overflow the queue.
• Bad Packets – packets that fit the Ethernet standard but are not in the right format for the
EBC module.
• Unknown Type – a foreign command was received and could not be interpreted. This will
probably happen only during software driver development.
• TX Errors – the Ethernet standard number of retries were attempted for a transmission.
Change Protocol
If you are experiencing a problem communicating from your PC
to a module that does not appear on the list of active modules, try
changing the protocol and clicking on Scan Network. You may be
able to link to your module with the other protocol.
Replacing the ERM / Slave Module
If you set up your original ERM or slave module using NetEdit, you will need to duplicate
the settings in the new module using the same procedure.
WARNING: Your system can be damaged if you install or remove system components before
disconnecting the system power. To minimize the risk of equipment damage, electrical shock, or
personal injury, always disconnect the system power before installing or removing any system
component.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
6–9
Chapter 6: Maintenance and Troubleshooting
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
Diagnosing Network Cable Problems
6–10
If you are experiencing communication problems, swapping cables is one of the simplest
diagnostic procedures you can perform. If the network operates correctly with a different
cable, you have isolated and cured the problem. If possible, use a short run of cable to test the
network because problems with longer cable runs can be more difficult to diagnose and are
more often intermittent.
If you are unable to swap cables, verify the proper operation of all other network components.
You probably have a cable problem if you have verified that your:
• ERM module is working correctly.
• ERM module configuration is correct.
• RLL program is correct.
• hubs are working correctly.
• Windows configuration is correct.
• network adapter card is the correct type, and it is working correctly.
It is a good maintenance practice to test network cables periodically and maintain a
permanent record of cable characteristics. A number of cable test instruments are available to
test 10/100BaseT and 10BaseFL networks. These instruments will check the electrical or
optical characteristics of your cabling, including:
• Continuity – This is a check to make sure the communication pairs are wired correctly, and
that the wires are continuous from end to end. In the case of fiber optic network this is a test
to be sure light is transmitted from one end of the cable to the other.
• Attenuation – This refers to the amount of signal loss over the cable segment at the signal
frequency of interest. The 10/100BaseT specification allows for a maximum signal loss of
11.5 decibels (dB) for the entire link at the signal frequency used by 10Mbps Ethernet. The
10BaseFL specification calls for the optical loss in link segment to be no greater than 12.5 dB.
• Crosstalk – Crosstalk occurs when a signal in one pair of wires is electromagnetically
coupled to an adjacent pair. This is critical for 10/100BaseT networks which are susceptible
to noise interference. 10BaseFL networks are virtually immune to noise interference.
NOTE: Any significant difference between the cable characteristics of the transmitter and receiver can cause
communication errors.
Ethernet devices continually monitor the receive data path for activity as a means of
verifying their link is working correctly. When the network is idle, each network device
(including the ERM module) sends a periodic link test signal to verify that the network
is working. If the link test signal or other network activity is not received periodically,
the LINKGD LED on the ERM module is turned off.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
GENERAL SPECIFICATIONS
APPENDIX
A
E
In This Appendix...
General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-2
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-2
Ethernet Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-4
Appendix A: General Specifications
A
2
C
4
5
F
7
8
9
10
11
12
13
14
A
B
C
D
General Specifications
A-2
Specifications
H2–ERM / H2-ERM100 and H4-ERM / H4–ERM100 General Specifications
Module Type
Ethernet I/OCommunications Master Module
Quantity of Modules
Defined by CPU, base configuration and power Per Basebudget
Quantity of Slaves per ERM
16 max.
Diagnostics
LEDs, ERM Workbench, NetEdit
Communications
Data Transfer
H2-ERM / H4-ERM: 10BaseT Ethernet
H2-ERM100 / H4-ERM100: 10/100BaseT Ethernet
H2-ERM / H4-ERM: 10 Million bits per second
H2-ERM100 / H4-ERM100: 100 Million bits per second
Extension Port
RJ45
Link Good Indicator (LINKGD)
Green LED
Activity Indicator (ACT)
Red LED
Error Indicator (ERROR)
Red LED
Power Consumption
H2-ERM / H4-ERM: 320 mA @ 5VDC (Supplied by DL205/DL405 base)
H2-ERM100 / H4-ERM100: 300 mA @ 5VDC (Supplied by DL205/DL405 base)
Operating Temperature
32° to 140° F (0° to 60° C)
Storage Temperature
–4° to 158° F (–20° to 70° C)
Relative Humidity
30% – 95% RH (non-condensing)
Environmental Air
No corrosive gases permitted
Networking Protocols Supported UDP/IP, IPX
Manufacturer
Host Automation Products
Link Distance
100 meters (328 feet)
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Appendix A: General Specifications
A
2
C
4
5
F
7
8
9
10
11
12
13
14
A
B
C
D
H2–ERM–F / H4–ERM–F General Specifications
Module Type
Ethernet I/O Communications Master Module
Quantity of Modules
Per Base Defined by CPU, base configuration and power budget
Quantity of Slaves per ERM
16 max.
Diagnostics
LEDs, ERM Workbench , NetEdit
Communications
10BaseFL Ethernet (fiber optic)
Data Transfer
10 Million bits per second
Extension Port
ST-style fiber optic connector
Link Good Indicator (LINKGD) Green LED
Activity Indicator (ACT)
Red LED
Error Indicator (ERROR)
Red LED
Power Consumption
450 mA @ 5VDC (Supplied by DL205/DL405 base)
Operating Temperature
32° to 140° F (0° to 60° C)
Storage Temperature
–4° to 158° F (–20° to 70° C)
Relative Humidity
30% – 95% RH (non-condensing)
Environmental Air
No corrosive gases permitted
Networking Protocols
Supported
UDP/IP, IPX
Manufacturer
Host Automation Products
Link Distance
Up to 2,000 meters (2Km), 6,560ft (1.2 miles)
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
A-3
Appendix A: General Specifications
A
2
C
4
5
F
7
8
9
10
11
12
13
14
A
B
C
D
Ethernet Standards
A-4
Various institutes and committees have been involved in establishing Ethernet data
communication standards. These specification standards assure Ethernet network
compatibility for products from a broad variety of manufacturers.
The ERM module complies with American National Standards Institute (ANSI) and Institute
of Electrical and Electronic Engineers standard ANSI/IEEE 802.3, Carrier Sense Multiple
Access with Collision Detection (CSMA/CD) Access Methods and Physical Layer
Specifications. This standard has been adopted by the International Organization for
Standardization (ISO) as document ISO/IEC 8802–3.
The Electronic Industries Association (EIA) and Telecommunications Industries Commercial
Building Telecommunications Wiring Standard designated EIA/TIA–568A defines
implementation of 10BaseT (twisted pair) and 10BaseF (fiber optics) for Ethernet
communications.
The same two organizations produced EIA/TIA TSB40–Additional Transmission
Specifications for Unshielded Twisted-Pair Connecting Hardware. The purpose of this
document is to specify transmission performance requirements and connecting hardware
requirements.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
ERM / SLAVE
DIAGNOSTICS AND
ERROR CODES
A PPENDIX
PPENDIX
B
In This Appendix...
ERM Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-2
ERM Status Word / Resetting the Slave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-2
DirectLOGIC Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-3
Do-more Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-3
ERM Status Word Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-4
Reading ERM Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-5
Reading ERM Statistics using Ladder Logic with DirectLOGiC . . . . . . . . . . . . . . . . . .B-5
Reading ERM Statistics using Ladder Logic with Do-more . . . . . . . . . . . . . . . . . . . .B-6
Reading Error Codes from Slaves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-7
Reading Error Codes from Slaves with DirectLOGIC . . . . . . . . . . . . . . . . . . . . . . . . .B-7
Reading Error Codes from Slaves with Do-more . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-9
Slave Diagnostic Word Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-10
Current / Last State Slave Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-12
Extended Slave Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-13
Appendix B: ERM / Slave Diagnostics and Error Codes
ERM Diagnostics
1
B
3
D
5
H
7
10
I
10
11
12
13
14
A
B
C
D
The first two words of memory in the Discrete Input table is used for ERM/slave status
information, and the first word of memory in the Discrete Output table is for Disable Slave
Command bits. The default memory addresses DLX300/X300 and DLY300/Y300 are used
in this example.
Do-more
DirectLOGIC
Slave Status Bits
Slave Status Bits
MSB
Slave 16
DLX
3
1
7
LSB
Slave 1
DLX
3
0
0
ERM Status Word
MSB
LSB
DLX
33
32
07
DLX
3
3
7
Status Bits
DLX
3
2
0
Error Code
Disable Slave Bits
MSB
Slave 16
DLY
3
1
7
LSB
Slave 1
DLY
3
0
0
The Slave Status Bits can
be monitored to detect if a
slave is in error.
The ERM Status Word
contains the ERM error
code and Status Bits (see
the following description
and Error Codes in
Appendix B). Bit 8
indicates that the ERM is
disabling a slave.
The Disable Slave Bits can
be used to disable a slave
from communicating with
the ERM module. Bit ON
= disable that specific slave.
RESET = re-enable the
specific slave.
MSB
Slave 16
X
3
1
7
V40414
LSB
Slave 1
X
3
0
0
ERM Status Word
MSB
V40415
LSB
X
3
3
7
XX
33
32
07
X
3
2
0
Status Bits
Error Code
Disable Slave Bits
MSB
V40514
Slave 16 Y
3
1
7
LSB
Y Slave 1
3
0
0
ERM Status Word / Resetting the Slave
The ERM Status Word contains the current ERM Error Code in the Least Significant Byte
and the Status Bits in the Most Significant Byte. Currently, only bit 8 is used in the MSB
designating the ERM is disabling Slave.
When using the Slave Disable Bits, the ERM must recognize the request to disable a slave
before attempting to re–enable that slave. This closed loop feedback is necessary due to the
asynchronous scans of the ERM and PLC. X330 (DirectLOGIC) or DLX330 (Do-more) is
the only feedback bit for ALL slave disabling bits (DLY300/Y300 – DLY317/Y317). Either
disable multiple slaves all on the same scan or serialize the disable process by using ladder
logic interlocks.
Use the following ladder logic code to manually reset a slave. For example, use this resetting
method when “Hot Swapping” a Terminator I/O module on a slave that is set up to be
manually reset using ladder logic. The default for the Terminator EBC is automatic rescan
after “Hot Swapping” and I/O module.
B-2
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Appendix B: ERM / Slave Diagnostics and Error Codes
DirectLOGIC Example
1
B
3
D
5
H
7
10
I
10
11
12
13
14
A
B
C
D
Direct SOFT
C200
C0
PD
Y300
C0
Y300
Event occurs to reset Slave 1
X330
SET
Disable Slave 1
Y300
Wait to re–enable Slave 1 until X330 (ERM
Disable Request Bit) is ON.
RST
Do-more Example
Do-more
C200
C0
PD
DLY300
C0
SET
DLY300
Event occurs to reset Slave 1
DLX330
DLY300
RST
Disable Slave 1
Wait to re–enable Slave 1 until DLX330 (ERM
Disable Request Bit) is ON.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
B-3
Appendix B: ERM / Slave Diagnostics and Error Codes
ERM Status Word Error Codes
The following table describes the errors that will be reported to the ERM Status Word.
1
B
3
D
5
H
7
10
I
10
11
12
13
14
A
B
C
D
Error Code
(Decimal)
B-4
Description
E0
No error.
E3
Configured bit inputs overlap system input bits.
E4
Configured bit outputs overlap system output bits.
E5
More than one device found with same module ID.
E6
More than one device found with same IP address.
E7
ERM could not read slave’s error information – slave not responding.
E8
Device not supported; may be old firmware or configuration error.
E9
Device timed out on a function request after retrys.
E13
Gateway address needed, but not specified
E14
Subnet mask needed, but not specified.
E15
Configured module ID’s do not match modules in device.
E16
Number of bit inputs specified in ERM is less than actual in slaves.
E17
Number of bit outputs specified in ERM is less than actual in slaves.
E18
Number of word inputs specified in ERM is less than actual in slaves.
E19
Number of word outputs specified in ERM is less than actual in slaves.
E20
Invalid base definition for this device.
E21
ERM has not been configured
E22
Overflow of internal buffer E22.
E23
Overflow of internal buffer E23.
E24
Overflow of internal buffer E24.
E25
Overflow of internal buffer E25.
E26
Overflow of internal buffer E26.
E27
Configuration error: input words configured not enough.
E28
Configuration error: output words configured not enough.
E221
ERM to CPU backplane error.
E223
PLC family unknown.
E224
ERM to CPU backplane error.
E225
Backplane code error returned from PLC.
E226
General backplane error returned from PLC.
E227
Timeout on PLC backplane error.
E228
ERM to CPU backplane error.
E231
ERM to CPU backplane error.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Appendix B: ERM / Slave Diagnostics and Error Codes
Reading ERM Statistics
Reading ERM Statistics using Ladder Logic with DirectLOGIC
The following ladder logic example reads the ERM statistics from the ERM module. 12
words (24 bytes) of statistical data are stored in the ERM’s memory starting at V0 (TA0). Use
slave address of 90 when reading ERM statistics. In the example below, the RX instruction
stores the statistical data from the ERM module to V1400 – V1413 in the CPU’s memory.
More information on the RX network instruction can be found in the PLC User Manual.
The ERM module is located in slot 2 of the I/O base in this example. Refer to the Special
Relays Appendix in the PLC User Manual to identify each slot’s Module Busy and Comm
Error bits.
The format of the ERM’s statistics is as follows:
PLC Address
Addr + 0
Addr + 1
Addr + 2,3
Addr + 4,5
Addr + 6,7
Addr + 10,11
Addr + 12,13
Description of Statistic
Format
Minimum I/O Scan in milliseconds
Word / Decimal
Maximum I/O Scan in milliseconds
Word / Decimal
Total accumulated time in milliseconds DWord / Decimal
Total number of I/O Scans
DWord / Decimal
Number of PLC Read Retries
DWord / Decimal
Number of PLC Write Retries
DWord / Decimal
Number of Slave Retries
DWord / Decimal
DirectSOFT
Module Busy Slot 2
SP124
Comm Error Slot 2
SP125
C200
LD
K0290
The constant value K0290
specifies the slot number (2)
and to read ERM statistics (90).
LD
K24
The constant value K24
specifies the number of
bytes to be read (12 words).
LDA
O 1400
Octal address 1400 is
converted to 300 HEX and
loaded into the accumulator.
V1400 is the starting
location for the Master CPU
where the specified data will
be read into.
RX
TA0
V0 (TA0) is the starting
location in the ERM where
the specified data will be
read from.
C200
SET
Module Busy Slot 2
SP124
C200
RST
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
B-5
1
B
3
D
5
H
7
10
I
10
11
12
13
14
A
B
C
D
Appendix B: ERM / Slave Diagnostics and Error Codes
Reading ERM Statistics using Ladder Logic with Do-more
The following ladder logic example reads the ERM statistics from the ERM module. 12
words (24 bytes) of statistical data are stored in the ERM’s memory starting at V0 (TA0). Use
slave address of 90 when reading ERM statistics. In the example below, the DLRX instruction
stores the statistical data from the ERM module to V100 – V111 in the CPU’s memory.
More information on the DLRX network instruction can be found in the Do-more help file.
The ERM module is located in slot 2 of the I/O base in this example. Interlocking is not
required in Do-more. Turning on C10 will result in one read of the ERM.
1
B
3
D
5
H
7
10
I
10
11
12
13
14
A
B
C
D
PLC Address
Addr + 0
Addr + 1
Addr + 2,3
Addr + 4,5
Addr + 6,7
Addr + 8,9
Addr + 10,11
B-6
Description of Statistic
Format
Minimum I/O Scan in milliseconds
Word / Decimal
Maximum I/O Scan in milliseconds
Word / Decimal
Total accumulated time in milliseconds DWord / Decimal
Total number of I/O Scans
DWord / Decimal
Number of PLC Read Retries
DWord / Decimal
Number of PLC Write Retries
DWord / Decimal
Number of Slave Retries
DWord / Decimal
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Appendix B: ERM / Slave Diagnostics and Error Codes
Reading Error Codes from Slaves
Reading Error Codes from Slaves with DirectLOGIC
The following ladder logic example reads the Error Codes from three slaves (1–3). The slaves’
error data is stored in their memory starting at V0 (TA0). Up to 36 words (72 bytes) of error
codes can be read from a slave depending on the number of bases and I/O modules (slots)
used per slave. In the example below, the RX instruction stores the Error data read from Slave
1 to V2000 – V2013 and from Slave 2 to V2020 – V2033, etc. in the CPU’s memory. More
information on the RX network instruction can be found in the PLC User Manual The ERM
module is located in slot 2 of the 205 I/O base in this example. Refer to the Special Relays
Appendix in the PLC User Manual to identify each slot’s Module Busy and Comm Error bits.
Refer to the Slave Diagnostic Word Memory Table in this chapter for a description of the
word information read from the slaves. This example reads words V0 – V11 (24 bytes) from
the slaves.
Direct SOFT
Module Busy
K0
VC60
SR
=
C60
C77
K0
VX300
SP124
SP7
Module Busy
Slot 2
SP124
Comm Error
Slot 2
SP125
=
C63
Slave 1
Error bit
X300
C60
K0201
The constant value K0201
specifies the slot number (2)
and slave 1.
K24
The constant value K24
specifies the number of
bytes to be read (12 words).
LD
LD
LDA
O 2000
RX
Continued on next page
TA0
Octal address 2000 is converted to 400
HEX and loaded into the accumulator.
V2000 is the starting location for the
Master CPU where the specified data
will be read into.
V0 (TA0) is the starting
location in the slave module
where the specified data will
be read from.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
B-7
1
B
3
D
5
H
7
10
I
10
11
12
13
14
A
B
C
D
Appendix B: ERM / Slave Diagnostics and Error Codes
Continued from previous page
1
B
3
D
5
H
7
10
I
10
11
12
13
14
A
B
C
D
Continued from previous page
Direct SOFT
Slave 2
Error bit
X301
C61
Module Busy
Slot 2
SP124
Comm Error
Slot 2
SP125
K0202
The constant value K0202
specifies the slot number (2)
and slave 2.
K24
The constant value K24
specifies the number of
bytes to be read (12 words).
LD
LD
LDA
O 2020
RX
TA0
Slave 3
Error bit
X302
C62
Module Busy
Slot 2
SP124
Comm Error
Slot 2
SP125
V0 (TA0) is the starting
location in the slave module
where the specified data will
be read from.
K0203
The constant value K0203
specifies the slot number (2)
and slave 3.
K24
The constant value K24
specifies the number of
bytes to be read (12 words).
LD
LD
LDA
O 2040
RX
TA0
B-8
Octal address 2020 is converted to HEX
and loaded into the accumulator. V2020
is the starting location for the Master
CPU where the specified data will be
read into.
Octal address 2040 is converted to HEX
and loaded into the accumulator. V2040
is the starting location for the Master
CPU where the specified data will be
read into.
V0 (TA0) is the starting
location in the slave module
where the specified data will
be read from.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Appendix B: ERM / Slave Diagnostics and Error Codes
Reading Error Codes from Slaves with Do-more
The following ladder logic example reads the Error Codes from slaves (1–3). The slaves’ error
data is stored in their memory starting at V0 (TA0). Up to 36 words (72 bytes) of error codes
can be read from a slave depending on the number of bases and I/O modules (slots) used per
slave. In the example below, the DLRX instructions read 24 bytes of Error data from Slave 1
to CPU memory V200 – V211, from Slave 2 to CPU memory V212 – V223 and from Slave
3 to CPU memory V224 – V235. More information on the DLRX network instruction can
be found in the Do-more help file. The ERM module is located in slot 2 of the 205 I/O base
in this example. Refer to the Slave Diagnostic Word Memory Table on the following page for
a description of the word information read from the slaves. Interlocking reads to the three
slaves is not required. The CPU will manage the reads. Turning on C13 will result in one read
of Slave 1, then a read of Slave 2, then a read of Slave 3.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
B-9
1
B
3
D
5
H
7
10
I
10
11
12
13
14
A
B
C
D
Appendix B: ERM / Slave Diagnostics and Error Codes
Slave Diagnostic Word Memory
1
B
3
D
5
H
7
10
I
10
11
12
13
14
A
B
C
D
B-10
The following table describes the Word information that is obtained when a slave’s diagnostic
information is read (RX) by the PLC CPU into its memory. Applies to 205/405 and
Terminator EBC modules.
Word
Description
V +0
Current slave error code: Bits 0 – 11
Type of Error: Bits 12–15: ( Bit 12 SET = I/O Error Condition;SET = I/O Warning) Bit 13
V +1
Slave module slot in error (slots 0 – 15).
V +2
Slave module slot in error (slots 16 – 31).
V +3
Slave’s Last error code
V +4
Extended error code module in slot 0.
V +5
Extended error code for module in slot 1.
V +6
Extended error code for module in slot 2.
V +7
Extended error code for module in slot 3.
V +8
Extended error code for module in slot 4.
V +9
Extended error code for module in slot 5.
V +10
Extended error code for module in slot 6.
V +11
Extended error code for module in slot 7.
V +12
Extended error code for module in slot 8 or base 1 slot 0.
V +13
Extended error code for module in slot 9 or base 1 slot 1.
V +14
Extended error code for module in slot 10 or base 1 slot 2.
V +15
Extended error code for module in slot 11 or base 1 slot 3.
V +16
Extended error code for module in slot 12 or base 1 slot 4.
V +17
Extended error code for module in slot 13 or base 1 slot 5.
V +18
Extended error code for module in slot 14 or base 1 slot 6.
V +19
Extended error code for module in slot 15 or base 1 slot 7.
V +20
Extended error code for module in slot 16 or base 2 slot 0.
V +21
Extended error code for module in slot 17 or base 2 slot 1.
V +22
Extended error code for module in slot 18 or base 2 slot 2.
V +23
Extended error code for module in slot 19 or base 2 slot 3.
V +24
Extended error code for module in slot 20 or base 2 slot 4.
V +25
Extended error code for module in slot 21 or base 2 slot 5.
V +26
Extended error code for module in slot 22 or base 2 slot 6.
V +27
Extended error code for module in slot 23 or base 2 slot 7.
V +28
Extended error code for module in slot 24 or base 3 slot 0.
V +29
Extended error code for module in slot 25 or base 3 slot 1.
V +30
Extended error code for module in slot 26 or base 3 slot 2.
Continued on following page
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Appendix B: ERM / Slave Diagnostics and Error Codes
Continued from previous page
Word
V +31
V +32
V +33
V +34
V +35
1
B
3
D
5
H
7
10
I
10
11
12
13
14
A
B
C
D
Description
Extended error code for module in slot 27 or base 3 slot 3
Extended error code for module in slot 28 or base 3 slot 4.
Extended error code for module in slot 29 or base 3 slot 5.
Extended error code for module in slot 30 or base 3 slot 6.
Extended error code for module in slot 31 or base 3 slot 7.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
B-11
Appendix B: ERM / Slave Diagnostics and Error Codes
Current / Last State Slave Error Codes
1
B
3
D
5
H
7
10
I
10
11
12
13
14
A
B
C
D
B-12
The following table lists the Current and Last State Slave error codes for Word 0 and Word 3
in the Slave Diagnostic Word Memory Table. Applies to 205/405 and Terminator EBC
modules.
Error Code
(Decimal)
E0
E121
E122
Description
E154
No error.
Channel failure.
Unused analog input channels exist.
Broken transmitter on one of the analog input channels (if supported by analog
module)
Multiple channels failed.
The module which was in this slot is no longer responding. User has removed a
module in a Terminator I/O slave system.
If Automatic Reset (default) is enabled for this slave, it will reset itself once the
replacement module is inserted.
If Manual Reset is enabled for this slave, the user must 1) SET the slave disable flag
for that slave in the first diagnostic output word, 2) wait for bits 8–15 in second
diagnostic input word to equal 1, then 3)RESET the slave disable flag in the first
diagnostic output word.
I/O configuration has changed. See E153 for reset methods.
E200–E216
Unused analog input channels exist at channel xx (1–16), where xx = Value
–200.(example: E212 indicates unused analog channel exists at channel 12.
E139
E142
E153
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Appendix B: ERM / Slave Diagnostics and Error Codes
Extended Slave Error Codes
1
B
3
D
5
H
7
10
I
10
11
12
13
14
A
B
C
D
The following table lists the Extended Slave error codes for Words 4–35 in the Slave
Diagnostic Word Memory Table. Applies to 205/405 and Terminator EBC modules.
Error Code
(Decimal)
Description
E32–E63
Bitwise error where bit 5 is always SET. Look at bit 0 thru bit 4 to get a
possible list of errors. Example 34 decimal =22 hexadecimal (Bit 5 SET and
Bit 1 SET).
BIT . . . . . . . . . . . . . . . . . . . . . . . . . Type of Error
0 . . . . . . . . . . . . . . . . . . . . . . . Terminal block off
1 . . . . . . . . . . . . . . . . . . External P/S voltage low
2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fuse blown
3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Bus error
4 Module initialization error (intelligent module)
5 Fault exists in module (this bit is SET if any of the above bits are SET)
E117
Write attempt to an invalid analog channel.
E119
Data not valid. Subnet mask or IP address not allowed // EBC SDK data
packet not constructed properly.
E121
E122
E139
E142
E146
Analog input channel error.
Unused analog input channels exist.
E154
Broken transmitter on one of the analog input channels.
Channel failure.
Communications failure. Hitachi drive on–board relay set.
The module which was in this slot is no longer responding. User has
removed a module in a Terminator I/O slave system. If Automatic Reset is
enabled for this slave, it will reset itself once the replacement module is
inserted. If Manual Reset is enabled for this slave, the user must 1) SET the
slave disable flag for that slave in the first diagnostic output word, 2) wait for
bits 12–15 in second diagnostic input word to equal 1, then 3) RESET the
slave disable flag in the first diagnostic output word.
One or more new modules has been inserted into the base. See E153 for
reset methods.
E155
Terminator module status error. One or more of the modules in the
T1H–EBC base has an error. For more detail check extended errors
E200– E216
Unused analog input channels exist at channel xx (1–16), where xx = Value
–200.
E153
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
B-13
Appendix B: ERM / Slave Diagnostics and Error Codes
Notes:
1
B
3
D
5
H
7
10
I
10
11
12
13
14
A
B
C
D
B-14
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
ERM AND ERM
WORKBENCH DEFAULT
SETTINGS
APPENDIX
C
In This Appendix...
ERM and ERM Workbench Factory Default Settings . . . . . . . . . . . . . . . . . . . . . . . .C–2
Appendix C: ERM and ERM Workbench Default Settings
1
2
C
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
ERM and ERM Workbench Factory Default Settings
C–2
The following factory default settings or values can be changed by using the tools within the
ERM Workbench utility.
Item
Default
Protocol
IPX
Address Mode
Ethernet Address
ERM Timeout to Slave
25ms
ERM Retries
1
Slave Watchdog
250ms
ERM Pet Slave Watchdog
0 (disabled)
ERM Consecutive Comm Failures
5
to Slave Before Placing Slave in
Standby Mode
Slave Padding
0
Bit Input Address
DirectLOGIC: V40414 (X300);
Do-more: (DLX300)
Bit Output Address
DirectLOGIC: V50514 (Y300)
Do-more: (DLY300)
Word Input Address
DirectLOGIC: V2000
Do-more: DLV2000
Word Output Address
DirectLOGIC: V2100
Do-more: DLV2100
Standby Cycle Time
500ms
Unsupported Slave Cycle Time
1000ms
PLCScan Timeout
100ms
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
MAPPING ERM SLAVE
I/O IN A THINK & DO
WINPLC SYSTEM
APPENDIX
D
In This Appendix...
Mapping ERM Slave I/O Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D–2
Launching Connectivity Center Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D–2
Connecting to the WinPLC Base I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D–2
Connecting to the ERM Slave I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D–3
Mapping I/O Points to Data Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D–3
Appendix D: Mapping ERM Slave I/O in a Think & Do WinPLC Slave System
1
2
3
D
5
6
7
8
9
10
11
12
13
14
A
B
C
D
Mapping ERM Slave I/O Points
The purpose of this appendix is to identify that the Think & Do ConnectivityCenter tool is
used to configure (map) the ERM remote slave I/O points to Data Items. We recommend
that you are familiar with the “Getting Started” and “Creating a Project” chapters in the
Think & Do Studio Learning Guide before attempting to configure the ERM I/O in
ConnectivityCenter.
NOTE: The ERM and its slaves need to be configured using ERM Workbench before using Think & Do
ConnectivityCenter to map the ERM slave I/O points to Data Items.
Launching Connectivity Center Tool
To launch Connectivity Center:
1) Launch Think & Do Studio ProjectCenter from the Windows desktop by clicking on Start
> Programs > Think & Do Studio > ProjectCenter. Or, click on the ProjectCenter icon to
start.
2) Click on the File Menu and either Open your Think & Do Project or select New.
3) Within ProjectCenter select Windows CE – Think & Do WinPLC as the Runtime Target.
4) Then click Tools > ConnectivityCenter to launch ConnectivityCenter. Or, click on the
ConnectivityCenter shortcut in the Project Explorer.
5) Once in ConnectivityCenter click on Configuration > Connect or click on the Connect
toolbar button.
Connecting to the WinPLC Base I/O
ConnectivityCenter will draw a picture of your WinPLC / ERM I/O network. Clicking on
the Backplane I/O Driver in the Board view window will display the WinPLC I/O base.
ERM Module
Board View
Clicking on Backplane
I/O displays the
WinPLC I/O
D–2
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Appendix D: Mapping ERM Slave I/O in a Think & Do WinPLC Slave System
Connecting to the ERM Slave I/O
Clicking on the Ethernet Remote Master Driver in the Board view window will display the
ERM slave I/O base(s).
ERM Slave 1 I/O Base
Board View
Clicking on Ethernet
Remote Master Driver
displays the ERM
slave I/O bases
ERM Slave 2 I/O Base
Scroll down to view
next slave
Mapping I/O Points to Data Items
This procedure is discussed in detail in the “Creating a Project” chapter in the Think & Do
Studio Learning Guide. This will map your real world I/O to Data Items.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
1
2
3
D
5
6
7
8
9
10
11
12
13
14
A
B
C
D
D–3
Appendix D: Mapping ERM Slave I/O in a Think & Do WinPLC Slave System
1
2
3
D
5
6
7
8
9
10
11
12
13
14
A
B
C
D
Notes:
D–4
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
CONFIGURING
TERMINATOR I/O
ANALOG OUTPUT
MODULES
A PPENDIX
E
In This Appendix:
Analog Output Module Control Byte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E–2
Appendix E: Configuring Terminator I/O Modules Analog Output Modules
Analog Output Module Control Byte
1
2
3
Terminator I/O analog voltage and current output and combination analog modules require
configuring via the module control byte. Analog input modules do not require configuration.
The DirectLOGIC example below shows an ERM network Terminator I/O slave with a
discrete input module in slot 1, an analog voltage output module in slot 2 and a combination
analog current module in slot 3. Note that the module control bytes are automatically
mapped to the “Y” data type registers. The bits within the module control byte are used to
enable or disable the analog outputs, select bipolar or unipolar output and select the voltage
or current output range. For Do-more applications, the control bits are mapped to DLY
addresses, an example is shown below.
D
E
6
7
8
9
10
11
1
1
14
A
B
C
D
DirectLOGIC
Module Control Byte for
each analog output module
T1F-08DA-2
T1F-8AD4DA-1
Do-more
Control Bytes are
mapped to DLY
addresses in Do-more
applications
E–2
T1F-08DA-2
T1F-8AD4DA-1
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Appendix E: Configuring Terminator I/O Modules Analog Output Modules
The table below defines the bits of an analog module control byte. Example “Y” bit addresses
are listed for the analog module control bytes from the ERM network example on the
previous page, along with their equivalent Do-more addresses. The module control byte
addresses will vary depending on the location of the analog module in the system, the number
of slaves, the amount of output modules used in an ERM network and the starting discrete
output address that is user specified. ERM Workbench will list the appropriate control byte
for any Terminator analog module that requires configuration.
1
2
3
Module Control Byte of 8 and 16-Channel Analog Output Modules and
Analog Combination Modules
D
Example Bit Addresses for
T1F–08DA–2
Example Bit Addresses for
T1F–8AD4DA–1
Outputs Enable
0 = All outputs OFF
1 = All outputs Enabled
Unipolar / Bipolar
0 = Unipolar selected
1 = Bipolar selected
5V / 10V Range
0 = 5V range
1 = 10V range
DL: Y320
Do-more: DLY320
DL: Y330
Do-more: DLY330
DL: Y321
Do-more: DLY321
DL: Y331
Do-more: DLY331
DL: Y322
Do-more: DLY322
DL: Y332
Do-more: DLY332
Bit 3
0 – 20mA / 4–20mA Range
0 = 0 – 20mA range
1 = 4 – 20mA range
DL: Y323
Do-more: DLY323
DL: Y333
Do-more: DLY333
Bit 4–7
Reserved for system use
–
–
Bit Definitions
Bit 0
Bit 1
Bit 2
The following example ladder logic code configures the analog output and combination
analog modules used in the previous examples. The T1F–08DA–2 is configured for outputs
enabled with 10V bipolar range. The T1F–8AD4DA–1 is configured for outputs enabled
with 4–20mA unipolar range. The RST instruction can be used to reset the bits, if necessary.
DirectSOFT
DirectSOFT
Configure T1F–08DA–2
SP0
Y320
SET
First scan enables the module’s outputs
Y321
SET
Select bipolar range
Y322
SET
Select 10 V range
Configure T1F–8AD4DA–1
SP0
Y330
SET
First scan enables the module’s outputs
E
6
7
8
9
10
11
1
1
14
A
B
C
D
Y333
SET
Select 4–20mA range
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
E–3
Appendix E: Configuring Terminator I/O Modules Analog Output Modules
1
2
3
Do-more Designer
D
E
6
7
8
9
10
11
1
1
14
A
B
C
D
E–4
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
H2-EBC(100) ANALOG
MODULE ADDRESSING
APPENDIX
F
E
In This Appendix...
H2-EBC(100) Analog Module Addressing H2/4-ERM(100) . . . . . . . . . . . . . . . . . . .F-2
Appendix F: H2-EBC(100) Analog Module Addressing
H2-EBC(100) Analog Module Addressing - H2/4-ERM(100)
When using an ERM to EBC configuration, the analog module data in the H2-EBC(100)
base is mapped to V-memory or Discrete I/O.Certain Diagnostics Data is not automatically
mapped. If needed, the Diagnostics Data can be accessed as described in H24-ERM-M
Appendix B.
The ERM Workbench software will tell you what the mapping is for each I/O module in the
H2-EBC(100) base. Once you have configured the H2-ERM(100) or H4-ERM(100) using
ERM Workbench you will get a screen similar to the following:
A
2
C
4
5
F
7
8
9
10
11
12
13
14
A
B
C
D
For the example above, the I/O configuration for Slave 1 is:
Slot 0 = F2-04THM
Slot 1 = F2-8AD4DA-1
Slot 2 = F2-08AD-1
Slot 3 = F2-04RTD
Slot 4 = D2-12TR
Slot 5 = F2-4AD2DA
Slot 6 = F2-04AD-2
Slot 7 = F2-04AD-1
Use the addresses shown in the ERM Workbench along with the following table to access the
analog I/O with your ERM master.
For example, to configure the input resolution of the F2-8AD4DA-1 module located in Slot
1 of the system, the data provided above along with the table below would show that V
memory location V2104 is required. Also, to read the current temperature detected by
Channel 3 of the RTD module in Slot 3, V memory location V2026 is required.
F-2
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Appendix F: H2-EBC(100) Analog Module Addressing
H2-EBC(100) Analog Module Addressing - H2-ERM(100)
Part Number
Channel Data
F2-04AD-1 (L)
F2-04AD-2 (L)
Input Words:
Word 1 = Ch1
Word 2 = Ch2
Word 3 = Ch3
Word 4 = Ch4
F2-08AD-1
Input Words:
Word 1 = Ch1
Word 2 = Ch2
Word 3 = Ch3
Word 4 = Ch4
Word 5 = Ch5
Word 6 = Ch6
Word 7 = Ch7
Word 8 = Ch8
F2-08AD-2
Input Words:
Word 1 = Ch1
Word 2 = Ch2
Word 3 = Ch3
Word 4 = Ch4
Word 5 = Ch5
Word 6 = Ch6
Word 7 = Ch7
Word 8 = Ch8
F2-4AD2DA
Input Words:
Word 1 = Ch1
Word 2 = Ch2
Word 3 = Ch3
Word 4 = Ch4
Output Words:
Word 1 = Ch1
Word 2 = Ch2
F2-8AD4DA-1
Input Words:
Word 1 = Ch1
Word 2 = Ch2
Word 3 = Ch3
Word 4 = Ch4
Word 5 = Ch5
Word 6 = Ch6
Word 7 = Ch7
Word 8 = Ch8
Output Words:
Word 1 = Ch1
Word 2 = Ch2
Word 3 = Ch3
Word 4 = Ch4
Module Configuration Data
Diagnostics Data*
None
No Broken Transmitter Detection
If No 24VDC or No Terminal Block:
• All channels = 0 counts
• ‘Error’ = 121**
• ‘Other’ = Cycles 1 thru 3***
None
Channels with broken transmitter:
• Channel=0 counts
• ‘Error’ =121**
• ‘I/O Module Status Word 1’ =
Channel Number**
If No 24VDC or No Terminal Block:
• All channels = 0 counts
• ‘Error’ =121**
• ‘Other’ = Cycles 1 thru 7***
None
No Broken Transmitter Detection
If No 24VDC or No Terminal Block:
• All channels = 0 counts
• ‘Error’ =121**
• ‘Other’ = Cycles 1 thru 7***
None
No Broken Transmitter Detection
If No 24VDC or No Terminal Block:
• All channels = 0 counts
• ‘Error’ =121**
• ‘Other’ = Cycles 1 thru 3***
Output Words:
Word 5 = Input Resolution
Word 6 = N/A
Word 7 = Track and Hold
Word 8 = Not Used
Channels with broken transmitter:
• Channel=0 counts
• ‘Error’ = 142**
• ‘I/O Module Status Word 1’ = Bit On
for Each Channel with Broken
Transmitter**
If No 24VDC or No Terminal Block:
• All channels = 0 counts
• ‘Error’ =142**
• ‘Other’ = 0xFF***
* Diagnostics Data is not automatically mapped. If needed, the Diagnostics Data can be accessed via ERM
Workbench or ladder as described in H24-ERM-M Appendix B.
** See Extended Slave Error Codes in Appendix B for further details.
*** 'Other' is a field accessible only in ERM Workbench by clicking the button: Slave N's Error List. This field
cannot be read programmatically.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
F-3
A
2
C
4
5
F
7
8
9
10
11
12
13
14
A
B
C
D
Appendix F: H2-EBC(100) Analog Module Addressing
A
2
C
4
5
F
7
8
9
10
11
12
13
14
A
B
C
D
H2-EBC(100) Analog Module Addressing - H2-ERM(100)
Part Number
Channel Data
Module Configuration Data
F2-8AD4DA-2
Input Words:
Word 1 = Ch1
Word 2 = Ch2
Word 3 = Ch3
Word 4 = Ch4
Word 5 = Ch5
Word 6 = Ch6
Word 7 = Ch7
Word 8 = Ch8
Output Words:
Word 1 = Ch1
Word 2 = Ch2
Word 3 = Ch3
Word 4 = Ch4
Output Words:
Word 5 = Input Resolution
Word 6 = Range Selection
Word 7 = Track and Hold
Word 8 = Not Used
Diagnostics Data*
No Broken Transmitter Detection
If No 24VDC or No Terminal Block:
• All channels = 0 counts
• ‘Error’ =121**
• ‘Other’ = 0xFF***
F2-04THM
F2-04RTD
Input Words:
Word 1 = Ch1
Word 2 = Ch2
Word 3 = Ch3
Word 4 = Ch4
None
Channels with broken transmitter:
• Channel=0 counts
• ‘Error’ = 142d**
• ‘I/O Module Status Word 1’ = Bit On
for Each Channel with Broken
Transmitter**
If No 24VDC or No Terminal Block:
• All channels = 0 counts
• ‘Error’ =121**
• ‘Other’ = 0x0F***
F2-02DA-1(L)
F2-02DA-2(L)
Output Words:
Word 1 = Ch1
Word 2 = Ch2
None
None
F2-02DAS-1
F2-02DAS-2
Output Words:
Word 1 = Ch1
Word 2 = Ch2
None
None
F2-08DA-1
F2-08DA-2
Output Words:
Word 1 = Ch1
Word 2 = Ch2
Word 3 = Ch3
Word 4 = Ch4
Word 5 = Ch5
Word 6 = Ch6
Word 7 = Ch7
Word 8 = Ch8
None
None
* Diagnostics Data is not automatically mapped. If needed, the Diagnostics Data can be accessed via ERM
Workbench or ladder as described in H24-ERM-M Appendix B.
** See Extended Slave Error Codes in Appendix B for further details.
*** 'Other' is a field accessible only in ERM Workbench by clicking the button: Slave N's Error List. This field
cannot be read programmatically.
F-4
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
Appendix F: H2-EBC(100) Analog Module Addressing
F2-04RTD Example (Module in Slot 3)
Using the ‘ERM Workbench’ dialog below and the ‘H2-EBC(100) Analog Module
Addressing - H2-ERM(100)’ chart above, we can find the addresses that contain channel data
for the F2-04RTD module in Slot 3. Diagnostics Data is not automatically mapped. If
needed, the Diagnostics Data can be accessed via ERM Workbench or ladder as described in
H24-ERM-M Appendix B.
Input Channel
Address
Channel 1
V2004
Channel 2
V2005
Channel 3
V2006
Channel 4
V2007
Error Words
The Slave Diagnostic Word for slot 3 would be
mapped to V + 7 (the eighth address in your
chosen V-memory range). The H24-ERM-M
manual Appendix B contains an example.
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
F-5
A
2
C
4
5
F
7
8
9
10
11
12
13
14
A
B
C
D
Appendix F: H2-EBC(100) Analog Module Addressing
A
2
C
4
5
F
7
8
9
10
11
12
13
14
A
B
C
D
Notes
F-6
Ethernet Remote Master User Manual, 2nd Edition, Rev. A - H24-ERM-M
