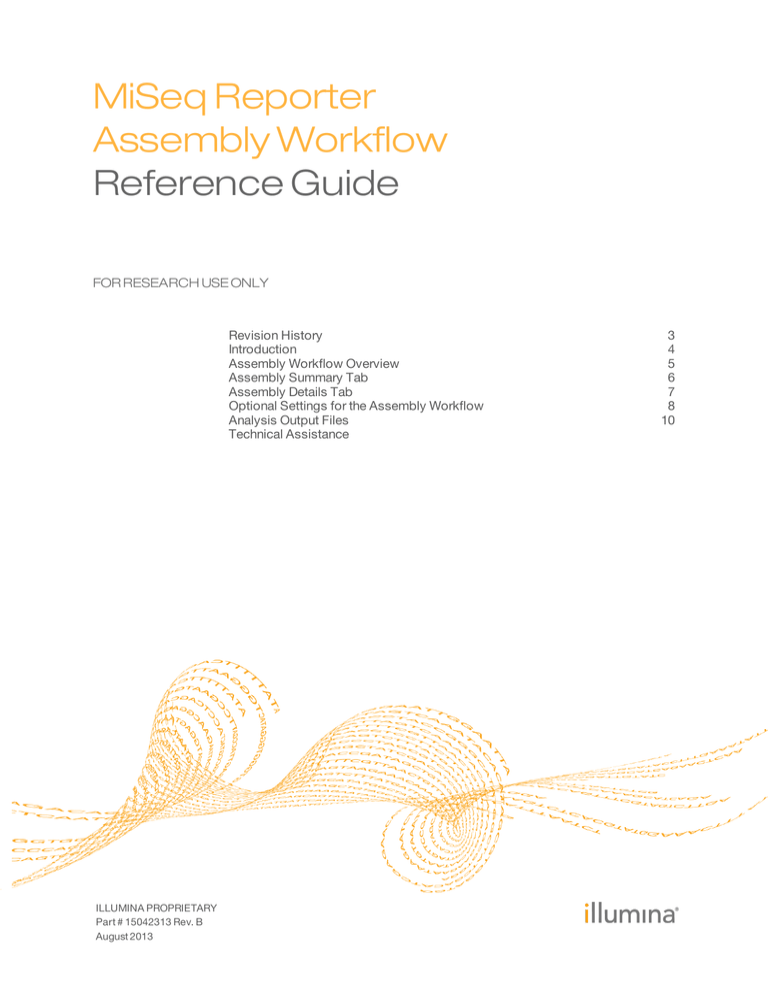

MiSeq Reporter
Assembly Workflow
Reference Guide
FOR RESEARCH USE ONLY
Revision History
Introduction
Assembly Workflow Overview
Assembly Summary Tab
Assembly Details Tab
Optional Settings for the Assembly Workflow
Analysis Output Files
Technical Assistance
ILLUMINA PROPRIETARY
Part # 15042313 Rev. B
August 2013
3
4
5
6
7
8
10
This document and its contents are proprietary to Illumina, Inc. and its affiliates ("Illumina"), and are intended solely for the
contractual use of its customer in connection with the use of the product(s) described herein and for no other purpose. This
document and its contents shall not be used or distributed for any other purpose and/or otherwise communicated, disclosed,
or reproduced in any way whatsoever without the prior written consent of Illumina. Illumina does not convey any license
under its patent, trademark, copyright, or common-law rights nor similar rights of any third parties by this document.
The instructions in this document must be strictly and explicitly followed by qualified and properly trained personnel in order
to ensure the proper and safe use of the product(s) described herein. All of the contents of this document must be fully read
and understood prior to using such product(s).
FAILURE TO COMPLETELY READ AND EXPLICITLY FOLLOW ALL OF THE INSTRUCTIONS CONTAINED HEREIN
MAY RESULT IN DAMAGE TO THE PRODUCT(S), INJURY TO PERSONS, INCLUDING TO USERS OR OTHERS, AND
DAMAGE TO OTHER PROPERTY.
ILLUMINA DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE IMPROPER USE OF THE PRODUCT(S)
DESCRIBED HEREIN (INCLUDING PARTS THEREOF OR SOFTWARE) OR ANY USE OF SUCH PRODUCT(S) OUTSIDE
THE SCOPE OF THE EXPRESS WRITTEN LICENSES OR PERMISSIONS GRANTED BY ILLUMINA IN CONNECTION
WITH CUSTOMER'S ACQUISITION OF SUCH PRODUCT(S).
FOR RESEARCH USE ONLY
© 2013 Illumina, Inc. All rights reserved.
Illumina, IlluminaDx, BaseSpace, BeadArray, BeadXpress, cBot, CSPro, DASL, DesignStudio, Eco, GAIIx, Genetic
Energy, Genome Analyzer, GenomeStudio, GoldenGate, HiScan, HiSeq, Infinium, iSelect, MiSeq, Nextera, NuPCR,
SeqMonitor, Solexa, TruSeq, TruSight, VeraCode, the pumpkin orange color, and the Genetic Energy streaming bases
design are trademarks or registered trademarks of Illumina, Inc. All other brands and names contained herein are the property
of their respective owners.
Part #
Revision
Date
15042313
B
August
2013
15042313
A
June
2013
MiSeq Reporter Assembly Workflow Reference Guide
Description of Change
• Added descriptions of optional settings Adapter
and ReverseComplement.
• Noted that an optional reference genome can be
provided with either *.fasta or *.fa extensions.
Initial release.
The information provided within was previously
included in the MiSeq Reporter User Guide. With this
release, the MiSeq Reporter User Guide contains
information about the interface, how to view run
results, how to requeue a run, and how to install and
configure the software. Information specific to the
Assembly workflow is provided in this guide.
3
Revision History
Revision History
Introduction
The Assembly workflow assembles small genomes (< 20 Mb) without the use of a
reference genome, and is best suited for the assembly of bacterial genomes, such as E.
coli.
The Assembly workflow uses the Velvet software and writes assembly results in the
FASTA format.
In the MiSeq Reporter Analyses tab, a run folder associated with the Assembly workflow
is represented with the letter A. For more information about the software interface, see the
MiSeq Reporter User Guide (part # 15042295).
This guide describes the analysis steps performed in the Assembly workflow, the types of
data that appear on the interface, and the analysis output files generated by the
workflow.
4
Part # 15042313 Rev. B
The Assembly workflow uses a de Bruijn graph methodology to assemble reads into
contigs, which are consensus DNA sequences representing overlapping sets of reads. The
resulting contigs are written to a FASTA file named contigs.fa in a subfolder of the
Alignment folder named AssemblyN, where N is the sample number.
Reads are randomly subsampled from the total data output to produce Assemble_N_
Rx.fastq.gz files, where N refers to the sample number and x refers to the read number.
These files contain the reads used in the assembly process. The selection process is
random but not stochastic, meaning the same subset of reads are selected each time that
the Assembly workflow is run. The subsampling of reads prevents overloading of the
RAM built into MiSeq instrument computer.
NOTE
A reference genome is optional. Reference genomes can use either a *.fasta or *.fa file
extension.
If a
}
}
}
reference genome is specified, the workflow performs the following steps:
Compares contigs against the reference genome.
Reorders contigs to match the order of the reference genome, as closely as possible.
Generates the samples graph (dot-plot), which summarizes the match between
contigs and the reference genome. For more information, see Samples Graph on page
7.
The assembly process uses the Velvet software. For a description of Velvet, see Velvet:
algorithms for de novo short read assembly using de Bruijn graphs, Zerbino and Birney,
Genome Research 2008.
MiSeq Reporter Assembly Workflow Reference Guide
5
Assembly Workflow Overview
Assembly Workflow Overview
Assembly Summary Tab
The Summary tab for the Assembly workflow includes a low percentages graph, high
percentages graph, and clusters graph:
} Low percentages graph—Shows phasing, prephasing, and mismatches in
percentages. Low percentages indicate good run statistics.
} High percentages graph—Shows clusters passing filter, alignment to a reference, and
intensities in percentages. High percentages indicate good run statistics.
} Clusters graph—Shows numbers of raw clusters, clusters passing filter, clusters that
did not align, clusters not associated with an index, and duplicates.
Low Percentages Graph
Y Axis
X Axis
Percent
Phasing 1
Phasing 2
Prephasing
1
Prephasing
2
Description
The percentage of molecules in a cluster that fall behind the current cycle
within Read 1.
The percentage of molecules in a cluster that fall behind the current cycle
within Read 2.
The percentage of molecules in a cluster that run ahead of the current
cycle within Read 1.
The percentage of molecules in a cluster that run ahead of the current
cycle within Read 2.
High Percentages Graph
Y Axis
X Axis
Percent
PF
I20 / I1 1
I20 / I1 2
PE
Resynthesis
Description
The percentage of clusters passing filters.
The ratio of intensities at cycle 20 to the intensities at cycle 1 for Read 1.
The ratio of intensities at cycle 20 to the intensities at cycle 1 for Read 2.
The ratio of first cycle intensities for Read 1 to first cycle intensities for
Read 2.
Clusters Graph
6
Y Axis
X Axis
Clusters
Raw
PF
Description
The total number of clusters detected in the run.
The total number of clusters passing filter in the run.
Part # 15042313 Rev. B
The Details tab for the Assembly workflow includes a samples graph and a samples
table:
} Samples graph—Summarizes the match between contigs and the reference genome
in a syntenic plot (dot-plot). This plot is available only if a reference genome was
specified in the sample sheet.
} Samples table—Summarizes the sequencing results for each sample.
Samples Graph
Contigs are arranged end-to-end along the X axis and the reference chromosomes are
arranged bottom-to-top along the Y axis. Each pixel of the plot is colored according to
how many short sequences of the corresponding contig have a match in the
corresponding portion of the reference genome.
An identical assembly results in a diagonal line. A vertical gap in the plot might indicate
a portion of the reference that is absent in the assembly, such as a plasmid, which is
found in some bacteria populations.
Y Axis
X Axis
Reference
Assembly
Position
Description
A syntenic plot of assembled contigs compared to a reference. A
reference genome must be specified in the sample sheet.
Samples Table
Column
Description
#
An ordinal identification number in the table.
Sample ID
The sample ID from the sample sheet. Sample ID must always be a
unique value.
Sample Name
The sample name from the sample sheet.
Num Contigs
The number of contigs assembled for this sample.
MeanContigLength
The average contig length for this sample.
MedContigLength
The median contig length for this sample.
MinContigLength
The minimum contig length for this sample.
MaxContigLength
The maximum contig length for this sample.
Base Count
The total length of the resulting assembly.
N50
N50 length is the length of the shortest contig. The sum of contigs of
equal length or longer is at least 50% of the total length of all contigs.
MiSeq Reporter Assembly Workflow Reference Guide
7
Assembly Details Tab
Assembly Details Tab
Optional Settings for the Assembly Workflow
Sample sheet settings are optional commands that control various analysis parameters.
Settings are used in the Settings section of the sample sheet and require a setting name
and a setting value.
} If you are viewing or editing the sample sheet in Excel, the setting name resides in
the first column and the setting value in the second column.
} If you are viewing or editing the sample sheet in a text editor such as Notepad, the
setting name is followed by a comma and a setting value. Do not include a space
between the comma and the setting value.
Example: Adapter,CTGTCTCTTATACACATCT
The following optional settings are compatible with the Assembly workflow.
Sample Sheet Settings for Analysis
Parameter
Description
Adapter
Specify the 5' portion of the adapter sequence to prevent
reporting sequence beyond the sample DNA.
Illumina recommends adapter trimming for Nextera
libraries and Nextera Mate Pair libraries.
To specify two or more adapter sequences, separate the
sequences by a plus (+) sign. For example:
CTGTCTCTTATACACATCT+AGATGTGTATAAGAGA
CAG
AdapterRead2
Specify the 5' portion of the Read 2 adapter sequence to
prevent reporting sequence beyond the sample DNA.
Use this setting to specify a different adapter other than
the one specified in the Adapter setting.
Kmer
This setting overrides the k-mer size used by Velvet.
Default is 31; odd-numbered values up to 255 are
supported.
ReverseComplement
Settings are 0 or 1. Default is 1, reads are reversecomplemented.
If set to true (1), all reads are reverse-complemented as
they are written to FASTQ files.
Use the default setting of 1 when using the Assembly
workflow with Nextera Mate Pair libraries.
Optional Configurable
MiSeq Reporter uses a maximum of 550 Mbp of sequence data for de novo assembly. This
setting is controlled in the MiSeq Reporter.exe.config file using the configuration setting
MaximumMegabasesAssembly.
8
Configuration Name
Values and Description
MaximumMegabasesAssembly
550 (default)
The maximum number of megabases to assemble. Larger
values require more RAM.
Part # 15042313 Rev. B
For more information about configuration settings, see the MiSeq Reporter User Guide (part
# 15042295).
MiSeq Reporter Assembly Workflow Reference Guide
9
Optional Settings for the Assembly Workflow
NOTE
Assembly of reads from longer runs requires more memory than assembly of reads from
shorter runs. If the process terminates due to memory requirements, consider lowering
the setting MaximumMegabasesAssembly.
Analysis Output Files
The following analysis output files are generated for the Assembly workflow and written
to the MiSeqAnalysis folder.
File Name
Description
Contigs.fa
Contains the contigs for each assembly.
Located in Data\Intensities\BaseCalls\Alignment.
Summarizes the match between contigs and the reference
genome.
Located in Data\Intensities\BaseCalls\Alignment.
Supplementary Output Files
The following output files provide supplementary information, or summarize run results
and analysis errors. Although, these files are not required for assessing analysis results,
they can be used for troubleshooting purposes.
10
File Name
Description
AdapterTrimming.txt
Lists the number of trimmed bases and percentage of
bases for each tile. This file is present only if adapter
trimming was specified for the run.
Located in Data\Intensities\BaseCalls\Alignment.
AnalysisLog.txt
Processing log that describes every step that occurred
during analysis of the current run folder. This file does not
contain error messages.
Located in the root level of the run folder.
AnalysisError.txt
Processing log that lists any errors that occurred during
analysis. This file is present only if errors occurred.
Located in the root level of the run folder.
AssemblyRunStatistics.xml
Contains summary statistics specific to the run.
Located in the root level of the run folder.
CompletedJobInfo.xml
Written after analysis is complete, contains information
about the run, such as date, flow cell ID, software version,
and other parameters.
Located in the root level of the run folder.
DemultiplexSummaryF1L1.txt
Reports demultiplexing results in a table with one row per
tile and one column per sample.
Located in Data\Intensities\BaseCalls\Alignment.
Summary.xml
Contains a summary of mismatch rates and other base
calling results.
Located in Data\Intensities\BaseCalls\Alignment.
Summary.htm
Contains a summary web page generated from
Summary.xml.
Located in Data\Intensities\BaseCalls\Alignment.
Part # 15042313 Rev. B
For technical assistance, contact Illumina Technical Support.
Table 1 Illumina General Contact Information
Illumina Website
Email
www.illumina.com
[email protected]
Table 2 Illumina Customer Support Telephone Numbers
Region
Contact Number
Region
North America
1.800.809.4566
Italy
Austria
0800.296575
Netherlands
Belgium
0800.81102
Norway
Denmark
80882346
Spain
Finland
0800.918363
Sweden
France
0800.911850
Switzerland
Germany
0800.180.8994
United Kingdom
Ireland
1.800.812949
Other countries
Contact Number
800.874909
0800.0223859
800.16836
900.812168
020790181
0800.563118
0800.917.0041
+44.1799.534000
MSDSs
Material safety data sheets (MSDSs) are available on the Illumina website at
www.illumina.com/msds.
Product Documentation
Product documentation in PDF is available for download from the Illumina website. Go
to www.illumina.com/support, select a product, then click Documentation & Literature.
MiSeq Reporter Assembly Workflow Reference Guide
Technical Assistance
Technical Assistance
Illumina
San Diego, California 92122 U.S.A.
+1.800.809.ILMN (4566)
+1.858.202.4566 (outside North America)
[email protected]
www.illumina.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
