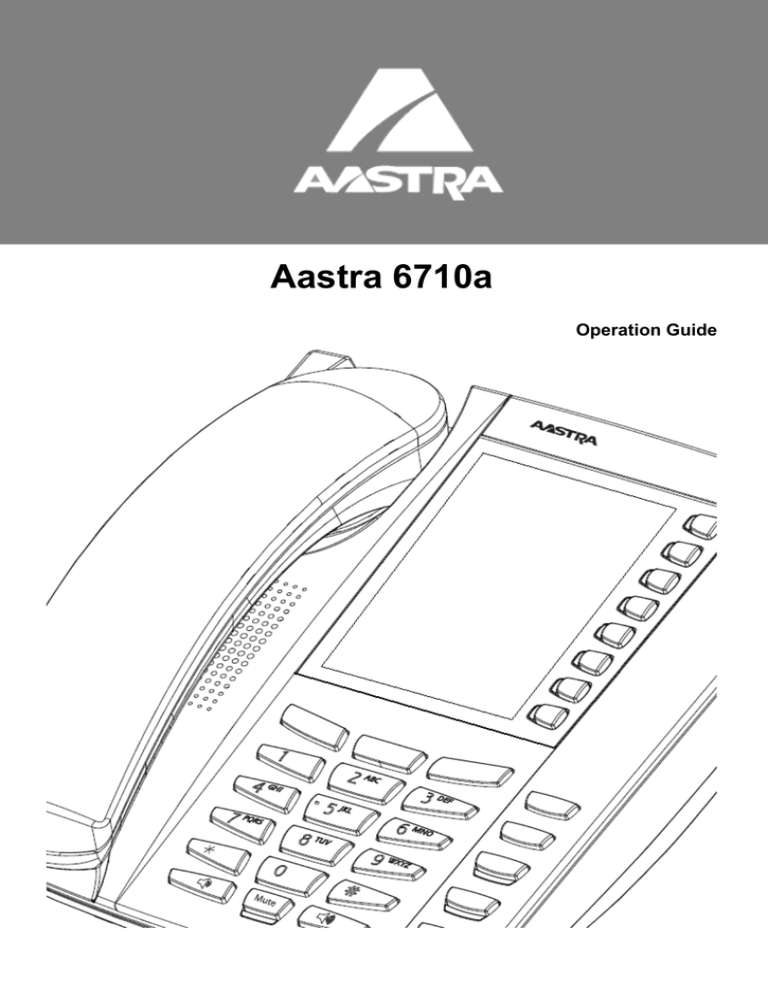

Aastra 6710a
Aastra 6710a
Operation Guide
Table of Contents
Introduction ..................................................................................................................................... 3
Phone Specification ........................................................................................................................ 3
Phone Parts .................................................................................................................................... 4
Key Panel........................................................................................................................................ 5
Bottom View .................................................................................................................................... 7
Basic Operation .............................................................................................................................. 8
Dial ........................................................................................................................................... 8
Call by Handsfree ..................................................................................................................... 8
Call by Headset ........................................................................................................................ 8
Music on Hold ........................................................................................................................... 8
Mute.......................................................................................................................................... 8
Goodbye Key ............................................................................................................................ 8
Redial ....................................................................................................................................... 8
Volume Setting................................................................................................................................ 9
Set Ring Volume ....................................................................................................................... 9
Set Handfree Volume ............................................................................................................... 9
Set Handset Volume ................................................................................................................. 9
Set Headset Volume ................................................................................................................. 9
Speed Dial Memory ...................................................................................................................... 10
Save a Memory....................................................................................................................... 10
Dial from a Memory ................................................................................................................ 10
Delete Memory ....................................................................................................................... 10
Message Waiting Memory (MWM) ................................................................................................ 11
Phone Setting ............................................................................................................................... 12
Set Flash time ......................................................................................................................... 12
Set Ring Melody ..................................................................................................................... 12
Introduction
Aastra 6710a is an easily managed line-powered analog phone. The functions and features
available with this telephone are designed for easy use in all different telephone handling
situations. It supports calls by either handset, headset or handsfree operation with excellent voice
quality.
Phone Specification
General
Color
Signal
Line supported
Charcoal
Analog
Single
Features
Flash button flash time
programmable
Compatibility with hearing aid
DTMF dialing
Incoming call/MWI indicator
Support Handsfree
Support Headset
Volume control
LED calling signalization
Hold with key
Release with key
Speed dial keys
Redial with key
Navigational key
Ringer melody
Ringer volume
Ringer silence
100ms, 200ms, 300ms (default), 400ms, 600ms, 900ms
Yes
Yes
Yes
Yes
Yes
Handset / Headset (4 levels)
Handsfree (8 levels)
Hardware and Feature
Support
Support
Support
Support (up to 8)
last 1 number
Yes
8 types
2 levels
Yes
Accessories
Connection cable, RJ11/ RJ45
Number card
Wall mounting kit
1 pcs, 2 meters
1 pcs
screws & anchors included
Phone Parts
When you unpack your phone, you should ensure that you have all of the following items. If any
part is missing, contact the supplier of your phone.
Key Panel
Symbols /
Keys
Français
Español
Deutsch
Português
Nederlands
Italiano
Speed-dial
Numérotation
Teclas
Kurzwahl
Discagem rápida
Snel-kiezen
Numeri brevi
M0-M7
abrégée
programables
M0-M7
M0-M7
M0-M7
M0-M7
M0-M7
M0-M7
Flash key
R - Flash
Tecla Flash
R-Taste
Flash
Haakcontact
Tasto Flash
Redial / Pause key
Touche Bis /
Rellamada /
Wahlwiederholung Rediscagem /
Nummerherhaling / Bis / Pausa
Pause
Pausa
/ Pausentaste
tecla de pausa
Pauzetoets
Fin / Fin
Desconectar
Ende Taste
Desconectar
Beëindigen
Goodbye key
d’appel
Tasto
Riaggancio
0-9, * and #
0-9, * et #
0-9, * y #
0-9, * und #
0-9, * e #
0-9, * en #
0-9, * e #
(dial keys)
numérotation
(digitos)
(Zifferntasten)
(Dígitos)
(bel toetsen)
(tasti selezione)
Volume keys
Réglage du
Volumen
Lautstärketasten
Volume
Volume toetsen
Tasti
volume
regolazione
volume
Mute key
Touche secret
(Mute) silencio Stummtaste
Mudo
Mute-toets
Tasto mute
Save key
Sauvegarde
Salvar
Salvar
Opslaan
Tasto
Speichertaste
salvataggio
Delete key
Suppression
Borrado
Löschtaste
Excluir
Verwijderen
Tasto cancella
Music on hold
Musique
Música en
Musik bei Warten
Música em
Muziek tijdens
Musica d'attesa
d'attente
espera
espera
wachten
Message
Mensaje en
Mensagem em
Wachtend bericht
déposé
espera
espera
Haut-parleur /
Altavoz / Tecla Lautsprecher /
Alto-falante /
Luidspreker /
Altoparlante /
Casque
de manos libre Kopfhörertaste
Fone de ouvido
hoofdtelefoon
Cuffia
Message waiting
Speaker / Headset
Nachricht wartet
Messaggio
Giacente
Bottom View
Symbols /
Keys
Line socket
Français
Español
Prise de ligne
Puerto
téléphonique
conneccion de
Deutsch
Anschlussbuchse
Português
Nederlands
Italiano
Conector de linha Lijnpoort
Presa linea
telefônica
telefonica
linea
OFF / Hi Volt /
Off / Haute
DE / Alto
AUS/Spannung/
OFF / Hi Volt /
UIT / Hi Volt /
OFF / Alta
MW(-) / MW(+)
Tension /
voltaje / MW(-)
MW(-) / MW(+
MW(-) / MW(+)
MW(-) / MW(+)
Tensione /
MW(-) / MW(+)
/ MW(+)
Headset Jack
Prise casque
Puerto de
MW(-) / MW(+)
Kopfhörerbuchse
auricular
Handset Jack
Prise combiné
Puerto de
microtelefono
Hörerbuchse
Conector do fone Hoofdtelefoon
Presa Cuffia
de ouvido
aansluiting
Conector do
Telefoonhoorn
Presa
monofone
aansluiting
Microtelefono
Basic Operation
Dial
Pick up the handset (or press [
[#] or [Pause] to dial out.
] for handsfree / headset operation) and press numeric key, [*],
Call by Handsfree
1. Press [
] and enter the number by using the dial pad.
2. To hang up the phone, press [
] again.
3. When you are talking on handset, you can switch to handsfree mode by pressing [
Call by Headset
1. Insert a headset to the phone
2. Press [
] and enter the number using the dial pad.
3. To hang up the phone, press [
] again.
4. When you are talking on handset, you can switch to headset mode by pressing [
Music on Hold
1. When a call is in progress, press [ ] to hold the call (LED on).
2. Press [ ] again or toggle the hook switch to resume the call (LED off).
Mute
1. When a call is in progress, press [ ] to mute (LED flashing).
2. To speak to the caller, press [ ] again (LED off).
Goodbye Key
1. During off-hook by handset, press [
] to process another call.
2. During off-hook by handsfree/headset , press [
] to hang up.
Redial
1. Press [
] to redial the last called number.
].
].
Volume Setting
Set Ring Volume
Three levels of ring volume provided: High, Low, Silence
1. Place the handset on the phone
2. Press „Volume +‟ to increase ring volume
3. Press „Volume –„ to decrease ring volume.
To disable the ring for incoming calls. Press the „Volume –„ until reach Silence level or press [ ]
during on-hook. The Mute LED will remain ON during on-hook to indicated the ring is now in
silence.
Set Handfree Volume
Eight levels of handsfree volume provided: Level 1 to 8
1. Press [
]
2. Press „Volume +‟ to increase the handfree volume
3. Press „Volume –‟ to decrease the handfree volume
Set Handset Volume
Four levels of handsfree volume provided: Level 1 to 4
1. Pick up the handset
2. Press „Volume +‟ to increase the handset volume
3. Press „Volume –„ to decrease the handset volume
Set Headset Volume
Four levels of handsfree volume provided: Level 1 to 4
1. Plug in the headset
2. Press [
]
3. Press „Volume +‟ to increase the headset volume
4. Press „Volume –„ to decrease the headset volume
Speed Dial Memory
Save a Memory
1. Place the handset on the phone
2. Press one memory key (M0 to M7)
3. Press [ ] and enter the number to be saved
4. Press [ ] key again to complete saving
5. The “save” successes with confirmation tone
Dial from a Memory
1. Pick up the handset or press [
]
2. Press the memory key (M0 to M7) to be dialed
Delete Memory
1. Place the handset on the phone
2. Press the memory key (M0 to M7) to be deleted
3. Press [ ]
4. The “delete” successes with confirmation tone
Message Waiting Memory (MWM)
The message waiting memory normally stores the number to reach the voicemail box.
Save MWM
1. Place the handset on the phone
2.
3.
4.
5.
Press [
]
Press [ ] and enter the number to be saved
Press [ ] key again to complete saving
The “save” successes with confirmation tone
Dial from a MWM
1. Pick up the handset or press „Speaker/Handset‟
2. Press the [
]
Delete MWM
1. Place the handset on the phone
2. Press [
]
3. Press [ ]
4. The “delete” successes with confirmation tone
Message Waiting LED
When there‟s message awaiting to be read, the message waiting LED will be lighted ON or
flashing in red.
The Message Waiting switch (at the back of the phone) is used to select the appropriate MW
mode (HV / + / - ). Please check the MW type of the connected PBX to work with the phone.
Select “OFF” on the MW switch to deactivate the message waiting function.
Phone Setting
Different combination of key sequences are used on different parameter settings as shown in the
table below
Parameters
Set flash time
Set ring melody
Programming key
sequence
[save]+[#]+[0]+[1]
+[#]+[X]+[#]
Lock
Valid
Protected Settings
Yes
1: 100ms
2: 200ms
3: 300ms
4: 400ms
6: 600ms
9: 900ms
Default
[save]+[#]+[0]+[2]
+[#]+[X]+[#]
Yes
RING 1
1~8
300ms
Set Flash time
1. During On-hook, press [save]+[#]+[0]+[1]+[#]+[X]+[#]
X could be set from 1 (100ms) / 2 (200ms) / 3 (300ms) / 4 (400ms) / 6 (600ms) / 9 (900ms).
2. If the setting successes, a confirmation ring will be generated.
Set Ring Melody
1. During On-hook, press [save]+[#]+[0]+[2]+[#]+[X]+[#].
X could be set from 1 to 8 (melodies 1~8).
2. If the setting successes, a confirmation tone will be generated.
EC-Declaration of conformity
Déclaration de conformité CE
EG-Konformitätserklärung
Declaración de conformidad CE
AASTRA France (1 rue Arnold Schoenberg – 78280 Guyancourt – France) hereby declares that:
This product, Aastra 6710a, equipment is in conformity with the essential requirements and other relevant provisions
of the European Directive 1999/5/EC (R&TTE Directive)
Le poste Aastra 6710a est conforme aux exigences essentielles de la directive 1999/5/EC
Dieses Gerät Aastra 6710a entspricht den grundlegenden Anforderungen der Richtlinie 1999/5/EG
Este equipo Aastra 6710a cumple con los requisitos esenciales de la directiva 1999/5/CE
http://www.aastra.com
