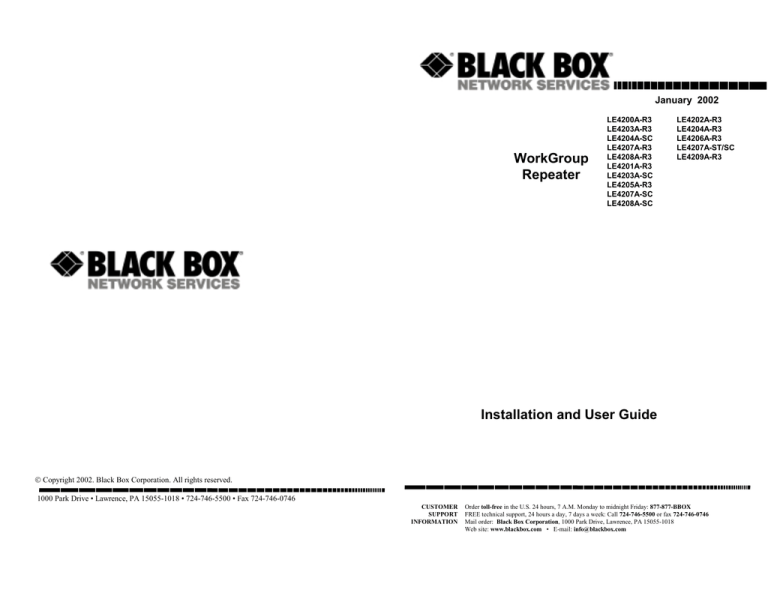

LE420X-R3_WrkgrpRrptr_jan02

LE420X-R3_WrkgrpRrptr_jan02
January 2002
WorkGroup
Repeater
LE4200A-R3
LE4203A-R3
LE4204A-SC
LE4207A-R3
LE4208A-R3
LE4201A-R3
LE4203A-SC
LE4205A-R3
LE4207A-SC
LE4208A-SC
LE4202A-R3
LE4204A-R3
LE4206A-R3
LE4207A-ST/SC
LE4209A-R3
Installation and User Guide
 Copyright 2002. Black Box Corporation. All rights reserved.
1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746
CUSTOMER
SUPPORT
INFORMATION
Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX
FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: [email protected]
BLACK BOX WorkGroup Repeater Installation and User Guide (02/02)
Black Box Workgroup
Repeater
Trademarks
Ethernet is a trademark of Xerox Corporation
UL is a registered trademark of Underwriters Laboratories
.
Important: Black Box Workgroup Repeaters contain no user serviceable parts.
Attempted service by unauthorized personnel shall render any and all warranties
null and void. If problems are experienced with a Black Box Workgroup
Repeater, consult Section 5, Troubleshooting, of this User Guide.
2002 Black Box Corporation
Printed in the United States of America
Contacting Black Box Corporation
Please use the mailing address, phone and fax numbers listed below.
Black Box Corporation
1000 Park Drive
Lawrence, PA 15055
Phone (724) 746-5500
Fax (724) 746-0746
email: [email protected]
84-00022 (Rev E 2/02)
i
BLACK BOX WorkGroup Repeater Installation and User Guide (02/02)
FEDERAL COMMUNICATIONS COMMISSION
AND
CANADIAN DEPARTMENT OF COMMUNICATIONS
RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio frequency energy and if not
installed and used properly, that is, in strict accordance with the manufacturer’s
instructions, may cause interference to radio communication. It has been tested
and found to comply with the limits for a Class A computing device in accordance
with the specifications in Subpart B of Part 15 of FCC rules, which are designed to
provide reasonable protection against such interference when the equipment is
operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference, in which case the user at his own
expense will be required to take whatever measures may be necessary to correct the
interference.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission
from digital apparatus set out in the Radio Interference Regulation of the Canadian
Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les
limites applicables aux appareils numériques de la classe A prescrites dans le
Règlement sur le brouillage radioélectrique publié par le ministère des
Communications du Canada.
ii
BLACK BOX WorkGroup Repeater Installation and User Guide (02/02)
Normas Oficiales Mexicanas (NOM)
Electrical Safety Statement
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el
aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia
futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de operación
deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca de la
tina de baño, lavabo, sótano mojado o cerca de una alberca, etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que sean
recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá a lo
descrito en las instrucciones de operación. Todo otro servicio deberá ser referido a
personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no interfiera su
uso. La colocación del aparato eléctrico sobre una cama, sofá, alfombra o superficie
similar puede bloquea la ventilación, no se debe colocar en libreros o gabinetes que
impidan el flujo de aire por los orificios de ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor como
radiadores, registros de calor, estufas u otros aparatos (incluyendo amplificadores)
que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo
descrito en el instructivo de operación, o como se indique en el aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del
equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean
pisados ni pellizcados por objetos colocados sobre o contra ellos, poniendo
particular atención a los contactos y receptáculos donde salen del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las recomendaciones
del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas de
energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea usado por
un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean derramados
sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.
iii
BLACK BOX WorkGroup Repeater Installation and User Guide (02/02)
TABLE OF CONTENTS
PAGE
1.0 SPECIFICATIONS............................................................................................ 1
1.1 Technical Specifications ......................................................................................... 1
1.2 Specifications - Repeater Port Module (RPM) ..................................................... 3
1.3 Ordering Information.............................................................................................. 3
2.0 INTRODUCTION ............................................................................................. 4
2.1 Inspecting the Package and Product ....................................................................... 4
2.2 Product Description ............................................................................................... 4
2.2.1 Workgroup Repeater Chassis...................................................................... 5
2.3 Repeater Port Modules (RPMs).............................................................................. 6
2.3.1 RPM-BNC .................................................................................................. 7
2.3.2 RPM-TP
(Twisted Pair) ......................................................................... 7
2.3.3 RPM-AUI ................................................................................................... 8
2.3.4 RPM-FST (Fiber ST, Twist-lock Connector)........................................... 9
2.3.5 RPM-FSC (Fiber SC, Snap-in Connector) ............................................ 10
2.4 Features and Benefits............................................................................................ 11
2.5 Applications.......................................................................................................... 12
3.0 INSTALLATION ............................................................................................ 13
3.1 Locating the Workgroup Repeater........................................................................ 13
3.1.1 Table-Top / Shelf Mounting ..................................................................... 13
3.2 Connecting Ethernet Media .................................................................................. 13
3.2.1 Connecting Twisted Pair (RJ-45, Unshielded or Shielded) ...................... 14
3.2.2 Connecting ThinNet 10BASE2 (BNC) .................................................... 14
3.2.3 Connecting ThickNet 10BASE5 (AUI) ................................................... 14
3.2.4 Connecting Fiber Optic (ST and SC types) ............................................. 15
3.2.5 Connecting Single-Mode Fiber Optic (SMF) ........................................... 15
4.0 OPERATION................................................................................................... 16
4.1 Repeater Functionality.......................................................................................... 16
4.2 Powering the Black Box Workgroup Repeater ..................................................... 16
4.3 Chassis LEDs........................................................................................................ 17
5.0 TROUBLESHOOTING .................................................................................. 18
5.1 Before Calling for Assistance ............................................................................... 18
5.2 When Calling for Assistance ................................................................................ 19
5.3 Shipping and Packaging Information.................................................................... 19
iv
BLACK BOX WorkGroup Repeater Installation and User Guide (02/02)
1.0
SPECIFICATIONS
1.1
Technical Specifications
Performance
Data Rate: 10 Mbits / sec
Partitioning: Enforced after 32 consecutive collisions.
Reconnect: Occurs after 512 bits of error-free transmission.
Network Standards
Ethernet V 1.0/V2.0 IEEE 802.3: 10BASE-T, 10BASE5, 10BASE2,
10BASE-FL & FOIRL, and DTE
(The Workgroup Repeater are physical layer standard Ethernet
products, and operate independently of all software.)
Maximum Ethernet Segment Lengths
10BASE-T (twisted pair)
Shielded twisted pair
10BASE2 ThinNet (BNC)
10BASE5 ThickNet
FOIRL multi-mode Fiber optic
10BASE-FL multi-mode Fiber optic
-
100 m (328 ft)
150m (492 ft)
185 m (607 ft)
500 m (1,640 ft)
1 km (3,281 ft)
2 km (6,562 ft)
Connectors (or ports) for 10Mb Ethernet Media
WorkGroup Repeater: For Ethernet media attachment, two RPMs (Repeater
Port Modules) are mounted in the rear, along with the AC power cord
receptacle.
RPMs available with standard WorkGroup Repeater models:
RPM-TP: Shielded female RJ-45 with up-link switch
(Note: Shielded 10BASE-T connectors accept either unshielded or
shielded wiring plugs for standard twisted pair media wiring.)
RPM-BNC: ThinNet (BNC) connector with internal termination switch
RPM-AUI: D-Sub 15-Pin Female with slide lock
RPM-FST: Multi-mode fiber 10BASE-FL ST (dual "twist lock")
connector
RPM-FSC: Multi-mode fiber 10BASE-FL SC (dual “plug in”)
connector
1
BLACK BOX WorkGroup Repeater Installation and User Guide (02/02)
Operating Environment:
Ambient Temperature: 32° to 120° F (0° to 50°C)
Storage Temperature: -5° to 140°F (-20°to 60°C)
Ambient Relative Humidity: 10% to 95% (non-condensing)
Packaging Specifications of the WorkGroup Repeaters:
Enclosure: High strength steel.
Suitable for wiring closet shelf or desktop mounting.
(Vertical mounting clips are available)
Repeater Port Module Slots: 2
Dimensions: 5.4 in D x 8.5 in. W x 1.75 in. H
(13.7 cm x 21.6 cm x 4.45 cm)
Weight: 2.5 lbs (1.1 Kg)
Port Slot Cut-out: 2.2 in. x .75 in. (5.6 cm x 1.9 cm)
Cooling method: Convection
Workgroup Repeater Power Supply (Internal):
AC Power Connector: IEC-type, male recessed, rear of chassis
Input Voltage: 90 to 260 vac (auto-ranging)
Input Frequency: 47 to 63 Hz (auto-ranging)
Power Consumption: 15 watts max for the WorkGroup Repeater unit
LED Indicators on Chassis
PWR - Power, Green LED, steady ON indicates there is AC power.
RX - Receive, Green LED, blinks to indicate network activity, data
being received from any of the RPMs.
JAB - Jabber, Amber LED, illuminates when jabber condition (illegal
packet size) is detected on any port; affected port is partitioned
temporarily until jabber stops.
COL - Collision, Yellow LED, flashes when a collision is detected
on any of the RPMs.
For the LEDs on each RPM, see "Product Description" of the RPMs.
Agency Approvals
UL Listed (UL 1950), cUL, CE, emissions meets FCC Part 15 Class A
115v 60 Hz Power Supply: UL Listed, CSA certified
23v 50 Hz Power Supply: UL Listed, CSA certified, GS approved
2
BLACK BOX WorkGroup Repeater Installation and User Guide (02/02)
1.2
Specifications - Repeater Port Modules (RPMs)
RPM Type :
BNC
AUI Fiber-mm
Front Access
yes
yes
yes
Connector Type
BNC-f DB-15 f Fiber-ST
Partition (PART)LED yes
yes
yes
Receive (RX) LED
yes
yes
yes
LINK LED
n.a.
n.a.
yes
Switch on Face Plate yes**
n.a.
n.a.
TP*
yes
RJ-45
yes
yes
yes
yes***
“Fiber-mm” is multi-mode cable, normally used for 10BASE-FL installations, up to 2.0km.
*
The RJ-45 connector is shielded; it accepts RJ-45 eight-pin plugs for unshielded
and shielded twisted pair wiring.
** Internal termination switch for BNC, no "Tee" connector is required.
*** MDI-X (Media Dependent Interface - Crossover) switch for RJ-45 uplink,
no crossover cable is required.
1.3
Ordering Information
Workgroup Repeater Models
LE4200A-R3
LE4201A-R3
LE4202A-R3
2 BNC
1 BNC + 1 AUI
2 AUI
LE4203A-R3
1 BNC + 1 fiber (ST)
LE4204A-R3
LE4205A-R3
LE4206A-R3
LE4207A-R3
LE4208A-R3
LE4209A-R3
1 AUI + 1 fiber (ST)
1 BNC + 1 TP
1 AUI + 1TP
2 Fiber (ST,ST)
1 TP + 1 FIBER (ST)
2 TP (i.e.. 2RJ-45s)
Models with 100Mb fiber and SC connectors:
LE4203A-SC
LE4204A-SC
LE4207A-SC
LE4207A-ST/SC
LE4208A-SC
1 BNC + 1 Fiber (SC)
1 AUI + 1 Fiber (SC)
2 Fiber (SC, SC)
2 Fiber (ST,SC)
1 TP + 1 Fiber (SC)
3
BLACK BOX WorkGroup Repeater Installation and User Guide (02/02)
2.0
INTRODUCTION
2.1
Inspecting the Package and Product
Examine the shipping container for obvious damage prior to installing this
product; notify the carrier of any damage which you believe occurred during shipment or
delivery. Inspect the contents of this package for any signs of damage and ensure that the
items listed below are included.
This package should contain:
1
Workgroup Repeater Unit (with 2 installed RPM’s)
1
AC Power Cord (U.S. and other 115 VAC only)
1
Installation and User Guide (this manual)
Remove the items from the shipping container. Be sure to keep the shipping
container should you need to ship the unit at a later date.
In the event there are items missing or damaged, contact the party from whom you
purchased the product. If the unit needs to be returned, please use the original shipping
container if possible. Refer to Section 5, Troubleshooting, for specific return procedures.
2.2
Product Description
Workgroup Repeater expand a network by extending individual Ethernet
segments. Where standard distance limits are not sufficient, and where different media types
need to come together in one Ethernet link, Black Box Workgroup Repeater Repeaters are
ideal. They support connections to all standard Ethernet media types.
Each Workgroup Repeater unit is a complete operational unit with internal power
supply, all enclosed in a compact, rugged metal enclosure. The media connectors and the
chassis status LEDs are all conveniently accessed from the front. The unit is easily installed
and is suitable for wiring closet shelf, vertical wall, or desktop mounting.
Workgroup Repeaters provide full repeater functionality per IEEE 802.3
specifications and in compliance with Ethernet V1.0/2.0 standards. Workgroup Repeaters
operate as homogeneous-media repeaters (two segments of the same media type connected)
4
BLACK BOX WorkGroup Repeater Installation and User Guide (02/02)
or as mixed-media repeaters (two segments of different media type connected). Using two
RPMs, two full-length segments of all media types are supported by each WorkGroup
Repeater model and configuration. The family of Workgroup Repeater models supports all
combinations of standard Ethernet media.
2.2.1
Workgroup Repeater Chassis
The Workgroup Repeater functions as an in-line repeater. The Workgroup
Repeater chassis houses the main repeater circuit board, and two Repeater Port Modules.
The main repeater board is used to power the two RPM cards and as a connection plane
between the cards. The chassis has two connector slots, each of which supports one
Repeater Port Module (RPM) to provide either 10BASE2, 10BASE5, 10BASE-FL, FOIRL,
or 10BASE-T connectivity. The individual RPMs are used for one Ethernet segment each,
and provide full IEEE 802.3 repeater
functionality supporting a full length
BLACK BOX
(412) 746-5500
Figure 2.2.1: Workgroup
PWR RX COL
Repeater (Front Views)
segment. Individual RPMs are equipped
with a single media interface connector. Any RPM can be installed in either slot of the
Black Box Workgroup Repeater chassis.
All LEDs common to the WorkGroup Repeater unit are front-mounted for easy
visual monitoring of status during operation. To simplify media connections, each media
interface port and the port-specific LED’s are accessible from the rear of the unit, along
with the AC power cord port.
The internal power supply is auto-ranging to handle any AC power type
worldwide. Power input may range from 90 to 260 vac, with a frequency rating of 47 to 63
Hz. The unit is equipped with a rear mounted IEC-type recessed male AC power
connector. (When shipped for use in areas other than 115 vac, a power cord will not be
included). The 200X unit is convection-cooled for silent operation.
The Workgroup Repeater base unit features Power (PWR), Receive (RX),
Collision (COL), and Jabber (JAB) LED status indicators located in the front of the unit.
5
BLACK BOX WorkGroup Repeater Installation and User Guide (02/02)
These LEDs provide a visual assessment of the operational condition and aggregate
network activity at the unit, and are in addition to the LEDs on each individual RPM.
2.3
Workgroup Repeater - Repeater Port Modules (RPMs)
For standard WorkGroup Repeater models, there is an option of five different
Repeater Port Modules (RPMs) each equipped with its own unique connector type. The
assortment of standard network connector types for these RPM includes BNC (ThinNet),
AUI (ThickNet), RJ-45 (UTP and STP), Fiber-ST (Fiber, "Twist-lock" type) and Fiber-SC
(Fiber, “Snap-in” type) are available.
RPM Cards : RPM-BNC, RPM-AUI,
RPM-FST, RPM-FSC, RPM-TP
Each of the individual
Internal Termination
Slide Switch
Standard BNC
10BASE2 Connector
RPMs are described in detail in
this section.
2.3.1
RPM-BNC
1
Partition LED
2
Receive LED
1
2
The RPM-BNC repeater module is
equipped with a standard
RPM-BNC
10BASE2 coax connector. This RPM performs full IEEE 802.3 repeater functionality and
is used for 10BASE2 ThinNet (commonly referred to as BNC) connections.
The RPM-BNC module is designed with a special switch -selectable internal
termination function that eliminates the need for a "tee" connector and a 50 ohm
terminator. To take advantage of internal termination, the slide switch should be in the
"DOWN" (or right-side) position. In this configuration, the 10BASE2 segment is directly
attached to the BNC port where it is internally terminated. When the switch is in the "UP"
(or left-side) position, the BNC port requires a "tee" connector (not supplied) and a 50 ohm
6
BLACK BOX WorkGroup Repeater Installation and User Guide (02/02)
terminator for proper termination. Certain applications may require a "tee" connector, used
as a tap, to allow the 10BASE2 coax segment to continue on past the RPM-BNC
connection.
The RPM-BNC module includes one partition (PART) and one receive (RX)
LED, which are visible from the rear. The PART LED flashes AMBER to indicate that the
segment has been automatically partitioned. As soon as normal transmission resumes, the
segment will be automatically re-established. The RX LED illuminates GREEN
intermittently to indicate data is being received.
Important Note:
2.3.2
RPM-TP
For the RPM-BNC Termination Switch DOWN (or right): Internally Terminated
UP (or left): Requires "T" Connector.
(Twisted Pair)
The RPM-TP card supports Ethernet twisted pair segments of any standard
length. It is equipped with a single RJ-45 connector. The RJ-45 connector is shielded to
minimize emissions and will allow both unshielded twisted pair (UTP) and shielded twisted
pair (STP) segment connections.
The RPM-TP module is also
equipped with a slide switch to allow
for cascaded or up-link connections.
MDI-X
Cross-Over
Slide Switch
Shielded RJ-45
Connector
This feature eliminates the need for a
1
special twisted pair crossover cable.
2
With the switch in the UP (or LEFT)
3
position, the RPM-TP port is used for
up-link connections (i.e., a connection
to another repeater or hub typically.)
1
LINK
2
Partition
3
Receive
RPM-TP
When used for segments going to workstations and other user device connections, the
switch should be in the DOWN (or RIGHT) position. The LINK LED is particularly useful
in choosing the proper position for the up-link switch. If the LINK LED is illuminated, the
switch is set properly! If not, change the switch setting.
The RPM-TP will support 10BASE-T unshielded twisted pair wiring (UTP)
environments with maximum segment distances up to 100m (325 ft.), or shielded twisted
pair wiring (STP) of 150m (500 ft.). This module is designed with internal transceiver
7
BLACK BOX WorkGroup Repeater Installation and User Guide (02/02)
functionality. In addition to PART and RX (same as RPM-BNC, Section 2.3.1), the RPMTP has a LINK LED to indicate proper connectivity with the remote device.
Important Note: For the RPM-TP MDI-X Crossover Switch DOWN(or Right) for workstations and user connections.
UP (or Left) for Up-Link connections to other hubs, etc.
The RJ-45 pins normally (TP crossover switch DOWN or RIGHT) are per the standard for
hub-to-user twisted pair wiring: 1 = receive+, 2 = receive-, 3 = transmit+, 6 = transmit-,
other pins not used. When the TP crossover switch is UP or LEFT, the pins of the RJ-45
port are per the standard for up-links using twisted pair wiring, i.e., the transmit and the
receive pairs are exchanged: 1 = transmit+, 2 = transmit-, 3 = receive+, 6 = receive-, other
pins not used.
2.3.3
RPM-AUI
This module is equipped with
a 15 pin female AUI connector and a
Standard 15-pin
female AUI,
with slide-lock
1
Partition LED
2
Receive LED
slide-lock, and performs full IEEE
802.3 repeater functionality. It is used
to provide connectivity with a
2
1
10BASE5 (ThickNet) backbone or to
any AUI segments. A transceiver is
required when connecting to a
RPM-AUI
ThickNet segment and the RPM-AUI
supports this convention. The RPM-AUI is also a "universal" Ethernet media interface as it
may be used with a variety of different mini-transceivers to provide connectivity to any
media type.
The RPM-AUI card is equipped with Partition (PART) and Receive (RX) LEDs
which function the same as the identical LEDs on the RPM-BNC (Section 2.3.1 above).
The RPM-AUI card is also used for connecting Ethernet devices using standard
AUI cabling. In this situation, it is important to consider the AUI segment length or
distance to the attached device.
The maximum transmission distance between a backbone transceiver equipped
with an AUI connector and the RPM-AUI card will vary. When an AUI cable is used to
connect the RPM-AUI directly to a backbone transceiver, the maximum AUI segment
length is allowed. If the RPM-AUI is connected to a transceiver that has been cascaded
from another transceiver, the maximum AUI segment length is reduced.
8
BLACK BOX WorkGroup Repeater Installation and User Guide (02/02)
According to Ethernet standards, the maximum distance from the transceiver AUI
connector and the attached device ( RPM-AUI) is 50m (165 ft.). The AUI segment
maximum length is reduced in cascaded configurations. See the following note.
Important Note: The maximum transmission distance is decreased by 6m (20
ft.) for every additional level of network transceiver device "dropped" or "cascaded" from
the original backbone transceiver tap.
The RPM-AUI connector supports standard IEEE signals, summarized in Table 2.3.3.
Table 2.3.3: AUI Pin Assignments
Function
Pin
Function
Control In Circuit Shield
10
Data Out Circuit B
Control In Circuit A
11
Data Out Circuit Shield
Data Out Circuit A
12
Data In Circuit B
Data In Circuit Shield
13
Voltage Plus (+)
Data In Circuit A
14
Voltage Shield
Voltage Common
15
Control Out Circuit B
Control Out Circuit A
SHELL Protective Ground
Control Out Circuit Shield (conductive shell)
Control In Circuit B
Pin
1
2
3
4
5
6
7
8
9
NOTES:
1)
2)
2.3.4
Voltage Plus (pin #13) and Voltage Common (pin # 6) use a single
twisted pair in the AUI cable.
Pins 4, 8, 11 and 14 may be connected to pin #1.
RPM-FST (Fiber ST, Twist-lock Connector)
The RPM-FST is a multi-mode fiber
10BASE-FL, FOIRL
ST Connectors
optic module equipped with a dual ST-type
connector. It functions as an IEEE 802.3 full
repeater to support 10BASE-FL and FOIRL
1
network segments. When used for 10BASE-FL
2
segments, this module supports fiber optic
transmission distances up to 2000m. For FOIRL
applications, it supports fiber segments of up to
1000m in length. The RPM-FST includes full
3
1
LINK
2
Partition
3
Receive
RPM-FST
transceiver functionality and does not require an external transceiver device. In addition to
Partition (PART) and Receive (RX) LEDs, a LINK LED indicates connectivity.
9
BLACK BOX WorkGroup Repeater Installation and User Guide (02/02)
NOTE: The RPM-FST circuit board contains a six pin jumper which controls
the intensity of the transmitted signal. By default, the jumper is placed across pins 1 & 2.
The jumper may be set as follows, to accommodate distances of up to 4 km:
(See Figure and Table on following page.)
JUMPER ACROSS DISTANCES SUPPORTED
1-2
0 - 2 km
3-4
0.5 - 3 km*
5-6
1.5 - 4 km*
1 2
DEFAULT
3 4
5 6
When distances of less than 2 km are needed, the jumper
should be placed across pins 1 and 2.
J1
* When fiber cable distances of more than 2 km are selected, the minimum cable length must also be
increased, as shown in the table above.
2.3.5
RPM-FSC (Fiber SC, Snap-in Connector)
The RPM-FSC is also a multi-mode fiber optic repeater module, similar to the
RPM-FST. It has the same LEDs indicating port
10BASE-FL, FOIRL
SC Connectors
partitioned (PART), receive activity (RX), and link
operational (LINK). It has the same jumper settings for
extra distance in certain circumstances.
1
While the functionality of the these two
2
modules is the same, the RPM-FSC is equipped with an
SC-type "snap-in" connector instead of an ST-type
"twist-lock" connector.
10
3
RPM-FSC
BLACK BOX WorkGroup Repeater Installation and User Guide (02/02)
2.4
Features and Benefits
Models for Homogeneous Media
Workgroup Repeater models support extensions of all standard Ethernet
media types, including BNC-BNC, AUI-AUI, TP-TP, and Fiber-Fiber. Users
may expand network distances while retaining the media of choice with
these models.
Models for Mixed Media
Since the Workgroup Repeater port connectors are modules, the units are
ideal when different media types need to be brought together at a repeater
unit. Two-Port models are available with all combinations of BNC, AUI, TP,
and Fiber. These mixed-media models ensure standard signals and up-tofull-length distance on each network segment, accommodating changes in
media preferences as networks change over time.
RPMs (Repeater Port Modules) for All Standard Ethernet Media
The RPMs support all of the various IEEE 802.3 standards including,
10BASE-FL, FOIRL, 10BASE2, 10BASE5 and 10BASE-T.
Fiber Ports Meet 10BASE-FL Specification, 2000 meters distance
The WorkGroup Repeaters fiber RPMs meet the "FL" specification for 2 Km
distance. They also support the older FOIRL specification rated at 1 Km.
Front-Mounted LEDs
Status LEDs are all readily visible from the front for ease of monitoring
operational status over time. (Port-specific LED’s used for checking out the
connections during set-up) are in the rear along with the media ports.
Optional wall-mounting convenience
The compact Workgroup Repeaters are supplied with mounting clips and
screws to accommodate installation at any location, wall or shelf, within
reach of an AC power outlet. When networks are expanded and segments
need to be extended or changed at out-of-the-way locations, the WorkGroup
Repeater package is ideal.
World-wide applications
An internal universal power supply allows the WorkGroup Repeater to be
used throughout the world.
11
BLACK BOX WorkGroup Repeater Installation and User Guide (02/02)
2.5
Applications
Workgroup Repeater are generally used to extend Ethernet segments of the same
media type. Several models are available for this task, including BNC to BNC, AUI to
AUI, Twisted Pair to Twisted Pair, and Fiber to Fiber. This family of homogeneous-media
repeater models support each standard Ethernet media type, and allow users to expand
network distances while retaining the wiring media of choice. As many as four repeaters
may be connected in series to connect users at the extremities of 5X the standard segment
distance while still adhering to the Ethernet "four repeater" rule.
The Workgroup Repeater units are ideal when different media types need to be
brought together at a repeater unit. As media type preferences change over time and as
networks expand to new distances with system growth, the requirement to convert media
types while ensuring standard signals on both network segments is increasingly common.
The Workgroup Repeater meet this requirement with all media-combination types available.
BLACK BOX
(412) 746-5500
i
PWR RX COL
AUI Segment
10BASE-FL Segment
Figure 2.5.2: Black Box Workgroup Repeater convert media types
while extending segment distance.
The internal auto-ranging power supply of the Black Box Workgroup Repeater
permits it to be installed anywhere in the world. In the workplace or in a wiring closet,
WorkGroup Repeater unit may be conveniently shelf or table-top mounted and plugged into
a standard AC power convenience outlet for a simple installation. For rack-mounting, two
WorkGroup Repeater units fit side-by-side in a standard rack-width space.
The compact, lightweight design and the mounting brackets and velcro strip
included with the WorkGroup Repeater units make them ideal for mounting anywhere a
segment length extension of any media type is needed. These units are suitable when
network segment extensions are needed in offices, labs, hallways and storage areas.
12
BLACK BOX WorkGroup Repeater Installation and User Guide (02/02)
3.0
INSTALLATION
This Section discusses location and installation options for the Workgroup
Repeater.
3.1
Locating the Workgroup Repeater
The location of the Workgroup Repeater is dependent on the physical layout of
the network and the area to be served. The unit should be set-up in a location that will
accommodate easy and equal access to planned network devices and/or segment
connections.
Locate an AC receptacle that is within six feet (2 meters) of the Workgroup
Repeater site. The rugged steel case of the Workgroup Repeater will protect it from
accidental damage in a wiring closet or in a workplace setting. Keep an open area around
the unit so that convection cooling can occur while the unit is in operation.
3.1.1
Black Box Workgroup Repeater Table-Top / Shelf Mounting
The Workgroup Repeater unit has four rubber feet to provide stability while not
scratching finished surfaces. It is typically shelf-mounted either in a wiring closet or in an
open area. To conserve shelf space, it may be desirable to mount several units on top of
each other. If so, this may be readily done as the Black Box Workgroup Repeater's steel
case is strong.
Should vertical mounting of the unit (such as on a wall surface) be desired,
operation and cooling are not impaired. Mounting clips for vertical mounting are available.
3.2
Connecting Ethernet Media
The Workgroup Repeater is specifically designed to support connections for any
two Ethernet segment media types within a single unit. This is accomplished by using a
family of Repeater Port Modules (RPMs). The various media types supported along with
the corresponding IEEE 802.3 standards and connector types are as follows:
Media
ThinNet
ThickNet
Twisted Pair
Fiber (mm1)
Fiber (mm1)
IEEE Standard
10BASE2
10BASE5
10BASE-T
FOIRL
10BASE-FL
Connector
BNC
AUI (female)
RJ-45
ST or SMA
ST or SMA
PM type
RPM-BNC, BPM-BNC
RPM-AUI, BPM-AUI
RPM-TP, BPM-TP
RPM-FST, RPM-FSM, BPM-FST
RPM-FST, RPM-FSM, BPM-FST
1 mm = multi-mode
13
BLACK BOX WorkGroup Repeater Installation and User Guide (02/02)
3.2.1
Connecting Twisted Pair (RJ-45, Unshielded or Shielded)
The following procedure describes how to connect a 10BASE-T twisted pair
segment to the RJ-45 port on the RPM-TP. The procedure is the same for both unshielded
and shielded twisted pair segments.
1. Using standard 10BASE-T media, insert either end of the cable with an RJ-45 plug
into the RJ-45 connector of the RPM-TP. Note that, even though the RPM-TP connector
is shielded, either unshielded or shielded 10BASE-T cables and wiring may be used.
2. Connect the other end of the cable to the corresponding device.
3. Use the LINK LED to ensure proper connectivity by noting that the LED will be
illuminated when the unit is powered and proper connection is established. If the LINK
LED is not illuminated, change the setting of the up-link switch. If this does not help,
ensure that the cable is connected properly and is not defective.
The RPM-TP is equipped with a up-link slide switch to accommodate repeater-torepeater connections without special cross-over connectors.
3.2.2
Connecting ThinNet 10BASE2 (BNC)
Connect the ThinNet coax cable to the BNC connector on the RPM-BNC card in
the same manner as is done for any standard BNC connection. The RPM-BNC port is
specially equipped with an internal termination switch on the front of the card (see Section
4.1 for a description of this switch). This eliminates the need to use a "tee" connector when
the BNC cable is ending at the connection to this RPM. Some applications may require a
"tee" connector, used as a tap, to allow the 10BASE2 coax segment to continue on past the
RPM-BNC connection.
3.2.3 Connecting ThickNet 10BASE5 (AUI)
Using the steps below as a guide, attach a new or existing 10BASE5 ThickNet dropcable directly to the AUI connector on the RPM-AUI port.
1. Plug the male end of the cable into the female AUI connector on the RPMAUI card.
2. Engage the AUI connector slide lock to insure maximum connectivity.
3. Connect the opposite end of the cable into a network AUI port. (This
could be a network backbone transceiver, a hub or fan-out with an AUI
backbone port, or an AUI module in a concentrator.)
The RPM-AUI card may also used for connecting to other Ethernet devices using
standard AUI cabling. In this type of situation, it is important to consider the AUI segment
length to the attached device, including any cascading. (See Section 2.2.3 for detailed
information on the RPM-AUI card, connector pins, and cable lengths.)
14
BLACK BOX WorkGroup Repeater Installation and User Guide (02/02)
3.2.4 Connecting Fiber Optic 10BASE-FL and FOIRL (ST-type, “Twist-Lock")
The following procedure applies to FOIRL and 10BASE-FL applications using an
RPM-ST card with ST-type fiber connectors. (The primary difference between FOIRL and
10BASE-FL for users is the maximum distance allowed. 10BASE-FL is used for a fiber
segment length of up to 2000m, while FOIRL is used for fiber segments of up to 1000m in
length.)
1. Before connecting the fiber optic cable, remove the protective dust caps from the
tips of the connectors on the RPM-ST. Save these dust caps for future use.
2. Wipe clean the ends of the dual connectors with a soft cloth or lint-free lens tissue
dampened in alcohol. Make certain the connectors are clean before connecting.
Note:
3.
4.
5.
3.2.5
One strand of the duplex fiber optic cable is coded using color bands
at regular intervals; you must use the color-coded strand on the
associated ports at each end of the fiber optic segment.
Connect the Transmit (TX) port (light colored post) on the RPM-FST to
the Receive (RX) port of the remote device. Begin with the color-coded strand of
the cable for this first TX-to-RX connection.
Connect the Receive (RX) port (dark colored post) on the RPM-FST to the
Transmit (TX) port of the remote device. Use the non-color coded fiber strand for
this.
The LINK LED on the front of the RPM-FST will illuminate when a proper
connection has been established at both ends (and when power is ON in the unit).
If LINK is not lit after cable connection, the normal cause is improper cable
polarity. Swap the fiber cables at the Port Module connector to remedy this
situation.
Connecting Fiber Optic (SC-type, "Snap-on")
The same five-step procedure as for fiber ST-type applies to FOIRL and
10BASE-FL applications using an RPM-FSC card used with SC-type fiber connectors.
Follow the five steps as described in the paragraph above.
When connecting fiber media to SC connectors, simply snap on the square male
connector into the female SC jack of the device until it clicks and secures.
15
BLACK BOX WorkGroup Repeater Installation and User Guide (02/02)
4.0
OPERATION
This section describes the functionality and operation of the Workgroup Repeater.
4.1
Repeater Functionality
Workgroup Repeaters operate as mixed-media or homogeneous Ethernet
repeaters. Both types are compliant with IEEE 802.3 specifications and supports all IEEE
defined media, including 10BASE-T, 10BASE-FL, FOIRL, 10BASE2, and 10BASE5. The
following describes the basic functionality of the Workgroup Repeaters.
1. Repeater Functions: Each RPM port operates in conjunction with the
controller functions of the WorkGroup Repeater base unit, functioning together as
a fully compliant Ethernet repeater. Each WorkGroup Repeater unit counts as a
single repeater.
2. Collisions: When a collision is detected at a port other than the original
receiving port, it generates a jam pattern to the other ports. When a collision
signal is detected at a receiving port, it generates a jam pattern to the other port.
The sequence of jam signals depends on the sequence and location of collisions.
3. Partitioning and Re-connection: A Workgroup Repeater will automatically
disconnect (partition) any segment (port) when 64 consecutive collisions occur or
after 6.5 ms of continuous transmissions. Network integrity is checked every 800
ms and segment (port) reconnection occurs after a 512-bit packet is transmitted
without error.
4. Link Status: The WorkGroup Repeater RPMs indicate link integrity for fiber
optic and twisted pair segments. Broken cables or a loss of power at any point in
twisted pair and fiber segments will turn off the LINK LED indicator on the
associated RPM.
4.2
Powering the WorkGroup Repeater
The WorkGroup Repeater incorporates an internal universal power supply, and
has a recessed male IEC connector for the AC power cord at the right-rear. A six foot
power cord is supplied with each unit. (Except units being shipped from the U.S. factory to
outside the United States and Canada will not include a power cord.)
The WorkGroup Repeater auto-ranging power supply supports installation
environments where the AC voltage is from 90 to 260 volts with a power input frequency
16
BLACK BOX WorkGroup Repeater Installation and User Guide (02/02)
between 47 and 63 Hz, and will consume no more than a maximum of 15 watts. The power
connector is located on the back of the unit. In order to power down the unit, simply
unplug the power cable from either the wall socket, power strip or the power connector on
the back of the unit.
When connecting various Ethernet media, there is no need to power down the
unit. Individual segments of any media type can be connected or disconnected from RPMs
without concern for AC power-related problems or damage to the unit.
4.3
Chassis LEDs
The WorkGroup Repeaters are equipped with four LEDs located on the front of
the chassis unit. These LEDs include Power (PWR), Receive (RX), Collision (COL) and
Jabber (JAB). They are used to provide visual indication about the operational condition
and traffic activity of the unit and its associated RPM ports.
Workgroup Repeater chassis unit
LED
Description
PWR
Illuminates GREEN to indicate that the unit is receiving power.
RX
GREEN, ON when data is being received on one or more RPM ports.
COL
Flashes YELLOW to indicate a collision has occurred.
JAB
Illuminates AMBER to indicate a jabber condition has occurred.
In addition to the chassis LEDs on the front of each WorkGroup Repeater, each
RPM card features a set of status LEDs, dependent on the media type supported. (See
Section 2.2).
17
BLACK BOX WorkGroup Repeater Installation and User Guide (02/02)
5.0
TROUBLESHOOTING
If problems should develop during installation or operation, follow the
suggestions below prior to calling Technical Support for help. If you are unsure of any
procedures described in this chapter, or if the WorkGroup Repeater is not operating as
expected, do not attempt to repair or alter the unit. Contact Black Box for assistance.
5.1
Before Calling for Assistance
1.
If you have difficulty installing or operating the WorkGroup Repeater, refer to
Chapters 3 and 4. Make sure that the various other components of the network
are working.
2.
Check the cables and connectors to make sure they have been properly
connected and the cables/wires have not been crimped or in some way
impaired during installation.
3.
Check that the AC power cord is plugged into a functioning electrical outlet.
Make sure that the AC power cord is properly plugged intot he WorkGroup
Repeater. Use the PWR LEDs to verify the unit is receiving proper power.
4.
If the problem is isolated to a network device other than the WorkGroup
Repeater, replace the problem device with a known good device. Verify whether
or not the problem is corrected. If it is not, go to step 5. If the problem is
corected, the WorkGroup Repeater and its associated cables will function
properly.
5.
18
If the problem still exists, contact Black Box.
BLACK BOX WorkGroup Repeater Installation and User Guide (02/02)
5.2
When Calling for Assistance
If you determine that your WorkGroup Repeater is malfunctioning, do not
attempt to alter or repair the unit. It contains no user-serviceable parts. Contact Black
Box by phone at (724) 746-5500 or by other appropriate method .
Before you do, make a record of the history of the problem. Black Box will be
able to provide more efficient and accurate assistance if you have a complete
description, including:
•
The nature and duration of the problem.
•
When the problem occurs.
•
The components involved in the problem.
•
Any particular application that, when used, appears to create the problem or
make it worse.
5.3
Shipping and Packaging Information
If you need to transport or ship your WorkGroup Repeater:
•
Package it carefully. We recommend that you use the original container.
•
If you are shipping the WorkGroup Repeater for repair, make sure you include
everything that was included in the original package. Before you ship, contact
Black Box to get a Return Materials Authorization (RMA) number.
Ship the package to:
Black Box Corporation
1000 Park Drive
Lawrence, PA 15055
Phone:
(724) 746-5500
Fax:
(724) 746-0746
19
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
