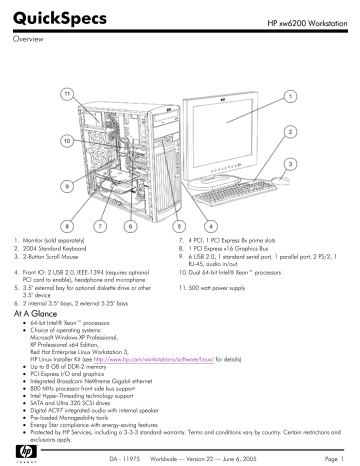

QuickSpecs
HP xw6200 Workstation
Overview
1. Monitor (sold separately)
2. 2004 Standard Keyboard
3. 2-Button Scroll Mouse
4. Front IO: 2 USB 2.0, IEEE-1394 (requires optional
PCI card to enable), headphone and microphone
5. 3.5" external bay for optional diskette drive or other
3.5" device
6. 2 internal 3.5" bays, 2 external 5.25" bays
7. 4 PCI, 1 PCI Express 8x prime slots
8. 1 PCI Express x16 Graphics Bus
9. 6 USB 2.0, 1 standard serial port, 1 parallel port, 2 PS/2, 1
RJ-45, audio in/out
10. Dual 64-bit Intel® Xeon™ processors
11. 500 watt power supply
At A Glance
64-bit Intel® Xeon™ processors
Choice of operating systems:
Microsoft Windows XP Professional,
XP Professional x64 Edition,
Red Hat Enterprise Linux Workstation 3,
HP Linux Installer Kit (see http://www.hp.com/workstations/software/linux/ for details)
Up to 8 GB of DDR-2 memory
PCI-Express I/O and graphics
Integrated Broadcom NetXtreme Gigabit ethernet
800 MHz processor front side bus support
Intel Hyper-Threading technology support
SATA and Ultra 320 SCSI drives
Digital AC97 integrated audio with internal speaker
Pre-loaded Manageability tools
Energy Star compliance with energy-saving features
Protected by HP Services, including a 3-3-3 standard warranty. Terms and conditions vary by country. Certain restrictions and
exclusions apply.
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 1
QuickSpecs
HP xw6200 Workstation
Standard Features - Custom Components
Processor and Speed –
One of the following
64-bit Intel Xeon Processor with 800 MHz Front Side Bus
2.8 GHz (1 MB L2 cache)
3.0 GHz (1 MB L2 cache)
3.0 GHz (2 MB L2 cache)
3.2 GHz (1 MB L2 cache)
3.2 GHz (2 MB L2 cache)
3.4 GHz (1 MB L2 cache)
3.4 GHz (2 MB L2 cache)
3.6 GHz (1 MB L2 cache)
3.6 GHz (2 MB L2 cache)
2nd 64-bit Intel Xeon Processor with 800 MHz Front Side Bus
2.8 GHz (1 MB L2 cache)
3.0 GHz (1 MB L2 cache)
3.0 GHz (2 MB L2 cache)
3.2 GHz (1 MB L2 cache)
3.2 GHz (2 MB L2 cache)
3.4 GHz (1 MB L2 cache)
3.4 GHz (2 MB L2 cache)
3.6 GHz (1 MB L2 cache)
3.6 GHz (2 MB L2 cache)
Operating System –
One of the following
Microsoft Windows XP Professional
Microsoft Windows XP Professional x64 Edition (http://www.hp.com/workstations/pws/windowsxp64/)
Red Hat Enterprise Linux Workstation 3 64-bit version (Update 2 in 32- and 64-bit available as
aftermarket option)
HP Installer Kit for Linux (includes drivers for both 32-bit & 64-bit OS versions)
NOTE: Although HP Personal Workstations can be ordered with the HP Installer Kit for Linux and an
IEEE 1394 card, HP cannot provide customer support for this configuration. Please refer to the Linux
Hardware Support Matrix (http://www.hp.com/support/linux_hardware_matrix) for details, and to the
Linux User Manual (http://www.hp.com/support/linux_user_manual) for tips on user-enablement of the
IEEE 1394 Card.
1st Hard Disk Drive –
One of the following
40 GB 7200 rpm Serial ATA drive (2 MB cache)
80 GB 7200 rpm Serial ATA drive (8 MB cache)
160 GB 7200 rpm Serial ATA drive (8 MB cache)
250 GB 7200 rpm Serial ATA drive (8 MB cache)
400 GB 7200 rpm Serial ATA drive (8 MB cache)
74 GB 10K rpm Serial ATA drive (8 MB cache)
73 GB 10K Ultra320 SCSI drive
146 GB 10K Ultra320 SCSI drive
300 GB 10K Ultra320 SCSI drive
36 GB 15K Ultra320 SCSI drive
73 GB 15K Ultra320 SCSI drive
146 GB 15K Ultra320 SCSI drive
DA - 11975
Worldwide — Version 22 — June 6, 2005
Windows XP
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
Red Hat Linux
WS3
WS3
WS3
WS3
WS3
WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
Page 2
QuickSpecs
HP xw6200 Workstation
Standard Features - Custom Components
2nd Hard Disk Drive –
One of the following
2nd hard drive, 40 GB 7200 rpm Serial ATA drive (2 MB cache)
2nd hard drive, 80 GB 7200 rpm Serial ATA drive (8 MB cache)
2nd hard drive, 160 GB 7200 rpm Serial ATA drive (8 MB cache)
2nd hard drive, 250 GB 7200 rpm Serial ATA drive (8 MB cache)
2nd hard drive, 400 GB 7200 rpm Serial ATA drive (8 MB cache)
2nd hard drive, 74 GB 10K rpm Serial ATA drive (8 MB cache)
2nd hard drive, 73 GB 10K Ultra320 SCSI drive
2nd hard drive, 146 GB 10K Ultra320 SCSI drive
2nd hard drive, 300 GB 10K Ultra320 SCSI drive
2nd hard drive, 36 GB 15K Ultra320 SCSI drive
2nd hard drive, 73 GB 15K Ultra320 SCSI drive
2nd hard drive, 146 GB 15K Ultra320 SCSI drive
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
WS3
WS3
WS3
WS3
WS3
WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
3rd Hard Disk Drive –
One of the following
3rd hard drive, 73 GB 10K Ultra320 SCSI drive
3rd hard drive, 146 GB 10K Ultra320 SCSI drive
3rd hard drive, 300 GB 10K Ultra320 SCSI drive
3rd hard drive, 36 GB 15K Ultra320 SCSI drive
3rd hard drive, 73 GB 15K Ultra320 SCSI drive
3rd hard drive, 146 GB 15K Ultra320 SCSI drive
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
Factory Integrated
RAID
RAID 0 Configuration – Striped Array
RAID 1 Configuration – Mirrored Array
NOTE: Requires 2 identical hard drives (speeds, capacity,
interface)
Drive controllers
Integrated serial ATA controller
Optional Ultra 320 SCSI controller (required if HDs are SCSI) basic
Optional Ultra 320 SCSI controller (required if HDs are SCSI) advanced, with RAID support and external connector
DA - 11975
Worldwide — Version 22 — June 6, 2005
32-Bit
32-Bit
Page 3
QuickSpecs
HP xw6200 Workstation
Standard Features - Custom Components
Memory One of the following
256 MB DDR-2 PC2-3200 (400 MHz) ECC Registered (1 x 256
MB)
512 MB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 256
MB)
1 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 512 MB)
2 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 1 GB)
2 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (4 x 512 MB)
3 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 1 GB + 2
x 512 MB)
4 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 2 GB)
4 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (4 x 1 GB)
6 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 2 GB + 2
x 1 GB)
8 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (4 x 2 GB)
Removable Storage
2nd Removable Storage
Keyboard One of the following
Mouse One of the following
Windows XP
32-Bit, 64-Bit
Red Hat Linux
7.2, 7.3, WS3
32-Bit, 64-Bit
7.2, 7.3, WS3
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
32-Bit, 64-Bit
32-Bit, 64-Bit
64-Bit
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
64-Bit
7.2, 7.3, WS3
1.44-MB Diskette Drive
48X CD-ROM Drive
48X/32X/48X CD-RW Drive
16X/40X DVD-ROM Drive
48X/32X/48X/16X Combo CD-RW/DVD-ROM Drive
16X DVD+/-RW, Dual-Layer
16X DVD+/-RW, Dual-Layer LightScribe
Windows XP
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit
Red Hat Linux
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
48X/32X/48X CD-RW Drive
16X/40X DVD-ROM Drive
48X/32X/48X/16X Combo CD-RW/DVD-ROM Drive
16X DVD+/-RW, Dual-Layer
16X DVD+/-RW, Dual-Layer LightScribe
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
PS/2 Standard Keyboard
USB Standard Keyboard
Windows XP
32-Bit, 64-Bit
32-Bit, 64-Bit
Red Hat Linux
7.2, 7.3, WS3
7.2, 7.3, WS3
PS/2 2-Button Scroll Mouse
PS/2 3-Button Mouse
USB 2-Button Optical Scroll Mouse
USB 3-Button Optical Mouse
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 4
QuickSpecs
HP xw6200 Workstation
Standard Features - Custom Components
Audio
NIC
Integrated Digital AC97 audio with internal speaker
Sound Blaster Audigy 2 ZS PCI
Broadcom BCM5751 NetXtreme™ Gigabit Ethernet Controller
(PCI-E)
Graphics
NVIDIA Quadro NVS 280 PCI (64 MB, VGA & DVI - up to 2 of
these two cards can be integrated in the factory)
NVIDIA Quadro NVS 400 PCI (64 MB, quad head, VGA & DVI)
NVIDIA Quadro NVS 280 PCI Express (64 MB, VGA & DVI)
ATI FireGL V3100 PCI Express (128 MB)
NVIDIA Quadro FX 540 PCI Express (128 MB)
NVIDIA Quadro FX 1300 PCI Express (128 MB)
NVIDIA Quadro FX 1400 PCI Express (128 MB)
ATI FireGL V5100 PCI Express (128 MB)
NVIDIA Quadro FX 3400 PCI Express (256 MB)
32-Bit
32-Bit, 64-Bit
7.2, 7.3, WS3
Windows XP
32-Bit, 64-Bit
Red Hat Linux
7.2, 7.3, WS3
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
Miscellaneous
Solenoid lock and hood sensor
IEEE 1394 PCI Card
Trusted Platform Module
HP 64-bit Transition Tool Kit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit
32-Bit, 64-Bit
Software
Symantec Norton AntiVirus 2004 (optional)*
HP Performance Tuning Framework*
Altiris Recovery*
HP Client Manager Software v6.0*
* Not available with Linux Operating System
32-Bit
32-Bit, 64-Bit
32-Bit
32-Bit
DA - 11975
Worldwide — Version 22 — June 6, 2005
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
Page 5
QuickSpecs
HP xw6200 Workstation
Standard Features - Specs
Operating System (choice) Microsoft Windows XP Professional
Windows XP Professional x64 Edition (http://www.hp.com/workstations/pws/windowsxp64/)
OR Red Hat Enterprise Linux Workstation 3 Update 2 (64-bit only)
OR HP Installer Kit for Linux (includes drivers for both 32-bit & 64-bit OS versions on HP xw8200,
xw6200 and xw4200)
Form factor
Minitower
Color
Carbonite/Alloy metallic
System Board Form Factor Non-standard ATX
Processor
Single or dual 64-bit Intel Xeon processors (Nocona) with Hyper-Threading Technology
CPU Bus Speed Supported 800 MHz FSB
Standard L2 Cache
1 MB L2 cache
Chipset
Intel E7525
Memory Expansion Slots 4 DIMM's
Memory Type Supported DDR-2 (ECC registered)
Memory Speed Supported DDR-2 Synch DRAM PC2-3200 (400 MHz) Registered ECC
Maximum Memory
8 GB (4 DIMMs slots, 2 GB DIMMs required to meet maximum configurations)
Network controller
Integrated Broadcom 5751 10/100/1000 for HP
Audio
Integrated AC'97 digital audio with S/PDif 6-channel pass-through, stereo microphone, and Yamaha XG
Lite Softsynth support
PCI slots
4 PCI slots (full-height)
1 PCI Express (x8 mechanically, x4 electrically)
1 PCI Express x16 graphics
AGP slot
none
Bays
Total Bays = 5
Internal Bays
Two 3.5 inch bays with acoustic dampening rail assemblies
External Bays
Two 5.25 inch full length 2003 mm maximum device depth (top bay is limited to 198 mm depth
when optional smart cover solenoid lock is installed). Bottom bay can be converted to an internal
3.5 inch 3rd Hard Drive bay using optional bracket
One 3.5 inch bay for optional floppy drive
Parallel Port
1
Serial Port
1
Front I/O
2 USB 2.0, Headphone, Microphone, optional IEEE 1394
NOTE: Although HP Personal Workstations can be ordered with the HP Installer Kit for Linux and an IEEE
1394 card, HP cannot provide customer support for this configuration. Please refer to the Linux
Hardware Support Matrix (http://www.hp.com/support/linux_hardware_matrix) for details, and to the
Linux User Manual (http://www.hp.com/support/linux_user_manual) for tips on user-enablement of the
IEEE 1394 Card.
Rear I/O
6 USB 2.0, 1 standard serial port, 1 parallel port, PS/2 keyboard and mouse, 1 RJ-45 to integrated
Gigabit LAN, Audio In, Audio Out, Mic In
USB Keyboard
Optional
USB Mouse
Optional
PS/2 Keyboard
1
PS/2 Mouse
1
Chassis Dimensions
17.3 x 6.5 X 17.3 in (44.1 x 16.5 x 44.0 cm)
(H x W x D)
System weight
Standard config – 35 lb
Shipping weight
Varies by region
Temperature
Operating
40° to 95° F (5° to 35° C)
Non-operating
-40° to 140° F (-40° to 60° C)
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 6
QuickSpecs
HP xw6200 Workstation
Standard Features - Specs
Humidity
Operating
8% to 85%
Non-operating
8% to 90%
Maximum Altitude
Operating
10,000 ft (3,000 m)
(nonpressurized)
Non-operating
30,000 ft (9,100 m)
Power Supply
500W wide-ranging, active Power Factor Correction
Interfaces Supported
1 SATA interface (2 serial-ATA connectors), 1 EIDE interface (2 EIDE connectors) for optical drives,
optional multi-bay interface
Hard Drive Controller (PCI) Ultra160 or Ultra320, or SATA RAID, or Ultra320 RAID
Supported
Preinstalled Software
HP Client Manager Software v6.0*
Altiris Local Recovery*
Alert Standard Format specification*
Norton AntiVirus 2004 (optional preinstall)*
CD/DVD software dependent on optical drive choices
* Not available on Linux
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 7
QuickSpecs
HP xw6200 Workstation
Standard Features - Preconfigured Global Models
xw6200X/XD2.8/B80/
H1.0/280E/dF/s
Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
Graphics
Mouse
Other
64-bit Intel Xeon processor 2.80 GHz 1 MB/800
Microsoft Windows XP Professional
1 MB L2
1 GB (2x512) DDR2-400 ECC Registered
16X DVD-ROM
80 GB SATA/150 7200 rpm (1st)
NVIDIA Quadro NVS 280 PCI Express included in base configuration Alternative graphics card options should be ordered separately - they
are listed below:
NVIDIA Quadro NVS 280 PCI (64 MB, VGA & DVI, can be added as
second card)
NVIDIA Quadro NVS 400 PCI (64 MB, quad head, VGA & DVI)
ATI FireGL V3100 PCI Express (128 MB)
NVIDIA Quadro FX 540 PCI Express (128 MB)
NVIDIA Quadro FX 1300 PCI Express (128 MB)
NVIDIA Quadro FX 1400 PCI Express (128 MB)
ATI FireGL V5100 PCI Express (128 MB)
NVIDIA Quadro FX 3400 PCI Express (256 MB)
NOTE: Please see Part Numbers in After market options/Standalone
accessories section.
HP scroll mouse (PS/2)
Includes Floppy Drive and Standard PS/2 Keyboard
xw6200X/XD2.8/B80/H1.0/280E/dF/s Country Code Key
PD896AW#ABA
Switzerland (German/French)
N. America
PD896AW#ABC
Fr. Canadian
Switzerland (Italian/English)
PD896AW#ABM
L. America
Dutch
PD896AW#ACF
Japan (English)
Denmark
PD896AW#ABJ
Japan (Japanese)
Asia/Pacific (English)
PD896AW#ABU
UK
Korea
PD896AW#ABD
Germany
China
PD896AW#ABF
France
Taiwan
PD896AW#ABZ
Italy
India
PD896AW#ABE
Spain
Australia
PD896AW#AK6
Europe
Thailand
DA - 11975
PD896AW#AR8
PD896AW#ACN
PD896AW#ABH
PD896AW#ACE
PD896AW#AB4
PD896AW#AB1
PD896AW#AB2
PD896AW#AB0
PD896AW#ACJ
PD896AW#ABG
PD896AW#AKL
Worldwide — Version 22 — June 6, 2005
Page 8
QuickSpecs
HP xw6200 Workstation
Standard Features - Preconfigured Global Models
xw6200X/XD3.2/C74/
H1.0/280E/dF/s
Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
Graphics
Mouse
Other
64-bit Intel Xeon processor 3.20 GHz 1 MB/800
Microsoft Windows XP Professional
1 MB L2
1 GB (2x512) DDR2-400 ECC Registered
16X DVD-ROM
74 GB SATA/150 10,000 rpm (1st)
NVIDIA Quadro NVS 280 PCI Express included in base configuration Alternative graphics card options should be ordered separately - they
are listed below:
NVIDIA Quadro NVS 280 PCI (64 MB, VGA & DVI, can be added as
second card)
NVIDIA Quadro NVS 400 PCI (64 MB, quad head, VGA & DVI)
ATI FireGL V3100 PCI Express (128 MB)
NVIDIA Quadro FX 540 PCI Express (128 MB)
NVIDIA Quadro FX 1300 PCI Express (128 MB)
NVIDIA Quadro FX 1400 PCI Express (128 MB)
ATI FireGL V5100 PCI Express (128 MB)
NVIDIA Quadro FX 3400 PCI Express (256 MB)
NOTE: Please see Part Numbers in After market options/Standalone
accessories section.
HP scroll mouse (PS/2)
Includes Floppy Drive and Standard PS/2 Keyboard
xw6200X/XD3.2/C74/H1.0/280E/dF/s Country Code Key
PM199AW#ABA
Switzerland (German/French)
N. America
PM199AW#ABC
Fr. Canadian
Switzerland (Italian/English)
PM199AW#ABM
L. America
Dutch
PM199AW#ACF
Japan (English)
Denmark
PM199AW#ABJ
Japan (Japanese)
Asia/Pacific (English)
PM199AW#ABU
UK
Korea
PM199AW#ABD
Germany
China
PM199AW#ABF
France
Taiwan
PM199AW#ABZ
Italy
India
PM199AW#ABE
Spain
Australia
PM199AW#AK6
Europe
Thailand
DA - 11975
PM199AW#AR8
PM199AW#ACN
PM199AW#ABH
PM199AW#ACE
PM199AW#AB4
PM199AW#AB1
PM199AW#AB2
PM199AW#AB0
PM199AW#ACJ
PM199AW#ABG
PM199AW#AKL
Worldwide — Version 22 — June 6, 2005
Page 9
QuickSpecs
HP xw6200 Workstation
Standard Features - Preconfigured Global Models
xw6200X/XD3.2+/B80/
H1.0/280E/dF/s
Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
Graphics
Mouse
Other
Dual 64-bit Intel Xeon processors 3.20 GHz 1 MB/800
Microsoft Windows XP Professional
1 MB L2 per processor
1 GB (2x512) DDR2-400 ECC Registered
16X DVD-ROM
80 GB SATA/150 7200 rpm (1st)
NVIDIA Quadro NVS 280 PCI Express included in base configuration Alternative graphics card options should be ordered separately - they
are listed below:
NVIDIA Quadro NVS 280 PCI (64 MB, VGA & DVI, can be added as
second card)
NVIDIA Quadro NVS 400 PCI (64 MB, quad head, VGA & DVI)
ATI FireGL V3100 PCI Express (128 MB)
NVIDIA Quadro FX 540 PCI Express (128 MB)
NVIDIA Quadro FX 1300 PCI Express (128 MB)
NVIDIA Quadro FX 1400 PCI Express (128 MB)
ATI FireGL V5100 PCI Express (128 MB)
NVIDIA Quadro FX 3400 PCI Express (256 MB)
NOTE: Please see Part Numbers in After market options/Standalone
accessories section.
HP scroll mouse (PS/2)
Includes Floppy Drive and Standard PS/2 Keyboard
xw6200X/XD3.2+/B80/H1.0/280E/dF/s Country Code Key
PD898AW#ABA
Switzerland (German/French)
N. America
PD898AW#ABC
Fr. Canadian
Switzerland (Italian/English)
PD898AW#ABM
L. America
Dutch
PD898AW#ACF
Japan (English)
Denmark
PD898AW#ABJ
Japan (Japanese)
Asia/Pacific (English)
PD898AW#ABU
UK
Korea
PD898AW#ABD
Germany
China
PD898AW#ABF
France
Taiwan
PD898AW#ABZ
Italy
India
PD898AW#ABE
Spain
Australia
PD898AW#AK6
Europe
Thailand
DA - 11975
PD898AW#AR8
PD898AW#ACN
PD898AW#ABH
PD898AW#ACE
PD898AW#AB4
PD898AW#AB1
PD898AW#AB2
PD898AW#AB0
PD898AW#ACJ
PD898AW#ABG
PD898AW#AKL
Worldwide — Version 22 — June 6, 2005
Page 10
QuickSpecs
HP xw6200 Workstation
Standard Features - Preconfigured Global Models
xw6200X/XD3.4/C74/
H1.0/280E/dF/s
Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
Graphics
Mouse
Other
64-bit Intel Xeon processor 3.40 GHz 1 MB/800
Microsoft Windows XP Professional
1 MB L2
1 GB (2x512) DDR2-400 ECC Registered
16X DVD-ROM
74 GB SATA/150 10,000 rpm (1st)
NVIDIA Quadro NVS 280 PCI Express included in base configuration Alternative graphics card options should be ordered separately - they
are listed below:
NVIDIA Quadro NVS 280 PCI (64 MB, VGA & DVI, can be added as
second card)
NVIDIA Quadro NVS 400 PCI (64 MB, quad head, VGA & DVI)
ATI FireGL V3100 PCI Express (128 MB)
NVIDIA Quadro FX 540 PCI Express (128 MB)
NVIDIA Quadro FX 1300 PCI Express (128 MB)
NVIDIA Quadro FX 1400 PCI Express (128 MB)
ATI FireGL V5100 PCI Express (128 MB)
NVIDIA Quadro FX 3400 PCI Express (256 MB)
NOTE: Please see Part Numbers in After market options/Standalone
accessories section.
HP scroll mouse (PS/2)
Includes Floppy Drive and Standard PS/2 Keyboard
xw6200X/XD3.4/C74/H1.0/280E/dF/s Country Code Key
PM200AW#ABA
Switzerland (German/French)
N. America
PM200AW#ABC
Fr. Canadian
Switzerland (Italian/English)
PM200AW#ABM
L. America
Dutch
PM200AW#ACF
Japan (English)
Denmark
PM200AW#ABJ
Japan (Japanese)
Asia/Pacific (English)
PM200AW#ABU
UK
Korea
PM200AW#ABD
Germany
China
PM200AW#ABF
France
Taiwan
PM200AW#ABZ
Italy
India
PM200AW#ABE
Spain
Australia
PM200AW#AK6
Europe
Thailand
DA - 11975
PM200AW#AR8
PM200AW#ACN
PM200AW#ABH
PM200AW#ACE
PM200AW#AB4
PM200AW#AB1
PM200AW#AB2
PM200AW#AB0
PM200AW#ACJ
PM200AW#ABG
PM200AW#AKL
Worldwide — Version 22 — June 6, 2005
Page 11
QuickSpecs
HP xw6200 Workstation
Standard Features - Preconfigured Global Models
xw6200X/XD3.4+/B80/
H1.0/280E/dF/s
Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
Graphics
Mouse
Other
Dual 64-bit Intel Xeon processors 3.40 GHz 1 MB/800
Microsoft Windows XP Professional
1 MB L2 per processor
1 GB (2x512) DDR2-400 ECC Registered
16X DVD-ROM
80 GB SATA/150 7200 rpm (1st)
NVIDIA Quadro NVS 280 PCI Express included in base configuration Alternative graphics card options should be ordered separately - they
are listed below:
NVIDIA Quadro NVS 280 PCI (64 MB, VGA & DVI, can be added as
second card)
NVIDIA Quadro NVS 400 PCI (64 MB, quad head, VGA & DVI)
ATI FireGL V3100 PCI Express (128 MB)
NVIDIA Quadro FX 540 PCI Express (128 MB)
NVIDIA Quadro FX 1300 PCI Express (128 MB)
NVIDIA Quadro FX 1400 PCI Express (128 MB)
ATI FireGL V5100 PCI Express (128 MB)
NVIDIA Quadro FX 3400 PCI Express (256 MB)
NOTE: Please see Part Numbers in After market options/Standalone
accessories section.
HP scroll mouse (PS/2)
Includes Floppy Drive and Standard PS/2 Keyboard
xw6200X/XD3.4+/B80/H1.0/280E/dF/s Country Code Key
PD900AW#ABA
Switzerland (German/French)
N. America
PD900AW#ABC
Fr. Canadian
Switzerland (Italian/English)
PD900AW#ABM
L. America
Dutch
PD900AW#ACF
Japan (English)
Denmark
PD900AW#ABJ
Japan (Japanese)
Asia/Pacific (English)
PD900AW#ABU
UK
Korea
PD900AW#ABD
Germany
China
PD900AW#ABF
France
Taiwan
PD900AW#ABZ
Italy
India
PD900AW#ABE
Spain
Australia
PD900AW#AK6
Europe
Thailand
DA - 11975
PD900AW#AR8
PD900AW#ACN
PD900AW#ABH
PD900AW#ACE
PD900AW#AB4
PD900AW#AB1
PD900AW#AB2
PD900AW#AB0
PD900AW#ACJ
PD900AW#ABG
PD900AW#AKL
Worldwide — Version 22 — June 6, 2005
Page 12
QuickSpecs
HP xw6200 Workstation
Standard Features - Preconfigured Global Models
xw6200X/XD3.4+/C74/
H2/280E/dF/s
Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
Graphics
Mouse
Other
Dual 64-bit Intel Xeon processors 3.40 GHz 1 MB/800
Microsoft Windows XP Professional
1 MB L2 per processor
2 GB (2x1GB) DDR2-400 ECC Registered
16X DVD-ROM
74 GB SATA/150 7200 rpm (1st)
NVIDIA Quadro NVS 280 PCI Express included in base configuration Alternative graphics card options should be ordered separately - they
are listed below:
NVIDIA Quadro NVS 280 PCI (64 MB, VGA & DVI, can be added as
second card)
NVIDIA Quadro NVS 400 PCI (64 MB, quad head, VGA & DVI)
ATI FireGL V3100 PCI Express (128 MB)
NVIDIA Quadro FX 540 PCI Express (128 MB)
NVIDIA Quadro FX 1300 PCI Express (128 MB)
NVIDIA Quadro FX 1400 PCI Express (128 MB)
ATI FireGL V5100 PCI Express (128 MB)
NVIDIA Quadro FX 3400 PCI Express (256 MB)
NOTE: Please see Part Numbers in After market options/Standalone
accessories section.
HP scroll mouse (PS/2)
Includes Floppy Drive and Standard PS/2 Keyboard
xw6200X/XD3.4+/B80/H1.0/280E/dF/s Country Code Key
PR845AW#ABA
Switzerland (German/French)
N. America
PR845AW#ABC
Fr. Canadian
Switzerland (Italian/English)
PR845AW#ABM
L. America
Dutch
PR845AW#ACF
Japan (English)
Denmark
PR845AW#ABJ
Japan (Japanese)
Asia/Pacific (English)
PR845AW#ABU
UK
Korea
PR845AW#ABD
Germany
China
PR845AW#ABF
France
Taiwan
PR845AW#ABZ
Italy
India
PR845AW#ABE
Spain
Australia
PR845AW#AK6
Europe
Thailand
DA - 11975
PR845AW#AR8
PR845AW#ACN
PR845AW#ABH
PR845AW#ACE
PR845AW#AB4
PR845AW#AB1
PR845AW#AB2
PR845AW#AB0
PR845AW#ACJ
PR845AW#ABG
PR845AW#AKL
Worldwide — Version 22 — June 6, 2005
Page 13
QuickSpecs
HP xw6200 Workstation
Standard Features - Preconfigured Global Models
xw6200X/XD3.6/C74/
H1.0/280E/dF/s
Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
Graphics
Mouse
Other
64-bit Intel Xeon processor 3.60 GHz 1 MB/800
Microsoft Windows XP Professional
1 MB L2
1 GB (2x512) DDR2-400 ECC Registered
16X DVD-ROM
74 GB SATA/150 10,000 rpm (1st)
NVIDIA Quadro NVS 280 PCI Express included in base configuration Alternative graphics card options should be ordered separately - they
are listed below:
NVIDIA Quadro NVS 280 PCI (64 MB, VGA & DVI, can be added as
second card)
NVIDIA Quadro NVS 400 PCI (64 MB, quad head, VGA & DVI)
ATI FireGL V3100 PCI Express (128 MB)
NVIDIA Quadro FX 540 PCI Express (128 MB)
NVIDIA Quadro FX 1300 PCI Express (128 MB)
NVIDIA Quadro FX 1400 PCI Express (128 MB)
ATI FireGL V5100 PCI Express (128 MB)
NVIDIA Quadro FX 3400 PCI Express (256 MB)
NOTE: Please see Part Numbers in After market options/Standalone
accessories section.
HP scroll mouse (PS/2)
Includes Floppy Drive and Standard PS/2 Keyboard
xw6200X/XD3.6/C74/H1.0/280E/dF/s Country Code Key
PM201AW#ABA
Switzerland (German/French)
N. America
PM201AW#ABC
Fr. Canadian
Switzerland (Italian/English)
PM201AW#ABM
L. America
Dutch
PM201AW#ACF
Japan (English)
Denmark
PM201AW#ABJ
Japan (Japanese)
Asia/Pacific (English)
PM201AW#ABU
UK
Korea
PM201AW#ABD
Germany
China
PM201AW#ABF
France
Taiwan
PM201AW#ABZ
Italy
India
PM201AW#ABE
Spain
Australia
PM201AW#AK6
Europe
Thailand
DA - 11975
PM201AW#AR8
PM201AW#ACN
PM201AW#ABH
PM201AW#ACE
PM201AW#AB4
PM201AW#AB1
PM201AW#AB2
PM201AW#AB0
PM201AW#ACJ
PM201AW#ABG
PM201AW#AKL
Worldwide — Version 22 — June 6, 2005
Page 14
QuickSpecs
HP xw6200 Workstation
Standard Features - Preconfigured Global Models
xw6200X/XD3.6+/B80/
H1.0/280E/dF/s
Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
Graphics
Mouse
Other
Dual 64-bit Intel Xeon processors 3.60 GHz 1 MB/800
Microsoft Windows XP Professional
1 MB L2 per processor
1 GB (2x512) DDR2-400 ECC Registered
16X DVD-ROM
80 GB SATA/150 7200 rpm (1st)
NVIDIA Quadro NVS 280 PCI Express included in base configuration Alternative graphics card options should be ordered separately - they
are listed below:
NVIDIA Quadro NVS 280 PCI (64 MB, VGA & DVI, can be added as
second card)
NVIDIA Quadro NVS 400 PCI (64 MB, quad head, VGA & DVI)
ATI FireGL V3100 PCI Express (128 MB)
NVIDIA Quadro FX 540 PCI Express (128 MB)
NVIDIA Quadro FX 1300 PCI Express (128 MB)
NVIDIA Quadro FX 1400 PCI Express (128 MB)
ATI FireGL V5100 PCI Express (128 MB)
NVIDIA Quadro FX 3400 PCI Express (256 MB)
NOTE: Please see Part Numbers in After market options/Standalone
accessories section.
HP scroll mouse (PS/2)
Includes Floppy Drive and Standard PS/2 Keyboard
xw6200X/XD3.6+/B80/H1.0/280E/dF/s Country Code Key
PD902AW#ABA
Switzerland (German/French)
N. America
PD902AW#ABC
Fr. Canadian
Switzerland (Italian/English)
PD902AW#ABM
L. America
Dutch
PD902AW#ACF
Japan (English)
Denmark
PD902AW#ABJ
Japan (Japanese)
Asia/Pacific (English)
PD902AW#ABU
UK
Korea
PD902AW#ABD
Germany
China
PD902AW#ABF
France
Taiwan
PD902AW#ABZ
Italy
India
PD902AW#ABE
Spain
Australia
PD902AW#AK6
Europe
Thailand
DA - 11975
PD902AW#AR8
PD902AW#ACN
PD902AW#ABH
PD902AW#ACE
PD902AW#AB4
PD902AW#AB1
PD902AW#AB2
PD902AW#AB0
PD902AW#ACJ
PD902AW#ABG
PD902AW#AKL
Worldwide — Version 22 — June 6, 2005
Page 15
QuickSpecs
HP xw6200 Workstation
Standard Features - Preconfigured Global Models
xw6200X/XD3.6+/C74/
H2/280E+/dF/s
– Trader station
Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
Graphics
Mouse
Other
Dual 64-bit Intel Xeon processors 3.60 GHz 1 MB/800
Microsoft Windows XP Professional
1 MB L2 per processor
2 GB (2x1) DDR2-400 ECC Registered
16X DVD-ROM
74 GB SATA/150 10,000 rpm (1st)
NVIDIA Quadro NVS 280 PCI Express included in base configuration Alternative graphics card options should be ordered separately - they
are listed below:
NVIDIA Quadro NVS 280 PCI (64 MB, VGA & DVI, can be added as
second card)
NVIDIA Quadro NVS 400 PCI (64 MB, quad head, VGA & DVI)
ATI FireGL V3100 PCI Express (128 MB)
NVIDIA Quadro FX 540 PCI Express (128 MB)
NVIDIA Quadro FX 1300 PCI Express (128 MB)
NVIDIA Quadro FX 1400 PCI Express (128 MB)
ATI FireGL V5100 PCI Express (128 MB)
NVIDIA Quadro FX 3400 PCI Express (256 MB)
NOTE: Please see Part Numbers in After market options/Standalone
accessories section.
HP scroll mouse (PS/2)
Includes Floppy Drive and Standard PS/2 Keyboard
xw6200X/XD3.6+/C74/H2/280E+/dF/s Country Code Key
PM202AW#ABA
Switzerland (German/French)
N. America
PM202AW#ABC
Fr. Canadian
Switzerland (Italian/English)
PM202AW#ABM
L. America
Dutch
PM202AW#ACF
Japan (English)
Denmark
PM202AW#ABJ
Japan (Japanese)
Asia/Pacific (English)
PM202AW#ABU
UK
Korea
PM202AW#ABD
Germany
China
PM202AW#ABF
France
Taiwan
PM202AW#ABZ
Italy
India
PM202AW#ABE
Spain
Australia
PM202AW#AK6
Europe
Thailand
DA - 11975
PM202AW#AR8
PM202AW#ACN
PM202AW#ABH
PM202AW#ACE
PM202AW#AB4
PM202AW#AB1
PM202AW#AB2
PM202AW#AB0
PM202AW#ACJ
PM202AW#ABG
PM202AW#AKL
Worldwide — Version 22 — June 6, 2005
Page 16
QuickSpecs
HP xw6200 Workstation
After-Market Options
Processors
2nd 64-bit Intel Xeon™ processor with Hyper-Threading
64-bit Intel Xeon processor at 2.8 GHz with 800 MHz FSB & 1 MB of L2 cache
64-bit Intel Xeon processor at 3.0 GHz with 800 MHz FSB & 1 MB of L2 cache
64-bit Intel Xeon processor at 3.0 GHz with 800 MHz FSB & 2 MB of L2 cache
64-bit Intel Xeon processor at 3.2 GHz with 800 MHz FSB & 1 MB of L2 cache
64-bit Intel Xeon processor at 3.2 GHz with 800 MHz FSB & 2 MB of L2 cache
64-bit Intel Xeon processor at 3.4 GHz with 800 MHz FSB & 1 MB of L2 cache
64-bit Intel Xeon processor at 3.4 GHz with 800 MHz FSB & 2 MB of L2 cache
64-bit Intel Xeon processor at 3.6 GHz with 800 MHz FSB & 1 MB of L2 cache
64-bit Intel Xeon processor at 3.6 GHz with 800 MHz FSB & 2 MB of L2 cache
Part Number
DY665A
DY666A
PQ903A
DY667A
PQ904A
DY668A
PQ905A
DY669A
PQ906A
Graphics
Multi display solutions
Red Hat Linux
Part Number
X
32-Bit, 64-Bit 7.2, 7.3, WS3
AA932A
X
32-Bit, 64-Bit
AA605A
X
32-Bit, 64-Bit
32-Bit, 64-Bit 7.2, 7.3, WS3
AA606A
DY650A
X
32-Bit, 64-Bit
DL139A
X
X
X
X
X
X
X
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
PCI
NVIDIA Quadro NVS 280 (64 MB,
VGA & DVI)
NVIDIA Quadro NVS 400 (64 MB,
quad head, VGA & DVI)
Quadro NVS 400 DVI cables
NVIDIA Quadro NVS 280 PCI-E (64
MB, VGA & DVI)
DMS-59 to Dual DVI Cable for NVS
cards
NVIDIA Quadro FX 330 (64 MB)
ATI FireGL V3100 (128 MB)
NVIDIA Quadro FX 540 (128 MB)
NVIDIA Quadro FX 1300 (128 MB)
NVIDIA Quadro FX 1400 (128 MB)
ATI FireGL V5100 (128 MB)
NVIDIA Quadro FX 3400 (256 MB)
DA - 11975
PCIExpress
NA
X
Windows XP
Worldwide — Version 22 — June 6, 2005
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
PB332A
PE949A
PH791A
PB331A
PM979A
PB330A
PB329A
Page 17
QuickSpecs
HP xw6200 Workstation
After-Market Options
Hard Drives
Controllers
SATA Hard Drives
40 GB SATA/150 Hard Drive (7200 rpm)
80 GB SATA/150 Hard Drive (7200 rpm)
160 GB SATA/150 Hard Drive (7200 rpm)
250 GB SATA/150 Hard Drive (7200 rpm)
400 GB SATA/150 Hard Drive (7200 rpm)
74 GB SATA/150 Hard Drive (10,000 rpm)
SCSI Hard Drives
73 GB Ultra320 SCSI Hard Drive (10,000 rpm)
146 GB Ultra320 SCSI Hard Drive (10,000 rpm)
300 GB Ultra320 SCSI Hard Drive (10,000 rpm)
36 GB Ultra320 SCSI Hard Drive (15,000 rpm)
73 GB Ultra320 SCSI Hard Drive (15,000 rpm)
146 GB Ultra320 SCSI Hard Drive (15,000 rpm)
Bracket HDD 3.5to5.25 xw6200
Cable, 3 port SCSI xw4200/6200
Windows XP Red Hat Linux
32-Bit, 64-Bit
WS3
32-Bit, 64-Bit
WS3
32-Bit, 64-Bit
WS3
32-Bit, 64-Bit
WS3
32-Bit, 64-Bit
WS3
32-Bit, 64-Bit
WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
AA613A
AA614A
DY672A
AA616A
AA617A
DY671A
DY659A
DY661A
SCSI Controllers
Windows XP Red Hat Linux
Part Number
X
32-Bit, 64-Bit 7.2, 7.3, WS3
DZ554A
X
32-Bit, 64-Bit
AA850A
PCI
U320 SCSI Controller RAID 0,1 &
external connector
Ultra320 SCSI RAID Adaptec
2120S (Windows only, includes
external connector)
PCIExpress
Hard Drives
Keyboards
HP PS/2 Standard Keyboard (Carbonite/Silver)
HP USB Standard Keyboard (Carbonite/Silver)
HP USB 2004 Modular Keyboard
Smartcard adapter for modular keyboard
Pointing Devices
HP PS/2 2-Button Scroll Mouse (Carbonite)
HP USB 2-Button Optical Scroll Mouse
(Carbonite/Silver)
HP PS/2 3-Button Mouse
HP USB Optical 3-button mouse
USB Spaceball 5000
USB SpaceMouse
DA - 11975
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
32-Bit, 64-Bit
Part Number
PB371A
DE705A
DE706A
DS702A
PM254A
DX760A
Windows XP Red Hat Linux
Part Number
32-Bit, 64-Bit 7.2, 7.3, WS3
32-Bit, 64-Bit 7.2, 7.3, WS3
32-Bit, 64-Bit
32-Bit, 64-Bit
DT527A
DT528A
DT530A
DT531A
32-Bit, 64-Bit 7.2, 7.3, WS3
32-Bit, 64-Bit 7.2, 7.3, WS3
DD440B
DC172B
32-Bit, 64-Bit 7.2, 7.3, WS3
32-Bit, 64-Bit 7.2, 7.3, WS3
32-Bit, 64-Bit
32-Bit, 64-Bit
AA778A
DY651A
DV675A
DZ203A
Worldwide — Version 22 — June 6, 2005
Page 18
QuickSpecs
HP xw6200 Workstation
After-Market Options
Networking
Memory (DIMMs)
NICs
PCI
Intel Pro/1000MT
X
HP Gigabit by Broadcom
(BCM5782)
Broadcom BCM5751 NetXtreme™
Gigabit Ethernet Controller (PCI-E)
X
PCIWindows XP
Express
32-Bit, 64Bit
32-Bit, 64Bit
X
32-Bit, 64Bit
400 MHz DDR-2 PC2-3200 ECC Registered DIMMs
256 MB DDR-2 PC2-3200 (400 MHz) ECC
Registered
512 MB DDR-2 PC2-3200 (400 MHz) ECC
Registered
1 GB DDR-2 PC2-3200 (400 MHz) ECC Registered
2 GB DDR-2 PC2-3200 (400 MHz) ECC Registered
Red Hat Linux
Part Number
7.2, 7.3, WS3
DC193A
7.2, 7.3, WS3
DC194A
7.2, 7.3, WS3
DZ556A
Windows XP Red Hat Linux
32-Bit, 64-Bit 7.2, 7.3, WS3
Part Number
DY656A
32-Bit, 64-Bit 7.2, 7.3, WS3
DY658A
32-Bit, 64-Bit 7.2, 7.3, WS3
32-Bit, 64-Bit 7.2, 7.3, WS3
DY655A
DY657A
Monitors (Supported by all TFTs
Operating Systems offered HP TFT L2335 (23-inch)
by HP)
HP TFT L2035 (20.1-inch)
HP TFT L1955 (19.1-inch)
HP TFT L1755 (17-inch)
Multimedia
P9615W#
P9614W#
PD974A5
PL777AA
PCI
PCIExpress
IEEE1394 Firewire PCI card (Windows only)
X
PA997A
NOTE: Although HP Personal Workstations can be ordered with the HP Installer Kit for Linux and an IEEE
1394 card, HP cannot provide customer support for this configuration. Please refer to the Linux
Hardware Support Matrix (http://www.hp.com/support/linux_hardware_matrix) for details, and to the
Linux User Manual (http://www.hp.com/support/linux_user_manual) for tips on user-enablement of the
IEEE 1394 Card.
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 19
QuickSpecs
HP xw6200 Workstation
After-Market Options
Optical Drives
DVD-ROM Drive
16X/40X DVD-ROM w/ +R read
CD-ROM Drive
48X Max CD-ROM Drive
CD-RW Drive
48X/32X/48X CD-RW Drive
Combo Drive
48X/32X Combo DVD-ROM/CD-RW Drive
DVD+/-RW Drive
16X DVD+/-RW, Dual-Layer
16X DVD+/-RW, Dual-Layer LightScribe
Optical Drives
256 MB USB 2.0 II drive key
1.44 MB Internal Floppy Drive
HP DAT24i Internal DDS3 tape drive
HP DAT24e External DDS3 tape drive
HP DAT40i Internal DDS4 tape drive
HP DAT40e External DDS4 tape drive
HP DAT72i Internal DAT72 tape drive
HP DAT72e External DAT72 tape drive
Windows XP Red Hat Linux
32-Bit, 64-Bit 7.2, 7.3, WS3
Part Number
AA620A
32-Bit, 64-Bit 7.2, 7.3, WS3
DC143B
32-Bit, 64-Bit 7.2, 7.3, WS3
DE205A
32-Bit, 64-Bit 7.2, 7.3, WS3
DE206A
32-Bit, 64-Bit 7.2, 7.3, WS3
32-Bit, 64-Bit
PH205A
DZ555A
Windows XP Red Hat Linux
32-Bit, 64-Bit 7.2, 7.3, WS3
32-Bit, 64-Bit 7.2, 7.3, WS3
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
Part Number
PH657A
DY670A
C1555D
C1556D
C5686B
C5687C
Q1522A
Q1523A
Security
Chassis clamp lock, universal, no cable
Chassis clamp lock, universal, with cable
Brackets/Stands
HP xw6200 sliding rack kit
Depth Adjustable Rails (stationary)
Sliding Shelf kit
Fixed shelf kit
Other Devices
IDE Cable Kit for HP xw6200 and xw8200 (2nd)
Front Card Guide and Fan Kit
DY660A
DY648A
Operating Systems
Red Hat Enterprise Linux Workstation 3 Update 4 (32-bit version)
Red Hat Enterprise Linux Workstation 3 Update 4 (64-bit version)
PT509A
PT510A
DA - 11975
Worldwide — Version 22 — June 6, 2005
DE817A
DE818A
DY663A
332558-B21
234672-B21
253449-B21
Page 20
QuickSpecs
HP xw6200 Workstation
After-Market Options
Software
HP Remote Graphics V2 LTU for HP WS
HP Remote Graphics V3LTU for HP WS
HP Remote Graphics V2 Receiver LTU
HP Remote Graphics V3 Receiver LTU
HP Remote Graphics V2 software media
HP Remote Graphics V3 software media
HP Remote SW for HP 1 year Update Subscription
HP Remote SW Receiver 1 year Update Subscription
DA - 11975
Windows XP
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
Worldwide — Version 22 — June 6, 2005
Red Hat Linux
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
Part Number
PE672A
PY682AA
PE674A
PY684AA
PE675A
PY685AA
PN681A
PN680A
Page 21
QuickSpecs
HP xw6200 Workstation
Memory
E7525 chipset
DDR-2 SDRAM ECC REGISTERED MEMORY
If only using one DIMM, install it in socket 1. For more than one DIMM, install memory in pairs (a pair would be considered to be
the DIMMs in sockets 1 & 2, 3 & 4) and do not mix speeds. It is always best to load the memory in pairs rather than a single DIMM
(two 512 MB DIMMs will have better performance than a single 1 GB DIMM). Each pair of DIMMs must be the same size and same
DRAM technology. The Intel E7525 chipset supports ECC Registered 400 MHz (PC2-3200) DDR-2 memory only.
MAXIMUM MEMORY
Supports up to 8 GB of DDR SDRAM
POSSIBLE MEMORY CONFIGURATIONS
Not all memory configurations possible are represented below.
DIMM Size
256 MB
512 MB
512 MB
1 GB
1 GB
2 GB
2 GB
4 GB
8 GB
Slot
1
256 MB
512 MB
256 MB
1 GB
256 MB
1 GB
512 MB
1 GB
2 GB
DA - 11975
2
3
4
256 MB
256 MB
512 MB
1 GB
2 GB
512 MB
1 GB
2 GB
256 MB
256 MB
1 GB
512 MB
1 GB
2 GB
Worldwide — Version 22 — June 6, 2005
Page 22
QuickSpecs
HP xw6200 Workstation
Storage
Tower configuration
Quantity Supported
Position Supported
Controller
Convertible Minitower
Optional Diskette Drive
1
3
Diskette
5.25" Storage Drive Bays
2
1, 2
IDE
(position 1 drive bay is limited to
198 mm depth when optional
smart cover solenoid lock is
installed; position 2 drive bay
can be converted to an internal
3.5" 3rd hard drive bay with
optional bracket)
3.5" Storage Drive Bays with
2 (3)
4, 5 (and 2, for 3rd drive using
SATA or optional SCSI
acoustic dampening rail
optical bay)
Factory Integrated RAID*
assemblies
NOTE: Factory Integrated RAID 0 Configuration (Striped Array) and RAID 1 Configuration (Mirrored Array) requires 2 hard drives
* NOTE
with identical speeds, capacity and interface.
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 23
QuickSpecs
HP xw6200 Workstation
Additional Technical Specifications
System Board
Architecture
Chipset
Super I/O Controller
System Board Form Factor
Processor Socket
DIMM Connectors (DDR2,
1.8V)
AGP Connector (1.5V)
Integrated Graphics
PCI Connectors (5.0V)
PCI Express Connectors
PCI card guide
Flash ROM
AC97 integrated audio
CD ROM IN (Audio)
AUX IN (Audio)
Clear CMOS Button
CPU Fan Header
Chassis Fan Header
Chassis Speaker Header
CMOS Battery Holder –
Lithium
Hood Lock Header
Hood Sensor Header
Multibay Header
Hard drive acoustic
dampening rails
Integrated SATA RAID
Xeon 64-bit/PCI-E
Intel E7525/ICH5R Chipset
SMSC LPC47B397
ATX (slightly larger than standard ATX)
Dual 604 Pin ZIF
4
None
None
4 full length 33 MHz 32-bit
1 x16
1 x8 (with x4 electricals)
Optional, tool-free support for all full-length cards with PCI extender
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Standard in 2 internal 3.5" bays, tool-free
RAID 0 and RAID 1
Supports one RAID array on 2 ports
Creation of 2 drive HDD array
RAID 0 Configuration - Striped Array
RAID 1 Configuration - Mirrored Array
Integrated Broadcom
NetXtreme Gigabit
Ethernet for HP
Wake-On-Lan®
ASF 1.0 (Alert Standard
Format)
Power Supply Header
Power Switch, Power LED
& Hard Drive LED Header
Password Clear Header
Riser Connector
Yes
Yes
Yes
Yes
Yes
Yes
Yes
None
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 24
QuickSpecs
HP xw6200 Workstation
Additional Technical Specifications
HDD activity LED Header
PCI extender that connects
to System Board
Yes, 2 & 4 pin
None
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 25
QuickSpecs
HP xw6200 Workstation
Technical Specifications
Cooling
Cooling Solutions
Supported
Power Supply Fan (Variable
Speed)
Processor Fan-Heatsink
(Variable Speed)
Chassis Fan (front)
Chassis Fan (rear)
Internal Speaker
Yes
92 x 25 mm
70 x 15 mm
One 92 x 25 mm (optional)
Two 92 x 25 mm (standard)
Standard
Power Supply
Full Ranging Input
Active Power Factor
Correction (APFC) (Input
Current is nearly 1/2 a
non-APFC PS)
Passive Power Factor
Correction (PFC)
Operating Voltage Range
Rated Voltage Range
Rated Line Frequency
Operating Line Frequency
Range
Rated Input Current
Maximum Rated Power
Heat Dissipation
PS Size (wide x high x deep)
Energy Star Compliant
FEMP Standby Power
Compliant (<2W in S5 Power Off)
Surge Tolerant Full
Ranging Power Supply
Typical configuration
power consumption
ROM Features
Instantly Available PC
Yes
Yes
No
90 - 264 VAC/118 VAC
100 – 240 VAC
50-60 Hz/400Hz
47 – 66 Hz/393 – 407Hz
9A/9A
500 W
Typical 1228.9 btu/hr
Maximum 1706 btu/hr
150 mm x 98 mm x 168 mm
Yes
No
Withstands power surges up to 2000V
2 processors (2x3.6GHz Xeon), 1 GB memory (2x512 MB)
Two hard drives (2xSATA 40 GB), DVD-ROM drive
PCI-Express Graphics Card (FX 1300)
Floppy, Monitor
Input Power consumption
@ 120Vac/60Hz
Typical operating mode
360 W
= 1228.9 btu/hr
(system busy)
Windows XP Idle
201 W
= 685.9 btu/hr
Hibernate mode (S4)
6.4 W
= 21.84 btu/hr
Power Off (S5)
6.4 W
= 21.84 btu/hr
Description
Allows for very low power consumption with quick resume time
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 26
QuickSpecs
HP xw6200 Workstation
Technical Specifications
ROM Based F10 Setup
Review and customize BIOS settings
and diagnostics
Remote System Installation Allows a new or existing system to boot over the network and download software, including the operating
via F12 (PXE) (Remote Boot system
from Server)
System/Emergency ROM Recovers corrupted system BIOS
Flash Recovery with Video
ROM revision levels
Identifies system ROM revision levels and reports in ROM-based F10 setup
Version is stored in an industry standard memory location (SMBIOS) so that management SW
applications can use and report this information
System board revision level
Allows management SW to read the revision level of the system board
Revision level is digitally encoded into the hardware and cannot be modified
Auto Setup when New
System automatically detects addition of new hardware
Hardware Installed
Serial, Parallel, USB,
Enable or disables serial, parallel, USB, audio, and network ports
Audio, Network,
Enable/Disable Port
Control
Removable Media Write/ Prevents ability to boot from removable media on supported devices (and can disable writes to media)
Boot Control
Power-On Password
Prevents an unauthorized person from booting up the computer
Setup Password
Prevents an unauthorized person from changing the system configuration
Replicated Setup
Saves BIOS settings to diskette or USB disk-on-key in human readable file. Repset.exe utility can then
replicate these settings on machines being deployed without entering ROM-based F10 setup
Memory Change Alert
Alerts management console if memory is removed or changed
(Requires HP Client
Manager Software)
Thermal Alert (Requires HP Monitors the temperature state within the chassis. Three modes:
Client Manager Software)
NORMAL – normal temperature ranges
ALERTED – excessive temperatures are detected. Raises a flag so action can be taken to avoid
shutdown or provide for a smoother system shutdown
SHUTDOWN – excessive temperatures are encountered. Automatically shuts down the computer
without warning before hardware component damage occurs
Master Boot Record
Detects changes to MBR and optional restoration, useful in protecting from viruses
Security
Remote ROM Flash
Provides secure, fail-safe ROM image management from a central network console
Remote Wakeup/shutdown
System administrators can power on, restart, and power off a client computer from a remote
location.
Enables cost-effective power consumption when the administrator needs to distribute software,
perform security management, or update the ROM
ACPI (Advanced
Allows the system to wake from a low power mode
Configuration and Power
Controls system power consumption, making it possible to place individual cards and peripherals
Management Interface)
in a low-power or powered-off state without affecting other elements of the system
Supports ACPI 2.0 for full compatibility with 64-bit operating systems
Keyboard-less Operation The system can be operated without a keyboard
SMBIOS
System Management BIOS 2.3.5, previously known as DMI BIOS, for system management information
Localized ROM Setup
Common BIOS image supports configuration (Setup) in 11 languages, with local keyboard mappings
Asset tag
Allows user or MIS to set unique tag string in ROM
Ownership tag
Allows user or MIS to set unique tag string in ROM
Memory Scrubbing
Allows memory controller to transparently correct transient ECC errors in the background
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 27
QuickSpecs
HP xw6200 Workstation
Technical Specifications
Memory Remapping
Per-slot control
Adaptive cooling
Pre-boot diagnostics
Other deployment &
management features
HP Client Management
Solutions
Allows system memory lost to PCI devices to be reclaimed above 4 GB, for use with operating systems
that support more than 4 GB (Windows XP 64-bit edition, Linux)
Allows individual slot configuration (option ROM., latency)
Fan control parameters are set according to detected hardware configuration for optimal acoustics
Early (pre-video) critical errors are reported via beeps and blinks on the power LED
HP Client Management Solutions help simplify management of Workstations and significantly reduce
total ownership costs. These solutions share a common design and are highly integrated due to the
extensive work between HP and its partner Altiris.
HP Client Manager Software is included free with all HP business PCs and Workstations. It enables
central tracking, monitoring, and management of the hardware aspects of HP client systems:
Get valuable hardware information such as CPU, memory, video, and security settings
Monitor system health to fix problems before they occur
Install drivers and BIOS updates without visiting each PC
Remotely configure BIOS and security settings
Automate processes to quickly resolve hardware problems
Additional Altiris solutions (fee-based) are available to address Workstation management challenges
through the entire IT lifecycle including:
Inventory assessment
Software license compliance
Personality migration
Software image deployment
Software distribution
Asset management
Client backup and recovery
Problem resolution
Visit http://www.hp.com/go/easydeploy for more information, to download HP Client Manager Software,
and to evaluate the Altiris solutions.
System Software Manager A free utility that detects and updates BIOS, device drivers, and management agent versions on your
(free)
networked PCs and workstations
Altiris Local Recovery
Provides data and system file protection for HP business PCs to enable fast recovery of information that is
accidentally deleted or if the system becomes corrupted. Designed for disconnected or seldomconnected users, Local Recovery protects your HP computer's data and system state by taking scheduled
snapshots, which are then stored in a protected area on the local hard disk. System backup and disaster
recovery is now simple and fast for all users, regardless of connectivity
Replicated Setup
Saves BIOS settings to diskette or USB disk-on-key in human readable file. Repset.exe utility can then
replicate these settings on machines being deployed without entering ROM-based F10 setup
Software Restore CD
Restores computer to its original factory shipping image
Asset Tag
Repository for storing company-specific property asset numbers for easy tracking
Initially set equal to the system serial number
Stored in a protected section of non-volatile memory that can be accessed and modified with the
F10 Setup program
DIMM Serial Presence
Detects whether or not memory DIMMs are present and their type
Detect
Hard drive serial number, Hard drive manufacturer, model, and serial number is stored in the hard drive firmware and reported in
model, and manufacturer ROM-based F10 setup
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 28
QuickSpecs
HP xw6200 Workstation
Technical Specifications
System serial number,
model, & manufacturer
ROM revision levels
Memory Change Alert
(Requires HP Client
Manager Software)
Ownership Tag
Hard drive interface
Integrity Monitoring
(CRC Checking)
Drive Self Tests (DPS)
System serial number, model, & manufacturer stored in a non-volatile memory and can be retrieved with
management SW or viewed in ROM-based F10 setup
Identifies system ROM revision levels and reports in ROM-based F10 setup
Version is stored in an industry standard memory location (SMBIOS) so that management SW
applications can use and report this information
Alerts management console if memory is removed or changed
A user-defined string stored in non-volatile memory that is displayed in the BIOS splash screen
A feature of SATA and SCSI, Cyclic Redundancy Checking provides data transfer verification and
proactive notification of hard drive data transmission problems with recommendations for enhancing
system performance. It detects all the following errors' types:
single bit errors
double bit errors
an odd number of errors
error bursts up to 32-bits long
Drive Protection System (Adaptec and LSI SCSI controllers do not offer DPS)
A diagnostic hard drive self test. It scans critical physical components and every sector of the hard
drive for physical faults and then reports any faults to the user.
Running independently of the operating system, it can be accessed through the computer's setup
procedure. It produces an evaluation on whether the hard drive is the source of the problem and
needs to be replaced.
The system expands on the Self-Monitoring, Analysis, and Reporting Technology (SMART), a continuously
running systems diagnostic that alerts the user to certain types of failures
DPS Access through F10 Setup during Boot (F10 diagnostic access not available with SCSI drives)
SMART Technology
Allows hard drives to monitor their own health and to raise flags if imminent failures were predicted
(Self-Monitoring, Analysis Predicts failures before they occur. Tracks fault prediction and failure indication parameters such as reand Reporting Technology) allocated sector count, spin retry count, calibration retry count
By avoiding actual hard drive failures, SMART hard drives act as "insurance" against unplanned user
downtime and potential data loss from hard drive failure
SMART I – Drive Failure Prediction
SMART II – Off-Line Data Collection
SMART III – Off-Line Read Scanning with Defect Reallocation
Security Features
Access panel key lock
Prevents removal of the access panel and all internal components including optical and floppy drives
(standard)
Smart Cover solenoid lock Prevents removal of the access panel and all internal components including optical and floppy drives.
(optional)
Eliminates the need for a physical key by enabling password-protected locking & unlocking by a local or
remote user.
Padlock (optional)
Prevents entire system theft and discourages access panel removal. 7mm diameter padlock loop at rear
of system.
Kensington Cable Lock
Prevents entire system theft only. 3mm x 7mm slot at rear of system.
(optional)
Universal chassis clamp
The version without a cable discourages access panel removal and prevents theft of IO devices. The
lock (optional)
version with a cable additionally prevents entire system theft and allows multiple systems to be secured
with a single cable.
Intrusion Sensor (optional) Notifies a local or remote user when the chassis access panel has been opened.
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 29
QuickSpecs
HP xw6200 Workstation
Technical Specifications
Serviceability Features of
System
Access panel
Optical drives
Floppy drive
Hard drives
Expansion cards
Chassis fan removal
Green user touch points
Color-coordinated cables
and connectors
Memory
CPUs
Power supply diagnostic
LED
Power Button
Power LED
Hard drive activity LED
Internal speaker
Dual Color Power and HD
LED on Front of Computer
(Indicates Normal
Operations and Fault
Conditions)
System/Emergency ROM
Flash Recovery
with Video
Configuration Record SW
Over-Temp Warning on
Screen (Requires IM
Agents)
OS CD (Restore OS CD)
Restore CD
Flash ROM
3.3V Aux Power LED on
System PCA
Dual Function 5V Aux
Power LED (ON)/PS_ON
LED (OFF) on System PCA
Diagnostic Power Switch
LED on board
Clear Password Jumper
Clear CMOS Button
CMOS Battery Holder for
easy Replacement
Processor ZIF Socket for
easy Upgrade
DIMM Connectors for easy
Upgrade
Tool-less, one-handed
Tool-less
Tool-less
Tool-less
Tool-less
Tool-less
Yes, on tool-free internal chassis mechanisms
Yes
Tool-less, can be upgraded without removing any internal components
Tool-less, can be upgraded without removing any internal components
Yes, dual function: AC OK & power OK
Yes, ACPI multi-function
Yes, dual color LED indicates normal operation and faults.
Yes
Yes, used for pre-boot diagnostic beep codes
green – normal
red – fault
Recovers corrupted system BIOS.
Yes
Yes
Restores computer to its original factory shipping image
Restores the computer to its original factory shipping image
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 30
QuickSpecs
HP xw6200 Workstation
Technical Specifications
NIC LEDs (integrated)
Used to determine NIC status
(Green & Amber)
ASF 1.0 support (Alert
Industry-standard specification for network alerting in operating system-absent environments
Standard Format)
Dual function front power Also acts as a reset switch when held for 4 seconds
switch
Service and Support
On-site Warranty and Service (Note 1): This three-year, limited warranty and service offering delivers
three years of on-site, next business-day (Note 2) service for parts and labor and includes free telephone
support (Note 3) 24 x 7. Global coverage (Note 2) ensures that any product purchased in one country
and transferred to another, non-restricted country will remain fully covered under the original warranty
and service offering.
NOTE 1: Terms and conditions may vary by country. Certain restrictions and exclusions apply.
NOTE 2: On-site service may be provided pursuant to a service contract between HP and an authorized
HP third-party provider, and is not available in certain countries. Global service response times are
based on commercially reasonable best effort and may vary by country.
NOTE 3:
3 Technical telephone support applies only to HP-configured, HP and HP-qualified, third-party
hardware and software. Toll-free calling and 24 x 7 support may not be available in some countries.
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 31
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Audio
AC97 Integrated ADI
1981B Audio
Type
AC ‘97 Stereo Codec
FM Synthesis Support
OPL3 FM Synthesis
Support
Sound Blaster
Compatibility
Audio Jacks
Integrated
Yes
Yes – Yamaha XG Lite
Yes
Yes
Microphone-In (20-K ohm Input Impedance); rear stereo and front analog
microphone ports
Line-In (12-K ohm Input Impedance)
Line-Out * (less than 800 ohms Output Impedance, expects at least a 10-K
ohm load)
Headphone-Out (2.5 Ohms Output Impedance, expects at least a 32 ohm
load)
NOTE: *Internal Speaker Amplifier is for Internal Speaker only. External Speakers need to be powered
externally.
7 kHz – 48 kHz
Sampling
Yes – GM and FM Midi Support, Direct Music and Down Loadable Soundset
Wavetable Syntheses
(software)
(4 Meg DLS Level 1 and 2 Support)
No
3D Positional Sound
Yes
Digital Audio
Yes
Analog Audio
Number of Channels on Stereo (Left & Right channels)
Line-Out
(mono/stereo)
3W
Internal Audio Speaker
Power Rating
Yes
Internal Speaker
Fixed 7 Band ParametricEQ
Hardware Equalizer for
Internal Speaker
Yes
External Speaker Jack
(Line-Out)
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 32
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Communications
Broadcom BCM5751
Connector
NetXtreme Gigabit
Controller
Ethernet Controller (PCI-E)
Memory
Data rates supported
Compliance
Bus architecture
Data path width
Data path speed
Data transfer mode
Hardware certifications
RJ-45
Broadcom 5751 PCI-E 1.0a LAN Controller
Integrated 96Kb frame buffer memory
10/100/1000 Mbps
IEEE 802.3, 802.3AB and 802.3u compliant, 802.3x flow control
PCI-E 1.0a
X1
2.5Gbit per sec per direction transfer rate
Bus-master DMA
FCC class B, NRTL Mark Canada and United States, C-Tick for Australia,
BSMI for Taiwan, VCCI for Japan, MIC for Korea, GOST for Russia
Power requirement
3.1 watts @ +3.3V AUX supply
Boot ROM support
Yes
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T, 1000 Mbps
Environmental
32° to 131° F (0° to 55° C)
Operating temperature
85% at 131° F (55° C)
Operating humidity
Dimensions
4.4 x 2.2 x 0.08 in (11.2 x 5.5 x .2 cm)
Operating system driver Microsoft Windows 2000 and XP, Red Hat Linux 7.2, 7.3 and Red Hat
support
Enterprise Linux 3
Management capabilities WOL, PXE , Remote cable management
Alerting
ASF 2.0
Kit contents
Broadcom 5751, CD, Broadcom NetXtreme Gigabit Ethernet PCI NIC,
drivers, quick install guide, product warranty statement
Intel Pro 1000 MT
Gigabit NIC
Connector
Controller
Memory
Data rates supported
Compliance
Bus architecture
Data path width
Data transfer mode
Hardware certifications
Power requirement
Boot ROM support
DA - 11975
RJ-45
Intel 82540EM Gigabit Controller
Integrated 96Kb frame buffer memory
10/100/1000 Mbps
IEEE 802.1A, 802.1P, 802.1P, 802.1Q, 802.2, 802.3, 802.3AB and
802.3u compliant, 802.3x flow control
PCI 2.2
32-bit, 33/66 MHz bus interface
Bus-master DMA
FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark
for European Union
1.48 watts @ +3.3V AUX supply with 5V tolerance
Yes
Worldwide — Version 22 — June 6, 2005
Page 33
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Communications
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T, 1000 Mbps
Environmental
32° to 131° F (0° to 55° C)
Operating temperature
85% at 131° F (55° C)
Operating humidity
Dimensions
6.4 x 4.8 x 0.8 in (16.3 x 12.1 x 1.9 cm)
Operating system driver Microsoft Windows NT 4.0, Microsoft Windows 98, Microsoft Windows
support
2000, Microsoft Windows XP, Linux 2.2, Linux 2.4
Management capabilities ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, Intel PROset II utility
Kit contents
The Intel Pro 1000 MT NIC, CD containing Intel PROset II NIC drivers, quick
install guide, product warranty statement
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 34
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Controllers
LSI Logic LSI 20320
Ultra320 SCSI single
channel host adapter
Bus architecture
Number of supported
devices
Interface protocol
Host bus transfer rate
SCSI data transfer rate
SCSI Bus
Internal connector
External connector
Total connectors
Plug and Play Support
Dimensions (H x L)
Approvals
Operating system support
Kit contents
Adaptec SCSI RAID
2120S Card
Dimensions (H x D)
RAID level
Data Transfer Rate
Cache Memory
Device Support
Bus Type
Internal Connectors
External Connectors
System Requirements
Operating Temperature
Power Requirements
Operating System
Support
Other
Kit Contents
DA - 11975
PCI-X (backward compatible with PCI)
Up to 15 SCSI devices
64 bit, 133MHz PCI-X
Up to 1MB/s
Up to 320MB/s per channel
Wide Ultra320, Low Voltage Differential, and Ultra Wide Single-Ended
68-pin HD
68 pin
2
No
6.6 x 2.5 in (16.9 x 6.4 cm)
CE, VCCI, Canada, C-Tick, FCC class B, UL 94VO
Microsoft Windows XP Professional
Windows XP Professional x64 Edition
Controller card, driver CD, LED cables, user documentation and warranty
card.
2.5 x 6.6 in (6.4 x 16.8 cm) Low profile card
0, 1, 10, 5, 50, JBOD
Up to 320 MB/s
64 MB (onboard)
Up to 15 SCSI devices
64-bit/66 MHz PCI
(Also support 32-bit/33 MHz PCI)
One 68-pin high-density
One 68-pin VHDCI
Intel PC or equivalent with available PCI slot
32° to 131° F (0° to 55° C)
4 amps @ +5V
Windows 2000 Professional, Windows XP Professional,
Windows XP Professional x64 Edition
Optimized disk utilization
Online RAID Level Migration
Online capacity expansion
Immediate RAID availability (background initialization)
S.M.A.R.T. support
Controller card, driver CD, LED cables, user documentation and warranty
card.
Worldwide — Version 22 — June 6, 2005
Page 35
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Hard Drives
Serial ATA Hard Drives
(7200 rpm)
40 GB
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
80 GB
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 11975
40,020,664,320 bytes
1 in (2.6 cm)
Media diameter: 3.5 in (8.9.x cm)
Physical size: 4 in (10.2 cm)
Serial ATA
150 MB/s
2 MB
Single Track
1.0 ms
Average
8.5 ms
Full-Stroke
18.0 ms
7,200 rpm
78,165,360
32° to 140° F (0° to 60° C)
80,026,361,856 bytes
1 in (2.6 cm)
Media diameter: 3.5 in (8.9.x cm)
Physical size: 4 in (10.2 cm)
Serial ATA
150 MB/s
8 MB
Single Track
1.0 ms
Average
8.5 ms
Full-Stroke
18 ms
7,200 rpm
156,301,488
32° to 140° F (0° to 60° C)
Worldwide — Version 22 — June 6, 2005
Page 36
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Hard Drives
160 GB
250 GB
Capacity
Height
Width
160,041,885,696 bytes
1 in (2.6 cm)
Media diameter: 3.5 in (8.9.x cm)
Physical size: 4 in (10.2 cm)
Serial ATA
150 MB/s
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
8 MB
Single Track
1.0 ms
Average
8.5 ms
Full-Stroke
18 ms
Logical Blocks
Operating Temperature
312,581,808
32° to 140° F (0° to 60° C)
Capacity
Height
Width
250,059,350,016 bytes
1 in (2.6 cm)
Media diameter: 3.5 in (8.9 cm)
Physical size: 4 in (10.2 cm)
Serial ATA
150 MB/s
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 11975
7,200 rpm
8 MB
Single Track
0.8 ms
Average
<9.0 ms
Full-Stroke
<17 ms
7,200 rpm
488,397,168
41° to 131°F (5° to 55°C)
Worldwide — Version 22 — June 6, 2005
Page 37
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Hard Drives
400 GB
SATA Hard Drives
(10,000 rpm)
74 GB
Capacity
Height
Width
400,088,457,216 bytes
1 in (2.6 cm)
Media diameter: 3.5 in (8.9.x cm)
Physical size: 4 in (10.2 cm)
Serial ATA
150 MB/s
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
8 MB
Single Track
0.8 ms
Average
<11.0 ms
Full-Stroke
<15 ms
Rotational Speed
Logical Blocks
Operating Temperature
7,200 rpm
781,422,768
41° to 131°F (5° to 55°C)
Capacity
Height
Width
74,355,769,344 bytes
1.0 in (2.54 mm)
Media diameter: 3.3 in (84mm)
Physical size: 4 in (10.2 cm)
Serial ATA
150 MB/s
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 11975
8 MB
Single Track
0.3 ms
Average
4.5 ms
Full-Stroke
10.2 ms
10,000 rpm
145,226,112
41° to 140° F (5 to 60° C)
Worldwide — Version 22 — June 6, 2005
Page 38
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Hard Drives
Ultra320 SCSI Hard
Drives (10,000 rpm)
73 GB
146 GB
300 GB
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 11975
73,407,865,856 bytes
1.0 in (2.54 cm)
3.5 in (8.9 cm)
68 pin LVD SCSI
320 MB/s
8 Mbytes
Single Track
0.3 msec
Average
<4.5 msec
Full-Stroke
<11.0 msec
10,000 rpm
143,374,738
40° to 130° F (5° to 55° C)
146,815,737,856 bytes
1.0 in (2.54 cm)
3.5 in (8.9 cm)
68 pin LVD SCSI
320 MB/s
8 Mbytes
Single Track
0.3 msec
Average
<4.5 msec
Full-Stroke
<11.0 msec
10,000 rpm
286,749,488
40° to 130° F (5° to 55° C)
300,000,000,000 bytes
1.0 in (2.54 cm)
3.5 in (8.9 cm)
68 pin LVD SCSI
320 MB/s
8 Mbytes
Single Track
0.3 msec
Average
<4.5 msec
Full-Stroke
<11.0 msec
10,000 rpm
585,937,500
40° to 130° F (5° to 55° C)
Worldwide — Version 22 — June 6, 2005
Page 39
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Hard Drives
Ultra320 SCSI Hard
Drives (15,000 rpm)
36 GB
73 GB
146 GB
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 11975
36,420,075,520 bytes
1.0 in (2.54 cm)
3.5 in (8.9 cm)
68 pin LVD SCSI
320 MB/s
8 Mbytes
Single Track
0.3 msec
Average
<4.5 msec
Full-Stroke
<11.0 msec
15,000 rpm
71,132,960
40° to 130°F (5° to 55°C)
73,407,865,856 bytes
1.0 in (2.54 cm)
3.5 in (8.9 cm)
68 pin LVD SCSI
320 MB/s
8 Mbytes
Single Track
0.3 msec
Average
<4.5 msec
Full-Stroke
<11.0 msec
15,000 rpm
143,374,738
40° to 130°F (5° to 55° C)
146,815,737,856 bytes
1.0 in (2.5 cm)
3.5 in (8.9 cm)
68 pin LVD SCSI
320 MB/s
8 Mbytes
Single Track
0.3 msec
Average
<4.5 msec
Full-Stroke
<11.0 msec
15,000 rpm
143,374,738
40° to 130°F (5° to 55°C)
Worldwide — Version 22 — June 6, 2005
Page 40
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Removable Storage
USB Disk on Key
Dimensions (HxWxD)
Weight
USB Specification
Transfer Rate
Storage Media
Power Supply
Capacity
DA - 11975
0.9 x 0.7 x 3.9 in (2.3 x 1.8 x 9.8 cm)
0.05 lb (0.02 kg)
2.0
Read-1023 KB/Sec; Write-850 KB/Sec
Solid state flash memory, no moving parts
USB Bus-powered, no external power required
256 MB
Worldwide — Version 22 — June 6, 2005
Page 41
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Input/Output Devices
PS/2 OR USB '04
Standard Keyboard
Physical
characteristics
104, 105, 106, 107, 109 layout (depending
upon country)
Dimensions (L x W x H)
18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)
Weight
2 lb (0.9 kg) minimum
Electrical
Operating voltage
+ 5VDC ± 5%
Power consumption
50-mA maximum (with three LEDs ON)
ESD
CE level 4, 15-kV air discharge
EMI - RFI
Conforms to FCC rules for a Class B computing
device
MicrosoftPC
Functionally compliant
MicrosoftPC 99 - 2001
Mechanical
Languages
38 available
Keycaps
Low-profile design
Switch actuation
55-g nominal peak force with tactile feedback
Switch life
20 million keystrokes (using Hasco modified
tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Microsoft PC 99 - 2001 Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
Environmental
50° to 122° F (10° to 50° C)
Operating temperature
Non-operating
-22° to 140° F (-30° to 60° C)
temperature
10% to 90% (non-condensing at ambient)
Operating humidity
Non-operating humidity 20% to 80% (non-condensing at ambient)
40 g, six surfaces
Operating shock
80 g, six surfaces
Non-operating shock
2-g peak acceleration
Operating vibration
Non-operating vibration 4-g peak acceleration
26 in (66 cm) on carpet, six-drop sequence
Drop (out of box)
42 in (107 cm) on concrete, 16-drop sequence
Drop (in box)
Operating system support Windows 2000, XP Professional, and XP Professional x64 Edition
Red Hat Linux 7.2, 7.3 and WS3 Versions
Approvals
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC
Ergonomic compliance
ANSI HFS 100, ISO 9241-4, and TUVGS
Kit contents
Keyboard, keyboard software media, installation guide, warranty card, safety
and comfort
DA - 11975
Keys
Worldwide — Version 22 — June 6, 2005
Page 42
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Input/Output Devices
USB Modular Keyboard
Physical
characteristics
104, 105, 106, 107, 109 layout (depending
upon country)
Dimensions (L x W x H)
18.59 x 6.73 x 0.90 in (472 x 170 x 23 mm)
with numeric pad attached
Weight
2 lb (0.9 kg) minimum
Electrical
Operating voltage
+ 5VDC ±5%
Power consumption
50-mA maximum (with three LEDs ON)
System interface
USB Type A plug connector
ESD
CE level 4, 15-kV air discharge
EMI - RFI
Conforms to FCC rules for a Class B computing
device
MicrosoftPC
Functionally compliant
MicrosoftPC 99 - 2001
Mechanical
Languages
38 available
Keycaps
Low-profile design
Switch actuation
55-g nominal peak force with tactile feedback
Switch life
20 million keystrokes (using Hasco modified
tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Microsoft PC 99 - 2001 Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
Environmental
50° to 122°F (10° to 50°C)
Operating temperature
Non-operating
-22° to 140°F (-30° to 60°C)
temperature
10% to 90% (non-condensing at ambient)
Operating humidity
Non-operating humidity 20% to 80% (non-condensing at ambient)
40 g, six surfaces
Operating shock
80 g, six surfaces
Non-operating shock
2-g peak acceleration
Operating vibration
Non-operating vibration 4-g peak acceleration
26 in (66 cm) on carpet, six-drop sequence
Drop (out of box)
442 in (107 cm) on concrete, 16-drop sequence
Drop (in box)
Operating system support Windows 2000 and Windows XP
Approvals
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC, USB-IF
Ergonomic compliance
ANSI HFS 100, ISO 9241-4, and TUVGS
Kit contents
Keyboard, numerical keypad, USB cable, I/O Security Software &
Documentation CD including Modular Access Keyboard software &
installation guide, warranty card, safety and comfort guide
DA - 11975
Keys
Worldwide — Version 22 — June 6, 2005
Page 43
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Input/Output Devices
2-Button Scroll Mouse
(PS/2)
Scroll Wheel
Maximum Rotation Speed
Switch Type
Switch Life
Mechanical Life
Environmental
Mechanical
Regulatory Approvals
HP Optical Scroll Mouse Dimensions (H x L x W)
(USB)
Weight
Cable length
System requirements
DA - 11975
8 mm
30 mm/s
Light force micro-switch
1 million operations
Minimum 200,000 revolutions
Operating Temperature 50° to 122° F (10° to 50° C)
-22° to 140° F (-30° to 60° C)
Non-operating
Temperature
10% to 90% (non condensing at ambient)
Operating Humidity
Non-operating Humidity 20% to 80% (non condensing at ambient)
40 g, 6 surfaces
Operating Shock
80 g, 6 surfaces
Non-operating Shock
2 g peak acceleration
Operating Vibration
Non-operating Vibration 4 g peak acceleration
400 ± 20% DPI
Resolution
10 in/s maximum
Tracking Speed
100 in/s
Acceleration
85 g nominal peak force
Switch Actuation
1,000,000 operations (using Hasco modified
Switch Life
tester)
2m
Cable Length
Mechanically compliant
PC98-99
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BCIQ, C-Tick
1.5 x 4.5 x 2.5 in (3.8 x 11.6 x 6.3 cm)
0.27 lb (0.12 kg)
72.8 in (185 cm)
Microsoft Windows 95, 98, 2000, Me, and XP
Worldwide — Version 22 — June 6, 2005
Page 44
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Input/Output Devices
HP 3-Button Mouse (PS/2) Dimensions/Weight
Environmental
Mechanical
Height
Length
Width
Weight
Operating temperature
Non-operating
temperature
Operating humidity
Resolution
Tracking speed
Switch life
Switch type
Tracking mechanism life
Cable length
PC98-99
Spaceball 5000 (USB)
Physical characteristics
Environmental
Dimensions (H x W x D)
Ball Diameter
Weight
Features
1.42 in (3.6 cm)
4.17 in (10.7 cm)
2.87 in (7.4 cm)
5.20 oz (150 g)
32° to 104° F (0° to 40° C)
-4° to 140° F (-20° to 60° C)
10% to 90% (non condensing at ambient)
400 20% DPI
10 in/s Maximum
1,000,000 operations (using Hasco modified
tester)
Micro-switches
155 miles (250 km) at average speed of 10 in/s
6 ft (1.8 m)
Mechanically compliant
3.0 x 6.0 x 8.4 in (7.6 x 15.2 x 21.3 cm)
2.2 in (5.6 cm)
2.1 lb (9.94 kg)
Six degrees of freedom motion control through
the X, Y, Z axis (pitch, roll, yaw)
Certified for leading CAD and DCC applications
50° to 104° F (10° to 40° C)
43° to 140° F (6° to 60° C)
Operating temperature
Non-operating
temperature
8% to 80% (non-condensing at ambient)
Operating humidity
Non-operating humidity 5% to 80% (non-condensing at ambient)
Mechanical
12 programmable (unshifted)
Buttons
0.5 - 8.2N/1.8 - 29.5 oz
Ball Force Range
0.085 – 0.33 oz-in. (6.91 Nmm)
Ball Torque Range
10 bits
Resolution
Serial Specifications
USB 1.1 or greater
Connector
12.8 ft. (3.9 m)
Cable Length
USB model – 16 msec
Data Rate
Xon/Xoff (on PS/2 model only)
Flow Control
Software Drivers Available USB model
Microsoft Windows XP
System Requirements
10 MB free disk space
Disk Space
UL, cUL, EN 950, EN 60950, CSA, FCC, CE Mark, TUV, CISPR 22, EN
Regulatory Approvals
50082, IEC 1000 4-2, IEC 1000-4-3, AS/NZS, VCCI, BSMI, C-Tick
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 45
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Input/Output Devices
HP SpaceMouse Plus USB Physical characteristics
Environmental
Dimensions (H x W x D)
Cap Diameter
Weight
Features
7.4 x 4.72 x 1.73 in (18.8 x 12.0 x 4.4 cm)
2 x 6.5 x 6.6 mm
1.5 lb (0.68 kg)
Six degrees of freedom motion control through
the X, Y, Z axis (pitch, roll, yaw)
Certified for leading CAD and DCC applications
41° to 140° F (5° to 60° C)
-13° to 158° F (-25° to 70° C)
Operating temperature
Non-operating
temperature
10 to 98 % RH (non-condensing)
Operating humidity
Non-operating humidity 10 to 98 % RH (non-condensing)
Mechanical
11 programmable (unshifted)
Buttons
0.2 N – 4.5 N
Cap Force Range
4 Nmm to 100 Nmm
Cap Torque Range
8 bit
Resolution
USB Specifications
USB 1.1 or greater
Connector
2m
Cable Length
16 msec
Data Rate
Software Drivers Available Microsoft Windows XP
System Requirements
10 MB free disk space
Disk Space
UL, cUL, EN 950, EN 60950, CSA, FCC, CE Mark, TUV, CISPR 22, EN
Regulatory Approvals
50082, IEC 1000 4-2, IEC 1000-4-3, AS/NZS, VCCI, BSMI, C-Tick
1394 Firewire FH/LP
Card (PCI)
Device Interface Protocol
Data Rate
Devices Supported
Connectors
Bus Interface
Physical
Environmental
Minimum System
Requirements
Regulatory Agency
Approval
DA - 11975
IEEE-1394a
100Mbits/s, 200Mbit/s and 400Mbits/s
IEEE-1394 compliant devices
Two IEEE1394 6-Pin Connector (Bracket Side)
One 10-Pin (9 Contacts) Custom Connector (Internal)
PCI
Low profile PCI card with a full height bracket
32° to 104° F (0° to 50° C)
Operating temperature
-13° to 158° F (-25° to 70° C)
Non-operating
temperature
5% to 95%
Relative humidity
3 cable ports
Ports
Microsoft XP Professional or Red Hat Linux 7.3/9.0 (Class Driver)
Pentium II 266 or faster
64-MB RAM
Available PCI slot
CD-ROM drive
FCC Part 15B, cULus 60950, CE Mark EN55022B(1995)/EN55024-1998
STD, Taiwan BSMI CNS13438, Korea MIC
Worldwide — Version 22 — June 6, 2005
Page 46
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Optical Devices
48X CD-ROM Drive
Capacity
Dimensions (HxWxD)
Weight
Interface
Mounting Orientation
Data Transfer Rates Read
Media and Formats Read
Data Transfer Modes
Access Times (typical)
Start-up Time (typical)
Stop Time (typical)
Read Buffer size
Audio Output
Configuration Jumper
Block
Operating Conditions
Approvals/
Environmental
Operating Systems
Supported
Supplied Software
16X/40X DVD-ROM Drive Height
with +R Read Support
Interface Type
Dimensions (W x H x D)
Disc Formats
DA - 11975
700 MB CD disc
1.63 x 5.83 x 7.27 in (4.13 x 14.6 x 18.5 cm)
1.76 lb (0.8 kg)
ATAPI/EIDE
Horizontal or vertical
Digital audio extraction (minimum) – 1,200 KB/s (8X)
CD read – up to 7,200 KB/s (48X)
Formats: CD-DA, CD-ROM (Mode 1 and 2), CD-XA Ready, Photo CD
Formats
(Single and Multi-session), Mixed Mode (Audio and Data combined), CD-I
(FMV), CD Plus, CD-Extra;
Media:
Media stamped, CD-R, CD-RW
PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA
Mode 0 (16.7 MB/s); UltraDMA Mode 2 (33.3 MB/s)
< 75 ms @ 48x
Random
< 150 ms
Full-Stroke
< 7 s (single session)
< 30 s (multisession)
<4s
128 KB (minimum)
0.7 VRMS
Line-Out
80 dB
Signal-to-Noise Ratio
65 dB
Channel Separation
Master, slave, and cable select modes
Temperature
41° to 122° F (5° to 50° C)
10% to 80%
Humidity
UL 1950 (US and Canada), CSA, SEMKO, TUV; CE, FDA, FCC, IC, C-TICK
Windows 2000, XP Professional, and XP Professional x64 Edition
Red Hat Linux 7.2, 7.3 and WS3 Versions
None
5.25-in, half-height, tray load
ATAPI/EIDE
5.88 x 1.71 x 7.87 [max] in (149.5 x 43.25 x 200.0 [max] mm) (external,
excluding bezel)
DVD-ROM (single and dual layer); DVD-video; DVD-R version 1.0 and 2.0;
DVD-RW version 1.0 and 1.1; DVD-R multi-border; DVD+RW; DVD+R ;
CD-ROM Mode 1 and 2; CD-DA; CD-ROM XA Mode 2, Form 1 and 2;
CD-extra; CD-text; CD-I Mode 2, Form 1 and 2; CD-I ready; video CD,
CD-bridge; PhotoCD (single and multi-session); CD-R; CD-RW
Worldwide — Version 22 — June 6, 2005
Page 47
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Optical Devices
Disc Capacity
DVD-ROM
CD-ROM
Access Times
(typical reads, including
settling)
DVD-ROM Single Layer
CD-ROM Mode 1
Full Stroke DVD
Full Stroke CD
Startup Time
4.7 GB (DVD-5), 8.54 GB (DVD-9), 9.4 GB
(DVD-10), 3.95 GB (DVD-R version 1.0), 4.7 GB
(DVD-R version 2.0), 4.7 GB (DVD-RW version
1.0 and 1.1), 4.7 GB (DVD+RW), 4.7G
(DVD+R)
540 MB (Mode 1, 12 cm), 640 MB (Mode 2, 12
cm), 700 MB (80 minimum CD-R and CD-RW),
180 MB (8 cm)
120 ms
90 ms
240 ms (seek)
160 ms (seek)
< 10 seconds (typical)
Stop Time
Data Transfer Modes
Maximum Data Transfer
Rates
Power
Audio Output
Configuration Jumper
Block
Data Interface Connector
Operating Environmental
(all conditions noncondensing)
< 4 seconds
PIO Mode 4 (16.6 MB/s); Multi-word DMA
mode 2 (16.6 MB/s); UltraDMA Mode 3 (44.4
MB/s)
CD-ROM Read
6000 KB/s (40X) Max
DVD-ROM Read
21,600 KB/s (16X) Max
Digital Audio Extraction 6000 KB/s (40X) Max
Source
Four-pin, DC power receptacle
DC Power Requirement
5 VDC ± 5% – 100 mV ripple p-p
12 VDC ± 5% – 200 mV ripple p-p
DC Current
5 VDC – <800 mA typical,
< 1000 mA maximum
12 VDC – < 870 mA typical,
<1800 mA maximum
Line-Out
0.7 VRMS
Signal-to-Noise Ratio
85 dB
Channel Separation
65 dB
Master, slave, and cable select modes
40-pin, shrouded and keyed, flat ribbon
Temperature (operating) 41° to 122° F (5° to 50° C)
10% to 85%
Relative Humidity
(operating)
86° F (30° C)
Maximum Wet Bulb
Temperature (operating)
Certifications, Approvals MMC II support, multi-read certification, Microsoft WHQL certification, ACA
AS/NZS 3548 class B, CNS 13438, C.I.S.P.R. Pub 22, TUV or VDE
EN60950, EN 55022, EN55024, EMKO EN60950, EN 60825-1, UL
60950, CSA C22.2 60950-2000, CFR 21 part 1040 class 1, CFR 47
C.I.S.P.R. Pub 22 Class B, DHHS/FDA, ANSI C63.4-1992
Operating Systems
Windows 2000, XP Professional, and XP Professional x64 Edition
Supported
Red Hat Linux 7.2, 7.3 and WS3 Versions
Kit Contents
16X/40X DVD-ROM Drive, InterVideo WinDVD MPEG Movie Playback
software, audio cable, and installation guide.
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 48
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Optical Devices
HP 48X CD-RW
Height
Mounting Orientation
Interface
Dimensions (HxWxD)
Weight (max)
Read Only Disc
Parameters
Writeable Disc
Parameters
Access Times
(typical reads, including
settling)
DA - 11975
5.25-inch, half-height, tray-load
Horizontal or vertical
ATAPI/EIDE
1.63 x 5.75 x 7.27 [max] in (4.13 x 14.6 x 18.5 [max] cm) (external,
excluding bezel)
2.0 lb (0.9 kg)
Digital audio extraction (minimum) – 1,800 KB/s
Data Transfer Rates –
Read
(12X)
CD read – up to 7,200 KB/s (48X)
Media and Formats –
Formats: CD-DA, CD-ROM (Mode 1 and 2),
Read
CD-ROM XA (Mode 2, Form 1 and 2), Mixed
Mode, CD-Plus, CD-Extra, CD-I FMV, Video CD,
CD-Text, Photo CD (single and multisession)
Media: stamped, CD-R, CD-RW
CD-R write – 2100 KB/s (14X) to 7200 KB/s
Data Transfer Rates –
Write
(40X)
CD-RW write – 600 KB/s (4X)
CD-RW write (high speed) – 1500 KB/s (10X) to
1800 KB/s (12X)
CD-RW write (ultra high speed) – 2400 KB/s
(16X) to 4800 KB/s (32X)
Media and Formats –
Formats: CD-DA, CD-ROM (Mode 1 and 2),
Write
CD-ROM XA (Mode 2, Form 1 and 2), Mixed
Mode, CD-Plus, CD-Extra, CD-I FMV, Video CD,
CD-Text
Media: CD-R, CD-RW (including ultra-speed)
Disc-at-once, session-at-once,, track-at-once,
Write Methods
incremental fixed and variable packet,
multisession
125 ms
CD-ROM Mode 1
210 ms (seek)
Full Stroke CD
<7 s (single session), <30 s (multisession)
Start-up Time (typical)
<4 s
Stop Time (typical)
2 MB
Write Buffer Size
PIO Mode 4 (16.6 MB/s); Multi-word DMA
Data Transfer Modes
mode 2 (16.6 MB/s); UltraDMA Mode 2 (33.3
MB/s)
Worldwide — Version 22 — June 6, 2005
Page 49
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Optical Devices
Power
Source
DC Power Requirement
DC Current
Audio Output
Configuration Jumper
Block
Operating Conditions
Approvals/
Environmental
Operating Systems
Supported
Supplied software
48X Combo CDRW/DVD-ROM
Height
Mounting Orientation
Interface Type
Dimensions (W x H x D)
Weight (max)
DA - 11975
Total Drive Power
(standby mode)
Line-Out
Signal-to-Noise Ratio
Channel Separation
Four-pin, DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
5 VDC (< 1000 mA typical, < 1600 mA
maximum)
12 VDC (< 600 mA typical, < 1400 mA
maximum)
< 2.5 Watt
0.7 VRMS
74 dB
65 dB
Master, slave, and cable select modes
Temperature
Humidity
41° to 122° F (5° to 50° C)
10% to 90%10% to 90%
MPC-3 compliant, multi-read requirements, ATA Spec X3T9.2, ATAPI Spec
SFF-8020, ANSI C63.4-1992, UL 1950, ACA AS/NZS 3548, CB Bulletin
No. 96A, CSA C22.2 No. 950-1995, CFR 47 C.I.S.P.R. Pub 22 Class B,
DHHS/FDA, EMKO-TSE 07/94, TUV EN60950, EN60825-1, MIC, BSMICNS 13438, CE, Microsoft PC2001 certification, Microsoft Logo for
Windows XP and 2000.
Windows 2000, XP Professional, and XP Professional x64 Edition
Red Hat Linux 7.2, 7.3 and WS3 Versions
Roxio Easy CD & DVD Creator: Create or copy CDs and DVDs, including
music and data CDs, and data DVDs
Dantz Retrospect Express: Back up systems to CD, DVD, or tape media.
5.25-inch, half-height, tray-load
Either horizontal or vertical
ATAPI/EIDE
5.77 x 1.71 x 7.87 [max] in (14.66 x 4.34 x 20.0 [max] cm) (external,
excluding bezel)
2.6 lb (1.2 kg)
Worldwide — Version 22 — June 6, 2005
Page 50
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Optical Devices
Read Only Disc
Parameters
Formats and Modes
Supported
CD-ROM-Mode 1; CD-ROM XA-Mode 2 (forms
1 and 2); CD-Bridge; CD digital audio; CD
Extra; CD-I-Mode 2 (forms 1 and 2) and CD-IReady; Photo CD (single and multi-session);
video CD; DVD (single- and double-layer); DVDR; DVD-RW; DVD-RW Multi-Border; DVD+R;
DVD+R Multisession , and DVD+RW
Capacity
180 MB (mode 2, 8 cm); 540 MB (mode 1, 12
cm); 650 MB (mode 2, 12 cm); 700 MB (Mode
2, 12 cm); 4.7 GB (DVD-5); 8.54 GB (DVD-9);
9.4 GB (DVD-10)
CD-ROM, CD-R, CD-RW 7200 KB/s (48X) Max
read
21,632 KB/s (16X ) Max
DVD ROM read
Writeable Disc
Parameters
Disc Type
Write Methods
Format and Modes
Supported
Capacity
Access Times
(typical reads, including
settling)
DA - 11975
CD-R write
CD-RW write
Random DVD
Random CD
Full Stroke DVD
Full Stroke CD
Startup Time (single)
Startup Time (multisession)
Stop Time
Cache Buffer
Data Transfer Modes
CD-R and CD-RW
Disc at Once, Track at Once, Session at Once,
Variable Packet, Fixed Packet
CD-ROM (mode 1); CD-ROM XA (mode 2,
forms 1 and 2); CD digital audio, CD-I (mode 2,
forms 1 and 2); video CD; CD-Bridge; Video CD
180 MB (mode 2, 8 cm); 540 MB (mode 1, 12
cm); 650 MB (mode 2, 12 cm); 700 MB (mode
2, 12 cm)
7200 KB/s (48X) Max
4800 KB/s (32X) Max
< 140 ms (typical)
< 125 ms, (typical)
< 250 ms (seek)
< 210 ms (seek)
< 7 seconds (typical)
< 30 seconds (typical)
< 4 seconds
2 MB (minimum)
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
DMA mode 2 (16.7 MB/s); ATA UltraDMA Mode
3 44 Mbytes/s (default)
Worldwide — Version 22 — June 6, 2005
Page 51
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Optical Devices
Power
Source
DC Power Requirement
DC Current
Audio Output
Four-pin, DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
5 VDC (< 1000 mA typical, < 1600 mA
maximum)
12 VDC (< 600 mA typical, < 1400 mA
maximum)
< 2.5 Watt
Total Drive Power
(standby mode)
0.7 VRMS
Line-Out
74 dB
Signal-to-Noise Ratio
65 dB
Channel Separation
Master, slave, and cable select modes
Configuration Jumper
Block
Data Interface Connector 40-pin, shrouded and keyed, flat ribbon
41° to 122° F (5° to 50° C)
Operating Environmental Temperature
(all conditions nonRelative humidity
10% to 90%
condensing)
Maximum wet bulb
86° F (30° C)
temperature
MPC-3 compliant, multi-read requirements, ATA Spec X3T9.2, ATAPI Spec
Certifications,
Requirements
SFF-8020, ANSI C63.4-1992, UL 1950, ACA AS/NZS 3548, CB Bulletin
No. 96A, CSA C22.2 No. 950-1995, CFR 47 C.I.S.P.R. Pub 22 Class B,
DHHS/FDA, EMKO-TSE 07/94, TUV EN60950, EN60825-1, MIC, BSMICNS 13438, CE, Microsoft PC2001 certification, Microsoft Logo for
Windows XP and 2000.
Windows 2000, XP Professional, and XP Professional x64 Edition
Operating Systems
Supported
Red Hat Linux 7.2, 7.3 and WS3 Versions
48X Combo CD-RW/DVD-ROM Drive, Roxio Easy CD & DVD Creator,
Option Kit Contents
InterVideo WinDVD MPEG Movie Playback software, Dantz Retrospect
Express Backup software, audio cable, and installation guide.
16X DVD+/-RW, DualLayer (Win and RHWS3)
Height
Orientation
Interface Type
Disc Recording Capacity
Dimensions (W x H x D)
Weight (maximum)
Recording Method
Write Support
Read Support
DA - 11975
5.25-inch, half-height, tray-load
Either horizontal or vertical
ATAPI/EIDE
4.7 GB (single-layer), 8.5 GB (double-layer)
5.9 x 1.7 x 7.9 in (15.0 x 4.4 x 20.0 cm)
2.6 lb (1.2 kg)
Disc-at-once, Track-at-once, and Session-at-once; Variable Packet and Fixed
Packet
DVD+R (1.3), DVD+R DL (1.0), DVD+RW (1.2), DVD-R (2.0), DVD-RW
(1.1), CD-R (OBII Vol2.0 Rev 1.2), CD-RW (LS, HS, US)
DVD-ROM (single- and dual-layer), DVD-Video, DVD+R (include
multisession), DVD+RW, DVD-R (incl. multiborder), DVD-RW, DVD-MRW;
CD-ROM Mode 1, CD-ROM XA (Mode 2, forms 1 and 2), CD-TEXT, Photo
CD single- and multi-session), CD-DA (Audio CD), CD-Extra, CD-R, CD-RW
(supports AM2), VCD, CD-I, UDF (1.02 and 1.50), CD-MRW
Worldwide — Version 22 — June 6, 2005
Page 52
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Optical Devices
Write Speed (maximum)
DVD+R
DVD+RW
DVD-R
DVD-RW
Read Speed (maximum)
Access Time (typical
reads, including settling)
Power
CD-R
CD-RW (US)
DVD-ROM
DVD+R, DVD+RW,
DVD-R, DVD-RW
CD-ROM, CD-R,
CD-RW, CD-Audio
Random DVD
Random CD
Full Stroke DVD
Full Stroke CD
Startup Time (single)
Startup Time (multisession)
Stop Timex
Cache Buffer
Data Transfer Modes
Source
DC Power Requirement
DC Current
16X CAV (21,600 KB/s), 8x ZCLV (10,800
KB/s), 2.4-8x CLV (3250-10,800 KB/s)
2.4-4X CLV (3250-5400 KB/s)
2-4X CLV (2700-5400 KB/s), 8X ZCLV (10,800
KB/s)
2-4X CLV (2700-5400 KB/s)
16-40X CAV (2400-6000 KB/s)
4-24X CLV (600-3600 KB/s)
5-16X CAV (6750 - 21,600 KB/s)
4-8X CAV (5400 - 10,800 KB/s)
16-40X CAV (2400 to 6000 KB/s)
< 130 ms (typical)
< 120 ms, (typical)
< 240 ms (seek)
< 200 ms (seek)
< 7 seconds (typical)
< 30 seconds (typical)
< 4 seconds
2 MB (minimum)
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
DMA mode 2 (16.7 MB/s); ATA UltraDMA Mode
3 (44.4 MB/s) (default on most HP xw
workstations)
Four-pin, DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 10%-200 mV ripple p-p
5 VDC (< 2000 mA typical, < 2500 mA
maximum)
12 VDC (< 700 mA typical, < 2000 mA
maximum)
< 2.5 Watt
Total Drive Power
(standby mode)
Audio Output
0.7 VRMS
Line-Out
74 dB
Signal-to-Noise Ratio
65 dB
Channel Separation
Operating Environmental Temperature
41° to 122° F (5° to 50° C)
(all conditions non10% to 90%
Relative humidity
condensing)
86° F (30° C)
Maximum wet bulb
temperature
System Configuration
Intel Pentium IV Processor or later with 128 MB of memory (required); 256
MB recommended 2-D or 3-D graphics cards on primary disk drive for
operating system and application software; second disk drive for audio and
video data
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 53
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Optical Devices
Operating Systems
Support
Regulatory Approvals
Option Kit contents
16X DVD+/-RW
LightScribe drive
Height
Orientation
Interface Type
Disc Recording Capacity
Dimensions (W x H x D)
Weight (maximum)
Write Speed (maximum)
Read Speed (maximum)
DA - 11975
Windows 2000, XP Professional, and XP Professional x64 Edition
Red Hat Linux 7.2, 7.3 and WS3 Versions (Red Hat Linux 7.2, 7.3, 8, 9.0
may require additional third party software to make full use of this device)
MPC-3 and MMC-4 compliant, multi-read certified, ATA Spec X3T9.2,
ATAPI Spec T13.1153D, ANSI C63.4-1992, UL 60950, ACA AS/NZS
3548, CB Bulletin No. 96A, CSA C22.2 No. 60950, CFR 47 C.I.S.P.R. Pub
22 Class B, DHHS/FDA, EMKO-TSE 07/94, TUV EN60950, EN60825-1,
MIC Class B, BSMI-CNS 13438, CE EN60950, EN55022:1998 and
EN55024, Microsoft Logo for Windows XP, relevant parts of IEC 61000-4.
16X DVD±R/±RW Drive, InterVideo WinDVD, InterVideo WinDVD Creator,
Roxio Easy Media Creator, Dantz Retrospect Express Backup Software,
installation guide, and DVD+R media.
NOTE: This DVD writer kit does not include any software for burning DVDs
on Linux. DVD burning is supported with the 'growisofs' command. CD
burning is supported with the 'cdrecord' command. Red Hat Enterprise Linux
WS 3 distribution includes both 'cdrecord' and 'growisofs'. Red Hat Linux 7.2,
7.3, 8, 9.0 distributions only include 'cdrecord'. Therefore DVD burning is
only supported on WS 3.
5.25-inch, half-height, tray-load
Either horizontal or vertical
ATAPI/EIDE
8.5 GB DL or 4.7 GB standard
5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
2.6 lb (1.2 kg)
Up to16X
DVD+R
Up to 4X
DVD+RW
Up to 2.4X
DVD+R DL
Up to 8X
DVD-R
Up to 4X
DVD-RW
Up to 40X
CD-R
Up to 24X
CD-RW
Up to 8X
DVD+R/-R/+RW/
-RW/+R DL
Up to 16X
DVD-ROM
Up to 40X
CD-ROM, CD-R
Up to 32X
CD-RW
Worldwide — Version 22 — June 6, 2005
Page 54
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Optical Devices
Access Time (typical
reads, including settling)
Random
Full Stroke
Startup Time
Stop Time
Cache Buffer
Data Transfer Modes
Power
Source
DC Power Requirement
DC Current
DVD: < 130 ms (typical), CD: < 120 ms
(typical)
DVD: < 240 ms (seek), CD: < 200 ms (seek)
Single-session: < 15 seconds (typical), Multisession: < 30 seconds (typical)
< 4 seconds
2 MB (minimum)
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
DMA mode 2 (16.7 MB/s); ATA UltraDMA Mode
3 (44.4 MB/s -default)
Four-pin, DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 10%-200 mV ripple p-p
5 VDC (< 2000 mA typical, < 2500 mA
maximum)
12 VDC (< 700 mA typical, < 2000 mA
maximum)
< 2.5 Watt
Total Drive Power
(standby mode)
Audio Output
0.7 VRMS
Line-Out
74 dB
Signal-to-Noise Ratio
65 dB
Channel Separation
Operating Environmental Temperature
41° to 122° F (5° to 50° C)
(all conditions non10% to 90%
Relative humidity
condensing)
86° F (30° C)
Maximum wet bulb
temperature
System Configuration
Intel Pentium III Processor or later with 128 MB of memory (required); 256
MB recommended 2-D or 3-D graphics cards on primary disk drive for
operating system and application software; second disk drive for audio and
video data
Operating Systems
Microsoft Windows 2000, Windows XP Professional, Windows XP Home
Support
MPC-3 compliant, multi-read requirements, ATA Spec X3T9.2, ATAPI Spec
Regulatory Approvals
T13.1153D, ANSI C63.4-1992, UL 1950, ACA AS/NZS 3548, CB Bulletin
No. 96A, CSA C22.2 No. 950-1995, CFR 47 C.I.S.P.R. Pub 22 Class B,
DHHS/FDA, EMKO-TSE 07/94, TUV EN60950, EN60825-1, MIC, BSMICNS 13438, CE, Microsoft PC2001 certification, Microsoft Logo for
Windows XP and 2000.
16X DVD+/-RW LightScribe drive, LightScribe software, InterVideo WinDVD,
Option Kit contents
InterVideo WinDVD Creator, Roxio Easy Media Creator 7, Dantz Retrospect
Express Backup Software, installation guide, and DVD+R media.
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 55
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Graphics
NVIDIA Quadro NVS 280 Form Factor
(PCI)
Graphic Controller
VGA controller
Bus type
RAMDAC
Memory
Connector
Dimensions
Controller clock speed
Color planes
Overlay planes
Maximum vertical refresh
rate
Maximum pixel clock
Multi-monitor support
Single DVI Support
Dual DVI Support
High-definition Video
Processor (HDVP)
ATX
Integrated Quadro 280 2-D graphics processor unit (GPU)
Integrated into the Quadro GPU
PCI
Dual 350 MHz
64 MB DDR with frame buffer and Texture storage
Single High-density Flex Connector
Low-profile, 2.586 x 6.6 in (6.57 x 16.76 cm)
275 MHz
32-bit color buffer
1 16-bit Video overlay plane
120 Hz
350 MHz
Dual analog or digital monitors
Yes
Yes
Full-screen, full-frame video playback of HDTV and DVD content
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video overlay
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
IDCT motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
Available graphics drivers Microsoft Windows 2000 and Microsoft Windows XP (Provides full native
Dual View mode, Span or Big Desktop mode, and Clone mode)
Red Hat Linux
HP qualified drivers may be preloaded or available from the HP support web
site: http://welcome.hp.com/country/us/eng/software_drivers.html.
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 56
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Graphics
NVIDIA Quadro NVS 280 Form Factor
Graphics Card (PCIGraphics Controller
Express)
VGA controller
Bus Type
RAMDAC
Memory
ATX
Integrated Quadro 280 2-D graphics processor unit (GPU)
Integrated into the Quadro GPU
PCI-Express x16 or PCI
Dual 350 MHz integrated
64 MB 000 MHz DDR SDRAM unified frame buffer, Z-buffer and Texture
storage
Connectors
Single High-density Flex Connector
Multi-monitor support
Dual integrated analog display controllers supporting up to two analog
displays at 1920 x1200 @ 85Hz or two digital displays at 1600x1200 @
60Hz
Additional product
250 MHz
Controller clock speed
features
32-bit color buffer
Color planes
1 16-bit Video overlay plane
Overlay planes
Maximum vertical refresh 120 Hz
rate
350 MHz
Maximum pixel clock
Yes
Single DVI Support
Yes
Dual DVI Support
Full-screen, full-frame video playback of HDTV
High-definition Video
Processor (HDVP)
and DVD content
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video
overlay
Hardware color-space conversion (YUV 4:2:2
and 4:2:0)
IDCT motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
PCI-Express
Supports X16 PCI-E
Available graphics drivers Microsoft Windows® XP or Windows 2000 (Provides full native Dual View
mode, Span or Big Desktop mode, and Clone mode)
HP qualified drivers may be preloaded or available from the HP support
Web site: http://welcome.hp.com/country/us/eng/software_drivers.html.
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 57
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Graphics
NVIDIA Quadro4 NVS
400 Graphics Card
Form Factor
Graphics Controller
Bus Type
RAMDAC
Memory
ATX
Integrated Quadro4 2D/3D 128-bit graphics processor unit (GPU)
PCI
Dual 350 MHz
64 MB 220 MHz, 4mx 32 DDR per GPU, 32-MB per GPU unified frame
buffer
Connectors
Dual LFH-60
Dimensions
Low-profile form factor
Multi-monitor support
1 to 4 displays with nView – with two cards (1 PCI per card), up to 8
monitors can be driven
nView Hardware
32-bit color
Architecture
2048x1536 @ 75Hz maximum resolution
Dual 350 MHz RAMDACs
Integrated TMDS
Digital Vibrance Control (DVC)
High-performance 2D rendering engine
Optimized for 32-, 24-, 16-, 15- and 8-bpp modes
High-definition video
Full-screen, full-frame video playback of HDTV and DVD content
processor (HDVP)
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video overlay
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
IDCT Motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
Supported graphics APIs Fully compliant with OpenGL 1.3 and DirectX 8.1
Available graphics drivers Microsoft Windows XP and Microsoft Windows 2000, Linux
See: http://www.hp.com/support/workstation_drivers/
NVIDIA Quadro FX 330
Graphics Card
Form Factor
Graphics Controller
Bus Type
Memory
Connectors
Multi-monitor support
RAMDAC
DA - 11975
ATX
NVIDIA Nv37GL
PCI-Express x16
64 MB 000 MHz DDR SDRAM unified frame buffer, Z-buffer and Texture
storage
DMS-59 output supporting up to two analog or digital (with optional cable)
displays
Dual integrated analog display controllers supporting up to two analog
displays at 2048 x1536 @ 60Hz or two digital displays at 1600x1200 @
60Hz
Dual 350 MHz integrated
Worldwide — Version 22 — June 6, 2005
Page 58
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Graphics
Architecture features
Shading architecture
64-bit memory interface
128-bit IEEE floating-point precision graphics pipeline
128-bit color precision
12-bit sub-pixel precision
4x FSAA at 1024x768
Hardware accelerated antialiased points and lines
Hardware OpenGL overlay planes
Hardware accelerated two-sided lighting
Hardware accelerated clipping planes
Hardware accelerated occlusion culling
3D volumetric texture support
Fully programmable GPU
Optimized compilers for Cg, OpenGL shading language, and Microsoft
HLSL
Supported graphics APIs
OpenGL 1.5
DirectX 9.0
Available graphics drivers HP-tested: Microsoft Windows® XP, Windows 2000, and Linux
HP qualified drivers may be preloaded or available from the HP support
Web site: http://welcome.hp.com/country/us/eng/software_drivers.html.
Maximum Resolution
Dual DVI-I output with optional cable – drives dual digital displays at
resolutions up to 1600x1200 @ 60Hz
Internal 350MHz RAMDACs – drives dual analog displays up to 2048x1536
@ 60Hz each
ATI FireGL V3100
Graphics Card
Form Factor
Graphics Controller
Bus Type
Memory
Connectors
Multi-monitor support
RAMDAC
Architecture features
DA - 11975
ATX
RV370
PCI-Express x16
128MB 200MHz DDR unified frame buffer, Z-buffer and Texture storage
1 DVI-I analog/digital and 1 VGA analog monitor output
Dual integrated display controllers supporting up to 2048x1536 @ 85Hz on
both displays
Dual 400 MHz integrated
128-bit memory interface
128-bit IEEE floating-point precision
24-bits per RGBA color precision
4-bit sub-pixel precision
2 parallel geometry engines
4 parallel pixel pipelines
2x/4x/6x FSAA
Hardware accelerated antialiased points and lines
Hardware OpenGL overlay planes
Hardware accelerated two-sided lighting
Hardware accelerated clipping planes
Hardware accelerated occlusion culling
Hardware accelerated clip planes
Worldwide — Version 22 — June 6, 2005
Page 59
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Graphics
Shading architecture
Smartshader™ technology
Programmable pixel and vertex shaders
16 textures per pass
Pixel shaders up to 160 instructinos with 32-bit floating point precision for
each RGBA component
Multiple render target support
Shadow volume rendering acceleration
High precision 10-bit per channel frame buffer support
Supported graphics APIs OpenGL 1.5
DirectX 9.0
Available graphics drivers HP-tested: Microsoft Windows XP, Windows 2000, and Linux
HP qualified drivers may be preloaded or available from the HP support
Web site: http://welcome.hp.com/country/us/eng/software_drivers.html.
Maximum Resolution
DVI-I output – drives digital display at resolutions up to 1600x1200
Internal 400MHz RAMDACs – drives dual analog displays up to 2048x1536
@ 85Hz each
NVIDIA Quadro FX 540
PCI-Express Graphics
Card
Form Factor
Graphics Controller
Bus Type
RAMDAC
Memory
Connectors
Multi-monitor support
Additional product
features
Shading architecture
Supported graphics APIs
DA - 11975
ATX, 4.376" x 7.0"
Single slot
NVIDIA NV43GL
PCI-Express x16, <75W power consumption
Dual 400 MHz integrated
128 MB 275 MHz DDR SDRAM unified frame buffer, Z-buffer and Texture
storage
8.8 GB/sec graphics memory bandwidth
DVI-I + VGA + 10-pin HDTV Out (HD cable purchased separately)
Dual integrated analog display controllers supporting up to two analog
displays at 2048x1536 @ 75Hz, one digital display at 1600x1200 @
60Hz.
128 KB BIOS 3.3V Flash ROM reprogrammable by SW
Hardware accelerated Overlay Planes
Hardware accelerated two-sided lighting
Hardware accelerated antialiased points and lines
3D Volumetric Texture support
Hardware accelerated Occlusion Culling
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0
specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
Fully programmable GPU (OpenGL1.5/DirectX 9.0c class)
Long fragment programs (up to 65,536 instructions)
Long vertex programs (up to 65,536 instructions)
Looping and subroutines (up to 256 loops per vertex program)
Dynamic flow control
Conditional execution
Optimized compilers for Cg, OpenGL shading language, and Microsoft
HLSL
OpenGL 1.5 ICD with immediate mode support for all OGL primitive types
DirectX 9.0c
Worldwide — Version 22 — June 6, 2005
Page 60
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Graphics
Available graphics drivers HP-tested: Microsoft Windows XP, Windows 2000, and Linux
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/eng/software_drivers.html.
DVI-I output - drives digital display at resolutions up to 1600x1200 @ 60Hz
Maximum Resolution
Internal 400MHz RAMDACs - drives dual analog displays up to 2048x1536
@ 75Hz each
NVIDIA Quadro FX 1300 Form Factor
Graphics Card
Graphics Controller
Bus Type
Memory
ATX
NVIDIA NV38GL
PCI-Express x16
128 MB 275 MHz DDR SDRAM unified frame buffer, Z-buffer and Texture
storage
Connectors
2 DVI-I analog/digital monitor outputs, 1 3-pin Mini DIN stereo output
Multi-monitor support
Dual integrated analog display controllers supporting up to two analog
displays at 2048x1536 @ 60Hz on both displays or dual digital displays at
1600x1200 @ 60Hz
NVIEW advanced multi-display desktop and application management
seamlessly integrated into Microsoft Windows
RAMDAC
Dual 400 MHz integrated
Architecture features
256-bit memory interface
128-bit IEEE floating-point precision graphics pipeline
128-bit color precision
12-bit sub-pixel precision
4x FSAA at 1280x1024
Hardware accelerated antialiased points and lines
Hardware OpenGL overlay planes
Hardware accelerated two-sided lighting
Hardware accelerated clipping planes
Hardware accelerated occlusion culling
3D volumetric texture support
Quad-buffered stereo
Shading architecture
Fully programmable GPU
Optimized compilers for Cg, OpenGL shading language, and Microsoft
HLSL
Supported graphics APIs OpenGL 1.5
DirectX 9.0
Available graphics drivers HP-tested: Microsoft Windows® XP, Windows 2000, and Linux
HP qualified drivers may be preloaded or available from the HP support
Web site: http://welcome.hp.com/country/us/eng/software_drivers.html.
Maximum Resolution
Dual DVI-I output – drives dual digital displays at resolutions up to
1600x1200 @ 60Hz
Internal 400MHz RAMDACs – drives dual analog displays up to 2048x1536
@ 75Hz each
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 61
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Graphics
NVIDIA Quadro FX 1400 Form Factor
PCI-Express Graphics
Controller
Graphics Controller
Bus Type
RAMDAC
Memory
ATX, 4.376" x 8.5"
Single slot
NVIDIA NV41GL
PCI-Express x16, <75W power consumption
Dual 400 MHz integrated
128 MB 300 MHz DDR SDRAM unified frame buffer, Z-buffer and Texture
storage
19.2 GB/s graphics memory bandwidth
Connectors
2 DVI-I analog/digital monitor outputs, 1 3-pin Mini DIN stereo output
Multi-monitor support
Dual integrated analog display controllers supporting up to two analog
displays at 2048x1536 @ 85Hz on both displays.
Additional product
128 KB BIOS 3.3V Flash ROM reprogrammable by SW
features
Hardware accelerated Overlay Planes
Hardware accelerated two-sided lighting
Hardware accelerated antialiased points and lines
Quad-buffered Stereo
3D Volumetric Texture support
Hardware accelerated Occlusion Culling
Scalable Link Interface (SLI) technology
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0
specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
Shading architecture
Fully programmable GPU (OpenGL1.5/DirectX 9.0c class)
Long fragment programs (up to 65,536 instructions)
Long vertex programs (up to 65,536 instructions)
Looping and subroutines (up to 256 loops per vertex program)
Dynamic flow control
Conditional execution
Optimized compilers for Cg, OpenGL shading language, and Microsoft
HLSL
Supported graphics APIs OpenGL 1.5 ICD with immediate mode support for all OGL primitive types
DirectX 9.0c
Available graphics drivers HP-tested: Microsoft Windows XP, Windows 2000 and Linux
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/eng/software_drivers.html.
Maximum Resolution
Dual DVI-I output – drives dual digital displays at resolutions up to
1900x1200 @ 60Hz
Internal 400MHz RAMDACs – drives dual analog displays up to 2048x1536
@ 85Hz each
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 62
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Graphics
NVIDIA Quadro FX 3400 Form Factor
Graphics Card
Graphics Controller
Bus Type
Memory
ATX
NVIDIA NV45GL
PCI-Express x16
256 MB 450 MHz GDDR3 SDRAM unified frame buffer, Z-buffer and
Texture storage
Connectors
2 DVI-I (one dual-link/one single-link) analog/digital monitor outputs,
1 3-pin Mini DIN stereo output
Multi-monitor support
Dual integrated analog display controllers supporting up to two analog
displays at 2048x1536 @ 85Hz on both displays or dual digital displays at
1600x1200 (single-link) and 3840x2400 (dual-link).
NVIEW advanced multi-display desktop and application management
seamlessly integrated into Microsoft Windows
RAMDAC
Dual 400 MHz integrated
Architecture features
256-bit memory interface
128-bit IEEE floating-point precision graphics pipeline
128-bit color precision
12-bit sub-pixel precision
8x FSAA at 1920x1200, 4x at 2048x1536, rotated grid FSAA sampling
algorithm
Hardware accelerated antialiased points and lines
Hardware OpenGL overlay planes
Hardware accelerated two-sided lighting
Hardware accelerated clipping planes
3rd generation occlusion culling
3D volumetric texture support
Quad-buffered stereo
Dual Link DVI enabling driving digital displays up to 3840x2400 (24Hz)
Shading architecture
Fully programmable GPU
Long fragment programs (up to 65,536 instructions)
Long vertex programs (up to 65,536 instructions)
Looping and subroutines (up to 256 loops per vertex program)
Dynamic flow control
Conditional execution
Supported graphics APIs OpenGL 1.5
DirectX 9.0
Available graphics drivers HP-tested: Microsoft Windows® XP, Windows 2000, and Linux
HP qualified drivers may be preloaded or available from the HP support
Web site: http://welcome.hp.com/country/us/eng/software_drivers.html.
Maximum Resolution
Dual DVI-I output – drives dual digital displays at resolutions up to
1600x1200 @ 60Hz (single-link) and 3840x2400 @ 24Hz (dual-link).
Internal 400MHz RAMDACs – drives dual analog displays up to 2048x1536
@ 75Hz each
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 63
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Graphics
ATI FireGL V5100
PCI-Express Graphics
Controller
Form Factor
Graphics Controller
Bus Type
Memory
Connectors
Multi-monitor support
ATX
RV423
PCI-Express x16
128 MB 350MHz DDR unified frame buffer, Z-buffer and Texture storage
2 DVI-I analog/digital monitor outputs, 1 3-pin Mini DIN stereo output
Dual integrated display controllers supporting up to two analog displays at
2048x1536 @ 85Hz on both displays.
RAMDAC
Dual 400 MHz integrated
Architecture features
256-bit memory interface
128-bit IEEE floating-point precision
24-bits per RGBA color precision
8-bit sub-pixel precision
6 parallel geometry engines
12 parallel pixel pipelines
2x/4x/6x FSAA
Hardware accelerated antialiased points and lines
Hardware OpenGL overlay planes
Hardware accelerated two-sided lighting
Hardware accelerated clipping planes
Hardware accelerated occlusion culling
Hardware accelerated clip planes
Quad-buffered stereo
Shading architecture
Smartshader™ technology
Programmable pixel and vertex shaders
16 textures per pass
Pixel shaders up to 160 instructions with 32-bit floating point precision for
each RGBA component
Multiple render target support
Shadow volume rendering acceleration
High precision 10-bit per channel frame buffer support
Supported graphics APIs OpenGL 1.5
DirectX 9.0
Available graphics drivers HP-tested: Microsoft Windows XP, Windows 2000, and Linux
HP qualified drivers may be preloaded or available from the HP support
Web site: http://welcome.hp.com/country/us/eng/software_drivers.html.
Maximum Resolution
DVI-I output – drives digital displays at resolutions up to 1600x1200
Internal 400MHz RAMDAC – drives dual analog displays up to 2048x1536
@ 85Hz each
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 64
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
HP L1755 Flat Panel
Monitor
Panel
Type
Viewable Image Area
(diagonal)
Screen Opening (WxH)
Viewing Angle (typical)
Video/Other Inputs
Brightness (typical)
Contrast Ratio (typical)
Response Rate (typical)
Pixel Pitch
Color Depth Support
Plug and Play
Self Powered USB 2.0
Hub
Input Signal
Input Impedance
Sync Input
Signal Interface/
Performance
Video Cable
Video Cable Length
Horizontal Frequency
Vertical Frequency
Native Resolution
Maximum Resolution
(Analog)
Maximum Resolution
(Digital)
Preset VESA Graphic
Modes (non-interlaced)
Preset MAC Mode
Preset VGA Mode
Preset SUN Mode
Fail Safe Mode
Maximum Pixel Clock
Speed
User Programmable
Modes
Anti-Glare
DA - 11975
Active matrix, thin film transistor (TFT)
17 in (43.2 cm) maximum viewable
13.4 x 10.7 in (33.9 x 27.2 cm)
176 degrees horizontal/176 degrees vertical
(10:1 minimum contrast ratio)
Up to 250 nits (cd/m2)
Up to 1000:1 (typical)
25 ms (typical rise + fall)
0.264 mm
16.7 million colors
Yes (supports VESA DDC2B; PC2001 compliant)
One upstream, four downstream ports (cable
included)
Two connectors: one 15-pin mini D-sub analog
VGA; and one DVI-I (VGA analog or digital)
75 ohms ± 2%
Separate sync (HSYNC/VSYNC); composite sync,
Sync on Green (activated through on-screen
display)
VGA to VGA, DVI-D to DVI-D, and DVI-I to VGA
78 in (2.0 m)
30 to 82 kHz
56 to 75 Hz
1280 x 1024 @ 60 Hz analog
1280 x 1024 @ 60 Hz digital
1280 x 1024 @ 75 Hz analog
1280 x 1024 @ 75 Hz digital
640 x 480 @ 60 Hz, 72 Hz, 75 Hz
720 x 400 @ 70 Hz
800 x 600 @ 60 Hz, 72 Hz, 75 Hz
1024 x 768 @ 60 Hz, 70 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75 Hz
832 x 624 @ 75 Hz
1152 x 870 @75 Hz
640 x 480 @ 60 Hz, 72 Hz
1152 x 900 @ 76 Hz
Yes (limits out of range signal messages)
140 MHz
Yes, 15
Yes
Worldwide — Version 22 — June 6, 2005
Page 65
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
Anti-Static
AssetControl
Default Color
Temperature
On Screen Display (OSD) Buttons or Switches
Controls
Languages
User Controls
Power
Power Supply
Input Power
Nominal Current
Frequency
Average
Typical Power
Consumption
Maximum
Power Saving
Off Mode
Mechanical
Power Cable Length
Dimensions
(H x W x D)
Weight
Bezel Width
Tilt Range
Swivel Range
Height Adjustable
DA - 11975
Yes
Yes (accessible on HP Compaq Business
Desktops featuring Intelligent Manageability)
Yes (6500k, 9300k, SRGB, Custom User)
Power on/off; 3-button OSD; second level OSD
buttons include dual-input switch, dedicated auto
adjust switch
English, Spanish, French, German, Italian,
Japanese, Simplified Chinese
Size and positioning, contrast, brightness, clock,
clock phase, selectable color temperature, serial
number, mode displayed, sleep timer, input
selection, factory reset, individual color contrast,
full-screen resolution
Auto-ranging, 90 to 265 VAC; internal power
supply
100 ~ 240 VAC
1.5 A maximum
50 ~ 60 Hz
33 watts when displaying standard office
software
< 40 watts
< 60 watts
<2W
0 watts (when master power switch is in the off
position)
70 in (1.8 m); non-captive
Unpacked with stand 16.1 (minimum) to 21.2
(maximum) x 14.4 x 8.3
in (40.9 (minimum) to
42.2 (maximum) x 36.5
x 21.1 cm)
8.3 x 12.2 in
Base Area
(Footprint D x W)
(21.1 x 30.9 cm)
11.8 x 14.4 x 2.9 in
Panel only (without
stand) (H x W x D)
(30.1 x 40.9 x 7.3 cm)
Unpacked with stand 14.7 lb (6.7 kg)
8.1 lb (3.7 kg)
Unpacked without
stand
20.2 lb (9.2 kg)
Packaged
13 mm left and right, 14 mm top, and 15 mm
bottom
-5° to +35°
± 50° horizontal swivel
Yes (5.1 in/13 cm adjustment range)
Worldwide — Version 22 — June 6, 2005
Page 66
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
Pivot Rotation
Base
Environmental
Options
Other
DA - 11975
Yes, 90 °
Ships detached and is removable after
installation
Temperature – Operating 41° to 95° F (5° to 35° C)
Temperature – Non-4° to 140° F (-20° to 60° C)
operating
20% to 80%
Humidity – Operating
5% to 95%
Humidity – Nonoperating
0 to 13,000 ft (0 to 4,000 m)
Altitude – Operating
Altitude – Non-operating 0 to 40,000 ft (0 to 12,192 m)
Features integrated microphone/headset jacks,
HP Desktop Access
Center – Part number:
dual function headset for phone/PC support, a
DK985A
MultiBay slot for adding an optical drive (sold
separately), and four USB ports for easy
integration of third-party digital solutions. Sold
separately. For more information, refer to the HP
Desktop Access Center QuickSpec document.
Powered directly by the monitor, seamlessly
HP Flat Panel Speaker
Bar – Part number:
attaches to the monitor's bezel to bring full
PF804AA
multimedia support to select HP flat panel
monitors. Features dual speakers with full sound
range and external jack for headphones. Sold
separately. For more information, refer to the HP
Flat Panel Speaker Bar QuickSpec document.
HP Compaq 7000 Series Allows mounting of a 15-, 17- or 19-inch HP flat
Ultra-slim Desktop
panel monitor and an HP Compaq dc7100
Integrated Work Center Ultra-slim Desktop PC on a single stand for the
Stand – Part number:
convenience of an "all-in-one" form factor. Sold
DL641B
separately. For more information, refer to this
product's QuickSpec document
VGA to VGA cable, DVI-D to DVI-D cable, DVI-I
Accessories Included
to VGA cable, USB cable, user CD-ROM with
Pivot Pro software
Pivot Pro software from Portrait Displays, Inc.
Software
interacts with your PC's native graphics driver to
enable seamless portrait screen redraws with a
simple mouse-click or keyboard command. Pivot
Pro supports 90-degree portrait and landscape
views. Language support is available in English,
Japanese, French, German, Spanish, Italian, and
Traditional and Simplified Chinese.
HP Display LiteSaver feature lets you schedule
Software
Sleep mode at preset times to help protect the
display against image retention, drastically lower
power consumption and energy costs, and
extend the lifespan of the monitor.
Worldwide — Version 22 — June 6, 2005
Page 67
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
User Guide Languages
Certification and
Compliance
Compatibility
Service and Warranty
HP L1955 Flat Panel
Monitor
Panel
English, Latin America Spanish, Brazilian
Portuguese, Danish, Dutch, Finnish, French,
German, Italian, Norwegian, Swedish, Greek,
Polish, Russian, Slovenian, Turkish, Simplified
Chinese, Traditional Chinese, Korean, and
Japanese
Warranty Languages
English, Canadian French, Latin America
Spanish, Brazilian Portuguese, Danish, Dutch,
Finnish, French, German, Italian, Norwegian,
Spanish, Swedish, Bahasa Indonesian, Simplified
Chinese, Traditional Chinese, and Korean
Color
Carbonite, two-tone carbonite and silver (EMEA
only)
VESA Mounting
Yes (swing arm/wall mount not included); base
must be removed for mounting options)
VESA External Mounting Yes (standard 4 hole pattern, 100 mm)
Kensington Lock-ready
Yes
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China
CCC Approval, CISPR Requirements, Eastern European Approvals, Energy
Star Compliant, FCC Approval, German Ergonomic (TUV and GS Mark),
ISO 13406-2 Compliant (Pixel Defect Guidelines), Mexican NOM Approval,
MPR-II Compliant, PC2001 Compliant, PC99 Certified, S. Korean MIC
Approval, Taiwan BSMI Approval, TCO 99 or 03 depending on region
(emissions, ergonomics, environment), TUV-Ergo, UL Listed, VCCI Approvals,
Microsoft Windows Certification
VESA Video Signal Standard (VSIS) Compliant video cards have been tested
and proven compatible for use with the HP L1755 Flat Panel Monitor.
Recommended for use with HP products.
Limited three-year parts and repair labor, service provider labor, and on-site
service. Next business day advanced exchange direct replacement service
available during warranty period. Certain restrictions and exclusions apply.
For details, contact HP Customer Support.
Type
Viewable Image Area
(diagonal)
Screen Opening (WxH)
Viewing Angle (typical)
Brightness (typical)
Contrast Ratio (typical)
Response Rate (typical)
Pixel Pitch
Color Depth Support
DA - 11975
Active matrix, thin film transistor (TFT)
19 in (48.25 cm) maximum viewable
14.9 x 12.0 in (38.0 x 30.5 cm)
176 degrees horizontal/176 degrees vertical
(10:1 minimum contrast ratio)
Up to 250 nits (cd/m2)
Up to 1000:1 (typical)
<16 ms (typical rise + fall)
0.294 mm
16.7 million colors
Worldwide — Version 22 — June 6, 2005
Page 68
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
Video/Other Inputs
Plug and Play
Self Powered USB 2.0
Hub
Input Signal
Input Impedance
Sync Input
Signal Interface/
Performance
Video Cable
Video Cable Length
Horizontal Frequency
Vertical Frequency
Native Resolution
Maximum Resolution
(Analog)
Maximum Resolution
(Digital)
Preset VESA Graphic
Modes (non-interlaced)
Preset MAC Mode
Preset VGA Mode
Preset SUN Mode
Fail Safe Mode
Maximum Pixel Clock
Speed
User Programmable
Modes
Anti-Glare
Anti-Static
AssetControl
Default Color
Temperature
On Screen Display (OSD) Buttons or Switches
Controls
Languages
User Controls
DA - 11975
Yes (supports VESA DDC2B; PC2001 compliant)
One upstream, four downstream ports (cable
included)
Two connectors: one 15-pin mini D-sub analog
VGA; and one DVI-I (VGA analog or digital)
75 ohms ± 2%
Separate sync (HSYNC/VSYNC); composite sync,
Sync on Green (activated through on-screen
display)
VGA to VGA, DVI-D to DVI-D, and DVI-I to VGA
78 in (2.0 m)
30 to 82 kHz
56 to 75 Hz
1280 x 1024 @ 75 Hz analog
1280 x 1024 @ 60 Hz digital
1280 x 1024 @ 75 Hz analog
1280 x 1024 @ 75 Hz digital
640 x 480 @ 60 Hz, 72 Hz, 75 Hz
720 x 400 @ 70 Hz
800 x 600 @ 60 Hz, 72 Hz, 75 Hz
1024 x 768 @ 60 Hz, 70 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75 Hz
832 x 624 @ 75 Hz
1152 x 870 @75 Hz
640 x 480 @ 60 Hz, 72 Hz
1152 x 900 @ 76 Hz
Yes (limits out of range signal messages)
140 MHz
Yes, 15
Yes
Yes
Yes (accessible on HP Compaq Business
Desktops featuring Intelligent Manageability)
Yes (6500k, 9300k, SRGB, Custom User)
Power on/off; 3-button OSD; second level OSD
buttons include dual-input switch, dedicated auto
adjust switch
English, Spanish, French, German, Italian,
Japanese, Simplified Chinese
Size and Positioning
Contrast
Worldwide — Version 22 — June 6, 2005
Page 69
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
Power
Power Supply
Input Power
Nominal Current
Frequency
Average
Typical Power
Consumption
Maximum
Power Saving
Off Mode
Mechanical
Power Cable Length
Dimensions
(H x W x D)
Weight
Bezel Width
Tilt Range
Swivel Range
Height Adjustable
Pivot Rotation
Base
DA - 11975
Brightness
Clock, Clock Phase
Selectable Color Temperature
Serial Number
Mode Displayed
Sleep Timer
Input Selection
Factory Reset
Individual Color Contrast
Full-screen Resolution
Auto-ranging, 90 to 265 VAC; internal power
supply
100 ~ 240 VAC
1.5 A maximum
50 ~ 60 Hz
33 watts when displaying standard office
software
< 40 watts
< 60 watts
< 2 watts
0 watts (when master power switch is in the off
position)
70 in (1.8 m); non-captive
Unpacked with stand 16.8 (minimum) to 22.3
(maximum) x 15.9 x 8.3
in (42.7 (minimum) to
56.6 (maximum) x 40.4
x 21.1 cm)
8.3 x 12.2 in
Base Area
(Footprint D x W)
(21.1 x 30.9 cm)
13.2 x 15.9 x 3.1 in
Panel only (without
stand) (H x W x D)
(33.5 x 40.4 x 7.9 cm)
Unpacked with stand 16.5 lb (7.5 kg)
10.5 lb (4.75 kg)
Unpacked without
stand
23.5 lb (10.7 kg)
Packaged
13 mm left and right, 14 mm top, and 15 mm
bottom
-5° to +35°
± 50° horizontal swivel
Yes (5.1 in/13 cm adjustment range)
Yes, 90 °
Ships detached and is removable after
installation
Worldwide — Version 22 — June 6, 2005
Page 70
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
Environmental
Options
Temperature – Operating
Temperature – Nonoperating
Humidity – Operating
Humidity – Nonoperating
Altitude – Operating
Altitude – Non-operating
Desktop Access Center
HP Flat Panel Speaker
Bar
Other
Accessories Included
Software
Software
User Guide Languages
Warranty Languages
Color
VESA Mounting
VESA External Mounting
Kensington Lock-ready
DA - 11975
41° to 95° F (5° to 35° C)
-4° to 140° F (-20° to 60° C)
20% to 80%
5% to 95%
0 to 13,000 ft (0 to 4,000 m)
0 to 40,000 ft (0 to 12,192 m)
Features integrated microphone/headset jacks,
dual function headset for phone/PC support, a
MultiBay slot for adding an optical drive (sold
separately), and four USB ports for easy
integration of third-party digital solutions. Sold
separately; part number DK985A. For more
information, refer to the HP Desktop Access
Center QuickSpecs.
Powered directly by the monitor, seamlessly
attaches to the monitor's bezel to bring full
multimedia support to select HP flat panel
monitors. Features dual speakers with full sound
range and external jack for headphones. Sold
separately, part number PF804AA. For more
information, refer to the HP Flat Panel Speaker
Bar QuickSpecs.
VGA to VGA cable, DVI-D to DVI-D cable, DVI-I
to VGA cable, USB cable, user CD-ROM with
Pivot Pro software
Pivot Pro software from Portrait Displays, Inc.
interacts with your PC's native graphics driver to
enable seamless portrait screen redraws with a
simple mouse-click or keyboard command. Pivot
Pro supports 90-degree portrait and landscape
views. Language support is available in English,
Japanese, French, German, Spanish, Italian, and
Traditional and Simplified Chinese.
HP Display LiteSaver feature lets you schedule
Sleep mode at preset times to help protect the
display against image retention, drastically lower
power consumption and energy costs, and
extend the lifespan of the monitor.
English
English
Carbonite, two-tone carbonite and silver (EMEA
only)
Yes (swing arm/wall mount not included); base
must be removed for mounting options)
Yes (standard 4 hole pattern, 100 mm)
Yes
Worldwide — Version 22 — June 6, 2005
Page 71
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
Certification and
Compliance
Compatibility
Service and Warranty
HP Flat Panel Monitor
L2035
Panel
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China
CCIB/CCEE Approval, CISPR Requirements, Eastern European Approvals,
Energy Star Compliant, FCC Approval, German Ergonomic (TUV and GS
Mark), ISO 13406-2 Compliant (Pixel Defect Guidelines), Mexican NOM
Approval, MPR-II Compliant, PC2001 Compliant, PC99 Certified, S. Korean
MIC Approval, Taiwan BSMI Approval, TCO 99 or 03 depending on region
(emissions, ergonomics, environment), TUV-Ergo, UL Listed, VCCI Approvals,
Microsoft® Windows® Certification
VESA Video Signal Standard (VSIS) Compliant video cards have been tested
and proven compatible for use with the HP L1955 Flat Panel Monitor.
Recommended for use with HP products.
Limited three-year parts and repair labor, service provider labor, and on-site
service. Next Business Day advanced exchange direct replacement service
available during warranty period. Certain restrictions and exclusions apply.
For details, contact HP Customer Support.
Type
Viewable Image Area
(diagonal)
Screen Opening
(W x H)
Viewing Angle (typical)*
On Screen Display
(OSD) Controls
DA - 11975
20-inch Active Matrix TFT (thin film transistor)
20.1 in (51 cm)
16.2 x 12.17 in (41.1 x 30.9 cm)
Up to 170° H/170° V (10:1 minimum contrast
ratio)
Brightness (typical*
Up to 250 nits (cd/m2)
Contrast Ratio (typical)* Up to 400:1
Response Rate (typical)* 16 ms (typical, rise + fall)
Pixel Pitch
0.255 mm
Color Depth Support
16.7 million colors
*All specifications are provided by the component manufacturers.
Performance specifications represent the highest specification of all HP's
component manufacturers' typical level specifications for performance.
Actual performance may vary either higher or lower.
PiP (Picture in Picture), Input select, auto adjust,
Buttons or Switches
OSD up, OSD down, OSD menu select, power
English, French, German, Spanish, Italian
Languages
Brightness, contrast, positioning, color
User Controls
temperature, individual color control, serial
number display, full screen resolutions, clock,
clock phase, video picture-in-picture (size and
position), input selection (includes separate direct
access key for dedicated swap between inputs 1
and 2), factory reset
Worldwide — Version 22 — June 6, 2005
Page 72
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
Signal Interface/
Performance
Horizontal Frequency
Vertical Frequency
Graphics Controller
Native Resolution
Preset VESA Graphic
Modes (non-interlaced)
Video Input
Text Mode
Mac Mode
Sun Mode
Maximum Pixel Clock
Speed
User Programmable
Modes
Anti-Glare
Anti-Static
Default Color
Temperature
Plug and Play
Input Signal
Input Impedance
Sync Input
Video Cable
Video Cable Length
Input Power
Power
Frequency
Maximum
Power Saving
Power Cable Length
DA - 11975
30 to 94 kHz (VGA input); 30 to 92 KHz (DVI
input) (for modes with pixel clock less than 157
MHz)
48 to 85 Hz (VGA input); 30 to 92 KHz (DVI
input) (for modes with pixel clock less than 157
MHz)
Pixelworks PW171
1600 x 1200 @ 60 Hz (recommended)
1600 x 1200 @ 60 Hz, 75 Hz (VGA input)
1280 x 1024 @ 60 Hz, 75 Hz, 85 Hz
1280 x 960 @ 60 Hz
1152 x 900 @ 66 Hz
1024 x 768 @ 60 Hz, 75 Hz, 85 Hz
800 x 600 @ 60 Hz, 85 Hz
640 x 480 @ 60 Hz, 75 Hz, 85 Hz
720 x 400 @ 70 Hz
1152 x 870 @ 75 Hz and 832 x 624 @ 75 Hz
1152 x 900 @ 66 Hz
202 MHz (VGA input); 162 MHz (DVI input)
Yes, 10
Yes
Yes
6500 K
Yes
Four connectors, including one 15-pin mini Dsub VGA, one DVI-I (VGA analog and digital
input), one composite video, and one s-video
75 ohms ± 10%
Separate sync (HSYNC/VSYNC); composite sync,
Sync on Green
VGA to VGA; VGA to DVI-I; DVI-D to DVI-I
5.9 ft (1.8 m)
Auto-Ranging, 90 to 132 VAC and 195 to 265
VAC; internal power supply, 50 Hz/60 Hz
47.5 to 63 Hz
< 75 W
<5W
5.9 ft (1.8 m)
Worldwide — Version 22 — June 6, 2005
Page 73
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
Mechanical
Dimensions (H x W x D)
Unpacked with stand
Unpacked without
stand (head only)
Packaged
Weight
Environmental
Options
Tilt Range
Swivel Range
Height Adjustable
Pivot Rotation
Base
Temperature – Operating
Temperature – Nonoperating
Humidity – Operating
Humidity – Nonoperating
Altitude – Operating
Altitude – Non-operating
HP Desktop Access
Center
DA - 11975
Unpacked
17.36 to 20.9 x 17.8 x
8.27 in
(44.1 to 53.1 x 45.2 x
21.0 cm)
14.29 x 17.8 x 3.19 in
(36.3 x 45.2 x 8.1 cm)
11.5 x 21.9 x 23.9 in
(29.2 x 55.6 x 60.6 cm)
With stand: 20.28 lb
(9.2 kg);
Without stand: 12.35 lb
(5.6 kg)
26.9 lb (12.2 kg)
Packaged
-5° to + 25° vertical
-35° to + 35°
Yes, range 3.54 in (9.0 cm)
Yes
Attached
46° to 95° F (10° to 35° C)
6° to 140° F (-10° to 60° C)
20% to 80% non-condensing
5% to 85%
+12,000 ft (+3,657.6 m)
+40,000 ft (+12,192 m)
Sold separately, the HP Desktop Access Center
features integrated microphone/headset jacks,
dual function headset for phone/PC support, a
MultiBay slot for adding an optical drive (sold
separately), and four USB ports for easy
integration of third-party digital solutions; part
number DK985A. For more information, refer to
the HP Desktop Access Center QuickSpecs.
Worldwide — Version 22 — June 6, 2005
Page 74
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
Other
Accessories Included
User Guide Languages
VGA to VGA cable – connects the graphic card's
VGA analog connector to the monitor's input #1
(VGA analog) connector
VGA to DVI-I cable – connects the graphic card's
VGA connector to the monitor's input #2 (DVI-I
analog) connector
DVI-D to DVI-I cable – connects the graphic
card's DVI-D digital connector to the monitor's
input #2 (DVI-I digital) connector
English, B. Portuguese, French, LA Spanish,
Korean, S. Chinese, T. Chinese, Bahasa,
Japanese, Danish, Finnish, German, Norwegian,
Spanish, Swedish, Greek, Polish, Russian,
Slovenian, Turkish
Warranty Languages
Certification and
Compliance
Compatibility
Service and Warranty
HP Flat Panel Monitor
L2335
Panel
English, Canadian French, LA Spanish, Brazilian
Portuguese, Danish, German, Castilian Spanish,
French, Italian, Dutch, Norwegian, Finnish,
Swedish, Bahasa Indonesian, Korean, T.
Chinese, S. Chinese
Color
Carbonite/Silver
VESA External Mounting Yes (Standard 4 hole pattern, 100 mm)
Kensington Lock-Ready
Yes
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China
CCIB/CCEE Approval, CISPR Requirements, Eastern European Approvals,
*Energy Star Compliant, FCC Approval, German Ergonomic (TUV and GS
Mark), ISO 9241-3,7,8 VDT Guidelines, ISO 13406-2 Pixel Defect
Guidelines, Mexican NOM Approval, MIC Requirements (New Zealand),
MPR-II Compliant, Nordic Approvals (Nemko, Fimko, Demko, Semko),
PC2001 Compliant, PC99 Certified, S. Korean MIC Approval, Taiwan BSMI
Approval, TCO 03 (emissions, ergonomics, environment), TUV-Ergo, UL
Listed, VCCI Approvals, Windows Certification (Microsoft® Windows® 98,
Microsoft Windows 2000, and Microsoft Windows XP)
* Energy Star Compliant available summer 2004.
Compatible with platforms using the VESA standard video modes and HP
Compaq Business Desktops d500, d300, and d200 Series, Compaq Evo
Desktops, and HP Workstations
Limited three years parts, labor, and on-site service, including backlight.
Availability varies by region. Certain restrictions and exclusions apply.
Consult HP Customer Service for details.
Type
Viewable Image Area
(diagonal)
Screen Opening
(W x H)
Viewing Angle (typical)*
Brightness (typical)*
Contrast Ratio (typical)*
DA - 11975
23-inch Active Matrix TFT (thin film transistor)
23 in (58.4 cm)
19.53 x 12.24 in (49.6 x 31.1 cm)
Up to 170° H/170° V (10:1 minimum contrast
ratio)
Up to 250 nits (cd/m2)
Up to 500:1
Worldwide — Version 22 — June 6, 2005
Page 75
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
Response Rate (typical)* 16 ms (typical, rise + fall)
0.258 mm
Pixel Pitch
16.7 million colors
Color Depth Support
* All specifications are provided by the component manufacturers.
Performance specifications represent the highest specification of all HP's
component manufacturers' typical level specifications for performance.
Actual performance may vary either higher or lower.
On Screen Display (OSD) Buttons or Switches
PiP (Picture in Picture), Input Select, Auto Adjust,
Controls
OSD Up, OSD Down, OSD Menu Select, Power
English, French, German, Spanish, Italian
Languages
Brightness, contrast, positioning, color
User Controls
temperature, individual color control, serial
number display, full screen resolutions, clock,
clock phase, video picture-in-picture (size and
position), input selection (includes separate direct
access key for dedicated swap between inputs 1
and 2), factory reset
Signal Interface/
30 to 94 kHz (VGA input); 30 to 92 KHz (DVI
Horizontal Frequency
Performance
input) (for modes with pixel clock less than 157
MHz)
48 to 85 Hz (VGA and DVI input)
Vertical Frequency
Pixelworks PW172
Graphics Controller
1920 x 1200 @ 60 Hz (recommended)
Native Resolution
1920 x 1200 @ 60Hz
Preset VESA Graphic
Modes (non-interlaced)
1600 x 1200 @ 60 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75Hz, 85 Hz
1280 x 960 @ 60 Hz
1152 x 900 @ 66 Hz
1024 x 768 @ 60 Hz, 75 Hz, 85 Hz
800 x 600 @ 60 Hz, 75Hz
640 x 480 @ 60 Hz, 75 Hz
720 x 400 @ 70 Hz
Text Mode
1152 x 870 @ 75 Hz and 832 x 624 @ 75 Hz
Mac Mode
1152 x 900 @ 66 Hz
Sun Mode
202 MHz (VGA input); 162 MHz (DVI input)
Maximum Pixel Clock
Speed
Yes, 10
User Programmable
Modes
Yes
Anti-Glare
Yes
Anti-Static
6500 K
Default Color
Temperature
Video Input
DA - 11975
Plug and Play
Input Signal
Yes
Five connectors, including one 15-pin mini Dsub VGA, one DVI-I (VGA analog and digital
input), one composite video, one s-video,
component video
Worldwide — Version 22 — June 6, 2005
Page 76
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
Input Impedance
Sync Input
Power
Video Cable
Video Cable Length
Input Power
Mechanical
Frequency
Maximum
Power Saving
Power Cable Length
Dimensions (H x W x D)
Weight
Environmental
Options
DA - 11975
Tilt Range
Swivel Range
Height Adjustable
Pivot Rotation
Base
Temperature –
Operating
Temperature –
Non-operating
Humidity – Operating
Humidity –
Non-operating
Altitude – Operating
Altitude –
Non-operating
HP Desktop Access
Center
75 ohms ± 10%
Separate sync (HSYNC/VSYNC); composite sync,
Sync on Green
VGA to VGA; VGA to DVI-I; DVI-D to DVI-I
5.9 ft (1.8 m)
Auto-Ranging, 90 to 132 VAC and 195 to 265
VAC; internal power supply, 50 Hz/60 Hz
47.5 to 63 Hz
< 100 W
<5W
5.9 ft (1.8 m)
17.36 (min) to 20.9
Unpacked
(max) x 21.46 x 8.27 in
(44.1 (min) to 53.1
(max) x 54.5 x 21.0 cm)
Unpacked withou stand 14.57 x 21.46 x 3.35
(head only)
in (37.0 x 54.5 x 8.5
cm)
11.5 x 25.75 x 23.86
Packaged
in (29. 2 x 65.4 x 60.6
cm)
22.27 lb (10.1 kg)
Unpacked
30.87 lb (14.0 kg)
Packaged
-5° to + 25° vertical
-35° to + 35°
Yes, range 3.54 in (9.0 cm)
Yes
Attached
46° to 95° F (10° to 35° C)
6° to 140° F (-10° to 60° C)
20% to 80% non-condensing
5% to 85%
+12,000 ft (+3,657.6 m)
+40,000 ft (+12,192 m)
Sold separately, the HP Desktop Access Center
Features integrated microphone/headset jacks,
dual function headset for phone/PC support, a
MultiBay slot for adding an optical drive (sold
separately), and four USB ports for easy
integration of third-party digital solutions; part
number DK985A. For more information, refer to
the HP Desktop Access Center QuickSpecs.
Worldwide — Version 22 — June 6, 2005
Page 77
QuickSpecs
HP xw6200 Workstation
Technical Specifications - Monitors
Other
Accessories Included
Certification and
Compliance
Compatibility
Service and Warranty
VGA to VGA cable – connects the graphic card's
VGA analog connector to the monitor's input #1
(VGA analog) connector
VGA to DVI-I cable – connects the graphic card's
VGA connector to the monitor's input #2 (DVI-I
analog) connector
DVI-D to DVI-I cable – connects the graphic
card's DVI-D digital connector to the monitor's
input #2 (DVI-I digital) connector
User Guide Languages
English, B. Portuguese, French, LA Spanish,
Korean, S. Chinese, T. Chinese, Bahasa,
Japanese, Danish, Finnish, German, Norwegian,
Spanish, Swedish, Greek, Polish, Russian,
Slovenian, Turkish
Warranty Languages
English, Canadian French, LA Spanish, Brazilian
Portuguese, Danish, German, Castilian Spanish,
French, Italian, Dutch, Norwegian, Finnish,
Swedish, Bahasa Indonesian, Korean, T.
Chinese, S. Chinese
Color
Carbonite/silver
VESA External Mounting Yes (Standard 4 hole pattern, 100 mm)
Kensington Lock-Ready
Yes
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China
CCIB/CCEE Approval, CISPR Requirements, Eastern European Approvals,
*Energy Star Compliant, FCC Approval, German Ergonomic (TUV and GS
Mark), ISO 9241-3,7,8 VDT Guidelines, ISO 13406-2 Pixel Defect
Guidelines, Mexican NOM Approval, MIC Requirements (New Zealand),
MPR-II Compliant, Nordic Approvals (Nemko, Fimko, Demko, Semko),
PC2001 Compliant, PC99 Certified, S. Korean MIC Approval, Taiwan BSMI
Approval, TCO 03 (emissions, ergonomics, environment), TUV-Ergo, UL
Listed, VCCI Approvals, Windows Certification (Microsoft® Windows® 98,
Microsoft Windows 2000, and Microsoft Windows XP).
* Energy Star Compliant available summer 2004.
Compatible with platforms using the VESA standard video modes and HP
Compaq Business Desktops d500, d300, and d200 Series, Compaq Evo
Desktops, and HP Business Desktops d300 series.
Limited three years parts, labor, and on-site service, including backlight.
Availability varies by region. Certain restrictions and exclusions apply.
Consult HP Customer Service for details.
© Copyright 2005 Hewlett-Packard Development Company, L.P.
All rights reserved. HP and the HP logo are trademarks of the Hewlett Packard Company in the U.S. and/or other countries.
Microsoft and Windows are trademarks of Microsoft Corporation in the U.S. and/or other countries. NVIDIA and Quadro are
trademarks of NVIDIA Corporation. All other product names mentioned herein may be trademarks of their respective companies.
HP shall not be liable for technical or editorial errors or omissions contained herein. The information is provided as is without
warranty of any kind and is subject to change without notice. The warranties for HP products are set forth in the express limited
warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty
DA - 11975
Worldwide — Version 22 — June 6, 2005
Page 78
Download PDF
