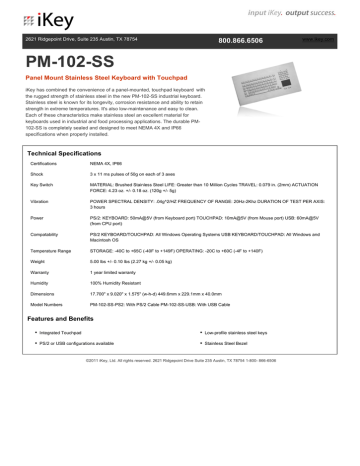

PM 102 SS
2621 Ridgepoint Drive, Suite 235 Austin, TX 78754
800.866.6506
www.ikey.com
PM-102-SS
Panel Mount Stainless Steel Keyboard with Touchpad
iKey has combined the convenience of a panel-mounted, touchpad keyboard with
the rugged strength of stainless steel in the new PM-102-SS industrial keyboard.
Stainless steel is known for its longevity, corrosion resistance and ability to retain
strength in extreme temperatures. It's also low-maintenance and easy to clean.
Each of these characteristics make stainless steel an excellent material for
keyboards used in industrial and food processing applications. The durable PM102-SS is completely sealed and designed to meet NEMA 4X and IP66
specifications when properly installed.
Technical Specifications
Certifications
NEMA 4X, IP66
Shock
3 x 11 ms pulses of 50g on each of 3 axes
Key Switch
MATERIAL: Brushed Stainless Steel LIFE: Greater than 10 Million Cycles TRAVEL: 0.079 in. (2mm) ACTUATION
FORCE: 4.23 oz. +/- 0.18 oz. (120g +/- 5g)
Vibration
POWER SPECTRAL DENSITY: .04g^2/HZ FREQUENCY OF RANGE: 20Hz-2Khz DURATION OF TEST PER AXIS:
3 hours
Power
PS/2: KEYBOARD: [email protected] (from Keyboard port) TOUCHPAD: [email protected] (from Mouse port) USB: [email protected]
(from CPU port)
Compatability
PS/2 KEYBOARD/TOUCHPAD: All Windows Operating Systems USB KEYBOARD/TOUCHPAD: All Windows and
Macintosh OS
Temperature Range
STORAGE: -40C to +65C (-40F to +149F) OPERATING: -20C to +60C (-4F to +140F)
Weight
5.00 lbs +/- 0.10 lbs (2.27 kg +/- 0.05 kg)
Warranty
1 year limited warranty
Humidity
100% Humidity Resistant
Dimensions
17.700" x 9.020" x 1.575" (w-h-d) 449.6mm x 229.1mm x 40.0mm
Model Numbers
PM-102-SS-PS2: With PS/2 Cable PM-102-SS-USB: With USB Cable
Features and Benefits
Integrated Touchpad
Low-profile stainless steel keys
PS/2 or USB configurations available
Stainless Steel Bezel
©2011 iKey, Ltd. All rights reserved. 2621 Ridgepoint Drive Suite 235 Austin, TX 78754 1-800- 866-6506
