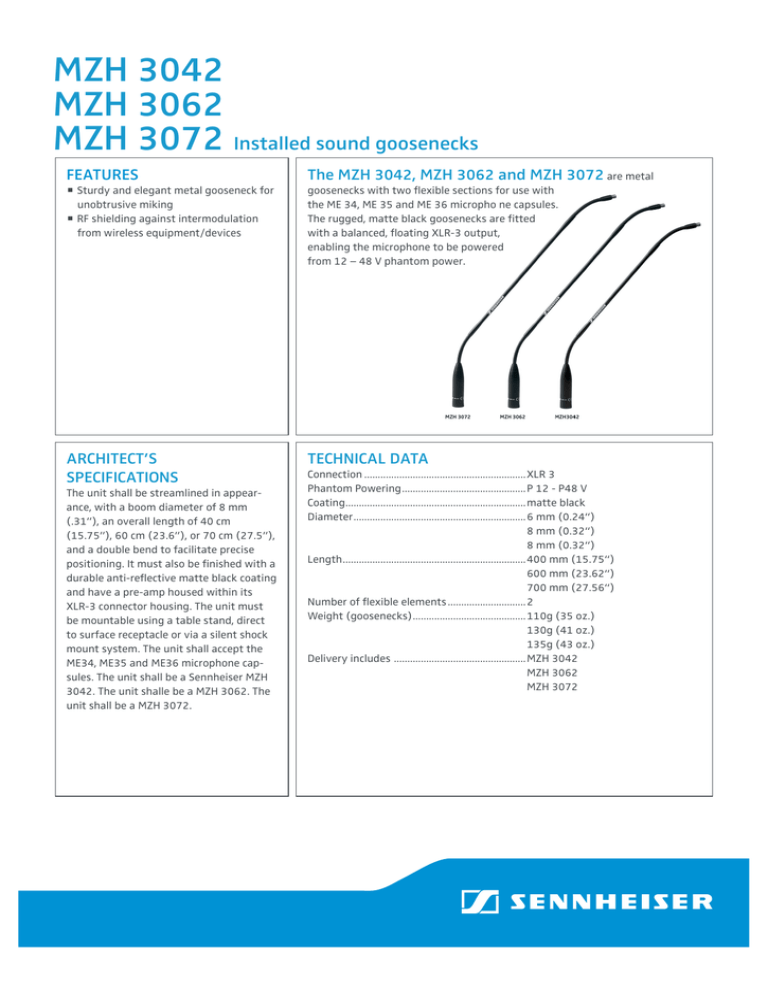

Sennheiser MZH 3062, MZH 3042, MZH 3072 Specification

Sennheiser MZH 3062, MZH 3042, MZH 3072 Specification
MZH 3042
MZH 3062
MZH 3072 Installed sound goosenecks
FEATURES
The MZH 3042, MZH 3062 and MZH 3072 are metal
Sturdy
and elegant metal gooseneck for
unobtrusive miking
RF shielding against intermodulation
from wireless equipment/devices
goosenecks with two flexible sections for use with
the ME 34, ME 35 and ME 36 micropho ne capsules.
The rugged, matte black goosenecks are fitted
with a balanced, floating XLR-3 output,
enabling the microphone to be powered
from 12 – 48 V phantom power.
ARCHITECT’S
SPECIFICATIONS
TECHNICAL DATA
The unit shall be streamlined in appear­
ance, with a boom diameter of 8 mm
(.31”), an overall length of 40 cm
(15.75”), 60 cm (23.6”), or 70 cm (27.5”),
and a double bend to facilitate precise
positioning. It must also be finished with a
durable anti-reflective matte black coating
and have a pre-amp housed within its
XLR-3 connector housing. The unit must
be mountable using a table stand, direct
to surface receptacle or via a silent shock
mount system. The unit shall accept the
ME34, ME35 and ME36 microphone cap­
sules. The unit shall be a Sennheiser MZH
3042. The unit shalle be a MZH 3062. The
unit shall be a MZH 3072.
Connection............................................................. XLR 3
Phantom Powering............................................... P 12 - P48 V
Coating.................................................................... matte black
Diameter................................................................. 6 mm (0.24“)
8 mm (0.32“)
8 mm (0.32“)
Length..................................................................... 400 mm (15.75“)
600 mm (23.62“)
700 mm (27.56“)
Number of flexible elements.............................. 2
Weight (goosenecks)........................................... 110g (35 oz.)
130g (41 oz.)
135g (43 oz.)
Delivery includes . ................................................ MZH 3042
MZH 3062
MZH 3072
MZH 3042 MZH 3062 MZH 3072 Installed sound goosenecks
CONNECTIVITY
Mic –
Mic +
XLR-3
PRODUCT VARIANTS
MZH 3042, black
MZH 3062, black
MZH 3072, black
MZH 3042 NX, Nextel grey MZH 3062 NX, Nextel grey MZH 3072 NX, Nextel grey RECOMMENDED ACCESSORIES
Cat. No. 009384
Cat. No. 500652
Cat. No. 500653
Cat. No. 500811
Cat. No. 500812
Cat. No. 500813
Contact your local Service Partner:
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
MZT 30, installation XLR3F connectorCat. No. 005085
MZS 31, shockmount
Cat. No. 005087
MZTX 31 PTT, tablestand Cat. No. 500457
(with push-to-talk)
MZFS 80, floorstand Cat. No. 500651
06/10 Sennheiser is a registered trademark of Sennheiser electronic GmbH & Co. KG. www.sennheiser.com. Copyright © 2010. All rights reserved. Errors and omissions excepted.
DIMENSIONS
