VetPro 1000
®
Mobile Dental
Delivery System

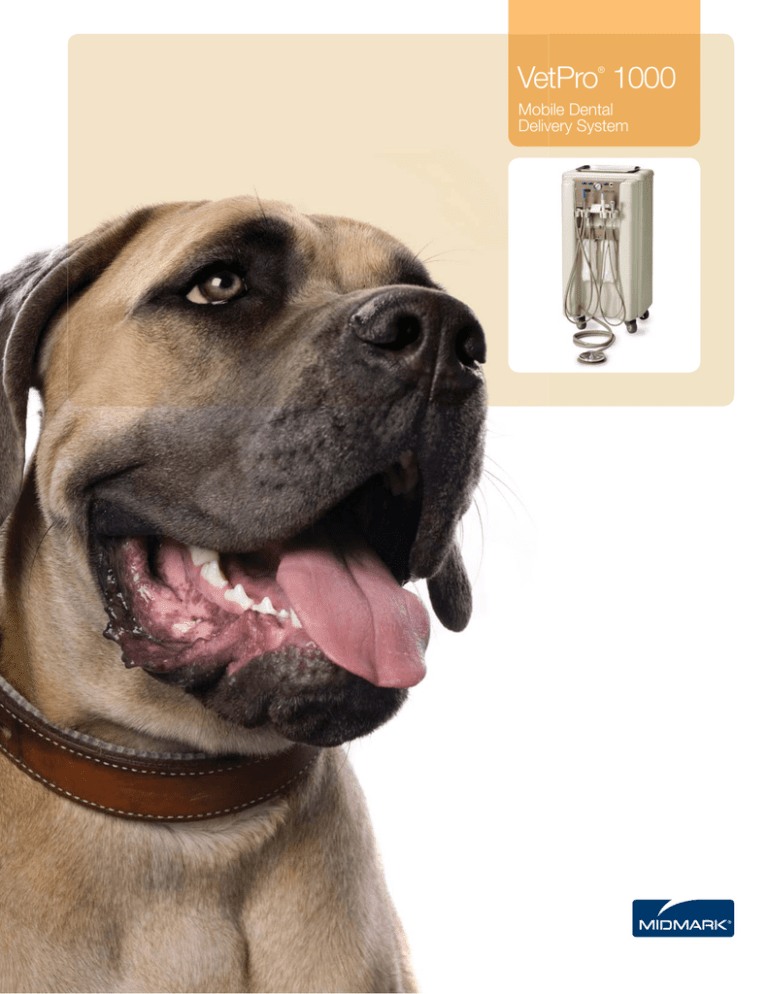

The VetPro 1000 Mobile Dental Delivery System
Oil-Free, Worry-Free, Hassle-Free
®
A reliable veterinary
dental delivery solution
that helps you provide
better patient care.
Supported by Midmark
The VetPro® 1000 gives you unsurpassed reliability, backed by our
trained service technicians and independent service network. You
will have peace of mind knowing that over 90 years of manufacturing
experience goes into each product. VetPro® 1000…the oil-free,
worry-free, hassle-free solution for your veterinary dental needs.
Specifications
Accessories
Overall depth: 18.5" (46.99 cm)
VetPro® Lube-Free High-Speed and
Low-Speed Handpieces included
Overall width: 23" (58.42 cm)
Overall height: 36.5" (92.71 cm)
Oil-free compressor
Our exclusive oil-free compressor technology allows you to provide
your patients with better, more efficient care without the mess or
hassles of oil-lubricated units. The VetPro® 1000 dental delivery
system requires no oil changes and very little maintenance for
hassle-free operation. Oil-free means there is no oil to contaminate
your handpieces, providing a clean, dry, aseptic work environment
for you, your staff and your patients.
Designed for veterinary dentistry
The VetPro® 1000 has precise controls designed specifically for
veterinary dentistry. You can switch from handpiece to handpiece
without touching a button – the unit will automatically adjust as the
handpiece is lifted from its cradle. The oil-free compressor means
there are no oily parts for animal hair to stick to, and, it’s one of the
quietest compressors on the market with a sound level of 40 dB.
Casters: 3" (7.62 cm)
medical grade
Compressor
Oil-free 1/3 hp motor
Working pressure: 70-100 psi
Flow rate: 2.5 CFM at 40 psi
Handpiece connection type:
Midwest 4-hole style
Optional fiber optics
Bur starter kit included
10 Disposable prophy angles
included
Sound level: 40 dB
Air reservoir: 1 gallon
Manual air tank purge
Water Module
Model Numbers
8000-001
VetPro® 1000
with integrated scaler
8000-002
VetPro® 1000
without scaler
8000-003
VetPro® 1000
with integrated scaler
and fiber optics
8000-004
VetPro® 1000
without integrated
scaler; with fiber optics
8000-007
VetPro® 1000
with LED scaler and dual
fiber optic high-speed
handpieces
8000-008
VetPro® 1000
with LED scaler and
fiber optics
Two 1-liter reservoirs (toggled)
Pressurized system: 30-40 psi
Aseptic, non-retracting
HPC coolant
Manual handpiece flush system
Durable construction
Its durable construction withstands the rigors often found in clinical
settings. The VetPro® 1000 is a completely enclosed system to
protect internal mechanics from contaminants and animal hair, and
is made from sturdy ABS plastic to withstand the strains caused
by frequent usage.
External quick connects for
water and air
Electrical
Voltage: 115 VAC, 6 Amps
Frequency: 50/60 Hz
UL 60601-1:2003
CAN/CSA-C22.2 No. 601-1-M90
Powercord: 10' hospital grade
facebook.com/MidmarkAnimalHealth
Optional, Integrated Acteon Satelec®
SP Newtron® Piezo Scaler,
with or without LED Light
midmarkanimalhealth.com
Midmark is an ISO 13485 and ISO 9001 Certified Company. • 1-800-MIDMARK • 1-937-526-3662 • midmark.com
© 2011 Midmark Corporation • Products subject to improvement changes without notice • Litho in U.S.A. • 007-0725-00 Rev. E1 (4/11)
