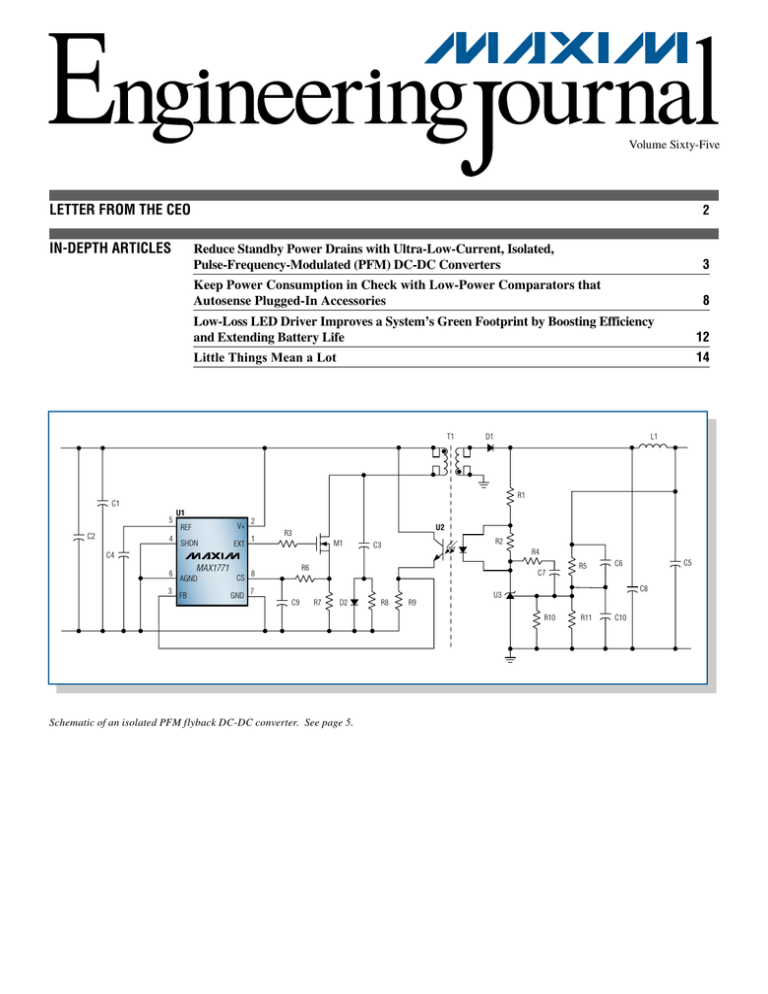

Schematic of an isolated PFM flyback DC-DC converter. See page 5.
R5
R11
C10
TM
Letter from the CEO
Maxim Provides Resources for Energy-Efficient Design
Recently, I calculated the energy usage of devices in my home. To my surprise, I discovered that my media server is using
$473 worth of electricity a year—that means that I spend more to operate the server over one to two years than I paid for the
server itself! I wonder if the server manufacturer is worried about this, and whether their customers are aware of this high total
cost of ownership. If the manufacturer could reduce the energy usage of this device, it would give all their customers an effective
discount. Not only would this energy efficiency reduce our impact on the environment, but it would be a competitive advantage.
This is precisely the challenge that we face as engineers. With the rising costs of energy and increased awareness of global
warming, consumers are demanding more environmentally friendly products. This demand poses complex technical challenges
for engineers, but it also represents a new business opportunity. That is, electronics manufacturers who offer higher-efficiency
products will have a competitive advantage in today’s marketplace.
When you think about it, this new emphasis simply rewards designers for good engineering. Even before “green” became a
byword, low-power design was good design. Greater power efficiency means smaller power supplies, lower costs, greater board
densities, improved battery life, reduced heat, and higher reliability.
In the past, efficiency was one of several parameters that engineers traded off to meet customer needs. However, with the
energy challenges facing our world today, efficiency is a tradeoff that we can no longer afford to make.
Maxim has designed “green” products for over 25 years. You know us as leaders in high-efficiency DC-DC converters,
battery-management ICs, and low-power products such as amplifiers. And, of course, we have been working for years to make
our products lead-free and reduce the use of hazardous materials.
You can count on Maxim to deliver innovative, energy-efficient solutions. We are devoting more engineering resources to
exciting, environmentally friendly technologies, in addition to the ones that we already pioneered. Specifically, we are applying
our expertise to hybrid automotive, solar power conversion and control, high-brightness LEDs, display drivers, notebook power,
and many other new areas.
We are also reorganizing our website to make it easier to find green design resources. Over the years, we have written over
2000 application notes, many of which can help you improve the efficiency of your products. We have assembled these and other
design resources on one easy-to-use microsite: www.maxim-ic.com/green-design.
Our engineers will continue to provide new design tips, reference designs, and application notes to help you maximize
efficiency. Stay tuned to Maxim’s website for technical information and products that will help you meet your customers’
demand for greener solutions.
This edition of the Engineering Journal features four articles written for engineers facing the energy challenges of today.
I hope that they inspire you with new ways to conserve resources.
Together, we can meet today’s most pressing technical and business challenges and make the world a better place. That’s
“Engineering Success.”
Tunç Doluca
President and Chief Executive Officer
Do you know how much your devices cost to operate?
Find out with Maxim’s energy cost calculator:
www.maxim-ic.com/energy-calc
Innovation Delivered is a trademark and Maxim is a registered trademark of Maxim Integrated Products, Inc. © 2009 Maxim Integrated Products, Inc. All rights reserved.
Reduce Standby
Power Drains
with Ultra-LowCurrent, Isolated,
Pulse-FrequencyModulated (PFM)
DC-DC Converters
consideration, and for safety concerns, galvanic isolation
is an important aspect of the design.
To address these concerns, designers must focus on
the design of the DC-DC converter to ensure that it
consumes as little current as possible during no-load
conditions. All DC-DC converters, even during
standby, can consume significant quiescent current.
One commercial power-supply module (the Recom ®
R-78A3.3-1OR), for example, draws about 7mA under
no-load conditions. However, with some attention to
topology and careful design, an isolated DC-DC converter
module with a no-load current drain of less than 1mA
can be implemented.
The 30X difference in current drain can translate into
reduced battery replacements. For example, even if
the system’s batteries are rechargeable, then additional
recharge cycles might be needed if the higher currentdrain supply is used. Moreover, batteries that are
recharged often, wear out sooner and end up in landfills.
Similarly, if the device employs one-time-use batteries,
they will discharge sooner with a higher standby current
and get discarded more frequently.
Javier Monsalve Kägi, Senior Member of Technical
Staff, Applications, Maxim Integrated Products, Inc.
Jose Miguel de Diego
Escuela Técnica Superior de Ingeniería, Bilbao, Spain
Jose Ignacio Garate
Escuela Técnica Superior de Ingeniería, Bilbao, Spain
While there are several approaches to the challenge, this
article looks at the use of pulse-frequency modulation
(PFM) to achieve a 1700:1 ratio between the device’s on
and standby states.
This article explains how to reduce the level of
low-current consumption in isolated DC-DC power
supplies and how to improve the performance of those
supplies under no-load conditions. Sensitive to today’s
need for innovative “green” solutions, the discussion
especially focuses on ways to extend the battery life of
battery-powered electronic devices and communicationsystem devices with discontinuous transmission.
System Characteristics
Typical power consumption versus time looks like the
graph in Figure 1. Here the load current spikes during
operation or active charging, and then drops when the
device is idle. The idle current, IZ, must be minimized
to reduce the battery drain and extend the battery life
and standby time. Thus, the isolated DC-DC converter
needs ultra-low current consumption when no load is
connected, and should also provide high isolation from
input to output. Ideally, the converter should also offer
high conversion efficiency and a small footprint.
Today, many industrial systems employ battery-powered
sensors and transponders to eliminate expensive cable
installations and to reduce overall system power
consumption. These industrial systems typically have
an active mode and a standby mode. In active mode the
sensor delivers data to the transponder (a radio modem)
which transmits the data to a host system. In standby
mode the transponder and sensor go to sleep for a fixed or
variable time period. This start-and-stop operation, often
referred to as a discontinuous operating mode, maximizes
the battery life of the device.
Q1 = t1 ✕ l1
ILOAD
For an application like a watering system that leverages
GSM radio modules for the sensors, maintenance costs
would be high if the batteries powering the GSM radios
had to be replaced every few days, or even every few
weeks. Since such a system spends most of its time
in standby or sleep mode, minimizing the power drain
from the battery when no activity is taking place would
go a long way toward extending battery life. In this
system no-load quiescent current becomes a key design
I1
t1
Q2 = t2 ✕ l2
t2 = kt ✕ t1
I2 / I1 = kI
I2
t
Figure 1. The relationship between the on and standby states of a communication device with discontinuous transmission.

3
Table 1. Characteristics of Commercial DC-DC Converters
Manufacturer
Electronic AG
XP Power
Recom Power International
C&D Technologies®
Bourns® Inc.
Recom Power International
Traco®
Model
TEN 5-1210
JCA0412S03
RW-123.3S
HL02R12S05
MX3A-12SA
R-78A3.3-1
VI (V)
12
12
12
12
12
12
VO (V)
3.3
3.3
3.3
5
3.3
3.3
The typical commercial DC-DC converters listed in
Table 1 show input currents of 7mA to 40mA when no
load is connected with an input of 12V. These converters
traditionally employ pulse-width-modulation (PWM)
controllers. However, PWM controllers always have an
active oscillator, even when there is no load, and that
oscillator continually draws current from the battery.
IO (A)
1.2
1.2
0.7
0.4
3.0
1.0
II (IO = 0, mA)
20
38
21
40
11
7
η (%)
77
83
65
60
93
81
Isolation
✓
✓
✓
✓
The most common approach solves the problem by using
either an auxiliary winding or an optocoupler.
The power-supply topology is a step-down approach;
the battery pack used by the application has a nominal
voltage of 12V, while the internal electronic circuits in
the system operate at 3.6V, nominal. Figure 2 shows the
schematic diagram of the DC-DC switching regulator, and
the Bill of Materials with component values is provided in
Table 2. When the control loop is regulating the voltage,
the optocoupler requires a constant current through the
LED on the primary side of the transformer. The lower
limit of the current is fixed by the optocoupler’s CTR
at low bias currents (63% at 10mA, and 22% at 1mA)
and by a reduction of the response time (2µs at 20mA
and 6.6µs at 5mA).
A PFM Controller Topology
An alternative approach is to use a DC-DC converter that
employs a pulse-frequency-modulation (PFM) controller.1
A PFM controller uses two one-shot circuits that only
work when the load drains current from the DC-DC
converter’s output. The PFM is based on two switching
times (the maximum on-time and the minimum off-time)
and two control loops (a voltage-regulation loop and a
maximum peak-current, off-time loop).
The current consumption of the output voltage-divider
(formed by resistors R5 and R11) is fixed to 7µA.
Because of this, the 0.5µA required by the reference
input plus its thermal deviation does not significantly
affect the output voltage. Additionally, the voltage
measured at the divider output does not suffer a relevant
delay, thanks to the low-input capacitance. This latter
fact precludes the need for a capacitive divider to reduce
the input capacitance of the precision reference. In the
optocoupler, the phototransistor draws 60µA (|IFB| <
60nA), which translates into a current flow through the
LED of less than 230µA (CTR ~26%).
The PFM is also characterized by control pulses of
variable frequency. The two one-shot circuits in the
controller define the TON (maximum on-time) and the
TOFF (minimum off-time). The T ON one-shot circuit
activates the second one-shot, T OFF . Whenever the
comparator of the voltage loop detects that VOUT is out
of regulation, the TON one-shot circuit is activated.
The time of the pulse is fixed up to a maximum value.
This pulse time can be reduced if the maximum peakcurrent loop detects that the current limit is surpassed.
The quiescent current consumption of a PFM controller is
limited only to the current needed to bias its reference and
error comparator (10s of µA). In contrast, the internal
oscillator of a PWM controller must be turned on
continuously, leading to a current consumption of several
milliamps. The implementation presented in this article
keeps the current consumption to less than 1mA at 12V by
using a PFM controller topology.
Controlling It All
To implement a PFM controller, the MAX1771 BiCMOS
step-up, switch-mode power-supply controller (U1) can
be used to provide the necessary timing. The MAX1771
offers improvements over prior pulse-skipping control
solutions: reduced size of the inductors required, due
to a 300kHz switching frequency; the current-limited
PFM control scheme achieves 90% efficiencies over
a wide range of load currents; and a maximum supply
current of just 110μA. Besides these advantages, the
main characteristics of the MAX1771 in a nonisolated
application are: 90% efficiency with load currents
ranging from 30mA to 2A; up to 24W of output power;
and an input-voltage range of 2V to 16.5V.
Field systems such as the watering system must endure
harsh environments, and thus the DC-DC converter
in those systems should be galvanically isolated. A
transformer provides the isolation, but the challenge is
to feed back the voltage reference from the secondary
side to the primary side without breaking the isolation.
4
the following characteristics: 100µF, 6.3V, X5R, and
1206 size (Kemet® C1206C107M9PAC). Using ceramic
capacitors reduces the capacitor leakage to just a few
microamps. Note, however, that the ceramic capacitors
cost about 3x that of the tantalum capacitors, and that
difference would increase the system cost.
The resistances of the voltage-control loop have been
chosen to have the highest possible values. This decision
represents a trade-off between current consumption and
loop stability. As a result, the current through the voltagedivider is less than 7µA. Since the filtering capacitors are
nonideal, capacitor leakage current must be added to this
current. In this design, filter capacitor-leakage current in
C5 and C8 is less than 20µA. If lower leakage is required,
these caps could be upgraded to ceramic capacitors with
Figure 3 shows the prototype PFM DC-DC converter
that draws a quiescent current of just 0.24mA. The
T1
D1
L1
R1
C1
5
C2
U1
V+
REF
4
SHDN
EXT
2
1
U2
R3
M1
R2
C3
R4
C4
6
3
MAX1771
AGND
FB
CS
GND
R6
8
7
C9
R5
C7
R7
D2
R8
C8
U3
R9
C5
C6
R10
R11
C10
Figure 2. Schematic of an isolated PFM flyback DC-DC converter.
Table 2. Component Bill of Materials for PFM Flyback DC-DC Converter
Reference
Values
C2
470µF 25V
C10
180pF
C1, C4, C7
100nF 16V
C5, C8
100µF 16V 0.1Ω
C6
100pF
C3
1nF 50V
C9
150pF
D1
MBRS230LT3G
D2
MBRA160T3G
L1
22µH 1.2A 0.19Ω
M1
IRFR120
R1, R6
R9, R2
R3
R4
R5
R7
R10
R11
R8
T1
U1
U2
680Ω
100kΩ
10Ω
4.7kΩ
390kΩ
0.047Ω
270kΩ
820kΩ
100Ω
EP10 3F3
MAX1771
TLV431A
U3
SFH6106-2
Description
CEL 470µF, 25V, +105°C,
10mm x 10mm SMD
CS 180p C COG, 50V 0603/1
#CSMD 100nF K X7R 16V 0603/1
CEL TAN 100µF ±20% E 16V 0.1Ω
CS 100p C COG 50V 0603/1
#CS 1n M X7R 50V 0603/1
CS 150p C COG 50V 0603/1
D Schottky 2A, 30V SMB
D Schottky 1A, 60V SMA
L SMD 22µH, 1.2A, 0.19Ω
Q IRFR120 DPAK 8.4A, 100V,
0.270Ω, NMOS
RS 680R J 1/16W 0603/1
#RS 100K F 1/16W 0603/1
#RS 10R J 1/16W 0603/1
#RS 4K7 J 1/16W 0603/1
#RS 390K F 1/16W 0603/1
RS R047 J 1206 /1
RS 270K F 0603 /1
RS 820K F 0603 /1
#R SMD 100R -J 1206/1
T SMD EP10 3F3 NUCTOR
DC-DC controller
U TLV431A V.REF 1.25V SOT23-5
#U SFH6106-2 OPTO 63-125%,
5.3kV SMD-4
5
Manufacturer
UUD1E471MNL1GS (Nichicon®)
GRM39 COG 181 J 50 PT (Murata®)
GRM39X7R104K16PT (Murata)
T495D107K016ATE100 (Kemet®)
GRM39 COG 101 J 50 PT (Murata)
GRM39 COG 271 J 50 PT (Murata)
GRM39 COG 151 J 50 PT (Mutata)
MBRS230LT3G (ON Semiconductor(s))
MBRA160T3G (ON Semiconductor)
SRR0604-220ML (Bourns®)
IRFR120 (Int.Rectifier.)
RK73B 1J T TD 680 J (KOA Speer®)
RK73H 1J T TD 1003 F (KOA Speer)
RK73B 1J T TD 100 J (KOA Speer)
RK73H 1J T TD 4701 J (KOA Speer)
RK73H 1J T TD 3903 F (KOA Speer)
SR73 2B T TD R047 J (KOA Speer)
RK73H 1J T TD 2703 F (KOA Speer)
RK73H 1J T TD 8203 F (KOA Speer)
RK73B 2B T TD 101 J (KOA Speer)
CSHS-EP10-1S-8P-T (Ferroxcube®-Nuctor)
Maxim Integrated Products
TLV431ACDBVR (Texas Instruments™)
SFH6106-2 (Vishay®)
Table 4. Efficiency at Nominal Voltage for Different
Loads
VIN (V) IIN (mA) VOUT (V) IOUT (A) Efficiency (%)
12.0
0.24
3.615
0
0
12.0
61
3.615
0.14
69.14
12.0
83
3.615
0.2
72.59
12.0
121
3.615
0.3
74.69
12.0
160
3.615
0.4
75.31
12.0
200
3.615
0.5
75.31
12.0
240
3.615
0.6
75.31
12.0
281
3.615
0.7
75.04
12.0
323
3.615
0.8
74.61
12.0
367
3.615
0.9
73.88
12.0
411
3.615
1.0
73.30
Figure 3. Top view of the DC-DC PFM converter prototype for
wireless applications.
Table 3. Current Consumption Under a No-Load State
for Different Input Voltages
VIN (V)
10.0
12.0
15.0
IIN (mA)
0.244
0.239
0.227
VOUT (V)
3.615
3.615
3.615
IOUT (A)
0
0
0
loop may oscillate during certain load conditions. To
prevent self-oscillation, designers must account for the
various tolerances of the components in a production
environment. Thus, the values of the resistors and
capacitors used in the loop must be selected with care.
board measures less than 50mm by 30mm, can deliver
3.6W with an input-voltage range of 10V to 15V (12V
nominal), and operates at a switching frequency of
300kHz. The converter can supply a maximum constant
output current of 1A while delivering a regulated output
of 3.6V. Employing a flyback topology (step down) with
both current and voltage feedback control, the converter
output is galvanically isolated from the input.
Table 4 provides the values for the input and output
parameters of the power supply at various load conditions.
The optimum efficiency is reached at normal conditions
and within the nominal load range.
The efficiency of the DC-DC converter with no load
is represented as zero (Figure 4), because the current
consumed by the wireless device in standby mode and
referred to the 3.6V output side is below 140µA. This
current is negligible, when compared to the 0.24mA of
the power supply’s input-current consumption under
no-load conditions.
The prototype can be used in various wireless applications
that operate in a discontinuous transmission mode. The
current consumption of the modules can peak at 3A, and
the maximum mean current is 1A. To reduce the current
peaks and avoid the problems that they generate in the
performance of the radio, the techniques described in
references 2 and 3 are used. Additionally, some basic
guidelines suggest that designers should use high-value
capacitors that have low series resistances.
The waveforms in Figures 5a, b, c, and d show the
output voltage and control voltage for various loads; the
control pulses at the gate of the switching device become
more frequent as the load increases. The converter
prototype shows the signals at no load, 100mA, 500mA,
and 1A current loads. The scope traces graphically
illustrate the operation of the PFM control scheme. The
lower scope trace is scaled by 5x to make it more visible.
The X axis represents the time and the Y axis the voltage.
Qualifying Design Performance
To verify the performance of the power supply, the
following parameters are measured: the input voltage,
VI; the input current, II; the nominal output voltage, VO;
the load current consumption, IO; and the efficiency of
the power supply. Tables 3 and 4 show the measurement
results, including the losses on the common-mode input
filter and the losses of the protection circuitry. It is also
important to remember that power supplies handling
low power levels are not as efficient as power supplies
handling higher loads. The higher-load power supplies
are usually synchronous, which helps to reduce the losses
in the active devices.
Summary
Initial industry surveys indicate that the best commercial
isolated DC-DC converters for power supplies with low
current consumption under no-load conditions typically
have about 20mA minimum current consumption. With
minimal effort, however, designers can use a PFM
scheme to implement a low-IQ, isolated power supply
that has the lowest current consumption on the market.
The no-load current consumption of the power supply
presented here is only 0.24mA.
The current consumption of the power supply with a
PFM control scheme has been reduced to 0.24mA. Due
to component values selected, however, the control
6
80
EFFICIENCY (%)
60
40
20
0
0
0.2
0.4
0.6
0.8
Figure 5d.Output voltage and control voltage for 1A load
(20ms/div, CH1 1V/div, and CH2 5V/div).
1.0
OUTPUT CURRENT CONSUMPTION (A)
