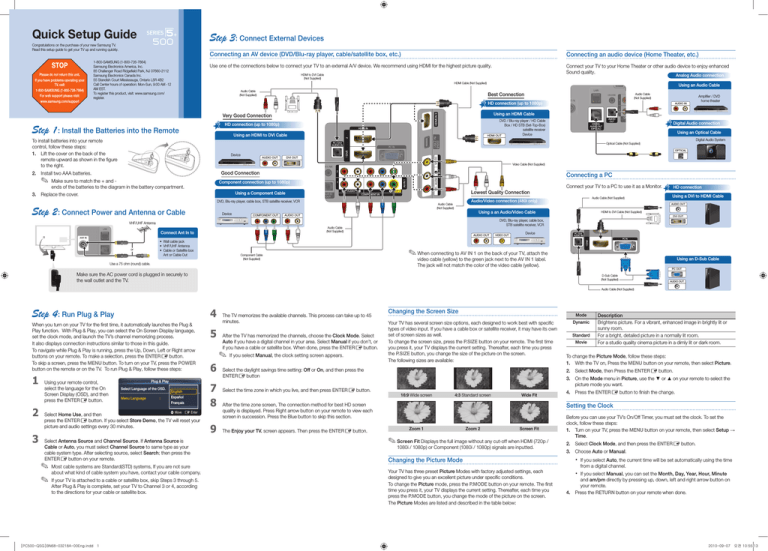

Quick Setup Guide
Step 3: Connect External Devices
Congratulations on the purchase of your new Samsung TV.
Read this setup guide to get your TV up and running quickly.
STOP
Please do not return this unit.
If you have problems operating your
TV, call:
1-800-SAMSUNG (1-800-726-7864)
For web support please visit:
www.samsung.com/support
1-800-SAMSUNG (1-800-726-7864)
Samsung Electronics America, Inc.
85 Challenger Road Ridgefield Park, NJ 07660-2112
Samsung Electronics Canada Inc.
55 Standish Court Mississauga, Ontario L5R 4B2
Call Center hours of operation: Mon-Sun, 9:00 AM -12
AM EST.
To register this product, visit: www.samsung.com/
register.
Connecting an AV device (DVD/Blu-ray player, cable/satellite box, etc.)
Connecting an audio device (Home Theater, etc.)
Use one of the connections below to connect your TV to an external A/V device. We recommend using HDMI for the highest picture quality.
Connect your TV to your Home Theater or other audio device to enjoy enhanced
Sound quality.
Analog Audio connection
HDMI to DVI Cable
(Not Supplied)
HDMI Cable (Not Supplied)
Audio Cable
(Not Supplied)
Using an Audio Cable
Best Connection
Audio Cable
(Not Supplied)
HD connection (up to 1080p)
To install batteries into your remote
control, follow these steps:
1. Lift the cover on the back of the
remote upward as shown in the figure
to the right.
Amplifier / DVD
home theater
Using an HDMI Cable
Very Good Connection
Step 1: Install the Batteries into the Remote
AUDIO IN
DVD / Blu-ray player / HD Cable
Box / HD STB (Set-Top-Box)
satellite receiver
Device
HDMI OUT
HD connection (up to 1080p)
Using an HDMI to DVI Cable
Digital Audio connection
Using an Optical Cable
Digital Audio System
Optical Cable (Not Supplied)
OPTICAL
Device
AUDIO OUT
DVI OUT
Video Cable (Not Supplied)
Good Connection
2. Install two AAA batteries.
✎✎ Make sure to match the + and -
ends of the batteries to the diagram in the battery compartment.
Connecting a PC
Component connection (up to 1080p)
Connect your TV to a PC to use it as a Monitor.
Lowest Quality Connection
Using a Component Cable
3. Replace the cover.
DVD, Blu-ray player, cable box, STB satellite receiver, VCR
Step 2: Connect Power and Antenna or Cable
Device
COMPONENT OUT
or
AUDIO OUT
Component Cable
(Not Supplied)
Use a 75 ohm (round) cable.
HDMI to DVI Cable (Not Supplied)
DVI OUT
DVD, Blu-ray player, cable box,
STB satellite receiver, VCR
Audio Cable
(Not Supplied)
• Wall cable jack
• VHF/UHF Antenna
• Cable or Satellite box
Ant or Cable Out
AUDIO OUT
Using a an Audio/Video Cable
AUDIO OUT
VHF/UHF Antenna
Connect Ant In to
Audio Cable (Not Supplied)
Audio/Video connection (480i only)
Audio Cable
(Not Supplied)
HD connection
Using a DVI to HDMI Cable
VIDEO OUT
Device
✎✎When connecting to AV IN 1 on the back of your TV, attach the
video cable (yellow) to the green jack next to the AV IN 1 label.
The jack will not match the color of the video cable (yellow).
Using an D-Sub Cable
PC OUT
Make sure the AC power cord is plugged in securely to
the wall outlet and the TV.
D-Sub Cable
(Not Supplied)
AUDIO OUT
Audio Cable (Not Supplied)
4 The TV memorizes the available channels. This process can take up to 45
Step 4: Run Plug & Play
When you turn on your TV for the first time, it automatically launches the Plug &
Play function. With Plug & Play, you can select the On Screen Display language,
set the clock mode, and launch the TV’s channel memorizing process.
It also displays connection instructions similar to those in this guide.
To navigate while Plug & Play is running, press the Up, Down, Left or Right arrow
buttons on your remote. To make a selection, press the ENTERE button.
To skip a screen, press the MENU button. To turn on your TV, press the POWER
button on the remote or on the TV. To run Plug & Play, follow these steps:
2 Select Home Use, and then
Plug & Play
Select Language of the OSD.
Menu Language
:
English
Español
Français
U Move E Enter
press the ENTERE button. If you select Store Demo, the TV will reset your
picture and audio settings every 30 minutes.
3 Select Antenna Source and Channel Source. If Antenna Source is
Cable or Auto, you must select Channel Source to same type as your
cable system type. After selecting source, select Search; then press the
ENTERE button on your remote.
✎✎ Most cable systems are Standard(STD) systems, If you are not sure
about what kind of cable system you have, contact your cable company.
✎✎ If your TV is attached to a cable or satellite box, skip Steps 3 through 5.
After Plug & Play is complete, set your TV to Channel 3 or 4, according
to the directions for your cable or satellite box.
[PC500-QSG]BN68-03218A-00Eng.indd 1
5 After the TV has memorized the channels, choose the Clock Mode. Select
Auto if you have a digital channel in your area. Select Manual if you don’t, or
if you have a cable or satellite box. When done, press the ENTERE button.
✎✎ If you select Manual, the clock setting screen appears.
6 Select the daylight savings time setting: Off or On, and then press the
Mode
Your TV has several screen size options, each designed to work best with specific
types of video input. If you have a cable box or satellite receiver, it may have its own
set of screen sizes as well.
To change the screen size, press the P.SIZE button on your remote. The first time
you press it, your TV displays the current setting. Thereafter, each time you press
the P.SIZE button, you change the size of the picture on the screen.
The following sizes are available:
7 Select the time zone in which you live, and then press ENTERE button.
8 After the time zone screen, The connection method for best HD screen
Standard
Movie
Description
Brightens picture. For a vibrant, enhanced image in brightly lit or
sunny room.
For a bright, detailed picture in a normally lit room.
For a studio quality cinema picture in a dimly lit or dark room.
To change the Picture Mode, follow these steps:
1. With the TV on, Press the MENU button on your remote, then select Picture.
3. On the Mode menu in Picture, use the ▼ or ▲ on your remote to select the
picture mode you want.
16:9 Wide screen
4:3 Standard screen
Wide Fit
4. Press the ENTERE button to finish the change.
Setting the Clock
quality is displayed. Press Right arrow button on your remote to view each
screen in succession. Press the Blue button to skip this section.
9 The Enjoy your TV. screen appears. Then press the ENTERE button.
Dynamic
2. Select Mode, then Press the ENTERE button.
ENTERE button
1 Using your remote control,
select the language for the On
Screen Display (OSD), and then
press the ENTERE button.
minutes.
Changing the Screen Size
Zoom 1
Zoom 2
Screen Fit
✎✎Screen Fit Displays the full image without any cut-off when HDMI (720p /
1080i / 1080p) or Component (1080i / 1080p) signals are inputted.
Before you can use your TV’s On/Off Timer, you must set the clock. To set the
clock, follow these steps:
1. Turn on your TV, press the MENU button on your remote, then select Setup →
Time.
2. Select Clock Mode, and then press the ENTERE button.
3. Choose Auto or Manual.
Changing the Picture Mode
xx If you select Auto, the current time will be set automatically using the time
Your TV has three preset Picture Modes with factory adjusted settings, each
designed to give you an excellent picture under specific conditions.
To change the Picture mode, press the P.MODE button on your remote. The first
time you press it, your TV displays the current setting. Thereafter, each time you
press the P.MODE button, you change the mode of the picture on the screen.
The Picture Modes are listed and described in the table below:
xx If you select Manual, you can set the Month, Day, Year, Hour, Minute
from a digital channel.
and am/pm directly by pressing up, down, left and right arrow button on
your remote.
4. Press the RETURN button on your remote when done.
2010-09-07 오전 10:55:13
Step 5: Remote Control
Step 6: Media Play Features
The Media Play feature lets you connect to your PC through your home network and
stream PC audio and video files to your HDTV using your remote. To use IPTV or
Samsung PC Share Manager, you must connect your TV to your network. You can
attach the TV to your network in two ways, by cable, using CAT 5 cable, or wirelessly,
using a Samsung Wireless LAN Adapter. Instructions for both connection methods are
below.
Remote Control Buttons and Functions
✎✎This is a special remote control for the visually impaired and has Braille points on the Power, Channel and Volume buttons.
POWER
Turns the TV on and off.
SOURCE
Selects the HDMI mode directly.
Displays and selects the available video sources.
Changes channels.
Quickly select frequently used functions.
Returns to the previous menu.
These buttons are for the Channel list, Media Play
(USB) menu, etc.
POWER
Displays channel list on thescreen.
MENU
Displays Favorite Channel Lists on the screen.
FAV.CH
TOOLS
INFO
RETURN
EXIT
A
B
C
TV Rear Panel
The LAN Port on the Wall
Selects the on-screen menu items and changes the values
seen on the menu.
Exits the menu.
D
S.MODE
SLEEP
MTS
P.MODE
P.SIZE
CC
LAN Cable (Not Supplied)
Displays information on the TV screen.
S.MODE: Press to select the sound mode.
SLEEP: Use to set the sleep timer function.
MTS: Press to choose stereo, mono or Separate Audio
Program (SAP broadcast).
P.MODE: Press to select the picture mode.
P.SIZE: Selects the picture size.
CC: Controls the caption decoder.
SOURCE
HDMI
Configuring the Network Connection - Wired
Most home networks use the Dynamic Host Configuration Protocol (DHCP) to
configure network connections. Home networks that support DHCP automatically
provide the IP address, subnet mask, gateway, and DNS values your TV needs to
access the Internet so you don’t have to enter them manually.
To configure your network connection for a network that uses DHCP, follow these
steps:
1. Connect your TV to your network as shown in one of the illustrations above.
2. Turn on your TV, press the MENU button on your remote, and then select
Setup → Network.
HDMI
Changing Channels and Adjusting the Volume
PRE-CH
MUTE
Adjust the volume by pressing the Volume button
on the remote.
Change the channels by pressing the Channel button on the remote.
✎✎If your TV is attached to a cable or satellite box, change the channel using
CH LIST
✎✎You can also change the channels by pressing the z
MEDIA.P
TOOLS
Viewing the On Screen Menus
RETURN
the box’s remote.
MENU
FAV.CH
PRE-CH
button on the front panel of your TV and adjust the volume by pressing the y button.
MUTE
INFO
CH LIST
MENU
Connecting a USB Device for Media Play
EXIT
To view the On Screen Menus, follow these steps:
MEDIA.P
FAV.CH
1. Turn on your TV, press the MENU button on your
A
B
C
D
TOOLS
INFO
remote. The main menu appears.
MTS
S.MODE SLEEP
The menu’s left side has the following menu
P.MODE and
P.SIZE Support.
options: Picture, Sound, Channel, Setup, Input, Application,
CC
RETURN
EXIT
2. Press the ▲ or ▼ button on your remote to select a menu option, and then
press the ENTERE button.
A
B
C
D
3. When done using the menu, press the EXIT button on your remote to exit.
Selecting a Source
S.MODE
SLEEP
MTS
P.MODE
P.SIZE
CC
To watch a movie on your Blu-ray player or watch
POWER
SOURCE
your favorite TV show, you must select the correct
source. A source is a device, such as a Blu-ray/DVD
player, a cable/satellite box, antenna or a cable TV
HDMI
input. Sources can be connected to your TV through
the HDMI, DVI, Component, Composite, or D-sub
connections, or through the Antenna or Cable In connections.
To view the signal from a source connected to the HDMI, DVI, Component,
Composite, or D-sub jack, press the SOURCE button on your remote. Each time
you press the SOURCE button, you change to a different source.
You can enjoy photo,
music, and movie files
stored on a USB device
by connecting it to the TV
and using the Media Play
feature. To connect a USB
device for Media Play,
follow these steps:
1. Turn on your TV.
MediaPlay
5. On the Network Setup menu,
set Internet Protocol Setup
and DNS Setup to Auto.
Auto acquires and enters
the necessary internet values
automatically.
6. Select Network Test to check
Internet connectivity.
✎✎Some networks are Static
4. Select Network Setup. The Network Setup screen appears.
Network Setup
Internet Protocol Setup : Auto
IP Address
:
Subnet Mask
:
Gateway
:
DNS
: Auto
DNS Server
:
r
U Move E Enter R Return
IP networks. If your network
is a Static IP network, you can not use DHCP to configure the network
connection. Instead, you must enter the IP Address, Subnet Mask,
Gateway, and DNS Server manually. For instructions explaining how to
configure a Static IP network, see your user’s manual.
The instructions below are for networks that use the Dynamic Host Configuration
Protocol (DHCP) to configure network connections automatically. If your have a
Static IP network, see your user’s manual for configuration instructions.
To configure your network connection for a network that uses DHCP, follow these
steps:
1. Connect your TV to your network as shown in the illustrations above.
3. Set the Network Type to Wireless if it is not already set to Wireless.
4. Select Network Setup. The Network Setup screen appears.
SOURCE
Configuring the Network Connection - Wireless
2. Turn on your TV, press the MENU button on your remote, and the select Setup
→ Network.
3. Set the Network Type to Wired if it is not already set to Wired.
POWER
TV Rear Panel
Samsung’s Wireless LAN adapter is sold separately and is offered by select
retailers, Ecommerce sites and Samsungparts.com. Samsung’s Wireless LAN
adapter supports the IEEE 802.11A/B/G and N communication protocols.
Samsung recommends using IEEE 802.11N. When you play the video over a IEEE
802.11B/G connection, the video may not play smoothly.
Most wireless network systems incorporate a security system that requires devices
that access the network through an access point or AP (typically a wireless IP
Sharer) to transmit an encrypted security code called an access key.
If Pure High-throughput (Greenfield) 802.11n mode is selected and the Encryption
type is set to WEP, TKIP or TKIPAES (WPS2Mixed) for your AP, Samsung TVs will
not support a connection in compliance with new Wi-Fi certification specifications.
LAN Cable (Not Supplied)
Cuts off the sound temporarily.
CH LIST
MEDIA.P
Wireless IP
sharer
TV Side Panel
LAN Cable (Not Supplied)
TV Rear Panel
External Modem
(ADSL / VDSL / Cable TV)
Modem Cable (Not Supplied)
MUTE
Opens the OSD.
Samsung Wireless LAN
Adapter
or
Returns to the previous channel.
PRE-CH
Adjusts the volume.
Use these buttons in Media Play (USB) and Anynet+
(HDMI-CEC) modes. (�: Controls recording on
Samsung recorders that have the Anynet+ feature)
The LAN Port on the Wall
Network Connection - Wired
The Modem Port on the Wall
Have direct access to channels.
Views Media Play (USB).
You can connect your TV to your LAN through a standard wireless router or
modem. To connect wirelessly, you must first attach a “Samsung Wireless LAN
Adapter” (WIS09ABGN, WIS09ABGN2, WIS10ABGN - sold separately) to either the
USB 1 or USB 2 (HDD) port on the back of your TV. See the illustration below.
There are two main ways to connect your TV to your network using cable,
depending on your network setup. They are illustrated below:
HDMI
Press to select additional channels (digital) being
broadcasted by the same station. For example, to select
channel “54-3”, press “54”, then press “-” and “3”.
Network Connection - Wireless
5. On the Network Setup menu,
select an AP(Access Point) and
ad hoc network. if you have
selected network with a security
key, the Security Key screen
appears.
6. Enter the security key using the
numbers on the remote, and then
press the Blue button on your
remote.
Network Setup
Select a Network
: Not Selected
r
Internet Protocol Setup : Auto
IP Address
:
Subnet Mask
:
Gateway
:
DNS
: Auto
DNS Server
✎✎ If your network uses WEP
:
PBC(WPS) U Move E Enter R Return
security encryption, 0~9 and A~F will be available on the Security
Key screen. Use the Direction button on your remote to move to the
characters and the enter key to select them.
7. On the Network Setup menu, set Internet Protocol Setup and DNS to Auto.
The Auto acquires and enters the necessary internet values automatically.
Videos
8. Select Network Test to check internet connectivity.
✎✎For more information, see your user’s manual.
SUM
Change Device
View Devices
E Enter R Return
2. Connect a USB device
containing photo, music and/or movie files to the USB 1 or USB 2 (HDD) port
on the back or side panel of the TV.
3. When USB is connected to the TV, popup window appears. Then you can
select Media Play.
PRE-CH
MUTE
BN68-03218A-00
CH LIST
MEDIA.P
TOOLS
[PC500-QSG]BN68-03218A-00Eng.indd 2
MENU
FAV.CH
INFO
2010-09-07 오전 10:55:16
Download PDF
