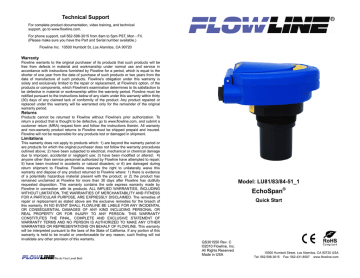

EchoSpan LU81, LU83, and LU84 Quick Start Guide

EchoSpan LU81, LU83, and LU84 Quick Start Guide
Technical Support
For complete product documentation, video training, and technical
support, go to www.flowline.com.
For phone support, call 562-598-3015 from 8am to 5pm PST, Mon - Fri.
(Please make sure you have the Part and Serial number available.)
Flowline Inc. 10500 Humbolt St, Los Alamitos, CA 90720
Warranty
Flowline warrants to the original purchaser of its products that such products will be
free from defects in material and workmanship under normal use and service in
accordance with instructions furnished by Flowline for a period, which is equal to the
shorter of one year from the date of purchase of such products or two years from the
date of manufacture of such products. Flowline's obligation under this warranty is
solely and exclusively limited to the repair or replacement, at Flowline's option, of the
products or components, which Flowline's examination determines to its satisfaction to
be defective in material or workmanship within the warranty period. Flowline must be
notified pursuant to the instructions below of any claim under this warranty within thirty
(30) days of any claimed lack of conformity of the product. Any product repaired or
replaced under this warranty will be warranted only for the remainder of the original
warranty period.
Returns
Products cannot be returned to Flowline without Flowline's prior authorization. To
return a product that is thought to be defective, go to www.flowline.com, and submit a
customer return (MRA) request form and follow the instructions therein. All warranty
and non-warranty product returns to Flowline must be shipped prepaid and insured.
Flowline will not be responsible for any products lost or damaged in shipment.
Limitations
This warranty does not apply to products which: 1) are beyond the warranty period or
are products for which the original purchaser does not follow the warranty procedures
outlined above; 2) have been subjected to electrical, mechanical or chemical damage
due to improper, accidental or negligent use; 3) have been modified or altered; 4)
anyone other than service personnel authorized by Flowline have attempted to repair;
5) have been involved in accidents or natural disasters; or 6) are damaged during
return shipment to Flowline. Flowline reserves the right to unilaterally waive this
warranty and dispose of any product returned to Flowline where: 1) there is evidence
of a potentially hazardous material present with the product; or 2) the product has
remained unclaimed at Flowline for more than 30 days after Flowline has dutifully
requested disposition. This warranty contains the sole express warranty made by
Flowline in connection with its products. ALL IMPLIED WARRANTIES, INCLUDING
WITHOUT LIMITATION, THE WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. The remedies of
repair or replacement as stated above are the exclusive remedies for the breach of
this warranty. IN NO EVENT SHALL FLOWLINE BE LIABLE FOR ANY INCIDENTAL
OR CONSEQUENTIAL DAMAGES OF ANY KIND INCLUDING PERSONAL OR
REAL PROPERTY OR FOR INJURY TO ANY PERSON. THIS WARRANTY
CONSTITUTES THE FINAL, COMPLETE AND EXCLUSIVE STATEMENT OF
WARRANTY TERMS AND NO PERSON IS AUTHORIZED TO MAKE ANY OTHER
WARRANTIES OR REPRESENTATIONS ON BEHALF OF FLOWLINE. This warranty
will be interpreted pursuant to the laws of the State of California. If any portion of this
warranty is held to be invalid or unenforceable for any reason, such finding will not
invalidate any other provision of this warranty.
We do Your Level Best
Model: LU81/83/84-51_1
EchoSpan®
Quick Start
QS301550 Rev. C
©2010 Flowline, Inc.
All Rights Reserved
Made in USA
10500 Humbolt Street, Los Alamitos, CA 90720 USA
Tel: 562.598.3015 Fax: 562.431.8507
We do Yourwww.flowline.com
Level Best
Select Fail Safety Output
Welcome to the EchoSpan® Quick Start
®
The EchoSpan Quick Start is meant to show some of the more common
®
setup solutions to getting the EchoSpan up and running quickly. If you
run into an issue that is not addressed here or wish to install or set up with
®
a non-standard configuration, please address the EchoSpan Manual or
refer to the Flowline website at www.flowline.com.
We Do Your Level Best
®
®
Thank you for purchasing Flowline’s EchoSpan . The EchoSpan provides a 4-20 mA
analog output with integrated LCD and three push-button configuration. This Quick
Start includes everything you’ll need to get the transmitter up and running. For
®
complete information, please refer to EchoSpan documentation located at
www.flowline.com.
1)
Enter the configuration menu
(as discussed previously),
2)
Select SAFE from the menu,
3)
Select an output option, such as 22mA,
21mA, 20mA, 4mA, or HOLD, and
4)
Select EXIT to return to the Configuration menu.
Select Fail Safety Output
Reverse 4-20 mA Signal
Components
Depending on the model shipped to you, you should have the components shown
®
®
below. Both components – the EchoSpan and Viton gasket – are required to install
®
the EchoSpan .
EchoSpan®
LU81-5101
LU81-5161
LU83-5101
LU83-5101
LU84-5101
LU84-5161
In the event the transmitter does not receive an
echo, the Select Fail Safety Output setting can be
set either to 22mA, 21mA, 20mA or HOLD the last
value to achieve the desired fail-safe condition.
During fail-safe, the display will read LOST.
Viton® gasket
Part#: 200129 (2”)
The transmitter allows you to switch the 4-20 mA value at the top and bottom of the
application. By default, 4mA is configured as the bottom and 20mA is configured as
the top. The transmitter displays this as NORM. Follow these instructions to reverse
this setting:
1)
Enter the configuration menu
(as discussed previously),
2)
Select TANK from the menu,
3)
Select Rev MA from the
menu,
4)
Then, select Rev from the
menu, and
5)
Select EXIT to return to the
Configuration menu.
Reverse 4-20 mA Signal
Troubleshooting
If you face any issues not addressed in this quick start, please refer to the EchoSpan
Manual located on Flowline website at www.flowline.com.
We do Your Level Best
We do Your Level Best
®
Set Units
Mounting the Transmitter
The transmitter displays information in inches,
feet, centimeters, meters, or percentages. This
can be displayed to represent the amount of air
or the amount of liquid in a tank.
The transmitter should always be mounted perpendicular to the liquid surface using the
®
provided Viton mounting gasket. Insure that there are no restrictions or obstacles in the
path of the ultrasonic signal.. Further mounting information can be found on the Flowline
website at www.flowline.com.
Air Display Mode shows the distance from the
bottom of the sensor to the liquid surface. Liquid
Display mode show the distance from the liquid
surface to the bottom of the tank.
The LU81, 83, & 84 has a 2” NPT or G fitting that can be installed in standard 2” tank
adapters. It is best to keep the height of any adapter to a minimum with 6” being the
absolute maximum for a 2” riser. The LM-1001 is a good choice for sidewall mount
applications.
Setting Units
Follow these instructions to set how units are displayed:
1)
Mounting with a Tank Adapter: Select a tank adapter fitting, such as the LM522890.
Enter the configuration menu (as
discussed previously),
2)
Select UNITS from the menu,
Mounting with a Riser: As installations with tall, narrow risers can impede the
acoustic signal. 2" diameter risers should be no taller than 5". Larger diameter risers
should be no taller than 12".
3)
Select the type of unit or the type of
DISPLAY you desire, and
Mounting with a Side Mount Bracket: Use Flowline's LM50-1001 side mount
bracket.
4)
Select EXIT to return to the Configuration
menu.
Set Height and Fill Height
This setting customizes the reading for your installation. Follow these instructions to
set the height and fill height for your tank:
Riser Mounting
1)
Enter the configuration menu (as discussed previously),
2)
Select TANK from the menu,
3)
Select HEIGHT. Use the UP and DOWN buttons to set the height of your tank. Then,
hold down the SELECT button to save this setting,
4)
Select FILL-H for the fill
height. Use the UP and
DOWN buttons to set the fill
height of your tank. Then, hold
down the SELECT button to
save this setting, and
5)
Select EXIT to return to the
Configuration menu.
We do Your Level Best
Setting Fill Height
Side Mounting
Mounting with a Stand Pipe: A standpipe may be used
to
dampen turbulence, separate surface foam from the point
of measurement or increase performance in heavy vapor.
Select a 2” pipe and attach the transmitter with a coupling
and reducer bushing. The pipe length should run the
measurement span and the bottom of the pipe should
remain submerged at all times to prevent foam from
entering the pipe. Cut the bottom end of the pipe at 45°
and drill a 1/4”pressure equalization hole high in the dead
band. The pumps should not drive liquid past
the open end of the standpipe which causes the liquid in
the pipe to oscillate.
We do Your Level Best
Mounting with a Standpipe
IMPORTANT MOUNTING GUIDELINES:
1)
2)
3)
4)
5)
6)
Never mount the sensor at an angle.
Liquid should never enter the dead band.
Mount at least 3” from the side wall.
Never mount in a vacuum.
Do not obstruct the sensor’s 3” beam width.
Isolate air gaps between inner and outer threads for best performance.
Some final notes on safety:
Where personal safety or significant property damage can occur due to
a spill, the installation must have a redundant backup safety system.
Wiring should always be completed by a licensed electrician.
Supply voltage should never exceed 28 VDC.
The sensor must be chemically compatible with the application.
Design a fail-safe system for possible sensor and/or power failure.
Never use the sensor in classified hazardous environments.
Configuring the Transmitter
Wiring the Transmitter
The following wiring diagrams can be used when wiring the transmitter.
The transmitter features a non-volatile memory,
and can be configured prior to installation. Your
configuration will not be lost when the transmitter is
powered down.
Before configuring, be sure to have the following
information:
Height. This is the distance from the transducer
face to the bottom of the tank.
Fill Height (Fill-H). This is the distance from the
highest level of liquid to the bottom of the tank
Height and Fill Height
Wiring Schematic for Flowline DataView L155
Configuration Menu
The transmitter is configured with the three buttons on
the transmitter’s face (UP, DOWN and SELECT) and
the transmitter's LCD. To access the transmitter's
configuration menu, simply hold down the SELECT
button for five seconds or until the menu is displayed.
When the SELECT button is released, the display menu
will begin to scroll through the uppermost level of the
configuration menu.
Wiring Schematic for Typical PLC
We do Your Level Best
When the menu scrolls to an item you wish to configure,
simply press the SELECT button again when that item
Transmitter Interface
appears. Once you've made your configuration changes,
press SELECT again when “Exit” appears to scroll through
the options and once more while RUN appears in the display.
This will return the transmitter to its operational mode.
We do Your Level Best
