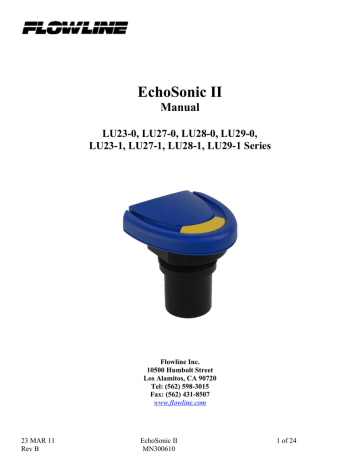

EchoSonic II
Manual
LU23-0, LU27-0, LU28-0, LU29-0,
LU23-1, LU27-1, LU28-1, LU29-1 Series
Flowline Inc.
10500 Humbolt Street
Los Alamitos, CA 90720
Tel: (562) 598-3015
Fax: (562) 431-8507
www.flowline.com
23 MAR 11
Rev B
EchoSonic II
MN300610
1 of 24
Preface
This manual explains how to use the EchoSonic II, LU23, LU27, LU28 and LU29 series ultrasonic level
transmitter.
Warranty, Service & Repair
To register your product with the manufacturer, go to the Flowline website for on-line registration. The website
address is as follows:
www.flowline.com
On-line Warranty Registration can be found under Contact Us in the Navigation Bar along the side of the home
page.
If for some reason your product must be returned for factory service, go to the Flowline website to receive a
Material Return Authorization number (MRA), providing the following information:
1. Full Part Number, Full Serial Number
2. Name and telephone number of someone who can answer technical questions related to the product
and its application.
3. Return Shipping Address
4. Brief Description of the Symptom
5. Brief Description of the Application
On-line Material Return Authorization can be found under Contact Us in the Navigation Bar along the side of
the home page. Click on Return Authorization to begin the MRA request. Once you have received a MRA
number, ship the product prepaid in its original packing to:
Flowline Factory Service
MRA_____
10500 Humbolt Street
Los Alamitos, CA 90720
To avoid delays in processing your repair, write the MRA on the shipping label. Please include the information
about the malfunction with your product. This information enables our service technicians to process your repair
order as quickly as possible.
2 of 24
EchoSonic II
MN300610
31 MAR 11
Rev B
Warranty
Flowline warrants to the original purchaser of its products that such products will be free from defects in
material and workmanship under normal use and service in accordance with instructions furnished by Flowline
for a period, which is equal to the shorter of one year from the date of purchase of such products or two years
from the date of manufacture of such products. Flowline's obligation under this warranty is solely and
exclusively limited to the repair or replacement, at Flowline's option, of the products or components, which
Flowline's examination determines to its satisfaction to be defective in material or workmanship within the
warranty period. Flowline must be notified pursuant to the instructions below of any claim under this warranty
within thirty (30) days of any claimed lack of conformity of the product. Any product repaired or replaced
under this warranty will be warranted only for the remainder of the original warranty period.
Returns
Products cannot be returned to Flowline without Flowline's prior authorization. To return a product that is
thought to be defective, go to www.flowline.com, and submit a customer return (MRA) request form and follow
the instructions therein. All warranty and non-warranty product returns to Flowline must be shipped prepaid and
insured. Flowline will not be responsible for any products lost or damaged in shipment.
Limitations
This warranty does not apply to products which: 1) are beyond the warranty period or are products for which
the original purchaser does not follow the warranty procedures outlined above; 2) have been subjected to
electrical, mechanical or chemical damage due to improper, accidental or negligent use; 3) have been modified
or altered; 4) anyone other than service personnel authorized by Flowline have attempted to repair; 5) have
been involved in accidents or natural disasters; or 6) are damaged during return shipment to Flowline. Flowline
reserves the right to unilaterally waive this warranty and dispose of any product returned to Flowline where: 1)
there is evidence of a potentially hazardous material present with the product; or 2) the product has remained
unclaimed at Flowline for more than 30 days after Flowline has dutifully requested disposition. This warranty
contains the sole express warranty made by Flowline in connection with its products. ALL IMPLIED
WARRANTIES, INCLUDING WITHOUT LIMITATION, THE WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. The remedies of
repair or replacement as stated above are the exclusive remedies for the breach of this warranty. IN NO EVENT
SHALL FLOWLINE BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY
KIND INCLUDING PERSONAL OR REAL PROPERTY OR FOR INJURY TO ANY PERSON. THIS
WARRANTY CONSTITUTES THE FINAL, COMPLETE AND EXCLUSIVE STATEMENT OF
WARRANTY TERMS AND NO PERSON IS AUTHORIZED TO MAKE ANY OTHER WARRANTIES OR
REPRESENTATIONS ON BEHALF OF FLOWLINE. This warranty will be interpreted pursuant to the laws
of the State of California. If any portion of this warranty is held to be invalid or unenforceable for any reason,
such finding will not invalidate any other provision of this warranty.
23 MAR 11
Rev B
EchoSonic II
MN300610
3 of 24
Introduction:
The EchoSonic II is a general-purpose ultrasonic level transmitter that provides a loop powered 4-20 mA
output. The 4-20 mA output can be used to provide the proportional level of liquid in any tank or vessel. The
signal can be connected to any device that accepts a loop powered 4-20 mA signal, such as a PLC, SCADA,
DCS, display, controller, etc.
New Features
 Simple configuration with WebCal software, no more target calibration.
 Adjustable Loop Fail-Safe, Hold Last, Empty, Full, 21 mA, 22 mA
 Easy to reverse mA output, 4-20 mA to 20-4 mA
 Adjustable start-up condition, Empty, Mid (12 mA), Full, Over range (22 mA)
 Increased output filtering
Table of Contents
Introduction .........................................................................................................................4
New Features ......................................................................................................................4
About this manual ...............................................................................................................5
Specifications ......................................................................................................................7
Dimensions .........................................................................................................................7
Getting Started ....................................................................................................................8
USB® Fob Interface ......................................................................................................9
WebCal ..........................................................................................................................9
Step 1: Configuration .......................................................................................10
Step 2: Tank Levels .........................................................................................12
Step 3: Write to Unit ........................................................................................12
Wiring ..........................................................................................................................13
Wiring Diagram ...........................................................................................................13
Wiring Connections ....................................................................................................13
Wiring to Displays, Controllers & PLC’s ...................................................................14
Installation.........................................................................................................................16
Position and Mount ......................................................................................................16
Mounting Guide ...........................................................................................................16
Fitting Selection ...........................................................................................................17
Tank Adapter: ..................................................................................................17
Riser .................................................................................................................17
Flange ...............................................................................................................18
Side Mount Fitting ...........................................................................................18
Stand Pipe ........................................................................................................19
Advanced Feature .............................................................................................................20
Appendix ..........................................................................................................................20
Updating WebCal Software .........................................................................................21
Updating Transmitter Firmware ..................................................................................23
Factory Defaults ...........................................................................................................23
Troubleshooting ...........................................................................................................24
User Settings ................................................................................................................24
4 of 24
EchoSonic II
MN300610
31 MAR 11
Rev B
About this Manual:
PLEASE READ THE ENTIRE QUICK START PRIOR TO INSTALLING OR USING THIS PRODUCT.
This manual includes information on the EchoSonic II series Ultrasonic Level Switch from FLOWLINE.
Please refer to the part number located on the switch label to verify the exact model configuration, which
you have purchased.
User’s Responsibility for Safety:
FLOWLINE manufactures a broad range of level sensing technologies. While each of these sensors is designed
to operate in a wide variety of applications, it is the user’s responsibility to select a sensor model that is
appropriate for the application, install it properly, perform tests of the installed system, and maintain all
components. The failure to do so could result in property damage or serious injury.
Proper Installation and Handling:
Only professional staff should install and/or repair this product. Install the transmitter with the included Viton
gasket and never over tighten the transmitter within the fitting. Always check for leaks prior to system start-up.
Wiring and Electrical:
A supply voltage of 12 to 28 VDC is used to power the EchoSonic II. Electrical wiring of the transmitter
should be performed in accordance with all applicable national, state, and local codes.
Material Compatibility:
The enclosure is made of Polycarbonate (PC). The transducer is made of Polyvinylidene Fluoride (PVDF).
Make sure that the model, which you have selected, is chemically compatible with the application media.
Enclosure:
While the transmitter housing is liquid-resistant the EchoSonic II is not designed to be operational when
immersed. It should be mounted in such a way that the enclosure and transducer do not come into contact with
the application media under normal operational conditions.
Safety;
 Installation should be done by properly trained staff
 Supply voltage should never exceed a maximum of 28 VDC
 Make sure the sensor is chemically compatible with your application
 Design a fail-safe system that accommodates the possibility of sensor and/or power failure.
 This sensor should not be used in classified hazardous environments
Make a Fail-Safe System:
Design a fail-safe system that accommodates the possibility of transmitter and/or power failure. FLOWLINE
recommends the use of redundant backup systems and alarms in addition to the primary system.
Flammable, Explosive or Hazardous Applications:
EchoSonic II should not be used within classified hazardous environments.
23 MAR 11
Rev B
EchoSonic II
MN300610
5 of 24
Warning:
Always use the Viton gasket when installing the EchoSonic II, and make sure that all electrical wiring of the
switch is in accordance with applicable codes.
Components:
EchoSonic II is offered in three different models. Depending on the model purchased, you may or may not have
been shipped all the components shown below. You do however, need an EchoSonic II, USB® Fob and
Viton® gasket to configure, install and operate EchoSonic II.

EchoSonic II
o LU27-01
o LU27-11
o LU23-01
o LU23-11
o LU28-01
o LU28-11
o LU29-01
o LU29-11
- 9.8’ (3 m) range,
- 9.8’ (3 m) range,
– 18.0’ (5.5 m) range,
– 18.0’ (5.5 m) range,
– 26.2’ (8 m) range,
– 26.2’ (8 m) range,
– 32.8’ (10 m) range,
– 32.8’ (10 m) range,

Viton Gasket
o Part #200128 for LU27 series
o Part #220129 for LU23, LU27 or LU29 series

USB® Fob
o Part #LI99-1001
Type 6P encl., 1” NPT
Type 6P encl., 1” G
Type 6P encl., 2” NPT
Type 6P encl., 2” G
Type 6P encl., 2” NPT
Type 6P encl., 2” G
Type 6P encl., 2” NPT
Type 6P encl., 2” G
 Quick Start Guide
6 of 24
EchoSonic II
MN300610
31 MAR 11
Rev B
Specifications:
Range:
LU27: 4" to 9.8'
(10 cm to 3 m)
LU23: 8" to 18.0' LU28: 8" to 26.2' LU29: 8" to 32.8'
(20 cm to 5.5 m)
(20 cm to 8 m)
(20 cm to 10 m)
Process temp.:
F: -4° to 140°
Accuracy:
± 0.2% of range
C: -20° to 60°
Resolution:
LU27: 0.019” (0.5mm)
Temp. comp.:
Automatic
LU23: 0.039” (1mm)
Ambient temp.: F: -31° to 140°
LU28: 0.079” (2 mm)
C: -35° to 60°
LU28: 0.079” (2 mm)
Pressure:
MWP = 30 PSI
Dead band:
LU27: 4” (10cm)
Enclosure type: Type 6P encapsulated,
LU23/28/29: 8” (20cm)
corrosion resistance &
Beam width:
LU27: 2” (5cm)
submersible
LU23/28/29: 3” (7.6cm)
Encl. material:
Polycarbonate
Configuration:
WebCal® PC
Trans. material: PVDF
Windows® USB 2.0
Cable jacket mat.: Polyurethane
Memory:
Non-volatile
Cable type:
4-conductor shielded
Supply voltage: 24 VDC (loop)
Cable length:
10’ (3 m)
Consumption:
0.5 W
Process mount: LU27: 1” NPT (1” G)
Loop resistance: 500 Ohms @ 24 VDC
LU23/28/29: 2” NPT (2”
Signal output:
4-20 mA, two-wire
G)
Signal invert:
4-20 mA or 20-4 mA
Mount. gasket:
Viton®
Signal fail-safe: 4 mA, 20 mA, 21 mA,
Classification:
General purpose
22 mA or hold last
Compliance:
CE, RoHS
Approvals:
cFMu
Dimensions:
Side View / LU27 Series
Side View / LU23, LU28 and LU29 Series
23 MAR 11
Rev B
EchoSonic II
MN300610
7 of 24
Getting Started:
EchoSonic II is configured through WebCal, a PC software program. WebCal is a free download from
Flowline’s website. You must download and install WebCal prior to plugging in the USB® Fob. Please
go to http://www.flowline.com, click on WebCal Software and select your language version.
WebCal System Requirements
Windows® XP or 2000
10 mB hard drive space
256 mB RAM
1 USB® 2.0 port
Internet connection
8 of 24
EchoSonic II
MN300610
31 MAR 11
Rev B
USB® Fob Interface
EchoSonic II communicates with WebCal through a USB® interface called a Fob. Before plugging your
Fob into your computer’s USB® port, be sure that you have installed WebCal on your computer.
Connect the red, green, white and black wires from EchoSonic II into the correct terminals on the Fob.
Tighten the screws on the terminals and plug your Fob into the USB® port of your computer.
*
Once EchoSonic II is configured and prior to installation, isolate the white and green wires
from active power to prevent a short of the configuration circuit
WebCal
With EchoSonic II connected to your computer, open the WebCal software by clicking on the WebCal
icon. Follow steps 1-3 to configure the transmitter. Click “Help” in the lower right hand corner and open
the help menu of WebCal for additional instructions on WebCal. If you need additional assistance using
WebCal, please contact a Flowline Applications engineer at (562) 598-3015
23 MAR 11
Rev B
EchoSonic II
MN300610
9 of 24
WebCal Step 1: Configuration
This section of WebCal is where you select the application’s configuration settings. Start from the top and
work to the bottom, choosing the selections that are applicable to your configuration. “Not Applicable”
will automatically show when a selection doesn’t apply to your configuration settings, and you may move
on. All configuration settings must be selected or have “Not Applicable” before you can continue to step
2. Note: Pressing the Clear Screen button will reset the configuration table and allow access to all of the
features.
Loop Fail-Safe
This feature allows you to select the fail-safe current output if the sensor
fails to detect a return signal (LOST). When the sensor regains signal,
the output current will revert back to the current level condition.
o Hold Last Value - The output will remain in the same state as
the last echo detected. Example: If the output was 6.7 mA just
prior to the LOST signal, the device will continue to output 6.7
mA. When the sensor regains signal, the output will indicate the
level when the signal was regain.
o Empty - The output will revert to the current value of an Empty
tank. The empty state is dependent upon the Output at Empty
setting. When 4 mA at Bottom is selected, the sensor will output
4 mA when a fail-safe condition occurs. If 20 mA at Bottom is
selected, the sensor will output 20 mA when a fail-safe condition
occurs
o Full - The output will revert to the current value of a Full tank.
The full state is dependent upon the Output at Empty setting.
When 4 mA at Bottom is selected, the sensor will output 20 mA
when a fail-safe condition occurs. If 20 mA at Bottom is
selected, the sensor will output 4 mA when a fail-safe condition
occurs
o Overfill (21mA) - The output current will go to 21mA when the
return signal is lost.
o Overfill (22mA) - The output current will go to 22mA when the
return signal is lost.
Note: Right click on any menu that you may have questions on to open the help menu.
Note: To reset, press the Clear Screen button.
10 of 24
EchoSonic II
MN300610
31 MAR 11
Rev B
Output at Empty
This feature allows you to select the orientation of the 4 to 20mA output
(4 to 20 mA or 20 to 4 mA). Choose which output setting best fits the
application. Typical installations are set with 4 mA at Bottom. This will
not affect the performance of the sensor other than the output of the
EchoSonic II. WebCal’s factory default is 4mA at bottom and 20mA at
top. When connecting your sensor to a display, you must account for
your output settings.
o 4mA at Bottom - The output current will be 4mA when the
sensor measures an empty tank and 20mA when the sensor
measures a full tank.
o 20mA at Bottom - The output current will be 20mA when the
sensor measures an empty tank and 4mA when the sensor
measures a full tank
Startup Condition
This feature allows the operator to select the output current on initial
startup prior to acquiring a true return signal (level measurement).
This only occurs during the initial powering of EchoSonic II and the
transmitter will revert to the correct level reading when the level is
acquired.
o Empty - Selects the start up current established in Output at
Empty. Example: Select 4 mA at Bottom, the output will
remain at 4 mA until the unit acquires a true return echo.
Select 20 mA at Bottom, the output will remain at 20 mA until
the unit acquires a true return echo.
o Mid Tank - When selected, the startup current will read 12
mA until the unit acquires a true return echo.
o Full Tank - Uses the opposite current that was selected in
Output at Empty. Example: If you select 4 mA at Bottom then
the start up current would be 20 mA. If you select 20 mA at
Bottom then the start up current would be 4 mA.
o Overfill (22mA) - The output at startup would be 22 mA. This
condition will remain until the unit acquires a true return echo.
Note: Right click on any menu that you may have questions on to open the help menu.
Note: To reset, press the Clear Screen button.
23 MAR 11
Rev B
EchoSonic II
MN300610
11 of 24
WebCal Step 2: Tank Levels
This section of WebCal is where you enter application measurement values. All values must be filled in
before moving to step 3.
Sensor Height: Distance from
the bottom of the tank to the
bottom of the transducer.
Fill Height: Distance from the
bottom of the tank to the
maximum liquid height.
WebCal Step 3: Write to Unit
After you have entered configurations and tank values, click “Write to Unit” and send the configuration
to your EchoSonic. Now use WebCal’s file management features to save your configuration by clicking
“Save Config File” and print your wiring diagram by clicking “Wiring Diagram.”
Write to Unit
Wiring diagram
Save Config File
12 of 24
EchoSonic II
MN300610
31 MAR 11
Rev B
Wiring Diagram
Wiring EchoSonic II
After you have finished positioning and mounting EchoSonic II, follow WebCal’s wiring diagram to wire
EchoSonic II. Flowline recommends using a qualified licensed electrician to wire EchoSonic II and your
application’s components.
Wire Connections:
Red & Black
Red and Black leads are for connection to a 24 VDC power supply or to a 4-20 mA loop power
source. The red and black wires can be extended up to 1,000 feet using a 22 gauge or larger wire,
however do not extend the green and white wires.
White & Green
White and Green leads are reserved for use with WebCal and should not be connected during
usage in the application. These wires should not be connected to WebCal while power is supplied
from any source other than the LI99 series Fob.
Note: Once EchoSonic is configured, isolate the white and green wires from active power to
prevent a short of the configuration circuit.
Note: Do not extend the White & Green wires beyond 15’.
23 MAR 11
Rev B
EchoSonic II
MN300610
13 of 24
General notes for electrical connections, usage and safety:






Where personal safety or significant property damage can occur due to a spill, the
installation must have a redundant backup safety system installed.
Wiring should always be completed by a licensed electrician.
Supply voltage should never exceed 28 VDC.
The sensor materials must be Chemically compatible with the liquids to be measured.
Design a fail-safe system for possible sensor and/or power failure.
Never use the sensor in environments classified as Hazardous.
Voltage Output
EchoSonic II can be used as a 0 to 5 or 0 to 10 VDC output device. A resistor will need to be added to the
circuit to enable a voltage output (refer to the wiring diagram below).
 0-5 VDC output
o Add a 250 Ohm resistor
o Actual output will be 0.8 to 5 VDC
 0-10 VDC output
o Add a 500 Ohm resistor
o Actual output will be 2 to 10 VDC
Wiring to Display, Controllers & PLC’s
Below is a quick review of wiring the EchoSonic II to common display, controllers and PLC’s.
DataView LI55 Series
Level Controller
14 of 24
Commander LI90 Series
Multi-Tank Level Controller
EchoSonic II
MN300610
31 MAR 11
Rev B
DataLoop LI25 Series
Level Indicator
without the backlight
DataLoopLI25 Series
Level Indicator
with the backlight
Wiring to Display, Controllers & PLC’s (continued)
DataPoint LC52 Series
Level Controller
JWA mode (Factory Setting)
DataPoint LC52 Series
Level Controller
JWB mode
Generic Loop
Powered Display
Generic PLC
23 MAR 11
Rev B
EchoSonic II
MN300610
15 of 24
Installation
The EchoSonic II should always be mounted perpendicular to the liquid surface and installed using the
provided Viton mounting gasket. Make sure that the fitting and transmitter threads are not damaged or
worn. Always hand-tighten the transmitter within the fitting. Perform an installed leak test under normal
process conditions prior to system start up. Note: The preferred mounting fitting for the LU27 series is the
LM52-1400 (2” thread x 1” thread) reducer bushing.
Mounting Guide
1. Do not mount at an angle
2. Liquid should never enter the dead band
3. Side Wall:
a. For LU27 Series - mount at least 2” from the side wall
b. For LU23, LU28 & LU29 Series - mount at least 3” from the side wall
4. Do not mount where obstacles will intrude on sensor’s beam width
a. See Specifications on page 8
5. Do not mount in a vacuum
6. Avoid mounting in the center of a dome top tank.
7. In cone bottom tank, position the sensor over the deepest part of the tank.
Do not install at
angle relative to the
liquid.
Do not install within
3” of tank sidewall.
Do not install with
objects in the beam.
Do not install in
applications with
vacuum.
16 of 24
EchoSonic II
MN300610
31 MAR 11
Rev B
Installation in existing fittings
If the existing fitting is larger than the threads of the EchoSonic II, select a reducer bushing such as
the LM52-1400 (2” thread x 1” thread) or LM52-2400 (3” thread x 2” thread).
Metal Tanks (LU27 series)
Flowline ultrasonic transmitters have been optimized for use in non-metallic fittings.
1. For best performance, avoid the use of metallic fittings.
a. Use a plastic 2” x 1” reducer bushing, such as the LM52-1400 or a plastic 1” flange,
such as the LM52-1850 for metallic tanks.
2. While installations directly into a 1” metal fitting are not recommended, acceptable results
may be obtained if the 1” fitting is a half coupling in form and the outer diameter of the
coupling is tightly wrapped in vinyl tape to dampen vibrations.
Fitting Selection:
Check the part number to determine the required fitting mount size and thread type. EchoSonic II
is commonly installed in tank adapters, flanges, brackets or standpipes. Note: Always include the
gasket when installing the EchoSonic II.
1. Tank Adapter: Select a tank adapter fitting, such as the LM52-1890 for the LU27 series
or the LM52-2890 for the LU23, LU28 & LU29 series.
a. For best results, select a 2” tank adapter and add a reducer bushing such as the
LM52-1400, thread x thread, reducer bushing.
b. Avoid tank adapter (thread x thread) styles and/or pipe stops forward of the
installed transducer.
2” Tank Adapter
Socket x Thread
Tank Adapter
w/ 2”x1” Reducer Bushing
Tank Adapter
Thread x Thread
Do not use thread x thread
2. Riser: Installations with tall, narrow risers can impede the acoustic signal.
a. LU23, LU28 & LU29 Series: 2” (5 cm) diameter risers should be no taller than 5”
(12.7 cm). Larger diameter risers should be no taller than 12” (30.5 cm).
b. LU27 Series:
23 MAR 11
Rev B
EchoSonic II
MN300610
17 of 24
Note: Do not exceed the dimensions listed above
2.
Flange (LU27 series):
If installing on a flange, select a flange with a thread that is above the plane of the flange,
such as the LM52-1850.
a. The LU23, LU28 & LU29 series works well with Flange installations.
b. Avoid the use of blind flanges with tapped threads or flanges where the threads are
even with the plane of the flange, such as the Banjo 1" Poly ANSI Flange (series
AF100).
c. Use a flange with a 2” thread and add a 2” to 1” reducer bushing to complete the
installation.
2” Flange w/
thread out of plane
2” Flange w/
thread in plane
2” Flange w/
Reducer Bushing
Do not use thread in plane
3. Side Mount Bracket:
For installations in open tanks and sumps, use the LM50 series side mount bracket.
a. For the LU27 series, order the LM50-1001-1, which includes a 2”x 1” Reducer
Bushing.
b. For the LU23, LU28 & LU29, series, order the LM50-1001 side mount bracket.
18 of 24
EchoSonic II
MN300610
31 MAR 11
Rev B
4. Stand Pipe:
A standpipe maybe used to dampen turbulence or when foam is present in the application.
a. Pipe can be made of any material.
b. Select a minimum 3” ID pipe for the stand pipe.
i. A 2” pipe is usable with the LU27 series, but is the minimum.
ii. Pipes larger than 3” can also be used.
c. Use a coupling and reducer bushing to attach the EchoSonic II to the pipe.
i. With the LU27 series, be sure to use a plastic reducing bushing such as
LM52-1400 2” T x 1” T fitting or the LM52-1410 2” S x 1” T fitting.
d. The pipe length should run the measurement span and the bottom of the pipe should
remain submerged at all times to prevent foam from entering the pipe.
e. Cut a 45°notch at the bottom of the pipe and drill a 1/4”pressure equalization hole
in the dead band.
f. The pumps should not drive liquid past the open end of the stand pipe which causes
the liquid in the pipe to oscillate.
23 MAR 11
Rev B
EchoSonic II
MN300610
19 of 24
Advanced Features
This tool is designed to help solve operational issues. Changing these setting will alter the performance of
your unit. Please read through this HELP file to assist you in making adjustments or if still unclear about a
specific issue, please contact FLOWLINE, Applications Engineering.
NOTE: When the Advanced Button is highlighted with a RED border, this indicates you have
selected an advanced feature…

Increase output filtering: Placing a check mark in the box will increase the filtering
(averaging) of the analog output. If you require the 4 to 20 mA output to be smooth for the
application such as Open Channel Flow measurement, you might check this box.
20 of 24
EchoSonic II
MN300610
31 MAR 11
Rev B




Decrease Output Filtering: Placing a check mark in the box will eliminate all filtering
(averaging) of the analog output. Enables a pulse by pulse level reading. Use this filter to
see changes in level after every sound pulse.
Note: Never check increase output filtering and decrease output filtering at the same time.
Stabilize Output in Deadband: Placing a check mark in the box will activate a filter to hold
the output at Full if the level enters the dead band of the EchoPod. This filter requires the
level to leave the dead band at a smooth and steady rate.
Turn OFF Fast Level Changes: Placing a check mark in the box will turn off the filter
enabling fast level changes. Use this filter if your application has very smooth, slow and
steady level changes. The filter instructs EchoPod to look only for small incremental
changes in level.
Turn ON Noisy Mount Start Filter: Placing a check mark in the box will activate a filter
that reduces sound interference from the installation mount. Use this filter if the EchoPod
will not go to full range in the installation.
Appendix
Updating WebCal Software
WebCal software can be updated directly from the software. Simply click on the Updates Tab at the top
of the window and press the Download button. Make sure that your computer has access to the Internet.
If not, an error window will appear.
When the Download button is pressed, the software will check the version of software you re using with
the most recent version at Flowline. If the versions are similar, a window indicating that the most recent
version is installed. If not, then a window will appears asking to download the latest version. Follow the
instructions for installing the latest version.
23 MAR 11
Rev B
EchoSonic II
MN300610
21 of 24
Updating Transmitter Firmware
WebCal software can also be used to update the firmware inside the EchoSonic II transmitter. This
feature allows the transmitter to be updated when new features are added. First open WebCal with an
EchoSonic II transmitter connected and the latest version of WebCal downloaded to your PC.
Click on the Updates Tab and then click on Select Program to select the Firmware update.
Select the latest version of the firmware file and click on OK.
Confirm that the address is correct and then click on Update Sensor to begin the firmware update. This
step should take less than 1 minute. You can follow the progress with the status bar to the right of the
Update Sensor button. When completed, click on the Configuration tab to configure the transmitter.
Remember, when the firmware has been updated, the unit will return to its original factory settings.
 If there is a communication interruption during the update, the process will stop. It is OK
to click on Update Sensor again to start the process over again.
Factory Default
Pressing the Factory Config button in the Configuration menu will return the screen to the
following settings. Out of the box, the EchoPod will output a 4-20 mA output that is maximized
for its operational range. The transmitter can be used in the original factory setting without
configuration with WebCal. Use the table below to identify the configuration of the sensor out of
the box.
22 of 24
EchoSonic II
MN300610
31 MAR 11
Rev B
Factory Defaults Table
Part
Number
LU27-01
LU27-11
LU23-01
LU23-11
LU28-01
LU28-11
LU29-01
LU29-11
Sensor
Height
300 cm
(118.1”)
550 cm
(216.5”)
800 cm
(315.0”)
1000 cm
(393.7”)
Fill
Height
290 cm
(114.1”)
530 cm
(208.7”)
780 cm
(307.1”)
980 cm
(385.8”)
Loop
Fail-Safe
Overfill
(22 mA)
Overfill
(22 mA)
Overfill
(22 mA)
Overfill
(22 mA)
Output
at Empty
4 mA @
Bottom
4 mA @
Bottom
4 mA @
Bottom
4 mA @
Bottom
Startup
Condition
Empty
Empty
Empty
Empty
Testing the Transmitter
1. Connect a multimeter in series with the black wire to read the current output.
2. Verify that the current increases (tank filling) and decreases (tank emptying) appropriately
in the calibrated span.
3. If not, carefully observe and attempt to correlate any installation, level or application event
for more specific troubleshooting direction.
23 MAR 11
Rev B
EchoSonic II
MN300610
23 of 24
Troubleshooting
PROBLEM
SOLUTION
Transmitter indicates a
current of 0 mA
Transmitter jumps to a
current reading between 19
and 20 mA
Transmitter indicates a
current over 23 mA
Transmitter always jumps to
LOST condition
Output of transmitter is
opposite of the level of
liquid
No Unit Detected in
WebCal
Internet error. The server
name or address could not
be resolved.
Cannot access some of the
features in Configuration
User Settings:
Check the wiring for an open circuit. An open circuit is the most common issue
with a 0 mA signal
Check the installation of the transmitter. Bad installation fittings will cause false
signals near the top of the tank, which typically translates to a signal between 19
and 20 mA. Also look for interference just below the transmitter. If the transmitter
is installed in a metal fitting, switch to a plastic fitting.
Immediately check the wiring for a short circuit. The EchoSonic II is current
limited to 22 mA. Anything above 23 mA indicates a short circuit.
Check the dimensional configuration (Height and Fill-H) of the EchoSonic II.
Make sure that the Fill-H setting corresponds to the full level of liquid (from the
bottom up) and not the distance from the transmitter to the liquid (top down).
Check the Output at Empty Setting. Make sure the setting is correct (4mA at
bottom or 20 mA at bottom).
WebCal cannot detect an EchoSonic II connected to the computer.
 Check that the Fob is connected to the USB port.
 Check that all four wires (Red, Black, White and Green) are securely attached
to the Fob.
 Check in Device Manager that both drivers (WebCal Configuration &
EchoFob) are present.
This is a warning indicating the computer configuring EchoSonic II is not
connected to the internet. Click OK to continue. Flowline recommends being
connecting to the internet for all configurations. Not being connected to the
internet will not prevent the EchoSonic II from being configured.
As choices are made in Configuration, WebCal will begin to eliminate functions
that are no longer active. To reset Configuration or get access to all the features,
click on the Clear Screen button.
Fill out the chart below and keep as a record of your configuration.
Tank
Height =
Loop Fail-Safe (select one)
Hold Last Value Empty
Fill-H =
Full
Overfill (21mA)
Output at Empty (select one)
4mA at Bottom
20mA at Bottom
Startup Condition (select one)
Empty
Mid-Tank (12mA)
Full Tank
Advanced (if selected, identify which filter that was activated)
Increase output
Decrease output
Stabilize output
Turn OFF fast
filtering:
filtering:
in dead band
level changes
24 of 24
EchoSonic II
MN300610
Overfill (22mA)
Overfill (22mA)
Turn ON noisy
start filter
31 MAR 11
Rev B
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
