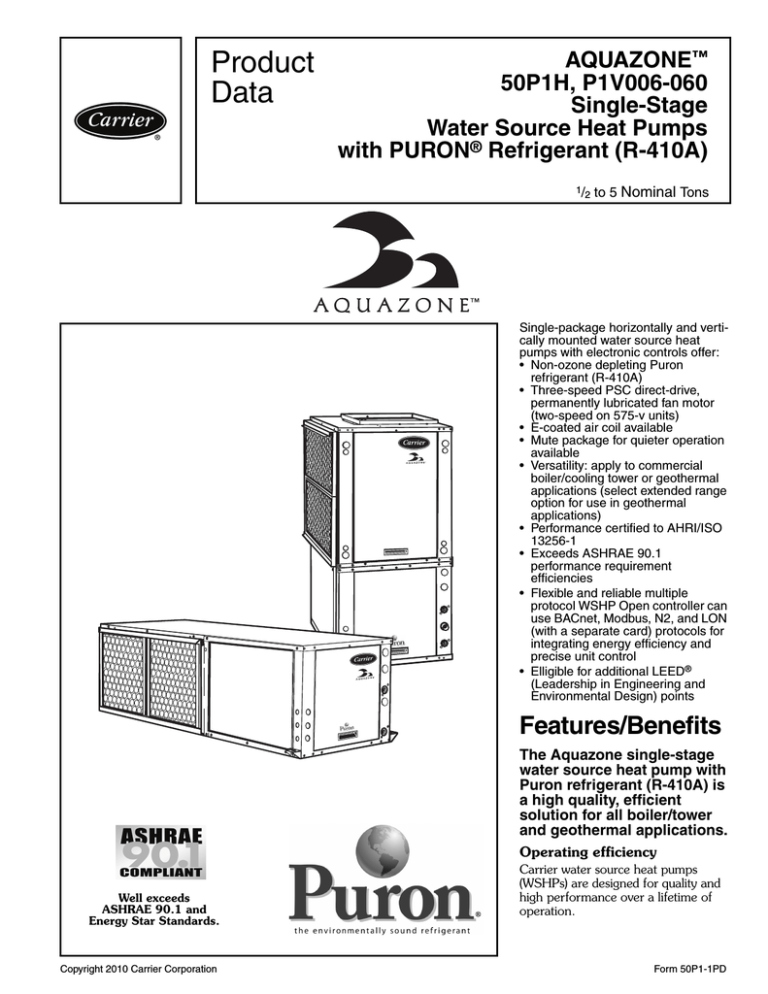

AQUAZONE™
50P1H, P1V006-060
Single-Stage
Water Source Heat Pumps
with PURON® Refrigerant (R-410A)
1/
2
to 5 Nominal Tons
Single-package horizontally and vertically mounted water source heat
pumps with electronic controls offer:
• Non-ozone depleting Puron
refrigerant (R-410A)
• Three-speed PSC direct-drive,
permanently lubricated fan motor
(two-speed on 575-v units)
• E-coated air coil available
• Mute package for quieter operation
available
• Versatility: apply to commercial
boiler/cooling tower or geothermal
applications (select extended range
option for use in geothermal
applications)
• Performance certified to AHRI/ISO
13256-1
• Exceeds ASHRAE 90.1
performance requirement
efficiencies
• Flexible and reliable multiple
protocol WSHP Open controller can
use BACnet, Modbus, N2, and LON
(with a separate card) protocols for
integrating energy efficiency and
precise unit control
• Elligible for additional LEED®
(Leadership in Engineering and
Environmental Design) points
Features/Benefits
The Aquazone single-stage
water source heat pump with
Puron refrigerant (R-410A) is
a high quality, efficient
solution for all boiler/tower
and geothermal applications.
Operating efficiency
Well exceeds
ASHRAE 90.1 and
Energy Star Standards.
Copyright 2010 Carrier Corporation
Carrier water source heat pumps
(WSHPs) are designed for quality and
high performance over a lifetime of
operation.
Form 50P1-1PD
Features/Benefits (cont)
Single-stage WSHP models with Puron refrigerant (R-410A) offer cooling
EERs (Energy Efficiency Ratios) to
24.5 and heating COPs (Coefficiency
of Performance) to 5.0.
All efficiencies stated are in accordance with standard conditions under
ISO (International Organization for
Standardization) Standard 13256-1
and provide among the highest ratings
in the industry, exceeding ASHRAE
(American Society of Heating, Refrigeration and Air Conditioning Engineers) 90.1 Energy Standards.
High quality construction and
testing
All units are manufactured to meet
extensive quality control protocol from
start to finish through an automated
control system, which provides continuous monitoring of each unit and
performs quality control checks as
equipment progresses through the
production process. Standard construction features of the Aquazone™ units
include:
Cabinet — Standard unit fabrication
consists of heavy gage galvanized sheet
metal cabinet construction designed for
part standardization (i.e., minimal
number of parts) and modular design.
Compressor section interior surfaces
are lined with 1/2 in. thick, dual density, 11/2 lb per cubic ft acoustic type fiberglass insulation. Air-handling section interior surfaces are lined with
1/2 in. thick, single density, 11/2 lb per
cubic ft foil-backed fiber insulation for
ease of cleaning. Insulation placement
is designed to eliminate any exposed
edges to prevent the introduction of
glass fibers into the airstream.
Horizontal and vertical water source
heat pumps are fabricated from heavy
gage galvanized steel with a powder
coat paint finish on the front access
panel.
Compressor — Aquazone 50P1
single-stage units include a rotary
compressor in sizes 006-018 and a
scroll compressor in sizes 024-060.
Single-stage models with Puron® refrigerant (R-410A) offer a dual level vibration isolation system. The compressor is mounted on computer selected
vibration isolation springs to a large
heavy gage compressor mounting tray
plate, which is then isolated from the
cabinet base with rubber grommets for
maximized vibration attenuation. The
compressor has thermal overload protection and is located in an insulated
compartment away from the airstream
to minimize sound transmission.
AHRI/ISO labels — Aquazone units
have AHRI (Air Conditioning, Heating,
and Refrigeration Institute)/ISO, NRTL
(Nationally Recognized Testing Lab), or
ETL labels and are factory tested under
normal operating conditions at nominal water flow rates. Quality assurance
is provided via testing report cards
shipped with each unit to indicate specific unit performance under cooling
and heating modes of operation.
Blower and motor assembly —
Aquazone 50P1 units are available
with permanent split capacitor (PSC)
or high-static PSC motors.
NOTE: The PSC and high-static PSC
blower motors, when used with a
Table of contents
Page
Features/Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
Model Number Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
AHRI/ASHRAE/ISO 13256-1 Capacity Ratings . . . . . . . . . . . . . . . . . . . . . 6
Physical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Options and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-10
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11,12
Selection Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Performance Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-28
Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29-32
Typical Piping and Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Typical Control Wiring Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . .34-45
Application Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46-51
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52-55
Guide Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56-61
2
Thermidistat device and/or a humidistat and the Deluxe D controls, allow
for intelligent fan speed reduction to
provide the IdealHumidity™ system.
The variable-speed blower systems
work in concert with the Thermidistat
and/or humidistat control to remove
more moisture than a standard system,
making the occupants feel cool and
more comfortable.
Refrigeration/water circuit — All
units contain sealed Puron refrigerant
(R-410A) circuits including a highefficiency hermetic compressor designed for heat pump operation, a
thermostatic expansion valve for refrigerant metering, an enhanced corrugated aluminum-lanced fin and rifled copper tube refrigerant-to-air heat exchanger, reversing valve, coaxial (tubein-tube) refrigerant-to-water heat exchanger, and safety controls including
a high-pressure switch, low-pressure
switch, water coil low temperature
sensor, and air coil low temperature
sensor.
Quiet operation
Fan motor insulation and double
isolated compressor are provided for
sound isolation, cabinets are fully insulated to reduce noise transmission, low
speed blowers are utilized for quiet operation through reduced outlet air
velocities, and air-to-refrigerant coils
are designed for lower airflow coil face
velocities. Additional sound mitigation
can be attained with the mute package
option.
Puron® refrigerant (R-410A)
Puron refrigerant (R-410A) is a nonchlorine based refrigerant. Puron refrigerant characteristics, compared to
R-22, have:
• Binary and near azeotropic mixture
of 50% R-32 and 50% R-125.
• Higher efficiencies (50 to 60%
higher operating pressures).
• Non-ozone depleting potential and
low global warming potential.
• Virtually no glide. Unlike other
alternative refrigerants, the two
components in Puron refrigerant
have virtually the same leak rates.
Therefore, refrigerant can be added
if necessary without recovering the
charge.
E-coated (electro-coated) air
coils
The 50P1H and P1V units are available with an optional e-coated air coil.
This electro-coating process will provide years of protection against
corrosion from airborne chemicals.
Modern building materials, such as
countertops, floor coverings, paints
and other materials, can “outgas”
chemicals into the indoor air. Some of
these chemicals are suspected of
contributing to corrosion in the air
coils found in both traditional and
geothermal heating and cooling
equipment. Corrosion often results in
refrigerant leaks and eventual failure of
the air coil, costing hundreds of dollars
to replace. Studies have also shown
that these air coil coatings improve
moisture shedding and therefore,
improve a units moisture removal
capability resulting in a more comfortable indoor environment. The 50P1H
and P1V units assure both maximum
air coil life and comfort.
Design flexibility
Airflow configurations for horizontal
units are available in four patterns
including left or right return, and left,
right, or back discharge. Horizontal
units are field convertible from left or
right discharge to back discharge. Vertical units are available in three airflow
patterns including top discharge with
right or left return. Standard entering
water temperature is between 60 and
95 F. Extended entering water temperature range between 20 and 120 F offers maximum design flexibility for all
applications. Water flow rates as low as
1.5 gpm per ton assist with selection
from a various range of circulating
pumps. Factory-installed options are
offered to meet specific design
requirements.
Safe, reliable operation
Standard safety features for the refrigerant circuit include high-pressure
switch, low-pressure sensor to detect
loss of refrigerant, and low air temperature sensor to safeguard against freezing. Equipment safety features include
water loop temperature monitoring,
voltage protection, water coil freeze
protection, and standard electronic
condensate overflow shutdown. All
safety features are tested and run at the
factory to assure proper operation of
all components and safety switches.
All components are carefully designed and selected for endurance
durability, and carefree day-to-day
operation.
The Aquazone™ unit is shipped to
provide internal and external equipment protection. Shipping supports
are placed under the blower housing
and compressor feet. In addition,
horizontal and vertical units are both
mounted on oversized pallets with lag
bolts for sturdiness and maximum protection during transit.
Ease of installation
The Aquazone unit is packaged for
simple low cost handling, with minimal
time required for installation. All units
are pre-wired and factory charged with
refrigerant. Horizontal units are provided with factory-installed hangar isolation brackets. Vertical units are provided with an internally trapped condensate drain to reduce labor associated
with installing an external trap for each
unit. Water connections (FPT) and condensate drains (FPT) are anchored
securely to the unit cabinet, eliminating
the need for backup wrenches.
Simple maintenance and
serviceability
The Aquazone water source heat
pump (WSHP) units are constructed to
provide ease of maintenance. Units
allow access to the compressor section
from 3 sides and have large removable
panels for easy access. Additional panels are provided to access the blower
and control box sections.
The blower housing assembly can
be serviced without disconnecting ductwork from the dedicated blower access
panel. Blower units are provided with
permanently lubricated bearings for
worry-free performance. Blower inlet
rings allow removal of the blower
wheel without having to remove the
housing or ductwork connections.
Electrical disconnection of the
blower motor and control box is easily
accomplished from quick disconnects
on each component.
Easy removal of the control box
from the unit provides access to all
refrigeration components.
The refrigeration circuit is easily
tested and serviced through the use of
high and low pressure ports integral to
the refrigeration circuit.
Maximum control flexibility
Aquazone water source heat pumps
provide reliable control operation
using a standard microprocessor board
with flexible alternatives for many
direct digital controls (DDC) applications including the Carrier Comfort
Network® (CCN) controls and open
protocol systems.
The Aquazone standard unit solidstate control system, the Complete C,
provides control of the unit compressor, reversing valve, fan, safety features, and troubleshooting fault indication features. The Complete C control
system is one of the most user friendly,
low cost, and advanced control boards
found in the WSHP industry. Many
features are field selectable to provide
the ultimate in field installation flexibility. The overall features of this standard
control system include:
50-va transformer — The transformer
assists in accommodating accessory loads.
Anti-short cycle timer — The timer
provides a minimum off time to prevent
the unit from short cycling. The
5-minute timer energizes when the
compressor is deenergized, resulting in
a 5-minute delay before the unit can be
restarted.
Random start relay — The random
start relay ensures a random delay in
energizing each different WSHP unit.
This option minimizes peak electrical
demand during start-up from different
operating modes or after building power outages.
High and low pressure refrigerant
protection — This protection safeguards against unreliable unit operation and provides a warning for
refrigerant leaking.
Condensate overflow sensor —
The electronic sensor is mounted to
the drain pan. When condensate pan
liquid reaches an unacceptable level,
unit is automatically deactivated and
placed in a lockout condition. Thirty
continuous seconds of overflow is recognized as a fault by the sensor.
High and low voltage protection
— Safety protection for excessive or
low voltage conditions is included.
Automatic intelligent reset — The
unit will automatically restart 5 minutes
after shutdown if the fault has cleared.
Should a fault occur 3 times sequentially, lockout will occur.
3
Features/Benefits (cont)
Accessory output — A 24-v output
is provided to cycle a motorized water
valve or damper actuator with compressor in applications such as variable
speed pumping arrangements.
Performance Monitor (PM) — This
unique feature monitors water temperatures to warn when the heat pump is
operating inefficiently or beyond
typical operating range. Field
selectable switch initiates a warning
code on the unit display.
Water coil freeze protection (selectable for water or antifreeze) —
The field selectable switch for water
and water/glycol solution systems initiates a fault when temperatures exceed
the selected limit for 30 continuous
seconds.
Air coil freeze protection (check
filter operation) — The field selectable switch for assessing excessive filter
pressure drop initiates a fault when
temperatures exceed the selected limit
for 30 continuous seconds.
Alarm relay setting — A selectable
24-v or pilot duty dry contact provides
activation of a remote alarm.
Electric heat option — The output
provided on the controller operates
two stages of emergency electric heat.
Service Test mode with diagnostic
LED (light-emitting diode) — The
Service Test mode allows service personnel to check the operation of the
WSHP and control system efficiently.
Upon entering Service Test mode,
time delays are sped up, and the Status
LED will flash a code to indicate the
last fault experienced for easy diagnosis. Based on the fault code flashed by
the status LED, system diagnostics are
assisted through the use of Carrier provided troubleshooting tables for easy
reference to typical problems.
LED visual output — An LED panel
indicates high pressure, low pressure,
low voltage, high voltage, air/water
freeze protection, condensate overflow, and control status.
WSHP Open multiple protocol
controller — Carrier's state of the art
water source heat pump multiple protocol controller is capable of communicating BACnet*, Modbus†, N2 and
LON (with a separate card) protocols.
The controller is designed specifically
for Carrier's WSHPs in order to bring
more features and benefits to the units
4
such as waterside economizer control,
auxiliary heat, dehumidification, etc., in
addition to independent compressor
and fan operation. The WSHP Open
controller can be used to actively monitor and control all modes of operation
as well as monitor the following diagnostics and features: unit number, zone
temperature, zone set point, zone humidity set point, discharge air temperatures, fan status, stages of heating,
stages of cooling, outdoor-air temperature, leaving-air temperature, leaving
water temperature, alarm status, and
alarm lockout condition.
The controller also provides a proactive approach to maintenance and
service enabling the unit to recognize
and correct operating conditions outside of recommended operating conditions avoiding the need to manually restart equipment. From a system standpoint WSHP Open controller can
accept both water and airside linkage.
Condenser water linkage provides
optimized water loop operation using
the UC (universal controller) Open XP
loop controller. Loop pump operation
is automatically controlled by WSHP
equipment occupancy schedules, unoccupied demand and tenant override
conditions. Positive pump status feedback prevents nuisance fault trips.
Airside linkage enables the WSHP
equipment to be completely integrated
with the Carrier's VVT® application as
a system. The WSHP Open controller
responds to individual zone demands
rather than average temperature conditions to provide individual temperature
control in each zone.
This controller has a 38.4 kilobaud
communications capability and is compatible with i-Vu® Open building automation system controls and CCN controls. The addition of the Carrier CO2
sensor in the conditioned space provides ASHRAE 62 compliance and demand controlled ventilation (DCV). A
DCV control strategy is especially beneficial for a water source heat pump
system to minimize the energy utilized
to condition ventilation air. In combination with energy efficient Aquazone
units, DCV may be the most energy efficient approach ever developed for a
water source heat pump system.
The WSHP Open multiple protocol
controller is designed specifically for
constant volume (CV) and variable
volume and temperature (VVT®) applications. This comprehensive controls
system allows water source heat pumps
to be linked together to create a fully
functional HVAC (heating, ventilation,
and air conditioning) automation
system.
PremierLink™ controller adds
reliability, efficiency, and
simplification
The PremierLink direct digital controller can be ordered as a factory-installed
option. Designed and manufactured
exclusively by Carrier, the controller
can be used to actively monitor and
control all modes of operation as well
as monitor the following diagnostics
and features: unit number, zone temperature, zone set point, zone humidity
set point, discharge air temperatures,
fan status, stages of heating, stages of
cooling, outdoor-air temperature, leaving-air temperature, leaving water temperature, alarm status, and alarm lockout condition.
This controller has a 38.4 kilobaud
communications capability and is
compatible with i-Vu Open building automation system controls and CCN
controls. The addition of the Carrier
CO2 sensor in the conditioned space
provides ASHRAE 62-99 compliance
and demand controlled ventilation
(DCV). A DCV control strategy is especially beneficial for a water source heat
pump system to minimize the energy
utilized to condition ventilation air. In
combination with energy efficient
Aquazone units, DCV may be the most
energy efficient approach ever developed for a water source heat pump
system.
The PremierLink peer-to-peer, Internet ready communicating control is designed specifically for constant volume
(CV) and variable volume and temperature (VVT®) applications. This comprehensive controls system allows water source heat pumps to be linked together to create a fully functional
HVAC (heating, ventilation, and air
conditioning) automation system.
LON protocol for diverse control
— The LON controller option is ideal
when building automation requires
interoperability across diverse control
platforms. This LONMark** compliant
offering can operate as standalone
or as a part of Local Operating
Network (LON) via the LonWorks**
FTT-10 Free Topology communication
network. Factory completed pre-engineered applications specific to Aquazone water source heat pumps and
digital wall sensors communicating
over Sensor Link (S-Link) communication protocol completes a system of
networked control.
Humidity control — Aquazone
50P1H, P1V units provide very good
latent capacity and are an excellent
choice for controlling humidity within a
zone in many applications. The latent
capacity of the units can be increased
based on zone conditions with either
the use of fan speed control and a humidistat. The Deluxe D controls option
provides fan speed control based on
relative humidity and is an effective,
low-cost means of controlling humidity
in some parts of North America.
*Sponsored by ASHRAE (American Society of Heating, Refrigerating, and
Air Conditioning Engineers).
†Registered trademark of Schneider Electric.
**Registered trademark of Echelon Corporation.
a50-8601
Model number nomenclature
Aquazone™ Single Stage Water Source Heat
Pump with Puron®
Puron Refrigerant (R-410A)
50P1H
50P1V
*
50P1H Units
50P1V Units
††
Front
Front
†
†
W – Complete C with WSHP Open Multiple Protocol
Communicating Control**
Y – Deluxe D with WSHP Open Multiple Protocol
Communicating Control**
EWT
HS
LON
PSC
—
—
—
—
LEGEND
Entering Water Temperature
High Static
Local Operating Network
Permanent Split Capacitor
ETL_listed_C_US-tif.tif
*PSC HS motors not available for sizes 006-012.
†LONWorks Open System Protocol.
**BACview6 handheld device or USBLink are required for commissioning.
††The 460-v units using internal secondary pump and/or modulating hot water
heat (pump) will require a neutral wire.
5
AHRI/ASHRAE/ISO 13256-1 capacity ratings
WATER LOOP HEAT PUMP
50P1
UNIT SIZE
COP
db
EER
wb
Cooling 86 F
GROUND WATER HEAT PUMP
Heating 68 F
5,800
13.2
7,500
4.7
6,900
21.1
6,200
4.0
6,200
15.4
4,900
3.4
009
8,800
13.4
11,600
4.2
10,100
21.0
9,800
3.9
9,300
15.7
7,900
3.4
012
11,700
13.5
15,200
4.3
13,700
20.8
12,500
3.8
12,000
14.9
9,900
3.2
015
14,500
15.4
17,300
5.0
16,800
24.5
14,400
4.4
15,000
17.2
11,100
3.6
018
17,300
14.3
21,500
5.0
20,600
24.2
17,200
4.4
18,400
16.3
13,900
3.4
024
23,700
13.4
28,500
4.7
26,700
20.9
24,000
4.1
24,900
15.4
18,500
3.3
030
28,100
13.4
35,100
4.6
31,700
20.1
29,600
4.1
28,900
15.1
23,400
3.4
036
34,500
13.5
45,200
4.4
38,700
20.7
37,500
4.0
35,300
14.9
29,600
3.3
042
40,100
13.1
52,700
4.3
45,900
19.6
44,000
3.8
40,500
14.4
34,300
3.2
048
47,700
13.3
55,900
4.7
54,300
20.5
46,500
4.1
49,000
14.7
36,400
3.4
060
59,400
13.4
77,000
4.3
66,600
19.9
64,000
3.8
60,100
14.8
50,500
3.1
NOTES:
1. Cooling capacities based upon 80.6 F db, 66.2 F wb entering air
temperature.
2. Heating capacities based upon 68 F db, 59 F wb entering air
temperature.
3. All ratings based upon operation at the lower voltage of dual voltage
rated models.
4. Certified in accordance with the AHRI/ISO Standard 13256-1 Certification Program.
6
Capacity
Btuh
COP
Capacity
Btuh
EER
(Btuh/W)
Heating 32 F
006
LEGEND
Coefficient of Performance
Dry Bulb
Energy Efficiency Ratio
Wet Bulb
EER
(Btuh/W)
Cooling 77 F
EER
(Btuh/W)
COP
Capacity
Btuh
GROUND LOOP HEAT PUMP
Heating 50 F
Capacity
Btuh
—
—
—
—
Capacity
Btuh
Cooling 59 F
Capacity
Btuh
COP
Physical data
50P1 UNIT SIZE
COMPRESSOR (1 Each)
FACTORY CHARGE R-410A (oz)
PSC FAN MOTOR AND BLOWER
(3 Speeds)
Fan Motor (Hp)
High Static Fan Motor (Hp)
Blower Wheel Size (D x W) (in.)
COAX VOLUME (gal.)
WATER CONNECTION SIZE, FPT (in.)
UNIT MAXIMUM WATER WORKING
PRESSURE (psig)*
Base Unit
Internal Motorized Water Valve
Internal Auto Flow Valve
50P1V UNITS
Air Coil Dimensions (H x W) (in.)
Throwaway Filter, Standard 1-in.
Weight
Operating (lb)
Packaged (lb)
50P1H UNITS
Air Coil Dimensions (H x W) (in.)
Throwaway Filter, Standard 1-in.,
Size
Weight
Operating (lb)
Packaged (lb)
006
009
17
18.5
1/
1/
10
25
5x5
0.123
1/2
5x5
0.143
1/2
012
Rotary
23
1/
10
6x5
0.167
1/2
015
018
024
030
35
43
43
48
1/
6
1/
6
1/
4
3/
4
8x7
0.286
1/2
8x7
0.450
1/2
9x7
0.286
3/4
9x7
0.323
3/4
036
Scroll
50
042
048
060
70
74
82
1/
2
3/
4
3/
1
9x8
0.323
3/4
9x8
0.890
3/4
10 x 10
0.738
1
11 x 10
0.939
1
24 x 213/4
24 x 24
24 x 213/4
24 x 24
28 x 25
28 x 28
28 x 25
28 x 28
213
219
228
234
283
290
298
305
4
500
300
500
10 x 15 10 x 15 10 x 15 20 x 171/4 20 x 171/4 20 x 171/4 20 x 171/4
10 x 18 10 x 18 10 x 18 20 x 20
20 x 20
20 x 20
20 x 20
110
115
163
168
168
173
184
189
192
197
10 x 15 10 x 15 10 x 15
16 x 22
16 x 22
16 x 22
16 x 22
10 x 18 10 x 18 10 x 18
16 x 25
16 x 25
18 x 25
18 x 25
163
168
168
173
184
189
192
197
110
115
112
117
112
117
121
126
121
126
LEGEND
FPT — Female Pipe Thread
PSC — Permanent Split Capacitor
TXV — Thermostatic Expansion Valve
20 x 25
20 x 25
20 x 35 20 x 35
20 x 28
20 x 28
20 x 24, 20 x 24,
or
or
(2) 20 x 14 (2) 20 x 14 20 x 14 20 x 14
213
219
228
234
283
290
298
305
*Use the lowest maximum pressure rating when multiple options are
combined.
NOTE: All units have spring compressor mountings, TXV expansion
devices, and 1/2-in. and 3/4-in. electrical knockouts.
UNIT CORNER WEIGHTS (lb)
UNIT SIZE 50P1H
006
009
012
015
018
024
030
036
042
048
060
TOTAL WEIGHT
110
112
121
163
168
184
192
213
228
283
298
LEFT FRONT
40
41
45
54
55
61
63
70
75
93
98
RIGHT FRONT
20
21
22
44
45
50
52
58
62
76
80
LEFT BACK
25
25
27
33
34
37
38
43
46
57
60
RIGHT BACK
25
25
27
33
34
37
38
43
46
57
60
NOTE: Front is control box end.
7
Options and accessories
ITEM
Aquazone™ System Control Panel
2-in. Filter Rack
Ball Valves (Brass Body)
Permanent Split Capacitor, High Static
Blower Motor
Cupronickel Heat Exchangers
Deluxe D Control System
Extended Range Units
Fire-Rated Hoses
Hose Kit Assemblies
PremierLink™ Intelligent Controller
LONMark Compliant Controller
UC Open XP Loop Controller
Non-Programmable Thermostat
PremierLink Accessories
Programmable 5-Day Thermostat
Programmable 7-Day Flush-Mount
Thermostat
Programmable 7-Day Light-Activated
Thermostat
Programmable 7-Day Thermostat
Remote Sensors (SPT, CO2, Humidity
Sensors)
Solenoid Water Control Valves (Brass
Body)
Sound Attenuation (Mute) Package
Two-Way Motorized Control Valve
Water Circuit Options
Y Strainers (Brass Body)
WSHP Open Multiple Protocol Controller
FACTORYINSTALLED
OPTIONS
FIELDINSTALLED
ACCESSORIES
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Factory-installed options
Cupronickel heat exchangers are available for higher
corrosion protection for applications such as open tower,
geothermal, etc. Consult the water quality guidelines for
proper application and selection of this option.
Sound attenuation package (mute package) is available for applications that require especially low noise levels. With this option, a double application of sound
attenuating material is applied, access panels are double
dampened with 1/2-in. thick density fiberglass insulation,
which is applied to the basepan, and a unique application
of special dampening material is applied to the curved
portion of the blower. The mute package in combination
with standard unit noise reduction features (i.e., as
mentioned previously) provides sound levels and noise
reduction to the highest degree.
Extended range units have an insulated coaxial coil
and insulated refrigerant and water piping to prevent
condensation, and therefore potential dripping problems,
in applications where the entering water temperature is
below the normal operating range (less than 60 F). Units
are capable of operating with an entering water temperature range of 20 to 120 F.
Water circuit options provide internally mounted 2.5 or
3.0 gpm per ton automatic flow regulating valves for easier
installation.
Two-way motorized control valve can be provided for
applications involving open type systems or variable speed
pumping. This valve will slowly open and close in conjunction with the compressor operation to shut off or turn on
water to the unit.
8
WSHP Open multiple protocol controller is a proactive controller capable of communicating BACnet, Modbus, N2, and LON (with a separate card) protocols. The
controller is designed to allow users access and ability to
change and configure multiple settings and features including indoor air quality (IAQ), waterside economizer controls,
etc.
Deluxe D control system provides the same functions
as the Complete C control system while incorporating
additional flexibility and functions to include:
Thermostat input capabilities accommodate emergency shutdown mode and night setback with override potential. Night
setback from low temperature thermostat with 2-hour override is initiated by a momentary signal from the thermostat.
Compressor relay staging is used with dual stage units
(units with 2 compressors and 2 Deluxe D controls) or in
master/slave applications.
Boilerless electric heat control system allows automatic
changeover to electric heat at low loop water temperature.
Intelligent reversing valve operation minimizes reversing
valve operation for extended life and quiet operation.
Thermostat type select (Y, O or Y, W) provides ability to
work and select heat pump or heat/cool thermostats (Y, W).
Reversing valve signal select (O or B) provides selection for
heat pump O/B thermostats.
The IdealHumidity™ system provides operation of fan control for dehumidification operation (units with ECM motor
have input on the ECM board; optional Deluxe D board is
not required).
Multiple units on one thermostat/wall sensor provides for
communication for up to three heat pumps on one
thermostat.
Boilerless changeover temperature provides selection of
boilerless changeover temperature set point.
Accessory relays allow configuration for multiple applications including fan and compressor cycling, digital night
setback (NSB), mechanical night setback, water valve operation, and outside air damper operation.
PremierLink™ controller is compatible with the Carrier
Comfort Network® (CCN) and other building automation
systems (BAS). This control is designed to allow users the
access and ability to change factory-defined settings thus
expanding the function of the standard unit.
LONMark compliant controller contains the factoryloaded Aquazone™ water source heat pump application for
an interoperable control solution.
Permanent split capacitor (high static) blower motors
enable the 50P1 units to increase performance levels in
high-static applications.
Field-installed accessories
Aquazone™ system control panel includes a preprogrammed, easy to use, Carrier Comfort Controller set up
for a WSHP system.
• Panel coordinates and monitors loop water temperature
and all water side ancillary equipment.
• The 50RLP model nomenclature is used to customize
the control panel options to control all WSHP system
requirements.
• Panel can be ordered to include 2, 4, 6, or 8 stages of
system heat rejection.
• Panel can be ordered to include 2, 4, 6, or 8 stages of
system heat addition.
• Panel can be ordered with unique WSHP zone operation capabilities for stand-alone systems (i.e., noncommunicating) to control 10 or 18 zones of WSHP units.
• Panel can be ordered to control variable frequency cooling tower fan operation.
• System pumping operation can be configured for start/
stop, lead/lag, or variable frequency pump operation.
• Direct Digital Controls (DDC) compatible using the Carrier Comfort Network® (CCN) and WSHP units utilizing
PremierLink™ CCN controllers.
Carrier’s line of Aquazone thermostats are both
attractive and multi-functional, accommodating standalone water source heat pump installations.
Programmable 7-day thermostat — Thermostat offers
2-stage heat, 2-stage cool, auto changeover, 7-day programmable with copy command, 4 settings per day, fully
electronic, 24 vac, backlit LCD, keypad lockout, no
batteries required, 5-minute compressor protection,
NEVERLOST™ memory, 3 security levels, and temperature display in degrees F or C.
Programmable 7-day light-activated thermostat — Thermostat offers same features as the 7-day programmable
thermostat and includes occupied comfort settings with
lights on, unoccupied energy savings with lights off.
Programmable 7-day flush-mount thermostat — Thermostat offers same features as the 7-day programmable
thermostat and includes locking coverplate with tamper
proof screws, flush to wall mount, holiday/vacation
programming, set point limiting, dual point with adjustable
deadband, O or B terminal, and optional wall or
duct-mounted remote sensor.
Programmable 5-day thermostat — Thermostat offers
2-stage heat, 2-stage cool, auto changeover, 5-minute
built-in compressor protection, locking cover included,
temperature display in degrees F or C, keypad lockout,
backlit display, 5-1-1 programming, O or B terminal, dual
set point with adjustable deadband, configurable display,
self-prompting program, and 4 settings per day.
Non-programmable thermostat — Thermostat offers
2 heat stages, 2 cool stages, auto changeover, 5-minute
built-in compressor protection, locking cover included,
temperature display in degrees F or C, keypad lockout,
large display, backlit display, O or B terminal, dual set
point with adjustable deadband, and backplate with terminals.
UC Open XP loop controller with six stages (2 stages
for heating and 4 stages for cooling) includes:
• Loop temperature alarms
• Two pump single loop flow monitoring with the ability
to manually select the lead pump
• One common alarm signal and indicating light and one
audible alarm
• Loop water temperature sensor test circuit
• Functional test simulation from operator keypad
• Real timeclock, industrial noise ratings
• Loop water temperature control switch
Filter rack (2 in.) is available in place of the standard
1-in. return air filter to enhance the filtration system of the
water source heat pump. The 2-in. filter rack does not
include filters.
Fire-rated hoses are 2 ft long and have a fixed MPT on
one end and a swivel with an adapter on the other end.
Hose kits are provided with both a supply and return hose
and can be either stainless steel or galvanized. Two sizes
are available (3/4 and 1 in.).
Ball valves (brass body) are used for shutoff and balancing water flow and are available with memory, memory
stop, and pressure temperature ports. Ball valves consist of
UL-listed brass body, ball and stem type with Teflon* seats
and seals. Two sizes are available (3/4 and 1 in.).
Y strainers (bronze body) are “Y” type strainers with a
brass cap. With a maximum operating pressure rating of
450 psi, the strainer screen is made of stainless steel and is
available with blow down valves. Two sizes are available
(3/4 and 1 in.).
Solenoid valves (brass body) offer 3.5 watt coil,
24 volt, 50/60 Hz, 740 amps inrush, .312 amps holding.
Solenoid valves have slow operation for quiet system application. Two sizes are available (3/4 and 1 in.).
Hose kit assemblies provide all the necessary components to hook up a water-side system. Supply hose
includes a ported ball valve with pressure temperature
(P/T) plug ports, flexible stainless steel hose with swivel
and nipple. Return hose includes a ball valve, preset automatic balancing valve (gpm) with two P/T ports, flexible
stainless steel hose with a swivel and nipple, balancing
valve, and low-pressure drop water control valve.
Remote sensors are available for Aquazone flush-mount
thermostats and for wall (wired and wireless) or duct
mounted applications.
SPT Standard offers space temperature sensor with communication port.
SPT Plus offers space temperature sensor with set point
adjust, local override with indicating light and communication port.
SPT Pro offers space temperature sensor with LCD display, set point adjust, local override, alarm icon, outside
air, and unit status with heating and cooling set points.
SPT Pro+ offers space temperature sensor with LCD display, set point adjust, local override, alarm icon, outside
air, unit status with heating and cooling set points, and fan
speed control.
LON wall sensors are available in 3 models: sensor only,
sensor with status override indicator, and sensor with set
point, status adjustment override, and digital LCD display.
PremierLink™ accessories are available for providing a
fully integrated WSHP DDC system. Accessories include
supply air temperature sensors (with override and/or set
point adjustment), communicating room sensors, CO2
*Registered trademark of DuPont.
9
Options and accessories (cont)
sensors (for use in demand control ventilation), and linkage
thermostats (to control multiple units from one thermostat).
Two-way motorized control valve can be provided for
applications involving open type systems or variable speed
pumping. This valve will slowly open and close in conjunction with the compressor operation to shut off or turn on
water to the unit.
AQUAZONE™ THERMOSTATS
Carrier
®
R
Pm
COOL
AUTO
COOL
HEAT
AUTO
HEAT
7-DAY PROGRAMMABLE/
LIGHT-ACTIVATED PROGRAMMABLE
5-DAY PROGRAMMABLE/
NON-PROGRAMMABLE
7-DAY PROGRAMMABLE
FLUSH MOUNT
WSHP OPEN SENSORS
a33WARMER
MANUAL ON
WARMER
INFO
COOLER
MANUAL ON
WARMER
INFO
COOLER
MODE
FAN SPEED
a33a33-
COOLER
a33-
SPACE TEMPERATURE
SENSOR WITH SET
POINT ADJUSTMENT
AND LOCAL OVERRIDE
OCCUPIED
MANUAL
ON
SPACE TEMPERATURE
SENSOR WITH SLIDE SET
POINT ADJUSTMENT AND
LOCAL OVERRIDE
SPACE TEMPERATURE SENSOR
WITH SET POINT ADJUSTMENT,
FAN SPEED CONTROL, AND
LOCAL OVERRIDE
SPACE TEMPERATURE
SENSOR ONLY
LON WALL SENSORS
SENSOR ONLY
10
SENSOR WITH OVERRIDE
SENSOR WITH SET POINT ADJUSTMENT,
OVERRIDE AND DIGITAL LCD
Dimensions
50P1H006-060 UNITS
OVERALL
CABINET
(in.)
50P1H
UNIT
SIZE
1
Loop
A
B
C
Width Length Height
006,009,
012
22.5
40.3
ELECTRICAL
KNOCKOUTS
(in.)
WATER CONNECTIONS
(in.)
D
In
11.5
3
Condensate
3/4-in. FPT
2
Loop
E
In
3.8 1.5
Loop
In/Out
FPT
H
J
K
1/2
1/ 2
3/ 4
F
E
Out Out
AA
BB
8.6
3.3
0.7
1/ 2
2.9
5.9
2
1.5
RETURN
CONNECTION (in.)
USING RETURN
AIR OPENING
(±0.10 in.)
DISCHARGE CONNECTION (in.)
DUCT FLANGE INSTALLED
(±0.10 in.)
L
M
Supply
Height
N
Supply
Width
O
P
Q
Return
Width
R
Return
Height
8.9
1.3
8.9
6.7
7.4
1.3
16.1
9.5
1.1 1.0
0.8 1.0
Low
Low
Power
Voltage Voltage Supply
S
T
015,018
22.4
48.3
17.5
3.7 1.9
9.7
1.9
3.3
0.7
1/
4.0
7.0
10.0
1.2
13.1
9.7
3.9
3.2
22.9
15.5
024,030
22.4
48.3
18.3
3.7 1.9
9.7
1.9
3.3
0.7
3/
4
4.0
7.0
10.0
1.2
13.1
9.7
3.9
4.0
22.9
16.3
0.8 1.0
036,042
22.4
53.1
21.3
3.7 1.8 12.7
1.8
3.3
0.7
3/ 4
4.0
7.0
10.0
2.4
16.1
11.0
2.9
2.7
26.1
19.3
0.8 1.0
048,060
25.4
68.0
21.3
3.7 1.8 12.7
1.8
3.3
0.7
1
4.0
7.0
10.0
1.2
16.1
13.6
4.0
4.0
35.0
19.3
1.3 1.0
NOTES:
1. Condensate is 3/4-in. FPT copper.
2. While clear access to all removable panels is not required, installer should
take care to comply with all building codes and allow adequate clearance
for future field service.
3. Horizontal unit shipped with filter bracket only. This bracket should be
removed for return duct connection.
4. Discharge flange and hanger kit is factory installed.
5. Blower service panel requires 2 ft of service access.
6. Blower service access is through back panel on straight discharge
units or through panel opposite air coil on back discharge units.
BSP
CAP
CSP
FPT
—
—
—
—
PSC BLOWER AIRFLOW
CONFIGURATION
LEGEND
Blower Service Panel
Control Access Panel
Compressor Service Panel
Female Pipe Thread
CODE
E
B
S
Z
a50-8661
LEFT RETURN
2' [61cm] Service
Access
CSP
Front
RETURN
Left
Right
Left
Right
RIGHT RETURN
Optional 2'
[61cm]
Service
Access
Front
Left Return
Right Return
AA
3.3"
[83.8mm]
Straight
Discharge
3
F
J
1
D
H
0.7" [17.8mm]
BB
1.1”
0.7"
[17.8mm]
E
A
Front-View
Straight
Discharge
BB
Condensate
Back
3 / 4" FPT
Discharge
Note: Choose either
back or straight discharge
Condensate
3 / 4" FPT
Back
Discharge
Note: Choose either
back or straight discharge
M
Blower
Outlet
C
V
Model
006-012
015-030
036-042
048-060
U
40.3
48.4
53.3
68.0
V
23.5
24.6
24.6
27.6
W
19.2
19.3
19.3
23.3
C
W
Blower
Outlet
M
BSP
Right Return Back Discharge
O
L
Blower
Outlet
P
A
U
N
N
O
A
Left Return Back Discharge
Air Coil Side
BSP
Unit Hanger Detail
Front
N
Air Coil Side
Note: Blower service panel requires 2’ service access
O
2' [61cm] Service
Access
Optional 2'
[61cm]
Service
Access
CSP
AA
3.3"
[83.8mm]
2
CAP
K
P
DISCHARGE
Back
Back
Right
Left
BSP
M
P
N
BSP
Blower
Outlet
CSP
M
Front
Front
O
Left Return Straight Discharge
1.75 [44.5mm]
T
S
Q
Air Coil
Air Coil
CSP
C R
Q
S
T
R
C
Front
B
Left Return Left View Air Coil Opening
Right Return Straight Discharge
Front
B
Right Return Right View Air Coil Opening
11
Dimensions (cont)
50P1V006-060 UNITS
OVERALL
CABINET
(in.)
50P1V
UNIT
SIZE
006,009,
012
ELECTRICAL
KNOCKOUTS
(in.)
WATER CONNECTIONS
(in.)
1
Loop
A
Width
B
Depth
C
Height
22.5
21.3
22.5
D
In
E
In
3.8 1.5
3
Condensate
3/4-in. FPT
2
Loop
F
E
Out Out
8.7
1.5
Loop
In/Out
FPT
RETURN
CONNECTION (in.)
USING RETURN
AIR OPENING
(±0.10 in.)
DISCHARGE CONNECTION (in.)
DUCT FLANGE INSTALLED
(±0.10 in.)
J
K
L
1/ 2
1/2
3/4
N
O
Supply
Width
P
Supply
Depth
Q
R
S
Return
Depth
T
Return
Height
U
M
Low
Low
Power
Voltage Voltage Supply
H
I
6.1
1.5
1/
2
2.9
5.9
8.1
6.2
6.2
9.0
9.0
5.3
2.4
16.0
10.2
1.0
015,018
22.4
22.4
40.5
3.7 1.9
9.7
1.9
7.0
1.9
1/
2
4.0
7.0
10.0
7.2
4.2
14.0
14.0
6.7
2.2
18.4
20.3
1.1
024,030
22.4
22.4
40.5
3.7 1.9
9.7
1.9
7.0
1.9
3/
4
4.0
7.0
10.0
7.2
4.2
14.0
14.0
6.7
2.2
18.4
20.3
1.1
036,042
22.4
25.4
46.5
3.7 1.8 12.7
1.8
8.0
1.8
3/
4
4.0
7.0
10.0
7.2
6.0
14.0
14.0
6.5
2.1
22.9
24.3
1.1
048,060
25.4
29.1
50.5
3.7 1.8 12.7
1.8
8.0
1.8
1
4.0
7.0
10.0
8.2
5.7
16.0
18.0
7.3
2.1
26.2
28.3
1.1
NOTES:
ASP
BSP
CAP
CSP
FPT
HV
LV
1. Condensate is 3/4-in. FPT.
2. While clear access to all removable panels is not required, installer should
take care to comply with all building codes and allow adequate clearance
for future field service.
3. Front and side access is preferred for service access. However, all components
may be serviced from the front access panel if side access is not available.
4. Discharge flange is field installed.
—
—
—
—
—
—
—
LEGEND
Alternate Service Panel
Blower Service Panel
Control Access Panel
Compressor Service Panel
Female Pipe Thread
High Voltage
Low Voltage
a50-8663
Field Installed
Discharge Flange
Access Panels
Standard Filter Bracket
Air Coil
P
B
N
N
BSP
P
Front
O
Front
ASP
Opptional
2' [61cm]
Service
Access
Left Rtn
O
A
CSP
CAP
Q
R
Air Coil Side
Air Coil Side
Top View-Right Return
Top View-Left Return
S
S
U
R
Isometric
View
2' [61cm]
Service
U
Air Coil
Air Coil
T
T
C
C
CSP
Front
Power Supply
3/4" [19.1 mm] HV
Knockout
Low Voltage
1/2" [12.7 mm] LV
Knockout
Low Voltage
1/2" [12.7 mm] LV
Knockout
CSP
Back
Right Return Right View
- Air Coil Opening
12
(Right Rtn
Opposite
Side)
M
Back
Front
Left Return Left View
- Air Coil Opening
CSP
2
3
L
K
1
J
U
F
H
D
E
A
Selection procedure (50P1H024 unit example)
I Determine the actual cooling and heating
loads at the desired dry bulb and wet bulb
conditions.
Given:
Total Cooling (TC) . . . . . . . . . . . . . . .24,500 Btuh
Sensible Cooling (SC) . . . . . . . . . . . . .21,800 Btuh
Entering-Air Temperature db . . . . . . . . . . . . 80.0 F
Entering-Air Temperature wb . . . . . . . . . . . . . .65 F
II Determine the following design parameters
from Performance Data tables.
Determine entering water temperature, water flow
rate (gpm), airflow (cfm), water flow pressure drop
and design wet and dry bulb temperatures. Airflow
cfm should be between 300 and 450 cfm per ton.
Unit water pressure drop should be kept as close as
possible to each other to make water balancing easier. For the 50P1H024 unit example, the given
design parameters are as follows:
Given:
Entering Water Temperature . . . . . . . . . . . . . .90 F
Water Flow (Based upon
12 F rise in temperature) . . . . . . . . . . . . 6.0 gpm
Airflow . . . . . . . . . . . . . . . . . . . . . . . . . . 750 cfm
III Select a unit based on total cooling and total
sensible cooling conditions. Unit selected
should be closest to but not larger than the
actual cooling load.
Enter Performance Data tables at the design water
flow and water temperature. Read the total and sensible cooling capacities.
NOTE: Interpolation is permissible, extrapolation is
not.
For example, enter the 50P1H024 (PSC Blower)
Performance Table at design water flow and water
temperature. Read Total Cooling, Sensible Cooling
and Heat of Rejection capacities:
Total Cooling . . . . . . . . . . . . . . . . . . .23,400 Btuh
Sensible Cooling . . . . . . . . . . . . . . . . .17,500 Btuh
Heat of Rejection . . . . . . . . . . . . . . . .30,200 Btuh
Read the Heat Capacity. If the Heat Capacity
exceeds the design criteria specified in the scope, it is
acceptable.
NOTE: It is normal for water source heat pumps to
be selected on cooling capacity only since the heating
output is usually greater than the cooling capacity.
IV Determine the correction factors associated
with the variable factors of dry bulb and wet
bulb using the correction factor tables found
in this book.
Use the following formulas to determine the correction factors of total cooling, sensible cooling, and
heat of rejection:
a. Corrected Total Cooling = tabulated total cooling
x wet bulb correction x airflow correction.
b. Corrected Sensible Cooling = tabulated sensible
cooling x wet/dry bulb correction x airflow
correction.
c. Corrected Heat of Rejection = tabulated heat
of rejection x wet bulb correction x airflow
correction.
V Determine entering air and airflow correction
using the correction factor tables found in this
book.
The nominal airflow for the 50P1H024 is 800 cfm.
The design parameter is 750 cfm. Actual airflow
(from table) is 850 cfm.
750/850 x 100 = 88% of actual airflow:
Use the 87.5% row in the Airflow Correction Table.
The Entering-Air Temperature is 65 F wb. Use the
65 F row in the Entering Air Correction Table.
Using the following formulas to determine the correction factors of entering air and airflow correction:
Table
Corrected
Total Cooling
Corrected
Sensible Cooling
Corrected
Heat of Rejection
Ent Air
Airflow
Corrected
= 23,400 x 0.9681 x 0.9889 = 22,402
= 17,500 x 1.1213 x 1.0484 = 20,572
= 30,200 x 0.9747 x 0.9393 = 27,649
Compare the corrected capacities to the load requirements established in Step I. If the capacities are
within 10% of the load requirements, the equipment
is acceptable. It is better to undersize than oversize as
undersizing improves humidity control, reduces
sound levels and extends the life of the equipment.
VI Calculate and assess the water temperature
rise.
Calculate the water temperature rise and assess the
selection using the following calculation:
Actual Temperature
Rise
=
Corrected Heat of Rejection
GPM x 500
For example, using the Corrected Heat of Rejection
from the last step:
Actual Temperature
Rise
=
27,649
=
6.0 x 500
9.2 F
If the units selected are not within 10% of the load
calculations, review what effect changing the GPM,
water temperature and/or airflow will have on the
corrected capacities. If the desired capacity cannot be
achieved, select the next larger or smaller unit and
repeat Steps I through VI.
ADDITIONAL REFERENCE CALCULATIONS
HEATING
LWT = EWT – (HE / GPM x 500)
LAT = EAT + (HC / CFM x 1.08)
COOLING
LWT = EWT + (HR / GPM x 500)
LAT (db) = EAT (db) – (SC / CFM x 1.08)
Latent Cooling (LC) = Total Cooling (TC) – Sensible
Cooling (SC)
13
Performance data
50P1H,P1V006
220 CFM NOMINAL AIRFLOW COOLING/220 CFM NOMINAL AIRFLOW HEATING*
PRESSURE DROP
EWT
(F)
GPM
1.5
1.5
0.8
0.8
1.1
1.1
1.5
1.5
0.8
0.8
1.1
1.1
1.5
1.5
0.8
0.8
1.1
1.1
1.5
1.5
0.8
0.8
1.1
1.1
1.5
1.5
0.8
0.8
1.1
1.1
1.5
1.5
0.8
0.8
1.1
1.1
1.5
1.5
0.8
0.8
1.1
1.1
1.5
1.5
0.8
0.8
1.1
1.1
1.5
1.5
0.8
0.8
1.1
1.1
1.5
1.5
0.8
0.8
1.1
1.1
1.5
1.5
0.8
0.8
1.1
1.1
1.5
1.5
20
30
40
50
60
70
80
85
90
100
110
120
AHRI
COP
db
EAT
EER
EWT
GPM
HE
ISO
LAT
MBtuh
TC
THC
THR
TSC
wb
14
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
PSI
ft wg
1.7
1.7
0.5
0.5
0.8
0.8
1.3
1.3
0.4
0.4
0.6
0.6
1.0
1.0
0.3
0.3
0.5
0.5
0.9
0.9
0.3
0.3
0.5
0.5
0.8
0.8
0.2
0.2
0.4
0.4
0.7
0.7
0.2
0.2
0.4
0.4
0.6
0.6
0.2
0.2
0.3
0.3
0.6
0.6
0.2
0.2
0.3
0.3
0.6
0.6
0.2
0.2
0.3
0.3
0.5
0.5
0.2
0.2
0.3
0.3
0.5
0.5
0.1
0.1
0.3
0.3
0.5
0.5
4.0
4.0
1.2
1.2
1.8
1.8
2.9
2.9
0.9
0.9
1.4
1.4
2.4
2.4
0.8
0.8
1.2
1.2
2.0
2.0
0.6
0.6
1.0
1.0
1.8
1.8
0.5
0.5
0.9
0.9
1.6
1.6
0.5
0.5
0.8
0.8
1.5
1.5
0.5
0.5
0.8
0.8
1.4
1.4
0.4
0.4
0.7
0.7
1.3
1.3
0.4
0.4
0.7
0.7
1.2
1.2
0.3
0.3
0.6
0.6
1.2
1.2
0.3
0.3
0.6
0.6
1.1
1.1
Airflow
CFM
TC
COOLING — EAT 80/67 F
Sens/Tot
TSC
kW
Ratio
HEATING — EAT 70 F
THR
EER
Operation Not Recommended
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
7.4
7.7
7.4
7.7
7.3
7.6
7.3
7.6
7.4
7.7
7.4
7.7
6.9
7.2
7.2
7.5
7.3
7.6
6.5
6.8
6.9
7.1
7.0
7.3
6.0
6.3
6.4
6.7
6.6
6.8
5.6
5.8
5.9
6.1
6.2
6.4
5.3
5.5
5.6
5.8
5.8
6.1
5.0
5.2
5.3
5.5
5.5
5.7
4.4
4.6
4.7
4.9
4.9
5.1
3.9
4.1
4.2
4.4
4.3
4.5
3.5
3.6
3.7
3.8
3.8
4.0
LEGEND
Air Conditioning, Heating, and Refrigeration Institute
Coefficient of Performance
Dry Bulb
Entering Air Temperature
Energy Efficiency Ratio
Entering Water Temperature
Gallons Per Minute
Heat of Extraction (MBtuh)
International Organization for Standardization
Leaving Air Temperature (F)
Btuh in Thousands
Total Capacity (MBtuh)
Total Heating Capacity (MBtuh)
Total Heat Rejection (MBtuh)
Total Sensible Capacity (MBtuh)
Wet Bulb
4.2
4.8
4.1
4.6
4.0
4.5
4.3
4.8
4.2
4.8
4.2
4.7
4.2
4.8
4.3
4.8
4.3
4.8
4.1
4.7
4.2
4.8
4.2
4.8
4.0
4.5
4.1
4.6
4.1
4.7
3.8
4.3
3.9
4.4
4.0
4.6
3.7
4.2
3.8
4.3
3.9
4.4
3.6
4.1
3.7
4.2
3.8
4.3
3.4
3.8
3.5
4.0
3.6
4.0
3.1
3.6
3.3
3.7
3.3
3.8
3.0
3.3
3.0
3.4
3.1
3.5
0.57
0.62
0.55
0.60
0.54
0.59
0.59
0.64
0.57
0.62
0.56
0.61
0.61
0.66
0.59
0.64
0.58
0.63
0.63
0.69
0.61
0.67
0.61
0.66
0.66
0.72
0.64
0.70
0.63
0.69
0.68
0.74
0.67
0.73
0.65
0.71
0.70
0.76
0.68
0.74
0.67
0.73
0.72
0.79
0.70
0.76
0.69
0.75
0.76
0.83
0.74
0.80
0.73
0.79
0.81
0.87
0.78
0.85
0.77
0.83
0.85
0.93
0.83
0.90
0.81
0.88
0.28
0.29
0.26
0.27
0.25
0.26
0.31
0.33
0.29
0.30
0.28
0.29
0.35
0.36
0.32
0.33
0.31
0.32
0.39
0.40
0.36
0.37
0.34
0.36
0.43
0.45
0.40
0.42
0.38
0.40
0.47
0.49
0.45
0.46
0.42
0.44
0.50
0.52
0.47
0.49
0.45
0.47
0.53
0.55
0.49
0.52
0.48
0.50
0.58
0.60
0.55
0.57
0.53
0.55
0.63
0.66
0.6
0.62
0.58
0.61
0.68
0.71
0.65
0.68
0.64
0.67
8.4
8.7
8.3
8.6
8.2
8.5
8.3
8.7
8.4
8.7
8.4
8.7
8.1
8.5
8.3
8.6
8.3
8.7
7.9
8.2
8.1
8.4
8.2
8.5
7.5
7.8
7.8
8.1
7.9
8.2
7.2
7.5
7.4
7.7
7.6
7.9
7.0
7.3
7.2
7.5
7.4
7.7
6.7
7.0
7.0
7.3
7.1
7.4
6.4
6.6
6.6
6.9
6.7
7.0
6.0
6.3
6.2
6.5
6.3
6.6
5.8
6.0
5.9
6.2
6.0
6.2
26.4
26.4
28.5
28.5
29.2
29.2
23.2
23.2
25.8
25.8
26.9
26.9
19.9
19.9
22.5
22.5
23.8
23.8
16.8
16.8
19.1
19.1
20.4
20.4
14.0
14.0
16.0
16.0
17.1
17.1
12.0
12.0
13.2
13.2
14.7
14.7
10.7
10.7
11.9
11.9
13.1
13.1
9.4
9.4
10.7
10.7
11.5
11.5
7.6
7.6
8.7
8.7
9.3
9.3
6.2
6.2
7.0
7.0
7.4
7.4
5.0
5.0
5.6
5.6
6.0
6.0
Airflow
CFM
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
170
225
THC
kW
HE
LAT
COP
4.3
4.4
4.6
4.7
4.8
4.9
4.9
5.0
5.3
5.4
5.5
5.7
5.7
5.8
6.0
6.1
6.3
6.5
6.5
6.7
6.7
6.9
7.1
7.3
7.3
7.5
7.4
7.6
7.8
8.0
8.0
8.2
7.9
8.1
8.3
8.5
8.4
8.6
8.2
8.4
8.5
8.7
8.5
8.7
8.5
8.7
8.6
8.8
8.7
8.9
0.49
0.44
0.50
0.45
0.51
0.46
0.51
0.46
0.52
0.47
0.53
0.47
0.53
0.48
0.54
0.48
0.55
0.49
0.55
0.50
0.56
0.50
0.57
0.51
0.57
0.51
0.58
0.52
0.58
0.53
0.59
0.53
0.59
0.53
0.60
0.54
0.60
0.54
0.60
0.50
0.60
0.50
0.60
0.50
0.61
0.55
0.62
0.55
0.62
0.56
2.7
2.9
3.0
3.2
3.2
3.4
3.2
3.5
3.6
3.8
3.8
4.1
3.9
4.2
4.2
4.5
4.5
4.8
4.6
5.0
4.9
5.2
5.2
5.5
5.3
5.7
5.5
5.9
5.8
6.2
5.9
6.4
5.9
6.3
6.3
6.7
6.3
6.7
6.2
6.6
6.4
6.8
6.4
6.8
6.4
6.8
6.5
7.0
6.5
7.0
93.3
88.0
95.2
89.5
96.2
90.3
96.8
90.7
98.8
92.3
100.2
93.3
100.9
93.9
102.7
95.3
104.4
96.6
105.4
97.4
106.7
98.4
108.6
99.9
109.7
100.7
110.5
101.4
112.4
102.8
113.4
103.6
113.2
103.5
115.4
105.1
115.7
105.3
114.7
104.6
116.2
105.8
116.4
105.9
116.3
105.8
117.0
106.4
117.1
106.5
2.6
2.9
2.7
3.1
2.8
3.2
2.8
3.2
3.0
3.4
3.1
3.5
3.1
3.6
3.3
3.7
3.4
3.9
3.4
3.9
3.5
4.0
3.7
4.2
3.7
4.3
3.8
4.3
3.9
4.5
4.0
4.5
4.0
4.5
4.1
4.6
4.1
4.6
4.0
4.6
4.1
4.7
4.1
4.7
4.1
4.7
4.1
4.7
4.1
4.7
Operation Not Recommended
*Performance capacities shown in thousands of Btuh.
NOTES:
1. Interpolation is permissible; extrapolation is not.
2. All entering air conditions are 80 F db and 67 F wb in cooling, and 70 F db in heating. AHRI/ISO certified conditions are 80.6 F db and 66.2 F wb in cooling and
68 F db in heating.
3. Table does not reflect fan or pump power corrections for AHRI/ISO conditions.
4. All performance is based upon the lower voltage of dual voltage rated units.
5. Operation below 40 F EWT is based upon a 15% methanol antifreeze solution.
6. Operation below 60 F EWT requires optional insulated water/refrigerant circuit.
7. See performance correction tables for operating conditions other than those listed
above.
50P1H,P1V009
325 CFM NOMINAL AIRFLOW COOLING/325 CFM NOMINAL AIRFLOW HEATING*
PRESSURE DROP
EWT
(F)
GPM
2.3
2.3
1.1
1.1
1.7
1.7
2.3
2.3
1.1
1.1
1.7
1.7
2.3
2.3
1.1
1.1
1.7
1.7
2.3
2.3
1.1
1.1
1.7
1.7
2.3
2.3
1.1
1.1
1.7
1.7
2.3
2.3
1.1
1.1
1.7
1.7
2.3
2.3
1.1
1.1
1.7
1.7
2.3
2.3
1.1
1.1
1.7
1.7
2.3
2.3
1.1
1.1
1.7
1.7
2.3
2.3
1.1
1.1
1.7
1.7
2.3
2.3
1.1
1.1
1.7
1.7
2.3
2.3
20
30
40
50
60
70
80
85
90
100
110
120
AHRI
COP
db
EAT
EER
EWT
GPM
HE
ISO
LAT
MBtuh
TC
THC
THR
TSC
wb
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
PSI
ft wg
4.5
4.5
1.3
1.3
1.9
1.9
3.5
3.5
0.9
0.9
1.5
1.5
3.0
3.0
0.6
0.6
1.3
1.3
2.6
2.6
0.5
0.5
1.1
1.1
2.3
2.3
0.4
0.4
1.0
1.0
2.1
2.1
0.3
0.3
0.9
0.9
2.0
2.0
0.3
0.3
0.9
0.9
1.9
1.9
0.3
0.3
0.8
0.8
1.8
1.8
0.2
0.2
0.8
0.8
1.7
1.7
0.2
0.2
0.7
0.7
1.6
1.6
0.2
0.2
0.7
0.7
1.6
1.6
10.5
10.5
3.0
3.0
4.4
4.4
8.1
8.1
2.0
2.0
3.5
3.5
6.8
6.8
1.5
1.5
2.9
2.9
6.0
6.0
1.2
1.2
2.5
2.5
5.4
5.4
0.9
0.9
2.3
2.3
4.9
4.9
0.8
0.8
2.1
2.1
4.6
4.6
0.7
0.7
2.0
2.0
4.4
4.4
0.6
0.6
1.9
1.9
4.3
4.3
0.6
0.6
1.7
1.7
4.0
4.0
0.5
0.5
1.6
1.6
3.8
3.8
0.4
0.4
1.6
1.6
3.6
3.6
Airflow
CFM
TC
COOLING — EAT 80/67 F
Sens/Tot
TSC
kW
Ratio
HEATING — EAT 70 F
THR
EER
Operation Not Recommended
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
10.2
10.7
10.5
10.9
10.6
11.0
9.9
10.3
10.1
10.5
10.3
10.7
9.4
9.8
9.7
10.1
9.9
10.3
9.0
9.4
9.3
9.7
9.5
9.8
8.5
8.8
8.8
9.2
9.1
9.5
8.0
8.3
8.3
8.6
8.6
8.9
7.7
8.0
8.0
8.4
8.3
8.7
7.5
7.8
7.7
8.1
8.0
8.4
6.8
7.0
7.1
7.4
7.3
7.6
6.1
6.3
6.5
6.8
6.7
7.0
5.4
5.6
5.8
6.0
6.0
6.2
LEGEND
Air Conditioning, Heating, and Refrigeration Institute
Coefficient of Performance
Dry Bulb
Entering Air Temperature
Energy Efficiency Ratio
Entering Water Temperature
Gallons Per Minute
Heat of Extraction (MBtuh)
International Organization for Standardization
Leaving Air Temperature (F)
Btuh in Thousands
Total Capacity (MBtuh)
Total Heating Capacity (MBtuh)
Total Heat Rejection (MBtuh)
Total Sensible Capacity (MBtuh)
Wet Bulb
6.0
6.8
6.0
6.8
6.0
6.8
6.0
6.8
6.0
6.8
6.0
6.8
6.0
6.7
6.0
6.8
6.0
6.8
5.9
6.7
5.9
6.7
6.0
6.7
5.8
6.5
5.8
6.6
5.9
6.7
5.6
6.3
5.7
6.5
5.8
6.5
5.5
6.2
5.6
6.4
5.7
6.5
5.4
6.2
5.5
6.3
5.6
6.4
5.1
5.8
5.3
6.0
5.4
6.1
4.8
5.4
5.0
5.6
5.1
5.8
4.4
5.0
4.6
5.2
4.7
5.4
0.59
0.64
0.57
0.62
0.56
0.61
0.61
0.66
0.59
0.64
0.59
0.64
0.63
0.69
0.62
0.67
0.61
0.66
0.65
0.71
0.64
0.69
0.63
0.69
0.68
0.74
0.66
0.72
0.65
0.71
0.70
0.77
0.69
0.75
0.67
0.73
0.71
0.78
0.70
0.76
0.69
0.75
0.72
0.79
0.71
0.78
0.70
0.76
0.76
0.82
0.74
0.81
0.73
0.80
0.79
0.85
0.77
0.84
0.76
0.83
0.82
0.89
0.80
0.87
0.79
0.86
0.39
0.40
0.36
0.37
0.34
0.36
0.43
0.45
0.40
0.41
0.38
0.40
0.48
0.50
0.45
0.47
0.43
0.45
0.54
0.57
0.50
0.52
0.48
0.50
0.61
0.63
0.56
0.59
0.53
0.55
0.67
0.70
0.63
0.66
0.59
0.62
0.70
0.73
0.67
0.69
0.63
0.65
0.73
0.76
0.70
0.73
0.66
0.69
0.82
0.86
0.78
0.81
0.75
0.78
0.90
0.94
0.86
0.89
0.83
0.87
0.98
1.02
0.94
0.98
0.91
0.95
11.6
12.0
11.7
12.2
11.8
12.3
11.3
11.8
11.5
12.0
11.6
12.0
11.1
11.6
11.3
11.7
11.3
11.8
10.8
11.3
11.0
11.5
11.1
11.6
10.6
11.0
10.7
11.2
10.9
11.3
10.3
10.7
10.5
10.9
10.6
11.1
10.1
10.5
10.3
10.7
10.5
10.9
10.0
10.4
10.1
10.6
10.3
10.7
9.6
10.0
9.8
10.2
9.9
10.3
9.2
9.5
9.4
9.8
9.5
9.9
8.7
9.1
9.0
9.4
9.1
9.5
26.6
26.6
29.5
29.5
31.1
31.1
22.8
22.8
25.4
25.4
26.8
26.9
19.5
19.5
21.7
21.7
23.0
23.0
16.5
16.5
18.5
18.5
19.6
19.6
14.0
14.0
15.6
15.6
17.1
17.1
11.8
11.8
13.2
13.2
14.4
14.4
11.0
11.0
12.1
12.1
13.3
13.3
10.2
10.2
11.1
11.1
12.1
12.1
8.2
8.2
9.2
9.2
9.7
9.7
6.8
6.8
7.6
7.6
8.0
8.0
5.5
5.5
6.2
6.2
6.5
6.5
Airflow
CFM
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
250
330
THC
kW
HE
LAT
COP
6.5
6.7
7.1
7.3
7.4
7.6
7.5
7.7
8.0
8.2
8.4
8.6
8.6
8.8
9.0
9.2
9.4
9.6
9.6
9.8
9.9
10.2
10.4
10.6
10.6
10.9
10.8
11.1
11.3
11.6
11.4
11.6
11.7
12.0
12.2
12.5
12.2
12.5
12.0
12.3
12.6
12.9
12.6
12.9
12.3
12.6
12.9
13.3
13.0
13.3
0.73
0.66
0.74
0.67
0.75
0.67
0.75
0.68
0.76
0.69
0.77
0.69
0.78
0.70
0.79
0.71
0.80
0.72
0.80
0.72
0.81
0.73
0.82
0.74
0.83
0.75
0.84
0.75
0.85
0.77
0.85
0.77
0.87
0.78
0.88
0.79
0.88
0.79
0.88
0.80
0.90
0.80
0.90
0.80
0.89
0.80
0.91
0.82
0.91
0.82
4.2
4.4
4.7
5.0
4.9
5.3
5.1
5.4
5.5
5.9
5.8
6.2
6.0
6.4
6.4
6.8
6.7
7.2
6.9
7.4
7.2
7.7
7.6
8.1
7.8
8.3
8.0
8.5
8.4
9.0
8.5
9.0
8.7
9.3
9.1
9.8
9.2
9.8
9.0
9.6
9.5
10.1
9.5
10.2
9.3
9.9
9.8
10.5
9.9
10.5
94.2
88.8
96.3
90.4
97.4
91.2
97.9
91.7
99.8
93.1
101.1
94.1
101.8
94.7
103.3
95.8
104.8
97.0
105.6
97.6
106.8
98.5
108.4
99.8
109.3
100.5
110.1
101.1
111.9
102.5
112.1
102.7
113.3
103.6
115.1
105.0
115.4
105.2
114.5
104.6
116.5
106.1
116.8
106.3
115.7
105.5
117.9
107.2
118.2
107.4
2.6
3.0
2.8
3.2
2.9
3.3
2.9
3.4
3.1
3.5
3.2
3.6
3.2
3.7
3.4
3.8
3.5
3.9
3.5
4.0
3.6
4.1
3.7
4.2
3.7
4.3
3.8
4.3
3.9
4.4
3.9
4.4
4.0
4.5
4.0
4.6
4.1
4.6
4.0
4.6
4.1
4.7
4.1
4.7
4.1
4.6
4.2
4.8
4.2
4.8
Operation Not Recommended
*Performance capacities shown in thousands of Btuh.
NOTES:
1. Interpolation is permissible; extrapolation is not.
2. All entering air conditions are 80 F db and 67 F wb in cooling, and 70 F db in heating. AHRI/ISO certified conditions are 80.6 F db and 66.2 F wb in cooling and
68 F db in heating.
3. Table does not reflect fan or pump power corrections for AHRI/ISO conditions.
4. All performance is based upon the lower voltage of dual voltage rated units.
5. Operation below 40 F EWT is based upon a 15% methanol antifreeze solution.
6. Operation below 60 F EWT requires optional insulated water/refrigerant circuit.
7. See performance correction tables for operating conditions other than those listed
above.
15
Performance data (cont)
50P1H,P1V012
400 CFM NOMINAL AIRFLOW COOLING/400 CFM NOMINAL AIRFLOW HEATING*
PRESSURE DROP
EWT
(F)
GPM
3.0
3.0
1.5
1.5
2.3
2.3
3.0
3.0
1.5
1.5
2.3
2.3
3.0
3.0
1.5
1.5
2.3
2.3
3.0
3.0
1.5
1.5
2.3
2.3
3.0
3.0
1.5
1.5
2.3
2.3
3.0
3.0
1.5
1.5
2.3
2.3
3.0
3.0
1.5
1.5
2.3
2.3
3.0
3.0
1.5
1.5
2.3
2.3
3.0
3.0
1.5
1.5
2.3
2.3
3.0
3.0
1.5
1.5
2.3
2.3
3.0
3.0
1.5
1.5
2.3
2.3
3.0
3.0
20
30
40
50
60
70
80
85
90
100
110
120
AHRI
COP
db
EAT
EER
EWT
GPM
HE
ISO
LAT
MBtuh
TC
THC
THR
TSC
wb
16
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
PSI
ft wg
8.5
8.5
1.9
1.9
3.6
3.6
6.7
6.7
1.4
1.4
3.0
3.0
5.7
5.7
1.1
1.1
2.6
2.6
5.0
5.0
0.9
0.9
2.3
2.3
4.5
4.5
0.8
0.8
2.1
2.1
4.1
4.1
0.7
0.7
1.9
1.9
3.8
3.8
0.6
0.6
1.8
1.8
3.7
3.7
0.6
0.6
1.8
1.8
3.6
3.6
0.5
0.5
1.7
1.7
3.3
3.3
0.5
0.5
1.6
1.6
3.2
3.2
0.4
0.4
1.5
1.5
3.0
3.0
19.6
19.6
4.3
4.3
8.4
8.4
15.5
15.5
3.2
3.2
6.9
6.9
13.1
13.1
2.5
2.5
6.0
6.0
11.5
11.5
2.1
2.1
5.3
5.3
10.3
10.3
1.8
1.8
4.8
4.8
9.5
9.5
1.5
1.5
4.4
4.4
8.8
8.8
1.5
1.5
4.2
4.2
8.5
8.5
1.4
1.4
4.1
4.1
8.2
8.2
1.2
1.2
3.8
3.8
7.7
7.7
1.1
1.1
3.6
3.6
7.3
7.3
1.0
1.0
3.4
3.4
7.0
7.0
Airflow
CFM
TC
COOLING — EAT 80/67 F
Sens/Tot
TSC
kW
Ratio
HEATING — EAT 70 F
THR
EER
Operation Not Recommended
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
14.2
14.8
14.3
14.9
14.3
14.9
14.0
14.5
14.2
14.8
14.3
14.8
13.5
14.1
13.9
14.4
14.0
14.6
12.9
13.5
13.4
13.9
13.6
14.1
12.2
12.7
12.5
13.1
12.7
13.3
11.4
11.9
11.8
12.3
12.0
12.5
10.9
11.4
11.4
11.9
11.6
12.1
10.5
10.9
11.0
11.4
11.2
11.6
9.5
9.9
10.1
10.5
10.4
10.8
8.5
8.9
9.1
9.4
9.4
9.8
7.5
7.8
8.0
8.3
8.3
8.7
LEGEND
Air Conditioning, Heating, and Refrigeration Institute
Coefficient of Performance
Dry Bulb
Entering Air Temperature
Energy Efficiency Ratio
Entering Water Temperature
Gallons Per Minute
Heat of Extraction (MBtuh)
International Organization for Standardization
Leaving Air Temperature (F)
Btuh in Thousands
Total Capacity (MBtuh)
Total Heating Capacity (MBtuh)
Total Heat Rejection (MBtuh)
Total Sensible Capacity (MBtuh)
Wet Bulb
8.2
9.3
8.2
9.3
8.2
9.3
8.1
9.2
8.2
9.3
8.2
9.3
7.9
8.9
8.0
9.1
8.1
9.2
7.6
8.6
7.8
8.8
7.9
8.9
7.3
8.3
7.4
8.4
7.5
8.5
7.0
7.9
7.1
8.0
7.2
8.1
6.8
7.7
6.9
7.9
7.0
7.9
6.7
7.5
6.8
7.7
6.8
7.7
6.4
7.2
6.5
7.3
6.6
7.5
6.0
6.8
6.2
7.0
6.3
7.1
5.7
6.4
5.8
6.6
5.9
6.7
0.58
0.63
0.58
0.63
0.58
0.63
0.58
0.63
0.58
0.63
0.58
0.63
0.58
0.63
0.58
0.63
0.58
0.63
0.59
0.64
0.58
0.63
0.58
0.63
0.60
0.65
0.59
0.64
0.59
0.64
0.61
0.67
0.60
0.65
0.60
0.65
0.62
0.68
0.61
0.66
0.60
0.66
0.63
0.69
0.62
0.67
0.61
0.67
0.67
0.72
0.65
0.70
0.64
0.69
0.71
0.77
0.68
0.74
0.67
0.73
0.76
0.82
0.73
0.79
0.71
0.77
0.55
0.57
0.51
0.53
0.50
0.52
0.61
0.63
0.57
0.59
0.54
0.57
0.67
0.70
0.62
0.65
0.60
0.63
0.74
0.77
0.69
0.72
0.67
0.69
0.82
0.85
0.77
0.80
0.75
0.78
0.90
0.94
0.85
0.88
0.83
0.86
0.90
0.98
0.89
0.93
0.87
0.90
0.99
1.03
0.93
0.97
0.91
0.95
1.07
1.12
1.02
1.06
1.00
1.04
1.17
1.22
1.12
1.16
1.09
1.14
1.27
1.32
1.22
1.27
1.19
1.24
16.1
16.8
16.1
16.7
16.0
16.6
16.0
16.7
16.1
16.8
16.1
16.8
15.8
16.5
16.0
16.7
16.1
16.7
15.5
16.1
15.7
16.4
15.8
16.5
15.0
15.6
15.2
15.8
15.3
15.9
14.5
15.1
14.7
15.3
14.8
15.4
14.2
14.7
14.4
15.0
14.5
15.1
13.9
14.4
14.1
14.7
14.3
14.8
13.2
13.8
13.5
14.1
13.8
14.3
12.5
13.1
12.9
13.4
13.1
13.7
11.8
12.3
12.2
12.7
12.4
12.9
25.8
25.8
27.9
27.9
28.8
28.8
22.9
22.9
25.1
25.1
26.2
26.2
20.1
20.1
22.2
22.2
23.3
23.3
17.4
17.4
19.3
19.3
20.4
20.4
14.9
14.9
16.3
16.3
17.0
17.0
12.7
12.7
13.9
13.9
14.5
14.5
11.7
11.7
12.8
12.8
13.4
13.4
10.7
10.7
11.7
11.7
12.3
12.3
8.9
8.9
9.8
9.8
10.4
10.4
7.3
7.3
8.1
8.1
8.6
8.6
5.9
5.9
6.6
6.6
7.0
7.0
Airflow
CFM
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
300
400
THC
kW
HE
LAT
COP
8.5
8.7
9.3
9.5
9.6
9.9
9.8
10.1
10.6
10.8
11.0
11.3
11.3
11.6
11.9
12.2
12.5
12.8
12.8
13.1
13.3
13.6
14.0
14.3
14.3
14.7
14.7
15.0
15.4
15.8
15.8
16.2
16.0
16.4
16.8
17.2
17.2
17.6
16.6
17.0
17.4
17.8
17.7
18.2
17.3
17.7
18.0
18.4
18.3
18.8
0.98
0.88
1.00
0.90
1.01
0.91
1.02
0.92
1.04
0.93
1.05
0.94
1.06
0.95
1.08
0.97
1.09
0.98
1.10
0.99
1.11
1.00
1.13
1.02
1.14
1.03
1.15
1.04
1.18
1.06
1.19
1.07
1.20
1.08
1.22
1.10
1.24
1.11
1.22
1.10
1.30
1.10
1.30
1.10
1.24
1.12
1.28
1.15
1.29
1.16
5.3
5.7
6.0
6.4
6.3
6.8
6.5
7.0
7.1
7.6
7.6
8.1
7.8
8.3
8.3
8.9
8.9
9.5
9.1
9.8
9.6
10.2
10.2
10.8
10.5
11.2
10.8
11.5
11.4
12.2
11.7
12.5
11.9
12.7
12.6
13.4
12.9
13.8
12.5
13.3
13.1
14.0
13.4
14.3
13.0
13.9
13.6
14.5
13.9
14.8
96.20
90.20
98.6
91.9
99.7
92.8
100.4
93.3
102.6
95.0
104.1
96.2
104.9
96.8
106.8
98.2
108.6
99.6
109.6
100.4
111.1
101.5
113.1
103.1
114.2
104.0
115.3
104.8
117.6
106.5
118.8
107.5
119.4
108.0
121.7
109.8
123.0
110.7
121.3
109.4
123.6
111.2
124.8
112.1
123.3
110.9
125.5
112.6
126.6
113.5
2.5
2.9
2.7
3.1
2.8
3.2
2.8
3.2
3.0
3.4
3.1
3.5
3.1
3.6
3.2
3.7
3.4
3.8
3.4
3.9
3.5
4.0
3.6
4.1
3.7
4.2
3.7
4.2
3.8
4.4
3.9
4.4
3.9
4.5
4.0
4.6
4.1
4.6
4.0
4.6
4.1
4.6
4.1
4.7
4.1
4.6
4.1
4.7
4.2
4.7
Operation Not Recommended
*Performance capacities shown in thousands of Btuh.
NOTES:
1. Interpolation is permissible; extrapolation is not.
2. All entering air conditions are 80 F db and 67 F wb in cooling, and 70 F db in heating. AHRI/ISO certified conditions are 80.6 F db and 66.2 F wb in cooling and
68 F db in heating.
3. Table does not reflect fan or pump power corrections for AHRI/ISO conditions.
4. All performance is based upon the lower voltage of dual voltage rated units.
5. Operation below 40 F EWT is based upon a 15% methanol antifreeze solution.
6. Operation below 60 F EWT requires optional insulated water/refrigerant circuit.
7. See performance correction tables for operating conditions other than those listed
above.
50P1H,P1V015
525 CFM NOMINAL AIRFLOW COOLING/525 CFM NOMINAL AIRFLOW HEATING*
PRESSURE DROP
EWT
(F)
GPM
3.8
3.8
1.9
1.9
2.8
2.8
3.8
3.8
1.9
1.9
2.8
2.8
3.8
3.8
1.9
1.9
2.8
2.8
3.8
3.8
1.9
1.9
2.8
2.8
3.8
3.8
1.9
1.9
2.8
2.8
3.8
3.8
1.9
1.9
2.8
2.8
3.8
3.8
1.9
1.9
2.8
2.8
3.8
3.8
1.9
1.9
2.8
2.8
3.8
3.8
1.9
1.9
2.8
2.8
3.8
3.8
1.9
1.9
2.8
2.8
3.8
3.8
1.9
1.9
2.8
2.8
3.8
3.8
20
30
40
50
60
70
80
85
90
100
110
120
AHRI
COP
db
EAT
EER
EWT
GPM
HE
ISO
LAT
MBtuh
TC
THC
THR
TSC
wb
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
PSI
ft wg
4.1
4.1
1.0
1.0
1.8
1.8
3.3
3.3
0.8
0.8
1.6
1.6
2.9
2.9
0.6
0.6
1.4
1.4
2.5
2.5
0.6
0.6
1.2
1.2
2.3
2.3
0.5
0.5
1.1
1.1
2.1
2.1
0.4
0.4
1.0
1.0
2.0
2.0
0.4
0.4
1.0
1.0
1.9
1.9
0.4
0.4
1.0
1.0
1.9
1.9
0.4
0.4
0.9
0.9
1.8
1.8
0.3
0.3
0.8
0.8
1.7
1.7
0.3
0.3
0.8
0.8
1.6
1.6
9.5
9.5
2.3
2.3
4.3
4.3
7.7
7.7
1.8
1.8
3.6
3.6
6.6
6.6
1.5
1.5
3.1
3.1
5.8
5.8
1.3
1.3
2.8
2.8
5.3
5.3
1.1
1.1
2.5
2.5
4.9
4.9
1.0
1.0
2.4
2.4
4.6
4.6
0.9
0.9
2.3
2.3
4.4
4.4
0.9
0.9
2.2
2.2
4.3
4.3
0.8
0.8
2.1
2.1
4.1
4.1
0.7
0.7
1.9
1.9
3.9
3.9
0.7
0.7
1.8
1.8
3.7
3.7
Airflow
CFM
TC
COOLING — EAT 80/67 F
Sens/Tot
TSC
kW
Ratio
HEATING — EAT 70 F
THR
EER
Operation Not Recommended
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
17.3
18.1
17.5
18.2
17.5
18.3
17.0
17.7
17.2
18.0
17.4
18.1
16.4
17.1
16.8
17.5
17.0
17.7
15.7
16.4
16.2
16.9
16.4
17.1
15.2
15.8
15.5
16.1
15.8
16.4
14.3
14.9
14.7
15.3
14.9
15.6
13.8
14.4
14.2
14.8
14.5
15.1
13.3
13.9
13.7
14.3
14.1
14.6
12.4
12.9
12.8
13.3
13.1
13.6
11.3
11.8
11.8
12.2
12.1
12.6
10.3
10.8
10.7
11.2
11.0
11.5
LEGEND
Air Conditioning, Heating, and Refrigeration Institute
Coefficient of Performance
Dry Bulb
Entering Air Temperature
Energy Efficiency Ratio
Entering Water Temperature
Gallons Per Minute
Heat of Extraction (MBtuh)
International Organization for Standardization
Leaving Air Temperature (F)
Btuh in Thousands
Total Capacity (MBtuh)
Total Heating Capacity (MBtuh)
Total Heat Rejection (MBtuh)
Total Sensible Capacity (MBtuh)
Wet Bulb
10.8
12.2
10.8
12.2
10.8
12.2
10.6
12.0
10.7
12.1
10.8
12.2
10.4
11.8
10.6
12.0
10.6
12.0
10.2
11.5
10.4
11.7
10.4
11.8
10.1
11.4
10.1
11.4
10.2
11.5
9.8
11.1
9.8
11.1
9.9
11.2
9.6
10.9
9.7
11.0
9.8
11.1
9.5
10.7
9.5
10.8
9.6
10.9
9.2
10.4
9.2
10.4
9.3
10.5
8.8
10.0
8.9
10.0
9.0
10.2
8.5
9.6
8.5
9.6
8.6
9.8
0.62
0.67
0.62
0.67
0.62
0.67
0.63
0.68
0.62
0.68
0.62
0.67
0.63
0.69
0.63
0.68
0.63
0.68
0.65
0.70
0.64
0.69
0.63
0.69
0.66
0.72
0.65
0.71
0.65
0.70
0.68
0.74
0.67
0.73
0.66
0.72
0.70
0.76
0.68
0.74
0.67
0.73
0.71
0.77
0.69
0.75
0.69
0.74
0.74
0.80
0.72
0.78
0.71
0.77
0.78
0.84
0.75
0.82
0.74
0.81
0.82
0.89
0.79
0.86
0.78
0.85
0.61
0.64
0.56
0.59
0.54
0.57
0.68
0.71
0.63
0.66
0.60
0.63
0.76
0.79
0.71
0.74
0.68
0.71
0.84
0.88
0.79
0.82
0.76
0.79
0.93
0.97
0.88
0.91
0.85
0.88
1.03
1.07
0.97
1.01
0.94
0.98
1.10
1.13
1.02
1.07
0.99
1.03
1.14
1.19
1.08
1.12
1.04
1.08
1.25
1.31
1.19
1.23
1.15
1.20
1.37
1.43
1.30
1.36
1.27
1.32
1.50
1.56
1.43
1.48
1.39
1.45
19.4
20.2
19.4
20.2
19.4
20.2
19.3
20.1
19.4
20.2
19.4
20.2
19.0
19.8
19.2
20.0
19.3
20.1
18.6
19.4
18.9
19.7
19.0
19.8
18.3
19.1
18.5
19.2
18.6
19.4
17.8
18.5
18.0
18.7
18.2
18.9
17.5
18.2
17.7
18.4
17.9
18.6
17.2
18.0
17.4
18.1
17.6
18.3
16.6
17.3
16.8
17.5
17.0
17.7
16.0
16.7
16.2
16.9
16.4
17.1
15.5
16.1
15.6
16.2
15.8
16.4
28.4
28.4
31.1
31.1
32.2
32.2
24.8
24.8
27.3
27.3
28.8
28.8
21.6
21.6
23.8
23.8
25.0
25.0
18.7
18.7
20.5
20.5
21.6
21.6
16.2
16.3
17.6
17.6
18.6
18.6
13.9
13.9
15.1
15.1
15.9
15.9
12.8
12.8
13.9
13.9
14.7
14.7
11.7
11.7
12.8
12.8
13.5
13.5
9.9
9.9
10.8
10.8
11.4
11.4
8.3
8.3
9.0
9.0
9.5
9.5
6.9
6.9
7.5
7.5
7.9
7.9
Airflow
CFM
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
395
525
THC
kW
HE
LAT
COP
9.5
9.8
10.6
10.9
11.1
11.4
11.3
11.6
12.3
12.6
12.8
13.1
13.1
13.5
13.9
14.2
14.6
14.9
14.9
15.3
15.5
15.9
16.3
16.7
16.7
17.1
17.1
17.5
18.0
18.4
18.4
18.8
18.7
19.2
19.6
20.1
20.1
20.6
19.5
19.9
20.4
20.9
20.9
21.4
20.2
20.7
21.2
21.7
21.7
22.2
1.07
0.96
1.09
0.98
1.11
0.99
1.11
1.00
1.13
1.02
1.14
1.03
1.15
1.03
1.16
1.05
1.18
1.06
1.18
1.06
1.20
1.07
1.21
1.09
1.22
1.09
1.22
1.10
1.24
1.11
1.25
1.12
1.25
1.12
1.27
1.14
1.27
1.14
1.26
1.13
1.28
1.15
1.29
1.15
1.28
1.15
1.29
1.16
1.30
1.17
6.1
6.5
7.1
7.5
7.5
8.0
7.7
8.2
8.5
9.1
9.0
9.7
9.3
10.0
10.0
10.7
10.6
11.3
10.9
11.7
11.5
12.2
12.1
13.0
12.5
13.3
12.9
13.8
13.7
14.6
14.1
15.0
14.3
15.3
15.1
16.2
15.6
16.6
15.0
16.0
15.9
16.9
16.3
17.4
15.7
16.8
16.6
17.7
17.1
18.2
92
87
95
89
96
90
97
90
99
92
100
93
101
94
103
95
104
96
105
97
106
98
108
99
109
100
110
101
112
102
113
103
114
104
116
105
117
106
116
105
118
107
119
108
117
107
120
108
121
109
2.62
2.98
2.84
3.24
2.94
3.35
2.99
3.41
3.18
3.62
3.29
3.75
3.35
3.82
3.50
3.99
3.63
4.13
3.69
4.21
3.81
4.34
3.94
4.50
4.02
4.58
4.10
4.68
4.25
4.85
4.33
4.94
4.38
5.00
4.54
5.18
4.62
5.27
4.52
5.15
4.68
5.34
4.77
5.43
4.65
5.30
4.82
5.49
4.90
5.59
Operation Not Recommended
*Performance capacities shown in thousands of Btuh.
NOTES:
1. Interpolation is permissible; extrapolation is not.
2. All entering air conditions are 80 F db and 67 F wb in cooling, and 70 F db in heating. AHRI/ISO certified conditions are 80.6 F db and 66.2 F wb in cooling and
68 F db in heating.
3. Table does not reflect fan or pump power corrections for AHRI/ISO conditions.
4. All performance is based upon the lower voltage of dual voltage rated units.
5. Operation below 40 F EWT is based upon a 15% methanol antifreeze solution.
6. Operation below 60 F EWT requires optional insulated water/refrigerant circuit.
7. See performance correction tables for operating conditions other than those listed
above.
17
Performance data (cont)
50P1H,P1V018
600 CFM NOMINAL AIRFLOW COOLING/600 CFM NOMINAL AIRFLOW HEATING*
PRESSURE DROP
EWT
(F)
GPM
4.5
4.5
2.3
2.3
3.4
3.4
4.5
4.5
2.3
2.3
3.4
3.4
4.5
4.5
2.3
2.3
3.4
3.4
4.5
4.5
2.3
2.3
3.4
3.4
4.5
4.5
2.3
2.3
3.4
3.4
4.5
4.5
2.3
2.3
3.4
3.4
4.5
4.5
2.3
2.3
3.4
3.4
4.5
4.5
2.3
2.3
3.4
3.4
4.5
4.5
2.3
2.3
3.4
3.4
4.5
4.5
2.3
2.3
3.4
3.4
4.5
4.5
2.3
2.3
3.4
3.4
4.5
4.5
20
30
40
50
60
70
80
85
90
100
110
120
AHRI
COP
db
EAT
EER
EWT
GPM
HE
ISO
LAT
MBtuh
TC
THC
THR
TSC
wb
18
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
PSI
ft wg
7.2
7.2
2.1
2.1
3.4
3.4
5.9
5.9
1.7
1.7
2.9
2.9
5.1
5.1
1.4
1.4
2.6
2.6
4.6
4.6
1.3
1.3
2.3
2.3
4.2
4.2
1.1
1.1
2.1
2.1
3.9
3.9
1.0
1.0
2.0
2.0
3.6
3.6
1.0
1.0
1.9
1.9
3.5
3.5
0.9
0.9
1.8
1.8
3.4
3.4
0.9
0.9
1.7
1.7
3.2
3.2
0.8
0.8
1.6
1.6
3.1
3.1
0.7
0.7
1.6
1.6
2.9
2.9
16.7
16.7
4.9
4.9
7.9
7.9
13.7
13.7
3.9
3.9
6.7
6.7
11.8
11.8
3.3
3.3
5.9
5.9
10.6
10.6
2.9
2.9
5.3
5.3
9.6
9.6
2.6
2.6
4.9
4.9
8.9
8.9
2.3
2.3
4.5
4.5
8.3
8.3
2.2
2.2
4.4
4.4
8.1
8.1
2.1
2.1
4.2
4.2
7.9
7.9
2.0
2.0
4.0
4.0
7.4
7.4
1.8
1.8
3.8
3.8
7.1
7.1
1.7
1.7
3.6
3.6
6.8
6.8
Airflow
CFM
TC
COOLING — EAT 80/67 F
Sens/Tot
TSC
kW
Ratio
HEATING — EAT 70 F
THR
EER
Operation Not Recommended
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
22.1
23.0
22.9
23.9
23.3
24.3
21.1
22.0
21.9
22.8
22.5
23.5
20.4
21.2
20.8
21.7
21.2
22.1
19.3
20.1
19.8
20.6
20.1
21.0
18.2
19.0
18.7
19.4
19.1
19.8
17.0
17.7
17.5
18.3
17.9
18.7
16.4
17.1
16.9
17.6
17.3
18.0
15.8
16.4
16.3
17.0
16.7
17.4
14.4
15.0
15.0
15.6
15.4
16.0
12.9
13.4
13.5
14.0
13.9
14.5
11.2
11.6
11.8
12.3
12.3
12.8
LEGEND
Air Conditioning, Heating, and Refrigeration Institute
Coefficient of Performance
Dry Bulb
Entering Air Temperature
Energy Efficiency Ratio
Entering Water Temperature
Gallons Per Minute
Heat of Extraction (MBtuh)
International Organization for Standardization
Leaving Air Temperature (F)
Btuh in Thousands
Total Capacity (MBtuh)
Total Heating Capacity (MBtuh)
Total Heat Rejection (MBtuh)
Total Sensible Capacity (MBtuh)
Wet Bulb
14.2
16.1
14.4
16.3
14.4
16.3
13.9
15.7
14.2
16.0
14.5
16.4
13.7
15.5
13.8
15.6
13.9
15.8
13.2
14.9
13.4
15.1
13.5
15.3
12.7
14.3
12.8
14.5
13.0
14.7
12.1
13.7
12.3
13.9
12.5
14.1
11.8
13.3
12.0
13.5
12.2
13.8
11.5
13.0
11.7
13.2
11.9
13.4
10.8
12.2
11.0
12.5
11.2
12.7
10.1
11.4
10.3
11.6
10.5
11.9
9.2
10.4
9.5
10.7
9.7
11.0
0.64
0.70
0.63
0.68
0.62
0.67
0.66
0.72
0.65
0.70
0.64
0.70
0.67
0.73
0.66
0.72
0.66
0.72
0.68
0.74
0.68
0.73
0.67
0.73
0.69
0.76
0.69
0.75
0.68
0.74
0.71
0.77
0.70
0.76
0.69
0.76
0.72
0.78
0.71
0.77
0.70
0.76
0.73
0.79
0.71
0.78
0.71
0.77
0.75
0.82
0.74
0.80
0.73
0.79
0.78
0.85
0.76
0.83
0.75
0.82
0.82
0.89
0.80
0.87
0.79
0.86
0.72
0.75
0.64
0.67
0.60
0.62
0.82
0.86
0.75
0.78
0.71
0.74
0.93
0.97
0.85
0.89
0.81
0.85
1.04
1.08
0.96
1.00
0.92
0.96
1.15
1.20
1.07
1.12
1.03
1.08
1.28
1.33
1.20
1.25
1.15
1.20
1.35
1.40
1.26
1.31
1.22
1.27
1.42
1.48
1.33
1.38
1.28
1.34
1.57
1.63
1.48
1.54
1.43
1.49
1.74
1.81
1.64
1.71
1.59
1.65
1.92
2.00
1.82
1.89
1.77
1.84
24.5
25.5
25.1
26.1
25.3
26.4
23.9
24.9
24.4
25.4
24.9
25.9
23.5
24.5
23.7
24.7
23.9
24.9
22.8
23.8
23.0
24.0
23.3
24.2
22.1
23.1
22.3
23.2
22.6
23.5
21.4
22.3
21.6
22.5
21.9
22.8
21.0
21.9
21.2
22.1
21.5
22.4
20.6
21.5
20.8
21.7
21.1
22.0
19.8
20.6
20.0
20.8
20.3
21.1
18.8
19.6
19.1
19.9
19.4
20.2
17.8
18.5
18.1
18.8
18.4
19.1
30.7
30.8
35.8
35.8
39.0
39.0
25.6
25.6
29.3
29.3
31.9
31.9
21.9
22.0
24.4
24.4
26.1
26.1
18.6
18.6
20.6
20.6
21.9
21.9
15.8
15.8
17.4
17.4
18.4
18.4
13.3
13.3
14.7
14.7
15.5
15.5
12.2
12.2
13.5
13.5
14.3
14.3
11.1
11.1
12.3
12.3
13.0
13.0
9.2
9.2
10.1
10.1
10.8
10.8
7.4
7.4
8.2
8.2
8.8
8.8
5.8
5.8
6.5
6.5
7.0
7.0
Airflow
CFM
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
450
600
THC
kW
HE
LAT
COP
11.2
11.4
12.4
12.7
12.9
13.3
13.2
13.5
14.3
14.7
15.0
15.3
15.3
15.7
16.3
16.6
17.0
17.4
17.4
17.9
18.2
18.6
19.1
19.6
19.6
20.1
20.2
20.7
21.2
21.7
21.7
22.3
22.1
22.7
23.3
23.9
23.9
24.5
23.1
23.7
24.3
24.9
25.0
25.6
24.1
24.7
25.4
26.0
26.1
26.7
1.25
1.13
1.29
1.16
1.30
1.17
1.31
1.17
1.33
1.20
1.35
1.21
1.35
1.22
1.37
1.23
1.39
1.25
1.39
1.25
1.41
1.26
1.42
1.28
1.43
1.29
1.44
1.29
1.46
1.31
1.46
1.32
1.47
1.32
1.49
1.34
1.50
1.35
1.49
1.33
1.50
1.35
1.51
1.36
1.50
1.35
1.52
1.37
1.53
1.38
7.2
7.6
8.2
8.8
8.7
9.3
9.0
9.6
9.9
10.6
10.5
11.2
10.8
11.6
11.7
12.5
12.4
13.2
12.7
13.6
13.4
14.3
14.2
15.2
14.7
15.7
15.2
16.2
16.1
17.2
16.6
17.8
17.0
18.2
18.0
19.3
18.6
19.9
17.9
19.1
19.0
20.3
19.6
20.9
18.8
20.1
20.0
21.3
20.6
22.0
93.
88.
96
90
97
90
97
91
99
93
101
94
102
94
103
96
105
97
106
98
107
99
109
100
110
101
112
102
114
103
115
104
116
105
118
107
119
108
118
107
120
108
121
110
120
108
122
110
124
111
2.61
2.98
2.83
3.22
2.92
3.33
2.97
3.38
3.15
3.59
3.26
3.72
3.32
3.78
3.47
3.96
3.60
4.10
3.67
4.18
3.79
4.32
3.93
4.49
4.01
4.58
4.11
4.68
4.27
4.86
4.35
4.96
4.41
5.03
4.59
5.23
4.68
5.34
4.56
5.20
4.74
5.41
4.84
5.51
4.71
5.37
4.89
5.58
4.99
5.69
Operation Not Recommended
*Performance capacities shown in thousands of Btuh.
NOTES:
1. Interpolation is permissible; extrapolation is not.
2. All entering air conditions are 80 F db and 67 F wb in cooling, and 70 F db in heating. AHRI/ISO certified conditions are 80.6 F db and 66.2 F wb in cooling and
68 F db in heating.
3. Table does not reflect fan or pump power corrections for AHRI/ISO conditions.
4. All performance is based upon the lower voltage of dual voltage rated units.
5. Operation below 40 F EWT is based upon a 15% methanol antifreeze solution.
6. Operation below 60 F EWT requires optional insulated water/refrigerant circuit.
7. See performance correction tables for operating conditions other than those listed
above.
50P1H,P1V024
800 CFM NOMINAL AIRFLOW COOLING/800 CFM NOMINAL AIRFLOW HEATING*
PRESSURE DROP
EWT
(F)
GPM
6.0
6.0
3.0
3.0
4.5
4.5
6.0
6.0
3.0
3.0
4.5
4.5
6.0
6.0
3.0
3.0
4.5
4.5
6.0
6.0
3.0
3.0
4.5
4.5
6.0
6.0
3.0
3.0
4.5
4.5
6.0
6.0
3.0
3.0
4.5
4.5
6.0
6.0
3.0
3.0
4.5
4.5
6.0
6.0
3.0
3.0
4.5
4.5
6.0
6.0
3.0
3.0
4.5
4.5
6.0
6.0
3.0
3.0
4.5
4.5
6.0
6.0
3.0
3.0
4.5
4.5
6.0
6.0
20
30
40
50
60
70
80
85
90
100
110
120
AHRI
COP
db
EAT
EER
EWT
GPM
HE
ISO
LAT
MBtuh
TC
THC
THR
TSC
wb
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
PSI
ft wg
8.5
8.5
2.2
2.2
4.0
4.0
7.2
7.2
1.9
1.9
3.6
3.6
6.4
6.4
1.7
1.7
3.2
3.2
5.9
5.9
1.5
1.5
3.0
3.0
5.5
5.5
1.3
1.3
2.6
2.6
4.9
4.9
1.3
1.3
2.6
2.6
4.8
4.8
1.2
1.2
2.5
2.5
4.7
4.7
1.2
1.2
2.5
2.5
4.7
4.7
1.2
1.2
2.4
2.4
4.5
4.5
1.1
1.1
2.3
2.3
4.3
4.3
1.0
1.0
2.2
2.2
4.2
4.2
19.6
19.6
5.2
5.2
9.3
9.3
16.7
16.7
4.4
4.4
8.2
8.2
14.9
14.9
3.9
3.9
7.4
7.4
13.6
13.6
3.5
3.5
6.9
6.9
12.6
12.6
3.0
3.0
6.1
6.1
11.3
11.3
2.9
2.9
5.9
5.9
11.0
11.0
2.8
2.8
5.8
5.8
10.7
10.7
2.8
2.8
5.8
5.8
10.7
10.7
2.7
2.7
5.5
5.5
10.3
10.3
2.5
2.5
5.3
5.3
9.9
9.9
2.4
2.4
5.1
5.1
9.6
9.6
Airflow
CFM
TC
COOLING — EAT 80/67 F
Sens/Tot
TSC
kW
Ratio
HEATING — EAT 70 F
THR
EER
Operation Not Recommended
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
27.7
28.9
28.2
29.4
28.5
29.6
26.9
28.0
27.5
28.7
27.8
28.9
26.2
27.3
26.7
27.8
27.0
28.1
25.3
26.3
25.7
26.8
26.1
27.1
22.9
23.8
23.4
24.4
23.8
24.8
22.2
23.1
22.8
23.7
23.2
24.1
21.6
22.4
22.2
23.1
22.5
23.4
21.6
22.4
22.2
23.1
22.5
23.4
20.2
21.0
20.8
21.6
21.1
22.0
18.8
19.5
19.3
20.1
19.7
20.5
17.1
17.8
17.8
18.6
18.3
19.1
LEGEND
Air Conditioning, Heating, and Refrigeration Institute
Coefficient of Performance
Dry Bulb
Entering Air Temperature
Energy Efficiency Ratio
Entering Water Temperature
Gallons Per Minute
Heat of Extraction (MBtuh)
International Organization for Standardization
Leaving Air Temperature (F)
Btuh in Thousands
Total Capacity (MBtuh)
Total Heating Capacity (MBtuh)
Total Heat Rejection (MBtuh)
Total Sensible Capacity (MBtuh)
Wet Bulb
17.4
19.7
17.5
19.8
17.5
19.8
17.1
19.4
17.3
19.6
17.4
19.7
16.9
19.1
17.0
19.3
17.1
19.4
16.6
18.8
16.7
18.9
16.8
19.0
15.7
17.8
15.8
17.9
16.0
18.1
15.5
17.5
15.6
17.6
15.7
17.8
15.3
17.3
15.4
17.4
15.4
17.5
15.3
17.3
15.4
17.4
15.4
17.5
14.8
16.8
14.9
16.9
15.0
17.0
14.4
16.3
14.4
16.3
14.5
16.4
13.9
15.7
14.0
15.8
14.1
16.0
0.63
0.68
0.62
0.67
0.62
0.67
0.64
0.69
0.63
0.68
0.63
0.68
0.65
0.70
0.64
0.69
0.64
0.69
0.66
0.71
0.65
0.70
0.64
0.70
0.69
0.75
0.67
0.73
0.67
0.73
0.70
0.76
0.68
0.74
0.68
0.74
0.71
0.77
0.69
0.75
0.69
0.75
0.71
0.77
0.69
0.75
0.69
0.75
0.74
0.80
0.72
0.78
0.71
0.77
0.77
0.84
0.75
0.81
0.74
0.80
0.81
0.88
0.78
0.85
0.77
0.84
1.12
1.16
1.05
1.09
1.02
1.06
1.23
1.28
1.15
1.19
1.11
1.16
1.36
1.42
1.26
1.32
1.22
1.27
1.52
1.58
1.40
1.46
1.35
1.41
1.91
1.99
1.76
1.84
1.70
1.77
2.03
2.12
1.88
1.95
1.80
1.88
2.16
2.25
1.99
2.07
1.91
1.99
2.16
2.25
1.99
2.07
1.91
1.99
2.44
2.54
2.25
2.34
2.16
2.25
2.77
2.88
2.55
2.66
2.45
2.55
3.13
3.26
2.89
3.01
2.78
2.89
31.5
32.8
31.8
33.1
31.9
33.2
31.1
32.4
31.4
32.7
31.5
32.8
30.8
32.1
31.0
32.2
31.1
32.4
30.4
31.7
30.5
31.7
30.6
31.9
29.4
30.6
29.4
30.7
29.6
30.8
29.2
30.4
29.2
30.4
29.3
30.5
28.9
30.1
29.0
30.1
29.0
30.2
28.9
30.1
29.0
30.1
29.0
30.2
28.5
29.7
28.5
29.7
28.5
29.7
28.3
29.4
28.1
29.2
28.1
29.3
27.9
29.0
27.8
28.9
27.9
29.0
24.8
24.8
26.9
26.9
28.0
28.0
21.9
21.9
24.0
24.0
25.1
25.1
19.3
19.3
21.1
21.1
22.1
22.1
16.7
16.7
18.3
18.3
19.3
19.3
12.0
12.0
13.3
13.3
14.1
14.1
11.0
11.0
12.2
12.2
12.9
12.9
10.0
10.0
11.1
11.1
11.8
11.8
10.0
10.0
11.1
11.1
11.8
11.8
8.3
8.3
9.2
9.2
9.8
9.8
6.8
6.8
7.6
7.6
8.0
8.0
5.5
5.5
6.2
6.2
6.6
6.6
Airflow
CFM
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
640
850
THC
kW
HE
LAT
COP
15.5
15.9
17.2
17.6
18.0
18.4
18.4
18.8
19.9
20.4
20.8
21.3
21.3
21.9
22.6
23.2
23.7
24.3
24.3
24.9
25.3
25.9
26.6
27.2
27.2
27.9
30.4
31.1
31.7
32.5
32.4
33.1
31.5
32.3
32.7
33.5
33.4
34.2
32.6
33.4
33.8
34.6
34.4
35.2
32.6
33.4
33.8
34.6
34.4
35.2
1.91
1.71
1.93
1.74
1.95
1.75
1.95
1.76
1.98
1.78
2.00
1.79
2.01
1.80
2.03
1.82
2.05
1.84
2.06
1.85
2.08
1.87
2.10
1.89
2.12
1.90
2.18
1.96
2.21
1.99
2.23
2.00
2.21
1.98
2.24
2.01
2.25
2.02
2.23
2.01
2.26
2.03
2.28
2.05
2.23
2.01
2.26
2.03
2.28
2.05
9.5
10.1
11.0
11.8
11.7
12.5
12.1
12.9
13.4
14.4
14.3
15.3
14.7
15.7
15.9
17.0
16.9
18.0
17.4
18.6
18.3
19.6
19.4
20.7
20.0
21.4
22.9
24.4
24.0
25.7
24.6
26.3
23.8
25.5
25.0
26.7
25.5
27.2
24.8
26.5
25.9
27.6
26.4
28.2
24.8
26.5
25.9
27.6
26.4
28.2
92
87
95
89
96
90
97
91
99
92
100
93
101
94
103
95
104
96
105
97
107
98
108
100
109
100
114
104
116
105
117
106
116
105
117
107
118
107
117
106
119
108
120
108
117
106
119
108
120
108
2.39
2.72
2.61
2.98
2.70
3.08
2.76
3.14
2.94
3.36
3.06
3.49
3.12
3.55
3.27
3.72
3.39
3.87
3.46
3.94
3.57
4.07
3.70
4.22
3.77
4.30
4.08
4.65
4.20
4.79
4.26
4.85
4.18
4.77
4.29
4.89
4.34
4.95
4.28
4.88
4.38
4.99
4.42
5.04
4.28
4.88
4.38
4.99
4.42
5.04
Operation Not Recommended
*Performance capacities shown in thousands of Btuh.
NOTES:
1. Interpolation is permissible; extrapolation is not.
2. All entering air conditions are 80 F db and 67 F wb in cooling, and 70 F db in heating. AHRI/ISO certified conditions are 80.6 F db and 66.2 F wb in cooling and
68 F db in heating.
3. Table does not reflect fan or pump power corrections for AHRI/ISO conditions.
4. All performance is based upon the lower voltage of dual voltage rated units.
5. Operation below 40 F EWT is based upon a 15% methanol antifreeze solution.
6. Operation below 60 F EWT requires optional insulated water/refrigerant circuit.
7. See performance correction tables for operating conditions other than those listed
above.
19
Performance data (cont)
50P1H,P1V030
1000 CFM NOMINAL AIRFLOW COOLING/1000 CFM NOMINAL AIRFLOW HEATING*
PRESSURE DROP
EWT
(F)
GPM
7.5
7.5
3.8
3.8
5.6
5.6
7.5
7.5
3.8
3.8
5.6
5.6
7.5
7.5
3.8
3.8
5.6
5.6
7.5
7.5
3.8
3.8
5.6
5.6
7.5
7.5
3.8
3.8
5.6
5.6
7.5
7.5
3.8
3.8
5.6
5.6
7.5
7.5
3.8
3.8
5.6
5.6
7.5
7.5
3.8
3.8
5.6
5.6
7.5
7.5
3.8
3.8
5.6
5.6
7.5
7.5
3.8
3.8
5.6
5.6
7.5
7.5
3.8
3.8
5.6
5.6
7.5
7.5
20
30
40
50
60
70
80
85
90
100
110
120
AHRI
COP
db
EAT
EER
EWT
GPM
HE
ISO
LAT
MBtuh
TC
THC
THR
TSC
wb
20
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
PSI
ft wg
5.0
5.0
1.3
1.3
2.3
2.3
4.2
4.2
1.0
1.0
2.0
2.0
3.7
3.7
0.9
0.9
1.8
1.8
3.4
3.4
0.8
0.8
1.7
1.7
3.1
3.1
0.7
0.7
1.5
1.5
2.9
2.9
0.7
0.7
1.4
1.4
2.7
2.7
0.6
0.6
1.4
1.4
2.7
2.7
0.6
0.6
1.4
1.4
2.6
2.6
0.6
0.6
1.3
1.3
2.5
2.5
0.5
0.5
1.2
1.2
2.4
2.4
0.5
0.5
1.2
1.2
2.3
2.3
11.6
11.6
2.9
2.9
5.4
5.4
9.7
9.7
2.4
2.4
4.7
4.7
8.6
8.6
2.1
2.1
4.2
4.2
7.8
7.8
1.8
1.8
3.8
3.8
7.2
7.2
1.6
1.6
3.6
3.6
6.7
6.7
1.5
1.5
3.3
3.3
6.3
6.3
1.4
1.4
3.2
3.2
6.2
6.2
1.4
1.4
3.1
3.1
6.0
6.0
1.3
1.3
3.0
3.0
5.7
5.7
1.2
1.2
2.8
2.8
5.5
5.5
1.1
1.1
2.7
2.7
5.3
5.3
Airflow
CFM
TC
COOLING — EAT 80/67 F
Sens/Tot
TSC
kW
Ratio
HEATING — EAT 70 F
THR
EER
Operation Not Recommended
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
33.3
34.7
33.5
34.9
33.6
35.0
32.6
34.0
33.1
34.5
33.7
35.1
31.6
32.9
32.3
33.7
32.6
34.0
30.4
31.7
31.1
32.4
31.4
32.7
29.0
30.2
30.0
31.2
30.4
31.7
27.7
28.8
28.5
29.6
29.0
30.2
26.7
27.8
27.6
28.8
28.2
29.3
25.7
26.8
26.8
27.9
27.3
28.5
24.0
24.9
25.1
26.1
25.6
26.7
22.5
23.5
23.2
24.2
23.8
24.8
20.4
21.2
21.4
22.3
22.0
22.9
LEGEND
Air Conditioning, Heating, and Refrigeration Institute
Coefficient of Performance
Dry Bulb
Entering Air Temperature
Energy Efficiency Ratio
Entering Water Temperature
Gallons Per Minute
Heat of Extraction (MBtuh)
International Organization for Standardization
Leaving Air Temperature (F)
Btuh in Thousands
Total Capacity (MBtuh)
Total Heating Capacity (MBtuh)
Total Heat Rejection (MBtuh)
Total Sensible Capacity (MBtuh)
Wet Bulb
20.3
22.9
20.2
22.8
20.0
22.7
20.2
22.8
20.3
22.9
20.5
23.2
19.9
22.5
20.1
22.8
20.2
22.9
19.4
21.9
19.6
22.2
19.7
22.3
18.8
21.2
19.2
21.7
19.4
21.9
18.3
20.7
18.5
21.0
18.7
21.2
17.8
20.1
18.2
20.6
18.4
20.8
17.3
19.6
17.8
20.1
18.0
20.4
16.6
18.8
17.0
19.3
17.3
19.6
16.1
18.2
16.3
18.4
16.5
18.7
15.2
17.2
15.6
17.6
15.8
17.8
0.61
0.66
0.60
0.65
0.60
0.65
0.62
0.67
0.61
0.67
0.61
0.66
0.63
0.68
0.62
0.68
0.62
0.67
0.64
0.69
0.63
0.69
0.63
0.68
0.65
0.70
0.64
0.70
0.64
0.69
0.66
0.72
0.65
0.71
0.65
0.70
0.67
0.72
0.66
0.71
0.65
0.71
0.67
0.73
0.66
0.72
0.66
0.72
0.69
0.75
0.68
0.74
0.67
0.73
0.72
0.78
0.70
0.76
0.69
0.75
0.74
0.81
0.73
0.79
0.72
0.78
1.38
1.44
1.31
1.36
1.27
1.32
1.51
1.57
1.42
1.48
1.38
1.44
1.65
1.72
1.55
1.61
1.50
1.57
1.81
1.89
1.70
1.77
1.65
1.71
2.00
2.08
1.87
1.95
1.81
1.89
2.21
2.30
2.07
2.16
2.00
2.08
2.34
2.43
2.18
2.27
2.11
2.20
2.46
2.56
2.30
2.39
2.22
2.31
2.74
2.85
2.56
2.67
2.48
2.58
3.07
3.19
2.86
2.98
2.77
2.88
3.44
3.58
3.21
3.34
3.10
3.23
38.0
39.5
37.9
39.5
37.9
39.4
37.7
39.3
37.9
39.5
38.3
39.9
37.2
38.8
37.6
39.1
37.7
39.3
36.6
38.1
36.9
38.4
37.0
38.5
35.8
37.3
36.3
37.8
36.6
38.1
35.3
36.7
35.5
37.0
35.8
37.3
34.7
36.1
35.1
36.5
35.4
36.8
34.1
35.5
34.7
36.1
34.9
36.4
33.3
34.7
33.8
35.2
34.1
35.5
33.0
34.4
33.1
34.4
33.3
34.6
32.2
33.5
32.4
33.8
32.6
33.9
24.0
24.0
25.7
25.7
26.5
26.5
21.6
21.6
23.3
23.3
24.4
24.4
19.2
19.2
20.9
20.9
21.7
21.7
16.8
16.8
18.3
18.3
19.0
19.1
14.5
14.5
16.0
16.0
16.8
16.8
12.5
12.5
13.7
13.7
14.5
14.5
11.5
11.5
12.7
12.7
13.4
13.4
10.5
10.5
11.7
11.7
12.3
12.3
8.7
8.7
9.8
9.8
10.3
10.3
7.4
7.4
8.1
8.1
8.6
8.6
5.9
5.9
6.7
6.7
7.1
7.1
Airflow
CFM
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
750
1000
THC
kW
HE
LAT
COP
20.0
20.4
21.6
22.1
22.5
23.0
22.9
23.5
24.7
25.3
25.7
26.4
26.3
26.9
27.8
28.5
29.1
29.8
29.8
30.5
31.0
31.8
32.5
33.3
33.3
34.1
34.2
35.1
35.8
36.7
36.7
37.6
37.3
38.2
39.0
40.0
40.2
41.2
38.8
39.8
40.5
41.5
41.6
42.6
40.3
41.3
42.0
43.0
42.9
44.0
2.31
2.08
2.37
2.13
2.40
2.15
2.41
2.16
2.45
2.20
2.48
2.23
2.49
2.24
2.52
2.26
2.55
2.29
2.56
2.30
2.58
2.32
2.61
2.34
2.63
2.36
2.64
2.37
2.68
2.40
2.70
2.42
2.71
2.43
2.75
2.47
2.78
2.50
2.75
2.50
2.80
2.50
2.80
2.50
2.79
2.51
2.85
2.56
2.88
2.59
12.6
13.4
14.0
14.9
14.7
15.7
15.1
16.2
16.7
17.8
17.6
18.8
18.1
19.4
19.5
20.8
20.6
22.0
21.3
22.7
22.4
23.9
23.7
25.3
24.4
26.0
25.2
26.9
26.7
28.5
27.4
29.3
28.0
29.9
29.5
31.5
30.6
32.6
29.3
31.3
30.8
32.9
31.7
33.9
30.6
32.7
32.1
34.3
32.9
35.1
95
89
97
90
98
91
98
92
100
93
102
94
102
95
104
96
106
98
107
98
108
99
110
101
111
102
112
102
114
104
115
105
116
105
118
107
120
108
118
107
120
108
121
109
120
108
122
110
123
111
2.53
2.89
2.67
3.04
2.75
3.13
2.79
3.18
2.95
3.36
3.04
3.47
3.10
3.53
3.24
3.69
3.35
3.82
3.41
3.89
3.52
4.02
3.65
4.16
3.71
4.24
3.79
4.33
3.92
4.47
3.99
4.55
4.04
4.60
4.15
4.74
4.24
4.84
4.14
4.72
4.24
4.84
4.30
4.91
4.23
4.83
4.33
4.93
4.36
4.98
Operation Not Recommended
*Performance capacities shown in thousands of Btuh.
NOTES:
1. Interpolation is permissible; extrapolation is not.
2. All entering air conditions are 80 F db and 67 F wb in cooling, and 70 F db in heating. AHRI/ISO certified conditions are 80.6 F db and 66.2 F wb in cooling and
68 F db in heating.
3. Table does not reflect fan or pump power corrections for AHRI/ISO conditions.
4. All performance is based upon the lower voltage of dual voltage rated units.
5. Operation below 40 F EWT is based upon a 15% methanol antifreeze solution.
6. Operation below 60 F EWT requires optional insulated water/refrigerant circuit.
7. See performance correction tables for operating conditions other than those listed
above.
50P1H,P1V036
1,200 CFM NOMINAL AIRFLOW COOLING/1,200 CFM NOMINAL AIRFLOW HEATING*
PRESSURE DROP
EWT
(F)
GPM
9.0
9.0
4.5
4.5
6.8
6.8
9.0
9.0
4.5
4.5
6.8
6.8
9.0
9.0
4.5
4.5
6.8
6.8
9.0
9.0
4.5
4.5
6.8
6.8
9.0
9.0
4.5
4.5
6.8
6.8
9.0
9.0
4.5
4.5
6.8
6.8
9.0
9.0
4.5
4.5
6.8
6.8
9.0
9.0
4.5
4.5
6.8
6.8
9.0
9.0
4.5
4.5
6.8
6.8
9.0
9.0
4.5
4.5
6.8
6.8
9.0
9.0
4.5
4.5
6.8
6.8
9.0
9.0
20
30
40
50
60
70
80
85
90
100
110
120
AHRI
COP
db
EAT
EER
EWT
GPM
HE
ISO
LAT
MBtuh
TC
THC
THR
TSC
wb
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
PSI
ft wg
6.4
6.4
1.8
1.8
3.1
3.1
5.4
5.4
1.6
1.6
2.7
2.7
4.8
4.8
1.4
1.4
2.4
2.4
4.4
4.4
1.3
1.3
2.3
2.3
4.0
4.0
1.2
1.2
2.1
2.1
3.8
3.8
1.1
1.1
2.0
2.0
3.6
3.6
1.0
1.0
1.9
1.9
3.5
3.5
1.0
1.0
1.9
1.9
3.4
3.4
0.9
0.9
1.8
1.8
3.3
3.3
0.9
0.9
1.7
1.7
3.1
3.1
0.9
0.9
1.6
1.6
3.0
3.0
14.8
14.8
4.3
4.3
7.1
7.1
12.5
12.5
3.6
3.6
6.2
6.2
11.1
11.1
3.2
3.2
5.6
5.6
10.1
10.1
2.9
2.9
5.2
5.2
9.3
9.3
2.7
2.7
4.9
4.9
8.7
8.7
2.5
2.5
4.6
4.6
8.3
8.3
2.4
2.4
4.4
4.4
8.1
8.1
2.3
2.3
4.3
4.3
7.9
7.9
2.2
2.2
4.1
4.1
7.5
7.5
2.1
2.1
4.0
4.0
7.2
7.2
2.0
2.0
3.8
3.8
7.0
7.0
Airflow
CFM
TC
COOLING — EAT 80/67 F
Sens/Tot
TSC
kW
Ratio
HEATING — EAT 70 F
THR
EER
Operation Not Recommended
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
39.9
41.5
40.1
41.7
40.0
41.7
39.2
40.8
39.7
41.4
39.9
41.6
38.0
39.5
38.8
40.4
39.2
40.8
36.1
37.6
37.5
39.1
38.0
39.6
34.6
36.0
35.8
37.3
36.4
37.9
32.5
33.8
33.9
35.3
34.5
35.9
31.5
32.8
32.8
34.1
33.4
34.7
30.5
31.8
31.7
33.0
32.2
33.5
28.3
29.5
29.5
30.7
30.1
31.3
26.2
27.3
27.2
28.4
27.6
28.8
24.1
25.1
25.1
26.1
25.4
26.5
LEGEND
Air Conditioning, Heating, and Refrigeration Institute
Coefficient of Performance
Dry Bulb
Entering Air Temperature
Energy Efficiency Ratio
Entering Water Temperature
Gallons Per Minute
Heat of Extraction (MBtuh)
International Organization for Standardization
Leaving Air Temperature (F)
Btuh in Thousands
Total Capacity (MBtuh)
Total Heating Capacity (MBtuh)
Total Heat Rejection (MBtuh)
Total Sensible Capacity (MBtuh)
Wet Bulb
24.2
27.4
24.3
27.5
24.3
27.5
24.0
27.2
24.2
27.4
24.3
27.4
23.6
26.7
23.9
27.0
24.0
27.2
22.9
25.9
23.5
26.5
23.6
26.7
22.5
25.5
22.9
25.9
23.1
26.1
21.8
24.7
22.3
25.2
22.5
25.5
21.5
24.4
21.9
24.8
22.1
25.0
21.2
24.0
21.6
24.4
21.7
24.5
20.5
23.1
20.8
23.5
21.0
23.7
19.8
22.4
20.0
22.6
20.0
22.7
19.0
21.4
19.2
21.8
19.2
21.8
0.61
0.66
0.61
0.66
0.61
0.66
0.61
0.67
0.61
0.66
0.61
0.66
0.62
0.68
0.62
0.67
0.61
0.67
0.63
0.69
0.63
0.68
0.62
0.68
0.65
0.71
0.64
0.70
0.63
0.69
0.67
0.73
0.66
0.72
0.65
0.71
0.68
0.74
0.67
0.73
0.66
0.72
0.70
0.76
0.68
0.74
0.67
0.73
0.72
0.79
0.71
0.77
0.70
0.76
0.75
0.82
0.73
0.80
0.72
0.79
0.79
0.86
0.77
0.83
0.76
0.82
1.67
1.74
1.62
1.69
1.60
1.67
1.80
1.87
1.71
1.78
1.67
1.74
1.98
2.06
1.85
1.92
1.79
1.87
2.20
2.29
2.04
2.13
1.97
2.05
2.46
2.56
2.28
2.38
2.20
2.29
2.76
2.88
2.56
2.67
2.47
2.57
2.90
3.05
2.72
2.84
2.62
2.73
3.10
3.23
2.88
3.00
2.78
2.89
3.47
3.62
3.24
3.37
3.13
3.25
3.88
4.04
3.63
3.78
3.51
3.65
4.31
4.49
4.05
4.21
3.92
4.08
45.6
47.4
45.5
47.4
45.5
47.3
45.3
47.1
45.5
47.4
45.6
47.4
44.7
46.5
45.1
47.0
45.3
47.2
43.6
45.4
44.4
46.3
44.7
46.5
42.9
44.7
43.6
45.4
43.9
45.7
41.9
43.7
42.6
44.4
42.9
44.7
41.5
43.3
42.1
43.8
42.3
44.1
41.1
42.8
41.6
43.3
41.7
43.4
40.2
41.9
40.6
42.2
40.8
42.5
39.5
41.1
39.7
41.3
39.6
41.3
38.9
40.4
39.0
40.6
38.9
40.5
23.8
23.8
24.7
24.7
25.0
25.0
21.8
21.8
23.3
23.3
23.9
23.9
19.2
19.2
21.0
21.0
21.9
21.9
16.4
16.4
18.4
18.4
19.3
19.3
14.0
14.0
15.7
15.7
16.6
16.6
11.8
11.8
13.2
13.2
14.0
14.0
10.8
10.8
12.1
12.1
12.8
12.8
9.8
9.8
11.0
11.0
11.6
11.6
8.1
8.2
9.1
9.1
9.6
9.6
6.8
6.8
7.5
7.5
7.9
7.9
5.6
5.6
6.2
6.2
6.5
6.5
Airflow
CFM
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
860
1150
THC
kW
HE
LAT
COP
22.6
23.2
25.6
26.2
26.8
27.5
27.5
28.2
30.1
30.8
31.6
32.4
32.4
33.2
34.5
35.4
36.3
37.2
37.3
38.2
38.9
39.8
40.9
41.9
42.0
43.0
43.1
44.1
45.2
46.3
46.4
47.5
47.0
48.2
49.2
50.4
50.3
51.5
48.8
50.0
50.9
52.2
52.0
53.2
50.6
51.9
52.7
54.0
53.7
55.0
2.67
2.39
2.80
2.51
2.85
2.56
2.88
2.59
2.98
2.68
3.05
2.74
3.08
2.77
3.16
2.84
3.23
2.90
3.27
2.93
3.32
2.99
3.40
3.05
3.44
3.09
3.47
3.12
3.55
3.19
3.59
3.22
3.61
3.24
3.68
3.30
3.71
3.34
3.67
3.29
3.73
3.35
3.76
3.38
3.72
3.34
3.79
3.40
3.82
3.43
14.1
15.1
16.6
17.7
17.6
18.8
18.2
19.4
20.3
21.7
21.6
23.1
22.3
23.8
24.1
25.7
25.6
27.3
26.4
28.2
27.8
29.7
29.5
31.5
30.4
32.5
31.4
33.5
33.2
35.4
34.2
36.5
34.8
37.1
36.6
39.1
37.6
40.1
36.3
38.8
38.1
40.7
39.0
41.7
37.9
40.4
39.6
42.3
40.5
43.2
94
89
98
91
99
92
100
93
102
95
104
96
105
97
107
98
109
100
110
101
112
102
114
104
115
105
116
106
119
107
120
108
121
109
123
111
124
111
123
110
125
112
126
113
125
112
127
113
128
114
2.49
2.84
2.68
3.06
2.76
3.15
2.80
3.19
2.95
3.37
3.04
3.47
3.09
3.52
3.20
3.65
3.30
3.76
3.35
3.82
3.43
3.91
3.53
4.02
3.58
4.08
3.64
4.15
3.74
4.26
3.79
4.32
3.82
4.36
3.92
4.47
3.97
4.53
3.90
4.45
4.00
4.56
4.05
4.62
3.99
4.54
4.08
4.65
4.12
4.70
Operation Not Recommended
*Performance capacities shown in thousands of Btuh.
NOTES:
1. Interpolation is permissible; extrapolation is not.
2. All entering air conditions are 80 F db and 67 F wb in cooling, and 70 F db in heating. AHRI/ISO certified conditions are 80.6 F db and 66.2 F wb in cooling and
68 F db in heating.
3. Table does not reflect fan or pump power corrections for AHRI/ISO conditions.
4. All performance is based upon the lower voltage of dual voltage rated units.
5. Operation below 40 F EWT is based upon a 15% methanol antifreeze solution.
6. Operation below 60 F EWT requires optional insulated water/refrigerant circuit.
7. See performance correction tables for operating conditions other than those listed
above.
21
Performance data (cont)
50P1H,P1V042
1,350 CFM NOMINAL AIRFLOW COOLING/1,350 CFM NOMINAL AIRFLOW HEATING*
PRESSURE DROP
EWT
(F)
GPM
10.5
10.5
5.3
5.3
7.9
7.9
10.5
10.5
5.3
5.3
7.9
7.9
10.5
10.5
5.3
5.3
7.9
7.9
10.5
10.5
5.3
5.3
7.9
7.9
10.5
10.5
5.3
5.3
7.9
7.9
10.5
10.5
5.3
5.3
7.9
7.9
10.5
10.5
5.3
5.3
7.9
7.9
10.5
10.5
5.3
5.3
7.9
7.9
10.5
10.5
5.3
5.3
7.9
7.9
10.5
10.5
5.3
5.3
7.9
7.9
10.5
10.5
5.3
5.3
7.9
7.9
10.5
10.5
20
30
40
50
60
70
80
85
90
100
110
120
AHRI
COP
db
EAT
EER
EWT
GPM
HE
ISO
LAT
MBtuh
TC
THC
THR
TSC
wb
22
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
PSI
ft wg
9.2
9.2
2.3
2.3
4.3
4.3
7.9
7.9
2.0
2.0
3.9
3.9
7.1
7.1
1.8
1.8
3.5
3.5
6.5
6.5
1.6
1.6
3.3
3.3
6.1
6.1
1.5
1.5
3.1
3.1
5.7
5.7
1.4
1.4
2.9
2.9
5.4
5.4
1.3
1.3
2.8
2.8
5.3
5.3
1.3
1.3
2.8
2.8
5.2
5.2
1.2
1.2
2.7
2.7
5.0
5.0
1.2
1.2
2.6
2.6
4.8
4.8
1.1
1.1
2.5
2.5
4.7
4.7
21.3
21.3
5.3
5.3
10.0
10.0
18.2
18.2
4.6
4.6
8.9
8.9
16.4
16.4
4.1
4.1
8.1
8.1
15.0
15.0
3.7
3.7
7.5
7.5
14.0
14.0
3.4
3.4
7.1
7.1
13.2
13.2
3.2
3.2
6.7
6.7
12.6
12.6
3.1
3.1
6.5
6.5
12.3
12.3
3.0
3.0
6.4
6.4
12.0
12.0
2.8
2.8
6.1
6.1
11.6
11.6
2.7
2.7
5.9
5.9
11.2
11.2
2.6
2.6
5.7
5.7
10.8
10.8
Airflow
CFM
TC
COOLING — EAT 80/67 F
Sens/Tot
TSC
kW
Ratio
HEATING — EAT 70 F
THR
EER
Operation Not Recommended
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
47.4
49.3
48.4
50.4
48.9
50.9
45.9
47.8
47.0
48.9
47.5
49.4
44.4
46.2
45.4
47.3
46.0
47.9
43.1
44.9
43.9
45.7
44.4
46.2
41.3
43.0
42.2
43.9
42.8
44.5
39.5
41.1
40.4
42.1
41.0
42.7
38.4
40.0
39.4
41.1
40.1
41.7
37.4
39.0
38.5
40.1
39.1
40.7
35.2
36.7
36.4
37.9
37.1
38.6
32.8
34.2
34.1
35.5
34.8
36.2
30.2
31.4
31.5
32.8
32.3
33.7
LEGEND
Air Conditioning, Heating, and Refrigeration Institute
Coefficient of Performance
Dry Bulb
Entering Air Temperature
Energy Efficiency Ratio
Entering Water Temperature
Gallons Per Minute
Heat of Extraction (MBtuh)
International Organization for Standardization
Leaving Air Temperature (F)
Btuh in Thousands
Total Capacity (MBtuh)
Total Heating Capacity (MBtuh)
Total Heat Rejection (MBtuh)
Total Sensible Capacity (MBtuh)
Wet Bulb
30.6
34.7
31.1
35.2
31.3
35.5
29.9
33.9
30.4
34.4
30.7
34.7
29.2
33.1
29.7
33.6
30.0
33.9
28.8
32.6
29.0
32.8
29.2
33.1
28.1
31.8
28.3
32.0
28.5
32.3
27.4
31.0
27.6
31.3
27.9
31.5
27.1
30.7
27.3
30.9
27.5
31.2
26.8
30.3
27.0
30.6
27.2
30.8
26.2
29.6
26.4
29.9
26.6
30.1
25.5
28.9
25.7
29.1
25.9
29.4
24.8
28.0
25.0
28.3
25.3
28.6
0.65
0.70
0.64
0.70
0.64
0.70
0.65
0.71
0.65
0.70
0.65
0.70
0.66
0.72
0.65
0.71
0.65
0.71
0.67
0.73
0.66
0.72
0.66
0.72
0.68
0.74
0.67
0.73
0.67
0.73
0.70
0.76
0.68
0.74
0.68
0.74
0.71
0.77
0.69
0.75
0.69
0.75
0.72
0.78
0.70
0.76
0.70
0.76
0.74
0.81
0.73
0.79
0.72
0.78
0.78
0.85
0.76
0.82
0.75
0.81
0.82
0.89
0.79
0.86
0.78
0.85
1.87
1.95
1.76
1.83
1.71
1.78
2.05
2.13
1.92
2.00
1.86
1.94
2.26
2.35
2.11
2.20
2.04
2.12
2.51
2.61
2.34
2.43
2.25
2.35
2.80
2.91
2.60
2.71
2.51
2.61
3.13
3.26
2.91
3.03
2.80
2.92
3.32
3.46
3.08
3.21
2.97
3.09
3.51
3.65
3.26
3.39
3.14
3.27
3.94
4.10
3.66
3.81
3.52
3.67
4.41
4.60
4.11
4.28
3.96
4.12
4.95
5.15
4.61
4.80
4.45
4.63
53.7
55.9
54.4
56.6
54.7
57.0
52.8
55.0
53.4
55.6
53.8
56.0
52.0
54.2
52.6
54.8
52.9
55.1
51.7
53.8
51.8
53.9
52.1
54.2
50.9
52.9
51.0
53.1
51.3
53.4
50.1
52.2
50.3
52.4
50.6
52.6
49.8
51.8
50.0
52.0
50.2
52.3
49.4
51.5
49.6
51.6
49.8
51.9
48.7
50.7
48.9
50.9
49.1
51.1
47.9
49.9
48.1
50.1
48.4
50.4
47.1
49.1
47.3
49.3
47.6
49.5
25.4
25.4
27.5
27.5
28.6
28.6
22.4
22.4
24.5
24.5
25.5
25.5
19.6
19.6
21.5
21.5
22.5
22.5
17.2
17.2
18.8
18.8
19.7
19.7
14.8
14.8
16.2
16.2
17.1
17.1
12.6
12.6
13.9
13.9
14.6
14.6
11.6
11.6
12.8
12.9
13.5
13.6
10.7
10.7
11.8
11.8
12.5
12.5
8.9
8.9
9.9
9.9
10.5
10.5
7.4
7.4
8.3
8.3
8.8
8.8
6.1
6.1
6.8
6.8
7.3
7.3
Airflow
CFM
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
1050
1400
THC
kW
HE
LAT
COP
28.8
29.5
31.6
32.4
32.9
33.7
33.6
34.5
36.1
37.0
37.8
38.7
38.7
39.6
40.8
41.8
42.8
43.8
43.9
44.9
45.6
46.7
47.8
49.0
49.0
50.2
50.3
51.5
52.8
54.1
54.1
55.4
54.9
56.3
57.6
59.0
59.0
60.4
57.2
58.6
59.9
61.3
61.3
62.7
59.4
60.8
62.1
63.6
63.5
65.1
3.37
3.03
3.45
3.10
3.49
3.14
3.52
3.16
3.59
3.23
3.64
3.27
3.67
3.30
3.74
3.36
3.80
3.41
3.83
3.44
3.89
3.49
3.96
3.56
4.00
3.59
4.04
3.63
4.11
3.70
4.16
3.73
4.18
3.76
4.27
3.83
4.31
3.87
4.25
3.82
4.34
3.89
4.38
3.93
4.32
3.88
4.40
3.96
4.45
3.99
18.1
19.3
20.5
21.9
21.6
23.1
22.3
23.8
24.4
26.1
25.8
27.6
26.6
28.4
28.5
30.4
30.2
32.2
31.1
33.2
32.6
34.8
34.5
36.9
35.6
38.0
36.7
39.2
38.8
41.5
40.0
42.7
40.7
43.4
43.0
45.9
44.2
47.2
42.6
45.5
44.9
48.0
46.2
49.3
44.6
47.6
46.9
50.1
48.1
51.4
95
90
98
91
99
92
100
93
102
94
103
96
104
96
106
98
108
99
109
100
110
101
112
102
113
103
114
104
117
106
118
107
118
107
121
109
122
110
120
109
123
111
124
111
122
110
125
112
126
113
2.51
2.86
2.68
3.06
2.76
3.15
2.80
3.20
2.95
3.36
3.04
3.46
3.09
3.52
3.20
3.65
3.30
3.76
3.35
3.82
3.44
3.92
3.54
4.04
3.60
4.10
3.65
4.16
3.76
4.29
3.82
4.35
3.85
4.39
3.96
4.51
4.01
4.58
3.94
4.49
4.05
4.61
4.10
4.68
4.03
4.59
4.13
4.71
4.19
4.77
Operation Not Recommended
*Performance capacities shown in thousands of Btuh.
NOTES:
1. Interpolation is permissible; extrapolation is not.
2. All entering air conditions are 80 F db and 67 F wb in cooling, and 70 F db in heating. AHRI/ISO certified conditions are 80.6 F db and 66.2 F wb in cooling and
68 F db in heating.
3. Table does not reflect fan or pump power corrections for AHRI/ISO conditions.
4. All performance is based upon the lower voltage of dual voltage rated units.
5. Operation below 40 F EWT is based upon a 15% methanol antifreeze solution.
6. Operation below 60 F EWT requires optional insulated water/refrigerant circuit.
7. See performance correction tables for operating conditions other than those listed
above.
50P1H,P1V048
1,600 CFM NOMINAL AIRFLOW COOLING/1,600 CFM NOMINAL AIRFLOW HEATING*
PRESSURE DROP
EWT
(F)
GPM
12.0
12.0
6.0
6.0
9.0
9.0
12.0
12.0
6.0
6.0
9.0
9.0
12.0
12.0
6.0
6.0
9.0
9.0
12.0
12.0
6.0
6.0
9.0
9.0
12.0
12.0
6.0
6.0
9.0
9.0
12.0
12.0
6.0
6.0
9.0
9.0
12.0
12.0
6.0
6.0
9.0
9.0
12.0
12.0
6.0
6.0
9.0
9.0
12.0
12.0
6.0
6.0
9.0
9.0
12.0
12.0
6.0
6.0
9.0
9.0
12.0
12.0
6.0
6.0
9.0
9.0
12.0
12.0
20
30
40
50
60
70
80
85
90
100
110
120
AHRI
COP
db
EAT
EER
EWT
GPM
HE
ISO
LAT
MBtuh
TC
THC
THR
TSC
wb
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
PSI
ft wg
6.8
6.8
1.8
1.8
3.4
3.4
6.2
6.2
1.6
1.6
3.1
3.1
5.8
5.8
1.5
1.5
3.0
3.0
5.5
5.5
1.4
1.4
2.8
2.8
5.3
5.3
1.3
1.3
2.7
2.7
5.1
5.1
1.3
1.3
2.6
2.6
4.9
4.9
1.2
1.2
2.6
2.6
4.9
4.9
1.2
1.2
2.6
2.6
4.8
4.8
1.2
1.2
2.5
2.5
4.7
4.7
1.1
1.1
2.4
2.4
4.6
4.6
1.1
1.1
2.4
2.4
4.5
4.5
15.6
15.6
4.1
4.1
7.8
7.8
14.3
14.3
3.7
3.7
7.2
7.2
13.4
13.4
3.4
3.4
6.8
6.8
12.7
12.7
3.2
3.2
6.5
6.5
12.2
12.2
3.0
3.0
6.3
6.3
11.8
11.8
2.9
2.9
6.1
6.1
11.4
11.4
2.8
2.8
6.0
6.0
11.3
11.3
2.8
2.8
5.9
5.9
11.1
11.1
2.7
2.7
5.8
5.8
10.9
10.9
2.6
2.6
5.6
5.6
10.6
10.6
2.5
2.5
5.5
5.5
10.4
10.4
Airflow
CFM
TC
COOLING — EAT 80/67 F
Sens/Tot
TSC
kW
Ratio
HEATING — EAT 70 F
THR
EER
Operation Not Recommended
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
56.4
58.8
57.5
59.8
57.9
60.3
54.8
57.1
56.0
58.3
56.6
58.9
52.9
55.1
54.3
56.5
55.0
57.2
50.7
52.8
52.3
54.5
53.0
55.2
48.3
50.3
50.0
52.1
50.9
53.0
45.7
47.6
47.5
49.5
48.4
50.4
44.3
46.1
46.2
48.1
47.1
49.0
42.9
44.6
44.8
46.6
45.7
47.6
39.8
41.4
41.8
43.5
42.8
44.6
36.5
38.0
38.6
40.2
39.7
41.3
33.0
34.4
35.2
36.7
36.3
37.8
LEGEND
Air Conditioning, Heating, and Refrigeration Institute
Coefficient of Performance
Dry Bulb
Entering Air Temperature
Energy Efficiency Ratio
Entering Water Temperature
Gallons Per Minute
Heat of Extraction (MBtuh)
International Organization for Standardization
Leaving Air Temperature (F)
Btuh in Thousands
Total Capacity (MBtuh)
Total Heating Capacity (MBtuh)
Total Heat Rejection (MBtuh)
Total Sensible Capacity (MBtuh)
Wet Bulb
34.4
39.0
34.6
39.1
34.5
39.1
34.0
38.5
34.3
38.9
34.5
39.0
33.3
37.7
33.8
38.3
34.0
38.5
32.5
36.8
33.1
37.5
33.4
37.8
31.5
35.7
32.2
36.4
32.5
36.8
30.5
34.5
31.2
35.3
31.6
35.7
29.9
33.8
30.6
34.7
31.0
35.1
29.3
33.2
30.1
34.1
30.5
34.5
28.2
31.9
28.9
32.7
29.3
33.2
26.9
30.4
27.7
31.4
28.1
31.8
25.5
28.9
26.4
29.9
26.8
30.3
0.61
0.66
0.60
0.65
0.60
0.65
0.62
0.67
0.61
0.67
0.61
0.66
0.63
0.68
0.62
0.68
0.62
0.67
0.64
0.70
0.63
0.69
0.63
0.68
0.65
0.71
0.64
0.70
0.64
0.70
0.67
0.72
0.66
0.71
0.65
0.71
0.68
0.73
0.66
0.72
0.66
0.72
0.68
0.74
0.67
0.73
0.67
0.72
0.71
0.77
0.69
0.75
0.69
0.74
0.74
0.80
0.72
0.78
0.71
0.77
0.77
0.84
0.75
0.81
0.74
0.80
2.25
2.34
2.11
2.20
2.05
2.14
2.47
2.57
2.31
2.40
2.23
2.32
2.72
2.83
2.53
2.64
2.45
2.55
3.02
3.15
2.81
2.92
2.70
2.81
3.38
3.52
3.13
3.25
3.01
3.13
3.79
3.94
3.50
3.64
3.37
3.50
4.02
4.19
3.72
3.87
3.57
3.72
4.26
4.43
3.93
4.10
3.78
3.94
4.79
4.99
4.43
4.62
4.26
4.44
5.40
5.62
5.00
5.21
4.81
5.01
6.09
6.34
5.65
5.88
5.44
5.66
64.0
66.7
64.6
67.2
64.8
67.5
63.2
65.8
63.8
66.4
64.1
66.8
62.1
64.7
62.9
65.5
63.2
65.8
61.0
63.5
61.8
64.4
62.2
64.8
59.9
62.3
60.7
63.2
61.1
63.6
58.6
61.0
59.5
61.9
59.9
62.4
58.0
60.4
58.8
61.3
59.3
61.7
57.4
59.8
58.2
60.6
58.6
61.1
56.2
58.5
57.0
59.3
57.4
59.7
55.0
57.3
55.8
58.0
56.1
58.5
53.9
56.1
54.6
56.8
55.0
57.2
25.1
25.1
27.2
27.2
28.2
28.2
22.2
22.2
24.3
24.3
25.4
25.4
19.4
19.4
21.4
21.4
22.5
22.5
16.8
16.8
18.6
18.6
19.6
19.6
14.3
14.3
16.0
16.0
16.9
16.9
12.1
12.1
13.6
13.6
14.4
14.4
11.1
11.1
12.5
12.5
13.2
13.2
10.1
10.1
11.4
11.4
12.1
12.1
8.3
8.3
9.4
9.4
10.0
10.0
6.8
6.8
7.7
7.7
8.2
8.2
5.4
5.4
6.2
6.2
6.7
6.7
Airflow
CFM
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
1200
1600
THC
kW
HE
LAT
COP
30.9
31.6
33.9
34.7
34.4
35.3
35.1
36.0
37.9
38.8
39.5
40.5
40.7
41.7
43.6
44.7
44.9
46.0
46.0
47.1
48.2
49.3
50.5
51.8
51.8
53.1
53.5
54.8
56.2
57.5
57.6
59.0
58.8
60.2
61.7
63.2
63.3
64.8
61.3
62.8
64.3
65.9
65.9
67.5
63.9
65.5
66.9
68.6
68.5
70.2
3.54
3.18
3.60
3.24
3.63
3.26
3.65
3.27
3.70
3.33
3.74
3.36
3.76
3.37
3.81
3.42
3.85
3.46
3.87
3.48
3.91
3.51
3.96
3.56
3.99
3.58
4.02
3.61
4.08
3.67
4.12
3.70
4.14
3.72
4.21
3.78
4.25
3.82
4.20
3.78
4.28
3.84
4.32
3.88
4.27
3.83
4.35
3.91
4.39
3.95
19.6
20.9
22.3
23.8
22.7
24.2
23.3
24.9
25.8
27.5
27.2
29.1
28.3
30.2
31.0
33.0
32.1
34.3
33.1
35.3
35.0
37.4
37.1
39.6
38.3
40.9
39.8
42.4
42.2
45.0
43.4
46.4
44.5
47.5
47.1
50.2
48.4
51.7
46.7
49.9
49.4
52.7
50.7
54.1
49.0
52.3
51.7
55.1
53.0
56.6
94
88
96
90
97
90
97
91
99
92
100
93
101
94
104
96
105
97
106
97
107
99
109
100
110
101
111
102
113
103
114
104
115
105
118
107
119
107
117
106
120
108
121
109
119
108
122
110
123
111
2.56
2.92
2.76
3.14
2.78
3.17
2.82
3.22
3.00
3.42
3.10
3.53
3.18
3.62
3.36
3.83
3.42
3.90
3.49
3.98
3.61
4.11
3.74
4.26
3.81
4.34
3.90
4.44
4.03
4.60
4.10
4.68
4.16
4.74
4.29
4.90
4.36
4.97
4.28
4.88
4.40
5.02
4.47
5.09
4.39
5.01
4.51
5.14
4.57
5.21
Operation Not Recommended
*Performance capacities shown in thousands of Btuh.
NOTES:
1. Interpolation is permissible; extrapolation is not.
2. All entering air conditions are 80 F db and 67 F wb in cooling, and 70 F db in heating. AHRI/ISO certified conditions are 80.6 F db and 66.2 F wb in cooling and
68 F db in heating.
3. Table does not reflect fan or pump power corrections for AHRI/ISO conditions.
4. All performance is based upon the lower voltage of dual voltage rated units.
5. Operation below 40 F EWT is based upon a 15% methanol antifreeze solution.
6. Operation below 60 F EWT requires optional insulated water/refrigerant circuit.
7. See performance correction tables for operating conditions other than those listed
above.
23
Performance data (cont)
50P1H,P1V060
2,000 CFM NOMINAL AIRFLOW COOLING/2,000 CFM NOMINAL AIRFLOW HEATING*
PRESSURE DROP
EWT
(F)
GPM
15.0
15.0
7.5
7.5
11.3
11.3
15.0
15.0
7.5
7.5
11.3
11.3
15.0
15.0
7.5
7.5
11.3
11.3
15.0
15.0
7.5
7.5
11.3
11.3
15.0
15.0
7.5
7.5
11.3
11.3
15.0
15.0
7.5
7.5
11.3
11.3
15.0
15.0
7.5
7.5
11.3
11.3
15.0
15.0
7.5
7.5
11.3
11.3
15.0
15.0
7.5
7.5
11.3
11.3
15.0
15.0
7.5
7.5
11.3
11.3
15.0
15.0
7.5
7.5
11.3
11.3
15.0
15.0
20
30
40
50
60
70
80
85
90
100
110
120
AHRI
COP
db
EAT
EER
EWT
GPM
HE
ISO
LAT
MBtuh
TC
THC
THR
TSC
wb
24
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
PSI
ft wg
14.0
14.0
3.4
3.4
6.8
6.8
12.6
12.6
3.1
3.1
6.3
6.3
11.8
11.8
2.8
2.8
5.9
5.9
11.1
11.1
2.6
2.6
5.6
5.6
10.7
10.7
2.4
2.4
5.4
5.4
10.3
10.3
2.3
2.3
5.2
5.2
9.9
9.9
2.3
2.3
5.1
5.1
9.8
9.8
2.2
2.2
5.0
5.0
9.6
9.6
2.1
2.1
4.9
4.9
9.4
9.4
2.0
2.0
4.8
4.8
9.2
9.2
2.0
2.0
4.7
4.7
9.0
9.0
32.2
32.2
7.9
7.9
15.8
15.8
29.2
29.2
7.0
7.0
14.6
14.6
27.2
27.2
6.4
6.4
13.7
13.7
25.7
25.7
6.0
6.0
13.0
13.0
24.6
24.6
5.6
5.6
12.5
12.5
23.7
23.7
5.4
5.4
12.0
12.0
22.9
22.9
5.2
5.2
11.8
11.8
22.6
22.6
5.1
5.1
11.6
11.6
22.2
22.2
4.9
4.9
11.3
11.3
21.7
21.7
4.7
4.7
11.0
11.0
21.2
21.2
4.6
4.6
10.7
10.7
20.7
20.7
Airflow
CFM
TC
COOLING — EAT 80/67 F
Sens/Tot
TSC
kW
Ratio
HEATING — EAT 70 F
THR
EER
Operation Not Recommended
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
68.2
71.0
69.0
71.8
69.3
72.1
66.6
69.3
67.8
70.6
68.3
71.1
64.7
67.3
66.0
68.7
66.7
69.4
62.4
65.0
63.7
66.3
64.2
66.8
59.6
62.0
61.1
63.6
61.6
64.2
56.4
58.8
58.1
60.4
58.7
61.1
54.8
57.0
56.4
58.7
57.1
59.5
53.1
55.3
54.8
57.1
55.5
57.8
49.6
51.7
51.4
53.5
52.1
54.2
46.6
48.5
47.8
49.8
48.6
50.6
43.0
44.7
44.2
46.0
44.9
46.8
LEGEND
Air Conditioning, Heating, and Refrigeration Institute
Coefficient of Performance
Dry Bulb
Entering Air Temperature
Energy Efficiency Ratio
Entering Water Temperature
Gallons Per Minute
Heat of Extraction (MBtuh)
International Organization for Standardization
Leaving Air Temperature (F)
Btuh in Thousands
Total Capacity (MBtuh)
Total Heating Capacity (MBtuh)
Total Heat Rejection (MBtuh)
Total Sensible Capacity (MBtuh)
Wet Bulb
41.6
47.0
41.5
47.0
41.3
46.8
41.1
46.5
41.5
47.0
41.6
47.0
40.3
45.6
40.9
46.3
41.2
46.6
39.3
44.5
39.9
45.1
40.0
45.3
38.0
43.0
38.6
43.7
38.8
43.9
36.7
41.5
37.3
42.2
37.5
42.4
36.1
40.8
36.6
41.4
36.8
41.6
35.4
40.1
35.9
40.7
36.1
40.9
34.3
38.9
34.7
39.3
34.8
39.4
33.8
38.2
33.6
38.1
33.7
38.2
33.1
37.5
32.8
37.1
32.7
37.0
0.61
0.66
0.60
0.65
0.60
0.65
0.62
0.67
0.61
0.67
0.61
0.66
0.62
0.68
0.62
0.67
0.62
0.67
0.63
0.69
0.63
0.68
0.62
0.68
0.64
0.69
0.63
0.69
0.63
0.68
0.65
0.71
0.64
0.70
0.64
0.69
0.66
0.72
0.65
0.70
0.64
0.70
0.67
0.73
0.66
0.71
0.65
0.71
0.69
0.75
0.68
0.73
0.67
0.73
0.73
0.79
0.70
0.76
0.69
0.75
0.77
0.84
0.74
0.81
0.73
0.79
3.00
3.12
2.87
2.99
2.82
2.94
3.21
3.34
3.05
3.18
2.98
3.10
3.47
3.61
3.28
3.41
3.19
3.32
3.78
3.93
3.56
3.70
3.45
3.59
4.15
4.32
3.89
4.05
3.77
3.92
4.59
4.78
4.29
4.47
4.15
4.32
4.84
5.04
4.52
4.71
4.37
4.55
5.09
5.30
4.76
4.95
4.60
4.78
5.67
5.90
5.29
5.51
5.11
5.32
6.33
6.59
5.91
6.15
5.71
5.94
7.07
7.36
6.61
6.88
6.38
6.64
78.3
81.6
78.7
82.0
78.8
82.1
77.4
80.6
78.1
81.3
78.4
81.6
76.4
79.6
77.1
80.3
77.5
80.7
75.3
78.4
75.8
78.9
75.9
79.0
73.7
76.7
74.3
77.4
74.4
77.5
72.1
75.1
72.7
75.7
72.8
75.8
71.3
74.2
71.9
74.8
72.0
75.0
70.5
73.4
71.0
74.0
71.2
74.1
69.0
71.9
69.5
72.3
69.6
72.4
68.2
71.0
68.0
70.8
68.2
71.0
67.2
70.0
66.8
69.6
66.8
69.5
22.8
22.8
24.0
24.0
24.6
24.6
20.8
20.8
22.2
22.2
22.9
22.9
18.7
18.7
20.1
20.1
20.9
20.9
16.5
16.5
17.9
17.9
18.6
18.6
14.3
14.3
15.7
15.7
16.3
16.3
12.3
12.3
13.5
13.5
14.1
14.1
11.4
11.4
12.5
12.5
13.1
13.1
10.4
10.4
11.5
11.5
12.1
12.1
8.8
8.8
9.7
9.7
10.2
10.2
7.4
7.4
8.1
8.1
8.5
8.5
6.1
6.1
6.7
6.7
7.0
7.0
Airflow
CFM
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
1460
1950
THC
kW
HE
LAT
COP
41.6
42.6
45.5
46.6
47.4
48.6
48.5
49.7
52.2
53.5
54.8
56.1
56.2
57.5
59.5
60.9
62.6
64.1
64.3
65.9
66.9
68.5
70.4
72.1
72.4
74.1
74.2
75.9
78.0
79.9
80.1
82.0
81.1
83.0
84.9
87.0
86.9
89.0
84.1
86.2
87.8
89.9
89.6
91.8
87.2
89.3
90.7
92.9
92.3
94.5
4.98
4.48
5.08
4.56
5.13
4.61
5.16
4.64
5.27
4.73
5.34
4.80
5.38
4.83
5.48
4.92
5.57
5.01
5.63
5.05
5.70
5.12
5.82
5.22
5.88
5.28
5.93
5.33
6.05
5.44
6.12
5.50
6.15
5.52
6.27
5.63
6.33
5.69
6.25
5.60
6.40
5.70
6.40
5.80
6.35
5.70
6.45
5.80
6.50
5.84
25.8
27.5
29.2
31.1
30.9
33.0
31.8
34.0
35.1
37.5
37.3
39.8
38.5
41.1
41.4
44.2
44.1
47.1
45.6
48.7
47.8
51.0
50.9
54.4
52.6
56.2
54.1
57.8
57.5
61.4
59.2
63.2
60.1
64.2
63.4
67.7
65.1
69.5
62.8
67.0
65.9
70.4
67.5
72.0
65.4
69.9
68.4
73.1
69.8
74.5
96
90
99
92
100
93
101
94
103
95
105
97
106
97
108
99
110
100
111
101
112
103
115
104
116
105
117
106
119
108
121
109
121
109
124
111
125
112
123
111
126
113
127
114
125
112
128
114
129
115
2.45
2.79
2.62
2.99
2.71
3.09
2.75
3.14
2.91
3.31
3.01
3.43
3.06
3.49
3.18
3.63
3.29
3.75
3.35
3.82
3.44
3.92
3.55
4.05
3.61
4.12
3.66
4.18
3.78
4.31
3.84
4.37
3.86
4.41
3.97
4.52
4.02
4.58
3.95
4.50
4.04
4.61
4.09
4.66
4.03
4.59
4.12
4.70
4.16
4.74
Operation Not Recommended
*Performance capacities shown in thousands of Btuh.
NOTES:
1. Interpolation is permissible; extrapolation is not.
2. All entering air conditions are 80 F db and 67 F wb in cooling, and 70 F db in heating. AHRI/ISO certified conditions are 80.6 F db and 66.2 F wb in cooling and
68 F db in heating.
3. Table does not reflect fan or pump power corrections for AHRI/ISO conditions.
4. All performance is based upon the lower voltage of dual voltage rated units.
5. Operation below 40 F EWT is based upon a 15% methanol antifreeze solution.
6. Operation below 60 F EWT requires optional insulated water/refrigerant circuit.
7. See performance correction tables for operating conditions other than those listed
above.
ENTERING AIR CORRECTION TABLE
HEATING CORRECTIONS
Ent Air Heating
DB (F) Capacity
45
50
55
60
65
68
70
75
80
1.0507
1.0327
1.0195
1.0102
1.0033
1.0000
0.9979
0.9928
0.9866
FULL LOAD COOLING CORRECTIONS 400 CFM PER TON
Total
Sensible Cooling Capacity Multipliers — Entering DB (F)
Ent Air Cooling
WB (F)
65
70
75
80
80.6
85
90
95
Capacity
50
0.7800 0.9778
*
*
*
*
*
*
*
55
0.8327 0.8966 1.0556
*
*
*
*
*
*
60
0.8954 0.7505 0.9184 1.1056
*
*
*
*
*
65
0.9681
—
0.6778 0.8992 1.1213 1.1480 1.3439
*
*
66.2
0.9871
—
0.6103 0.8420 1.0698 1.0969 1.2938
*
*
67
1.0000
—
0.5507 0.7782 1.0000 1.0262 1.2161 1.4266
*
70
1.0508
—
—
0.6408 0.8856 0.9135 1.1082 1.3087 1.4869
75
1.1435
—
—
—
0.6085 0.6403 0.8566 1.0663 1.2376
Power Heat of
Ext
0.7802
0.8227
0.8683
0.9168
0.9680
1.0000
1.0218
1.0781
1.1367
1.1314
1.0953
1.0646
1.0380
1.0139
1.0000
0.9908
0.9673
0.9419
LEGEND
THR — Total Heat of Rejection
WB — Wet Bulb
Ent — Entering
Ext — Extraction
DB — Dry Bulb
kW
THR
0.9972
0.9980
0.9988
0.9996
0.9999
1.0000
1.0005
1.0014
0.8243
0.8667
0.9169
0.9747
0.9897
1.0000
1.0403
1.1135
*Sensible capacity equals total capacity.
NOTE: AHRI/ISO/ASHRAE 13256-1 uses entering air conditions of
Cooling - 80.6 F DB/ 66.2 F WB, and Heating - 68 F DB/ 59 F WB entering air temperature.
AIRFLOW CORRECTION TABLE
HEATING
% OF
RATED
75
81.25
87.5
93.75
100
106.25
112.5
118.75
125
Heating
Capacity
0.9200
0.9384
0.9548
0.9739
1.0000
1.0377
1.0915
1.1658
1.2652
Power
Heat of
Ext
Total
Capacity
Sensible
Capacity
0.9606
0.9691
0.9784
0.9887
1.0000
1.0122
1.0253
1.0394
1.0544
0.9605
0.9722
0.9826
0.9919
1.0000
1.0069
1.0126
1.0171
1.0204
0.9764
0.9829
0.9889
0.9947
1.0000
1.0050
1.0096
1.0138
1.0177
1.1134
1.0789
1.0484
1.0222
1.0000
0.9820
0.9681
0.9583
0.9527
LEGEND
Ext — Extraction
THR — Total Heat of Rejection
COOLING
Sensible
Capacity
Ratio*
0.9368
0.9551
0.9717
0.9867
1.0000
1.0116
1.0216
1.0299
1.0365
kW
THR
0.9605
0.9730
0.9837
0.9927
1.0000
1.0055
1.0093
1.0113
1.0116
0.8837
0.9130
0.9393
0.9668
1.0000
1.0434
1.1016
1.1790
1.2798
*Sensible Capacity Ratio = Sensible Capacity/Total Capacity.
ANTIFREEZE CORRECTION TABLE
ANTIFREEZE TYPE
ANTIFREEZE
PERCENTAGE
Water
0
5
15
25
5
15
25
5
15
25
5
15
25
Propylene Glycol
Methanol
Ethanol
Ethylene Glycol
Total Capacity
1.000
0.995
0.986
0.978
0.997
0.990
0.982
0.998
0.994
0.986
0.998
0.994
0.988
COOLING
EWT 90 F
Sensible
Capacity
1.000
0.995
0.986
0.978
0.997
0.990
0.982
0.998
0.994
0.986
0.998
0.994
0.988
kW
1.000
1.003
1.009
1.014
1.002
1.007
1.012
1.002
1.005
1.009
1.002
1.004
1.008
HEATING
EWT 30 F
Heating
Capacity
1.000
0.989
0.968
0.947
0.989
0.968
0.949
0.981
0.944
0.917
0.993
0.980
0.966
kW
WATER
PRESSURE
DROP,
EWT 30 F
1.000
0.997
0.990
0.983
0.997
0.990
0.984
0.994
0.983
0.974
0.998
0.994
0.990
1.000
1.070
1.210
1.360
1.070
1.160
1.220
1.140
1.300
1.360
1.040
1.120
1.200
LEGEND
EWT — Entering Water Temperature
25
Performance data (cont)
MOTORIZED WATER VALVE CORRECTIONS
UNIT SIZE
50P1
006
009
012
015
018
024
030
036
042
048
060
LEGEND
MOPD — Maximum Operating Pressure Drop
WPD — Waterside Pressure Drop
26
Cv
MOPD
4.9
4.9
4.9
4.9
4.9
4.9
4.9
4.9
4.9
4.9
4.9
4.9
4.9
4.9
4.9
4.9
4.9
4.9
10.3
10.3
10.3
10.3
10.3
10.3
10.3
10.3
10.3
10.3
10.3
10.3
10.3
10.3
10.3
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
GPM
0.8
1.1
1.5
1.1
1.7
2.2
1.5
2.3
3
1.8
2.6
3.5
2.3
3.4
4.5
3
4.5
6
3.8
5.5
7.5
4.5
6.8
9
5.3
7.9
10.5
6
9
12
7.5
11.3
15
WPD ADDERS
PSI
0.03
0.05
0.09
0.05
0.12
0.2
0.09
0.22
0.37
0.13
0.28
0.51
0.22
0.48
0.84
0.37
0.84
1.5
0.14
0.29
0.53
0.19
0.44
0.76
0.26
0.59
1.04
0.34
0.76
1.36
0.53
1.2
2.12
FT
0.06
0.12
0.22
0.12
0.28
0.47
0.22
0.51
0.87
0.31
0.65
1.18
0.51
1.11
1.95
0.87
1.95
3.46
0.31
0.66
1.22
0.44
1.01
1.76
0.61
1.36
2.4
0.78
1.76
3.14
1.22
2.78
4.9
BLOWER PERFORMANCE DATA — STANDARD UNIT
50P1
UNIT
SIZE
RATED
AIRFLOW
(cfm)
MIN
CFM
006
220
150
009
325
225
012
400
300
015
525
375
018
600
450
024
800
600
030
1000
750
036
1200
900
042
1350
1050
048
1600
1200
060
2000
1500
FAN
SPEED
HIGH
MED
LOW
HIGH
MED
LOW
HIGH
MED
LOW
HIGH
MED
LOW
HIGH
MED
LOW
HIGH
MED
LOW
HIGH
MED
LOW
HIGH
MED
LOW
HIGH
MED
LOW
HIGH
MED
LOW
HIGH
MED
LOW
AIRFLOW (cfm) AT EXTERNAL STATIC PRESSURE (in. wg)
0.00
0.05
0.10
0.15
0.20
0.25
0.30
0.35
0.40
0.45
0.50
300
250
200
400
370
330
460
410
360
725
657
578
725
657
578
290
240
190
380
360
322
450
400
350
706
647
568
706
647
568
280
230
180
360
340
310
440
390
340
696
637
559
696
637
559
270
210
160
350
320
300
430
380
320
686
617
549
686
617
549
250
200
150
330
310
280
420
370
320
666
608
529
666
608
529
230
190
210
150
180
855
713
1074
1017
912
1310
1077
951
1340
1245
300
280
250
390
350
300
588
549
480
588
549
480
922
817
684
1017
960
855
1232
1038
922
1264
1169
280
260
874
722
1102
1036
931
1329
1086
951
1378
1273
320
290
260
400
360
310
637
588
510
637
588
510
950
836
694
1045
988
884
1280
1067
941
1302
1207
539 451
510
451
539 451
510
451
884 827
789 732
665 618
979 903
922 846
827 751
1174 1077
1009 912
902
1226 1131
1131 1064
1815
1682
1568
2078
1901
1744
1767
1653
1530
2048
1882
1725
1710
1625
1492
2019
1852
1695
1653
1577
1435
1999
1823
1666
1596
1520
1378
1970
1793
1637
686
608
676
598
686
608
676
598
310
260
210
410
390
340
470
420
360
745
666
588
745
666
588
960
779
950
770
941
760
931
751
912
741
893
732
1188
1064
1474
1174
980
1558
1416
1083
1169
1045
1455
1164
980
1530
1397
1083
1140
1017
1436
1106
970
1501
1368
1074
1121
998
1416
1106
970
1473
1349
1074
1843
1682
2195
2009
1813
1824
1663
2195
2009
1813
1805
1644
2185
1999
1803
1786
1625
2176
1980
1793
1093
979
1387
1096
960
1444
1321
1064
1881
1767
1606
2156
1950
1774
1064
960
1358
1096
960
1416
1302
1055
1853
1729
1587
2117
1931
1764
380
340
0.60
0.70
0.80
732
665
656
0.90
1.00
320
798
931
1416 1216 1216
1340
1264
1921 1842 1754 1627
1744 1676 1588
1568
LEGEND
ESP — External Static Pressure
NOTES:
1. Shaded areas denote ESP where operation is not recommended.
2. Units factory shipped on medium speed. Other speeds require
field selection.
3. All airflow is rated and shown above at the lower voltage if unit is
dual voltage rated, e.g., 208 v for 208/230 v units.
4. Only two-speed fan (high and medium) available on 575 v units.
5. Performance stated is at the rated power supply, performance may
vary as the power supply varies from the rated.
27
Performance data (cont)
BLOWER PERFORMANCE DATA HIGH-STATIC UNIT
50P1
RATED
MIN
UNIT AIRFLOW
CFM
SIZE
(cfm)
015
525
018
600
024
800
030
1000
036
1200
042
1350
048
1600
060
2000
FAN
SPEED
HS HI
375 HS MED
HS LOW
HS HI
450 HS MED
HS LOW
HS HI
600 HS MED
HS LOW
HS HI
750 HS MED
HS LOW
HS HI
900 HS MED
HS LOW
HS HI
1050 HS MED
HS LOW
HS HI
1200 HS MED
HS LOW
HS HI
1500 HS MED
HS LOW
AIRFLOW (cfm) AT EXTERNAL STATIC PRESSURE (in. wg)
0.00
0.05
0.10
0.15
0.20
0.25
0.30
0.35
0.40
0.45
0.50
774
696
617
774
696
617
764
686
608
764
686
608
755
676
598
755
676
598
745
657
588
745
657
588
735
657
578
735
657
578
715
647
568
715
647
568
979
960
931
912
988
884
696
637
568
696
637
568
979
960
855
1074
988 979 960 941 931 912 893 865
1484
1310 1300 1290 1280 1271 1261 1242 1222
989 980 980 970 970 960 951 931
1473 1463 1444 1425 1397
1311 1302 1292 1283 1273 1254 1245 1235
1026
836
1455
1213
922
1387
1216
676
617
559
676
617
559
903
922
827
1102
979
798
1426
1193
902
1378
1188
637 519
588 480
519
637 519
588 480
519
798 665
846 713 589
751 675
988 874 760
884 779 713
713
1358 1251 1135
1116 1038 883
1938
1948
1758
2352
2117
1891
1767
1615
2225
1989
1833
1739
1587
2195
1980
1813
1691
1520
2156
1940
1793
725
647
706
627
725
647
706
627
1910
1938
1748
2342
2107
1882
1862
1919
1739
2332
2107
1882
1786
1891
1720
2323
2097
1872
1701
1872
1710
2313
2068
1862
LEGEND
ESP — External Static Pressure
HS — High Static
NOTES:
1. Shaded areas denote ESP where operation is not recommended.
2. Units factory shipped on medium speed. Other speeds require
field selection.
3. All airflow is rated and shown above at the lower voltage if unit is
dual voltage rated, e.g., 208 v for 208/230 v units.
4. Only two-speed fan (high and medium) available on 575 v units.
5. Performance stated is at the rated power supply, performance may
vary as the power supply varies from the rated.
28
1577
1843
1691
2293
2038
1852
1435
1824
1672
2274
2019
1852
1796
1644
2254
1999
1842
0.60
0.70
0.80
0.90
713
931
1311 1178 1026
1121 1026
1625
1435
2087
1891
1764
1539
1311
2019
1842
1715
1416 1254
1940 1852
1460 1715
1666 1588
1.00
Electrical data
ELECTRICAL DATA — 50P1H, P1V UNITS WITH STANDARD PSC MOTOR

FAN
MOTOR
FLA
TOTAL
UNIT
FLA
MIN
CIRCUIT
AMP
MAX
FUSE/
HACR
BRKR
1
1
0.40
0.40
3.7
3.3
4.5
4.0
15
15
22.2
18.8
1
1
0.80
0.70
6.4
4.5
7.8
5.5
15
15
5.1
4.0
32.5
31.5
1
1
0.80
0.70
5.9
4.7
7.2
5.7
15
15
197/254
239/292
6.0
5.4
29.0
28.0
1
1
1.00
0.86
7.0
6.3
8.5
7.6
15
15
208/230-1-60
265-1-60
197/254
239/292
7.2
5.9
33.0
28.0
1
1
1.00
0.86
8.2
6.8
10.0
8.2
15
15
024
208/230-1-60
265-1-60
197/254
239/292
12.8
9.6
58.3
54.0
1
1
1.50
1.30
14.3
10.9
17.5
13.3
30
20
030
208/230-1-60
265-1-60
208/230-3-60
460-3-60
197/254
239/292
197/254
414/506
14.1
11.2
8.9
4.2
73.0
60.0
58.0
28.0
1
1
1
1
3.00
2.70
3.00
1.70
17.1
13.9
11.9
5.9
20.6
16.7
14.1
7.0
30
25
20
15
036
208/230-1-60
265-1-60
208/230-3-60
460-3-60
197/254
239/292
197/254
414/506
16.7
13.5
10.4
5.8
79.0
72.0
73.0
38.0
1
1
1
1
1.80
2.00
1.80
1.24
18.5
15.5
12.2
7.0
22.7
18.9
14.8
8.5
35
30
25
15
042
208/230-1-60
208/230-3-60
460-3-60
575-3-60
197/254
197/254
414/506
518/633
17.9
13.5
6.0
4.9
112.0
88.0
44.0
34.0
1
1
1
1
3.00
3.00
1.70
1.40
20.9
16.5
7.7
6.3
25.4
19.9
9.2
7.5
40
30
15
15
048
208/230-1-60
208/230-3-60
460-3-60
575-3-60
197/254
197/254
414/506
518/633
21.8
13.7
6.2
4.8
117.0
83.1
41.0
33.0
1
1
1
1
3.40
3.40
1.80
1.40
25.2
17.1
8.0
6.2
30.7
20.5
9.6
7.4
50
30
15
15
060
208/230-1-60
208/230-3-60
460-3-60
575-3-60
197/254
197/254
414/506
518/633
26.3
15.6
7.8
5.8
134.0
110.0
52.0
38.9
1
1
1
1
4.90
4.90
2.50
1.90
31.2
20.5
10.3
7.7
37.8
24.4
12.3
9.2
60
40
20
15
COMPRESSOR
50P1
UNIT
SIZE
RATED
VOLTAGE
V-Ph-Hz
VOLTAGE
MIN/MAX
RLA
006
208/230-1-60
265-1-60
197/254
239/292
3.3
2.9
17.7
13.5
009
208/230-1-60
265-1-60
197/254
239/292
5.6
3.8
012
208/230-1-60
265-1-60
197/254
239/292
015
208/230-1-60
265-1-60
018
BRKR
FLA
HACR
LRA
RLA
—
—
—
—
—
LRA
Qty
LEGEND
Breaker
Full Load Amps
Heating, Air Conditioning and Refrigeration
Locked Rotor Amps
Rated Load Amps
NOTES:
1. HACR circuit breaker in USA only.
2. All fuses Class RK-5.
1110
29
Electrical data (cont)
ELECTRICAL DATA — 50P1H, P1V UNITS WITH STANDARD PSC MOTOR
AND INTERNAL SECONDARY PUMP (SPECIAL ORDER OPTION)
Qty
FAN
MOTOR
FLA
TOTAL
UNIT
FLA
PUMP
FLA
MIN
CIRCUIT
AMP
MAX
FUSE/
HACR BRKR
17.7
13.5
1
1
0.40
0.40
4.1
4.0
0.4
0.7
4.9
4.7
15
15
4.5
3.8
22.2
18.8
1
1
0.80
0.70
5.7
5.2
0.4
0.7
6.8
6.2
15
15
197/254
239/292
5.1
4.0
32.5
31.5
1
1
0.80
0.70
6.7
5.4
0.8
0.7
8.0
6.4
15
15
208/230-1-60
265-1-60
197/254
239/292
6.0
5.4
29.0
28.0
1
1
1.00
0.86
7.4
7.0
0.4
0.7
8.9
8.3
15
15
018
208/230-1-60
265-1-60
197/254
239/292
7.2
5.9
33.0
28.0
1
1
1.00
0.86
9.0
7.5
0.8
0.7
10.8
8.9
15
15
024
208/230-1-60
265-1-60
197/254
239/292
12.8
9.6
58.3
54.0
1
1
1.50
1.30
15.1
11.6
0.8
0.7
18.3
14.0
30
20
030
208/230-1-60
265-1-60
208/230-3-60
460-3-60*
197/254
239/292
197/254
414/506
14.1
11.2
8.9
4.2
73.0
60.0
58.0
28.0
1
1
1
1
3.00
2.70
3.00
1.70
17.9
14.6
12.7
6.6
0.8
0.7
0.8
0.7
21.4
17.4
14.9
7.7
35
25
20
15
036
208/230-1-60
265-1-60
208/230-3-60
460-3-60*
197/254
239/292
197/254
414/506
16.7
13.5
10.4
5.8
79.0
72.0
73.0
38.0
1
1
1
1
1.80
2.00
1.80
1.24
19.3
16.2
13.0
7.7
0.8
0.7
0.8
0.7
23.5
19.6
15.6
9.2
40
30
25
15
042
208/230-1-60
208/230-3-60
460-3-60*
197/254
197/254
414/506
17.9
13.5
6.0
112.0
88.0
44.0
1
1
1
3.00
3.00
1.70
21.7
17.3
8.4
0.8
0.8
0.7
26.2
20.7
9.9
40
30
15
048
208/230-1-60
208/230-3-60
460-3-60*
197/254
197/254
414/506
21.8
13.7
6.2
117.0
83.1
41.0
1
1
1
3.40
3.40
1.80
26.3
18.2
9.1
1.1
1.1
1.1
31.7
21.6
10.6
50
35
15
060
208/230-1-60
208/230-3-60
460-3-60*
197/254
197/254
414/506
26.3
15.6
7.8
134.0
110.0
52.0
1
1
1
4.90
4.90
2.50
32.3
21.6
11.4
1.1
1.1
1.1
38.8
25.5
13.3
60
40
20
COMPRESSOR
50P1
UNIT
SIZE
RATED
VOLTAGE
V-Ph-Hz
VOLTAGE
MIN/MAX
RLA
LRA
006
208/230-1-60
265-1-60
197/254
239/292
3.3
2.9
009
208/230-1-60
265-1-60
197/254
239/292
012
208/230-1-60
265-1-60
015
BRKR
FLA
HACR
LRA
RLA
—
—
—
—
—
LEGEND
Breaker
Full Load Amps
Heating, Air Conditioning and Refrigeration
Locked Rotor Amps
Rated Load Amps
*Neutral connection required. All 460-v units with internal secondary
pumps require a 4-wire power supply with neutral. Inernal secondary
pumps are rated 265 vac and are wired between one hot leg and
neutral.
NOTES:
1. HACR circuit breaker in USA only.
2. All fuses Class RK-5.
30
ELECTRICAL DATA — 50P1H, P1V UNITS WITH HIGH-STATIC PSC MOTOR
COMPRESSOR
Qty
FAN
MOTOR
FLA
TOTAL
UNIT
FLA
MIN
CIRCUIT
AMP
MAX
FUSE/
HACR
1
1
1.00
0.86
7.0
6.3
8.5
7.6
15
15
33.0
28.0
1
1
1.50
1.30
8.7
7.2
10.5
8.7
15
15
12.8
9.6
58.3
54.0
1
1
3.00
2.70
15.8
12.3
19.0
14.7
30
20
197/254
239/292
197/254
414/506
14.1
11.2
8.9
4.2
73.0
60.0
58.0
28.0
1
1
1
1
3.00
2.70
3.00
1.70
17.1
13.9
11.9
5.9
20.6
16.7
14.1
7.0
30
25
20
15
036
208/230-1-60
265-1-60
208/230-3-60
460-3-60
197/254
239/292
197/254
414/506
16.7
13.5
10.4
5.8
79.0
72.0
73.0
38.0
1
1
1
1
3.00
2.70
3.00
1.70
19.7
16.2
13.4
7.5
23.9
19.6
16.0
9.0
40
30
25
15
042
208/230-1-60
208/230-3-60
460-3-60
575-3-60
197/254
197/254
414/506
518/633
17.9
13.5
6.0
4.9
112.0
88.0
44.0
34.0
1
1
1
1
3.00
3.00
1.70
1.40
20.9
16.5
7.7
6.3
25.4
19.9
9.2
7.5
40
30
15
15
048
208/230-1-60
208/230-3-60
460-3-60
575-3-60
197/254
197/254
414/506
518/633
21.8
13.7
6.2
4.8
117.0
83.1
41.0
33.0
1
1
1
1
4.90
4.90
2.50
1.90
26.7
18.6
8.7
6.7
32.2
22.0
10.3
7.9
50
35
15
15
060
208/230-1-60
208/230-3-60
460-3-60
575-3-60
197/254
197/254
414/506
518/633
26.3
15.6
7.8
5.8
134.0
110.0
52.0
38.9
1
1
1
1
5.80
5.80
2.60
2.30
32.1
21.4
10.4
8.1
38.7
25.3
12.4
9.6
60
40
20
15
50P1
UNIT
SIZE
RATED
VOLTAGE
V-Ph-Hz
VOLTAGE
MIN/MAX
RLA
LRA
015
208/230-1-60
265-1-60
197/254
239/292
6.0
5.4
29.0
28.0
018
208/230-1-60
265-1-60
197/254
239/292
7.2
5.9
024
208/230-1-60
265-1-60
197/254
239/292
030
208/230-1-60
265-1-60
208/230-3-60
460-3-60
BRKR
FLA
HACR
LRA
RLA
—
—
—
—
—
LEGEND
Breaker
Full Load Amps
Heating, Air Conditioning and Refrigeration
Locked Rotor Amps
Rated Load Amps
NOTES:
1. HACR circuit breaker in USA only.
2. All fuses Class RK-5.
31
Electrical data (cont)
ELECTRICAL DATA — 50P1H, P1V UNITS WITH HIGH-STATIC PSC MOTOR
AND INTERNAL SECONDARY PUMP (SPECIAL ORDER OPTION)
Qty
FAN
MOTOR
FLA
TOTAL
UNIT
FLA
PUMP
FLA
MIN
CIRCUIT
AMP
MAX
FUSE/
HACR BRKR
29.0
28.0
1
1
1.00
0.86
7.4
7.0
0.4
0.7
8.9
8.3
15
15
7.2
5.9
33.0
28.0
1
1
1.50
1.30
9.5
7.9
0.8
0.7
11.3
9.4
15
15
197/254
239/292
12.8
9.6
58.3
54.0
1
1
3.00
2.70
16.6
13.0
0.8
0.7
19.8
15.4
30
25
208/230-1-60
265-1-60
208/230-3-60
460-3-60*
197/254
239/292
197/254
414/506
14.1
11.2
8.9
4.2
73.0
60.0
58.0
28.0
1
1
1
1
3.00
2.70
3.00
1.70
17.9
14.6
12.7
6.6
0.8
0.7
0.8
0.7
21.4
17.4
14.9
7.7
35
25
20
15
036
208/230-1-60
265-1-60
208/230-3-60
460-3-60*
197/254
239/292
197/254
414/506
16.7
13.5
10.4
5.8
79.0
72.0
73.0
38.0
1
1
1
1
3.00
2.70
3.00
1.70
20.5
16.9
14.2
8.2
0.8
0.7
0.8
0.7
24.7
20.3
16.8
9.7
40
30
25
15
042
208/230-1-60
208/230-3-60
460-3-60*
197/254
197/254
414/506
17.9
13.5
6.0
112.0
88.0
44.0
1
1
1
3.00
3.00
1.70
21.7
17.3
8.4
0.8
0.8
0.7
26.2
20.7
9.9
40
30
15
048
208/230-1-60
208/230-3-60
460-3-60*
197/254
197/254
414/506
21.8
13.7
6.2
117.0
83.1
41.0
1
1
1
4.90
4.90
2.50
27.8
19.7
9.8
1.1
1.1
1.1
33.2
23.1
11.3
50
35
15
060
208/230-1-60
208/230-3-60
460-3-60*
197/254
197/254
414/506
26.3
15.6
7.8
134.0
110.0
52.0
1
1
1
5.80
5.80
2.60
33.2
22.5
11.5
1.1
1.1
1.1
39.7
26.4
13.4
60
40
20
COMPRESSOR
50P1
UNIT
SIZE
RATED
VOLTAGE
V-Ph-Hz
VOLTAGE
MIN/MAX
RLA
LRA
015
208/230-1-60
265-1-60
197/254
239/292
6.0
5.4
018
208/230-1-60
265-1-60
197/254
239/292
024
208/230-1-60
265-1-60
030
*Neutral connection required. All 460-v units with internal secondary
pumps require a 4-wire power supply with neutral. Inernal secondary
pumps are rated 265 vac and are wired between one hot leg and
neutral.
BRKR
FLA
HACR
LRA
RLA
—
—
—
—
—
LEGEND
Breaker
Full Load Amps
Heating, Air Conditioning and Refrigeration
Locked Rotor Amps
Rated Load Amps
NOTES:
1. HACR circuit breaker in USA only.
2. All fuses Class RK-5.
32
Typical piping and wiring
TYPICAL PIPING AND WIRING INSTALLATION
A50-7728ef
33
Typical control wiring schematics
UNITS WITH COMPLETE C CONTROLLER, SINGLE-PHASE
Complete C
LEGEND
AL
BM
BMC
BR
CB
CC
CO
FP1
FP2
HP
HPWS
JW
LOC
MV
NEC
PSC
P1
RV
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Alarm Relay Contacts
Blower Motor
Blower Motor Contactor
Blower Relay
Circuit Breaker
Compressor Contactor
Condensate Overflow Sensor
Water Coil Freeze Protection Sensor
Air Coil Freeze Protection Sensor
High-Pressure Switch
High Pressure Water Switch
Jumper Wire
Loss of Charge Pressure Switch
Motorized Valve
National Electrical Code
Permanent Split Capacitor
Field Wiring Terminal Block
Reversing Valve Solenoid
TRANS
TXV
UPS
— Transformer
— Thermostatic Expansion Valve
— Unit Performance Sentinel
Factory Low Voltage Wiring
Factory Line Voltage Wiring
Field Low Voltage Wiring
Field Line Voltage Wiring
Printed Circuit Trace
Optional Wiring
Solenoid Coil
Relay Contacts - N.C.
Relay Contacts - N.O.
Capacitor
Temperature Switch
Low Pressure Switch
Relay/Contactor Coil
High Pressure Switch
Thermistor
Wire Nut
Splice Cap
Condensate Pan
G
Circuit Breaker
LED
*Optional.
COMPLETE C CONTROLLER FAULT CODES
NOTES:
1. Compressor and blower motor thermally protected internally.
2. All wiring to the unit must comply with NEC and local codes.
3. 208/230 v transformer will be connected for 208 v operation. For 230 v
operation, disconnect RED lead at L1 and attach ORANGE lead to L1.
Insulate open end of RED lead. Transformer is energy limiting or may
have circuit breaker.
4. FP1 thermistor provides freeze protection for water. When using antifreeze solutions, cut JW3 jumper.
5. Check installation wiring information for specific thermostat hookup. Refer
to thermostat installation instructions for wiring to the unit. Thermostat
wiring must be “Class 1” and voltage rating equal to or greater than unit
supply voltage.
6. 24-v alarm signal shown. For dry alarm contact, cut JW1 jumper and dry
contact will be available between AL1 and AL2.
7. Transformer secondary ground via Complete C board standoffs and
screws to control box. (Ground available from top two standoffs as
shown.)
8. Fan motors factory wired for medium speed. For high and low speed
remove BLU wire from fan motor speed tap ‘M’ and connect to ‘H’ for high
or ‘L’ for low.
9. Aquastat is supplied with unit and must be wired in series with the hot leg
to the pump. Aquastat is rated for voltage up to 277 v.
34
DESCRIPTION OF OPERATION
Normal Mode
LED
ON
Normal Mode with UPS Warning
ON
Complete C is Non-Functional
Fault Retry
Lockout
Over/Under Voltage Shutdown
Test Mode-No Fault in Memory
Test Mode-HP Fault in Memory
Test Mode-LP Fault in Memory
Test Mode-FP1 Fault in Memory
Test Mode-FP2 Fault in Memory
Test Mode-CO Fault in Memory
Test Mode-Over/Under Shutdown
in Memory
Test Mode-UPS in Memory
Swapped FP1/FP2 Lockout
OFF
Slow Flash
Fast Flash
Slow Flash
Flashing Code 1
Flashing Code 2
Flashing Code 3
Flashing Code 4
Flashing Code 5
Flashing Code 6
ALARM RELAY
Open
Cycle (Closed 5 Sec.
Open 25 Sec.)
Open
Open
Closed
Open (Closed After 15 Min.)
Cycling Code 1
Cycling Code 2
Cycling Code 3
Cycling Code 4
Cycling Code 5
Cycling Code 6
Flashing Code 7
Cycling Code 7
Flashing Code 8
Flashing Code 9
Cycling Code 8
Cycling Code 9
UNITS WITH COMPLETE C CONTROLLER, 208/230 V, THREE-PHASE UNITS
Complete C
LEGEND
AL
BM
BMC
BR
CB
CC
CO
COMPR
FP1
FP2
HP
HPWS
JW
LOC
MV
MVES
NEC
P1
RV
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Alarm Relay Contacts
Blower Motor
Blower Motor Contactor
Blower Relay
Circuit Breaker
Compressor Contactor
Condensate Overflow Sensor
Compressor
Water Coil Freeze Protection Sensor
Air Coil Freeze Protection Sensor
High-Pressure Switch
High Pressure Water Switch
Jumper Wire
Loss of Charge Pressure Switch
Motorized Valve
Motorized Valve End Switch
National Electrical Code
Field Wiring Terminal Block
Reversing Valve Solenoid
TRANS
TXV
UPS
— Transformer
— Thermostatic Expansion Valve
— Unit Performance Sentinel
Factory Low Voltage Wiring
Factory Line Voltage Wiring
Field Low Voltage Wiring
Field Line Voltage Wiring
Printed Circuit Trace
Optional Wiring
Solenoid Coil
Relay Contacts - N.C.
Relay Contacts - N.O.
Capacitor
Temperature Switch
Low Pressure Switch
Relay/Contactor Coil
High Pressure Switch
Thermistor
Wire Nut
Splice Cap
Condensate Pan
G
Circuit Breaker
LED
*Optional.
COMPLETE C CONTROLLER FAULT CODES
NOTES:
1. Compressor and blower motor thermally protected internally.
2. All wiring to the unit must comply with NEC and local codes.
3. 208/230 v transformer will be connected for 208 v operation. For 230 v
operation, disconnect RED lead at L1 and attach ORANGE lead to L1.
Insulate open end of RED lead. Transformer is energy limiting or may
have circuit breaker.
4. FP1 thermistor provides freeze protection for water. When using antifreeze solutions, cut JW3 jumper.
5. Check installation wiring information for specific thermostat hookup. Refer
to thermostat installation instructions for wiring to the unit. Thermostat
wiring must be “Class 1” and voltage rating equal to or greater than unit
supply voltage.
6. 24-v alarm signal shown. For dry alarm contact, cut JW1 jumper and dry
contact will be available between AL1 and AL2.
7. Transformer secondary ground via Complete C board standoffs and
screws to control box. (Ground available from top two standoffs as
shown.)
8. Aquastat is supplied with unit and must be wired in series with the hot leg
to the pump. Aquastat is rated for voltage up to 277 v.
9. Fan motors factory wired for medium speed. For high and low speed
remove BLU wire from fan motor speed tap ‘M’ and connect to ‘H’ for high
or ‘L’ for low.
DESCRIPTION OF OPERATION
Normal Mode
LED
ON
Normal Mode with UPS Warning
ON
Complete C is Non-Functional
Fault Retry
Lockout
Over/Under Voltage Shutdown
Test Mode-No Fault in Memory
Test Mode-HP Fault in Memory
Test Mode-LP Fault in Memory
Test Mode-FP1 Fault in Memory
Test Mode-FP2 Fault in Memory
Test Mode-CO Fault in Memory
Test Mode-Over/Under Shutdown
in Memory
Test Mode-UPS in Memory
Swapped FP1/FP2 Lockout
OFF
Slow Flash
Fast Flash
Slow Flash
Flashing Code 1
Flashing Code 2
Flashing Code 3
Flashing Code 4
Flashing Code 5
Flashing Code 6
ALARM RELAY
Open
Cycle (Closed 5 Sec.
Open 25 Sec.)
Open
Open
Closed
Open (Closed After 15 Min.)
Cycling Code 1
Cycling Code 2
Cycling Code 3
Cycling Code 4
Cycling Code 5
Cycling Code 6
Flashing Code 7
Cycling Code 7
Flashing Code 8
Flashing Code 9
Cycling Code 8
Cycling Code 9
35
Typical control wiring schematics (cont)
UNITS WITH COMPLETE C CONTROLLER, 460 AND 575 V, THREE-PHASE UNITS
Complete C
LEGEND
AL
BM
BMC
BR
CB
CC
CO
COMPR
FP1
FP2
HP
HPWS
JW
LOC
MV
MVES
NEC
P1
PB
RVS
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Alarm Relay Contacts
Blower Motor
Blower Motor Contactor
Blower Relay
Circuit Breaker
Compressor Contactor
Condensate Overflow Sensor
Compressor
Water Coil Freeze Protection Sensor
Air Coil Freeze Protection Sensor
High-Pressure Switch
High Pressure Water Switch
Jumper Wire
Loss of Charge Pressure Switch
Motorized Valve
Motorized Valve End Switch
National Electrical Code
Field Wiring Terminal Block
Power Block
Reversing Valve Solenoid
TRANS
TXV
UPS
— Transformer
— Thermostatic Expansion Valve
— Unit Performance Sentinel
Factory Low Voltage Wiring
Factory Line Voltage Wiring
Field Low Voltage Wiring
Field Line Voltage Wiring
Printed Circuit Trace
Optional Wiring
Solenoid Coil
Relay Contacts - N.C.
Relay Contacts - N.O.
Capacitor
Temperature Switch
Low Pressure Switch
Relay/Contactor Coil
High Pressure Switch
Thermistor
Wire Nut
Splice Cap
Condensate Pan
G
Circuit Breaker
LED
*Optional.
COMPLETE C CONTROLLER FAULT CODES
NOTES:
1. Compressor and blower motor thermally protected internally.
2. All wiring to the unit must comply with NEC and local codes.
3. Transformer is wired to 460 v lead (black/red) for 460 v units. Transformer is
wired to 575 v lead (grey) for 575 v units. Transformer is energy limiting or may
have circuit breaker.
4. FP1 thermistor provides freeze protection for water. When using antifreeze
solutions, cut JW3 jumper.
5. Check installation wiring information for specific thermostat hookup. Refer to
thermostat installation instructions for wiring to the unit. Thermostat wiring
must be “Class 1” and voltage rating equal to or greater than unit supply
voltage.
6. 24-v alarm signal shown. For dry alarm contact, cut JW1 jumper and dry contact will be available between AL1 and AL2.
7. Transformer secondary ground via Complete C board standoffs and screws to
control box. (Ground available from top two standoffs as shown.)
8. Blower motors factory wired for medium speed. For high and low speed
remove BLU wire from fan motor speed tap ‘M’ and connect to ‘H’ for high or ‘L’
for low.
9. For low speed, revove black wire from BR6 and replace with red wire. Connect
brown and black wires together.
10. For blower motors with leads, for medium or low speed, disconnect black wire
from BR6. Connect black and orange/purple wire together. Connect red for low
or blue for medium to BR6.
11. Blower motor factory wired for medium speed. For low speed remove BLU
wire from medium speed tap and connect to low speed tap. For high speed
remove BLU wire from medium speed tap and connect to high speed tap.
Remove brown jumper wire from high speed tap. Insulate open end of brown
jumper.
36
DESCRIPTION OF OPERATION
Normal Mode
LED
ON
Normal Mode with UPS Warning
ON
Complete C is Non-Functional
Fault Retry
Lockout
Over/Under Voltage Shutdown
Test Mode-No Fault in Memory
Test Mode-HP Fault in Memory
Test Mode-LP Fault in Memory
Test Mode-FP1 Fault in Memory
Test Mode-FP2 Fault in Memory
Test Mode-CO Fault in Memory
Test Mode-Over/Under Shutdown
in Memory
Test Mode-UPS in Memory
Swapped FP1/FP2 Lockout
OFF
Slow Flash
Fast Flash
Slow Flash
Flashing Code 1
Flashing Code 2
Flashing Code 3
Flashing Code 4
Flashing Code 5
Flashing Code 6
ALARM RELAY
Open
Cycle (Closed 5 Sec.
Open 25 Sec.)
Open
Open
Closed
Open (Closed After 15 Min.)
Cycling Code 1
Cycling Code 2
Cycling Code 3
Cycling Code 4
Cycling Code 5
Cycling Code 6
Flashing Code 7
Cycling Code 7
Flashing Code 8
Flashing Code 9
Cycling Code 8
Cycling Code 9
UNITS WITH DELUXE D CONTROLLER, SINGLE-PHASE
Deluxe D
LEGEND
AL
BM
BMC
CB
CC
CO
FP1
FP2
HP
HPWS
JW
LOC
MV
MVES
NEC
P1
RVS
TRANS
TXV
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Alarm Relay Contacts
Blower Motor
Blower Motor Capacitor
Circuit Breaker
Compressor Contactor
Condensate Overflow Sensor
Water Coil Freeze Protection Sensor
Air Coil Freeze Protection Sensor
High-Pressure Switch
High Pressure Water Switch
Jumper Wire
Loss of Charge Pressure Switch
Motorized Valve
Motorized Valve End Switch
National Electric Code
Field Wiring Terminal Block
Reversing Valve Solenoid
Transformer
Thermostatic Expansion Valve
Factory Low Voltage Wiring
Factory Line Voltage Wiring
Field Low Voltage Wiring
Field Line Voltage Wiring
Printed Circuit Trace
Optional Wiring
Solenoid Coil
Relay Contacts - N.C.
Relay Contacts - N.O.
Capacitor
Relay/Contactor Coil
Temperature Switch
Low Pressure Switch
Thermistor
High Pressure Switch
Condensate Pan
Wire Nut
Circuit Breaker
Splice Cap
Ground
G
LED
*Optional.
NOTES:
1. Compressor and blower motor thermally protected internally.
2. All wiring to the unit must comply with NEC and local codes.
3. 208/230 v transformer will be connected for 208 v operation. For 230 v
operation, disconnect RED lead at L1 and attach ORANGE lead to L1.
Insulate open end of RED lead. Transformer is energy limiting or may have
circuit breaker.
4. FP1 thermistor provides freeze protection for water. When using antifreeze
solutions, cut JW3 jumper.
5. Check installation wiring information for specific thermostat hookup. Refer
to thermostat installation instructions for wiring to the unit. Thermostat wiring must be “Class 1” and voltage rating equal to or greater than unit supply voltage.
6. 24-v alarm signal shown. For dry alarm contact, cut JW4 jumper and dry
contact will be available between AL1 and AL2.
7. Transformer secondary ground via Deluxe D board standoffs and screws
to control box. (Ground available from top two standoffs as shown.)
8. Aquastat is supplied with unit and must be wired in series with the hot leg
to the pump. Aquastat is rated for voltage up to 277 v.
9. Blower motor is factory wired for high and low speeds. No other combination is available.
DELUXE D CONTROLLER FAULT CODES
OPERATION
Normal Mode
Deluxe D is Non-Functional
Test Mode
Night Setback
Emergency Shut Down
Invalid Thermostat Inputs
No Fault in Memory
HP Fault/(Lockout) Note 1
LP Fault/(Lockout) Note 1
FP1 Fault/(Lockout) Note 1
FP2 Fault/(Lockout) Note 1
CC Fault/(Lockout) Note 1
Over-Under Voltage
Normal Mode with UPS
Swapped FP1/FP2 Lockout
STATUS LED
(GREEN)
ON
OFF
—
Flashing Code 2
Flashing Code 3
Flashing Code 4
ON
Slow Flash/(Fast Flash)
Slow Flash/(Fast Flash)
Slow Flash/(Fast Flash)
Slow Flash/(Fast Flash)
Slow Flash/(Fast Flash)
Slow Flash
ON
Fast Flash
TEST LED
(YELLOW)
OFF
OFF
ON
—
—
—
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
FAULT LED
(RED)
Note 2
OFF
Note 2
Note 2
Note 2
Note 2
Flashing Code 1
Flashing Code 2
Flashing Code 3
Flashing Code 4
Flashing Code 5
Flashing Code 6
Flashing Code 7
Flashing Code 8
Flashing Code 9
ALARM RELAY
Open
Open
Cycle (Note 3)
—
—
—
Open
Open/(Closed)
Open/(Closed)
Open/(Closed)
Open/(Closed)
Open/(Closed)
Open (Note 4)
Cycle (Note 5)
Closed
NOTES:
1. Status LED (GREEN) Slow Flash - Controller In - Fault Retry Mode. Fast Flash - Controller in Lockout Mode.
Slow Flash = 1 Flash per every 2 seconds. Fast Flash = 2 Flashes per every 1 second.
2. Fault LED (RED) flashes a code representing last fault in memory. If no fault in memory code 1 is flashed.
3. Cycles appropriate code, by cycling alarm relay in the same sequence as fault LED.
4. Alarm relay closes after 15 minutes.
5. Alarm relay cycles. Closed for 5 seconds and open for 25 seconds.
37
Typical control wiring schematics (cont)
UNITS WITH DELUXE D CONTROLLER, 208/230 V, THREE-PHASE UNITS
Deluxe D
LEGEND
AL
BM
BMC
CB
CC
CO
COMPR
FP1
FP2
HP
HPWS
JW
LOC
MV
MVES
NEC
P1
RVS
TRANS
TXV
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Alarm Relay Contacts
Blower Motor
Blower Motor Capacitor
Circuit Breaker
Compressor Contactor
Condensate Overflow Sensor
Compressor
Water Coil Freeze Protection Sensor
Air Coil Freeze Protection Sensor
High-Pressure Switch
High Pressure Water Switch
Jumper Wire
Loss of Charge Pressure Switch
Motorized Valve
Motorized Valve End Switch
National Electric Code
Field Wiring Terminal Block
Reversing Valve Solenoid
Transformer
Thermostatic Expansion Valve
Factory Low Voltage Wiring
Factory Line Voltage Wiring
Field Low Voltage Wiring
Field Line Voltage Wiring
Printed Circuit Trace
Optional Wiring
Solenoid Coil
Relay Contacts - N.C.
Relay Contacts - N.O.
Capacitor
Relay/Contactor Coil
Temperature Switch
Low Pressure Switch
Thermistor
High Pressure Switch
Condensate Pan
Wire Nut
Circuit Breaker
Splice Cap
Ground
G
LED
*Optional.
NOTES:
1. Compressor and blower motor thermally protected internally.
2. All wiring to the unit must comply with NEC and local codes.
3. 208/230 v transformer will be connected for 208 v operation. For 230 v
operation, disconnect RED lead at L1 and attach ORANGE lead to L1.
Insulate open end of RED lead. Transformer is energy limiting or may have
circuit breaker.
4. FP1 thermistor provides freeze protection for water. When using antifreeze
solutions, cut JW3 jumper.
5. Check installation wiring information for specific thermostat hookup. Refer
to thermostat installation instructions for wiring to the unit. Thermostat wiring must be “Class 1” and voltage rating equal to or greater than unit supply voltage.
6. 24-v alarm signal shown. For dry alarm contact, cut JW4 jumper and dry
contact will be available between AL1 and AL2.
7. Transformer secondary ground via Deluxe D board standoffs and screws
to control box. (Ground available from top two standoffs as shown.)
8. Aquastat is supplied with unit and must be wired in series with the hot leg
to the pump. Aquastat is rated for voltage up to 277 v.
9. Blower motor is factory wired for high and low speeds. No other combination is available.
DELUXE D CONTROLLER FAULT CODES
OPERATION
Normal Mode
Deluxe D is Non-Functional
Test Mode
Night Setback
Emergency Shut Down
Invalid Thermostat Inputs
No Fault in Memory
HP Fault/(Lockout) Note 1
LP Fault/(Lockout) Note 1
FP1 Fault/(Lockout) Note 1
FP2 Fault/(Lockout) Note 1
CC Fault/(Lockout) Note 1
Over-Under Voltage
Normal Mode with UPS
Swapped FP1/FP2 Lockout
STATUS LED
(GREEN)
ON
OFF
—
Flashing Code 2
Flashing Code 3
Flashing Code 4
ON
Slow Flash/(Fast Flash)
Slow Flash/(Fast Flash)
Slow Flash/(Fast Flash)
Slow Flash/(Fast Flash)
Slow Flash/(Fast Flash)
Slow Flash
ON
Fast Flash
TEST LED
(YELLOW)
OFF
OFF
ON
—
—
—
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
FAULT LED
(RED)
Note 2
OFF
Note 2
Note 2
Note 2
Note 2
Flashing Code 1
Flashing Code 2
Flashing Code 3
Flashing Code 4
Flashing Code 5
Flashing Code 6
Flashing Code 7
Flashing Code 8
Flashing Code 9
ALARM RELAY
Open
Open
Cycle (Note 3)
—
—
—
Open
Open/(Closed)
Open/(Closed)
Open/(Closed)
Open/(Closed)
Open/(Closed)
Open (Note 4)
Cycle (Note 5)
Closed
NOTES:
1. Status LED (GREEN) Slow Flash - Controller In - Fault Retry Mode. Fast Flash - Controller in Lockout Mode.
Slow Flash = 1 Flash per every 2 seconds. Fast Flash = 2 Flashes per every 1 second.
2. Fault LED (RED) flashes a code representing last fault in memory. If no fault in memory code 1 is flashed.
3. Cycles appropriate code, by cycling alarm relay in the same sequence as fault LED.
4. Alarm relay closes after 15 minutes.
5. Alarm relay cycles. Closed for 5 seconds and open for 25 seconds.
38
UNITS WITH DELUXE D CONTROLLER, 460 AND 575 V, THREE-PHASE UNITS
Deluxe D
LEGEND
AL
BM
BMC
BR
CB
CC
CO
COMPR
FP1
FP2
HP
HPWS
JW
LOC
MV
MVES
NEC
P1
PB
RVS
TRANS
TXV
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Alarm Relay Contacts
Blower Motor
Blower Motor Capacitor
Blower Relay
Circuit Breaker
Compressor Contactor
Condensate Overflow Sensor
Compressor
Water Coil Freeze Protection Sensor
Air Coil Freeze Protection Sensor
High-Pressure Switch
High Pressure Water Switch
Jumper Wire
Loss of Charge Pressure Switch
Motorized Valve
Motorized Valve End Switch
National Electric Code
Field Wiring Terminal Block
Power Block
Reversing Valve Solenoid
Transformer
Thermostatic Expansion Valve
NOTES:
1. Compressor and blower motor thermally protected internally.
2. All wiring to the unit must comply with NEC and local codes.
3. Transformer is wired to 460 v (BLK/RED) lead for 460/60/3 units. 575 v
(GRY) lead for 575/60/3. Transformer is energy limiting or may have circuit
breaker.
4. FP1 thermistor provides freeze protection for water. When using antifreeze
solutions, cut JW3 jumper.
5. Check installation wiring information for specific thermostat hookup. Refer
to thermostat installation instructions for wiring to the unit. Thermostat wiring must be “Class 1” and voltage rating equal to or greater than unit supply voltage.
6. 24-v alarm signal shown. For dry alarm contact, cut JW4 jumper and dry
contact will be available between AL1 and AL2.
7. Transformer secondary ground via Deluxe D board standoffs and screws
to control box. (Ground available from top two standoffs as shown.)
8. Blower motors factory wired for medium and high speeds. For any other
combination of sppeds, at the motoro, attach the black wire to the higher of
the two desired speed taps. Attach the blue wire to the lower of the desired
two speed taps.
9. Blower motor is factory wired for high and low speeds. No other combination is available.
Factory Low Voltage Wiring
Factory Line Voltage Wiring
Field Low Voltage Wiring
Field Line Voltage Wiring
Printed Circuit Trace
Optional Wiring
Solenoid Coil
Relay Contacts - N.C.
Relay Contacts - N.O.
Capacitor
Relay/Contactor Coil
Temperature Switch
Low Pressure Switch
Thermistor
High Pressure Switch
Condensate Pan
Wire Nut
Circuit Breaker
Splice Cap
Ground
G
LED
DELUXE D CONTROLLER FAULT CODES
OPERATION
Normal Mode
Deluxe D is Non-Functional
Test Mode
Night Setback
Emergency Shut Down
Invalid Thermostat Inputs
No Fault in Memory
HP Fault/(Lockout) Note 1
LP Fault/(Lockout) Note 1
FP1 Fault/(Lockout) Note 1
FP2 Fault/(Lockout) Note 1
CC Fault/(Lockout) Note 1
Over-Under Voltage
Normal Mode with UPS
Swapped FP1/FP2 Lockout
STATUS LED
(GREEN)
ON
OFF
—
Flashing Code 2
Flashing Code 3
Flashing Code 4
ON
Slow Flash/(Fast Flash)
Slow Flash/(Fast Flash)
Slow Flash/(Fast Flash)
Slow Flash/(Fast Flash)
Slow Flash/(Fast Flash)
Slow Flash
ON
Fast Flash
TEST LED
(YELLOW)
OFF
OFF
ON
—
—
—
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
FAULT LED
(RED)
Note 2
OFF
Note 2
Note 2
Note 2
Note 2
Flashing Code 1
Flashing Code 2
Flashing Code 3
Flashing Code 4
Flashing Code 5
Flashing Code 6
Flashing Code 7
Flashing Code 8
Flashing Code 9
ALARM RELAY
Open
Open
Cycle (Note 3)
—
—
—
Open
Open/(Closed)
Open/(Closed)
Open/(Closed)
Open/(Closed)
Open/(Closed)
Open (Note 4)
Cycle (Note 5)
Closed
NOTES:
1. Status LED (GREEN) Slow Flash - Controller In - Fault Retry Mode. Fast Flash - Controller in Lockout Mode.
Slow Flash = 1 Flash per every 2 seconds. Fast Flash = 2 Flashes per every 1 second.
2. Fault LED (RED) flashes a code representing last fault in memory. If no fault in memory code 1 is flashed.
3. Cycles appropriate code, by cycling alarm relay in the same sequence as fault LED.
4. Alarm relay closes after 15 minutes.
5. Alarm relay cycles. Closed for 5 seconds and open for 25 seconds.
39
Typical control wiring schematics (cont)
UNITS WITH COMPLETE C AND LON CONTROLLER
Complete C
LEGEND
AL
BM
BMC
BR
CB
CC
CO
FP1
FP2
HP
HPWS
JW1
LOC
LON
MV
MVES
NEC
P1
RVS
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Alarm Relay Contacts
Blower Motor
Blower Motor Capacitor
Blower Relay
Circuit Breaker
Compressor Contactor
Sensor, Condensate Overflow
Sensor, Water Coil Freeze Protection
Sensor, Air Coil Freeze Protection
High-Pressure Switch
High-Pressure Water Switch
Clippable Field Selection Jumper
Loss of Charge Pressure Switch
Local Operating Network
Motorized Valve
Motorized Valve End Switch
National Electrical Code
Field Wiring Terminal Block
Reversing Valve Solenoid
TRANS — Transformer
TXV
— Thermostatic Expansion Valve
Field Line Voltage Wiring
Field Low Voltage Wiring
Printed Circuit Trace
Optional Wiring
Relay/Contactor Coil
Condensate Pan
Wire Nut
Relay Contacts - N.C.
Relay Contacts - N.O.
Low Pressure Switch
High Pressure Switch
Splice Cap
Circuit Breaker
Solenoid Coil
Temperature Switch
Thermistor
Ground
*Optional Wiring.
NOTES:
1. Compressor and blower motor thermally protected internally.
2. All wiring to the unit must comply with NEC and local codes.
3. Transformer is wired to 460 v (BLK/RED) lead for 460/3/60
units. Transformer is energy limiting or may have circuit
breaker.
4. FP1 thermistor provides freeze protection for water. When
using antifreeze solutions, cut JW3 jumper.
5. Typical thermostat wiring shown. Refer to thermostat installation instructions for wiring to the unit. Thermostat wiring must
be Class 1 and voltage rating equal to or greater than unit supply voltage.
6. Factory cut JW1 jumper. Dry contact will be available between
AL1 and AL2.
7. Transformer secondary ground via Complete C board standoffs and screws to control box. (Ground available from top two
standoffs as shown.)
40
8. Fan motors factory wired for medium speed. For high and low
speed remove BLU wire from fan motor speed tap ‘M’ and connect to ‘H’ for high or ‘L’ for low.
9. For low speed remove black wire from BR6 and replace with
red. Connect black and brown wire together.
10. Optional LON wires. Only connect if LON connection is desired
at the wall sensor.
11. For blower motors with leads, for medium or low speed, disconnect black wire from BR6. Connect black and orange/purple
wire together. Connect red for low or blue for medium to BR6.
12. Fan motors factory wired for medium speed. For high and low
speed remove BLU wire from fan motor speed tap ‘M’ and connect to ‘H’ for high or ‘L’ for low. Remove brown jumper wire
from tap. Insulate open end of brown jumper.
UNITS WITH DELUXE D AND LON CONTROLLER
Deluxe D
LEGEND
AL
BM
BMC
BR
CB
CC
CO
FP1
FP2
HP
HPWS
JW1
LOC
LON
MV
MVES
NEC
P1
RVS
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Alarm Relay Contacts
Blower Motor
Blower Motor Capacitor
Blower Relay
Circuit Breaker
Compressor Contactor
Sensor, Condensate Overflow
Sensor, Water Coil Freeze Protection
Sensor, Air Coil Freeze Protection
High-Pressure Switch
High-Pressure Water Switch
Clippable Field Selection Jumper
Loss of Charge Pressure Switch
Local Operating Network
Motorized Valve
Motorized Valve End Switch
National Electrical Code
Field Wiring Terminal Block
Reversing Valve Solenoid
TRANS — Transformer
TXV
— Thermostatic Expansion Valve
Field Line Voltage Wiring
Field Low Voltage Wiring
Printed Circuit Trace
Optional Wiring
Relay/Contactor Coil
Condensate Pan
Wire Nut
Relay Contacts - N.C.
Relay Contacts - N.O.
Low Pressure Switch
High Pressure Switch
Splice Cap
Circuit Breaker
Solenoid Coil
Temperature Switch
Thermistor
Ground
*Optional Wiring.
NOTES:
1. Compressor and blower motor thermally protected internally.
2. All wiring to the unit must comply with NEC and local codes.
3. Transformer is wired to 460 v (BLK/RED) lead for 460/3/60
units. Transformer is energy limiting or may have circuit
breaker.
4. FP1 thermistor provides freeze protection for water. When
using antifreeze solutions, cut JW3 jumper.
5. Typical thermostat wiring shown. Refer to thermostat installation instructions for wiring to the unit. Thermostat wiring must
be Class 1 and voltage rating equal to or greater than unit supply voltage.
6. Factory cut JW4 jumper. Dry contact will be available between
AL1 and AL2.
7. Transformer secondary ground via Deluxe D board standoffs
and screws to control box. (Ground available from top two
standoffs as shown.)
8. Blower motor is factory wired for medium and high speeds. For
any other combination of speeds, at the motor attach the BLK
wire to the higher of the two desired speed taps and the BLU
wire to the lower of the two desired speed taps.
9. Blower motor is factory wired for high and low speeds. No other
combination is available.
10. Optional LON wires. Only connect if LON connection is desired
at the wall sensor.
41
Typical control wiring schematics (cont)
PREMIERLINK™ CONTROLLER APPLICATIONS WITH COMPLETE C CONTROL
COMPLETE
C
CONTROL
PREMIER
LINK
PWR
Y
HS1/EXH/RVS
W
CR
CR
O
G
R
LEGEND
CR — Control Relay
LWT — Leaving Water Temperature Sensor
SAT — Supply Air Temperature Sensor
SPT — Space Temperature Sensor
NOTE: Reversing valve is on in cooling
mode.
C
CMP1
FAN
AL2
PWR
J1
J8
AL1
A
J5
J6
S
A
T
CMPSAFE
S
P
T
J4
L
W
T
PREMIERLINK CONTROLLER APPLICATIONS WITH DELUXE D CONTROL
PREMIER
LINK
PWR
DELUXE
D
CONTROL
Y1
HS2
Y2
HS1
LEGEND
LWT — Leaving Water Temperature Sensor
SAT — Supply Air Temperature Sensor
SPT — Space Temperature Sensor
NOTE: Reversing valve is on in cooling
mode.
W1
O/W2
CMP2
G
CMP1
FAN
C
PWR
J1
J8
R
J5
J6
42
S
A
T
L
W
T
J4
CMPSAFE
S
P
T
AL1
43
BM
BR
CO
LWT
N.C.
OAD
OCC
RH
SAT
SPT
—
—
—
—
—
—
—
—
—
—
10
LEGEND
Blower Motor
Blower Relay
Condensate Overflow
Leaving Water Temperature
Normally Closed
Outside Air Damper
Occupancy Input Contact
Relative Humidity
Supply Air Temperature
Space Temperature
WHSP-OPEN
PRIMARY
PRIMARY
UNITS WITH COMPLETE C AND WSHP OPEN MULTIPLE PROTOCOL CONTROLS
44
BM
CO
FSD
LWT
N.C.
OAD
OCC
RH
SAT
SPT
—
—
—
—
—
—
—
—
—
—
LEGEND
Blower Motor
Condensate Overflow
Fire Shutdown
Leaving Water Temperature
Normally Closed
Outside Air Damper
Occupancy Input Contact
Relative Humidity
Supply Air Temperature
Space Temperature
WSHP-OPEN
PRIMARY
PRIMARY
UNITS WITH DELUXE D AND WSHP OPEN MULTIPLE PROTOCOL CONTROLS
Typical control wiring schematics (cont)
8
FIELD INSTALLED
8
6
J4
LSB
5
9 0 1
-
MSTP Baud
6
SW3
J12
Field Installed
Local Access Port
1
J1
2
3
SPT PLUS Sensor
Shown
J19
WHITE
J13
GREEN
1
J14
J11
RED
J17
7
BLACK
J20
J5
1
J2
To
SPT PLUS
J22
10
3
2
1
+
2
1
PRIMARY
NC FIRE/SMOKE
DETECTOR CONTACT
(FIELD-INSTALLED)
- Gnd
OA DAMPER (AO-2)
(FIELD-INSTALLED)
REMOTE OCCUPANCY/
FAN STATUS SWITCH
(FIELD-INSTALLED)
CONDENSATE
OVERFLOW SWITCH
AO1 – Aux Reheat or Cond.
WTR. Loop Econ. (AO 1)
SAT (LAT) (Input 7)
Comp Status (DI-5) (If not installed, it must be connected to DO-5)
LWT (Input 6)
Comp #1 (DO-5)
Reversing Valve (DO-3)
Comp #2 (DO-4)
Aux Heat (DO-2)
Fan (DO-1) (Fan On or Low Speed)
+ 24vac
INPUT/OUTPUT TYPE
*These inputs are configurable.
LEGEND
— Analog Input
— Analog Output
— Binary Input
— Binary Output
— Space Temperature
Factory Wiring
Field Wiring
AO (0-10Vdc/2 - 10Vdc)
BO Relay (24VAC, 1A)
BO Relay (24VAC, 1A)
BO Relay (24VAC, 1A)
BO Relay (24VAC, 1A)
BO Relay (24VAC, 1A)
BO Relay (24VAC, 1A)
BO Relay (24VAC, 1A)
BO Relay (24VAC, 1A)
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
AO (0-10Vdc/2 - 10Vdc)
Communicating
AI (4 - 20mA)
AI (4 -20mA)
BI (Dry Contacts)
BI (Dry Contacts)
AI (10K Thermistor)
AI (10K Thermistor)
TYPE OF I/O
N/A
N/A
SPS, SPPL, SPP
33ZCSENSRH-01
33ZCSENCO2
N/A
N/A
10K Type II
33ZCSENSAT
PART NUMBERS
J1, 6*
J1, 7
J1, 8
J11, 7 and 8 (NO)
J11, 5 and 6 (NO)*
J11, 2 and 3 (NO)*
J1, 5*
J1, 4*
J22 1 and 2*
J2 4 and 5*
J13, 1 - 4
J4, 5 and 6
J4, 2 and 3
J1, 2
J1, 10
J2, 1 and 2
J2, 3 and 4
CONNECTION
PIN NUMBERS
Binary Output 3 (RV)
Binary Output 4 (Y2)
Binary Output 5 (Y1)
Binary Output 6
Binary Output 7
Binary Output 8
Binary Output 2
Binary Output 1 (G)
Analog Output 2
Analog Output 1
Local Access Port
Analog Input 1
Analog Input 2
Binary Input 3
Binary Input 5
Analog Input 6
Analog Input 7
CHANNEL
DESIGNATION
NOTES:
1. Mount the water source heat pump controller in the equipment controls enclosure with
at least two no. 6 x 1 in. self-tapping screws. Allow adequate clearance for wiring.
2. Verify sensor power and wiring requirements prior to making any terminations. Sensors requiring a separate isolated 24 vac power source will not utilize WSHP terminals
J4-1, or 4.
AI
AO
BI
BO
SPT
WSHP Open Inputs and Outputs Table
Inputs
Space Temperature Sensor
Space Relative Humidity
Indoor Air Quality
Condensate Switch
Stage 1 Compressor Status
Leaving Condenser Water Temperature
Supply Air Temperature
Outputs
Modulating Valve (Auxiliary Heat/Water
Economizer)
Outside Air Damper
Supply Fan On/Low Speed
(3 Speed Only)
Auxiliary Heat or 2-Position Water Loop
Economizer
Reversing Valve (B or O Operation)
Compressor 2nd Stage
Compressor 1st Stage
Dehumidification Relay
Fan Speed Medium/Low (3 Speed Only)
Fan Speed High/Low (3 Speed Only)
FAN SPEED (DO-8) (HIGH OR FAN ON )
FAN SPEED (DO-7) (MED OR LOW)
DEHUMIDIFY OUTPUT CONTACT (DO-6) (FACTORY OPTION)
Install BT485 where device is
located at the end of network
segment only.
DB
WSHP OPEN MULTIPLE PROTOCOL CONTROLLER
6
5
+24vac
9600 19.2k 38.4k 76.8k
5
9 0 1
7
7
MSB
6
-
5
RED
LED1
4-20mA
4
+
3
+24vac
2
4-20mA
8
7
1
BLACK
O
N
4
+12V
4
4
3
3
2
1
012207-1BT485BT
2
SPACE CO2
SENSOR
1
4
SPACE RH PRIMARY
SENSOR
8
6
Rnet-
7
FIELD INSTALLED (OPTIONAL) – SEE NOTE 2
6
5
WHITE
5
4
3
GREEN
4
3
2
Gnd
3
2
3
Rnet+
7
8
2
4
1
1
2
To WSHP Controller
Rnet Terminals (J13)
45
Application data
Aquazone™ water source heat pump products are available
in a flexible, efficient array of models, which can be used in
all types of water loop, ground water, and ground loop
type systems. Utilize Aquazone products to provide optimal energy efficient solutions and adapt to the most challenging design requirements.
AQUAZONE PRODUCT GUIDE
50 SERIES
50HQP,VQP
50PC
50PS
50PEC
50PT
50PSW
50RTP
50VS
TYPE
SIZE (tons)
Large Capacity
6-10 (HQP)
61/2-25 (VQP)
APPLICATION
Environmentally sound unit with Puron®
refrigerant (R-410A) designed to handle
large zoned areas for all geothermal and
boiler/tower applications.
Compact WSHP with Puron refrigerant
Compact
(R-410A) for boiler/tower, ground water, or
11/4-5
ground loop systems.
Premium, ultra efficient unit with Puron
Premium
refrigerant (R-410A) for new boiler/tower,
Efficiency
1/ -6
ground water, or ground loop systems
2
High Efficiency Efficient console unit with Puron refrigerant
(R-410A) and attractive design for finished
Console
3/ -11/
interior, under-window installations.
4
2
Premium, ultra efficient 2-stage unit with
Premium
Puron refrigerant (R-410A) for new boiler/
Efficiency
2-6
tower, ground water, or ground loop
systems
Water-to-Water Efficient unit with Puron refrigerant
3-28
(R-410A) serves as an alternative to preheat or cool air. Unit can be used as a
stand-alone or supplemental boiler/chiller
in most hydronic heating applications. Also
conditions process fluids, lubricants, and
refrigerants.
Rooftop
Economical solution for indoor air quality
3-20
(IAQ) problems and tempering ventilation
air.
Premium EffiUltra efficient unit with environmentally
ciency Vertical sound Puron refrigerant (R-410A) for
Stack Heat Pump boiler/tower and geothermal applications
3/ to 3 Tons
(condominiums, hotels, etc.). Stacked
4
design allows for common piping and simplistic design.
Water loop system
Water loop (or boiler/tower) system applications typically
include a number of units plumbed to a common piping
system. For optimal performance, this system should be
designed between 2.25 and 3 gpm per ton of cooling
capacity. The system is comprised of highly efficient packaged reverse cycle heat pump units interconnected by a
water loop. The water circuit serves as both a sink and
source for heat absorption and rejection and is designed
for entering water temperatures between 60 F and 90 F.
Within this temperature range units can heat or cool as required from the same water source. Transferring heat from
warm to cold spaces in the building, whenever they coexist, conserves energy rather than creating new heat.
Refer to the Carrier Water Source Heat Pump System Design Guide for assistance with the design of water
loop systems. The guide includes a practical approach
for the latest and most current design recommendations
including:
• product application, including horizontal, vertical, console, rooftop and water-to-water applications
• ventilation methods and system design, including
energy recovery
• acoustical considerations for different product types
• addressing indoor air quality (IAQ) issues such as condensate removal and humidity control
46
• air distribution design including diffuser selection/
layout and ductwork design
• hydronic system design including pipe sizing/layout and
boiler/tower sizing
• control configurations such as standalone, DDC, DCV,
and VVT® controls
• Water Source Heat Pump Efficiency/Operational Cost
Comparison chart
• system variations such as a system without a boiler, variable pumping, and variable air volume (VAV) for interior
use
Ground water systems
To utilize Aquazone units in ground water applications, extended range should be specified. This will provide factoryinstalled insulation on the coaxial coil to prevent condensate from dripping when entering water temperatures are
below 60 F. In addition, the copper coaxial coil installed on
the Aquazone units may not be suitable for all water conditions. Refer to the Water Conditioning section for proper
coaxial coil material selection.
Surface water system — This system is typically located
near a lake or pond. In this application, the loop can be
submerged in a series of coils beneath the water surface.
The number of coils required depends on system load and
design. This application requires minimum piping and
excavation.
Open loop system — This system is used where ground
water is plentiful. In this application, ground water is
pumped through supply piping from the well to the building.
The water is then pumped back into the ground through a
discharge well as it leaves the building. An additional heat
exchanger is usually installed between the building water
piping system and the ground water piping system. This design limits the amount of piping and excavation required.
Aquazone units are provided with a standard thermostatic expansion valve (TXV) and are rated to extremely low
temperatures to self-adjust the refrigeration circuit, therefore water regulating valves are not required on open loop
systems. To conserve water on this type of system, a slow
opening/closing solenoid valve is recommended.
Ground loop systems
There are many commonly specified designs for ground
loop applications. Typical designs include vertical loops
and horizontal loops. In some applications, water is piped
from the ground or lake directly to the water source heat
pump. Piping is limited to the amount of pipe required to
get the water from the source to the unit.
NOTE: When utilizing Aquazone water source heat pumps
in ground loop systems, refer to design considerations in
the ground water system section.
Horizontal ground loop — This system is used when
adequate space is available and trenching can be easily accomplished. A series of parallel pipes are laid out in trenches 3 to 6 ft below the ground surface, and then back-filled.
Often, multiple pipes are used to maximize the heat transfer capability of each trench. The amount of pipe and the
size of the ground loop field are based on ground
conditions, heating, and cooling requirements of the application and system design.
Vertical ground loop — This system is used in vertical
borehole applications. This design is well suited for retrofit
applications when space is limited or where landscaping is
already complete and minimum disruption of the site is desired. The vertical ground loop system contains a single
loop of pipe inserted into a hole. The hole is back-filled and
grouted after the pipe is inserted. The completed loop is
concealed below ground. The number of loops required depends on ground conditions, heating and cooling requirements, and the depth of each hole.
Hybrid systems — In some applications, it may be beneficial to incorporate a cooling tower into the ground loop
system to reduce the overall cost. A hybrid system discards
excess heat into the air and increases the cooling performance of the ground loop.
Condensate drainage
Venting — Condensate lines should be properly vented to
prevent fan pressure from causing water to hang up in the
piping. Condensate lines should be pitched to assure full
drainage of condensate under all load conditions. Chemical
treatment should be provided to remove algae in the condensate pans and drains in geographical areas that are
conducive to algae growth.
Trapping — Condensate trapping is an essential necessity
on every water source heat pump unit. A trap is provided
to prevent the backflow of moisture from the condensate
pan and into the fan intake or downstream into the
mechanical system. The water seal or the length of the trap
depends on the positive or negative pressure on the drain
pan. As a rule of thumb, the water seal should be sized for
1 in. for every 1 in. of negative pressure on the unit. The
water seal is the distance from the bottom of the unit condensate piping connection to the bottom of the condensate
drain line run-out piping. Therefore, the trap size should be
double the water seal dimension.
Horizontal units — Horizontal units should be sloped toward the drain at a 1/4 in. per foot pitch. If it is not possible
to meet the pitch requirement, a condensate pump should
be designed and installed at the unit to pump condensate
to a building drain. Horizontal units are not internally
trapped; therefore an external trap is necessary. Each unit
must be installed with its own individual trap and means to
flush or blow out the condensate drain. The design of a
common trap or vent for multiple units is not acceptable.
The condensate piping system should not be designed with
a pipe size smaller than the drain connection pipe size.
Vertical units — Vertical units utilize a condensate hose
inside the cabinet that acts as a trapping loop, therefore an
external trap is not necessary. Each unit must be installed
with its own vent and means to flush or blow out the
condensate drain lines. Do not install a common trap or
vent on vertical units.
Water conditioning
In some applications, maintaining proper water quality
may require the use of higher corrosion protection for
the water-to-refrigerant heat exchanger. Water quality varies from location to location and is unique for each job.
Water characteristics such as pH value, alkalinity, hardness, and specific conductance are of importance when
considering any WSHP application. Water typically
includes impurities and hardness that must be removed.
The required treatment will depend on the water quality as
well as type of system. Water problems fall into three main
categories:
1. Scale formation caused by hard water reduces the
heat transfer rate and increases the water pressure
drop through the heat exchanger. As water is heated,
minerals and salts are precipitated from a solution
and deposited on the inside surface of the pipe or
tube.
2. Corrosion is caused by absorption of gases from the
air coupled with water on exposed metal. Corrosion
is also common in salt-water areas.
3. Organic growths such as algae can reduce the heat
transfer rate by forming an insulating coating on the
inside tube surface. Algae can also promote corrosion
by pitting.
NOTE: In most commercial water loop applications,
Aquazone™ WSHP units use a copper water-to-refrigerant
heat exchanger. Units can also be equipped with a
cupronickel heat exchanger for applications where water is
outside the standard contaminant limits for a copper heat
exchanger.
47
Application data (cont)
WATER QUALITY GUIDELINES
CONDITION
HX MATERIAL*
CLOSED
RECIRCULATING†
OPEN LOOP AND RECIRCULATING WELL**
Scaling Potential — Primary Measurement
Above the given limits, scaling is likely to occur. Scaling indexes should be calculated using the limits below.
pH/Calcium
All
N/A
pH < 7.5 and Ca Hardness, <100 ppm
Hardness Method
Index Limits for Probable Scaling Situations (Operation outside these limits is not recommended.)
Scaling indexes should be calculated at 150 F for direct use and HWG applications, and at 90 F for indirect HX use. A monitoring plan should be implemented.
Ryznar Stability Index
6.0 - 7.5
All
N/A
If >7.5 minimize steel pipe use.
Langelier Saturation Index
–0.5 to +0.5
All
N/A
If <–0.5 minimize steel pipe use.
Based upon 150 F HWG and direct well, 85 F indirect well HX.
Iron Fouling
Iron Fe2+ (Ferrous)
<0.2 ppm (Ferrous)
All
N/A
(Bacterial Iron Potential)
If Fe2+ (ferrous) >0.2 ppm with pH 6 - 8, O2<5 ppm check for iron bacteria.
Iron Fouling
<0.5 ppm of Oxygen
All
N/A
Above this level deposition will occur.
Corrosion Prevention††
pH
6 - 8.5
6 - 8.5
All
Monitor/treat as needed.
Minimize steel pipe below 7 and no open tanks with pH <8.
<0.5 ppm
Hydrogen Sulfide (H2S)
At H2S>0.2 ppm, avoid use of copper and cupronickel piping or HXs.
All
N/A
Rotten egg smell appears at 0.5 ppm level.
Copper alloy (bronze or brass) cast components are okay to <0.5 ppm.
Ammonia Ion as Hydroxide,
<0.5 ppm
Chloride, Nitrate and Sulfate
All
N/A
Compounds
Maximum Chloride Levels
Maximum allowable at maximum water temperature.
50 F (10 C)
75 F (24 C)
100 F (38 C)
Copper
N/A
<20 ppm
NR
NR
Cupronickel
N/A
<150 ppm
NR
NR
304 SS
N/A
<400 ppm
<250 ppm
<150 ppm
316 SS
N/A
<1000 ppm
<550 ppm
<375 ppm
Titanium
N/A
>1000 ppm
>550 ppm
>375 ppm
Erosion and Clogging
Particulate Size and Erosion
<10 ppm of particles and a
maximum velocity of 6 fps. <10 ppm (<1 ppm “sandfree” for reinjection) of particles and a maximum
All
velocity of 6 fps. Filtered for maximum 800 micron size. Any particulate that
Filtered for maximum
is not removed can potentially clog components.
800 micron size.
Brackish
Use cupronickel heat exchanger when concentrations of calcium or
All
N/A
sodium chloride are greater than 125 ppm are present. (Seawater is
approximately 25,000 ppm.)
LEGEND
HWG — Hot Water Generator
HX — Heat Exchanger
N/A — Design Limits Not Applicable Considering Recirculating
Potable Water
NR — Application Not Recommended
SS
— Stainless Steel
*Heat exchanger materials considered are copper, cupronickel, 304 SS
(stainless steel), 316 SS, titanium.
†Closed recirculating system is identified by a closed pressurized piping
system.
**Recirculating open wells should observe the open recirculating design
considerations.
48
††If the concentration of these corrosives exceeds the maximum allowable
level, then the potential for serious corrosion problems exists.
Sulfides in the water quickly oxidize when exposed to air, requiring that no
agitation occur as the sample is taken. Unless tested immediately at the
site, the sample will require stabilization with a few drops of one Molar
zinc acetate solution, allowing accurate sulfide determination up to
24 hours after sampling. A low pH and high alkalinity can cause system
problems, even when both values are within ranges shown. The term pH
refers to the acidity, basicity, or neutrality of the water supply. Below 7.0,
the water is considered to be acidic. Above 7.0, water is considered to be
basic. Neutral water contains a pH of 7.0.
To convert ppm to grains per gallon, divide by 17. Hardness in mg/l is
equivalent to ppm.
COMPLETE C AND DELUXE D ELECTRONIC CONTROL FEATURES COMPARISON
FEATURES
BASIC FEATURES
High and Low Refrigerant Pressure Protection
Water Coil Freeze Protection
True 24 VA Thermostat Signals
Thermostat Inputs Compatible with Triacs
Condensate Overflow Sensor
Anti-Short-Cycle Time Delay
Random Start
Alarm (selectable dry contact or 24 VA)
Water Valve Relay
Water Valve Relay with Compressor Delay
Emergency Shutdown
Night Setback with Override
Outdoor Air Damper Control
COMPLETE C
COMPLETE C
WITH LON
DELUXE D
DELUXE D
WITH LON
COMPLETE C OR
DELUXE D WITH WSHP
OPEN CONTROLLER
S
S
S
S
S
S
S
S
S
N/A
N/A
N/A
N/A
S
S
S
S
S
S
S
S
S
N/A
DDC
DDC
N/A
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
DDC
DDC
S
S
S
S
S
S
S
S
S
S
S
DDC
DDC
S
S
S
S
S
S
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
S
S
S
S
S
N/A
DDC
N/A
N/A
N/A
N/A
N/A
DDC
N/A
N/A
N/A
N/A
N/A
S
S
S
S
S
S
S
S
S
S
S
S
S
N/A
N/A
N/A
N/A
N/A
S
S
S
S
S
S
S
S
S
N/A
N/A
S
DDC
N/A
N/A
N/A
N/A
N/A
S
S
S
S
S
S
S
S
S
N/A
N/A
S
DDC
S
S
S
S
S
S
S
S
S
S
S
S
N/A
S
S
S
S
S
S
S
N/A
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
N/A
N/A
N/A
N/A
N/A
N/A
S
N/A
N/A
N/A
S
O
N/A
N/A
N/A
N/A
N/A
N/A
S
N/A
N/A
N/A
S
O
S
S
S
S
S
O
ADVANCED FEATURES
Intelligent Reset
High and Low Voltage Protection
Air Coil Freeze Protection
Freeze Set Point Field Select (water, antifreeze)
Electric Heat Control Outputs
Boilerless Electric Heat Control
Intelligent Reversing Valve Operation
High/Low Fan Speed Outputs
Intelligent Fan Speed Control
Thermostat Type Select (Y,O or Y,W)
Reversing Valve Signal Select (O or B)
Dehumidistat Input
Multiple Units on One Thermostat/Wall Sensor
Condenser Waterside/Airside Linkage
Waterside Economizer
Proactive Diagnostics
CO2 Sensor Capable
IAQ Capable
SERVICE AND RELIABILITY FEATURES
Service Test Mode
LED Fault and Status Lights
Fault Memory After Reset
Unit Performance Sentinel
Harness-Type Factory Wiring Connections
Fully Noise-Tested Design
CE Approval
Removable Low Voltage Connector
DDC/ENERGY MANAGEMENT FEATURES
LONMark Compliant
BACnet Compliant
Johnson N2 Compliant
Modbus Compliant
Leaving Air and Water Temperature Sensor
Digital Wall Sensor
Complete C
DDC
Deluxe D
IAQ
—
—
—
—
LEGEND
Complete C Control System
Direct Digital Controls
Deluxe D Control System
Indoor Air Quality
LON
N/A
O
S
—
—
—
—
LONMark Controller
Not Available
Optional
Standard
49
Application data (cont)
Acoustical design
Sound power levels represent the sound as it is produced
by the source, the WSHP unit, with no regard to attenuation between the source and the space. Acoustical design
goals are necessary to provide criteria for occupied spaces
where people can be comfortable and communicate effectively over the background noise of the air-conditioning
system and other background noise sources.
Acoustical design goals are desirable sound pressure levels within a given conditioned space and are represented
by noise criteria (NC) curves. The NC curve levels represent a peak over a full spectrum of frequencies. A high value in a low frequency band has the same effect on NC level
as a lower value in a high frequency band. It is important
that sound levels be balanced over the entire spectrum relative to the NC curve. The lower the NC criteria curve, the
more stringent the room acoustical design must be to meet
the design goals.
It is important to know how to convert NC levels
from the unit ratings in terms of sound power (Lw). This
conversion depends on the specifics of the acoustical environment of the installation.
The resulting calculations are compared to the NC curve
selected for the area to assess the acoustical design.
Some of the factors that affect conversion of sound
power to sound pressure and consequent NC level include:
• type of acoustical ceiling
• use of metal or flex duct
• absorption in the occupied space
• location in the occupied space
• open or closed layout plan
• use of open or ducted returns
• orientation of unit to occupant
• use of lined or unlined duct
WSHP sound control
The analysis of the projected sound level in the conditioned
space caused by a WSHP unit located in a ceiling plenum is
quite involved. The key is to have good sound power ratings (Lw) in dB on the equipment to determine the sound
attenuation effect of the ductwork, ceiling and room. In
combination with utilizing standard Aquazone™ equipment
attenuating features or the advanced mute package features, suggestions for horizontal and vertical unit sound design are provided to design around the WSHP units.
Horizontal units
Use the following guidelines for layout of Aquazone horizontal units to minimize noise:
1. Obtain sound power ratings in accordance with latest
standards from manufacturers to select quietest
equipment.
2. Do not locate units over a space with a required NC
of 40 or less. Instead, locate units above less sensitive
noise areas such as above or in equipment rooms,
utility closets, restrooms, storage rooms, or above
corridors.
3. Provide at least 10 feet between WSHP units to avoid
the additive effect of two noise sources.
50
4. Provide an acoustical pad underneath the WSHP unit
in applications where the unit must be mounted
above noise sensitive areas such as private offices or
conference rooms. The pad attenuates radiated noise.
Be sure the pad has an area at least twice that of the
WSHP footprint.
5. Maximize the installed height above the suspended
ceiling.
6. Be sure the WSHP unit is located at least 6 feet away
from any ceiling return grille to prevent line-of-sight
casing noise to reach the space below.
7. Suspend the WSHP unit from the ceiling with hangers that utilize spring or neoprene type isolators to
reduce vibration transmission.
8. Utilize flexible electrical connections to the WSHP
unit. DO NOT USE NOT RIGID CONNECTIONS.
9. Utilize flexible loop water and condensate piping connections to the WSHP unit.
10. Use a canvas duct connector to connect the WSHP
discharge to the downstream duct system. This
reduces vibration-induced noise.
11. Provide acoustic interior lining for the first 20 feet of
discharge duct, or until the first elbow is reached. The
elbow prevents line-of-site sound transmission in the
discharge duct.
12. Provide turning vanes in ductwork elbows and tees to
reduce air turbulence.
13. Size the sheet metal supply duct with velocities no
greater than 1000 fpm.
14. Ensure ductwork is rigid.
15. Use round duct whenever possible to further reduce
noise.
16. Allow at least 3 equivalent duct diameters of straight
duct upstream and downstream of the unit before
allowing any fittings, transitions, etc.
17. Seal all penetrations around duct entering the space.
18. Provide a 4-ft run-out duct made of flexible material
to connect a diffuser to the supply trunk duct. The
flex duct provides an “attenuating end-effect” and
reduces duct-transmitted sound before it reaches the
space. Typically a 6 dB sound reduction can be
accomplished with the use of flex duct.
19. Locate the run-out duct balancing damper as far away
from the outlet diffuser as possible. Locating the
balancing damper at the trunk duct exit is the best
location.
20. If return air is drawn through a ceiling plenum, provide an acoustically lined return duct elbow or “L”
shaped boot at the WSHP to eliminate line-of-sight
noise into the ceiling cavity and possible through ceiling return air grilles. Face the elbow or boot away
from the nearest adjacent WSHP unit to prevent additive noise.
21. Do not hang suspended ceiling from the ductwork.
Vertical units
Solenoid valves
All guidelines established for horizontal units also apply for
vertical units. In addition, since vertical units tend to be installed in small equipment rooms or closets, the following
additional guidelines apply:
1. Mount the unit on a pad made of high-density sound
absorbing material such as rubber or cork. Extend the
pad beyond the WSHP unit footprint by at least
6 inches in each direction.
2. Since the unit returns airflow through a grille
mounted in a closet door, provide a sound barrier or
some other modification of the closet to prevent lineof-sight noise into the space.
3. Follow good duct design practice in sizing and locating the connection of the WSHP discharge to the
supply duct system. Use an elbow with turning vanes
and bent in the direction of the fan rotation to minimize turbulence. Make any duct transitions as smooth
and as gradual as possible to again minimize turbulence and loss of fan static pressure.
In applications using variable flow pumping, solenoid
valves can be field installed and operated from the control
board in the Aquazone™ WSHP unit.
Freeze protection
Applications where systems are exposed to outdoor
temperatures below freezing (32 F) must be protected from
freezing. The most common method of protecting water
systems from freezing is adding glycol concentrations into
the water. Design care should be used when selecting both
the type and concentrations of glycol utilized due to the
following:
• Equipment and performance may suffer with high concentrations of glycol and other antifreeze solutions.
• Loss of piping pressure may increase greatly, resulting
in higher pumping costs.
• Higher viscosity of the mixture may cause excess corrosion and wear on the entire system.
• Acidity of the water may be greatly increased, promoting corrosion.
• Glycol promotes galvanic corrosion in systems of dissimilar metals. The result is corrosion of one metal by
the other, causing leaks.
51
Controls
WSHP Open sequence of operation
The WSHP Open multi-protocol controller will control mechanical cooling, heating and waterside economizer outputs based on its own space temperature input and set
points. An optional CO2 IAQ (indoor air quality) sensor
mounted in the space can maximize the occupant comfort.
The WSHP Open controller has its own hardware clock
that is automatically set when the heat pump software is
downloaded to the board. Occupancy types are described
in the scheduling section below. The following sections describe the functionality of the WSHP Open multi-protocol
controller. All point objects referred to in this sequence of
operation will be referenced to the objects as viewed in the
BACview6 handheld user interface.
Scheduling — Scheduling is used to start/stop the unit
based on a time period to control the space temperature to
specified occupied heating and cooling set points. The
controller is defaulted to control by occupied set points all
the time, until either a time schedule is configured with
BACview6, Field Assistant, i-Vu® Open, or a third party
control system to enable/disable the BAS (Building Automation System) on/off point. The local time and date must
be set for these functions to operate properly. The occupancy source can be changed to one of the following:
Occupancy schedules — The controller will be occupied
24/7 until a time schedule has been configured using either Field Assistant, i-Vu Open, BACview6 or a third party
control system to enable/disable the BAS on/off point.
The BAS point can be disabled by going to Config, then
Unit, then Occupancy Schedules and changing the point
from enable to disable then clicking OK.
NOTE: This point must be enabled in order for the i-Vu
Open, Field Assistant, or BACview6 control system to assign a time schedule to the controller.
Schedule_schedule — The unit will operate according to
the schedule configured and stored in the unit. The schedule is accessible via the BACview6 Handheld tool, i-Vu
Open, or Field Assistant control system. The daily schedule
consists of a start/stop time (standard or 24-hour mode)
and seven days of the week, starting with Monday and
ending on Sunday. To enter a daily schedule, navigate to
Config, then Sched, then enter BACview6 Admin Password (1111), then go to schedule_schedule. From here,
enter either a Weekly or Exception schedule for the unit.
Occupancy input contact — The WSHP Open controller
has the capability to use an external dry contact closure to
determine the occupancy status of the unit. The Occupancy Schedules will need to be disabled in order to utilize the
occupancy contact input.
NOTE: Scheduling can only be controlled from one
source.
BAS (Building Automation System) on/off — A BAS
system that supports network scheduling can control the
unit through a network communication and the BAS
scheduling function once the Occupancy Schedules have
been disabled.
NOTE: Scheduling can either be controlled via the unit or
the BAS, but not both.
52
Indoor fan — The indoor fan will operate in any one of
three modes depending on the user configuration selected.
Fan mode can be selected as Auto, Continuous, or Always On. In Auto mode, the fan is in intermittent operation during both occupied and unoccupied periods. Continuous fan mode is intermittent during unoccupied periods
and continuous during occupied periods. Always On mode
operates the fan continuously during both occupied and
unoccupied periods. In the default mode, Continuous, the
fan will be turned on whenever any one of the following is
true:
• The unit is in occupied mode as determined by its occupancy status.
• There is a demand for cooling or heating in the unoccupied mode.
• There is a call for dehumidification (optional).
When power is reapplied after a power outage, there
will be a configured time delay of 5 to 600 seconds before
starting the fan. There are also configured fan delays for
Fan On and Fan Off. The Fan On delay defines the delay
time (0 to 30 seconds; default 10) before the fan begins to
operate after heating or cooling is started while the Fan Off
delay defines the delay time (0 to 180 seconds; default 45)
the fan will continue to operate after heating or cooling is
stopped. The fan will continue to run as long as the compressors, heating stages, or the dehumidification relays are
on. If the SPT failure alarm or condensate overflow alarm
is active; the fan will be shut down immediately regardless
of occupancy state or demand.
Automatic fan speed control — The WSHP Open controller is capable of controlling up to three fan speeds using
the ECM (electronically commutated motor). The motor
will operate at the lowest speed possible to provide quiet
and efficient fan operation with the best latent capability.
The motor will increase speed if additional cooling or heating is required to obtain the desired space temperature set
point. The control increases the motor's speed as the space
temperature rises above the cooling or below the heating
set point. The amount of space temperature increase
above or below the set point required to increase the fan
speed is user configurable in the set point. Also, the control
will increase the fan speed as the supply-air temperature
approaches the configured minimum or maximum limits.
Fan speed control (during heating) — Whenever heat is required and active, the control continuously monitors the
supply-air temperature to verify it does not rise above the
configured maximum heating SAT limit (110 F default). As
the SAT approaches this value, the control will increase the
fan speed as required to ensure the SAT will remain within
the limit. This feature provides the most quiet and efficient
operation by operating the fan at the lowest speed
possible.
Fan speed control (during cooling) — Whenever mechanical cooling is required and active, the control continuously
monitors the supply-air temperature to verify it does not
fall below the configured minimum cooling SAT limit (50 F
default). As the SAT approaches this value, the control will
increase the fan speed as required to ensure the SAT will
remain within the limit. The fan will operate at lowest
speed to maximize latent capacity during cooling.
Cooling — The WSHP Open controller will operate one
or two stages of compression to maintain the desired cooling set point. The compressor outputs are controlled by
the PI (proportional-integral) cooling loop and cooling stages capacity algorithm. They will be used to calculate the desired number of stages needed to satisfy the space by comparing the space temperature (SPT) to the appropriate
cooling set point. The water side economizer, if applicable,
will be used for first stage cooling in addition to the compressor(s). The following conditions must be true in order
for the cooling algorithm to run:
• Cooling is set to Enable.
• Heating mode is not active and the compressor time
guard has expired.
• Condensate overflow input is normal.
• If occupied, the SPT is greater than the occupied cooling set point.
• Space temperature reading is valid.
• If unoccupied, the SPT is greater than the unoccupied
cooling set point.
• If economizer cooling is available and active and the
economizer alone is insufficient to provide enough
cooling.
• OAT (if available) is greater than the cooling lockout
temperature.
If all the above conditions are met, the compressors will
be energized as required, otherwise they will be deenergized. If cooling is active and should the SAT approach the
minimum SAT limit, the fan will be indexed to the next
higher speed. Should this be insufficient and if the SAT falls
further (equal to the minimum SAT limit), the fan will be indexed to the maximum speed. If the SAT continues to fall
5° F below the minimum SAT limit, all cooling stages will
be disabled.
During Cooling mode, the reversing valve output will be
held in the cooling position (either B or O type as configured) even after the compressor is stopped. The valve will
not switch position until the Heating mode is required.
The configuration screens contain the minimum SAT
parameter as well as cooling lockout based on outdoor-air
temperature (OAT). Both can be adjusted to meet various
specifications.
There is a 5-minute off time for the compressor as well
as a 5-minute time delay when staging up to allow the SAT
to achieve a stable temperature before energizing a second
stage of capacity. Likewise, a 45-second delay is used
when staging down.
After a compressor is staged off, it may be restarted
again after a normal time-guard period of 5 minutes and if
the supply-air temperature has increase above the minimum supply-air temperature limit.
The WSHP Open controller provides a status input to
monitor the compressor operation. The status is monitored to determine if the compressor status matches the
commanded state. This input is used to determine if a refrigerant safety switch or other safety device has tripped
and caused the compressor to stop operating normally. If
this should occur, an alarm will be generated to indicate the
faulted compressor condition.
Heating — The WSHP Open controller will operate one
or two stages of compression to maintain the desired heating set point. The compressor outputs are controlled by
the heating PI (proportional-integral) loop and heating
stages capacity algorithm. They will be used to calculate
the desired number of stages needed to satisfy the space by
comparing the space temperature (SPT) to the appropriate
heating set point. The following conditions must be true in
order for the heating algorithm to run:
• Heating is set to Enable.
• Cooling mode is not active and the compressor time
guard has expired.
• Condensate overflow input is normal.
• If occupied, the SPT is less than the occupied heating
set point.
• Space temperature reading is valid.
• If unoccupied, the SPT is less than the unoccupied heating set point.
• OAT (if available) is less than the heating lockout
temperature.
If all the above conditions are met, the heating outputs
will be energized as required, otherwise they will be deenergized. If the heating is active and should the SAT approach
the maximum SAT limit, the fan will be indexed to the next
higher speed. Should this be insufficient, and the SAT rises
further reaching the maximum heating SAT limit, the fan
will be indexed to the maximum speed. If the SAT still continues to rise 5  F above the maximum limit, all heating
stages will be disabled.
During Heating mode, the reversing valve output will be
held in the heating position (either B or O type as configured) even after the compressor is stopped. The valve will
not switch position until the Cooling mode is required.
The configuration screens contain the maximum SAT
parameter as well as heating lockout based on outdoor-air
temperature (OAT); both can be adjusted to meet various
specifications.
There is a 5-minute off time for the compressor as well
as a 5-minute time delay when staging up to allow the SAT
to achieve a stable temperature before energizing a second
stage of capacity. Likewise, a 45-second delay is used
when staging down.
After a compressor is staged off, it may be restarted
again after a normal time-guard period of 5 minutes and if
the supply-air temperature has fallen below the maximum
supply air temperature limit.
The WSHP Open controller provides a status input to
monitor the compressor operation. The status is monitored to determine if the compressor status matches the
commanded state. This input is used to determine if a refrigerant safety switch or other safety device has tripped
and caused the compressor to stop operating normally. If
this should occur, an alarm will be generated to indicate the
faulted compressor condition. Also, if auxiliary heat is
available (see below), the auxiliary heat will operate to replace the reverse cycle heating and maintain the space
temperature as required.
Auxiliary heat — The WSHP Open controller can control a two-position, modulating water, or steam valve
53
Controls (cont)
connected to a coil on the discharge side of the unit and
supplied by a boiler or a single-stage ducted electric heater
in order to maintain the desired heating set point. Should
the compressor capacity be insufficient or a compressor
failure occurs, the auxiliary heat will be used. Unless the
compressor fails, the auxiliary heat will only operate to
supplement the heat provided by the compressor if the
space temperature falls more than one degree below the
desired heating set point (the amount is configurable). The
heat will be controlled so the SAT will not exceed the maximum heating SAT limit.
Auxiliary modulating hot water/steam heating reheat —
The control can modulate a hot water or steam valve connected to a coil on the discharge side of the unit and supplied by a boiler in order to maintain the desired heating
set point should the compressor capacity be insufficient or
a compressor failure occurs. Unless a compressor fault
condition exists, the valve will only operate to supplement
the heat provided by the compressor if the space temperature falls more than one degree below the desired heating
set point. The valve will be controlled so the SAT will not
exceed the maximum heating SAT limit.
Two-position hot water/steam heating reheat — The control can operate a two-position, NO or NC, hot water or
steam valve connected to a coil on the discharge side of the
unit and supplied by a boiler in order to maintain the desired heating set point should the compressor capacity be
insufficient or a compressor failure occurs. Unless a compressor fault condition exists, the valve will only open to
supplement the heat provided by the compressor if the
space temperature falls more than one degree below the
desired heating set point. The valve will be controlled so
the SAT will not exceed the maximum heating SAT limit.
The heat stage will also be subject to a 2-minute minimum
OFF time to prevent excessive valve cycling.
Single stage electric auxiliary heat — The control can operate a field-installed single stage of electric heat installed on
the discharge side of the unit in order to maintain the desired heating set point should the compressor capacity be
insufficient or a compressor failure occurs. Unless a compressor fault condition exists, the heat stage will only operate to supplement the heat provided by the compressor if
the space temperature falls more than one degree below
the desired heating set point. The heat stage will be controlled so the SAT will not exceed the maximum heating
SAT limit. The heat stage will also be subject to a 2-minute
minimum OFF time to prevent excessive cycling.
Indoor air quality (IAQ) and demand controlled ventilation (DCV) — If the optional indoor air quality sensor
is installed, the WSHP Open controller can maintain indoor air quality via a modulating OA damper providing demand controlled ventilation. The control operates the modulating OA damper during occupied periods. The control
monitors the CO2 level and compares it to the configured
set points, adjusting the ventilation rate as required. The
control provides proportional ventilation to meet the requirements of ASHRAE specifications by providing a base
ventilation rate and then increasing the rate as the CO2 level increases. The control will begin to proportionally increase ventilation when the CO2 level rises above the start
54
ventilation set point and will reach the full ventilation rate
when the CO2 level is at or above the maximum set point.
A user-configurable minimum damper position ensures
that proper base ventilation is delivered when occupants
are not present. The IAQ configurations can be accessed
through the configuration screen. The following conditions
must be true in order for this algorithm to run:
• Damper control is configured for DCV.
• The unit is in an occupied mode.
• The IAQ sensor reading is greater than the DCV start
control set point.
The control has four user adjustable set points: DCV
start control set point, DCV maximum control set point,
minimum damper position, and DCV maximum damper
position.
Two-position OA damper — The control can be configured to operate a ventilation damper in a two-position ventilation mode to provide the minimum ventilation requirements during occupied periods.
Waterside economizer — The WSHP Open controller
has the capability of providing modulating or two-position
water economizer operation (for a field-installed economizer coil mounted to the entering air side of the unit and connected to the condenser water loop) in order to provide
free cooling (or preheating) when water conditions are optimal. Water economizer settings can be accessed through
the equipment status screen. The following conditions
must be true for economizer operation:
• SAT reading is available.
• EWT reading is available.
• If occupied, the SPT is greater than the occupied cooling set point or less than the occupied heating set point
and the condenser water is suitable.
• Space temperature reading is valid.
• If unoccupied, the SPT is greater than the unoccupied
cooling set point or less than the unoccupied heating set
point and the condenser water is suitable.
Modulating water economizer control — The control has
the capability to modulate a water valve to control condenser water flowing through a coil on the entering air side
of the unit.
Cooling — The purpose is to provide an economizer cooling function by using the water loop when the entering water loop temperature is suitable (at least 5° F below space
temperature). If the water loop conditions are suitable,
then the valve will modulate open as required to maintain a
supply air temperature that meets the load conditions.
Should the economizer coil capacity alone be insufficient
for a period greater than 5 minutes, or should a high humidity condition occur, then the compressor will also be
started to satisfy the load. Should the SAT approach the
minimum cooling SAT limit, the economizer valve will
modulate closed during compressor operation.
Heating — Additionally, the control will modulate the water valve should the entering water loop temperature be
suitable for heating (at least 5° F above space temperature)
and heat is required. The valve will be controlled in a similar manner except to satisfy the heating requirement.
Should the economizer coil capacity alone be insufficient
to satisfy the space load conditions for more than 5 minutes, then the compressor will be started to satisfy the load.
Should the SAT approach the maximum heating SAT limit,
the economizer valve will modulate closed during compressor operation.
Two-position water economizer control — The control has
the capability to control a NO or NC, two-position water
valve to control condenser water flow through a coil on the
entering air side of the unit.
Cooling — The purpose is to provide a cooling economizer function directly from the condenser water loop when
the entering water loop temperature is suitable (at least
5° F below space temperature). If the optional coil is provided and the water loop conditions are suitable, then the
valve will open to provide cooling to the space when required. Should the capacity be insufficient for a period
greater than 5 minutes, or should a high humidity condition occur, then the compressor will be started to satisfy
the load. Should the SAT reach the minimum cooling SAT
limit, the economizer valve will close during compressor
operation.
Heating — Additionally, the economizer control will open
the water valve should the entering water loop temperature
be suitable for heating (at least 5° F above space temperature) and heat is required. The valve will be controlled in a
similar manner except to satisfy the heating requirement.
Should the coil capacity be insufficient to satisfy the space
load for more than 5 minutes, then the compressor will be
started to satisfy the load. Should the SAT reach the maximum heating SAT limit, the economizer valve will close
during compressor operation.
Demand limit — The WSHP Open controller has the
ability to accept three levels of demand limit from the network. In response to a demand limit, the unit will decrease
its heating set point and increase its cooling set point to
widen the range in order to immediately lower the electrical demand. The amount of temperature adjustment in response is user adjustable for both heating and cooling and
for each demand level. The response to a particular demand level may also be set to zero.
Condenser water linkage — The control provides optimized water loop operation using an universal controller
(UC) open loop controller. Loop pump operation is automatically controlled by WSHP equipment occupancy
schedules, unoccupied demand and tenant override conditions. Positive pump status feedback prevents nuisance
fault trips. The condenser water linkage operates when a
request for condenser water pump operation is sent from
each WSHP to the loop controller. This request is generated whenever any WSHP is scheduled to be occupied, is
starting during optimal start (for warm-up or pull down prior to occupancy), there is an unoccupied heating or cooling demand, or a tenant pushbutton override. At each
WSHP, the water loop temperature and the loop pump
status is given. The WSHP will NOT start a compressor until the loop pumps are running or will shutdown the compressors should the pumps stop. This prevents the WSHP
from operating without water flow and thus tripping out on
refrigerant pressure, causing a lockout condition. The
WSHP Open controller will prevent this from occurring.
Also, the loop controller can be configured to start the
pumps only after a configurable number of WSHPs are requesting operation (from 1-"N"). This can be used to prevent starting the entire loop operation for only one WSHP.
Meanwhile, the WSHPs will not operate if the loop pump
status is off and therefore the WSHP compressor will not
run.
55
Guide specifications
Single-Stage Water Source Heat Pumps with
Puron® Refrigerant (R-410A)
HVAC Guide Specifications
Size Range: 5,800 to 66,600 Btuh
Cooling Capacity
4,900 to 77,000 Btuh
Heating Capacity
Carrier Model Number: 50P1H, 50P1V
Part 1 — General
1.01 SYSTEM DESCRIPTION
A. Single package horizontally and vertically mounted
water source heat pumps with Puron® refrigerant
(R-410A) and electronic controls.
B. Equipment shall be completely assembled, piped
and internally wired. Capacities and characteristics
as listed in the schedule and the guide specifications
that follow.
1.02 QUALITY ASSURANCE
A. All equipment listed in this section must be rated and
certified in accordance with AHRI/ISO and ETL
listed to UL standard 1995. The units shall have
AHRI/ISO and ETL labels.
B. All units shall be fully quality tested by factory run
testing under normal operating conditions and water
flow rates as described herein. Quality control system shall automatically perform via computer: triple
leak check, pressure tests, evacuate and accurately
charge system, perform detailed heating and cooling
mode tests, and quality cross check all operational
and test conditions to pass/fail data base. A detailed
report card will ship with each unit displaying all test
performance data.
NOTE: If unit fails on any cross check, system shall
not allow unit to ship.
C. Serial numbers will be recorded by factory and furnished to contractor on report card for ease of unit
warranty status. Units tested without water flow are
not acceptable. Units shall be prewired and precharged in factory.
Part 2 — Product
2.01 EQUIPMENT
A. General:
Units shall be supplied completely factory built for
an entering water temperature range from 60 to
95 F as standard. Units may consist of rotary or
scroll compressor, PSC (permanent split capacitor)
fan motor and blower and refrigerant circuit as indicated on the equipment schedule. Equivalent units
from other manufacturers can be proposed provided
approval to bid is given 10 days prior to bid closing.
B. Unit Cabinets:
1. Horizontal Units:
a. Horizontal units shall have one of the
following airflow arrangements: left inlet/
right discharge; right inlet/left discharge; left
56
inlet/back discharge; or right inlet/back discharge as shown on the plans.
b. Horizontal units must have the ability to be
field convertible from side to back or back to
side discharge with no additional parts or unit
structure modification. Units will have factoryinstalled hanger brackets with rubber isolation
grommets packaged separately.
2. Vertical Units:
Vertical units shall have one of the following air
flow arrangements: left return/top discharge,
right return/top discharge, front return/top discharge as shown on the plans.
3. If units with these arrangements are not used,
the contractor is responsible for any extra costs
incurred by other trades.
4. All units (horizontal and vertical) must have a
minimum of three access panels for serviceability of compressor compartment. Units having
only one access panel to compressor, heat
exchangers, expansion device, or refrigerant
piping shall not be acceptable.
5. Standard cabinet panel insulation must meet
NFPA 90A requirements, air erosion and mold
growth limits of UL-181, stringent fungal resistance test per ASTM C1071 and ASTM G21,
and shall meet zero level bacteria growth per
ASTM G22. Unit insulation must meet these
stringent requirements or unit(s) will not be
accepted.
6. Cabinets shall have separate holes and knockouts for entrance of line voltage and low voltage
control wiring.
7. All factory-installed wiring passing through factory knockouts and openings shall be protected
from sheet metal edges at openings by plastic
ferrules.
8. Contractor must ensure that units can be easily
removed for servicing and coordinate locations
of electrical conduit and lights with the electrical
contractor.
C. Compressor:
1. Compressor section interior surfaces shall be
lined with 1/2 in. thick, dual density, 11/2 lb per
cubic ft acoustic type fiberglass insulation. Airhandling section interior surfaces shall be lined
with 1/2 in. thick, single density, 11/2 lb per
cubic ft foil-backed fiber insulation for ease of
cleaning.
2. Insulation placement shall be designed in a
manner that will eliminate any exposed edges
to prevent the introduction of glass fibers into
the airstream. Units without foil-backed insulation in the air-handling section will not be
accepted.
3. The compressor shall have a dual level vibration
isolation system.
4. The compressor will be mounted on computerselected vibration isolation springs to a large heavy
gage compressor mounting tray plate, which
is then isolated from the cabinet base with rubber
grommets for maximized vibration attenuation.
5. Compressor shall be located in an insulated
compartment away from airstream to minimize
sound transmission.
6. Compressor shall have thermal overload
protection.
7. The heat pumps shall be fabricated from heavy
gage galvanized steel with powder coat paint
finish. Both sides of the steel shall be painted
for added protection.
8. All units must have an insulated panel separating the fan compartment from the compressor
compartment.
9. Units with the compressor in the airstream are
not acceptable.
D. Fan and Motor Assembly:
1. Blower shall have inlet rings to allow removal of
wheel and motor from one side without removing housing.
2. The fan motor shall be 3-speed, permanently
lubricated, PSC (permanent split capacitor) type
with internal thermal overload protection.
3. The fan motor shall be isolated from the housing by rubber grommets.
4. The motor shall be permanently lubricated and
have thermal overload protection.
5. A special dehumidification mode shall be provided to allow lower airflows in cooling for better dehumidification. The dehumidification
mode shall be selectable via a jumper on the
control board or may be controlled externally
from a humidistat.
6. Airflow/static pressure rating of the unit shall
be based on a wet coil and a clean filter in
place. Ratings based on a dry coil and/or no filter, or on an ESP (external static pressure) less
than 0.50 in. wg shall NOT be acceptable.
E. Refrigerant Circuit:
1. All units shall contain a Puron® refrigerant
(R-410A) sealed circuit including a high-efficiency Copeland UltraTech™ single-stage compressor designed for heat pump operation, a
thermostatic expansion valve for refrigerant
metering, an enhanced corrugated aluminum
lanced fin and rifled copper tube refrigerant to
air heat exchanger, reversing valve, coaxial
(tube-in-tube) refrigerant to water heat
exchanger, and safety controls, including a
high-pressure switch, low-pressure switch (loss
of charge), water coil low temperature sensor,
and air coil low temperature sensor.
2. Access fittings shall be factory-installed on high
and low pressure refrigerant lines to facilitate
field service.
3. Refrigerant metering shall be accomplished by
thermostatic expansion valve only.
F. Drain Pan:
1. The drain pan shall be constructed of epoxy
powder, painted, galvanized steel to inhibit corrosion. This corrosion protection system shall
meet the stringent 1000-hour salt spray test per
ASTM B117. If plastic type material is used, it
must be HDPE (high-density polyethylene) to
avoid thermal cycling shock stress failure over
the lifetime of the unit.
2. Drain pan shall be fully insulated.
3. Drain outlet shall be located at pan as to allow
complete and unobstructed drainage of condensate. Drain outlet for horizontal units shall be
connected from pan directly to FPT fitting. No
hidden internal tubing extensions from pan outlet extending to unit casing (that can create
drainage problems) will be accepted.
4. The unit as standard will be supplied with solidstate electronic condensate overflow protection.
A mechanical float switch will be used with the
WSHP Open multiple protocol controller
option.
5. Vertical units shall be furnished with a PVC slip
condensate drain connection and an internal
factory-installed condensate trap. If units without an internal trap are used, the contractor is
responsible for any extra costs to field install
these provisions, and/or the extra costs for the
subcontractor to install these provisions.
G. Filter:
1. Units shall have a factory-installed 1 in. wide filter bracket for filter removal from either side.
Units shall have a 1 in. thick throwaway type
fiberglass filter.
2. The contractor shall purchase one spare set of
filters and replace factory shipped filters on
completion of start-up.
3. Filters shall be standard sizes. If units utilize
non-standard filter sizes, then the contractor
shall provide 12 spare filters for each unit.
H. Thermostatic Expansion Valve:
1. Expansion valves shall be dual port balanced
types with external equalizer for optimum
refrigerant metering.
2. Units shall be designed and tested for operating
ranges of entering water temperatures from
20 to 120 F.
3. Reversing valve shall be four-way solenoid activated refrigerant valve, which shall default to
heating mode should the solenoid fail to function. If the reversing valve solenoid defaults to
cooling mode, an additional low temperature
57
Guide specifications (cont)
thermostat must be provided to prevent
over-cooling
an
already
cold
room.
I. Controls and Safeties:
1. Electrical:
a. A control box shall be located within the unit
compressor compartment and shall contain a
50 va transformer, 24-volt activated, 2 or
3-pole compressor contactor, terminal block
for thermostat wiring and solid-state controller for complete unit operation.
b. Reversing valve and fan motor wiring shall be
routed through this electronic controller.
c. Units shall be name-plated for use with timedelay fuses or HACR circuit breakers. Unit
controls shall be 24-volt and provide heating
or cooling as required by the remote
thermostat/sensor.
2. Unit Controls:
a. Safety controls including a high-pressure
switch, a low-pressure sensor, and a low
water and low air temperature sensor. Access
fittings shall be factory installed on high and
low pressure refrigerant lines to facilitate field
service.
b. Activation of any safety device shall prevent
compressor operation via a microprocessor
lockout circuit. The lockout shall be reset at
the thermostat or at the contractor-supplied
disconnect switch.
c. Units which may be reset only at the disconnect switch only shall not be acceptable.
3. Complete C Controls:
The standard Complete C electronic control
system shall interface with a heat pump (Y,O)
wall thermostat (mechanical or electronic). The
control system microprocessor board shall be
specifically designed to protect against building
electrical system noise contamination, EMI, and
RFI interference. The control system shall have
the following features:
a. 50 va transformer.
b. Performance Monitor (PM). The PM warns
when the heat pump is running inefficiently.
c. Anti-short cycle time delay on compressor
operation time delay shall be 5 minutes
minimum.
d. Random start on power up mode.
e. Low voltage protection.
f. High voltage protection.
g. Unit shutdown on high or low refrigerant
pressures.
h. Unit shutdown on low water temperature.
i. Water coil freeze protection (selectable for
water or antifreeze).
j. Air coil freeze protection (check filter switch).
k. Condensate overflow shutdown.
58
l. Option to reset unit at thermostat or disconnect. Fault type shall be retained in memory if
reset at thermostat.
m. Automatic intelligent reset. Unit shall automatically reset 5 minutes after trip if the fault
has cleared. Should a fault reoccur 3 times
sequentially, lockout requiring manual reset
will occur.
n. Ability to defeat time delays for servicing.
o. Light-emitting diodes (LED) to indicate high
pressure, low pressure, low voltage, high voltage, air/water freeze protection, condensate
overflow and control status.
p. The low-pressure switch SHALL NOT be
monitored for the first 90 seconds after a
compressor start command to prevent nuisance safety trips.
q. Remote fault type indication at thermostat.
r. Selectable 24-v or pilot duty dry contact
alarm output.
s. 24-v output to cycle a motorized water valve
with compressor contactor.
t. Electric heat output to control two stages of
electric heat (emergency heat).
u. Service test mode for troubleshooting and
service.
v. Unit Performance Sentinel (UPS). The UPS
warns when the heat pump is running
inefficiently.
Units not providing the 8 safety protections of
anti-short cycle, low voltage, high voltage, high
refrigerant pressure, low pressure (loss of
charge), air coil freeze, water coil freeze, and
condensate overflow protections will not be
accepted.
4. Deluxe D Controls:
Optional electronic Deluxe D control shall have
all the features of the Complete C control with
the following additional features:
a. 75 va transformer.
b. A removable thermostat connector.
c. Random start on return from night setback.
d. Intelligent reversing valve operation for
extended life and quiet operation.
e. Night setback control from low temperature
thermostat, with 2-hour override initiated by
a momentary signal from the thermostat.
f. Dry contact night setback output for digital
night setback thermostats.
g. Ability to work with heat/cool (Y, W)
thermostats.
h. Ability to work with heat pump thermostats
using O or B reversing valve control.
i. Single grounded wire to initiate night setback,
or emergency shutdown.
j. Boilerless system control can switch automatically to electric heat at low loop water
temperature.
k. Dehumidistat input providing fan control
for dehumidification operation via the IdealHumidity™ system.
l. Multiple units connected to one sensor providing communication for up to 3 water
source heat pumps.
m. Selection of boilerless changeover temperature set point.
n. Compressor relay staging for dual stage units
or in master/slave applications.
Units not having automatic low sensible heat
ratio cooling will not be accepted; as an alternate, a hot gas reheat coil may be provided with
control system for automatic activation.
5. WSHP Open Multiple Protocol Control:
Units shall have all the features above (either C
or D boards) and the state of the art WSHP
Open multiple protocol interface board. All
point objects will have the ability to be viewed in
the BACview6 Handheld user interface. This
will permit all units to be daisy chain connected
by a 2-wire twisted pair shielded cable. The following points must be available at a central or
remote computer location:
a. space temperature
b. leaving water temperature
c. discharge air temperature
d. command of space temperature set point
e. cooling status
f. heating status
g. low temperature sensor alarm
h. high pressure switch alarm
i. fan on/off position of space thermostat
j. unoccupied/occupied command
k. cooling demand
l. heating demand
m. fan “ON/AUTO” command
n. fault prevention with auto reset
o. itemized fault code viewed with BACview
interface
Additional WSHP Open multiple protocol control features shall include:
a. two-position OA damper
b. modulating OA damper with DCV
c. auxiliary modulating hot water/steam
heating
d. two-position hot water/steam heating
e. single stage electric auxiliary heat
f. auto fan speed control (heating/cooling)
g. power fail restart delay
h. dehumidification
i. modulating water economizer control
j. two-position water economizer control
6. PremierLink™ Controller:
This optional control will function with
CCN (Carrier Comfort Network®) and
ComfortVIEW™ software. It shall also be compatible with ComfortLink™ controllers. It shall
be ASHRAE 62 compliant and Internet ready.
It shall accept a CO2 sensor in the conditioned
space and be demand controlled ventilation
(DCV) ready. The communication rate must be
38.4K or faster. It shall include an integrated
economizer controller.
7. LonWorks Interface System:
Units shall have all features listed above (either
Complete C or Deluxe D) and the control board
shall be supplied with a LonWorks interface
board, which is LONMark certified. This will
permit all units to be daisy chained via a 2-wire
twisted pair shielded cable. The following points
must be available at a central or remote computer location:
a. space temperature
b. leaving-water temperature
c. discharge-air temperature
d. command of space temperature set point
e. cooling status
f. heating status
g. low temperature sensor alarm
h. low pressure sensor alarm
i. high pressure switch alarm
j. condensate sensor alarm
k. high/low voltage alarm
l. fan "ON/AUTO" position of space
thermostat
m. unoccupied/occupied command
n. cooling command
o. heating command
p. fan "ON/AUTO" command
q. fault reset command
r. itemized fault code revealing reason for specific shutdown fault (any one of 7)
This option also provides the upgraded 75 va
control transformer with load side short circuit
and overload protection via a built in circuit
breaker.
J. Piping:
1. Supply and return water connections shall be
copper FPT fittings and shall be securely
mounted flush to the cabinet corner post
allowing for connection to a flexible hose without the use of a back-up wrench.
59
Guide specifications (cont)
2. All water connections and electrical knockouts
must be in the compressor compartment corner
post as to not interfere with the serviceability of
unit. Contractor shall be responsible for any
extra costs involved in the installation of units
that do not have this feature.
K. Solid-State Permanent Split Capacitor (PSC) Fan
Control Board:
1. Airflow selection shall be accomplished via
3 jumper switches on the PSC control board.
Actual airflow shall be indicated by the cfm LED
with each 100 cfm being represented by one
flash of the LED.
2. Airflow shall be automatically maintained (±5%)
by the PSC motor regardless of external static
pressure up to its maximum output capacity.
3. A jumper shall allow selection of a special dehumidification mode, which reduces airflow in
cooling by 25% to increase the latent capacity
of the unit. A terminal shall be provided on the
control board to allow an external humidistat to
activate dehumidification mode.
L. Remote Service Sentinel (Complete C or Deluxe D):
1. Solid-state control system shall communicate
with thermostat to display (at the thermostat)
the unit status, fault status, and specific fault
condition, as well as retrieve previously stored
fault that caused unit shutdown.
2. The remote service sentinel allows building
maintenance personnel or service personnel to
diagnose unit from the wall thermostat.
3. The control board shall provide a signal to the
thermostat fault light, indicating a lockout.
4. Upon cycling the G (fan) input 3 times within a
60-second time period, the fault light shall display the specific code as indicated by a
sequence of flashes. A detailed flashing code
shall be provided at the thermostat LED to display unit status and specific fault status such as
over/under voltage fault, high pressure fault,
low pressure fault, low water temperature fault,
condensate overflow fault, etc.
5. Units that do not provide this remote service
sentinel shall not be acceptable.
M. Special Features:
1. Cupronickel coaxial water-to-refrigerant heat
exchangers are available for higher corrosion
protection.
2. The sound attenuation (mute) package consists
of high technology sound attenuating materials
strategically applied to the cabinet, in addition
to the standard system, to further dampen
sound.
3. Extended range is available for units operating
with entering water temperatures below dew
point. Extended entering water temperatures
range from 20 to 120 F.
60
4. A two-way motorized water control valve shall
operate in conjunction with the compressor to
shut off or turn on water to the unit.
5. Water circuit options shall provide internally
mounted 2.5 or 3.0 gpm per ton automatic
flow regulating valves.
6. The permanent split capacitor (PSC) high-static
blower motor shall increase unit capacity
through the use of a high-static blower motor.
7. Aquazone™ Thermostat Controls:
a. Programmable multi-stage thermostat offers
7-day clock, holiday scheduling, large backlit
display and remote sensor capability.
b. Programmable 7-day light-activated thermostat offers occupied comfort settings with
lights on, unoccupied energy savings with
lights off.
c. Programmable 7-day flush-mount thermostat offers locking coverplate with tamper
proof screws, flush to wall mount, dual point
with adjustable deadband, O or B terminal,
and optional remote sensor.
d. Programmable 5-day thermostat offers
2-stage heat/2-stage cool, auto changeover,
5-minute built-in compressor protection,
locking cover included.
e. Non-programmable thermostat offers 2stage heat/2-stage cool, auto changeover, 5minute built-in compressor protection, locking cover included.
8. Loop controller with six stages (2 stages for
heating and 4 stages for heat rejection) is available.
9. The filter rack (1-in.) enhances the filtration system of the water source heat pump.
NOTE: Filter rack does not include filters.
10. Fire-rated hose kits include a fixed MPT on one
end and a swivel with an adapter on the other
end. Hose kits can be either stainless steel or
galvanized.
11. Ball valves (brass body) shut off and balance
water flow. Valves are available with memory,
memory stop, and pressure temperature ports.
12. Y strainers (bronze body) are “Y” type configuration with a brass cap and stainless steel
strainer screen. Maximum operating pressure
rating of strainers is 450 psi.
13. Solenoid valves (brass body) provide slow operation for quiet system application.
14. Hose kit assemblies include a ported ball valve
with pressure temperature (P/T) plug ports and
flexible stainless steel hose with swivel and
nipple. Return hose includes a ball valve,
preset measure flow (gpm) with two P/T ports,
flexible stainless steel hose with a swivel and
nipple.
15. Multiple-protocol WSHP Open controller
remote sensors for Aquazone flush-mount
thermostats and DDC control options. Only
Carrier sensors can be used with the WSHP
Open controller. Sensors are available as
follows:
a. SPT Standard offers space temperature sensor with communication port.
b. SPT Plus offers space temperature sensor
with set point adjust, local override with indicating light and communication port.
c. SPT Pro offers space temperature sensor
with LCD display, set point adjust, local
override, alarm icon, outside air, and unit
status with heating and cooling set points.
d. SPT Pro+ offers space temperature sensor
with LCD display, set point adjust, local
override, alarm icon, outside air, unit status
with heating and cooling set points, and fan
speed control.
16. PremierLink™ accessories provide a fully integrated DDC system. Accessories include supply
air temperature sensors, communicating room
sensors, CO2 sensors, and linkage thermostats.
17. An Aquazone™ system control panel as specified in 50RLP Product Data (525-00040) is
available.
18. LON wall sensors are available in 3 models:
sensor only, sensor with status override indicator, and sensor with set point, status adjustment
override, and digital LCD display.
61
Carrier Corporation • Syracuse, New York 13221
1110
10-10
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Section 6
Pg 64
Catalog No. 04-52500060-01
Printed in U.S.A.
Form 50P1-1PD
Replaces: New
Tab
6b
Download PDF
