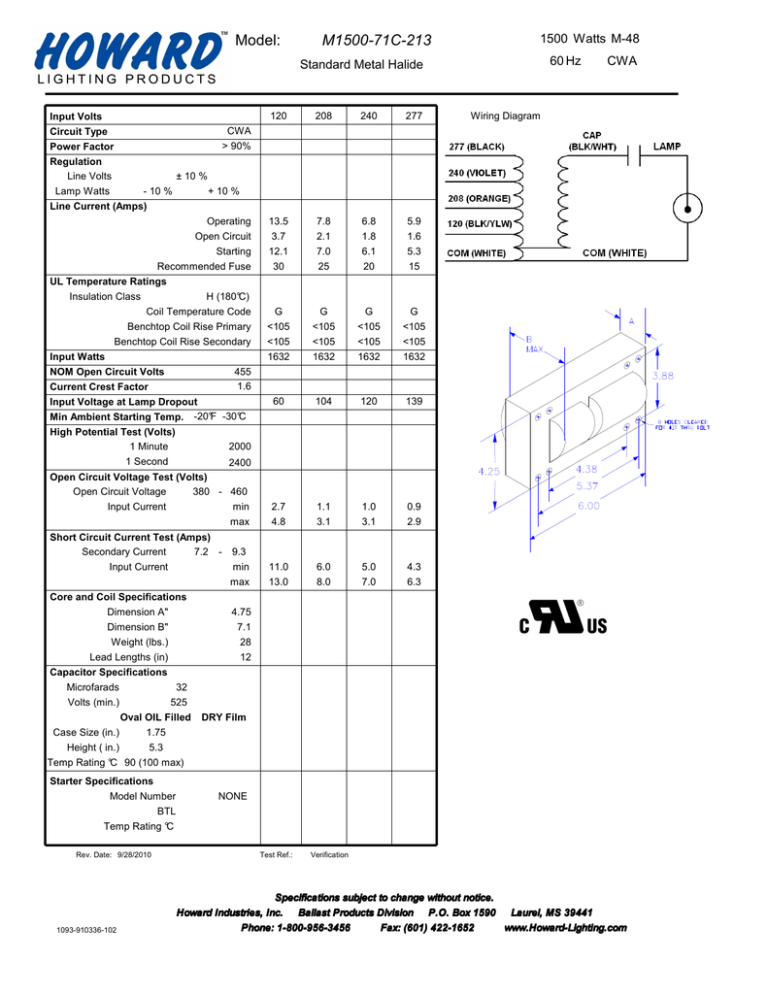

M1500-71C-213 Model: M-48 1500

M1500-71C-213 Model: M-48 1500
Model:
M1500-71C-213
1500 Watts M-48
60 Hz
Standard Metal Halide
Input Volts
120
208
240
277
CWA
Wiring Diagram
CWA
Circuit Type
> 90%
Power Factor
Regulation
Line Volts
± 10 %
Lamp Watts
- 10 %
+ 10 %
Line Current (Amps)
Operating
13.5
7.8
6.8
5.9
Open Circuit
3.7
2.1
1.8
1.6
Starting
12.1
7.0
6.1
5.3
30
25
20
15
Recommended Fuse
UL Temperature Ratings
Insulation Class
H (180°C)
Coil Temperature Code
G
G
G
G
Benchtop Coil Rise Primary
<105
<105
<105
<105
Benchtop Coil Rise Secondary
<105
<105
<105
<105
1632
1632
1632
1632
60
104
120
139
min
2.7
1.1
1.0
0.9
max
4.8
3.1
3.1
2.9
min
11.0
6.0
5.0
4.3
max
13.0
8.0
7.0
6.3
Input Watts
455
1.6
NOM Open Circuit Volts
Current Crest Factor
Input Voltage at Lamp Dropout
Min Ambient Starting Temp. -20°F -30°C
High Potential Test (Volts)
1 Minute
2000
1 Second
2400
Open Circuit Voltage Test (Volts)
380 - 460
Open Circuit Voltage
Input Current
Short Circuit Current Test (Amps)
Secondary Current
7.2 Input Current
Core and Coil Specifications
Dimension A"
Dimension B"
9.3
4.75
7.1
Weight (lbs.)
28
Lead Lengths (in)
12
Capacitor Specifications
Microfarads
32
Volts (min.)
525
Case Size (in.)
Height ( in.)
Oval OIL Filled
1.75
DRY Film
5.3
Temp Rating °C 90 (100 max)
Starter Specifications
Model Number
NONE
BTL
Temp Rating °C
Rev. Date: 9/28/2010
1093-910336-102
Test Ref.:
Verification
Specifications subject to change without notice.
Howard Industries, Inc.
Ballast Products Division P.O. Box 1590
Laurel, MS 39441
Phone: 1-800-956-3456
Fax: (601) 422-1652
www.Howard-Lighting.com
