Intermatic Timers Brochure
O
ION
IGHTING •
L
L
A
ION
ENERGY
CON
TR
SL •
P
E
G
R
SU
CT
ROTE

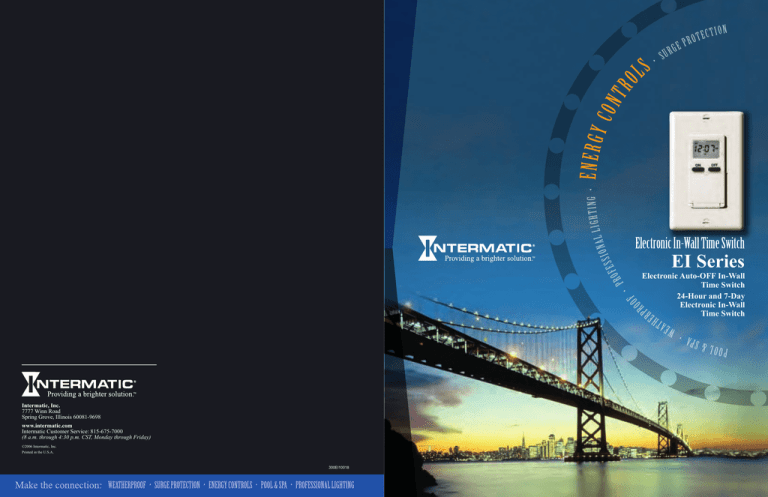

Electronic In-Wall Time Switch
Electronic Auto-OFF In-Wall
Time Switch
24-Hour and 7-Day
Electronic In-Wall
Time Switch
OO
F
•
FE
O
R
P
SS
EI Series
•
WEATHERPROOF • SURGE PROTECTION • ENERGY CONTROLS • POOL & SPA • PROFESSIONAL LIGHTING
P
O
O
L
&
S PA
300EI10018
H
©2006 Intermatic, Inc.
Printed in the U.S.A.
WE
AT
R
www.intermatic.com
Intermatic Customer Service: 815-675-7000
(8 a.m. through 4:30 p.m. CST, Monday through Friday)
ER
P
Intermatic, Inc.
7777 Winn Road
Spring Grove, Illinois 60081-9698
EI
Series
Electronic In-Wall Time Switches
EI15MH – Electronic Auto-OFF Time Switch
Time Switches
EI400 Series – 24-Hour Electronic Time Switch
EI400 Series Switch Rating:
• Resistive (heater): 20 Amp, 120-277 VAC
1800 Watts
• Tungsten (incandescent): 15 Amp,
120 VAC; 6 Amp, 208-277 VAC
• Ballast (Fluorescent): 16 Amp,
120-277 VAC
• Motor: 1 H.P., 120 VAC; 2 H.P., 240 VAC
• DC Loads: 12 VDC, 2 Amp; 28 VDC, 4 Amp
Caution: Do not use for sunlamps, sauna, etc...
EI15MH Series Switch Rating:
• 40-500 Watts, 120 VAC, 60 Hz.
• P-type magnetic ballast fluorescent
• Power Consumption 0.6 Watts
• No Neutral Required
Caution: Do not use for sunlamps, sauna, etc...
Energy Controls
PRODUCT FEATURES
• All models automatically switch loads with
to-the-minute accuracy.
• EI200 Series and EI400 Series effectively replace
multiple spring wound timer models, freeing up shelf
space and providing more specification flexibility.
• EI600 Series and EJ500 Series provide astronomic
programming (sunset ON and sunrise OFF settings) to
eliminate the need for additional control devices.
• Astronomic programming can be combined with
independent programs to provide sunset ON and timed
OFF settings
APPLICATIONS
• Schools
• Offices
• Airports
• Stores
• Hotels
• Restaurants
• Parks
• Apartments
FOR CONTROLLING
• Indoor Lighting
• Outdoor Lighting
• Pumps & Fans
• HID Lighting
• Library Lights
• Classroom Lights
• Fluorescent Lighting
• PAR Lights
• Heaters
• Recreational Vehicles
• Air Conditioners
• Porch Lights
• Carriage Lights
This energy saving timer is designed to replace any standard wall
switch, single or mulit-gang, and automatically limit the ON time of
incandescent or fluorescent lighting loads. This compact solid-state
design with silent operation provides 2-way operation – immediate
switch OFF or a time-delayed OFF after 15 minutes. To restart timer,
simply switch to OFF for one second then move toggle switch back to
TIMER position. A blocking plate is supplied with the timer and may
be used to eliminate ON mode for a timed ON use only.
Model#
EI15MH
Switch
Single-Pole
Color
Ivory
EI200 Series – Electronic Auto-OFF Time Switch
EI200 Series Switch Rating:
• Resistive (heater): 15 Amp, 120 VAC
1800 Watts
• Tungsten (incandescent): 8.3 Amp,
120 VAC 1000 Watts
• Ballast (Fluorescent): 8 Amp, 120 VAC
• Motor: 1/4 H.P., 120 VAC
Caution: Do not use for sunlamps, sauna, etc...
SPECIFICATIONS
Switch: Single-Pole or 3-Way (Multi-Way) Compatable
Special Voltages and Cycles: 50 or 60 Hz.
Operating Ambient Temperature Range: 32˚F (0˚C) to
104˚F (40˚C)
Shipping Weight: 0.5 lbs. (0.23 kg)
Agency Approval:
or
This easy to program timer provides up to 40 ON/OFF
operations which can be used for 24-hour or 7-day load control.
The astronomic feature provides sunset ON and sunrise OFF
settings and the auto daylight savings adjustment. A factory
supplied CR2 lithium battery provides up to three years of time
keeping without AC power and user program selections are
stored in non-volatile memory. The timer has an isolated single
pole single throw switch which allows the timer to switch any
load type, including PAR lamps and motor loads from 12 to 277
volts AC or 12 to 28 volts DC, within the specified ratings. A
unique “3 wire” design allows the timer to replace, or be used as
a single-pole or 3-way (multi-way) switch.
Model#
EI400C
EI400WC
EI400LAC
Model#
EI600C
EI600WC
EI600LAC
CEC Title 24 (on select models)
Time Range
5/10/15/30 Minute
5/10/15/30 Minute
5/10/15/30 Minute
5/10/15/30/45 Minute
5/10/15/30/45 Minute
5/10/15/30/45 Minute
10/20/30/60 Minute
10/20/30/60 Minute
10/20/30/60 Minute
15/30 Minute or 1/2/4 Hour
15/30 Minute or 1/2/4 Hour
15/30 Minute or 1/2/4 Hour
1/2/4/8 Hour
1/2/4/8 Hour
1/2/4/8 Hour
2/4/8/12 Hour
2/4/8/12 Hour
2/4/8/12 Hour
Color
Ivory
White
Light Almond
Ivory
White
Light Almond
Ivory
White
Light Almond
Ivory
White
Light Almond
Ivory
White
Light Almond
Ivory
White
Light Almond
Hold
Yes
Yes
Yes
No
No
No
Yes
Yes
Yes
No
No
No
Yes
Yes
Yes
Yes
Yes
Yes
Switch
Single-Pole / 3-Way
Single-Pole / 3-Way
Single-Pole / 3-Way
Color
Ivory
White
Light Almond
EI500 Series – 7-Day Electronic Time Switch
The EI500 series compact 7-day timers provides up to 7-ON and
7-OFF operations which can be used for 24-hour or 7-day load
control of lights, fans, pumps, and other medium-duty loads for
energy savings, security, and convenience. Its compact, quiet,
low profile design is easy to program for to-the-minute 24-hour
or 7-day control. In addition, the display continuously shows
time of day, day of the week, timer load and the load status.
Available in three colors white, ivory, and light almond.
Replaces single-pole switches
in a variety of applications.
Model#
EI500C
EI500WC
EI500LAC
Switch
Single-Pole
Single-Pole
Single-Pole
Color
Ivory
White
Light Almond
Switch
Single-Pole / 3-Way
Single-Pole / 3-Way
Single-Pole / 3-Way
Color
Ivory
White
Light Almond
EJ500 Series – 7-Day Electronic Astronomic Time Switch
EJ500 Series Switch Rating:
• Tungsten (incandescent): 40-500 Watts,
120 VAC, 60 HZ.
• Ballast (Fluorescent): P-type magnetic
ballast
• No Neutral Required
Caution: Do not use for sunlamps, sauna, etc...
EI500 Series Switch Rating:
• Resistive (heater): 15 Amp, 120 VAC
1800 Watts
• Tungsten (incandescent): 8.3 Amp,
120 VAC 1000 Watts
• Ballast (Fluorescent): 8 Amp, 120 VAC
• Motor: 1/4 H.P., 120 VAC;
Caution: Do not use for sunlamps, sauna, etc...
The EI200 series timers provide silent operation in time ranges from 5
minutes up to 12 hours. Six basic models available in three colors
reduce the need to stock as many timers, freeing up shelf space and
providing more specification flexibility. HOLD feature on select
models turns the load ON until manually turned OFF. Replaces
single-pole switches in a variety of applications.
Model#
EI200
EI200W
EI200LA
EI205
EI205W
EI205LA
EI210
EI210W
EI210LA
EI215
EI215W
EI215LA
EI220
EI220W
EI220LA
EI230
EI230W
EI230LA
EI600 Series Switch Rating:
• Resistive (heater): 20 Amp, 120-277 VAC,
1800 Watts
• Tungsten (incandescent): 15 Amp, 120 VAC;
6 Amp, 208-277 VAC
• Ballast (Fluorescent): 16 Amp, 120-277 VAC
• Motor: 1 H.P., 120 VAC; 2 HP, 240 VAC
• DC Loads:12 VDC, 2 Amp; 28 VDC, 4 Amp
Caution: Do not use for sunlamps, sauna, etc...
The EI400 series effectively replaces 16 different spring-wound
models, freeing up additional shelf space, providing more
specification flexibility, ease of installation and absolutely silent
operation. A factory supplied CR2 lithium battery provides up to three
years of operation and user program selection is stored in non-volatile
memory. A low battery indicator appears in the display when the
battery requires replacement. A field selectable warning feature
provides an audible and/or visual signal that the load is about to switch
off. Functions to control all voltages and frequencies (within the
contact ratings) with no adjustments required. Provides “true” 3-way
control allowing the load interval to be started and stopped using a
standard mechanical switch.
Style: Decorator styling, except EI15MH
Variety of colors including: White, Ivory, Almond and
Light Almond
EI600 Series – 7-Day Electronic Astronomic Time Switch
The EJ500 Series 7-day timers provide up to 6-ON and 6-OFF
operations per week, which can be used for 24-hour or 7-day
control of incandescent and fluorescent lighting for energy
savings, security and convenience. The astronomic feature
provides sunset ON and sunset OFF settings. Two factory
supplied batteries provide up to 3 years of time keeping. The
timer is compact, quite, low profile design is easy to program for
to-the-minute 24-hour and 7-day control. Optional random
feature deters burglars by giving your home a “lived-in” look.
Model#
EJ500C
EJ500AC
Switch
Single-Pole / 3-Way
Single-Pole / 3-Way
Color
White
Almond
EI
Series
Electronic In-Wall Time Switches
EI15MH – Electronic Auto-OFF Time Switch
Time Switches
EI400 Series – 24-Hour Electronic Time Switch
EI400 Series Switch Rating:
• Resistive (heater): 20 Amp, 120-277 VAC
1800 Watts
• Tungsten (incandescent): 15 Amp,
120 VAC; 6 Amp, 208-277 VAC
• Ballast (Fluorescent): 16 Amp,
120-277 VAC
• Motor: 1 H.P., 120 VAC; 2 H.P., 240 VAC
• DC Loads: 12 VDC, 2 Amp; 28 VDC, 4 Amp
Caution: Do not use for sunlamps, sauna, etc...
EI15MH Series Switch Rating:
• 40-500 Watts, 120 VAC, 60 Hz.
• P-type magnetic ballast fluorescent
• Power Consumption 0.6 Watts
• No Neutral Required
Caution: Do not use for sunlamps, sauna, etc...
Energy Controls
PRODUCT FEATURES
• All models automatically switch loads with
to-the-minute accuracy.
• EI200 Series and EI400 Series effectively replace
multiple spring wound timer models, freeing up shelf
space and providing more specification flexibility.
• EI600 Series and EJ500 Series provide astronomic
programming (sunset ON and sunrise OFF settings) to
eliminate the need for additional control devices.
• Astronomic programming can be combined with
independent programs to provide sunset ON and timed
OFF settings
APPLICATIONS
• Schools
• Offices
• Airports
• Stores
• Hotels
• Restaurants
• Parks
• Apartments
FOR CONTROLLING
• Indoor Lighting
• Outdoor Lighting
• Pumps & Fans
• HID Lighting
• Library Lights
• Classroom Lights
• Fluorescent Lighting
• PAR Lights
• Heaters
• Recreational Vehicles
• Air Conditioners
• Porch Lights
• Carriage Lights
This energy saving timer is designed to replace any standard wall
switch, single or mulit-gang, and automatically limit the ON time of
incandescent or fluorescent lighting loads. This compact solid-state
design with silent operation provides 2-way operation – immediate
switch OFF or a time-delayed OFF after 15 minutes. To restart timer,
simply switch to OFF for one second then move toggle switch back to
TIMER position. A blocking plate is supplied with the timer and may
be used to eliminate ON mode for a timed ON use only.
Model#
EI15MH
Switch
Single-Pole
Color
Ivory
EI200 Series – Electronic Auto-OFF Time Switch
EI200 Series Switch Rating:
• Resistive (heater): 15 Amp, 120 VAC
1800 Watts
• Tungsten (incandescent): 8.3 Amp,
120 VAC 1000 Watts
• Ballast (Fluorescent): 8 Amp, 120 VAC
• Motor: 1/4 H.P., 120 VAC
Caution: Do not use for sunlamps, sauna, etc...
SPECIFICATIONS
Switch: Single-Pole or 3-Way (Multi-Way) Compatable
Special Voltages and Cycles: 50 or 60 Hz.
Operating Ambient Temperature Range: 32˚F (0˚C) to
104˚F (40˚C)
Shipping Weight: 0.5 lbs. (0.23 kg)
Agency Approval:
or
This easy to program timer provides up to 40 ON/OFF
operations which can be used for 24-hour or 7-day load control.
The astronomic feature provides sunset ON and sunrise OFF
settings and the auto daylight savings adjustment. A factory
supplied CR2 lithium battery provides up to three years of time
keeping without AC power and user program selections are
stored in non-volatile memory. The timer has an isolated single
pole single throw switch which allows the timer to switch any
load type, including PAR lamps and motor loads from 12 to 277
volts AC or 12 to 28 volts DC, within the specified ratings. A
unique “3 wire” design allows the timer to replace, or be used as
a single-pole or 3-way (multi-way) switch.
Model#
EI400C
EI400WC
EI400LAC
Model#
EI600C
EI600WC
EI600LAC
CEC Title 24 (on select models)
Time Range
5/10/15/30 Minute
5/10/15/30 Minute
5/10/15/30 Minute
5/10/15/30/45 Minute
5/10/15/30/45 Minute
5/10/15/30/45 Minute
10/20/30/60 Minute
10/20/30/60 Minute
10/20/30/60 Minute
15/30 Minute or 1/2/4 Hour
15/30 Minute or 1/2/4 Hour
15/30 Minute or 1/2/4 Hour
1/2/4/8 Hour
1/2/4/8 Hour
1/2/4/8 Hour
2/4/8/12 Hour
2/4/8/12 Hour
2/4/8/12 Hour
Color
Ivory
White
Light Almond
Ivory
White
Light Almond
Ivory
White
Light Almond
Ivory
White
Light Almond
Ivory
White
Light Almond
Ivory
White
Light Almond
Hold
Yes
Yes
Yes
No
No
No
Yes
Yes
Yes
No
No
No
Yes
Yes
Yes
Yes
Yes
Yes
Switch
Single-Pole / 3-Way
Single-Pole / 3-Way
Single-Pole / 3-Way
Color
Ivory
White
Light Almond
EI500 Series – 7-Day Electronic Time Switch
The EI500 series compact 7-day timers provides up to 7-ON and
7-OFF operations which can be used for 24-hour or 7-day load
control of lights, fans, pumps, and other medium-duty loads for
energy savings, security, and convenience. Its compact, quiet,
low profile design is easy to program for to-the-minute 24-hour
or 7-day control. In addition, the display continuously shows
time of day, day of the week, timer load and the load status.
Available in three colors white, ivory, and light almond.
Replaces single-pole switches
in a variety of applications.
Model#
EI500C
EI500WC
EI500LAC
Switch
Single-Pole
Single-Pole
Single-Pole
Color
Ivory
White
Light Almond
Switch
Single-Pole / 3-Way
Single-Pole / 3-Way
Single-Pole / 3-Way
Color
Ivory
White
Light Almond
EJ500 Series – 7-Day Electronic Astronomic Time Switch
EJ500 Series Switch Rating:
• Tungsten (incandescent): 40-500 Watts,
120 VAC, 60 HZ.
• Ballast (Fluorescent): P-type magnetic
ballast
• No Neutral Required
Caution: Do not use for sunlamps, sauna, etc...
EI500 Series Switch Rating:
• Resistive (heater): 15 Amp, 120 VAC
1800 Watts
• Tungsten (incandescent): 8.3 Amp,
120 VAC 1000 Watts
• Ballast (Fluorescent): 8 Amp, 120 VAC
• Motor: 1/4 H.P., 120 VAC;
Caution: Do not use for sunlamps, sauna, etc...
The EI200 series timers provide silent operation in time ranges from 5
minutes up to 12 hours. Six basic models available in three colors
reduce the need to stock as many timers, freeing up shelf space and
providing more specification flexibility. HOLD feature on select
models turns the load ON until manually turned OFF. Replaces
single-pole switches in a variety of applications.
Model#
EI200
EI200W
EI200LA
EI205
EI205W
EI205LA
EI210
EI210W
EI210LA
EI215
EI215W
EI215LA
EI220
EI220W
EI220LA
EI230
EI230W
EI230LA
EI600 Series Switch Rating:
• Resistive (heater): 20 Amp, 120-277 VAC,
1800 Watts
• Tungsten (incandescent): 15 Amp, 120 VAC;
6 Amp, 208-277 VAC
• Ballast (Fluorescent): 16 Amp, 120-277 VAC
• Motor: 1 H.P., 120 VAC; 2 HP, 240 VAC
• DC Loads:12 VDC, 2 Amp; 28 VDC, 4 Amp
Caution: Do not use for sunlamps, sauna, etc...
The EI400 series effectively replaces 16 different spring-wound
models, freeing up additional shelf space, providing more
specification flexibility, ease of installation and absolutely silent
operation. A factory supplied CR2 lithium battery provides up to three
years of operation and user program selection is stored in non-volatile
memory. A low battery indicator appears in the display when the
battery requires replacement. A field selectable warning feature
provides an audible and/or visual signal that the load is about to switch
off. Functions to control all voltages and frequencies (within the
contact ratings) with no adjustments required. Provides “true” 3-way
control allowing the load interval to be started and stopped using a
standard mechanical switch.
Style: Decorator styling, except EI15MH
Variety of colors including: White, Ivory, Almond and
Light Almond
EI600 Series – 7-Day Electronic Astronomic Time Switch
The EJ500 Series 7-day timers provide up to 6-ON and 6-OFF
operations per week, which can be used for 24-hour or 7-day
control of incandescent and fluorescent lighting for energy
savings, security and convenience. The astronomic feature
provides sunset ON and sunset OFF settings. Two factory
supplied batteries provide up to 3 years of time keeping. The
timer is compact, quite, low profile design is easy to program for
to-the-minute 24-hour and 7-day control. Optional random
feature deters burglars by giving your home a “lived-in” look.
Model#
EJ500C
EJ500AC
Switch
Single-Pole / 3-Way
Single-Pole / 3-Way
Color
White
Almond
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
