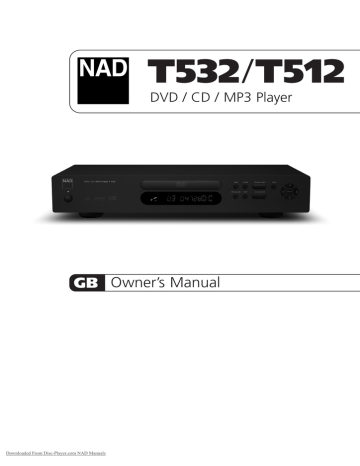

T532/T512
DVD / CD / MP3 Player
GB Owner’s Manual
Downloaded From Disc-Player.com NAD Manuals
Introduction
SAFETY PRECAUTIONS
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE
CAUTION
THIS DVD RECEIVER EMPLOYS A LASER SYSTEM.
TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS OWNER’S MANUAL CAREFULLY AND
RETAIN FOR FUTURE REFERENCE, SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN
AUTHORIZED SERVICE LOCATION-SEE SERVICE PROCEDURE.
USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE. VISIBLE LASER
RADIATION WHEN OPEN THE ENCLOSURE. DO NOT STARE INTO BEAM.
THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED
WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.
WARNING : CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE
PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
RECORD YOUR MODEL NUMBER (NOW, WHILE YOU CAN SEE IT)
The model and serial number of your new DVD player are located on the back of the DVD player cabinet.
For your future convenience, we suggest that you record these numbers here:
MODEL NO. ____________________________
SERIAL NO. ____________________________
This product is manufactured to comply with the radio interference requirements of EEC DIRECTIVE
89/336/EEC, 93/68/EEC and 73/23/EEC.
GB
2
Downloaded From Disc-Player.com NAD Manuals
Introduction
TABLE OF CONTENTS
INTRODUCTION
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Identification of Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Front Panel/Display window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Preparing the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Operating with the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
CONNECTIONS
Connecting to Surround Sound System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-11
Enjoying Dolby Digital Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Enjoying Dolby Pro Logic Surround Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Enjoying 2 Channel Digital Stereo Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Enjoying DTS Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Connecting to an Stereo System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Connecting to a TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
INITIAL SETTINGS
Selection of initial settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Selecting disc Languages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Selecting rating level and password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-17
Selecting Country Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Selecting TV Aspect. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Selecting Menu Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Selecting Digital Audio Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Table of Languages and Their Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Table of Country Codes and Their Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
BASIC OPERATIONS
Basic Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-24
Special Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-26
Still Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Frame Advance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Skipping chapters and tracks forward or back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Scanning at High Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Playing in Slow-Motion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
OPERATION USING (GRAPHICAL USER INTERFACE) MENU ICONS
General Information about GUI menu icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Detailed description of each GUI menu icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
ADVANCED OPERATION
Using a title menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Using a DVD menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Memorizing Settings for Viewed DVDs (Last Condition Memory) . . . . . . . . . . . . . . . . . . . . . 30
Changing subtitle language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Changing audio soundtrack language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Viewing from another angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Producing a 3D Surround effect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Storing markers in memory to be viewed (listened to) again . . . . . . . . . . . . . . . . . . . . . . . . 34
Zoom Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Random Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Program Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Playback with MP3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37-38
REFERENCE
Disc Requirements/Copyright Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Before Calling Service Personnel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
GB
3
Downloaded From Disc-Player.com NAD Manuals
Introduction
IDENTIFICATION OF CONTROLS
FRONT PANEL
MENU button
SKIP buttons
POWER button and indicator
ARROW buttons
PAUSE button
Disc tray
PLAY button
Remote sensor
Display window
OPEN / CLOSE button
SELECT / ENTER
button
STOP button
SCAN buttons
DISPLAY WINDOW
PROGRAM indicator
DVD indicator
RANDOM indicator
CD indicator
Repeat playback mode
indicators
MP3 indicator
GB
Operating status indicator
Total playing time /
elapsed time indicators
Chapter/Track number indicator
Angle icon indicator
Title number indicator
4
Downloaded From Disc-Player.com NAD Manuals
Introduction
IDENTIFICATION OF CONTROLS
REAR PANEL
COAXIAL DIGITAL AUDIO OUT jack
AUDIO OUT (L/R) jacks
TO TV (SCART) jack
12 V TRIGGER IN (T532 only)
By connecting this DVD player to another NAD
audio component or system controller equipped
with a 12V trigger output, you can remotely operate
the T532 power ON/OFF.
TV SYSTEM SELECT Switch
Refer to explanation below
VIDEO OUT jack
OPTICAL DIGITAL AUDIO OUT jack
Remove the dust protection cap from the connector and
connect the optical digital cable (not supplied) firmly so
that the configurations of both the cable and the
connector match.
S-VIDEO OUT jack
VIDEO OUTPUT SELECT Switch
POWER CORD
Connect to an AC 110-240V, 50/60Hz outlet only.
GB
TV SYSTEM SELECT
You can enjoy NTSC or PAL discs by using your TV SYSTEM SELECT switch to choose the appropriate system.
If you try to play back PAL disc with NTSC-TV. The player will not playback the disc.
When the selected TV SYSTEM SELECT switch does not coincide with the system of your TV, normal colour picture may not be displayed.
Select the TV SYSTEM SELECT switch when the power is turned off.
When you playback NTSC disc with PAL-TV, some discs may produce black bands at the top and bottom of the screen.
Position of TV SYSTEM SELECT switch
PAL
NTSC
AUTO
Connected TV
PAL
NTSC
MULTI SYSTEM TV
Available disc
NTSC/PAL DVD disc
NTSC DVD disc
NTSC/PAL DVD disc
5
Downloaded From Disc-Player.com NAD Manuals
Introduction
IDENTIFICATION OF CONTROLS
REMOTE CONTROL
You will find instructions for each of the remote control function in the appropriate sections of this instruction manual
POWER button
OPEN/CLOSE button
REPEAT button
A-B button
POWER
OPEN/CLOSE
RANDOM button
SETUP button
SETUP
REPEAT
A-B
RANDOM
AUDIO
SUBTITLE
ANGLE
SOUND
SUBTITLE button
ANGLE button
SOUND button
AUDIO button
TITLE
MENU
* MENU button
*** TITLE button
** ARROW buttons
SELECT/ENTER button
SELECT
ENTER
DISPLAY button
RETURN button
DISPLAY
RETURN
ZOOM button
MARKER-SEARCH button
ZOOM
MARKER – SEARCH
PLAY button
FWD/REV SCAN button
SCAN
PLAY
SKIP
FWD/REV SKIP button
STOP button
STOP
PAUSE/SETUP button
PAUSE/STEP
SLOW
SLOW button
PROGRAM button
1
2
3
4
5
6
7
8
Number buttons
CLEAR button
GB
CLEAR
9
PROGRAM
0
*MENU BUTTON
Use the MENU button to display the menu
screen included on DVD video discs. To operate
a menu screen, follow the instructions in Using
a DVD Menu (page 29).
6
Downloaded From Disc-Player.com NAD Manuals
** DIRECTIONAL ARROW BUTTONS
(up, down, left, right) for use in high-lighting a
selection on a GUI menu screen, TITLE and
MENU screen.
***TITLE BUTTON
Use the TITLE button to display the title screen
included on DVD video discs. To operate a
menu screen, follow the instructions in Using a
Title Menu (page 29).
Introduction
IDENTIFICATION OF CONTROLS
PREPARING THE REMOTE CONTROL
Insert the batteries into the remote control so you can use it to operate the DVD player.
1 Open the battery cover
2 Insert batteries (AAA size)
• Make sure to match the + and - on the batteries to the marks inside the battery compartment.
3 Close the cover
NOTES ON BATTERIES
• Improper use of batteries may cause battery leakage and corrosion.
• To operate the remote control correctly, follow the instructions.
• Do not insert the batteries into the remote control in the wrong direction.
• Do not charge, heat, open, or short-circuit the batteries.
• Do not throw the batteries into fire.
• Do not leave dead or exhausted batteries in the remote control.
• Do not use different types of batteries together, or mix old and new batteries.
• If you do not use the remote control for a long period of time, remove the batteries to avoid possible
damage from battery corrosion.
• If the remote control does not function correctly or if the operating range becomes reduced, replace
all batteries with new ones.
• If battery leakage occurs, wipe the battery liquid from the battery compartment, then insert new batteries.
• The batteries should last about one year with normal use.
OPERATING WITH THE REMOTE CONTROL
This section shows you how to use the remote control.
Point the remote control at the remote control sensor and press the buttons.
GB
30° 30°
23 ft (7m)
POWER
OPEN/CLOSE
SETUP
REPEAT
A-B
RANDOM
AUDIO
SUBTITLE
ANGLE
SOUND
TITLE
MENU
SELECT
ENTER
Distance: About 23 ft (7 m) from the front of the remote sensor
Angle:
About 30 in each direction of the front of the remote sensor
• Do not expose the remote sensor of the DVD player to a strong light source such as direct sunlight or
illumination. If you do so, you may not be able to operate the DVD player with the remote control.
NOTES ON THE REMOTE CONTROL
• Point the remote control at the remote sensor on the DVD player.
• Do not drop or give the remote control a shock.
• Do not leave the remote control near an extremely hot or humid place.
• Do not spill water or put anything wet on the remote control.
• Do not disassemble the remote control.
7
Downloaded From Disc-Player.com NAD Manuals
Introduction
NOTES ON DISCS
This section shows you how to handle, clean and store discs.
ON HANDLING DISCS
• Do not touch the playback side of the disc.
• Do not attach paper or tape to discs.
ON CLEANING DISCS
• Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre
outward with a soft cloth. Always keep the disc clean.
• If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft
cloth and finish with a dry cloth.
• Do not use any type of solvents such as thinner, benzine, commercially available cleaners or anti-static
spray for vinyl LPs. They may damage the disc.
ON STORING DISCS
• Do not store discs in a place subject to direct sunlight or near heat sources.
• Do not store discs in places subject to moisture and dust such as a bathroom or near a humidifier.
• Store discs vertically in a case. Stacking or placing objects on discs outside of their case may cause
warping.
ABOUT THIS OWNER’S MANUAL
This owner’s manual explains the basic instructions of this DVD player.
Some DVD video discs have functions that may not be explained in this owner’s manual. Therefore, some
instructions may differ from this owner’s manual, and there may be extra instructions. In this case, follow
the instructions displayed on the TV screen or package.
may appear on the TV screen during operation. This icon means the function explained in this
owner’s manual is not available on that specific DVD video disc.
GB
8
Downloaded From Disc-Player.com NAD Manuals
Connections
CONNECTING TO THE SURROUND SOUND SYSTEM
ENJOYING DOLBY DIGITAL SOUND
You can enjoy the high quality dynamic sound of Dolby Digital, Dolby Pro Logic and 2 Channel Digital Stereo.
DOLBY DIGITAL
Dolby Digital is the surround sound technology used in theatres showing the latest movies, and is now available to reproduce this realistic effect in the
home. You can enjoy motion picture and live concert DVD video discs by connecting the DVD player to a 5.1 channel receiver equipped with a Dolby
Digital decoder or Dolby Digital processor.
DIGITAL
OUT
AUDIO
OUT
COAXIAL
L
DIGITAL
OUT
S-VIDEO
R
TO TV
COMPONENT
AUTO
PAL
VIDEO
OUTPUT
OPTICAL
NTSC
To S-VIDEO OUT or VIDEO OUT
To DIGITAL OUT
(COAXIAL OR OPTICAL)
75 ohm coaxial cable or
optical cable
To enjoy Dolby Digital sound
from this DVD player you
need the following:
• DVD recorded in Dolby Digital
5.1
• 5.1 channel receiver equipped
with a Dolby Digital decoder,
or Dolby Digital processor and
power amplifier
• 5 speakers and 1 sub woofer
VIDEO
OUT
S-VIDEO
OUT
S-Video cable or Video cable
To digital audio
input.
Connection example
Receiver equipped
with a Dolby
Digital decoder.
To S-video input or
Video input
Front speaker
(left)
Front speaker
(right)
Centre
speaker
GB
To enjoy Dolby Digital sound
You need to select Dolby Digital on
the SETUP menu
Subwoofer
Rear speaker
(left surround)
Rear Speaker
(right surround)
NOTES
• Refer to the owner’s manual of your audio equipment as well.
• When you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before
making any connections.
• The output sound of the DVD player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level. Otherwise, the
speakers may be damaged by a sudden high volume sound.
• Turn off the receiver before you connect or disconnect the DVD player’s power cord. If you leave the receiver power on, the speakers may be
damaged.
Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished works. Copyright 1992-1997 Dolby
Laboratories. All rights reserved.
9
Downloaded From Disc-Player.com NAD Manuals
Connections
CONNECTING TO THE SURROUND SOUND SYSTEM
ENJOYING DOLBY PRO LOGIC SURROUND SOUND
If your A/V receiver has a Dolby Pro Logic decoder, refer to the following connection diagram.
DIGITAL
OUT
AUDIO
OUT
COAXIAL
L
S-VIDEO
OUT
VIDEO
OUT
Connect one or two rear speakers.
Note: The surround effect is greatly enhanced by
using two surround speakers
DIGITAL
OUT
S-VIDEO
R
TO TV
COMPONENT
AUTO
PAL
VIDEO
OUTPUT
OPTICAL
NTSC
To VIDEO OUT
To AUDIO OUT
Video cable
Audio cable
To audio input
Connection example
Receiver equipped with
Dolby Pro Logic Surround
To video input
Front Speaker (left)
Front speaker
(right)
Centre speaker
GB
TV
TV
Rear speaker (left)
Rear speaker (right)
WITH A RECEIVER EQUIPPED WITH DOLBY DIGITAL
Connect the equipment the same way as described in Enjoying Dolby Digital Sound on page 9. Refer to that receiver’s owner’s manual and set the
receiver so you can enjoy Dolby Pro Logic Surround sound.
WARNING
Do not set the Digital Audio Output of this DVD player to Dolby Digital unless you are connecting the DIGITAL OUT jack of this DVD player to an AV
decoder that has the Dolby Digital decoding function. High volume sound may damage your hearing as well as the speakers (Refer to Selecting Digital
Audio Output on page 20).
10
Downloaded From Disc-Player.com NAD Manuals
Connections
CONNECTING TO THE SURROUND SOUND SYSTEM
ENJOYING 2 CHANNEL DIGITAL STEREO SOUND
You can enjoy the dynamic sound of 2 Channel Digital Stereo by connecting this DVD player to a receiver equipped with a digital audio input and
speaker system (right and left front speakers).
Connection example
75 ohm coaxial cable or optical cable
To DIGITAL OUT
(COAXIAL or OPTICAL)
To S-VIDEO OUT
or VIDEO OUT
DIGITAL
OUT
AUDIO
OUT
COAXIAL
L
S-VIDEO
OUT
VIDEO
OUT
S-Video cable
or Video cable
Receiver equipped with a digital
audio input.
To digital audio input
To S-video input
or Video input
Front speaker
(left)
Front speaker
(right)
TV
TV
DIGITAL
OUT
S-VIDEO
R
TO TV
COMPONENT
AUTO
PAL
VIDEO
OUTPUT
OPTICAL
NTSC
ENJOYING DTS SOUND
Your A/V Receiver or processor must be equipped with a DTS Decoder
The digital output (see selecting digital output page 20) must be set to “stream”.
The disc must have a DTS soundtrack
Connection example
Receiver equipped with a DTS
decoder.
75 ohm coaxial cable or optical cable
To S-video input
or Video input
To S-VIDEO OUT
or VIDEO OUT
To DIGITAL OUT
(COAXIAL or OPTICAL)
DIGITAL
OUT
COAXIAL
S-Video cable or
Video cable
COMPONENT
AUTO
NTSC
OPTICAL
VIDEO
OUTPUT
S-VIDEO
OUT
Centre
speaker
Front speaker
(right)
GB
Sub woofer
L
R
TO TV
PAL
Front
speaker (left)
AUDIO
OUT
DIGITAL
OUT
S-VIDEO
To digital audio input
VIDEO
OUT
Rear speaker
(left surround)
Rear speaker
(right surround)
NOTES
• Refer to the owner’s manual of your receiver as well.
• Before you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before
making any connections.
• The output sound of the DVD player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level. Otherwise,
the speakers may be damaged by a sudden high volume sound.
• Turn off the receiver before you connect or disconnect the DVD player’s power cord. If you leave the receiver power on, the speakers may be
damaged.
DTS and DTS Digital Out are trademarks of Digital Theater Systems Inc.
11
Downloaded From Disc-Player.com NAD Manuals
Connections
CONNECTING TO A STEREO SYSTEM
TO S-VIDEO OUT
DIGITAL
OUT
COAXIAL
S-video cable
AUDIO
OUT
L
DIGITAL
OUT
S-VIDEO
R
TO TV
COMPONENT
AUTO
PAL
VIDEO
OUTPUT
OPTICAL
NTSC
S-VIDEO
OUT
To AUDIO OUT (L/R)
If the TV has an S-video input,
connect the DVD player with the
S-video cable.
VIDEO
OUT
To VIDEO OUT
To S-video input
To video input
Video cable (supplied)
TV or monitor with
audio/visual inputs
To audio inputs of
the amplifier
Audio cable (supplied)
Audio system
GB
NOTES
• Refer to the owner’s manual of your audio system as well.
• Before you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before
making any connections.
• If you place the DVD player near a tuner or radio, the radio broadcast sound might be distorted. In this case, move the DVD player away from the
tuner and radio.
• The output sound of the DVD player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level. Otherwise,
the speakers may be damaged by a sudden high volume sound.
• Turn off the receiver before you connect or disconnect the DVD player’s power cord. If you leave the receiver power on, the speakers may be
damaged.
WARNING
Do not set the Digital Audio Output of this DVD player to Dolby Digital unless you are connecting the DIGITAL OUT jack of this DVD player to an AV
decoder that has the Dolby Digital decoding function. High volume sound may damage your hearing as well as the speakers (Refer to Selecting Digital
Audio Output on page 20).
12
Downloaded From Disc-Player.com NAD Manuals
Connections
CONNECTING TO A TV
To SCART
21-pin SCART cable (not supplied)
VIDEO OUTPUT SELECT switch
DIGITAL
OUT
COAXIAL
AUDIO
OUT
For using SCART’s RGB signal, set the VIDEO
OUTPUT switch to COMPONENT or for using
S-VIDEO OUT jack, set the VIDEO OUTPUT
switch to S-VIDEO
L
DIGITAL
OUT
S-VIDEO
R
TO TV
COMPONENT
AUTO
PAL
NTSC
OPTICAL
VIDEO
OUTPUT
To S-VIDEO OUT
S-VIDEO
OUT
VIDEO
OUT
To AUDIO (L/R)/VIDEO OUT
Audio/Video cable (supplied)
To 21-pin SCART socket
To video input
To audio input
If the TV has an S-video input,
connect the DVD player with the
S-video cable.
To S-video input
TV or monitor with
audio/video inputs
GB
NOTES
• Refer to the owner’s manual of your TV as well.
• Before you connect the DVD player to your TV, be sure to turn off the power and unplug both units from the wall outlet before making any
connections.
• Connect the DVD player to your TV directly. If you connect the DVD player to a VCR, the playback picture will be distorted because DVD video discs
are copy protected.
• In case of the TV set corresponding to RGB signal, the RGB signal is automatically selected in the TV (Only when the VIDEO OUTPUT Switch is set
to COMPONENT on the Rear Panel).
WARNING
Do not set the Digital Audio Output of this DVD player to Dolby Digital unless you are connecting the DIGITAL OUT jack of this DVD player to an AV
decoder that has the Dolby Digital decoding function. High volume sound may damage your hearing as well as the speakers (Refer to Selecting Digital
Audio Output on page 20).
13
Downloaded From Disc-Player.com NAD Manuals
Initial Settings
SELECTION OF INITIAL SETTINGS
Once the initial settings have been completed, the player can always be
operated under the same conditions (especially with DVD discs). The
settings will be retained in the memory until they are changed, even if
the power is switched off.
SELECTION OF INITIAL SETTINGS
1 Press SETUP in the stop or playback mode. The SETUP menu is
displayed.
POWER
OPEN/CLOSE
SETUP
REPEAT
A-B
RANDOM
1
AUDIO
SUBTITLE
ANGLE
SOUND
TITLE
MENU
2,3
SELECT
ENTER
DISPLAY
Disc Audio
Original
Disc Subtitle
English
Disc Menu
French
Rating
German
Country Code
Spanish
TV Aspect
Italian
Menu Language
Chinese
Progressive Scan
Polish
Digital Audio Output
Hungarian
5.1 Speaker Setup
Russian
Others
Other — — — —
RETURN
ZOOM
MARKER – SEARCH
SCAN
PLAY
SKIP
STOP
PAUSE/STEP
1
2
3
4
5
6
7
8
CLEAR
9
PROGRAM
0
GB
SLOW
2 Press
to select the desired item. The screen will show the
current setting for the selected item, and the alternate setting(s).
Disc Audio (see page 15.)
Disc Subtitle (see page 15.)
Disc Menu (see page 15.)
Rating (see page 16.)
Country Code (see page 17.)
TV Aspect (see page 18.)
Menu Language (see page 19.)
Digital Audio Output (see page 20.)
Others (see page 21.)
3 Press
and then
to select the desired setting and
press SELECT/ENTER. Some items require additional steps. (See the
respective page.)
When the alternate setting is selected the screen returns to the Initial
Settings display.
To exit SETUP menu
Press SETUP, RETURN or PLAY.
14
Downloaded From Disc-Player.com NAD Manuals
Initial Settings
SELECTING DISC LANGUAGE
This is to select the audio soundtrack language, subtitle language and
the language used in title menus or DVD menus which will always be
used for every disc to be played back.
When you play back a DVD video disc, the DVD player automatically
displays the pre-selected subtitle language if it is included on the disc.
1 At the setup screen, press
press
to select “Disc Audio” and
POWER
Disc Audio
Original
Disc Subtitle
English
Disc Menu
French
Rating
German
Country Code
Spanish
TV Aspect
Italian
Menu Language
Chinese
Progressive Scan
Polish
Digital Audio Output
Hungarian
5.1 Speaker Setup
Russian
Others
Other — — — —
OPEN/CLOSE
SETUP
REPEAT
A-B
RANDOM
AUDIO
SUBTITLE
ANGLE
SOUND
TITLE
MENU
1,2
SELECT
ENTER
DISPLAY
RETURN
ZOOM
2 Press
to select the desired language and then press
SELECT/ENTER
MARKER – SEARCH
SCAN
PLAY
SKIP
STOP
Disc Audio
Original
Disc Subtitle
English
Disc Menu
French
Rating
German
Country Code
Spanish
TV Aspect
Italian
Menu Language
Chinese
Polish
Digital Audio Output
Hungarian
5.1 Speaker Setup
Russian
Others
Other — — — —
PAUSE/STEP
SLOW
1
2
3
4
5
6
7
8
CLEAR
9
PROGRAM
0
GB
Original : The original language of each disc will be selected.
English : The English will be Selected.
Other : Another language can be selected. You can input 4-digit
language code. (Refer to the language codes on page 22. Press
CLEAR if an incorrect language code is entered.)
The Disc Subtitle and Disc Menu are selected by the same method.
When you play back a DVD videodisc, the DVD player automatically
displays the pre-selected subtitle language if it is included on the disc.
NOTE
• If the language selected is not available on the disc, the original
language designated by each disc will be selected.
15
Downloaded From Disc-Player.com NAD Manuals
Initial Settings
SELECTING RATING LEVEL AND PASSWORD
This is to prohibit the playing of specified DVDs which are unsuitable for
children.
• Some DVD discs contain a restriction level which enables parents to
remove scenes or prevent playback of discs by children. DVD players
are equipped with a password designed to prevent children from
changing the level.
POWER
OPEN/CLOSE
SETUP
REPEAT
A-B
RANDOM
AUDIO
SUBTITLE
ANGLE
SOUND
TITLE
MENU
1,2
SELECTING RATING LEVEL (DVD ONLY)
1 At the SETUP screen, press
to select “Rating” and press
. To add a password for the first time, you will be prompted to
enter a “New” 4-digit password, press SELECT/ENTER, and then
“Verify” the same 4-digit password and press SELECT/ENTER.
Example: 1234
Do not forget your password.
SELECT
ENTER
DISPLAY
RETURN
ZOOM
MARKER – SEARCH
SCAN
PLAY
SKIP
STOP
PAUSE/STEP
2 Press
2
3
4
5
6
7
8
CLEAR
PROGRAM
0
GB
9
8
Disc Subtitle
7
Disc Menu
6
Rating
5
Country Code
4
TV Aspect
3
Menu Language
2
Progressive Scan
1
Digital Audio Output
Unlock
5.1 Speaker Setup
Change
Others Change
SLOW
1
Disc Audio
to select the desired level and press SELECT/ENTER
Disc Audio
8 Blocked
Disc Subtitle
7 Blocked
Disc Menu
6
Rating
5
Contry Code
4
TV Aspect
3
Menu Language
2
Progressive Scan
1
Digital Audio Output
Unlock
Change
Others
You cannot play DVD video discs rated higher than the level you selected
unless you cancel the parental lock function.
For example, when you select level 7, discs rated higher than level 7 are
blocked and cannot be played.
The parent lock level is equivalent to the following USA movie ratings.
Level 7: NC-17
Level 6: R
Level 4: PG 13
Level 3: PG
Level 1: G
Some titles do not match with the rating level described as above.
If you change the level and enter a password, playback of all DVDs with
ratings higher than your selection will be blocked, unless the correct
password is entered again. For example: if you change the level to 5 , the
DVD player will not play discs with ratings of 6 , 7 or 8 unless the correct
password is entered on the remote control.
16
Downloaded From Disc-Player.com NAD Manuals
Initial Settings
SELECTING RATING LEVEL AND PASSWORD
TO CHANGE/CLEAR MEMORIZED PASSWORD
1 At the SETUP screen, press
to select “Password” and
press
2 Input your password and press SELECT/ENTER
3 To change or clear your password, press
to select
“Change” and press SELECT/ENTER. To change the rating
level/password, follow the preceding steps.
POWER
Disc Audio
Disc Subtitle
OPEN/CLOSE
Password
____
SETUP
REPEAT
A-B
RANDOM
AUDIO
SUBTITLE
ANGLE
SOUND
Disc Menu
Rating
Country Code
TV Aspect
TITLE
Menu Language
MENU
Progressive Scan
Digital Audio Output
5.1 Speaker Setup
Others
1,2,3
TO CLEAR YOUR 4-DIGIT PASSWORD
If you forget your password, to clear the current password, follow the
procedure below.
SELECT
ENTER
DISPLAY
RETURN
ZOOM
MARKER – SEARCH
SCAN
At the SETUP screen
Enter 6-digit number “210499” and then press SELECT/ENTER
The 4-digit password is cleared. “P CLr” will show up in the DVD’s
florescent display as your confirmation.
SELECTING COUNTRY CODE (T532 ONLY) (DVD ONLY)
1 At the SETUP screen, press
to select “Country Code” and
press
2 Enter your password then a cursor will be shown under the
letters to be changed.
3 Press
and
to toggle through the letters for your
geographical area
PLAY
SKIP
STOP
PAUSE/STEP
SLOW
1
2
3
4
5
6
7
8
2,3
CLEAR
9
PROGRAM
0
NOTE
Refer to the Country Code table found on page 22 for the
appropriate code
GB
17
Downloaded From Disc-Player.com NAD Manuals
Initial Settings
SELECTING TV ASPECT
Select the appropriate screen type according to your TV set; conventional
size screen (4:3) or wide-screen (16:9).
1 At the SETUP screen, press
press
POWER
OPEN/CLOSE
to select “TV Aspect” and
Disc Audio
4:3 Letterbox
Disc Subtitle
4:3 Panscan
Disc Menu
16:9 Wide
Rating
SETUP
REPEAT
A-B
RANDOM
AUDIO
SUBTITLE
ANGLE
SOUND
Contry Code
TV Aspect
Menu Language
Progressive Scan
TITLE
MENU
Digital Audio Output
5.1 Speaker Setup
Others
1,2
SELECT
ENTER
DISPLAY
RETURN
ZOOM
MARKER – SEARCH
SCAN
PLAY
SKIP
2 Press
to select the desired Aspect and press
SELECT/ENTER
Disc Audio
4:3 Letterbox
Disc Subtitle
4:3 Panscan
Disc Menu
16:9 Wide
Rating
STOP
Contry Code
PAUSE/STEP
SLOW
TV Aspect
Menu Language
1
2
3
4
5
6
7
8
9
Progressive Scan
Digital Audio Output
5.1 Speaker Setup
Others
CLEAR
PROGRAM
0
GB
4 3 Letterbox : The video material not formatted in the Pan & Scan style
is played back in the letterbox style (black bands appear at top and
bottom of screen).
4 3 Panscan : Select when a conventional TV set is connected. The video
material formatted in the Pan & Scan style is played back in that style (the
left and right edges are cut off).
16 9 Wide : Select when a wide-screen TV set is connected. Played in
FULL size. (Setting the wide-screen TV to FULL mode is also necessary.)
4:3 Letterbox
Cut Off
4:3 Panscan
16:9 Wide
• Each screen shows an example when the video material for a widescreen is played. (This setting does not affect the video material for
conventional size.).
18
Downloaded From Disc-Player.com NAD Manuals
Initial Settings
SELECTING MENU LANGUAGE
Selects language for SETUP menus and displays on the TV..
1 At the SETUP screen, press
and press
to select “Menu Language”
Disc Audio
English
Disc Subtitle
Spanish
Disc Menu
French
Rating
German
Country Code
Italian
POWER
OPEN/CLOSE
TV Aspect
Menu Language
SETUP
REPEAT
A-B
RANDOM
AUDIO
SUBTITLE
ANGLE
SOUND
Progressive Scan
Digital Audio Output
5.1 Speaker Setup
TITLE
MENU
Others
2 Press
to select the desired Language and SELECT/ENTER
Disc Audio
English
Disc Subtitle
Spanish
Disc Menu
French
Rating
German
Country Code
Italian
TV Aspect
1,2
SELECT
ENTER
DISPLAY
RETURN
ZOOM
MARKER – SEARCH
SCAN
PLAY
SKIP
Menu Language
STOP
Progressive Scan
Digital Audio Output
PAUSE/STEP
SLOW
5.1 Speaker Setup
Others
1
2
3
4
5
6
7
8
CLEAR
9
PROGRAM
0
GB
19
Downloaded From Disc-Player.com NAD Manuals
Initial Settings
SELECTING DIGITAL AUDIO OUTPUT
Each DVD disc has a variety of audio output options. Set the player’s
Digital Audio Output according to the type of audio system you use.
1 At the SETUP screen, press
and press
POWER
OPEN/CLOSE
to select Digital Audio Output
Disc Audio
DOLBY
DIGITAL
Disc Subtitle
Stream/PCM
Disc Menu
PCM
/PCM
Rating
SETUP
REPEAT
A-B
RANDOM
AUDIO
SUBTITLE
ANGLE
SOUND
Contry Code
TV Aspect
Menu Language
Progressive Scan
TITLE
MENU
Digital Audio Output
5.1 Speaker Setup
Others
1,2
SELECT
ENTER
DISPLAY
2 Press
to select the desired output and press
SELECT/ENTER
RETURN
ZOOM
MARKER – SEARCH
SCAN
SKIP
PLAY
Disc Audio
DOLBY
DIGITAL
Disc Subtitle
Stream/PCM
Disc Menu
PCM
/PCM
Rating
Contry Code
STOP
TV Aspect
PAUSE/STEP
SLOW
Menu Language
Progressive Scan
1
2
3
4
5
6
7
8
Digital Audio Output
5.1 Speaker Setup
CLEAR
Others
9
DOLBY DIGITAL/PCM : Select DOLBY DIGITAL/PCM if an active digital
output is supplied to a Dolby Digital decoder, (or an amplifier or other
equipment with Dolby Digital decoder). In this mode, the T531 will
automatically switch between Dolby Digital and Stereo PCM depending
on the program encoded on the disc, with Dolby Digital given priority.
DTS is not possible with this setting.
PROGRAM
0
GB
Playback Disc
OUTPUT
Stream/PCM
Dolby Digital/PCM
PCM only
48 & 96 kHz Linear
PCM DVD
PCM
PCM
PCM
DTS DVD
DTS bit Stream
Not Output
Not Output
Dolby Digital DVD
Dolby Digital bit
Stream
Dolby Digital bit
Stream
PCM
MPEG DVD
MPEG bit Stream
PCM
PCM
Audio CD
PCM
PCM
PCM
DTS Audio CD
DTS bit Stream
DTS bit Stream
DTS bit Stream
20
Downloaded From Disc-Player.com NAD Manuals
Stream/PCM : Select Stream/PCM if an active digital output is supplied
to an amplifier or other
equipment with DTS decoder, Dolby Digital decoder and MPEG decoder.
PCM : Select PCM if an active digital output is supplied to an amplifier
or other equipment with linear PCM only (or MD recorder or DAT deck).
5.1 Surround Sound modes are not possible with this setting.
NOTES
• When you are not using the player’s digital audio output, don’t select
any of the options.
• If an active digital audio output signal is supplied to a receiver or
other equipment without a corresponding digital decoding capability,
a very loud noise may be produced which could permanently
damage the speakers.
• The DTS DVD disc sound is played back only when the DVD player is
connected to a receiver with a DTS decoder.
Initial Settings
OTHERS
The DRC and PBC settings can be changed.
1 At the SETUP screen, press
to select “Others” and press
Disc Audio
DRC On
Disc Subtitle
PBC On
POWER
Disc Menu
OPEN/CLOSE
SETUP
REPEAT
A-B
RANDOM
AUDIO
SUBTITLE
ANGLE
SOUND
Rating
Country Code
TV Aspect
TITLE
MENU
Menu Language
Digital Audio Output
5.1 Speaker Setup
SELECT
ENTER
1,2
Others
DISPLAY
2 Press
to select the desired items and press SELECT/ENTER. The setting of the selected items
are changed between On and Off.
ZOOM
SCAN
RETURN
MARKER – SEARCH
PLAY
SKIP
DRC (DYNAMIC RANGE COMPRESSION) ON/OFF
On : Select this option to turn on the Dynamic Range Compression circuitry so that the dialogue remains
clear even at low volume levels.
Off : Select this option to turn off the Dynamic Range Compression and have the soundtrack presented
exactly as it was created.
PBC ON/OFF
Set Playback Control (PBC) to On or Off
On : Video CDs with PBC are played back according to the PBC.
Off : Video CDs with PBC are played back in the same way Audio CDs.
NOTE
PBC is only available for the T532
ABOUT DRC (DYNAMIC RANGE COMPRESSION)
With the DVD format you have the opportunity to hear a programs soundtrack in the most accurate and
realistic presentation possible, thanks to the use of digital audio technology. However, in certain instances
you may wish to slightly compress the dynamic range of the audio output (the difference between the
loudest sounds and the quietest ones) so that you may listen to a movie at a lower volume without losing
dialogue intelligibility.
GB
NOTES
• The DRC function works only during playback of Dolby Digital recorded discs.
• The level of Dynamic Range Compression may differ depending on the DVD disc.
• When playing karaoke, connect appropriate audio equipment (such as an amplifier) to the DVD video
player.
21
Downloaded From Disc-Player.com NAD Manuals
Initial Settings
TABLE OF LANGUAGES AND THEIR CODES
Enter the appropriate code number for the initial settings “Audio”, “Subtitle” and/or “Menu” (see page 15)
Code
6565
6566
6570
6577
6582
6583
6588
6590
6665
6669
6671
6672
6678
6679
6682
6765
6779
6783
6789
6865
6869
6890
6976
6978
6979
6983
6984
6985
7065
7073
7074
Language
Afar
Abkhazian
Afrikaans
Ameharic
Arabic
Assamese
Aymara
Azerbaijani
Bashkir
Byelorussian
Bulgarian
Bihari
Bengali; Bangla
Tibetan
Breton
Catalan
Corsican
Czech
Welsh
Danish
German
Bhutani
Greek
English
Esperanto
Spanish
Estonian
Basque
Persian
Finnish
Fiji
Code
7079
7082
7089
7165
7168
7176
7178
7185
7265
7273
7282
7285
7289
7365
7378
7383
7384
7387
7465
7473
7487
7565
7575
7576
7577
7578
7579
7583
7585
7589
7665
Language
Faroese
French
Frisian
Irish
Scots Gaelic
Galician
Guarani
Gujarati
Hausa
Hindi
Croatian
Hungarian
Armenian
Interlingua
Indonesian
Icelandic
Italian
Hebrew
Japanese
Yiddish
Javanese
Georgian
Kazakh
Greenlandic
Cambodian
Kannada
Korean
Kashmiri
Kurdish
Kirghiz
Latin
Code
7678
7679
7684
7686
7771
7773
7775
7776
7778
7779
7782
7783
7784
7789
7865
7869
7876
7879
7982
8065
8076
8083
8084
8185
8277
8279
8285
8365
8368
8372
8373
Language
Lingala
Laothian
Lithuanian
Latvian, Lettish
Malagasy
Maori
Macedonian
Malayalam
Mongolian
Moldavian
Marathi
Malay
Maltese
Burmese
Nauru
Nepali
Dutch
Norwegian
Oriya
Panjabi
Polish
Pashto, Pushto
Portuguese
Quechua
Rhaeto-Romance
Rumanian
Russian
Sanskrit
Sindhi
Serbo-Croatian
Singhalese
Code
8375
8376
8377
8378
8379
8381
8382
8385
8386
8387
8465
8469
8471
8472
8473
8475
8476
8479
8482
8484
8487
8575
8582
8590
8673
8679
8779
8872
8979
9072
9085
Language
Slovak
Slovenian
Samoan
Shona
Somali
Albanian
Serbian
Sudanese
Swedish
Swahili
Tamil
Telugu
Tajik
Thai
Tigrinya
Turkmen
Tagalog
Tonga
Turkish
Tatar
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapük
Wolof
Xhosa
Yoruba
Chinese
Zulu
TABLE OF COUNTRY CODES
GB
AD
AE
AF
AG
AI
AL
AM
AN
AO
AQ
AR
AS
AT
AU
AW
AZ
BA
BB
BD
BE
BF
BG
BH
BI
BJ
BM
BN
BO
BR
BS
BT
BV
BW
BY
BZ
CA
CC
CF
CG
CH
CI
CK
CL
CM
CN
CO
CR
CS
CU
Andorra
United Arab Emirates
Afghanistan
Antigua and Barbuda
Anguilla
Albania
Armenia
Netherlands Antilles
Angola
Antarctica
Argentina
American Samoa
Austria
Australia
Aruba
Azerbaidjan
Bosnia-Herzegovina
Barbados
Bangladesh
Belgium
Burkina Faso
Bulgaria
Bahrain
Burundi
Benin
Bermuda
Brunei Darussalam
Bolivia
Brazil
Bahamas
Bhutan
Bouvet Island
Botswana
Belarus
Belize
Canada
Cocos (Keeling) Islands
Central African Republic
Congo
Switzerland
Ivory Coast
Cook Islands
Chile
Cameroon
China
Colombia
Costa Rica
Former Czechoslovakia
Cuba
22
Downloaded From Disc-Player.com NAD Manuals
CV
CX
CY
CZ
DE
DJ
DK
DM
DO
DZ
EC
EE
EG
EH
ER
ES
ET
FI
FJ
FK
FM
FO
FR
FX
GA
GB
GD
GE
GF
GH
GI
GL
GM
GN
GP
GQ
GR
GS S
GT
GU
GW
GY
HK
HM
HN
HR
HT
HU
ID
Cape Verde
Christmas Island
Cyprus
Czech Republic
Germany
Djibouti
Denmark
Dominica
Dominican Republic
Algeria
Ecuador
Estonia
Egypt
Western Sahara
Eritrea
Spain
Ethiopia
Finland
Fiji
Falkland Islands
Micronesia
Faroe Islands
France
France (European Territory)
Gabon
Great Britain
Grenada
Georgia
French Guyana
Ghana
Gibraltar
Greenland
Gambia
Guinea
Guadeloupe (French)
Equatorial Guinea
Greece
Georgia & S. Sandwich Isls.
Guatemala
Guam (USA)
Guinea Bissau
Guyana
Hong Kong
Heard and McDonald Isls.
Honduras
Croatia
Haiti
Hungary
Indonesia
IE
IL
IN
IO
IQ
IR
IS
IT
JM
JO
JP
KE
KG
KH
KI
KM
KN
KP
KR
KW
KY
KZ
LA
LB
LC
LI
LK
LR
LS
LT
LU
LV
LY
MA
MC
MD
MG
MH
MK
ML
MM
MN
MO
MP
MQ
MR
MS
MT
Ireland
Israel
India
British Indian Ocean
Territory
raq
Iran
Iceland
Italy
Jamaica
Jordan
Japan
Kenya
Kyrgyzstan
Cambodia
Kiribati
Comoros
Saint Kitts & Nevis Anguilla
North Korea
South Korea
Kuwait
Cayman Islands
Kazakhstan
Laos
Lebanon
Saint Lucia
Liechtenstein
Sri Lanka
Liberia
Lesotho
Lithuania
Luxembourg
Latvia
Libya
Morocco
Monaco
Moldavia
Madagascar
Marshall Islands
Macedonia
Mali
Myanmar
Mongolia
Macau
Northern Mariana Islands
Martinique (French)
Mauritania
Montserrat
Malta
MU
MV
MW
MX
MY
MZ
NA
NC
NE
NF
NG
NI
NL
NO
NP
NR
NU
NZ
OM
PA
PE
PF
PG
PH
PK
PL
PM
PN
PR
PT
PW
PY
QA
RE
RO
RU
RW
SA
SB
SC
SD
SE
SG
SH
SI
SJ
SK
SL
SM
Mauritius
Maldives
Malawi
Mexico
Malaysia
Mozambique
Namibia
New Caledonia (French)
Niger
Norfolk Island
Nigeria
Nicaragua
Netherlands
Norway
Nepal
Nauru
Niue
New Zealand
Oman
Panama
Peru
Polynesia (French)
Papua New Guinea
Philippines
Pakistan
Poland
Saint Pierre and Miquelon
Pitcairn Island
Puerto Rico
Portugal
Palau
Paraguay
Qatar
Reunion (French)
Romania
Russian Federation
Rwanda
Saudi Arabia
Solomon Islands
Seychelles
Sudan
Sweden
Singapore
Saint Helena
Slovenia
Svalbard and Jan Islands
Slovak Republic
Sierra Leone
San Marino
SN
SO
SR
ST
SU
SV
SY
SZ
TC
TD
TF
TG
TH
TJ
TK
TM
TN
TO
TP
TR
TT
TV
TW
TZ
UA
UG
UK
UM
US
UY
UZ
VA
VC
VE
VG
VI
VN
VU
WF
WS
YE
YT
YU
ZA
ZM
ZR
ZW
Senegal
Somalia
Suriname
Saint Tome
Former USSR
El Salvador
Syria
Swaziland
Turks and Caicos
Chad
French Southern Territories
Togo
Thailand
Tadjikistan
Tokelau
Turkmenistan
Tunisia
Tonga
East Timor
Turkey
Trinidad and Tobago
Tuvalu
Taiwan
Tanzania
Ukraine
Uganda
United Kingdom
USA Minor Outlying Islands
United States
Uruguay
Uzbekistan
Vatican City State
Saint Vincent & Grenadines
Venezuela
Virgin Islands
Virgin Islands
Vietnam
Vanuatu
Wallis and Futuna
Samoa
Yemen
Mayotte
Yugoslavia
South Africa
Zambia
Zaire
Zimbabwe
Basic Operations
BASIC PLAYBACK
This section shows you the basics on how to play back a DVD video disc
PREPARATIONS
• When you want to play back DVD video discs, turn on the TV and
select the video input source connected to the DVD player.
• When you want to enjoy the sound of DVD video discs or audio CDs
from the audio system, turn on the audio system and select the input
source connected to the DVD player.
• For connection details, see pages 9-11.
• Set the playback picture size according to the aspect ratio of the
connected TV at the SETUP menu (TV Aspect).
• If you do not have the necessary equipment to enjoy Dolby Digital
sound, set the Digital Audio Output at the SETUP menu to PCM .
3
POWER
OPEN/CLOSE
1
1 Press POWER. The DVD player turns on and the power indicator
lights.
2
SETUP
REPEAT
A-B
RANDOM
AUDIO
SUBTITLE
ANGLE
SOUND
TITLE
MENU
2 Press OPEN/CLOSE. The disc tray opens.
• You can open the disc tray by pressing this button even if the
DVD player is in standby mode.
3 Place a disc on the disc tray with the playback side down.
• There are two different disc sizes. Place the disc in the correct
guide on the disc tray. If the disc is out of the guide, it may
damage the disc and cause the DVD player to malfunction.
• Do not place anything except 3 discs or 5 discs on the disc tray.
SELECT
ENTER
DISPLAY
RETURN
ZOOM
MARKER – SEARCH
SCAN
PLAY
SKIP
4
STOP
4 Press PLAY. The disc tray is automatically closed and playback
begins.
• If the disc is placed in upside down (and it is a single sided disc),
NO DISC or DISC ERROR appears on the TV screen.
MP3
CD DVD
TITLE
CHP/TRK
PROG.
RANDOM ALL A
B
Operating Status indicator
PAUSE/STEP
SLOW
1
2
3
4
5
6
7
8
CLEAR
9
PROGRAM
0
• If you insert an audio CD, the CD indicator lights up in the DVD
display. The title number does not appear.
• After playing back all of the chapters in the title, the DVD player
automatically stops and returns to the menu screen.
GB
WHEN A MENU SCREEN APPEARS ON THE TV SCREEN
In case of interactive DVDs with control, a menu screen appears on the
TV screen. Perform step 5 on page 24 to start play.
Example of interactive DVD on-screen menu
23
Downloaded From Disc-Player.com NAD Manuals
Basic Operations
BASIC PLAYBACK
POWER
5 Press
item.
OPEN/CLOSE
SETUP
REPEAT
A-B
RANDOM
AUDIO
SUBTITLE
ANGLE
SOUND
TITLE
1
2
3
4
MENU
SELECT
ENTER
DISPLAY
and press SELECT/ENTER, or press the numeric button(s), to select the desired
5
Play of the selected item now begins.
RETURN
• For further information, also refer to the jacket or case of the disc you are playing.
ZOOM
SCAN
MARKER – SEARCH
PLAY
SKIP
STOP
AFTER OPERATION
When the unit is not in use, remove the disc and press POWER to turn off the power.
NOTES
• Do not move the DVD player during playback. Doing so may damage the disc and the DVD player.
• Use the OPEN/CLOSE button on the remote control or DVD player to open and close the disc tray. Do
not push the disc tray while it is moving. Doing so may cause the DVD player to malfunction.
• Do not push up the disc tray or put any objects other than discs on the disc tray. Doing so may cause
the DVD video player to malfunction.
• Keep your fingers well clear of the disc tray as it is closing. Be especially careful with children’s fingers
around the closing disc tray as there is a risk of personal injury.
• When
appears on the TV screen while a button is pressed, it means that this function is not
available on the disc you are playing.
• Depending on the DVD disc, some operations may be different or restricted. Refer to the jacket or case
of the disc you are playing.
SCREEN SAVER
The screen saver is useful to prevent your display from becoming damaged. The screen saver picture
appears when you leave the DVD player in stop mode for about 5 minutes.
AUTOMATIC POWER OFF FUNCTION
After the Screen Saver has been engaged for about 5 minutes, the DVD player will automatically turn itself
off.
GB
Screen Saver
24
Downloaded From Disc-Player.com NAD Manuals
Basic Operations
SPECIAL PLAYBACK
STOPPING PLAY
Press STOP during playback
RESUME PLAY
When play is stopped, the unit records the point where STOP was
pressed (RESUME function).
Press PLAY and play will resume from this point.
NOTES
• Resume function will be cleared when the STOP is pressed on the
STOP mode.
• Resume function will be cleared when the power is turned off and
then on.
• Opening the disc tray cancels Resume function.
• The Resume function may not be available on some DVD discs.
POWER
SETUP
REPEAT
A-B
RANDOM
AUDIO
SUBTITLE
ANGLE
SOUND
TITLE
STILL PICTURE (PAUSE)
Press PAUSE/STEP during playback
DVD The player will be placed in the still picture mode.
CD The player will be placed in the pause mode.
FRAME ADVANCE (DVD ONLY)
Press PAUSE/STEP during still playback. (Each time you press PAUSE/STEP,
the picture advances one frame)
To resume normal playback, press PLAY
OPEN/CLOSE
MENU
SELECT
ENTER
DISPLAY
RETURN
ZOOM
MARKER – SEARCH
SCAN
PLAY
PLAY
STOP
Skipping back
Press SKIP
during playback
When the button is pressed once midway through a chapter/track, the
player returns to the start of that chapter/track. When it is pressed again,
a chapter/track is skipped each time the button is pressed.
SKIP
STOP
PAUSE/STEP
SKIPPING CHAPTERS AND TRACKS
Skipping forward
Press SKIP
during playback
A chapter (DVD) or a track (CD) is skipped each time the button is
pressed.
SKIP
SLOW
PAUSE / STEP
1
2
3
4
5
6
7
8
CLEAR
9
PROGRAM
0
GB
25
Downloaded From Disc-Player.com NAD Manuals
Basic Operations
BASIC PLAYBACK
You can play back discs at various speeds.
TO SCAN AT FAST FORWARD OR FAST REVERSE
PLAYBACK
Press the SCAN
or
button during playback
[TV screen]
X2
POWER
X2
OPEN/CLOSE
SETUP
REPEAT
A-B
RANDOM
AUDIO
SUBTITLE
ANGLE
SOUND
TITLE
• The speed of advance (reverse) is relatively slow at first. When the
button is pressed again, the speed becomes faster. (Each time the
button is pressed, the speed increases up to 4 steps (DVD) or 1 step
(CD).)
• The speed will be retained even after the button is released.
MENU
To return to normal playback, press PLAY
SELECT
ENTER
DISPLAY
RETURN
ZOOM
MARKER – SEARCH
SCAN
PLAY
SKIP
PLAY
SCAN
NOTE
• The DVD player does not play back sound during the high speed
reverse and forward playback of DVD video discs. However, the DVD
player plays back sound during fast forward or fast reverse playback
of audio CDs.
STOP
PAUSE/STEP
SLOW
SLOW
1
2
3
4
5
6
7
8
CLEAR
9
PLAYING IN SLOW-MOTION (DVD ONLY)
Press SLOW
or
during playback
The playback speed becomes 1/16 of the normal speed.
[TV screen]
1/16
1/16
PROGRAM
0
• The speed of slow-motion is slow at first. When the button is pressed
again, the speed becomes faster. Each time the button is pressed, the
speed increase up to 4 steps.
• The speed will be retained even after the button is released.
GB
To return to normal playback, press PLAY
NOTES
• The sound is muted during slow-motion playback.
• Subtitles do not appear on the screen during slow motion playback.
• The SLOW buttons do not work with Audio CDs.
26
Downloaded From Disc-Player.com NAD Manuals
Operation Using Menu Icons (Graphical User Interface)
GENERAL INFORMATION ABOUT GUI MENU ICONS
This unit features GUI Menu Icons showing disc information (title/chapter/track number, elapsed playing
time, audio/subtitle language, angle, and sound) and player information (repeat play, play mode, marker,
etc.). Some icons only show the indicated information. Other icons allow the settings to be changed.
COMMON PROCEDURES
1 Press DISPLAY during playback.
• Title function can be accessed from the stop mode.
POWER
2 Press
to select the desired item.
• The current selected item is indicated by a yellow frame on its GUI menu icons.
OPEN/CLOSE
SETUP
REPEAT
A-B
RANDOM
AUDIO
SUBTITLE
ANGLE
SOUND
TITLE
3 Press
to select the desired setting.
• When numbers are displayed (e.g. title number), the numeric buttons can also be used for setting
instead of
• For some functions, the setting will be registered immediately; for others, SELECT/ENTER must be
pressed.
2,3
MENU
SELECT
ENTER
DISPLAY
RETURN
1
To clear the GUI Menu Icons, press DISPLAY again
ZOOM
SCAN
MARKER – SEARCH
PLAY
SKIP
EXAMPLES OF GUI MENU ICONS
(The screens may differ depending on the disc contents.)
DVD GUI
CD GUI
DVD and CD GUI
1
1
1
16:57
1/5
CHAPT
0:16:57
1 ENG
D
6 CH
OFF
STER.
NORM.
A
GB
B
OFF
1
NORM.
27
Downloaded From Disc-Player.com NAD Manuals
Operation Using Menu Icons (Graphical User Interface)
DETAILED DESCRIPTION OF EACH GUI MENU ICON
Press DISPLAY during playback
[TV screen] DVD GUI
FUNCTION
to select desired item)
SELECTION METHOD
or Numeric
SELECT/ENTER
1
To show the current title number, and to jump to the desired title number.
1
To show the current chapter number and to jump to the desired chapter
number.
or Numeric
SELECT/ENTER SKIP
0:16:57
To show the elapsed time and directly select scenes by the desired time.
Numeric
SELECT/ENTER
1 ENG
D
6 CH
To show the current audio soundtrack language, encoding method, channel
number and to change the setting.
OFF
1
NORM.
Press DISPLAY during playback
[TV screen] CD GUI
1
16:57
GB
(Press
To show the current subtitles language and to change the setting.
To show the current angle number and to change the angle.
(Press
FUNCTION
to select desired item)
To show the current track number and to jump to the desired track number.
To show the elapsed time. (Display only)
To show the current audio (STEREO, LEFT, RIGHT) and to select to the desired
audio channel.
NORM.
To show the current sound (NORMAL or 3D SURROUND) and to change the
setting.
NOTES
• Some DVD discs may not provide all of the above GUI menu icons.
Downloaded From Disc-Player.com NAD Manuals
SUBTITLE
ANGLE
To show the current sound (NORMAL or 3D SURROUND) and to change the
setting.
STER.
28
AUDIO
SELECTION METHOD
or Numeric
SELECT/ENTER SKIP
-
AUDIO
Advanced Operation
USING A TITLE MENU
Some movie discs may contain two or more titles. If the disc has a title menu recorded on it, the TITLE
button can be used to select the movie title. (The details of operation differ depending on the disc used.)
• Selecting a title may not be possible on certain DVD discs.
1 Press TITLE.
A list of the titles on the disc is displayed.
TITLE
MENU
1
2
SELECT
ENTER
DISPLAY
RETURN
ZOOM
MARKER – SEARCH
SCAN
SKIP
PLAY
2
STOP
PAUSE/STEP
SLOW
Pressing TITLE again to resume play from the scene when TITLE was first pressed.
2 Press
and press ENTER or PLAY, or press the numeric button(s),
to select desired title.
The selected title now starts playing.
USING A DVD MENU
Some DVDs have unique menu structures called DVD menus. For example, DVDs programmed with
complex contents provide guide menus, and those recorded with various languages provide menus for
audio and subtitle language. Although the DVD menu’s contents and operation differ from disc to disc,
the following explains the basic operation when this feature is used.
TITLE
MENU
1
2
SELECT
ENTER
1 Press MENU during play.
The DVD menu available on the disc is now displayed.
1
2
DISPLAY
ZOOM
MARKER – SEARCH
SCAN
3
4
Pressing MENU again resumes play from the scene when MENU was first pressed.
• Resume play may not be possible on certain discs.
2 Press
and press ENTER, or press the numeric button(s), to select desired item.
GB
RETURN
PLAY
SKIP
F
STOP
PAUSE/STEP
SLOW
1
2
3
4
5
6
7
8
CLEAR
D
9
E
PROGRAM
0
I
The selected item is now executed.
P
S
29
Downloaded From Disc-Player.com NAD Manuals
Advanced Operation
MEMORIZING SETTINGS FOR VIEWED DVDS (T532 ONLY)
This unit will memorize settings for the last DVD you watched. Settings remain in memory even if you
remove the disc from the player, or switch power to the player OFF. Settings are stored in memory for use
any time automatically.
POWER
OPEN/CLOSE
SETUP
REPEAT
A-B
RANDOM
AUDIO
SUBTITLE
ANGLE
SOUND
TITLE
MENU
SELECT
ENTER
DISPLAY
RETURN
ZOOM
MARKER – SEARCH
SCAN
PLAY
SKIP
STOP
PAUSE/STEP
SLOW
1
2
3
4
5
6
7
8
CLEAR
9
PROGRAM
0
GB
30
Downloaded From Disc-Player.com NAD Manuals
NOTES
• Settings are stored in memory for use any time.
• This unit does not store settings in memory, if you remove the disc from the player or switch power to
the player OFF when DVD or title menu is displayed on the TV screen.
Advanced Operation
CHANGING SUBTITLE LANGUAGE
It is possible to change the subtitle language to a different language from the one selected at the initial
settings. (See page 15 for further info.)
This operation works only with discs on which multiple subtitle languages are recorded.
1 Press SUBTITLE during playback. When no subtitles are
recorded, “OFF” will be displayed instead of the language
number.
OFF
2 Press SUBTITLE repeatedly until the desired language is
selected. Number of the subtitle language being played back
is shown
1 ENG
POWER
OPEN/CLOSE
SETUP
REPEAT
A-B
RANDOM
AUDIO
SUBTITLE
ANGLE
SOUND
1,2
TITLE
MENU
SELECT
To eliminate the On Screen Subtitles.
Press SUBTITLE repeatedly to select OFF at step 2.
NOTES
• In some cases, the subtitle language is not changed to the selected one immediately.
• When a disc supporting the closed caption is played, the subtitle and the closed caption may overlap
each other on the TV screen. In this case, turn the subtitle off.
• When the desired language is not selected even after pressing the button several times, it means that
the language is not available on the disc.
• When the power is turned on or the disc is removed, subtitles appears in the language selected at the
initial settings. If this language is not recorded on the disc, the disc’s priority language appears.
CHANGING AUDIO SOUNDTRACK LANGUAGE
It is possible to change the audio soundtrack language to a different language from the one selected at
the initial settings in case of DVD disc. (See page 15 for further info.) This operation works only with discs
on which multiple audio soundtrack languages are recorded.
And it is possible to change the audio channel in case of audio CD.
DVD
1 Press AUDIO during play. Number of the audio soundtrack
language being played back.
2 Press AUDIO repeatedly until the desired language (or
encoding method, channel number) is selected.
1 ENG
D
6 CH
2 FRE
D
6 CH
POWER
GB
OPEN/CLOSE
SETUP
REPEAT
A-B
RANDOM
AUDIO
SUBTITLE
ANGLE
SOUND
1,2
TITLE
MENU
SELECT
CD
1 Press AUDIO during play.
STER.
2 Press AUDIO repeatedly until the desired sound is
selected.
LEFT
NOTES
• When the desired language is not selected even after pressing the button several times, it means that
the language is not available on the disc.
• When the power is turned on or the disc is removed, the language heard is the one selected at the
initial settings. If this language is not recorded on the disc, only the available language on the disc will
be heard.
• Some discs may not respond to Audio feature.
31
Downloaded From Disc-Player.com NAD Manuals
Advanced Operation
VIEWING FROM ANOTHER ANGLE
Some DVDs may contain scenes which have been shot simultaneously from a number of different angles.
For these discs, the same scene can be viewed from each of these different angles using the ANGLE button. (The recorded angles differ depending on the disc used.)
POWER
1 Press ANGLE during playback. Number of angle being
played back.
1
2 Press ANGLE repeatedly until the desired angle is
selected.
2
OPEN/CLOSE
SETUP
REPEAT
A-B
RANDOM
AUDIO
SUBTITLE
ANGLE
SOUND
1,2
TITLE
MENU
1
2
3
SELECT
FOR YOUR REFERENCE
The ANGLE indicator will blink in the DVD display window at scenes recorded at different angles to
indicate that angle switching is possible. The angle number can be programmed beforehand; the angle
will be switched to the selected number when the ANGLE indicator blinks.
NOTE
• This function only works for discs having scenes recorded at different angles.
PRODUCING A 3D SURROUND EFFECT
This unit can produce a 3D Surround effect, using Spatializer technology, which simulates multi-channel
audio playback from two conventional stereo speakers instead of the five or more speakers normally
required to listen to multi-channel audio from a home theatre. This feature works with DVD discs encoded
with Dolby Pro Logic and Dolby Digital audio tracks.
POWER
GB
OPEN/CLOSE
SETUP
REPEAT
A-B
RANDOM
AUDIO
SUBTITLE
ANGLE
SOUND
1 Press SOUND during playback. Each time this button is
pressed, the TV screen displays changes.
NORM.
2 Press SOUND repeatedly until the desired sound is
selected.
3D SUR
1,2
TITLE
MENU
SELECT
32
Downloaded From Disc-Player.com NAD Manuals
NOTE
• This 3D Surround effect may not be available on some DVD discs, such as those recorded with a mono
audio sound-track.
• Turn off the TV surround sound and other surround effects when using this 3D surround effect.
• For best 3D Surround effect using only two speakers it is recommended that the two speakers be
positioned approximately 2m to 2.5m apart, and the listening position should be 2m to 2.5m away
from the speakers.
Advanced Operation
REPEAT PLAY
REPEATING VIEWING (LISTENING)
Press REPEAT during playback
Each time this button is pressed, the TV screen changes as shown below and the disc will repeat a chapter
or title (DVD) or a track (CD).
DVD
Repeat of chapter being played
CHAPT
Repeat of title being played
TITLE
Cancel repeat mode
(normal play)
CD
Repeat of track being played
OFF
TRACK
Repeat of entire disc contents
ALL
Cancel repeat mode
(normal play)
OFF
To enjoy program repeat play (CD)
If REPEAT is pressed during program play, repeat play is operated as below.
Repeat of the current programmed track
Repeat of all programs
TRACK
ALL
Cancel repeat mode
(Program play)
OFF
To return to normal play
Press REPEAT several times until OFF is displayed.
REPEATING SECTIONS BETWEEN TWO SPECIFIC POINTS (A-B REPEAT)
1 Press A-B during play at the point where repeat play is to start (A). You can select OFF at this
step by pressing CLEAR.
A
*
2 Press A-B during play at the point where repeat play is to be concluded (B). Repeat play of the
selection between points A and B starts.
A
B
To return to normal play
Press A-B once OFF is displayed.
GB
OFF
NOTES
• Repeat play works only with discs for which the elapsed playing time appears in the DVD display
window during playback.
• Repeat play may not work correctly with some DVDs.
• A-B repeat play works only within a title DVD or a track CD.
• Some subtitles recorded around point A or B may fail to appear (DVD).
• Repeat and Play may not work with MP-3 encoded CD-R and CD-RW.
33
Downloaded From Disc-Player.com NAD Manuals
Advanced Operation
STORING MARKERS IN MEMORY TO BE VIEWED (LISTENED TO) AGAIN
Storing a MARKER in the DVD memory is similar to marking your page in a book. It allows you to
quickly return to any point on the disc.
STORING A MARKER IN THE MEMORY
1 Press MARKER during play at the starting point to be viewed (listened to) again
POWER
OPEN/CLOSE
SETUP
REPEAT
A-B
RANDOM
AUDIO
SUBTITLE
ANGLE
SOUND
TITLE
1/5
Indicates 1/5 is stored in the memory.
Up to 5 markers can be stored in the memory.
MENU
4
SELECT
ENTER
3
DISPLAY
RECALLING/CLEARING A MARKER
2 Press SEARCH during playback
RETURN
ZOOM
Maker
Picture 1
Maker
Picture 2
Maker
Picture 3
Maker
Picture 4
Maker
Picture 5
Present
MARKER – SEARCH
2
1
SCAN
PLAY
SKIP
STOP
PAUSE/STEP
1
2
3
4
5
6
7
8
9
CLEAR
4
SLOW
PROGRAM
0
4
3 Press
to select the marker to be recalled/cleared.
4 Press PLAY or SELECT/ENTER to recall a marker. Or press CLEAR to clear a marker.
Play resumes from the point corresponding to the selected marker, or the selected marker is cleared.
• The Present Picture is not cleared.
NOTE
• These operations work only with discs for which the elapsed playing time appears in the DVD display
window during playback or stop.
• Some subtitles recorded around the marker may fail to appear (DVD).
• All the markers are cleared when the power is turned off or the disc is removed and when TV Aspect
mode is changed on the SETUP menu.
• The marker is not stored when the DVD or title menu is displayed on the TV screen.
GB
34
Downloaded From Disc-Player.com NAD Manuals
Advanced Operation
ZOOM FEATURE
The Zoom feature allows you to ZOOM-IN and enlarge the picture on the screen from normal size to six
times normal size.
1 Press ZOOM during normal playback or still playback.
2 If you press
buttons, the zoom point shifts
TITLE
MENU
2
3 Press SELECT/ENTER. The selected frame is displayed in full size on the TV screen.
SELECT
ENTER
4 To resume normal playback. Press ZOOM repeatedly until the normal picture is restored.
NOTE
• Some discs may not respond to the Zoom feature.
• Zoom does not work on subtitles or menus included on DVD video discs.
1,4
DISPLAY
RETURN
ZOOM
MARKER – SEARCH
SCAN
SKIP
PLAY
STOP
PAUSE/STEP
NOTE
• This function only works with audio CD discs. Random does not work with DVD movies.
SLOW
1
2
3
4
5
6
RANDOM PLAY
You can playback titles or tracks in random order. (Random playback)
RANDOM PLAY (CD)
1 Press RANDOM during normal playback or stop mode. The DVD player automatically starts
random playback and the RANDOM indicator in the DVD display window appears.
GB
2 To resume normal playback, press RANDOM. The RANDOM indicator in the DVD display lights up
POWER
NOTE
• Random playback may not be possible on certain discs.
• If you press the SKIP
or
button during random playback, the DVD player goes to another
track randomly and starts playback.
OPEN/CLOSE
SETUP
REPEAT
A-B
RANDOM
AUDIO
SUBTITLE
ANGLE
SOUND
TITLE
MENU
SELECT
ENTER
DISPLAY
ZOOM
SCAN
RETURN
MARKER – SEARCH
PLAY
SKIP
35
Downloaded From Disc-Player.com NAD Manuals
Advanced Operation
PROGRAM PLAY
The player plays the tracks on the disc in the order you specify.
NOTE
• Program play function is possible only with audio CDs. It does not work with DVD movie discs
.
1 Press PROGRAM during playback or stop mode. The program playback screen appears on the TV screen.
POWER
OPEN/CLOSE
SETUP
REPEAT
A-B
RANDOM
AUDIO
SUBTITLE
ANGLE
SOUND
TITLE
Program
Step
1
Total Time 00:00
MENU
Clear All
SELECT
ENTER
2,3
DISPLAY
To exit the screen, press PLAY or PROGRAM.
RETURN
ZOOM
2 Press
MARKER – SEARCH
SCAN
PLAY
and press the numeric button(s)to select the desired track number.
SKIP
Program
3
STOP
PAUSE/STEP
1
5
19
Step
3
Total Time 08:32
SLOW
1
2
3
4
5
6
7
8
9
Clear All
CLEAR
PROGRAM
0
1
Repeat step 2 to select another track.
Up to 20 tracks can be programmed.
3 Press PLAY or SELECT/ENTER to exit the screen. The selected track is stored in the memory and
play now begins in the programmed sequence.
• If you press PROGRAM to exit the screen, the selected tracks are not memorized.
GB
After playback of all tracks programmed
Play is stopped.
CLEARING THE PROGRAM
To clear the programmed tracks one by one
Press
to select the unwanted number and then press CLEAR.
To clear all programmed tracks
Press
to select Clear All and then press SELECT/ENTER. Press PLAY or SELECT/ENTER to exit the
screen. If you press PROGRAM to exit the screen, the programs are not cleared. (The programs are also
cleared when the power is turned off or the disc removed.)
36
Downloaded From Disc-Player.com NAD Manuals
Advanced Operation
PLAYBACK WITH MP3
TO PLAY AN MP3 DISC
1 Load an MP3 disc. The MP3 menu is displayed.
MP3
Program
ABCD
MP3-1
MP3-2
MP3-3
MP3-4
MP3-5
MP3-6
MP3-7
MP3-8
MP3-9
2 Press
buttons to select the directory where MP3 files that you want to play are located
and then press SELECT/ENTER
Clear All
MP3
Program
MP3-1
..
TRACK_1
TRACK_2
TRACK_3
TRACK_4
TRACK_5
TRACK_6
TRACK_7
TRACK_8
3 Press
button to select the desired MP3 file of the selected directory of your disc
If you want to return to the previous menu, press the RETURN button.
Clear All
MP3
Program
MP3-1
..
TRACK_1
TRACK_2
TRACK_3
TRACK_4
TRACK_5
TRACK_6
TRACK_7
TRACK_8
Clear All
4 Press SELECT/ENTER or PLAY to start playback of the file
FOR YOUR REFERENCE
• Press SKIP
or SKIP
to play the next file or previous file during playback.
• Press TITLE to move to 1st page of current directory during playback and press TITLE again to move to
the next page within 5 seconds.
• Press MENU to move to the Root Directory during playback.
TITLE
MENU
SELECT
ENTER
2,3,4
DISPLAY
TO PLAY AN MP3 FILE REPEATEDLY
• If you press REPEAT button once during play, the current MP3 file will play repeatedly.
• If you press REPEAT button twice during play, the directory will play repeatedly.
• If you press REPEAT button three times, the repeat play will be cancelled.
MP3
Prog
MP3
MP3-1
RETURN
ZOOM
MARKER – SEARCH
SCAN
PLAY
SKIP
4
STOP
PAUSE/STEP
Progr
SLOW
MP3-1
..
..
TRACK_1
TRACK_1
TRACK_2
TRACK_2
TRACK_3
TRACK_3
TRACK_4
TRACK_4
TRACK_5
TRACK_5
TRACK_6
TRACK_6
TRACK_7
TRACK_7
TRACK_8
TRACK_8
1
2
3
4
5
6
GB
REPEAT symbol
NOTES
• The directory and file name is only displayed in English.
• If there is an impossible code to display, it will be displayed underlined (_) instead of English.
• If a directory has no MP3 file, the
is displayed with the directory name.
• This unit can play up to 256 files per disc. A disc recorded with more than 256 files cannot be played.
• The maximum allowable depth of nested directory is 50.
• Disc format is compatible with ISO9660 only.
• If you record mp3 files using the software which cannot create a FILE SYSTEM, for example Direct-CD
etc., it is impossible to playback mp3 files. We therefore recommend that you use Easy-CD Creator ,
which creates an ISO9660 file system.
• A single session disc requires mp3 files in the first track. If there is no mp3 file in the 1st track, it cannot
playback mp3 files. If you wish to playback mp3 files, format all the data in the disc or use a new one.
• If there are already data files which are not mp3 files on the CD-R disc, please, do not use that disc;
use a new one instead. However, if the disc is a CD-RW disc, this does not apply.
37
Downloaded From Disc-Player.com NAD Manuals
Advanced Operation
PLAYBACK WITH MP3
TO PROGRAM PLAY AN MP3 FILE
1 Follow steps 1 and 2 on previous page.
MP3
2 Select an MP3 file to program with
Program
MP3-1
..
TRACK_1
TRACK_2
TRACK_3
TRACK_4
TRACK_5
TRACK_6
TRACK_7
TRACK_8
Clear All
MP3
3 Press PROGRAM button to add an MP3 file to the program list. Repeat steps 2 - 3 to select
another track. Up to 60 files can be programmed.
Program
MP3-1
TRACK_2
..
TRACK_7
TRACK_1
TRACK_6
TRACK_2
TRACK_9
TRACK_3
TRACK_4
TRACK_5
TRACK_6
TRACK_7
TRACK_8
Clear All
MP3
4 Press
button and select the desired MP3 file and press SELECT/ENTER or PLAY button to
play. If you want to enter the main menu, press
button.
Program
MP3-1
TRACK_2
..
TRACK_7
TRACK_1
TRACK_6
TRACK_2
TRACK_9
TRACK_3
TRACK_4
TRACK_5
TRACK_6
TRACK_7
TRACK_8
Clear All
CLEARING THE PROGRAM
To clear the programs one by one
Press
to select the unwanted MP3 file on the program list and then press CLEAR.
TITLE
MENU
To clear all the programs
Press
to select the Clear All and press SELECT/ENTER.
SELECT
ENTER
2,4
DISPLAY
TO PLAY AN MP3 PROGRAM REPEATEDLY
• If you press REPEAT button once during play, the current MP3 file will play repeatedly.
• If you press REPEAT button twice during play, the all MP3 files on the program list will play repeatedly.
• If you press REPEAT button three times, the repeat play will be cancelled.
RETURN
ZOOM
MARKER – SEARCH
SCAN
PLAY
SKIP
4
STOP
GB
PAUSE/STEP
Program
SLOW
1
2
3
4
5
6
7
8
CLEAR
Program
TRACK_2
TRACK_2
TRACK_7
TRACK_7
TRACK_6
TRACK_6
TRACK_9
TRACK_9
9
PROGRAM
0
Clear All
Clear All
3
REPEAT symbol
38
Downloaded From Disc-Player.com NAD Manuals
Reference
DISC REQUIREMENTS / COPYRIGHT INFORMATION
PLAYABLE DISCS
This DVD player can play back the following discs.
Disc Mark
Contents
Disc size
Maximum playback time
Approx. 4 hours (single sided disc)
12 cm
DVD video discs
Approx. 8 hours (double sided disc)
Audio+ Video
(moving pictures)
Approx. 80 minutes (single sided disc)
8 cm
Approx. 160 minutes (double sided disc)
Audio CDs
12 cm
74 minutes
8 cm
20 minutes
Audio
In addition this unit can play back a CD-R or CD-RW that contains audio titles or MP3 files
You cannot playback discs other than those listed above. (Video CD CD-ROM, CD-Extra, CD-G, photo CD, and CD-i discs cannot be played on this
DVD player.)
REGION MANAGEMENT INFORMATION
Region Management Information: This DVD Player is designed and manufactured to respond to the Region Management Information that is recorded
on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DVD player, this DVD player cannot
play that disc.
The Region number of this DVD player is 2.
2
NOTES ON UNAUTHORIZED DISCS
You may not be able to play back some DVD video discs on this player if they were purchased from outside your geographic area or made for business
purposes. When you try to play back an unauthorized disc, “Check Regional Code” appears on the TV screen.
NOTES ON COPYRIGHT
It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, and rent copyrighted material without permission.
DVD video discs are copy protected, and any recordings made from these discs will be distorted.
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property
rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision
Corporation, and is intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
39
Downloaded From Disc-Player.com NAD Manuals
GB
Reference
BEFORE CALLING SERVICE PERSONNEL
SYMPTOMS AND CORRECTION
Check the following guide for the possible cause of a problem before contacting service.
SYMPTOM
CAUSE
CORRECTION
No power
• The power cord is disconnected
• Plug the power cord into the wall outlet
securely.
The power is on, but the DVD player does
not work.
• No disc is inserted.
• Insert a disc (Check that the DVD or, audio
CD indicator in the DVD display is lit).
No picture
• The TV is not set to receive DVD signal
output.
• Select the appropriate video input mode
on the TV so that the picture from the
DVD player appears on the TV screen.
• The video cable is not connected securely.
• Connect the video cable into the jacks
securely.
• The connected TV power is turned off.
• Turn on the TV.
• The equipment connected with the audio
cable is not set to receive DVD signal
output.
• Select the correct input mode of the audio
receiver so you can listen to the sound
from the DVD player.
• The audio cables are not connected
securely.
• Connect the audio cable into the jacks
securely.
• The power of the equipment connected
with the audio cable is turned off.
• Turn on the equipment connected with the
audio cable.
• The Digital Audio Output is set to the
wrong position.
• Set the Digital Audio Output to the correct
position, then turn on the DVD player
again by pressing the POWER button.
The playback picture is poor
• The disc is dirty.
• Clean the disc.
The DVD player does not start playback
• No disc is inserted.
• Insert a disc (Check that the DVD, or audio
CD indicator in the DVD display is lit).
• An unplayable disc is inserted.
• Insert a playable disc (Check the disc type,
color system and Regional code).
• The disc is placed upside down.
• Place the disc with the playback side
down.
• The disc is not placed within the guide.
• Place the disc on the disc tray correctly
inside the guide.
• The disc is dirty.
• Clean the disc.
• A menu is on the TV screen.
• Press the SETUP button to turn off the
menu screen.
• The Rating level is set.
• Cancel the Rating function or change the
rating level.
• The remote control is not pointed at the
remote sensor of the DVD player.
• Point the remote control at the remote
sensor of the DVD player.
• The remote control is too far from the
DVD player.
• Operate the remote control within about
23 ft (7 m).
• There is an obstacle in the path of the
remote control and the DVD player.
• Remove the obstacle.
• The batteries in the remote control are
exhausted.
• Replace the batteries with new ones.
No sound
GB
The remote control does not work
properly.
40
Downloaded From Disc-Player.com NAD Manuals
Reference
SPECIFICATIONS
DVD PLAYER / OUTPUTS / SUPPLIED ACCESSORIES
DVD PLAYER
Power supply
Power consumption
Mass
External dimensions (W X H X D)
Signal system
Laser
Frequency range (audio)
Signal-to-noise ratio (audio)
Dynamic range (audio)
Harmonic distortion (audio)
Operating conditions
Operation status
AC 110-240V, 50/60Hz
14 W
2.8 kg
430 x 75.6 x 242 mm
16.9 x 3.0 x 9.5 inches
PAL 625/50 , NTSC 525/60
Semiconductor laser, wavelength 650 nm
DVD: (PCM 96 kHz) 4 Hz to 22 kHz
DVD: (PCM 96 kHz) 4 Hz to 44 kHz
CD: 4 Hz to 22 kHz
More than 100 dB (EIAJ) (ANALOGUE OUT only)
DVD: More than 100 dB (EIAJ) (ANALOGUE OUT only)
CD: More than 95 dB (EIAJ) (ANALOGUE OUT only)
0.008 %
Temperature: 5°C to 35°C, Humidity 5% to 90%
Horizontal
OUTPUTS
Video output
S-video output
Audio output (digital audio)
Audio output (optical audio)
Audio output (analog audio)
SUPPLIED ACCESSORIES
Video cable
Audio cable
Remote control
Batteries
1.0 V (p-p), 75Ω, negative sync.,
RCA jack x 1/SCART
(Y) 1.0 V (p-p), 75Ω, negative sync.,
Mini DIN 4-pin x 1
(C) 0.3 V (p-p), 75Ω
0.5 V (p-p), 75Ω, RCA jack x 1
Optical connector x 1
2.0 Vrms (1 kHz, 0 dB), 330Ω,
RCA jack (L, R) x 1/SCART
1
1
1
2
GB
• Designs and specifications are subject to change without notice.
Manufactured under license from Dolby Laboratories. “Dolby”, and the double-D symbol are trademarks of Dolby Laboratories.
Confidential unpublished works. Copyright 1992-1997 Dolby Laboratories. All rights reserved.
“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.
41
Downloaded From Disc-Player.com NAD Manuals
www.NADelectronics.com
©2002 NAD ELECTRONICS INTERNATIONAL
A DIVISION OF LENBROOK INDUSTRIES LIMITED
All rights reserved. No part of this publication may be reproduced, stored or transmitted in any form without the written permission of NAD Electronics International
T532 Manual 08/02
Downloaded From Disc-Player.com NAD Manuals
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
