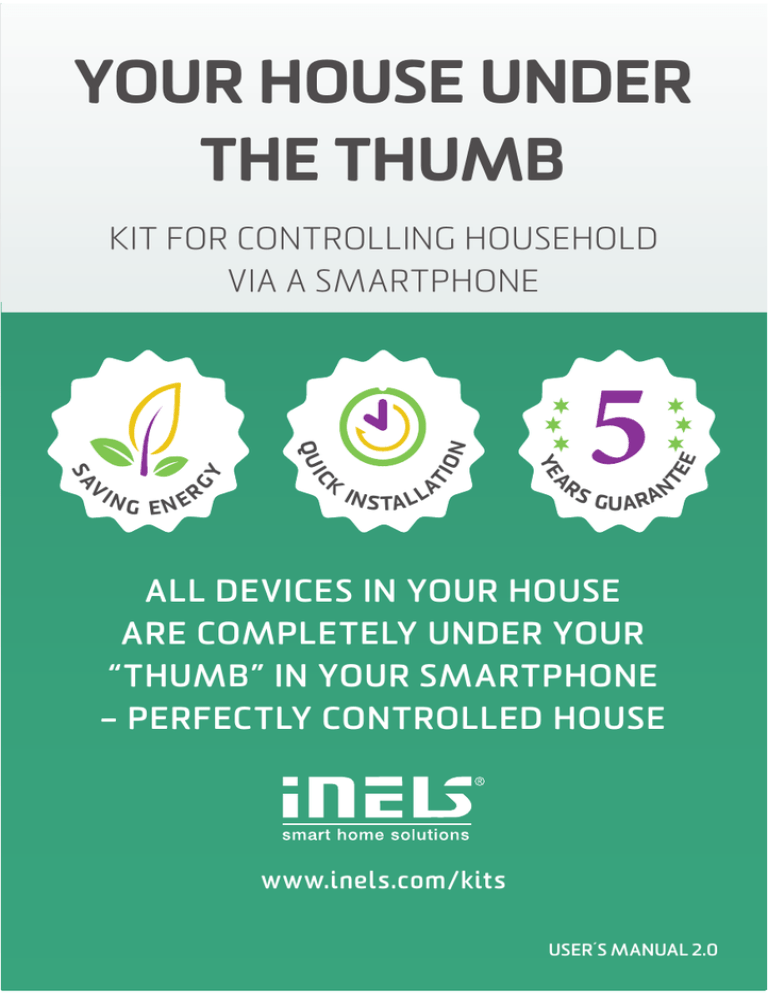

YOUR HOUSE UNDER
THE THUMB
TE
RS
E
N
TIO
I N S TA L L A
YE A
K
C
NG ENER
QUI
SA
VI
GY
KIT FOR CONTROLLING HOUSEHOLD
VIA A SMARTPHONE
GUARAN
ALL DEVICES IN YOUR HOUSE
ARE COMPLETELY UNDER YOUR
“THUMB” IN YOUR SMARTPHONE
– PERFECTLY CONTROLLED HOUSE
www.inels.com/kits
USER´S MANUAL 2.0
EVEN YOUR HOUSE CAN
BE „SMART“!
Would you like some help?
TECHNICAL SUPPORT
+420 800 100 671
[email protected]
YOUR HOUSE UNDER
THE THUMB
CONTROL YOUR HOUSE VIA A SMARTPHONE
The kit “House under the thumb” which you hold in your hands i s the
basic star ter kit for all of you, who would like to make your home
more comfor table. The star ter kit consi sts of 2 x colored wireless
bulbs, 1 x switching socket and 1 x camera, what allows you to try
the basic units of iNEL S RF Control – wireless solution. Everything i s
preset to ensure fast and easy installation.
This kit will open up new horizons for home automation. It can be extended
any time you need and according to your wishes. Depends on you if you want
to find something new and upgrade your current installation.
Thank you for buying the kit YOUR HOUSE UNDER „THE THUMB“.
Another kits and additional units can be found on the last pages
of the manual or at our webpage:
www.inels.com/kits
USER´S MANUAL CONTENT
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
13)
14)
15)
16)
17)
18)
Kit content .....................................................................................................................................................................................................................
How does it work? ..................................................................................................................................................................................................
The range of RF signal .........................................................................................................................................................................................
Easy installation .......................................................................................................................................................................................................
App download .............................................................................................................................................................................................................
First run ............................................................................................................................................................................................................................
App control ....................................................................................................................................................................................................................
Edit the unit name ..................................................................................................................................................................................................
Create rooms ...............................................................................................................................................................................................................
Assign unit to the room ......................................................................................................................................................................................
Tab Favorites, Scenes, Cameras ...................................................................................................................................................................
Assign a new unit .....................................................................................................................................................................................................
Delete room/unit .....................................................................................................................................................................................................
Technical parameters of Camera ..............................................................................................................................................................
Description and technical parameters of Smart RF box .......................................................................................................
Description and technical parameters of wireless bulb .......................................................................................................
Other RF units .............................................................................................................................................................................................................
Overview of other kits .........................................................................................................................................................................................
19) Virtual kits .....................................................................................................................................................................................................................
4
6
7
8
10
11
12
13
14
15
16
19
20
21
22
24
28
32
35
KIT CONTENT
Order code: 6703
1× iNELS cam
Interior color camera, which can be easily connected to a LAN through cable or to a WiFi
network. It is possible to connect up to 10 cameras and monitor them in apps.
• Parameters: resolution 640x480, night iR illuminator, dimension: 80 x 115 x 80 mm
•
Power supply: adapter 5V/1A (included), articulated bracket to set position
Order code: 7410
1×
ROUTER D-LINK
GO-RT-N150
D-Link GO-RT-N150 is the ideal network router with the wireless access point. Serves to
connect all units from the kit together and enables you connection with your home network.
4
U S E R ´S M A N U A L 2 . 0
KIT CONTENT
Order code: 4931
2×
COLORED WIRELESS
BULBS
RF-RGB-LED-550
This LED bulb contains three color chips (RGB), which can mix up any color (including
white) at different temperatures.
•
bulb has a built-in receiver and dimmer, so it can easily replace the original bulb
•
function: colorful scenes, brightness setting, color blending
•
parameters: RGB chips, power supply 230V AC, power consumption 9 W, luminous fl ux of
550 lm, E27 socket, size 65 x 115 mm
French
4560
Schuko
4562
British
4544
1×
SWITCHING SOCKET
RFSC-61
It is a quick solution for the wireless control of devices connected to the socket. It connects
between the existing socket and controlled appliance.
•
manual control by ON/OFF buttons and status indicator directly on the socket
•
signaling of device status – LED on the front panel – red (status indication), green (voltage indication)
•
parameters: power supply AC 230V, switching power up to 4000W (16A), dimension: 60 × 120 × 80 mm
Order code: 4684
1×
SMART RF BOX
eLAN-RF-OO3
The smart box is the mediator between your controller (Smartphone, Tablet, Samsung Smart
TV) and wireless units controlling lights, heating, blinds, sockets and other appliances.
•
Appliances can be controlled from your home WiFi network.
•
If you would like to control your appliances once you are not at home, please contact your
network provider (it is necessary to preset your router).
parameters: connection LAN RJ45, power supply 10 to 27 V DC (adapter included in the
package), dimension 90 × 52 × 65 mm, velikost 90×52×65 mm
•
W W W. I N E L S . C O M /K I T S
5
HOW DOES IT WORK?
The kit can be extended by other wireless units and thus you can easily
create your own system.
1
2
Colored wireless
bulb
Switching
socket
iNELS cam
WiFi
Every wireless bulb is numbered 1, 2 that corresponds to a device type name in App
(the default names of the light bulbs - Light 1, Light 2).
Router
Adapter AC
230 V
Smart RF box
WiFi
Light
Control range of your
smartphone depends on your
Wi-Fi coverage (power).
Remote control
If you want to control
your devices even outside
the house, contact your IT
administrator.
6
U S E R ´S M A N U A L 2 . 0
RANGE OF RF SIGNAL
The range of RF signal is up to 200m in the free open air.
TRANSMISSION OF RADIO FREQUENCY SIGNALS IN VARIOUS MATERIALS
FE
brick
walls
wooden structures
with plaster boards
reinforced
concrete
metal
partitions
60 - 90 %
80 - 95 %
20 - 60 %
0 - 10 %
common
glass
80 - 90 %
INSTALLING A SM ART RF BOX
Place a Smart RF box in the best possible position from Wireless units.
Optimal placement of Smart RF box is in the middle of space between individual RF units.
Please keep in mind, that the number of walls, ceilings reduces the signal strength and thus
limit the range of wireless units.




Order code: 4510

REPEATER
to extend
the range

In case of insufficient connection between RF units, we offer the following possibilities:
RELOCATE A UNIT
USE REPEATER (plug-in signal repeater) - install between Smart RF box and wireless unit which is
out of the range.
W W W. I N E L S . C O M /K I T S
7
EASY INSTALLATION
Switching socket
(max.: 40)
AC 230 V
RF
Wi-Fi
or
LAN
AC 230 V
Router D-link
iNELS Cam
20.15.10.254
20.15.10.5
User: admin
Password: dumpodpalcem
WiFi
User: admin
Password: elkoep
Links to app:
Download from
Link to you App (Android):
Link to you App (iOS):
play.google.com
itunes.apple.com
8
U S E R ´S M A N U A L 2 . 0
EASY INSTALLATION
Addresss
551125
Colored wireless
bulb (max.: 40)
RF
AC 230 V
Smart RF box
20.15.10.1
User: admin
Password: elkoep
Example of web interface:
Router
eLAN-RF-003
W W W. I N E L S . C O M /K I T S
Router D-link (GO-RT-N150)
9
APP DOWNLOAD
1.
Download app to your smartphone.
You can download Apps from your Google Play (for smartphones with Android operating
system) or from iTunes (for iPhone). App is free to download and there is no monthly fee.
iHC - MARF
iHC - MIRF
Download from
10
Link to your App:
pp
Link to your App:
play.google.com
e.com
itunes.apple.com
le.com
U S E R ´S M A N U A L 2 . 0
FIRST RUN
WiFi
Make sure your smartphone is connected to the same Wi-Fi network as Smart RF box.
To set the IP address press
the „Settings“.
Then tap the Tab „eLAN Settings“, and click on the magnifying glass icon
in the upper-right corner. The searching of Smart RF box is performed.
Inserts name for ela
an
My h
M
house
e
Name:
My house
CANCEL
My
y house
Obnovit
You can give any name to Smart RF box. On the right side of the screen confirm your selection of
Smart RF box (green symbol). Then double tap the Back button to return. The home screen will
appear with notification „New data downloading“ and then the preset items will be displayed.
W W W. I N E L S . C O M /K I T S
Wait please..
11
APP CONTROL
Click on the icon „iNELS“ to return to the Home screen.
By clicking the individual
item (Light 1, Light 2,
Switching socket) you
switch appliances ON/OFF.
State ON/OFF is displayed on the
right side in round indicator. Hold
your finger on the name (Light 1,
Light 2) to display a color spectrum.
Hold your finger on the
name of the switching
socket to set delayd ON/
delayd OFF, then the next
click allows you to set the
time of chosen action.
Color choice - choose the
color from the main area or by
pressing the color icons around
the main area you can change
the color of your bulb
ON/OFF - tap the icon ON/OFF
Brightness - drag your finger
across the slider to adjust the
brightness of the bulb
Circus mode - automatic blending
of colors
After turning it off and on again,
the bulb saves last used value of
brightness.
Time settings: h/min/sec.
Press the SET button to confirm.
12
U S E R ´S M A N U A L 2 . 0
EDIT THE UNIT NAME
The default names of the light bulbs can be changed.
Click on the „Settings“, then on the „Configuration“.
Units - the list of the added
units.
Light 1
Select the unit whose name you want to change and edit the Unit name. To stop recording changes,
click the Save button. By pressing the Back button you will return to the Menu Units.
W W W. I N E L S . C O M /K I T S
13
CREATE ROOMS
The room is used to group units.
Click on the „Settings“. Then on „Configuration“ and „Rooms“.
Click the Add button. Select any name and type of the room (the room type determines the icon
associated with the room). In the same way you enter the next room (the room YOUR HOUSE UNDER
„THE THUMB“ is set as default).
14
U S E R ´S M A N U A L 2 . 0
ASSIGN A NEW UNIT
Click on the „Settings“, then on „Configuration“ and Asign units.
Select the room to that you want to assign the units then tick the units which you want to assign to the
room and click „Next“.
W W W. I N E L S . C O M /K I T S
15
TAB FAVORITES
Tab Favorites is used to choose the most commonly used Units.
Click on the „Settings“ and then on the Tab „Favorites“. Press the Add
button to open the list of all Units. Select the required units and by
pressing the Save button you can assign them to the list.
16
U S E R ´S M A N U A L 2 . 0
TAB SCENES
The Scene is used to perform multiple operations - by pressing a single key you can run several commands
at once (e.g. all the lights ON, all the lights OFF, all the lights at 50% etc.).
Click on the Settings and then on the Tab Scene. Here press the Add button to create a Scene name, then select
the units and then click Next to select the Unit function.
You can add a fuction to each unit from the upper bar. You can change the settings by clicking on the
assigned function. In the same way you will assign the function to other units. Then press Add button.
W W W. I N E L S . C O M /K I T S
17
TAB CAMERA
To App you can connect and monitor up to 10 cameras such as iNELS cam or Axis.
Click on „Settings“ and then
on Tab Camera.
Please enter all required data on the screen and then press button „Save“.
iNELS cam:
The name of camera: Any
Enter the camera address: Any
(default 20.15.10.5)
The camera type: iNELS cam
Login: admin
Password: dumpodpalcem
Directional
control
Zoom
Axis:
The name of camera: Any
Enter the camera address: IP address
assigned according to your network
The camera type: Axis
Login: root
Password: pass
PTZ
(pan-tilt-zoom) - remote directional and
zoom control
Some cameras Axis provide pan, tilt and zoom
functions (PTZ). In the app you can control motion
picture (enabling wide area coverage) and zoom in/
zoom out (by button plus/minus).
Complete list of supported cameras can be found at:
www.inels.com
18
U S E R ´S M A N U A L 2 . 0
ASSIGN A NEW UNIT
Click on the Settings, then on Configuration.
Click on the Tab Units.
To assign other Units click on add button. Enter the required data (The unit name: Any, The unit address:
see Fig.1 (Page 20), The unit type: any - see Fig.1 (Page 20), select the icon: according to the function of the
unit). Press „Save“ to add a new unit.
W W W. I N E L S . C O M /K I T S
19
DELETE ROOM/UNIT
Click on the „Settings“ and then the „Configuration“.
Click on the Tab Units or
Rooms which you want to
delete.
MARKING IP ADDRESSES AND TYPES OF INDIVIDUAL UNITS
Fig.1
DESIGN
THERMOVALVE
DESIGN
BOX
Unit type:
RFATV-1
Unit type:
RFSA-61B
Address:
007585
Address:
00150A
007585
DESIGN
SOCKET
DESIGN
MODULE
Unit type:
RFSA-66M
005A95
Unit type:
RFSC-61/F
Address:
005A95
DESIGN
BULB
Unit type:
RF-RGB-LED-550
005A95
Delete using long press.
20
Address:
00205A
00205B
00205C
00205D
00205E
00205F
Address:
012836
Note: the addresses used for illustration and are unique.
U S E R ´S M A N U A L 2 . 0
INELS CAM
Scanning:
Sensor:
Minimum illumination:
IR illumination:
1/5“ VGA CMOS
from 0 lux with IR illumination
up to 5 meters
Exposure time:
0 up to +50 °C
Angle of view:
(H) 45,3°, (V) 34,5°, (D) 54,9°
Digital zoom:
4x digital zoom
Function - Image Features:
Adjustable/Configurable image size, quality, frame rate and bit rate
Time stamp and text overlays
Configurable motion detection
Sound level detection
Event notification and upload snapshots/video clips via SMTP or FTP
Configurable brightness, saturation, contrast
Video compression:
simultaneously using H.264 and MJPEG compression formats
JPEG for static images
Video resolution:
640 x 480, 320 x 240, 160 x 112 at a frame rate up to 30 fps
Audio compression:
PCM
Network protocols:
PV4, ARP, TCP, UDP, ICMP
DHCP client, NTP client (D-Link), DNS client, DDNS client (D-Link), SMTP client, FTPclient, HTTP server, PPPoE, UPnP port forwarding, LLTD,
Power consumption:
4W
Interface:
Ethernet 10/100 Mbps, WiFi 802.11b/g/n
Dimension:
Dimensions including base: 80 x 115 x 80 mm
Weight:
96,2 g
W W W. I N E L S . C O M /K I T S
21
DESCRIPTION OF SMART RF BOX
Front panel
Communication protocol
Red LED
RF STATUS
Antenna
connector
SMA
Red LED RF STATUS - indication of RF transmission
Oasis & RF Touch Compatible - defi nes the format of RF commands (RF Control system communication)
Antenna connector - used to connect RF antenna
Rear panel
Yellow USB status LED
Power connector
10-27V/ 200mA
SELV
LED indicator of ethernet
communication
Ethernet
Ethern
connector
connect
(RJ 4
45)
USB B
connector
RESET button
Green POWER LED
indicator of power
supply
Power connector - used to connect adapter AC 230 V
USB connector - in case of a power from USB and service purposes
LED indication of ethernet communication - when pressing the button in the App, the LED is blinking
POWER - power indicator
RESET - device reset to the factory default settings
22
U S E R ´S M A N U A L 2 . 0
TECHNICAL PARAMETERS OF SMART RF BOX
RF Control interface
Communication protocol:
Oasis & RF Touch Compatible
Transmitting frequency:
868 MHz
Signal transfer method:
two-way addressed message
Output for antenna:
SMA connector
Indication of RF communication:
red RF Status LED
Antenna:
1 dB (included in the package)
Range in free space:
up 100 m
Ethernet communication
ETH operating status indicator:
green LED
ETH communication indicator:
yellow LED
Communication interface:
10/100 Mbps (RJ45)
Supply voltage / Rated current:
10-27V DC / 200 mA
PoE supply:
Max. 27V / 200mA
Connection:
Jack connector Ø 2.1 mm
Supply voltage indicator:
green LED Power
Others
More power options:
connector USB-B
Indicator of USB activity:
yellow USB Status LED
Power supply:
230 V AC / 12V DC included in the package
Operating temperature:
-20 .. +55 °C
Storage temperature:
Degree of protection:
-25 .. +70 °C
IP 20
Pollution degree:
2
Operating position:
any
Installation:
any
Design:
aluminum box
Dimension:
90 x 52 x 65 mm
IP 20
Protection:
Factory settings
RESET button:
restart / device reset to the factory default settings
Username:
admin
Password:
elkoep
IP address:
192.168.1.1
W W W. I N E L S . C O M /K I T S
23
WIRELESS COLOURED BULB
Bulb description
65 mm
Energy label
115 mm
550
6
30 000
24
Lumen
Watt
h
Address
577145
U S E R ´S M A N U A L 2 . 0
TECHNICAL PARAMETERS OF WIRELESS BULB
Power supply:
100-240V AC/50/60 Hz
Max. power:
9W
Power factor:
<0.6
Beam angle:
360°
RGB:
16,7 million colors
Output
Light output:
6W
Luminous flux:
550 Lm
Color temperature:
RGB
Brightness control:
0-100 %
Service life:
30 000 hours
Control
RF comm. from transmitter:
868 MHz
Range in open space:
up to 20 m
Other data:
Working temperature:
0 .. + 50 °C
Storage temperature:
-30 .. + 70 °C
Connection:
E27 base
Operating position:
any
Dimensions:
65 x 115 mm
Weight:
150 g
SPECTRUM
400
(ultra) Violet
450
Blue
W W W. I N E L S . C O M /K I T S
500
Cyan
550
Green
(wavelength in nm)
600
Yellow
650
Orange
700
Red
800
Purple (infra)
25
SWITCHING SOCKET (RFSC-61/F)
Front side
Device state indicator
Power supply indicator
Prog button
Rear side
5775
577515
577515
Address
26
French
Schuko
British
Australian
US
CZ, SK, PL, FR
HU, DE, RU, AT, RO
GB
AUS
USA
U S E R ´S M A N U A L 2 . 0
SWITCHING SOCKET (RFSC-61)
Power supply:
Apparent power:
Dissipated power:
Supply voltage tolerance:
230V AC / 50-60 Hz
6 VA
0.7 W
+10 %; -15 %
Output
Number of contacts:
Rated current:
Switching power:
Peak current:
Switching voltage:
Min. switching power DC:
Mechanical service life:
Electrical service life (AC1):
1x switching (AgSnO2)
16 A / AC1
4000 VA / AC1, 384 W / DC
30 A / <3 s
250 V AC1 / 24V DC
500 mW
3 x 107
0.7 x 105
Control
RF command from transmitter:
Manual control:
Range in the open space:
868 MHz
PROG button (ON/OFF)
up to 200 m
Other data
Operating temperature:
Operating position:
-15 up to + 50 °C
any
Mounting:
in a network socket 230V AC
Protection:
IP30
Overvoltage category:
Pollution degree:
Dimension:
Weight:
Related standards:
W W W. I N E L S . C O M /K I T S
III.
2
60 x 120 x 80 mm
195 g
EN 60669, EN 300 220, EN 301 489
directive RTTE, NVč.426/2000Sb (directive 1999/ES)
27
OTHER RF UNITS
CONTROLLER
DEVICE DESCRIPTION
TYPE/CODE
WIRELESS WALL CONTROLLER
RFWB-20/G
Each of the 2 independent push-buttons can control any
number of wireless units (switches, dimmers, shutters). In
the design of LOGUS90 switch (plastic, glass, metal, wood,
stone). Battery-powered 3V/CR2032. Color: white.
4037
RFWB-40/G
WIRELESS WALL CONTROLLER
Each of the 4 independent push-buttons can control any
number of wireless units (switches, dimmers, shutters). In
the design of LOGUS90 switch (plastic, glass, metal, wood,
stone). Battery-powered 3V/CR2032. Color: white.
4060
RF KEY
4 BUTTON CONTROLLER - KEYCHAIN
Wireless controller sends a command to switch ON/OF or dim
any wireless device after pushing the button. You can control
independently up to 4 devices. By one touch, you can switch
ON any number of units at once. Battery-powered 3V/CR2032.
4375
WIRELESS REMOTE CONTROLLER WITH DISPLAY
RF PILOT
Universal controller with display enables you to comfortably
control wireless units, using all their functions. It enables
to create rooms, scenes and favorites sections/folders. It is
possible to preset up to 40 units. Battery-powered 2xAAA.
4376
RFIM-20B
WIRELESS CONTACT CONVERTER
Transmitter serves as the contact converter of external device
to the commands for wireless units. It contains 2 inputs, that
can be switched ON permanently (by push-button or switch).
Battery-powered 3V/CR2477, into an installation box.
4175
SWITCHES
DEVICE DESCRIPTION
TYPE/CODE
SWITCHING SOCKET
RFSC-61
Quick solution for wireless control of plug-in appliances, when
the switching socket is installed between the existing socket and
a plug-in appliance. Output contact 16A/4000W, 6 functions, it is
possible to control up to 32 controllers. Dimen.: 60x120x84 mm.
WIRELESS SWITCH UNIT - 6
1-channel and 2-channel switching actuator intended to be mounted
into an installation box, that can switch any device. It can control up
to 32 controllers. Power supply 230V. RFSA-61B: Switching contact
16A/4000W. RFSA-62B: 2 independent 8A/2x2000W contact.
28
French: 4560
Schuko:
4562
British: 4544
RFSA-61B
(RFSA-62B)
4499
(4770)
U S E R ´S M A N U A L 2 . 0
OTHER RF UNITS
SWITCHES
DEVICE DESCRIPTION
TYPE/CODE
WIRELESS SWITCH UNIT - 6 OUTPUTS
RFSA-66M
6-channel switching actuator intended to be installed in the swich-board contains 6 independent 8A contacts, that can switch any
device connected in switchboard. Power supply 230V. The antenna
AN-I included in the package can be replaced by external type AN-E
what eliminates the influence of metal door of switchoboard.
SWITCH UNIT FOR OUTDOOR USE
4282
RFUS-61
1-channel switching unit in the box that provides higher protection level. Intended for outdoor installation suited for wet, humid
and dusty areas. Output switching contact 12A/3000W, power
supply AC 230V, 6 functions. It it possible to control up to 32 controllers. Enclosure IP65, dimension 136x62x34 mm, color: grey.
4526
SWITCH UNIT FOR SHUTTERS (CONTACTLESS)
RFJA-12B
Used to control shutters, blinds, awnings, garage doors, gates,
skylights - all devices that can be controlled in two directions. It
can be controlled by up to 32 push-buttons of any controller. Intended to be mounted into an install. box or to the motor housing.
Power supply AC 230V, switching capacity for the contact is 8A.
4682
DIMMERS
DEVICE DESCRIPTION
TYPE/CODE
DIMMING SOCKET (MULTI-FUNCTION)
RFDSC-71
For dimming of lamps and lighting construction, when the switching socket is installed between the existing socket and the lamp.
It allows you to dim incandescent bulbs, halogen lamps, dimmable
energy saving bulbs and modern LED lighting sources up to 300 W.
UNIVERSAL DIMMER (INBUILT)
Wireless multifunction (7 functions) dimmer used to dim
incandescent bulbs, halogen lamps, ... The type of lighting
source is selected using the rotary switch. Intended to be
mounted into an installation box. Power supply AC 230V.
DIMMER FOR COLOURED (RGB) LED STRIPS
Dimmer intended to be mouned in a switchboard to control coloured RGB. Strips with max. power 70 W / channel that corresponds to
approximately 10 m of RGB strip. Power supply DC 12-24-V, option
of color blending mode, control through keychain, RF Pilot or App.
UNIVERSAL DIMMER
Wireless multifunction (7 functions) dimmer used to dim
incandescent bulbs, halogen lamps, dimmable energy saving
bulbs and modern LED lighting sources up to 600W of power.
Power supply AC 230V.
W W W. I N E L S . C O M /K I T S
4594
RFDEL-71B
4512
RFDA-73M/
RGB
4681
RFDEL-71M
4897
29
OTHER RF UNITS
LIGHTING
DEVICE DESCRIPTION
TYPE/CODE
COLOURED RGB LED STRIP, 5 METERS
Coloured RGB strip, 7.2W/m (30 LED chips / m), length 5 m, width
11mm, outdoor-proof design, also designed for installation on aluminium rails, adhesive tape, it can be shortened by 10 cm, luminous
flux of 660 lm/m, control by RFDA-73M dimmer, power supply 12V.
POWER SUPPLY FOR 5 M RGB STRIP
Power supply 230V/12V/60W to power 5m of RGB strip.
Intended for outdoor use (IP67), dimension 162,5 x 42,5
x 32 mm.
WIRELESS COLOURED BULB
This RGB LED bulb consists of 3 color chips which can mix up
any color at different temperatures. Bulb has a built-in receiver and dimmer, so it can be easily replaced for the original
bulb. Other functions: colorful scenes, brightness setting etc.
WIRELESS WHITE BULB
This bulb comes in both warm and cool white, it has built-In wireless receiver and dimmer, it can easily be placed
in any existing base and control by any controller.
7,2W, RGB,
30LED/M
6630
DC 12V/5A
60W
6589
RF-RGBLED-550
4931
RF-WHITELED-675
4936
TEMPERATURE CONTROL
DEVICE DESCRIPTION
TYPE/CODE
WIRELESS TEMPERATURE CONTROLLER
RFTC-50/G
Digital thermostat in the design of the LOGUS90 switch (plastic, glass, metal, wood). It measures the room temperature and
according to the set heating program (weekly mode) it sends
commands to the switching unit (heating device). Battery-powered (2xAA). It is possible to control up to 4 heating circuits.
SWITCH UNIT WITH A TEMPERATURE SENSOR
RFSTI-11/G
Temperature unit in the design of LOGUS90 switch. It measures the
temperature and switch a heating circuit at the same time. Relay
contact 8A/2000W, power supply 230V, the possibility to connect
an exter. temperature sensor. It is possible to connect up to 30 units.
RFSTI-11/G/
BR/BR
WIRELESS THERMOVALVE
RFATV-1
Wireless thermovalve measures the room temperature and
sends it to the Smart RF box, that compares the temperature
records with the set temperature and according to set program it sends a command to open or close the radiator valve.
30
RF TC50/G/
BR/BR
6307
U S E R ´S M A N U A L 2 . 0
OTHER RF UNITS
TEMPERATURE CONTROL
DEVICE DESCRIPTION
WIRELESS TEMPERATURE SENSOR
Internal or external sensor measures the temperature starting
from -20 up to 50°C. Intended to be mounted into an installation box, but it can be also placed anywhere. Recommended external sensor - TC/TZ 3-6-12 m. Battery-powered 3V/CR2477.
THERMODRIVER
Electric thermodrive to be mounted on the radiator valve
(including adapter VA80 for valves Heimeier, Oventrop,
Schlösser, Herb or Onda (M30 x 1,5)). Power supply: 230
V (closed without power).
TYPE/CODE
RFTI-10B
3175
TELVA/230V
6602
SYSTEM UNITS
DEVICE DESCRIPTION
TYPE/CODE
WIRELESS TOUCH UNIT - SURFACE MOUNT
RF TOUCH - W
Used to control up to 40 wireless units. Besides switching, controlling and dimming, it includes thermostats with weekly programming and it also enables to connect detectors. In the size of the
switch, with frames in the LOGUS90 design intended for surface-mounted installation. Power supply 230V. White color.
SMART RF BOX, SMART WI BOX
The mediator between your controller and wireless units controlling
lights, heating, shutters, sockets and other appliances. eLAN-RF-003:
It is connected to LAN network of your router and it is placed to ensure
the visibility to other controlled units. eLAN-WI-003: App for controlling is free to download from GooglePlay or iTunes Store.
IP CAMERA FOR OUTDOOR USE
Indoor color camera D-Link DCS-933L/E can be easily connected to LAN through cable or to wireless WiFi network. It is
possible to monitor up to 10 cameras in the App. Resolution
640x480, dimension: 80x115x80mm, power supply: included in the package 5V/1A.
MULTIFUNCTIONAL GSM COMMUNICATOR
GSM gate intended to be mounted in a switchboard enables a remote control of wireless units via SMS text message. It can also
send SMS text message containing information about the status
of wireless units. It contains 4 binary inputs for signals and 2 relay
outputs 8A/2x2000W to switch directly the unit.
REPEATER TO EXTEND THE RANGE
Repeater in the socket design, that is used to increase the
range of signal or in case of low signal between controller
and unit. It is possible to repeat the signal of up to 20 units.
W W W. I N E L S . C O M /K I T S
RFTW-AWH-BWH-CWH
eLAN-RF-003
(Wi-003)
5173
(487 2)
iNELS CAM
6703
RFGSM-220M
4604
RFRP-20
4510
31
THE OVERVIEW OF OTHER KITS
THE GAME OF LIGHTS
1×
SMART RF
BOX
3×
COLORED
WIRELESS
BULB
ORDER CODE: 5453
KIT TO CONTROL LIGHTS VIA SMARTPHONE
It has never been easier to set the appropriate ambience for reading a book, watching a movie
or a party with friends. All you need is wireless bulbs and smart box. Then you can control
every device from the comfort of your smartphone, tablet or smart TV. You can control not just
colored or white light bulbs, but other appliances too.
EASY HEAT REGULATION
1×
TEMPERATURE
CONTROLLER
1×
SWITCHING
SOCKET
ORDER CODE: 5458
KIT FOR WIRELESS TEMPERATURE REGULATION IN THE HOME
This kit enables convenient and quick control of heater, oil heater, panel heater or portable air
conditioner. Just plug the controlled device into switching socket and appropriately place your
controller RFTC-50G. The desired temperature is set on the controller, that compares it with
the current record and it sends a command to turn the device ON.
32
U S E R ´S M A N U A L 2 . 0
THE OVERVIEW OF OTHER KITS
HEATING WITH SAVINGS
1×
ORDER CODE: 5455
WIRELESS CONTROL
UNIT RF TOUCH
WIRELESS
3× THERMOVALVES
KIT TO CONTROL HEATING VIA WIRELESS RF TOUCH UNIT
Includes 3 wireless thermovalves that are installed instead the standard radiator valves. Measures the room temperature and sends it to the RF Touch control unit. RF Touch compares it with the
temperature set along with time schedule and sends a command to open or close the valve. You can
set heating programs in the weekly schedule, separately for each circuit (room).
REMOTE HEATING
1×
3×
ORDER CODE: 5456
SMART RF
BOX
WIRELESS
THERMOVALVES
KIT TO CONTROL HEATING VIA SMARTPHONE
Includes 3 wireless thermovalves that are installed instead the standard radiator valves. They measure the room temperature and send it to the Smart RF box. Smart RF box compares it with the
temperature set along with the time schedule in the App of your phone and sends a command to
open or close the valve. You can always turn on the heating circuit via app, whether you‘re at home,
or just going to visit your cottage and do not want to come to unheated place.
W W W. I N E L S . C O M /K I T S
33
THE OVERVIEW OF OTHER KITS
RADIO & MUSIC IN THE SWITCH
1×
LARA
RADIO
2×
SPEAKERS
ORDER CODE: 5454
KIT FOR CONROLLING MUSIC, WHICH PERFECTLY FITS IN YOUR HOME´S INTERIOR
LARA is a music and internet radio player. We have registered 40 favorite Czech radios stations as presets stations, but you can easily change it using configurator. LARA plays the music
stored in the NASA storage or in the external source (phone, MP3 player) connected through
cable on the front panel of device. Inbuilt amplifier allows direct connection of speakers (in
the same LOGUS 90 design) or allows connection of external in-wall or ceiling speakers.
ONE CONTROLLER FOR ALL
1×
3×
ORDER CODE: 5457
SMART IR
BOX
IR TRANSMITTER
KIT FOR CONTROLLING IR DEVICES VIA A SMARTPHONE
Thanks to Smart IR box, you can control home appliances via a Smartphone. Thus you no longer
need a bunch of controllers, you do not have to look for them, and you do not need to replace
the battery. You always stick your phone in your pocket, always at hand. Moreover, you can
control devices which are placed in another room (e.g. you can turn off TV in the children room).
34
U S E R ´S M A N U A L 2 . 0
VIRTUAL KITS
The virtual kit is a set of wireless units that are packed individually (as an individual product), but on
the other hand they are preset together (they are meant to work together) to ensure simple installation. They are off ered at a discounted price and it is not possible to separate any unit from this price.
UNDERFLOOR HEATING - BY WATER
Any wireless temperature regulator measures the room temperature, it compares with set temperature and
time program, then sends a command to switch the units ON. Based on the command from temperature
regulator, 6-channels switching unit is able to control up to 6 thermovalves corresponding to heating circuits.
KIT CONSISTS OF:
Wireless temperature controller RFTC-50/G, wireless switch unit (6 outputs) RFSA-66M,
thermodriver TELVA/230V.
UNDERFLOOR HEATING - BY ELECTRICITY
Temperature and switching unit (two in one) measures the fl oor temperature via external sensor
(inbuild). Then it sends data to wireless touch unit RF Touch, which compares it with the temperature
set along with the time schedule and then sends a command back to switch on/switch off the heating
circuits. It is possible to connect up to 4 temperature/switching units.
Advice 1) If just one reference temperature is enough for you, so then it can be measured by temperature sensor RFTI-10B and to switch up to 6 independent heating circuits you can use 6-channels
switching actuator RFSA-66M.
Advice 2) The wireless unit RF Touch can be replaced by Smart RF box and all can be controlled via
your smartphone. Both solution can be used together.
KIT CONSISTS OF:
Switching actuator with thermosensor RFSTI-11/G, Wireless touch unit RF Touch.
AGAINST THE FLOOD
A wireless sensor monitors the water leaks or flooding in the critical places (basement, pits, shafts,
bathroom, laundry,...) and sends immediately a command to the switching unit to close the solenoid valve
of the main water supply. You can be also informed of that accident through GSM gateway by sending
SMS text messages.
KIT CONSISTS OF:
Switch unit RFUS-61, wireless flood detector RFSF-1B,flood probe FP-1.
We recommend: solenoid valve: MPW SS 304 - 1/2 (3/4) 230V AC.
COLORED RGB LED STRIP
The app in your smartphone can send (through smart RF box) the commands to the dimming unit to
which the RGB strip is connected. From your app it is possible to switch ON/OFF, to set the color or
run the scene of automatic color blending.
Advice 1) The colored RGB strip can be controlled through RF Pilot, by controllers RFWB-20/40, RF key,...
Advice 2) If you do not want the colored RGB strip, we can replace it by monochromatic (warm white, cool white, red, ...). Then you can connect 8 m of monochromatic strip (power 7,2W/m) to RFDA-73M to each output.
KIT CONSISTS OF:
Smart RF box, dimmer RFDA-73M, 2 x 5m coloured RGB strip 7.2W/m, power supply 230V/
12V/100W.
W W W. I N E L S . C O M /K I T S
35
Manufacturer:
ELKO EP, Ltd. / Palackeho 493
Holešov - Všetuly 769 01 / Czech Republic
phone: +420 800 100 671 / e-mail: [email protected]
www.elkoep.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
