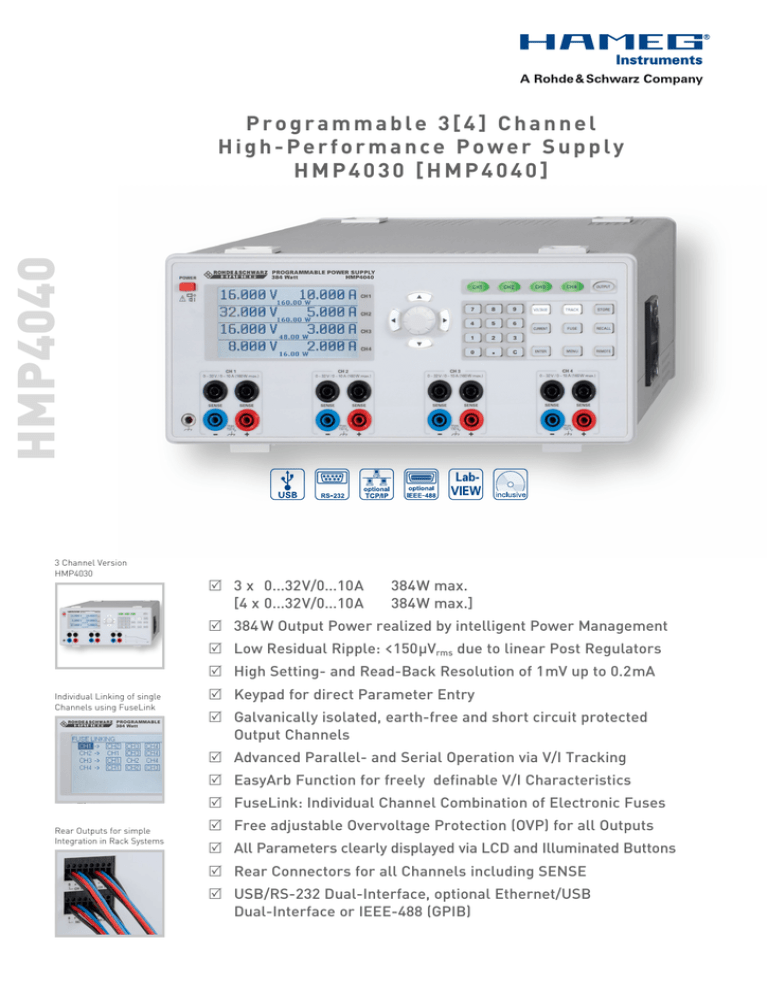

HMP4040
Programmable 3[4] Channel
High-Performance Power Supply
HMP4030 [HMP4040]
3 Channel Version
HMP4030
R 3
x 0…32 V/0…10 A
[4 x0…32 V/0…10 A
384 W max.
384 W max.]
R 384 W Output Power realized by intelligent Power Management
R Low Residual Ripple: <150 µVrms due to linear Post Regulators
R High Setting- and Read-Back Resolution of 1 mV up to 0.2 mA
Individual Linking of single
Channels using FuseLink
R Keypad for direct Parameter Entry
R G
alvanically isolated, earth-free and short circuit protected
­Output Channels
R Advanced Parallel- and Serial Operation via V/I Tracking
R EasyArb Function for freely definable V/I Characteristics
R FuseLink: Individual Channel Combination of Electronic Fuses
Rear Outputs for simple
Integration in Rack Systems
R Free adjustable Overvoltage Protection (OVP) for all Outputs
R All Parameters clearly displayed via LCD and Illuminated Buttons
R Rear Connectors for all Channels including Sense
R U
SB/RS-232 Dual-Interface, optional Ethernet/USB
­Dual-Interface or IEEE-488 (GPIB)
Programmable 3 Channel High Performance Power Supply HMP4030
[Programmable 4 Channel High Performance Power Supply HMP4040]
All data valid at 23 °C after 30 minutes warm-up.
Outputs
Advanced parallel and series operation: simultaneous switching on/off of
­active Channels via “Output” button, common voltage- and current control using tracking mode (individual channel linking), individual mapping
of Channels which shall be affected by FuseLink overcurrent protection
(switch-off), all Channels galvanically isolated from each other and the
protective earth
HMP4030:
HMP4040:
Output terminals:
Output power:
Compensation of lead
resistances (Sense):
Overvoltage/overcurrent
protection (OVP/OCP):
Electronic fuse:
Response time:
3 x 0…32 V/0…10 A
4 x 0…32 V/0…10 A
4 mm safety sockets frontside, Screw-type
terminal rear side (4 units per channel)
384 W max.
1 V
Adjustable for each channel
Adjustable for each channel,
may be combined using FuseLink
<10 ms
32 V Channels
Output values:
3 x 0…32 V/0…10 A, (5 A at 32 V, 160 W max.)
HMP4030
4 x 0…32 V/0…10 A, (5 A at 32 V, 160 W max.)
HMP4040
Resolution:
1 mV
Voltage
<1 A: 0.2 mA; ≥1 A: 1 mA
Current
Setting accuracy:
<0.05 % + 5 mV (typ. ±2 mV)
Voltage
<0.1 % + 5 mA (typ. ±1 mA at I <500 mA)
Current
Measurement accuracy:
<0.05 % + 2 mV
Voltage
<500 mA: <0.05 % + 0.5 mA, typ. ±0.5 mA
Current
≥500mA: <0.05 % + 2 mA, typ. ±2 mA
Current
3 Hz…100 kHz
3 Hz…20 MHz
Residual ripple:
<150 µVrms
1.5 mVrms typ.
Voltage
<1 mArms
Current
Residual deviation after a load change (10…90 %):
<0.01 % + 2 mV
Voltage
<0.01 % + 250 µA
Current
Residual deviation after a line voltage change (±10 %):
<0.01 % + 2 mV
Voltage
<0.01 % + 250 µA
Current
Recovery time after a load
step from 10…90 % for return
<100 µs
within a ±10 mV window:
Arbitrary Function EasyArb
Voltage, current, time
Parameters of points:
128
Number of points:
10 ms…60 s
Dwell time:
Continuous or burst mode
Repetition rate:
with 1…255 repetitions
Manually via keyboard or via Interface
Trigger:
Maximum ratings
Reverse voltage:
Reverse polarized voltage:
Max. permitted current in
case of reverse voltage:
Voltage to earth:
Miscellaneous
Temperature coefficient/°C:
Voltage
Current
Display:
Memory:
Interface:
Processing time:
Protection class:
Power supply:
Mains fuses:
Power consumption:
Operating temperature:
Storage temperature:
Rel. humidity:
Dimensions (W x H x D):
Weight:
33 V max.
0.4 V max.
5 A max.
150 V max.
0.01 % + 2 mV
0.02 % + 3 mA
240 x 128 Pixel LCD (full graphical)
Non volatile memory for 3 Arbitrary
functions and 10 device settings
Dual-Interface USB/RS-232 (HO720)
<50 ms
Safety class I (EN61010-1)
115/230 V ±10 %; 50…60 Hz, CAT II
115 V: 2 x 10 A slow blow 5 x 20 mm
230 V: 2 x 5 A slow blow 5 x 20 mm
550 VA max.
+5…+40 °C
-20…+70 °C
5…80 % (non condensing)
285 x 125 x 365 mm
approx. 10 kg
Accessories supplied: Line cord, Operating manual, CD, Software
Recommended accessories:
HO730 Dual-Interface Ethernet/USB
HO740 Interface IEEE-488 (GPIB), galvanically isolated
HZ10S 5 x silicone test lead (measurement connection in black)
HZ10R 5 x silicone test lead (measurement connection in red)
HZ10B 5 x silicone test lead (measurement connection in blue)
HZ13
Interface cable (USB) 1.8 m
HZ14
Interface cable (serial) 1:1
HZ43
19" Rackmount Kit 3RU
HZ72
GPIB-Cable 2 m
HZP91 19" Rackmount Kit 4RU
HMP4030/HMP4040E/050912 · C&E · Subject to change without notice · © HAMEG Instruments GmbH® · DQS-certified in accordance with DIN EN ISO 9001:2008, Reg.-No.: 071040 QM08
HAMEG Instruments GmbH · Industriestr. 6 · D-63533 Mainhausen · Tel +49 (0) 6182 8000 · Fax +49 (0) 6182 800100 · www.hameg.com · [email protected]
