MTD | 137-410A | Technical data | MTD 137-410A Technical data

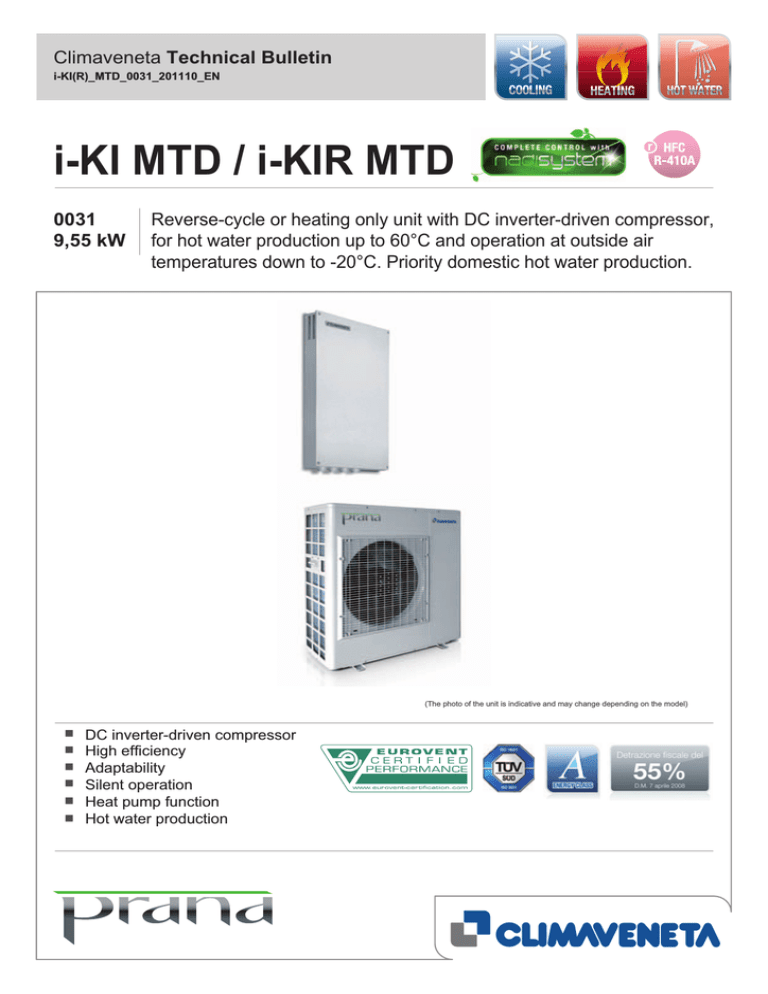

Climaveneta Technical Bulletin
i-KI(R)_MTD_0031_201110_EN
i-KI MTD / i-KIR MTD
0031
9,55 kW
Reverse-cycle or heating only unit with DC inverter-driven compressor,
for hot water production up to 60°C and operation at outside air
temperatures down to -20°C. Priority domestic hot water production.
(The photo of the unit is indicative and may change depending on the model)
DC inverter-driven compressor
High efficiency
Adaptability
Silent operation
Heat pump function
Hot water production
i-KI(R) MTD
INDEX
1.
DESCRIPTION OF THE UNIT
3
2.
ELECTRONIC CONTROLLER
5
3.
OPERATING CHARACTERISTICS
6
4.
ACCESSORIES
11
5.
GENERAL TECHNICAL DATA
24
6.
OPERATING LIMITS
28
7.
ETHYLENE GLYCOL MIXTURE
29
8.
FOULING FACTORS
29
10. MINIMUM AND MAXIMUM SYSTEM WATER CONTENT 30
10. SYSTEM PUMP CURVES
31
11. UTILITY WATER CIRCUIT CONNECTION DIAGRAM
31
12. FULL LOAD SOUND LEVEL
32
13. POSITION OF THE WATER CONNECTIONS
32
14. DIMENSIONAL DRAWINGS
33
15. CLEARANCES - HOISTING - SYMBOLS
33
16. OPERATING DIAGRAMS
34
This company participates in the Eurovent Certifi cation Programme.
The products are listed in the Directory of certifi ed products.
Eurovent certifi cation applied to units with cooling capacity up to 1500 kW
for air cooled water chillers and water cooled liquid chillers.
Company quality system
certified to UNI EN ISO 9001
and environmental certification
UNI EN ISO 14001
Waiver of liability
This document cannot be considered comprehensive for the purposes of: installation, operation, precautions against risks, handling
and transport. See the “General installation manual” for further information.
This document refers to standard configurations, in particular regarding dimensions, weights, electrical, refrigerant, water and air duct
connections (where applicable). For further information, drawings and diagrams contact the Climaveneta Sales Office.
Climaveneta accepts no liability deriving from the incorrect use of this document.
This publication is the sole property of Climaveneta, all reproduction, even partial, is prohibited.
The data contained in this publication may be changed without prior notice.
2
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
1. DESCRIPTION OF THE UNIT
High efficiency range
Fans
The i-KI heating only and i-KIR reverse-cycle heat pumps feature high seasonal efficiency in both heating and cooling mode,
using DC inverter technology to modulate compressor operation
and deliver the exact amount of energy based on the actual
needs of the building.
This excellent result has been achieved by carefully sizing all
the components. Special attention has been paid to all heat
exchange surfaces and the fans.
The use of newly designed condensing coils, with larger surfaces and special layout, new asymmetrical evaporators with
better and more efficient refrigerant distribution, both in the liquid and gas phase, and high efficiency fans are some of the
important innovations included with this product.
Careful sizing of the systems this series of units are used with
can mean significant savings in energy consumed and consequently a major reduction in running costs.
Axial-flow fans with DC brushless motor, external impeller, with
pressed plate blades, housed in aerodynamic tubes with accident prevention grill. Fans with continuous speed control by
pressure transducer.
Refrigerant circuit
Main components in the refrigerant circuit:
- refrigerant R410A
- electronic thermostatic valve,
- liquid receiver,
- 4-way reversing valve.
Heat pump electrical panel:
-
Smart Defrost
The heat pumps come with an innovative and patented selfadaptive defrost system that optimises defrost times, improving
overall unit efficiency.
The strength of this new logic is the ability to automatically
adjust parameters used by the algorithms in each cycle, based
on the outside conditions.
Controlling the evaporation pressure, outside air temperature
and defrost time, give an excellent estimate of ice on the coil,
thus guaranteeing an effective and efficient defrost cycle.
Compressor discharge temperature probe
Outside air temperature probe
Defrost temperature probe
Compressor suction temperature probe
Heat exchanger water inlet temperature probe
Heat exchanger water outlet temperature probe
Board with alarm signal display and dipswitches
Inverter board
Power module
Board protection fuses
Inside module electrical panel:
-
Air-water heat pump
Air-to-water heat pump, available in heating only and reversecycle versions.
Unit supplied complete with non-freezing oil and refrigerant
charge, and factory tested. Only water and electrical connections are required on site. Unit charged with R410A ecological
refrigerant.
Radio interference suppresser
Controller/unit interface
Electronic controller
Unit ON/OFF relay
Outlet heater / boiler relay
Alarm/secondary pump/dehumidifier relay
Heat/cool relay
Auxiliary circuit protection fuse
Controller protection fuse
Interface protection fuse
The water circuit is completed by:
-
COMPOSITION OF STANDARD UNIT
Structure
Structure made from hot galvanised steel load-bearing base
and panels, painted with polyester power coat. The load-bearing structure that holds together and supports the main components is designed to guarantee maximum access for service
and maintenance.
3-speed pump
Expansion vessel (8 litres)
Safety valve (3 bar)
Pressure gauge
Vent valve
Compressor
Inverter-driven DC brushless hermetic rotary compressors,
complete with thermal protector.
Utility-side heat exchanger
Braze welded AISI 316 steel plate heat exchanger. The heat
exchangers are lined on the outside with a layer of closed-cell
neoprene to prevent condensation.
Source-side heat exchanger
Finned coil heat exchanger made from copper tubes and aluminium fins, spaced apart so as to guarantee maximum heat
exchange efficiency. The unit is fitted as standard of the tray
condensate drain.
Electric frost protection heater for the base
Modulating electric frost protection heater for the base, positioned between the finned heat exchanger and the base to
improve and assist drainage of water during defrosts.
3
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
- Domestic hot water storage tank, 300, 500 and 1000 litres
with solar heating coil, to be combined with the DOMH2O
instant domestic hot water production kit.
- DOMH2O15 and DOMH2O24 instant domestic hot water production kit.
VERSIONS AVAILABLE
i-KI MTD
air/water heat pump, heating only, with DC inverter-driven compressors, domestic hot water production, axial-flow fans and hydronic unit.
i-KIR MTD reverse-cycle air/water heat pump with DC inverter-driven compressors, domestic hot water production, axial-flow fans and hydronic unit
The heat pump consists of:
REVERSE-CYCLE
heat pump
i-KIR 0031m MTD
i-EMR
Outdoor unit
Inside module
HEATING ONLY
heat pump
i-KIR 0031m MTD
i-EM
Outdoor unit
Inside module
The inside module is installed inside the building’s equipment
room and is electrically connected to the outdoor unit, installed
outside.
Connection example:
Power supply
Residual
current
circuit
breaker
QF1
Outdoor unit
Inside module
The remote room controller, outside air temperature probes,
supplementary electric heater or boiler, expansion modules and
all other accessories required by the system must only be connected to the inside module. This avoids having to run numerous cables to the outside, simplifying unit installation.
SUPPLIED AS STANDARD
- N-THC remote control complete with backlit display, temperature probe, humidity probe, knob and 4 buttons (must be
installed)
- Outside air temperature probe for climate compensation (must
be installed)
- Domestic hot water probe
- Storage tank probe
ACCESSORIES
- N-THC wired room timer thermostat with backlit display, complete with temperature and humidity probe for system configuration.
- N-EM1 expansion module for system configuration.
- 3-way selector valve for domestic hot water production.
- Supplementary electric heater for the heating system.
- DHW storage electric heater, as supplementary heat source
and for Legionella prevention.
- N-CM kit for managing heat pumps in cascade.
- N-RS RS485 serial card for ModBus protocol.
- Low-loss header, 35, 100 or 200 litres.
- Domestic hot water cylinder, 300 or 500 litres.
- Domestic hot water storage tank, 300 litres, to be combined
with the DOMH2O instant domestic hot water production kit.
4
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
2. ELECTRONIC CONTROLLER
The NADISYSTEM electronic controller is based on an innovative and efficient approach to building air-conditioning.
Energy is only consumed when necessary and the energy
sources are used based on availability, efficiency and cost, giving priority to renewable sources, where available.
The first significant advantage of introducing a single integrated
control system is optimisation of energy savings through coordination between the different system components, eliminating
inefficiencies in communication, simplifying installation and
reducing the number of controllers.
NADISYSTEM ensures dynamic control of water outlet temperature according to real needs in the building and the outside air
temperature, optimising comfort and reducing wasted energy.
The remote keypad supplied with the unit can be used to freely
set the room temperature, humidity, operating mode, domestic
hot water production and operating times for each zone.
The NADISYSTEM control system for residential applications
gives high operating flexibility by controlling the secondary circuits, that is, activating zone pumps and valves depending on
the room temperature set on the remote keypad, and by controlling mixing valves to ensure the correct water temperature in
radiant systems according to the climate conditions set for each
circuit.
There are 15 different types of pre-configured system for quick
and easy installation, with the possibility to manage up to 5
remote keypads for controlling thermal load in likewise zones.
The advanced PRANA controller also allows integration of solar
panels for the domestic hot water production, giving priority to
direct solar energy, if available, and increasing the use of
renewable sources while also managing traditional sources,
such as electric heaters or boilers.
The controller can manage up to four 4 heat pumps connected
in cascade to increase capacity in applications with multiple
occupied areas, such as hotels, schools, apartment blocks,
offices and shopping centres.
The units are managed in master-slave mode, with the master
unit responsible for processing the information and sending it to
the slave units.
This ensures fine control over the capacity delivered, without
decreasing performance, and more precise system sizing.
NADISYSTEM can determine how many cascaded units are
needed to guarantee domestic hot water production, all or just
one, according to requirements.
The controller also balances compressor operating hours based
on time logic, activating the units in rotation, and where necessary excluding any units that are momentarily out of service,
without interrupting operation of the cascade as a whole.
Moreover, the controller modulates fan operation for optimum
condensation or evaporation, depending on the operating
mode, allowing domestic hot water production even in summer
with outside temperatures up to 45°C, and reducing noise at
night.
NADISYSTEM also allows easy service, being interfaceable to
supervision systems for remote maintenance by specialist technicians, as well as remote control of certain functions, such as:
la remotazione di alcuni comandi come:
- on/off
- cooling/heating operation
- heating system/domestic hot water priority
- shutdown due to electricity rate
AUXILIARY
SOURCE
HOT WATER
FLOOR
HEATING
FAN COIL
SOLAR
INTEGRATION
RADIATORS
Main functions
- Wired remote keypad with backlit display, complete with temperature and humidity probe
- Calculation of dew point and increase in water outlet temperature for underfloor systems, possibility to enable a dehumidifier
- Operating parameters with dedicated user and installer
menus to configure the type of system
- Weekly timer for setting 6 daily time bands
- Outside air temperature probe to control the system water
temperature set point based on heating and cooling compensation curves. Fixed point operation also available.
- Cooling, heating operating modes, automatic mode changeover
- Domestic hot water production
- Supplementary electric heater management for domestic hot
water storage and Legionella prevention cycle
- Domestic hot water recirculation by timer or flow switch
- External resource (boiler or electric heater) management as
supplementary or sole source of heat
- Cascaded management of up to 4 heat pumps
- Different systems solutions by configuring the controller and
using dedicated expansion modules (accessories), up to 5
zones with the possibility to control different temperature
according to the selected compensation curves.
- Alarm signals
- Frost protection management based on inside or outside air
temperature or water temperature, to protect the system pipes
and heat exchangers inside the unit.
5
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
3. OPERATING CHARACTERISTICS
HIGH EFFICIENCY AND REDUCED CONSUMPTION
The i-KI and i-KIR reverse-cycle air-to-water heat pump is fitted
with DC inverter-driven compressor and EC fan with low energy
consumption.
Inverter technology continuously controls compressor speed to
ensure perfect adaptation to system load, modulating the heating or cooling capacity delivered and consequently reducing
power consumption and achieving the highest seasonal coefficients currently available on the market.
The seasonal coefficient of performance faithfully reflects the
advantages in energy and economic terms of using the heat
pump all year around, being the ratio between energy delivered
and power consumed. In terms of improving performance and
reducing power consumption, the electronic thermostatic valve
is an important component that maximises system efficiency.
Quick and effective adaptation by the electronic thermostatic
valve to variations in load allows the compressor to always work
at optimum efficiency, as well as extending compressor life.
TEMPERATURE CONTROL
Heating compensation curve
The water temperature delivered to the heating and cooling circuit is calculated by the controller and depends on the selected
cooling and heating compensation curve.
A building’s thermal requirements do not remain constant
throughout the day or the year, but rather increase or decrease
based on the outside air temperature.
It’s therefore a waste of energy to keep the water at a constant
temperature. Delivering water at different temperatures to the
terminals based on the outside air temperature achieves high
seasonal efficiency ratios and brings considerable savings in
running costs.
The compensation curve in heating and cooling mode can be
adjusted to allow correct heat pump operation according to the
system (radiant panels, radiators, fan coils).
Example: Selecting heating curve 1.4 with an outside air temperature of -5°C gives a water temperature of +55°C.
Dedicated compensation curves can be set for each zone,
depending on the type of terminal unit, or alternatively a fixed
point temperature can be selected.
A function called “room temperature influence” is available to
quickly adapt the water temperature by modifying the compensation curve when the indoor conditions change, for example
when there are more occupants in the room.
This function is only available in heating mode.
In cooling operation during summer, the controller calculates
the dew point using temperature and humidity probe on the
remote terminal, which determines an increase in the water
temperature to deliver to the radiant system and activation of
the dehumidifier (one dehumidifier contact only for all zones).
2,2
2
1,8
1,6
1,4
Water set point °C
1,2
1
0,8
0,6
0,4
0,2
-5
-25
Outside air temperature °C
Cooling compensation curve
Water
set point
Tm1
Tm2
Te1
Te2
Outside temp.
PROGRAMMING THE TIME BANDS
A timer is available to customise differentiated activation and
deactivation for each individual zone of the system, creating an
operating profile with up to 6 daily time bands.
Time band 1
Time band 2
Time band 3
Time band 4
6
Time band 5
Time band 6
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
SYSTEM PUMP OPERATION
All-electric operation
In all-electric operation the heat pump is integrated with an
electric heater to meet the entire demand of the building.
The electric heater is activated below certain outside temperatures so as to satisfy demand in the building that the heat pump
cannot manage on its own.
Considering the reduced number of hours of heat pump operation at low outside temperatures during the winter period, operation of the supplementary heater will also be reduced, and
consequently power consumption will be negligible.
Therefore the system’s seasonal energy efficiency remains
unchanged.
This solution is suggested for new homes and lower investments than monovalent heat pumps.
When reaching the system water temperature set point, the compressor stops and the system pump is activated periodically, so
as to minimise energy consumption and ensure correct measurement of the water temperature. The pump on and off times can
be set using a parameter, according to the type of system.
In systems with fan coils, the time between one sniffing cycle
and the next should be reduced in order to avoid excessive
cooling of the water, in heating operation, and if and if the system water content is equal to the minimum value shown in the
paragraph on “Minimum and maximum system water content”.
DOMESTIC HOT WATER PRODUCTION
Pt [kW]
The controller manages domestic hot water production using a
3-way valve installed outside of the unit, deviating the flow of
hot water to the DHW storage tank, which must be suitably
sized according to the type of usage.
Production is enabled when the water temperature inside the
DHW storage tank (probe BT8) is less than the DHW set point.
The production of domestic hot water is guaranteed in both
summer and winter, according to the operating limits shown in
this manual. If heat pump operation is expected outside of the
limits, consider using a supplementary source of heat, managed
directly by the controller.
An electric heater should be installed inside the DHW storage
tank to ensure the temperature does not fall below 10°C in the
event of extended periods of heat pump inactivity (standby).
10
Heat Capacity
P.d.C
8
6
4
Wi
nte
2
rL
oa
d
0
-15
-10
-5
0
5
10
15
20
Outside Air Temp. [°C]
Heat pump
Elec. Heater
LEGIONELLA PREVENTION FUNCTION
The Legionella prevention function ensures the elimination of
the Legionella bacteria that reside in domestic water storage
tanks. The temperature and duration of the Legionella prevention cycles to eliminate bacteria are typically:
• 2 minutes > 70°C
• 4 minutes > 65°C
• 60 minutes > 60°C
The Legionella prevention cycles are managed directly by the
controller, enabling the heater in the domestic hot water storage
tank domestic, with the possibility to set the duration, temperature, day and time.
Pt [kW]
Bivalent operation
In the case of bivalent operation the heat pump meets the
needs of the building down to a certain outside temperature,
called the bivalence point.
Below the bivalence point the heat pump switches off and only
the auxiliary source (e.g. boiler) provides heat for the building.
This solution is ideal for traditional systems and renovations.
Heat Capacity
P.d.C
8
6
AUXILIARY RESOURCES
System operation can be distinguished as monovalent, all-electric or bivalent. The controller can activate the external source
to achieve one of the functions listed above.
4
Wi
nte
2
rL
oa
d
0
Monovalent operation
For monovalent operation, the heat pump has to meet the entire
demand of the building. There may be excessive heating capacity of the heat pump above all when the outside air temperature
is above zero, as well as high power consumption.
Make sure the home’s energy meter is correctly sized.
Solution suggested for new homes.
Pt [kW]
10
-15
-10
-5
0
5
10
15
20
Outside Air Temp. [°C]
Heat pump
Boiler
14
Heat Capacity
P.d.C
12
10
8
6
4
Win
ter
2
Loa
d
0
-15
-10
-5
0
5
10
15
20
Outside Air Temp. [°C]
Heat pump
7
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
SYSTEM MANAGEMENT
N.
System
Configuration
The NADISYSTEM control system for residential applications
gives high operating flexibility by controlling the secondary circuits, that is, activating zone pumps and valves depending on
the room temperature set on the remote keypad, and by controlling mixing valves to ensure the correct water temperature in
radiant systems according to the climate conditions set for each
circuit.
There are 15 different types of pre-configured system for quick
and easy installation, with the possibility to manage up to 5
remote keypads for controlling thermal load in likewise zones.
0
Remote
Keypad
N-THC
Expansion
Module
If the radiant system also needs to meet cooling demand,
humidity control is guaranteed by activating the dehumidifier
contact, while calculation of the dew point, measured by the NTHC controller, ensures the correct water outlet temperature
defined by the cooling compensation curve, thus avoiding formation of condensate on the floor.
Remember to suitably insulate the pipes in contact with the air,
if air-conditioning in used inn summer.
The following table indicates the different type of systems that
can be controlled directly by the NadiSystem.
High Temp.
Zone
High Temp.
Zone
High Temp.
Zone
Low Temp.
Zone
Low Temp.
Zone
Low Temp.
Zone
(ex. Radiator/
Fan Coil)
(ex. Radiator/
Fan Coil)
(ex. Radiator/
Fan Coil)
(ex. Floor
Heating)
(ex. Floor
Heating)
(ex. Floor
Heating)
N-EM1
x1
standard
x1
1
DHW
Recircu
lation
5
x1
standard
x1
2
x1
standard
x1
3
standard
M
x1
M
x1
optional
x1
4
x2
standard
M
x1
optional
x1
5
x2
standard
M
x3
optional
x1
6
x2
5
standard
M
x3
optional
x1
7
x2
standard
2
2
1
2
M
x3
optional
8
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
N.
System
Configuration
The controller can manage the valves in each individual zone or
alternatively pumps, depending on the set temperature.
The system decides whether to activate the unit or the most
energy efficient resources to meet demand.
NadiSystem manages different temperature levels based on the
terminal units used.
The heat pump directly produces water at the right temperature
for the system terminals connected to the high temperature circuits (e.g. fan coils, radiators, towel rails in bathrooms), while
low temperature radiant panels are controlled by the mixing
valves according to the specific compensation curves.
Remote
Keypad
N-THC
x1
8
Expansion
Module
This means a compensation curve can be applied to the high
temperature zones and different compensation curves for each
low temperature zone (maximum three).
Depending on the type and complexity of the system, expansion modules are required for connection of the components
managed by the system (pumps, valves, probes etc.), as indicated in the table.
Simple installation by serial connection of the components making up the NadiSystem.
High Temp.
Zone
High Temp.
Zone
High Temp.
Zone
Low Temp.
Zone
Low Temp.
Zone
Low Temp.
Zone
(ex. Radiator/
Fan Coil)
(ex. Radiator/
Fan Coil)
(ex. Radiator/
Fan Coil)
(ex. Floor
Heating)
(ex. Floor
Heating)
(ex. Floor
Heating)
DHW
Recircu
lation
N-EM1
x2
5
standard
2
M
x3
optional
x1
9
x2
standard
2
1
M
x1
M
optional
x1
10
x2
standard
2
1
M
x1
M
optional
x1
11
x2
standard
2
1
M
x2
M
optional
x1
12
x3
standard
2
1
M
x3
M
optional
x1
13
x3
standard
5
2
1
2
M
x4
M
optional
x1
14
x3
standard
2
2
1
1
M
x2
5
2
1
M
M
optional
Key
M
Mixing valve floor heating
DHW pump circulation
Circulation Zone pump or motorized valve
Ambiente thermostat
Water probe
* N.1 ambiente thermostat available with the heat pump
** Configurations from 4 to 14 are required additional N-THC as accessories
9
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
FROST PROTECTION
The frost protection function is active even when the heat pump
is OFF.
DOMESTIC HOT WATER FROST PROTECTION STORAGE
The domestic hot water frost protection function is only active if
an auxiliary resource is installed for the domestic hot water storage tank.
The additional heater is activated if the water temperature,
measured by sensor BT8, is less than +5°C, and is deactivated
at +8°C.
PRIMARY CIRCUIT FROST PROTECTION SYSTEM
The frost protection function is implemented by starting the system pump and, where featured, the electric heater outside of
the unit when the water temperature water (measured by the
heat exchanger outlet probe) is less than 4.5°C, and switching
the same devices off when the water temperature reaches
+7°C.
SECONDARY CIRCUIT FROST PROTECTION SYSTEM
The pumps on the system’s secondary circuit are activated
together with the primary pump, according to the criterion
described in the previous paragraph.
FROST PROTECTION BASED ON OUTSIDE AIR TEMPERATURE
The system pump is activated according to the outside air temperature to prevent ice forming in the pipes.
The pump is activated if the outside air temperature is less than
4°C and deactivated when it rises back over 5°C.
FROST PROTECTION BASED ON INSIDE AIR TEMPERATURE
The heat pump and/or supplementary heat sources (outlet
heater or boiler) are activated if the inside temperature falls
below 14°C, to prevent the pipes inside the home from freezing.
ALARM SIGNALS
Correct unit operation and any alarms are displayed on the
room thermostat, the latter by the
symbol.
The diagnostics functions include complete alarm management,
with an alarm log (via service keypad) for more detailed analysis of unit behaviour.
10
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
4. ACCESSORIES
The accessories listed below are supplied separately.
METAL MESH WATER FILTER
This filter MUST be installed on the heat pump return pipe to
trap any impurities in the water circuit that may damage the
unit’s heat exchanger.
Characteristics
Body
Finish
Body gasket
Thread
Brass
Sanded
Betaflex 71
ISO 228/1
Filter
AISI 304 stainless steel micro-perforated
sheet metal
Hole pitch
Inscribed hole diameter
Number of holes per cm2
2 mm
500 micron
80
Dimensions
DN
R
L
H
inch
mm
mm
32
1 1/4
96
68
40
1 1/2
106
75
Pressure drop
R
Kv
50
2
126
90
inch
1 1/4
17
1 1/2
24,5
2
36
VIBRATION DAMPERS
Used between the heat pump and the support plane.
Vibration dampers made from rubber, elastomer and aluminium
alloy casing for fastening to the floor.
11
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
BT AND PT STORAGE TANKS
Storage tanks to be used in heating and cooling systems, to
ensure minimum heat pump operating time in all operating conditions and avoid excessive starts and stops. It can also be
used to isolate the water circuit from the heat pump and to partially meet energy demand during periods in which the unit is
shutdown due to the electricity rate. For indoor installation.
Models available
BT35
BT100
BT200
TP300
Volume
35 litres
100 litres
200 litres
300 litres
The diagram illustrates the use of the BT/TP storage tank as a
low-loss header to separate the heat pump primary circuit from
the secondary circuit to the terminal units.
This allows different flow-rates and temperatures to be managed
depending on the type of terminal used.
Correctly sized, it guarantees the minimum water volume
required by the heat pump.
The diagram shown is purely indicative.
The diagram illustrates the use of the BT/TP storage tank as a
storage tank on the heat pump return pipe so as to increase the
volume of water available in the system, avoiding excessive
starts and stops.
In this case, make sure the available pressure head of the
pump on the unit is sufficient to guarantee correct system operation.
The diagram shown is purely indicative.
12
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
Dimensions - Model BT35
Technical specifications
The storage tanks are made from carbon steel plate welded
using the best technology and undergo strict water pressure
tests (9 bars, allowing an operating pressure of 6 bars).
Being a container of water for heating and cooling, this product
does not require internal treatment, while the outside is coated
with rustproof paint.
The tanks are protected on the outside with a closed cell elastomeric foam lining, 50 mm thick, with soft blue PVC exterior finish, for models BT 100/200 and TP300; polyethylene foam insulation, 10 mm thick, with metallic exterior finish for models
BT35.
613
520
66
174
288
Ø308
80
65
210
80
1”
15
Ø7x20
85
1”
80
Wall
fastening
bracket
360
278
Fill/drain
15
Air vent
1” 1/4 1” 1/4
300
100
Volume
Storage tank dimensions
A
B
C
D
E
F
G
K
I
mm
500 400 970 100 130 160 280 250 264 264 868 140
550 450 1410 100 130 160 280 430 374 386 1298 170
700 600 1235 100 130 160 280 320 321 332 1133 200
Di
litres
100
200
300
d
120
Dimensions - Model BT100, BT200, TP300
Htot
5
Di
d
TOP VIEW
1C
1E-1G
also on
opposite side
I
1A
°
3/8"
3/8"
3/8"
5
45
1/2"
1/2"
1/2"
G
2"
2"
2"
5
H tot.
1"1/4
1"1/4
1"1/4
4
3
socket
F
2
°
1
3
socket
45
litres
100
200
300
Fittings
3
inch
1/2"
1/2"
1/2"
K
Volume
2
3
socket
Description
Heat pump outlet
Heat pump return
System outlet
System return
Supplementary source outlet
Supplementary source return
Electric heater attachment
Probe socket
Drain/load
Vent
1F-1H
also on opposite
side
2
1D
D
1B
4
13
A
C
B
E
Pos.
1A
1B
1C
1D
1E- G
1F-1H
2
3
4
5
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
OUTLET ELECTRIC HEATER
The outlet electric heaters are available with power ratings of 3
kW single-phase and 3, 6 and 9 kW three-phase.
Used on the system outlet, these guarantee the heating
demand of the building at low outside temperatures by supplementing the heating capacity of the heat pump.
The electric heaters are deactivated as soon as the heat pump
alone can meet heating demand.
Considering that normally the heat pump operates only a short
time at low outside temperatures, operation of the supplementary heater is also reduced and consequently power consumption is negligible.
Therefore, the system’s seasonal efficiency ratio remains
unchanged.
Wall-mounted installation using the fastening brackets.
30
70
The diagram shown is purely indicative.
7
5...90°C
4
11 (G 1 1/4 B )
30
120
1
2
3
4
5
6
7
14
10 (G 1 1/4 B)
3
2
100
70
1
260
348
53
Terminal block cover
Safety thermostat manual reset
Control thermostat knob
Reference for knob full scale
Cable gland for control cable
Cable gland for power cable
Red light, on when the heater is
operating
8
9
10
11
i-KI(R)_MTD_0031_201110_EN
30
9,5
90 +/- 5°C
30...70°C
Incoloy 800
1" 1/4 M GAS
IP 55
Red; on when heater operating
8
9
22
8
9,5
23
6
5
60
Safety thermostat
Adjustable thermostat
Heating element material
Threaded attachment
Index of protection
Indicator light
400V/50Hz
3000-6000-9000 W
6 Bar
30
Min/max operating
temperature
Dimensions
230V/50Hz
3000 W
158
Technical specifications
Power supply
Power
Maximum pressure
Wall fastening brackets
Heater body
Water inlet
Water outlet
HFC 410A
i-KI(R) MTD
IMMERSION ELECTRIC HEATER
The single-phase immersion electric heater can deliver 1 kW, 2k
W or 3 kW depending on the electrical connections, and must
only be used in immersion, via the water connections provided
on the HWC storage cylinders or the BT, TP and TPS storage
tanks.
The electric heater guarantees Legionella prevention or works
to supplement domestic hot water production at low outside
temperatures.
If used inside the TP storage tanks it can help meet building
heating demand in the event of operation outside of the heat
pump operating limits.
1
1
1 Immersion electric heater
The diagram shown is purely indicative.
L1 L2
L3
KM1
72
141
6 Bar
300°C
120°C
9….75°C
Incoloy 800
PVC
1” ½ M GAS
ASBERIT 60*48*3
IP 44
Green; on when heater operating
118
T1 T2 T3
"2"
N
U
PE
"1"
112
158
181,5
Dimensions - Immersion electric heater
105 x 85
M 1” 1/2 GAS
85
Maximum pressure
Max temperature, heating area
Max temperature, seal area
Adjustable safety thermostat
Heating element material
Terminal block protection material
Threaded attachment
Gasket
Index of protection
Indicator light
1000, 2000, 3000 W (+5%/ -10%); power
in relation to the electrical connection.
FU1
Power
Dimensions - Electrical panel
230V/50Hz
FU2
Technical specifications
Power supply
310
330
15
i-KI(R)_MTD_0031_201110_EN
140
16 16
GREEN LIGHT
HFC 410A
i-KI(R) MTD
1”¼ 3-WAY VALVE FOR DOMESTIC HOT WATER
PRODUCTION:
Dimensions - Valve body
S
B
H
The 3-way valve deviates the flow of water to the domestic hot
water storage tank when the temperature read by probe BT8
falls below the set point.
The servomotor is also fitted with an auxiliary contact.
Contact closed when the valve is open and contact open when
the valve is closed. The 3-way selector valve for domestic hot
water production must have the following characteristics for correct heat pump operation:
- Voltage 230V AC, 50/60 Hz
- If valve rotation takes more than 10 s, the time can be set by
parameter.
- Delta P 500 kPa
- Fluid temperature 0°C to 90°C
- Pressure drop below 20 kPa.
L
In the total height of the valve (body + servo control) also take
into account 40 mm for the extension supplied with the kit,
required for correct insulation of the pipes.
Fittings
L
B
H
S
Technical specifications - Valve body
Operating pressure
PN16 for water at 90°C.
PN20 for chilled water
Leaks
Fluid temperature
Angle of rotation
Thread
Valve body and fitting
Stem
Gasket
Ball
Weight
None
Water 0°C to 90°C
90°
Gas UNI ISO 228
Brass OT58, UNI575/65
Brass
PTFE seat, EPDM O-ring
Chrome-plated brass
1,28 Kg
inch
mm
mm
mm
mm
1”1/4 G
102,6
76,8
51,3
39,8
Dimensions - Servo control
230V - 1A (resistive)
Allowable operating
temperature
0 ... + 50 °C
Allowable transport and
storage temperature
- 10 ... + 80 °C
Allowable humidity
Index of protection
Connection cable
Manual control
Weight
Class G, DIN 40040
IP 54
6 x1 mm2, 0.8 m long
manual open/close control
0,45 Kg
L
P
L1
L
L1
H
P
mm
mm
mm
mm
131
156
75
70
Graph of valve pressure drop
Kvs 3-way valve DN 1-1/4"
100
Pressure drop (KPa)
Free auxiliary contact
(end travel)
H
Technical specifications - Servomotor
Power supply
230VAC, +10% - 15%
Frequency
50Hz
Power consumption
4 VA
Travel time (open/close)
10s
10
1
0,1
1
10
100
Water flow-rate (l/sec)
16
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
HWC DOMESTIC HOT WATER CYLINDER
Models available
HWC300
HWC500
The HWC storage cylinders are made especially for domestic
hot water production in combination with heat pumps, thanks to
the inside coil with large heat exchange area.
The heat pump is connected to the inside coil that heats the
domestic hot water contained in the storage tank.
Legionella prevention cycles are managed by an electric heater
that can be installed in the fitting provided on the flange.
The Legionella prevention cycles are managed by the NadiSystem controller on the heat pump.
Technical specifications
The cylinders are made from
S275JR steel plate in accordance
with DIN 4753 and undergo strict
water pressure tests (9 bars,
allowing an operating pressure of
6 bars). Lined on the inside with
double layer of enamel in accordance with DIN 4753.
Protection against corrosion guaranteed by the magnesium anode,
provided with the accessories
supplied as standard with the
storage cylinder. The cylinders
are protected on the outside by
50 mm rigid CFC-free PUR lining
with white skai casing.
Volume
300 litres
500 litres
Storage cylinder and heat pump combinations
Storage
cylinder
Coil water
content
Coil surface area
Combined heat pumps
HWC 300
HWC 500
(l)
22,3
38,5
(m2)
3,5
5,9
11 25 31 41 51 61 91
x x x
N.A N.A
x x x x x N.A N.A
The combinations proposed exclude the 0061 and 0091 heat pumps, which
require the TPS series storage tanks.
Water circuit diagram
FROM WATER
MAINS
SELF-CLEANING
FILTER
N.C.
LOW-LOSS
HEADER
AUTOMATIC
FILL ASSEMBLY
System
The diagram shown is purely indicative.
Use
A
Height
B
C
Diameter
D
Dimensions
300
500
with insulation - mm
1570
1800
without insulation - mm
with insulation - mm
650
750
without insulation - mm
550
650
height - mm
140
155
E Cold water
fitting - R”
1 ¼”
1 ¼”
height - mm
1570
1800
Hot water
F
fitting - R”
1 ¼”
1 ¼”
height - mm
1200
1400
G Recirculation
fitting - R”
½”
½”
height - mm
295
310
Flange with 2" bushing
H
Ø - mm
180/120 180/120
for electric heater
fitting - R”
2”
2”
height - mm
920
1185
Heat pump
J
outlet
fitting - R”
1 ¼”
1 ¼”
height - mm
240
255
Heat pump
K
return
fitting - R”
1 ¼”
1 ¼”
height - mm
1350
1550
N Thermometer
fitting - R”
½”
½”
height - mm
1570
1800
Probe socket
O
fitting - R”
½”
½”
height - mm
600
P Probe socket
fitting - R”
½”
height - mm
1570
1800
Q Magnesium anode
fitting - R”
1 ¼”
1 ¼”
height - mm
1400
R Magnesium anode
fitting - R”
1 ¼”
Dimensions - Model HWC300
Dimensions - Model HWC500
Weight with insulation
Water content heat exchange
Surface area heat exchanger
17
kg
l
m2
i-KI(R)_MTD_0031_201110_EN
145
22,3
3,5
220
38,5
5,9
HFC 410A
i-KI(R) MTD
TPS STORAGE TANKS AND DOMH2O INSTANT
DOMESTIC HOT WATER PRODUCTION KIT
Storage tank model available
TPS300
TPS500
TPS1000
The TPS storage tank is used to store water heated by a heat
pump, and allow further supplementary heat from the solar
heating coils fitted inside. In addition, tank connections are also
available for other sources of heating, for example gas- or
wood-fired appliances. Two electric heaters can be installed
using the 2” fittings provided.
Domestic hot water production is guaranteed by the
DOMH2O15 and DOMOH2O24 instant kits combined with the
storage tanks.
The instant domestic hot water production kit draws energy
from the storage tank and via heat exchange with the plate heat
exchanger ensures the correct domestic hot water temperature,
controlled by modulation of the primary circuit pump.
The control unit with graphic display allows the user to monitor
operation, as well as set the set point and operating parameters.
Water circuit diagram
4
Instant domestic hot water production kit model available
DOMH20 15
DOMH20 24
1
Heat pump (Air/water, water/water, ground
source)
2 Expansion vessel
3 Pump
4 Vent valve
5 Fill assembly
6 Safety valve
7 Solar panel
8 TPS hot water storage tank
9 DOMH2O instant hot water kit
10 Drain
7
Volume
300 Litres
500 Litres
1000 Litres
9
11
12
13
14
15
16
17
18
19
20
Temperature probe
Control unit
Plate heat exchanger
Recirculation temperature probe (accessory)
Solar heating system drain
Domestic hot water delivery
Flow meter and temperature probe
Mains water
Usage
Thermostatic valve (only if supplementary
solar panels are installed)
12
20
8
3
F
3
19
17
11
16
3
13
1
14
11
18
2
2
G
6
18
10
5
10
15
The diagram shown is purely indicative.
Technical specifications
TPS storage tanks
The storage tanks are made from carbon steel plate welded
using the best technology and undergo strict water pressure
tests (9 bars, allowing an operating pressure of 6 bars).
Being a container of hot and cold water, this product does not
require internal treatment, while the outside is coated with rustproof paint.
The tanks are protected on the outside with a closed cell elastomeric foam lining, 70 mm thick, with soft blue PVC exterior finish.
DOMH2O instant domestic hot water production kit
The instant domestic hot water production kit features the following components:
- AISI 316 stainless steel plate heat exchanger, insulated
- Circulating pump with low power consumption and electronic
speed control
- Control unit with graphic display indicating the temperature
and heat delivered
- Insulated copper pipes and connectors
- Sheet metal structure and thermoformed RAL panels, wallmounted installation.
18
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
The control unit adjusts the speed of the primary circuit pump to
maintain the set domestic hot water temperature, adjustable
from 30°C to 65°C. If the domestic hot water temperature leaving the heat exchanger reaches Tmax (between 60°C and
75°C) the primary circuit pump is switched off.
When the temperature falls below the threshold (Tmax) the
pump is started again.
For systems with supplementary solar heating, the primary
circuit temperature may exceed the maximum limit of 65°C
and pump speed modulation may not guarantee the DHW
set point.
In this case, a thermostatic valve should be used at the
instant domestic hot water production kit outlet to avoid
excessive domestic hot water temperatures.
The DHW recirculating pump can be managed (maximum power 185 W) by setting the water temperature in the recirculation
circuit.
When the temperature falls below the set point the recirculating
pump is activated, and vice-versa.
In addition, on and off times can be set for the recirculation circuit and a custom program created for each day of the week.
Selection guide
To choose the best system made up of storage tank and external instant hot water production unit, the following three parameters need to be verified:
1. Tank volume is sufficient to produce the DHW required by
the system.
2. Instant flow-rate of the external unit is higher than peak delivery flow-rate.
3. Storage tank volume is higher than the minimum recommended volume for correct heat pump operation (based on
heat output).
This condition is normally verified as the volume is quite low.
2. Instant DHW production
The amount of domestic hot water required at the points of
delivery must be less than the amount produced by the unit.
The graphs on the previous pages illustrate the amount of water
produced by the units as the primary circuit temperature changes.
3. Thermal inertia
The storage tank, as well as accumulating energy to be used
when necessary, also acts as a buffer for the primary source of
energy, reducing the number of starts and stops.
The volume of the storage tank must therefore be greater than
the value recommended by the manufacturer of the primary
source (heat pump or other appliance).
1. Storage tank volume
Tank volume and the characteristics of the primary source (heat
output and outlet temperature) are the parameters that determine the amount of water that can be delivered in a certain unit
of time. The following equation can be used to size the tank in
terms of volume.
V= [Wf*(Tout-Tin)/(T0-Tf)] - [(P*tm*1000)/(Cp*(T0-Tf)]
Typical combinations
Below are some combinations for typical residential applications
with heat pumps.
Type of home
Where:
V:
Required storage tank volume in litres
Wf: Amount of domestic hot water required in the peak period, in litres
Tm: Duration of the peak period in minutes
T0: Temperature inside the storage tank [°C]
Tf:
Minimum usable storage tank temperature [°C]
Tin: Mains water inlet temperature [°C]
Tout: DHW delivery temperature [°C]
Cp: Specific heat of water 4.186 kJ/kg °K
P:
Primary source heat output [kW]
Heat pump
heat output
Storage tank DOMH20
model
volume
Single home
Single home
Single home
Single home
<3
4-5
5-6
6-7
1
2
2
3
4 - 6 kW
6 - 8 kW
10 - 13 kW
15 - 18 kW
300
500
1000
1000
15
15
24
24
2 apartments
2 apartments
4-5
7-8
2
5
6 - 8 kW
15 - 18 kW
500
1000
15
24
3 apartments
3 apartments
7-8
9 - 12
3
6
15 - 18 kW
20 - 22 kW
1000
1000
24
24
The combinations are calculated based on the following peak consumption:
- 60 l per person in single homes,
- 250 l per apartment with one bathroom,
- 350 l per apartment with two bathrooms,
- Simultaneous use factor
DOMH20 15 heating performance
DOMH20 24 heating performance
* Domestic hot water flow-rate (l/min)
Tin = cold water from mains
Tout = domestic hot water
no. of
no. of
people bathrooms
* Domestic hot water flow-rate (l/min)
Primary inlet temperature [°C]
Tin = cold water from mains
Tout = domestic hot water
* The domestic hot water flow-rate shown on the performance curves remains constant for a variable time, depending on the volume of the storage
tank. Also see the instructions in the "Selection guide”.
19
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
Storage tank dimensions
C D E F G K I
litres
mm
300 690 550 1470 130 325 425 575 735 1060 1035 1185 635
500 790 650 1755 135 375 685 630 880 1336 1295 1445 780
1000 1050 850 2100 120 410 950 765 1105 1476 1560 1710 950
Volume
Di
d Htot A
Fittings
Volume
litres
300
500
1000
1
2
1"1/4
1"1/4
1"1/4
2"
2"
2"
Dimensions - TPS storage tank
B
3
4
inch
1/2" 1”1/4
1/2" 1”1/4
1/2" 1”1/4
5
6
1”
1”
1”
1”
1”
1”
L
M SR SM
Di
d
835 325 370 785
980 330 375 870
1150 380 425 1105
5
Fixed coil
Surface
Internal
area
volume
m2
l
1,5
9
2,1
13
4
25
1A
1E
1C
3
1
Description
Heat pump outlet
Heat pump return
Supplementary source outlet
Supplementary source return
Instant DHW kit outlet
Instant DHW kit return
Electric heater attachment
Probe socket
Drain/fill
Vent
Solar collector circuit outlet
Solar collector circuit return
6M
3
H tot
1
3
1D
F
K
G
1B
SM
L
1F
I
E
6R
2
SR
C
2
A
B
M
Pos.
1A
1B
1C
1D
1E
1F
2
3
4
5
6M
6R
4
[m.c.a./m2]
Solar heating coil pressure drop in TPS storage tanks
Press. drop per unit of area
2,5
Top view
2
1,5
5
1
0,5
0
0
1000
2000
3000
4000
5000
[l/h]
Dimensions - DOMH2O instant domestic hot water production kit
E
87
281
87
113
D
B
C
620
A
HOLES FOR WALL MOUNTING
32
L
F
77
G
92
H
117
455
I
92
77
90
248
20
Pos.
A
B
C
D
E
F
G
H
I
L
Description
Primary circuit pump
Primary circuit temperature probe
Control unit
Manual vent valve
Plate heat exchanger
Primary circuit outlet
Primary circuit return
Mains water inlet
Domestic hot water outlet
Flow meter and temperature probe
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
N-EM1 EXPANSION MODULE FOR SYSTEM CONFIGURATION
Dimensions - N-EM1 expansion module
300
The NADISYSTEM control system for residential applications
gives high operating flexibility, activating zone pumps and
valves depending on the set room temperature, and controlling
mixing valves to ensure the correct water temperature in radiant
systems according to the climate conditions set for each circuit.
With NADISYSTEM there up to 15 different types of system
pre-configurations for quick and easy installation, and up to 5
remote keypads for controlling thermal load in likewise zones.
FU11
FU10
TC10
A10
220
The N-EM1 expansion module is used to connect the secondary circuit components and corresponding zone thermostats
depending on the selected configuration.
Up to 3 expansion modules can be used to create more complex systems.
The meaning of the terminals may change based on the selected configuration, the connections are shown on the instruction
sheet provided with the expansion module.
120
PE
U
N
1
A10
FU10
FU11
TC10
Expansion module
10A fuse
1.25A fuse
230V/24V transformer
N-THC ROOM TIMER THERMOSTAT
The temperature and humidity settings are simple and intuitive
using the knob on the front, while the operating mode and time
bands can be selected using the 4 buttons.
The N-THC thermostat is fitted as standard with temperature
and humidity probe for correct control of the temperaturehumidity conditions inside the room.
By using the N-THC thermostat in the system, NadiSystem can
control 5 different zones, managing temperature, humidity and
time bands independently.
The simple and functional backlit display allows rapid viewing of
the settings and environmental conditions.
The main settings are:
- Room temperature and humidity setting (temperature and
humidity probe supplied as standard)
- Operating mode setting: heating, cooling, automatic mode
changeover
- Enable domestic hot water production
- Served zone on/off
- Program time bands
- Wall-mounted installation (maximum distance 500 metres)
Dimensions
28
86
143
8
21
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
N-CM CASCADE MANAGEMENT KEYPAD
The N-CM keypad allows cascaded connection of up to 4 heat
pumps to increase capacity delivered in applications with multiple occupied areas, such as hotels, schools, apartment blocks,
offices and shopping centres.
The units are managed in master-slave mode, with the master
unit responsible for processing the information and sending it to
the slave units.
This ensures fine control over the capacity delivered, without
decreasing performance, and more precise system sizing.
NADISYSTEM can determine how many cascaded units are
needed to guarantee domestic hot water production, all or just
one, according to requirements.
The controller also balances compressor operating hours based
on time logic, activating the units in rotation, and where necessary excluding any units that are momentarily out of service,
without interrupting operation of the cascade as a whole.
If the malfunctioning unit is the master, the operating parameters are transferred to another unit in the cascade, thus restoring partial operation.
The N-CM keypad can also display the operation of each heat
pump connected to the cascade and the N-THC room terminals
assigned to the zone in question, up to a maximum of 5 zones.
System architecture
N-THC
Zone 1
N-THC
Zone 2
N-EM1
N-CM
N-EM1
master
master
N-THC
Zone 3
master
N-THC
Zone 4
N-THC
Zone 5
N-EM1
master
82
Dimensions
31
156
22
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
N-RS RS485 SERIAL CARD
The N-RS is an optional card for directly interfacing the heat
pumps to an RS485 network.
The card guarantees opto-isolation of the controller from the
RS485 serial network.
The maximum baud rate available is 19200 baud.
The optional card is fitted in the comb connector on the unit’s
board.
23
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
5. GENERAL TECHNICAL DATA
i-KIR MTD 0031 RADIANT PANEL APPLICATION
SIZE
I-KIR
COOLING
Cooling capacity
Total power input (unit)
EER
ESEER
Heat exchanger water flow
Heat exchanger pressure drop
I-KIR
HEATING
Heating capacity
Total power input (unit)
COP
Portata acqua scambiatore
Heat exchanger pressure drop
COMPRESSORS
Numero
Number of circuits
Type of regulation
Minimum capacity steps
Type of refrigerant
Refrigerant charge
Oil charge
0031
(1)
kW
kW
7,02
2,15
3,27
1,21
49
m /h
kPa
(2)
kW
kW
9,55
2,31
4,13
1,64
35
m /h
kPa
N°.
1
N°.
1
INVERTER
%
0-100
R410A
1,5
kg.
kg.
FANS
Numero
Portata aria
Singol power input
N°.
m /s
kW
NOISE LEVELS
Total sound power
Total sound pressure
dB(A)
dB(A)
DIMENSIONS AND WEIGHTS i-KIR outdoor unit
Length
Larghezza
Altezza
Peso
mm.
mm.
mm.
kg.
1
1,00
0,10
(3)
64
50
(4)
850
330
882
85
(4)
DIMENSIONS AND WEIGHTS i-EM inside module
Lunghezza
Larghezza
mm.
356
mm.
109
Height
mm.
486
Weight
kg.
10
1
2
3
4
-
Plant (side) cooling exchanger water (in/out) 23/18 °C
Heat exchanger air (in) 35 °C
Plant (side) heating exchanger water (in/out) 30/35 °C
Source (side) heat exchanger air (in) 7 °C 87% R.H.
Sound power on the basis of measurements made in compliance with ISO 9614 and Eurovent 8/1 for Eurovent certified units; in compliance with ISO 3744 for non-certified units
Average sound pressure level, at 1 (m.) distance, unit in a free field on a reflective surface; non-binding value obtained from the sound power level
Standard configuration
Not available
24
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
i-KIR MTD 0031 HYDRONIC TERMINAL APPLICATION
SIZE
I-KIR
COOLING
Cooling capacity
Total power input (unit)
EER
ESEER
Heat exchanger water flow
Heat exchanger pressure drop
I-KIR
HEATING
Heating capacity
Total power input (unit)
COP
Portata acqua scambiatore
Heat exchanger pressure drop
COMPRESSORS
Numero
Number of circuits
Type of regulation
Minimum capacity steps
Type of refrigerant
Refrigerant charge
Oil charge
0031
(1)
kW
kW
4,91
1,96
2,51
3,36
0,844
55,7
m /h
kPa
(2)
kW
kW
kPa
9,00
2,87
3,14
1,54
40
N°.
1
N°.
1
INVERTER
%
0-100
R410A
1,5
kg.
kg.
FANS
Numero
Portata aria
Singol power input
N°.
m /s
kW
NOISE LEVELS
Total sound power
Total sound pressure
dB(A)
dB(A)
DIMENSIONS AND WEIGHTS i-KIR outdoor unit
Length
Larghezza
Altezza
Peso
mm.
mm.
mm.
kg.
1
1,00
0,10
(3)
64
50
(4)
850
330
882
85
(4)
DIMENSIONS AND WEIGHTS i-EM inside module
Length
Larghezza
mm.
356
mm.
109
Height
mm.
486
Weight
kg.
10
1
2
3
4
-
Plant (side) cooling exchanger water (in/out) 12/7 °C
Heat exchanger air (in) 35 °C
Plant (side) heating exchanger water (in/out) 40/45 °C
Source (side) heat exchanger air (in) 7 °C 87% R.H.
Sound power on the basis of measurements made in compliance with ISO 9614 and Eurovent 8/1 for Eurovent certified units; in compliance with ISO 3744 for non-certified units
Average sound pressure level, at 1 (m.) distance, unit in a free field on a reflective surface; non-binding value obtained from the sound power level
Standard configuration
Not available
25
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
i-KI MTD 0031 RADIANT PANEL APPLICATION
SIZE
I-KI
COOLING
Cooling capacity
Total power input (unit)
EER
ESEER
Heat exchanger water flow
Heat exchanger pressure drop
I-KI
HEATING
Heating capacity
Total power input (unit)
COP
Portata acqua scambiatore
Heat exchanger pressure drop
COMPRESSORS
Numero
Number of circuits
Type of regulation
Minimum capacity steps
Type of refrigerant
Refrigerant charge
Oil charge
0031
(1)
kW
kW
-
m /h
kPa
(2)
kW
kW
9,55
2,31
4,13
1,64
35
m /h
kPa
N°.
1
N°.
1
INVERTER
%
0-100
R410A
1,5
kg.
kg.
FANS
Numero
Portata aria
Singol power input
N°.
m /s
kW
NOISE LEVELS
Total sound power
Total sound pressure
dB(A)
dB(A)
DIMENSIONS AND WEIGHTS i-KI outdoor unit
Length
Larghezza
Altezza
Peso
mm.
mm.
mm.
kg.
1
1,00
0,10
(3)
64
50
(4)
850
330
882
85
(4)
DIMENSIONS AND WEIGHTS i-EM inside module
Length
Larghezza
mm.
356
mm.
109
Height
mm.
486
Weight
kg.
10
1
2
3
4
-
Plant (side) cooling exchanger water (in/out) 23/18 °C
Heat exchanger air (in) 35 °C
Plant (side) heating exchanger water (in/out) 30/35 °C
Source (side) heat exchanger air (in) 7 °C 87% R.H.
Sound power on the basis of measurements made in compliance with ISO 9614 and Eurovent 8/1 for Eurovent certified units; in compliance with ISO 3744 for non-certified units
Average sound pressure level, at 1 (m.) distance, unit in a free field on a reflective surface; non-binding value obtained from the sound power level
Standard configuration
Not available
26
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
i-KI MTD 0031 HYDRONIC TERMINAL APPLICATION
SIZE
I-KI
COOLING
Cooling capacity
Total power input (unit)
EER
ESEER
Heat exchanger water flow
Heat exchanger pressure drop
I-KI
HEATING
Heating capacity
Total power input (unit)
COP
Portata acqua scambiatore
Heat exchanger pressure drop
COMPRESSORS
Numero
Number of circuits
Type of regulation
Minimum capacity steps
Type of refrigerant
Refrigerant charge
Oil charge
0031
(1)
kW
kW
-
m /h
kPa
(2)
kW
kW
9,00
2,87
3,14
1,54
40
m /h
kPa
N°.
1
N°.
1
INVERTER
%
0-100
R410A
1,5
kg.
kg.
FANS
Numero
Portata aria
Singol power input
N°.
m /s
kW
NOISE LEVELS
Total sound power
Total sound pressure
dB(A)
dB(A)
DIMENSIONS AND WEIGHTS i-KI outdoor unit
Length
Larghezza
Altezza
Peso
mm.
mm.
mm.
kg.
1
1,00
0,10
(3)
64
50
(4)
850
330
882
85
(4)
DIMENSIONS AND WEIGHTS i-EM inside module
Length
Larghezza
mm.
356
mm.
109
Height
mm.
486
Weight
kg.
10
1
2
3
4
-
Plant (side) cooling exchanger water (in/out) 12/7 °C
Heat exchanger air (in) 35 °C
Plant (side) heating exchanger water (in/out) 40/45 °C
Source (side) heat exchanger air (in) 7 °C 87% R.H.
Sound power on the basis of measurements made in compliance with ISO 9614 and Eurovent 8/1 for Eurovent certified units; in compliance with ISO 3744 for non-certified units
Average sound pressure level, at 1 (m.) distance, unit in a free field on a reflective surface; non-binding value obtained from the sound power level
Standard configuration
Not available
27
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
6. OPERATING LIMITS
COOLING
Outside air temperature (°C)
45
40
35
30
25
20
15
0
5
10
15
20
25
Water outlet temperature (°C)
Outside air temperature (°C)
HEATING
50
45
40
35
30
25
20
15
10
5
0
-5
-10
-15
-20
-25
15
25
35
45
55
65
Water outlet temperature (°C)
Min/max water temperature difference = 5/10 °C (in minimum flow conditions, 7 l/min)
MAX return temperature to heat pump = 55°C
MAX outlet temperature to heat pump for DHW production = 58°C
Water circuit pressure min/max = 1/3 bar
Maximum glycol percentage = 40%
The temperature of the fluid leaving the unit must always be within the manufacturer’s specified operating range, even during start-up
and when first putting into heating mode. To ensure this, the water circuit can be fitted with a bypass valve and/or other solutions, such
as electric heaters with temperature control inside the storage tank.
28
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
7. ETHYLENE GLYCOL MIXTURE
Ethylene glycol and water mixture, used as a heat-conveying fluid, cause a variation in unit performance. For correct data, use the factors indicated in the following tabel.
cPf
cQ
cdp
0
-5
0
1
1
1
12%
0,985
1,02
1,07
Freezing point (°C)
-10
-15
-20
-25
Ethylene glycol percentage by weight
20%
30%
35%
40%
0,98
0,974
0,97
0,965
1,04
1,075
1,11
1,14
1,11
1,18
1,22
1,24
cPf: cooling power correction factor
cQ: flow correction factor
cdp: pressure drop correction factor
-30
-35
45%
0,964
1,17
1,27
50%
0,96
1,2
1,3
For data concerning other kind of anti-freeze solutions (e,g, propylene glycol)
please contact our Sale Department.
8. FOULING FACTORS
Performances are based on clean condition of tubes (fouling factor = 1). For different fouling values, performance should be adjusted
using the correction factors shown in the following table.
FOULING FACTORS
ff (m2 °CW)
0
1,80 x 10 -5
4,40 x 10 -5
8,80 x 10 -5
13,20 x 10 -5
17,20 x 10 -5
F1
1,000
1,000
1,000
0,960
0,944
0,930
EVAPORATOR
FK1
KE [°C]
1,000
0,0
1,000
0,0
1,000
0,0
0,990
0,7
0,985
1,0
0,980
1,5
CONDENSER/RECOVERY
F2
FK2
KC [°C]
1,000
1,000
0,0
1,000
1,000
0,0
0,990
1,030
1,0
0,980
1,040
1,5
0,964
1,050
2,3
0,950
1,060
3,0
ff: fouling factors
f1 - f2: potential correction factors
fk1 - fk2: compressor power input correction factors
r3: capacity correction factors
DESUPERHEATER
R3
1,000
1,000
0,990
0,980
0,964
0,950
KE: minimum condenser outlet temperature increase
KC: maximum condenser outlet temperature decrease
29
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
10. MINIMUM AND MAXIMUM SYSTEM WATER CONTENT
Minimum system water content
The minimum water content for the system shown in table 1 allows the number of compressor starts and stops to be limited.
Tab. 1
Size
Minimum water content
0031
26
l
Maximum system water content
The heat pumps are fitted as standard with an expansion vessel and safety valve. The maximum system water content depends on the
capacity of the expansion vessel (see table 2) and the calibration of the safety valve (see table 3).
Tab. 2
Size
Expansion vessel
Tab. 3
Size
Safety valve
l
0031
8
bar
0031
3
Table 4 shows an example of the maximum water content in the specified normal operating conditions.
If the volume of water in the system is higher, an additional, correctly sized expansion vessel is required.
System water temperature
Hydraulic head
Expansion vessel pre-charge
Maximum water content
°C
m
bar
l
30
3,2
-
25
2,8
277
20
20
2,3
820
15
1,8
1365
>12,25
1,5
1665
System water temperature
Hydraulic head
Expansion vessel pre-charge
Maximum water content
°C
m
bar
l
30
3,2
-
25
2,8
85
35
20
2,3
254
15
1,8
420
>12,25
1,5
515
System water temperature
Hydraulic head
Expansion vessel pre-charge
Maximum water content
°C
m
bar
l
30
3,2
-
25
2,8
50
45
20
2,3
150
15
1,8
250
>12,25
1,5
305
System water temperature
Hydraulic head
Expansion vessel pre-charge
Maximum water content
°C
m
bar
l
30
3,2
-
25
2,8
34
55
20
2,3
102
15
1,8
170
>12,25
1,5
207
Tab. 4
Expansion vessel calibration
The expansion vessels are pre-charged to a standard pressure
of 1 bar.
The pre-charge pressure is chosen depending on the maximum
difference in height between the system terminal and the heat
pump, as shown in the figure.
H
The maximum height must not exceed 55 metres due to the
maximum vessel pre-charge pressure of 6 bars.
Make sure that the system terminal at the lowest point H1 can
withstand the pressure of the water column at that point.
H1
30
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
10. SYSTEM PUMP CURVES
i-KI 0031 MTD and i-KIR 0031 MTD SYSTEM PUMP CURVE
[kPa]
8
7
6
5
4
3
2
1
0
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40
[L/min]
The pressure head refers to the values at the fittings.
Model
i-KI MTD 0031
i-KIR MTD 0031
Pump
power supply
230v-50Hz-1Ph
230v-50Hz-1Ph
Pf (1)
kW
Q (1)
m3/h
H (1)
kPa
7,02
1,21
49
Pt (2)
kW
9,55
9,55
Q (2)
m3/h
1,64
1,64
(1) System water temperature 23/18°C, outside air temperature 35°C DB
(2) System water temperature 30/35°C, outside air temperature 7°C DB/ 6°C WB
Pf
Pt
Q
F.L.I.
H
H (2)
kPa
35
35
F.L.I.
kW
0,10
0,10
Pump
Grundfoss UPSO15-70
Grundfoss UPSO15-70
Cooling capacity of unit
Heating capacity of unit
Flow of water to evaporator
Power absorbed by pump
Residual head
12. UTILITY WATER CIRCUIT CONNECTION DIAGRAM
Factory connections
Installer connections
1
6
9
5
11
2
3
10
T
13
F
UTILITY
RETURN
12
1
9
6
1
8
7
11
13
2
T
4
13
UTILITY
OUTLET
12
1
2
3
4
Pressure gauge
Vibration damper joint
Shut off valve
Calibrating valve
5
6
7
8
Flow switch (obligatory)
Thermometer
Pump
Safety valve
9
10
11
12
Expansion vessel
Wire mesh filter
Temperature sensor
Unit fill/drain valve
31
13 System vent
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
12. FULL LOAD SOUND LEVEL
SIZE
63
125
250
i-KIR 0031m
i-KI 0031m
64
64
64
64
64
64
SOUND POWER
Octave band [Hz]
500
1000
Sound power level dB(A)
62
60
62
60
2000
4000
8000
Total sound
level
53
53
50
50
39
39
64
64
Working conditions
Plant (side) cooling exchanger water (in/out) 12/7 °C
Heat exchanger air (in) 35 °C
Sound power on the basis of measurements made in compliance with ISO 9614 and Eurovent 8/1 for Eurovent certified units; in compliance with ISO 3744 for non-certified units
Such certification refers specifically to the sound Power Level in dB(A). This is therefore the only acoustic data to be considered as
binding.
SIZE
63
125
250
i-KIR 0031m
i-KI 0031m
50
50
50
50
50
50
SOUND PRESSURE LEVEL
Octave band [Hz] at 1 m
500
1000
Sound pressure level dB(A)
48
46
48
46
2000
4000
8000
Total sound
level
39
39
36
36
25
25
50
50
Working conditions
Plant (side) cooling exchanger water (in/out) 12/7 °C
Heat exchanger air (in) 35 °C
Average sound pressure level, at 1 (m.) distance, unit in a free field on a reflective surface; non-binding value obtained from the sound
power level.
13. POSITION OF THE WATER CONNECTIONS
180
110
G1 (1”)
water outlet
G1 (1”)
water return
60
90
32
i-KI(R)_MTD_0031_201110_EN
HFC 410A
i-KI(R) MTD
16. DIMENSIONAL DRAWINGS
INSIDE MODULE
275
90
60
109
155
540
486
357
330
Anchoring foot
116
HEAT PUMP
155
881.5
Water
outlet
522.5
850
180 110
335
356
Water
inlet
15. CLEARANCES - HOISTING
HEAT PUMP
INSIDE MODULE
20
an 1
mm
e th
Mor
Mor
e th
100
100
an 1
00 m
m
400
Wiring cover
Mor
an 6
00 m
m
an 6
re th
Mo
e th
m
00 m
HEAT PUMP
INSIDE MODULE
B
Bar code
(compressor side)
H
P
L
H
i-EM/i-EMR Dimensions
Dimension L
Dimension P
Dimension H
Gross weight
L
P
mm
mm
mm
Kg
0031m
600
400
300
12
HOISTING INSTRUCTIONS
i-KI/i-KIR Dimensions
Dimension L
Dimension P
Dimension H
Gross weight
mm
mm
mm
Kg
- Make sure all the panels are securely fastened before handling
the unit.
- Before hoisting, check the weight of the unit on the CE rating
label.
- Use all of the hoisting points indicated, and no others,
- Use equal length cables or slings.
- Use a spreader bar (not included)
- Handle the unit with care and without sudden or jerky movements.
0031m
1040
550
940
88
33
i-KI(R)_MTD_0031_201110_EN
HFC 410A
34
i-KI(R)_MTD_0031_201110_EN
2
OUTSIDE
3
T
10
T
T
F
INSIDE
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
4
N.C.
MEMBRANE EXPANSION
VESSEL
DRAIN VALVE
“Y” FILTER
SHUT-OFF VALVE
THERMOSTATIC MIXER
VENT VALVE
MT
CALIBRATING VALVE
VIBRATION DAMPER JOINT
FLOW SWITCH
THERMOMETER
N.B.: Typical water circuit diagram.
1
F
T
CHECK VALVE
KEY TO THE SYMBOLS
PRESSURE GAUGE
CLIMAVENETA APPLIANCES
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2")
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
5
INSIDE MODULE, MODEL i-EM / i-EMR
10
5
D
6
(*) INSTALL A STORAGE TANK ON THE HEAT PUMP RETURN
IF THE SYSTEM WATER CONTENT IS LESS THAN THE VALUE DESCRIBED
IN THE TECHNICAL BULLETIN.
ROOM UNIT (SUPPLIED AS STANDARD WITH THE HEAT PUMP)
9
ELECTRIC HEATER KIT, 1-2-3 kW
STORAGE TANK FOR HEATED AND CHILLED WATER,
MODEL BT35, BT100 OR BT200 (*)
8
7
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
OUTSIDE AIR TEMPERATURE PROBE
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
6
RUBBER VIBRATION DAMPER KIT FOR FLOOR-STANDING
INSTALLATION
MEDIUM TEMPERATURE REVERSE-CYCLE UNIT, MODEL i-KI / i-KIR
2
1
T
MT
7
ACS
8
AUTOMATIC FILL
ASSEMBLY
T
T
SELF-CLEANING
FILTER
i-KI_i-KIR_0000.0
CONFIGURATION "0"
ZONE "1"
FROM WATER
MAINS
REV_01 26/01/2011
LOW-LOSS
HEADER
9
i-KI(R) MTD
16. OPERATING DIAGRAMS
Heat pump connection to the system without low-loss header. Make sure the useful pressure head of the circulating pump on
the unit is sufficient for the pressure drop in the system. If the minimum system content does not reach values shown in this
manual, install an additional storage tank on the heat pump return pipe. No system configurations are required.
Water circuit diagram
HFC 410A
35
i-KI(R)_MTD_0031_201110_EN
2
OUTSIDE
3
T
10
T
T
F
INSIDE
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
HOT WATER RECIRCULATION
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
4
N.C.
MEMBRANE EXPANSION
VESSEL
DRAIN VALVE
“Y” FILTER
SHUT-OFF VALVE
THERMOSTATIC MIXER
VENT VALVE
MT
CALIBRATING VALVE
VIBRATION DAMPER JOINT
FLOW SWITCH
THERMOMETER
N.B.: Typical water circuit diagram.
1
F
T
CHECK VALVE
KEY TO THE SYMBOLS
PRESSURE GAUGE
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
5
INSIDE MODULE, MODEL i-EM / i-EMR
9
10
D
ROOM UNIT (SUPPLIED AS STANDARD WITH THE HEAT PUMP)
5
STORAGE TANK FOR HEATED AND CHILLED WATER,
MODEL BT35, BT100 OR BT200 (*)
ELECTRIC HEATER KIT, 1-2-3 kW
8
7
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2")
3
4
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
OUTSIDE AIR TEMPERATURE PROBE
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
6
RUBBER VIBRATION DAMPER KIT FOR FLOOR-STANDING
INSTALLATION
2
CLIMAVENETA APPLIANCES
MEDIUM TEMPERATURE REVERSE-CYCLE UNIT, MODEL i-KI / i-KIR
1
T
MT
7
ACS
8
AUTOMATIC FILL
ASSEMBLY
T
T
SELF-CLEANING
FILTER
i-KI_i-KIR_0000.1
CONFIGURATION "0"
ZONE "1"
FROM WATER
MAINS
REV_01 26/01/2011
LOW-LOSS
HEADER
9
i-KI(R) MTD
System number 0
Water circuit diagram
HFC 410A
MEMBRANE
EXPANSION VESSEL
“Y” FILTER
36
i-KI(R)_MTD_0031_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
HOT WATER RECIRCULATION
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
DRAIN VALVE
SHUT-OFF VALVE
THERMOSTATIC MIXER
VENT VALVE
MT
CALIBRATING VALVE
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
TO
MODULE
TOTHE
THEINSIDE
MTD2 SERIES
HEAT/ PUMP
i-EM
i-EMR(*)
(*)
F
T
CHECK VALVE
KEY TO THE SYMBOLS
PRESSURE GAUGE
2
N.C.
CLIMAVENETA APPLIANCES
NOTE
N-EM1 SYSTEM EXPANSION MODULE
3
D
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT.
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
8
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
ELECTRIC HEATER KIT, 1-2-3 kW
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
5
7
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
2
1
4
T
MT
5
ACS
8
6
AUTOMATIC
FILL ASSEMBLY
T
T
ZONE "1"
MTD2_0001.1
CONFIGURATION "1"
SELF-CLEANING
FILTER
REV_01 26/01/2011
LOW-LOSS
HEADER
FROM THE
WATER MAINS
7
i-KI(R) MTD
WATER CIRCUIT DIAGRAM
Configuration number 1 (parameter 0101= 1)
HFC 410A
MEMBRANE
EXPANSION VESSEL
“Y” FILTER
37
i-KI(R)_MTD_0031_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
DRAIN VALVE
SHUT-OFF VALVE
THERMOSTATIC MIXER
VENT VALVE
MT
CHECK VALVE
CALIBRATING VALVE
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
PRESSURE GAUGE
TO
MODULE
TO THE
THE INSIDE
MTD2 SERIES
i-EM /PUMP
i-EMR(*)(*)
HEAT
F
T
KEY TO THE SYMBOLS
2
N.C.
NOTE
N-EM1 SYSTEM EXPANSION MODULE
3
D
FOR THE ELECTRICAL CONNECTIONS TO THE HEAT PUMP SEE THE
WIRING DIAGRAM.
(***) THE DEHUMIDIFIER IS NOT SUPPLIED BY CLIMAVENETA.
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT.
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
8
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
ELECTRIC HEATER KIT, 1-2-3 kW
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
5
7
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
2
1
CLIMAVENETA APPLIANCES
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
4
T
MT
5
ACS
8
6
M
AUTOMATIC
FILL ASSEMBLY
T
T
DEHUMIDIFIER (***)
ZONE "1"
MTD2_0002.0
CONFIGURATION "2"
SELF-CLEANING
FILTER
FROM THE
WATER MAINS
REV_01 26/01/2011
LOW-LOSS
HEADER
7
i-KI(R) MTD
WATER CIRCUIT DIAGRAM
Configuration number 2 (parameter 0101= 2)
HFC 410A
MEMBRANE
EXPANSION VESSEL
“Y” FILTER
38
i-KI(R)_MTD_0031_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
DRAIN VALVE
SHUT-OFF VALVE
2
N.C.
THERMOSTATIC MIXER
VENT VALVE
MT
CALIBRATING VALVE
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
TO
MODULE
TOTHE
THEINSIDE
MTD2 SERIES
i-EM
i-EMR(*)
(*)
HEAT/ PUMP
F
T
CHECK VALVE
KEY TO THE SYMBOLS
PRESSURE GAUGE
CLIMAVENETA APPLIANCES
ADDITIONAL ROOM UNIT
9
3
D
FOR THE ELECTRICAL CONNECTIONS TO THE HEAT PUMP SEE THE
WIRING DIAGRAM.
(***) THE DEHUMIDIFIER IS NOT SUPPLIED BY CLIMAVENETA.
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT.
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
NOTE
N-EM1 SYSTEM EXPANSION MODULE
8
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
ELECTRIC HEATER KIT, 1-2-3 kW
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
5
7
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
2
1
4
T
9
MT
5
ACS
ZONE "2"
T
T
8
6
M
AUTOMATIC
FILL ASSEMBLY
T
T
DEHUMIDIFIER (***)
ZONE "1"
MTD_0003.0
CONFIGURATION "3"
SELF-CLEANING
FILTER
FROM THE
WATER MAINS
REV_01 26/01/2011
LOW-LOSS
HEADER
7
i-KI(R) MTD
WATER CIRCUIT DIAGRAM
Configuration number 3 (parameter 0101= 3)
HFC 410A
MEMBRANE
EXPANSION VESSEL
“Y” FILTER
39
i-KI(R)_MTD_0031_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
HOT WATER RECIRCULATION
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
DRAIN VALVE
SHUT-OFF VALVE
THERMOSTATIC MIXER
VENT VALVE
MT
CALIBRATING VALVE
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
TO
MODULE
TOTHE
THEINSIDE
MTD2 SERIES
i-EM
i-EMR(*)
(*)
HEAT/ PUMP
F
T
CHECK VALVE
KEY TO THE SYMBOLS
PRESSURE GAUGE
2
N.C.
CLIMAVENETA APPLIANCES
ADDITIONAL ROOM UNIT
9
3
D
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
NOTE
N-EM1 SYSTEM EXPANSION MODULE
8
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
ELECTRIC HEATER KIT, 1-2-3 kW
7
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
5
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
2
1
4
T
9
MT
5
ACS
ZONE "2"
8
T
T
8
6
M
AUTOMATIC
FILL ASSEMBLY
T
T
ZONE "1"
MTD2_0004.0
CONFIGURATION "4"
SELF-CLEANING
FILTER
FROM THE
WATER MAINS
REV_01 26/01/2011
LOW-LOSS
HEADER
7
i-KI(R) MTD
WATER CIRCUIT DIAGRAM
Configuration number 4 (parameter 0101= 4)
HFC 410A
MEMBRANE
EXPANSION VESSEL
SHUT-OFF VALVE
“Y” FILTER
40
i-KI(R)_MTD_0031_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
VENT VALVE
THERMOSTATIC MIXER
DRAIN VALVE
MT
CHECK VALVE
CALIBRATING VALVE
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
PRESSURE GAUGE
TO
MODULE
TOTHE
THEINSIDE
MTD2 SERIES
i-EM
i-EMR(*)
(*)
HEAT/ PUMP
F
T
KEY TO THE SYMBOLS
2
N.C.
CLIMAVENETA APPLIANCES
ADDITIONAL ROOM UNIT
9
3
D
FOR THE ELECTRICAL CONNECTIONS TO THE HEAT PUMP SEE THE
WIRING DIAGRAM.
(***) THE DEHUMIDIFIER IS NOT SUPPLIED BY CLIMAVENETA.
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT.
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
NOTE
N-EM1 SYSTEM EXPANSION MODULE
8
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
ELECTRIC HEATER KIT, 1-2-3 kW
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
5
7
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
2
1
4
T
7
MT
5
ACS
8
T
T
DEHUMIDIFIER (***)
ZONE "1"
8
6
M
AUTOMATIC
FILL ASSEMBLY
T
T
9
9
MTD2_0005.0
CONFIGURATION "5"
SELF-CLEANING
FILTER
ZONE "2"
REV_01 26/01/2011
LOW-LOSS
HEADER
FROM THE
WATER MAINS
ZONE "3"
i-KI(R) MTD
WATER CIRCUIT DIAGRAM
Configuration number 5 (parameter 0101= 5)
HFC 410A
MEMBRANE
EXPANSION VESSEL
“Y” FILTER
41
i-KI(R)_MTD_0031_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
HOT WATER RECIRCULATION
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
VENT VALVE
DRAIN VALVE
2
N.C.
THERMOSTATIC MIXER
SHUT-OFF VALVE
MT
CALIBRATING VALVE
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
TO
MODULE
TOTHE
THEINSIDE
MTD2 SERIES
HEAT/ PUMP
i-EM
i-EMR(*)
(*)
F
T
CHECK VALVE
KEY TO THE SYMBOLS
PRESSURE GAUGE
CLIMAVENETA APPLIANCES
ADDITIONAL ROOM UNIT
9
3
D
FOR THE ELECTRICAL CONNECTIONS TO THE HEAT PUMP SEE THE
WIRING DIAGRAM.
(***) THE DEHUMIDIFIER IS NOT SUPPLIED BY CLIMAVENETA.
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT.
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
NOTE
N-EM1 SYSTEM EXPANSION MODULE
8
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
ELECTRIC HEATER KIT, 1-2-3 kW
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
5
7
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
2
1
4
T
7
MT
5
8
T
T
DEHUMIDIFIER (***)
ZONE "1"
8
6
M
AUTOMATIC
FILL ASSEMBLY
T
T
9
9
MTD2_0006.0
CONFIGURATION "6"
SELF-CLEANING
FILTER
ZONE "2"
REV_01 26/01/2011
LOW-LOSS
HEADER
FROM THE
WATER MAINS
ZONE "3"
i-KI(R) MTD
WATER CIRCUIT DIAGRAM
Configuration number 6 (parameter 0101= 6)
HFC 410A
MEMBRANE
EXPANSION VESSEL
SHUT-OFF VALVE
“Y” FILTER
42
i-KI(R)_MTD_0031_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
DRAIN VALVE
2
N.C.
THERMOSTATIC MIXER
VENT VALVE
MT
CHECK VALVE
CALIBRATING VALVE
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
PRESSURE GAUGE
TO
MODULE
TOTHE
THEINSIDE
MTD2 SERIES
HEAT/ PUMP
i-EM
i-EMR(*)
(*)
F
T
KEY TO THE SYMBOLS
ADDITIONAL ROOM UNIT
9
3
D
FOR THE ELECTRICAL CONNECTIONS TO THE HEAT PUMP SEE THE
WIRING DIAGRAM.
(***) THE DEHUMIDIFIER IS NOT SUPPLIED BY CLIMAVENETA.
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT.
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
NOTE
N-EM1 SYSTEM EXPANSION MODULE
8
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
ELECTRIC HEATER KIT, 1-2-3 kW
5
7
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
3
4
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
2
1
CLIMAVENETA APPLIANCES
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
4
T
7
MT
5
ACS
8
T
T
8
DEHUMIDIFIER (***)
ZONE "1"
6
M
AUTOMATIC
FILL ASSEMBLY
T
T
9
9
ZONE "3"
MTD2_0007.0
CONFIGURATION "7"
SELF-CLEANING
FILTER
ZONE "2"
FROM THE
WATER MAINS
REV_01 26/01/2011
LOW-LOSS
HEADER
9
ZONE "4"
i-KI(R) MTD
WATER CIRCUIT DIAGRAM
Configuration number 7 (parameter 0101= 7)
HFC 410A
MEMBRANE
EXPANSION VESSEL
“Y” FILTER
43
i-KI(R)_MTD_0031_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
HOT WATER RECIRCULATION
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
DRAIN VALVE
SHUT-OFF VALVE
THERMOSTATIC MIXER
VENT VALVE
MT
CHECK VALVE
CALIBRATING VALVE
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
PRESSURE GAUGE
TO
MODULE
TOTHE
THEINSIDE
MTD2 SERIES
i-EM
i-EMR(*)
(*)
HEAT/ PUMP
F
T
KEY TO THE SYMBOLS
2
N.C.
ADDITIONAL ROOM UNIT
9
3
D
FOR THE ELECTRICAL CONNECTIONS TO THE HEAT PUMP SEE THE
WIRING DIAGRAM.
(***) THE DEHUMIDIFIER IS NOT SUPPLIED BY CLIMAVENETA.
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT.
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
NOTE
N-EM1 SYSTEM EXPANSION MODULE
8
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
ELECTRIC HEATER KIT, 1-2-3 kW
7
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
5
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
2
1
CLIMAVENETA APPLIANCES
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
4
T
7
MT
5
ACS
8
T
T
8
DEHUMIDIFIER (***)
ZONE "1"
6
M
AUTOMATIC
FILL ASSEMBLY
T
T
9
9
ZONE "3"
MTD2_XE_0008.0
CONFIGURATION "8"
SELF-CLEANING
FILTER
ZONE "2"
FROM THE
WATER MAINS
REV_01 26/01/2011
LOW-LOSS
HEADER
9
ZONE "4"
i-KI(R) MTD
WATER CIRCUIT DIAGRAM
Configuration number 8 (parameter 0101= 8)
HFC 410A
MEMBRANE
EXPANSION VESSEL
“Y” FILTER
44
i-KI(R)_MTD_0031_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
DRAIN VALVE
SHUT-OFF VALVE
THERMOSTATIC MIXER
VENT VALVE
MT
CHECK VALVE
CALIBRATING VALVE
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
PRESSURE GAUGE
TO
MODULE
TOTHE
THEINSIDE
MTD2 SERIES
HEAT/ PUMP
i-EM
i-EMR(*)
(*)
F
T
KEY TO THE SYMBOLS
2
N.C.
ADDITIONAL ROOM UNIT
9
3
D
FOR THE ELECTRICAL CONNECTIONS TO THE HEAT PUMP SEE THE
WIRING DIAGRAM.
(***) THE DEHUMIDIFIER IS NOT SUPPLIED BY CLIMAVENETA.
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT.
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
NOTE
N-EM1 SYSTEM EXPANSION MODULE
8
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
ELECTRIC HEATER KIT, 1-2-3 kW
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
5
7
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
2
1
CLIMAVENETA APPLIANCES
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
4
T
7
MT
5
ACS
8
T
T
DEHUMIDIFIER (***)
ZONE "1"
8
6
M
M
AUTOMATIC
FILL ASSEMBLY
T
T
DEHUMIDIFIER (***)
ZONE "2"
MTD2_0009.0
CONFIGURATION "9"
SELF-CLEANING
FILTER
FROM THE
WATER MAINS
REV_01 26/01/2011
LOW-LOSS
HEADER
9
i-KI(R) MTD
WATER CIRCUIT DIAGRAM
Configuration number 9 (parameter 0101= 9)
HFC 410A
MEMBRANE
EXPANSION VESSEL
“Y” FILTER
45
i-KI(R)_MTD_0031_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
HOT WATER RECIRCULATION
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
DRAIN VALVE
SHUT-OFF VALVE
THERMOSTATIC MIXER
VENT VALVE
MT
CHECK VALVE
CALIBRATING VALVE
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
PRESSURE GAUGE
TO
MODULE
TOTHE
THEINSIDE
MTD2 SERIES
i-EM
i-EMR(*)
(*)
HEAT/ PUMP
F
T
KEY TO THE SYMBOLS
2
N.C.
ADDITIONAL ROOM UNIT
9
3
D
FOR THE ELECTRICAL CONNECTIONS TO THE HEAT PUMP SEE THE
WIRING DIAGRAM.
(***) THE DEHUMIDIFIER IS NOT SUPPLIED BY CLIMAVENETA.
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT.
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
NOTE
N-EM1 SYSTEM EXPANSION MODULE
8
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
ELECTRIC HEATER KIT, 1-2-3 kW
7
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
5
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
2
1
CLIMAVENETA APPLIANCES
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
4
T
7
MT
5
ACS
8
T
T
DEHUMIDIFIER (***)
ZONE "1"
8
6
M
M
AUTOMATIC
FILL ASSEMBLY
T
T
DEHUMIDIFIER (***)
ZONE "2"
MTD2_0010.0
CONFIGURATION "10"
SELF-CLEANING
FILTER
FROM THE
WATER MAINS
REV_01 26/01/2011
LOW-LOSS
HEADER
9
i-KI(R) MTD
WATER CIRCUIT DIAGRAM
Configuration number 10 (parameter 0101= 10)
HFC 410A
MEMBRANE
EXPANSION VESSEL
“Y” FILTER
46
i-KI(R)_MTD_0031_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
HOT WATER RECIRCULATION
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
DRAIN VALVE
SHUT-OFF VALVE
THERMOSTATIC MIXER
VENT VALVE
MT
CALIBRATING VALVE
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
TO
MODULE
TOTHE
THEINSIDE
MTD2 SERIES
i-EM
i-EMR(*)
(*)
HEAT/ PUMP
F
T
CHECK VALVE
KEY TO THE SYMBOLS
PRESSURE GAUGE
2
N.C.
CLIMAVENETA APPLIANCES
ADDITIONAL ROOM UNIT
9
3
D
FOR THE ELECTRICAL CONNECTIONS TO THE HEAT PUMP SEE THE
WIRING DIAGRAM.
(***) THE DEHUMIDIFIER IS NOT SUPPLIED BY CLIMAVENETA.
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT.
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
NOTE
N-EM1 SYSTEM EXPANSION MODULE
8
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
ELECTRIC HEATER KIT, 1-2-3 kW
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
5
7
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
2
1
4
T
7
MT
5
ACS
8
T
T
DEHUMIDIFIER (***)
ZONE "1"
8
6
M
M
AUTOMATIC
FILL ASSEMBLY
T
T
T
T
DEHUMIDIFIER (***)
ZONE "2"
MTD2_0011.0
CONFIGURATION "11"
SELF-CLEANING
FILTER
FROM THE
WATER MAINS
REV_01 26/01/2011
LOW-LOSS
HEADER
9
ZONA "3"
9
i-KI(R) MTD
WATER CIRCUIT DIAGRAM
Configuration number 11 (parameter 0101= 11)
HFC 410A
MEMBRANE
EXPANSION VESSEL
“Y” FILTER
47
i-KI(R)_MTD_0031_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
HOT WATER RECIRCULATION
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
DRAIN VALVE
SHUT-OFF VALVE
2
N.C.
THERMOSTATIC MIXER
VENT VALVE
MT
CHECK VALVE
CALIBRATING VALVE
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
PRESSURE GAUGE
TO
MODULE
TOTHE
THEINSIDE
MTD2 SERIES
HEAT/ PUMP
i-EM
i-EMR(*)
(*)
F
T
KEY TO THE SYMBOLS
ADDITIONAL ROOM UNIT
9
3
D
FOR THE ELECTRICAL CONNECTIONS TO THE HEAT PUMP SEE THE
WIRING DIAGRAM.
(***) THE DEHUMIDIFIER IS NOT SUPPLIED BY CLIMAVENETA.
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT.
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
NOTE
N-EM1 SYSTEM EXPANSION MODULE
8
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
ELECTRIC HEATER KIT, 1-2-3 kW
7
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
5
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
2
1
CLIMAVENETA APPLIANCES
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
4
T
7
MT
5
ACS
8
T
T
DEHUMIDIFIER (***)
ZONE "1"
8
8
6
M
M
9
T
T
ZONE "4"
AUTOMATIC
FILL ASSEMBLY
T
T
DEHUMIDIFIER (***)
ZONE "2"
MTD2_0012.0
CONFIGURATION "12"
SELF-CLEANING
FILTER
ZONE "3"
FROM THE
WATER MAINS
REV_01 27/01/2011
LOW-LOSS
HEADER
9
9
i-KI(R) MTD
WATER CIRCUIT DIAGRAM
Configuration number 12 (parameter 0101= 12)
HFC 410A
MEMBRANE
EXPANSION VESSEL
“Y” FILTER
48
i-KI(R)_MTD_0031_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
HOT WATER RECIRCULATION
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
DRAIN VALVE
SHUT-OFF VALVE
THERMOSTATIC MIXER
VENT VALVE
MT
CHECK VALVE
CALIBRATING VALVE
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
PRESSURE GAUGE
TO
MODULE
TOTHE
THEINSIDE
MTD2 SERIES
i-EM
i-EMR(*)
(*)
HEAT/ PUMP
F
T
KEY TO THE SYMBOLS
2
N.C.
ADDITIONAL ROOM UNIT
9
3
D
FOR THE ELECTRICAL CONNECTIONS TO THE HEAT PUMP SEE THE
WIRING DIAGRAM.
(***) THE DEHUMIDIFIER IS NOT SUPPLIED BY CLIMAVENETA.
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT.
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
NOTE
N-EM1 SYSTEM EXPANSION MODULE
8
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
ELECTRIC HEATER KIT, 1-2-3 kW
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
5
7
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
2
1
CLIMAVENETA APPLIANCES
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
4
T
7
MT
5
ACS
8
T
T
DEHUMIDIFIER (***)
ZONE "1"
8
6
8
M
M
ZONE "5"
AUTOMATIC
FILL ASSEMBLY
T
T
9
DEHUMIDIFIER (***)
ZONE "2"
T
T
SELF-CLEANING
FILTER
9
ZONE "3"
MTD2_0013.0
CONFIGURATION "13"
ZONE "4"
9
FROM THE
WATER MAINS
REV_01 27/01/2011
LOW-LOSS
HEADER
9
i-KI(R) MTD
WATER CIRCUIT DIAGRAM
Configuration number 13 (parameter 0101= 13)
HFC 410A
MEMBRANE
EXPANSION VESSEL
“Y” FILTER
49
i-KI(R)_MTD_0031_201110_EN
N.B.: Typical water circuit diagram.
1
T
T
T
F
INDICATES CLIMAVENETA ACCESSORIES
ELECTRICAL CONNECTIONS
HOT WATER RECIRCULATION
DOMESTIC COLD WATER
DOMESTIC HOT WATER
HEAT PUMP RETURN
HEAT PUMP OUTLET
SAFETY VALVE WITH
PIPED DISCHARGE
DRAIN VALVE
SHUT-OFF VALVE
THERMOSTATIC MIXER
VENT VALVE
MT
CHECK VALVE
CALIBRATING VALVE
VIBRATION
DAMPER JOINT
FLOW SWITCH
THERMOMETER
PRESSURE GAUGE
TO
MODULE
TOTHE
THEINSIDE
MTD2 SERIES
i-EM
i-EMR(*)
(*)
HEAT/ PUMP
F
T
KEY TO THE SYMBOLS
2
N.C.
ADDITIONAL ROOM UNIT
9
3
D
FOR THE ELECTRICAL CONNECTIONS TO THE HEAT PUMP SEE THE
WIRING DIAGRAM.
(***) THE DEHUMIDIFIER IS NOT SUPPLIED BY CLIMAVENETA.
(**) INSTALL THE OUTSIDE AIR TEMPERATURE PROBE OUTDOORS,
FACING NORTH AND SHELTERED FROM SUNLIGHT.
(*) FOR THE WATER CONNECTIONS TO THE UNIT, SEE THE DIAGRAM
SHOWN IN THE HEAT PUMP TECHNICAL BULLETIN.
NOTE
N-EM1 SYSTEM EXPANSION MODULE
8
ROOM UNIT (SUPPLIED WITH THE HEAT PUMP AS STANDARD)
ELECTRIC HEATER KIT, 1-2-3 kW
7
DHW STORAGE TANK, MODEL HWC 300 OR HWC 500
5
STORAGE TANK FOR HEATED AND CHILLED WATER, MODEL BT35,
BT100 OR BT200
1”1/4 THREE-WAY SELECTOR VALVE FOR DHW PRODUCTION
3
4
6
REMOVABLE METAL MESH FILTER (1"1/4, 1"1/2 OR 2”)
2
1
CLIMAVENETA APPLIANCES
OUTSIDE AIR TEMPERATURE PROBE (**)
(SUPPLIED AS STANDARD WITH THE HEAT PUMP)
4
T
7
MT
5
ACS
8
T
T
DEHUMIDIFIER (***)
ZONE "1"
8
8
6
M
M
M
AUTOMATIC
FILL ASSEMBLY
DEHUMIDIFIER (***)
ZONE "3"
DEHUMIDIFIER (***)
ZONE "2"
T
T
T
T
MTD2_0014.0
CONFIGURATION "14"
SELF-CLEANING
FILTER
FROM THE
WATER MAINS
REV_00 27/01/2011
LOW-LOSS
HEADER
9
9
i-KI(R) MTD
WATER CIRCUIT DIAGRAM
Configuration number 14 (parameter 0101= 14)
HFC 410A
Climaveneta S.p.A.
Via Sarson 57/c
36061 Bassano del Grappa (VI)
Italy
Tel +39 0424 509500
Fax +39 0424 509509
info@climaveneta.com
www.climaveneta.com
Climaveneta France
3, Village d’Entreprises
ZA de la Couronne des Prés
Avenue de la Mauldre
78680 Epone
France
Tel +33 (0)1 30 95 19 19
Fax +33 (0)1 30 95 18 18
info@climaveneta.fr
www.climaveneta.fr
Climaveneta Deutschland
Rhenus Platz, 2
59439 Holzwickede
Germany
Tel +49 2301 91222-0
Fax +49 2301 91222-99
info@climaveneta.de
www.climaveneta.de
Climaveneta
Espana - Top Clima
Londres 67, 1° 4°
08036 Barcelona
Spain
Tel +34 963 195 600
Fax +34 963 615 167
topclima@topclima.com
www.climaveneta.com
Climaveneta Chat Union
Refrig. Equipment Co Ltd
88 Bai Yun Rd, Pudong Xinghuo
New dev. zone 201419 Shanghai
China
Tel 008 621 575 055 66
Fax 008 621 575 057 97
Climaveneta Polska Sp. z o.o.
Ul. Sienkiewicza 13A
05-120 Legionowo
Poland
Tel +48 22 766 34 55-57
Fax +48 22 784 39 09
info@climaveneta.pl
www.climaveneta.pl
Climaveneta India
Climate Technologies (P) LTD
#3487, 14th Main, HAL 2nd stage
Indiranagar, Bangalore 560008
India
Tel +91-80-42466900 - 949
Fax +91-80-25203540
sales@climaveneta.in
Climaveneta UK LTD
Highlands Road,
Shirley Solihull
West Midlands B90 4NL
Tel: +44 (0)871 663 0664
Fax: +44 (0)871 663 1664
Freephone: 0800 801 819
response@climaveneta.co.uk
www.climaveneta.co.uk
www.climaveneta.com
Download PDF
