measuring
•

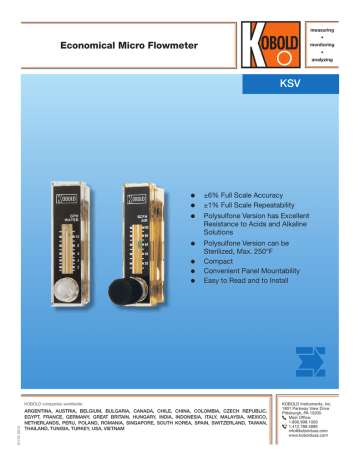

Economical Micro Flowmeter
monitoring
•
analyzing
KSV
•• ±6% Full Scale Accuracy
•• ±1% Full Scale Repeatability
•• Polysulfone Version has Excellent Resistance to Acids and Alkaline Solutions
••
••
••
••
Polysulfone Version can be
Sterilized, Max. 250°F
Compact
Convenient Panel Mountability
Easy to Read and to Install
01/12- 2013
KOBOLD companies worldwide:
ARGENTINA, AUSTRIA, BELGIUM, BULGARIA, CANADA, CHILE, CHINA, COLOMBIA, CZECH REPUBLIC,
EGYPT, FRANCE, GERMANY, GREAT BRITAIN, HUNGARY, INDIA, INDONESIA, ITALY, MALAYSIA, MEXICO,
NETHERLANDS, PERU, POLAND, ROMANIA, SINGAPORE, SOUTH KOREA, SPAIN, SWITZERLAND, TAIWAN,
THAILAND, TUNISIA, TURKEY, USA, VIETNAM
KOBOLD Instruments, Inc.
1801 Parkway View Drive
Pittsburgh, PA 15205
Main Office:
1.800.998.1020
1.412.788.4890
[email protected]
www.koboldusa.com
Economical Micro Flowmeter Model KSV
Description
The KOBOLD KSV flowmeter measures and controls low volume
flows of water or air. It has a plastic body with metal fittings and
is kept leak tight through the use of O-ring seals. The floats are
either stainless steel, glass, or titanium. Though the float types
are determined by measuring range, the plastics for the body
and metals for the fittings are not. The KSV comes with or
without a needle valve. We recommend that the needle valve
version be used to help stabilize the float during introduction
of media (particularly gases) into the flowmeter. As is typical
for needle valves, complete shut-off cannot be achieved and
if shutoff is desired, we recommend the installation of a shutoff
valve upstream of the KSV.
Dimensions
Specifications
Connections: 1/8" NPT, Female Measuring Accuracy: ±6% of Full Scale
Repeatability: ±1% of Full Scale
Operating Pressure: Max. 87 PSI
Flow Media: Liquids or Gases
Measuring Principle: Float
Mounting: Vertical, Up
Material Combinations
Housing
Connection
O-rings
Temperature Range
I
Polycarbonate
Brass
NBR
-4...140 °F
II
Polycarbonate
303 SS
FKM
-4...140 °F
III
Polysulfone
Brass
NBR
-4...248 °F
IV
Polysulfone
303 SS
FKM
-4...248 °F
Order Details (Example: KSV 3201 L)
Range
Water
Model KSV without Needle Valve
Material Combination
Material Combination
Float
Material
(GPH)
2
Model KSV with Needle Valve
Range
Air
Add Suffix "L"
I
II
III
IV
I
II
III
IV
(SCFH)
0.04...0.4
Glass
KSV-3101
KSV-3201
KSV-3301
KSV-3401
KSV-4101
KSV-4201
KSV-4301
KSV-4401
0.3...3
0.1...1.1
SS
KSV-3104
KSV-3204
KSV-3304
KSV-3404
KSV-4104
KSV-4204
KSV-4304
KSV-4404
0.5...5
0.1...0.5
Glass
KSV-3106
KSV-3206
KSV-3306
KSV-3406
KSV-4106
KSV-4206
KSV-4306
KSV-4406
1...10
0.5...4.5
SS
KSV-3116
KSV-3216
KSV-3316
KSV-3416
KSV-4116
KSV-4216
KSV-4316
KSV-4416
2...20
1.0...10
Titanium
KSV-3135
KSV-3235
KSV-3335
KSV-3435
KSV-4135
KSV-4235
KSV-4335
KSV-4435
5...50
2.0...20
SS
KSV-3180
KSV-3280
KSV-3380
KSV-3480
KSV-4180
KSV-4280
KSV-4380
KSV-4480
10...100
www.koboldusa.com
No responsibility taken for errors;
subject to change without prior notice.
