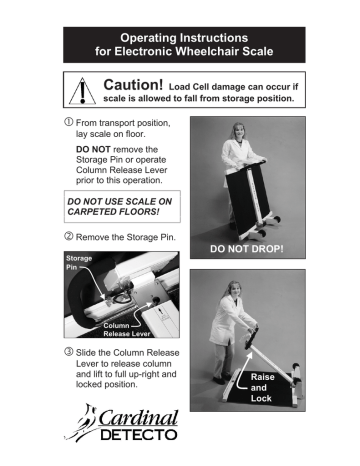

Operating Instructions
for Electronic Wheelchair Scale
Caution!
Load Cell damage can occur if
scale is allowed to fall from storage position.
c From transport position,
lay scale on floor.
DO NOT remove the
Storage Pin or operate
Column Release Lever
prior to this operation.
DO NOT USE SCALE ON
CARPETED FLOORS!
d Remove the Storage Pin.
DO NOT DROP!
Storage
Pin
Column
Release Lever
e Slide the Column Release
Lever to release column
and lift to full up-right and
locked position.
Raise
and
Lock
Operating Instructions
for Electronic Wheelchair Scale
f Press the ON key located
on front of the indicator.
g When the indicator reads
Zero, press the TARE
key, enter the wheelchair
weight, then press the
ENTER key. The
indicator will show a
negative weight equal to
the weight of wheelchair.
HINT:
If indicator is on
when storing, press the
ZERO key to zero the
indicator which activates
the automatic shutoff.
h Position patient on scale
by pulling wheelchair onto
scale. NEVER PUSH
patient on or off scale.
Lock wheelchair wheels.
i When weight reading is
steady, read the patient’s
weight.
j Remove patient from
Direction
of Travel
scale by backing down
the ramp.
k For storage, use column
release to release column
and fold down to locked
position. Replace storage
pin (see warning label on
scale base). Store in an
up-right position,
preferably near a wall for
maximum protection
against damage.
0065-C336-O8 Rev K
09/04
Correct
Storage
Position
CARDINAL SCALE MFG. CO.
PO BOX 151 x WEBB CITY, MO 64870
PH (417) 673-4631 x FAX (417) 673-5001
www.detectoscale.com
Printed in USA
