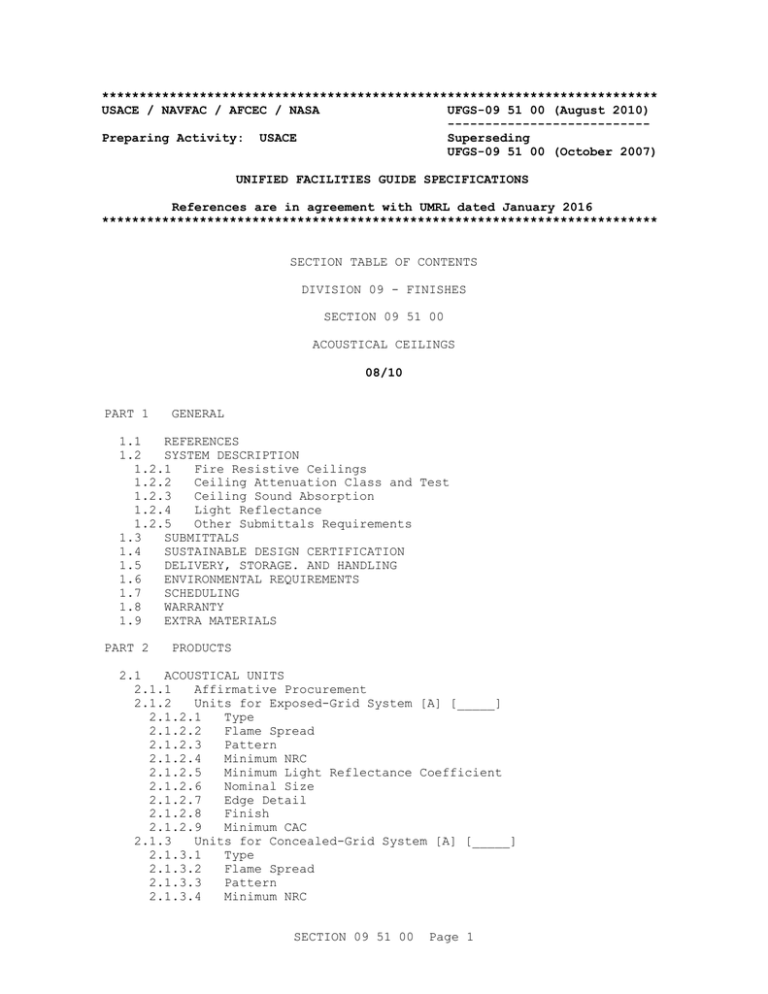

USACE / NAVFAC / AFCEC / NASA
UFGS-09 51 00 (August 2010)
--------------------------Preparing Activity: USACE
Superseding
UFGS-09 51 00 (October 2007)
UNIFIED FACILITIES GUIDE SPECIFICATIONS
References are in agreement with UMRL dated January 2016
**************************************************************************
SECTION TABLE OF CONTENTS
DIVISION 09 - FINISHES
SECTION 09 51 00
ACOUSTICAL CEILINGS
08/10
PART 1
GENERAL
1.1
REFERENCES
1.2
SYSTEM DESCRIPTION
1.2.1
Fire Resistive Ceilings
1.2.2
Ceiling Attenuation Class and Test
1.2.3
Ceiling Sound Absorption
1.2.4
Light Reflectance
1.2.5
Other Submittals Requirements
1.3
SUBMITTALS
1.4
SUSTAINABLE DESIGN CERTIFICATION
1.5
DELIVERY, STORAGE. AND HANDLING
1.6
ENVIRONMENTAL REQUIREMENTS
1.7
SCHEDULING
1.8
WARRANTY
1.9
EXTRA MATERIALS
PART 2
PRODUCTS
2.1
ACOUSTICAL UNITS
2.1.1
Affirmative Procurement
2.1.2
Units for Exposed-Grid System [A] [_____]
2.1.2.1
Type
2.1.2.2
Flame Spread
2.1.2.3
Pattern
2.1.2.4
Minimum NRC
2.1.2.5
Minimum Light Reflectance Coefficient
2.1.2.6
Nominal Size
2.1.2.7
Edge Detail
2.1.2.8
Finish
2.1.2.9
Minimum CAC
2.1.3
Units for Concealed-Grid System [A] [_____]
2.1.3.1
Type
2.1.3.2
Flame Spread
2.1.3.3
Pattern
2.1.3.4
Minimum NRC
SECTION 09 51 00
Page 1
2.1.3.5
Minimum Light Reflectance Coefficient
2.1.3.6
Nominal Size
2.1.3.7
Edge Detail
2.1.3.8
Joint Detail
2.1.3.9
Finish
2.1.3.10
Minimum CAC
2.1.4
Metal Pans [A] [_____]
2.1.4.1
Type
2.1.4.2
Flame Spread
2.1.4.3
Pattern
2.1.4.4
Minimum NRC
2.1.4.5
Minimum Light Reflectance Coefficient
2.1.4.6
Nominal Size
2.1.4.7
Edge Detail
2.1.4.8
Joint Detail
2.1.4.9
Finish
2.1.4.10
Pads
2.1.5
Impact/Abrasion Resistant Units
2.1.5.1
Type
2.1.5.2
Flame Spread
2.1.5.3
Pattern
2.1.5.4
Minimum NRC
2.1.5.5
Minimum Light Reflectance Coefficient
2.1.5.6
Nominal Size
2.1.5.7
Edge Detail
2.1.5.8
Joint Detail
2.1.6
Humidity Resistant Composition Units
2.1.6.1
Type
2.1.6.2
Flame Spread
2.1.6.3
Pattern
2.1.6.4
Minimum NRC
2.1.6.5
Minimum Light Reflectance Coefficient
2.1.6.6
Nominal Size
2.1.6.7
Edge Detail
2.1.7
Metal Faced Composition Units
2.1.7.1
Type
2.1.7.2
Flame Spread
2.1.7.3
Pattern
2.1.7.4
Minimum (NRC)
2.1.7.5
Minimum Light Reflectance Coefficient
2.1.7.6
Nominal Size
2.1.7.7
Edge Detail
2.1.7.8
Joint Detail
2.1.8
Unit Acoustical Absorbers
2.2
SUSPENSION SYSTEM
2.3
HANGERS
2.3.1
Wires
2.3.2
Straps
2.3.3
Rods
2.3.4
Eyebolts
2.3.5
Masonry Anchorage Devices
2.4
ACCESS PANELS
2.5
ADHESIVE
2.6
FINISHES
2.7
COLORS AND PATTERNS
2.8
ACOUSTICAL SEALANT
PART 3
EXECUTION
SECTION 09 51 00
Page 2
3.1
INSTALLATION
3.1.1
Suspension System
3.1.1.1
Plumb Hangers
3.1.1.2
Splayed Hangers
3.1.2
Wall Molding
3.1.3
Acoustical Units
3.1.4
Caulking
3.1.5
Adhesive Application
3.2
CEILING ACCESS PANELS
3.3
CLEANING
3.4
RECLAMATION PROCEDURES
-- End of Section Table of Contents --
SECTION 09 51 00
Page 3
**************************************************************************
USACE / NAVFAC / AFCEC / NASA
UFGS-09 51 00 (August 2010)
--------------------------Preparing Activity: USACE
Superseding
UFGS-09 51 00 (October 2007)
UNIFIED FACILITIES GUIDE SPECIFICATIONS
References are in agreement with UMRL dated January 2016
**************************************************************************
SECTION 09 51 00
ACOUSTICAL CEILINGS
08/10
**************************************************************************
NOTE: This guide specification covers the
requirements for conventional and impact/abrasion
resistant acoustical ceiling tile and panels, unit
acoustical absorbers, hangers, and suspension system
grid for installation in commercial-type work.
Adhere to UFC 1-300-02 Unified Facilities Guide
Specifications (UFGS) Format Standard when editing
this guide specification or preparing new project
specification sections. Edit this guide
specification for project specific requirements by
adding, deleting, or revising text. For bracketed
items, choose applicable items(s) or insert
appropriate information.
Remove information and requirements not required in
respective project, whether or not brackets are
present.
Comments, suggestions and recommended changes for
this guide specification are welcome and should be
submitted as a Criteria Change Request (CCR).
**************************************************************************
PART 1
GENERAL
**************************************************************************
Note: Plaster or gypsum wallboard ceilings, metal
faced or ceramic-bonded mineral fiber acoustical
ceilings should be used in lieu of mineral fiber, or
fiberglass base acoustical ceiling systems, in wet
areas such as showers and bathrooms or around
grills, in kitchens, and similar facilities where
greasy vapors are a problem. Be alert to this fact,
however, gypsum board made in other countries may
contain asbestos which, of course, is unacceptable.
Drawings should indicate the following:
a.
Location of acoustical systems.
SECTION 09 51 00
Arrangement of
Page 4
acoustical units, panels, light fixtures, and
diffusers, other penetrations and exposed suspension
grids.
b. Location of systems required to have ceiling
attenuation class (CAC).
c. Location and details of system required to have
a fire resistive rating.
d. Location and details and material of fire stops
above suspended ceilings.
e. Location and details of access panels and
maximum spacing of suspension members for concealed
grid suspension systems.
f. Location of each different color and pattern
when more than one type acoustical unit is specified
for a project. Details of special or patterned
panels if necessary to describe adequately. If more
than one system is used, key to locations by using
symbols.
g. Where acoustical ceilings are provided in
conjunction with thermal insulation beneath vented
attic spaces, careful attention should be given to
furnishing the appropriate type ceiling tile,
adequate details on the contract drawings, and to
including appropriate sections in the
specifications. Details on the drawings will cover
such features as support of insulation at
flush-mounted light fixtures, conduit, acoustical
units, suspension system components, heating and
air-conditioning units, and other utilities.
Installation of insulation over the suspension
systems, light fixtures, and other ceiling
penetrations will be coordinated with Sections
06 10 00 ROUGH CARPENTRY and 07 21 13 BOARD AND
BLOCK INSULATION, and manufacturer's literature.
**************************************************************************
1.1
REFERENCES
**************************************************************************
NOTE: This paragraph is used to list the
publications cited in the text of the guide
specification. The publications are referred to in
the text by basic designation only and listed in
this paragraph by organization, designation, date,
and title.
Use the Reference Wizard's Check Reference feature
when you add a RID outside of the Section's
Reference Article to automatically place the
reference in the Reference Article. Also use the
Reference Wizard's Check Reference feature to update
the issue dates.
SECTION 09 51 00
Page 5
ASTM E1264
(2014) Acoustical Ceiling Products
ASTM E1414/E1414M
(2011a; E 2014) Airborne Sound Attenuation
Between Rooms Sharing a Common Ceiling
Plenum
ASTM E1477
(1998a; R 2013) Luminous Reflectance
Factor of Acoustical Materials by Use of
Integrating-Sphere Reflectometers
ASTM E580/E580M
(2014) Application of Ceiling Suspension
Systems for Acoustical Tile and Lay-In
Panels in Areas Requiring Moderate Seismic
Restraint
ASTM E795
(2005; R 2012) Mounting Test Specimens
During Sound Absorption Tests
ASTM E84
(2015b) Standard Test Method for Surface
Burning Characteristics of Building
Materials
SCIENTIFIC CERTIFICATION SYSTEMS (SCS)
SCS
Scientific Certification Systems
(SCS)Indoor Advantage
U.S. DEPARTMENT OF DEFENSE (DOD)
UFC 3-310-04
(2013) Seismic Design for Buildings
UL ENVIRONMENT (ULE)
ULE Greenguard
UL Greenguard Certification Program
UNDERWRITERS LABORATORIES (UL)
UL Fire Resistance
1.2
(2014) Fire Resistance Directory
SYSTEM DESCRIPTION
**************************************************************************
NOTE: When reflected ceiling plans showing ceiling
penetrations are included in the project drawings,
it may not be necessary for the Contractor to
re-draw and submit as a shop drawing; in such cases,
delete the requirement from SD-02. Details not
applicable to the project should also be deleted.
On simple projects where manufacturer's standard
printed data are sufficient, omit this submittal
category from SD-03.
Where many different ceiling systems are used, it
may be more convenient to schedule STC ratings, fire
ratings, panel and suspension types on the drawings,
keyed to finish schedules, rather than to include
this data in the specification.
**************************************************************************
SECTION 09 51 00
Page 7
ASTM E1264
(2014) Acoustical Ceiling Products
ASTM E1414/E1414M
(2011a; E 2014) Airborne Sound Attenuation
Between Rooms Sharing a Common Ceiling
Plenum
ASTM E1477
(1998a; R 2013) Luminous Reflectance
Factor of Acoustical Materials by Use of
Integrating-Sphere Reflectometers
ASTM E580/E580M
(2014) Application of Ceiling Suspension
Systems for Acoustical Tile and Lay-In
Panels in Areas Requiring Moderate Seismic
Restraint
ASTM E795
(2005; R 2012) Mounting Test Specimens
During Sound Absorption Tests
ASTM E84
(2015b) Standard Test Method for Surface
Burning Characteristics of Building
Materials
SCIENTIFIC CERTIFICATION SYSTEMS (SCS)
SCS
Scientific Certification Systems
(SCS)Indoor Advantage
U.S. DEPARTMENT OF DEFENSE (DOD)
UFC 3-310-04
(2013) Seismic Design for Buildings
UL ENVIRONMENT (ULE)
ULE Greenguard
UL Greenguard Certification Program
UNDERWRITERS LABORATORIES (UL)
UL Fire Resistance
1.2
(2014) Fire Resistance Directory
SYSTEM DESCRIPTION
**************************************************************************
NOTE: When reflected ceiling plans showing ceiling
penetrations are included in the project drawings,
it may not be necessary for the Contractor to
re-draw and submit as a shop drawing; in such cases,
delete the requirement from SD-02. Details not
applicable to the project should also be deleted.
On simple projects where manufacturer's standard
printed data are sufficient, omit this submittal
category from SD-03.
Where many different ceiling systems are used, it
may be more convenient to schedule STC ratings, fire
ratings, panel and suspension types on the drawings,
keyed to finish schedules, rather than to include
this data in the specification.
**************************************************************************
SECTION 09 51 00
Page 7
Provide sound controlling units mechanically mounted on a ceiling
suspension system for acoustical treatment. The unit size, texture,
finish, and color must be as specified. The Contractor has the option to
substitute inch-pound (I-P) Recessed Light Fixtures (RLF) for metric RLF.
If the Contractor opts to furnish I-P RLF, other ceiling elements like
acoustical ceiling tiles, air diffusers, air registers and grills, shall
also be I-P products. Coordinate the whole ceiling system with other
details, like the location of access panels and ceiling penetrations, etc.,
shown on the drawings. The Contractor is responsible for all associated
labor and materials and for the final assembly and performance of the
specified work and products if I-P products are used. The location and
extent of acoustical treatment shall be as shown on the approved detail
drawings. Submit drawings showing suspension system, method of anchoring
and fastening, details, and reflected ceiling plan. Coordinate with
paragraph RECLAMATION PROCEDURES for reclamation of mineral fiber
acoustical ceiling panels to be removed from the job site.
1.2.1
Fire Resistive Ceilings
**************************************************************************
NOTE: Certified laboratory test reports for fire
resistance rating and ceiling attenuation class
(CAC) cannot be obtained for ceiling assemblies
which are nonstandard with the manufacturer.
Therefore, where a fire resistance rating and/or
ceiling sound transmission class are necessary, do
not specify a nonstandard ceiling assembly. Refer
to data in the UL Fire Resistance Directory for
details.
For Navy projects, delete this paragraph when fire
separation is not required by UFC 3-600-01, Fire
Protection Engineering for Facilities. Where
required, rating applies to total floor-ceiling or
roof-ceiling assembly, including
mechanical-electrical elements, penetrations,
structural system, and deck. If system is required
to be fire-endurance rated, show details of recessed
fixture enclosures and other penetrations on
drawings.
**************************************************************************
Rate acoustical ceiling systems, indicated as fire resistant, for fire
endurance as specified when tested in accordance with ASTM E119. Test
suspended ceiling with a specimen [roof] [floor] assembly representative of
the indicated construction, including mechanical and electrical work within
ceiling space openings for light fixtures, and air outlets, and access
panels. Provide ceiling assembly rating for [[1] [1-1/2] [2] [3] [4] hour
[concealed grid system] [exposed grid system]] [as shown on drawings].
Provide acoustical units with a flame spread of 25 or less and smoke
development of 50 or less when tested in accordance with ASTM E84.
1.2.2
Ceiling Attenuation Class and Test
**************************************************************************
NOTE: Ensure that CAC rating chosen is coordinated
with rating of walls detailed on the drawings. It
is inappropriate to have high CAC rating for
ceilings if walls nullify acoustical benefit.
SECTION 09 51 00
Page 8
Where room partitions do not extend to floor or roof
deck above, ceiling plenum path may prevent
acoustical privacy between rooms. Where required to
provide adequate room to room sound attenuation,
entire ceiling assembly, including air terminals and
light fixtures, should have appropriate Ceiling
Attenuation Class (CAC). Any penetration of ceiling
assembly will destroy integrity of ceiling in this
regard. Verify that other specification sections
and drawings include appropriate data to ensure that
these requirements are met for air terminals and
light fixtures. For standard applications, specify
CAC range of 35 - 39. A ceiling CAC range of 40-44
is recommended for all spaces where speech privacy
is required and that are surrounded or sub-divided
by partitions which do not extend to underside of
floor or roof deck above. For classified conference
rooms, executive offices, teleconferencing rooms and
other occupancies requiring the highest degree of
speech privacy, sound attenuation requirements will
have to be achieved by other means, most likely by
high sound transmission class (STC) partition
extending to the underside of floor or roof deck
above.
**************************************************************************
Provide a ceiling system with an attenuation class (CAC) of [_____] for
[_____] [and _____ for _____] when determined in accordance with
ASTM E1414/E1414M. Provide fixture attenuators over light fixtures and
other ceiling penetrations, and provide acoustical blanket insulation
adjacent to partitions, as required to achieve the specified CAC. Provide
test ceiling continuous at the partition and assembled in the suspension
system in the same manner that the ceiling will be installed on the project.
1.2.3
Ceiling Sound Absorption
Determine the Noise Reduction Coefficient (NRC) in accordance with ASTM C423
Test Method.
1.2.4
Light Reflectance
Determine light reflectance factor in accordance with ASTM E1477 Test
Method.
1.2.5
Other Submittals Requirements
The following shall be submitted:
a. Manufacturer's data indicating percentage of recycle material in
acoustic ceiling tiles to verify affirmative procurement compliance.
b.
Total weight and volume quantities of acoustic ceiling tiles with
recycle material.
c. Manufacturer's catalog showing UL classification of fire-rated ceilings
giving materials, construction details, types of floor and roof
constructions to be protected, and UL design number and fire protection
time rating for each required floor or roof construction and acoustic
SECTION 09 51 00
Page 9
ceiling assembly.
d.
Reports by an independent testing laboratory attesting that acoustical
ceiling systems meet specified [fire endurance] [and] [sound
transmission] requirements. Data attesting to conformance of the
proposed system to Underwriters Laboratories requirements for the fire
endurance rating listed in UL Fire Resistance may be submitted in lieu
of test reports.
e.
Certificate attesting that the mineral based acoustical units furnished
for the project contain recycled material and showing an estimated
percent of such material.
1.3
SUBMITTALS
**************************************************************************
NOTE: Review submittal description (SD) definitions
in Section 01 33 00 SUBMITTAL PROCEDURES and edit
the following list to reflect only the submittals
required for the project.
The Guide Specification technical editors have
designated those items that require Government
approval, due to their complexity or criticality,
with a "G." Generally, other submittal items can be
reviewed by the Contractor's Quality Control
System. Only add a ā€œGā€ to an item, if the submittal
is sufficiently important or complex in context of
the project.
For submittals requiring Government approval on Army
projects, a code of up to three characters within
the submittal tags may be used following the "G"
designation to indicate the approving authority.
Codes for Army projects using the Resident
Management System (RMS) are: "AE" for
Architect-Engineer; "DO" for District Office
(Engineering Division or other organization in the
District Office); "AO" for Area Office; "RO" for
Resident Office; and "PO" for Project Office. Codes
following the "G" typically are not used for Navy,
Air Force, and NASA projects.
An "S" following a submittal item indicates that the
submittal is required for the Sustainability
Notebook to fulfill federally mandated sustainable
requirements in accordance with Section 01 33 29
SUSTAINABILITY REPORTING.
Choose the first bracketed item for Navy, Air Force
and NASA projects, or choose the second bracketed
item for Army projects.
**************************************************************************
Government approval is required for submittals with a "G" designation;
submittals not having a "G" designation are for [Contractor Quality Control
approval.] [information only. When used, a designation following the "G"
designation identifies the office that will review the submittal for the
Government.] Submittals with an "S" are for inclusion in the
SECTION 09 51 00
Page 10
Sustainability Notebook, in conformance to Section 01 33 29 SUSTAINABILITY
REPORTING. Submit the following in accordance with Section 01 33 00
SUBMITTAL PROCEDURES:
SD-02 Shop Drawings
Approved Detail Drawings
SD-03 Product Data
Acoustical Ceiling Systems
Certification
SD-04 Samples
Acoustical Units
Acoustic Ceiling Tiles
SD-06 Test Reports
Fire Resistive Ceilings
Ceiling Attenuation Class and Test
SD-07 Certificates
Acoustical Units
Acoustic Ceiling Tiles
1.4
SUSTAINABLE DESIGN CERTIFICATION
**************************************************************************
NOTE: Products meeting the Gold standard will also
meet the basic standard. Require Gold when the
facility will be used by people sensitive to air
quality conditions, such as child development
centers and medical facilties.
**************************************************************************
Product shall be third party certified in accordance with ULE Greenguard[
Gold], SCS Scientific Certification Systems Indoor Advantage[ Gold ]or
equal. Certification shall be performed annually and shall be current.
1.5
DELIVERY, STORAGE. AND HANDLING
Deliver materials to the site in the manufacturer's original unopened
containers with brand name and type clearly marked. Carefully handle and
store materials in dry, watertight enclosures. Immediately before
installation, store acoustical units for not less than 24 hours at the same
temperature and relative humidity as the space where they will be installed
in order to assure proper temperature and moisture acclimation.
1.6
ENVIRONMENTAL REQUIREMENTS
Maintain a uniform temperature of not less than 16 degrees C 60 degrees F
nor more than 29 degrees C 85 degrees F and a relative humidity of not more
than 70 percent for 24 hours before, during, and 24 hours after
installation of acoustical units.
SECTION 09 51 00
Page 11
2.1.2
Units for Exposed-Grid System [A] [_____]
**************************************************************************
NOTE: In facilities where several different NRC
values are specified, clearly indicate which room or
areas should receive lay-in panels of a specific NRC
value.
**************************************************************************
2.1.2.1
Type
[I (cellulose composition)] [III (non-asbestos mineral fiber with painted
finish)] [IV (non-asbestos mineral fiber with membrane-faced overlay)] [IX
(mineral fiber with scrubbable finish)] [X (mineral composition with
plastic membrane)] [XI (mineral fiber with fabric faced overlay)] [XII
(fiberglass base with membrane-faced overlay)]
2.1.2.2
Flame Spread
Class A, 25 or less
2.1.2.3
Pattern
[A] [B] [C] [D] [E] [F] [G] [I] [J] [K] [_____]
2.1.2.4
Minimum NRC
[0.75] [_____] in open office areas; [0.60] [_____] in conference rooms,
executive offices, teleconferencing rooms, and other rooms as designated;
[0.50] [_____] in all other rooms and areas when tested on mounting Type
E-400 of ASTM E795.
2.1.2.5
Minimum Light Reflectance Coefficient
[LR-1, 0.75 or greater] [_____]
2.1.2.6
Nominal Size
[600 by 1200] [_____] mm [24 by 48] [_____] inch
2.1.2.7
Edge Detail
[Square] [Reveal] [Trimmed and butt] [_____]
2.1.2.8
Finish
Factory-applied [standard finish] [color finish].
2.1.2.9
Minimum CAC
[40] [_____]
2.1.3
2.1.3.1
Units for Concealed-Grid System [A] [_____]
Type
[I (cellulose composition)] [III (non-asbestos mineral fiber with painted
finish)] [IV (non-asbestos mineral fiber with membrane-faced overlay)] [IX
(mineral fiber with scrubbable finish)] [X (mineral composition with
SECTION 09 51 00
Page 16
plastic membrane)] [XI (mineral fiber with fabric faced overlay)] [XII
(fiberglass base with membrane-faced overlay)]
2.1.3.2
Flame Spread
Class A, 25 or less
2.1.3.3
Pattern
[A] [B] [C] [D] [E] [F] [G] [I] [J] [K] [_____]
2.1.3.4
Minimum NRC
[0.50] [_____] when tested on mounting Type B or Type E-400 of ASTM E795
2.1.3.5
Minimum Light Reflectance Coefficient
[LR-1, 0.75 or greater] [_____]
2.1.3.6
Nominal Size
[300 by 300] [_____] mm [12 by 12] [_____] inch
2.1.3.7
Edge Detail
[Beveled] [Square]
2.1.3.8
Joint Detail
[kerfed and rabbeted] [tongue and grooved]
2.1.3.9
Finish
Factory-applied [standard finish] [color finish]
2.1.3.10
Minimum CAC
[40] [_____]
2.1.4
2.1.4.1
Metal Pans [A] [_____]
Type
[V, steel] [VI, ASTM A167 stainless steel] [VII, aluminum] perforated pans
with acoustical, non-asbestos, insulation backing
2.1.4.2
Class:
2.1.4.3
Flame Spread
A, 25 or less
Pattern
[A] [C] [I] [_____]
2.1.4.4
Minimum NRC
[0.75] [_____] in open office areas; [0.60] [_____] in conference rooms,
executive offices, teleconferencing rooms, and other rooms as designated;
[0.50] [_____] in all other rooms and areas when tested on mounting Type
SECTION 09 51 00
Page 17
executive offices, teleconferencing rooms, and other rooms as designated.
[0.50] [_____] in all other rooms and areas. Base the tested NRC value on
Mounting Type E-400 of ASTM E795.
2.1.7.5
Minimum Light Reflectance Coefficient
LR-1, 0.75 or greater
2.1.7.6
Nominal Size
600 by [600] [1200] mm 24 by [24] [48] inch
2.1.7.7
Edge Detail
Square
2.1.7.8
Joint Detail
Trimmed and butted
2.1.8
Unit Acoustical Absorbers
**************************************************************************
NOTE: Unit acoustical absorbers should be used in
high noise areas such as bowling alleys, industrial
areas or in other locations when recommended by an
acoustical consultant. Quantity and spacing should
be shown on the drawings.
**************************************************************************
Absorbers shall be individually mounted sound absorbing plaques composed of
glass fibers or non-asbestos mineral fibers and having a NRC range of not
less than 0.60 - 0.70 when tested in accordance with ASTM C423 and reported
as a 4 frequency average.
2.2
SUSPENSION SYSTEM
**************************************************************************
NOTE: If more than one type of acoustical unit is
required, a separate paragraph for that type unit
will be used. Each unit type will be designated
with a letter or number symbol, such as A, B, etc.
Use the same letters or numbers to key unit types to
locations listed or shown on the drawings and in
Section 09 06 90 SCHEDULES FOR PAINTING AND COATING.
Each different type of suspension system must be
shown on the drawings.
Generally, lay-in panels supported by exposed grid
suspension system provide most economical
installation and allow greatest access to space
above ceiling. Where lay-in panels are subject to
displacement by building occupants or where ceiling
must be directly attached to underside of structural
system, concealed framing system may be more
appropriate. In lobbies, auditoriums, chapels or
clubs where a monolithic appearance may be desired,
greater expense of concealed suspension system may
SECTION 09 51 00
Page 20
be justified. Downward access concealed systems
should not be specified in areas of high seismic
activity.
An intermediate-duty suspension system should be
specified when the minimum load-carrying capacity of
the main runner is 175 N per m 12 pounds per linear
foot on a simple span of 1200 mm 4 feet without the
mid-span deflection exceeding 1/360th of the span.
Intermediate-duty systems are used primarily for
ordinary commercial structures where some ceiling
loads, due to light fixtures and air diffusers are
anticipated.
A heavy-duty suspension system should be specified
when the above described minimum load-carrying
capacity is 230 N per m 16 pounds per linear foot.
Heavy-duty systems are used when ceiling loads are
greater than ordinary commercial construction. See
ASTM C635/C635M for load testing methods for metal
suspension systems for acoustical tile and lay-in
panel ceilings.
Select classification required to support ceiling
load including acoustical units, lights and other
items supported by suspension system. Light duty
should be specified for residential construction
only. Load carrying capacities based on 1200 mm (4
foot) hanger spacing:
Classification
kg/meter lb/Linear Foot of Main Runner
Direct Hung
Indirect Hung
Furring Bar
7.38 5.0
2.95 2.0
6.64 4.5
Intermediate Duty
17.72 12.0
5.17 3.5
9.6 6.5
Heavy Duty
23.62 16.0
11.81 8.0
-
Light Duty
Corner caps are not available in all types of wall
moldings and are an extra cost item when available.
Provide seismic details, if a Government designer
(either Corps office or A/E) is the Engineer of
Record, and show on the drawings. Delete the second
bracketed phrase, in the last sentence, if no
seismic details are provided.
**************************************************************************
Provide [[standard] [fire-resistive] [snap-in metal pan]] [[exposed-grid]
[indirect hung concealed H and T or Zee] [direct hung, concealed, downward
access] [direct hung, concealed, upward access]] [[standard width flange]
[narrow width flange] [narrow width slotted flange]] [as shown on drawings]
suspension system conforming to ASTM C635/C635M [for intermediate-duty
systems] [for heavy-duty systems]. Provide surfaces exposed to view of
[aluminum or steel with a factory-applied [white] [black] [color]
SECTION 09 51 00
Page 21
2.1.2
Units for Exposed-Grid System [A] [_____]
**************************************************************************
NOTE: In facilities where several different NRC
values are specified, clearly indicate which room or
areas should receive lay-in panels of a specific NRC
value.
**************************************************************************
2.1.2.1
Type
[I (cellulose composition)] [III (non-asbestos mineral fiber with painted
finish)] [IV (non-asbestos mineral fiber with membrane-faced overlay)] [IX
(mineral fiber with scrubbable finish)] [X (mineral composition with
plastic membrane)] [XI (mineral fiber with fabric faced overlay)] [XII
(fiberglass base with membrane-faced overlay)]
2.1.2.2
Flame Spread
Class A, 25 or less
2.1.2.3
Pattern
[A] [B] [C] [D] [E] [F] [G] [I] [J] [K] [_____]
2.1.2.4
Minimum NRC
[0.75] [_____] in open office areas; [0.60] [_____] in conference rooms,
executive offices, teleconferencing rooms, and other rooms as designated;
[0.50] [_____] in all other rooms and areas when tested on mounting Type
E-400 of ASTM E795.
2.1.2.5
Minimum Light Reflectance Coefficient
[LR-1, 0.75 or greater] [_____]
2.1.2.6
Nominal Size
[600 by 1200] [_____] mm [24 by 48] [_____] inch
2.1.2.7
Edge Detail
[Square] [Reveal] [Trimmed and butt] [_____]
2.1.2.8
Finish
Factory-applied [standard finish] [color finish].
2.1.2.9
Minimum CAC
[40] [_____]
2.1.3
2.1.3.1
Units for Concealed-Grid System [A] [_____]
Type
[I (cellulose composition)] [III (non-asbestos mineral fiber with painted
finish)] [IV (non-asbestos mineral fiber with membrane-faced overlay)] [IX
(mineral fiber with scrubbable finish)] [X (mineral composition with
SECTION 09 51 00
Page 16
plastic membrane)] [XI (mineral fiber with fabric faced overlay)] [XII
(fiberglass base with membrane-faced overlay)]
2.1.3.2
Flame Spread
Class A, 25 or less
2.1.3.3
Pattern
[A] [B] [C] [D] [E] [F] [G] [I] [J] [K] [_____]
2.1.3.4
Minimum NRC
[0.50] [_____] when tested on mounting Type B or Type E-400 of ASTM E795
2.1.3.5
Minimum Light Reflectance Coefficient
[LR-1, 0.75 or greater] [_____]
2.1.3.6
Nominal Size
[300 by 300] [_____] mm [12 by 12] [_____] inch
2.1.3.7
Edge Detail
[Beveled] [Square]
2.1.3.8
Joint Detail
[kerfed and rabbeted] [tongue and grooved]
2.1.3.9
Finish
Factory-applied [standard finish] [color finish]
2.1.3.10
Minimum CAC
[40] [_____]
2.1.4
2.1.4.1
Metal Pans [A] [_____]
Type
[V, steel] [VI, ASTM A167 stainless steel] [VII, aluminum] perforated pans
with acoustical, non-asbestos, insulation backing
2.1.4.2
Class:
2.1.4.3
Flame Spread
A, 25 or less
Pattern
[A] [C] [I] [_____]
2.1.4.4
Minimum NRC
[0.75] [_____] in open office areas; [0.60] [_____] in conference rooms,
executive offices, teleconferencing rooms, and other rooms as designated;
[0.50] [_____] in all other rooms and areas when tested on mounting Type
SECTION 09 51 00
Page 17
E-400 of ASTM E795.
2.1.4.5
Minimum Light Reflectance Coefficient
[LR-1, 0.75 or greater] [_____]
2.1.4.6
Nominal Size
[600 by 600] [_____] mm [24 by 24] [_____] inch
2.1.4.7
Edge Detail
Manufacturer's standard.
2.1.4.8
Joint Detail
[Beveled] [_____]
2.1.4.9
Finish
Factory-applied standard finish
2.1.4.10
Pads
[Completely enclosed, of material and thickness required for acoustical and
fire test ratings] [_____].
2.1.5
Impact/Abrasion Resistant Units
2.1.5.1
Type
Non-asbestos mineral composition with a hardened mineral surface and
factory applied white paint finish. Provide a surface resistant to impact
and abrasion.
2.1.5.2
Flame Spread
Class A, 25 or less
2.1.5.3
Pattern
[_____]
2.1.5.4
Minimum NRC
[0.50] [_____] when tested on Mounting Type E-400 of ASTM E795.
2.1.5.5
Minimum Light Reflectance Coefficient
LR-1, 0.75 or greater
2.1.5.6
Nominal Size
[300 by 300] [600 by 600] [600 by 1200] mm [12 by 12] [24 by 24] [24 by 48]
[_____] inch
2.1.5.7
Edge Detail
[Square] [Beveled]
SECTION 09 51 00
Page 18
1.0 pound per square foot, hold down clips are
required. Hold down clips may also be specified
where frequent cleaning is required to prevent
displacement during cleaning.
**************************************************************************
Install acoustical units in accordance with the approved installation
instructions of the manufacturer. Ensure that edges of acoustical units
are in close contact with metal supports, with each other, and in true
alignment. Arrange acoustical units so that units less than one-half width
are minimized. Hold units in exposed-grid system in place with
manufacturer's standard hold-down clips, if units weigh less than 5
kg/square meter 1 psf or if required for fire resistance rating.
3.1.4
Caulking
**************************************************************************
NOTE: Specify caulking only when the space above
the ceiling will be used as an air plenum, or when
required to reduce sound transmission between rooms.
**************************************************************************
Seal all joints around pipes, ducts or electrical outlets penetrating the
ceiling. Apply a continuous ribbon of acoustical sealant on vertical web
of wall or edge moldings.
3.1.5
Adhesive Application
**************************************************************************
NOTE: Adhesive method of application should not be
used for new construction. It may be used for
application to existing ceiling surfaces in remodel
work. Tiles larger than 300 by 600 mm 12 by 24 inch
should not be attached by the adhesive method.
**************************************************************************
Wipe back of tile to remove accumulated dust. Daub acoustical units on
back side with four equal daubs of adhesive. Apply daubs near corners of
tiles. Ensure that contact area of each daub is at least 50 mm 2 inch
diameter in final position. Press units into place, aligning joints and
abutting units tight and uniform without differences in joint widths.
3.2
CEILING ACCESS PANELS
Locate ceiling access panels directly under the items which require access.
3.3
CLEANING
Following installation, clean dirty or discolored surfaces of acoustical
units and leave them free from defects. Remove units that are damaged or
improperly installed and provide new units as directed.
3.4
RECLAMATION PROCEDURES
**************************************************************************
NOTE: If the job requires removal of acoustical
ceiling systems, or acoustical units are left over
from new construction, the decision to recycle must
be weighed against the cost of packaging and
SECTION 09 51 00
Page 26
transportation, especially in remote areas. Most
mineral fiber and fiberglass ceilings can be
recycled. The following ceiling tiles cannot be
recycled: 1) Faced materials (vinyl faced, mylar,
metal faced). 2) Molded or cast ceiling products
and glue up ceiling tiles (either 305 by 305 mm 12
by 12 inch or 305 by 610 mm 12 by 24 inch panels).
3) Fiberglass panels. 4) Ceramic based tiles. 5)
Some proprietary products.
**************************************************************************
Neatly stack ceiling tile, designated for recycling by the Contracting
Officer, on 1220 by 1220 mm 4 by 4 foot pallets not higher than 1220 mm 4
foot. Panels must be completely dry. Shrink wrap and symmetrically stack
pallets on top of each other without falling over.
-- End of Section --
SECTION 09 51 00
Page 27
be justified. Downward access concealed systems
should not be specified in areas of high seismic
activity.
An intermediate-duty suspension system should be
specified when the minimum load-carrying capacity of
the main runner is 175 N per m 12 pounds per linear
foot on a simple span of 1200 mm 4 feet without the
mid-span deflection exceeding 1/360th of the span.
Intermediate-duty systems are used primarily for
ordinary commercial structures where some ceiling
loads, due to light fixtures and air diffusers are
anticipated.
A heavy-duty suspension system should be specified
when the above described minimum load-carrying
capacity is 230 N per m 16 pounds per linear foot.
Heavy-duty systems are used when ceiling loads are
greater than ordinary commercial construction. See
ASTM C635/C635M for load testing methods for metal
suspension systems for acoustical tile and lay-in
panel ceilings.
Select classification required to support ceiling
load including acoustical units, lights and other
items supported by suspension system. Light duty
should be specified for residential construction
only. Load carrying capacities based on 1200 mm (4
foot) hanger spacing:
Classification
kg/meter lb/Linear Foot of Main Runner
Direct Hung
Indirect Hung
Furring Bar
7.38 5.0
2.95 2.0
6.64 4.5
Intermediate Duty
17.72 12.0
5.17 3.5
9.6 6.5
Heavy Duty
23.62 16.0
11.81 8.0
-
Light Duty
Corner caps are not available in all types of wall
moldings and are an extra cost item when available.
Provide seismic details, if a Government designer
(either Corps office or A/E) is the Engineer of
Record, and show on the drawings. Delete the second
bracketed phrase, in the last sentence, if no
seismic details are provided.
**************************************************************************
Provide [[standard] [fire-resistive] [snap-in metal pan]] [[exposed-grid]
[indirect hung concealed H and T or Zee] [direct hung, concealed, downward
access] [direct hung, concealed, upward access]] [[standard width flange]
[narrow width flange] [narrow width slotted flange]] [as shown on drawings]
suspension system conforming to ASTM C635/C635M [for intermediate-duty
systems] [for heavy-duty systems]. Provide surfaces exposed to view of
[aluminum or steel with a factory-applied [white] [black] [color]
SECTION 09 51 00
Page 21
baked-enamel finish] [aluminum with a clear anodized finish] [aluminum with
colored factory-applied vinyl paint finish]. Provide wall molding having a
flange of not less than [23 mm 15/16 inch] [_____]. Provide [inside and
outside corner caps] [[standard] [overlapped] [mitered] corners].
Suspended ceiling framing system must have the capability to support the
finished ceiling, light fixtures, air diffusers, and accessories, as
shown. Provide a suspension system with a maximum deflection of 1/360 of
the span length. Conform seismic details to the [guidance in UFC 3-310-04
and ASTM E580/E580M] [contract drawings].
2.3
HANGERS
**************************************************************************
NOTE: Construction drawings should include a detail
drawing showing splayed and countersplayed
suspension system hanger wires.
**************************************************************************
Provide hangers and attachment capable of supporting a minimum 1330 N 300
pound ultimate vertical load without failure of supporting material or
attachment.
2.3.1
Wires
**************************************************************************
NOTE: Select stainless steel or nickel copper alloy
wire for facilities where high humidity can be
expected such as large kitchens, dishwashing areas,
indoor swimming pools, etc. Select zinc-coated
steel wire for other locations.
When spacing of hanger wires exceeds 1200 mm 4 feet
or when heavy loads are supported, 3.4 or 4.1 mm 8
or 10 gage wire should be specified.
**************************************************************************
Conform wires to [ASTM A641/A641M, Class 1, [2.0] [_____] mm [0.08 inch
(12 gauge)] [[_____] inch] in diameter.] [ASTM A580/A580M, composition 302
or 304, condition annealed stainless steel, [2.0] [_____] mm [0.08 inch (12
gauge)] [[_____] inch] in diameter.]
2.3.2
Straps
**************************************************************************
NOTE: Normally wire hangers should be used. If the
project is in an area subject to violent storms,
steel strap or rod hangers should be specified.
**************************************************************************
Provide straps of 25 by 5 mm 1 by 3/16 inch galvanized steel conforming to
ASTM A653/A653M, with a light commercial zinc coating or ASTM A1008/A1008M
with an electrodeposited zinc coating conforming to ASTM B633, Type RS.
2.3.3
Rods
**************************************************************************
NOTE: Normally wire hangers should be used. If the
project is in an area subject to violent storms,
steel strap or rod hangers should be specified.
SECTION 09 51 00
Page 22
**************************************************************************
Provide 5 mm 3/16 inch diameter threaded steel rods, zinc or cadmium coated.
2.3.4
Eyebolts
Provide eyebolts of weldless, forged-carbon-steel, with a straight-shank in
accordance with ASTM A489. Eyebolt size must be a minimum [_____] [7] mm
[1/4] inch, [zinc coated][cadmium plated].
2.3.5
Masonry Anchorage Devices
Comply with [ASTM C636/C636M] [_____] for anchorage devices for [eyebolts]
[machine screws] [wood screws].
2.4
ACCESS PANELS
**************************************************************************
NOTE: Include this paragraph only when access
panels are specified in paragraph titled SUSPENSION
SYSTEM. Delete identification code numbers and
systems not applicable to the particular project and
add additional numerical codes and system
descriptions if necessary. Code numbers and
corresponding system descriptions shall remain
unchanged, i.e., if "sprinkler system" is omitted,
the code number "6" will also be omitted from the
listing.
**************************************************************************
Provide access panels that match adjacent acoustical units, designed and
equipped with suitable framing and fastenings for removal and replacement
without damage. Size panel to be not less than 300 by 300 mm 12 by 12 inch
or more than 300 by 600 mm 12 by 24 inch.
a.
Attach an identification plate of 0.8 mm 0.032 inch thick aluminum, 19
mm 3/4 inch in diameter, stamped with the letters "AP" and finished the
same as the unit, near one corner on the face of each access panel.
b.
Identify ceiling access panel by a number utilizing white
identification plates or plastic buttons with contrasting numerals.
Provide plates or buttons of minimum 25 mm 1 inch diameter and securely
attached to one corner of each access unit. Provide a typewritten card
framed under glass listing the code identification numbers and
corresponding system descriptions listed above. Mount the framed card
where directed and furnish a duplicate card to the Contracting
Officer. Code identification system is as follows:
1
Fire detection/alarm system
2
Air conditioning controls
3
Plumbing system
4
Heating and steam systems
5
Air conditioning duct system
6
Sprinkler system
SECTION 09 51 00
Page 23
2.5
7
Intercommunication system
8
Nurse's call system
9
Pneumatic tube system
10
Medical piping system
11
Program entertainment
12
Telephone junction boxes
13
Detector X-ray
14
[_____]
ADHESIVE
**************************************************************************
NOTE: Tiles larger than 300 by 600 mm 12 by 24 inch
should not be attached by adhesive method.
**************************************************************************
Use adhesive as recommended by tile manufacturer.
2.6
FINISHES
Use manufacturer's standard textures, patterns and finishes as specified
for acoustical units and suspension system members. Treat ceiling
suspension system components to inhibit corrosion.
2.7
COLORS AND PATTERNS
Use colors and patterns for acoustical units and suspension system
components [as specified in Section 09 06 90 SCHEDULES FOR PAINTING AND
COATING] [_____].
2.8
ACOUSTICAL SEALANT
Conform acoustical sealant to ASTM C834, nonstaining.
PART 3
3.1
EXECUTION
INSTALLATION
**************************************************************************
NOTE: Adhesive method of application should not be
used for new construction. It may be used for
application to existing ceiling surfaces in remodel
work.
**************************************************************************
Examine surfaces to receive directly attached acoustical units for
unevenness, irregularities, and dampness that would affect quality and
execution of the work. Rid areas, where acoustical units will be cemented,
of oils, form residue, or other materials that reduce bonding capabilities
of the adhesive. Complete and dry interior finish work such as plastering,
concrete, and terrazzo work before installation. Complete and approve
SECTION 09 51 00
Page 24
mechanical, electrical, and other work above the ceiling line prior to the
start of acoustical ceiling installation. Provide acoustical work complete
with necessary fastenings, clips, and other accessories required for a
complete installation. Do not expose mechanical fastenings in the finished
work. Lay out hangers for each individual room or space. Provide hangers
to support framing around beams, ducts, columns, grilles, and other
penetrations through ceilings. Keep main runners and carrying channels
clear of abutting walls and partitions. Provide at least two main runners
for each ceiling span. Wherever required to bypass an object with the
hanger wires, install a subsuspension system so that all hanger wires will
be plumb.
3.1.1
Suspension System
Install suspension system in accordance with ASTM C636/C636M and as
specified herein. Do not suspend hanger wires or other loads from
underside of steel decking.
3.1.1.1
Plumb Hangers
Install hangers plumb and not pressing against insulation covering ducts
and pipes. Where lighting fixtures are supported from the suspended
ceiling system, provide hangers at a minimum of four hangers per fixture
and located not more than 150 mm 6 inch from each corner of each fixture.
3.1.1.2
Splayed Hangers
**************************************************************************
NOTE: The designer will add a detail to the
construction drawings detailing the proper method of
splaying and countersplaying hangers when hangers
must be splayed (sloped or slanted) around
obstructions.
**************************************************************************
Where hangers must be splayed (sloped or slanted) around obstructions,
offset the resulting horizontal force by bracing, countersplaying, or other
acceptable means.
3.1.2
Wall Molding
Provide wall molding where ceilings abut vertical surfaces. Miter corners
where wall moldings intersect or install corner caps. Secure wall molding
not more than 75 mm 3 inch from ends of each length and not more than 400 mm
16 inch on centers between end fastenings. Provide wall molding springs
at each acoustical unit in semi-exposed or concealed systems.
3.1.3
Acoustical Units
**************************************************************************
NOTE: In areas where the ceiling will be subject to
impact or where lay-in ceiling units are subject to
pressure differentials between the air plenum above
the ceiling and the space below, units will be
specified to be held in place with manufacturer's
standard hold-down clips.
If the ceiling has a fire endurance rating or the
panels weigh less than 4.9 kilograms per square meter
SECTION 09 51 00
Page 25
1.0 pound per square foot, hold down clips are
required. Hold down clips may also be specified
where frequent cleaning is required to prevent
displacement during cleaning.
**************************************************************************
Install acoustical units in accordance with the approved installation
instructions of the manufacturer. Ensure that edges of acoustical units
are in close contact with metal supports, with each other, and in true
alignment. Arrange acoustical units so that units less than one-half width
are minimized. Hold units in exposed-grid system in place with
manufacturer's standard hold-down clips, if units weigh less than 5
kg/square meter 1 psf or if required for fire resistance rating.
3.1.4
Caulking
**************************************************************************
NOTE: Specify caulking only when the space above
the ceiling will be used as an air plenum, or when
required to reduce sound transmission between rooms.
**************************************************************************
Seal all joints around pipes, ducts or electrical outlets penetrating the
ceiling. Apply a continuous ribbon of acoustical sealant on vertical web
of wall or edge moldings.
3.1.5
Adhesive Application
**************************************************************************
NOTE: Adhesive method of application should not be
used for new construction. It may be used for
application to existing ceiling surfaces in remodel
work. Tiles larger than 300 by 600 mm 12 by 24 inch
should not be attached by the adhesive method.
**************************************************************************
Wipe back of tile to remove accumulated dust. Daub acoustical units on
back side with four equal daubs of adhesive. Apply daubs near corners of
tiles. Ensure that contact area of each daub is at least 50 mm 2 inch
diameter in final position. Press units into place, aligning joints and
abutting units tight and uniform without differences in joint widths.
3.2
CEILING ACCESS PANELS
Locate ceiling access panels directly under the items which require access.
3.3
CLEANING
Following installation, clean dirty or discolored surfaces of acoustical
units and leave them free from defects. Remove units that are damaged or
improperly installed and provide new units as directed.
3.4
RECLAMATION PROCEDURES
**************************************************************************
NOTE: If the job requires removal of acoustical
ceiling systems, or acoustical units are left over
from new construction, the decision to recycle must
be weighed against the cost of packaging and
SECTION 09 51 00
Page 26
transportation, especially in remote areas. Most
mineral fiber and fiberglass ceilings can be
recycled. The following ceiling tiles cannot be
recycled: 1) Faced materials (vinyl faced, mylar,
metal faced). 2) Molded or cast ceiling products
and glue up ceiling tiles (either 305 by 305 mm 12
by 12 inch or 305 by 610 mm 12 by 24 inch panels).
3) Fiberglass panels. 4) Ceramic based tiles. 5)
Some proprietary products.
**************************************************************************
Neatly stack ceiling tile, designated for recycling by the Contracting
Officer, on 1220 by 1220 mm 4 by 4 foot pallets not higher than 1220 mm 4
foot. Panels must be completely dry. Shrink wrap and symmetrically stack
pallets on top of each other without falling over.
-- End of Section --
SECTION 09 51 00
Page 27
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
