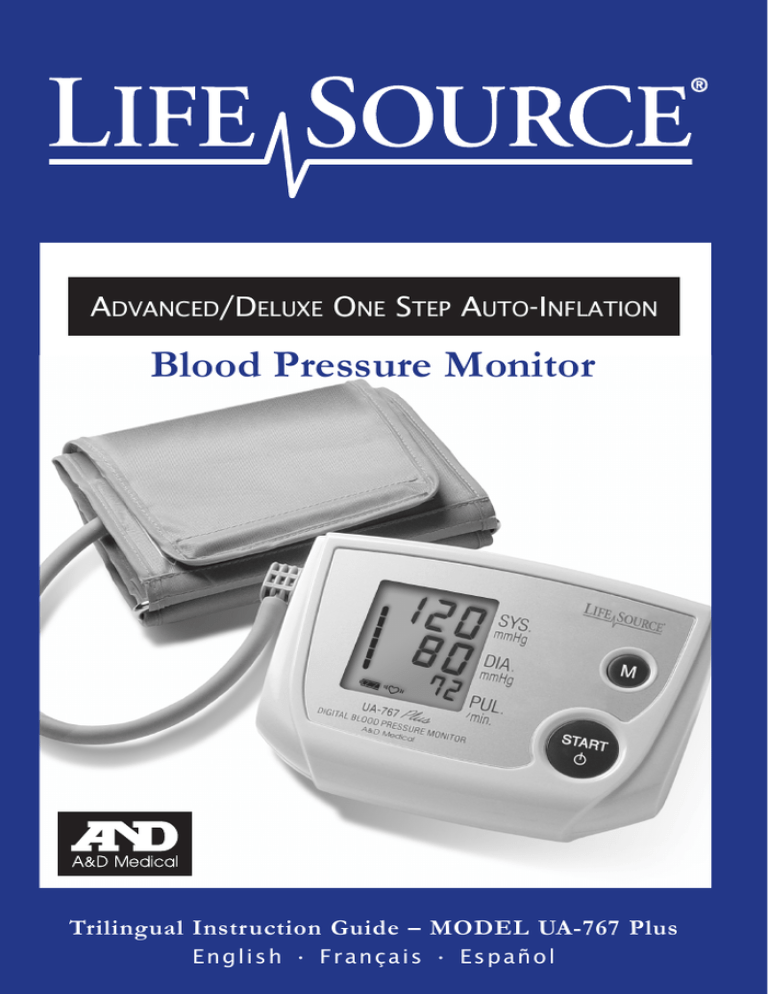

ADVANCED/DELUXE ONE STEP AUTO-INFLATION
Blood Pressure Monitor
Trilingual Instruction Guide – MODEL UA-767 Plus
English • Français • Español
✓
THIS MONITOR IS CLINICALLY VALIDATED
This LifeSource® blood pressure monitor has undergone and passed a
Clinical Validation study to determine the performance and accuracy. This
monitor is clinically validated according to the British Hypertension Society
(BHS) standard. The BHS is the most prestigious international blood pressure
organization. The published study was performed by a reviewing committee
consisting of physicians and/or nurses. Among blood pressure manufacturers, A&D Medical is proud to have the highest number of Clinically Validated
monitors with a positive recommendation from professionals that are available to
consumers.
The monitor is recommended by the Canadian Hypertension Society.
IMPORTANT INFORMATION
✓
Please read this important information before using your monitor.
☞
☞
☞
☞
☞
☞
☞
Please remember that only a medical practitioner is qualified to interpret your blood pressure measurements. Use of this device should not
replace regular medical examinations.
Have your physician review your procedure for using this device. He
or she will want to verify blood pressure measurements before prescribing or adjusting medications.
Consult your physician if you have any doubt about your readings.
Should a mechanical problem occur, contact A&D Medical.
Do not attempt to service, calibrate, or repair this monitor.
Because your UA-767 Plus monitor contains delicate, high-precision parts, avoid exposing it to extremes in temperature or humidity
or to direct sunlight, shock and dust. A&D Medical guarantees the
accuracy of this monitor only when it is stored and used within the
temperature and humidity ranges noted on page E-18.
Clean the monitor and cuff with a dry, soft cloth or a cloth dampened
with water and a mild detergent. Never use alcohol, benzene, thinner
or other harsh chemicals to clean monitor or cuff.
Remove and replace batteries if monitor is not used for more than
six months. Alkaline batteries recommended.
PRECAUTIONS
The UA-767 Plus is designed to be used at home, by those who are eighteen
(18) years and older, to monitor blood pressure (systolic and diastolic) and pulse
rate.
TABLE OF CONTENTS
?
Fast. Easy. Accurate.
®
Congratulations on purchasing a state-of-the-art LifeSource
blood pressure monitor—one of the most technologically
advanced monitors available today. Designed for ease of use
and accuracy, this monitor will facilitate your daily blood
pressure regimen.
Physicians agree that daily self-monitoring of blood pressure is
an important step individuals can take to maintain cardiovas
cular health and prevent the serious consequences associated
with undetected and untreated hypertension.
A&D Medical has been manufacturing high quality healthcare
products for over 20 years. We are committed to providing
you and your family with monitoring devices that provide the
utmost in accuracy and convenience.
WHAT DISPLAY SYMBOLS MEAN . . . . . . . . . . . . . . . . . . . . . . . . . E-2
MONITOR COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-3
HOW UA-767 PLUS WORKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-4
BEFORE YOU START . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-4
SELECTING THE CORRECT CUFF SIZE. . . . . . . . . . . . . . . . . . . . . . E-5
TAKING YOUR BLOOD PRESSURE. . . . . . .
WHAT IS AN IRREGULAR HEARTBEAT . . .
ABOUT CUFF INFLATION METER . . . . . . .
ABOUT AVERAGE READING . . . . . . . . . . . .
ABOUT PRESSURE RATING INDICATOR™
ABOUT MEMORY . . . . . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
E-6 — E-7
. . . . . . E-8
. . . . . . E-8
. . . . . . E-9
. . . . . . E-9
. . . . . E-10
USING THE MONITOR WITH AC ADAPTER . . . . . . . . . . . . . . . . .E-11
ABOUT BLOOD PRESSURE . . . . . . . . . . . . . . . . . . . . . . . E-12 — E-16
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-17
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-18
LifeSource - Designed for Life.
CONTACT INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-19
FRENCH INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . F-1
SPANISH INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S-1
Discount Therapy, Fitness, Pain Relief & Medical Equipment
E-1
?
MONITOR COMPONENTS
WHAT DISPLAY SYMBOLS MEAN
Display
Symbol
1932-1AIc UA787EXC•06 illust•03,12p symbols.FH7
Condition/Cause
Recommended
Action
1932-1AIc UA787EXC•06 illust•03,12p symbols.FH7
123
123
123
The symbol shown while meaMeasurement is in progress,
surement is in progress. It blinks remain as still as possible.
123
while detecting the pulse.
123
1932-1AIc
UA787EXC•06 illust•03,12p symbols.FH7
An irregular heartbeat or body
Take measurement again and
123 err CUf
movement may have occurred.
consult with your physician. p-3
Refer to page E-8 for more infor123
mation
on irregular
heartbeats.
1932-1AIc UA787EXC•06
illust•03,12p
symbols.FH7
123CUf
err
p-3
Previous measurement stored in
symbols.FH7
123 1932-1AIc UA787EXC•06 illust•03,12p
MEMORY.
123
The batteryUA787EXC•06
power indicatorillust•03,12p
Replace
all batteries with new
1932-1AIc
symbols.FH7
during measurement.
ones whenp-3
the symbol blinks.
Uf
Battery Full
123
The batteries are low when
Alkaline batteries recommended.
Uf
p-3 it
123
blinks.
Battery Low
p-3pressure due to
Unstable blood
excessive body movement.
r CUf
?
AC ADAPTER JACK
AIR SOCKET
SYSTOLIC PRESSURE
MEMORY BUTTON
DIASTOLIC PRESSURE
CUFF INFLATION
METER
PRESSURE RATING
INDICATOR
START BUTTON
PULSE RATE
AIR CONNECTOR PLUG
Try the measurement again.
Remain very still during the
measurement.
The systolic
and diastolic
values Fasten the cuff correctly, and try
1932-1AIc UA787EXC•06
illust•03,12p
symbols.FH7
p-3
are within 10 mmHg of each
other.
the measurement again.
The pressure value did not
increase during inflation.
Check for air leaks along the
tube and around the
air socket.
AIR HOSE
1932-1AIc UA787EXC•06 illust•03,12p symbols.FH7
The cuff is not fastened correctly.
The pulse is not detected correctly. Try the measurement again.
p-3 very still during
Remain
the measurement.
Cuff Inflation Meter
Pressure Rating Indicator™
E-2
?
www.activeforever.com
BATTERY COMPARTMENT
nected to cuff and monitor.
Measurement is in progress,
remain as still as possible.
-
+ +
PULSE DISPLAY ERROR
CUFF
+ -
err CUf
p-3
Make sure tube is properly con-
+
-
There is an air leak in the cuff or
monitor.
Refasten the cuff and retake
measurement.
OPEN
BATTERY COVER
Refer to the section “About
Pressure Rating Indicator” for
further explanation.
1-800-377-8033
www.activeforever.com
1-800-377-8033
?
E-3
?
SELECTING THE CORRECT CUFF SIZE
HOW UA-767 PLUS WORKS
LifeSource® blood pressure monitors are easy to use, accurate and digitally
display full measurement readouts. Our technology is based on the “oscil
lometric method” – a noninvasive blood pressure determination. The term
“oscillation” refers to any measure of vibrations caused by the arterial pulse.
Our monitor examines the pulsatile pressure generated by the arterial wall as
it expands and contracts against the cuff with each heartbeat.
The cuff is inflated until the artery is fully blocked. The inflation speed is
maximized and the pressure level is optimized by the device. The monitor
takes measurements while the cuff is both inflating and deflating. This results
in a faster measurement providing greater comfort to the user.
BEFORE YOU START
You must install 4 type AA (1.5 volt) batteries (alkaline batteries recommended),
or use the AC Adapter (see page E-11 for using the Monitor with AC Adapter)
and attach the cuff to the monitor before using it. To install batteries (or replace
them if the “Low Battery” symbol appears on display), proceed as follows:
1. Remove battery compartment cover by gently pushing down on arrow
and sliding cover forward.
Using the correct cuff size is important for an accurate reading. A cuff that is
too large will produce a reading that is lower than the correct blood pressure;
a cuff that is too small will produce a reading that is higher than the correct
blood pressure. With your arm hanging at the side of your body, measure the
circumference of your upper arm at the midpoint between the shoulder and
elbow.
REPLACEMENT
CUFF MODEL#
6.3” - 9.4” (16-24cm)
Small Cuff
UA-279
9.4” - 14.2” (24-36cm)
Medium Cuff
UA-280
14.2” - 17.7” (36-45cm)
Large Cuff
UA-281
Cuff Size Indicator On The Cuff
Our cuff has an indicator which tells you whether you are using the correct
cuff size or not. Place the cuff on your arm (see Page E-6 to learn how to put
the cuff on correctly) and if the Index Mark points within the Proper Fit
Range, you are using the correct cuff size. If the Index points outside of the
Proper Fit Range, contact A&D Medical at 1-888-726-9966 (in Canada, call
Auto Control Medical at 1-800-461-0991) for more information on where to
obtain a cuff replacement.
Systolic Pressure
Diastolic Pressure
Memory Button
TM
AC Adapter Jack
Pulse Rate
START Button
2. Put in bottom row of batteries first. Place the
EasyCuff™ Feature
Air Connector
Plug
USE SMALL CUFF
PROPER FIT RANGE
USE LARGE CUFF
Air Hose
EX
IND
+ + -
-
+
Battery Cover
INDEX
-
+
batteries in compartment with positive (+) and
negative (–) terminals matching those indicat
ed in the compartment. Be sure batteries make
contact with compartment terminals.
3. Replace cover by sliding it into the compart-
RECOMMENDED
CUFF SIZE
ARM SIZE
Air Socket
OPEN
ment and gently pressing into place.
Battery Compartment
NOTE: Rechargeable batteries will not work
with this monitor.
1932-1AIc UA787EXC•06 illust•02p name.FH7
E-4
?!
www.activeforever.com
1-800-377-8033
www.activeforever.com
USE SMALL CUFF
1-800-377-8033
PROPER FIT RANGE
USE LARGE CUFF
!
E-5
TAKING YOUR BLOOD PRESSURE
TAKING YOUR BLOOD PRESSURE
Tips for Blood Pressure Monitoring:
Relax for about 5 minutes before measurement.
Do not smoke or ingest caffeine at least 30 minutes prior to measure
ment.
Remove constricting clothing and place cuff on bare arm.
Unless your physician recommends otherwise, use left arm
to measure pressure.
Do not talk during measurement.
Do not cross legs and keep you feet flat on floor during measurement.
5. Press the START button. As the cuff pressurizes, measurement will begin
Now you are ready. Follow these simple steps:
7. When the measurement is complete, the systolic
1. Sit comfortably with your left arm resting on a
Cuff
flat surface so that the center of your upper arm
is at the same height as your heart.
Tube
2. Lay left arm on the table, palm up and thread
cuff end through metal loop, smooth side against arm. Then position the
tube off-center toward the inner side of arm in line with the little finger.
3. Pull the end of the cuff to tighten it, fold back the extra
material, and fasten securely. The cuff should be snug but
not too tight. You should be able to insert two fingers
between the cuff and your arm.
IMPORTANT: Measure pressure at the same time each day.
4. Confirm that the index
proper fit range.
points within the
Index
E-6
www.activeforever.com
and Proper Fit range
1-800-377-8033
and the Cuff Inflation Meter will show on the display screen. It is normal
for the cuff to feel very tight.
NOTE: If an appropriate pressure is not obtained, the device automatically
starts to inflate again.
NOTE: If you wish to stop inflation at any time, press the START button
again.
6. When the inflation is complete, the deflation starts automatically and the
blinks, indicating that the measurement is in progress. Once the pulse
is detected, the symbol flashes with each pulse beat.
NOTE: If an appropriate pressure is not obtained, the device automatically
starts to inflate again.
and diastolic pressure readings and pulse rate
are displayed.
SYSTOLIC
The cuff deflates and the monitor automatically
shuts off after 60 seconds, or you can turn it off
by pressing the START button.
DIASTOLIC
PULSE
8. The reading is then stored into memory. See page E-10 for more details
about the memory function.
9. Remove cuff and make a note of your blood pressure and pulse rate on
the chart in the back of the manual, indicating date and time of measure
ment. Additional logbook charts can be downloaded and printed for free
at www.LifeSourceOnline.com or in Canada, www.autocontrol.com.
We advise that you record the date and time after each measurement
because an accurate blood pressure history relies not on single or sporadic
readings but on a pattern over time.
NOTE: Allow at least 5 minutes between measurements on the same
person.
www.activeforever.com
1-800-377-8033
E-7
WHAT IS AN IRREGULAR HEARTBEAT
ABOUT AVERAGE READING
1932-1AIc UA787EXC•06 illust•03,12p symbols.FH7
123Blood Pressure Monitor provides a blood pressure and
The UA-767 Plus
The UA-767 Plus provides an average blood pressure reading
123
pulse rate measurement
even when an irregular heartbeat occurs. The
123
based on the total measurements stored in memory. When
Irregular Heartbeat
will appear in the display window in the
123 symbol
taking a measurement, the average blood pressure reading will
123 Heartbeat has occured during measurement. An irregular
event an Irregular
appear and the number of measurements stored in memory
p-3
123 err CUf
heartbeat is defined
as a heartbeat that varies by 25% from the average of all
123
1932-1AIc UA787EXC•06
symbols.FH7 times before the cuff begins to inflate.
willillust•03,12p
flash several
123 during the blood pressure measurement.
heartbeat intervals
It is important
123
123
123 measurements.
that you relax,123
remain still and refrain from talking during
123
123
NOTE: We recommend
contacting your physician if you
123 see this
123
symbol frequently.
123
123 err CUf
123
123
123
123
123
123
ABOUT CUFF INFLATION METER
The Cuff Inflation Meter is located on the left side of the display screen to
tell you when the blood pressure monitor is inflating and deflating the cuff.
The Cuff Inflation Meter moves up during inflation and moves down during
deflation.
Inflation in Progress
Inflation Complete
Deflation/Measurement
in Progress
AVERAGE
p-3
JNC7 Classification Indicator
JNC7 Classification Indicator
Hypertension
Stage
2
NUMBER OF
MEASUREMENTS
STORED
Stage 2 Hypertension
Hypertension Stage 2
IN
MEMORY
Stage 1 Hypertension
Hypertension Stage 1
Prehypertension
Prehypertension
Normal
Prehypertension
Normal
Example
Example
Stage 2
Hypertension INDICATOR™
ABOUT PRESSURE RATING
Hypertension
Stage 2
The Pressure Rating Indicator™ is a feature which
provides a snapshot of your blood pressure classifica
tion based on your measurements. This will let you
quickly know what your blood pressure readings
mean. Each segment of the bar indicator corresponds
to the Seventh Report of the Joint National Committee
(JNC7) on Prevention, Evaluation and Treatment of
High Blood Pressure from the National Heart, Lung
and Blood Institute - May 2003. For a more detailed
look at this blood pressure classification, please refer to
“Assessing High Blood Pressure” on page E-13.
:The indicator displays a segment, based on the current measurement,
corresponding to the JNC7 Classification.
NOTE: Due to other risk factors (e.g. diabetes, obesity, smoking, etc.)
in addition to your blood pressure measurement, the Pressure Rating
Indicator is approximate. Please consult with your physician for interpretation and diagnosis of your blood pressure measurements.
NOTE: Residents outside of the United States (e.g.. Canada and Mexico)
should refer to the WHO Classification Table on page E-13 for assessment
of their blood pressure measurement.
E-8
www.activeforever.com
1-800-377-8033
www.activeforever.com
1-800-377-8033
E-9
ABOUT MEMORY
USING THE MONITOR WITH AC ADAPTER
This monitor automatically stores up to thirty (30) blood pressure and pulse
measurements in memory. Measurements stored in memory are assigned an
index number in the order of the newest to the oldest. The oldest reading dis
plays as "n01". The M symbol in the upper left corner of the display screen
indicates that you are viewing a previous measurement stored in memory.
To retrieve readings, follow these simple steps:
1. When the display screen is blank, press and quickly release
the Memory ("M") button. You will see the index number
of the most recent reading followed by the measurement.
2. If you want to retrieve other measurements in memory,
press and release the Memory button repeatedly until the
desired index number is reached (e.g. n04). The measurement will then be displayed.
3. The display will shut off automatically a few seconds after
the readings are displayed.
To clear the measurement history from memory, press and hold
the Memory button for at least five seconds while the display
screen is blank. Release the button when you see the M symbol
flash and disappear in the upper left hand corner of the display.
This indicates that the memory has been cleared.
If there are no measurements stored in memory, you will see two 0s displayed
vertically followed by a blinking "A00".
The UA-767 Plus has an AC adapter jack to allow you to supply power
from an outlet in your home. We recommend you use only the exclusive
AC adapter to avoid potential damage to the monitor. Please contact A&D
Medical at 1-888-726-9966 (in Canada - 1-800-463-5414) if you would like
to purchase the AC adapter.
Connecting the AC adapter to the monitor:
1. Gently insert the AC adapter plug into a 120V AC outlet.
2. Connect the AC adapter plug into the jack on the right side
of the monitor.
Disconnecting the AC adapter from the monitor:
1. Turn the unit off by pressing the START button.
2. Disconnect the plug from the jack of the monitor quickly.
3. Gently remove the AC adapter from the outlet.
NOTE: If monitor has batteries-installed and an AC adapter connected, the
measurements stored in memory will be lost if AC adapter is unplugged
from the wall first. To ensure that measurements remain in memory, make
sure the unit is off and that the jack plugged into the monitor is removed
quickly before unplugging adapter from the wall.
NOTE: Stored measurements will be lost if batteries become low or are
removed.
Jack
Plug
AC Adapter
E-10
www.activeforever.com
1-800-377-8033
Jack
www.activeforever.com
1-800-377-8033
E-11
ABOUT BLOOD PRESSURE
ABOUT BLOOD PRESSURE
What Is Blood Pressure?
Blood pressure is the force exerted by blood against the walls of the arteries.
Systolic pressure occurs when the heart contracts; diastolic pressure occurs
when the heart expands. Blood pressure is measured in millimeters of mercury
(mmHg).
What Affects Blood Pressure?
Blood pressure is affected by many factors: age, weight, time of day, activ
ity level, climate, altitude and season. Certain activities can significantly
alter one’s blood pressure. Walking can raise systolic pressure by 12 mmHg
and diastolic pressure by 5.5 mmHg. Sleeping can decrease systolic blood
pressure by as much as 10 mmHg. Taking your blood pressure repeatedly
without waiting an interval of 5 minutes between readings, or without raising
your arm to allow blood to flow back to the heart, can also affect it.
In addition to these factors, beverages containing caffeine or alcohol, certain
medications, emotional stress and even tight-fitting clothes can make a differ
ence in the readings.
What Causes Variations In Blood Pressure?
An individual’s blood pressure varies greatly from day to day and season to
season. For hypersensitive individuals, these variations are even more pro
nounced. Normally, blood pressure rises during work or play and falls to its
lowest levels during sleep.
Assessing High Blood Pressure for Adults
The following standards for assessing high blood pressure (without regard
to age or gender) have been established as a guideline. Please note that other
risk factors (e.g. diabetes, obesity, smoking, etc.) need to be taken into con
sideration and may affect these figures. Consult with your physician for an
accurate assessment.
JNC7 Classification Table – for adults within the U.S.
BP Classification
Systolic (mmHg)
Normal
Prehypertension
Stage 1 Hypertension
Stage 2 Hypertension
less than 120
120-139
140-159
greater than
or equal to 160
Diastolic (mmHg)
and less than 80
or 80-89
or 90-99
greater than
or
100
or equal to
SOURCE: The Seventh Report of the Joint National Committee on
Prevention, Evaluation and Treatment of High Blood Pressure for Adults.
National Heart, Lung and Blood Institute - May 2003.
WHO Classification Table – for adults outside of the U.S.
(e.g. Canada, Mexico)
BP Classification
Systolic (mmHg)
Diastolic (mmHg)
Optimal
Normal
High-Normal
Stage 1 Hypertension
Stage 2 Hypertension
Stage 3 Hypertension
less than 120 and
less than 130 or
130-139
or
140-159
or
160-179
or
greater than
or
or equal to 180
less than 80
less than 85
85-89
90-99
100-109
greater than
or equal to 110
SOURCE: Standards to assess high blood pressure, without regard to age
or gender, have been established by the World Health Organization (WHO).
E-12
www.activeforever.com
1-800-377-8033
www.activeforever.com
1-800-377-8033
E-13
ABOUT BLOOD PRESSURE
What Is Hypertension?
Hypertension (high blood pressure) is the diagnosis given when readings
consistently rise above normal. It is well known that hypertension can lead
to stroke, heart attack or other illness if left untreated. Referred to as a “silent
killer” because it does not always produce symptoms that alert you to the
problem, hypertension is treatable when diagnosed early.
Can Hypertension Be Controlled?
In many individuals, hypertension can be controlled by altering lifestyle and
minimizing stress, and by appropriate medication prescribed and monitored
by your doctor. The American Heart Association recommends the following
lifestyle suggestions to prevent or control hypertension:
Don’t smoke.
Reduce salt and fat intake.
Maintain proper weight.
Exercise routinely.
Have regular physical
checkups.
Monitor your blood
pressure at periodic intervals.
Why Measure Blood Pressure at Home?
It is now well known that, for many individuals, blood pressure readings
taken in a doctor’s office or hospital setting might be elevated as a result of
apprehension and anxiety. This response is commonly called “white coat
hypertension.” In any case, self-measurement at home supplements your
doctor’s readings and provides a more accurate, complete blood pressure-his
tory. In addition, clinical studies have shown that the detection and treatment
of hypertension is improved when patients both consult their physicians and
monitor their own blood pressure at home.
E-14
www.activeforever.com
1-800-377-8033
ABOUT BLOOD PRESSURE
Answers to Why Your Readings Are Different
Between Home and at the Doctor’s Office
Why are my readings different between home and at a doctor’s office?
Your blood pressure readings taken in a doctor’s office or hospital setting may
be elevated as a result of apprehension and anxiety. This response is known
as white coat hypertension.
When I bring my monitor to a doctor’s office, why do I get a different
measurement from my monitor to that taken by a doctor or nurse?
The healthcare professional may be using a different sized cuff. The size of
the bladder inside the cuff is critical for the accuracy of the measurement.
This may give you a different reading. A cuff too large will produce a reading
that is lower than the correct blood pressure; a cuff that is too small will pro
duce a reading that is higher than the correct blood pressure. There may also
be other factors that can cause the difference in measurements.
Keys to Successful Monitoring:
Blood pressure fluctuates throughout the day. We recommend that you are
consistent in your daily measurement routine:
• Measure at the same time every day.
• Sit in the same chair/position.
• Do not cross legs and keep your feet flat on the floor.
• Relax for 5 minutes before measurement.
• Use the correct cuff size to get an accurate reading.
• Sit still during measurement – no talking, eating or sudden
movements.
• Record your measurement in a logbook.
www.activeforever.com
1-800-377-8033
E-15
TROUBLESHOOTING
ABOUT BLOOD PRESSURE
Establishing Baseline Measurements
The most important method to get an accurate blood pressure measurement
is consistency. To get the most benefit out of your monitor, it is important
to establish a “baseline measurement.” This helps build a foundation of
measurements that you can use to compare against future readings. To build
this baseline measurement, devote two weeks for consistent blood pressure
monitoring. This involves doing everything the same way when you measure
(e.g. measuring during the same time of day, in the same location, sitting in
the same chair, using the same cuff, etc.). Once you establish your baseline
measurement, you can start evaluating if your measurement has been affected
based on things lifestyle changes or medication treatment.
How Do I Record My Blood Pressure?
Blood pressure readings are typically recorded with the systolic pressure writ
ten first, followed by a slash mark and the diastolic pressure. For example,
120 mmHg systolic and 80 mmHg diastolic measurements are written as
120/80. Pulse is simply written with the letter “P” followed by the pulse
rate—P 72, for example. Please see the back of the manual for the blood
pressure tracking record.
Customer Support Tools Online
Additional tools are available on www.LifeSourceOnline.com (in Canada www.autocontrol.com) to help you get the most out of your blood pressure
monitoring. These include:
• Large Print Instruction Manuals
• Animated Operating Instructions for select models
• Additional Logbook Sheets
Problem
Probable cause
Nothing appears
in the display, after
I press the START
button.
Batteries are drained.
Corrective action
Replace all batteries with new
ones. Alkaline batteries
recommended.
Battery terminals are not in Reinstall the batteries with
the correct position.
negative and positive termi
nals matching those indicated
in the battery compartment.
The cuff does not
Battery voltage is too low. Replace all batteries with new
inflate.
Low battery symbol blinks. ones. Alkaline batteries rec[If the batteries are drained ommended.
completely, the mark does
not appear.]
The cuff is not fastened
Fasten the cuff correctly.
The unit does not
measure. Readings properly.
are too high or too You moved your arm or
Make sure you remain very
low.
body during the
still and quiet during the meameasurement.
surement.
The cuff position is not
Sit comfortably and still. Make
correct.
sure the cuff is at the same
level as your heart.
You are using the wrong
See Pg. E-5 "Selecting the
size cuff.
Correct Cuff."
Taking too many readings Relax five minutes before each
on the same arm in a short measurement.
period of time.
The value is differ- The healthcare professional See Pg. E-15 "Answers to
ent from that
may be using a different
Why Your Readings Are
measured at a clinic sized cuff.
Different Between Home and
or doctor’s office.
the Doctor’s Office."
Your measurements may
See Pg. E-14 "Why Measure
be elevated by white coat Blood Pressure at Home."
hypertension
NOTE: If the actions described above do not solve the problem, call 1888-726-9966 (In Canada - 1-800-461-0991). Do not attempt to repair the
device yourself.
E-16
www.activeforever.com
1-800-377-8033
www.activeforever.com
1-800-377-8033
E-17
CONTACT INFORMATION
SPECIFICATIONS
Model . . . . . . . . . . . . . . . . . . . . . . . . .
UA-767P (UA-767 Plus)
Type. . . . . . . . . . . . . . . . . . . . . . . . . . .
Oscillometric
Display . . . . . . . . . . . . . . . . . . . . . . . .
Digital character height
Pressure (16.0 mm)/pulse (10.0 mm)
displayed simultaneously
Memory . . . . . . . . . . . . . . . . . . . . . . .
30 readings
Measurement range . . . . . . . . . . .
Pressure: 20 mmHg to 280 mmHg
Pulse: 40 pulses to 200 pulses per minute
Accuracy . . . . . . . . . . . . . . . . . . . . . .
Pressure: +3 mmHg or
+2%, whichever is greater
Pulse: +5%
Pressurization . . . . . . . . . . . . . . . . .
Automatic, using micropump
Depressurization . . . . . . . . . . . . . .
Automatic constant speed
Power source . . . . . . . . . . . . . . . . . .
4 type “AA” (1.5 volt) alkaline
batteries (not included) or 120V
AC Adapter
Battery life . . . . . . . . . . . . . . . . . . . .
Approximately 6 months with
one daily measurement
Operating environment . . . . . . . .
50ºF to 104ºF (10ºC to 40ºC)
Less than 85% relative humidity
Storage environment . . . . . . . . . .
-4ºF to 140ºF (-20ºC to 60ºC)
Less than 95% relative humidity
Dimensions . . . . . . . . . . . . . . . . . . .
Length: 4.3” (110 mm)
Width: 5.8” (147 mm)
Height: 2.5” (64 mm)
Weight. . . . . . . . . . . . . . . . . . . . . . . . .
10.6 oz. (300 g) without batteries
Blood pressure measurements determined by the UA-767 Plus are
equivalent to those obtained by a trained observer using the cuff/stethoscope auscultation method within the limits prescribed by the American
National Standards Institute for electronic or automated sphygmomanometers.
E-18
www.activeforever.com
1-800-377-8033
Our products are designed and manufactured using the latest scientific and
technological methods, and offer accurate, easy to use, home monitoring and
treatment options. Our full product line includes:
Digital Blood Pressure Monitors
Manual Blood Pressure Kits
Blood Pressure Cuffs
Stethoscopes
Personal Health Scales
Nebulizers
Digital Thermometers
This LifeSource blood pressure product is covered by a
Lifetime Warranty. See warranty card for details.
Visit our web site at www.LifeSourceOnline.com
for warranty registration.
For more information regarding use, care or servicing of your blood pressure
monitor, contact:
A&D Medical
A division of A&D Engineering, Inc.
1555 McCandless Drive
Milpitas, CA 95035
LifeSource Health Line (Toll-Free): 1-888-726-9966
www.LifeSourceOnline.com
For Canadian Residents, please contact:
Auto Control Medical
6695 Millcreek Drive, Unit 5
Mississauga, Ontario
L5N 5R8 Canada
Auto Control (Toll-Free): 1-800-461-0991
www.autocontrol.com
www.activeforever.com
1-800-377-8033
E-19
Discount Therapy, Fitness, Pain Relief & Medical Equipment
10799 N. 90th Street
Scottsdale, AZ 85260
Download PDF
