TASK FORCE TIPS
®
FIRE FIGHTING EQUIPMENT

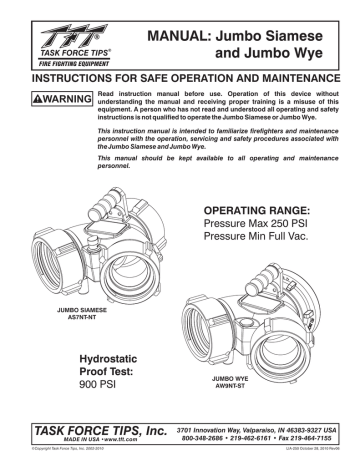

MANUAL: Jumbo Siamese
and Jumbo Wye
INSTRUCTIONS FOR SAFE OPERATION AND MAINTENANCE
WARNING
Read instruction manual before use. Operation of this device without
understanding the manual and receiving proper training is a misuse of this
equipment. A person who has not read and understood all operating and safety
instructions is not qualified to operate the Jumbo Siamese or Jumbo Wye.
This instruction manual is intended to familiarize firefighters and maintenance
personnel with the operation, servicing and safety procedures associated with
the Jumbo Siamese and Jumbo Wye.
This manual should be kept available to all operating and maintenance
personnel.
OPERATING RANGE:
Pressure Max 250 PSI
Pressure Min Full Vac.
JUMBO SIAMESE
AS7NT-NT
Hydrostatic
Proof Test:
900 PSI
TASK FORCE TIPS, Inc.
MADE IN USA •www.tft.com
©Copyright Task Force Tips, Inc. 2002-2010
JUMBO WYE
AW9NT-ST
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
LIA-250 October 28, 2010 Rev06
DANGER
PERSONAL RESPONSIBILITY CODE
TABLE OF CONTENTS
1.0 MEANING OF SIGNAL WORDS
1.1 SAFETY
2.0 GENERAL INFORMATION
2.1 CORROSION
2.2 USE WITH SALT WATER
3.0 INSTALLATION
4.0 USE
5.0 DRAWINGS AND PARTS LISTS
6.0 MAINTENANCE
7.0 WARRANTY
The member companies of FEMSA that provide emergency response
equipment and services want responders to know and understand the
following:
1. Firefighting and Emergency Response are inherently dangerous
activities requiring proper training in their hazards and the use of extreme
caution at all times.
2. It is your responsibility to read and understand any user's instructions,
including purpose and limitations, provided with any piece of equipment
you may be called upon to use.
3. It is your responsibility to know that you have been properly trained in
Firefighting and /or Emergency Response and in the use, precautions,
and care of any equipment you may be called upon to use.
4. It is your responsibility to be in proper physical condition and to maintain
the personal skill level required to operate any equipment you may be
called upon to use.
5. It is your responsibility to know that your equipment is in operable
condition and has been maintained in accordance with the
manufacturer’s instructions.
6. Failure to follow these guidelines may result in death, burns or other
severe injury.
FEMSA
Fire and Emergency Manufacturers and Services Association, Inc.
P.O. Box 147, Lynnfield, MA 01940 • www.FEMSA.org
1.0 MEANING OF SIGNAL WORDS
A safety related message is identified by a safety alert symbol and a signal word to indicate the level of risk involved
with a particular hazard. Per ANSI standard Z535.4-1998 the definitions of the three signal words are as follows:
2
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
1.1 SAFETY
WARNING
This equipment is intended for use by trained personnel for firefighting. Its use
for other purposes may involve hazards not addressed by this manual. Seek
appropriate guidance and training to reduce risk of injury.
WARNING
Burst hoses and fittings can result in injury or death. Maximum operating
pressure of TFT's Jumbo Siamese and Jumbo Wye is 250 psi (17 bar). Do not
exceed 250 PSI on either side of the appliance.
Per NFPA 1962 3 ½ to 5 inch (90-127 mm) hose marked SUPPLY HOSE shall not exceed 185 PSI (13 bar).
Per NFPA 1962 6 inch (152 mm) hose marked SUPPLY HOSE shall not exceed 135 psi (9 bar).
CAUTION
Any alterations to the Jumbo Siamese, the Jumbo Wye and its markings could
diminish safety and constitutes a misuse of this product.
2.0 GENERAL INFORMATION
The Jumbo Siamese and Jumbo Wye are intended for use in a hose line, on a fire hydrant, or an intake or discharge
manifold of a fire truck.
Handle
Clapper
Assembly
Handle
Side B
Coupling
Side B
Coupling
Serial
Number
Side A
Coupling
Jumbo Siamese
Serial
Number
Side A
Coupling
Jumbo Wye
2.1 CORROSION
The aluminum castings are hardcoat anodized, and TFT powdercoat finished inside and out for maximum corrosion
protection. Hose couplings are attached using polymer bearing rings which provides electrical isolation to help
prevent galvanic corrosion. The effects of corrosion can be minimized by good maintenance practices. See Section
7.0 for maintenance.
2.2 USE WITH SALT WATER
Use with salt water is permissible provided valve is thoroughly cleaned with fresh water after each use. The service
life of the valve may be shortened due to the effects of corrosion and is not covered under warranty.
3
3.0 INSTALLATION
Make connections to fire hose or fittings on each side of the Jumbo Siamese or Jumbo Wye.
WARNING
Kinks in supply hose may reduce water flow and cause injury or death to persons
dependant on water flow. When this valve is used on a hydrant or fire truck it is
recommended that it be used with an elbow to minimize risk of hoseline kinks.
CAUTION
Jumbo Siamese and Jumbo Wye’s must be properly connected. Mismatched or
damaged connectors may cause leaking or uncoupling under pressure and
could cause injury.
CAUTION
Dissimilar metals coupled together can cause galvanic corrosion that can result
in the inability to unscrew the threads or complete loss of thread engagement
over time. Per NFPA 1962, if dissimilar metals are left coupled together an anticorrosive lubricant should be applied to the threads. Also the coupling should be
disconnected and inspected at least monthly.
CAUTION
Male fire hose threads are sharp and can cause injury. Be careful when around
male hose threads.
4.0 USE
The couplings of Siamese and Wye models swivel to help prevent hose kinks, and make hose connection easier. Male
hose thread inlets are locked so that they will not rotate.
The Jumbo Wye fitting can be used to join the flow of two water sources together into one, or in the opposite direction to
split one water source into two. The flow direction in our out of any opening is possible.
The Jumbo Siamese valve can only flow water in one direction ONLY.
Water entering from either one or both Side A will exit through the single Side B discharge outlet. A swinging clapper
assembly prevents backflow through either leg of the Side A openings. An indicating pointer shows the position of the
clapper.
CAUTION
4
Jumbo Siamese will not flow water from Side B to both Side A openings. Do not
attempt to flow water in one Side A opening and out of the other Side A opening.
This valve contains a swinging clapper assembly that will prevent backflow
through one leg of the Side A openings.
5.0 DRAWINGS AND PARTS LISTS
16
13
15
12
14
11
10
1
2
3
7
8
9
9
8
17
6
4
5
Table 1: Jumbo Siamese Parts List
INDEX
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
DESCIRPTION
3/8 – 16 X 5/8 SOCKET HEAD CAP SCREW
3/8 – 16 X 7/8 SOCKET HEAD CAP SCREW
TOMBSTONE
PEG
WYE BODY 5.0”
SIAMESE NAME LABEL
3/8 –16 HEX JAM NUT
WASHER
GASKET
5/32 X 7/8 SPIROL PIN
CLAPPER 4”
PIVOT PIN
O-RING-012 3/8 ID 1/16 C/S
O-RING-119 15/16 ID 3/32 C/S
PIVOT CAP
LOCATOR
3/8 – 16 X 1 HEX HEAD BOLT
SIAMESE/WYE NAME LABEL
QTY
2
1
1
1
1
1
1
2
2
3
1
1
1
1
1
1
1
1
PART NUMBER
VT37-16SH625
VT37-16SH875
X365
X362
A5710
A1304
VT37-16NT
A5752
A5762
V1900
A5720
A5732
VO-012
VO-119
G191
A5774
VT37-16HX1.0
A1304/A1305
5
5.0 DRAWINGS AND PARTS LISTS
3
2
4
6
7
1
8
5
Table 2: Jumbo Wye Parts List
INDEX
1
2
3
4
5
6
7
8
DESCIRPTION
3/8 – 16 X 5/8 SOCKET HEAD CAP SCREW
3/8 – 16 X 7/8 SOCKET HEAD CAP SCREW
TOMBSTONE
PEG
WYE BODY 5.0”
WYE NAME LABEL
TOP CAP
O-RING-119 15/16 ID 3/32 C/S
1
2
5
QTY
2
1
1
1
1
1
1
1
6
PART NUMBER
VT37-16SH625
VT37-16SH875
X365
X362
A5710
A1305
G190
VO-119
7
3
8
4
Table 3: Storz Coupling Parts List
#
1
2
3
4
5
6
7
8
6
DESCRIPTION
PLASTIC STRIP 4.25” (FOR 4 INCH STORZ)
PLASTIC STRIP 5.25”
CUP SEAL 4.25 X 3.75 X ¼ (FOR 4 INCH STORZ)
CUP SEAL 5.25 X 4.75 X ¼
BALL 7/16” STAINLESS (FOR LOCKED OUT COUPLINGS)
PORT PLUG
LOCKING LEVER
SPRING TORSION
4” STORZ FITTING (USES A4730 ADAPTER)
5” STORZ FITTING
6” STORZ FITTING
4” STORZ GASKET PRESSURE ONLY
4” STORZ GASKET PRESSURE/VACUUM
5” STORZ GASKET PRESSURE ONLY
5” STORZ GASKET PRESSURE/VACUUM
6” STORZ GASKET PRESSURE/VACUUM
QTY
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
PART #
A1292
A1291
A1297
A1296
VB.437
A1299
A4171
A4230
A4124
A4125
A4126
A4215
A4216
A4220
A4221
A4226
5.0 DRAWINGS AND PARTS LISTS
1
3
2
4
5
Table 4: Male Thread Spout Parts List
#
1
2
3
4
5
DESCRIPTION
PLASTIC STRIP 5.25"
CUP SEAL 5.25 X 4.750 X 1/4
BALL 7/16" STAINLESS
LABEL; PORT COVER
4.0” NH MALE SPOUT
4.5” NH MALE SPOUT
5.0” NH MALE SPOUT
6.0” NH MALE SPOUT
1
QTY
1
1
1
1
1
1
1
1
5
2
3
PART #
A1291
A1296
VB.437
A1298
A4620N
A4625N
A4630N
A4635N
6
4
Table 5: Female Thread Coupling Parts List
#
1
2
3
4
5
6
DESCRIPTION
PLASTIC STRIP 5.25"
PLASTIC STRIP 7.00" (FOR 6.0” FEMALE THREADED COUPLINGS)
CUP SEAL 5.25 (FOR 4.0” THRU 5.0” COUPLING ONLY)
BALL 7/16” STAINLESS (FOR LOCKED OUT COUPLINGS)
PORT PLUG
4.0” NH FEMALE
4.5" NH FEMALE
5.0" NH FEMALE
6.0" NH FEMALE (USES A4745 ADAPTER)
4.0" HOSE COUPLING GASKET
4.5" HOSE COUPLING GASKET
5.0" HOSE COUPLING GASKET
6.0" HOSE COUPLING GASKET
QTY
1
1
1
1
1
1
1
1
1
1
1
1
1
PART #
A1291
A1290
A1296
VB.437
A1299
A4660N
A4665N
A4670N
A1266NX
V3198
V3220
V3210
V3240
7
6.0 MAINTENANCE
The Jumbo Siamese and Jumbo Wye should be cleaned and visually inspected inside and out at least once per month.
Moving parts such as clapper and couplings should be checked for smooth and free operation and greased as needed. A
silicone based grease such as Dow Corning 44 will exclude moisture and retard the effects of corrosion. Any scrapes that
expose bare aluminum should be touched up with enamel paint such as Rust-Oleum to inhibit corrosion. Replace any
missing or damaged parts before returning the appliance to service.
CAUTION
Dissimilar metals coupled together can cause galvanic corrosion that can result
in the inability to unscrew the threads of complete loss of thread engagement
over time. Per NFPA 1962 (1998 edition), if dissimilar metals are left coupled
together an anti-corrosive lubricant should be applied to the threads. Also the
coupling should be disconnected and inspected at least quarterly.
CAUTION
Any alterations to the Jumbo Siamese or the Jumbo Wye and its markings could
diminish safety and constitutes a misuse of this product.
7.0 WARRANTY
Task Force Tips, Inc., 3701 Innovation Way, Valparaiso, Indiana 46383-9327 ("TFT") warrants to the original purchaser of
its Jumbo Siamese or Jumbo Wye ("equipment"), and to anyone to whom it is transferred, that the equipment shall be free
from defects in material and workmanship during the five (5) year period from the date of purchase.
TFT's obligation under this warranty is specifically limited to replacing or repairing the equipment (or its parts) which
are shown by TFT's examination to be in a defective condition attributable to TFT. To qualify for this limited warranty,
the claimant must return the equipment to TFT, at 3701 Innovation Way, Valparaiso, Indiana 46383-9327, within a
reasonable time after discovery of the defect. TFT will examine the equipment. If TFT determines that there is a
defect attributable to it, TFT will correct the problem within a reasonable time. If the equipment is covered by this
limited warranty, TFT will assume the expenses of repair.
If any defect attributable to TFT under this limited warranty cannot be reasonably cured by repair or replacement, TFT
may elect to refund the purchase price of the equipment, less reasonable depreciation, in complete discharge of its
obligations under this limited warranty. If TFT makes this election, claimant shall return the equipment to TFT free and
clear of any liens and encumbrances.
This is a limited warranty. The original purchaser of the equipment, any person to whom it is transferred, and any
person who is an intended or unintended beneficiary of the equipment, shall not be entitled to recover from TFT any
consequential or incidental damages for injury to person and/or property resulting from any defective equipment
manufactured or assembled by TFT. It is agreed and understood that the price stated for the equipment is in part
consideration for limiting TFT's liability. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above may not apply to you.
TFT shall have no obligation under this limited warranty if the equipment is, or has been, misused or neglected (including
failure to provide reasonable maintenance) or if there have been accidents to the equipment or if it has been repaired or
altered by someone else.
THIS IS A LIMITED EXPRESS WARRANTY ONLY. TFT EXPRESSLY DISCLAIMS WITH RESPECT TO THE
EQUIPMENT ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND ALL IMPLIED WARRANTIES OF
FITNESS FOR A PARTICULAR PURPOSE. THERE IS NO WARRANTY OF ANY NATURE MADE BY TFT BEYOND
THAT STATED IN THIS DOCUMENT.
This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to
state.
TASK FORCE TIPS, Inc.
MADE IN USA •www.tft.com
©Copyright Task Force Tips, Inc. 2002-2010
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
LIA-250 October 28, 2010 Rev06
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
