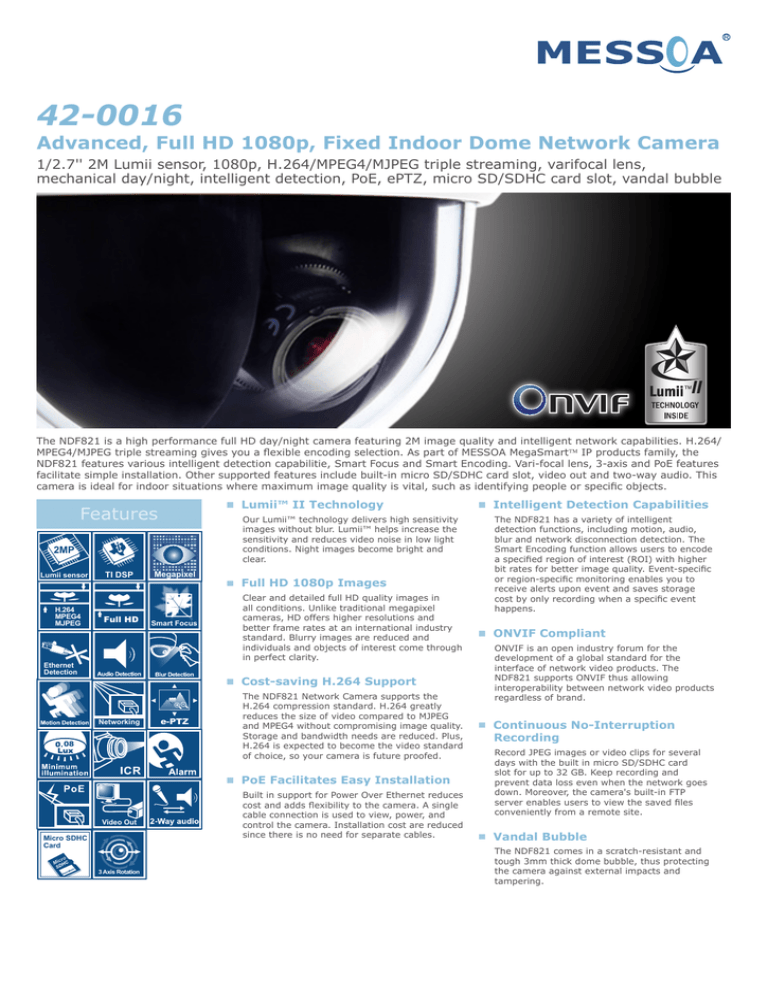

42-0016 Advanced, Full HD 1080p, Fixed Indoor Dome Network Camera

42-0016 Advanced, Full HD 1080p, Fixed Indoor Dome Network Camera
42-0016
Advanced, Full HD 1080p, Fixed Indoor Dome Network Camera
1/2.7'' 2M Lumii sensor, 1080p, H.264/MPEG4/MJPEG triple streaming, varifocal lens,
mechanical day/night, intelligent detection, PoE, ePTZ, micro SD/SDHC card slot, vandal bubble
II
The NDF821 is a high performance full HD day/night camera featuring 2M image quality and intelligent network capabilities. H.264/
MPEG4/MJPEG triple streaming gives you a flexible encoding selection. As part of MESSOA MegaSmart IP products family, the
NDF821 features various intelligent detection capabilitie, Smart Focus and Smart Encoding. Vari-focal lens, 3-axis and PoE features
facilitate simple installation. Other supported features include built-in micro SD/SDHC card slot, video out and two-way audio. This
camera is ideal for indoor situations where maximum image quality is vital, such as identifying people or specific objects.
Lumii™ II Technology
Features
Our Lumii™ technology delivers high sensitivity
images without blur. Lumii™ helps increase the
sensitivity and reduces video noise in low light
conditions. Night images become bright and
clear.
2MP
Lumii sensor
H.264
MPEG4
MJPEG
TI DSP
Full HD
Megapixel
Smart Focus
Ethernet
Detection
Full HD 1080p Images
Clear and detailed full HD quality images in
all conditions. Unlike traditional megapixel
cameras, HD offers higher resolutions and
better frame rates at an international industry
standard. Blurry images are reduced and
individuals and objects of interest come through
in perfect clarity.
Cost-saving H.264 Support
Networking
08
e-PTZ
The NDF821 Network Camera supports the
H.264 compression standard. H.264 greatly
reduces the size of video compared to MJPEG
and MPEG4 without compromising image quality.
Storage and bandwidth needs are reduced. Plus,
H.264 is expected to become the video standard
of choice, so your camera is future proofed.
PoE Facilitates Easy Installation
Video Out
Micro SDHC
Card
3 Axis Rotation
Built in support for Power Over Ethernet reduces
cost and adds flexibility to the camera. A single
cable connection is used to view, power, and
control the camera. Installation cost are reduced
since there is no need for separate cables.
Intelligent Detection Capabilities
The NDF821 has a variety of intelligent
detection functions, including motion, audio,
blur and network disconnection detection. The
Smart Encoding function allows users to encode
a specified region of interest (ROI) with higher
bit rates for better image quality. Event-specific
or region-specific monitoring enables you to
receive alerts upon event and saves storage
cost by only recording when a specific event
happens.
ONVIF Compliant
ONVIF is an open industry forum for the
development of a global standard for the
interface of network video products. The
NDF821 supports ONVIF thus allowing
interoperability between network video products
regardless of brand.
Continuous No-Interruption
Recording
Record JPEG images or video clips for several
days with the built in micro SD/SDHC card
slot for up to 32 GB. Keep recording and
prevent data loss even when the network goes
down. Moreover, the camera's built-in FTP
server enables users to view the saved files
conveniently from a remote site.
Vandal Bubble
The NDF821 comes in a scratch-resistant and
tough 3mm thick dome bubble, thus protecting
the camera against external impacts and
tampering.
Specifications
Image System
Image Sensor
1/2.7" 2MP image sensor optimized for low-light performance
Image Compression Method
Triple Streaming : H.264 / MPEG4 / Motion JPEG
Maximum Framerate vs. Resolution
Lens
HDTV 1080p(1920x1080) at 15 fps (NTSC) and 12.5 fps (PAL)and 2MP 16:9 (1280x720) at 30 fps (NTSC) and 25 fps (PAL)
Built-in Mechanical IR Cut Filter varifocal lens f=3~9mm, F1.2 (Mega pixel lens)
View Angle
H: 93°(Wide)~31.7°(Tele)/V:68.4°(Wide)~23.8°(Tele)
View Angle Adjustment
Pan:0°-355°, Tilt:0°-90°, Rotate:0°-355°
Electric
Shutter Time
Range from 1/10000s to 1/3.75s selectable (60Hz); Range from 1/10000s to 1/3.125s selectable (50Hz)
Audio
Two-way Mono Audio, Full-duplex, G.711 PCM 8kHz
Alarm
External input
Day/Night Mode
Mechanical (ICR) D/N control; Auto/ Forced BW/ Forced Color/ External
Minimum Illumination
0.08 Lux @10IRE; 0.30Lux @50IRE (shutter speed: 1/15sec)
Video Port
BNC X1, 1.0Vp-p, 75Ω / RCA x 1
Video Output
NTSC: 720 X 480 @30fps; PAL: 720 X 576 @25fps
Image Enhance
Exposure Mode: Auto/Manual; White Balance: Auto/Manual; Backlight Compensation: 5x5 zones selectable
Sharpness, Staturation, Brightness, Contrast: 255 level sensitivity
Feature Brief
Digital WDR
Yes; 5 level sensitivity
Privacy Zone
Yes; customized threshold privacy zone
Intelligent Video
Audio detection / Blur detection /Ethernet Detection/ Smart Encoding/ Smart Focus/ e-PTZ/ Event Management
Alarm Detection
Motion Detection: 5 x 5 zones, 5 level sensitivity or customized threshold; Audio Detection: 5 level sensitivity or customized threshold;
Blur Detection: customized threshold; External Input
File upload via FTP, SMTP and micro SD/SDHC Card; Notification via email, HTTP and TCP; External output activation
Video and audio recording to micro SD/SDHC Card
Alarm Event
Image Orientation
Mirror, Flip
Bit Rate Mode
Primary stream bit rate control: CBR/VBR
Local Storage
Memory Card
Micro SD/SDHC Card up to 32 GB
SD Card Overwrite
Yes
SD Card Store Category
Alarm / Motion / Schedule/ Un-interrupt recording
Power supply
Power Requirement
DC 12V & AC 24V ± 10% / PoE(IEEE 802.3af)
Power Connector
Screwless Terminal block
Power Consumption (Max.)
5W
Environment
Operating Temperature
-10ºC ~ 50ºC (-14ºF ~ 122 ºF)
Operating Humidity
10~ 90% RH
Storage Temperature
-20ºC ~ 60ºC (-4ºF ~ 140 ºF)
Regulatory
CE, FCC, RoHS
Network
Ethernet
10Base-T/100Base-TX Ethernet connection for LAN / WAN, RJ-45
Internet Protocol
IPv4, TCP/IP, UDP, HTTP, SMTP, DNS, DHCP, NTP, FTP, RTP,RTSP, ICMP, UPnP
Browser
IE browser 6.0 or above
I/O connector
Alarm Port
Terminal block 2 in / 1 out
Audio In / Out port
3.5mm Phone Jack x 2
Reset
Within 5 sec for rebooting system; more than 5 sec for loading default
Mechanism
Dimensions(ΦxH)
Φ138 mm x 101 mm (Φ5.43" x 3.98")
Weight
1.13kg (2.5lb)
NTSC model: NDF821-HN5-MES;
Order Information
PAL model: NDF821-HP5-MES
Accessory
Surface mount: standard package support; Pendent mount: SAB755M
Wall mount: Bracket SAB755, SAB749-W1
Mount Type
Dimensions
Power in (Red+ / Black-)
RJ-45 (Ethernet Connector)
ø36mm (1.42”)
ø101mm (3.98”)
ø138mm (5.43”)
BNC
Audio out (Green)
Audio in (Red)
ø108mm (4.25”)
2011.08.18 version.
MESSOA reserves the right to update this datasheet at any time without notice.
MESSOA USA e-mail:[email protected]//MESSOA Taiwan e-mail:[email protected]
Alarm out (Orange)
Reserved (Green)
Reserved (Yellow)
GND (Gray)
Alarm in 1 (Red)
Alarm in 2 (Brown)
