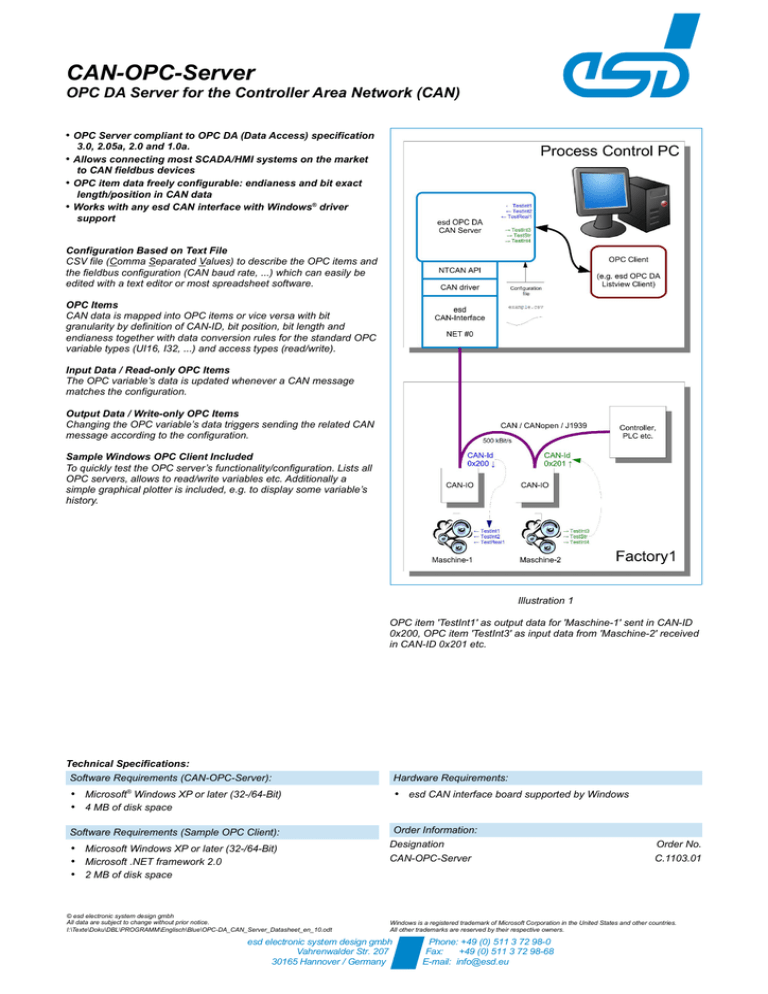

CAN-OPC Server Data Sheet

CAN-OPC Server Data Sheet
CAN-OPC-Server
OPC DA Server for the Controller Area Network (CAN)
• OPC Server compliant to OPC DA (Data Access) specification
3.0, 2.05a, 2.0 and 1.0a.
• Allows connecting most SCADA/HMI systems on the market
to CAN fieldbus devices
• OPC item data freely configurable: endianess and bit exact
length/position in CAN data
• Works with any esd CAN interface with Windows® driver
support
Configuration Based on Text File
CSV file (Comma Separated Values) to describe the OPC items and
the fieldbus configuration (CAN baud rate, ...) which can easily be
edited with a text editor or most spreadsheet software.
OPC Items
CAN data is mapped into OPC items or vice versa with bit
granularity by definition of CAN-ID, bit position, bit length and
endianess together with data conversion rules for the standard OPC
variable types (UI16, I32, ...) and access types (read/write).
Input Data / Read-only OPC Items
The OPC variable’s data is updated whenever a CAN message
matches the configuration.
Output Data / Write-only OPC Items
Changing the OPC variable’s data triggers sending the related CAN
message according to the configuration.
Sample Windows OPC Client Included
To quickly test the OPC server’s functionality/configuration. Lists all
OPC servers, allows to read/write variables etc. Additionally a
simple graphical plotter is included, e.g. to display some variable’s
history.
Illustration 1
OPC item 'TestInt1' as output data for 'Maschine-1' sent in CAN-ID
0x200, OPC item 'TestInt3' as input data from 'Maschine-2' received
in CAN-ID 0x201 etc.
Technical Specifications:
Software Requirements (CAN-OPC-Server):
Hardware Requirements:
• Microsoft® Windows XP or later (32-/64-Bit)
• 4 MB of disk space
Software Requirements (Sample OPC Client):
• Microsoft Windows XP or later (32-/64-Bit)
• Microsoft .NET framework 2.0
• 2 MB of disk space
© esd electronic system design gmbh
All data are subject to change without prior notice.
I:\Texte\Doku\DBL\PROGRAMM\Englisch\Blue\OPC-DA_CAN_Server_Datasheet_en_10.odt
• esd CAN interface board supported by Windows
Order Information:
Designation
CAN-OPC-Server
Order No.
C.1103.01
Windows is a registered trademark of Microsoft Corporation in the United States and other countries.
All other trademarks are reserved by their respective owners.
esd electronic system design gmbh
Vahrenwalder Str. 207
30165 Hannover / Germany
Phone: +49 (0) 511 3 72 98-0
Fax:
+49 (0) 511 3 72 98-68
E-mail: [email protected]
