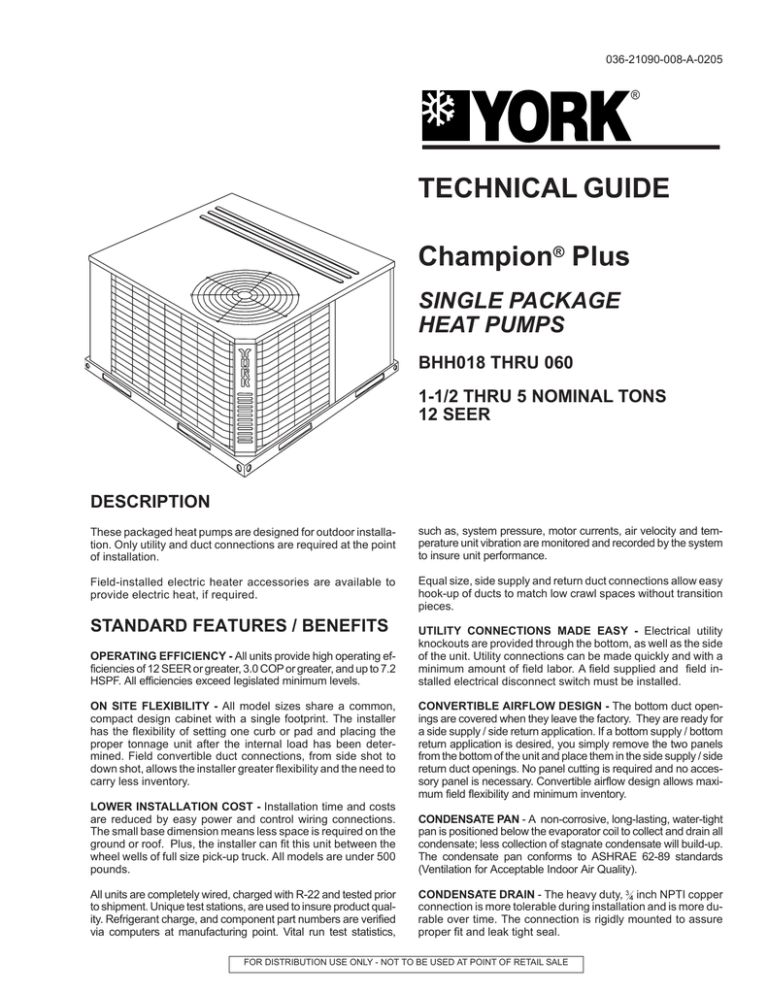

TECHNICAL GUIDE
Champion® Plus
SINGLE PACKAGE
HEAT PUMPS
BHH018 THRU 060
1-1/2 THRU 5 NOMINAL TONS
12 SEER
DESCRIPTION
These packaged heat pumps are designed for outdoor installation. Only utility and duct connections are required at the point
of installation.
such as, system pressure, motor currents, air velocity and temperature unit vibration are monitored and recorded by the system
to insure unit performance.
Field-installed electric heater accessories are available to
provide electric heat, if required.
Equal size, side supply and return duct connections allow easy
hook-up of ducts to match low crawl spaces without transition
pieces.
STANDARD FEATURES / BENEFITS
OPERATING EFFICIENCY - All units provide high operating efficiencies of 12 SEER or greater, 3.0 COP or greater, and up to 7.2
HSPF. All efficiencies exceed legislated minimum levels.
ON SITE FLEXIBILITY - All model sizes share a common,
compact design cabinet with a single footprint. The installer
has the flexibility of setting one curb or pad and placing the
proper tonnage unit after the internal load has been determined. Field convertible duct connections, from side shot to
down shot, allows the installer greater flexibility and the need to
carry less inventory.
UTILITY CONNECTIONS MADE EASY - Electrical utility
knockouts are provided through the bottom, as well as the side
of the unit. Utility connections can be made quickly and with a
minimum amount of field labor. A field supplied and field installed electrical disconnect switch must be installed.
CONVERTIBLE AIRFLOW DESIGN - The bottom duct openings are covered when they leave the factory. They are ready for
a side supply / side return application. If a bottom supply / bottom
return application is desired, you simply remove the two panels
from the bottom of the unit and place them in the side supply / side
return duct openings. No panel cutting is required and no accessory panel is necessary. Convertible airflow design allows maximum field flexibility and minimum inventory.
LOWER INSTALLATION COST - Installation time and costs
are reduced by easy power and control wiring connections.
The small base dimension means less space is required on the
ground or roof. Plus, the installer can fit this unit between the
wheel wells of full size pick-up truck. All models are under 500
pounds.
CONDENSATE PAN - A non-corrosive, long-lasting, water-tight
pan is positioned below the evaporator coil to collect and drain all
condensate; less collection of stagnate condensate will build-up.
The condensate pan conforms to ASHRAE 62-89 standards
(Ventilation for Acceptable Indoor Air Quality).
All units are completely wired, charged with R-22 and tested prior
to shipment. Unique test stations, are used to insure product quality. Refrigerant charge, and component part numbers are verified
via computers at manufacturing point. Vital run test statistics,
CONDENSATE DRAIN - The heavy duty, ! " inch NPTI copper
connection is more tolerable during installation and is more durable over time. The connection is rigidly mounted to assure
proper fit and leak tight seal.
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
036-21090-008-A-0205
STANDARD FEATURES and BENEFITS - continued
DURABLE FINISH - With a heavy duty cabinet made of
powder-painted, galvanized steel, the neutral color blends into
surrounding areas. The powered paint provides a better paint
to steel bond, which resists corrosion and rust creep. The special primer formulas and glossy earth tone finish insure less
fading when exposed to sunlight and offers a more attractive on
site appearance. This paint finish exceeds ASTM-B117 standards for 1000 hour salt spray rating, the highest in the industry.
FULL PERIMETER BASE RAILS - The easily removable base
rails provide a solid foundation for the entire unit and protects
the unit during shipment. The rails provide fork lift access from
all sides. Rigging holes are, provided also so that an overhead
crane can be used to place the unit on a roof. On applications
when the unit is placed on a pad, the base will keep the unit off
the pad to deter corrosion. On applications where height is limited, the 2-3/8 inch high base rails may be removed on location.
MORE ATTRACTIVE APPEARANCE - A single piece “Water
Shed” top cover containing a top discharge condenser fan arrangement requires less square footage on installation and
provides a wider variety of installations. The one piece design
adds greater water integrity. Rounded corners with water drip
edges add to the attractive appearance. The cabinet panels
have a non-fibrous insulation that reduces insulation fibers into
conditioned area.
TOP DISCHARGE - The top discharge condenser fan does not
disrupt neighboring areas and does not dry-out vegetation surrounding the unit. The warm air from the top mounted fan is
blown up away from the structure and any landscaping. This allows compact location on multi-unit applications.
OUTDOOR COIL GRILLE - A multi-piece totally enclosed, rigidly mounted outdoor coil grille provides protection from objects and personnel after installation. It also provides
protection during transit and installation.
LOW OPERATING SOUND LEVEL - The upward air flow carries the normal operating noise up and away from the living
area. The rigid top panel effectively isolates any motor sound.
Isolator mounted compressor and the rippled fins of the condenser coil, muffle the normal fan motor and compressor operating sounds. The unique formed base pan also aids in sound
alterations with it's “Super-Structure” design. This design strategically places embossments in the pan for optimum strength
and rigidity.
FAN SYSTEM - All models operate over a wide range of design
conditions with either a 3-speed direct-drive fan motor or an
(E.C.M.) electronically commutated motor that automatically adjusts the blower speed to meet a wide range of static requirements. These units easily match all types of applications and
provides greater on site flexibility to match comfort requirements.
SIMPLE CONTROL CIRCUIT - A low voltage printed circuit
board contains a low voltage terminal strip. The electrical control box is not located in the compressor compartment. All wiring internal to the unit is color/number coded.
CONTROLS - Reliable time-temperature defrost control provides defrost, including field selectable time periods between
cycles (30, 60 and 90 minutes); factory set at 30 minutes. Defrost control also provides an “X” terminal to provide a 24 volt
signal for room thermostat “LED” indication of unit lockout,
plus, built in 5 minute anti-short cycle protection.
2
PROTECTED COMPRESSOR - The compressor is internally
protected against high pressure and temperature. This is accomplished by the simultaneous operation of high pressure relief valve and a temperature sensor which protects the
compressor, if undesirable operating conditions occur.
EXCLUSIVE COIL DESIGN - Grooved copper tubes and enhanced aluminum fin construction improves heat transfer for
maximum efficiency and durability.
LOW MAINTENANCE - Long life, permanently lubricated condenser and evaporator fan motor bearings, need no annual
maintenance. Blower assembly can be easily cleaned by the
unique “Slip Track” slide-out blower assembly.
SECURED SERVICE ACCESS PORTS - Protected, externally
mounted, re-usable service access ports are provided on both
the high and low lines for ease of evacuating and charging the
system.
EASY SERVICE ACCESS - A large, single hinged panel covers the electrical controls and makes servicing easy. The
blower compartment has an additional large panel with a builtin handle tab. Removing this panel will allow the blower assembly to slide-out for easy removal for maintenance and ease of
trouble shooting.
REPLACEMENT PARTS - The installer has no need to carry
an inventory of unique parts or needs special training to replace any of the components parts for these units. All are easily
obtained from Source 1 or other major part houses.
FIELD-INSTALLED ACCESSORIES
ECONOMIZER DOWN DISCHARGE / SUPPLY KIT - Modulating integrated economizer provides simultaneous operation
between the mechanical cooling and economizer operation.
Independent blade design insures proper control and less than
1% leak rate. Includes hood and mesh bird screen filter integrated into the hood, dry bulb sensor and relief damper. Separate field accessories of single enthalpy and dual enthalpy are
also available.
SINGLE ENTHALPY SENSOR - Sensor replaces dry bulb
sensor standard in economizer kit. Provides improved economizer operation by sensing the dry bulb temperature from outdoors, plus the enthalpy content of the outdoor air.
DUAL ENTHALPY SENSOR - Additional sensor to single enthalpy sensor. Sensor selects both the return air temperature
dry bulb and humidity, in conjunction with the single enthalpy,
to determine the most economical mix. Single Enthalpy sensor also required.
UPGRADE PRESSURE PACKAGE - Contains screw in type
High pressure, Low Pressure/Loss of Charge switch, freeze
protection switch and lockout relay. Switches are placed onto
existing Schrader ports located in the unit by furnished adapters. When abnormal conditions are sensed through the pressure switches, the unit will lock out, preventing any further
operation until reset or problem is corrected. Package agency
approved.
HAIL GUARD KIT - Kit contains protected grilles made of expanded aluminum grilles with full perimeter 1-1/2 inch frame.
Sloped hoods are also included to assure maximum protection.
Unitary Products Group
036-21090-008-A-0205
FILTER / FRAME KIT (Single Phase only) - Kit contains the
necessary hardware to field install return air filters into the base
unit. Pre-cut filter racks and appropriate cleanable standard
size filters are shipped in one kit (1" filter is supplied). This kit is
available for single phase horizontal or vertical duct application
only. Standard in all 3 Phase models.
MOTORIZED FRESH AIR DAMPER - Designed for duct
mounted side return and unit mounted down shot return applications. Damper capable of providing 0% thru 50% of outdoor
air (field supplied). Closes on power loss, includes hood and
screen assembly.
RECTANGLE TO ROUND ADAPTERS - Kit includes one supply
and one return air rectangle to round duct adapter. Adapters are
preformed and designed to fit over current duct openings on the
base unit. Transition is from 15" square to 14" round.
ROOF CURBS - NRCA approved curbs provide proper fit to
base unit for rooftop installations. Curbs are designed to be assembled through hinge pins in each corner. Kit also provides
seal strip to assure a water tight seal. Eight and 14 inch high
roof curbs are available.
MANUAL OUTDOOR DAMPER - Provides 0% thru 50% outdoor air capability (field adjustable). Designed for duct
mounted side return and unit mounted down shot applications.
Includes hood and screen assembly.
WALL THERMOSTAT - The units are designed to operate with
24-volt electronic and electro-mechanical thermostats. All
units can operate with single stage heat / single stage cool thermostats - with or without the economizer.
TRANSFORMER KIT (Single Phase only) - Kit provides necessary hardware to provide single phase models from factory
furnished 40 VA transformer capability to 75 VA transformer capability.
ELECTRIC HEATERS - Each heater package provides easy
installation of electric heat strips. Slide in design with plug in
harness and agency approved. Heaters are available from 5.0
KW sizes and are designed for single point and dual connection.
TABLE OF CONTENTS
Description.............................................................................1
Features and Benefits .....................................................1 & 2
Field-installed Accessories..............................................2 & 3
Product Nomenclature ...........................................................3
Ratings...................................................................................4
Physical Data.........................................................................4
Cooling Capacities - BHH018 ................................................5
Cooling Capacities - BHH024 ................................................6
Cooling Capacities - BHH030 ................................................7
Cooling Capacities - BHH036 ................................................8
Cooling Capacities - BHH042 ................................................9
Cooling Capacities - BHH048 ..............................................10
Cooling Capacities - BHH060 ..............................................11
Heating Capacities - BHH018 & 024 ...................................12
Heating Capacities - BHH030 & 036 ...................................13
Heating Capacities - BHH042 & 048 ...................................14
Heating Capacities - BHH060..............................................15
Supply Air Blower Performance (230/460/575 volt).............15
Supply Air Blower Performance (208 volt)...........................16
Additional Static Pressure Resistance.................................16
Field Wiring Diagram ...........................................................17
Electrical Data (basic unit) ...................................................17
Electrical Data (cooling / electric heat) ................................18
Application Data...................................................................20
Center of Gravity and Weights.............................................20
Clearances...........................................................................20
Unit Dimensions...................................................................21
Typical Applications .............................................................22
Roof Curb Dimensions.........................................................23
Roof Curb Application..........................................................23
Typical Wiring Diagram (208/230-1-60) ...............................24
Typical Wiring Diagram (208/230-3-60) ...............................25
Typical Wiring Diagram (460-3-60 & 575-3-60) ...................26
Typical Wiring Diagram (BHH060 Models-208/230-1-60)....27
Typical Wiring Diagram (BHH060 Models-208/230-3-60)....28
Typical Wiring Diagram (BHH060 Models-460-3-60)...........29
Typical Wiring Diagram Legend...........................................30
Typical Wiring Diagram Notes .............................................30
Mechanical Specifications ...................................................31
PRODUCT NOMENCLATURE
B
1
H H
0
2
4
A
0
6
PRODUCT CATEGORY
VOLTAGE CODE
B = Single Package Heat Pumps
(Air Cooled)
06 = 208/230-1-60
25 = 208/230-3-60
46 = 460-3-60
58 = 575-3-60
PRODUCT GENERATION
1 = NEW or Current Design
PRODUCT IDENTIFIER
HH = Heat Pump (12 SEER)
Unitary Products Group
NOMINAL COOLING
CAPACITY (MBH)
018 = 18,000 BTUH 042 = 42,000 BTUH
024 = 24,000 BTUH 048 = 48,000 BTUH
030 = 30,000 BTUH 060 = 60,000 BTUH
036 = 36,000 BTUH
FACTORY
INSTALLED ELECTRIC HEAT
A = No Electric Heat Installed
3
036-21090-008-A-0205
DIRECT DRIVE
CONDENSER
FAN MOTOR
HIGHLY EFFICIENT ENHANCED
COPPER TUBE/ALUMINUM FIN
INDOOR COIL
BACK AND BOTTOM
RETURN AIR
AND SUPPLY AIR
DUCT OPENING
HIGHLY EFFICIENT
ENHANCED COPPER
TUBE/ALUMINUM FIN
OUTDOOR COIL
DECORATIVE
PROTECTIVE
COIL GUARD
HIGH VOLTAGE
TERMINAL BLOCK
LOW VOLTAGE
TERMINAL BLOCK
LONG LASTING
POWDER PAINT
FINISH EARTH
TONE COLOR
3-SPEED DIRECT DRIVE
BLOWER MOTOR WITH
SLIDE-OUT BLOWER ASSEMBLY
HIGH EFFICIENCY
COMPRESSOR
RIGIDLY
MOUNTED
HEAVY GAUGE
REMOVABLE
BASE RAILS
RATINGS
MODEL
BHH
018
024
030
036
042
048
060
060
(575 v)
COOLING CAPACITY1
80 / 67-95°F
MBH
17.2
23.6
31.2
35.0
41.0
46.5
59.0
SEER
12.00
12.00
12.00
12.00
12.00
12.00
12.00
EER
N/A
N/A
10.35
10.10
10.20
10.65
10.20
58.0
11.00
9.50
7.00
7.00
7.20
7.20
7.00
6.90
7.20
79
79
77
77
83
82
83
NET HEATING CAPACITY
@ 47°F
@ 17°F
MBH
COP
MBH
COP
17.2
3.20
8.8
2.00
23.6
3.28
12.6
2.04
28.0
3.20
16.0
2.00
34.2
3.40
18.2
2.02
39.5
3.10
23.0
2.00
45.5
3.16
25.6
2.00
58.0
3.20
34.0
2.00
7.00
83
58.0
SOUND
HSPF1 RATING2
(dbels)
3.00
34.0
2.00
AVAILABLE ELECTRIC HEAT
NOMINAL CAPACITY KW
SINGLE PHASE
THREE PHASE
5.0, 7.5
N/A
5.0. 7.5. 10.0
N/A
5.0, 7.5, 10.0, 15.0
10.0, 15.0
5.0, 7.5, 10.0, 15.0
10.0, 15.0
10.0, 15.0
10.0, 15.0
10.0, 15.0, 20.0, 25.0 10.0, 15.0, 20.0, 25.0
10.0, 15.0, 20.0, 25.0 10.0, 15.0, 20.0, 25.0
10.0, 15.0, 20.0, 25.0 10.0, 15.0, 20.0, 25.0
SEER = Seasonal Energy Efficiency Ratio - the total cooling output in BTU's during a normal annual usage period for cooling divided by the total electric power input in watt-hours during the same period.
COP = Coefficient of Performance - the total heating capacity provided by the refrigeration system, including circulating fan heat but excluding supplementary resistance (BTU's per hour) divided by the total electric input (watts) x 3.412.
1
Certified in accordance with the Unitary Small Equipment certification program, which is based on ARI Standard 210/240.
2 Rated
in accordance witht ARI Standard 270.
PHYSICAL DATA
018
9X6
024
10 X 8
030
10 X 8
BHH
036
10 x 8
042
11 x 10
048
11 X 10
060
11 X 10
!
!
!
1
ROWS DEEP
2
2
3
3
3
3
3
FINS PER INCH
15
15
13
15
16
16
16
MODELS
INDOOR
BLOWER
INDOOR
COIL
CENTRIFUGAL BLOWER (Dia. x Wd. in.)
FAN MOTOR HP (Three Speed)
"
"
"
FACE AREA (Sq. Ft.)
4.38
4.38
4.38
4.38
5.63
5.63
5.63
PROPELLER DIA. (in.)
22
22
22
22
22
22
22
FAN MOTOR HP
"
"
"
"
"
"
"
NOM. CFM TOTAL
1,800
1,800
1,800
2,400
2,400
3,000
3,000
ROWS DEEP
1
1
1
2
2
2
2
OUTDOOR
COIL
FINS PER INCH
20
20
20
20
20
20
20
FACE AREA (Sq. Ft.)
11.7
11.7
11.7
11.7
16.4
16.4
16.4
CHARGE
REFRIGERANT 22 (lbs./oz.)
5/6
5/5
6/5
8 / 12
11 / 8
12 / 0
9/0
FILTER
FACE AREA (Sq. Ft. / Qty. / Size)
COMPRESSOR
Hermetic Type, Qty. = 1
Scroll
Scroll
OUTDOOR
FAN
4
4.28 / 2 / 14 x 22
Reciprocating Reciprocating
Scroll
Scroll
Scroll
Unitary Products Group
036-21090-008-A-0205
COOLING CAPACITIES - 1-1/2 TON (BHH018)
Temperature of Air on
Outdoor Coil
72
115 °F
125 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
105 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
95 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
85 °F
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
450 CFM
WB°F
67 62
57
72
525 CFM
WB°F
67 62
57
Air On Indoor Coil
600 CFM
WB°F
72 67 62 57
72
675 CFM
WB°F
67 62
57
72
750 CFM
WB°F
67 62
57
21.2 19.2 17.0 17.0 21.2 19.2 17.0 17.0 21.2 19.3 17.0 17.0 21.9 19.9 17.6 17.6 22.6 20.5 18.1 18.1
1.50 1.50 1.48 1.48 1.52 1.52 1.50 1.50 1.54 1.54 1.53 1.52 1.56 1.56 1.54 1.54 1.58 1.58 1.56 1.56
11.8
10.5
9.3
8.0
6.7
—
—
14.5
13.2
12.0
10.7
9.4
8.1
6.8
17.0
15.9
14.6
13.3
12.0
10.8
9.5
17.0
16.0
14.7
13.4
12.1
10.9
9.6
13.0
11.5
10.0
8.5
7.0
—
—
15.9
14.4
12.9
11.4
9.9
8.3
6.8
17.0
16.5
15.8
14.2
12.7
11.2
9.7
17.0
16.5
15.9
14.3
12.8
11.3
9.8
14.2
12.5
10.7
9.0
7.2
—
—
17.3
15.6
13.8
12.1
10.3
8.6
6.8
17.0
17.0
16.9
15.2
13.4
11.7
9.9
17.0
17.0
17.0
15.3
13.5
11.8
10.0
15.8
13.8
11.8
9.8
7.9
—
—
18.9
17.3
15.3
13.3
11.3
9.3
7.3
17.6
17.6
17.5
15.5
13.5
11.5
9.6
17.6
17.6
17.6
15.6
13.6
11.6
9.6
17.4
15.2
13.0
10.7
8.5
—
—
20.5
19.0
16.7
14.5
12.3
10.0
7.8
18.1
18.1
18.1
15.9
13.7
11.4
9.2
18.1
18.1
18.1
15.9
13.7
11.4
9.2
20.1 17.3 16.0 15.9 19.9 17.2 15.8 15.8 19.8 17.0 15.7 15.6 20.8 17.9 16.5 16.4 21.8 18.8 17.3 17.2
1.62 1.60 1.59 1.59 1.64 1.62 1.61 1.61 1.66 1.64 1.63 1.64 1.68 1.66 1.65 1.66 1.70 1.68 1.67 1.67
10.9
9.7
8.4
7.1
5.8
—
—
13.5
12.2
10.9
9.7
8.4
7.1
5.8
15.5
14.2
12.9
11.6
10.3
9.1
7.8
15.4
14.1
12.8
11.6
10.3
9.0
7.7
12.3
10.8
9.3
7.8
6.2
—
—
15.2
13.6
12.1
10.6
9.1
7.6
6.1
15.6
14.9
14.3
12.8
11.3
9.8
8.2
15.5
14.9
14.2
12.7
11.2
9.7
8.2
13.7
11.9
10.2
8.4
6.7
—
—
16.8
15.1
13.3
11.6
9.8
8.1
6.3
15.7
15.7
15.7
14.0
12.2
10.5
8.7
15.6
15.6
15.6
13.9
12.1
10.4
8.6
15.1
13.1
11.1
9.1
7.1
—
—
17.8
16.5
14.5
12.5
10.5
8.5
6.5
16.5
16.5
16.5
14.5
12.5
10.5
8.5
16.4
16.4
16.4
14.4
12.4
10.5
8.5
16.4
14.2
11.9
9.7
7.5
—
—
18.8
17.8
15.6
13.4
11.1
8.9
6.7
17.3
17.3
17.3
15.1
12.9
10.6
8.4
17.2
17.2
17.2
15.0
12.8
10.5
8.3
17.9 15.4 14.4 14.1 17.9 15.4 14.4 14.1 17.9 15.4 14.5 14.2 18.7 16.1 15.1 14.8 19.5 16.7 15.7 15.4
1.73 1.71 1.70 1.70 1.76 1.73 1.72 1.72 1.78 1.75 1.74 1.74 1.80 1.78 1.77 1.76 1.82 1.80 1.79 1.78
10.2
8.9
7.6
6.3
5.1
—
—
12.9
11.6
10.3
9.0
7.8
6.5
5.2
14.1
13.0
11.7
10.4
9.1
7.8
6.6
13.9
12.7
11.5
10.2
8.9
7.6
6.3
11.6
10.0
8.5
7.0
5.5
—
—
14.1
13.0
11.5
10.0
8.5
7.0
5.5
14.3
13.7
13.1
11.6
10.0
8.5
7.0
14.0
13.5
12.8
11.3
9.8
8.3
6.7
12.9
11.2
9.4
7.7
5.9
—
—
15.3
14.4
12.8
11.0
9.3
7.5
5.8
14.5
14.5
14.5
12.7
11.0
9.2
7.5
14.2
14.2
14.2
12.4
10.7
8.9
7.2
14.1
12.1
10.2
8.2
6.2
—
—
16.0
15.3
13.7
11.8
9.8
7.8
5.8
15.1
15.1
15.1
13.1
11.1
9.1
7.1
14.8
14.8
14.8
12.8
10.8
8.8
6.8
15.3
13.1
10.9
8.6
6.4
—
—
16.7
16.3
14.7
12.5
10.2
8.0
5.8
15.7
15.7
15.7
13.5
11.2
9.0
6.8
15.4
15.4
15.4
13.2
10.9
8.7
6.4
15.6 13.4 12.8 12.3 15.8 13.6 13.0 12.5 16.1 13.8 13.2 12.7 16.6 14.2 13.6 13.1 17.1 14.7 14.1 13.5
1.85 1.83 1.82 1.81 1.87 1.85 1.84 1.82 1.89 1.87 1.86 1.84 1.92 1.89 1.88 1.87 1.94 1.92 1.91 1.89
9.4 12.3 12.8 12.3 10.8
8.2 11.0 11.7 11.4 9.3
6.9 9.7 10.5 10.1 7.8
5.6 8.4 9.2 8.8 6.3
4.3 7.1 7.9 7.5 4.8
— 5.8 6.6 6.2 —
— 4.6 5.3 4.9 —
13.0
12.4
11.0
9.5
7.9
6.4
4.9
13.0
12.5
11.8
10.3
8.8
7.3
5.8
12.5
12.0
11.4
9.9
8.4
6.9
5.3
12.2
10.4
8.7
6.9
5.2
—
—
13.8
13.8
12.3
10.5
8.8
7.0
5.3
13.2
13.2
13.2
11.5
9.7
8.0
6.2
12.7
12.7
12.7
11.0
9.2
7.5
5.7
13.2
11.2
9.2
7.3
5.3
—
—
14.2
14.2
13.0
11.0
9.1
7.1
5.1
13.6
13.6
13.6
11.6
9.7
7.7
5.7
13.1
13.1
13.1
11.1
9.1
7.2
5.2
14.3
12.0
9.8
7.6
5.3
—
—
14.7
14.7
13.8
11.6
9.3
7.1
4.9
14.1
14.1
14.1
11.8
9.6
7.3
5.1
13.5
13.5
13.5
11.3
9.1
6.8
4.6
13.3 11.4 11.2 10.6 13.8 11.8 11.6 10.9 14.3 12.2 12.0 11.3 14.5 12.4 12.2 11.5 14.7 12.6 12.4 11.7
2.0
1.9
1.9
1.9
2.0
2.0
2.0
1.9
2.0
2.0
2.0
1.9
2.0
2.0
2.0
2.0
2.1
2.0
2.0
2.0
8.7 11.4 11.2 10.6
7.4 10.4 10.5 10.0
6.1 9.1 9.2 8.7
4.8 7.8 8.0 7.4
3.6 6.5 6.7 6.1
— 5.2 5.4 4.8
— 3.9 4.1 3.6
10.1
8.6
7.0
5.5
4.0
—
—
11.8
11.8
10.4
8.9
7.4
5.9
4.3
11.6
11.2
10.6
9.1
7.6
6.1
4.5
10.9
10.6
10.0
8.5
7.0
5.4
3.9
11.4
9.7
7.9
6.2
4.4
—
—
12.2
13.2
11.7
10.0
8.2
6.5
4.7
12.0
12.0
12.0
10.2
8.5
6.7
5.0
11.3
11.3
11.3
9.5
7.8
6.0
4.3
12.3
10.3
8.3
6.3
4.4
—
—
12.4
13.1
12.3
10.3
8.3
6.3
4.4
12.2
12.2
12.2
10.2
8.2
6.2
4.2
11.5
11.5
11.5
9.5
7.5
5.5
3.5
13.2
11.0
8.7
6.5
4.3
—
—
12.6
13.1
12.9
10.7
8.5
6.2
4.0
12.4
12.4
12.4
10.2
7.9
5.7
3.5
11.7
11.7
11.7
9.4
7.2
5.0
2.7
1 = These capacities are net capacities - indoor fan heat deducted.
ALL SENSIBLE CAPACITY
Unitary Products Group
5
036-21090-008-A-0205
COOLING CAPACITIES - 2 TON (BHH024)
Temperature of Air on
Outdoor Coil
72
115 °F
125 °F
1
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
105 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
95 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
85 °F
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
600 CFM
WB°F
67 62
57
72
700 CFM
WB°F
67 62
57
Air On Indoor Coil
800 CFM
WB°F
72 67 62 57
72
900 CFM
WB°F
67 62
57
1,000 CFM
WB°F
72 67 62 57
25.2 23.3 21.1 20.7 26.3 24.3 22.0 21.6 27.4 25.3 23.0 22.5 27.2 25.2 22.9 22.4 27.1 25.1 22.7 22.3
2.05 20.3 2.01 2.01 2.07 2.05 2.03 2.03 2.09 2.07 2.05 2.05 2.21 2.19 2.17 2.17 2.33 2.31 2.29 2.29
15.4
13.6
11.9
10.2
8.5
—
—
19.1
17.3
15.6
13.9
12.2
10.5
8.8
21.1
21.1
19.6
17.9
16.2
14.5
12.8
20.7
20.7
20.0
18.3
16.6
14.9
13.2
16.7
14.7
12.7
10.7
8.6
—
—
20.7
18.6
16.6
14.6
12.6
10.6
8.5
22.0
22.0
20.9
18.9
16.8
14.8
12.8
21.6
21.6
21.3
19.3
17.2
15.2
13.2
18.1
15.8
13.4
11.1
8.8
—
—
22.3
19.9
17.6
15.3
12.9
10.6
8.3
23.0
23.0
22.1
19.8
17.5
15.1
12.8
22.5
22.5
22.5
20.2
17.9
15.5
13.2
19.3
16.6
14.0
11.3
8.7
—
—
23.6
21.0
18.3
15.7
13.0
10.4
7.7
22.9
22.9
22.4
19.8
17.1
14.5
11.8
22.4
22.4
22.4
19.8
17.1
14.5
11.8
20.5
17.5
14.5
11.6
8.6
—
—
25.0
22.0
19.1
16.1
13.1
10.1
7.1
22.7
22.7
22.7
19.8
16.8
13.8
10.8
22.3
22.3
22.3
19.4
16.4
13.4
10.4
24.6 21.7 19.5 19.4 25.5 22.5 20.2 20.1 26.4 23.3 20.9 20.9 26.5 23.3 20.9 20.9 26.5 23.4 21.0 20.9
2.20 2.17 2.14 2.14 2.23 2.19 2.17 2.17 2.25 2.21 2.19 2.19 2.37 2.34 2.31 2.31 2.50 2.46 2.44 2.44
15.2
13.5
11.8
10.1
8.4
—
—
18.3
16.6
14.9
13.2
11.4
9.7
8.0
19.5
19.5
18.0
16.3
14.6
12.9
11.2
19.4
19.4
18.0
16.3
14.6
12.8
11.1
16.8
14.8
12.7
10.7
8.7
—
—
20.1
18.1
16.1
14.0
12.0
10.0
8.0
20.2
20.2
19.5
17.4
15.4
13.4
11.4
20.1
20.1
19.4
17.4
15.4
13.4
11.3
18.3
16.0
13.7
11.3
9.0
—
—
21.9
19.6
17.3
14.9
12.6
10.3
7.9
20.9
20.9
20.9
18.6
16.2
13.9
11.6
20.9
20.9
20.9
18.5
16.2
13.9
11.5
19.6
16.9
14.3
11.6
9.0
—
—
22.6
20.7
18.0
15.3
12.7
10.0
7.4
20.9
20.9
20.9
18.3
15.6
13.0
10.3
20.9
20.9
20.9
18.2
15.6
12.9
10.3
20.8
17.9
14.9
11.9
8.9
—
—
23.4
21.7
18.8
15.8
12.8
9.8
6.8
21.0
21.0
21.0
18.0
15.0
12.0
9.1
20.9
20.9
20.9
18.0
15.0
12.0
9.0
22.3 19.4 17.9 17.9 23.2 20.2 18.6 18.6 24.0 20.9 19.3 19.2 24.0 20.9 19.2 19.2 24.0 20.9 19.2 19.2
2.36 2.31 2.28 2.28 2.38 2.33 2.31 2.30 2.40 2.35 2.33 2.33 2.53 2.48 2.45 2.45 2.66 2.60 2.58 2.58
14.2
12.5
10.8
9.1
7.4
—
—
17.4
15.7
14.0
12.3
10.5
8.8
7.1
17.9
17.9
16.5
14.8
13.1
11.3
9.6
17.9
17.9
16.5
14.7
13.0
11.3
9.6
15.8
13.7
11.7
9.7
7.7
—
—
18.8
17.2
15.1
13.1
11.1
9.1
7.1
18.6
18.6
17.9
15.8
13.8
11.8
9.8
18.6
18.6
17.8
15.8
13.8
11.8
9.8
17.3
15.0
12.6
10.3
8.0
—
—
20.2
18.7
16.3
14.0
11.7
9.3
7.0
19.3
19.3
19.3
16.9
14.6
12.3
9.9
19.2
19.2
19.2
16.9
14.6
12.2
9.9
18.5
15.9
13.2
10.5
7.9
—
—
20.6
19.4
17.1
14.4
11.8
9.1
6.5
19.2
19.2
19.2
16.6
13.9
11.3
8.6
19.2
19.2
19.2
16.6
13.9
11.2
8.6
19.8
16.8
13.8
10.8
7.8
—
—
20.9
20.1
17.8
14.9
11.9
8.9
5.9
19.2
19.2
19.2
16.2
13.3
10.3
7.3
19.2
19.2
19.2
16.2
13.2
10.3
7.3
20.0 17.2 16.3 16.3 20.8 17.9 17.0 17.0 21.6 18.5 17.6 17.6 21.5 18.5 17.5 17.5 21.5 18.4 17.5 17.5
2.51 2.44 2.43 2.42 2.53 2.47 2.45 2.44 2.55 2.49 2.47 2.46 2.69 2.62 2.60 2.59 2.82 2.74 2.72 2.72
13.2
11.5
9.8
8.1
6.4
—
—
16.5
14.8
13.1
11.4
9.6
7.9
6.2
16.3
16.3
14.9
13.2
11.5
9.8
8.1
16.3
16.3
14.9
13.2
11.5
9.8
8.1
14.7
12.7
10.7
8.7
6.6
—
—
17.5
16.3
14.2
12.2
10.2
8.2
6.1
17.0
17.0
16.3
14.2
12.2
10.2
8.2
17.0
17.0
16.3
14.2
12.2
10.2
8.2
16.2
13.9
11.6
9.2
6.9
—
—
18.5
17.7
15.4
13.1
10.7
8.4
6.1
17.6
17.6
17.6
15.3
12.9
10.6
8.3
17.6
17.6
17.6
15.3
12.9
10.6
8.3
17.4
14.8
12.1
9.5
6.8
—
—
18.5
18.1
16.2
13.5
10.9
8.2
5.5
17.5
17.5
17.5
14.9
12.2
9.6
6.9
17.5
17.5
17.5
14.9
12.2
9.6
6.9
18.7
15.7
12.7
9.7
6.8
—
—
18.4
18.4
16.9
14.0
11.0
8.0
5.0
17.5
17.5
17.5
14.5
11.5
8.5
5.6
17.5
17.5
17.5
14.5
11.5
8.5
5.6
17.8 15.0 14.8 14.8 18.5 15.6 15.4 15.4 19.2 16.2 15.9 16.0 19.1 16.1 15.8 15.9 18.9 16.0 15.7 15.8
2.67 2.58 2.57 2.56 2.69 2.60 2.59 2.58 2.71 2.62 2.61 2.60 2.84 2.75 2.74 2.73 2.98 2.88 2.87 2.86
12.2
10.5
8.8
7.1
5.4
—
—
15.0
13.9
12.2
10.4
8.7
7.0
5.3
14.8
14.8
13.4
11.7
10.0
8.3
6.6
14.8
14.8
13.4
11.7
10.0
8.3
6.6
13.7
11.7
9.7
7.6
5.6
—
—
15.6
15.3
13.3
11.3
9.3
7.2
5.2
15.4
15.4
14.7
12.6
10.6
8.6
6.6
15.4
15.4
14.7
12.7
10.6
8.6
6.6
15.2
12.8
10.5
8.2
5.8
—
—
16.2
16.2
14.5
12.1
9.8
7.5
5.1
15.9
15.9
15.9
13.6
11.3
8.9
6.6
16.0
16.0
16.0
13.6
11.3
9.0
6.6
16.4
13.7
11.1
8.4
5.8
—
—
16.1
16.1
15.2
12.6
9.9
7.3
4.6
15.8
15.8
15.8
13.2
10.5
7.9
5.2
15.9
15.9
15.9
13.2
10.5
7.9
5.2
17.6
14.6
11.6
8.7
5.7
—
—
16.0
16.8
16.0
13.0
10.1
7.1
4.1
15.7
15.7
15.7
12.8
9.8
6.8
3.8
15.8
15.8
15.8
12.8
9.8
6.8
3.8
= These capacities are net capacities - indoor fan heat deducted.
ALL SENSIBLE CAPACITY
6
Unitary Products Group
036-21090-008-A-0205
COOLING CAPACITIES - 2-1/2 TON (BHH030)
Temperature of Air on
Outdoor Coil
72
115 °F
125 °F
1
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
105 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
95 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
85 °F
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
750 CFM
WB°F
67 62
57
8755 CFM
WB°F
72 67 62 57
Air On Indoor Coil
1,000 CFM
WB°F
72 67 62 57
1,125 CFM
WB°F
72 67 62 57
1,250 CFM
WB°F
72 67 62 57
32.7 29.6 26.6 26.4 33.4 30.3 27.1 26.9 34.1 30.9 27.7 27.5 34.5 31.3 28.1 27.9 35.0 31.7 28.4 28.2
2.63 2.58 2.53 2.55 2.71 2.66 2.61 2.63 2.79 2.74 2.68 2.71 2.89 2.84 2.78 2.81 3.00 2.94 2.89 2.91
19.7
17.6
15.4
13.3
11.2
—
—
24.1
21.9
19.8
17.7
15.5
13.4
11.3
26.6
26.0
23.9
21.8
19.6
17.5
15.3
26.4
26.2
24.1
21.9
19.8
17.7
15.5
21.6
19.1
16.5
14.0
11.5
—
—
26.3
23.7
21.2
18.7
16.2
13.6
11.1
27.1
26.9
25.6
23.1
20.5
18.0
15.5
26.9
26.9
25.8
23.3
20.7
18.2
15.7
23.5
20.6
17.6
14.7
11.8
—
—
28.5
25.5
22.6
19.7
16.8
13.9
11.0
27.7
27.7
27.3
24.4
21.5
18.5
15.6
27.5
27.5
27.5
24.6
21.7
18.8
15.8
25.5
22.2
18.8
15.5
12.2
—
—
30.1
27.5
24.2
20.9
17.5
14.2
10.9
28.1
28.1
27.9
24.5
21.2
17.9
14.6
27.9
27.9
27.9
24.5
21.2
17.9
14.6
27.5
23.8
20.1
16.3
12.6
—
—
31.7
29.5
25.7
22.0
18.3
14.6
10.8
28.4
28.4
28.4
24.7
21.0
17.2
13.5
28.2
28.2
28.2
24.5
20.8
17.0
13.3
31.2 27.8 24.7 24.7 31.8 28.3 25.2 25.2 32.4 28.8 25.6 25.6 32.8 29.2 26.0 26.0 33.3 29.6 26.3 26.3
2.83 2.78 2.76 2.74 2.93 2.87 2.85 2.83 3.02 2.97 2.94 2.92 3.15 3.09 3.06 3.04 3.27 3.21 3.19 3.16
18.7
16.5
14.4
12.2
10.1
—
—
23.3
21.1
19.0
16.9
14.7
12.6
10.4
24.7
24.5
22.4
20.2
18.1
16.0
13.8
24.7
24.5
22.4
20.2
18.1
16.0
13.8
20.5
18.0
15.4
12.9
10.4
—
—
25.4
22.9
20.4
17.8
15.3
12.8
10.3
25.2
25.1
24.0
21.5
18.9
16.4
13.9
25.2
25.1
24.0
21.5
18.9
16.4
13.9
22.3
19.4
16.5
13.6
10.6
—
—
27.6
24.7
21.7
18.8
15.9
13.0
10.1
25.6
25.6
25.6
22.7
19.8
16.9
13.9
25.6
25.6
25.6
22.7
19.8
16.9
13.9
24.3
21.0
17.6
14.3
11.0
—
—
28.6
26.6
23.3
20.0
16.6
13.3
10.0
26.0
26.0
26.0
22.7
19.3
16.0
12.7
26.0
26.0
26.0
22.7
19.3
16.0
12.7
26.3
22.5
18.8
15.1
11.4
—
—
29.6
28.6
24.8
21.1
17.4
13.7
9.9
26.3
26.3
26.3
22.6
18.9
15.2
11.4
26.3
26.3
26.3
22.6
18.9
15.2
11.4
28.9 25.6 22.9 22.9 29.4 26.1 23.3 23.3 29.9 26.5 23.7 23.7 30.2 26.8 23.9 23.9 30.5 27.0 24.1 24.1
2.91 3.05 2.80 2.80 3.12 3.29 3.01 3.00 3.34 3.52 3.22 3.21 3.47 3.66 3.34 3.34 3.60 3.79 3.47 3.46
18.3
16.2
14.0
11.9
9.8
—
—
22.5
20.4
18.3
16.1
14.0
11.9
9.7
22.9
22.8
21.2
19.1
16.9
14.8
12.7
22.9
22.8
21.2
19.1
17.0
14.8
12.7
19.9
17.4
14.9
12.3
9.8
—
—
24.2
21.9
19.3
16.8
14.3
11.7
9.2
23.3
23.2
22.5
19.9
17.4
14.9
12.4
23.3
23.2
22.5
19.9
17.4
14.9
12.4
21.5
18.6
15.7
12.7
9.8
—
—
25.9
23.3
20.4
17.5
14.6
11.6
8.7
23.7
23.7
23.7
20.8
17.9
15.0
12.0
23.7
23.7
23.7
20.8
17.9
15.0
12.0
23.6
20.3
17.0
13.7
10.3
—
—
26.5
24.9
22.1
18.8
15.5
12.1
8.8
23.9
23.9
23.9
20.6
17.3
13.9
10.6
23.9
23.9
23.9
20.6
17.3
13.9
10.6
25.8
22.0
18.3
14.6
10.9
—
—
27.0
26.5
23.8
20.1
16.4
12.7
8.9
24.1
24.1
24.1
20.4
16.7
12.9
9.2
24.1
24.1
24.1
20.4
16.7
12.9
9.2
26.6 23.5 21.1 21.1 27.1 23.9 21.4 21.4 27.5 24.3 21.8 21.8 27.6 24.3 21.8 21.8 27.6 24.4 21.9 21.9
2.98 3.32 2.84 2.85 3.32 3.70 3.17 3.18 3.66 4.08 3.49 3.50 3.79 4.23 3.62 3.63 3.93 4.38 3.75 3.76
18.0
15.8
13.7
11.6
9.4
—
—
21.8
19.7
17.6
15.4
13.3
11.1
9.0
21.1
21.1
20.1
17.9
15.8
13.7
11.5
21.1
21.1
20.1
17.9
15.8
13.7
11.5
19.3
16.8
14.3
11.7
9.2
—
—
23.0
20.8
18.3
15.8
13.2
10.7
8.2
21.4
21.4
20.9
18.4
15.9
13.4
10.8
21.4
21.4
20.9
18.4
15.9
13.4
10.8
20.7
17.8
14.9
11.9
9.0
—
—
24.3
22.0
19.0
16.1
13.2
10.3
7.4
21.8
21.8
21.8
18.9
16.0
13.0
10.1
21.8
21.8
21.8
18.9
16.0
13.0
10.1
23.0
19.7
16.3
13.0
9.7
—
—
24.3
23.2
20.9
17.6
14.3
11.0
7.7
21.8
21.8
21.8
18.5
15.2
11.9
8.6
21.8
21.8
21.8
18.5
15.2
11.9
8.6
25.3
21.5
17.8
14.1
10.4
—
—
24.4
24.4
22.8
19.1
15.4
11.7
7.9
21.9
21.9
21.9
18.2
14.4
10.7
7.0
21.9
21.9
21.9
18.2
14.4
10.7
7.0
24.3 21.3 19.3 19.3 24.7 21.6 19.6 19.6 25.1 22.0 19.9 19.9 24.9 21.9 19.8 19.8 24.8 21.7 19.7 19.7
3.1
3.6
2.9
2.9
3.5
4.1
3.3
3.4
4.0
4.6
3.8
3.8
4.1
4.8
3.9
3.9
4.3
5.0
4.0
4.1
17.6
15.5
13.3
11.2
9.1
—
—
21.1
19.0
16.8
14.7
12.6
10.4
8.3
19.3
19.4
18.9
16.8
14.7
12.5
10.4
19.3
19.4
18.9
16.8
14.7
12.5
10.4
18.8
16.2
13.7
11.2
8.6
—
—
21.6
19.8
17.3
14.7
12.2
9.7
7.2
19.6
19.6
19.4
16.9
14.4
11.8
9.3
19.6
19.6
19.4
16.9
14.4
11.8
9.3
19.9
17.0
14.0
11.1
8.2
—
—
22.0
20.6
17.7
14.8
11.9
9.0
6.0
19.9
19.9
19.9
17.0
14.1
11.1
8.2
19.9
19.9
19.9
17.0
14.1
11.1
8.2
22.3
19.0
15.7
12.4
9.0
—
—
21.9
21.4
19.8
16.4
13.1
9.8
6.5
19.8
19.8
19.8
16.5
13.1
9.8
6.5
19.8
19.8
19.8
16.5
13.1
9.8
6.5
24.8
21.0
17.3
13.6
9.9
—
—
21.7
22.3
21.8
18.1
14.4
10.7
6.9
19.7
19.7
19.7
15.9
12.2
8.5
4.8
19.7
19.7
19.7
15.9
12.2
8.5
4.8
= These capacities are net capacities - indoor fan heat deducted.
ALL SENSIBLE CAPACITY
Unitary Products Group
7
036-21090-008-A-0205
COOLING CAPACITIES - 3 TON (BHH036)
Temperature of Air on
Outdoor Coil
72
115 °F
125 °F
1
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
105 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
95 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
85 °F
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
900 CFM
WB°F
67 62
57
1,050 CFM
WB°F
72 67 62 57
Air On Indoor Coil
1,200 CFM
WB°F
72 67 62 57
1,350 CFM
WB°F
72 67 62 57
1,500 CFM
WB°F
72 67 62 57
38.6 34.8 32.3 31.6 39.9 36.0 33.4 32.7 41.2 37.2 34.5 33.7 42.3 38.2 35.4 34.6 43.4 39.2 36.3 35.5
3.02 2.99 2.97 2.97 3.08 3.05 3.03 3.03 3.14 3.11 3.09 3.09 3.24 3.20 3.19 3.18 3.33 3.30 3.28 3.28
22.0
19.4
16.8
14.3
11.7
—
—
27.9
25.3
22.8
20.2
17.6
15.1
12.5
32.3
29.8
27.2
24.6
22.1
19.5
16.9
31.6
29.2
26.6
24.0
21.5
18.9
16.3
24.8
21.8
18.8
15.7
12.7
—
—
31.4
28.4
25.4
22.3
19.3
16.3
13.2
33.4
32.1
30.3
27.3
24.2
21.2
18.2
32.7
31.4
29.6
26.6
23.6
20.5
17.5
27.7
24.2
20.7
17.2
13.7
—
—
35.0
31.5
28.0
24.5
21.0
17.5
14.0
34.5
34.5
33.4
29.9
26.4
22.9
19.4
33.7
33.7
32.7
29.2
25.7
22.2
18.7
29.8
25.8
21.8
17.8
13.8
—
—
37.1
33.5
29.5
25.5
21.5
17.5
13.6
35.4
35.4
34.9
30.9
26.9
22.9
18.9
34.6
34.6
34.1
30.1
26.1
22.1
18.2
31.9
27.4
22.9
18.5
14.0
—
—
39.2
35.5
31.0
26.6
22.1
17.6
13.1
36.3
36.3
36.3
31.9
27.4
22.9
18.4
35.5
35.5
35.5
31.0
26.6
22.1
17.6
36.3 32.1 30.6 29.5 37.6 33.3 31.7 30.6 38.8 34.4 32.7 31.6 39.9 35.3 33.6 32.5 40.9 36.2 34.5 33.3
3.34 3.30 3.30 3.27 3.41 3.37 3.36 3.34 3.47 3.44 3.43 3.41 3.56 3.52 3.51 3.49 3.64 3.60 3.60 3.57
21.6
19.1
16.5
13.9
11.4
—
—
26.8
24.3
21.7
19.1
16.6
14.0
11.4
30.6
28.5
25.9
23.4
20.8
18.2
15.7
29.5
28.1
25.5
22.9
20.4
17.8
15.2
24.2
21.2
18.2
15.1
12.1
—
—
30.0
26.9
23.9
20.9
17.8
14.8
11.8
31.7
30.6
28.5
25.5
22.5
19.4
16.4
30.6
29.8
28.0
25.0
22.0
18.9
15.9
26.8
23.3
19.8
16.3
12.8
—
—
33.1
29.6
26.1
22.6
19.1
15.6
12.1
32.7
32.7
31.1
27.6
24.1
20.6
17.1
31.6
31.6
30.6
27.1
23.6
20.1
16.6
29.0
25.0
21.0
17.1
13.1
—
—
34.6
31.7
27.7
23.7
19.7
15.7
11.7
33.6
33.6
32.8
28.8
24.8
20.9
16.9
32.5
32.5
31.9
28.0
24.0
20.0
16.0
31.2
26.7
22.3
17.8
13.3
—
—
36.2
33.8
29.3
24.8
20.3
15.9
11.4
34.5
34.5
34.5
30.0
25.6
21.1
16.6
33.3
33.3
33.3
28.8
24.4
19.9
15.4
33.6 29.5 28.4 27.4 34.6 30.4 29.3 28.3 35.7 31.4 30.2 29.2 36.8 32.3 31.1 30.0 37.8 33.2 31.9 30.8
3.72 3.66 3.63 3.63 3.79 3.73 3.70 3.70 3.86 3.80 3.77 3.77 3.95 3.88 3.85 3.85 4.03 3.96 3.93 3.93
20.6
18.0
15.4
12.9
10.3
—
—
25.8
23.2
20.6
18.1
15.5
12.9
10.4
28.4
26.3
23.7
21.1
18.6
16.0
13.4
27.4
25.9
23.3
20.8
18.2
15.6
13.1
23.1
20.1
17.1
14.0
11.0
—
—
28.2
25.8
22.8
19.8
16.7
13.7
10.7
29.3
28.2
26.2
23.2
20.1
17.1
14.1
28.3
27.5
25.8
22.8
19.7
16.7
13.7
25.7
22.2
18.7
15.2
11.7
—
—
30.7
28.5
25.0
21.5
18.0
14.5
11.0
30.2
30.2
28.7
25.2
21.7
18.2
14.7
29.2
29.2
28.3
24.8
21.3
17.8
14.3
27.9
23.9
19.9
15.9
12.0
—
—
31.9
30.2
26.6
22.7
18.7
14.7
10.7
31.1
31.1
30.3
26.3
22.3
18.4
14.4
30.0
30.0
29.6
25.6
21.6
17.6
13.6
30.1
25.6
21.2
16.7
12.2
—
—
33.2
31.9
28.3
23.8
19.4
14.9
10.4
31.9
31.9
31.9
27.5
23.0
18.5
14.1
30.8
30.8
30.8
26.4
21.9
17.4
13.0
30.8 26.8 26.1 25.3 31.7 27.6 26.9 26.0 32.6 28.4 27.7 26.8 33.6 29.2 28.5 27.6 34.6 30.1 29.4 28.4
4.10 4.02 3.97 3.99 4.18 4.09 4.04 4.06 4.25 4.17 4.12 4.13 4.33 4.24 4.20 4.21 4.41 4.32 4.27 4.29
19.5
16.9
14.3
11.8
9.2
—
—
24.7
22.1
19.5
17.0
14.4
11.8
9.3
26.1
24.0
21.4
18.9
16.3
13.7
11.2
25.3
23.7
21.2
18.6
16.0
13.5
10.9
22.0
19.0
15.9
12.9
9.9
—
—
26.5
24.7
21.7
18.7
15.6
12.6
9.6
26.9
25.8
23.8
20.8
17.8
14.7
11.7
26.0
25.3
23.5
20.5
17.5
14.4
11.4
24.5
21.0
17.5
14.0
10.5
—
—
28.4
27.4
23.9
20.4
16.9
13.4
9.9
27.7
27.7
26.2
22.7
19.2
15.7
12.2
26.8
26.8
25.9
22.4
18.9
15.4
11.9
26.8
22.8
18.8
14.8
10.8
—
—
29.2
28.7
25.6
21.6
17.6
13.7
9.7
28.5
28.5
27.8
23.8
19.8
15.9
11.9
27.6
27.6
27.2
23.2
19.2
15.2
11.2
29.0
24.5
20.1
15.6
11.1
—
—
30.1
30.1
27.3
22.9
18.4
13.9
9.5
29.4
29.4
29.4
24.9
20.4
16.0
11.5
28.4
28.4
28.4
23.9
19.5
15.0
10.5
28.1 24.1 23.9 23.1 28.8 24.7 24.5 23.7 29.5 25.4 25.2 24.3 30.5 26.2 26.0 25.1 31.5 27.0 26.8 26.0
4.5
4.4
4.3
4.3
4.6
4.4
4.4
4.4
4.6
4.5
4.5
4.5
4.7
4.6
4.5
4.6
4.8
4.7
4.6
4.6
18.4
15.8
13.2
10.7
8.1
—
—
23.6
21.0
18.4
15.9
13.3
10.7
8.2
23.9
21.8
19.2
16.6
14.1
11.5
8.9
23.1
21.6
19.0
16.4
13.9
11.3
8.8
20.9
17.9
14.8
11.8
8.8
—
—
24.7
23.7
20.6
17.6
14.6
11.5
8.5
24.5
23.5
21.5
18.5
15.4
12.4
9.4
23.7
23.0
21.3
18.3
15.2
12.2
9.2
23.4
19.9
16.4
12.9
9.4
—
—
25.4
25.4
22.8
19.3
15.8
12.3
8.8
25.2
25.2
23.8
20.3
16.8
13.3
9.8
24.3
24.3
23.6
20.1
16.6
13.1
9.6
25.7
21.7
17.7
13.7
9.7
—
—
26.2
26.2
24.6
20.6
16.6
12.6
8.6
26.0
26.0
25.3
21.3
17.3
13.4
9.4
25.1
25.1
24.8
20.8
16.8
12.8
8.8
27.9
23.4
19.0
14.5
10.0
—
—
27.0
27.0
26.4
21.9
17.4
13.0
8.5
26.8
26.8
26.8
22.4
17.9
13.4
8.9
26.0
26.0
26.0
21.5
17.0
12.5
8.1
= These capacities are net capacities - indoor fan heat deducted.
ALL SENSIBLE CAPACITY
8
Unitary Products Group
036-21090-008-A-0205
COOLING CAPACITIES - 3-1/2 TON (BHH042)
Temperature of Air on
Outdoor Coil
115 °F
125 °F
1
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
105 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
95 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
85 °F
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
1050 CFM
WB°F
72 67 62 57
1,225 CFM
WB°F
72 67 62 57
Air On Indoor Coil
1,400 CFM
WB°F
72 67 62 57
1,575 CFM
WB°F
72 67 62 57
1,750 CFM
WB°F
72 67 62 57
43.1 41.0 38.5 37.8 43.8 41.7 39.1 38.4 44.6 42.4 39.8 39.1 44.7 42.5 39.9 39.2 44.8 42.6 40.0 39.3
3.50 3.51 3.45 3.46 3.57 3.58 3.52 3.53 3.64 3.65 3.59 3.60 3.75 3.75 3.69 3.70 3.86 3.86 3.80 3.81
25.7
22.7
19.7
16.7
13.7
—
—
32.9
29.9
26.9
23.9
20.9
17.9
14.9
38.5
36.3
33.3
30.3
27.3
24.3
21.3
37.8
36.8
33.8
30.8
27.8
24.8
21.9
28.3
24.8
21.2
17.7
14.2
—
—
36.0
32.5
29.0
25.4
21.9
18.4
14.8
39.1
38.0
35.9
32.4
28.8
25.3
21.8
38.4
38.0
36.5
32.9
29.4
25.8
22.3
30.9
26.9
22.8
18.7
14.6
—
—
39.2
35.1
31.1
27.0
22.9
18.8
14.7
39.8
39.8
38.5
34.4
30.3
26.3
22.2
39.1
39.1
39.1
35.0
30.9
26.8
22.8
33.2
28.5
23.9
19.2
14.6
—
—
40.9
37.2
32.6
27.9
23.3
18.6
14.0
39.9
39.9
39.3
34.6
30.0
25.3
20.7
39.2
39.2
39.2
34.6
29.9
25.3
20.6
35.4
30.2
25.0
19.8
14.6
—
—
42.6
39.3
34.1
28.9
23.7
18.5
13.2
40.0
40.0
40.0
34.8
29.6
24.4
19.2
39.3
39.3
39.3
34.1
28.9
23.7
18.5
41.6 38.9 36.3 35.2 42.5 39.7 37.1 36.0 43.4 40.6 37.9 36.8 43.5 40.6 37.9 36.8 43.5 40.6 37.9 36.8
3.86 3.89 3.79 3.81 3.95 3.99 3.88 3.90 4.04 4.08 3.97 3.99 4.13 4.17 4.06 4.08 4.23 4.27 4.15 4.17
25.1
22.1
19.1
16.2
13.2
—
—
32.0
29.0
26.0
23.0
20.0
17.0
14.0
36.3
35.5
32.5
29.5
26.5
23.5
20.5
35.2
34.5
31.5
28.5
25.5
22.6
19.6
27.8
24.3
20.7
17.2
13.7
—
—
35.2
31.7
28.2
24.6
21.1
17.5
14.0
37.1
36.7
35.2
31.6
28.1
24.6
21.0
36.0
35.7
34.2
30.6
27.1
23.5
20.0
30.5
26.4
22.3
18.2
14.2
—
—
38.5
34.4
30.3
26.2
22.2
18.1
14.0
37.9
37.9
37.9
33.8
29.7
25.6
21.5
36.8
36.8
36.8
32.7
28.6
24.5
20.4
32.9
28.3
23.6
19.0
14.3
—
—
39.6
36.7
32.1
27.4
22.8
18.1
13.5
37.9
37.9
37.9
33.2
28.6
23.9
19.3
36.8
36.8
36.8
32.2
27.5
22.9
18.2
35.4
30.1
24.9
19.7
14.5
—
—
40.6
39.1
33.8
28.6
23.4
18.2
13.0
37.9
37.9
37.9
32.7
27.5
22.3
17.0
36.8
36.8
36.8
31.6
26.4
21.2
16.0
39.1 35.9 33.4 32.3 40.1 36.8 34.3 33.2 41.1 37.7 35.1 34.0 41.1 37.8 35.2 34.1 41.2 37.8 35.2 34.1
4.33 4.34 4.24 4.25 4.42 4.43 4.33 4.34 4.51 4.52 4.42 4.43 4.62 4.63 4.53 4.54 4.73 4.74 4.64 4.65
24.2
21.2
18.2
15.3
12.3
—
—
30.7
27.8
24.8
21.8
18.8
15.8
12.8
33.4
32.7
29.7
26.7
23.8
20.8
17.8
32.3
31.8
28.8
25.8
22.8
19.8
16.8
27.0
23.5
19.9
16.4
12.8
—
—
33.7
30.6
27.0
23.5
19.9
16.4
12.9
34.3
33.9
32.4
28.9
25.4
21.8
18.3
33.2
32.9
31.4
27.9
24.3
20.8
17.3
29.7
25.7
21.6
17.5
13.4
—
—
36.7
33.4
29.3
25.2
21.1
17.0
12.9
35.1
35.1
35.1
31.1
27.0
22.9
18.8
34.0
34.0
34.0
30.0
25.9
21.8
17.7
32.2
27.5
22.9
18.2
13.6
—
—
37.3
35.2
31.1
26.4
21.8
17.1
12.5
35.2
35.2
35.2
30.5
25.9
21.2
16.6
34.1
34.1
34.1
29.4
24.8
20.1
15.5
34.7
29.4
24.2
19.0
13.8
—
—
37.8
37.0
32.9
27.6
22.4
17.2
12.0
35.2
35.2
35.2
30.0
24.8
19.6
14.3
34.1
34.1
34.1
28.9
23.7
18.5
13.2
36.5 32.9 30.5 29.5 37.6 33.9 31.5 30.4 38.8 34.9 31.2 31.3 38.8 34.9 32.5 31.3 38.9 35.0 32.5 31.4
4.79 4.78 4.70 4.70 4.88 4.87 4.78 4.78 4.97 4.95 4.87 4.87 5.10 5.08 5.00 5.00 5.23 5.22 5.13 5.12
23.3
20.3
17.4
14.4
11.4
—
—
29.5
26.5
23.5
20.5
17.5
14.5
11.6
30.5
30.0
27.0
24.0
21.0
18.0
15.0
29.5
29.1
26.1
23.1
20.1
17.1
14.1
26.2
22.6
19.1
15.5
12.0
—
—
32.2
29.4
25.9
22.3
18.8
15.3
11.7
31.5
31.2
29.7
26.2
22.6
19.1
15.6
30.4
30.2
28.7
25.1
21.6
18.1
14.5
29.0
24.9
20.8
16.7
12.7
—
—
34.9
32.3
28.2
24.1
20.1
16.0
11.9
32.4
32.4
32.4
28.3
24.3
20.2
16.1
31.3
31.3
31.3
27.2
23.1
19.0
15.0
31.5
26.8
22.2
17.5
12.9
—
—
34.9
33.6
30.1
25.4
20.8
16.1
11.5
32.5
32.5
32.5
27.8
23.2
18.5
13.9
31.3
31.3
31.3
26.7
22.0
17.4
12.7
33.9
28.7
23.5
18.3
13.1
—
—
35.0
35.0
31.9
26.7
21.4
16.2
11.0
32.5
32.5
32.5
27.3
22.1
16.9
11.6
31.4
31.4
31.4
26.2
20.9
15.7
10.5
34.0 29.9 27.7 26.6 35.2 31.0 28.7 27.6 36.4 32.0 29.7 28.6 36.5 32.1 29.8 28.6 36.6 32.2 29.8 28.7
5.3
5.2
5.2
5.1
5.3
5.3
5.2
5.2
5.4
5.4
5.3
5.3
5.6
5.5
5.5
5.5
5.7
5.7
5.6
5.6
22.4
19.4
16.5
13.5
10.5
—
—
28.3
25.3
22.3
19.3
16.3
13.3
10.3
27.7
27.3
24.3
21.3
18.3
15.3
12.3
26.6
26.3
23.4
20.4
17.4
14.4
11.4
25.3
21.8
18.3
14.7
11.2
—
—
30.7
28.3
24.7
21.2
17.7
14.1
10.6
28.7
28.5
27.0
23.5
19.9
16.4
12.8
27.6
27.4
26.0
22.4
18.9
15.3
11.8
28.2
24.1
20.1
16.0
11.9
—
—
32.0
31.3
27.2
23.1
19.0
14.9
10.9
29.7
29.7
29.7
25.6
21.5
17.5
13.4
28.6
28.6
28.6
24.5
20.4
16.3
12.2
30.7
26.1
21.4
16.8
12.1
—
—
32.1
32.1
29.0
24.4
19.7
15.1
10.4
29.8
29.8
29.8
25.1
20.5
15.8
11.2
28.6
28.6
28.6
24.0
19.3
14.7
10.0
33.2
28.0
22.8
17.6
12.4
—
—
32.2
32.2
30.9
25.7
20.5
15.2
10.0
29.8
29.8
29.8
24.6
19.4
14.2
8.9
28.7
28.7
28.7
23.4
18.2
13.0
7.8
= These capacities are net capacities - indoor fan heat deducted.
ALL SENSIBLE CAPACITY
Unitary Products Group
9
036-21090-008-A-0205
COOLING CAPACITIES - 4 TON (BHH048)
Temperature of Air on
Outdoor Coil
115 °F
125 °F
1
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
105 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
95 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
85 °F
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
1200 CFM
WB°F
72 67 62 57
1,400 CFM
WB°F
72 67 62 57
Air On Indoor Coil
1,600 CFM
WB°F
72 67 62 57
1,800 CFM
WB°F
72 67 62 57
2,000 CFM
WB°F
72 67 62 57
46.4 43.1 39.5 39.0 49.6 46.1 42.2 41.6 52.7 49.0 44.9 44.3 53.4 49.6 45.5 44.9 54.1 50.3 46.1 45.5
3.96 3.92 3.92 3.93 4.04 4.00 3.99 4.01 4.11 4.07 4.07 4.08 4.23 4.19 4.18 4.20 4.34 4.30 4.30 4.31
29.4
25.9
22.5
19.1
15.7
—
—
36.6
33.1
29.7
26.3
22.9
19.5
16.0
39.5
39.5
36.4
33.0
29.6
26.2
22.7
39.0
39.0
36.6
33.1
29.7
26.3
22.9
32.8
28.8
24.7
20.7
16.6
—
—
40.7
36.7
32.6
28.6
24.6
20.5
16.5
42.2
42.2
40.0
36.0
31.9
27.9
23.8
41.6
41.6
40.2
36.1
32.1
28.0
24.0
36.3
31.6
26.9
22.3
17.6
—
—
44.9
40.2
35.6
30.9
26.2
21.6
16.9
44.9
44.9
43.6
38.9
34.3
29.6
24.9
44.3
44.3
43.8
39.1
34.4
29.8
25.1
39.1
33.8
28.5
23.2
17.8
—
—
47.6
42.9
37.6
32.3
27.0
21.6
16.3
45.5
45.5
44.8
39.5
34.2
28.9
23.6
44.9
44.9
44.6
39.3
34.0
28.7
23.3
41.9
36.0
30.0
24.0
18.1
—
—
50.3
45.6
39.6
33.7
27.7
21.7
15.8
46.1
46.1
46.1
40.1
34.2
28.2
22.2
45.5
45.5
45.5
39.5
33.5
27.6
21.6
47.2 42.7 38.9 38.6 49.4 44.6 40.7 40.4 51.5 46.5 42.4 42.1 52.0 47.0 42.9 42.5 52.5 47.4 43.3 42.9
4.35 4.30 4.28 4.26 4.42 4.37 4.35 4.33 4.50 4.44 4.42 4.41 4.61 4.56 4.54 4.52 4.73 4.68 4.65 4.64
28.5
25.1
21.7
18.3
14.8
—
—
36.2
32.7
29.3
25.9
22.5
19.0
15.6
38.9
38.5
35.1
31.6
28.2
24.8
21.4
38.6
38.5
35.0
31.6
28.2
24.8
21.4
31.8
27.7
23.7
19.6
15.6
—
—
40.1
36.1
32.0
28.0
23.9
19.9
15.9
40.7
40.5
38.3
34.3
30.2
26.2
22.1
40.4
40.3
38.3
34.3
30.2
26.2
22.1
35.0
30.4
25.7
21.0
16.4
—
—
44.1
39.4
34.7
30.1
25.4
20.7
16.1
42.4
42.4
41.5
36.9
32.2
27.5
22.9
42.1
42.1
41.5
36.9
32.2
27.5
22.9
37.8
32.5
27.2
21.9
16.6
—
—
45.7
42.1
36.8
31.5
26.1
20.8
15.5
42.9
42.9
42.4
37.1
31.8
26.5
21.2
42.5
42.5
42.2
36.9
31.6
26.3
21.0
40.6
34.6
28.7
22.7
16.8
—
—
47.4
44.8
38.8
32.8
26.9
20.6
14.9
43.3
43.3
43.3
37.3
31.3
25.4
19.4
42.9
42.9
42.9
37.0
31.0
25.0
19.1
45.0 40.1 37.0 36.7 46.8 41.7 38.4 38.1 48.5 43.2 39.8 39.5 49.0 43.6 40.2 39.9 49.4 44.1 40.6 10.3
4.76 4.68 4.63 4.62 4.85 4.77 4.72 4.71 4.94 4.86 4.81 4.80 5.06 4.98 4.93 4.91 5.18 5.10 5.05 5.03
27.5
24.1
20.7
17.3
13.8
—
—
34.9
31.5
28.1
24.7
21.2
17.8
14.4
37.0
36.0
32.6
29.2
25.7
22.3
18.9
36.7
35.9
32.5
29.0
25.6
22.2
18.8
30.9
26.8
22.8
18.7
14.7
—
—
38.5
35.0
30.9
26.9
22.9
18.8
14.8
38.4
37.9
35.9
31.8
27.8
23.8
19.7
38.1
37.7
35.8
31.7
27.7
23.6
19.6
34.2
29.5
24.9
20.2
15.6
—
—
42.0
38.5
33.8
29.1
24.5
19.8
15.1
39.8
39.8
39.2
34.5
29.9
25.2
20.5
39.5
39.5
39.0
34.4
29.7
25.0
20.4
37.2
31.9
26.5
21.2
15.9
—
—
43.0
40.6
36.1
30.7
25.4
20.1
14.8
40.2
40.2
39.9
34.6
29.3
23.9
18.6
39.9
39.9
39.7
34.3
29.0
23.7
18.4
40.1
34.2
28.2
22.2
16.3
—
—
44.1
42.7
38.3
32.4
26.4
20.4
14.5
40.6
40.6
40.6
34.6
28.6
22.7
16.7
40.3
40.3
40.3
34.3
28.3
22.4
16.4
42.8 37.6 35.0 34.8 44.2 38.8 36.1 35.9 45.5 40.0 37.2 37.0 45.9 40.3 37.5 37.3 46.3 40.7 37.9 37.6
5.16 5.06 4.99 4.97 5.27 5.17 5.10 5.08 5.38 5.28 5.21 5.18 5.51 5.40 5.33 5.31 5.64 5.53 5.45 5.43
26.5
23.1
19.7
16.3
12.8
—
—
33.7
30.3
26.9
23.4
20.0
16.6
13.2
35.0
33.5
30.1
26.7
23.3
19.9
16.4
34.8
33.3
29.9
26.5
23.0
19.6
16.2
30.0
25.9
21.9
17.8
13.8
—
—
36.8
33.9
29.9
25.8
21.8
17.7
13.7
36.1
35.4
33.5
29.4
25.4
21.3
17.3
35.9
35.1
33.2
29.2
25.1
21.1
17.0
33.4
28.7
24.1
19.4
14.7
—
—
40.0
37.5
32.9
28.2
23.5
18.9
14.2
37.2
37.2
36.8
32.2
27.5
22.8
18.2
37.0
37.0
36.5
31.9
27.2
22.6
17.9
36.5
31.2
25.9
20.6
15.3
—
—
40.3
39.1
35.4
30.0
24.7
19.4
14.1
37.5
37.5
37.4
32.0
26.7
21.4
16.1
37.3
37.3
37.1
31.8
26.5
21.1
15.8
39.6
33.7
27.7
21.8
15.8
—
—
40.7
40.7
37.8
31.9
25.9
20.0
14.0
37.9
37.9
37.9
31.9
25.9
20.0
14.0
37.6
37.6
37.6
31.7
25.7
19.7
13.8
40.6 35.1 33.1 32.9 41.6 35.9 33.8 33.6 42.5 36.7 34.6 34.4 42.9 37.0 34.9 34.7 43.2 37.3 35.2 35.0
5.6
5.4
5.4
5.3
5.7
5.6
5.5
5.4
5.8
5.7
5.6
5.6
6.0
5.8
5.7
5.7
6.1
6.0
5.8
5.8
25.5
22.1
18.7
15.3
11.8
—
—
32.5
29.1
25.6
22.2
18.8
15.4
12.0
33.1
31.1
27.6
24.2
20.8
17.4
14.0
32.9
30.7
27.3
23.9
20.5
17.0
13.6
29.1
25.0
21.0
16.9
12.9
—
—
35.2
32.8
28.8
24.7
20.7
16.7
12.6
33.8
32.8
31.1
27.0
23.0
18.9
14.9
33.6
32.6
30.7
26.6
22.6
18.5
14.5
32.6
27.9
23.3
18.6
13.9
—
—
36.7
36.6
31.9
27.3
22.6
17.9
13.3
34.6
34.6
34.5
29.8
25.2
20.5
15.8
34.4
34.4
34.1
29.4
24.7
20.1
15.4
35.9
30.6
25.3
19.9
14.6
—
—
37.0
37.0
34.6
29.3
24.0
18.7
13.4
34.9
34.9
34.8
29.5
24.2
18.9
13.6
34.7
34.7
34.5
29.2
23.9
18.6
13.3
39.2
33.2
27.2
21.3
15.3
—
—
37.3
37.3
37.3
31.4
25.4
19.5
13.5
35.2
35.2
35.2
29.2
23.3
17.3
11.3
35.0
35.0
35.0
29.0
23.0
17.1
11.1
= These capacities are net capacities - indoor fan heat deducted.
ALL SENSIBLE CAPACITY
10
Unitary Products Group
036-21090-008-A-0205
COOLING CAPACITIES - 5 TON (BHH060)
Temperature of Air on
Outdoor Coil
115 °F
125 °F
1
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
105 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
95 °F
Sensible Capacity
1
MBH
Entering Dry
Bulb,°F
85 °F
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
Net Cap
MBH
Total Power
Input KW
86
83
80
77
74
71
68
1,500 CFM
WB°F
72 67 62 57
1,750 CFM
WB°F
72 67 62 57
Air On Indoor Coil
2,000 CFM
WB°F
72 67 62 57
2,250 CFM
WB°F
72 67 62 57
2,500 CFM
WB°F
72 67 62 57
67.2 58.8 54.6 51.4 69.0 60.3 56.0 52.7 70.7 61.9 57.4 54.1 73.4 64.2 59.6 56.1 76.1 66.6 61.8 58.2
5.01 4.95 4.88 4.89 5.14 5.08 5.01 5.02 5.27 5.21 5.14 5.15 5.44 5.38 5.30 5.32 5.61 5.54 5.47 5.48
37.9
33.6
29.3
25.1
20.8
—
—
46.8
42.5
38.2
34.0
29.7
25.4
21.1
54.6
51.3
47.0
42.7
38.4
34.2
29.9
51.4
50.4
46.2
41.9
37.6
33.3
29.1
42.0
36.9
31.9
26.8
21.8
—
—
51.6
46.6
41.5
36.5
31.4
26.4
21.3
56.0
54.3
51.0
46.0
40.9
35.9
30.8
52.7
52.3
50.1
45.1
40.0
35.0
29.9
46.1
40.2
34.4
28.6
22.7
—
—
56.5
50.6
44.8
39.0
33.1
27.3
21.5
57.4
57.4
55.1
49.2
43.4
37.6
31.8
54.1
54.1
54.1
48.3
42.4
36.6
30.8
50.0
43.3
36.7
30.0
23.4
—
—
61.1
54.4
47.8
41.1
34.5
27.8
21.2
59.6
59.6
58.4
51.8
45.1
38.5
31.9
56.1
56.1
56.1
49.5
42.9
36.2
29.6
53.8
46.4
38.9
31.5
24.0
—
—
65.6
58.2
50.7
43.3
35.8
28.4
20.9
61.8
61.8
61.8
54.3
46.9
39.4
32.0
58.2
58.2
58.2
50.7
43.3
35.8
28.4
61.9 55.8 51.3 50.7 63.7 57.4 52.8 52.1 65.4 59.0 54.2 53.5 67.3 60.7 55.8 55.1 69.2 62.4 57.4 56.6
5.55 5.45 5.36 5.41 5.69 5.58 5.50 5.55 5.83 5.72 5.63 5.68 6.01 5.90 5.81 5.86 6.19 6.08 5.98 6.04
36.3
32.0
27.7
23.5
19.2
—
—
45.6
41.3
37.0
32.7
28.5
24.2
19.9
51.3
49.7
45.5
41.2
36.9
32.6
28.4
50.7
50.0
45.8
41.5
37.2
32.9
28.7
40.2
35.2
30.1
25.0
20.0
—
—
50.3
45.2
40.2
35.1
30.1
25.0
20.0
52.8
52.0
49.3
44.3
39.2
34.2
29.1
52.1
51.8
49.6
44.6
39.5
34.5
29.4
44.1
38.3
32.5
26.6
20.8
—
—
55.0
49.1
43.3
37.5
31.6
25.8
20.0
54.2
54.2
53.2
47.3
41.5
35.7
29.8
53.5
53.5
53.5
47.7
41.9
36.0
30.2
48.0
41.4
34.7
28.1
21.5
—
—
58.7
53.0
46.4
39.7
33.1
26.4
19.8
55.8
55.8
55.3
48.6
42.0
35.4
28.7
55.1
55.1
55.1
48.4
41.8
35.2
28.5
51.9
44.5
37.0
29.6
22.1
—
—
62.4
56.9
49.4
42.0
34.5
27.1
19.6
57.4
57.4
57.4
49.9
42.5
35.0
27.6
56.6
56.6
56.6
49.2
41.7
34.3
26.8
61.2 54.1 50.1 50.0 61.4 54.3 50.2 50.2 61.6 54.5 50.4 50.3 63.3 56.0 51.8 51.7 65.0 57.5 53.2 53.1
6.16 6.04 5.96 5.86 6.29 6.17 6.08 5.98 6.41 6.29 6.20 6.10 6.59 6.46 6.38 6.27 6.77 6.64 6.55 6.45
36.1
31.9
27.6
23.3
19.0
—
—
45.1
40.9
36.6
32.3
28.0
23.8
19.5
50.1
47.8
43.5
39.2
35.0
30.7
26.4
50.0
48.1
43.8
39.5
35.3
31.0
26.7
39.6
34.6
29.5
24.5
19.4
—
—
48.8
44.2
39.1
34.1
29.0
24.0
18.9
50.2
49.1
46.6
41.5
36.5
31.4
26.3
50.2
49.2
46.9
41.8
36.8
31.7
26.7
43.1
37.2
31.4
25.6
19.7
—
—
52.5
47.5
41.7
35.8
30.0
24.2
18.3
50.4
50.4
49.6
43.8
37.9
32.1
26.3
50.3
50.3
49.9
44.1
38.3
32.4
26.6
47.0
40.3
33.7
27.0
20.4
—
—
55.0
51.1
44.7
38.0
31.4
24.7
18.1
51.8
51.8
51.4
44.8
38.1
31.5
24.8
51.7
51.7
51.5
44.9
38.2
31.6
25.0
50.9
43.4
36.0
28.5
21.1
—
—
57.5
54.7
47.7
40.2
32.8
25.3
17.9
53.2
53.2
53.2
45.7
38.3
30.8
23.4
53.1
53.1
53.1
45.7
38.2
30.7
23.3
60.5 52.4 48.8 49.4 59.1 51.2 47.7 48.3 57.7 50.0 46.6 47.1 59.2 51.3 47.8 48.4 60.7 52.6 49.0 49.6
6.77 6.64 6.56 6.31 6.88 6.75 6.67 6.42 6.99 6.86 6.78 6.52 7.17 7.03 6.95 6.69 7.35 7.21 7.12 6.85
36.0
31.7
27.4
23.2
18.9
—
—
44.7
40.4
36.1
31.9
27.6
23.3
19.0
48.8
45.9
41.6
37.3
33.0
28.8
24.5
49.4
46.2
41.9
37.6
33.3
29.0
24.8
39.0
34.0
28.9
23.9
18.8
—
—
47.3
43.1
38.1
33.0
28.0
22.9
17.9
47.7
46.2
43.8
38.8
33.7
28.6
23.6
48.3
46.6
44.1
39.1
34.0
28.9
23.9
42.0
36.2
30.4
24.5
18.7
—
—
50.0
45.8
40.0
34.2
28.3
22.5
16.7
46.6
46.6
46.0
40.2
34.4
28.5
22.7
47.1
47.1
46.3
40.5
34.7
28.8
23.0
45.9
39.3
32.6
26.0
19.3
—
—
51.3
49.2
43.0
36.3
29.7
23.0
16.4
47.8
47.8
47.5
40.9
34.2
27.6
20.9
48.4
48.4
48.0
41.3
34.7
28.0
21.4
49.8
42.3
34.9
27.4
20.0
—
—
52.6
52.6
45.9
38.5
31.0
23.6
16.1
49.0
49.0
49.0
41.6
34.1
26.6
19.2
49.6
49.6
49.6
42.1
34.7
27.2
19.8
59.8 50.6 47.5 48.7 56.8 48.1 45.1 46.3 53.9 45.5 42.7 43.9 55.2 46.6 43.8 45.0 56.5 47.7 44.8 46.1
7.4
7.2
7.2
6.8
7.5
7.3
7.3
6.9
7.6
7.4
7.3
6.9
7.8
7.6
7.5
7.1
7.9
7.8
7.7
7.3
35.9
31.6
27.3
23.0
18.7
—
—
44.3
40.0
35.7
31.4
27.2
22.9
18.6
47.5
43.9
39.7
35.4
31.1
26.8
22.5
48.7
44.2
39.9
35.7
31.4
27.1
22.8
38.4
33.4
28.3
23.3
18.2
—
—
45.9
42.1
37.0
32.0
26.9
21.9
16.8
45.1
43.3
41.1
36.0
30.9
25.9
20.8
46.3
44.1
41.3
36.3
31.2
26.2
21.1
41.0
35.2
29.3
23.5
17.7
—
—
45.5
44.2
38.3
32.5
26.7
20.9
15.0
42.7
42.7
42.4
36.6
30.8
25.0
19.1
43.9
43.9
42.7
36.9
31.1
25.3
19.4
44.9
38.2
31.6
24.9
18.3
—
—
46.6
46.6
41.3
34.6
28.0
21.3
14.7
43.8
43.8
43.6
37.0
30.3
23.7
17.1
45.0
45.0
44.4
37.8
31.1
24.5
17.8
48.7
41.2
33.8
26.3
18.9
—
—
47.7
47.7
44.2
36.7
29.3
21.8
14.4
44.8
44.8
44.8
37.4
29.9
22.5
15.0
46.1
46.1
46.1
38.6
31.2
23.7
16.3
= These capacities are net capacities - indoor fan heat deducted.
ALL SENSIBLE CAPACITY
Unitary Products Group
11
036-21090-008-A-0205
HEATING CAPACITIES - 1-1/2 TON (BHH018)
CFM
RETURN AIR
°F
55
450
70
80
55
600
70
80
55
750
70
80
1
CAP1
& KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
-10
7.594
1.200
5.562
1.273
4.408
1.359
7.776
1.152
5.744
1.225
4.590
1.311
9.109
1.177
7.077
1.250
5.923
1.336
0
8.826
1.264
6.794
1.337
5.640
1.423
9.008
1.216
6.976
1.289
5.822
1.375
10.341
1.241
8.309
1.314
7.155
1.400
OUTDOOR AIR TEMPERATURE, °F (72% RH)
10
20
30
40
10.323
12.141
14.348
17.029
1.329
1.393
1.458
1.523
8.291
10.109
12.316
14.997
1.405
1.466
1.531
1.596
7.137
8.955
11.162
13.843
1.488
1.552
1.617
1.682
10.505
12.323
14.530
17.211
1.281
1.345
1.410
1.475
8.473
0.291
12.498
15.179
1.354
1.4118
1.483
1.548
7.319
9.137
11.344
14.025
1.440
1.504
1.569
1.634
11.838
13.656
15.863
18.544
1.306
1.307
1.435
1.500
9.806
11.624
13.831
16.512
1379
1.443
1.506
1.573
8.652
10.470
1267
15.358
1.465
1.529
1.594
1.659
50
20.286
1.587
18.254
1.660
17.100
1.746
20.468
1.539
18.436
1.612
117.282
1.698
21.801
1.534
19.769
1.637
18.615
1.723
60
24.241
1.652
22.209
1.725
21.055
1.811
24.423
1.604
22.391
1.677
21.237
1.763
25.756
1.629
23.724
1.702
22.570
1.788
= These capacities are net capacities - the indoor motor heat has been added. These power inputs are total power inputs - the indoor motor watts have been added.
HEATING CAPACITIES - 2 TON (BHH024)
CFM
RETURN AIR
°F
55
600
70
80
55
800
70
80
55
1,000
70
80
1
CAP1
& KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
-10
6.418
1.430
4.628
1.525
2.933
1.601
8.428
1.417
6.638
1.512
4.943
1.588
9.001
1.626
7.211
1.721
5.516
1.797
0
7.999
1.539
6.209
1.635
4.514
1.710
10.009
1.526
8.219
1.622
6.524
1.697
10582
1.735
8.792
1.831
7.097
1.906
OUTDOOR AIR TEMPERATURE, °F (72% RH)
10
20
30
40
9.955
12.377
15.375
19.087
1.649
1.758
1.867
1.977
8.165
10.587
13.585
17.297
1.744
1.853
1.963
2.072
6.470
8.892
11.890
15.602
1.820
1.929
2.038
2.148
11.965
14.387
17.385
21.097
1.636
1.745
1.854
1.964
10.175
12.597
15.595
19.307
1.731
1.804
1.950
2.059
8.480
10.902
13.900
17.612
1.807
1.916
2.025
2.135
12.538
14.960
17.958
21.670
1.845
1..954
2.064
2.173
10.748
13.170
16.168
19.880
1.940
2.049
2.159
2.268
9.053
11.475
14.473
18.185
2.016
2.125
2.235
2.344
50
23.683
2.086
21.893
2.181
20.198
2.257
25.693
2.073
23.903
2.168
22.208
2.244
26.266
2.282
24.476
2.378
22.781
2.453
60
29.372
2.196
27.582
2.291
25.887
2.367
31.382
2.183
29.592
2.278
27.897
2.354
31.955
2.392
30.165
2.487
28.470
2.563
= These capacities are net capacities - the indoor motor heat has been added. These power inputs are total power inputs - the indoor motor watts have been added.
12
Unitary Products Group
036-21090-008-A-0205
HEATING CAPACITIES - 2-1/2 TON (BHH030)
CFM
RETURN AIR
°F
55
750
70
80
55
1,000
70
80
55
1,250
70
80
1
CAP1
& KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
-10
11.453
1.836
10.120
2.188
9.521
2.434
11.894
1.743
10.561
2.095
9.962
2.341
12.345
1.849
11.012
2.201
10.413
2.447
0
13.239
1.916
11.906
2.268
11.307
2.514
13.680
1.823
12.347
2.175
11.748
2.421
14.131
1.929
12.798
2.281
12.199
2.527
OUTDOOR AIR TEMPERATURE, °F (72% RH)
10
20
30
40
15.326
17.766
20.619
23.953
1.996
2.076
2.156
2.237
13.993
16.433
19.286
22.620
2.348
2.428
2.508
2.589
13.394
15.834
18.687
22.021
2.594
2.674
2.754
2.835
15.767
18.207
21.060
24.394
1.903
1.983
2.063
2.144
14.434
16.874
19.727
23.061
2.255
2.335
2.415
2.496
13.835
16.275
19.128
22.462
2.501
2.581
2.661
2.742
16.218
18..658
21.511
24.845
2.009
2.089
2.169
2.250
14.885
17.325
20.178
23.512
2.361
2.441
2.51
2.602
14.286
16.726
19.579
22.913
2.607
2.687
2.767
2.848
50
27.852
2.317
26.519
2.669
25.920
2.915
28.293
2.224
26.960
2.576
26.361
2.822
28.744
2.330
27.411
2.682
26.812
2.928
60
32.409
3.397
31.076
2.749
30.477
2.995
32.850
2.304
31.517
2.656
30.918
2.902
33.301
2.410
31.968
2.762
31.369
3.008
= These capacities are net capacities - the indoor motor heat has been added. These power inputs are total power inputs - the indoor motor watts have been added.
HEATING CAPACITIES - 3 TON (BHH036)
CFM
RETURN AIR
°F
55
900
70
80
55
1,200
70
80
55
1,500
70
80
1
CAP1
& KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
-10
12.428
1.995
10.640
2.289
9.172
2.523
14.133
1.886
12.345
2.180
10.877
2.414
15.861
2.002
14.073
2.296
12.605
2.530
0
14.736
2.135
12.948
2.429
11.480
2.663
16.441
2.026
14.653
2.320
13.185
2.554
18.169
2.142
16.381
2.436
14.913
2.670
OUTDOOR AIR TEMPERATURE, °F (72% RH)
10
20
30
40
17.475
20.726
24.584
29.164
2.275
2.414
2.554
2.693
15.687
18.938
22.796
27.376
2.569
2.708
2.848
2.987
14.219
17.470
21.328
25.908
2.803
2.942
3.082
3.221
19.180
22.431
26.289
30.869
2.166
2.305
2.445
2.584
17.392
20.643
24.501
29.081
2.460
2.599
2.739
2.878
15.924
19.175
23.033
27.613
2.694
2.833
2.973
3.112
20.908
24.159
28.017
32.597
2.282
2.421
2.561
2.700
19.120
22.371
26.229
30.809
2.576
2.715
2.855
2.994
17.652
20.903
24.761
29.341
2.810
2.949
3.089
3.228
50
34.600
2.833
32.812
3.127
31.344
3.361
36.305
2.724
34.517
3.018
33.049
3.252
38.033
2.840
36.245
3.1134
34.777
3.368
60
41.052
2.972
39.264
3.266
37.796
3.500
42.757
2.863
40.969
3.157
39.501
3.391
44.485
2.979
42.697
3.273
41.229
3.507
= These capacities are net capacities - the indoor motor heat has been added. These power inputs are total power inputs - the indoor motor watts have been added.
Unitary Products Group
13
036-21090-008-A-0205
HEATING CAPACITIES - 3-1/2 TON (BHH042)
CFM
RETURN AIR
°F
55
1,050
70
80
55
1,400
70
80
55
1,750
70
80
1
CAP1
& KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
-10
12.306
2.310
12.736
2.699
11.993
2.984
13.839
2.178
14.269
2.567
13.526
2.852
14.751
2.271
15.181
2.660
14.438
2.945
0
15.043
2.539
15.473
2.928
14.730
3.213
16.576
2.407
17.006
2.796
16.263
3.081
17.488
2.500
17.918
2.889
17.175
3.174
OUTDOOR AIR TEMPERATURE, °F (72% RH)
10
20
30
40
18.306
22.195
26.829
32.353
2.768
2.997
3.226
3.455
18.736
22.625
27.259
32.783
3.157
3.386
3.615
3.844
17.993
21.882
26.516
32.040
3.442
3.671
3.900
4.129
19.839
23.728
28.362
33.886
2.636
2.865
3.094
3.323
20.269
24.158
28.792
34.316
3.025
3.254
3.483
3.712
19.526
23.415
28.049
33.573
3.310
3.539
3.768
3.997
20.751
24.640
29.274
34.798
2.729
2.958
3.187
3.416
21.181
25.070
29.704
35.228
3.118
3.347
3.576
3.805
20.438
24.327
28.961
34.485
3.403
3.632
3.861
4.090
50
38.937
3.683
39.367
4.072
38.624
4.357
40.470
3.551
40.900
3.940
40.157
4.225
41.382
3.644
41.812
4.033
41.069
4.318
60
46.784
3.912
47.214
4.301
46.471
4.586
48.317
3.780
48.747
4.169
48.004
4.454
49.229
3.873
49.659
4.262
48.916
4.547
= These capacities are net capacities - the indoor motor heat has been added. These power inputs are total power inputs - the indoor motor watts have been added.
HEATING CAPACITIES - 4 TON (BHH048)
CFM
RETURN AIR
°F
55
1,200
70
80
55
1,600
70
80
55
2,000
70
80
1
CAP1
& KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
-10
15.391
2.741
11.255
3.022
10.389
3.294
17.345
2.747
13.209
3.028
12.343
3.300
20.558
2.830
16.422
3.11
15.553
3.383
0
18.532
3.009
14.396
3.290
13.530
3.562
20.486
3.015
16.350
3.296
15.484
3.568
23.699
3.098
19.563
3.379
18.697
3.651
OUTDOOR AIR TEMPERATURE, °F (72% RH)
10
20
30
40
22.420
27.232
33.189
40.562
3.278
3.546
3.815
4.083
18.284
23.096
29.053
36.426
3.559
3.827
4.096
4.364
17.418
22.230
28.187
35.560
3.831
4.099
4.368
4.636
24.374
29.186
35.143
42.516
3.284
3.552
3.821
4.089
20.238
25.050
31.007
38.380
3.565
3.833
4.102
4.370
19.372
24.184
30.141
37.514
3.837
4.105
4.374
4.642
27.587
32.399
38.356
45.729
3.367
3.635
3.904
4.172
23.451
28.263
34.220
41.593
3.648
3.916
4.185
4.453
22.585
27.397
33.354
40.727
3.920
4.188
4.457
4.725
50
49.688
4.352
45.552
4.633
44.686
4.905
51.642
4.358
47.506
4.639
46.640
4.911
54.855
4.441
50.719
4.722
49.853
4.994
60
60.984
4.620
56.848
4.901
55.982
5.173
62.938
4.626
58.802
4.907
57.936
5.179
66.151
4.709
62.015
4.990
61.149
5.262
= These capacities are net capacities - the indoor motor heat has been added. These power inputs are total power inputs - the indoor motor watts have been added.
14
Unitary Products Group
036-21090-008-A-0205
HEATING CAPACITIES - 5 TON (BHH060)
CFM
RETURN AIR
°F
55
1,500
70
80
55
2,000
70
80
55
2,500
70
80
1
CAP1
& KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
MBH
KW
-10
21.634
3.058
19.633
3.653
18.015
4.090
24.132
3.082
22.131
3.677
20.513
4.114
26.615
3.030
24.614
3.625
22.996
4.062
0
25.564
3.367
23.563
3.962
21.945
4.399
28.062
3.391
26.061
3.986
24.443
4.423
30.545
3.339
28.544
3.934
26.926
4.371
OUTDOOR AIR TEMPERATURE, °F (72% RH)
10
20
30
40
30.191
35.640
42.057
49.613
3.677
3.986
4.295
4.604
28.190
33.639
40.056
47.612
4.272
4.581
4.890
5.199
26.572
32.021
38.438
45.994
4.709
5.018
5.327
5.636
32.689
38.138
44.555
52.111
3.701
4.010
4.319
4.628
30.688
36.137
42.554
50.110
4.296
4.605
4.914
5.223
29.070
34.519
40.936
48.492
4.733
5.042
5.351
5.660
35.172
40.621
47.083
54.594
3.649
3.958
4.267
4.576
33.171
38.620
45.037
52.593
4.244
4.553
4.862
5.171
31.553
37.002
43.419
50.975
4.681
4.990
5.299
5.608
50
58.511
4.913
56.510
5.508
54.892
5.945
61.009
4.937
59.008
5.532
57.390
5.969
63.492
4.885
61.491
5.480
59.873
5.917
60
68.989
5.222
66.988
5.817
65.370
6.254
71.487
5.246
69.486
5.841
67.868
6.278
73.970
5.194
71.969
5.789
70.351
6.226
= These capacities are net capacities - the indoor motor heat has been added. These power inputs are total power inputs - the indoor motor watts have been added.
SIDE AND BOTTOM SUPPLY AIR BLOWER PERFORMANCE
230/460/575 volts
060
(230/460 only)
060
(575 only)
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
048
CFM
042
1.00
WATTS
036
0.90
CFM
030
0.80
WATTS
024
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
EXTERNAL STATIC PRESSURE - IWG
0.40
0.50
0.60
0.70
CFM
018
MOTOR
SPEED
0.30
WATTS
MODEL NO.
BHH
0.20
CFM
0.10
—
—
—
—
—
900
—
1200
900
—
—
1462
—
—
1544
—
1876
1544
—
—
—
—
—
290
—
390
280
—
—
526
—
—
620
—
752
620
—
—
—
—
—
850
—
1134
850
—
—
1400
—
—
1508
—
1829
1508
—
—
—
—
—
287
—
397
267
—
—
506
—
—
610
—
772
610
—
—
702
—
—
800
—
1068
800
—
1472
1337
—
—
1472
—
1783
1472
—
—
220
—
—
243
—
368
243
—
647
486
—
—
600
—
753
600
—
–
641
—
—
760
—
1002
—
—
1394
1275
—
1736
1436
1947
1736
1436
—
—
206
—
—
220
—
367
—
—
626
467
—
733
590
882
733
590
—
654
536
—
935
697
—
936
—
1414
1297
1167
—
1668
1375
1867
1968
1375
—
233
183
—
338
238
—
339
—
617
495
440
—
706
573
857
706
573
668
541
—
—
867
843
1200
897
—
1317
1199
1100
—
1599
1313
1786
1599
1313
401
209
—
—
322
183
640
322
—
688
465
414
—
680
557
832
680
557
652
—
—
—
800
—
1100
800
—
1219
1102
1012
1706
1531
1252
1706
1531
1252
386
—
—
—
304
—
620
304
—
660
435
387
807
653
540
807
663
540
—
—
—
987
733
—
987
—
—
1116
985
—
1637
1434
1172
1637
1434
—
—
—
—
507
286
—
507
—
—
533
397
—
782
622
517
782
622
—
—
—
—
873
867
—
873
—
—
1013
—
—
1569
1337
1062
1569
1337
—
—
—
—
493
268
—
493
—
—
507
—
—
757
591
493
757
581
—
—
—
—
760
—
—
760
—
—
910
—
—
1500
1240
—
1500
1240
—
—
—
—
480
—
—
480
—
—
480
—
—
732
560
—
732
560
—
COOL TB2-A
1900
HEAT TB2-A
520 1900 573 1900 627 1900 680 1900 727 1900 773 1900 820 1900 863 1900 907
—
—
COOL TB2-B
2000
HEAT TB2-B
590 2000 653 2000 717 2000 780 2000 833 2000 887 2000 940 2000 998
—
—
—
—
ELECTRIC
HEAT
1750 400 1750 447 1750 493 1750 540 1750 593 1750 647 1750 700 1750 753 1750 807 1750 860
HI
MED
LOW
— — — — — — 2499 1290 2391 1233 2283 1177 2175 1120 2067 1080 1958 1040 1850 1000
— — 2454 1163 2387 1117 2320 1070 2229 1023 2137 977 2046 930 1950 887 1854 843 1758 800
2242 1090 2201 1053 2161 1017 2120 980 2041 927 1962 873 1883 820 1797 787 1711 753 1625 720
NOTE: Above data includes allowances for a dry indoor coil and no filters. For additional pressure drops, refer to the “Additional Static Pressure Resistance” table.
ued
Unitary Products Group
Contin-
15
036-21090-008-A-0205
SIDE AND BOTTOM SUPPLY AIR BLOWER PERFORMANCE
208 volts
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
048
WATTS
042
CFM
036
WATTS
030
1.00
CFM
024
0.90
WATTS
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
HI
MED
LOW
018
0.80
CFM
MOTOR
SPEED
EXTERNAL STATIC PRESSURE - IWG
0.40
0.50
0.60
0.70
0.30
WATTS
MODEL NO.
BHH
0.20
CFM
0.10
—
—
741
—
—
810
—
1080
810
—
1465
1316
—
1694
1385
—
1694
1385
—
—
226
—
—
261
—
351
261
—
631
473
—
690
520
—
690
520
—
—
686
—
—
765
—
1021
766
—
1395
1260
—
1662
1349
1982
1662
1349
—
—
212
—
—
240
—
341
240
—
512
455
—
673
510
870
673
510
—
—
632
—
961
720
—
961
—
1440
1325
1204
—
1629
1312
1939
1629
1312
—
—
198
—
351
219
—
331
—
608
492
438
—
657
500
850
657
500
—
690
577
—
902
675
—
902
—
1381
1255
1148
—
1597
1276
1897
1597
1276
—
231
185
—
321
198
—
321
—
581
473
420
—
640
490
830
640
490
689
659
453
—
841
627
1171
841
—
1273
1167
1069
—
1542
1235
1813
1542
1235
374
210
165
—
305
215
604
306
—
656
446
396
—
623
480
800
623
480
593
487
—
—
751
—
1080
781
—
1185
1079
990
1728
1408
1193
1728
1486
—
361
188
—
—
290
—
486
280
—
530
419
372
770
607
470
770
607
—
497
—
—
990
720
—
980
—
—
1097
952
911
1644
1431
1152
1644
1431
—
347
—
—
468
274
—
468
—
—
604
392
348
740
590
460
740
590
—
—
—
—
888
660
—
888
—
—
1004
—
—
1559
1336
1079
1559
1336
—
—
—
—
456
257
—
456
—
—
480
—
—
707
563
440
707
563
—
—
—
—
786
—
—
786
—
—
912
—
—
1474
1240
—
1474
1240
—
—
—
—
444
—
—
444
—
—
456
—
—
673
537
—
673
537
—
—
—
—
684
—
—
—
—
—
—
—
—
1388
1195
—
1389
—
—
—
—
—
432
—
—
—
—
—
—
—
—
640
510
—
640
—
—
COOL TB2-A
1900
HEAT TB2-A
520 1900 573 1900 627 1900 680 1900 727 1900 773 1900 820
—
—
—
—
—
—
COOL TB2-B
2000
HEAT TB2-B
590 2000 653 2000 717 2000 780 2000 833 2000 887
—
—
—
—
—
—
ELECTRIC
1750 400 1750 447 1750 493 1750 540 1750 593 1750 647 1750 700 1750 753 —
HEAT
NOTE: Above data includes allowances for a dry indoor coil and no filters. For additional pressure drops, refer to the “Additional Static Pressure Resistance” table.
—
—
—
060
—
—
ADDITIONAL STATIC PRESSURE RESISTANCE
RESISTANCE, IWG
DESCRIPTION
CFM
500
600
700
800
900
1,000 1,100 1,200 1,300 1,400 1,500 1,600 1,700 1,800 1,900 2,000
Wet Indoor coil
0.01
0.01
0.01
0.02
0.01
0.02
0.03
0.04
0.04
0.03
0.04
0.04
0.05
0.05
0.06
0.07
Economizer
0.00
0.00
0.00
0.01
0.01
0.01
0.01
0.02
0.03
0.04
0.05
0.06
0.07
0.07
0.08
0.08
Filter/Frame Kit
0.01
0.02
0.02
0.02
0.02
0.02
0.03
0.03
0.03
0.03
0.04
0.05
0.05
0.06
0.06
0.07
Electric Heat
0.02
0.03
0.03
0.03
0.04
0.04
0.05
0.06
0.07
0.08
0.09
0.10
0.01
0.11
0.11
0.12
NOTE: 1. Deduct these resistance values from the available external static pressure shown in the respective Blower Performance Table.
2. The pressure thru the economizer is greater for 100% outdoor air then for 100% return air. If the resistance of the return air duct system is less then 0.25 IWG, the unit will deliver
less CFM during full economizer operation.
16
Unitary Products Group
036-21090-008-A-0205
FIELD WIRING DIAGRAM
THERMOSTAT
** = Minimum wire size of 18 AWG
wire should be used for all field
installed 24 volt wire.
UNIT TERMINAL STRIP
**
R
R
G
G
Y
Y
*
W
24 VOLT TRANSFORMER
W 2
PROGRAMMABLE
THERMOSTAT ONLY
W 1
O
* = Only required on units with
supplemental electric heat.
NOTE:
HEAT ANTICIPATOR
SHOULD BE SET AT 0.25
AMPS FOR ALL MODELS.
C
O
C
CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can
cause improper and dangerous operation. Verify proper operation after servicing.
CONTROL WIRING
REFER TO ELECTRICAL DATA
TABLES TO SIZE THE DISCONNECT
REFER TO ELECTRICAL DATA
TABLES TO SIZE THE DISCONNECT
POWER WIRING
ELECTRICAL DATA (BASIC UNIT)
VOLTAGE
SUPPLY
OUTDOOR
LIMITATIONS COMPRESSOR
AIR
MINIMUM
MODEL POWER SUPFAN
BLOWER CIRCUIT
BHH
PLY
MOTOR,
MOTOR, AMPACITY
FLA
MIN. MAX.
RLA
LRA
FLA
018 208/230-1-60 187
253
7.1
48.0
1.1
2.6
12.5
024 208/230-1-60 187
253
9.3
57.0
1.1
2.6
15.3
208/230-1-60 187
253
15.0
72.5
1.1
2.6
22.5
030 208/230-3-60 187
253
10.0
63.0
1.1
2.6
16.2
460-3-60
414
504
5.0
31.0
0.6
1.4
8.3
208/230-1-60 187
253
17.2
94.0
1.1
3.5
26.1
208/230-3-60 187
253
11.4
78.0
1.1
3.5
18.9
036
460-3-60
414
504
5.7
40.0
0.6
1.8
9.5
575-3-60
518
630
4.7
32.0
0.4
1.5
7.8
208/230-1-60 187
253
20.0
104.0
1.1
3.5
29.6
208/230-3-60 187
253
13.9
88.0
1.1
3.5
22.0
042
460-3-60
414
504
6.4
44.0
0.6
1.8
10.4
575-3-60
518
630
5.4
34.0
0.4
1.5
8.7
208/230-1-60 187
253
23.4
126.0
1.5
4.0
34.7
208/230-3-60 187
253
13.0
93.0
1.5
4.0
21.8
048
460-3-60
414
504
6.4
46.5
0.8
2.0
10.8
575-3-60
518
630
5.1
37.2
0.6
1.6
8.6
208/230-1-60 187
253
28.8
148.0
1.5
5.6
43.1
208/230-3-60 187
253
17.2
123.0
1.5
5.6
28.7
060
460-3-60
414
504
8.2
62.0
0.8
5.6
16.7
575-3-60
518
630
7.0
50.0
0.6
2.8
12.2
= Rated in accordance with ARI Standard 110, utilization range “A”.
MAX.
MAX.
FUSE
HACR
UNIT
TRANSFORMER
SIZE, BREAKER POWER
SIZE (VA)
SIZE,
FACTOR
AMPS
AMPS
`
15
15
0.96
40
20
20
0.96
40
30
30
0.96
40
25
25
0.96
75
15
15
0.96
75
35
35
0.96
40
25
25
0.96
75
15
15
0.96
75
15
15
0.96
75
40
40
0.96
40
30
30
0.96
75
15
15
0.96
75
15
15
0.96
75
45
45
0.96
40
30
30
0.96
75
15
15
0.96
75
15
15
0.96
75
60
60
0.96
40
40
40
0.96
75
20
20
0.96
75
15
15
0.96
75
` = Dual element, time delay type.
NOMINAL VOLTAGE
ELECTRIC HEAT
CORRECTION
FACTORS
Unitary Products Group
240
480
600
VOLTAGE
208
230
460
575
KW CAP. MULTIPLIER
.75
.92
.92
.92
17
036-21090-008-A-0205
MODEL
BHH
ELECTRICAL DATA (12 SEER HEAT PUMP / ELECTRIC HEAT)
COMPRESSOR
POWER
SUPPLY
RLA
LRA
018 208/230-1-60
7.1
48.0
024 208/230-1-60
9.3
57.0
15.0
72.5
15.0
0.0
72.5
0.0
17.2
94.0
17.2
0.0
94.0
0.0
20.0
104.0
20.0
0.0
104.0
0.0
048 208/230-1-60
23.4
126.0
060 208/230-1-60
28.8
148.0
030 208/230-3-60
10.0
63.0
036 208/230-3-60
11.4
78.0
042 208/230-3-60
13.9
88.0
048 208/230-3-60
13.0
93.0
060 208/230-3-60
17.2
123.0
030
460-3-60
5.0
31.0
036
460-3-60
5.7
40.0
042
460-3-60
6.4
44.0
048
460-3-60
6.4
46.5
060
460-3-60
8.2
62.0
030 208/230-1-60
036 208/230-1-60
042 208/230-1-60
1
2
SUPPLY
ELECTRIC HEAT ACCESSORY
COND.
AIR
FAN
BLOWER
TOTAL
MOTOR
KW
MOTOR, MODEL NO.
AMPS
FLA
FLA
2NH04500506
3.8 / 5.0 *
18.1 / 20.8
1.1
2.6
2NH04500706
5.6 / 7.5 *
27.1 / 31.3
2NH04500506
3.8 / 5.0 *
18.1 / 20.8
1.1
2.6
2NH04500706
5.6 / 7.5 *
27.1 / 31.3
2NH04501006 7.5 / 10.0 * 36.1 / 41.7
2NH04500506
3.8 / 5.0 *
18.1 / 20.8
2NH04500706
5.6 / 7.5 *
27.3 / 31.3
1.1
2.6
2NH04501006 7.5 / 10.0 * 36.1 / 41.7
2NH04501506 11.3 / 15.0 * 54.2 / 62.5
1.1
2.6
3.8/5.0
18.1/20.8
2ND04501506
0.0
0.0
7.5/10.0
36.1/41.7
3.8 / 5.0 *
18.1 / 20.8
2NH04500506
2NH04500706
5.6 / 7.5 *
27.1 / 31.3
1.1
3.5
2NH04501006 7.5 / 10.0 * 36.1 / 41.7
2NH04501506 11.3 / 15.0 * 54.2 / 62.5
1.1
3.5
3.8/5.0
18.1/20.8
2ND04501506
0.0
0.0
7.5/10.0
36.1/41.7
2NP04501006 7.5 / 10.0 * 36.1 / 41.7
1.1
3.5
2NP04501506 11.3 / 15.0 * 54.2 / 62.5
1.1
3.5
3.8/5.0
18.1/20.8
2ND04501506
0.0
0.0
7.5/10.0
36.1/41.7
2NP04501006 7.5 / 10.0 * 36.1 / 41.7
2NP04501506 11.3 / 15.0 * 54.2 / 62.5
1.5
4.0
2NP04502006 15.0 / 20.0 * 72.2 / 83.3
2NX04502506 18.8 / 25.0 * 90.3 / 104.2
2NP04501006 7.5 / 10.0 * 36.1 / 41.7
2NP04501506 11.3 / 15.0 * 54.2 / 62.5
1.5
5.6
2NH04502006 15.0 / 20.0 * 72.2 / 83.3
2NP04502506 18.8 / 25.0 * 90.3 / 104.2
2NH04501025 7.5 / 10.0 * 20.8 / 24.1
1.1
3.5
2NH04501525 11.3 / 15.0 * 31.3 / 36.1
2NH04501025 7.5 / 10.0 * 20.8 / 24.1
1.1
3.5
2NH04501525 11.3 / 15.0 * 31.3 / 36.1
2NP04501025 7.5 / 10.0 * 20.8 / 24.1
1.1
3.5
2NP04501525 11.3 / 15.0 * 31.3 / 36.1
2NP04501025 7.5 / 10.0 * 20.8 / 24.1
2NP04501525 11.3 / 15.0 * 31.3 / 36.1
1.5
4.0
2NP04502025 15.0 / 20.0 * 41.7 / 48.1
2NH04502525 18.8 / 25.0 * 52.1 / 60.1
2NH04501025 7.5 / 10.0 * 20.8 / 24.1
2NH04501525 11.3 / 15.0 * 31.3 / 36.1
1.5
5.6
2NH04502025 15.0 / 20.0 * 41.7 / 48.1
2NH04502525 18.8 / 25.0 * 52.1 / 60.1
2NH04501046
10.0**
12.0
0.6
1.8
2NH04501546
15.0**
18.0
2NH04501046
10.0**
12.0
0.6
1.8
2NH04501546
15.0**
18.0
2NH04501046
10.0**
12.0
0.6
1.8
2NH04501546
15.0**
18.0
2NP04501046
10.0**
12.0
2NH04501546
15.0**
18.0
0.8
2.0
2NH04502046
20.0**
24.1
2NH04502546
25.0**
30.1
10.0**
12.0
2NP04501046
2NH04501546
15.0**
18.0
0.8
5.6
2NH04502046
20.0**
24.1
2NP04502546
25.0**
30.1
= Dual element, time delay type.
= Standard circuit breakers may be used in Canada and on applications
over 60 amps where the heaters are separately fused.
18
MINIMUM
CIRCUIT
AMPACITY
MAX.
FUSE
SIZE,1
AMPS
MAX.
HACR2
BREAKER
SIZE
35.1 / 38.6
46.4 / 51.6
37.9 / 41.4
49.2 / 54.4
60.5 / 67.4
45.0 / 48.5
56.3 / 61.5
67.6 / 74.5
90.2 / 100.6
45.0/48.5
45.1/52.1
48.7 / 52.1
60.0 / 65.2
71.2 / 78.2
93.8 / 104.2
48.7/52.1
45.1/52.1
74.7 / 81.7
97.3 / 107.7
52.2/55.6
45.1/52.1
79.9/86.8
102.5/112.9
125.0/138.9
147.6/165.0
88.2/95.2
110.8/121.2
133.4/147.3
155.9/173.3
42.3/46.3
55.3/61.3
44.9 / 48.9
57.9 / 64.0
48.0 / 52.0
61.1 / 67.1
47.8/51.8
60.8/66.9
73.9/81.9
86.9/96.9
54.8/58.8
67.8/73.8
80.8/88.8
93.9/103.9
23.3
30.8
24.5
32.0
25.4
33.0
25.8
33.4
40.9
48.4
28.9
36.4
43.9
51.4
40 / 40
50 / 60
40 / 45
50 / 60
70 / 70
50 / 50
60 / 70
70 / 80
100 / 110
50/50
50/60
60 / 60
70 / 70
80 / 80
100 / 110
60/60
50/60
80 / 90
100 / 110
60/70
50/60
90/90
110/125
150/150
150/175
100/110
125/125
150/150
175/175
45/50
60/70
50/50
60/70
50/60
70/70
50/60
70/70
80/90
90/100
60/70
70/80
90/90
100/110
25
35
25
35
30
35
30
35
45
50
30
40
45
60
40 / 40
50 / 60
40 / 45
50 / 60
70 / 70
50 / 50
60 / 70
70 / 80
100 / 110
50/50
50/60
60 / 60
70 / 70
80 / 80
100 / 110
60/60
50/60
80 / 90
100 / 110
60/70
50/60
90/90
110/125
150/150
150/175
100/110
125/125
150/150
175/175
45/50
60/70
50/50
60/70
50/60
70/70
50/60
70/70
80/90
90/100
60/70
70/80
90/90
100/110
25
35
25
35
30
35
30
35
45
50
30
40
45
60
* = KW listed is for 240 volts, use table on previous page for 208 or 230 volts.
** = KW listed is for 480 volts, use table on previous page for 460 volts.
*** = KW listed is for 600 volts, use table on previous page for 575 volts.
Unitary Products Group
036-21090-008-A-0205
ELECTRICAL DATA (12 SEER HEAT PUMP / ELECTRIC HEAT)
(CONTINUED)
1
2
COND.
FAN
MOTOR
FLA
SUPPLY
AIR
BLOWER
MOTOR,
FLA
32.0
0.4
34.0
0.4
MODEL
BHH
COMPRESSOR
POWER
SUPPLY
RLA
LRA
036
575-3-60
4.7
042
575-3-60
5.4
ELECTRIC HEAT ACCESSORY
MAX.
HACR2
BREAKER
SIZE
MODEL
NO.
KW
TOTAL
AMPS
1.5
2NH04501058
2NH04501558
10.0***
15.0***
9.6
14.4
19.8
25.8
20
30
20
20
1.5
2NH04501058
2NH04501558
10.0***
15.0***
9.6
14.4
20.7
26.7
25
30
25
30
10.0***
15.0***
20.0***
25.0***
9.6
14.4
19.2
24.1
20.6
26.7
32.7
38.7
25
30
35
40
25
30
35
40
10.0***
15.0***
20.0***
25.0***
9.6
14.4
19.2
24.1
24.2
30.2
36.3
42.3
25
35
40
45
25
35
40
45
048
575-3-60
5.1
37.2
0.6
1.6
2NH04501058
2NH04501558
2NH04502058
2NH04502558
060
575-3-60
7.0
50.0
0.6
2.8
2NH04501058
2NH04501558
2NP04502058
2NP04502558
= Dual element, time delay type.
= Standard circuit breakers may be used in Canada and on applications
over 60 amps where the heaters are separately fused.
Unitary Products Group
MAX.
FUSE
SIZE,1
AMPS
MINIMUM
CIRCUIT
AMPACITY
* = KW listed is for 240 volts, use table on previous page for 208 or 230 volts.
** = KW listed is for 480 volts, use table on previous page for 460 volts.
*** = KW listed is for 600 volts, use table on previous page for 575 volts.
19
036-21090-008-A-0205
APPLICATION DATA
BHH
MODEL
018
024
030
036
042
048
060
450
600
750
900
1,050
1,200
1,500
MINIMUM AIR FLOW
(CFM)
COOLING
HEATING
450
600
750
900
1,050
1,200
1,500
MAXIMUM AIR FLOW
(CFM)
COOLING
750
1,000
1,250
1,500
1,750
2,000
2,500
HEATING
750
1,000
1,250
1,500
1,750
2,000
2,500
MINIMUM OPERATING TEMPERATURE IN COOLING MODE
(AMBIENT, °F)
45
45
45
45
45
45
45
MINIMUM MIXED AIR IN COOLING MODE
(RETURN AIR, DB°F/WB°F)
68 / 57
68 / 57
68 / 57
68 / 57
68 / 57
68 / 57
68 / 57
MINIMUM MIXED AIR IN HEATING MODE
(RETURN AIR, °F)
55
55
55
55
55
55
55
CENTER OF GRAVITY AND WEIGHTS
CENTER OF GRAVITY
D
FRONT
OF
UNIT
C
A
B
"' &
!
26
47¼
BHH
UNIT
SIZE
018
024
030
036
042
048
060
SHIPPING
WEIGHT
OPERATING
WEIGHT
351
356
353
388
440
485
495
346
351
348
383
435
480
490
UNIT CLEARANCES
(Minimum)
Front
12"
Rear
0"
24"
Right Side
24"
Below Unit
0"
Above Unit
36" (For Condenser
Air Discharge)
A
B
C
D
103
97
96
106
120
132
135
92
93
93
102
115
127
130
73
81
81
89
101
111
113
83
84
84
92
104
115
117
CLEARANCES
Left Side (Filter Access)
CORNER WEIGHTS
Units may be installed on combustible floors made from wood or class A,
B or C roof covering material.
` Units must be installed outdoors. Overhanging structures or shrubs
should not obstruct outdoor air discharge outlet.
NOTE: FOR UNITS APPLIED WITH A ROOF CURB, THE
MINIMUM CLEARANCE MAY BE REDUCED FROM 1
INCH TO 1/2 INCH BETWEEN COMBUSTIBLE ROOF
CURB MATERIAL AND THE SUPPLY DUCT.
20
Unitary Products Group
036-21090-008-A-0205
UNIT DIMENSIONS
HIGH VOLTAGE CONN.
% " DIA. KNOCKOUT
&
FRONT
COMPRESSOR
SERVICE ACCESS
COMPARTMENT PANEL
HIGH VOLTAGE CONN.
!! " DIA. KNOCKOUT
LOW VOLTAGE CONN.
% “ DIA. KNOCKOUT
&
A (OVERALL)
!
UNIT SIZE
DIMENSION
“A”
018 - 036
!! 042 - 060
"
&
SIDE SUPPLY
AIR OPENING
REFRIGERANT
CONNECTIONS
SIDE RETURN
AIR OPENING
ELECTRICAL/FILTER
SERVICE ACCESS
COMPARTMENT PANEL
% "
% "
& "
"' &
"
"
& "
HIGH VOLTAGE CONN.
!$"" DIA. KNOCKOUT
"% "
(OVERALL)
(OVERALL)
! !"
UNIT CONDENSATE
CONNECTION !"“ NPTI
(TRAP REQUIRED)
"
LOW VOLTAGE CONN.
% “ DIA. KNOCKOUT
&
FRONT
All dimensions are in inches. They are
subject to change without notice. Certified
dimensions will be provided upon request.
HIGH VOLTAGE
CONN. !! “ x % &" DIA.
KNOCKOUT
SIDE SUPPLY
AIR OPENING
" "!
" $ !"
& !&
6
" REAR
OUTDOOR
COIL
! !&
CONDENSATE
DRAIN !"“ NPTI
SIDE RETURN
AIR OPENING
BOTTOM SUPPLY
AIR OPENING
!
&
" ! "
!
15
15
"
!
15
4
& ' $
!
BOTTOM RETURN
AIR OPENING
! "
Unitary Products Group
21
036-21090-008-A-0205
TYPICAL APPLICATIONS
TYPICAL SLAB ON GROUND INSTALLATION
SUPPLY AIR
DUCT
RETURN AIR
DUCT
FIELD SUPPLIED
DISCONNECT SWITCH
LOCATED TO REAR OF UNIT
TO POWER SUPPLY
CONTROL WIRING
TO INDOOR
THERMOSTAT
TYPICAL ROOF CURB INSTALLATION
FIELD SUPPLIED
DISCONNECT SWITCH
MOUNTED ON UNIT
TO POWER SUPPLY
CONTROL WIRING
TO INDOOR THERMOSTAT
SUPPLY AIR
DUCT
ROOF CURB
INSTALLATION
REAR DUCT
ROOF CURB
INSTALLATION
BOTTOM DUCT
RETURN AIR
DUCT
SLAB ON GROUND
INSTALLATION
22
Unitary Products Group
036-21090-008-A-0205
ROOF CURB DIMENSIONS
(8" roof curb also available)
1
"
!
"
" ! "
% # &
"# "
% "
"!
!
"
4
OPENING FOR
RETURN AIR DUCT
22
OPENING FOR
SUPPLY AIR DUCT
1
14
FRONT
WOOD NAILER
INSULATED
PANELS
RECOMMENDED DUCT SIZE
SUPPLY AIR DUCT
% &" x "
RETURN AIR DUCT
% &" x $ ! ""
ROOF CURB APPLICATION
!
""
x 1" WIDE GASKETING FOR CURB FRAME
AND ALL DUCT SUPPORT SURFACES
1"
UNIT BASE RAIL
COUNTERFLASHING
UNIT BASE
WOOD NAILER
8" MIN. ABOVE FINISHED ROOF
CANT STRIP
14"
INSULATION AND ROOFING MATERIAL
CURB FRAME
INSULATION
ROOF DECK AND ROOFING MATERIAL
Unitary Products Group
23
036-21090-008-A-0205
TYPICAL WIRING DIAGRAM (208/230-1-60 POWER SUPPLY)
FOR DUAL POINT
ELECTRIC HEAT
POWER SUPPLY
SEE DETAIL A
SEE
DETAIL
"B"
SECONDARY POWER SUPPLY
FOR DUAL POINT ELEC HEAT
208/230-1-60
USE COPPER
CONDUCTORS ONLY
F3
F5
709/BK
(M1)
703/BK
(K3)
711/BK
(K5)
706/BK
(K4)
714/BK
(K6)
710/PR
F2
705/PR
(HTR2)
713/PR
(HTR3)
F4
(M1)
POWER SUPPLY
208/230-1-60
USE COPPER
CONDUCTORS ONLY
F1
708/PR
(HTR4)
716/PR
(HTR5)
F6
DETAIL A
DUAL POINT ELECTRIC HEAT (SEE NOTE 9)
24
Unitary Products Group
036-21090-008-A-0205
TYPICAL WIRING DIAGRAM (230-3-60 POWER SUPPLY)
Unitary Products Group
25
036-21090-008-A-0205
TYPICAL WIRING DIAGRAM (460-3-60 & 575-3-60 POWER SUPPLY)
E L E M E N T A R Y D IA G R A M
P O W E R S U P P L Y W /O U T
E L E C H E A T 4 6 0 -3 -6 0
O R 5 7 5 -3 -6 0
G N D
L U G
U S E C O P P E R
C O N D U C T O R S
O N L Y
P O W E R S U P P L Y W /
E L E C H E A T 4 6 0 -3 -6 0
O R 5 7 5 -3 -6 0
M 1 -1
7 0 9 /R
L 1
L 1
L 2
S E E N O T E 6
(S E E D E T A )
R C 3
F A N
M O T O R
1
7
K 3 -3
9
7
K 4 -3
7 1 9 /0
9
H T R
3
C
D E T A IL B
H T R
5
7 1 2 /B L
5
8
R
D F S T
S T A T
H T R
1
7 1 8 /B K
4
K 4 -2
7 1 3 /P R
1
7 0 8 /Y
6
K 4 -1
7 1 7 /R
H T R
2
7 0 5 /B L
5
H T R
4
H T R
6
1 0 9 /B K
7 2 0 /Y
6
C
1 0 8
/P R
2 1 3 /R
C B
2 0 5 /R
2 0 1 /B R
F O R
C O N
0 3 1 S E E
D E
T R
0 9 1
D E
F R O S T
O L
0 4 -0 0 0 A
T A IL B
K 3
B
8 1 3 /B R
1
8 1 4 /Y
4
P 3
2 2 4 /R
L 1
L 2
L 1
H 4
H 3
S 3
R
2 0 3 /B R
F S
8 0 3
M 1
8 0 4
/B K
H P
B L U
2 2 2 /Y
L P
R V S
2 2 1 /B R
R V S
G
W 2
W 1
O
C
T B 1
R O O M
4 D , 5 D , 6 D
O N
F A N
G
C
O
R V
C
D E F
W
W 1
A U T O
2 1 8 /Y
T H 1 /T C 1 A N T
H
H E A T
T H 2
E M
2 1 7 /G Y
C O O L
O F F
T C 1
T H 1
2 1 5 /O
D E F
2 2 0 /O
T H E R M O S T A T
O
R
Y
H T (R E D )
E M
H T
2 1 6 /W
Y
X
2 2 0 /O
2 0 3 /B R
26
Y
X
P R E S S
S W IT C H
2 2 1 /B R
R
R
8 0 2
B L U
K 4
2 1 D , 2 4 D
T 'S T A T
8 0 5
/B L
2 1 9 /B K
S E E N O T E 7
D S
M
8 1 0 /B L
K 1
F 2 4
D E F R O S T
C O N T R O L
0 3 1 -0 1 2 6 8 -0 0 0 B
C O M P R
R E L A Y
5
6
C O N T R O L L O G IC
C O N D F A N
/B K
/B K
B L U
C
D F S T
S T A T
1 1 D , 1 4 D , 1 5 D
8 1 1 /0
4
H 2
K 2
L S
8 0 8 /B R
3
F L
L 1
2 0 4 /B R
S E E N O T E 8
8 0 9 /O
2
K 2
B L U
D S
1
L H
L 1
7 E
S 2
P 2
T
2 0 9 \R
H 1
3
2 0 2 /Y
L 2
L 2
2
2 1 3 /R
8 D
2 4 V
F A N C O N T R O L
B O A R D
K 1
A
T 1
2 1 2
/R
2 0 8 /P R
2 2 3 /B R
4 8 0 O R 6 0 0
2 1 4 /B R
2 0 6 /B R
M 2
2 0 7 /B R
M 3
C O M P R
R E L A Y
0 0 F A N
M O T O R
B R N
P R P
4
8
7 0 7 /0
P R P
R C 2
M
7 0 4 /B K
K 3 -2
7 0 6 /P R
1 3 0 /P R
B R N
T 1
B L K
K 3 -1
M 1
B L K
1 0 5 /B L
C C H
7 0 3 /R
IO
3
L 3
L 1
L 1
B L K
C O M P R
M 3 -1
M 2 -1
T 1
L 1
L 2
1 2 6 /Y
T 3
L 3
1 1 0
/O
1 2 0 /Y
1 2 3 /B L
M 1 -3
(S E E D E T A )
(S E E D E T A )
1 1 4 /B K
T 2
L 2
7 1 0 /O
L 3
1 2 1 /B K
T 1
M 1 -2
7 1 1 /P R
W
T H 2
A N T
B
Unitary Products Group
036-21090-008-A-0205
TYPICAL WIRING DIAGRAM (BHH060 MODELS- 208/230-1-60 POWER SUPPLY)
ELEMENTARY DIAGRAM
POWER SUPPLY
WITH ELEC HEAT
208/230-1-60
USE COPPER
CONDUCTORS ONLY
1
GND
LUG
2
POWER SUPPLY
WITH ELEC HEAT
208/230-1-60
USE COPPER
CONDUCTORS ONLY
F1
3
709
/BK
PTCR
112
/BR
M1-1
L1
6
T1
101/BK
COMPR
240V/BK
114/BK
7
1
105/R W/ALT
CAPACITORS
ONLY
8
103
/BR
S / P CONFIGURATION
CCH
9
T1
PRP
D / P CONFIGURATION
240V/PR
CCH
BLK
L1
GRN
11
BLK
5
12
4
3
2
F3
P5
1
13
711
BK
I.D.FAN
MOTOR
230V
14
F5
2
3
5
6
9 11 12 13 15
K5
COM
NO
HTR 2
705
PR
712
HTR 3
713
BL
K4
COM
704
BL
NO
HTR 5
224/R
B
TB2
A
24V
HTR 1
22
701/Y
P3
L2
L1
L2
L1
24
25
26
O/ORN
W/GY
27
G/PRP
Y/YEL
29
COMPR
RELAY
R
DFST
STAT
BLU C
LH
2
FL
3
H4
4
204/BR
SEE NOTE 7
809/O
S3
1
L2
2
H1
3
L1
4
L1
LS
808/BR
811/O
H3
15D
K6
815
/R
812/R
5
816
/O
14D
K4
813
/O
H2
LTRIP
ECM
205/R
FOR DEFROST
CONTROL
031-09104-000A
SEE DETAIL B
28
M
129/PR
FAN CONTROL
BOARD
P2 S2
T
1
K2
702/PR
23
222/Y
BLU
DS
108/PR
201/BR
214/BR
T1
213/R
SEE
TABLES
1&2
21
230V
C
K1
20
716
PR
208V
292/R
NO
M1
PR
715
RED
NO
DETAIL B
F6
708
RED
K6
L2
F4
PR
HTR 4
707
128/BK
HEAT/BLK
COOL/BLU
19
NO
COM
R/RED
18
COM
109/BK
K7
17
K3
714
COM
BK
P4
EM/W
16
706
BK
S4
15
1
703
BK
S5
2
SPEED
F24
R
Y
G
W2
W1
O
C
810/BL
6
226/O
12D
K3
814
/BL
225/BK
817
/O
K5
K7
17B, 13D
TB1
30
ROOM THERMOSTAT
BLU
31
DS
32
BLU
O
COND FAN
R
C
C2/BRN
201/BR
35
FS
LP
804
COMPR
RELAY
TH1/TC1 ANT
HP
802
Y
BK
221/BR
HEAT
TH2
218/Y
EM HT
EM HT (RED)
DEF
O
220/O
RVS
H
C
PRESS
SWITCH
COOL
OFF
TC1
TH1
R
BL
219/BK
SEE NOTE 6
Unitary Products Group
AUTO
X
M
805
36
203/BR
ON
FAN
G
T'STAT
222/Y
M1
BK
803
BK
R
DFST
STAT DEFROST
CONTROL
031-01268-000B
C1/BRN
34
37
L1
BLK
BRN
1
33
BLK
RC2
OD FAN
MOTOR
BLK
10
OPTIONAL CCH
104
/R
RC1
S
SEE
DETAIL
A
710
/PR
111
/R
M1-2
T2
L2
102/Y
R
C
L2
DETAIL A
F2
4
5
M1 - 2
T2
RV
C
DEF
W
W1
215/O
217/GY
Y
216/W
X
W
TH2 ANT
B
27
036-21090-008-A-0205
TYPICAL WIRING DIAGRAM (BHH060 MODELS- 208/230-3-60 POWER SUPPLY)
POWER SUPPLY WITH
ELEC HEAT 230-3-60
1
L3 L2 L1
2
3
4
POWER SUPPLY W/OUT
ELEC HEAT 230-3-60
USE COPPER
CONDUCTORS
ONLY
240V/BLK
709/R
F1
GND
LUG
5
711/PR
F2
240V/PR
ELEMENTARY DIAGRAM
710/O
F3
128/BK
129/PR
108/PR
109/BK
M1-1
L1
T1
M1-2
L2
T2
M1-3
L3
T3
6
7
BLK
121/BK
105/BL
9
GRN
11
5 4 3 2 1
P5
S5
12
I.D.FAN
MOTOR
230V
13
14
15
S4
1 2 3 5 6 9 11 12 13 15
COM
R/RED
17
HEAT/BLK
COOL/BLU
18
19
20
NO
21
SEE
TABLES
1&2
722/R
719/O
CB
A M3 B
A M2 B
P3
702/PR
1
S3
HTR
3
HTR 2
708/Y
718/BK
712/BL
HTR 4
HTR
6
HTR 5
720/Y
109/BK
212/R
24V
L1
L2
L1
LH
2
FL
3
H4
4
H1
3
L1
4
L1
BLK
K2
H3
Y
204/BR
SEE NOTE 7
G
W2
W1
O
C
13E
809/O
808/BR
10E
LS
811
/0
5
810/BL
H2
6
LTRIP 225/BK
ECM
226/O
2
SPEED
F24
R
108/PR
201/BR
214/BR
128/BK
L2
L2
230V
C
T1
FAN CONTROL
BOARD P2 S2
1
T
2
114/BK
BLU
DS
32
C2/BRN
C1/BRN
201/BR
FS
36
803
BK
203/BR
28
F9
HTR 1
K3
21B
K7
16B
TB1
ROOM THERMOSTAT
31
37
713/PR
723/PR
30
35
717/R
F8
205
/R
29
F7
705/BL
K1
O/ORN
W/GY
G/PRP
Y/YEL
28
707/O
704/BK
129/PR
25
27
F6
224/R
B
TB2
A
22
26
706/PR
292/R
NO
701/Y
23
F5
M2-1
L1
T1
M2-2
L2
T2
M2-3
L3
T3
M3-1
L1
T1
M3-2
L2
T2
M3-3
L3
T3
208V
K7
K3
721/Y
COM
24
34
OD FAN
MOTOR
1
BRN
P4
EM/W
16
33
L3
PRP
703/R
BLK
RC2
F4
COMPR
3
L2
126/Y
BLK
CCH
L1
123/BL
8
10
804
BK
HP
BLU
222/Y
M1
LP
805
BL
802
BK
219/BK
SEE NOTE 6
220/O
RVS
221/BR
COND FAN
R
DFST
STAT C
R
M
COMPR
RELAY
Y
DEF
RV
C
DEF
O
W
W1
AUTO
TH1/TC1 ANT COOL
OFF
TC1
TH1
HEAT
213/R
H
C
PRESS
SWITCH
ON
FAN
G
T'STAT
X
R
O
TH2
218/Y
EM HT
EM HT (RED)
215/O
217/GY
Y
216/W
X
W
TH2 ANT
B
Unitary Products Group
036-21090-008-A-0205
TYPICAL WIRING DIAGRAM (BHH060 MODELS- 460-3-60 POWER SUPPLY)
Unitary Products Group
29
036-21090-008-A-0205
TYPICAL WIRING DIAGRAM LEGEND (See pages 24, 25, and 26)
CB
CCH
COMPR
DS
F1 F2 F3
F4 F5 F6
F7 F8 F9
F24
FS
HP
HTR 1
HTR 2
HTR 3
HTR 4
HTR 5
HTR 6
K1
K2
K3
K7
LP
LS
M1
M2
M3
PTCR
RC1/RC2
RC1
RC2
RC3
RVS
S2/P2
S3/P3
S4/P4
S3/P3
T1
TB2
CIRCUIT BREAKER 24V, 3 AMP
CRANKCASE HEATER (OPTIONAL)
COMPRESSOR
DEFROST SENSOR, CLOSES @ 31˚F, OPENS @ 55˚F.
FUSES, LINE VOLTAGE - 60 AMP (10, 15, 20 & 25 KW ELEC HEAT)
FUSES, LINE VOLTAGE - 30 AMP (10, 15, 20 & 25 KW ELEC HEAT)
FUSES, LINE VOLTAGE - 30 AMP (20, 25 KW ELEC HEAT)
FUSE 24V SECONDARY, 5 AMP
FREEZESTAT SWITCH (OPTIONAL ACCESSORY) OPEN @ 26˚ F
HIGH PRESSURE SWITCH (OPTIONAL ACCESSORY) OPENS @ 280 PSIG
ELECTRIC HEATER (OPT. ACCSSRY: ALL KW ELEC HEAT)
ELECTRIC HEATER (OPT. ACCSSRY: 7.5, 10, 15, 20 & 25 KW ELEC HEAT)
ELECTRIC HEATER (OPT. ACCSSRY: 20 & 25 KW ELEC HEAT)
ELECTRIC HEATER (OPT. ACCSSRY: 15, 20 & 25 KW ELEC HEAT)
ELECTRIC HEATER (OPT. ACCSSRY: 20 & 25 KW ELEC HEAT)
ELECTRIC HEATER (OPT. ACCSSRY: 20 & 25 KW ELEC HEAT)
RELAY INDOOR FAN MOTOR
RELAY ELECTRIC HEATER
RELAY ELECTRIC HEATER, 24 VDC COIL
RELAY LIMIT TRIP, 25 VDC COIL
LOW PRESSURE SWITCH (OPTIONAL ACCESSORY) OPEN @ 7 PSIG
LIMIT SWITCH, ELECTRIC HEAT (PART OF ELEC HEAT ACCESSORY)
CONTACTOR, COMPRESSOR & OUTDOOR FAN
CONTACTOR, ELECTRIC HEAT, 230V COIL
CONTACTOR, ELECTRIC HEAT, 230V COIL
START ASSIST (OPTIONAL DEVICE)
COMPRESSOR START & OUTDOOR FAN RUN CAPACITOR
COMPRESSOR START CAPACITOR (ALTERNATE)
OUTDOOR FAN RUN CAPACITOR (ALTERNATE)
INDOOR FAN RUN CAPACITOR
REVERSING VALVE SOLENOID
SOCKET/PLUG CONNECTION ON FAN CONTROL BOARD, LOW VOLTAGE
SOCKET/PLUG CONNECTION ON FAN CONTROL BOARD, LINE VOLTAGE
SOCKET/PLUG CONNECTION ON ID FAN MOTOR, 24V
SOCKET/PLUG CONNECTION ON ID FAN MOTOR, 230V
TRANSFORMER, 24V, 40 VA
TERMINAL BLOCK ECM MOTOR "SPEED" CONNECTIONS
IDENTIFIED TERMINAL ON RUN CAPACITOR
ROOM THERMOSTAT 24V CONNECTIONS
TB1 ON FAN/ELEC HEAT CONTROL BOARD
FACTORY WIRING AND DEVICES
OPTIONAL WIRING AND DEVICES
FIELD WIRING
TYPICAL WIRING DIAGRAM NOTES (See pages 24, 25, and 26)
30
Unitary Products Group
036-21090-008-A-0205
MECHANICAL SPECIFICATIONS
GENERAL DESCRIPTION
INDOOR (SUPPLY) FAN ASSEMBLY
Units shall be factory-assembled, single packaged, Heat
Pumps, designed for outdoor mounted installation. Units shall
have minimum SEER ratings of 12.0. They shall have built in,
equal size, field convertible duct connections for down discharge supply/return or horizontal discharge supply/return.
1. Fan shall be direct drive, multi-speed design. Job site selected (BHP) brake horse power shall not exceed the motors nameplate horse power rating.
The units shall be factory wired, piped, charged with R-22 refrigerant and factory tested prior to shipment. All unit wiring
shall be both numbered and color coded.
All units shall be manufactured in a facility certified to ISO
9001 standards, and the cooling performance shall be rated in
accordance with DOE and ARI test procedures. Units shall be
classified to UL 1995/CAN/CSA No. 236-M90 conditions.
2. Fan wheel shall be double-inlet type with forward-curved
blades, dynamically balanced to operate smoothly
throughout the entire range of operation. Airflow design
shall be constant air volume.
3. Bearings shall be sealed and permanently lubricated for
longer life and no maintenance.
4. Fan assembly shall be “Slip Track” (slide-out) design for
easy removal and cleaning.
UNIT CABINET
OUTDOOR FAN ASSEMBLY
1. Unit cabinet shall be constructed of G90 galvanized steel,
with exterior surfaces coated with a non-chalking, powered paint finish, certified at 1000 hour salt spray test per
ASTM-B117 standards.
1. The outdoor fan shall be of the direct-driven propeller
type, discharge air vertically, have aluminum blades riveted to corrosion resistant steel spider bracket and shall
be statically balanced for smooth operation.
2. The unit top shall be a single piece “Water Shed” design,
with drip edges and no-seam corners to provide optimum
water integrity.
2. The outdoor fan motor shall be totally enclosed with permanently lubricated bearings and internally protected
against overload conditions.
3. Unit shall have a rigidly mounted condenser coil guard to
provide protection from objects and personnel after installation.
REFRIGERANT COMPONENTS
4. Indoor blower section shall be insulated with up to 3/4”
thick, aluminum, foil faced insulation, fastened to prevent
insulation from entering the air stream.
5. Cabinet panels shall be “large” size, easily removable for
servicing and maintenance, with built-in lift handles.
6. Unit shall be built on a formed, “Super-Structure” design
base pan, with embossments at critical points to add
strength, rigidity and aid in minimizing sound.
7. Full perimeter base rails shall be provided to assure reliable transit of equipment, overhead rigging, fork truck access and proper sealing on roof curb applications. Base
rails shall be removable, when required, to lower unit
height.
8. Filters shall be furnished and be accessible through a removable access door, sealed air tight. (Single phase models - accessory kit available. Three phase models standard from factory.)
1. Compressors:
A. Shall be fully hermetic type, direct drive, internally protected with internal high-pressure relief and over temperature protection. The hermetic motor shall be
suction gas cooled and have a voltage range of + or 10% of the unit nameplate voltage.
B. Shall have internal isolation and sound muffling to
minimize vibration and noise, and be externally isolated on a dedicated, independent mounting.
2. Coils:
A. Evaporator and condenser coils shall have aluminum
plate fins mechanically bonded to seamless internallyenhanced copper tubes with all joints brazed.
B. Evaporator and Condenser coils shall be of the direct
expansion, draw-thru design.
3. Refrigerant Circuit and Refrigerant Safety Components
shall include:
A. Independent fixed-orifice expansion devices.
B. Solid-core filter dryer to eliminate any foreign matter.
9. Units vertical discharge and return duct configuration
shall be designed to fit between standard 24” O.C. beams
without modification to building structure, duct work and
base unit.
10. Condensate pan shall be internally sloped and conform to
ASHRAE 62-89 self-draining standards, with ! "“ NPTI
copper, ridged mount connection.
C. Accessible service gage connections on both suction
and discharge lines to charge, evacuate, and measure refrigerant pressure during any necessary servicing or troubleshooting, without losing charge and
without disrupting condenser or evaporator air flow.
D. The refrigeration system shall provide at least 10° F of
liquid sub-cooling at design conditions.
E. Unit shall have a suction line accumulator and automatic reversing valve.
Unitary Products Group
31
4. Unit Controls:
A. Unit shall contain a large, low voltage Terminal Board
for easy connection of field low voltage wiring.
B. Controls shall be mounted in a large control box with
tilt-out, hinged access door, allowing easy access for
trouble shooting and maintenance without affecting
the normal system operation pressures.
C. Unit shall contain a reliable time-temperature defrost
control to provide defrost, including field selectable
time periods between cycles (30, 60 and 90 minutes),
factory set at 30 minutes. The defrost control shall also
have an “X” terminal to provide a 24 volt signal for
room thermostat “LED” indication of unit lockout. Plus
a built in 5 minute anti-short cycle protection.
D. Unit shall have large, easily removable panels, covering electrical controls and compressor, allowing easy
access for any maintenance or servicing.
ELECTRIC HEATING SECTION
1. An electric heating section, with nickel chromium elements, shall be provided in a range of 5 thru 75 KW.
3. The heating section assembly shall slide out of the unit for
easy maintenance and service.
4. Units with electric heating sections shall be wired for a single point power supply, with branch circuit fusing (where
required).
UNIT OPERATING CHARACTERISTICS
1. Unit shall be capable of starting and running at 125° F outdoor temperature, exceeding maximum load criteria of
ARI Standard 210/240.
2. The compressor, with standard controls, shall be capable of
operation down to 45° F outdoor temperature.
ELECTRICAL REQUIREMENTS
All unit power wiring shall enter unit cabinet at a single factory
provided location and be capable of side or bottom entry. This
will minimize roof penetrations and avoid unit field modifications. Separate side and bottom openings shall be provided
for the control wiring.
2. The heating section shall have an automatic reset primary
limit control to prevent the heating element system from
operating at an excessive temperature.
ISO 9001
Certified Quality
Management System
Unitary Products Group
5005 York Drive, Norman, Oklahoma 73069
Subject to change without notice. Printed in U.S.A.
Copyright © by York International Corporation 2004. All Rights Reserved.
036-21090-008-A-0205
Supersedes: 036-21090-007-B-1004
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
