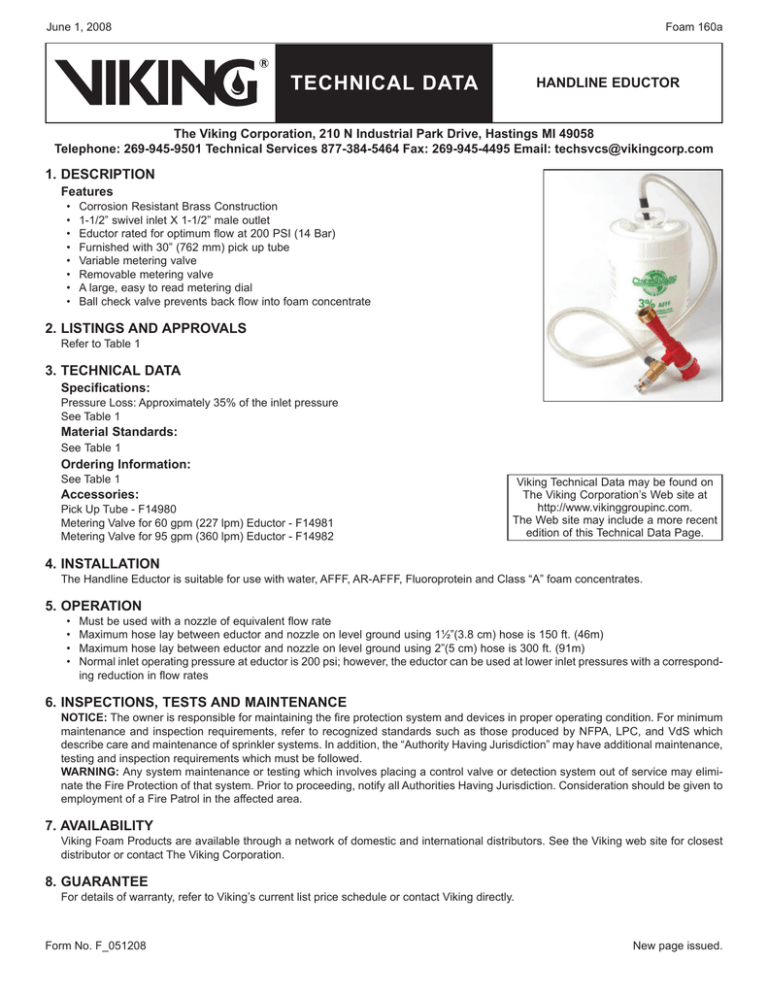

Foam 160a
June 1, 2008
TECHNICAL DATA
Handline eductor
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
Telephone: 269-945-9501 Technical Services 877-384-5464 Fax: 269-945-4495 Email: [email protected]
1. DESCRIPTION
Features
•
•
•
•
•
•
•
•
Corrosion Resistant Brass Construction
1-1/2” swivel inlet X 1-1/2” male outlet
Eductor rated for optimum flow at 200 PSI (14 Bar)
Furnished with 30” (762 mm) pick up tube
Variable metering valve
Removable metering valve
A large, easy to read metering dial
Ball check valve prevents back flow into foam concentrate
2. LISTINGS AND APPROVALS
Refer to Table 1
3. technical data
Specifications:
Pressure Loss: Approximately 35% of the inlet pressure
See Table 1
Material Standards:
See Table 1
Ordering Information:
See Table 1
Accessories:
Pick Up Tube - F14980
Metering Valve for 60 gpm (227 lpm) Eductor - F14981
Metering Valve for 95 gpm (360 lpm) Eductor - F14982
Viking Technical Data may be found on
The Viking Corporation’s Web site at
http://www.vikinggroupinc.com.
The Web site may include a more recent
edition of this Technical Data Page.
4. Installation
The Handline Eductor is suitable for use with water, AFFF, AR-AFFF, Fluoroprotein and Class “A” foam concentrates.
5. Operation
•
•
•
•
Must be used with a nozzle of equivalent flow rate
Maximum hose lay between eductor and nozzle on level ground using 1½”(3.8 cm) hose is 150 ft. (46m)
Maximum hose lay between eductor and nozzle on level ground using 2”(5 cm) hose is 300 ft. (91m)
Normal inlet operating pressure at eductor is 200 psi; however, the eductor can be used at lower inlet pressures with a corresponding reduction in flow rates
6. Inspections, tests and maintenance
NOTICE: The owner is responsible for maintaining the fire protection system and devices in proper operating condition. For minimum
maintenance and inspection requirements, refer to recognized standards such as those produced by NFPA, LPC, and VdS which
describe care and maintenance of sprinkler systems. In addition, the “Authority Having Jurisdiction” may have additional maintenance,
testing and inspection requirements which must be followed.
WARNING: Any system maintenance or testing which involves placing a control valve or detection system out of service may eliminate the Fire Protection of that system. Prior to proceeding, notify all Authorities Having Jurisdiction. Consideration should be given to
employment of a Fire Patrol in the affected area.
7. Availability
Viking Foam Products are available through a network of domestic and international distributors. See the Viking web site for closest
distributor or contact The Viking Corporation.
8. guarantee
For details of warranty, refer to Viking’s current list price schedule or contact Viking directly.
Form No. F_051208
New page issued.
Foam 160b
June 1, 2008
TECHNICAL DATA
Handline eductor
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
Telephone: 269-945-9501 Technical Services 877-384-5464 Fax: 269-945-4495 Email: [email protected]
Table 1: Handline Eductors
Part No.
Flow:
Inlet:
Proportioning Metering Valve
Weight
Material
Listings &
Approvals
Specifically
listed with Foam
F09349
60 GPM
(227 LPM)
1.5” NPSH
Fixed 3%
10 lbs.
(4.5 kg)
Brass
UL / FM
-
F09350
60 GPM
(227 LPM)
1.5” NPSH
Fixed 6%
10 lbs.
(4.5 kg)
Brass
UL / FM
-
F09510
60 GPM
(227 LPM)
1.5” NPSH
Fixed 1%
10 lbs.
(4.5 kg)
Brass
UL / FM
-
F09181
98 GPM
(371 LPM)
1.5” NPSH
Fixed 3%
10 lbs.
(4.5 kg)
Brass
UL / FM
C301 MS, C302,
C33 LT, C333
F09184
98 GPM
(371 LPM)
1.5” NPSH
Fixed 6%
10 lbs.
(4.5 kg)
Brass
UL / FM
C361
F09511
98 GPM
(371 LPM)
1.5” NPSH
Fixed 1%
10 lbs.
(4.5 kg)
Brass
UL / FM
CUG
F14976
95 GPM
(360 LPM)
1.5” NST
Adjustable - .5%, 1%, 3%, 6%
10 lbs.
(4.5 kg)
Brass
None
-
F14977
95 GPM
(360 LPM)
1.5” NPSH
Adjustable - .5%, 1%, 3%, 6%
10 lbs.
(4.5 kg)
Brass
None
-
F14978
60 GPM
(227 LPM)
1.5” NST
Adjustable - .5%, 1%, 3%, 6%
10 lbs.
(4.5 kg))
Brass
None
-
F14979
60 GPM
(227 LPM)
1.5” NPSH
Adjustable - .5%, 1%, 3%, 6%
10 lbs.
(4.5 kg)
Brass
None
-
Form No. F_051208
New page issued.
